Model Primus PTEJEASP285CG01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel (Drawing 1 of 2)

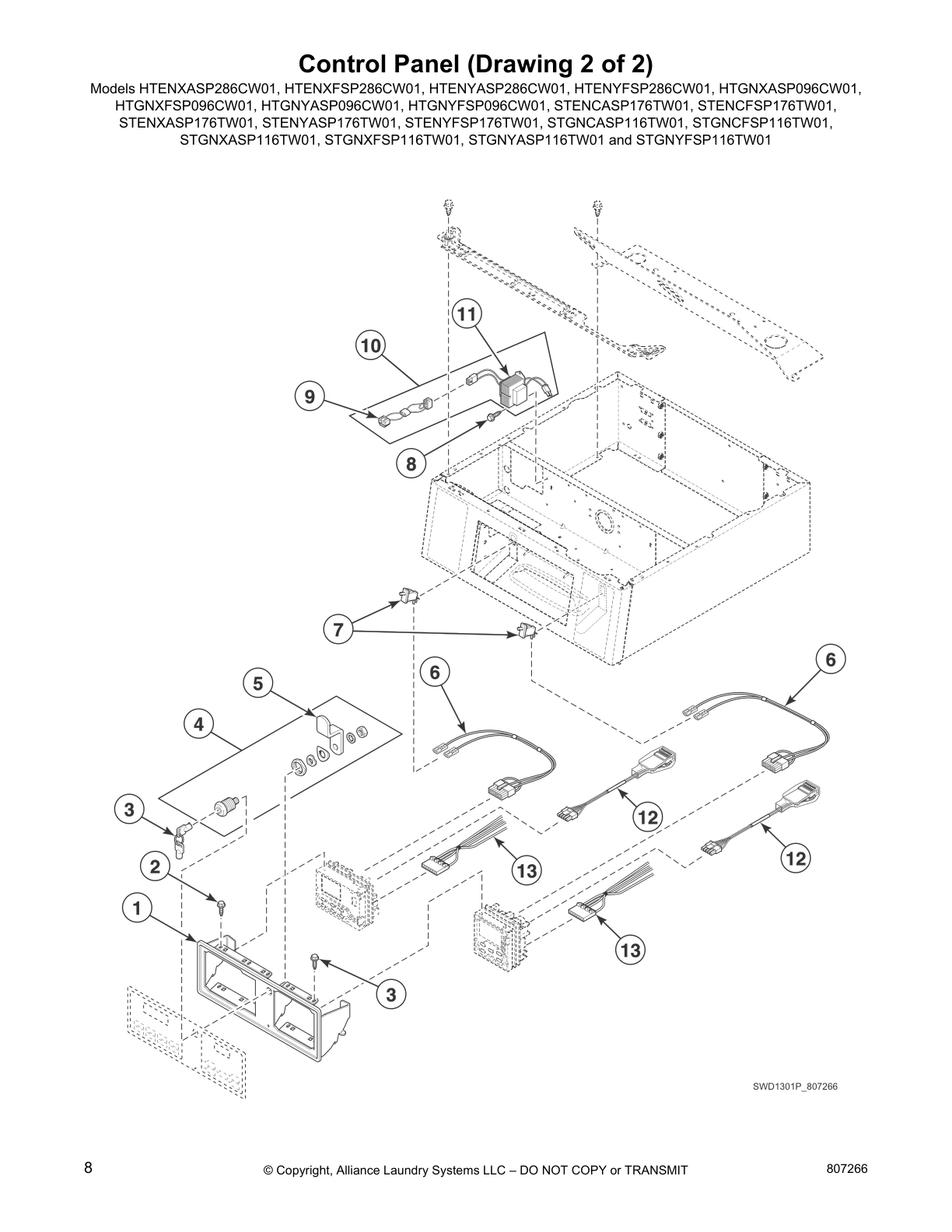

Control Panel (Drawing 2 of 2)

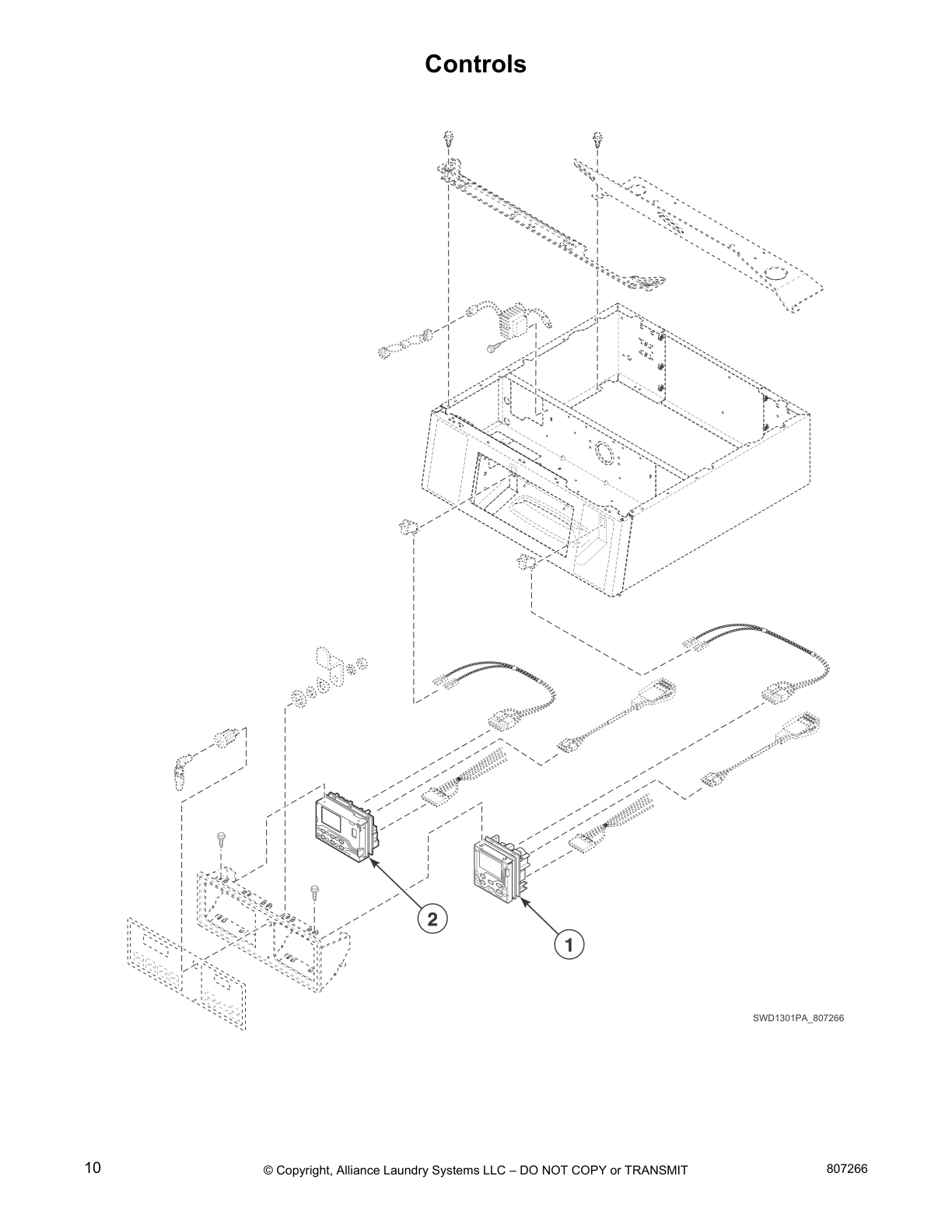

Controls

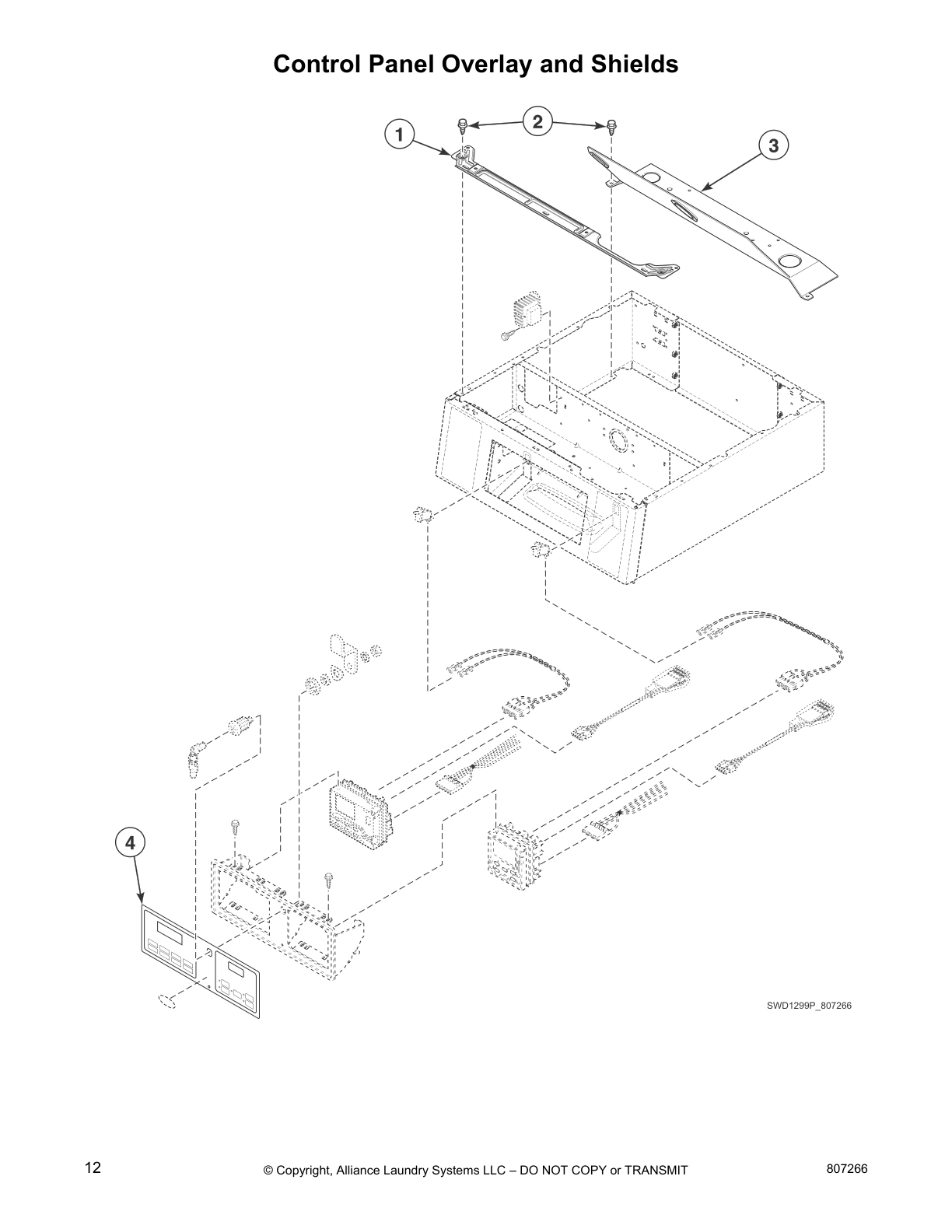

Control Panel Overlay and Shields

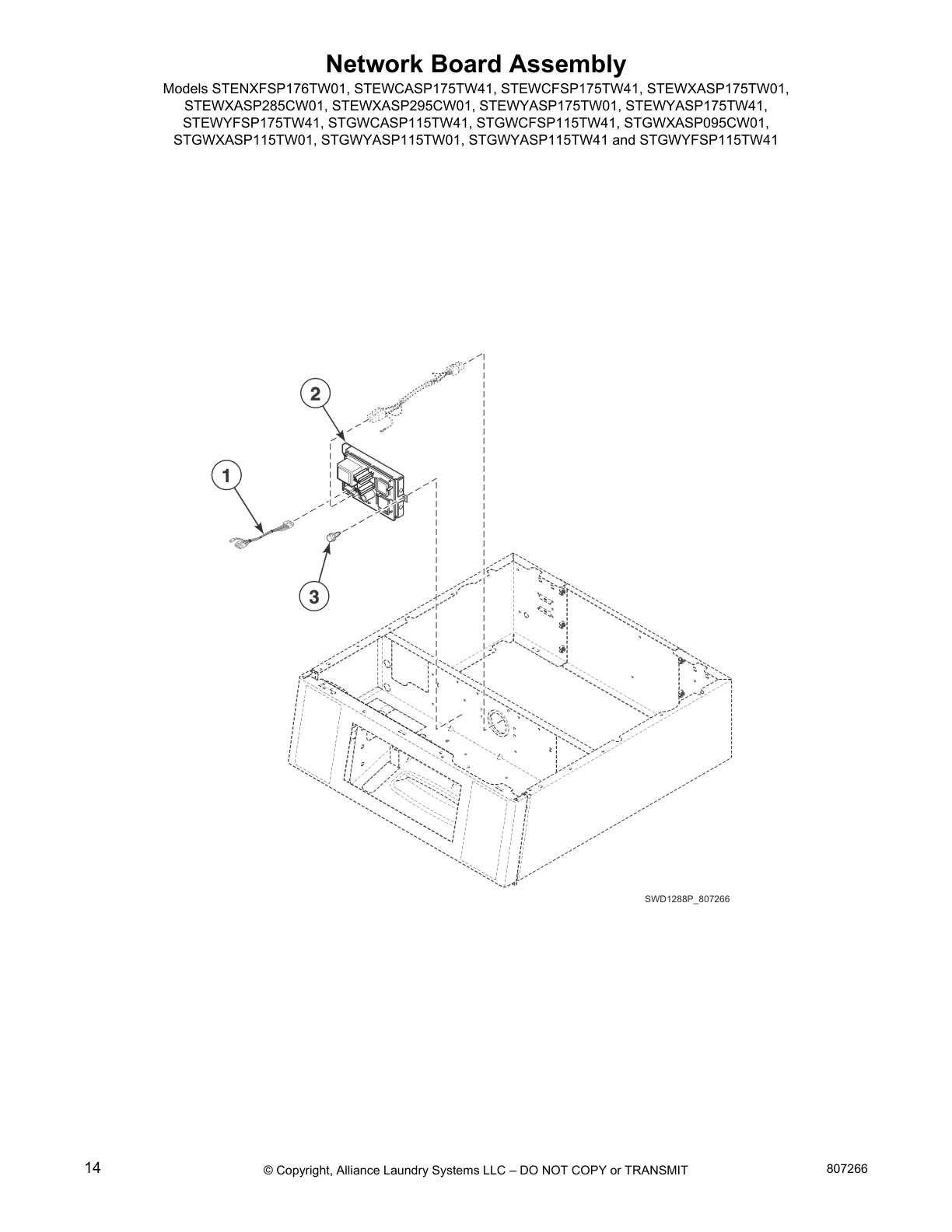

Network Board Assembly

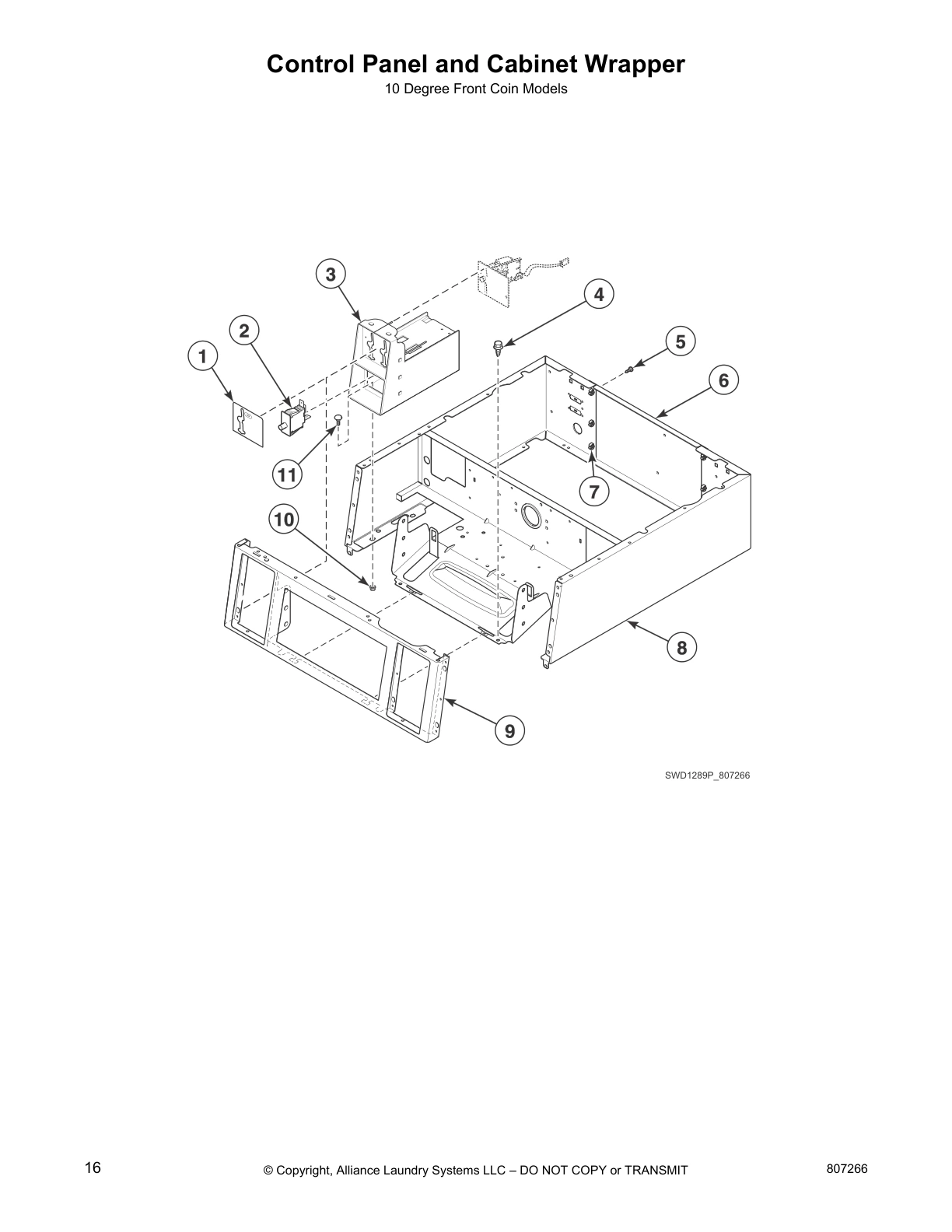

Control Panel and Cabinet Wrapper

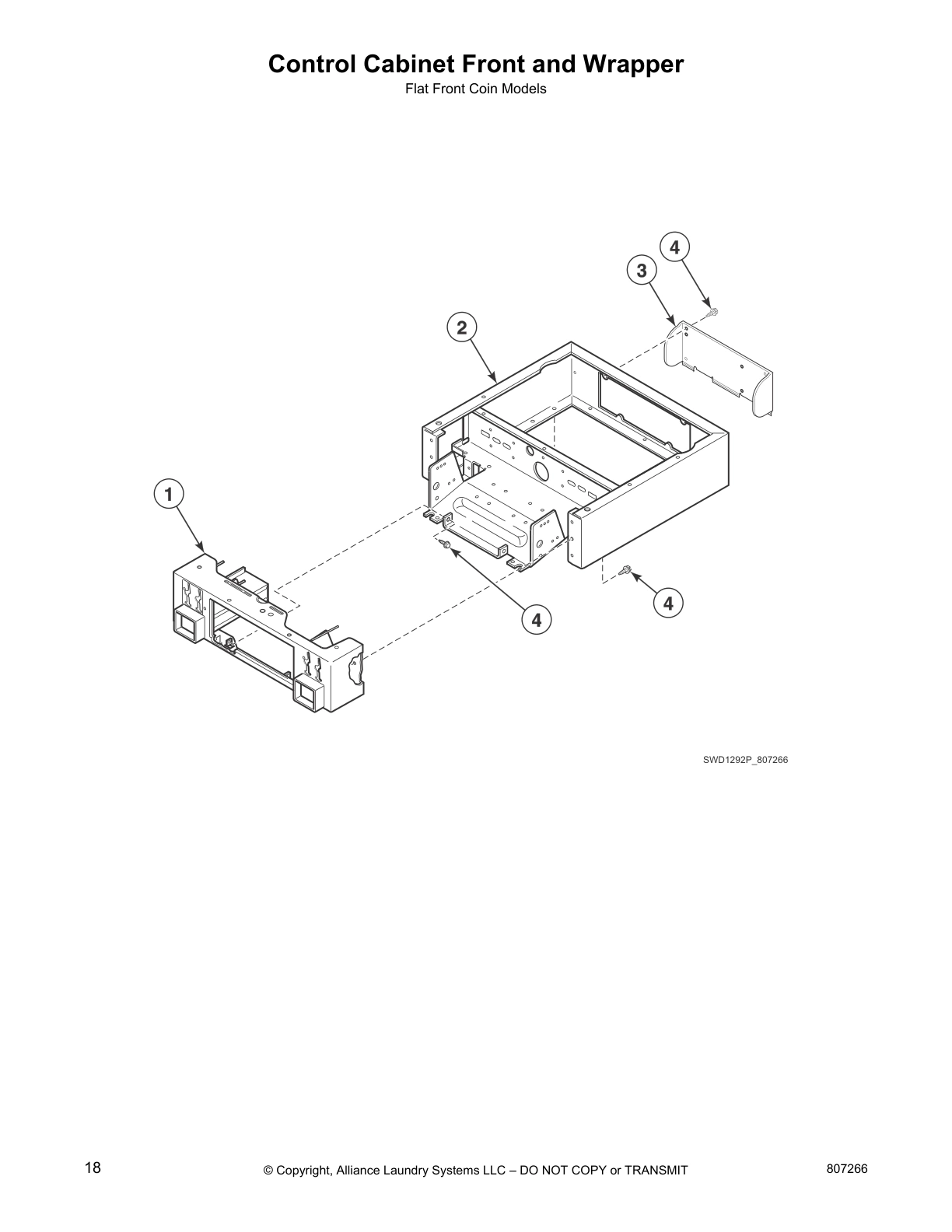

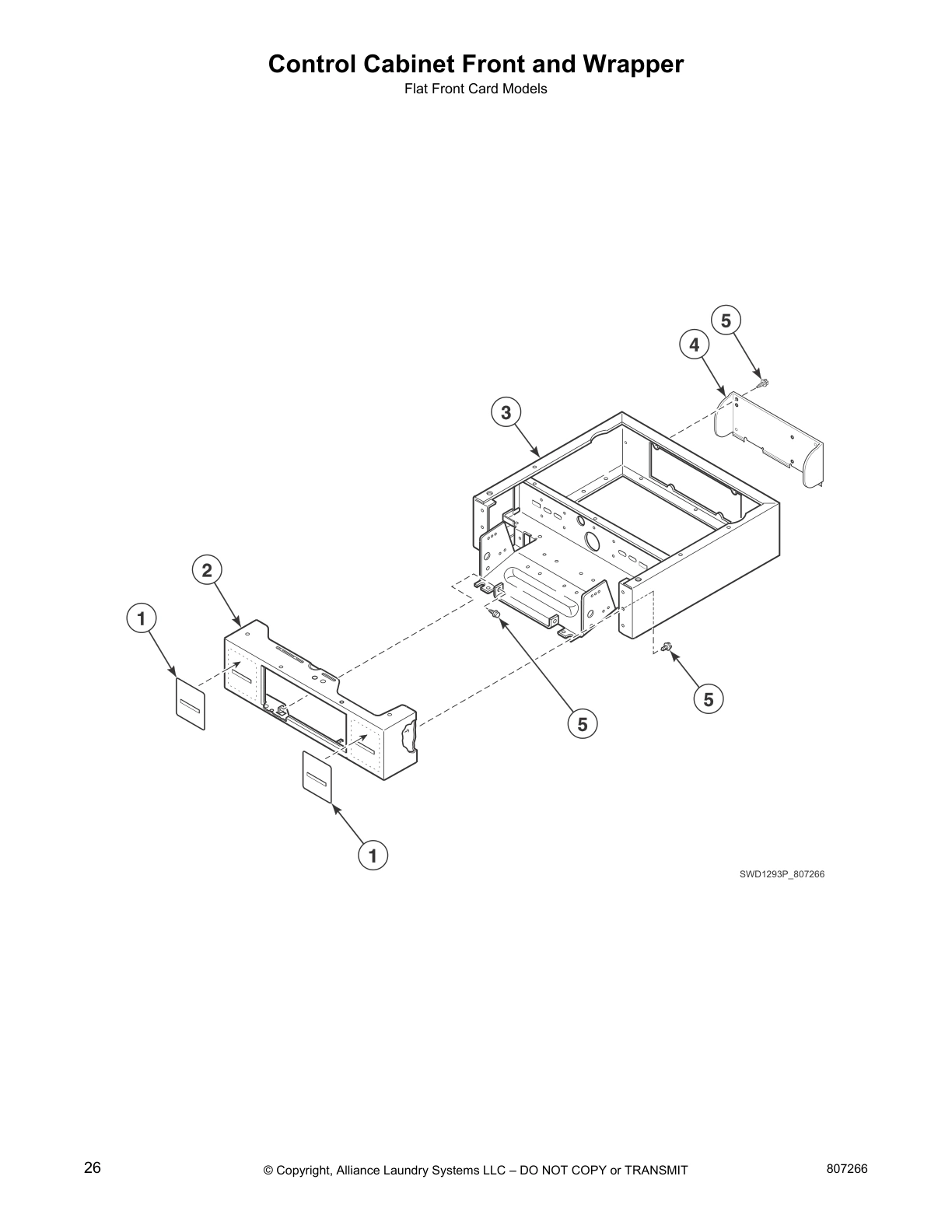

Control Cabinet Front and Wrapper

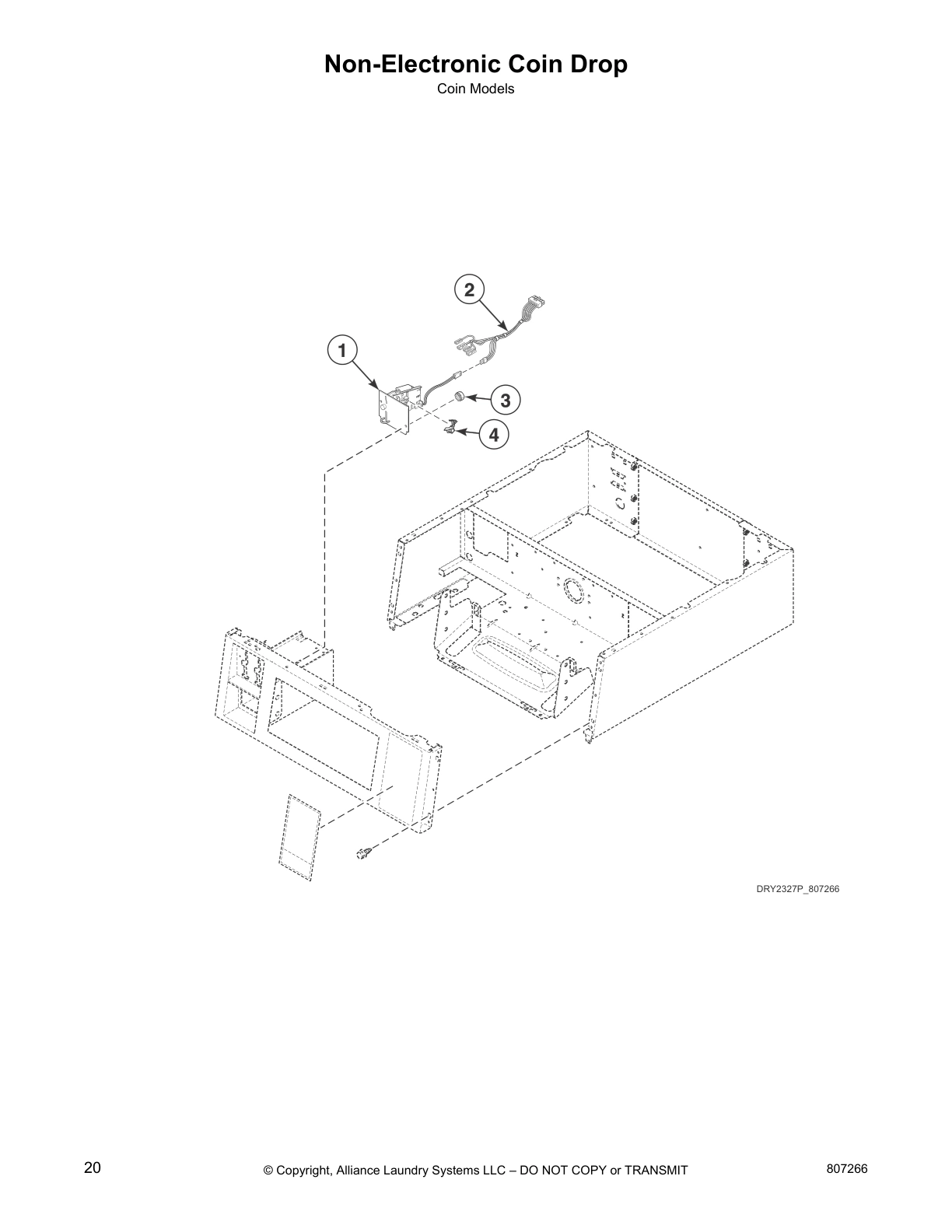

Non-Electronic Coin Drop

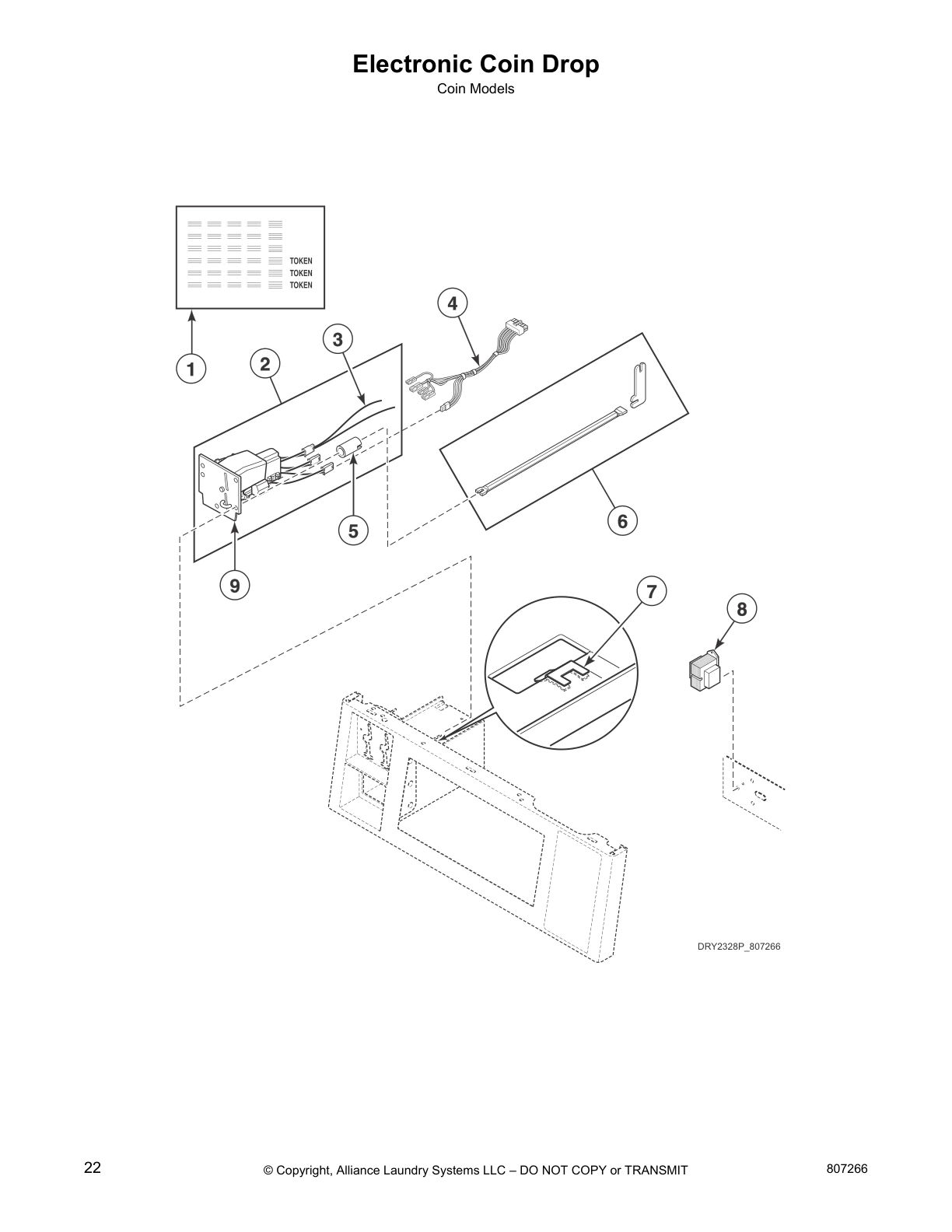

Electronic Coin Drop

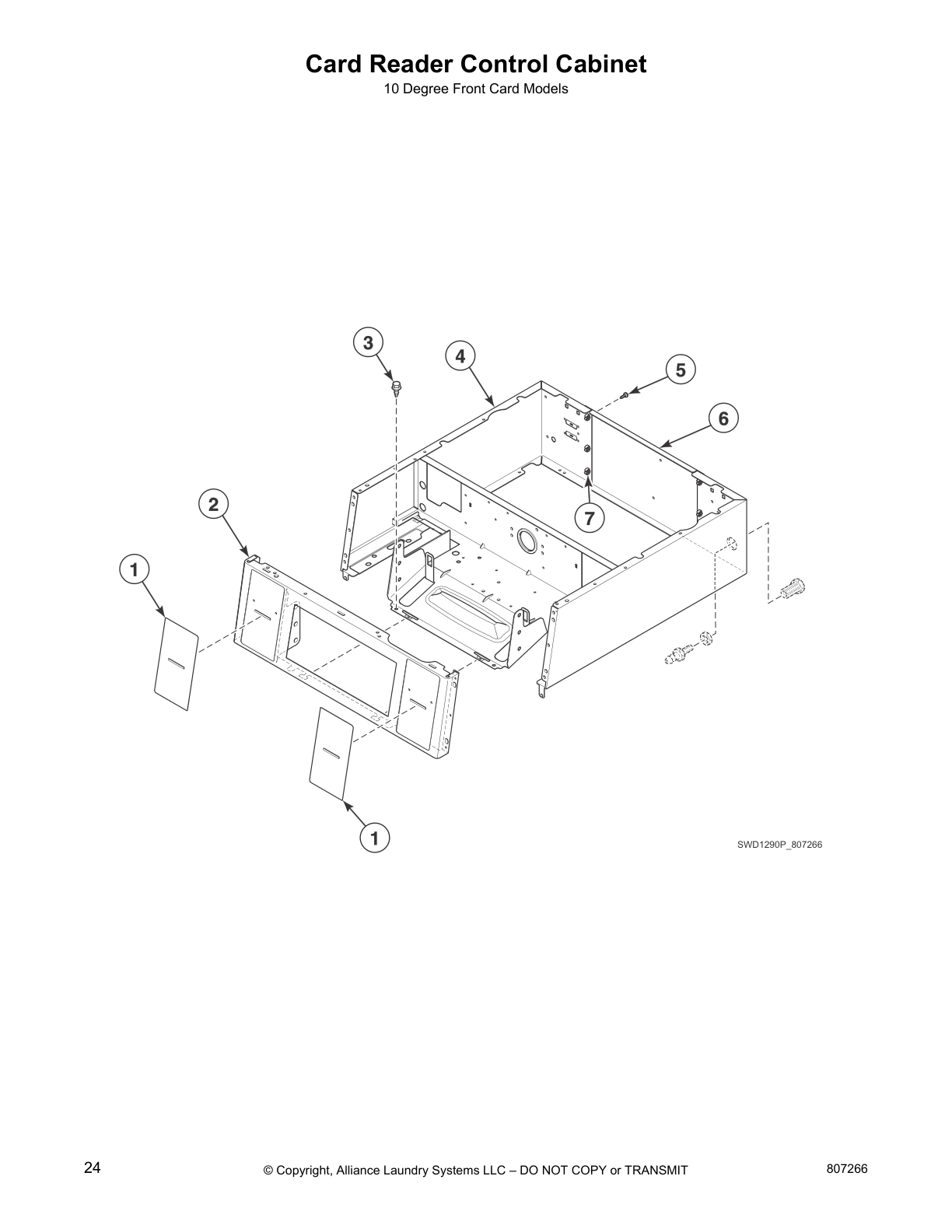

Card Reader Control Cabinet
Control Cabinet Front and Wrapper

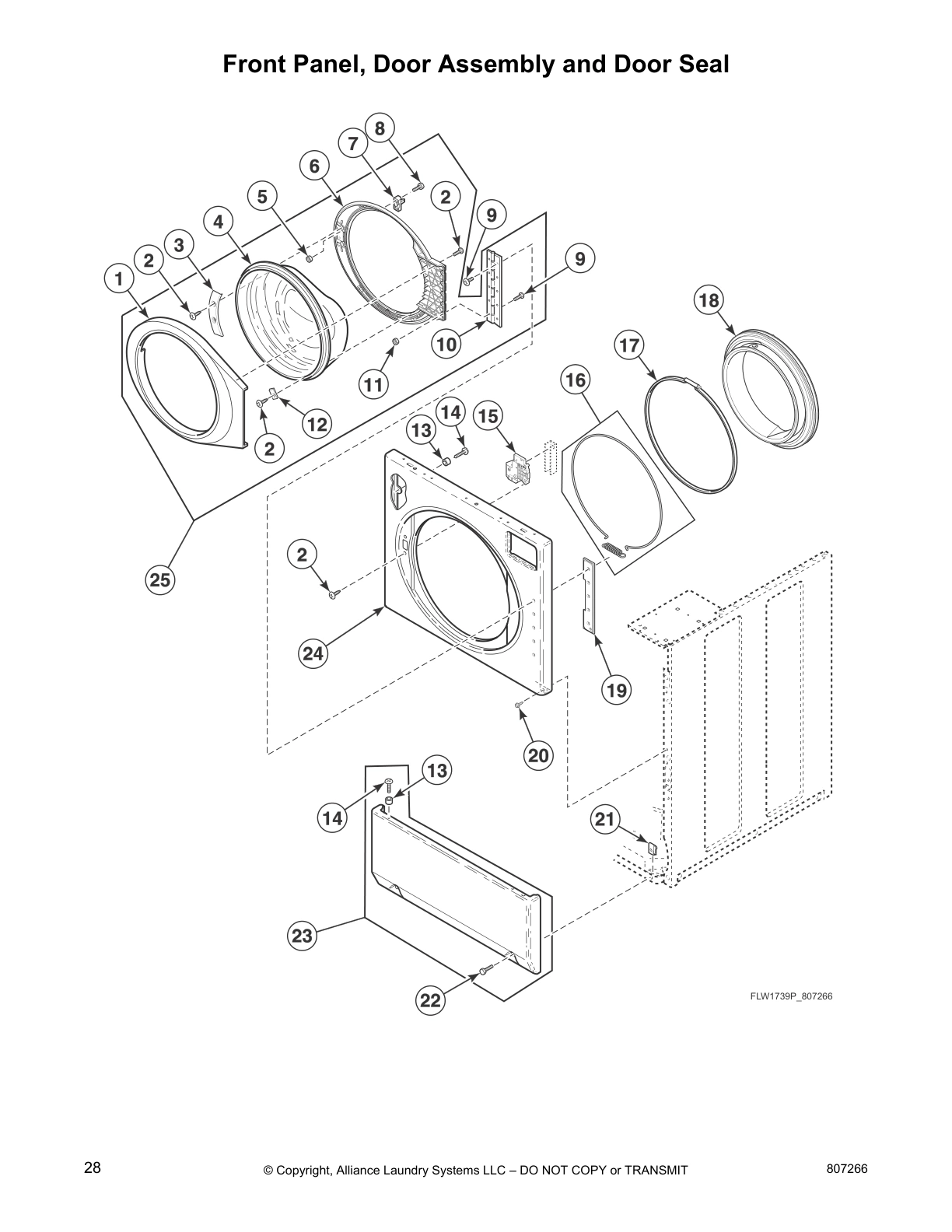

Front Panel, Door Assembly and Door Seal

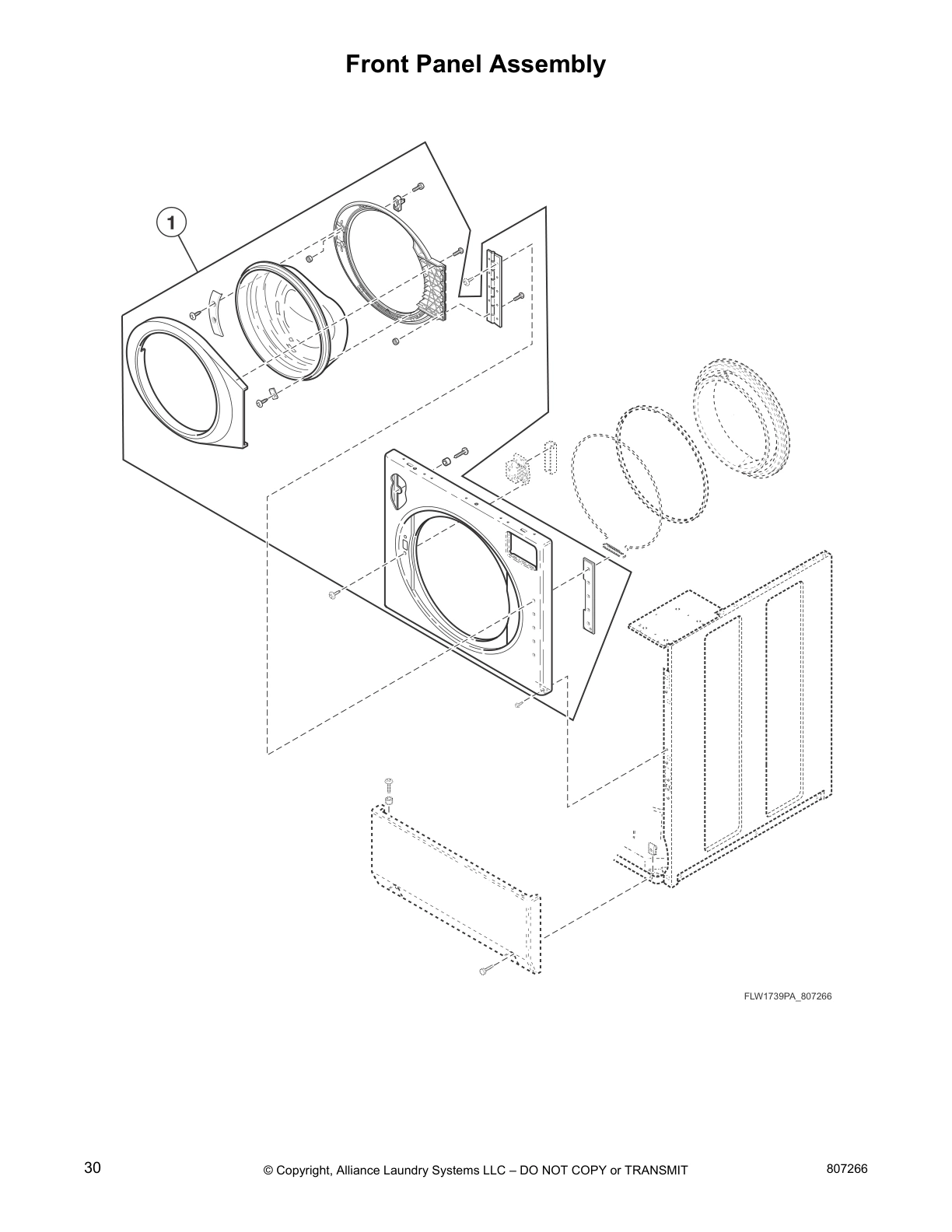

Front Panel Assembly

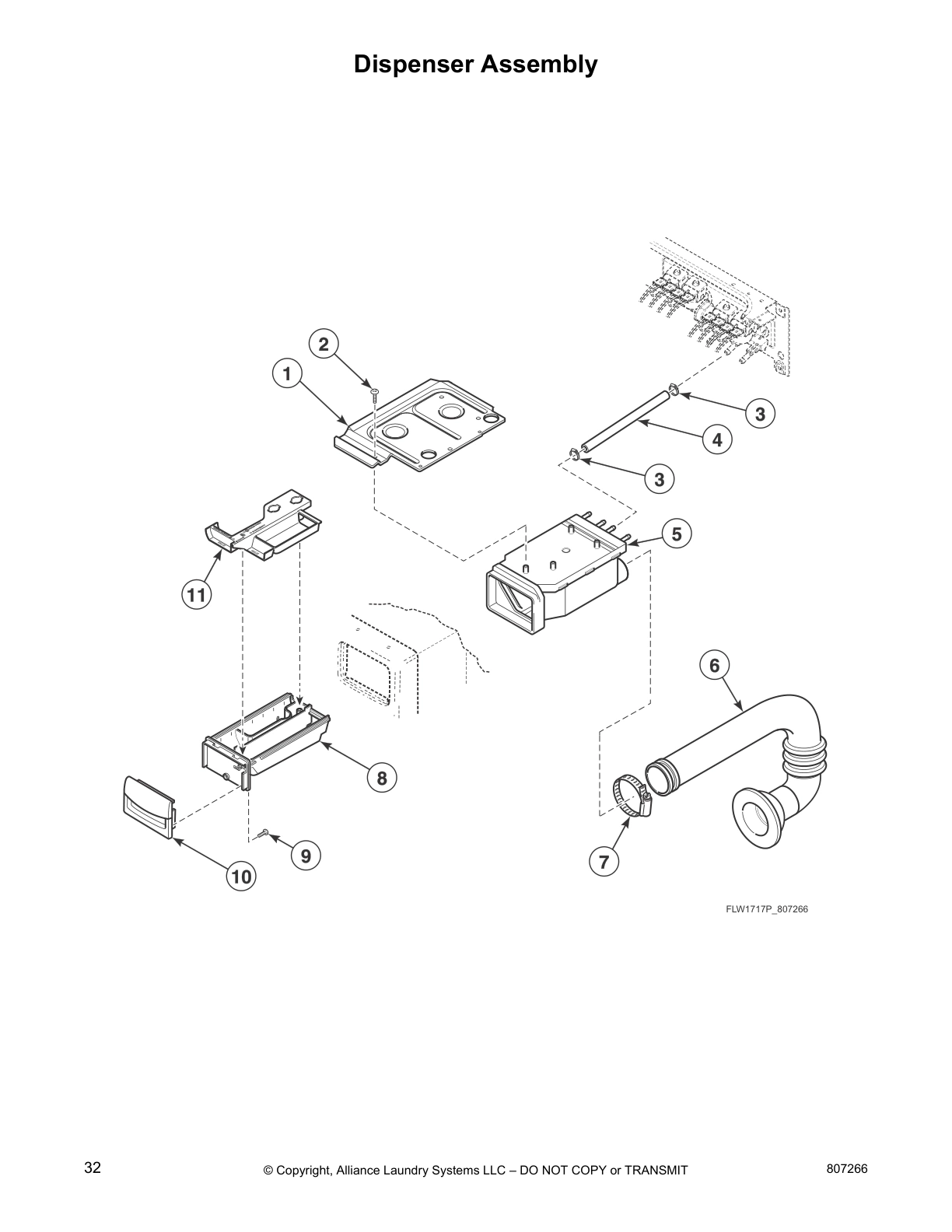

Dispenser Assembly

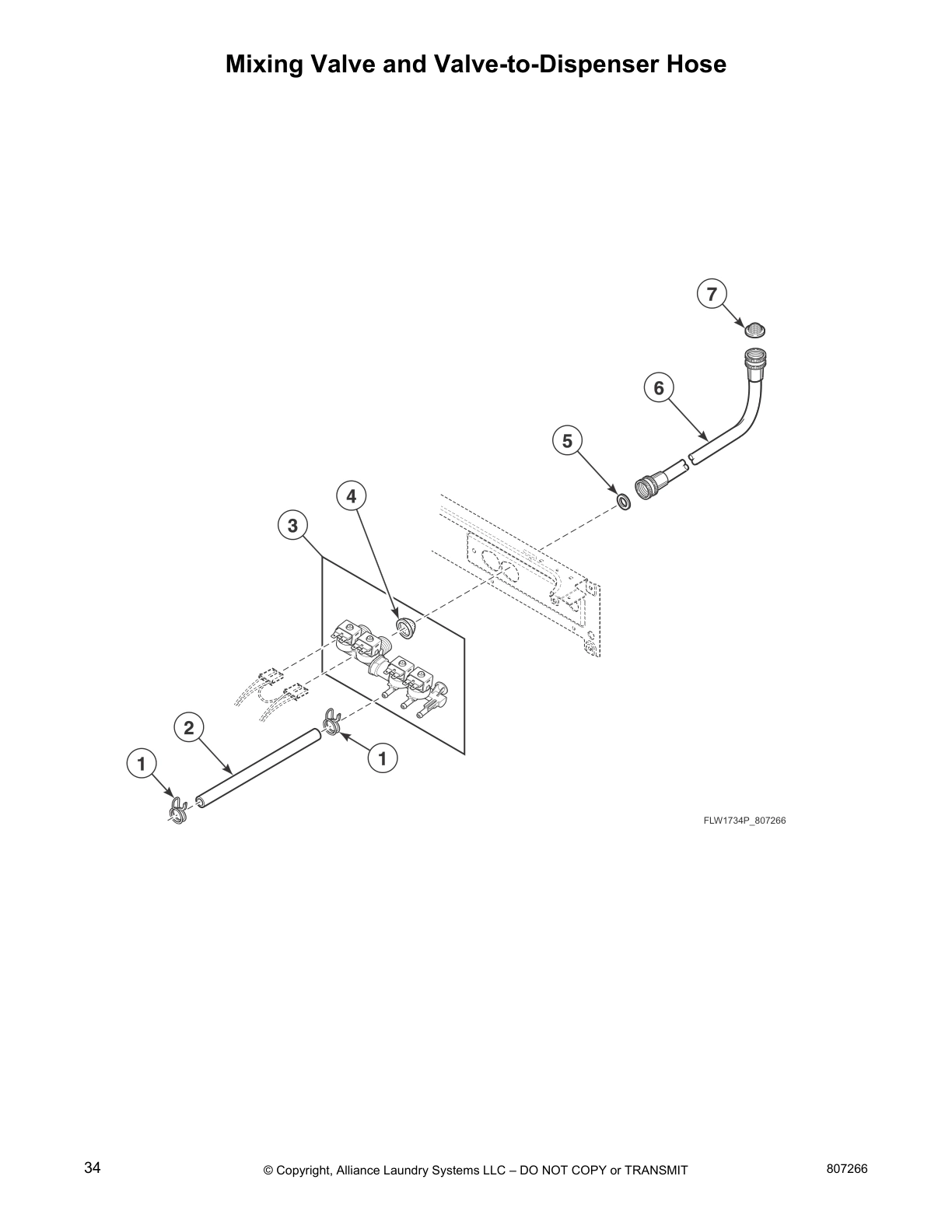

Mixing Valve and Valve-to-Dispenser Hose

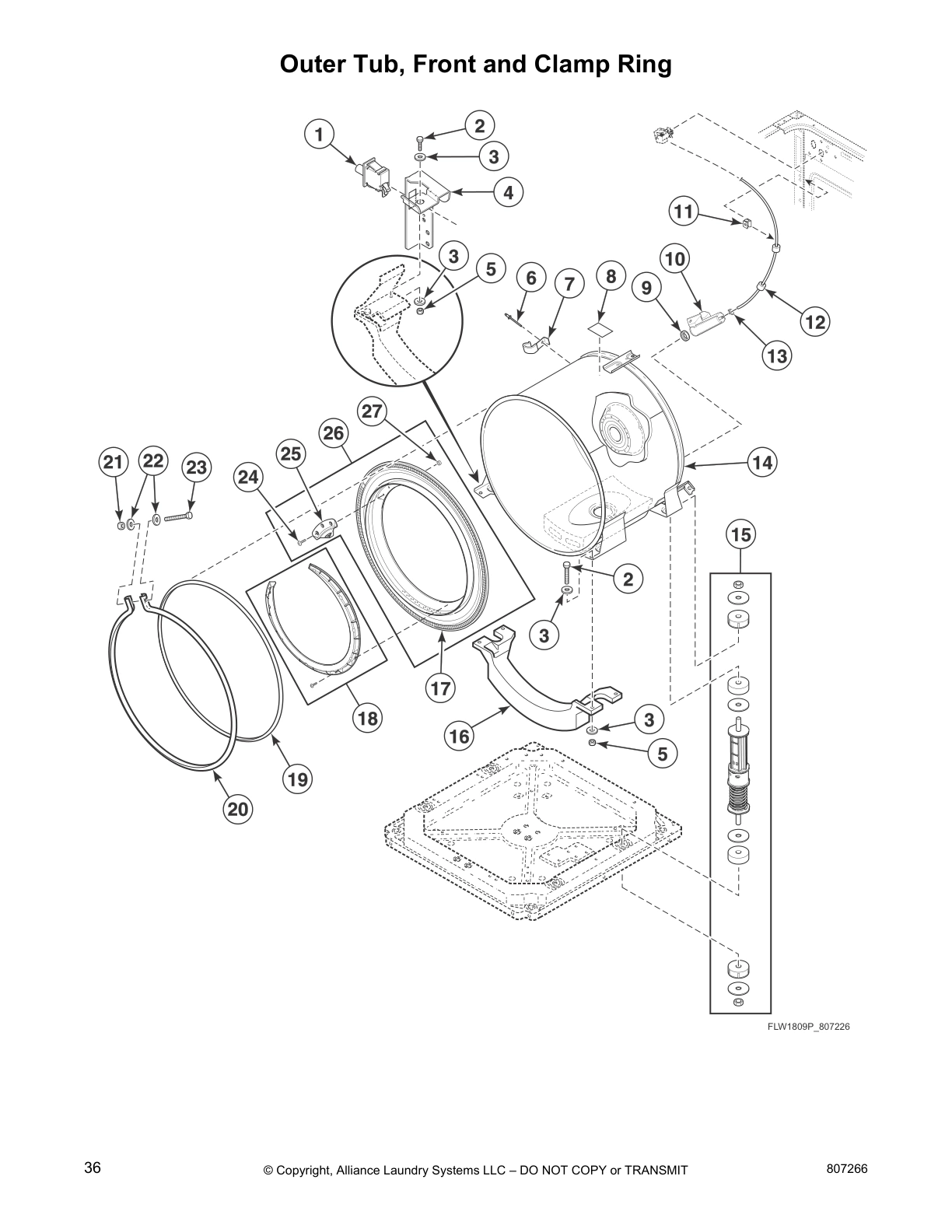

Outer Tub, Front and Clamp Ring

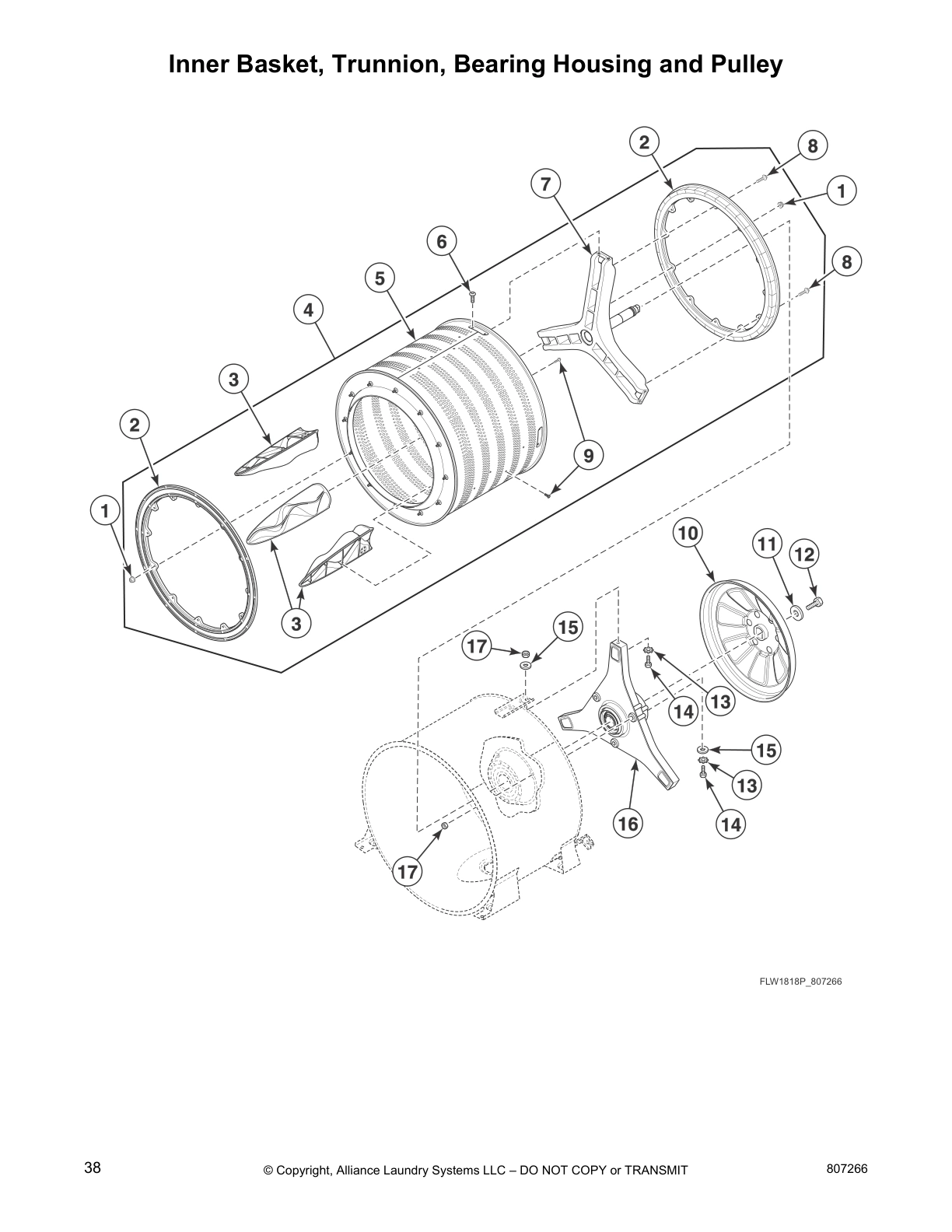

Inner Basket, Trunnion, Bearing Housing and Pulley

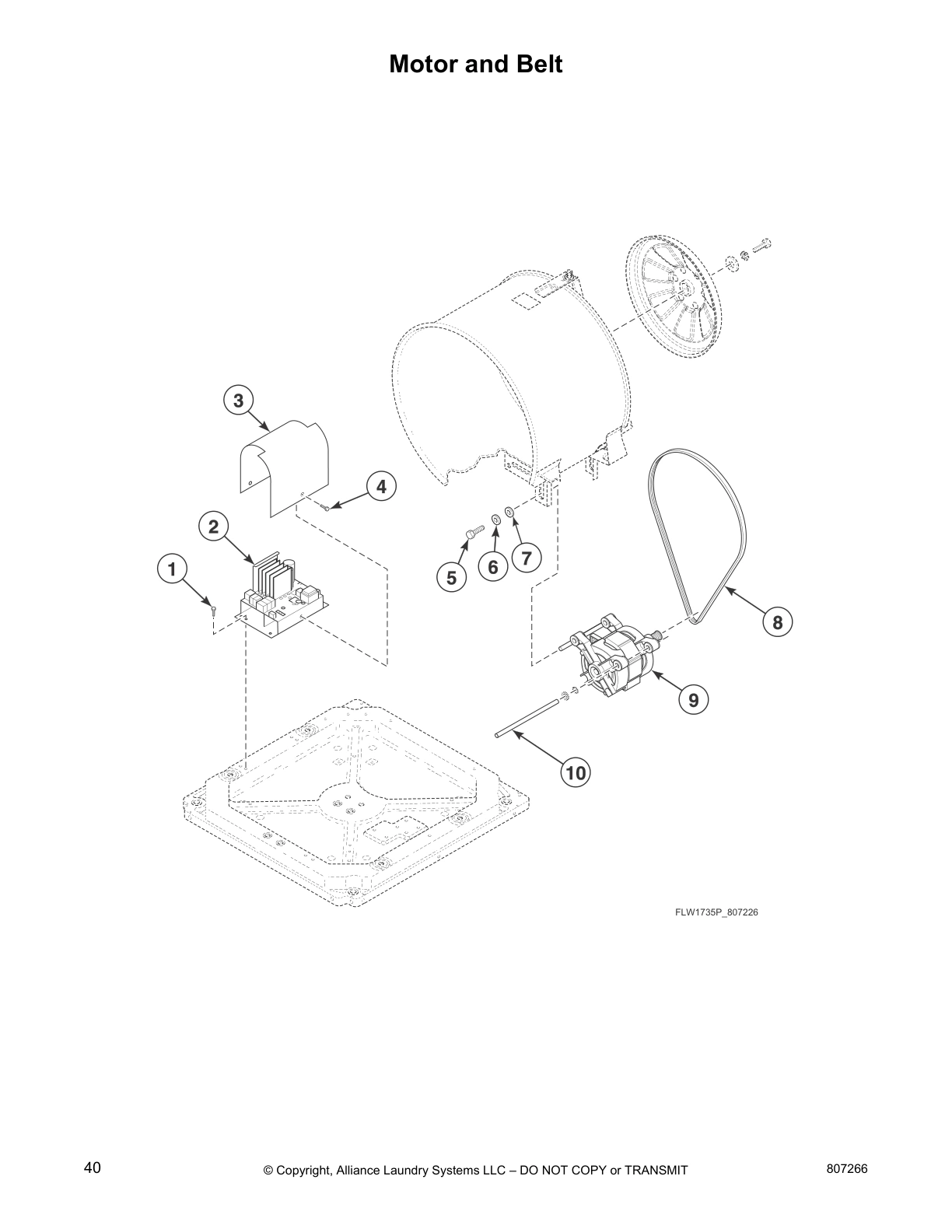

Motor and Belt

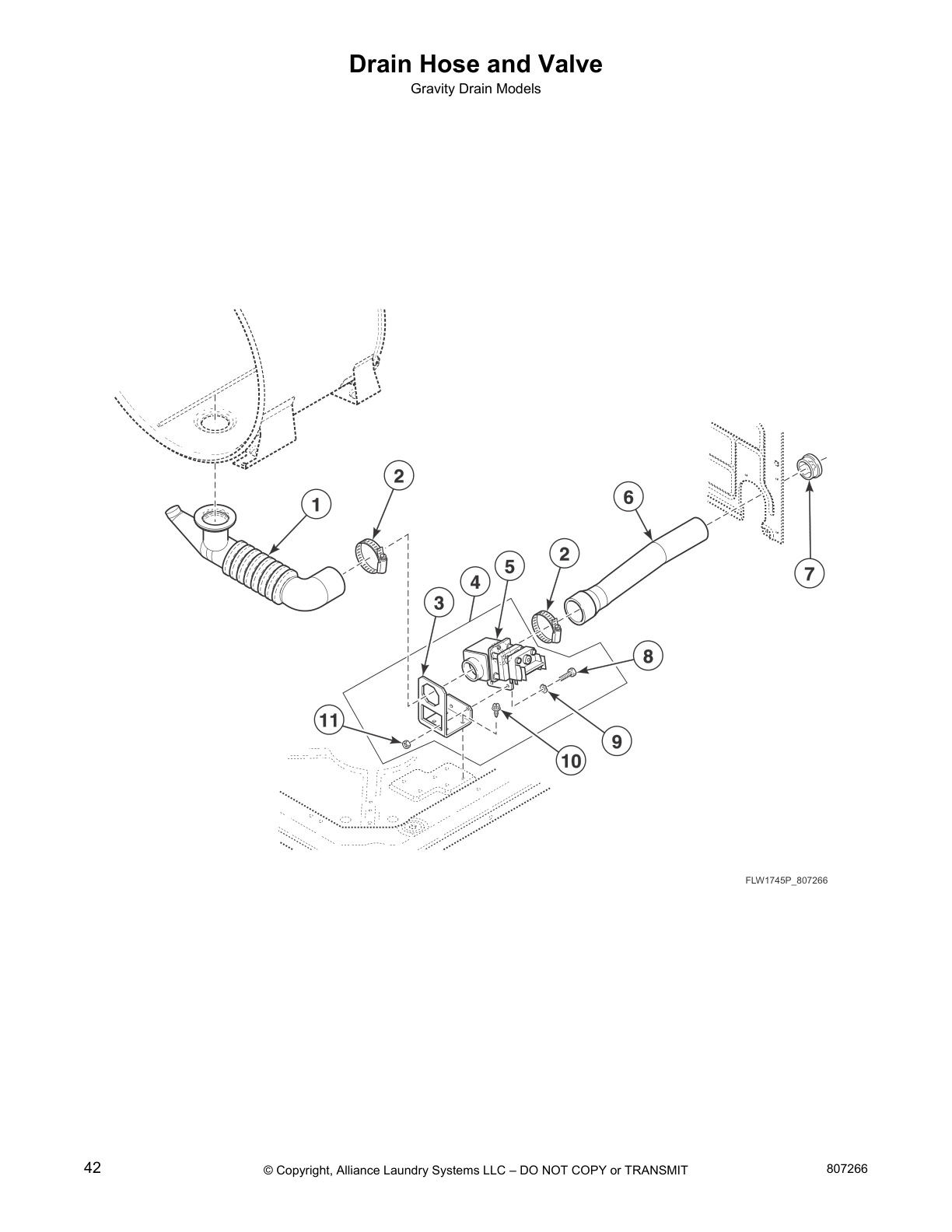

Drain Hose and Valve

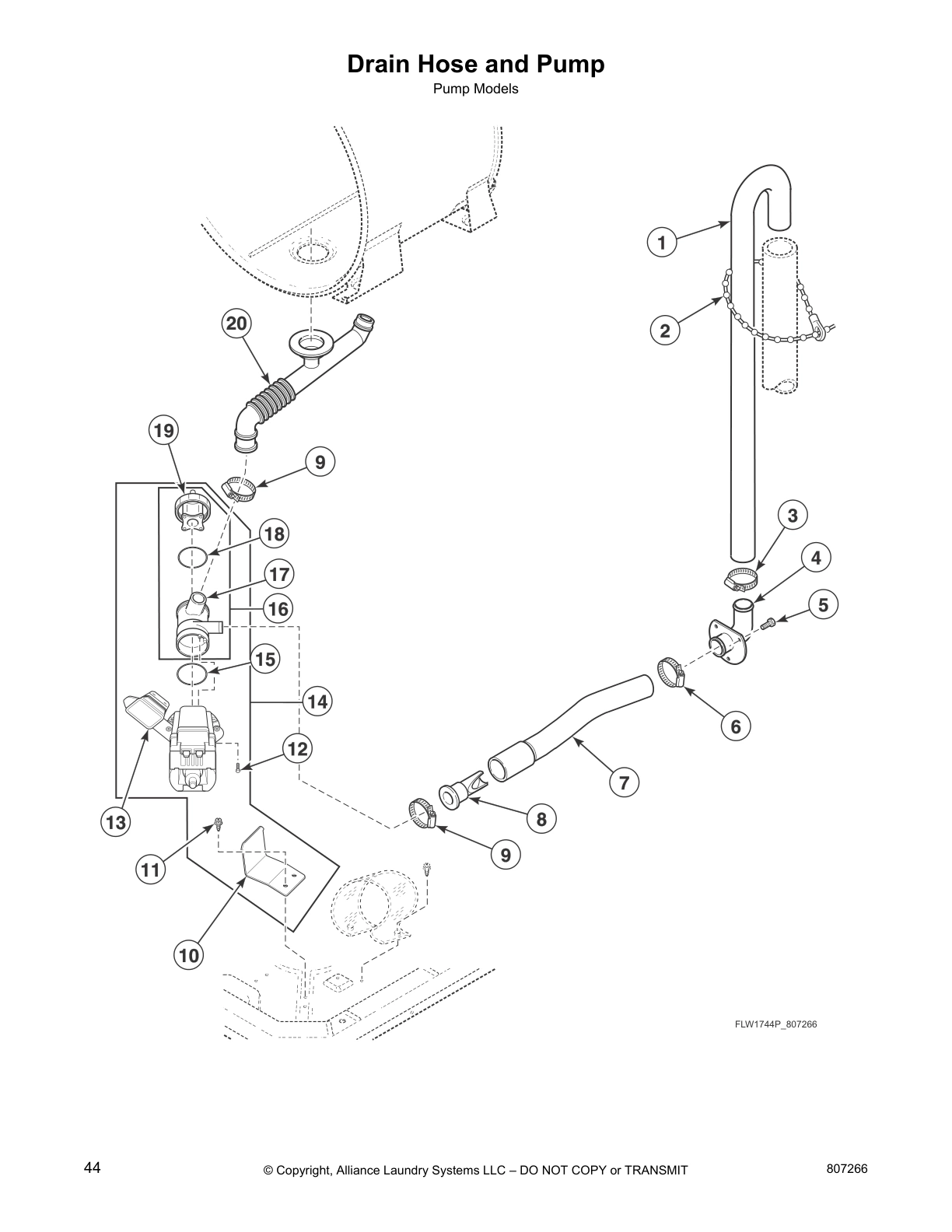

Drain Hose and Pump

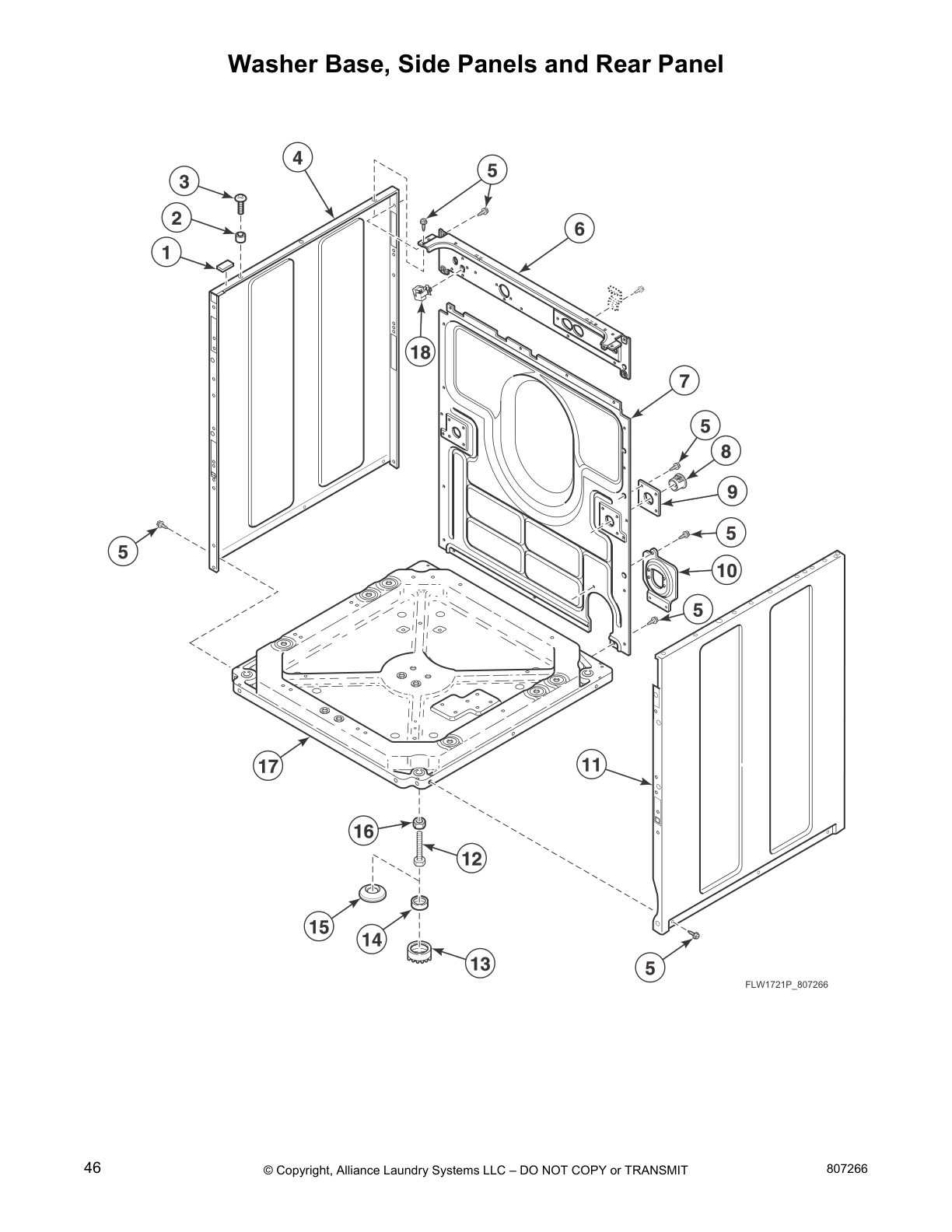

Washer Base, Side Panels and Rear Panel

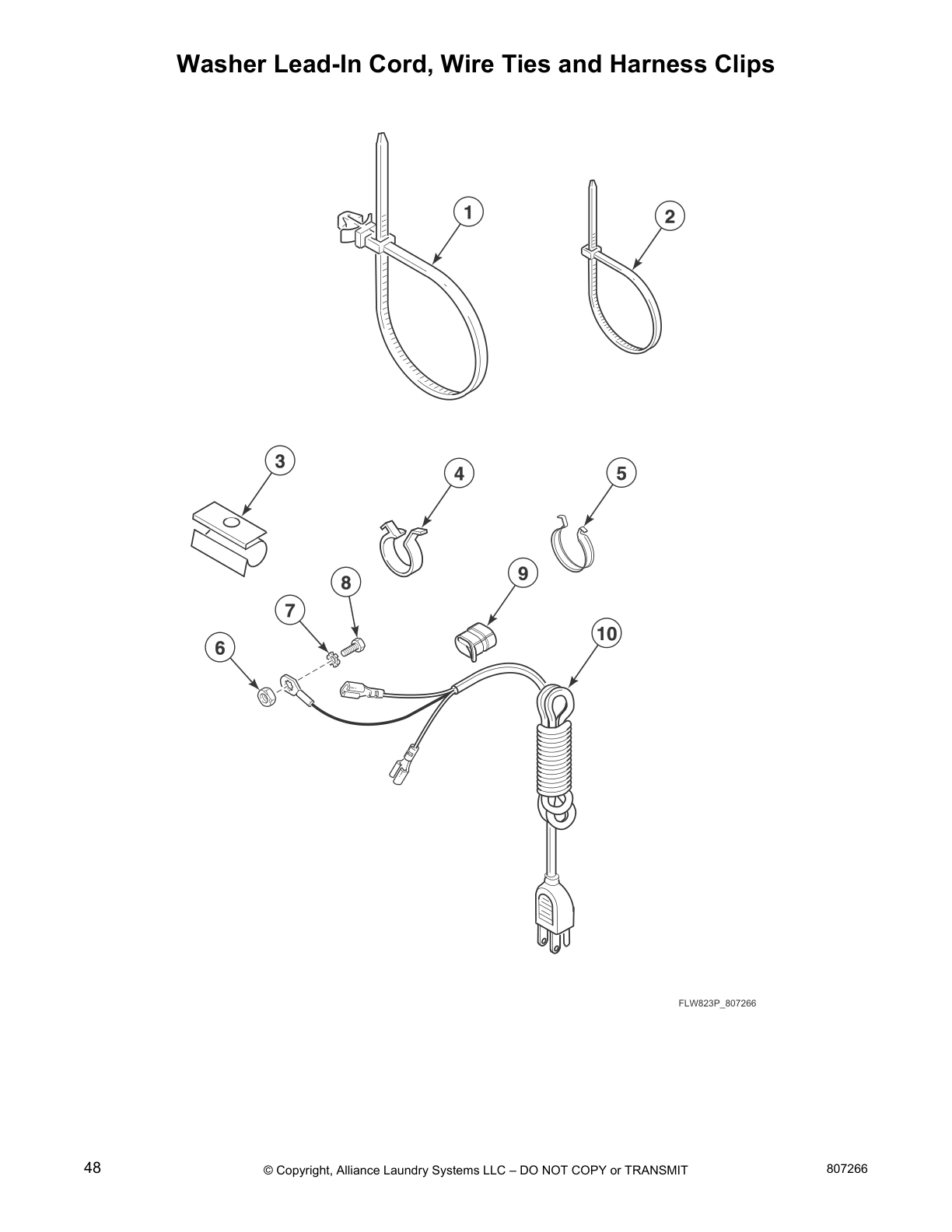

Washer Lead-In Cord, Wire Ties and Harness Clips

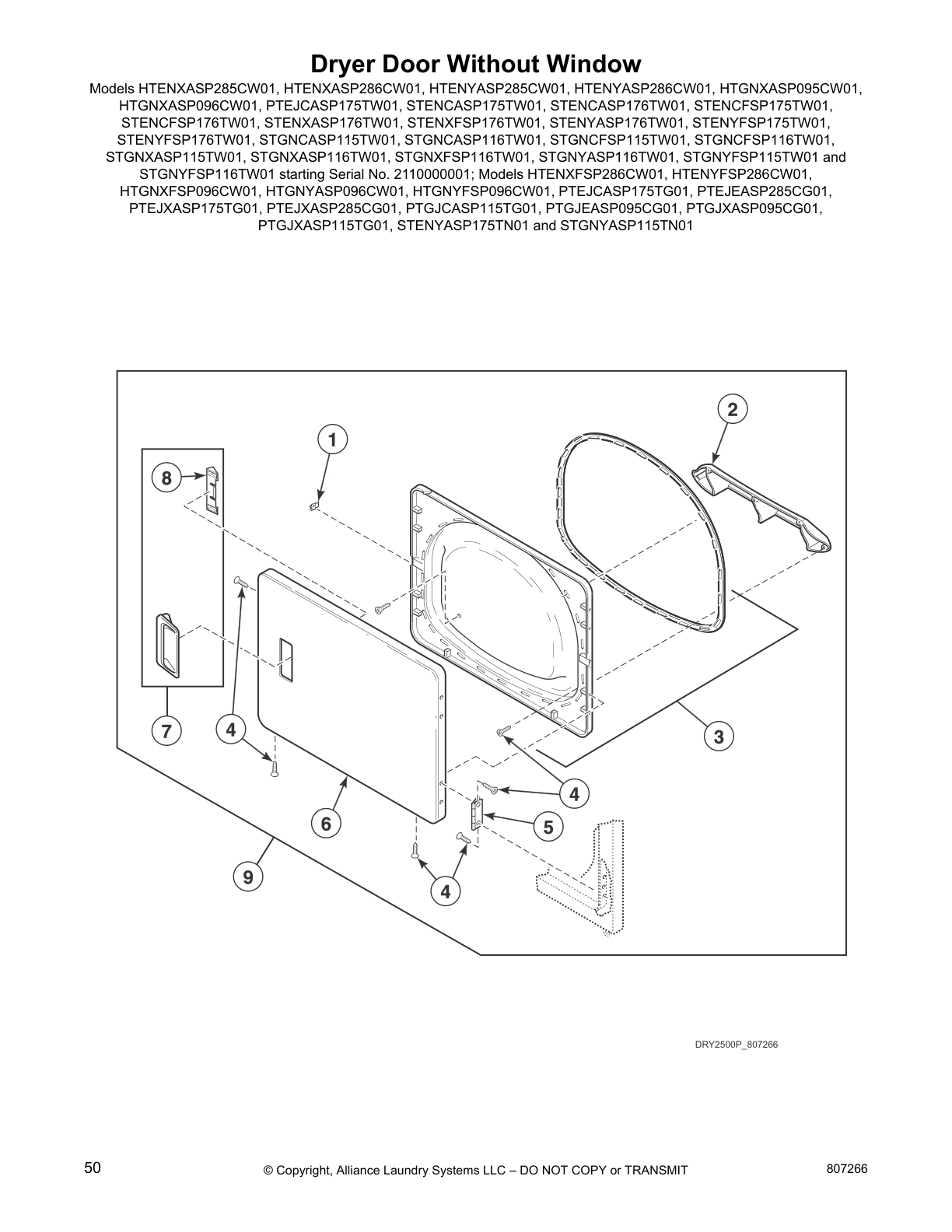

Dryer Door Without Window

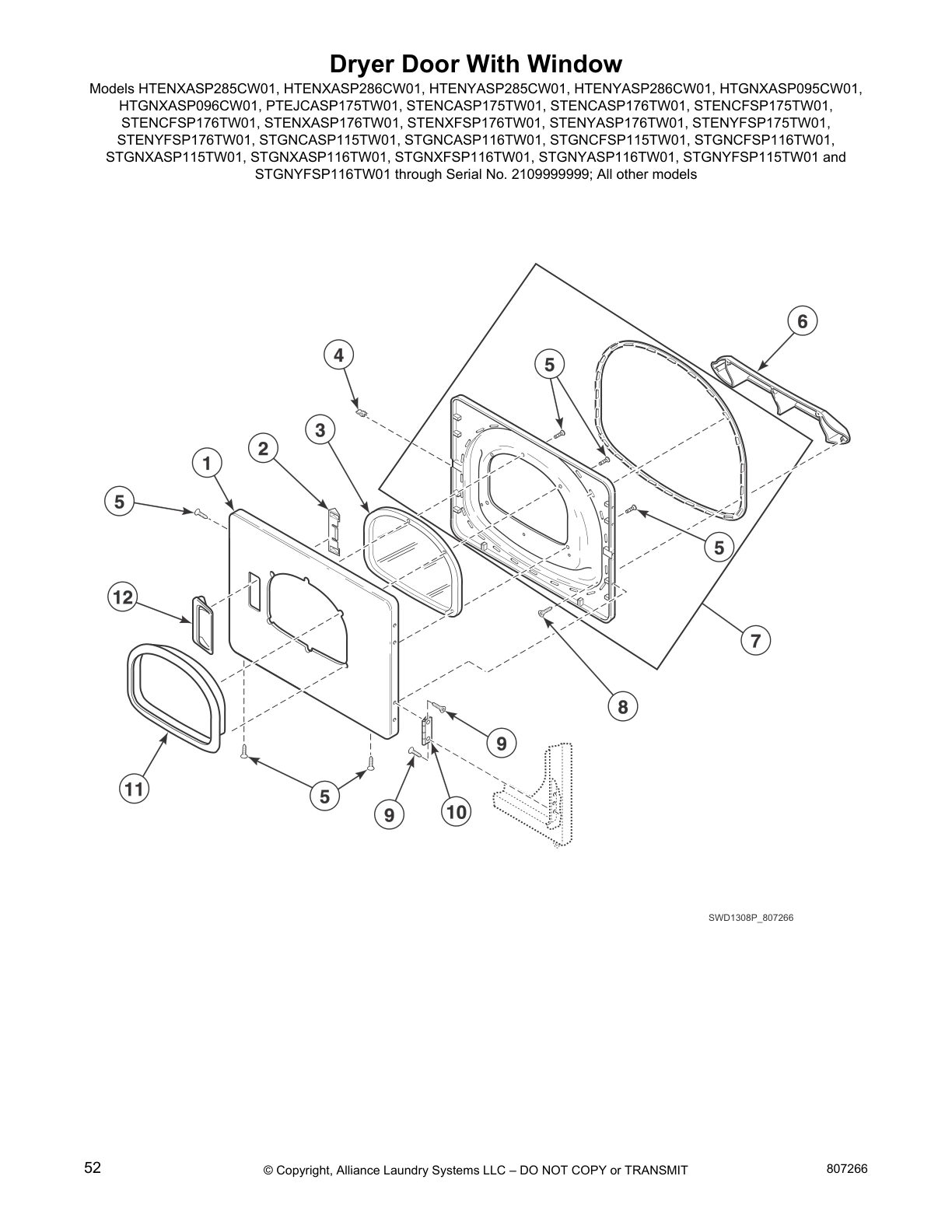

Dryer Door With Window

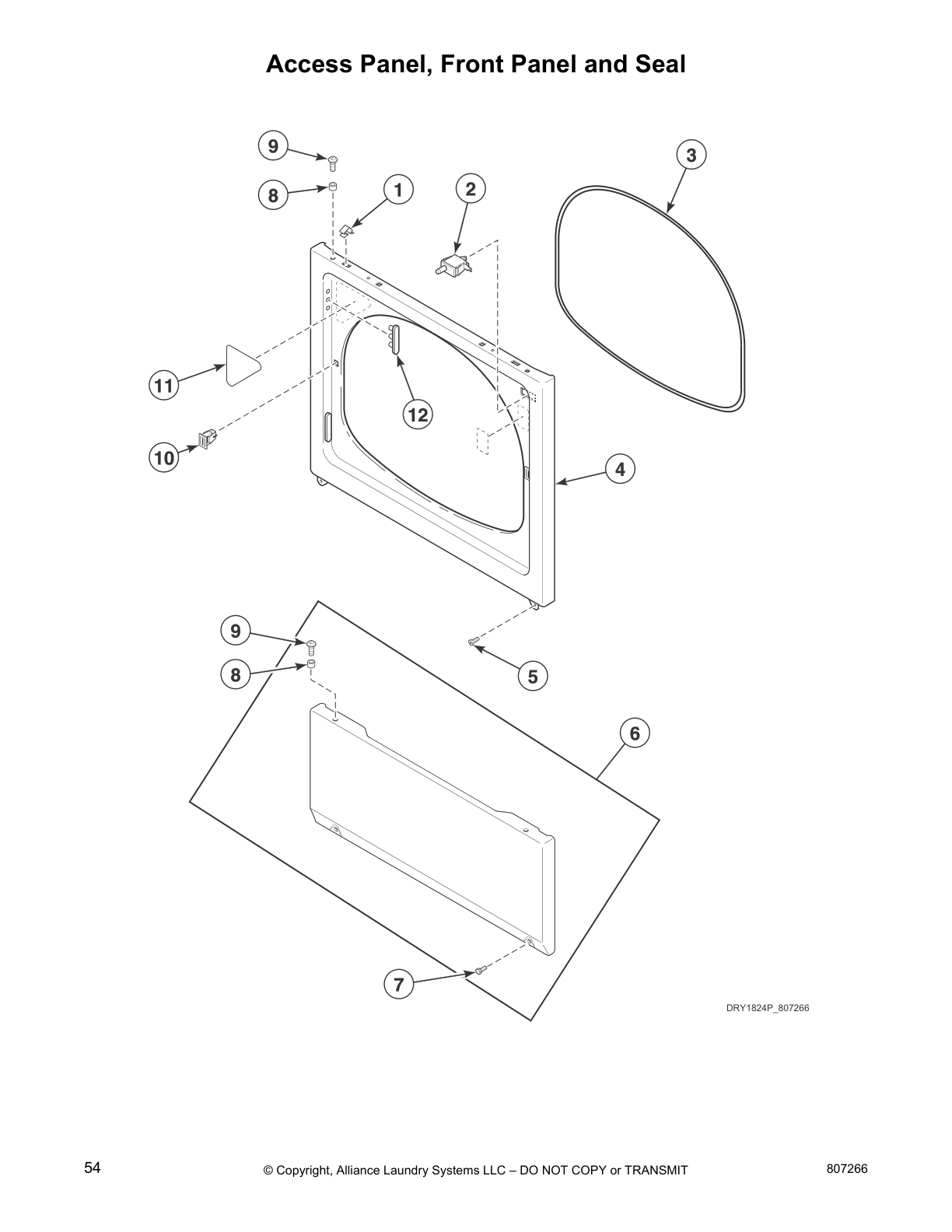

Access Panel, Front Panel and Seal

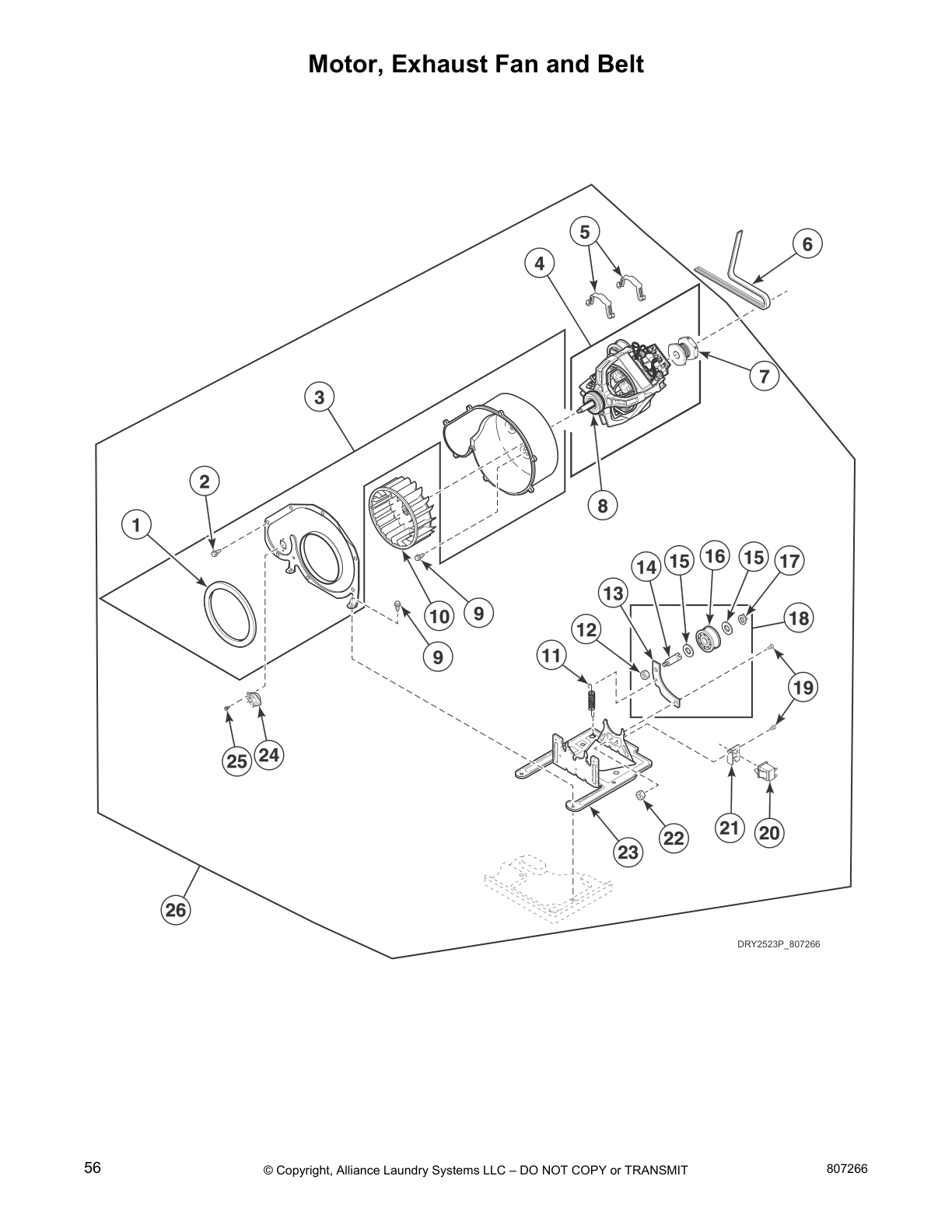

Motor, Exhaust Fan and Belt

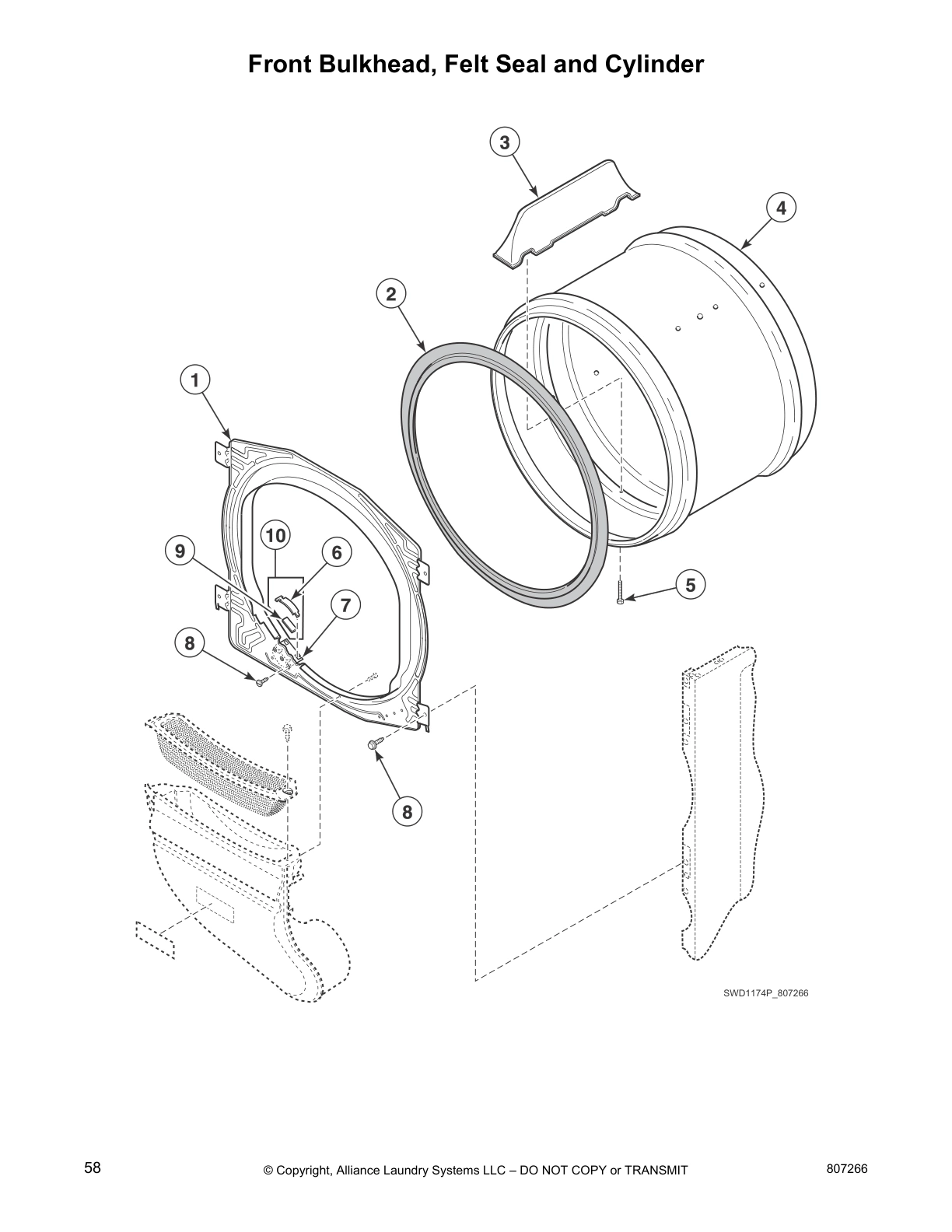

Front Bulkhead, Felt Seal and Cylinder

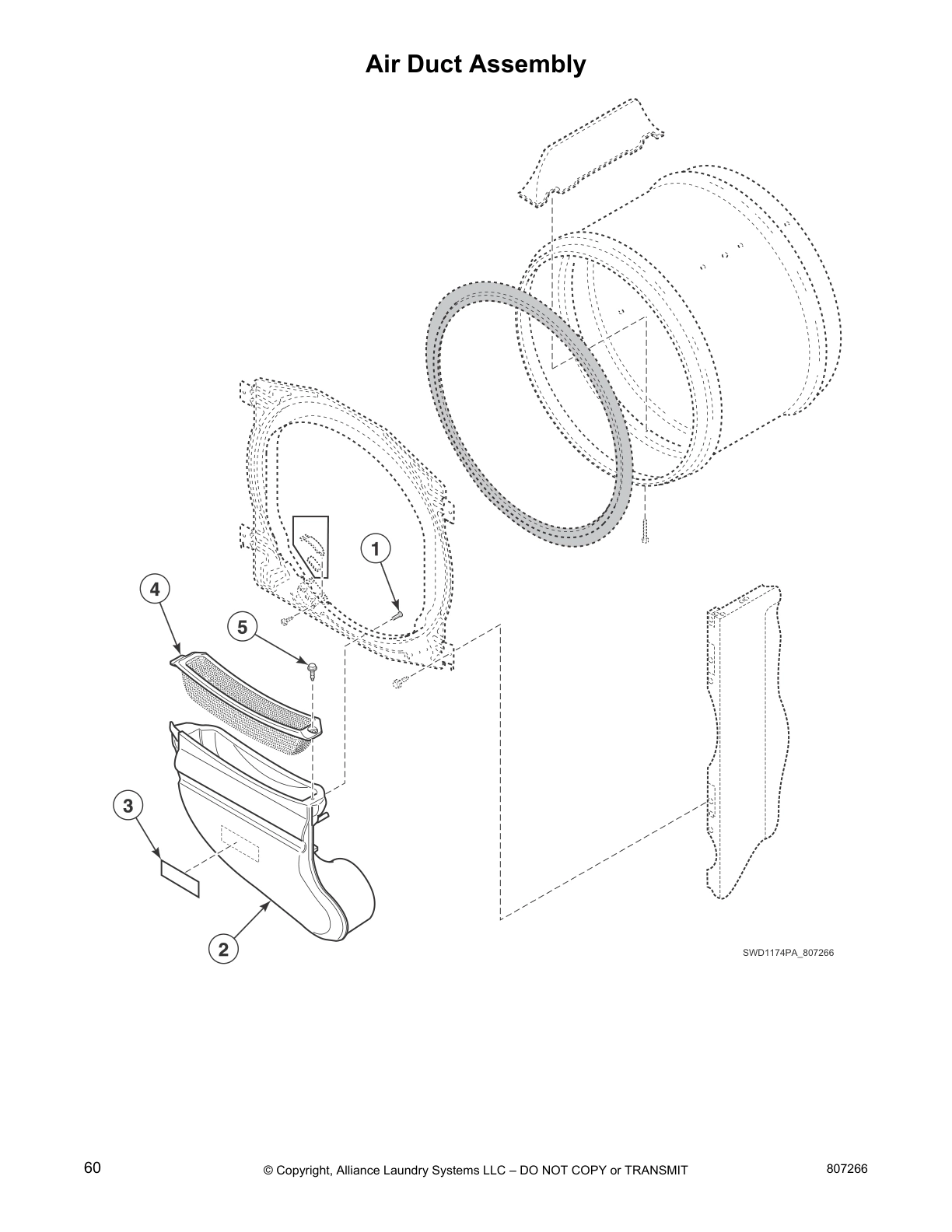

Air Duct Assembly

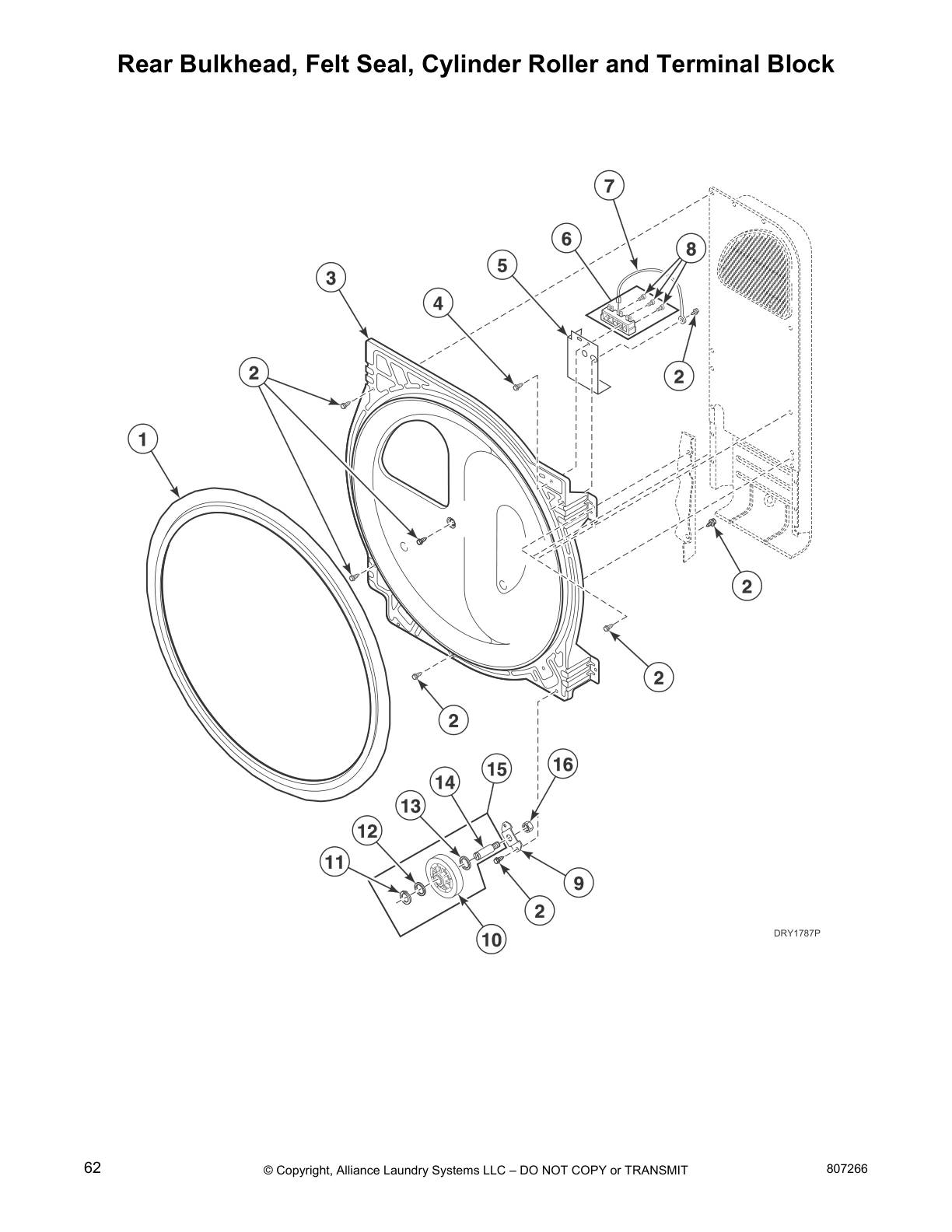

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

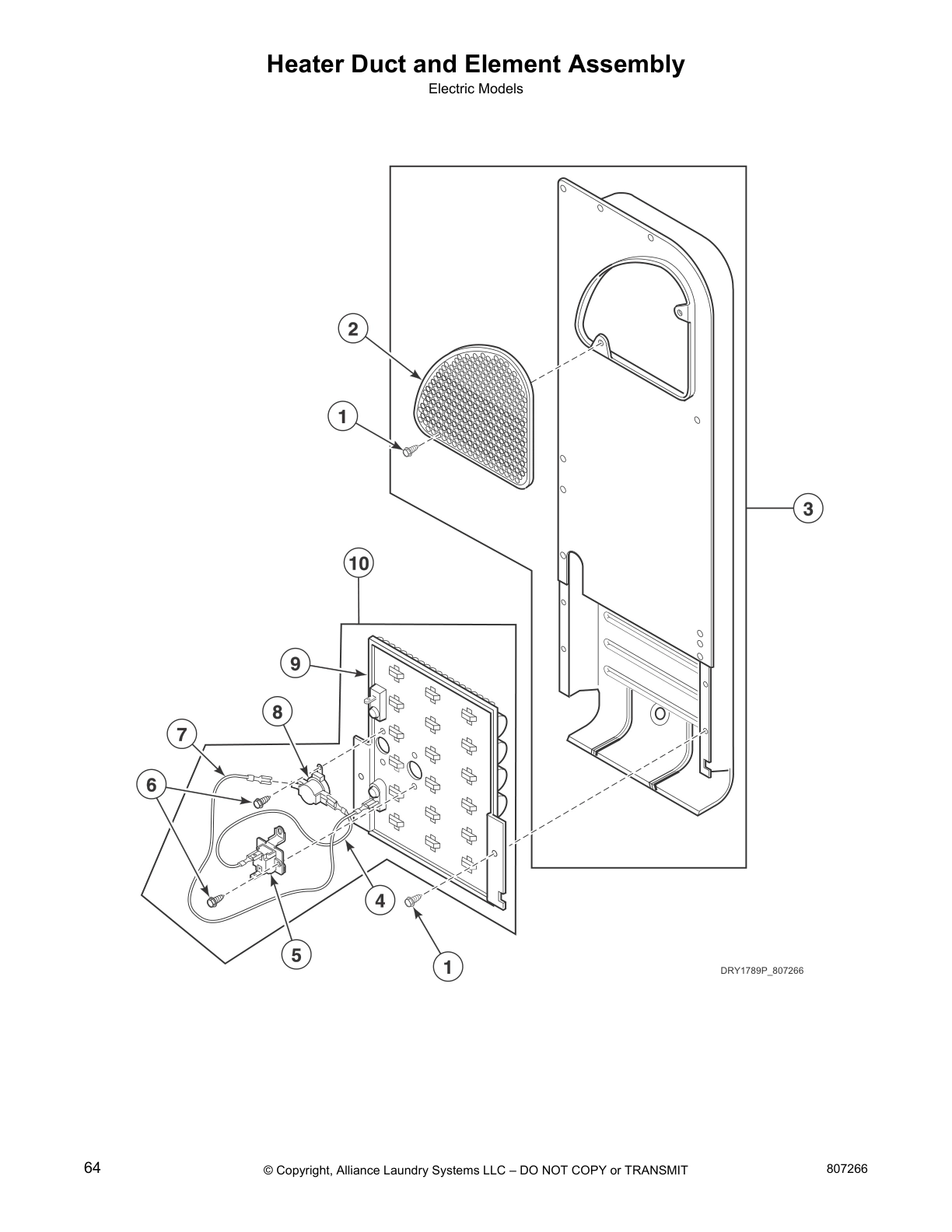

Heater Duct and Element Assembly

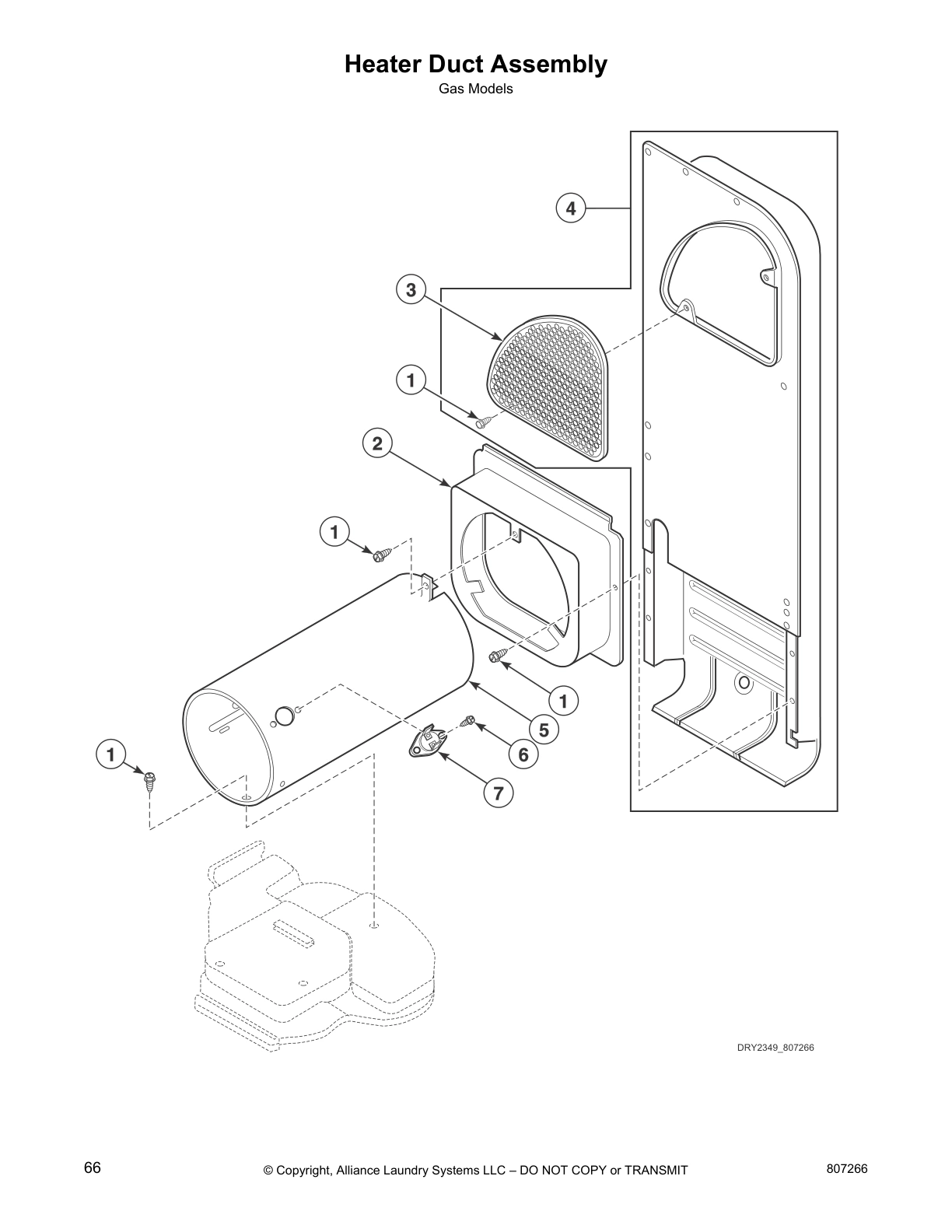

Heater Duct Assembly

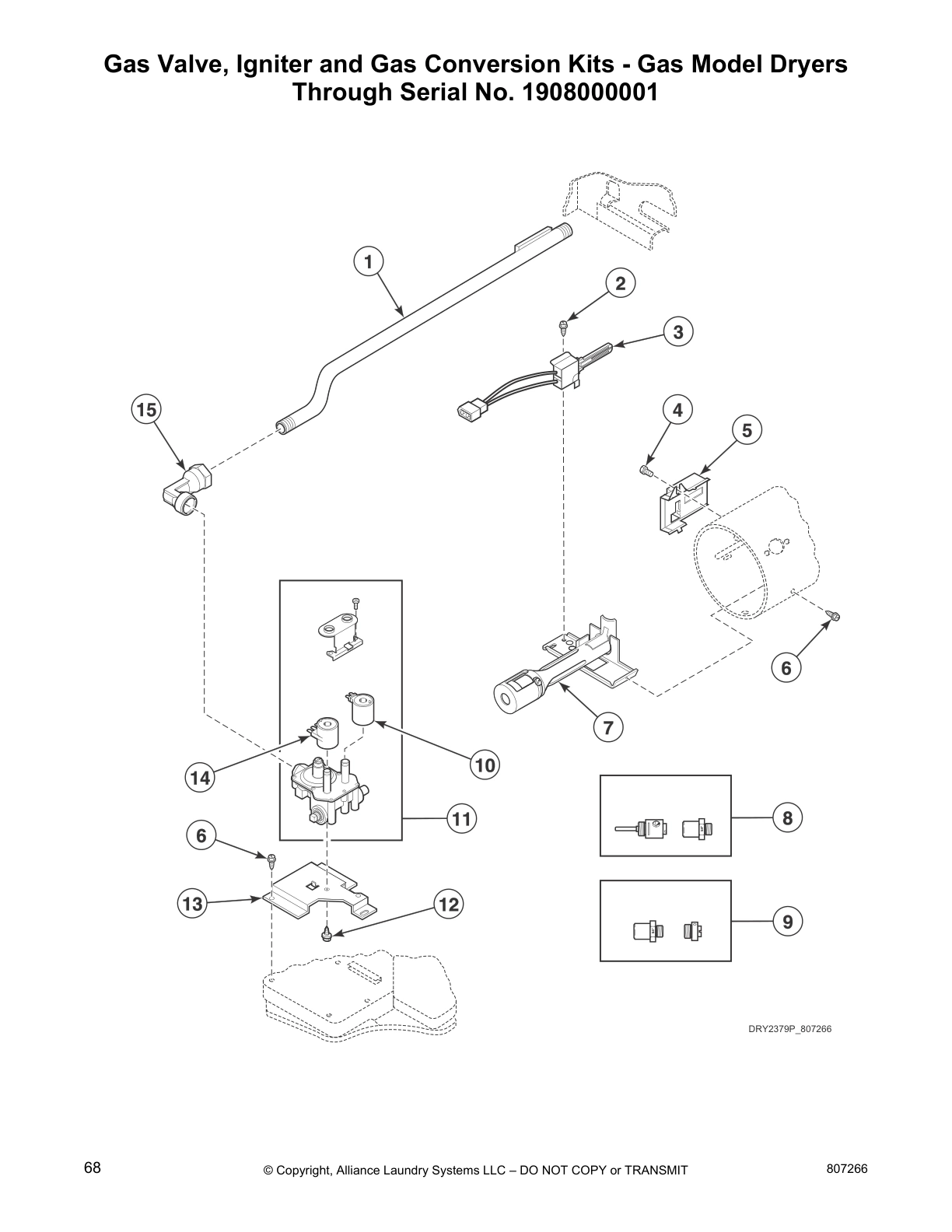

Gas Valve, Igniter and Gas Conversion Kits - Gas Model Dryers
Through Serial No. 1908000001

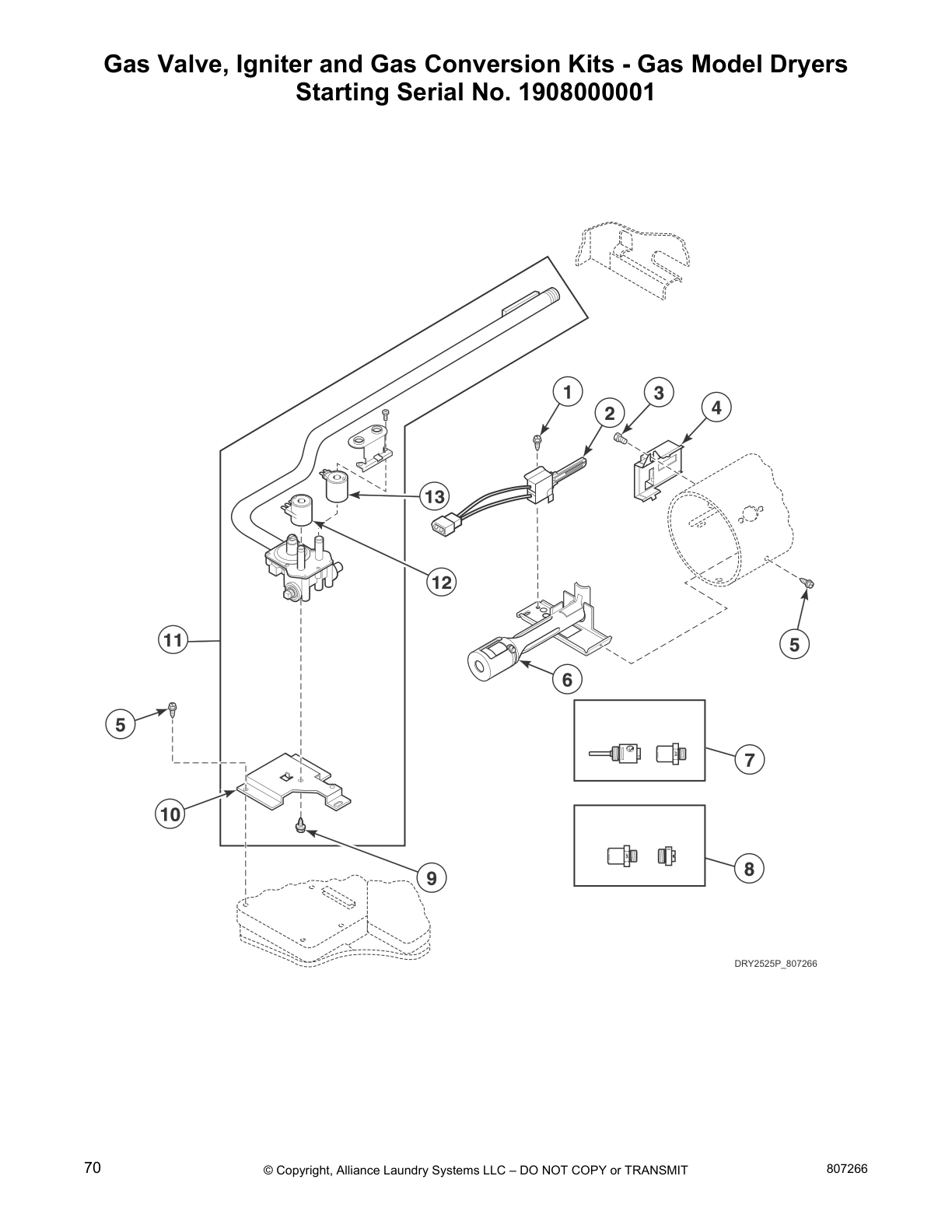

Gas Valve, Igniter and Gas Conversion Kits - Gas Model Dryers
Starting Serial No. 1908000001

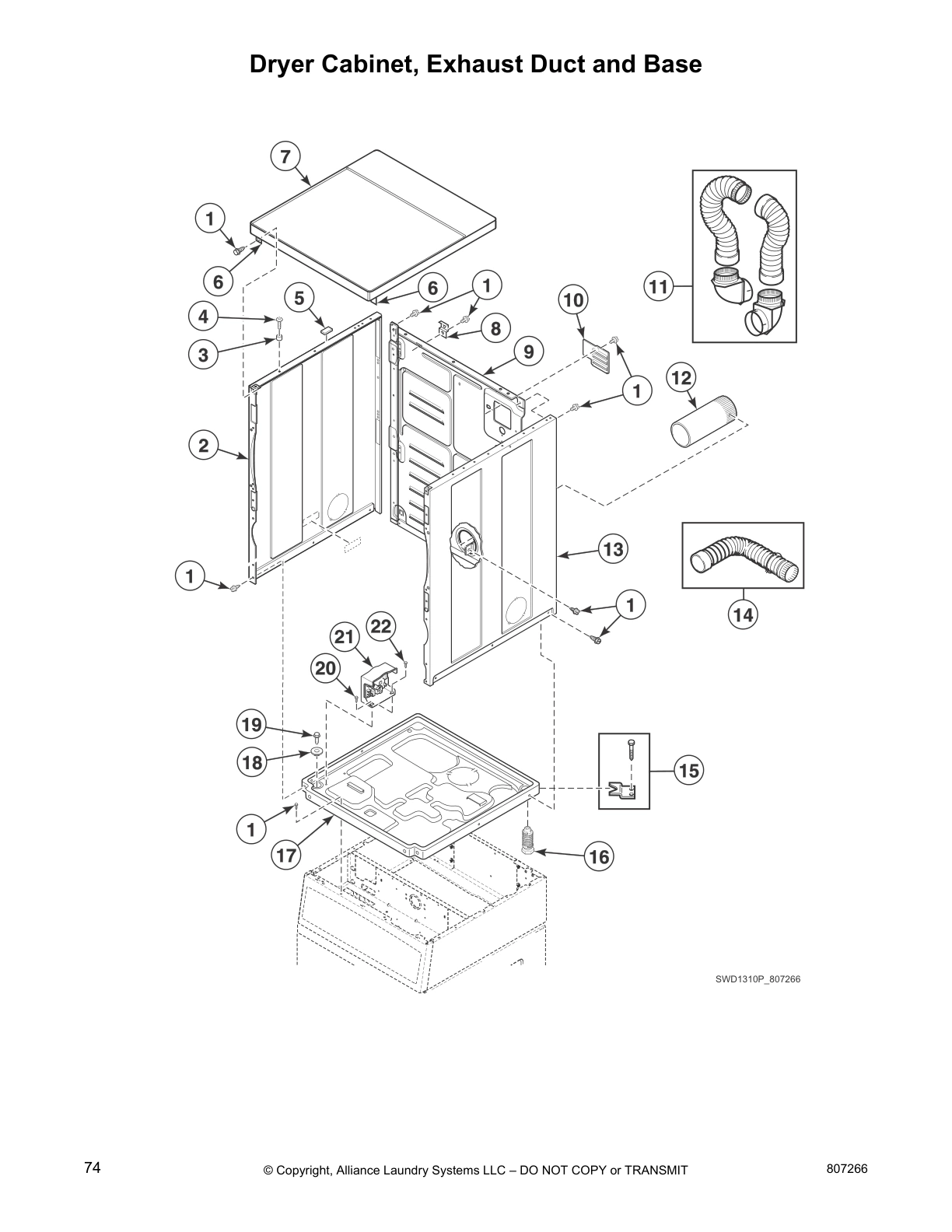

Dryer Cabinet, Exhaust Duct and Base

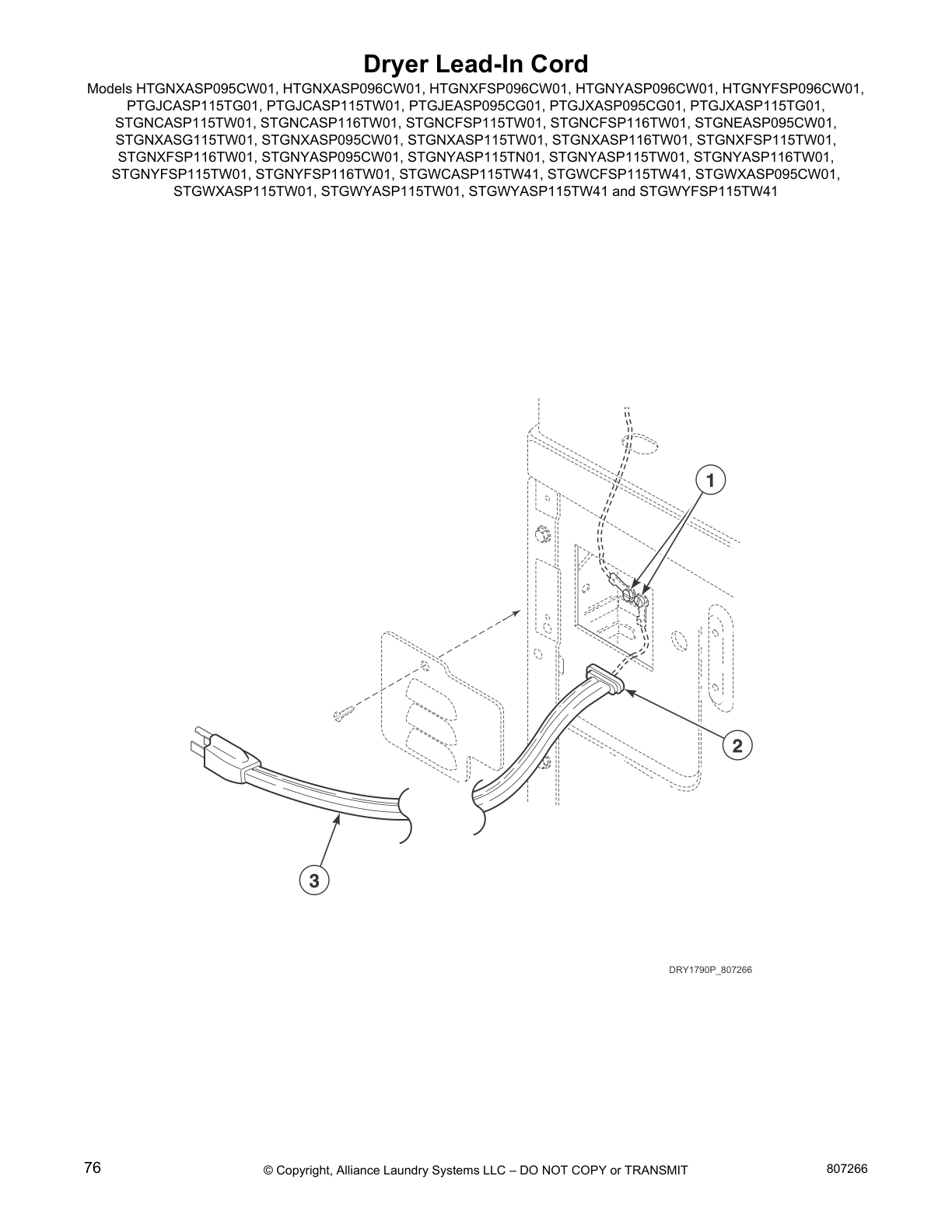

Dryer Lead-In Cord

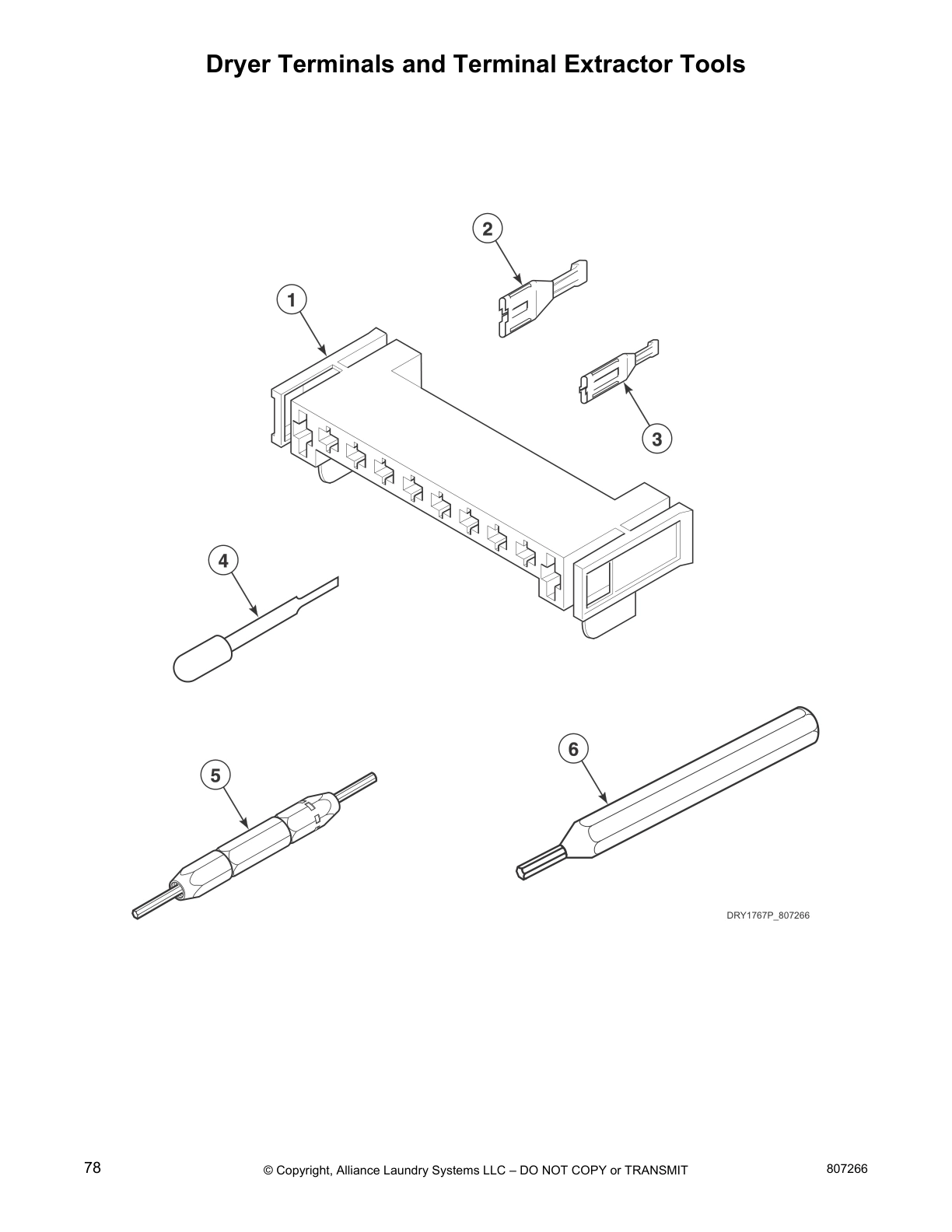

Dryer Terminals and Terminal Extractor Tools

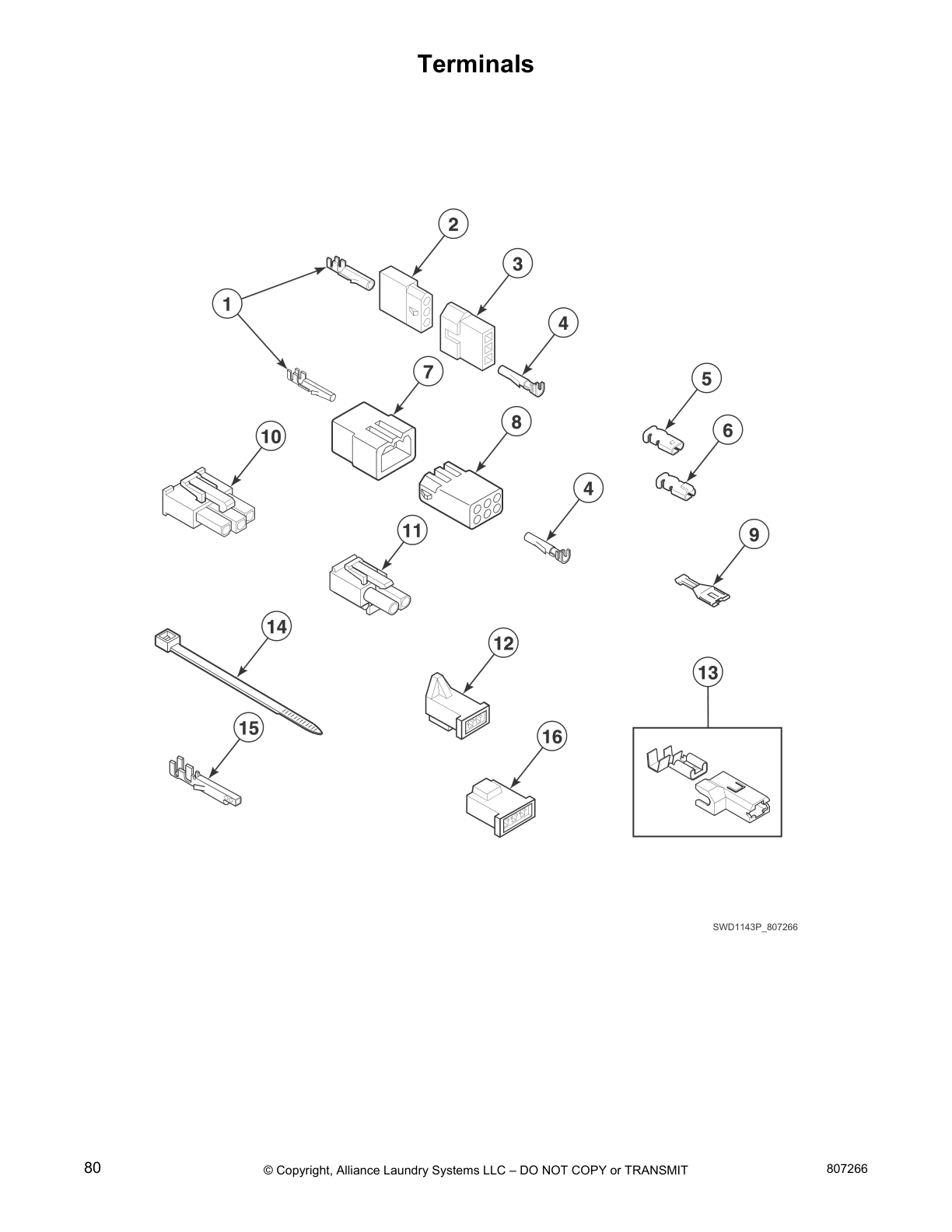

Terminals

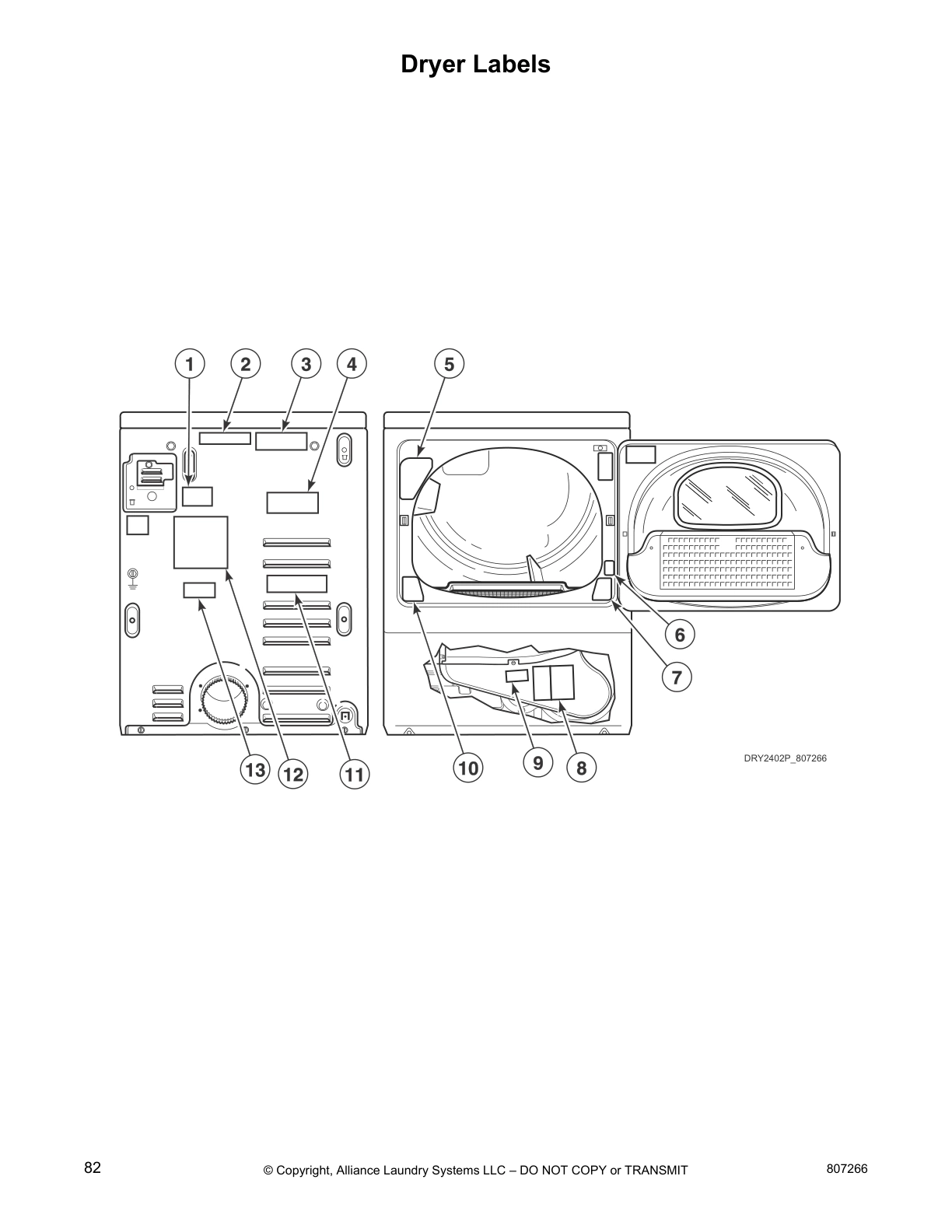

Dryer Labels

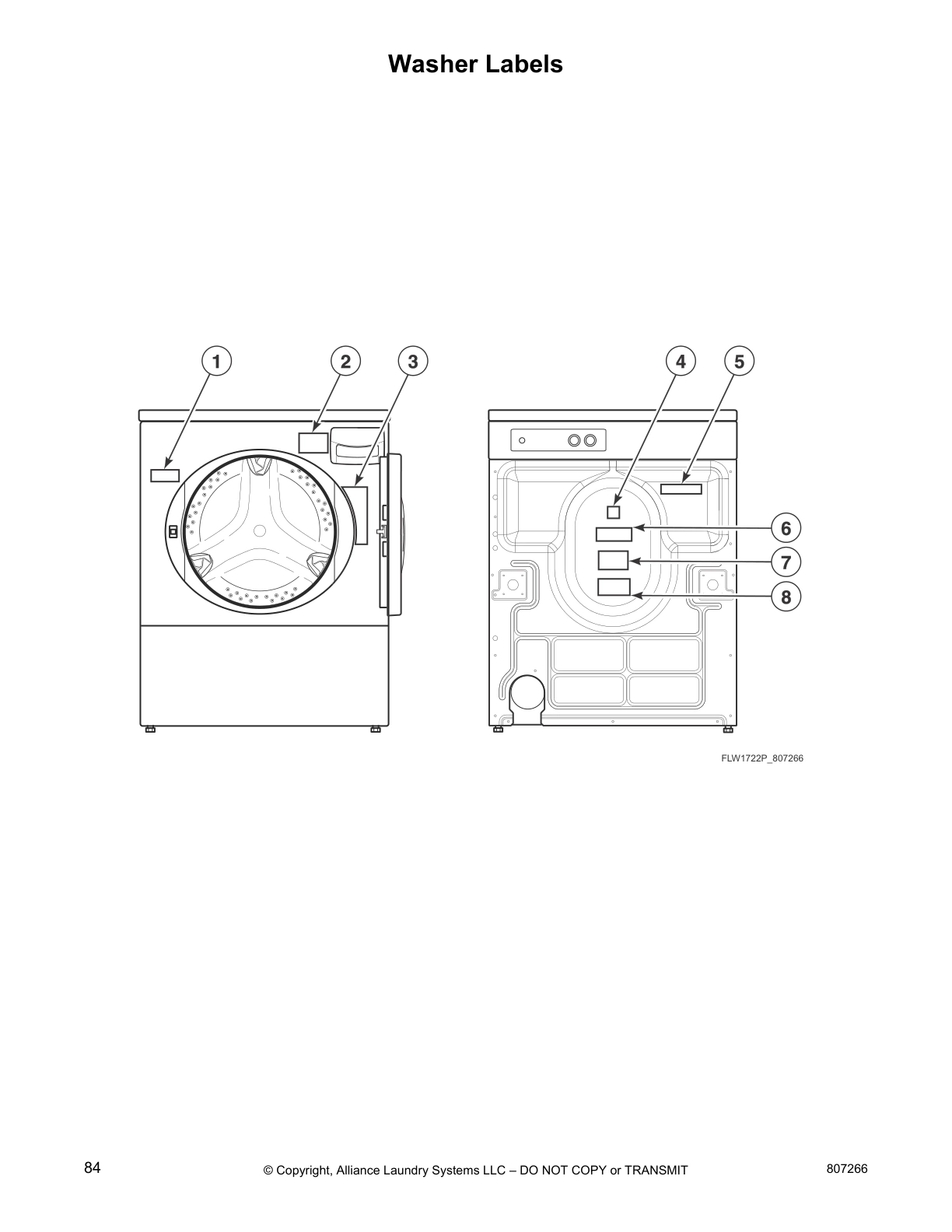

Washer Labels

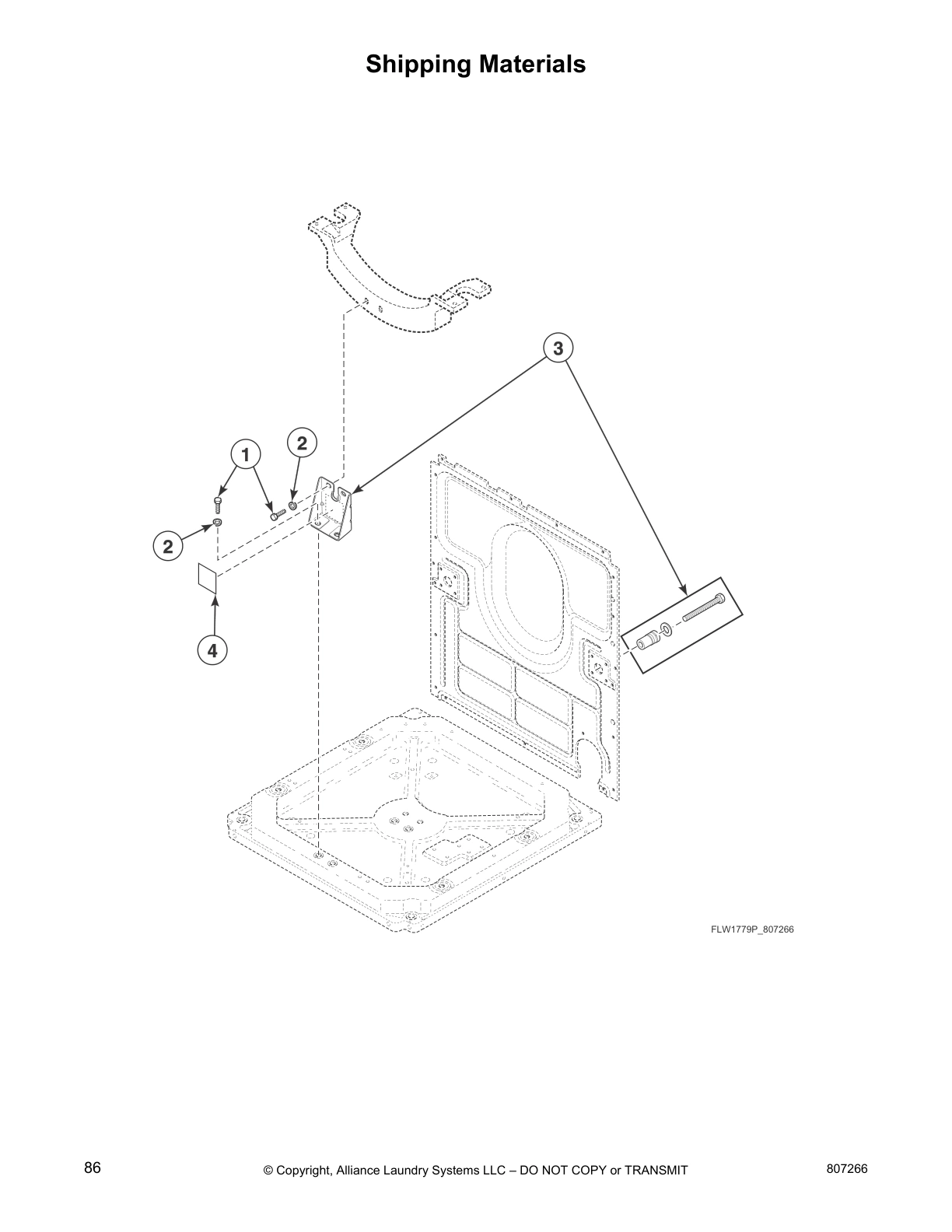

Shipping Materials

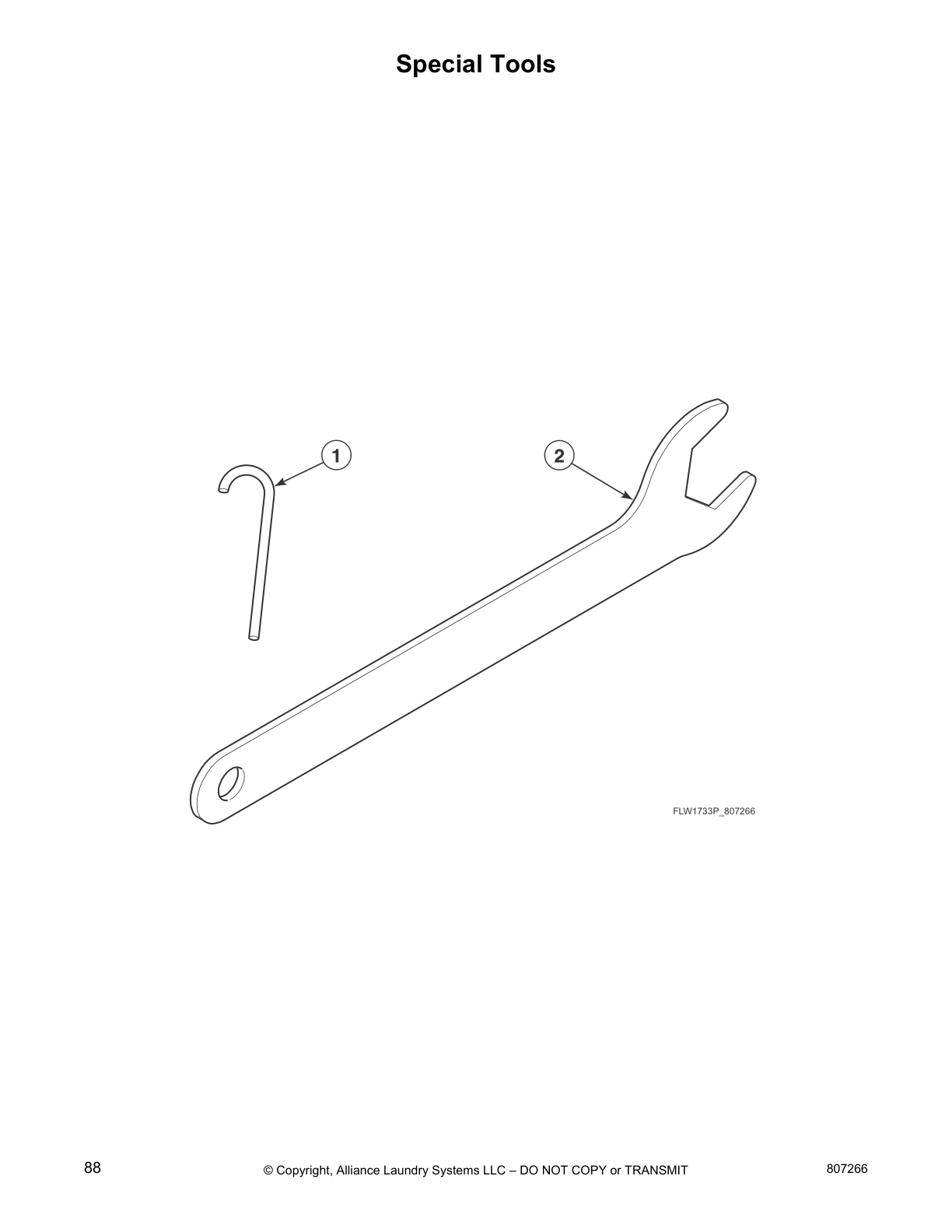

Special Tools

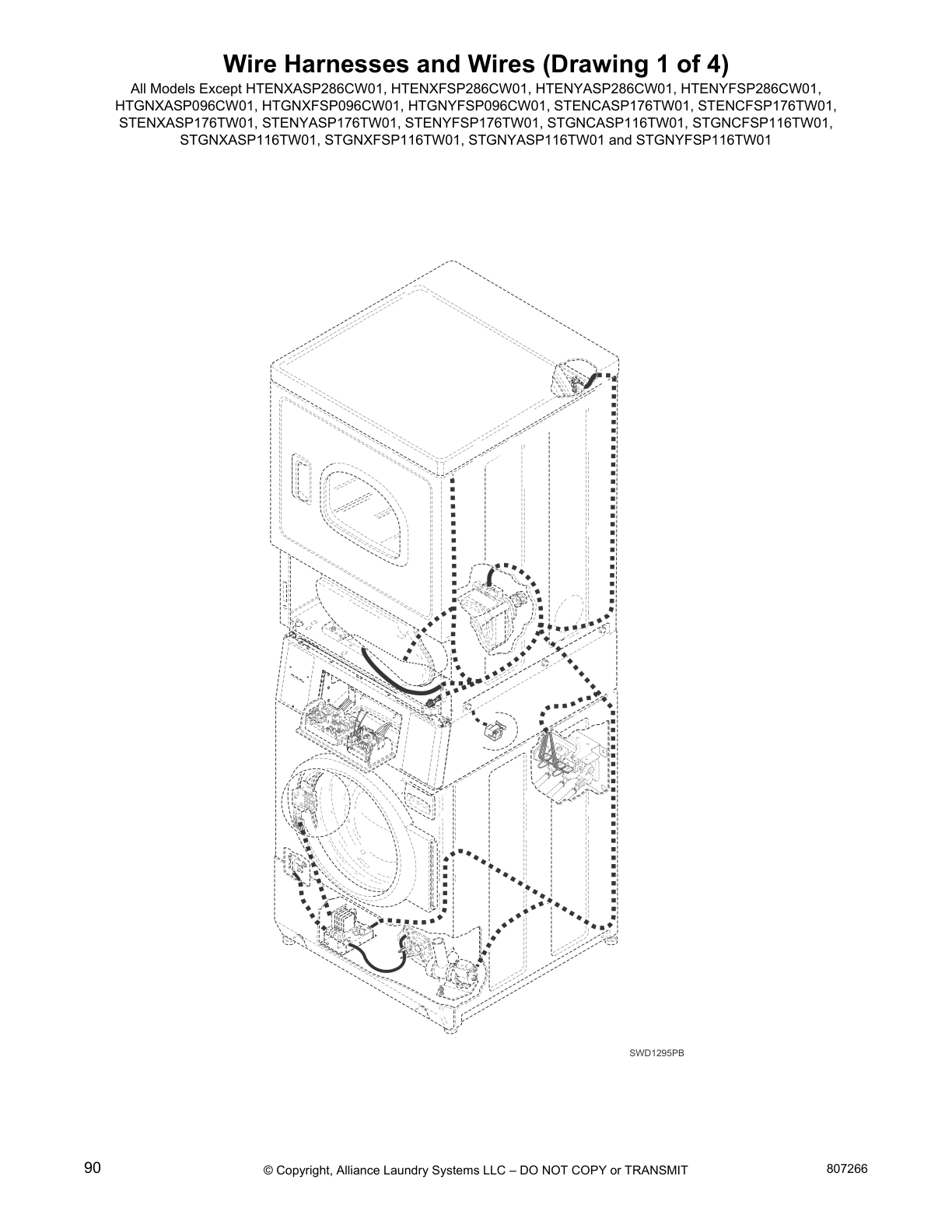

Wire Harnesses and Wires (Drawing 1 of 4)
Wire Harnesses and Wires (Drawing 2 of 4)

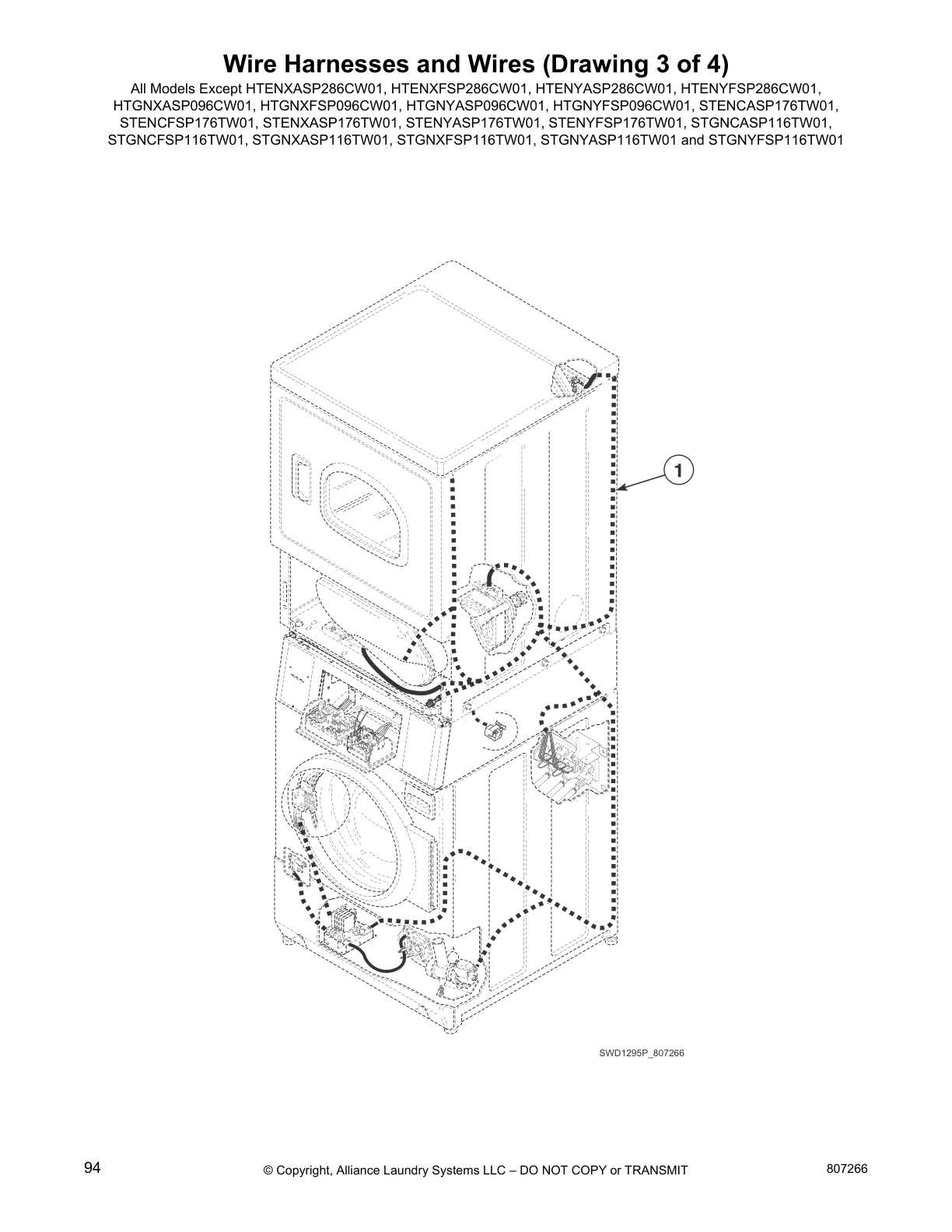

Wire Harnesses and Wires (Drawing 3 of 4)

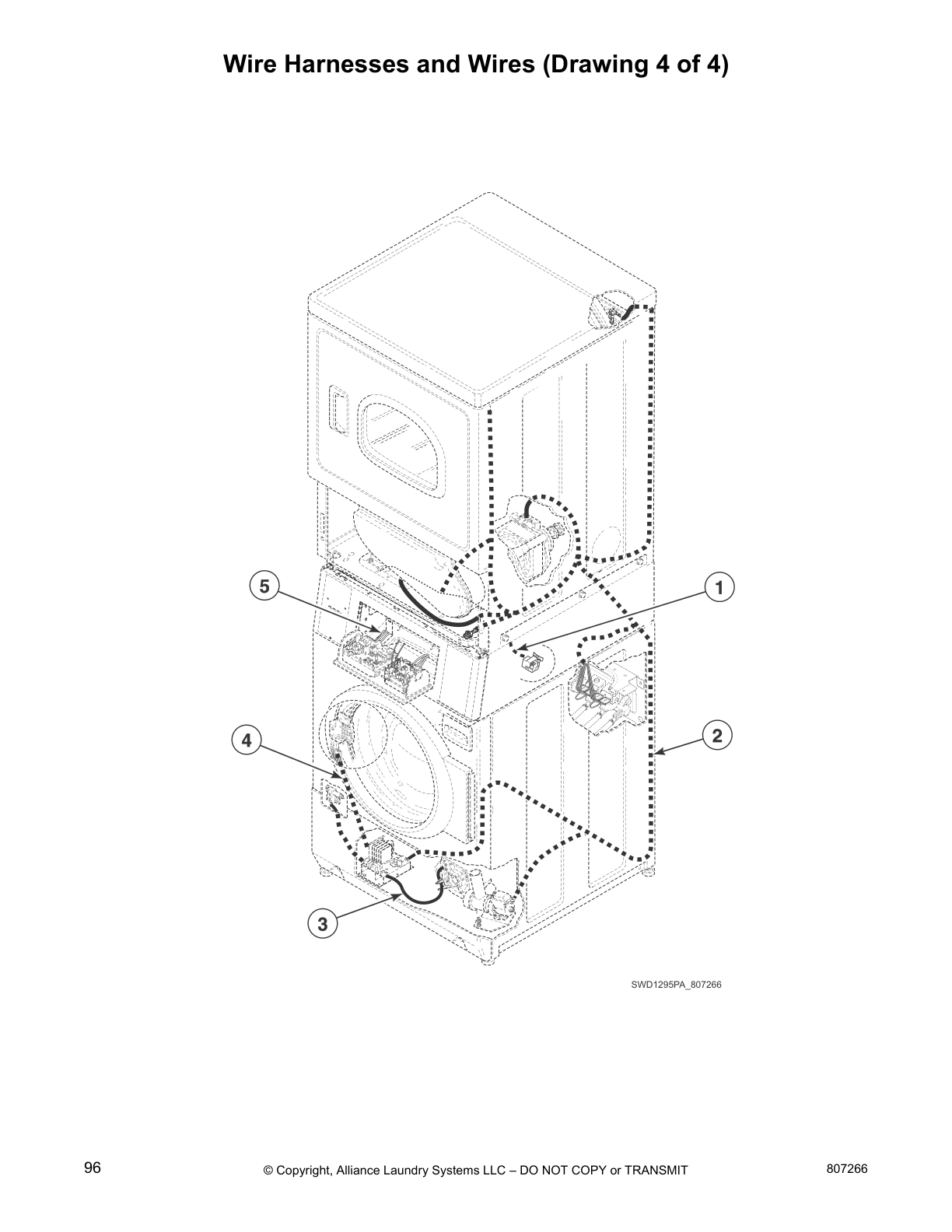

Wire Harnesses and Wires (Drawing 4 of 4)
Common parts from model Primus PTEJEASP285CG01 Stacked Washer and Dryer
3
Dual Coin Harness Assembly SPQ 70441601P No Longer Available
5
Lock Assembly SPQ 54612 No Longer Available
15
Pump Housing Assembly SPQ 802429P Contact Us For Availability
16
Pump Housing SPQ 802434P Contact Us For Availability
17
Gasket SPQ 802428 Contact Us For Availability
18
Lid Assembly SPQ 802427 Contact Us For Availability
× ![]()
