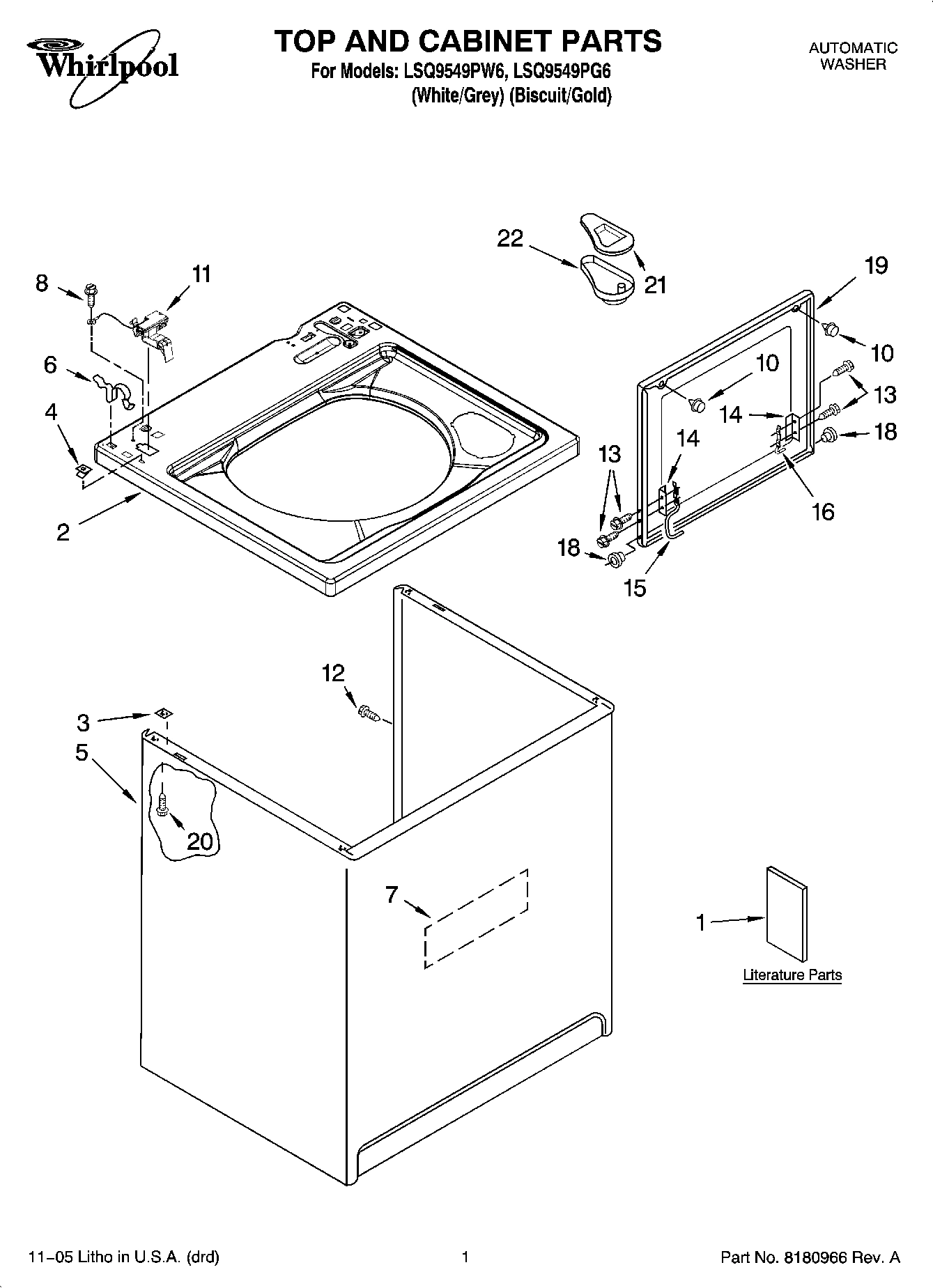

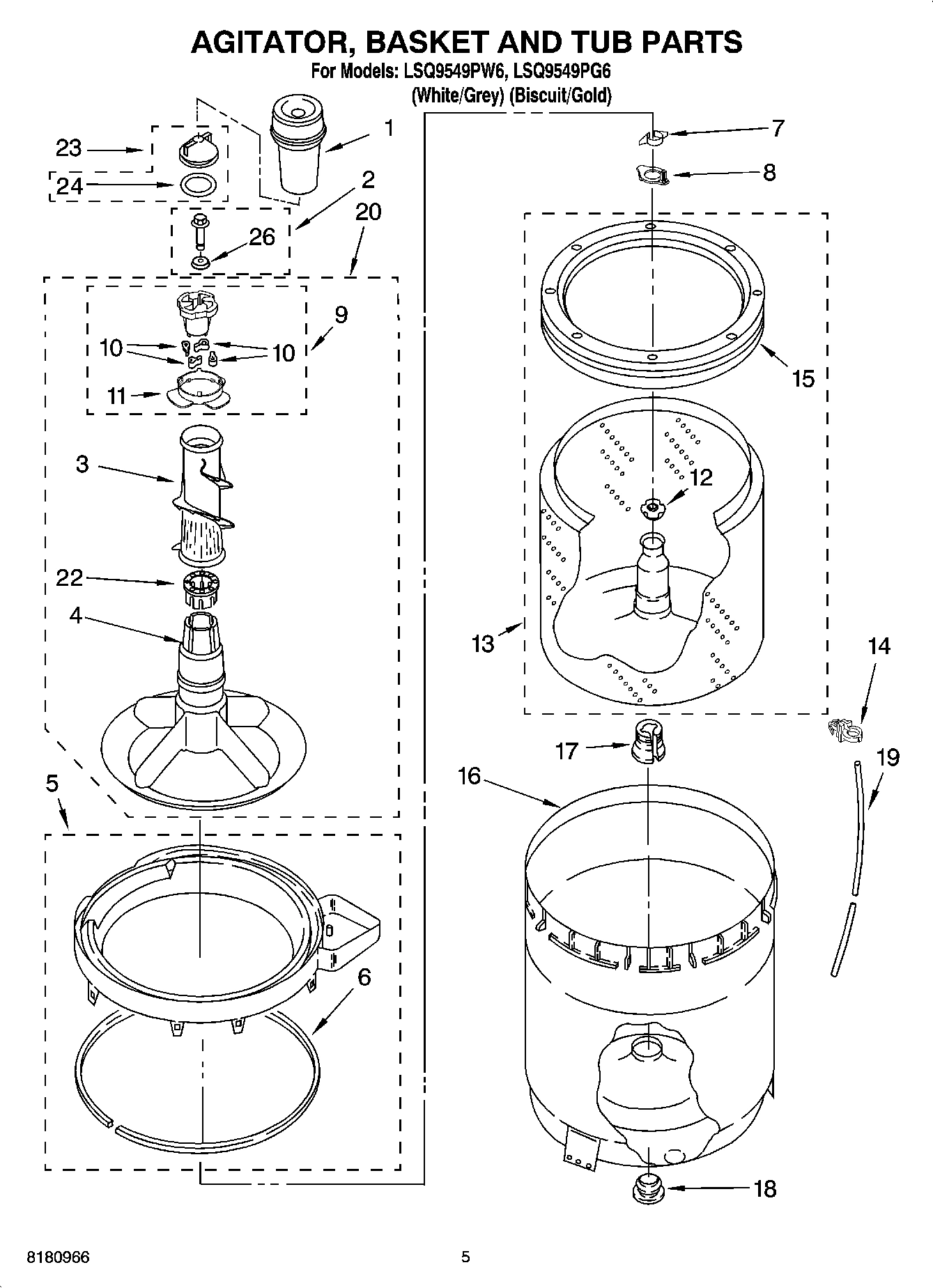

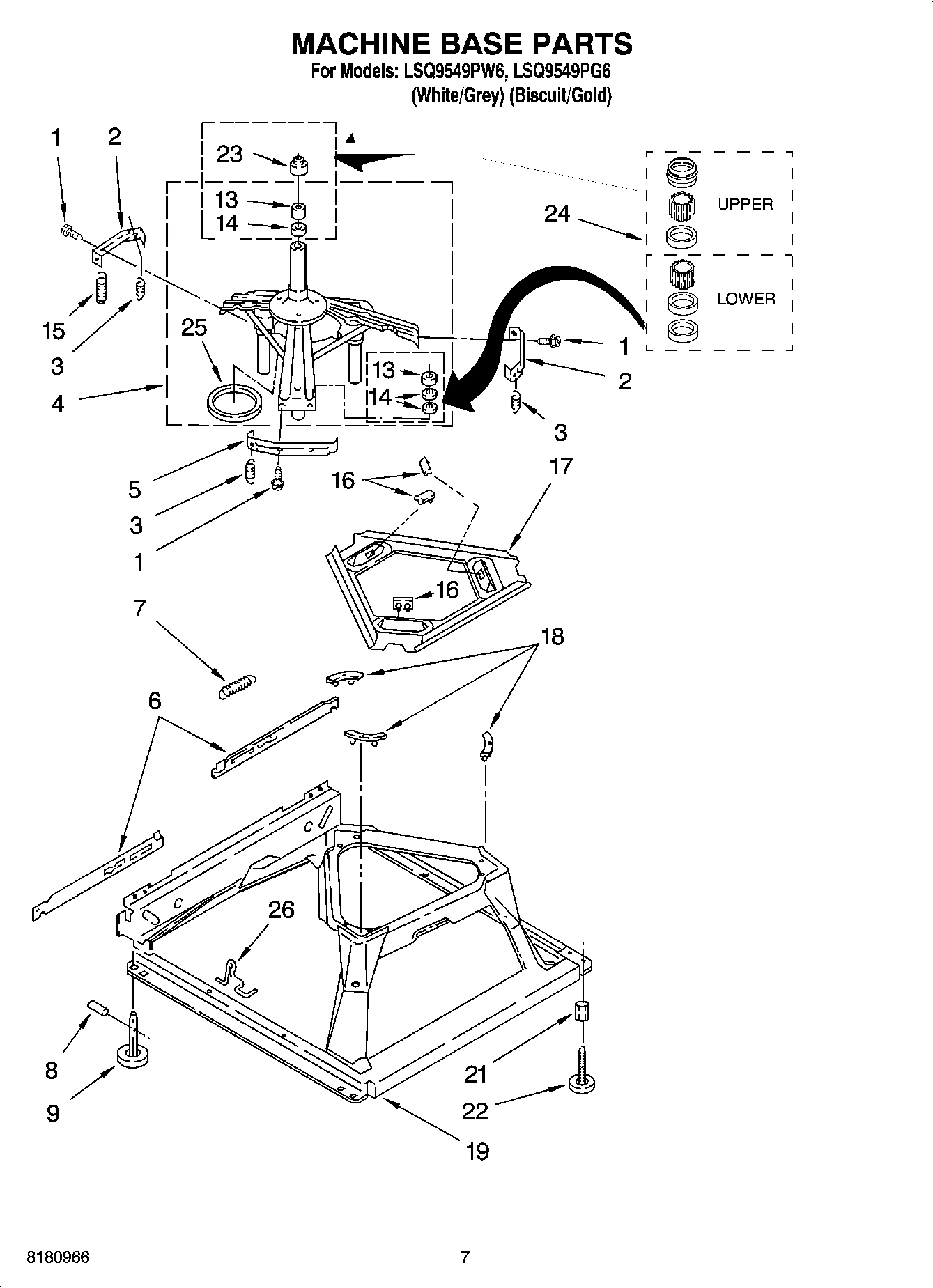

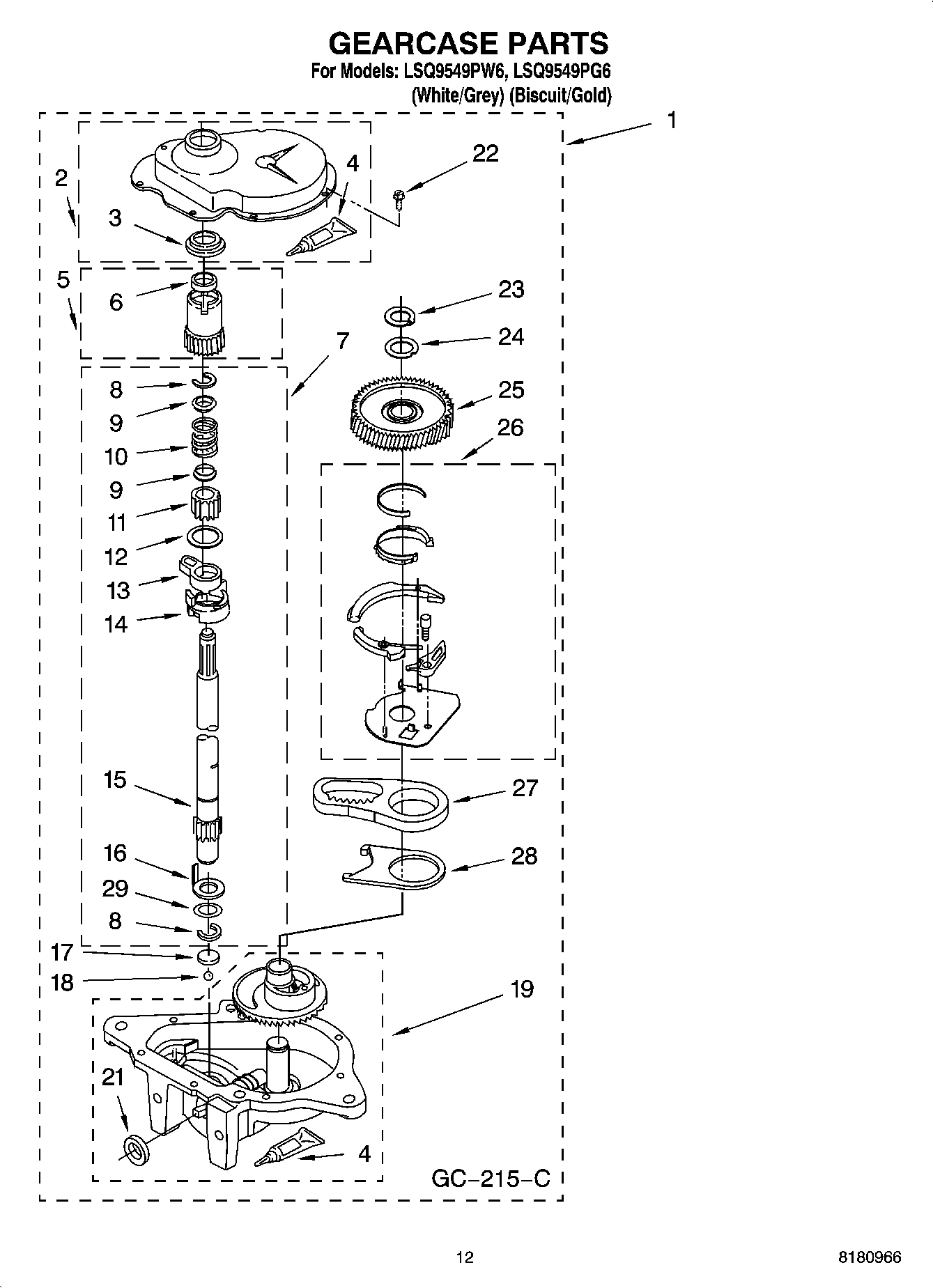

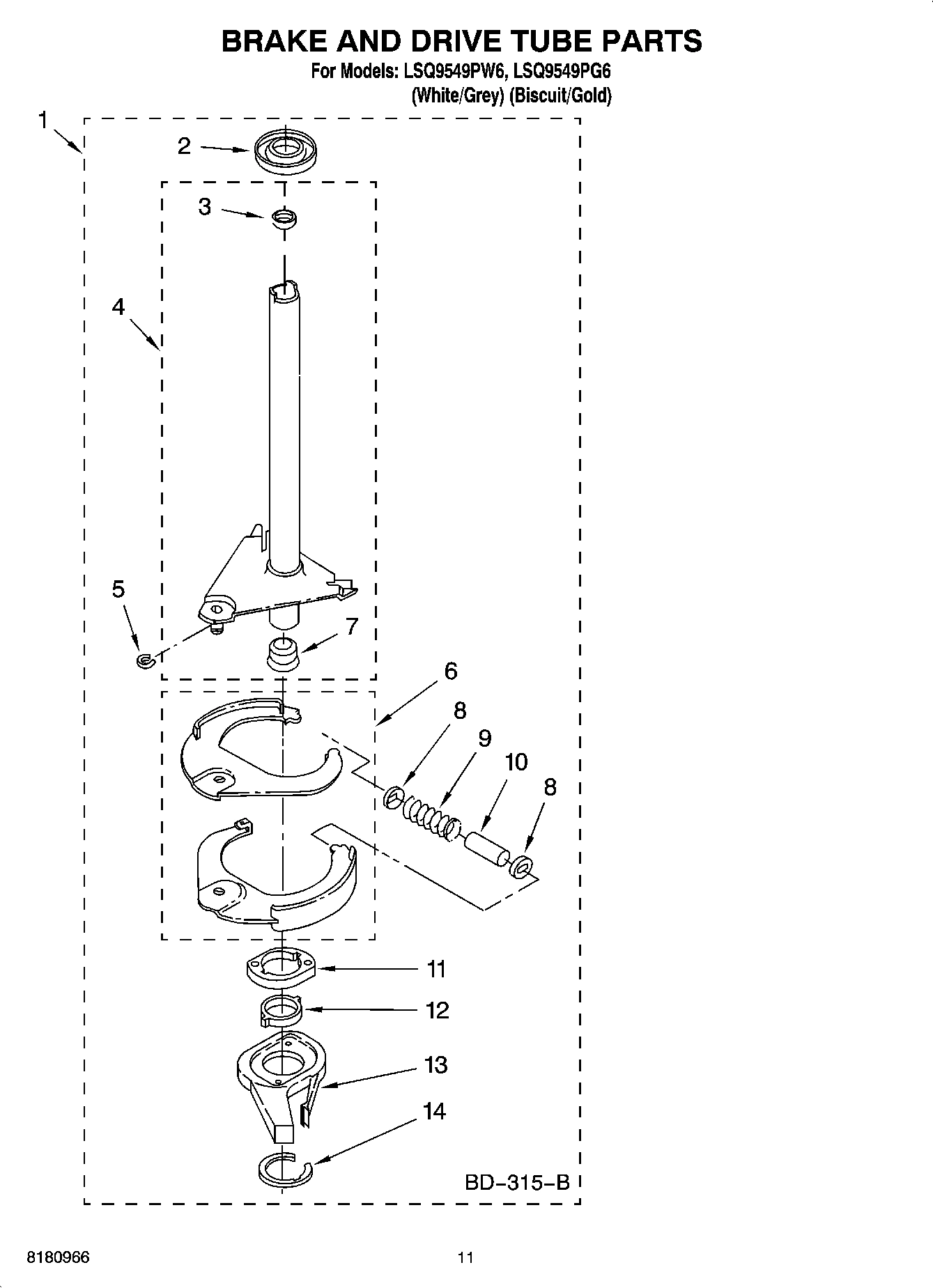

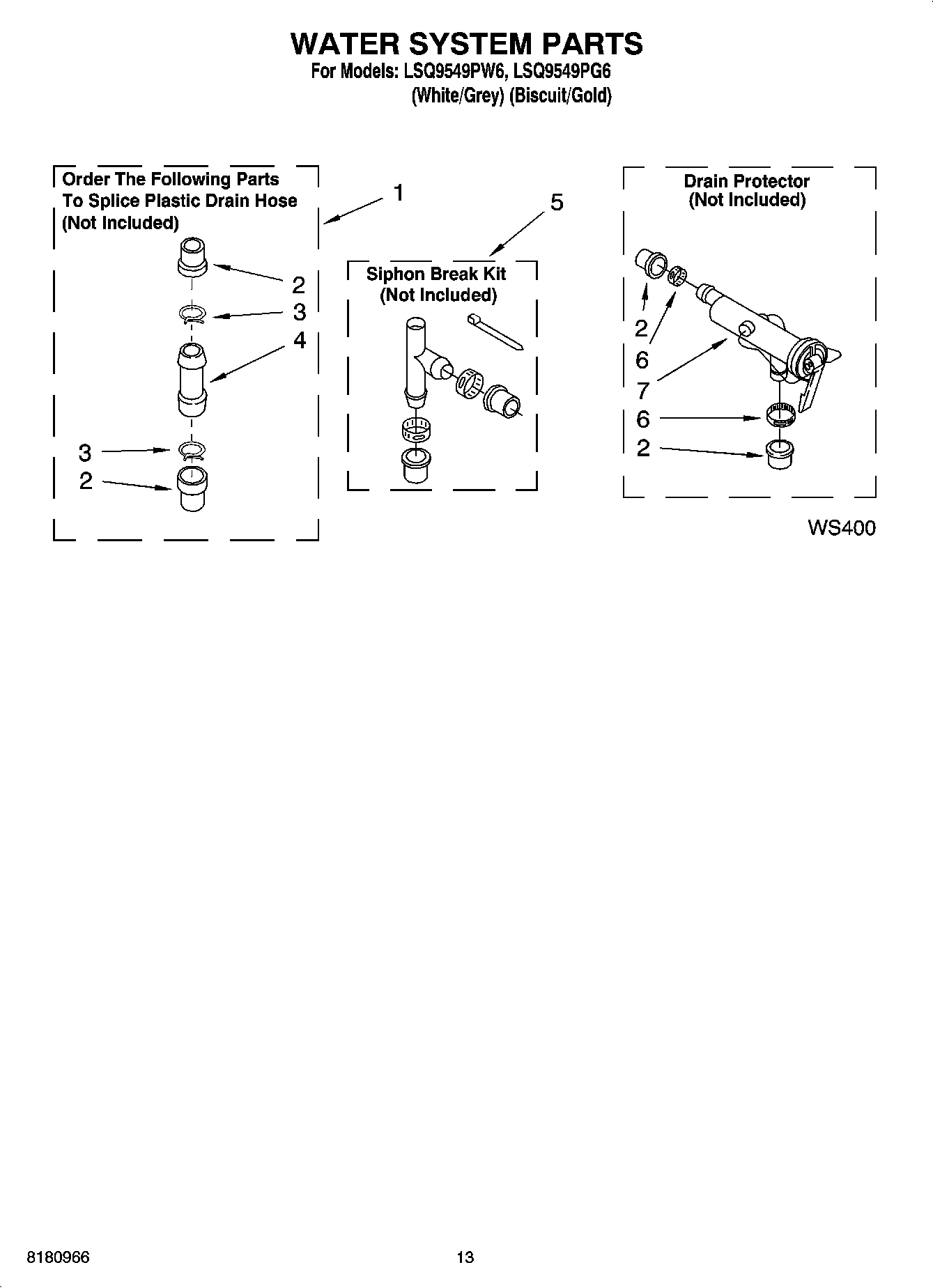

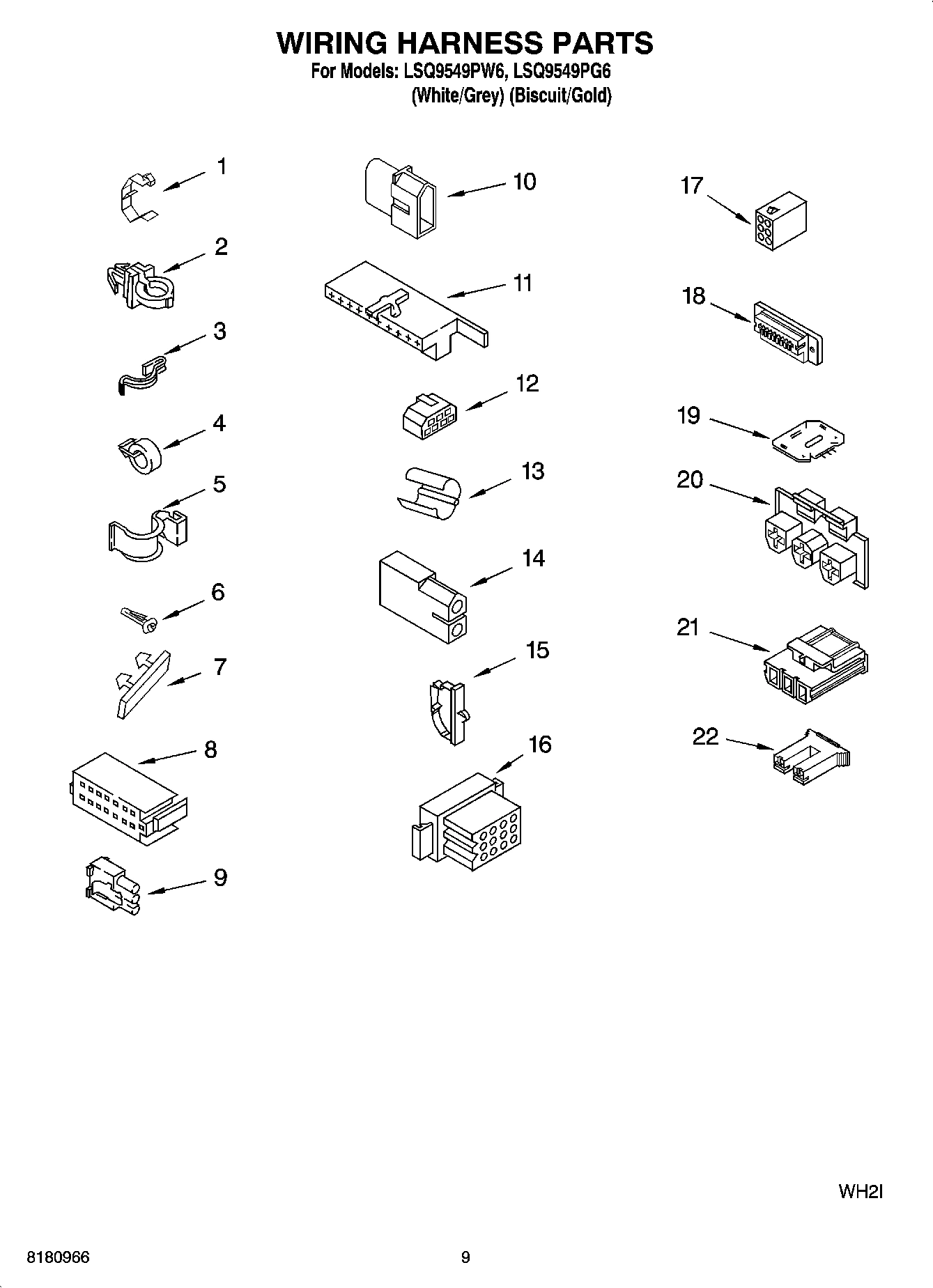

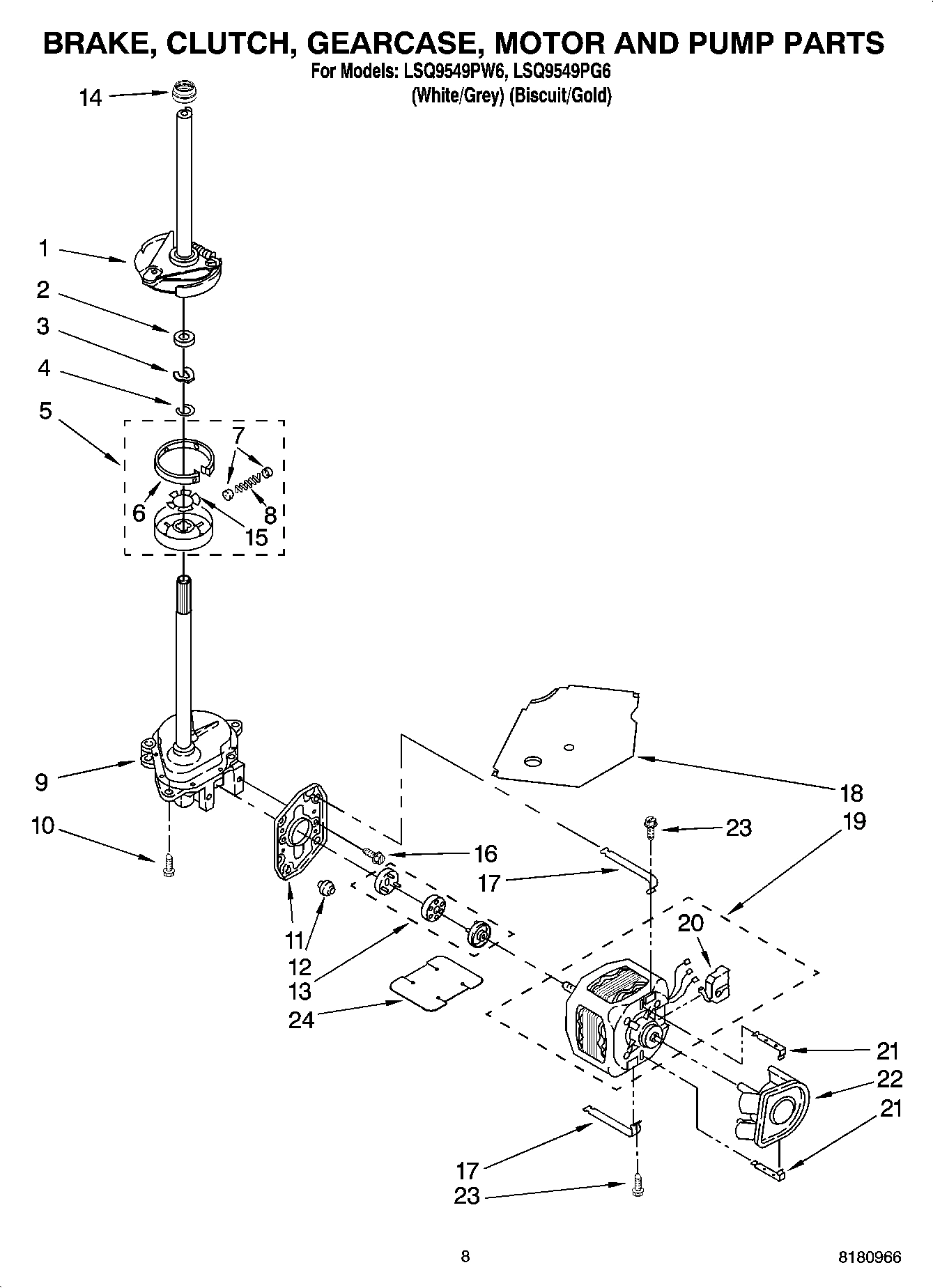

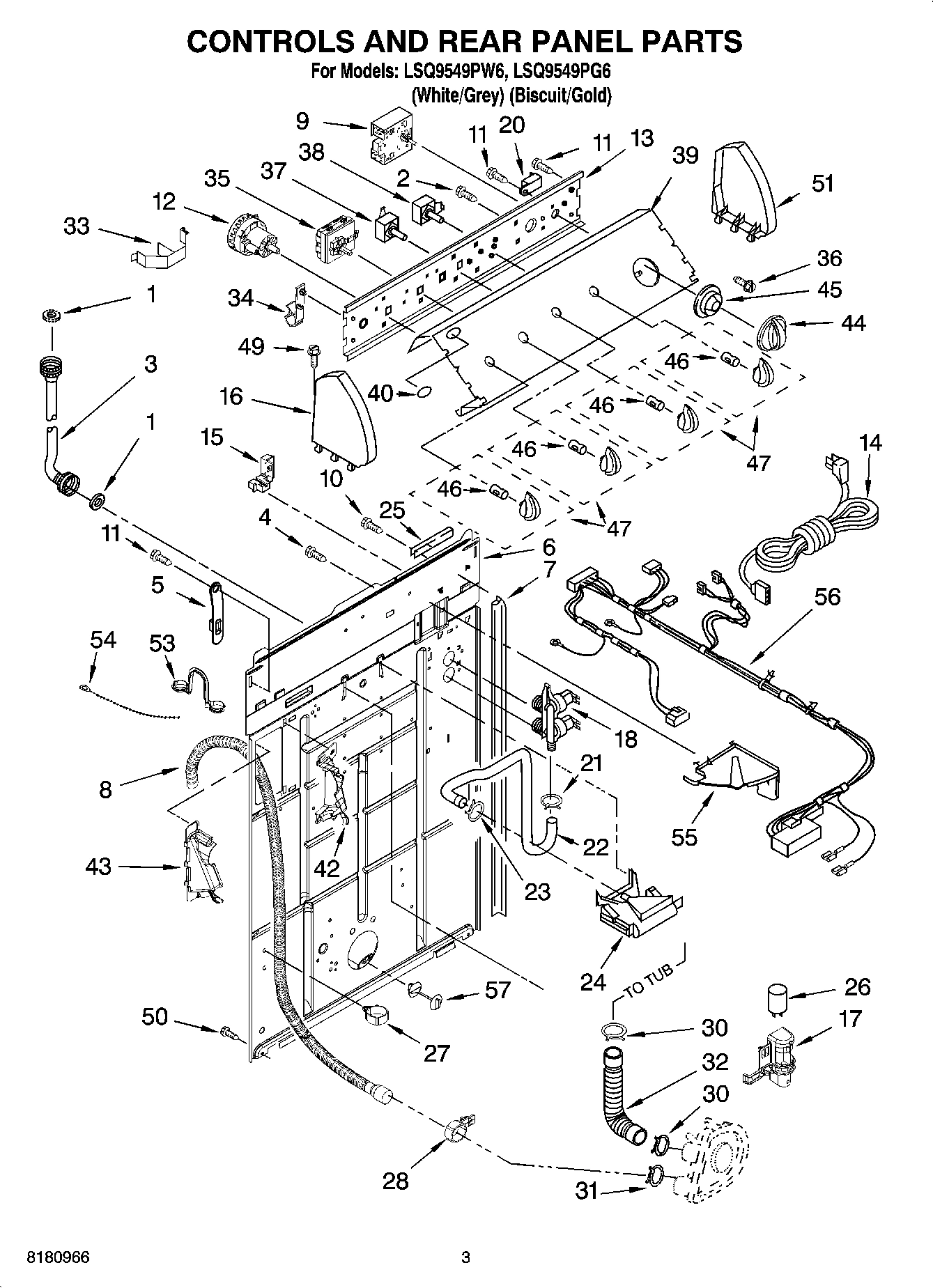

Model Whirlpool LSQ9549PW6 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

Manual, Washer Do-It-Yourself WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Feature Sheet WPL 3955907 Contact Us For Availability

1

Energy Guide WPL 3957488 Contact Us For Availability

1

Installation Instructions WPL 3958075 Contact Us For Availability

1

Wiring Diagram WPL 8577358 Contact Us For Availability

1

Use & Care Guide WPL 8578232 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI158054A Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Top (White) WPL 8543451 Contact Us For Availability

2

Top (Biscuit) WPL 8543452 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $100.66

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $6.92

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

9

WP8577356 Whirlpool Washer Timer In Stock WPL WP8577356 $136.56

353424 Whirlpool Connector Backorder WPL 353424 $16.76

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

WP3952374 Whirlpool Bearing Backorder WPL WP3952374 $4.19

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

W10389328 Whirlpool Basket Backorder WPL W10389328 $227.40

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

14

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $44.86

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.19

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.51

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $78.56

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

Hinge, Lid (L.H.) WPL 8559336 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

16

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Clip, Capacitor WPL 8318046 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Lid (White) WPL 8558398 Contact Us For Availability

Lid (Biscuit) WPL 8558399 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

Cover, Dispenser WPL 3955788 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

Dispenser, Bleach WPL 8519517 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $16.76

35

Switch, Water Temperature (ATC) WPL 8564140 Contact Us For Availability

43

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.59

44

Knob, Timer (Silver) WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $33.58

46

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.20

47

WPL 8544937 WPL 8544937 Contact Us For Availability

47

WPL 8544938 WPL 8544938 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

55

WPL 8539874 WPL 8539874 Contact Us For Availability

57

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18
