Model Primus PTLJXASP543NG23 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel

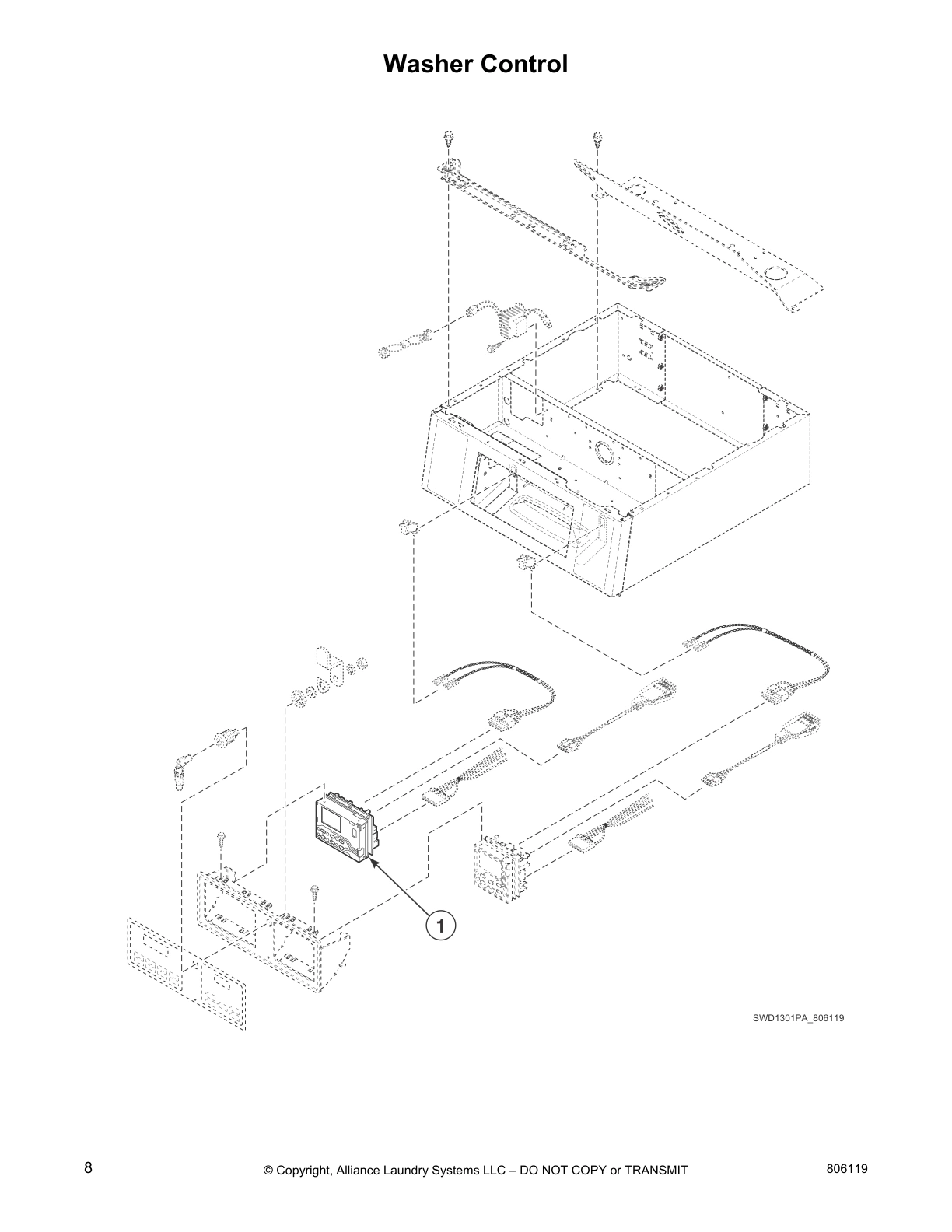

Washer Control
Dryer Control
Control Panel Shields
Electrical Access Panel, Filters and Terminal Block
(Drawing 1 of 3)
Electrical Access Panel, Filters and Terminal Block
(Drawing 2 of 3)
Electrical Access Panel, Filters and Terminal Block
(Drawing 3 of 3)
Network Board Assembly
Control Panel and Cabinet Wrapper
Control Cabinet - Front Control Bill Acceptor Models

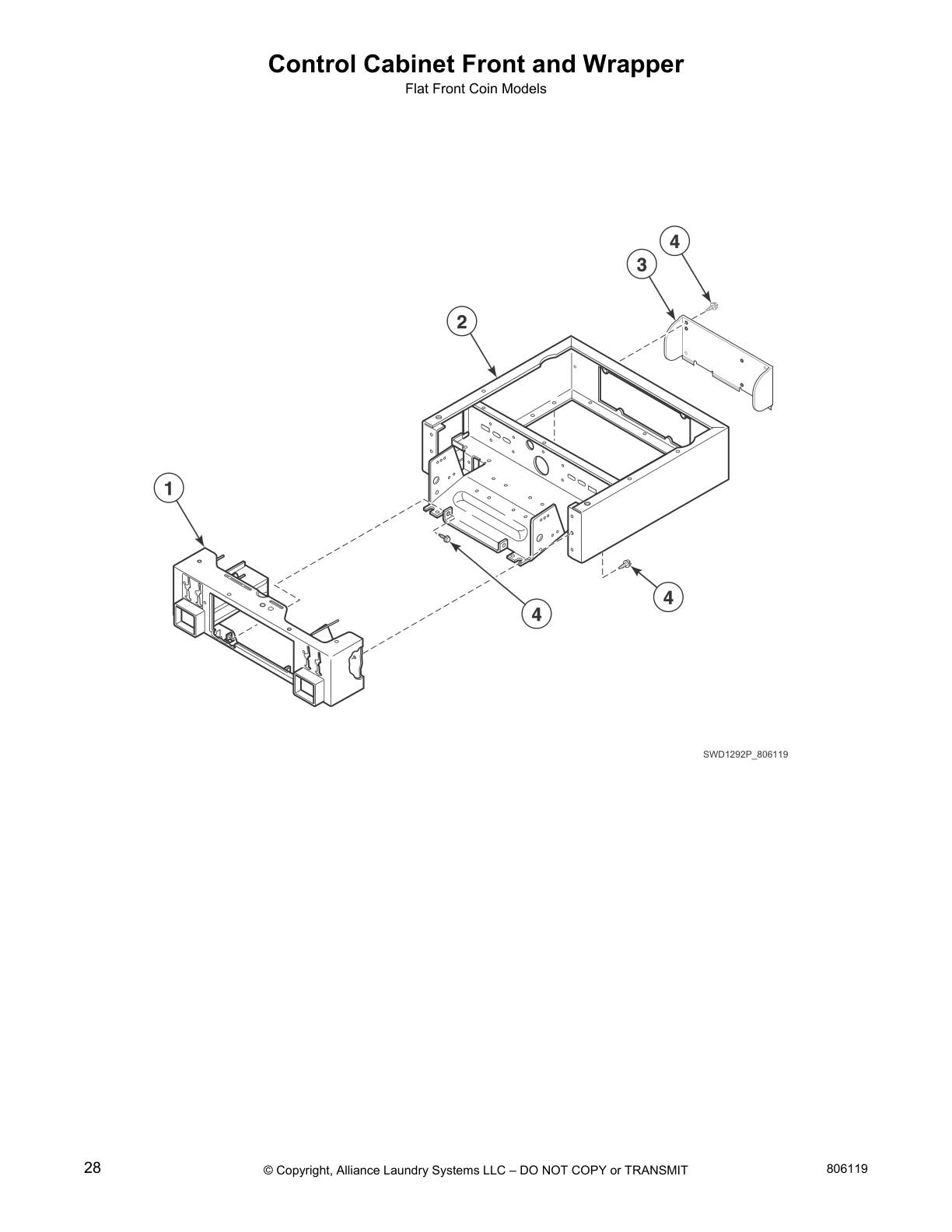

Control Cabinet Front and Wrapper
Non-Electronic Coin Drop

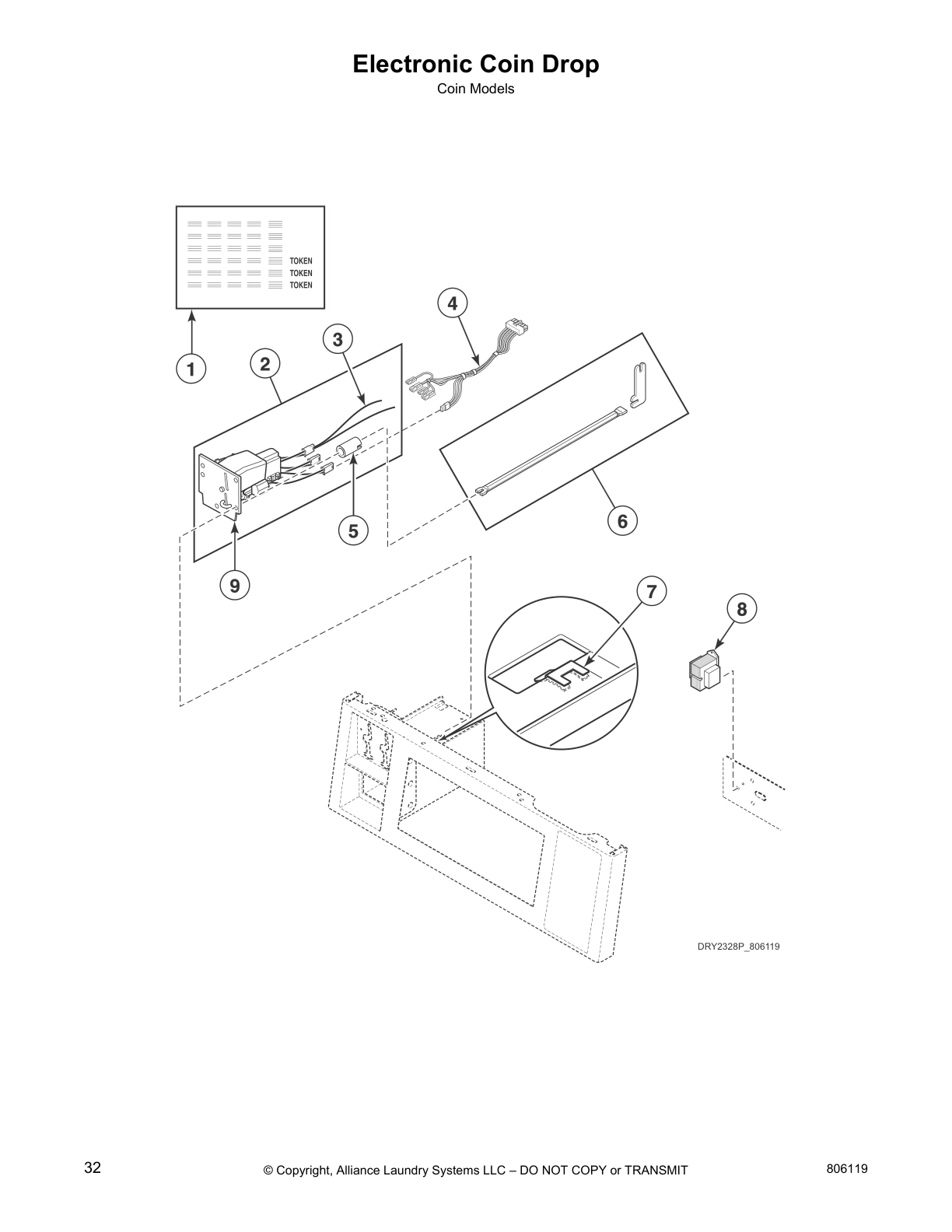

Electronic Coin Drop
Card Reader and Non-Vend Control Cabinet

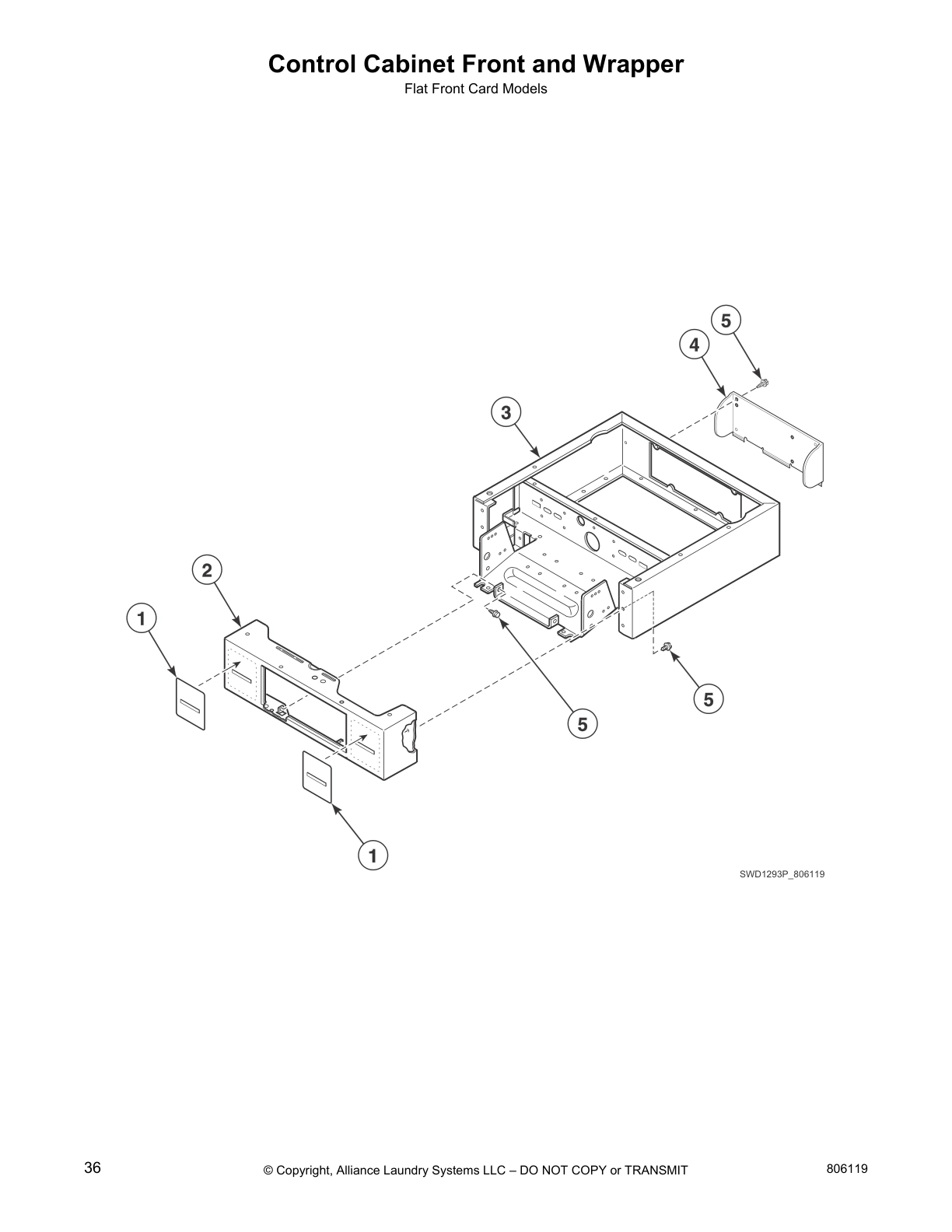

Control Cabinet Front and Wrapper
Front Panel, Door Assembly and Door Seal

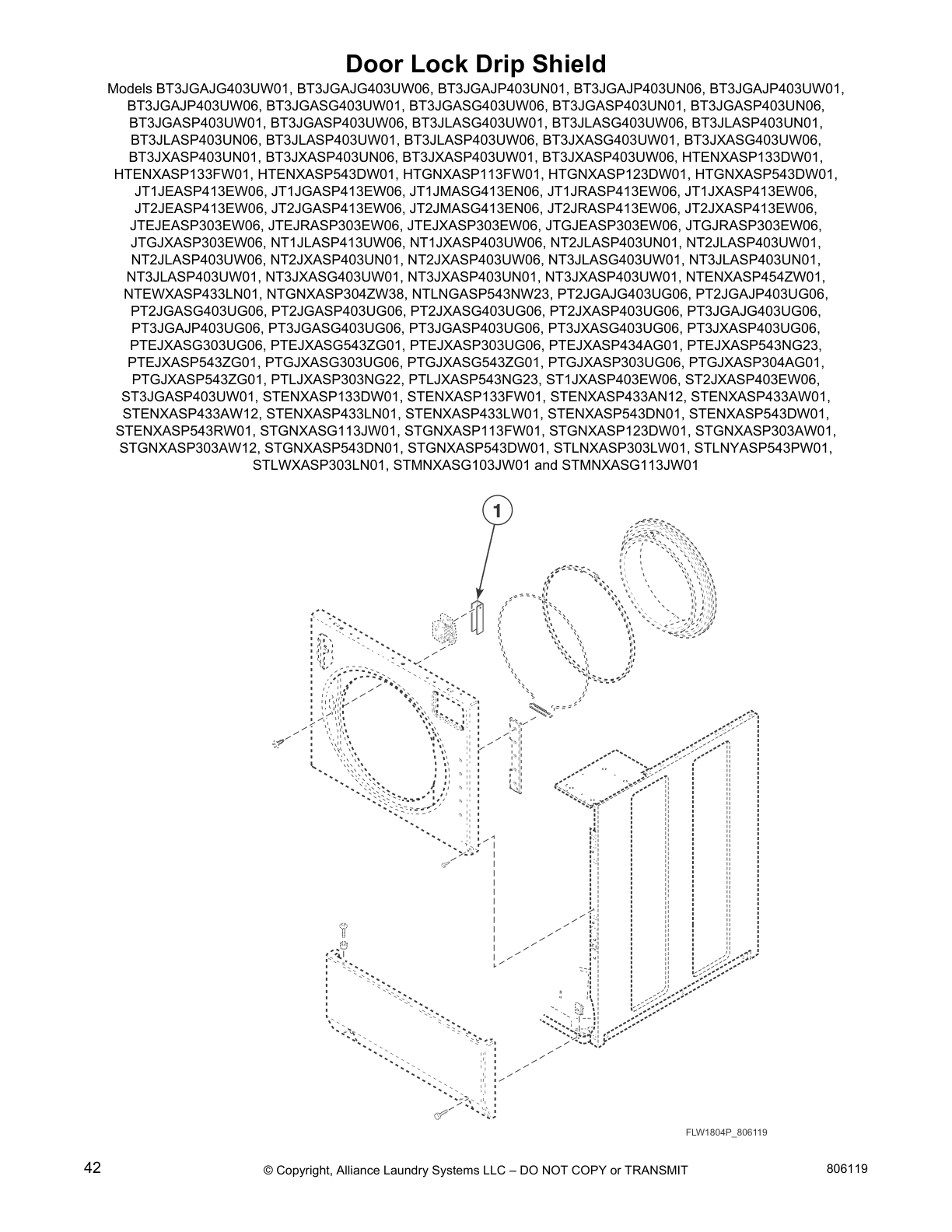

Door Lock Drip Shield
Dispenser Assembly
Mixing Valve
Fill Hose
Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt (Drawing 1 of 2)
Motor and Belt (Drawing 2 of 2)
Drain Hose and Valve
Drain Hose and Pump
Drain Pump Shield
Washer Base, Side Panels and Rear Panel
Washer Junction Box
Supply Injection Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips
Dryer Door Without Window (Drawing 1 of 2)
Dryer Door Without Window (Drawing 2 of 2)
Dryer Door With Window (Drawing 1 of 2)
Dryer Door With Window (Drawing 2 of 2)
Dryer Door With Window - Through Serial No. 1706999999
Dryer Door With Window - Starting Serial No. 1707000001
Front Panel and Seal
Access Panel
Blower Housing
Shields
Motor
Thermistor, Exhaust Fan and Belt
Idler Assembly
Front Bulkhead, Felt Seal and Cylinder
Air Duct Assembly (Drawing 1 of 2)
Air Duct Assembly (Drawing 2 of 2)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly (Drawing 1 of 2)
Heater Duct and Element Assembly (Drawing 2 of 2)
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Starting Serial No. 1908000001

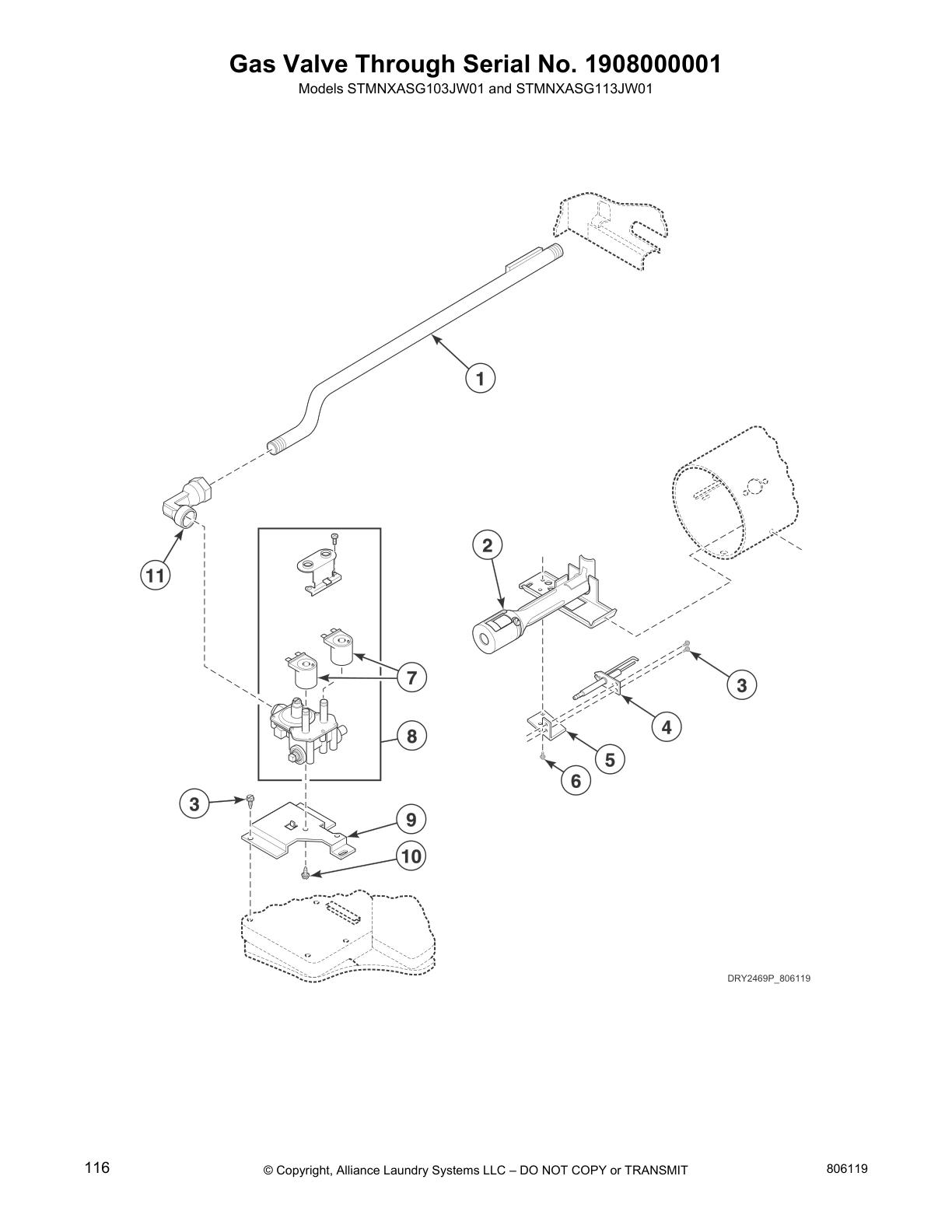

Gas Valve Through Serial No. 1908000001

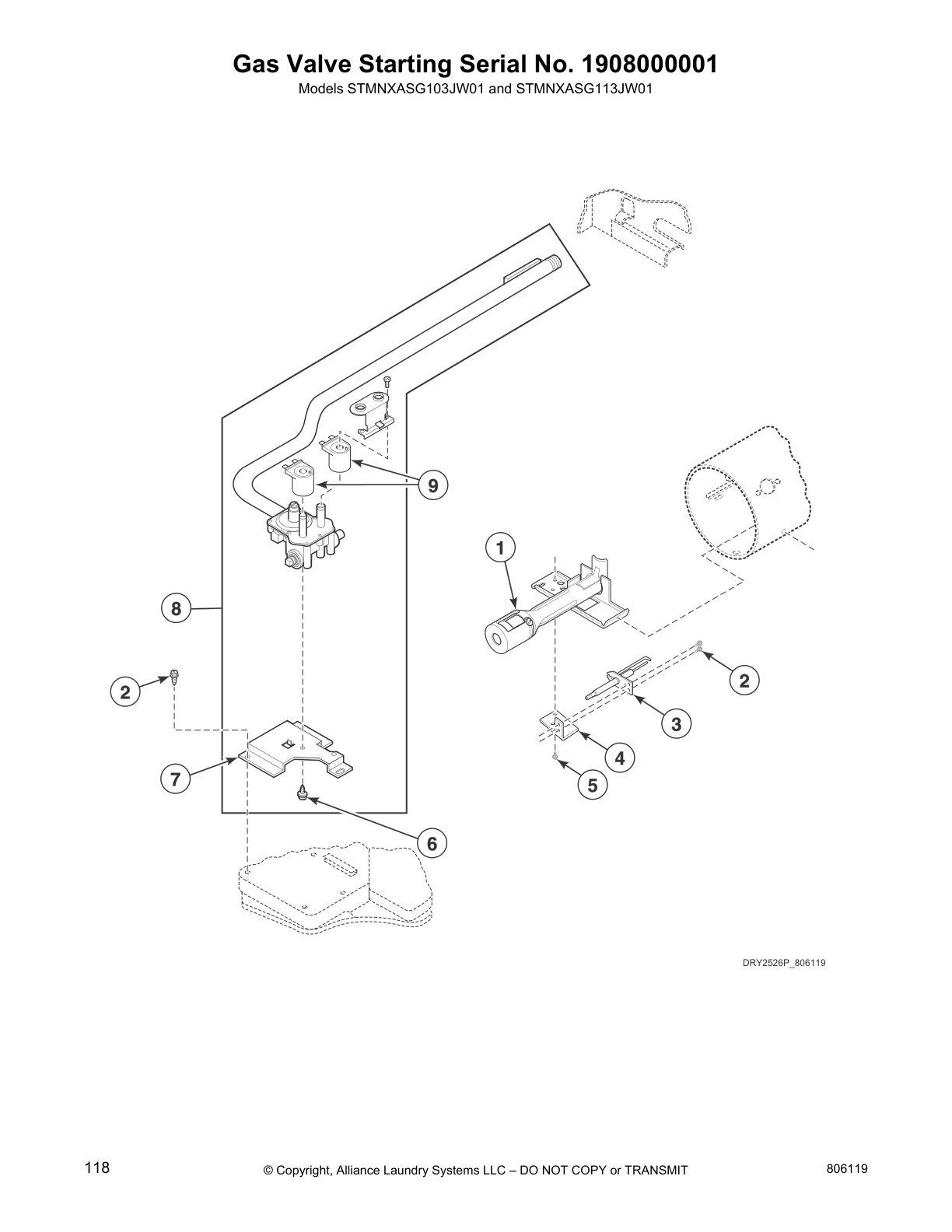

Gas Valve Starting Serial No. 1908000001

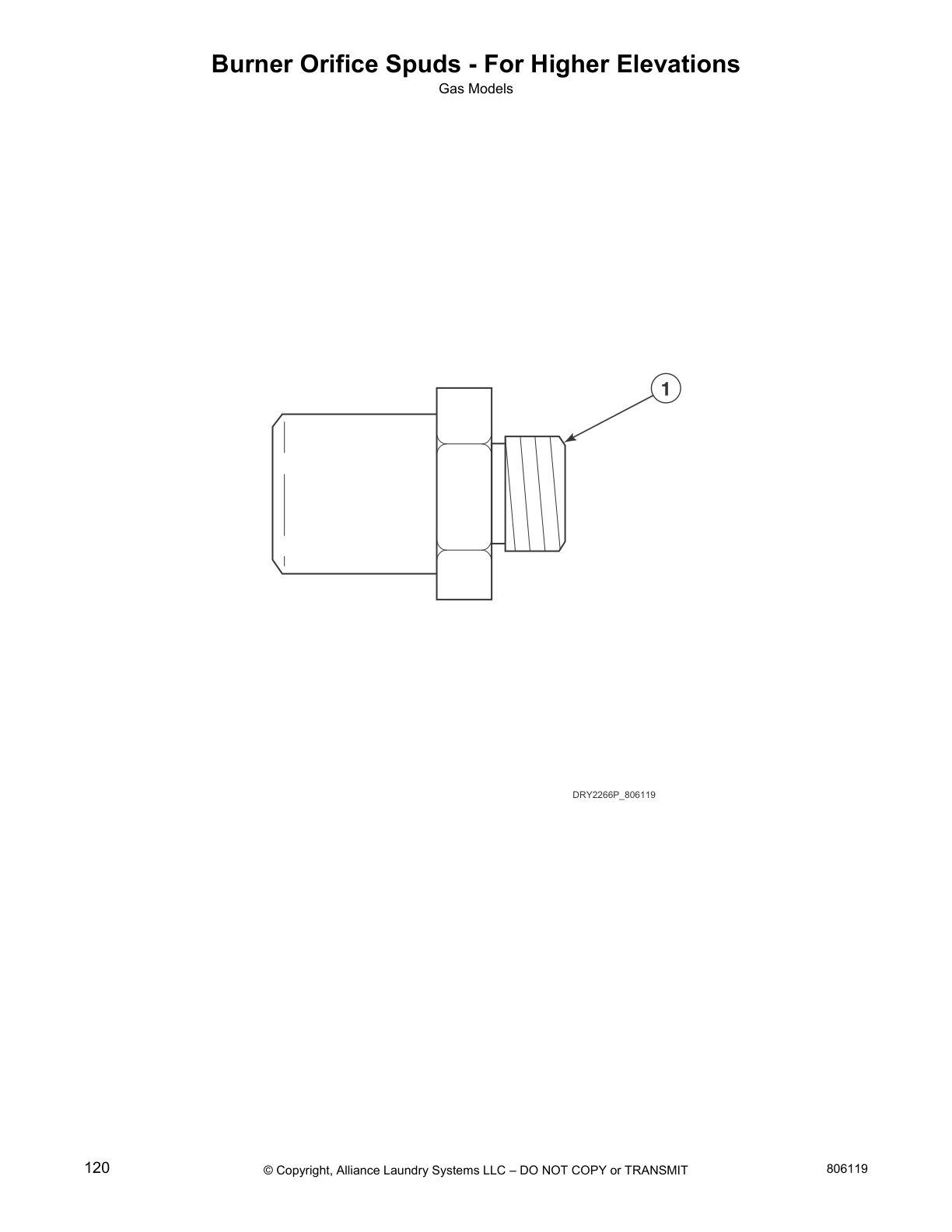

Burner Orifice Spuds - For Higher Elevations
Dryer Cabinet and Exhaust Duct
Output Control Assembly

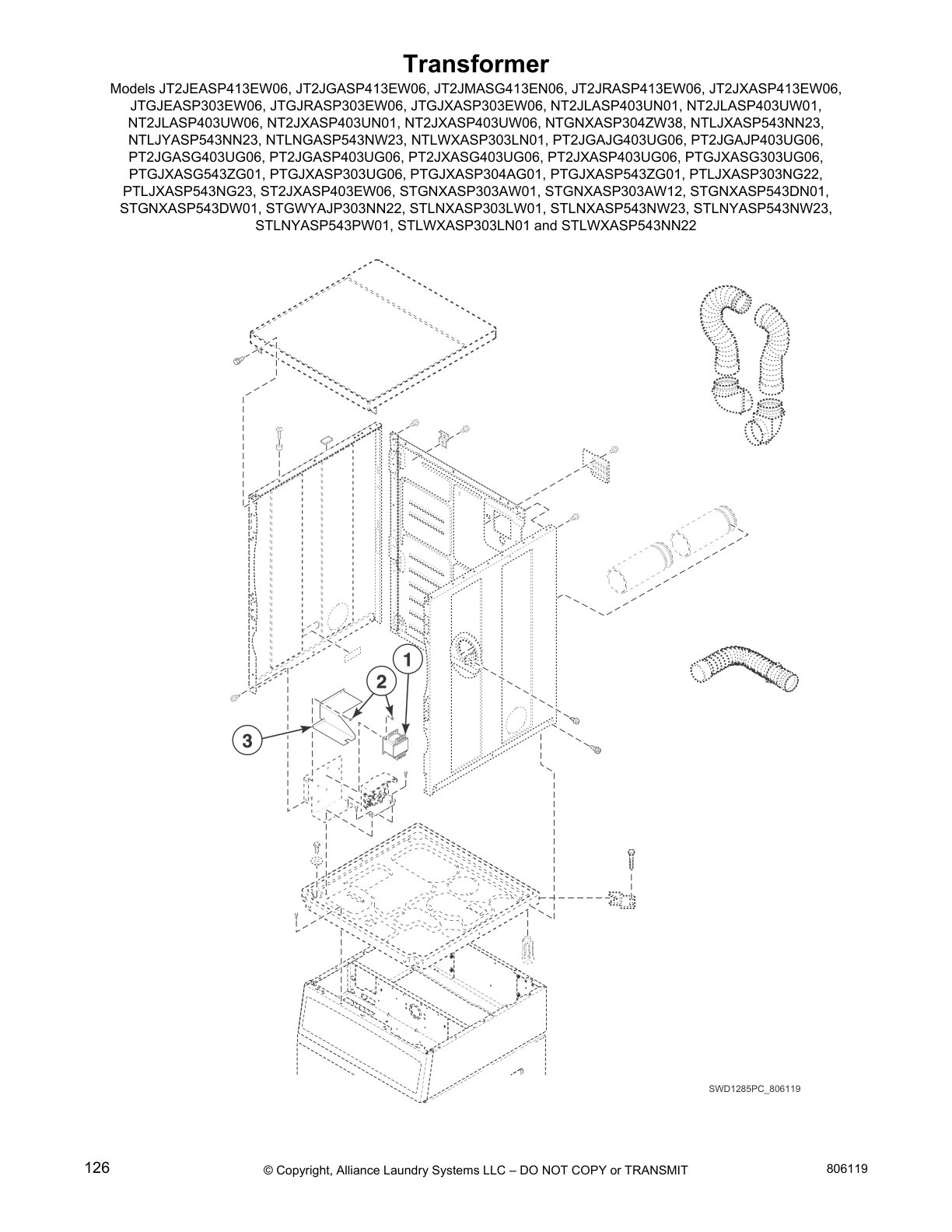

Transformer
Dryer Base
Ignition Control Module
Dryer Lead-In Cord (Drawing 1 of 2)
Dryer Lead-In Cord (Drawing 2 of 2)
Junction Box (Drawing 2 of 2) - Through Serial No. 1912999999
Junction Box (Drawing 2 of 2)
Dryer Terminals and Terminal Extractor Tools
Terminals
Dryer Labels
Washer Labels
Shipping Materials
Special Tools
Miscellaneous Wire Harnesses
Washer Wire Harnesses and Wires (Drawing 1 of 2)
Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Primus PTLJXASP543NG23 Stacked Washer and Dryer
3
Coin Drop SPQ 70441601P No Longer Available
7
Wiring Harness Assembly SPQ 54612 No Longer Available
16
Pump Housing SPQ 802434P Contact Us For Availability
17
Gasket SPQ 802428 Contact Us For Availability
× ![]()
