Model KUDL15FXSS7 – Common Parts & Diagrams

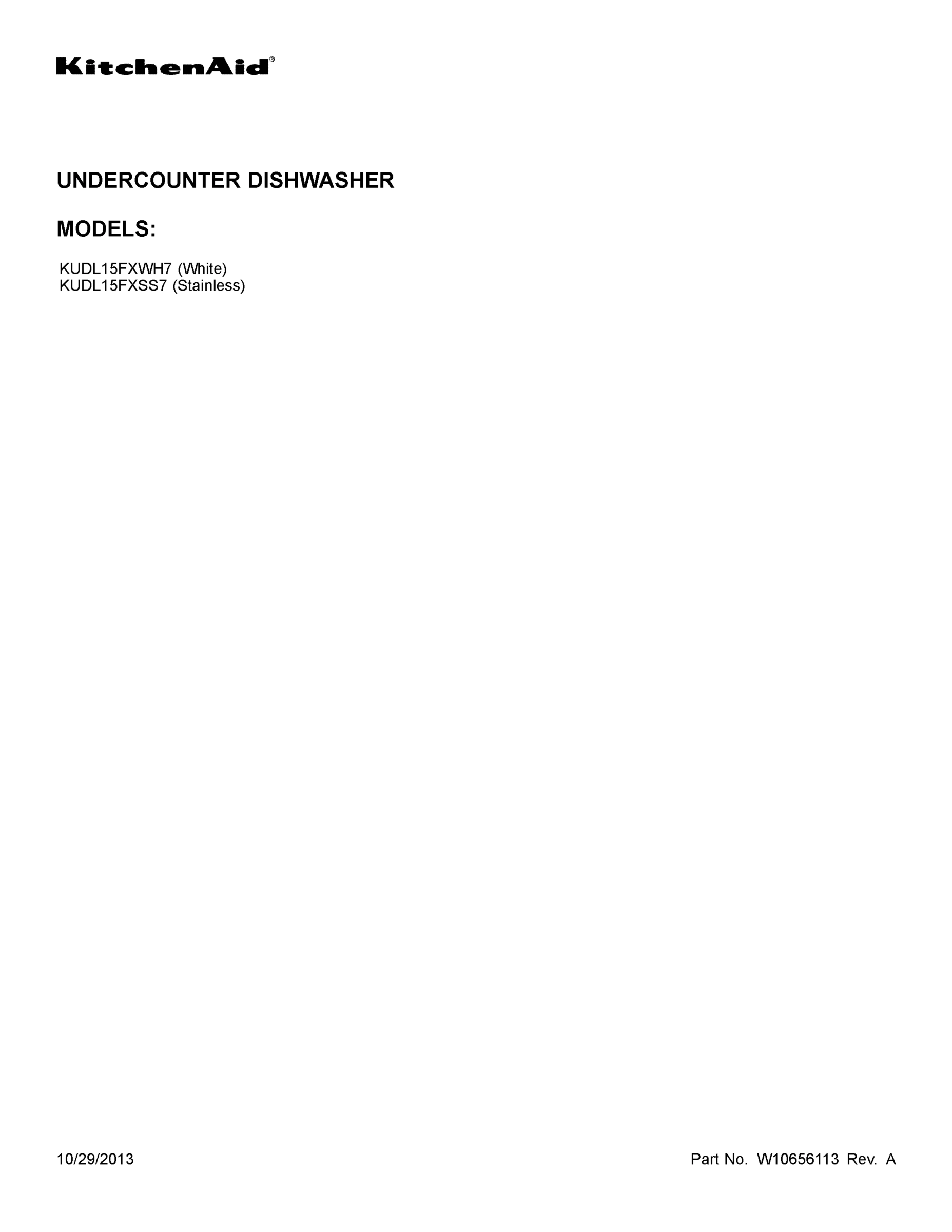

01 - COVER SHEET

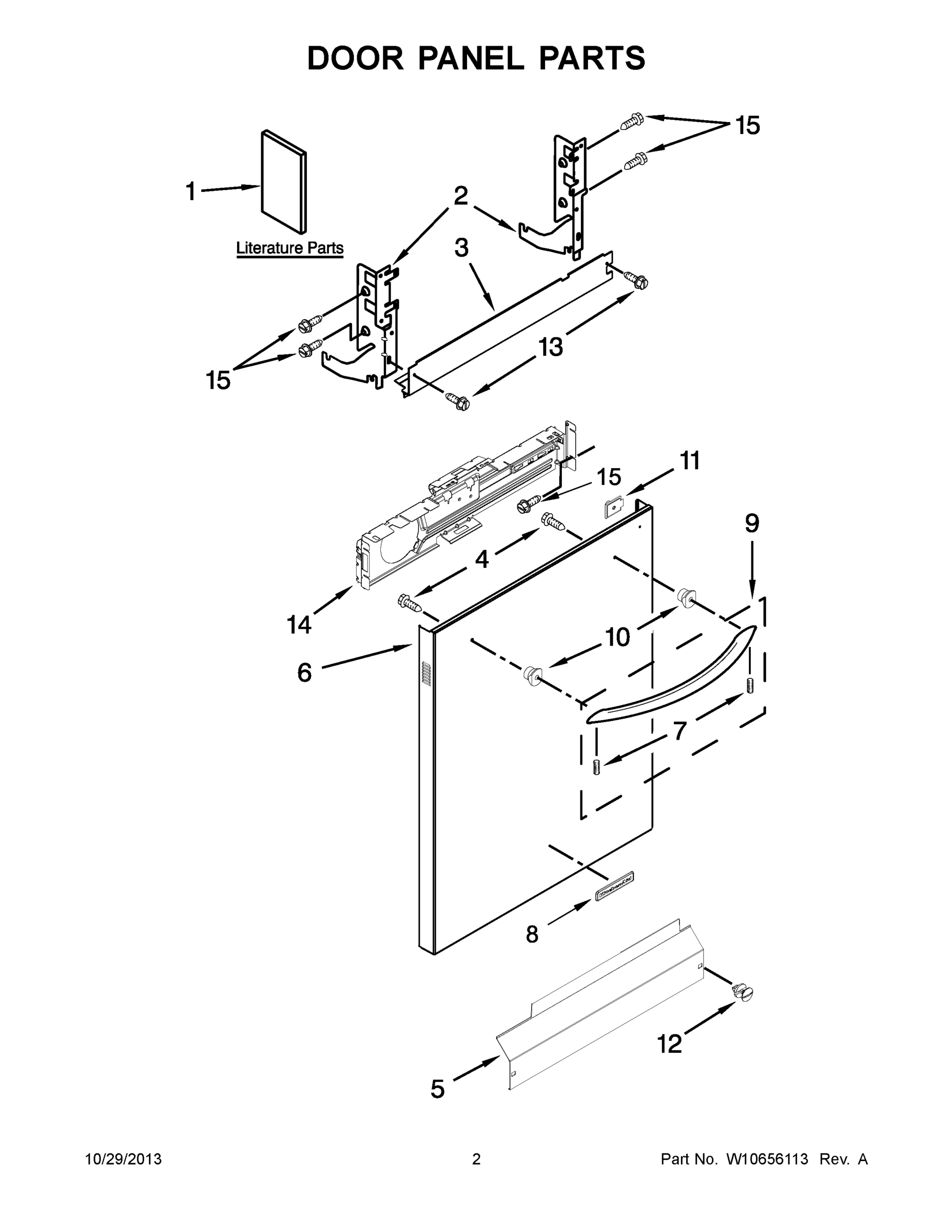

02 - DOOR PANEL PARTS

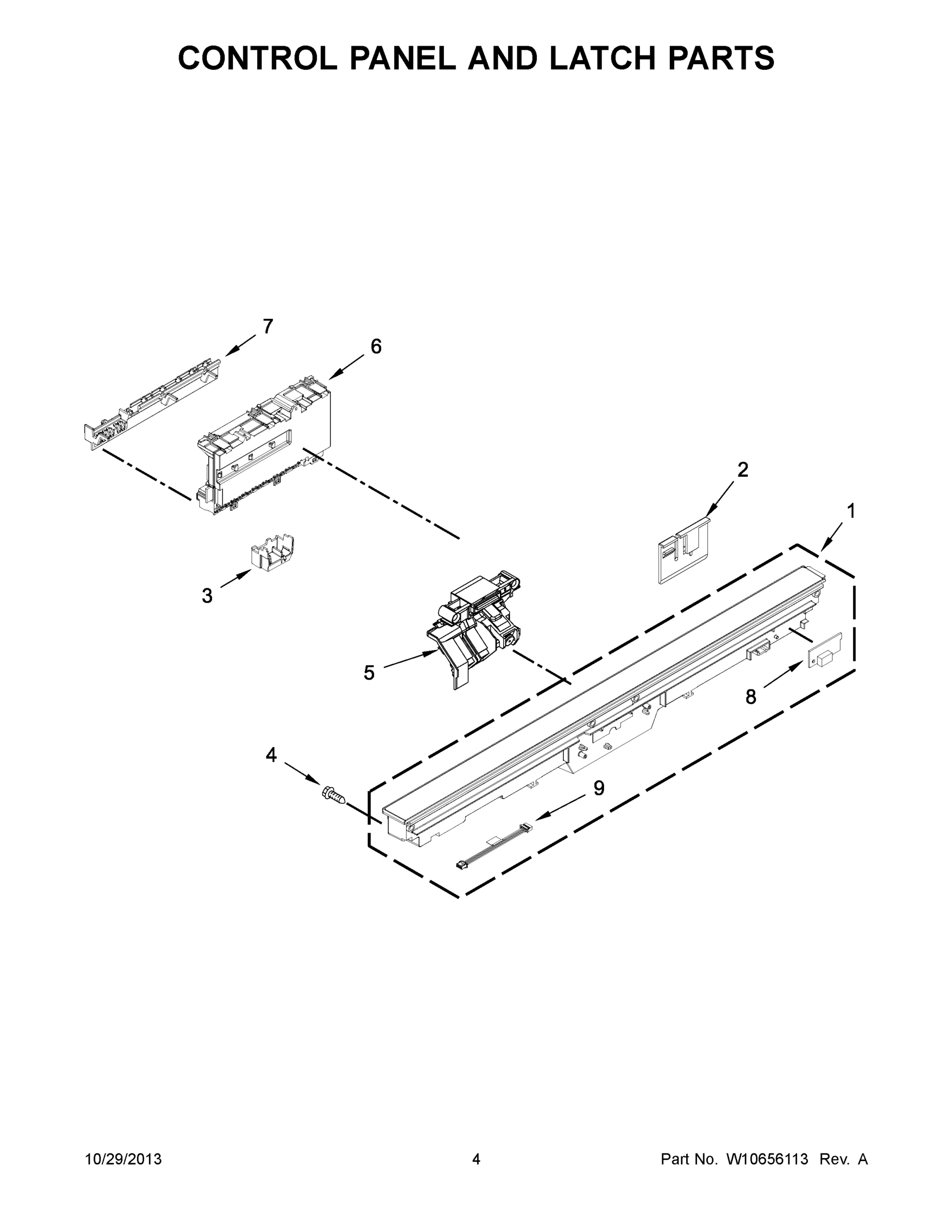

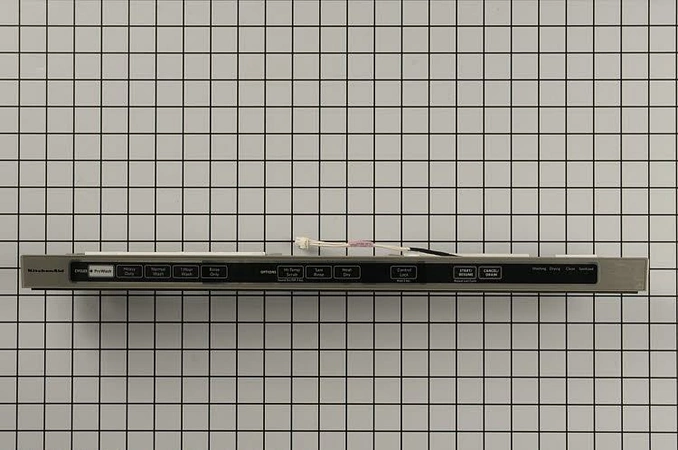

03 - CONTROL PANEL AND LATCH PARTS

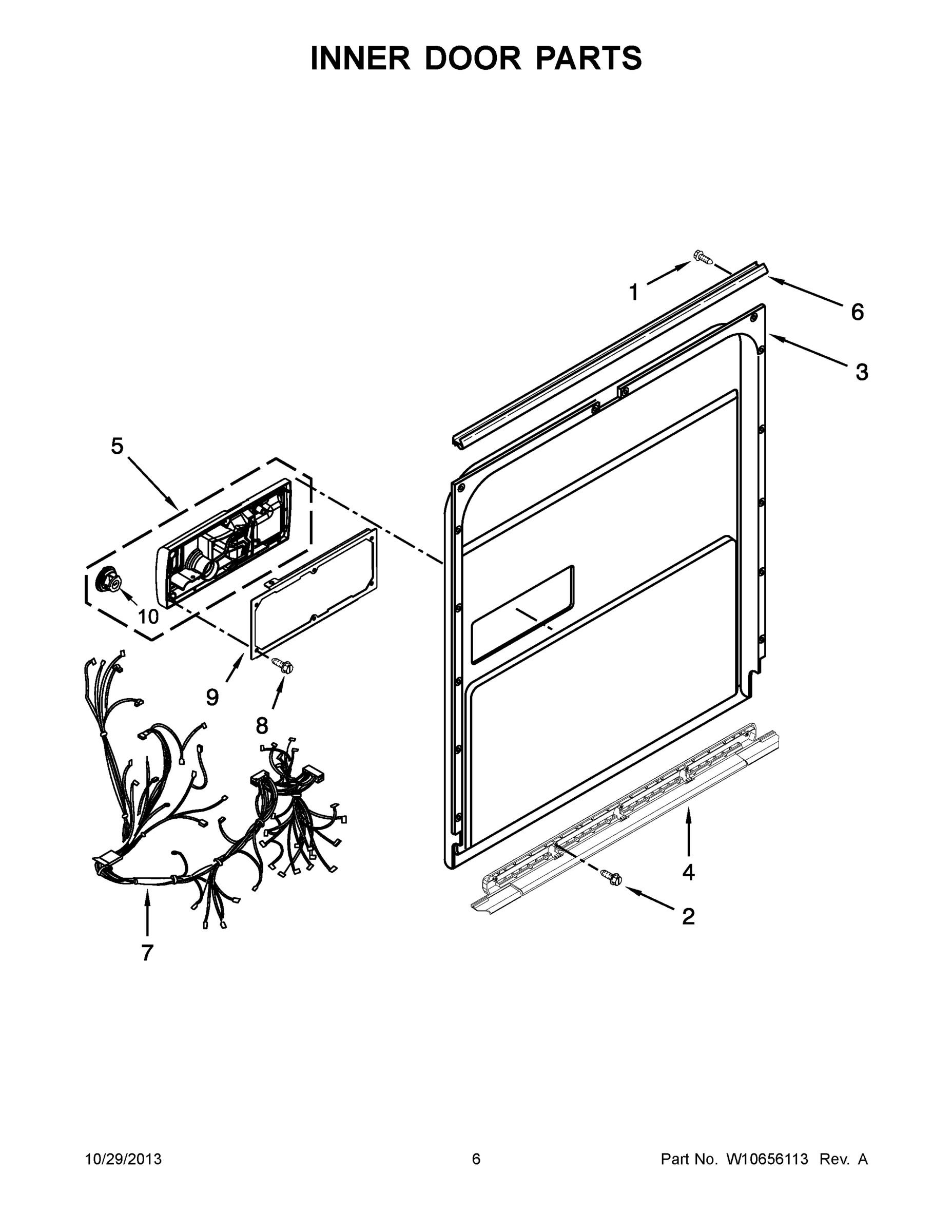

04 - INNER DOOR PARTS

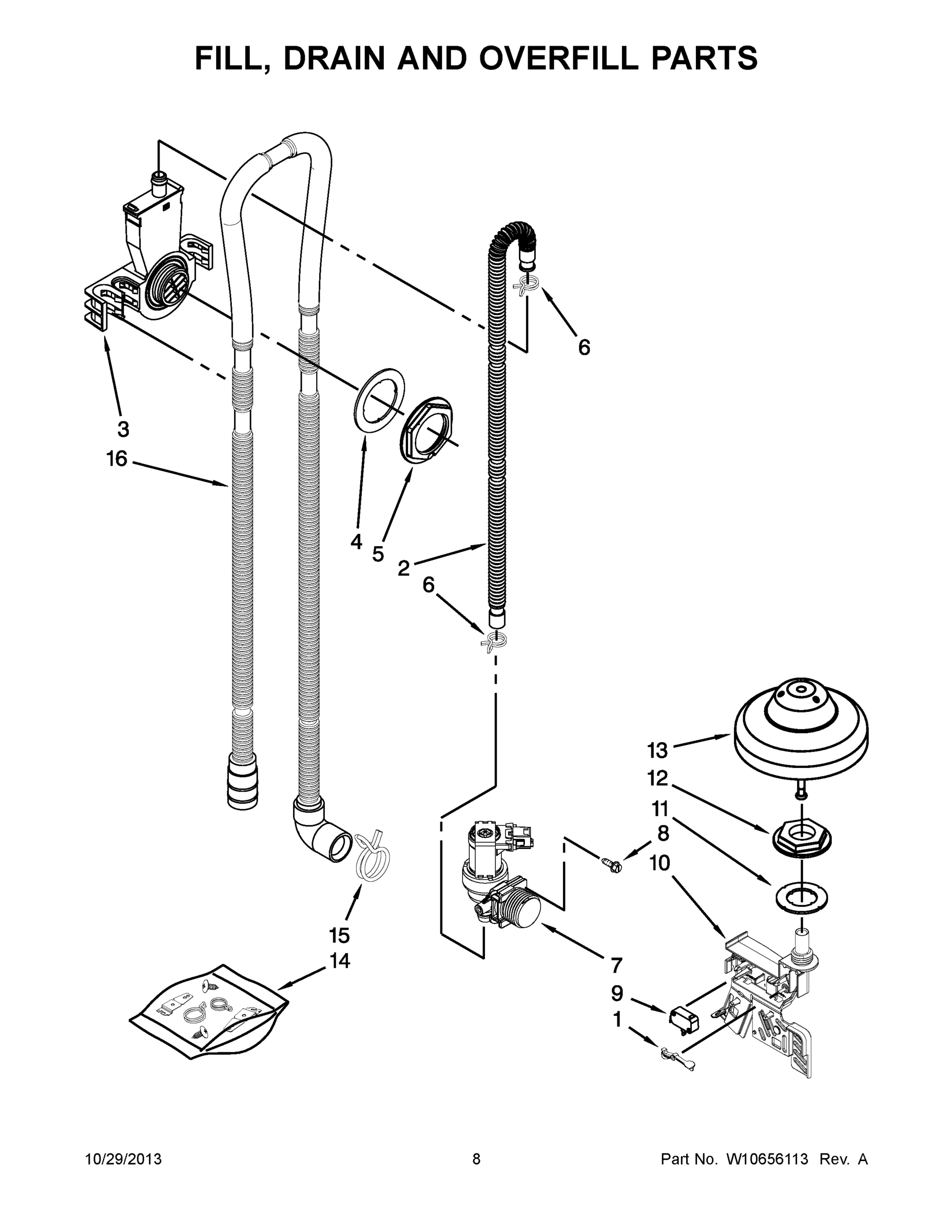

05 - FILL, DRAIN AND OVERFILL PARTS

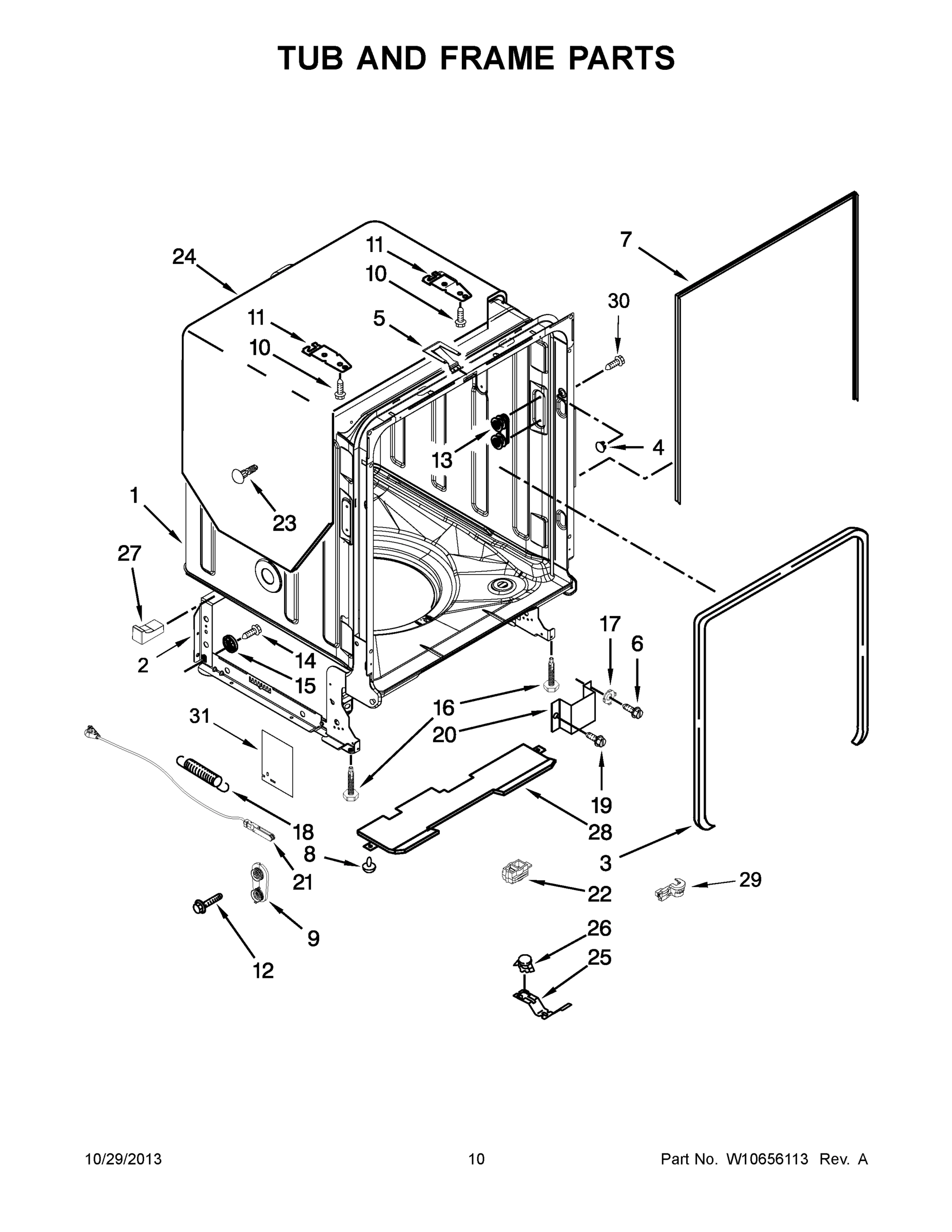

06 - TUB AND FRAME PARTS

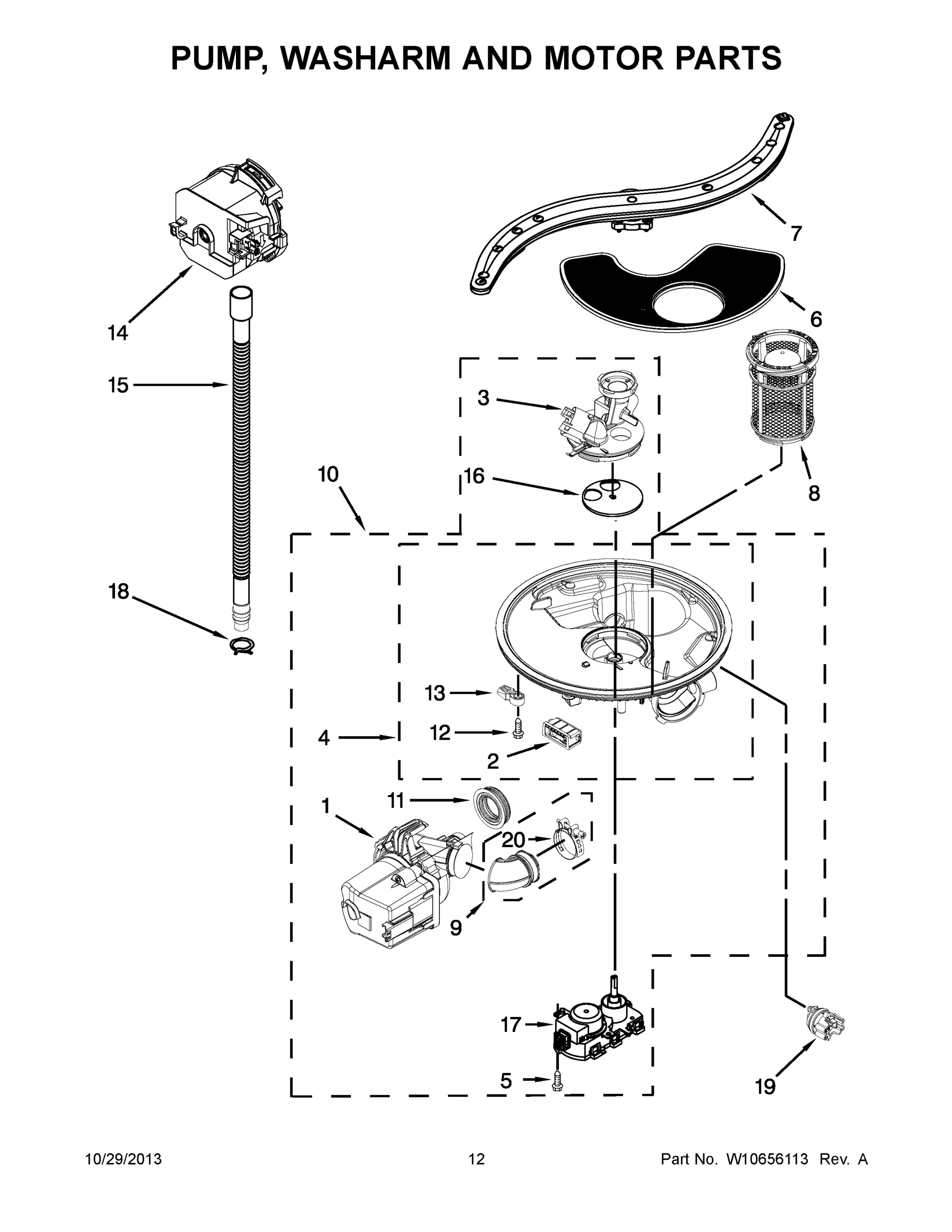

07 - PUMP, WASHARM AND MOTOR PARTS

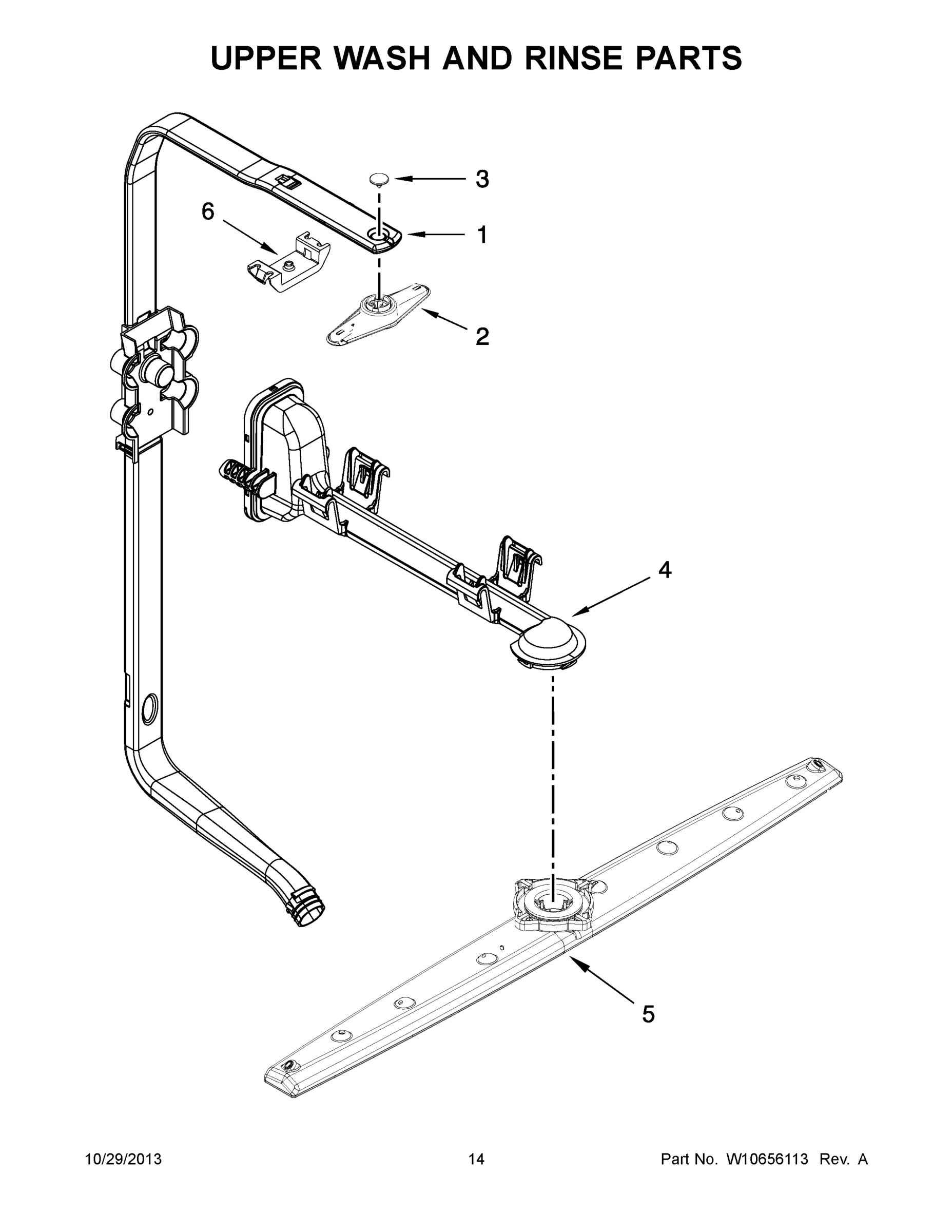

08 - UPPER WASH AND RINSE PARTS

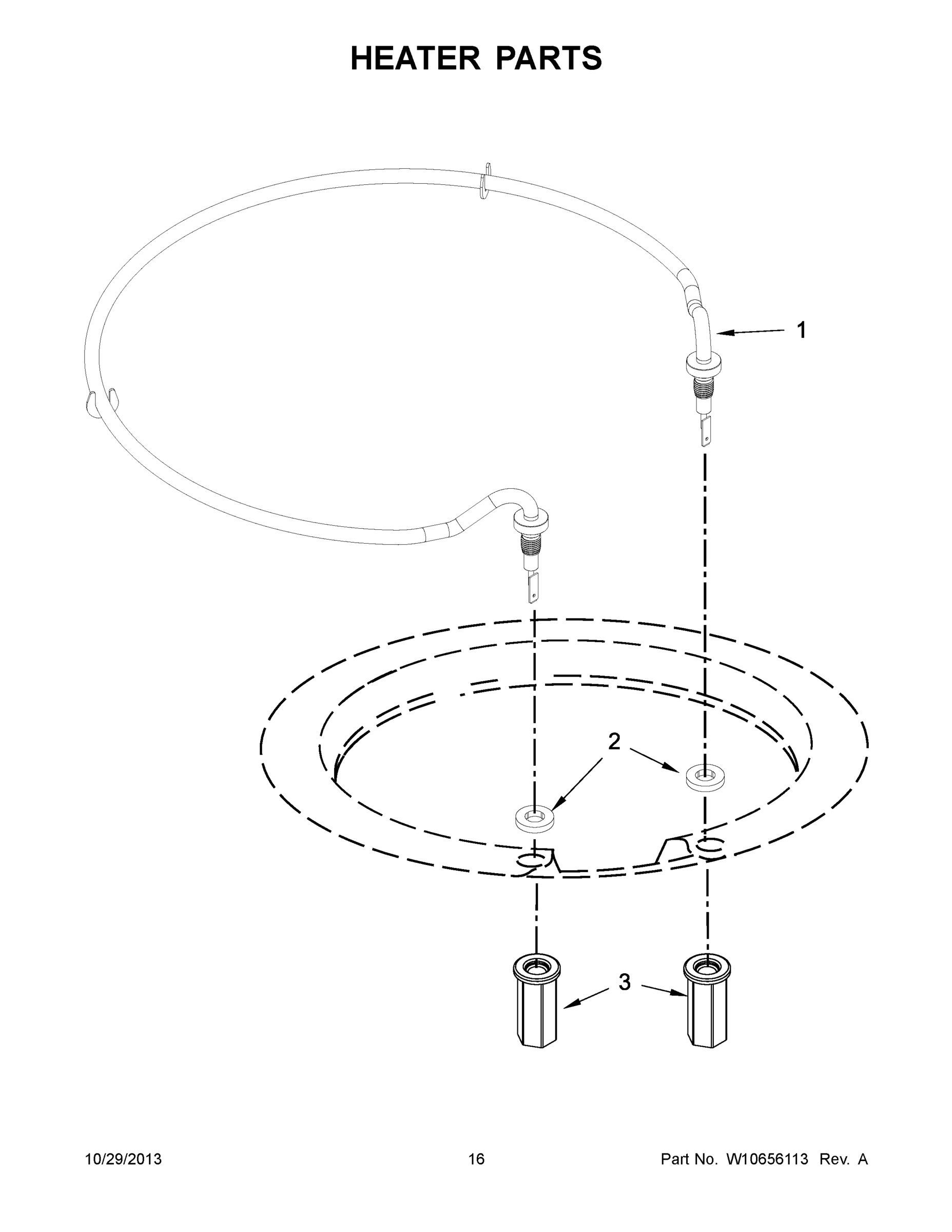

09 - HEATER PARTS

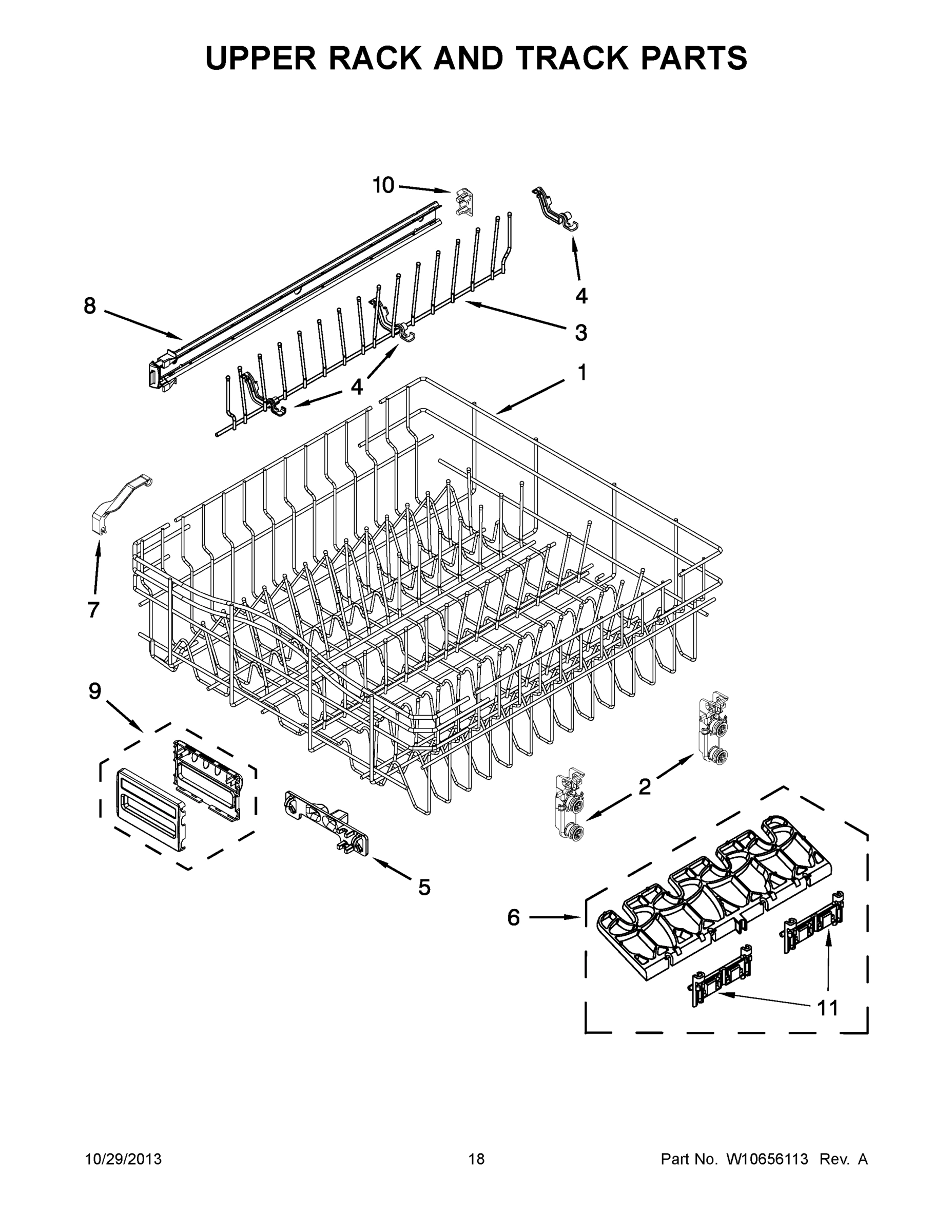

10 - UPPER RACK AND TRACK PARTS

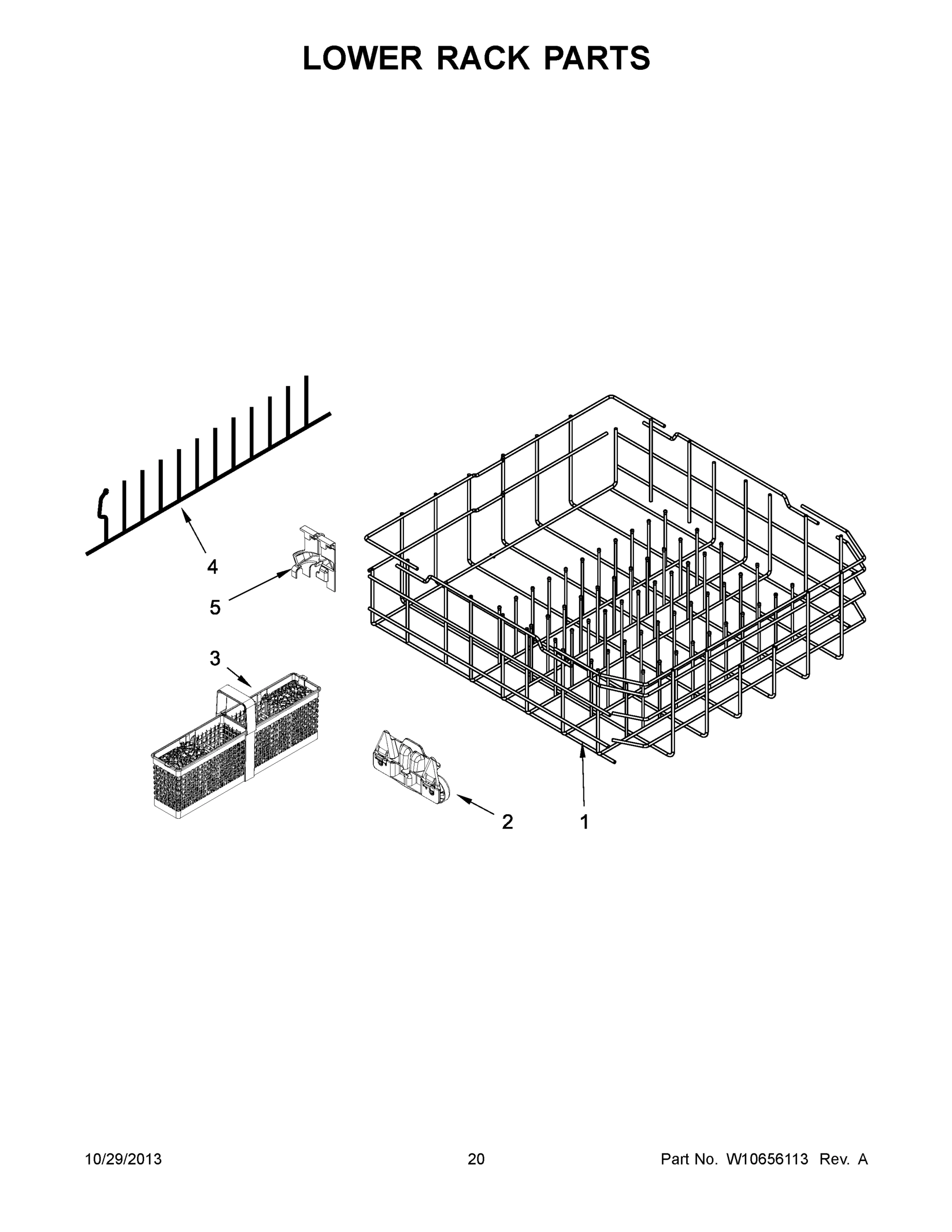

11 - LOWER RACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
