Model GE ATEE9AWP433AW01 General Electric Model ATEE9AWP433AW01 – Common Parts & Diagrams

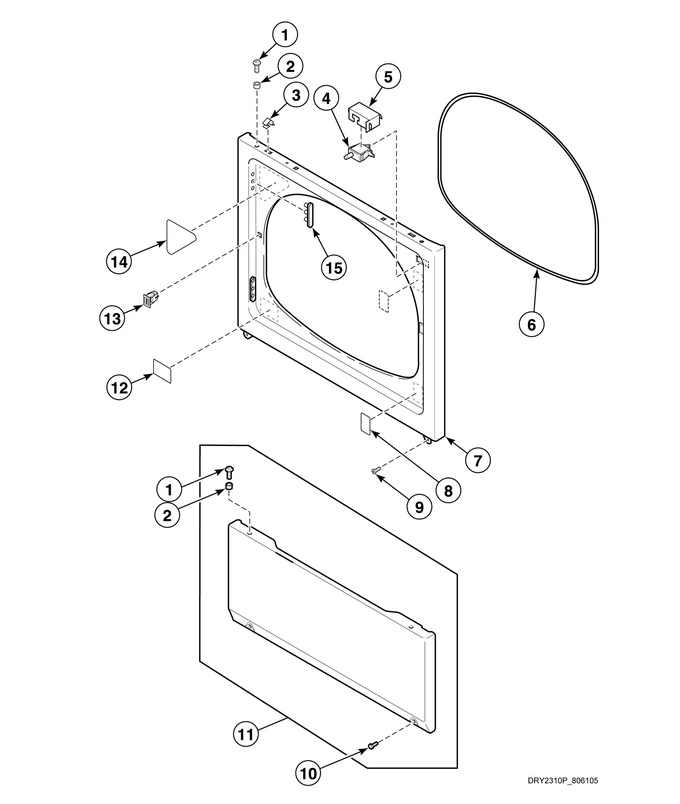

Access Panel, Front Panel and Seal (Drawing 5 of 5)
Air Duct (Drawing 3 of 3)
Base, Side Panels and Rear Panel
Blower Housing and Shields

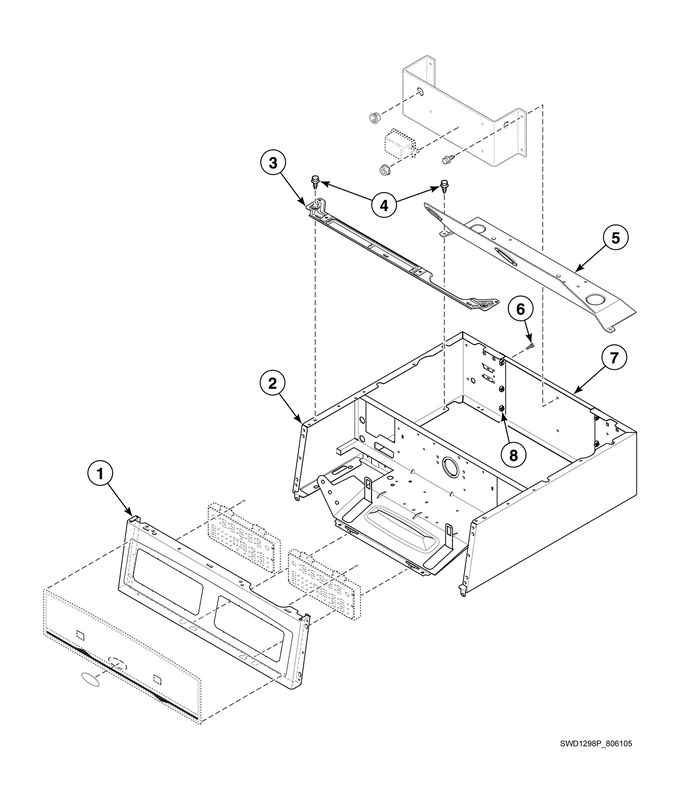

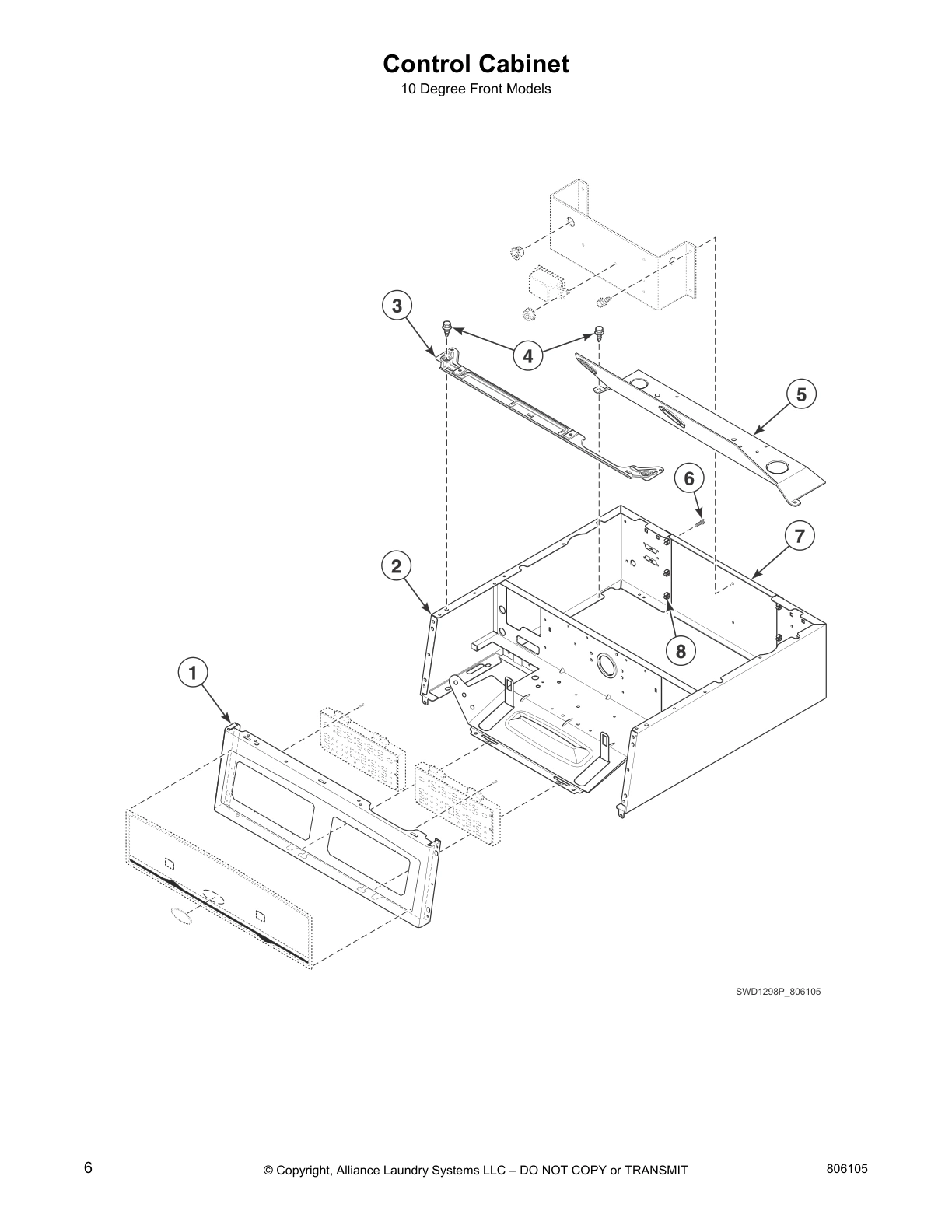

Control Cabinet (10 Degree Front Models)
Control Cabinet Line Filter

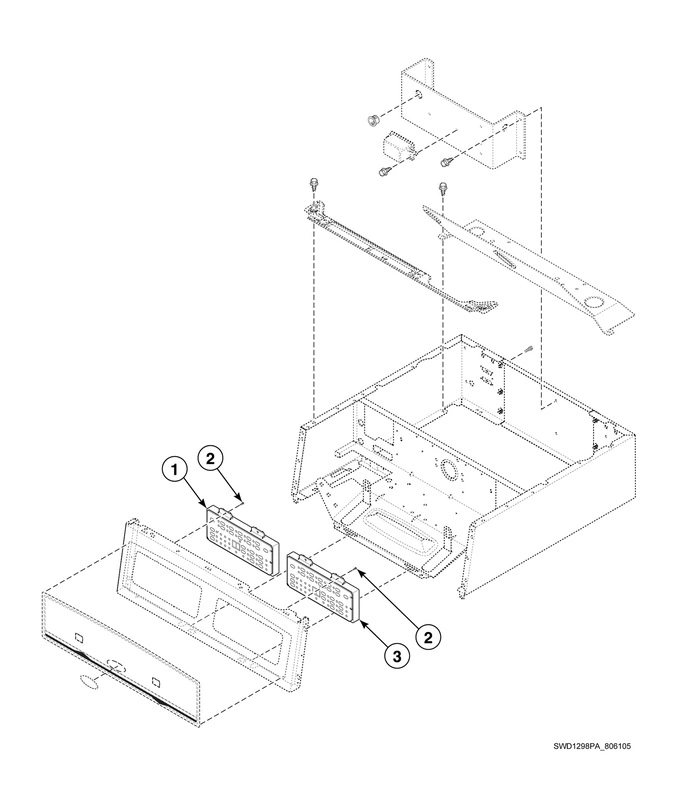

Controls (10 Degree Front Models)

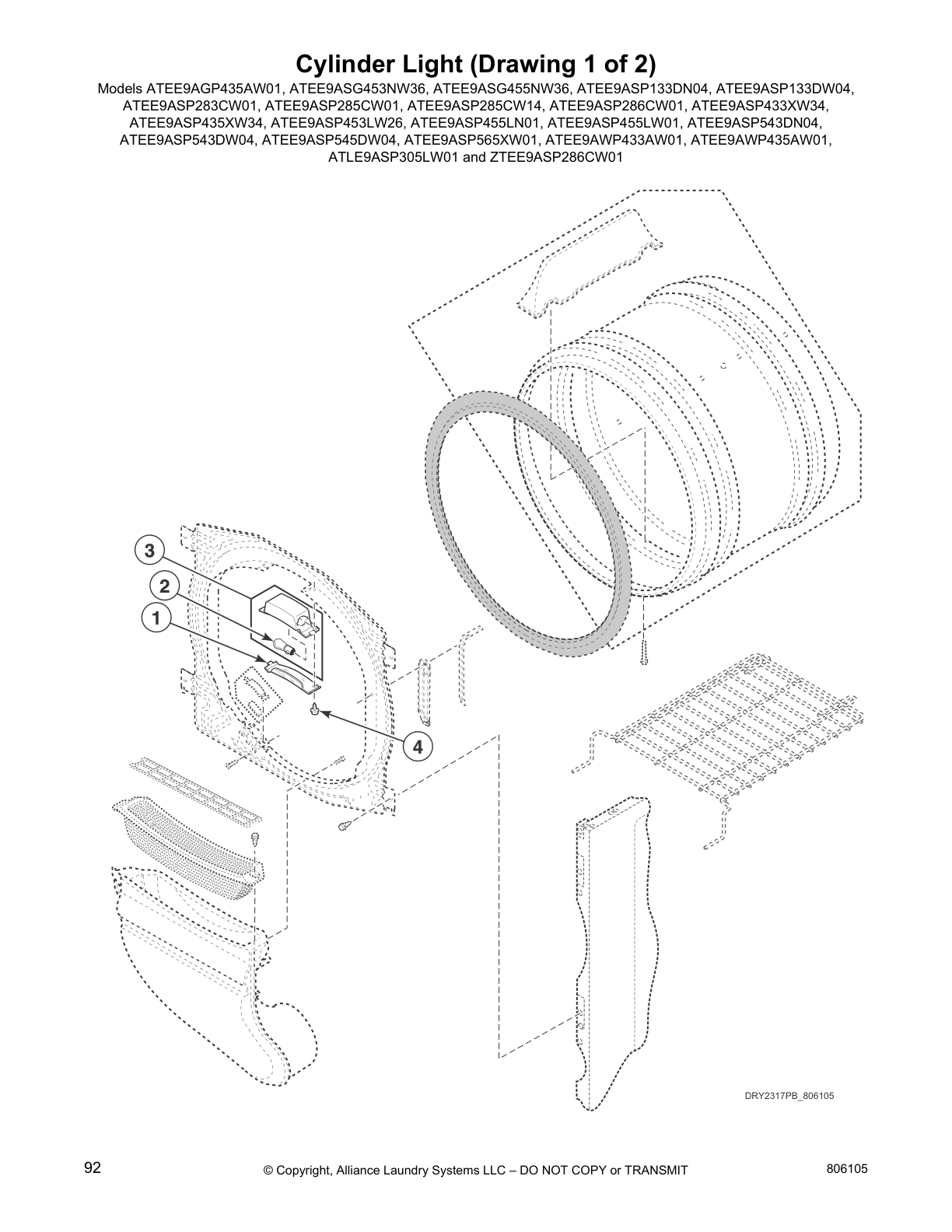

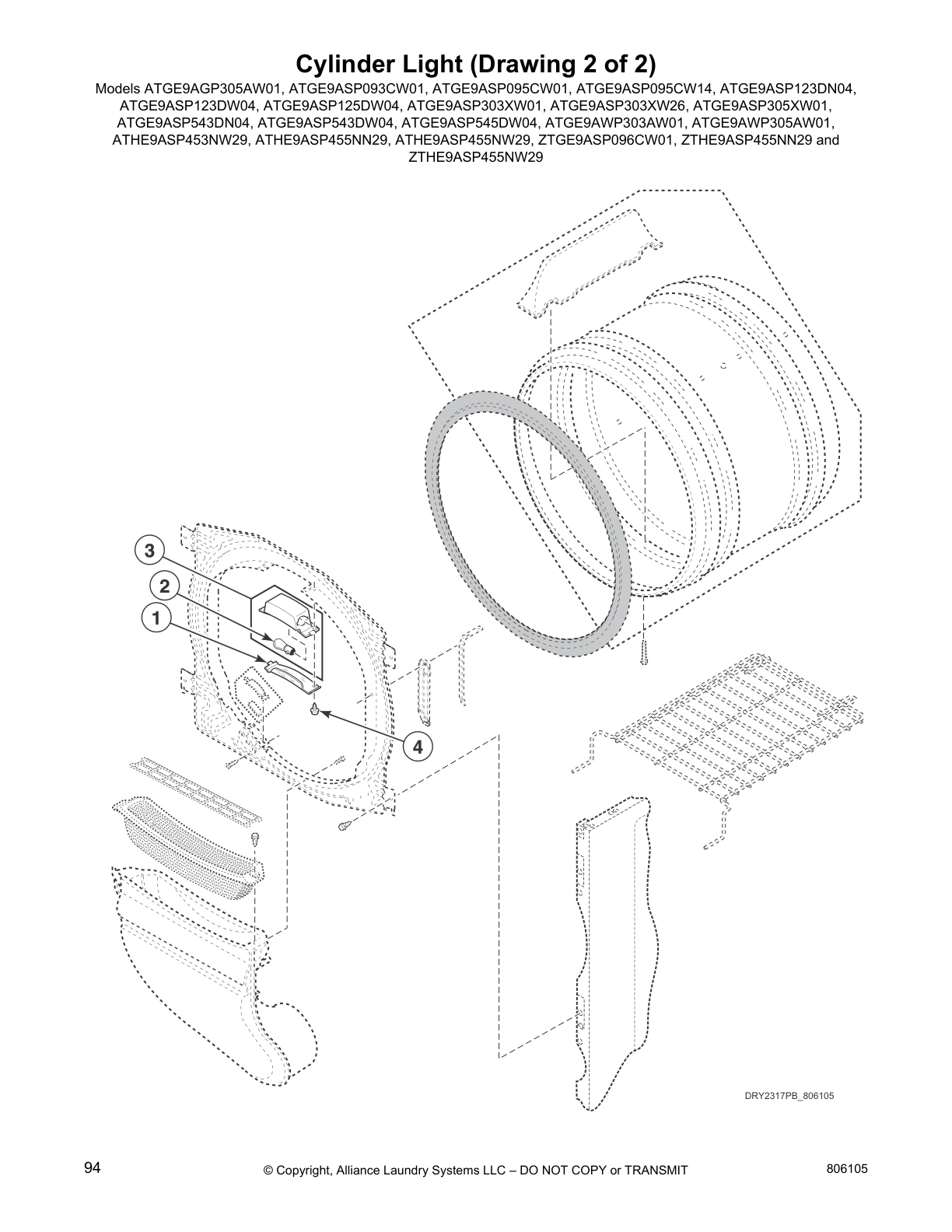

Cylinder Light (Drawing 1 of 2)
Dispenser Assembly
Door Assembly and Door Seal
Drain Hose and Pump (Drawing 1 of 2)
Drain Hose and Pump (Drawing 2 of 2)
Dryer Cabinet, Exhaust Duct and Base

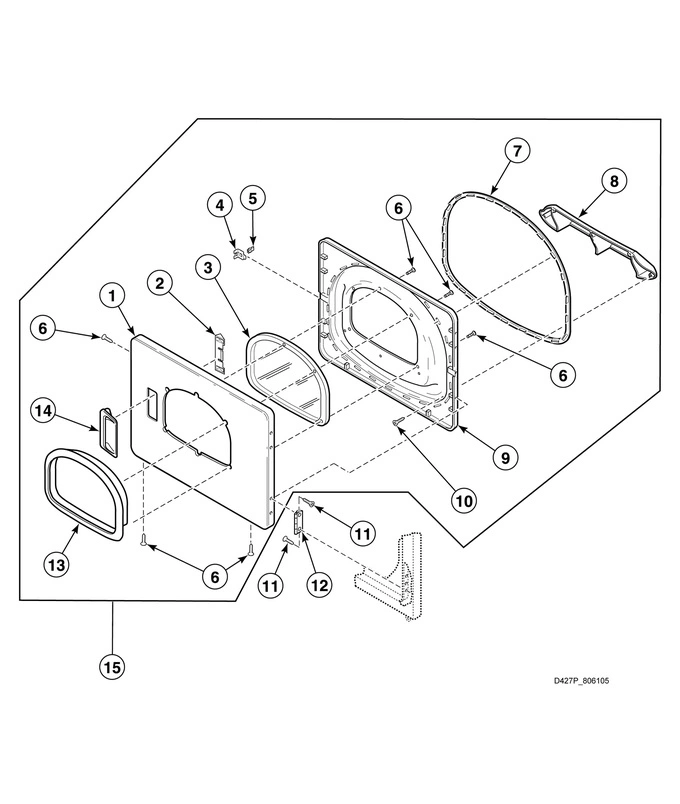

Dryer Door With Window (Drawing 2 of 2)

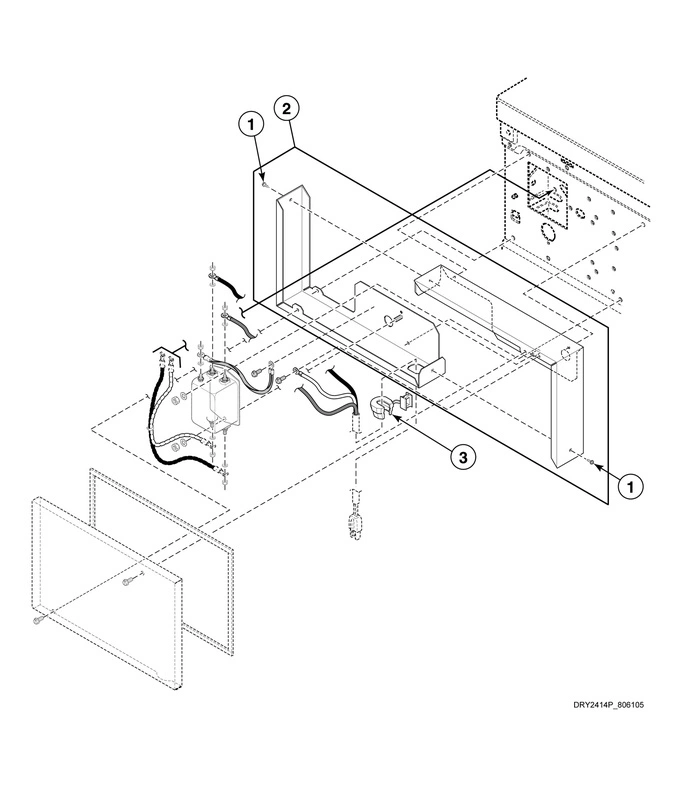

Dryer Junction Box (Drawing 1 of 3)
Dryer Junction Box (Drawing 2 of 3)
Dryer Junction Box (Drawing 3 of 3)
Dryer Labels
Fill Hose
Front Bulkhead, Felt Seal and Cylinder
Front Panel
Heater Duct and Element Assembly (Electric Models)

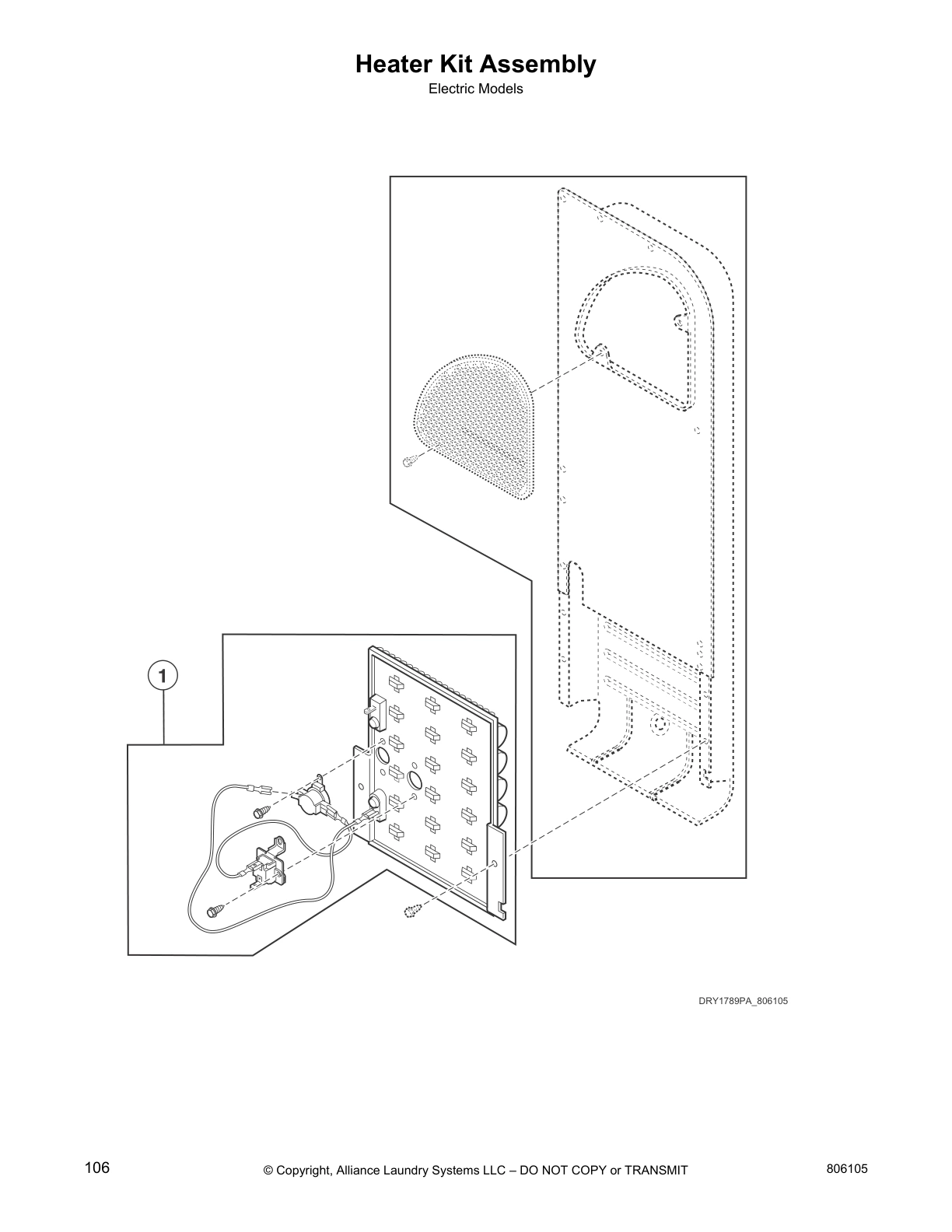

Heater Kit Assembly (Electric Models)
Idler Assembly
Inner Basket, Trunnion, Bearing Housing and Pulley

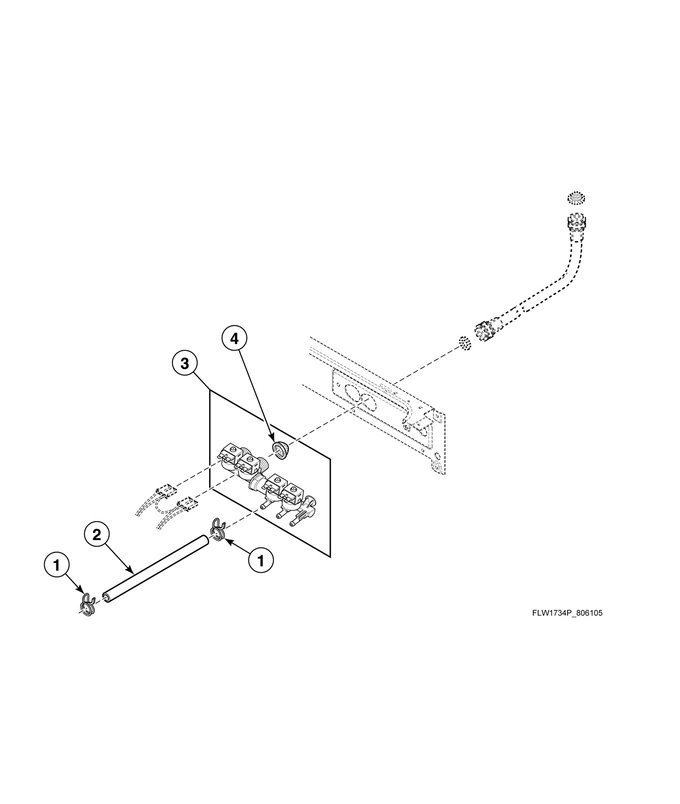

Mixing Valve and Valve-to-Dispenser Hose
Motor and Belt
Motor, Exhaust Fan and Belt
Outer Tub, Front and Clamp Ring

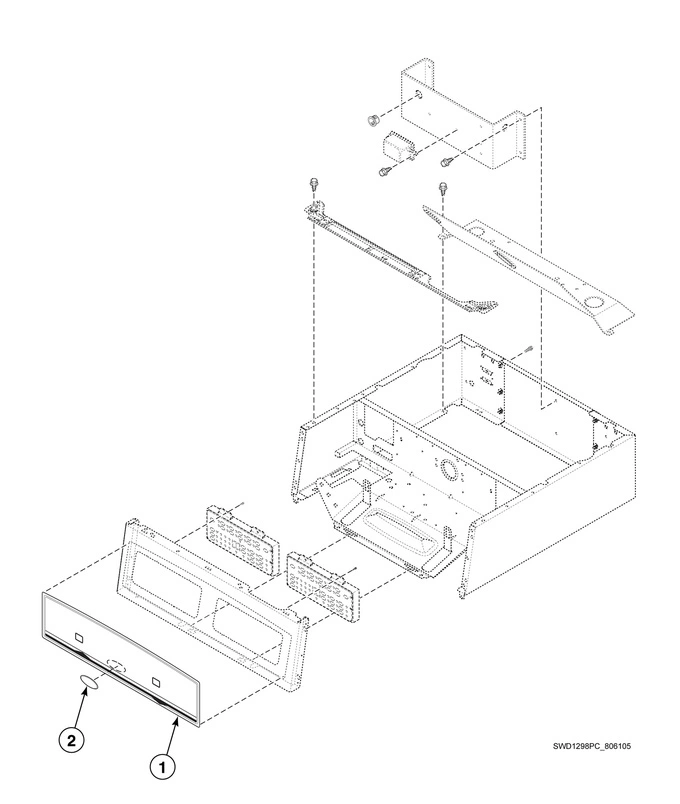

Overlay (10 Degree Front Models)
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Shipping Materials
Special Tools
Washer Junction Box

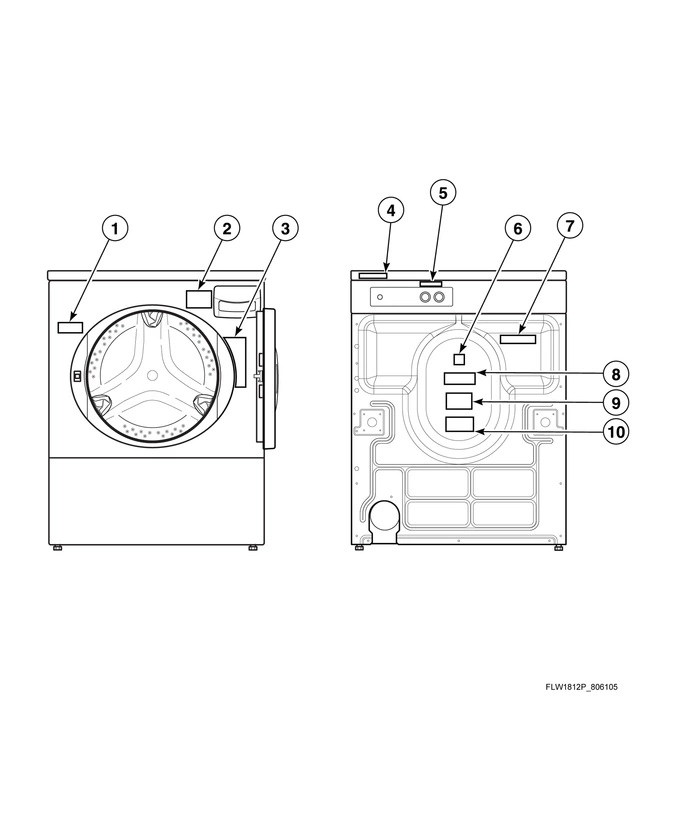

Washer Labels

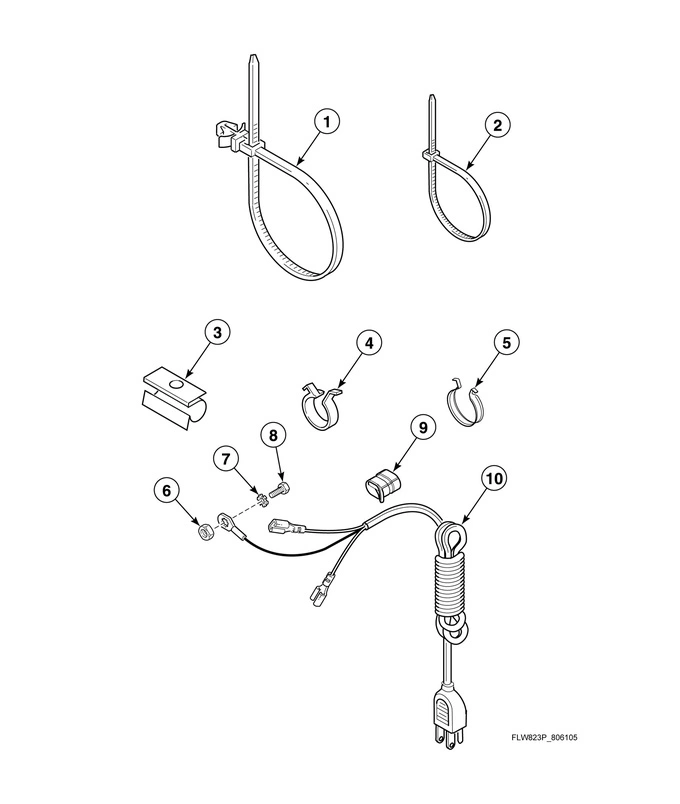

Washer Lead-In Cord, Wire Ties and Harness Clips

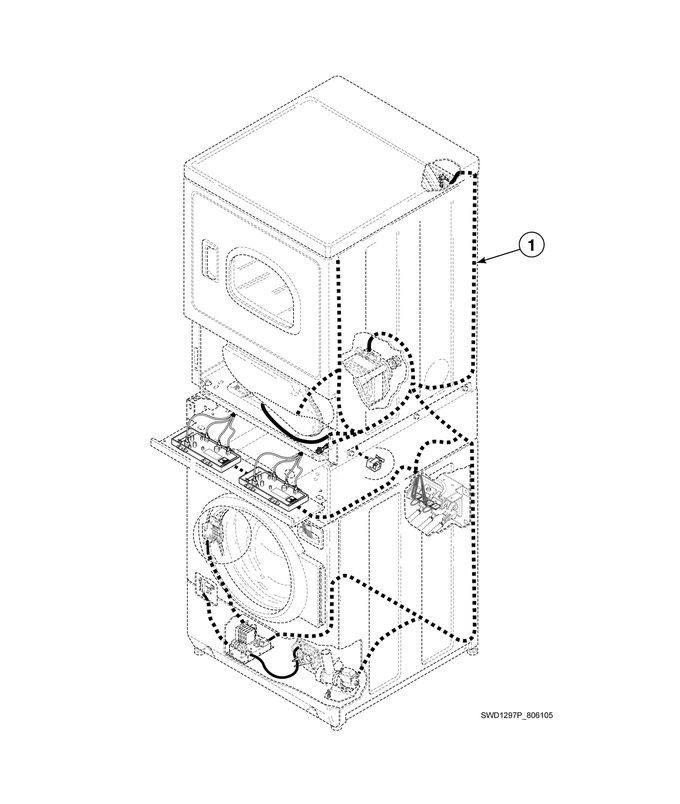

Wire Harnesses and Wires (Drawing 1 of 2)
Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model GE ATEE9AWP433AW01 General Electric Model ATEE9AWP433AW01
1
Screw GEN D501086 Contact Us For Availability
1
Bumper Pad GEN 36226 Contact Us For Availability
1
Blower Housing Seal GEN D510238P Contact Us For Availability
1
Control Panel (Comment: Black) GEN 803960B Contact Us For Availability
1
Control Panel (Comment: White) GEN 803960WP Contact Us For Availability
1
Nut GEN 29787 Contact Us For Availability
1
Control Assembly (Comment: Washer) GEN 805236P Contact Us For Availability
1
Cylinder Light Lens GEN D512106 Contact Us For Availability
1
Dispenser Plate GEN 803843 Contact Us For Availability
1
Outer Door Bezel (Comment: Black) GEN 803710BP Contact Us For Availability
1
Outer Door Bezel (Comment: White) GEN 803710WP Contact Us For Availability
1
Outer Door Bezel (Comment: Gray) GEN 803711P Contact Us For Availability
1
Drain Hose Sleeve GEN 33615 Contact Us For Availability
1
Dryer Door GEN D510082WP Contact Us For Availability
1
Lead-In Cord Kit GEN 61605P Contact Us For Availability
1
Washer (Comment: Flow restrictor, Water press GEN 802254 Contact Us For Availability
1
Washer (Comment: Filter screen) GEN 803615 Contact Us For Availability
1
Bulkhead Assembly (Comment: White, Includes i GEN D505899WP Contact Us For Availability
1
Front Bulkhead (Comment: Galvanized) GEN D513638 Contact Us For Availability
1
Cylinder Seal Assembly GEN D510207P Contact Us For Availability
1
Adhesive (Comment: Apply to cylinder seal) GEN D511637P Contact Us For Availability
1
Seal Kit (Comment: Includes 2 cylinder seals, GEN RB170001 Contact Us For Availability
1
Heater Kit Assembly (Comment: 4000 Watt, 240 GEN 61930 Contact Us For Availability
1
Idler Spring GEN D510185 Contact Us For Availability
1
Nut GEN 804418 Contact Us For Availability
1
Screw GEN M400043 Contact Us For Availability
1
Motor Mount Clamp GEN D510180 Contact Us For Availability
1
Out-of-Balance Switch Assembly GEN 803415 Contact Us For Availability
1
Control Overlay GEN 804491 Contact Us For Availability
1
Pulley Bolt Tightening Fixture (Comment: Use GEN 802336 Contact Us For Availability
1
Junction Box Cover GEN 803820 Contact Us For Availability
1
Notice Label GEN 803011 Contact Us For Availability
1
Wire Tie GEN 38663 Contact Us For Availability
1
Upper Electric Harness GEN D513972 Contact Us For Availability
1
Pressure Sensor Harness GEN 804433 Contact Us For Availability
1
Hose Clamp (Comment: 6 required) GEN 804173 Contact Us For Availability
2
Panel Locator GEN 56079 Contact Us For Availability
2
Screw GEN D503688 Contact Us For Availability
2
Screw GEN 31260 Contact Us For Availability
2
Wrapper Assembly (Comment: Black) GEN 804112B Contact Us For Availability
2
Wrapper Assembly (Comment: White) GEN 804112W Contact Us For Availability
2
Drum Light Lamp GEN D503579 Contact Us For Availability
2
Screw GEN 801001 Contact Us For Availability
2
Standpipe Strap GEN 33489 Contact Us For Availability
2
Drain Base Bracket GEN 803814 Contact Us For Availability
2
Bracket GEN D510146 Contact Us For Availability
2
Door Handle Wedge GEN D510129W Contact Us For Availability
2
Junction Box Assembly (Comment: Includes item GEN D516153 Contact Us For Availability
2
Junction Box Seal GEN D514379P Contact Us For Availability
2
Line Filter (Comment: 30 Amp, 250 Volt/50 or GEN 804844 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 203718 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 203719 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 203720 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 203750 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 4 f GEN 204102 Contact Us For Availability
2
Fill Hose (Comment: Marked for cold water, 4 GEN 204103 Contact Us For Availability
2
Fill Hose (Comment: Marked for hot water, 10 GEN 204108 Contact Us For Availability
2
Moisture Sensor Base GEN D513738 Contact Us For Availability
2
Outlet Cover (Comment: Aluminized steel) GEN D500820 Contact Us For Availability
2
Outlet Cover (Comment: Black, Nitrocarburized GEN D515573 Contact Us For Availability
2
Balance Ring Assembly GEN 804393 Contact Us For Availability
2
Inverter Control Assembly GEN 807175P Contact Us For Availability
2
Cylinder Belt GEN D511255P Contact Us For Availability
2
Screw GEN 800461 Contact Us For Availability
2
Washer GEN M400014 Contact Us For Availability
2
Wrench (Comment: Use for adjusting leveling l GEN 392P4 Contact Us For Availability
2
Junction Box Seal GEN 803832P Contact Us For Availability
2
Oversudsing Label (Comment: English) GEN 802074 Contact Us For Availability
2
Oversudsing Label (Comment: Spanish) GEN 802838 Contact Us For Availability
2
Oversudsing Label (Comment: Quebec French) GEN 802839 Contact Us For Availability
2
Harness Strap GEN 55881 Contact Us For Availability
2
Front Control Harness (Comment: Washer) GEN 806031 Contact Us For Availability
2
Dispenser Inlet Hose GEN 803849 Contact Us For Availability
3
Screw (Comment: Use with painted panels) GEN 39733 Contact Us For Availability
3
Screw (Comment: Use with stainless steel pane GEN 806276 Contact Us For Availability
3
Speed Clip GEN 28835 Contact Us For Availability
3
Air Duct Assembly GEN D510151W Contact Us For Availability
3
Thermostat Shield GEN D514325 Contact Us For Availability
3
Shield Bracket GEN 804018 Contact Us For Availability
3
Snap Bushing GEN M402542 Contact Us For Availability
3
Control (Comment: Dryer) GEN D514567P Contact Us For Availability
3
Cylinder Light Assembly (Comment: 240 Volt, I GEN D512109 Contact Us For Availability
3
Door Glass Mounting Plate GEN 804239 Contact Us For Availability
3
Retainer Clip GEN 36014 Contact Us For Availability
3
Screw GEN 802431 Contact Us For Availability
3
Top Panel (Comment: Gray) GEN D510032DG Contact Us For Availability
3
Top Kit (Comment: White) GEN D510032WP Contact Us For Availability
3
Top and Bracket Assembly (Comment: Stainless GEN D513224 Contact Us For Availability
3
Dryer Door Window GEN D503982P Contact Us For Availability
3
Strain Relief GEN 52113 Contact Us For Availability
3
Junction Box Cover GEN D514363 Contact Us For Availability
3
Ground Filter Harness (Comment: Filter to rea GEN D514038 Contact Us For Availability
3
Warning Label (Comment: Text, Electric shock) GEN 44324001 Contact Us For Availability
3
Washer GEN 20290 Contact Us For Availability
3
Bar Sensor (Comment: 2 required) GEN D513737 Contact Us For Availability
3
Heater Duct Assembly (Comment: Includes items GEN D510025P Contact Us For Availability
3
Idler Lever GEN D516310 Contact Us For Availability
3
Lifter GEN 804382 Contact Us For Availability
3
Mixing Valve (Comment: BSPP connection, start GEN 806612 Contact Us For Availability
3
End Shield GEN 806258 Contact Us For Availability
3
Motor Pulley (Comment: 50 Hertz) GEN D500222 Contact Us For Availability
3
Washer GEN 804458 Contact Us For Availability
3
Hose Clip GEN 36985 Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: White, Inclu GEN D510905WP Contact Us For Availability
3
Rear Bulkhead Assembly (Comment: Galvanized, GEN D511082P Contact Us For Availability
3
Shipping Brace GEN 804454 Contact Us For Availability
3
Power Cord Assembly GEN 39931 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 802367 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 804924 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805962 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805964 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805965 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 805966 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806550 Contact Us For Availability
3
Warning Label (Comment: Reduce fire risk, Doo GEN 806591 Contact Us For Availability
3
Motor Harness GEN 806029 Contact Us For Availability
3
Mixing Valve (Comment: GHT connection, throug GEN 806510 Contact Us For Availability
4
Switch GEN D512973 Contact Us For Availability
4
Screw GEN D501285 Contact Us For Availability
4
Lint Filter (Comment: White) GEN D503980W Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Dark gray) GEN 800004DG Contact Us For Availability
4
Cabinet Panel Kit (Comment: Left, White, Incl GEN 800004WP Contact Us For Availability
4
Cabinet Side Panel (Comment: Left, Stainless GEN 802525P Contact Us For Availability
4
Motor Shield GEN D514602 Contact Us For Availability
4
Terminal Block Assembly GEN 803988 Contact Us For Availability
4
Screw GEN D500227 Contact Us For Availability
4
Door Glass GEN 802695P Contact Us For Availability
4
Drain Hose GEN 803976 Contact Us For Availability
4
O-Ring GEN 802429P Contact Us For Availability
4
Top Hinge GEN D510136 Contact Us For Availability
4
Door Strike Mount GEN D510127 Contact Us For Availability
4
Filter Harness (Comment: Filter to terminal b GEN D514036 Contact Us For Availability
4
Venting Instruction Label GEN D502791 Contact Us For Availability
4
Door Latch Assembly GEN 803920 Contact Us For Availability
4
Wire Assembly (Comment: Orange, Thermostat ju GEN D510528 Contact Us For Availability
4
Inner Basket Assembly Kit (Comment: Includes GEN 804376P Contact Us For Availability
4
Mixing Valve Screen GEN 24122 Contact Us For Availability
4
Motor Control Shield (Comment: Includes items GEN 806498 Contact Us For Availability
4
Motor and Pulley Assembly (Comment: 240 Volt/ GEN D505843P Contact Us For Availability
4
Out-of-Balance Switch Bracket GEN 804457 Contact Us For Availability
4
Screw GEN 800462 Contact Us For Availability
4
Cable Connection Box GEN 39922 Contact Us For Availability
4
Wire Clip (Comment: Small) GEN D504034 Contact Us For Availability
4
Door Lock Harness Assembly GEN 806028 Contact Us For Availability
5
Drip Shield GEN D514327 Contact Us For Availability
5
Warning/Caution Label (Comment: English) GEN D500281 Contact Us For Availability
5
Warning Label (Comment: Brazilian Portuguese) GEN D514226 Contact Us For Availability
5
Warning Label (Comment: Arabic, Right side of GEN D514410 Contact Us For Availability
5
Front Panel Label (Comment: Chinese) GEN D514863 Contact Us For Availability
5
Front Panel Label (Comment: Korean) GEN D514864 Contact Us For Availability
5
Warning Label (Comment: Japanese) GEN D514866 Contact Us For Availability
5
Warning Label (Comment: Thai) GEN D514867 Contact Us For Availability
5
Lint Filter Cover GEN D510502W Contact Us For Availability
5
Control Shield GEN 804363 Contact Us For Availability
5
Dispenser Assembly GEN 803698 Contact Us For Availability
5
Nut GEN 685846 Contact Us For Availability
5
Strain Relief GEN 32219 Contact Us For Availability
5
Drain Pump Isolator GEN 803815 Contact Us For Availability
5
Cabinet Rear Panel GEN D514632P Contact Us For Availability
5
Door Strike GEN D510181 Contact Us For Availability
5
Warning Label (Comment: Vietnamese) GEN D516187 Contact Us For Availability
5
Warning Label (Comment: Quebec French, Right GEN D516243 Contact Us For Availability
5
Cylinder Baffle (Comment: 3 required) GEN D510102W Contact Us For Availability
5
Door Lock Drip Shield GEN 804784 Contact Us For Availability
5
Wire Assembly (Comment: Black, Fuse jumper, A GEN D510527 Contact Us For Availability
5
Inner Basket Assembly GEN 804374P Contact Us For Availability
5
Nut GEN 800452 Contact Us For Availability
5
Motor Control Shield GEN 804878 Contact Us For Availability
5
Motor Hub Ring Kit GEN 590P3 Contact Us For Availability
5
Terminal Block Shield GEN D514330 Contact Us For Availability
5
Washer GEN 800624 Contact Us For Availability
5
Wire Clip (Comment: Large) GEN 687500 Contact Us For Availability
5
Security Cabinet Harness GEN D513991 Contact Us For Availability
6
Front Panel Seal GEN D511056 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Through Serial No GEN 803790 Contact Us For Availability
6
Rear Panel (Comment: Fixed, Starting Serial N GEN 806716 Contact Us For Availability
6
Screw GEN 70240301 Contact Us For Availability
6
Detergent Hose GEN 804717 Contact Us For Availability
6
Inner Door Bezel Kit (Comment: White) GEN 802307P Contact Us For Availability
6
Inner Door Bezel Kit (Comment: Gray) GEN 802331P Contact Us For Availability
6
Inner Door Bezel (Comment: Glass-filled polyp GEN 804562P Contact Us For Availability
6
Hose Stand GEN 38732 Contact Us For Availability
6
Drain Pump Assembly GEN 803922 Contact Us For Availability
6
Access Panel Plate GEN D510903 Contact Us For Availability
6
Screw GEN D500226 Contact Us For Availability
6
Natural/L.P. Gas Label (Comment: English/Queb GEN D500240 Contact Us For Availability
6
Label (Comment: Australian gas association) GEN D503887 Contact Us For Availability
6
Cylinder Assembly (Comment: White) GEN D510159WP Contact Us For Availability
6
Cylinder Assembly (Comment: Galvanized, Inclu GEN D510265WP Contact Us For Availability
6
Wire Clamp Ring GEN 802283 Contact Us For Availability
6
Thermal Fuse Assembly GEN D511412 Contact Us For Availability
6
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
6
Screw GEN 804699 Contact Us For Availability
6
Screw GEN D501524 Contact Us For Availability
6
Pop Rivet GEN 685847 Contact Us For Availability
6
Terminal Block Assembly (Comment: Includes 3 GEN D510190P Contact Us For Availability
6
Shipping Spacer GEN 803858 Contact Us For Availability
6
Junction Box (Comment: Upper) GEN 803818 Contact Us For Availability
6
Notice Label GEN D516073 Contact Us For Availability
6
Nut GEN 03673 Contact Us For Availability
7
Front Panel (Comment: Gray) GEN D510066DG Contact Us For Availability
7
Front Panel (Comment: White) GEN D510066WP Contact Us For Availability
7
Warning Label GEN D512263 Contact Us For Availability
7
Rear Panel (Comment: Removable) GEN 803789 Contact Us For Availability
7
Rear Access Panel GEN 803998 Contact Us For Availability
7
Line Filter (Comment: starting Serial Nos. be GEN 805633 Contact Us For Availability
7
Hose Clamp GEN 685725 Contact Us For Availability
7
Door Catch Assembly GEN 802803 Contact Us For Availability
7
Pump Housing Assembly (Comment: Includes item GEN 802434P Contact Us For Availability
7
Flexible Venting Kit GEN 521P3 Contact Us For Availability
7
Liner Door Seal GEN D510147P Contact Us For Availability
7
Warning Label (Comment: English/French, Disco GEN D500316 Contact Us For Availability
7
Disconnect Power Warning Label (Comment: Engl GEN D505281 Contact Us For Availability
7
Screw GEN 62588 Contact Us For Availability
7
Hose Clamp (Comment: Seal to outer tub front) GEN 802281 Contact Us For Availability
7
Screw GEN 23222 Contact Us For Availability
7
Trunnion Shaft Kit (Comment: Includes hardwar GEN 804405P Contact Us For Availability
7
Screw GEN M400057 Contact Us For Availability
7
Blower Fan Assembly GEN D510139P Contact Us For Availability
7
Hose Clip GEN 800553 Contact Us For Availability
7
Screw GEN 61199 Contact Us For Availability
7
Label (Comment: Remove shipping brace) GEN 804488 Contact Us For Availability
7
Caution Label (Comment: Icon, Ground machine) GEN 801706 Contact Us For Availability
7
Washer GEN 03815 Contact Us For Availability
8
Shipping Plug GEN 803859 Contact Us For Availability
8
Expansion Clip GEN 70030501 Contact Us For Availability
8
Filter Harness (Comment: Filter to main harne GEN 804797 Contact Us For Availability
8
Dispenser Drawer GEN 803667 Contact Us For Availability
8
Screw GEN 801993 Contact Us For Availability
8
Pump Housing GEN 802428 Contact Us For Availability
8
Exhaust Duct GEN D516196 Contact Us For Availability
8
Door Liner Grill GEN D503870W Contact Us For Availability
8
Gas Clearance Label GEN D511004 Contact Us For Availability
8
Drying Rack GEN D512082P Contact Us For Availability
8
Door Seal (Comment: Black) GEN 804428P Contact Us For Availability
8
Door Seal Assembly (Comment: Gray) GEN 804429P Contact Us For Availability
8
Limit Thermostat GEN D510701 Contact Us For Availability
8
Idler Lever and Wheel Assembly (Comment: Incl GEN D510158 Contact Us For Availability
8
Screw GEN 804399 Contact Us For Availability
8
Washer GEN 02834 Contact Us For Availability
8
Thermistor Assembly (Comment: Black) GEN D502366 Contact Us For Availability
8
Cylinder Roller Bracket GEN D510100 Contact Us For Availability
8
Filter Harness (Comment: Filter to main harne GEN 804396 Contact Us For Availability
8
Left Hand Thread Label (Comment: Text, Left h GEN 685928 Contact Us For Availability
8
Left Hand Thread Label (Comment: Icon, Left h GEN 804949 Contact Us For Availability
8
Screw GEN 20530 Contact Us For Availability
9
Screw GEN D503661 Contact Us For Availability
9
Shipping Plate GEN 803851 Contact Us For Availability
9
Screw GEN 800548 Contact Us For Availability
9
Screw GEN 801019 Contact Us For Availability
9
Drain Pump Drip Shield GEN 805561 Contact Us For Availability
9
Gasket GEN 802427 Contact Us For Availability
9
Cabinet Side Panel (Comment: Right, Gray) GEN D510002DGP Contact Us For Availability
9
Cabinet Side Panel (Comment: Right, White) GEN D510002WP Contact Us For Availability
9
Cabinet Side Panel (Comment: Right, Stainless GEN D512539 Contact Us For Availability
9
Liner and Seal Assembly (Comment: Includes it GEN D510098W Contact Us For Availability
9
Warning Label (Comment: Text, Disconnect powe GEN 803260 Contact Us For Availability
9
Elec GEN F8211201 Contact Us For Availability
9
Extension Spring GEN 802285 Contact Us For Availability
9
Heater Assembly (Comment: 4000 Watt, 240 Volt GEN D510327P Contact Us For Availability
9
Screw GEN D500824 Contact Us For Availability
9
Washer GEN M400080 Contact Us For Availability
9
Screw GEN D502535 Contact Us For Availability
9
Pressure Bulb GEN 803837 Contact Us For Availability
9
Cylinder Roller GEN D510708P Contact Us For Availability
9
Strain Relief GEN 38384 Contact Us For Availability
10
Screw GEN 33562 Contact Us For Availability
10
NOT ON YOUR MODEL GEN - Contact Us For Availability
10
Drain Hose Bracket GEN 803828 Contact Us For Availability
10
Dispenser Handle (Comment: Black) GEN 804227B Contact Us For Availability
10
Dispenser Handle (Comment: White) GEN 804227WP Contact Us For Availability
10
Dispenser Handle (Comment: Gray) GEN 804228 Contact Us For Availability
10
Door Hinge GEN 802934 Contact Us For Availability
10
Lid Assembly (Comment: Includes filter) GEN 802426P Contact Us For Availability
10
Directional Exhaust Kit (Comment: Used to ven GEN 528P3 Contact Us For Availability
10
Screw GEN D505870 Contact Us For Availability
10
GEN D500049 GEN D500049 Contact Us For Availability
10
GEN F8615701 GEN F8615701 Contact Us For Availability
10
Lint Filter Label (Comment: Icon) GEN D502781 Contact Us For Availability
10
Felt Pad (Comment: 2 required) GEN D510189 Contact Us For Availability
10
Hinge Plate GEN 802206 Contact Us For Availability
10
Retaining Ring GEN 23748 Contact Us For Availability
10
Switch GEN D516391 Contact Us For Availability
10
Pulley Assembly GEN 803974 Contact Us For Availability
10
Drive Belt GEN 804985 Contact Us For Availability
10
Junction Box (Comment: Lower) GEN 803819 Contact Us For Availability
10
GEN D500314 GEN D500314 Contact Us For Availability
11
Cabinet Side Panel (Comment: Right, Dark gray GEN 800005DG Contact Us For Availability
11
Cabinet Side Panel (Comment: Right, Stainless GEN 802526P Contact Us For Availability
11
Side Panel Kit (Comment: Right, White) GEN 806492 Contact Us For Availability
11
Compartment Cover GEN 803669 Contact Us For Availability
11
Nut GEN 23951 Contact Us For Availability
11
Hose Clamp GEN F200204 Contact Us For Availability
11
Hold Down Kit (Comment: For mobile home insta GEN 526P3 Contact Us For Availability
11
Screw GEN D505295 Contact Us For Availability
11
Gas Label (Comment: Text, Stainless steel fle GEN D505215 Contact Us For Availability
11
Cylinder Glide (Comment: 2 required) GEN D513710 Contact Us For Availability
11
Front Panel (Comment: Gray) GEN 802277DG Contact Us For Availability
11
Front Panel (Comment: White) GEN 802277WP Contact Us For Availability
11
Front Panel (Comment: Stainless steel) GEN 802288P Contact Us For Availability
11
Washer GEN 52549 Contact Us For Availability
11
Motor Switch Bracket GEN D516311 Contact Us For Availability
11
Washer GEN 800464 Contact Us For Availability
11
Motor and Rod Assembly Kit (Comment: Includes GEN 805726P Contact Us For Availability
11
Pressure Sensor Tube Assembly GEN 804483 Contact Us For Availability
11
Filter Jumper Harness (Comment: Filter to ter GEN 804805 Contact Us For Availability
12
Lint Filter Label GEN D502804 Contact Us For Availability
12
Leveling Leg GEN 34319 Contact Us For Availability
12
Glass Mounting Clip (Comment: 7 required) GEN 802700 Contact Us For Availability
12
Sealant (Comment: Tub-to-pump hose to outer t GEN 27615P Contact Us For Availability
12
Tub-to-Pump Hose GEN 803829 Contact Us For Availability
12
Leveling Leg GEN D510135 Contact Us For Availability
12
Hinge GEN D511036 Contact Us For Availability
12
Electric Clearance Lab GEN D511005 Contact Us For Availability
12
Glide Kit (Comment: Includes items 10 and 11 GEN RB170003 Contact Us For Availability
12
Nut GEN 52566 Contact Us For Availability
12
Screw (Comment: Left hand thread) GEN 685831 Contact Us For Availability
12
Motor Rod GEN 803861 Contact Us For Availability
12
Hose Clamp GEN 803891 Contact Us For Availability
12
Washer GEN D504082 Contact Us For Availability
13
Door Catch Assembly GEN D510177 Contact Us For Availability
13
Rubber Foot (Comment: Use to prevent movement GEN D501855 Contact Us For Availability
13
Door Assembly (Comment: White, Includes items GEN 804083WP Contact Us For Availability
13
Door Assembly (Comment: Gray, Includes items GEN 804210 Contact Us For Availability
13
Door Assembly (Comment: Black, Includes items GEN 805550 Contact Us For Availability
13
Dryer Base GEN D514245 Contact Us For Availability
13
Window Trim GEN D503981W Contact Us For Availability
13
GEN 44321601 GEN 44321601 Contact Us For Availability
13
GEN D500497 GEN D500497 Contact Us For Availability
13
GEN D502507 GEN D502507 Contact Us For Availability
13
Cylinder Glide Bracket (Comment: 2 required) GEN D510145 Contact Us For Availability
13
Nut GEN 36020 Contact Us For Availability
13
Shaft GEN 56461P Contact Us For Availability
13
Motor Mount GEN D510060 Contact Us For Availability
13
Washer (Comment: Used through Serial No. 1609 GEN M403958 Contact Us For Availability
13
Grommet GEN 29175 Contact Us For Availability
14
Rubber Foot GEN 34318 Contact Us For Availability
14
Washer GEN 26509 Contact Us For Availability
14
Door Pull and Wedge Kit (Comment: White, Incl GEN D510103WP Contact Us For Availability
14
Front Bulkhead Assembly (Comment: Includes it GEN D515532 Contact Us For Availability
14
Screw GEN 801045 Contact Us For Availability
14
Outer Tub Assembly GEN 803864 Contact Us For Availability
14
Roller Kit (Comment: Includes 2 each of items GEN RB170002 Contact Us For Availability
15
Hinge Hole Plug GEN D510186 Contact Us For Availability
15
Anchor (Comment: Includes 4 rubber discs with GEN 155P3 Contact Us For Availability
15
Anchor Floor Mount Assembly (Comment: Include GEN 802844P Contact Us For Availability
15
Screw GEN 36048 Contact Us For Availability
15
Door and Liner Assembly (Comment: White, Incl GEN D511636WP Contact Us For Availability
15
Access Panel Assembly (Comment: Gray) GEN D514250DG Contact Us For Availability
15
Access Panel Assembly (Comment: White) GEN D514250WP Contact Us For Availability
15
Access Panel Assembly (Comment: Stainless ste GEN D514251 Contact Us For Availability
15
Nut GEN 56156 Contact Us For Availability
15
Washer GEN 800457 Contact Us For Availability
15
Shock Assembly (Comment: Must replace all 4) GEN 803777 Contact Us For Availability
16
Nut GEN 21899 Contact Us For Availability
16
Output Board Shield GEN D514420 Contact Us For Availability
16
Bearing Housing Kit (Comment: Includes hardwa GEN 805525 Contact Us For Availability
16
Counterweight GEN 803810 Contact Us For Availability
17
Base Assembly GEN 803876 Contact Us For Availability
17
Tub Front GEN 803770 Contact Us For Availability
18
Pressure Sensor GEN 203843 Contact Us For Availability
18
Screw GEN D514428 Contact Us For Availability
19
Output Control Assembly GEN D513797P Contact Us For Availability
20
Screw GEN 804667 Contact Us For Availability
20
Foreign Object Deflector (Comment: Black, Inc GEN 806308 Contact Us For Availability
20
Foreign Object Deflector (Comment: Gray, Incl GEN 806313 Contact Us For Availability
20
Foreign Object Deflector (Comment: Tall, Gray GEN 806361 Contact Us For Availability
21
Tub Front Seal GEN 803801 Contact Us For Availability
22
Clamp Ring GEN 803802 Contact Us For Availability
23
Cabinet Side Panel (Comment: Left, Gray) GEN D510001DGP Contact Us For Availability
23
Cabinet Side Panel (Comment: Left, White) GEN D510001WP Contact Us For Availability
23
Cabinet Side Panel (Comment: Left, Stainless GEN D512538 Contact Us For Availability
23
Nut GEN F430218 Contact Us For Availability
24
Washer GEN M400081 Contact Us For Availability
26
Bumper Pad GEN 56128 Contact Us For Availability
26
Screw GEN 802596 Contact Us For Availability
27
Clothes Guard Deflector GEN 804467 Contact Us For Availability
27
Clothes Guard Deflector (Comment: Heavy duty) GEN 805548 Contact Us For Availability
28
Tub Front Assembly (Comment: Includes items 1 GEN 803879 Contact Us For Availability
29
Nut GEN 802343 Contact Us For Availability
NA
Porcelain Touch-Up Paint (Comment: White) GEN 122P4P Contact Us For Availability
NA
Paint (Comment: Gray) GEN 806436P Contact Us For Availability
NA
Foam Pad GEN 804875 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805938 Contact Us For Availability
NA
Chemical Injection Conversion Kit (Comment: I GEN 805939 Contact Us For Availability
NA
Pump-to-Gravity Drain Kit GEN 805770 Contact Us For Availability
NA
Ground Label GEN D502510 Contact Us For Availability
NA
Anti-Seize Compound (Comment: Apply to motor GEN 27604P Contact Us For Availability
NA
Bearing Kit GEN 805730 Contact Us For Availability
NA
Mixing Valve Shield GEN 804783 Contact Us For Availability
NA
18 Gauge Wire (Comment: Black, Order wire by GEN 45001 Contact Us For Availability
NA
12 Gauge Wire (Comment: Orange, Order wire by GEN 45380 Contact Us For Availability
× ![]()
