Model Alliance NT1LXFSP401UW01 Stacked Washer and Dryer – Common Parts & Diagrams

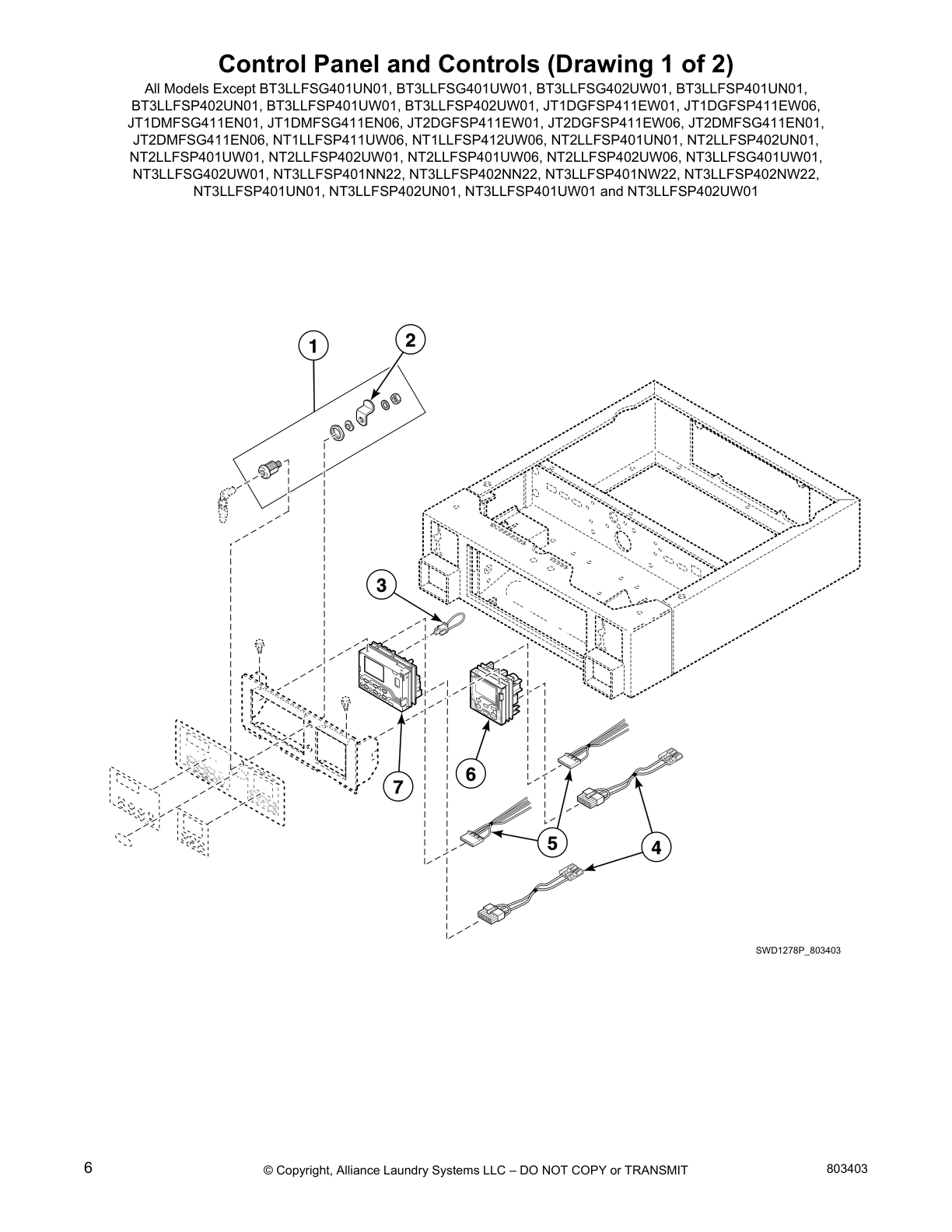

Control Panel and Controls (Drawing 1 of 2)

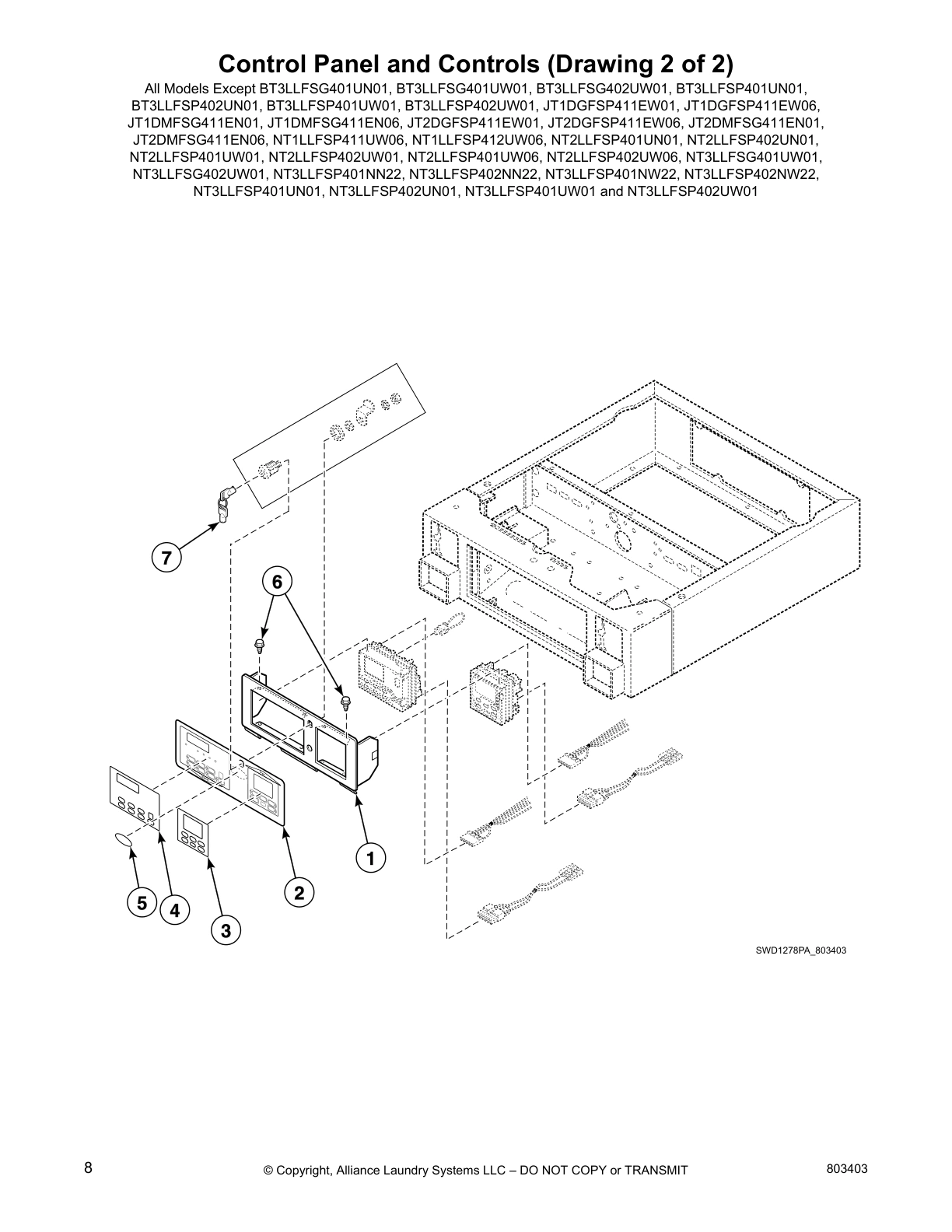

Control Panel and Controls (Drawing 2 of 2)

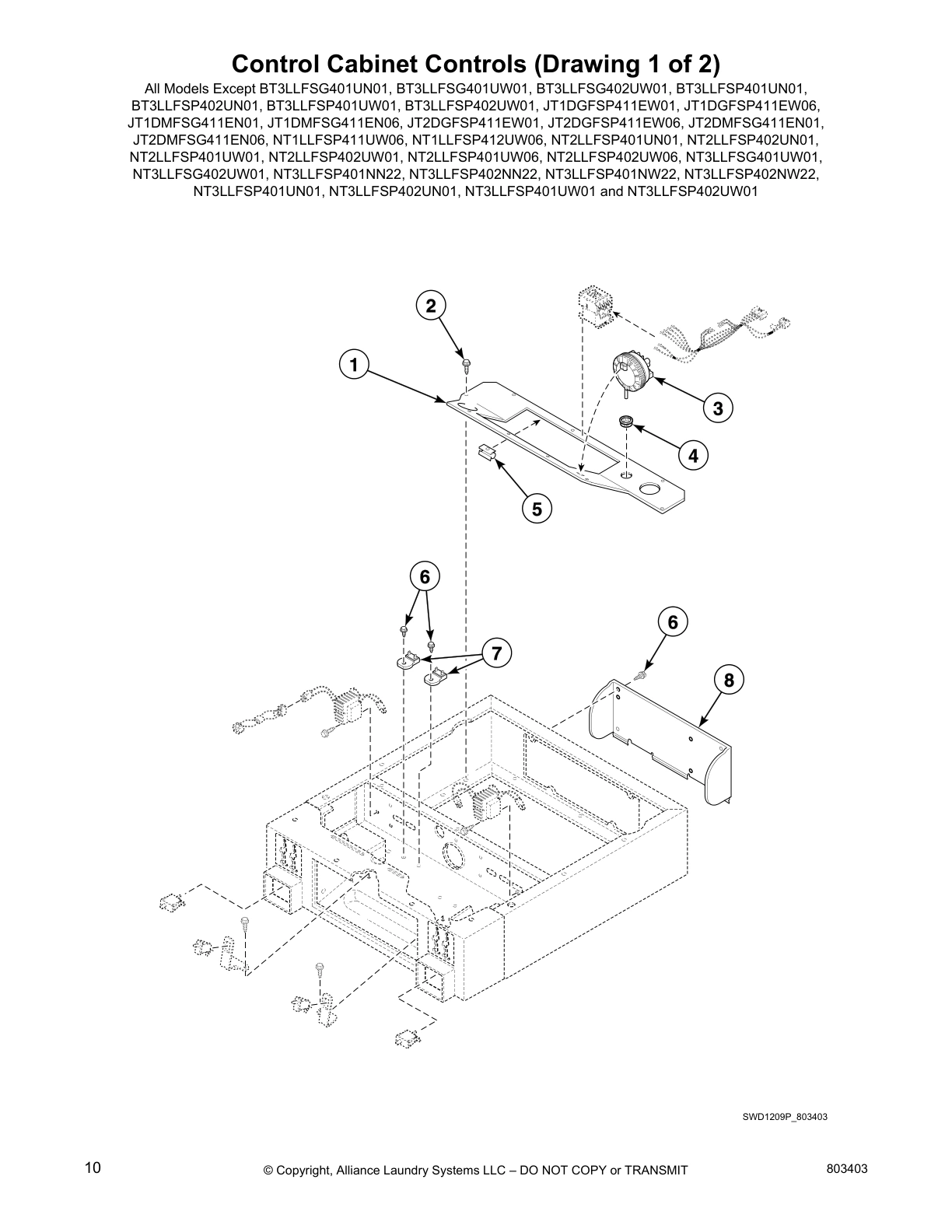

Control Cabinet Controls (Drawing 1 of 2)

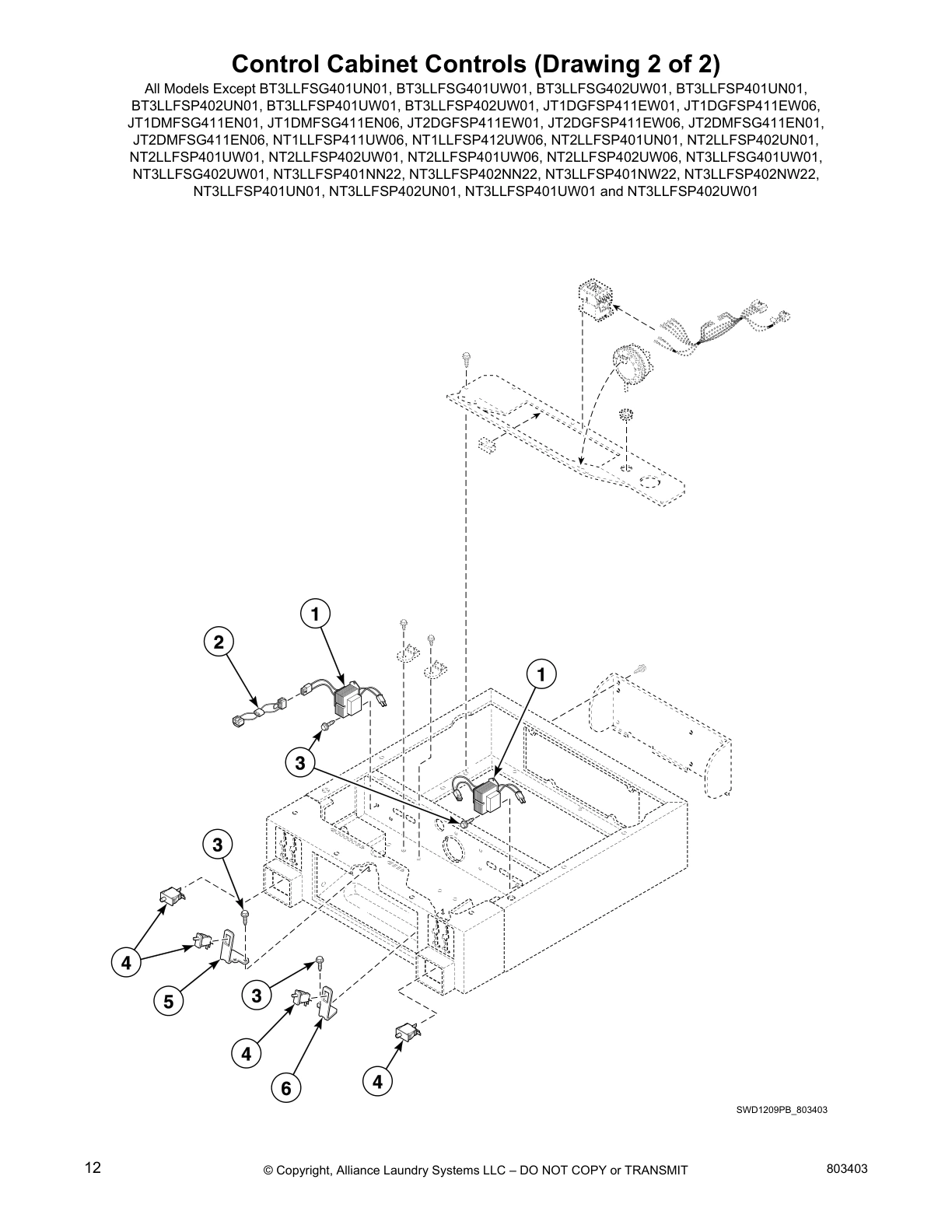

Control Cabinet Controls (Drawing 2 of 2)

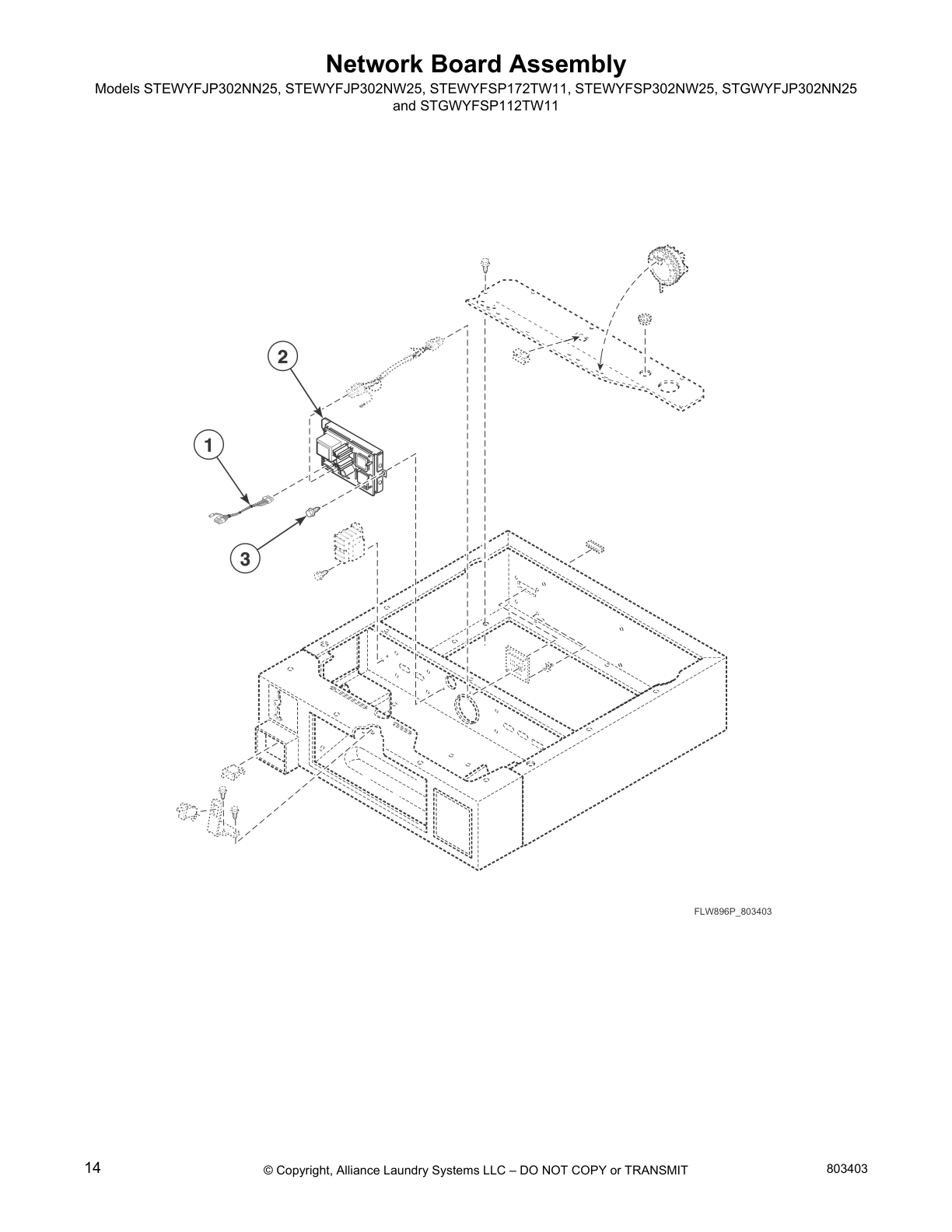

Network Board Assembly

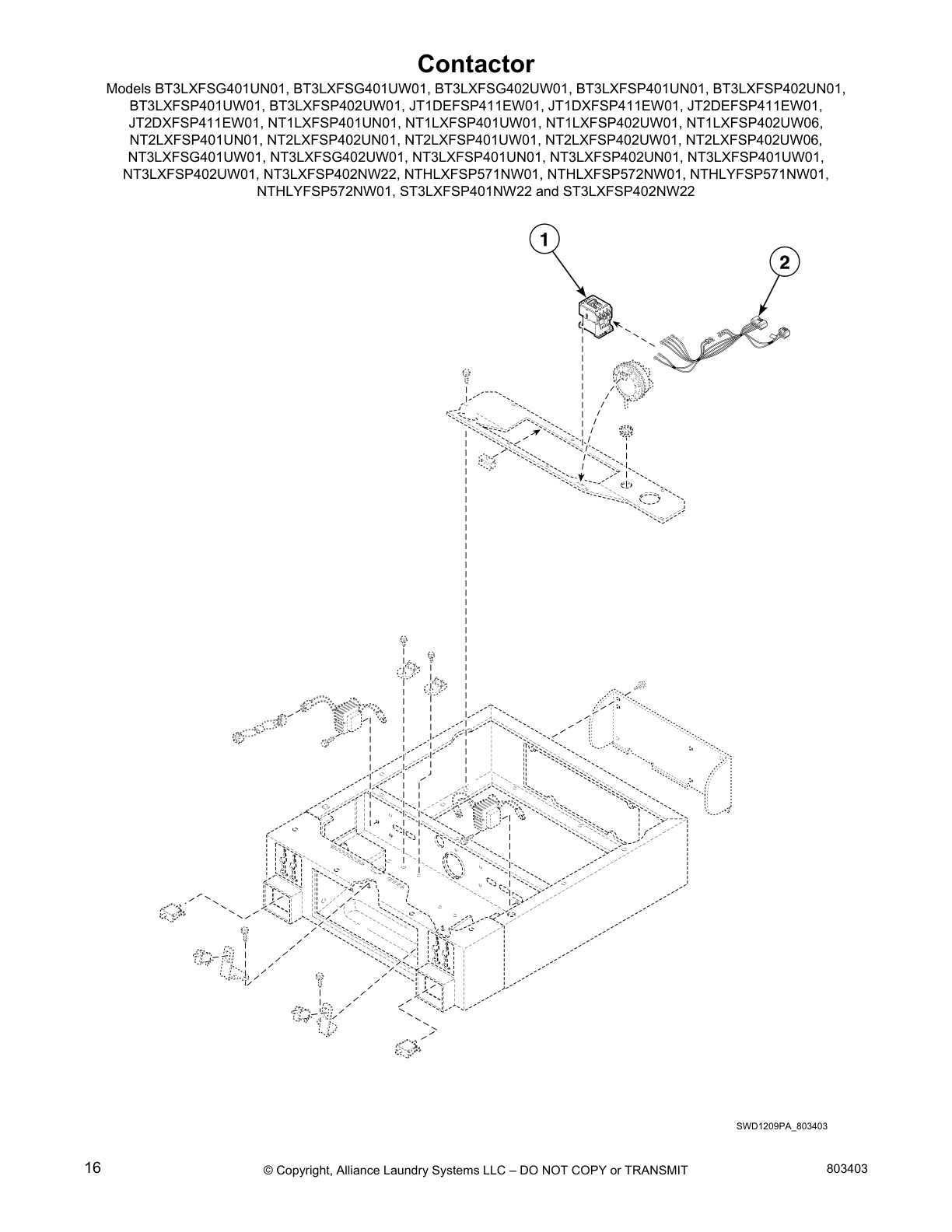

Contactor

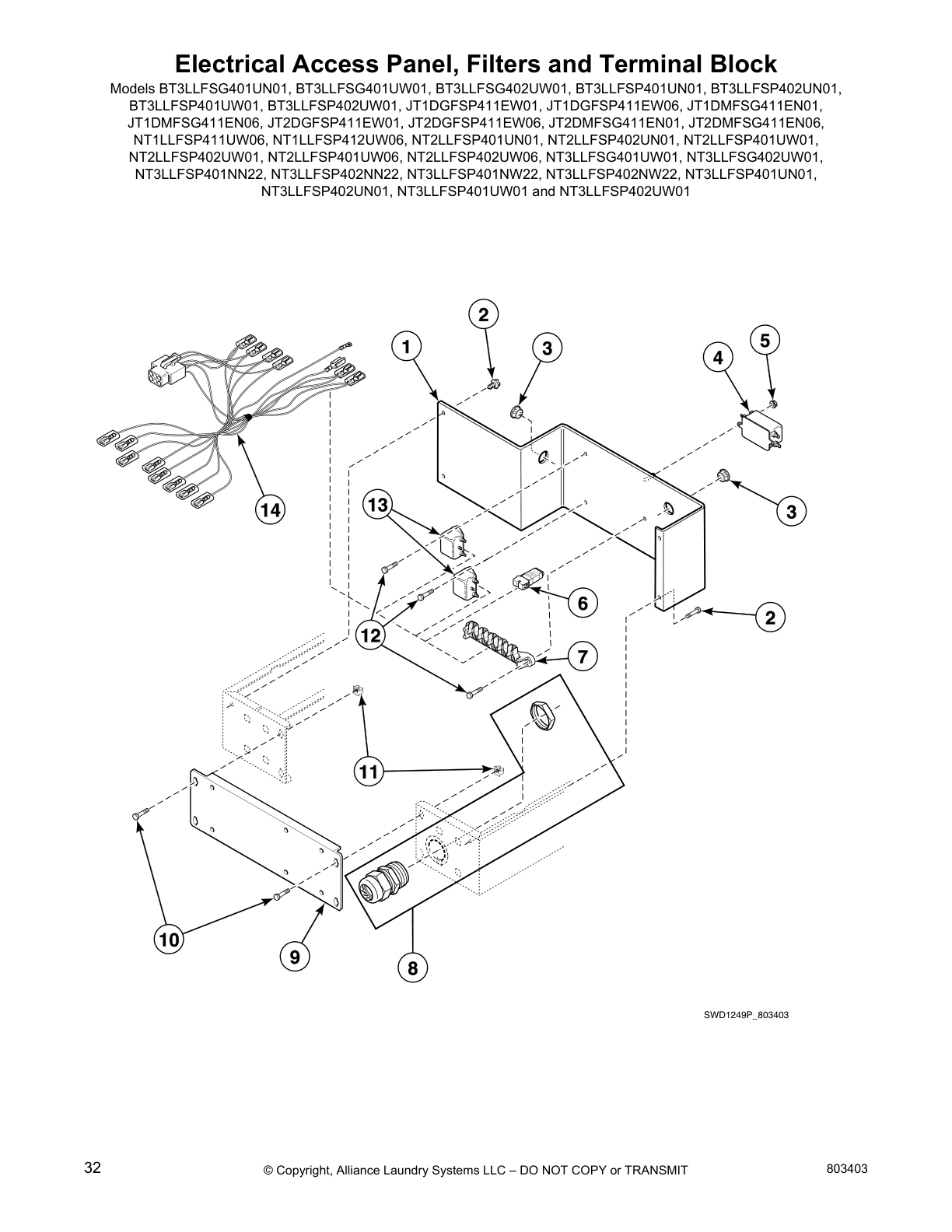

Electrical Access Panel, Filters and Terminal Block

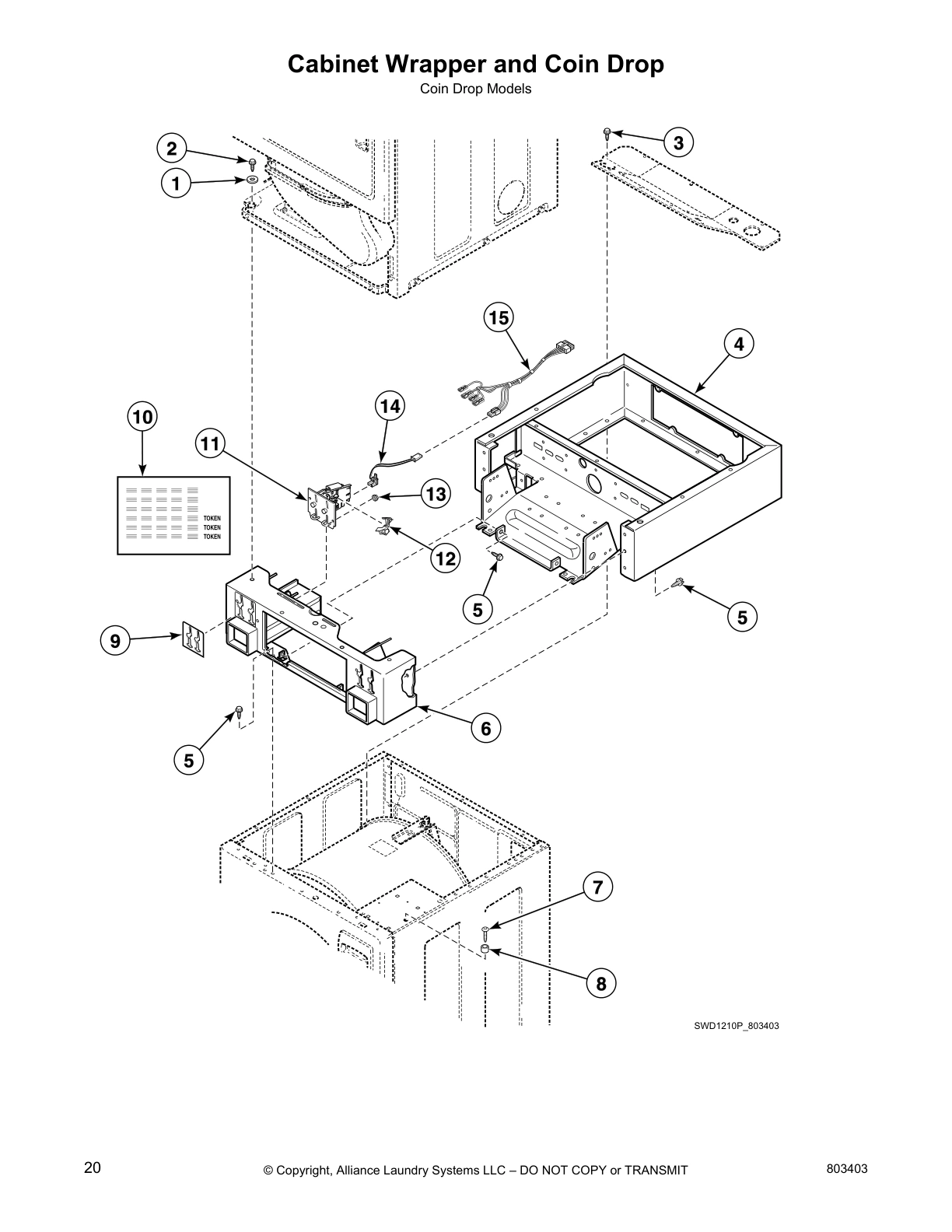

Cabinet Wrapper and Coin Drop

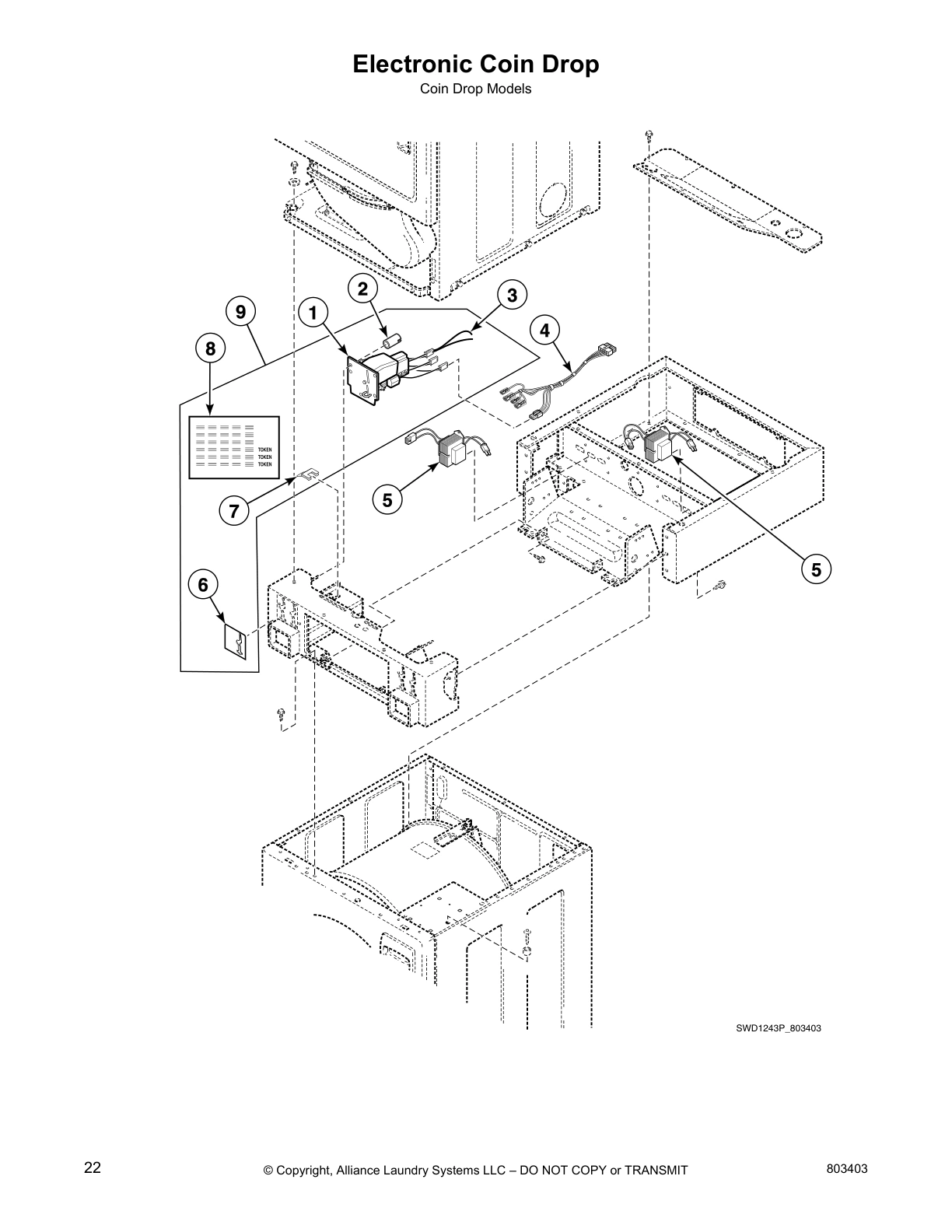

Electronic Coin Drop

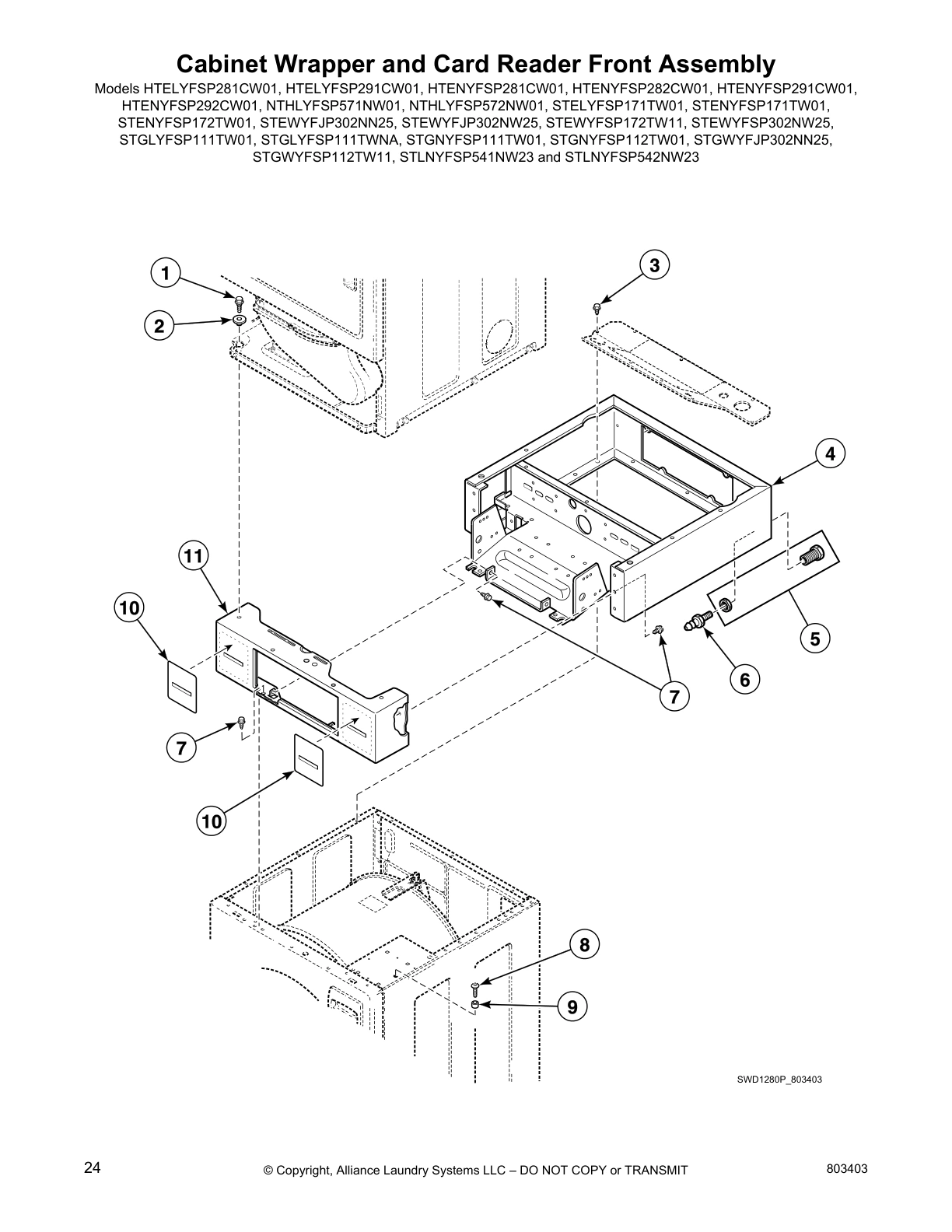

Cabinet Wrapper and Card Reader Front Assembly

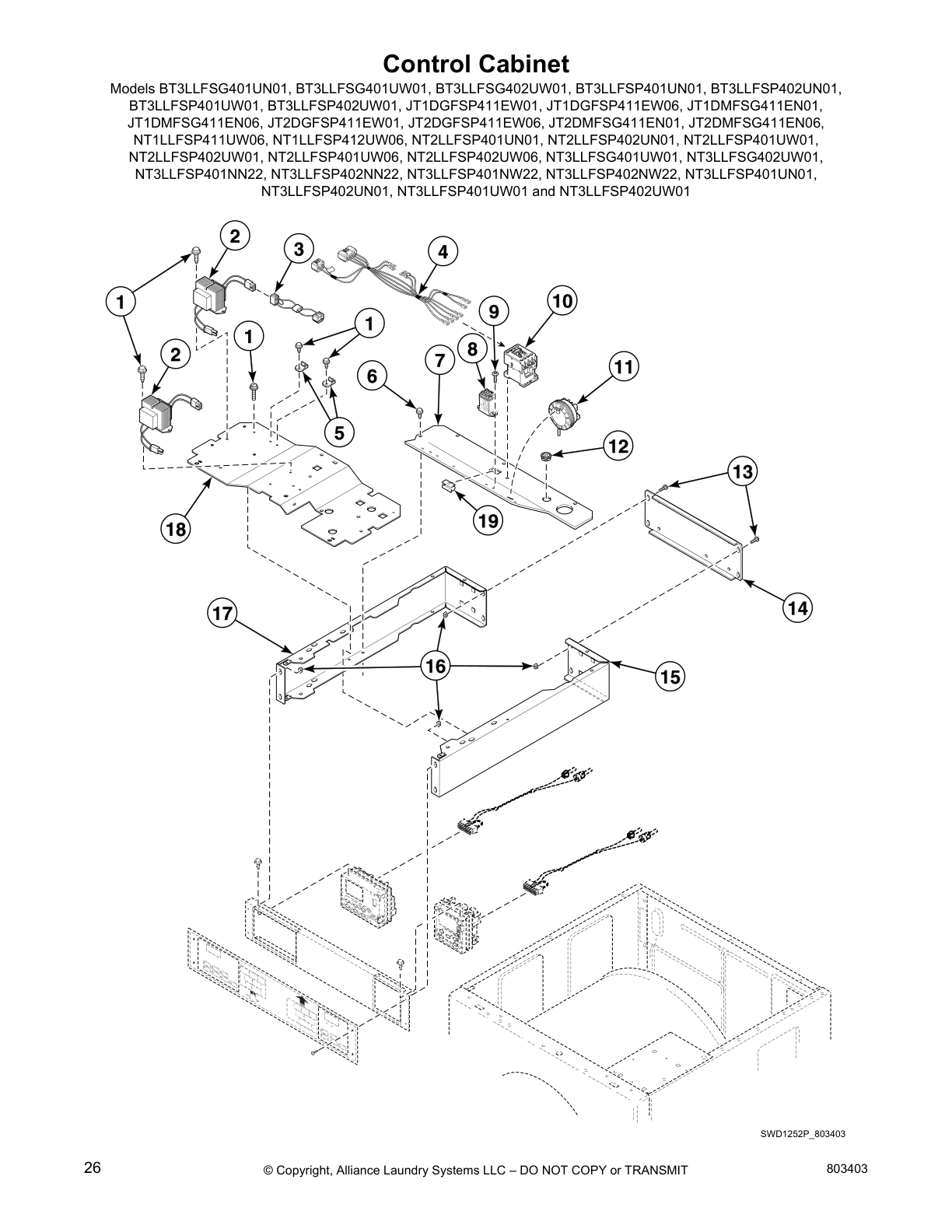

Control Cabinet

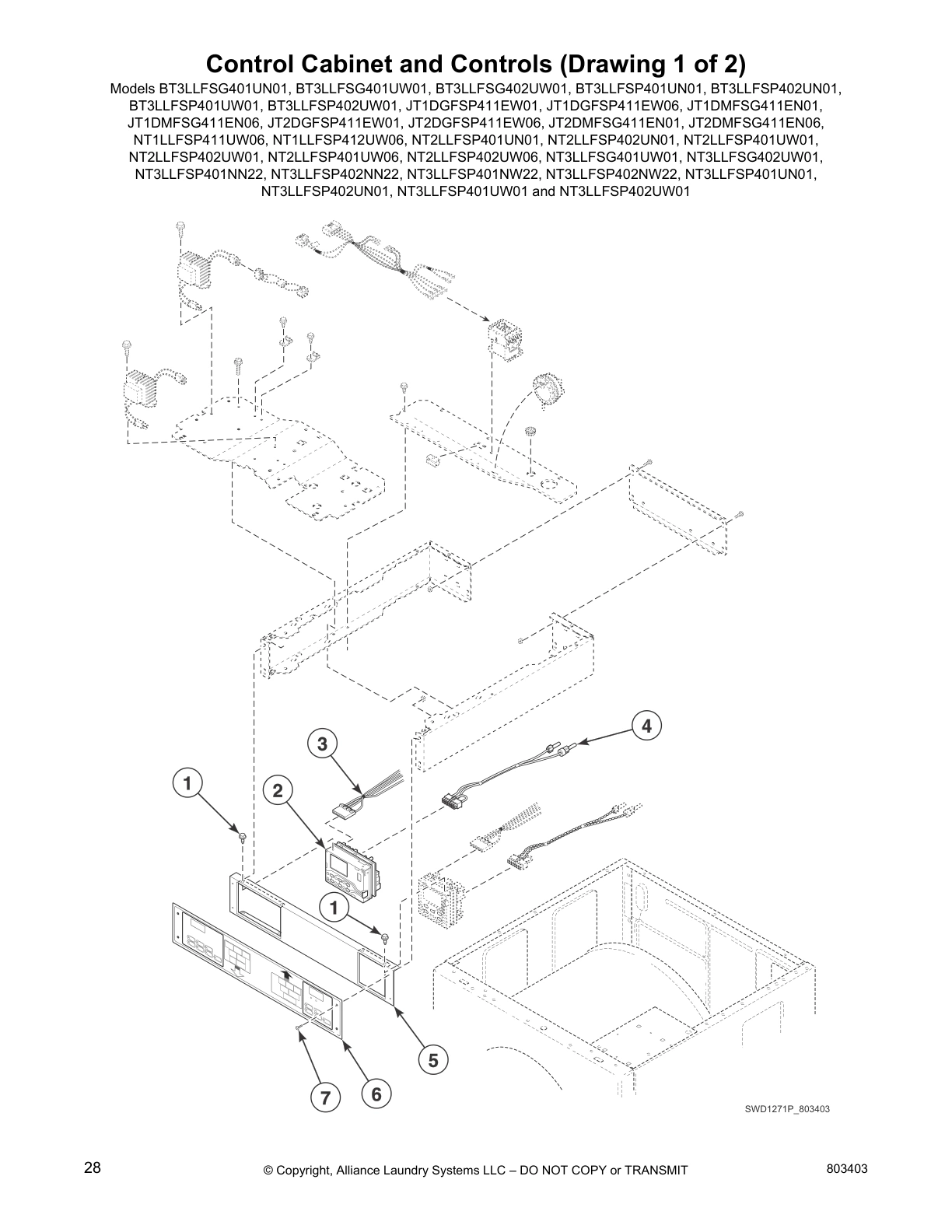

Control Cabinet and Controls (Drawing 1 of 2)

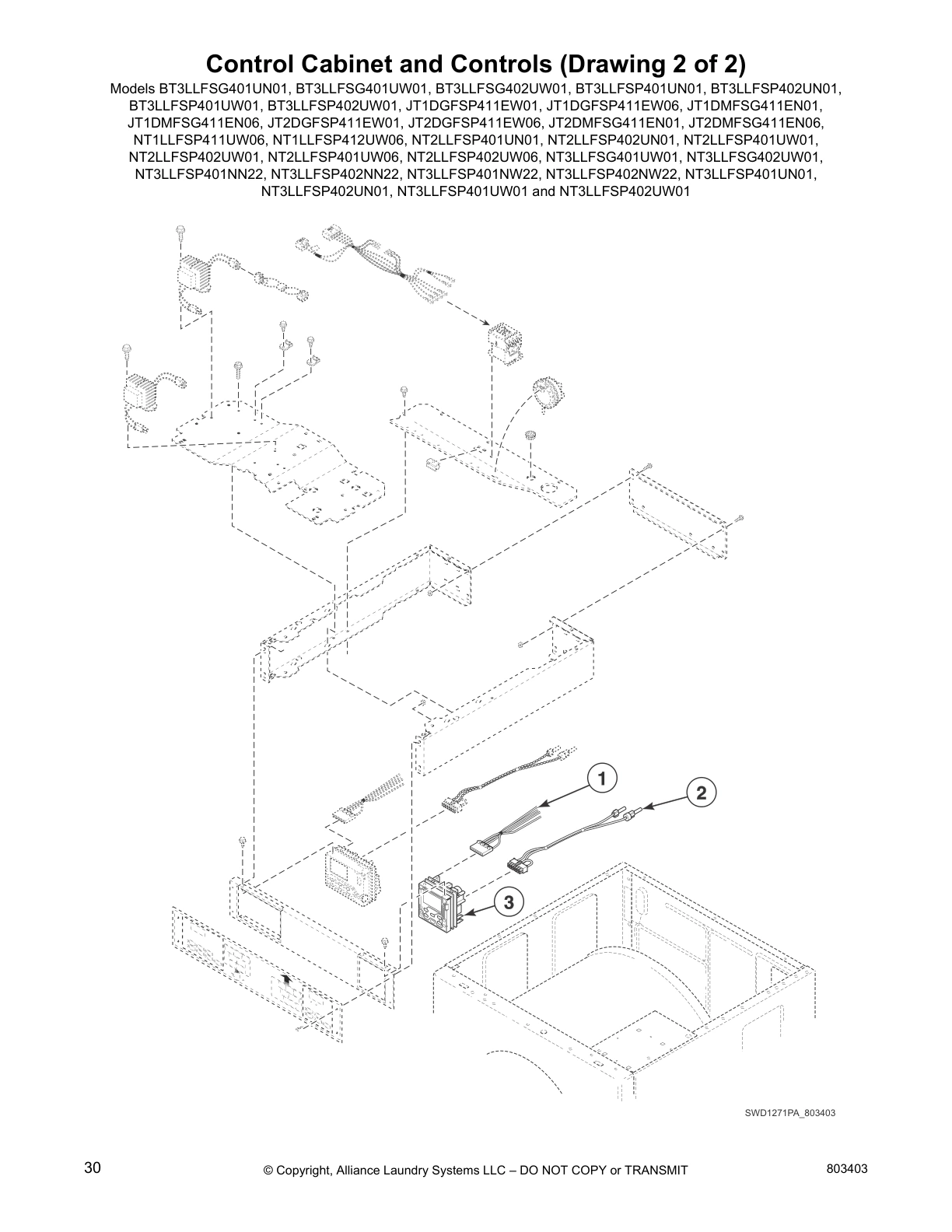

Control Cabinet and Controls (Drawing 2 of 2)

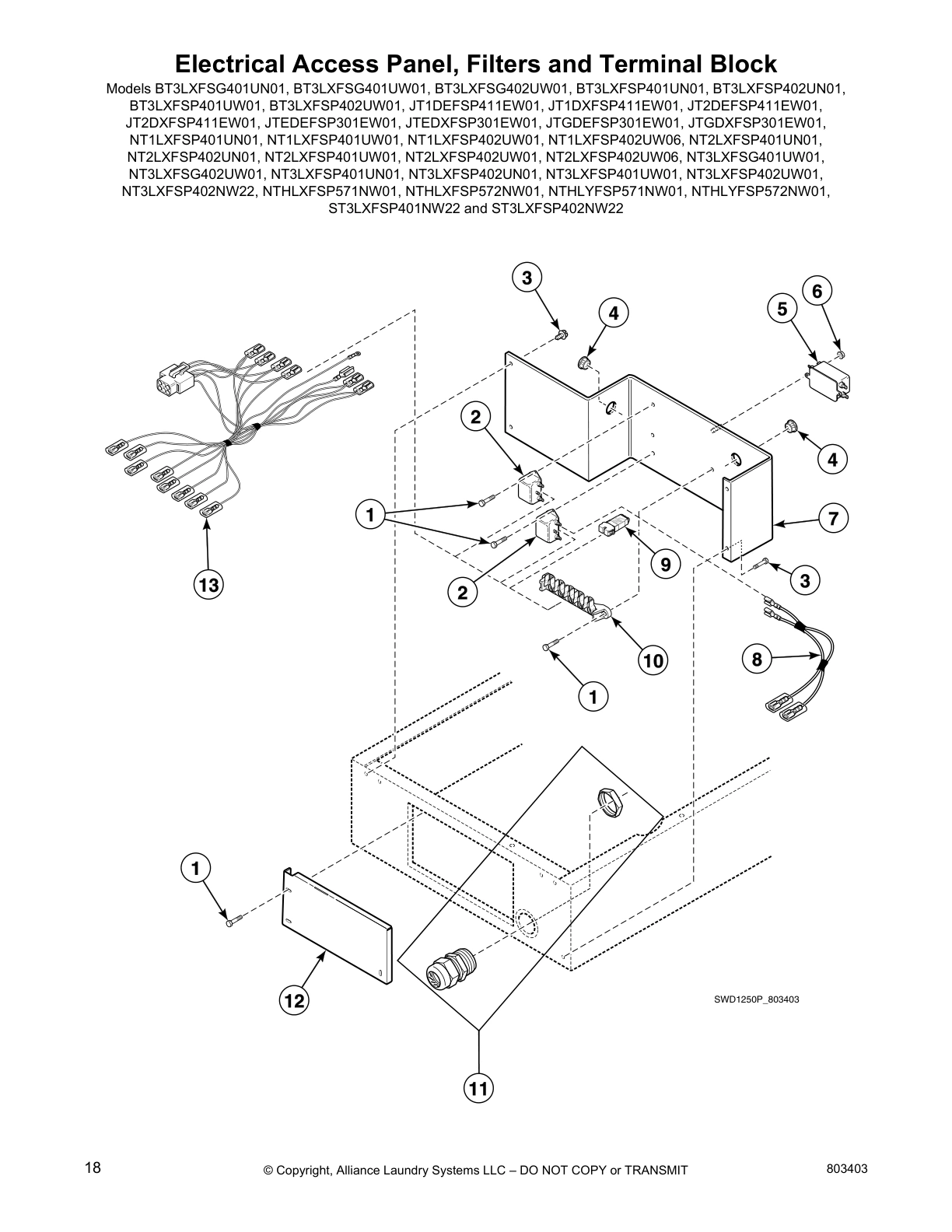

Electrical Access Panel, Filters and Terminal Block
Washer Door Assembly

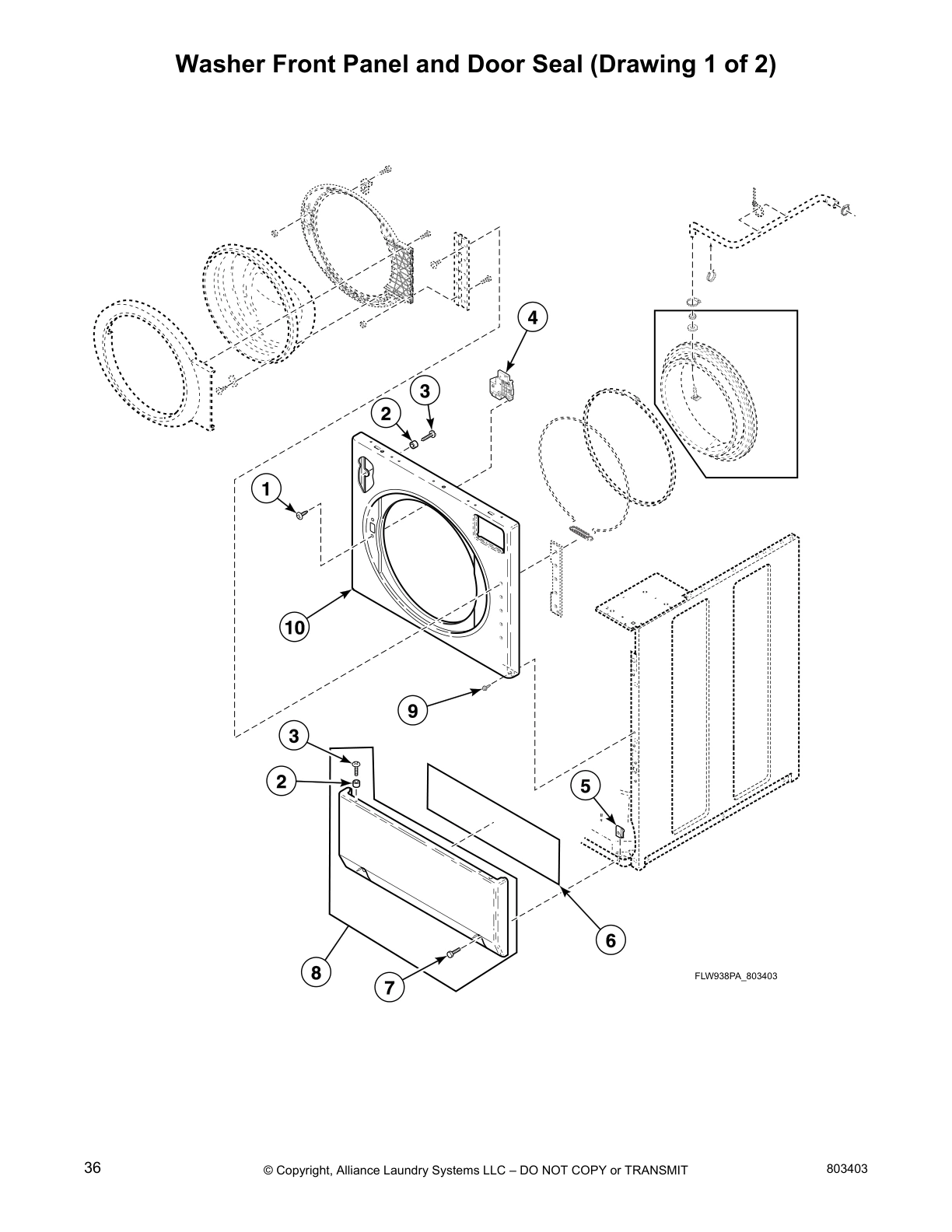

Washer Front Panel and Door Seal (Drawing 1 of 2)

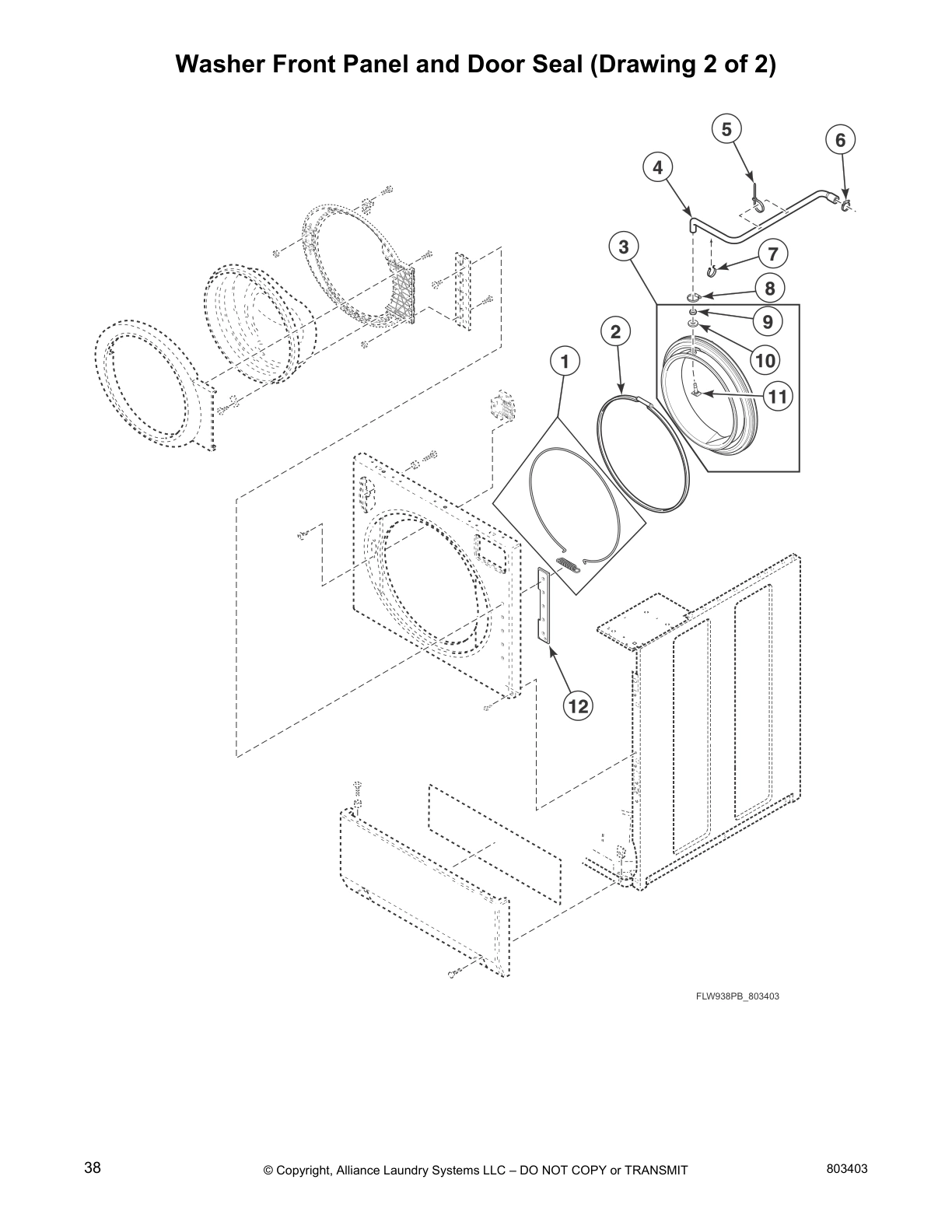

Washer Front Panel and Door Seal (Drawing 2 of 2)

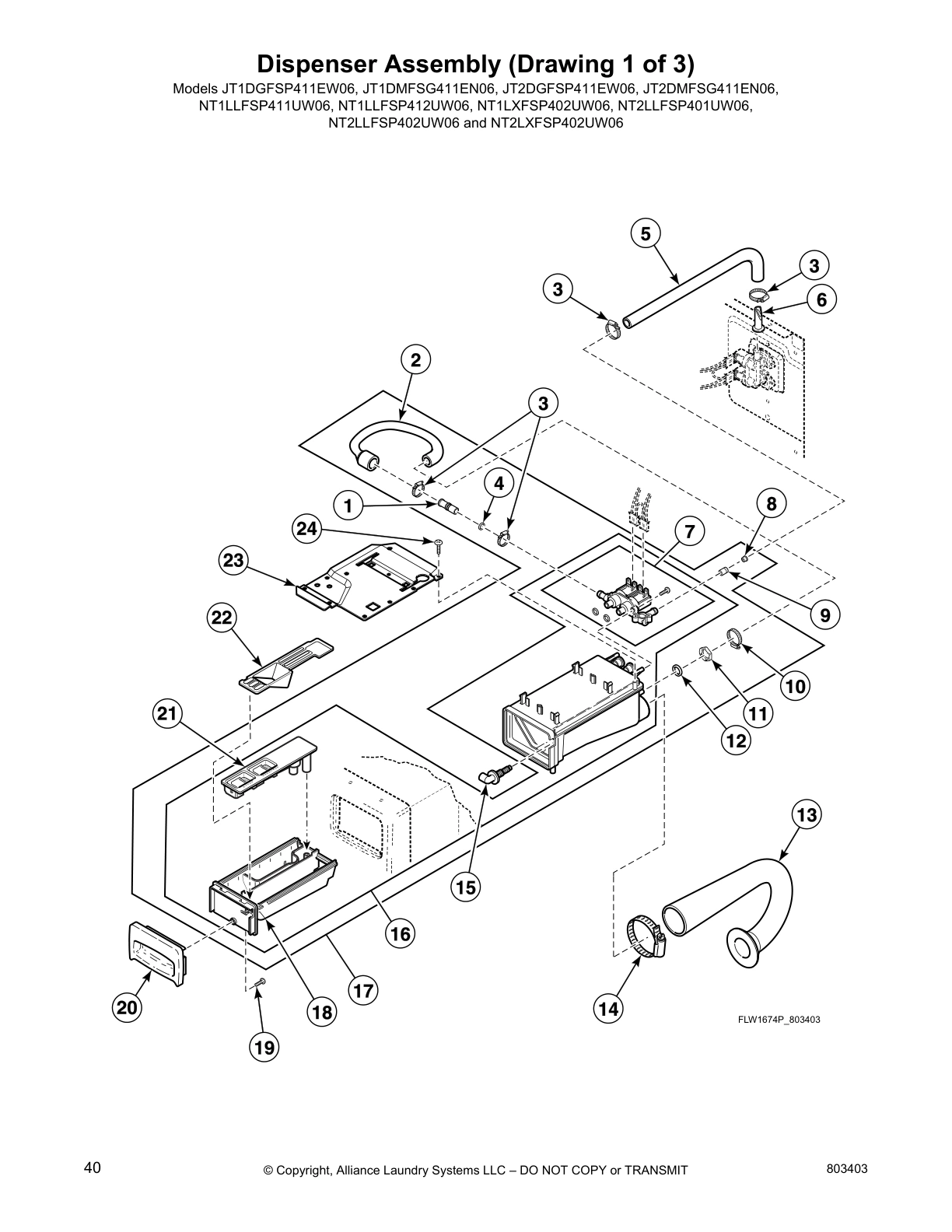

Dispenser Assembly (Drawing 1 of 3)
Dispenser Assembly (Drawing 2 of 3)

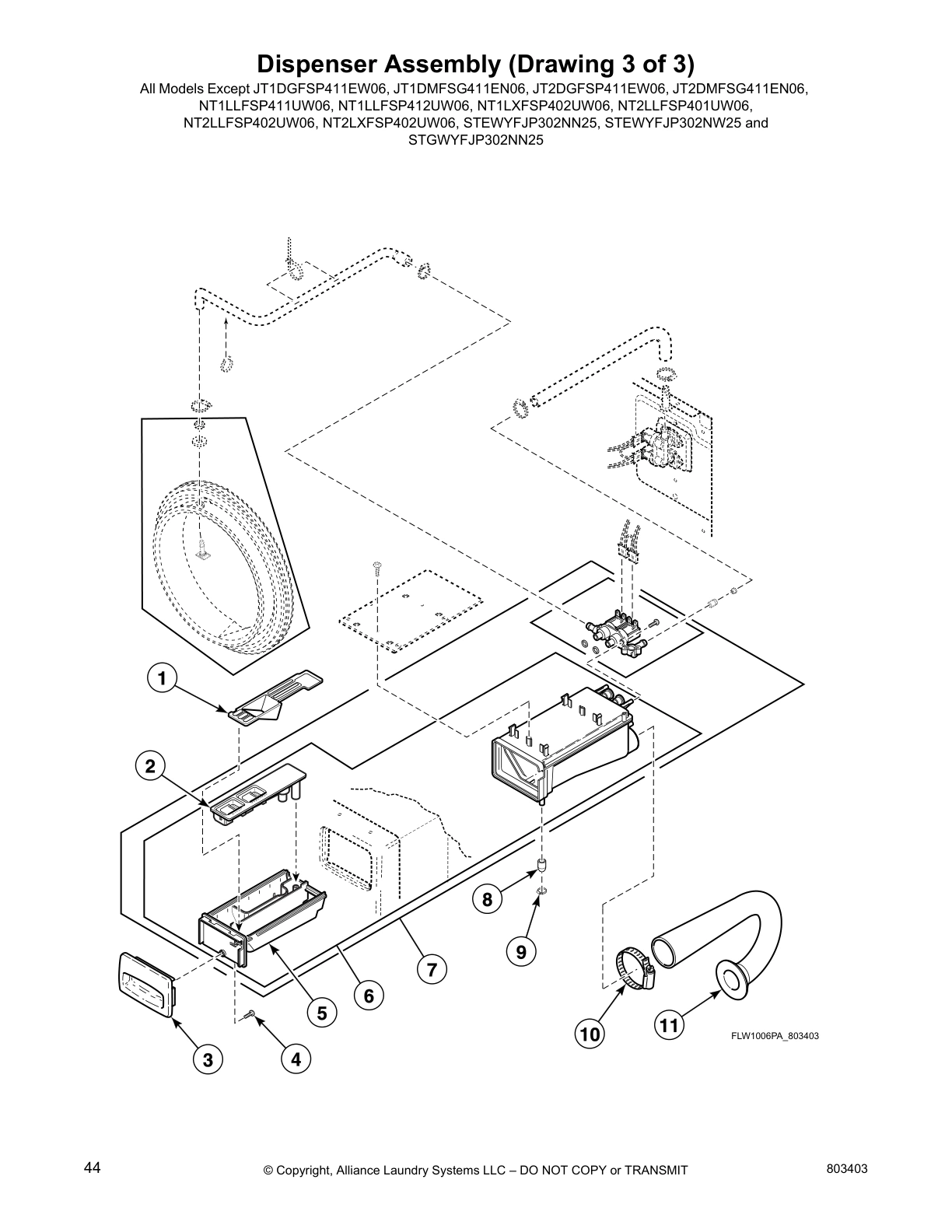

Dispenser Assembly (Drawing 3 of 3)

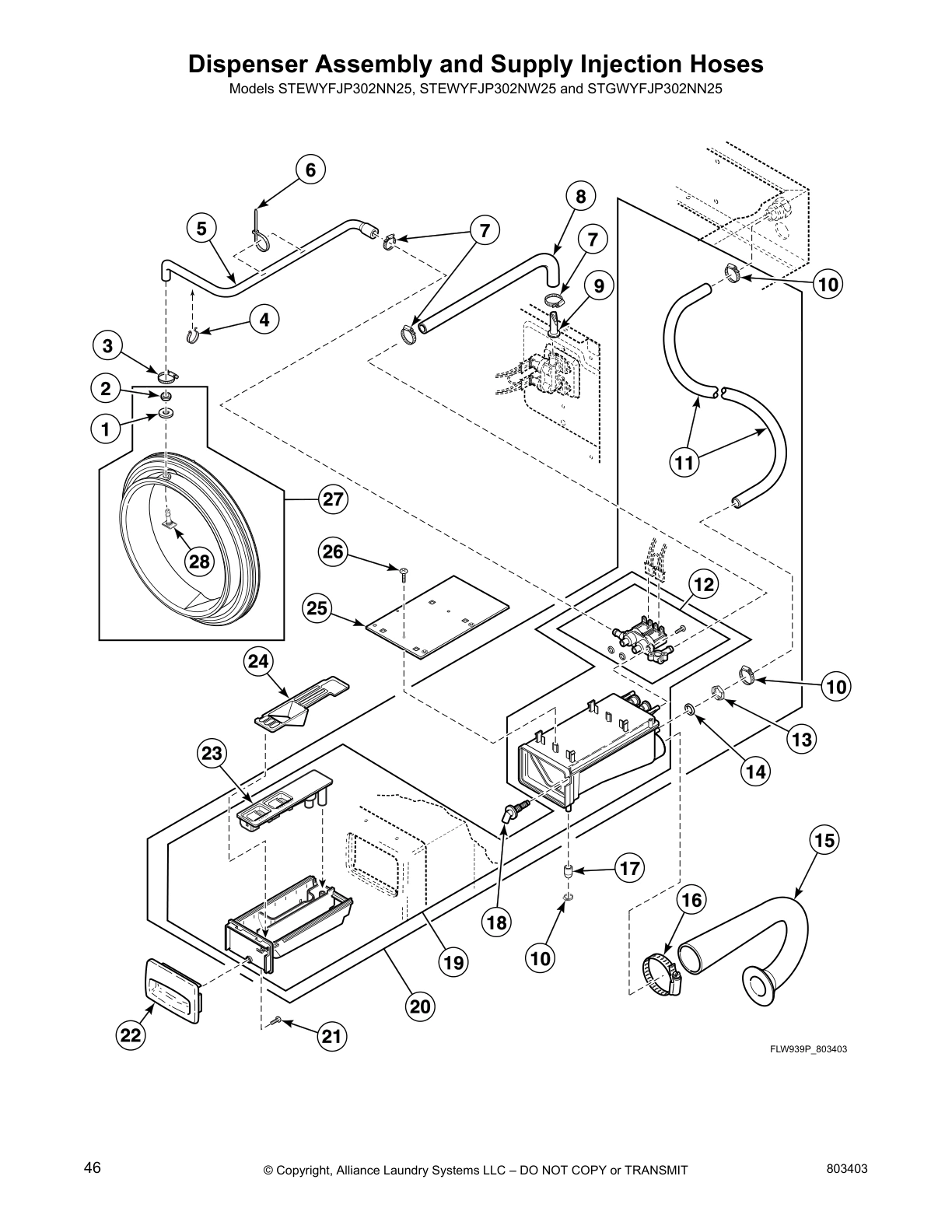

Dispenser Assembly and Supply Injection Hoses
Mixing Valve, Valve-to-Dispenser Inlet Hose and Fill Hose

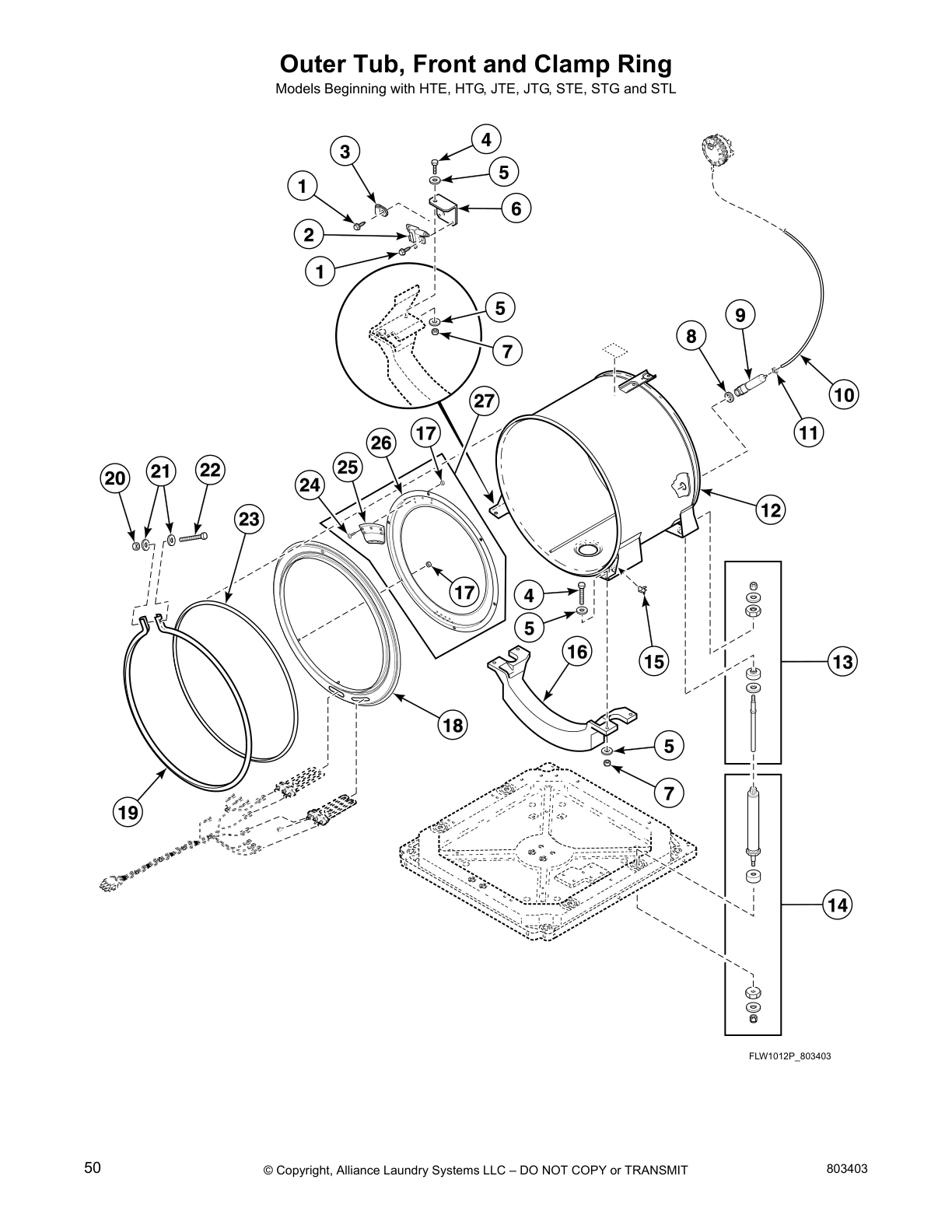

Outer Tub, Front and Clamp Ring

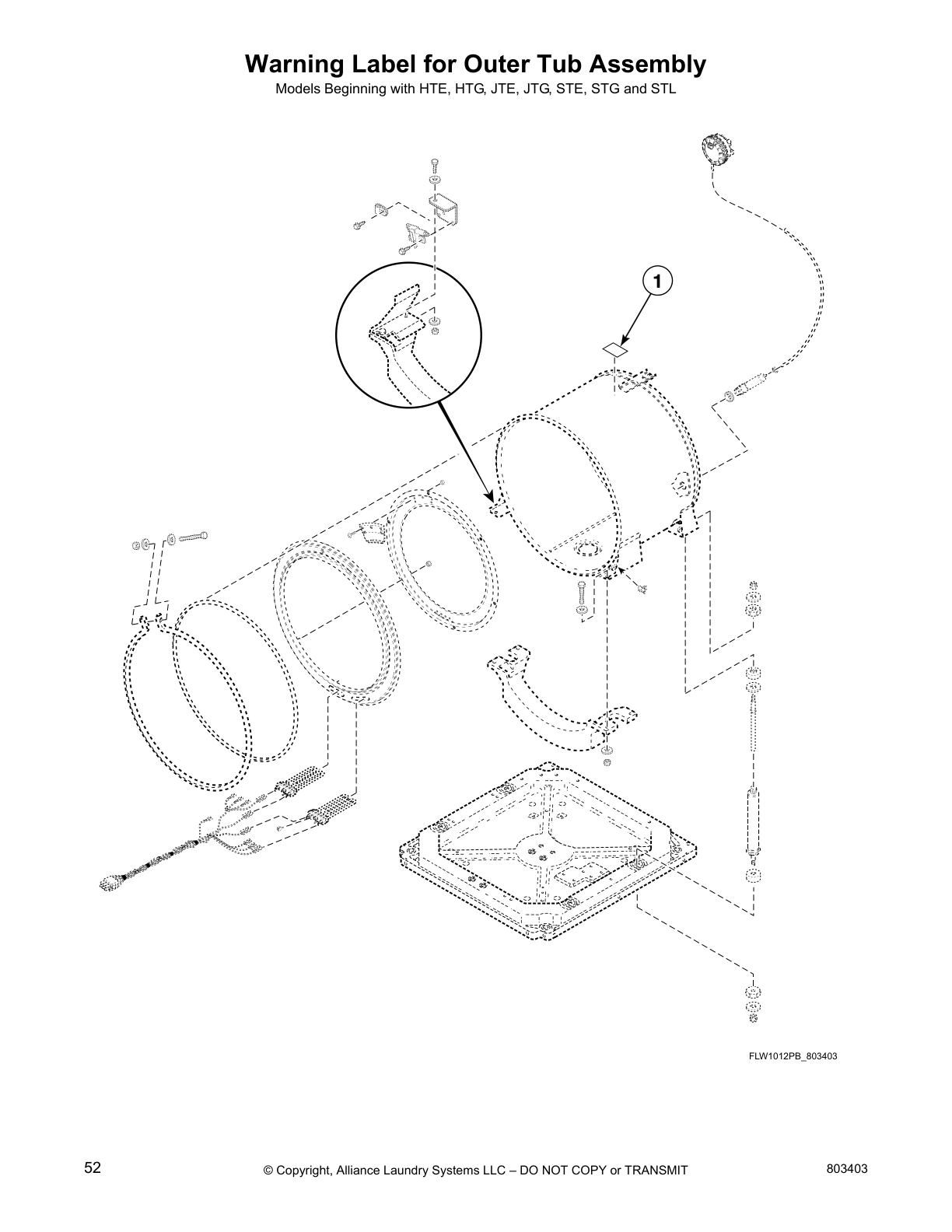

Warning Label for Outer Tub Assembly

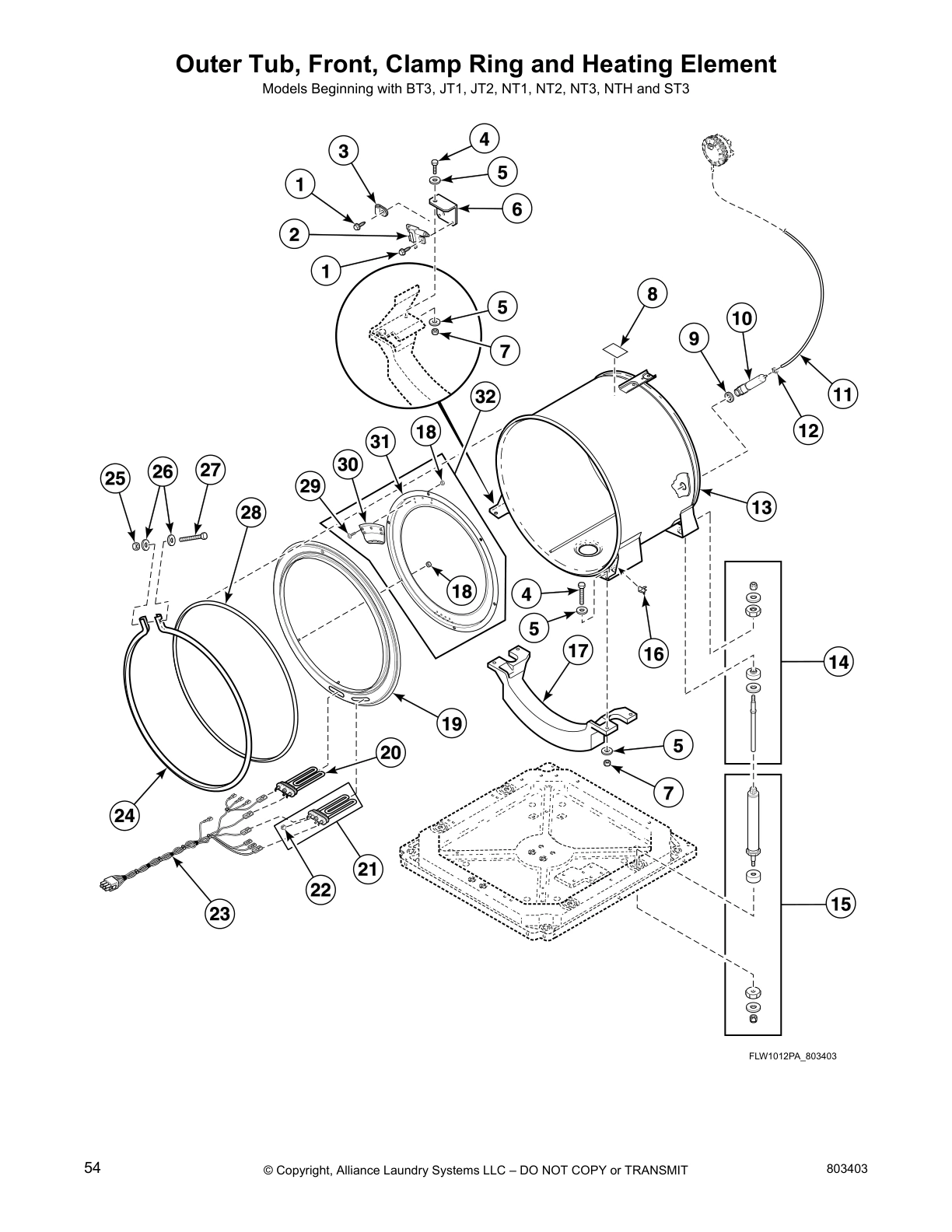

Outer Tub, Front, Clamp Ring and Heating Element
Inner Basket, Trunnion, Bearing Housing and Pulley
Washer Motor and Belt

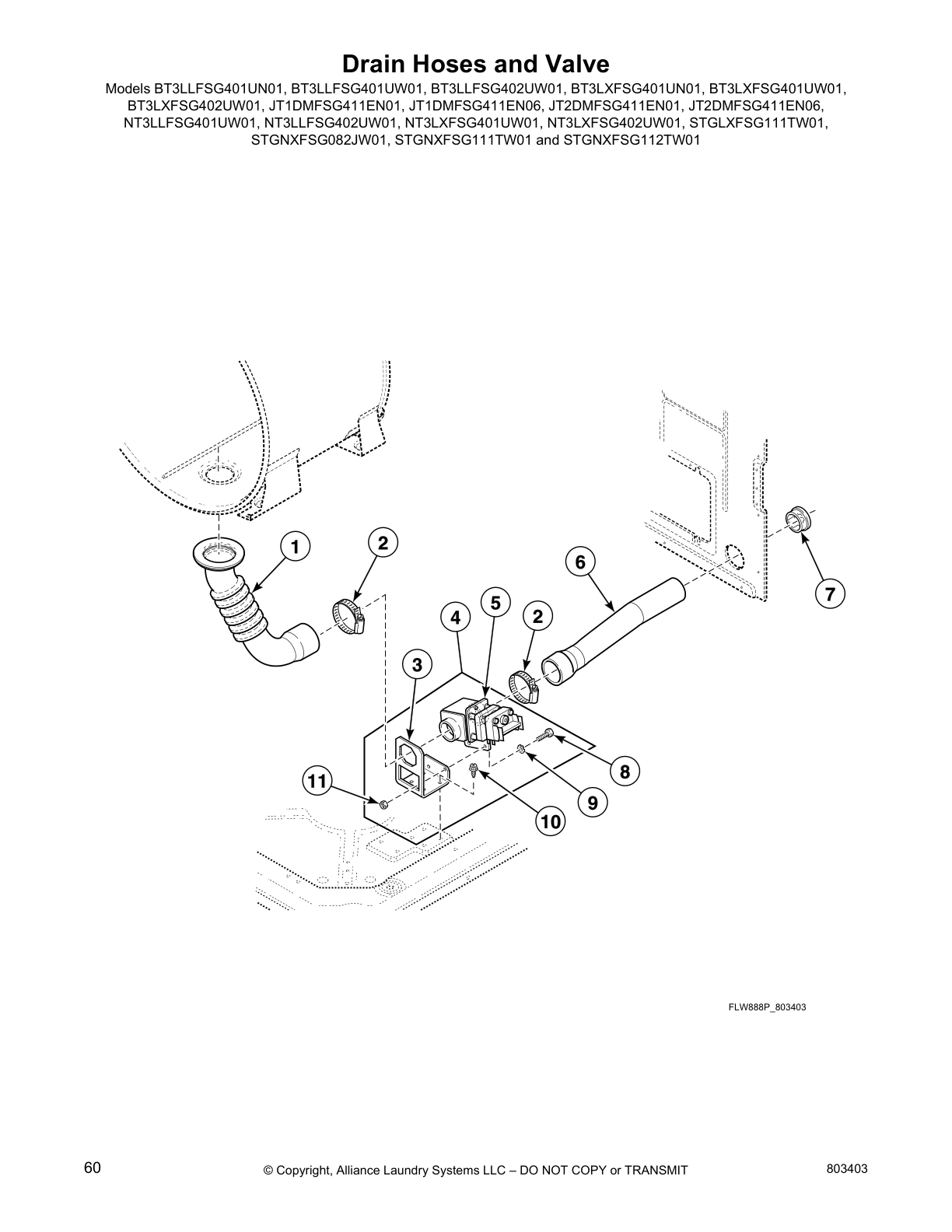

Drain Hoses and Valve

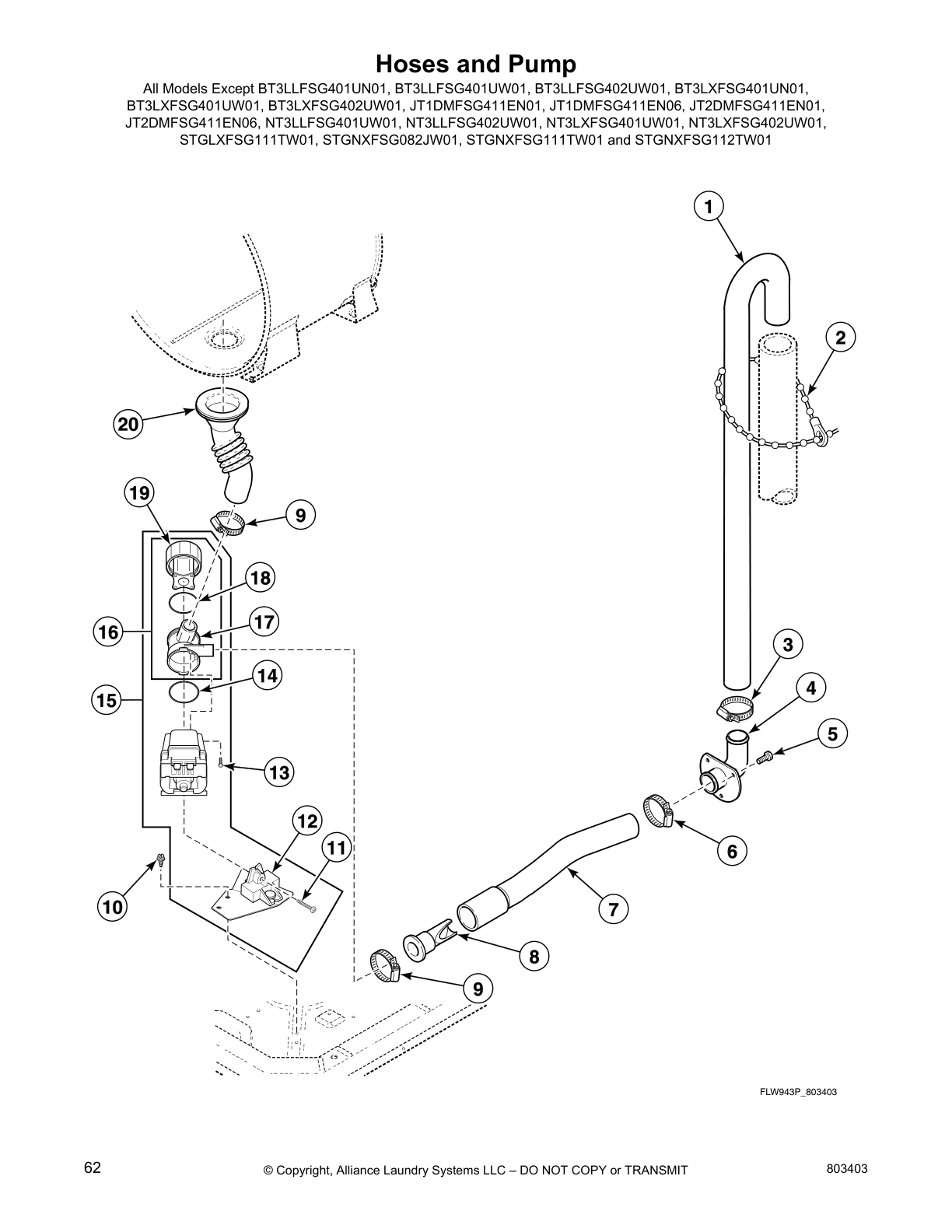

Hoses and Pump

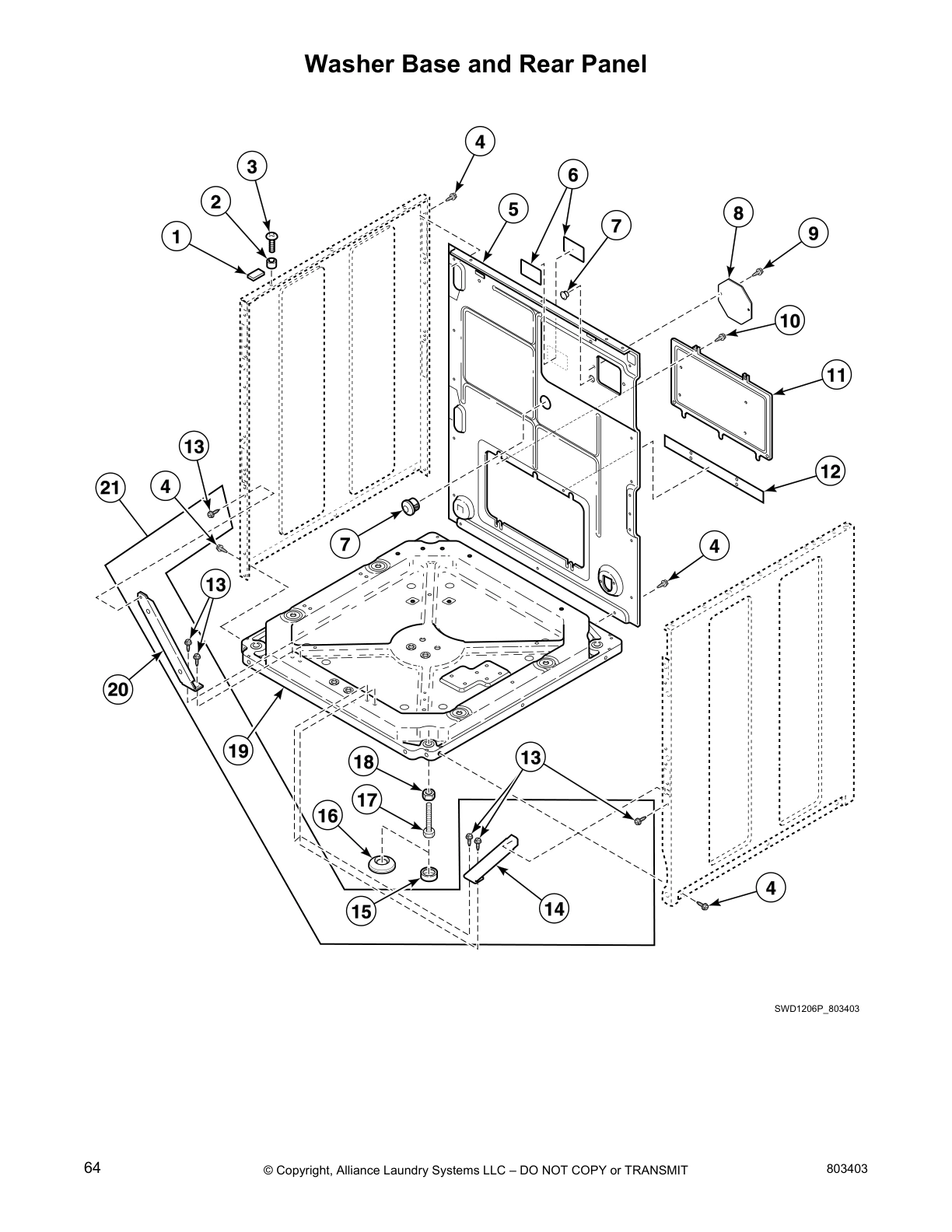

Washer Base and Rear Panel

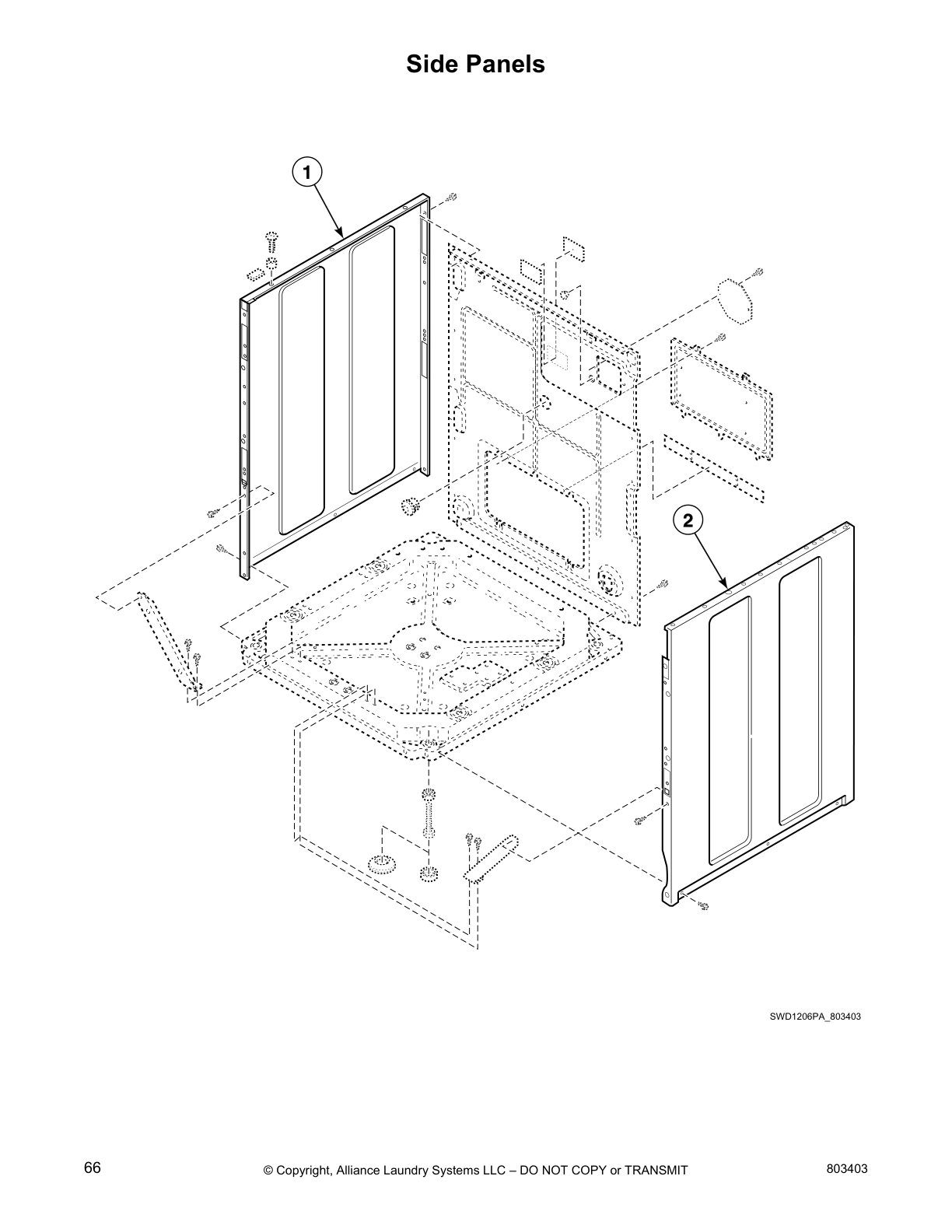

Side Panels

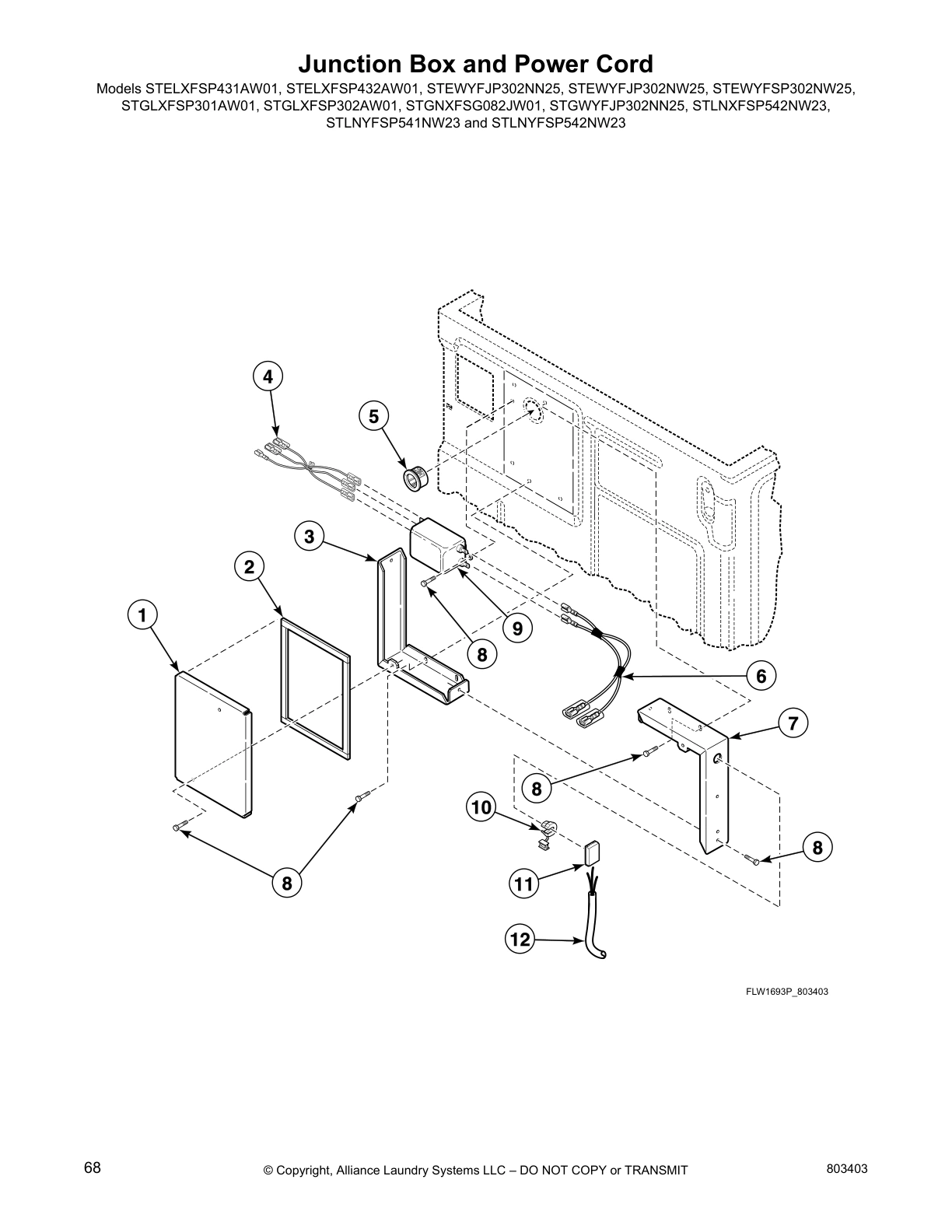

Junction Box and Power Cord

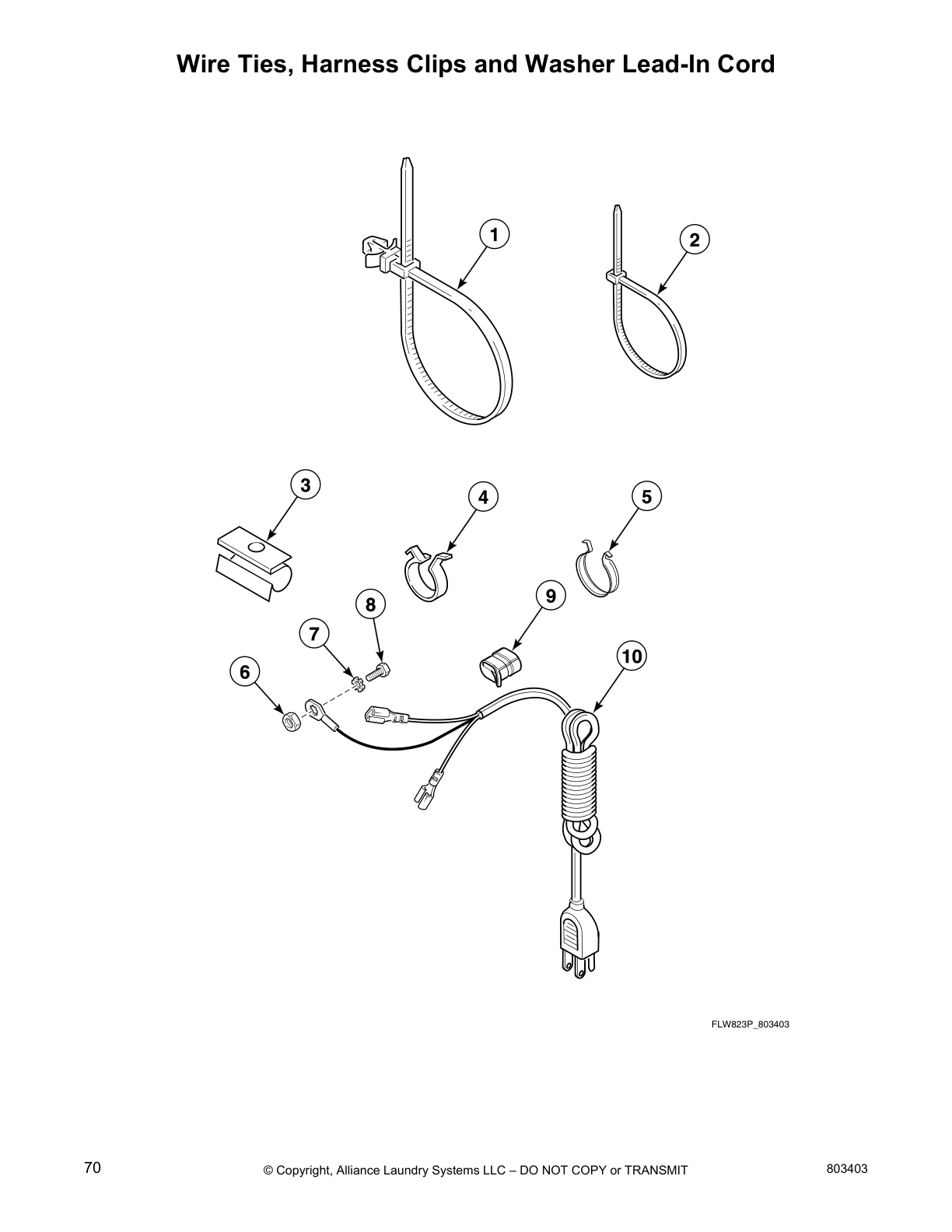

Wire Ties, Harness Clips and Washer Lead-In Cord

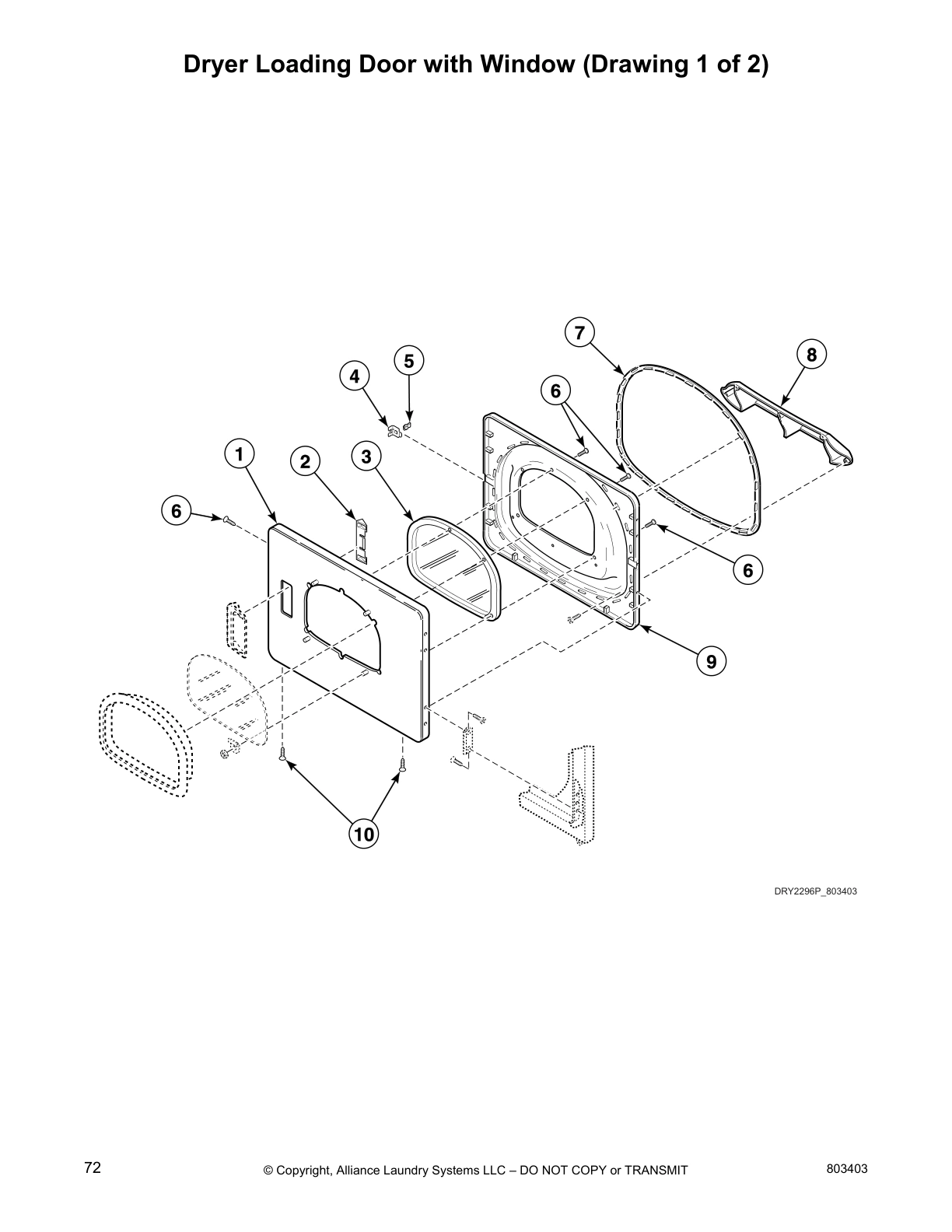

Dryer Loading Door with Window (Drawing 1 of 2)

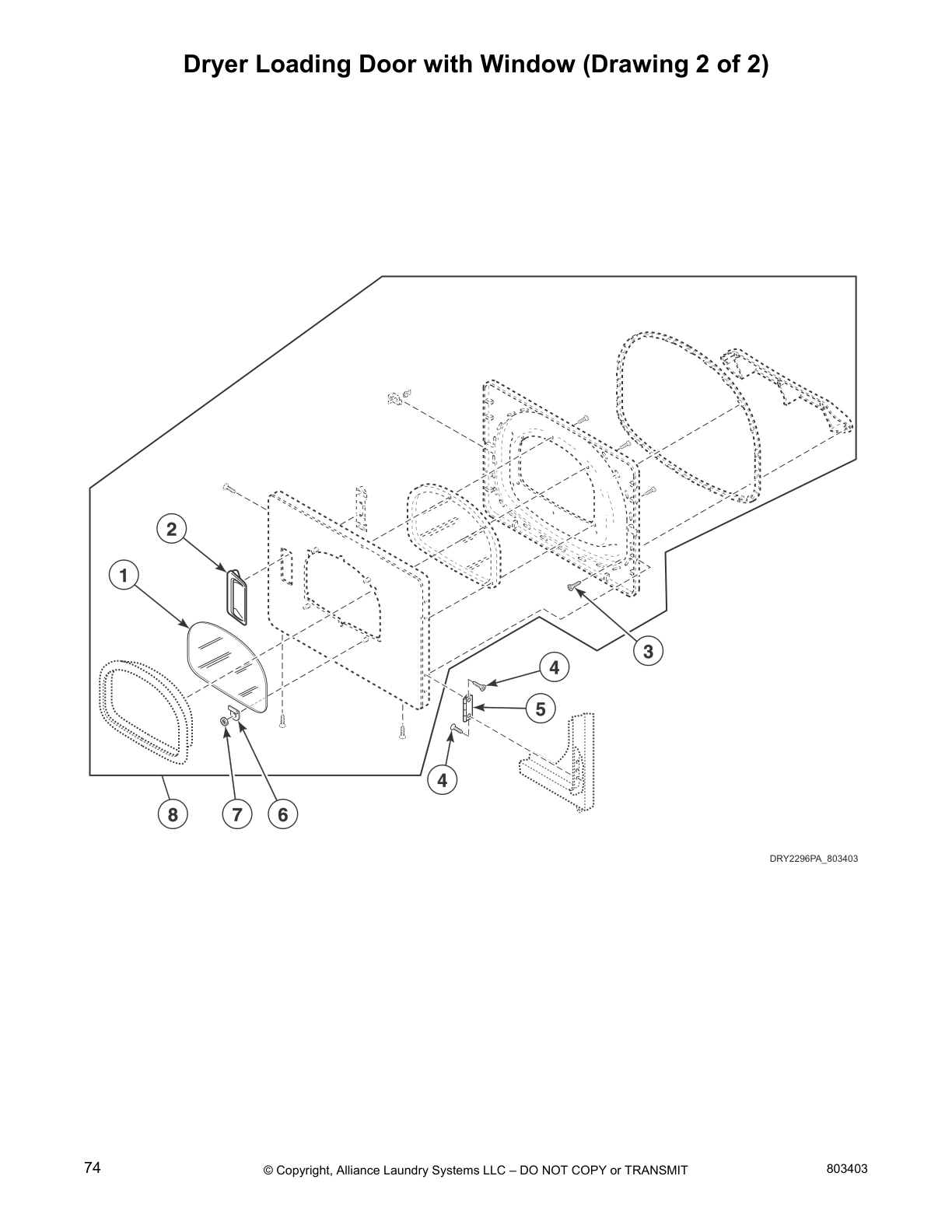

Dryer Loading Door with Window (Drawing 2 of 2)

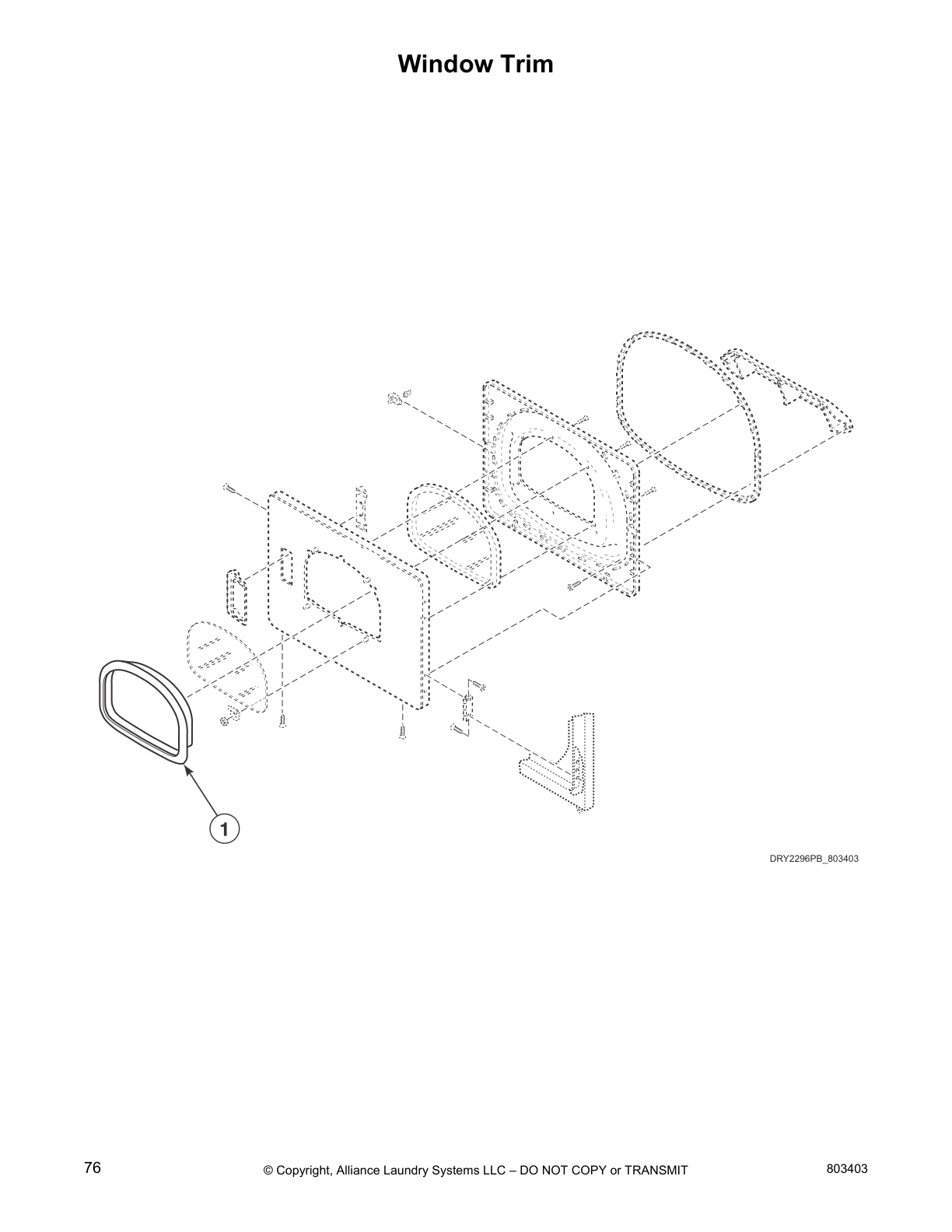

Window Trim

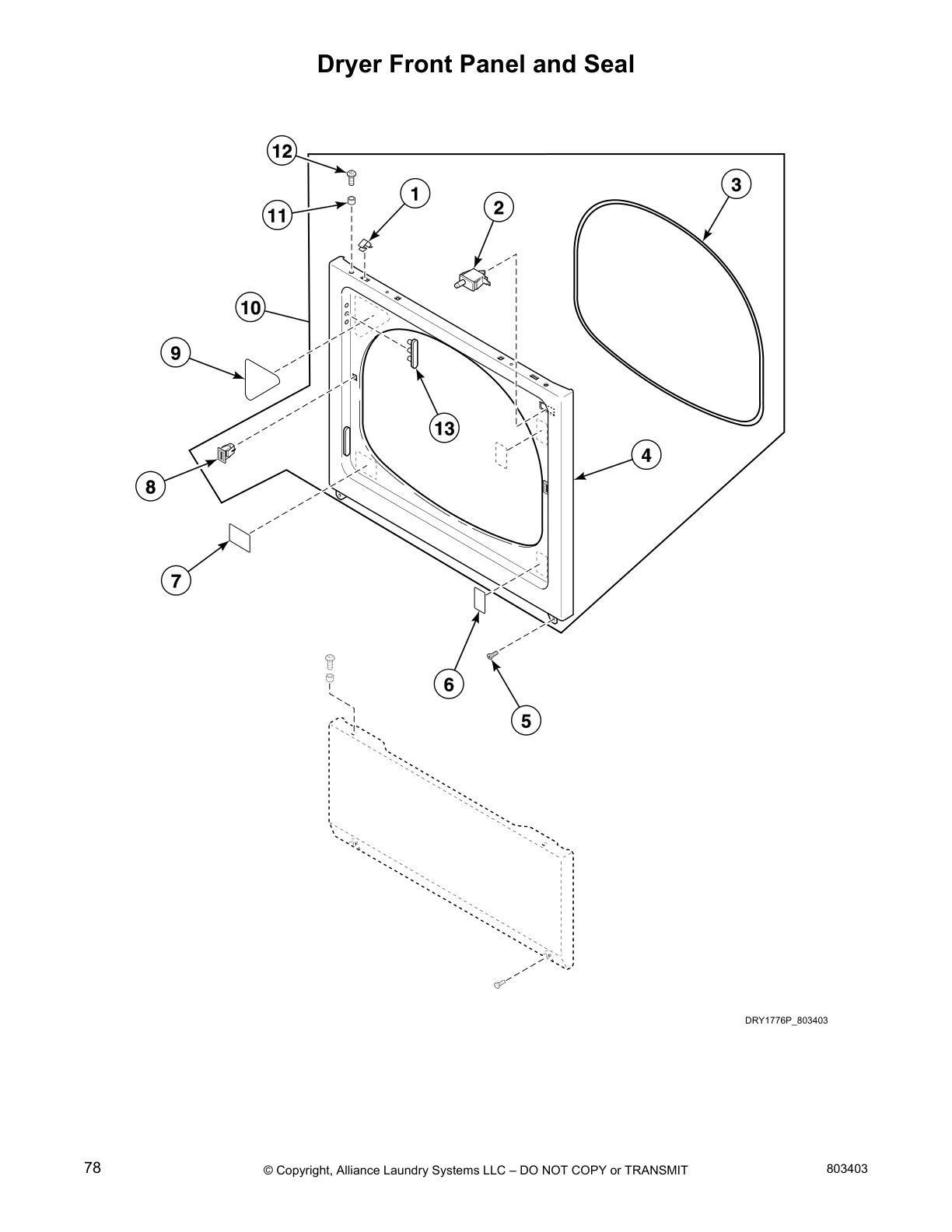

Dryer Front Panel and Seal

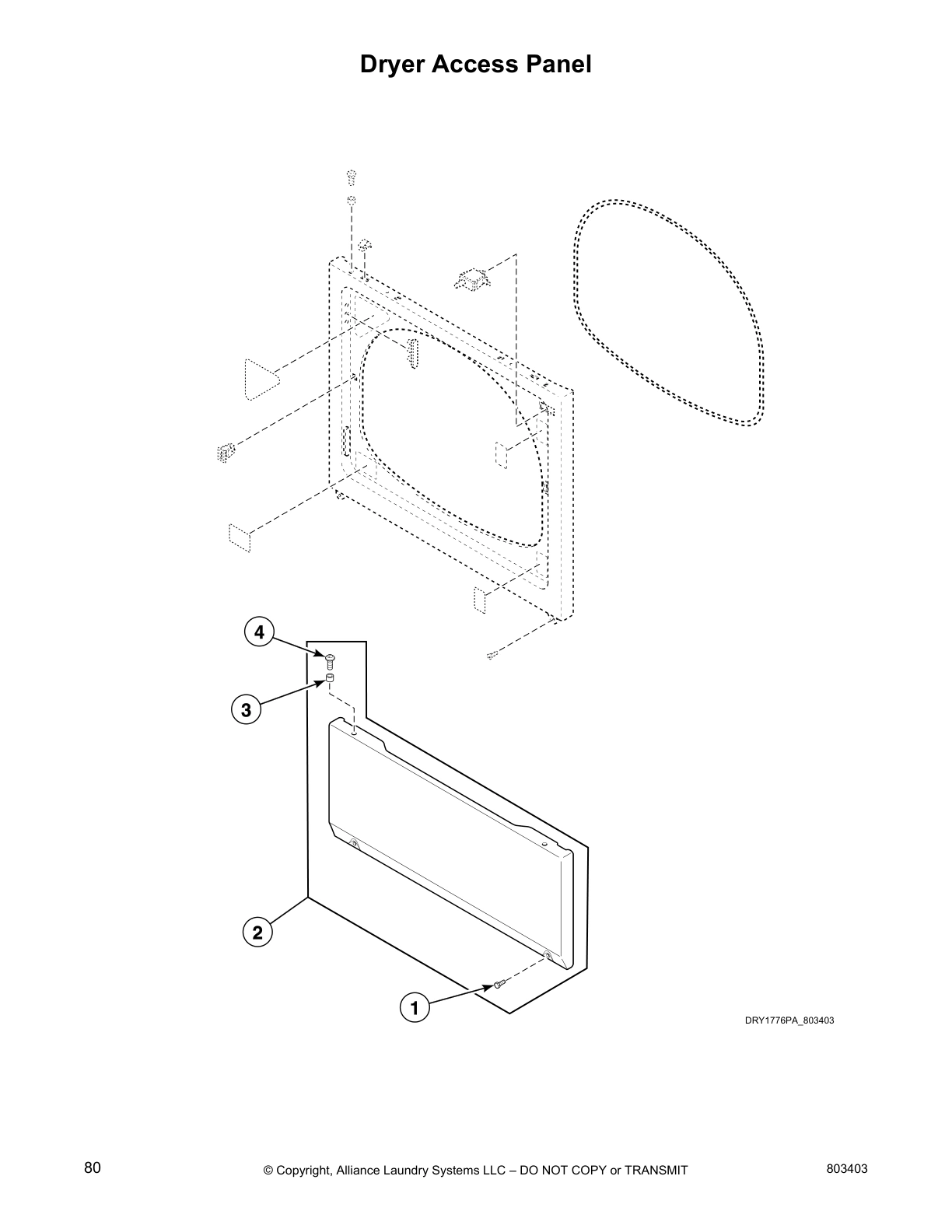

Dryer Access Panel

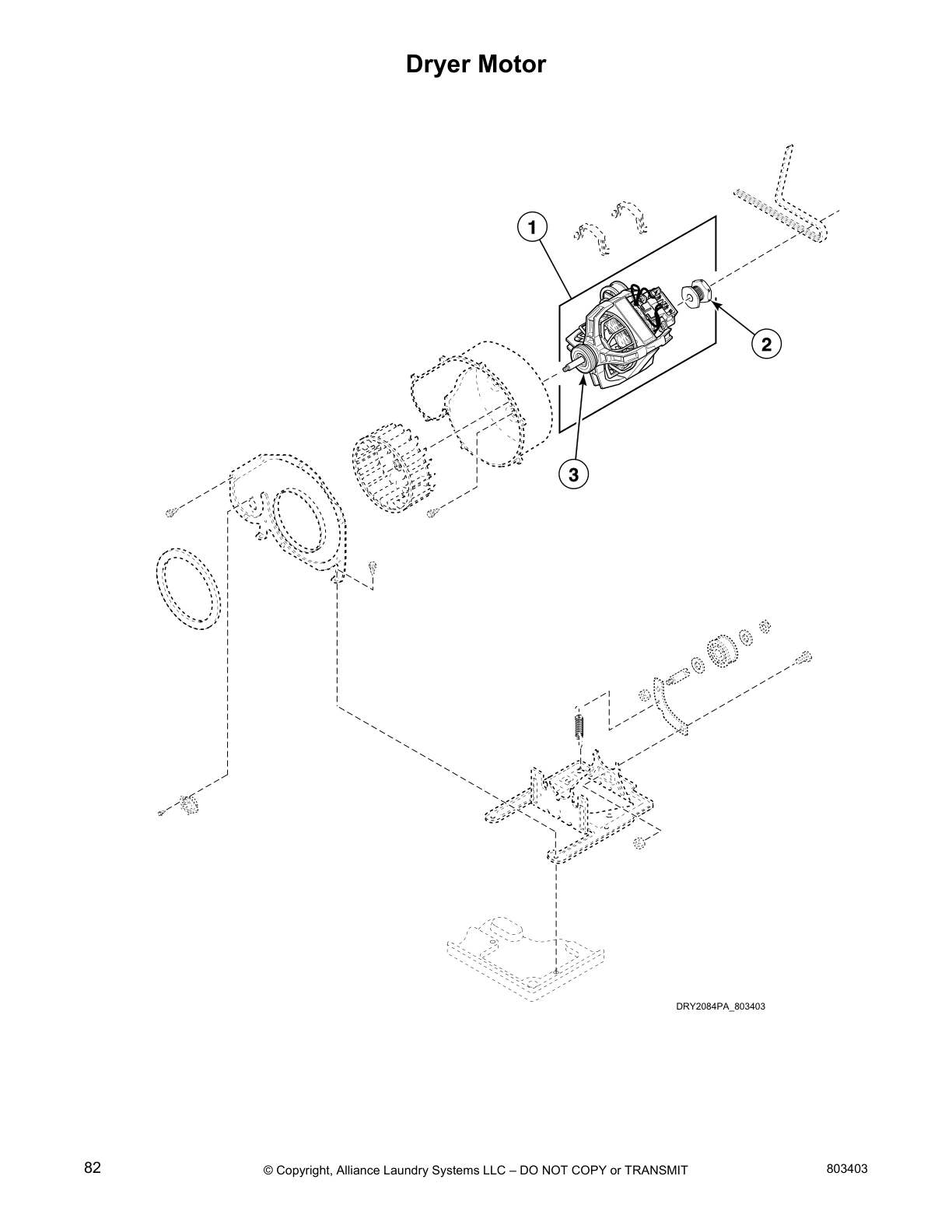

Dryer Motor

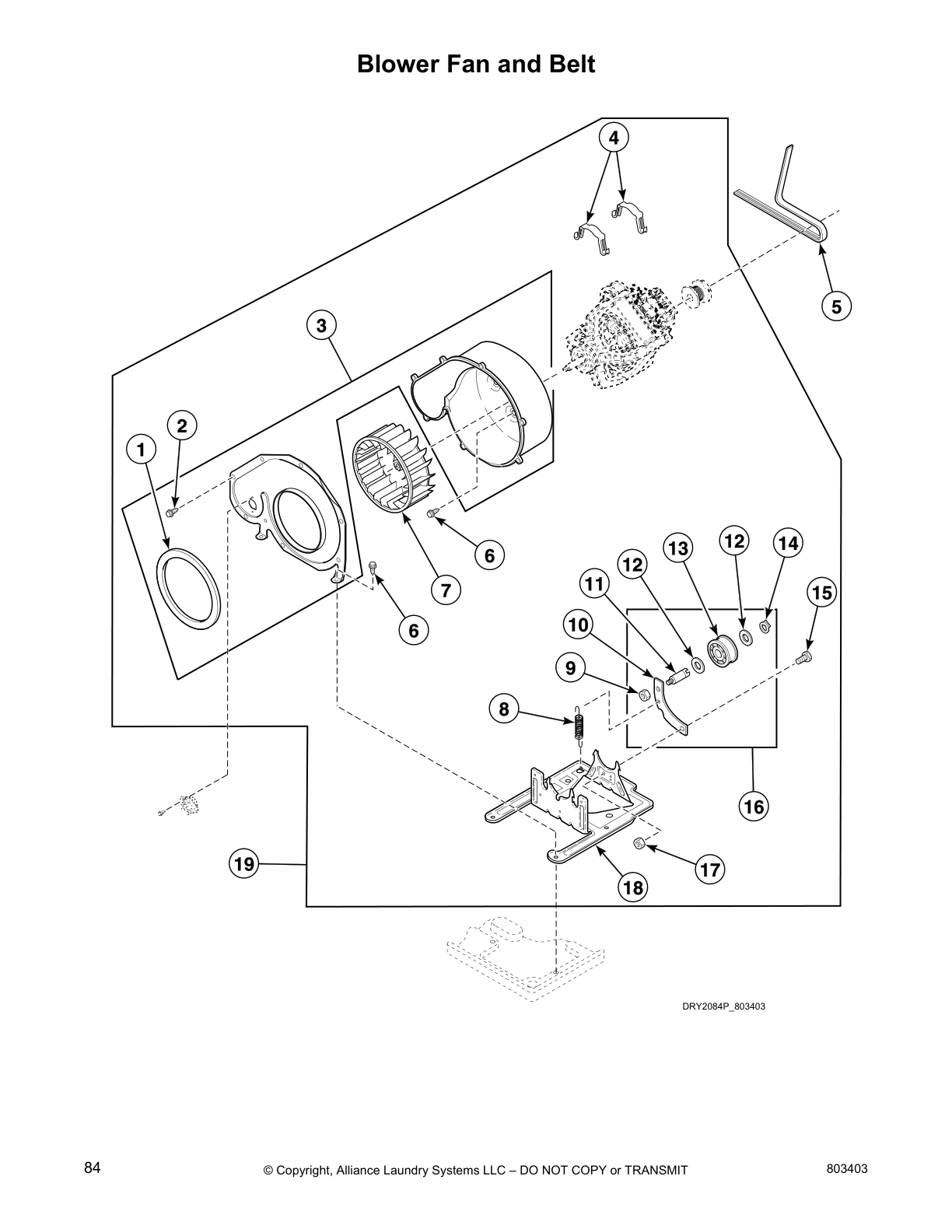

Blower Fan and Belt

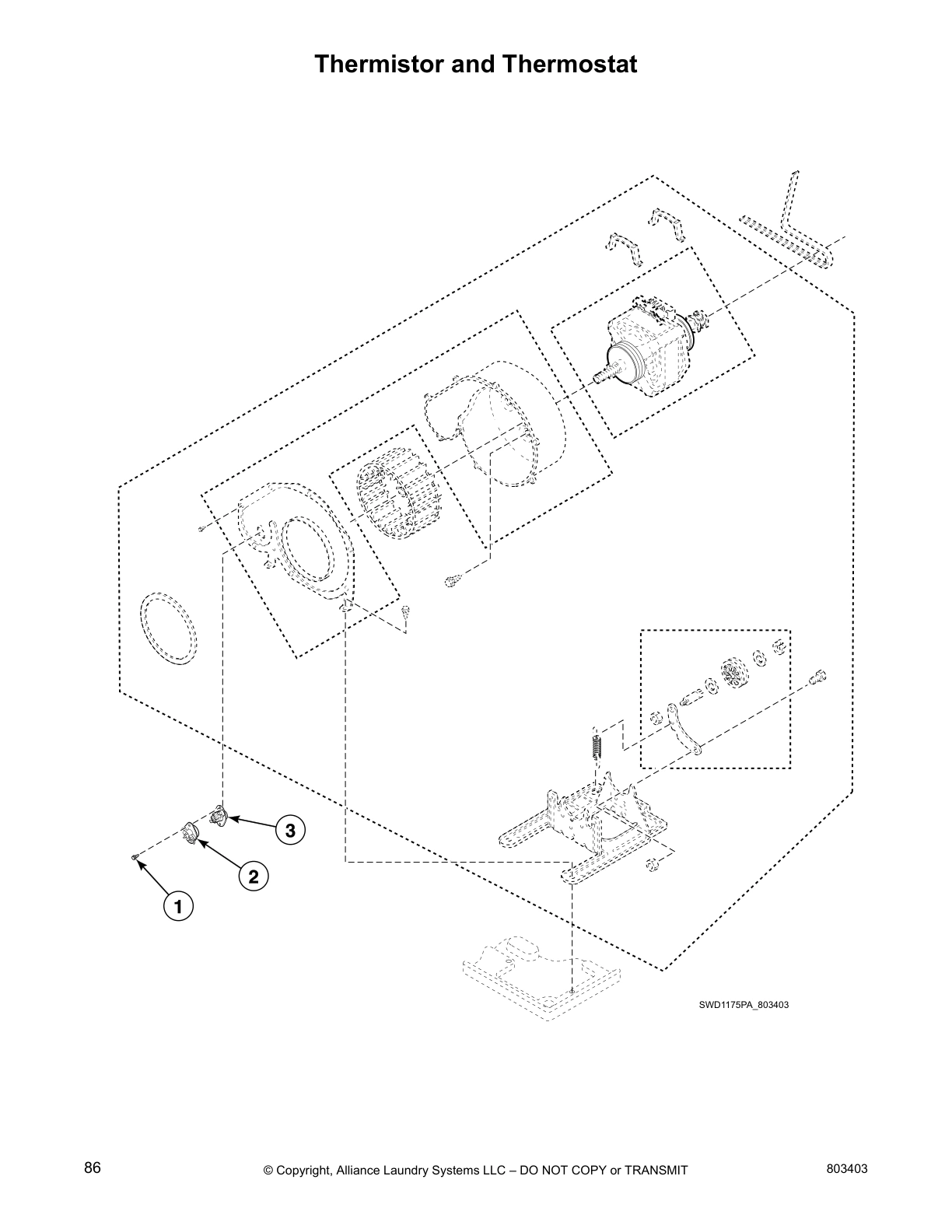

Thermistor and Thermostat

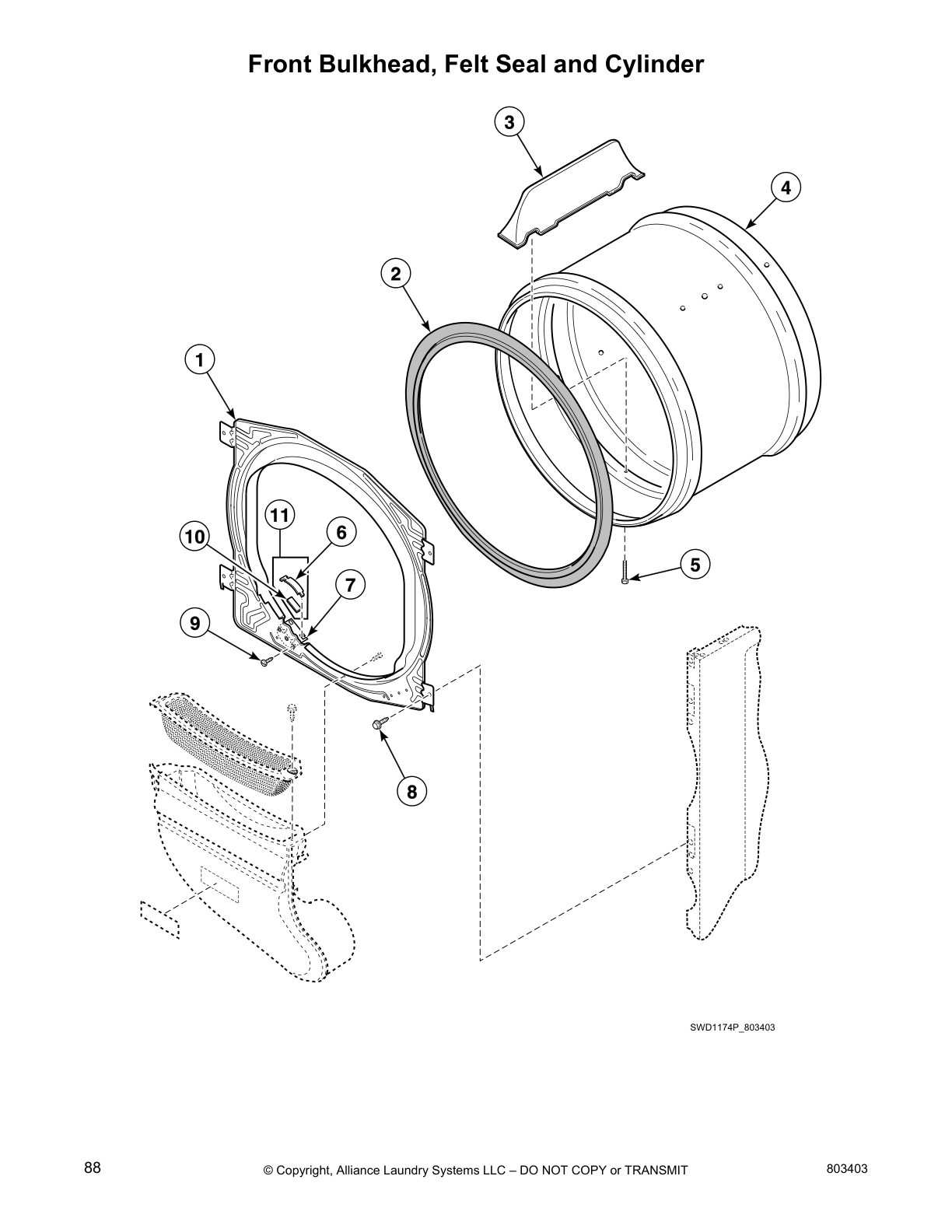

Front Bulkhead, Felt Seal and Cylinder

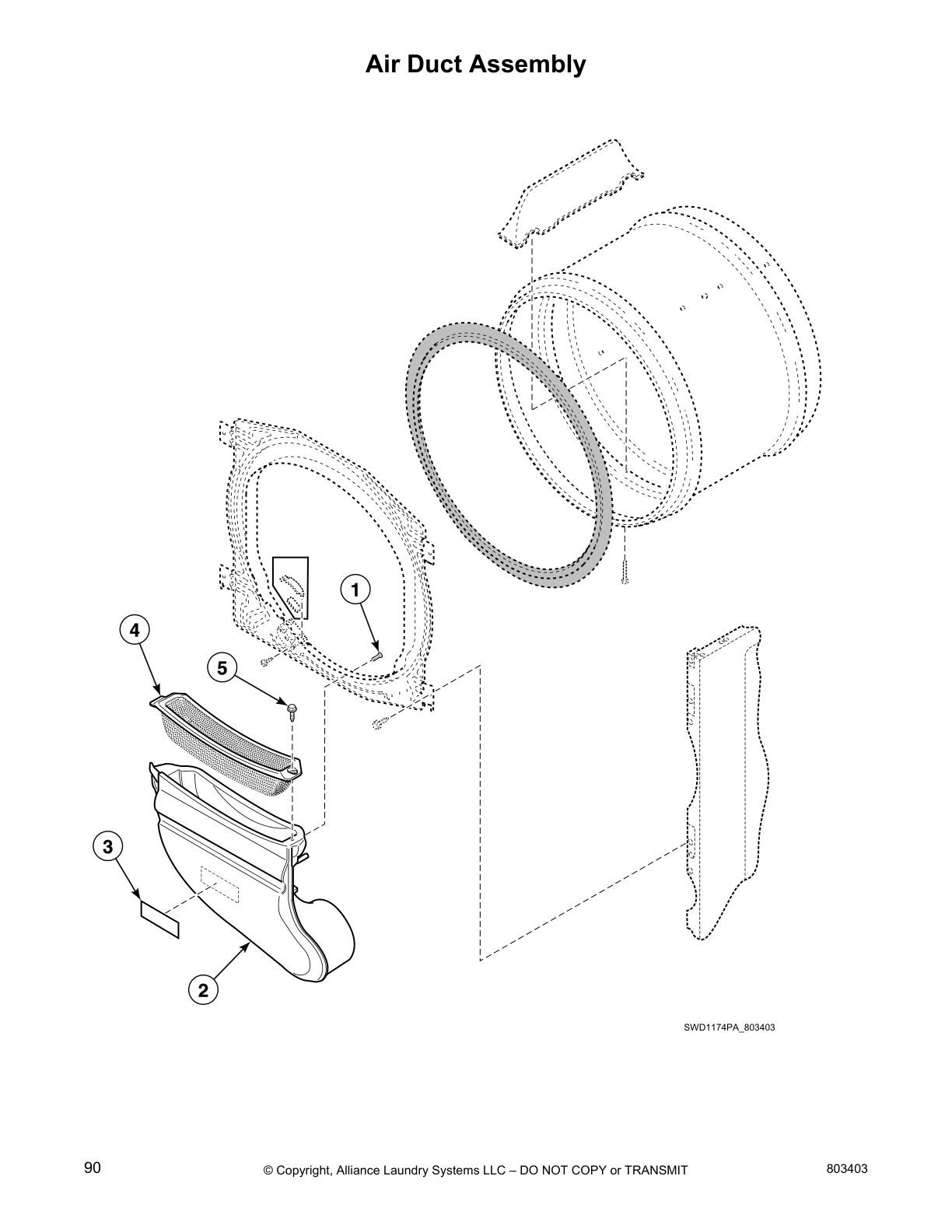

Air Duct Assembly

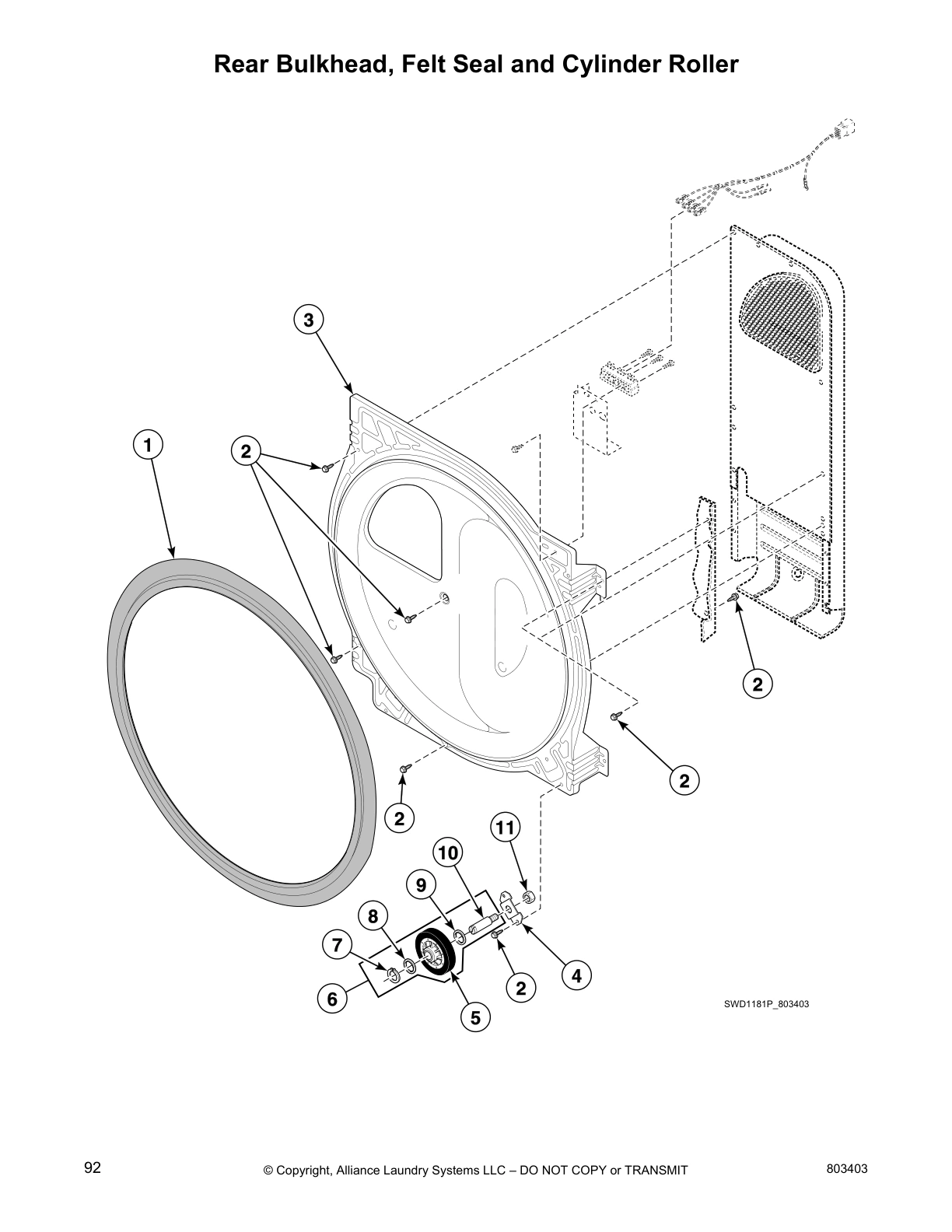

Rear Bulkhead, Felt Seal and Cylinder Roller

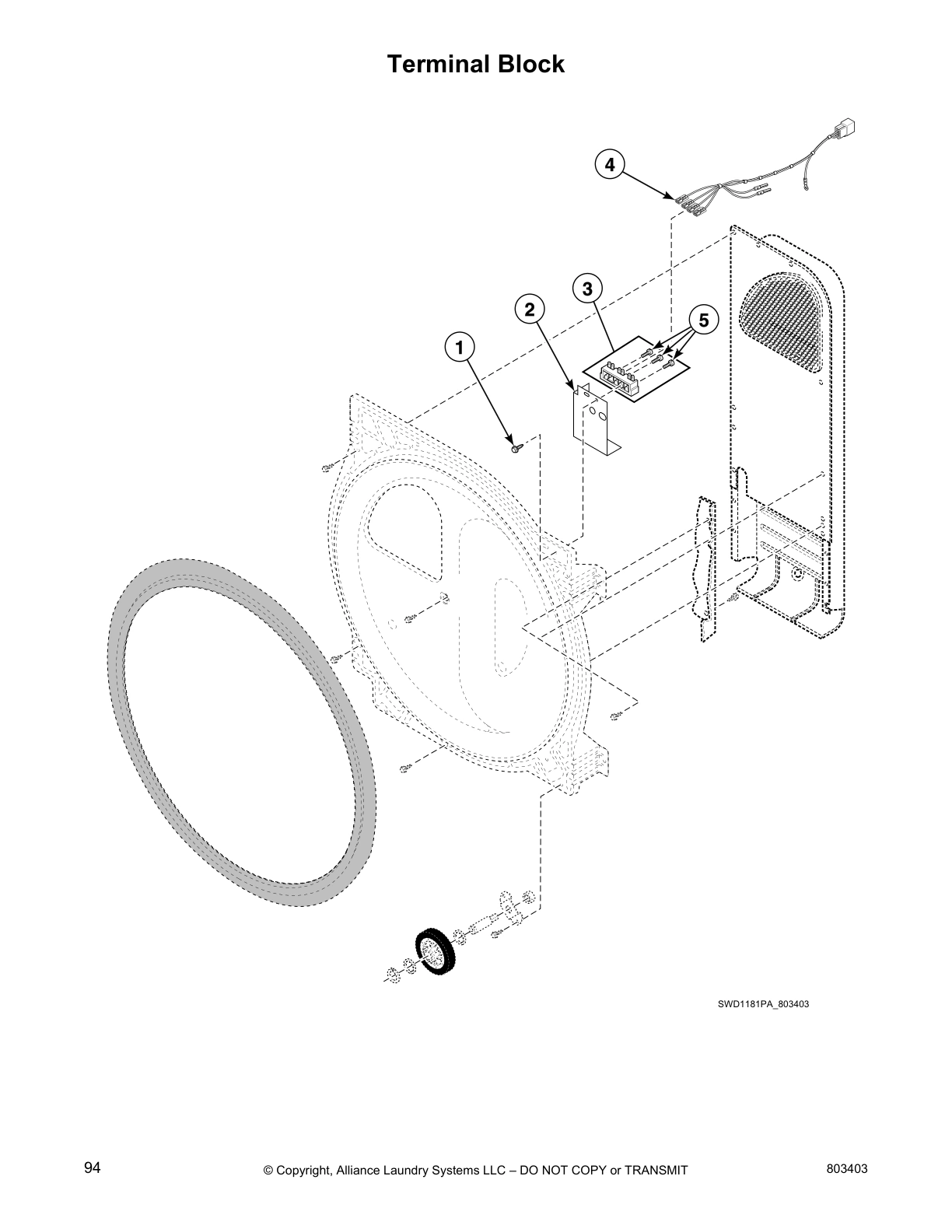

Terminal Block

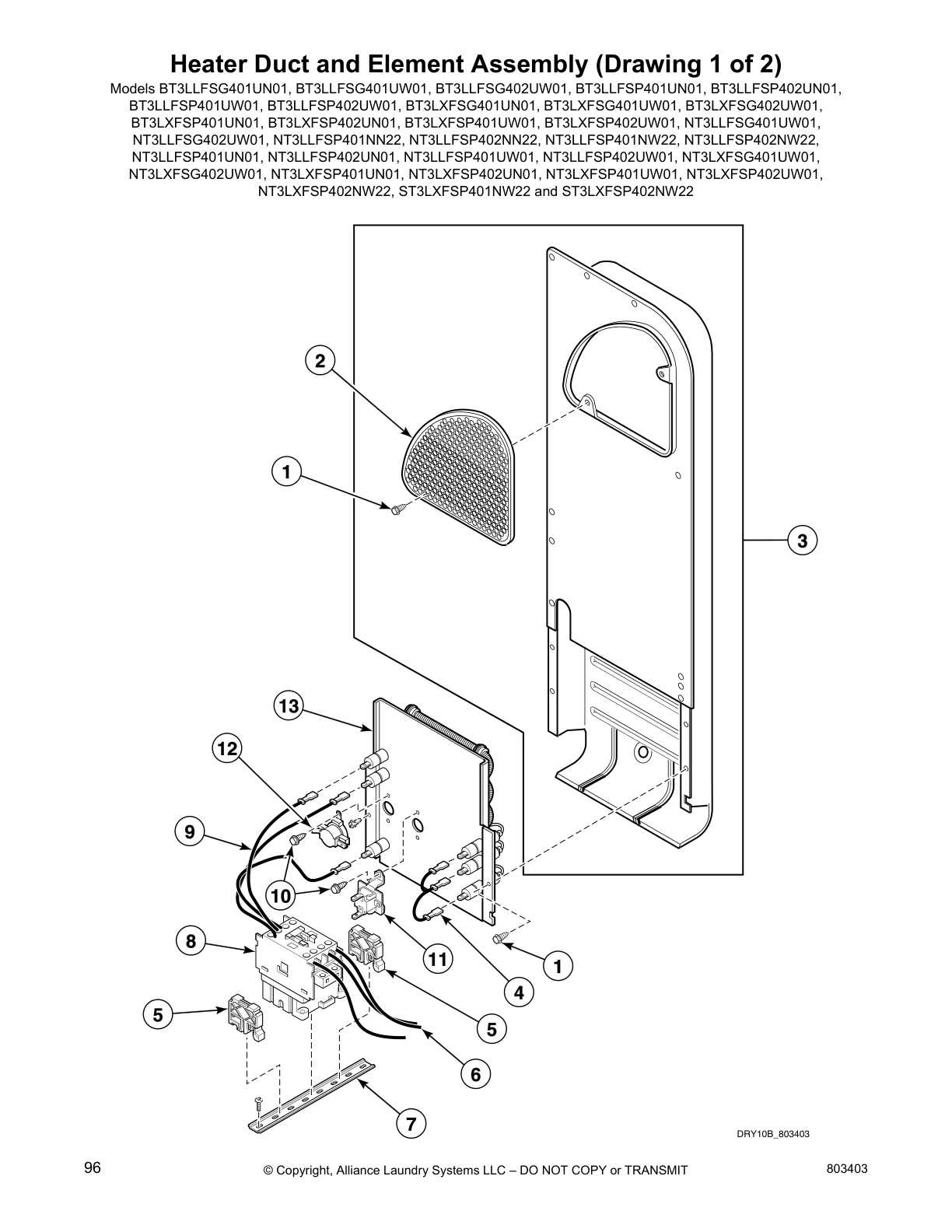

Heater Duct and Element Assembly (Drawing 1 of 2)

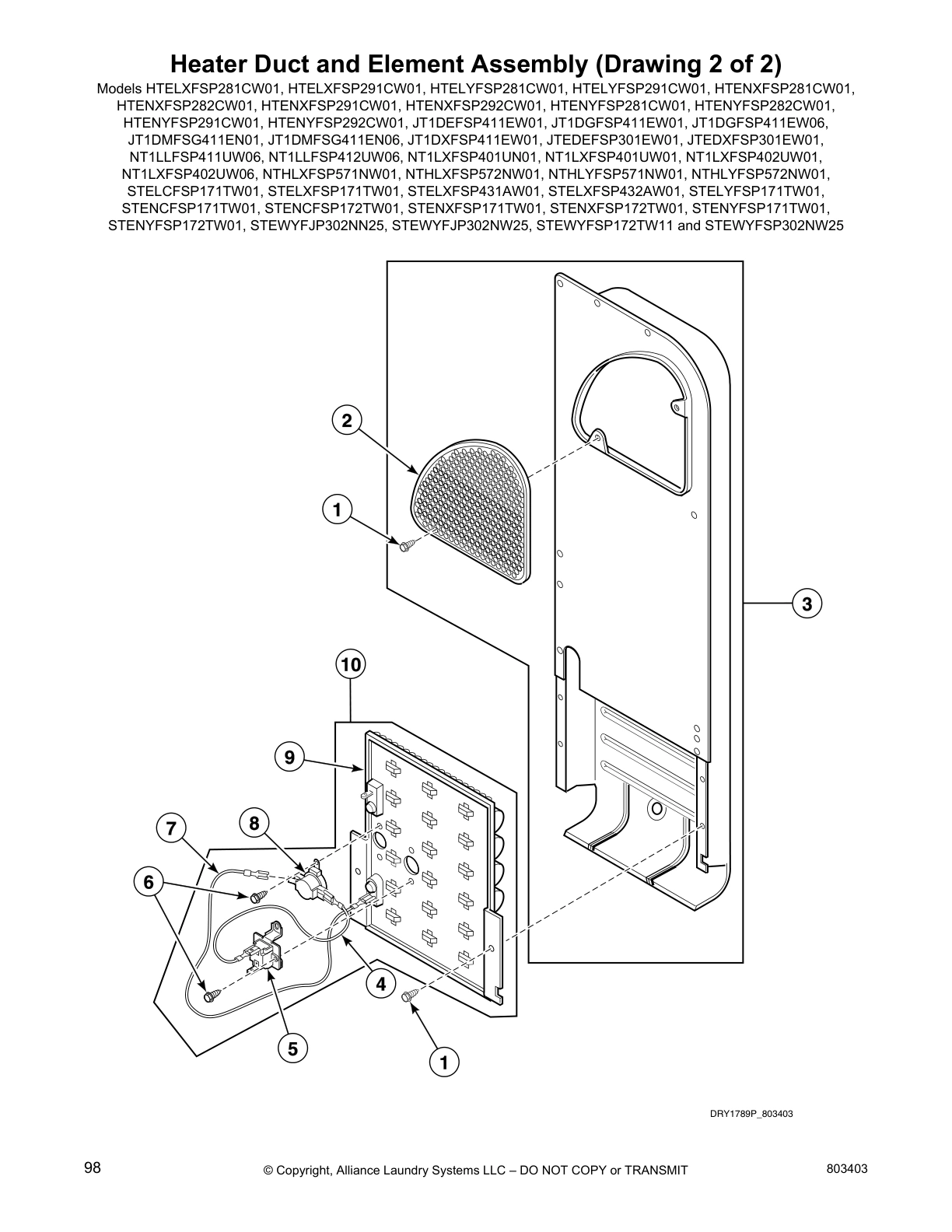

Heater Duct and Element Assembly (Drawing 2 of 2)

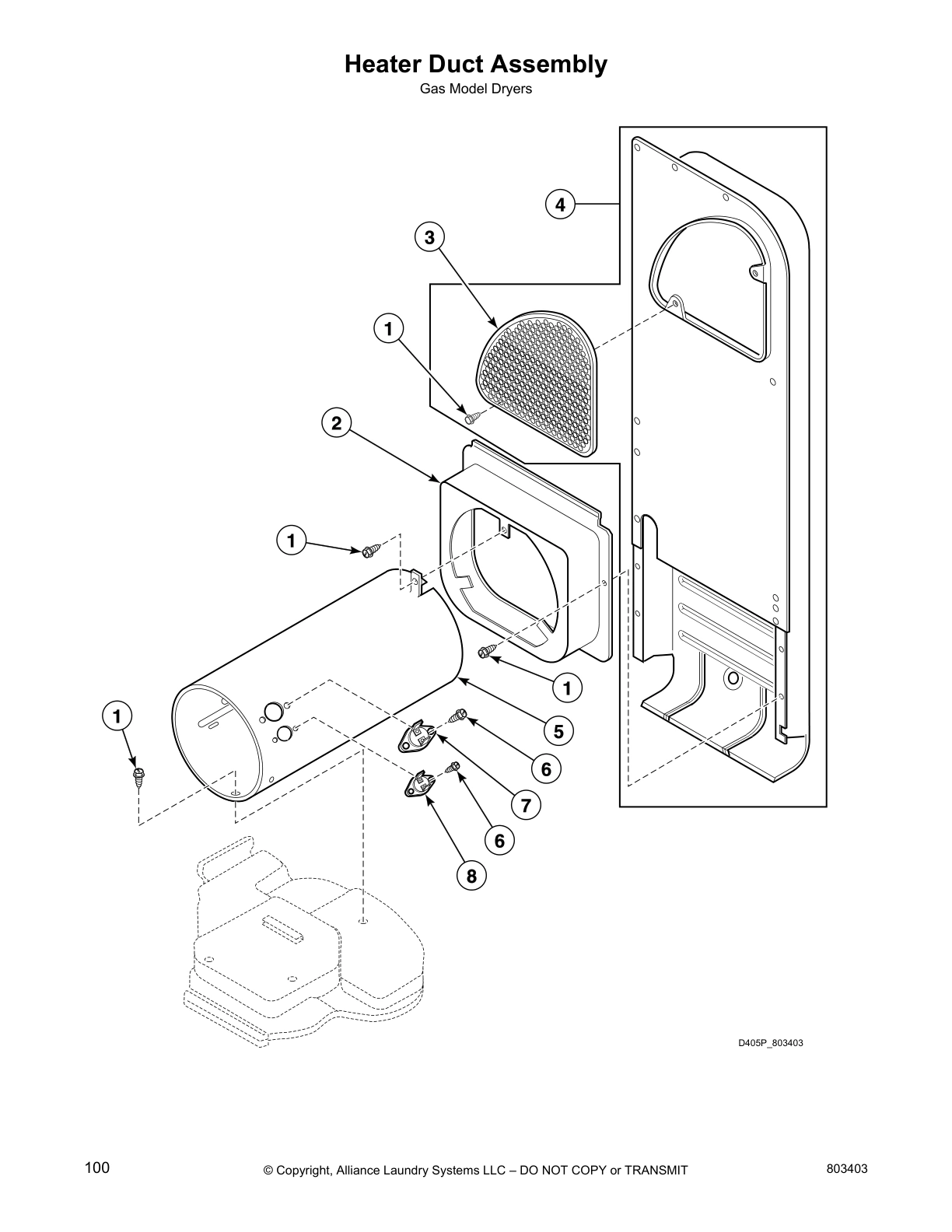

Heater Duct Assembly

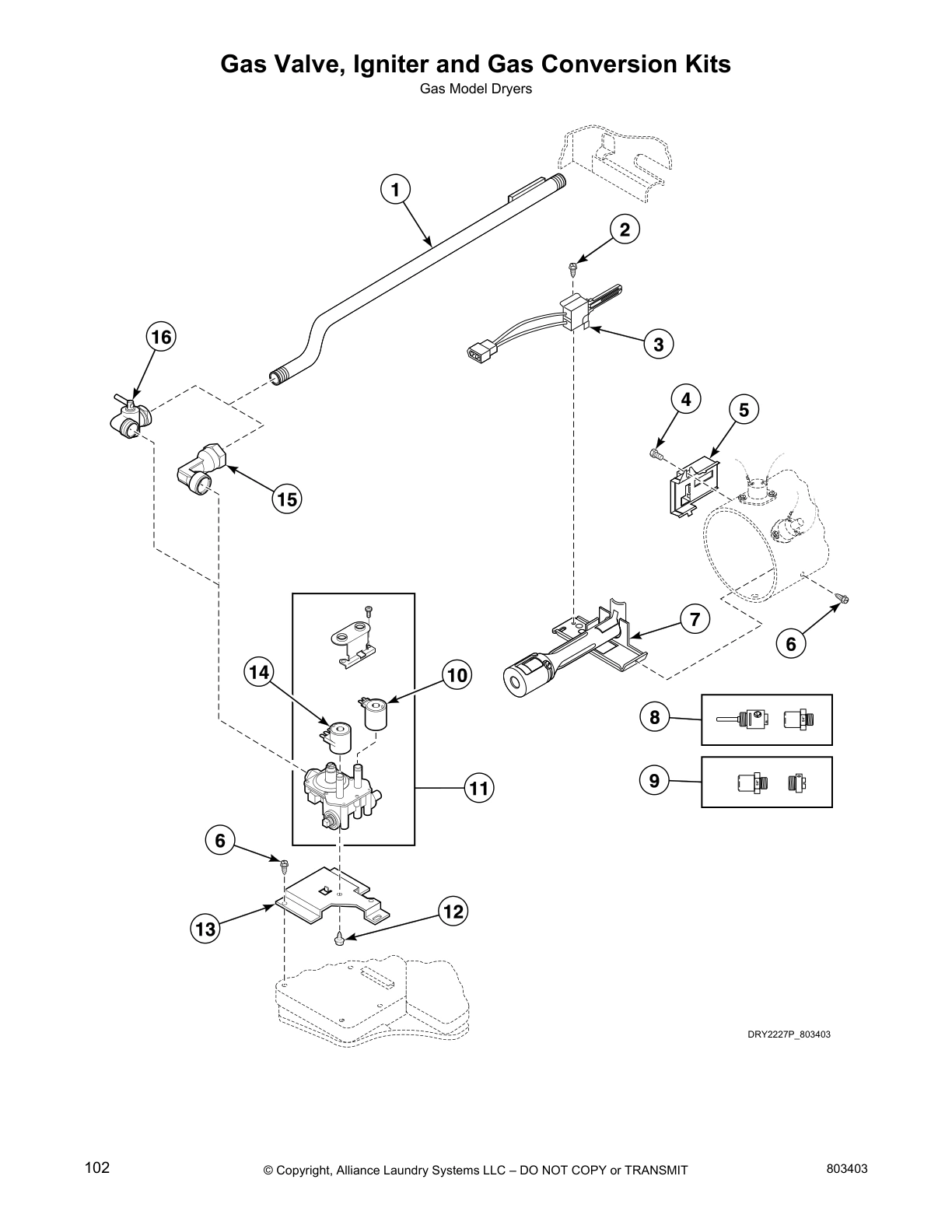

Gas Valve, Igniter and Gas Conversion Kits

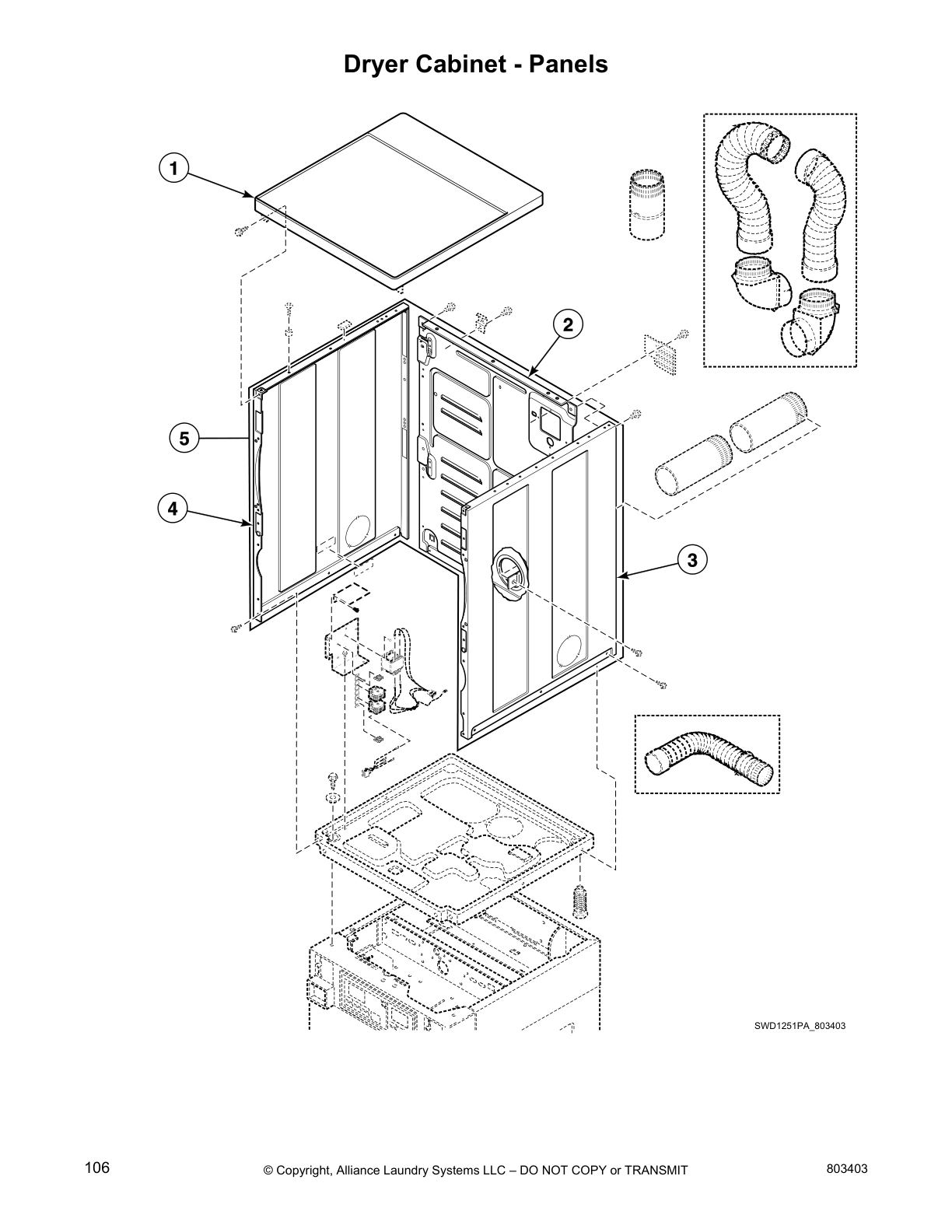

Dryer Cabinet - Panels

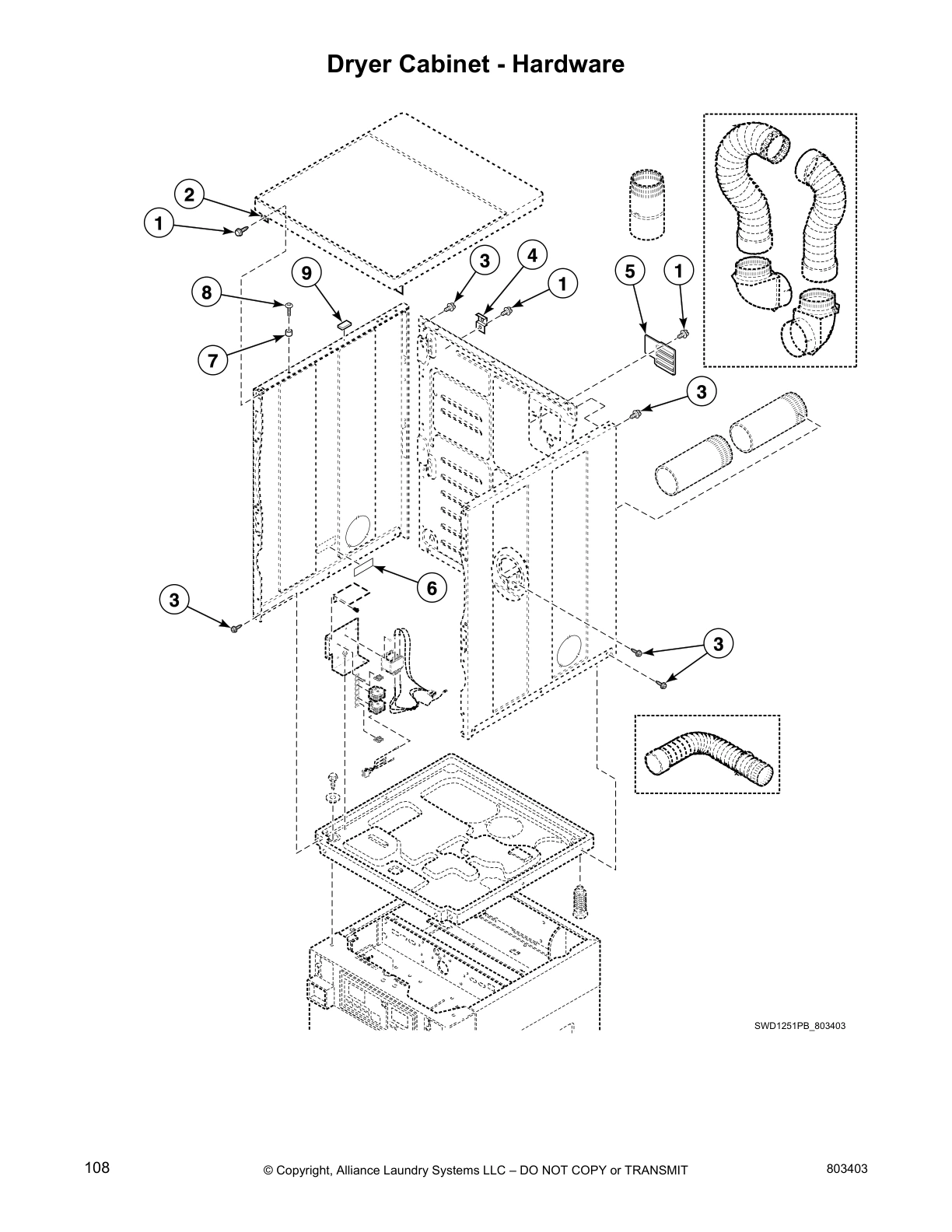

Dryer Cabinet - Hardware

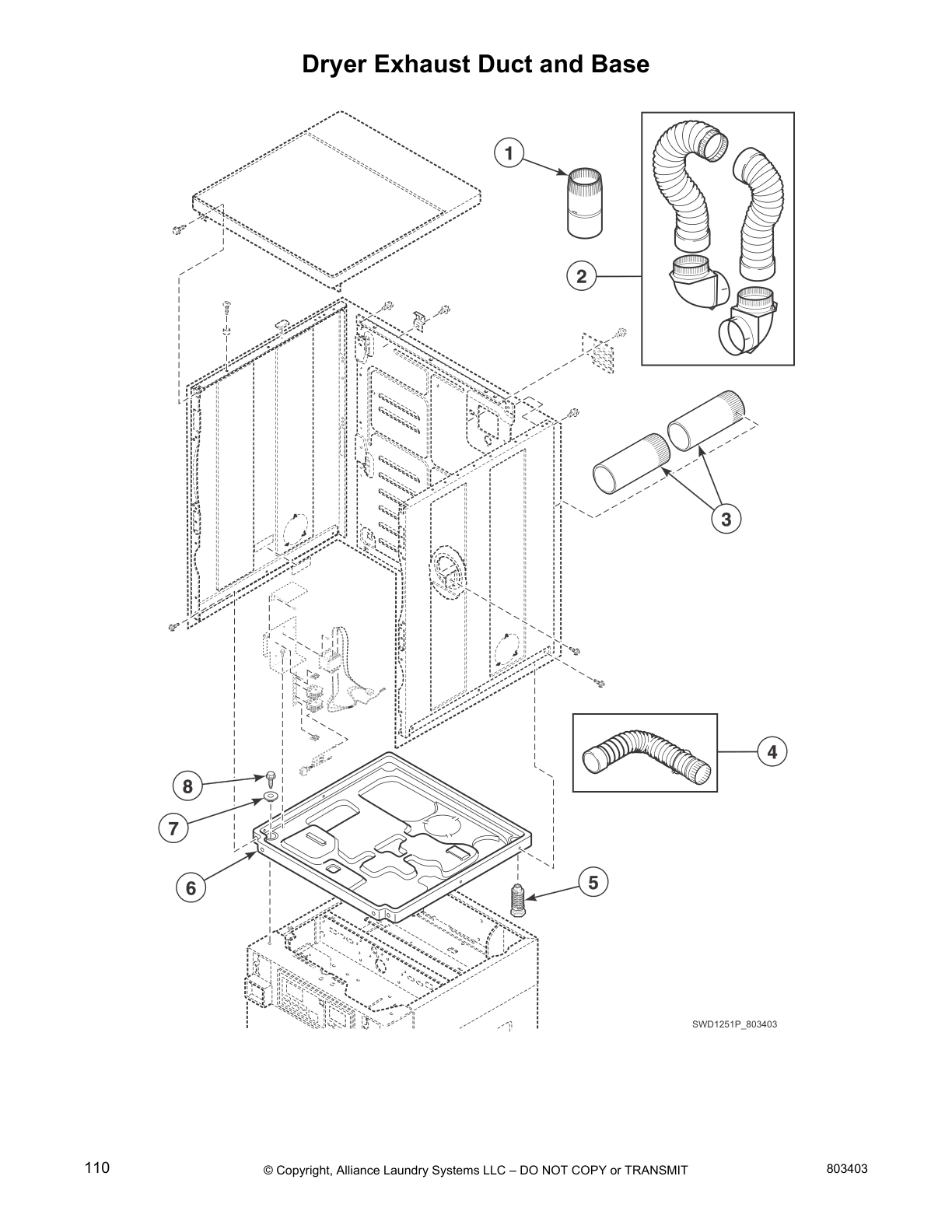

Dryer Exhaust Duct and Base

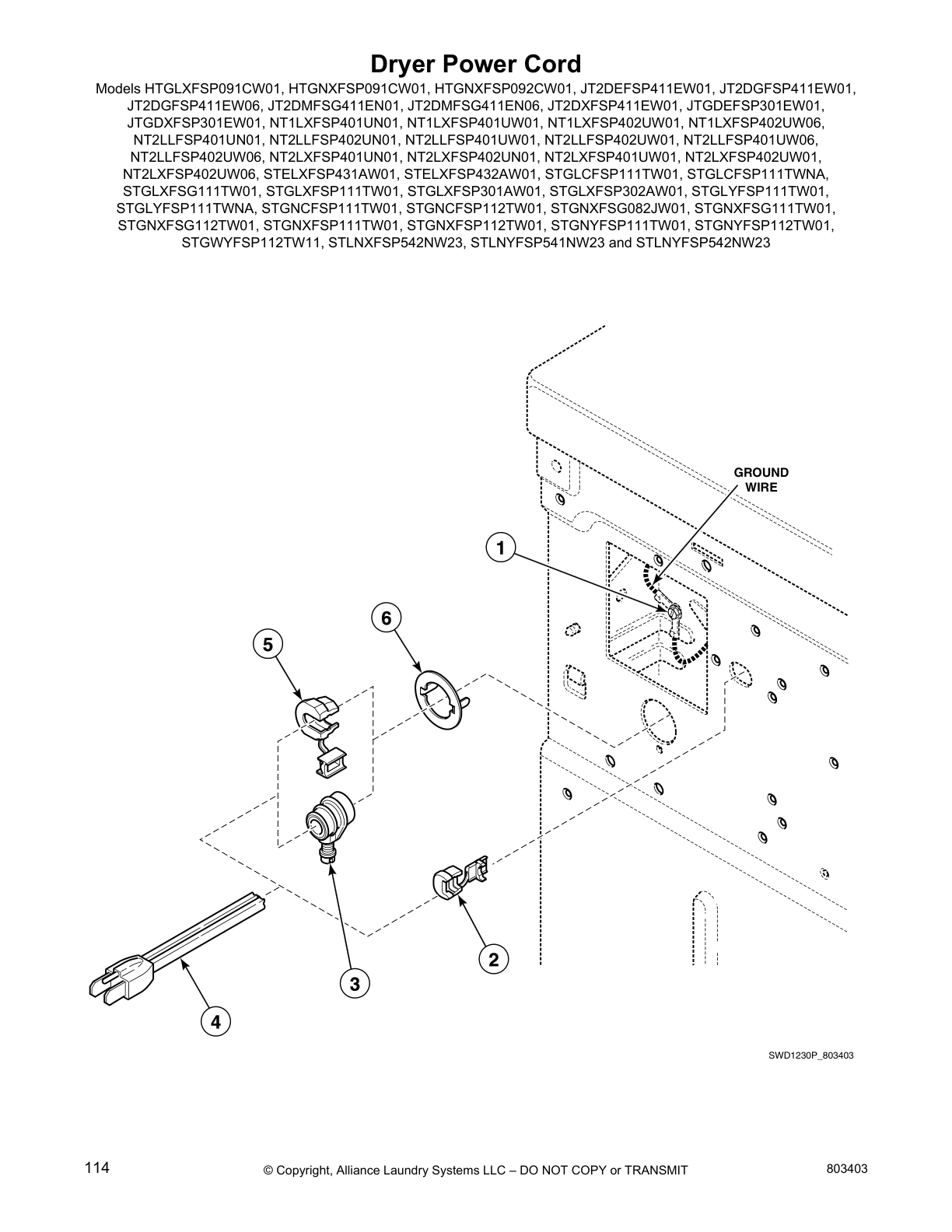

Dryer Power Cord
Dryer Motor Connection Block, Terminal Extractor Tools

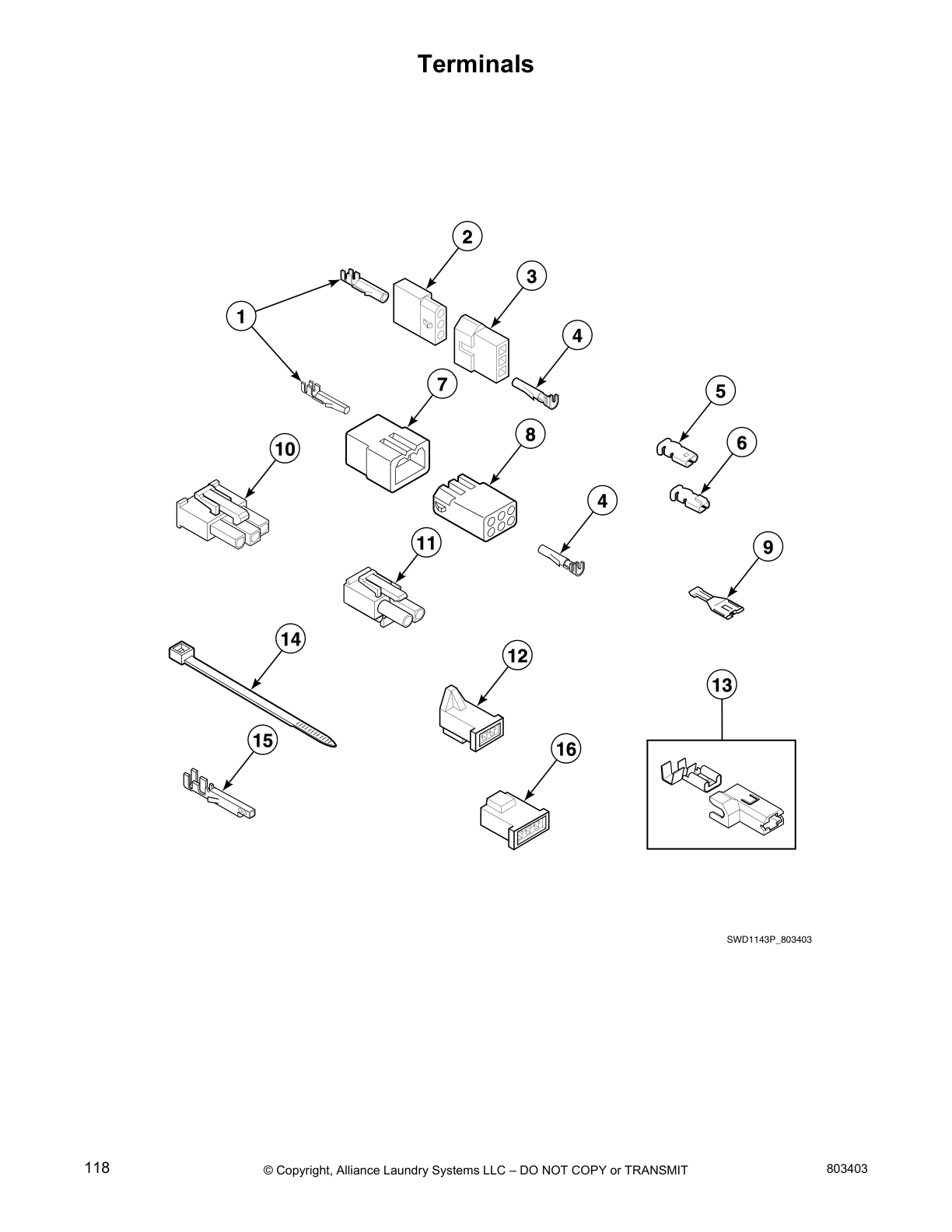

Terminals
Shipping Materials

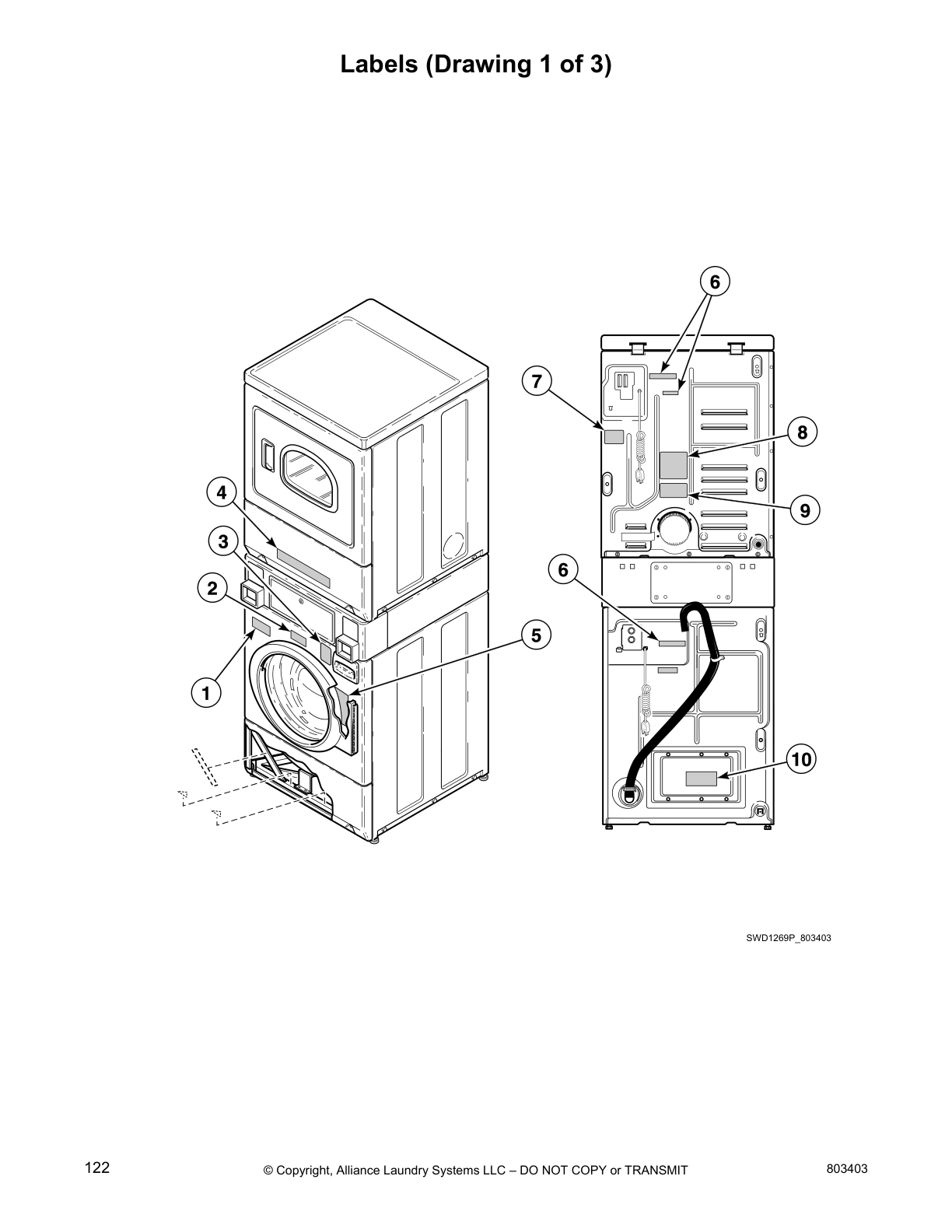

Labels (Drawing 1 of 3)

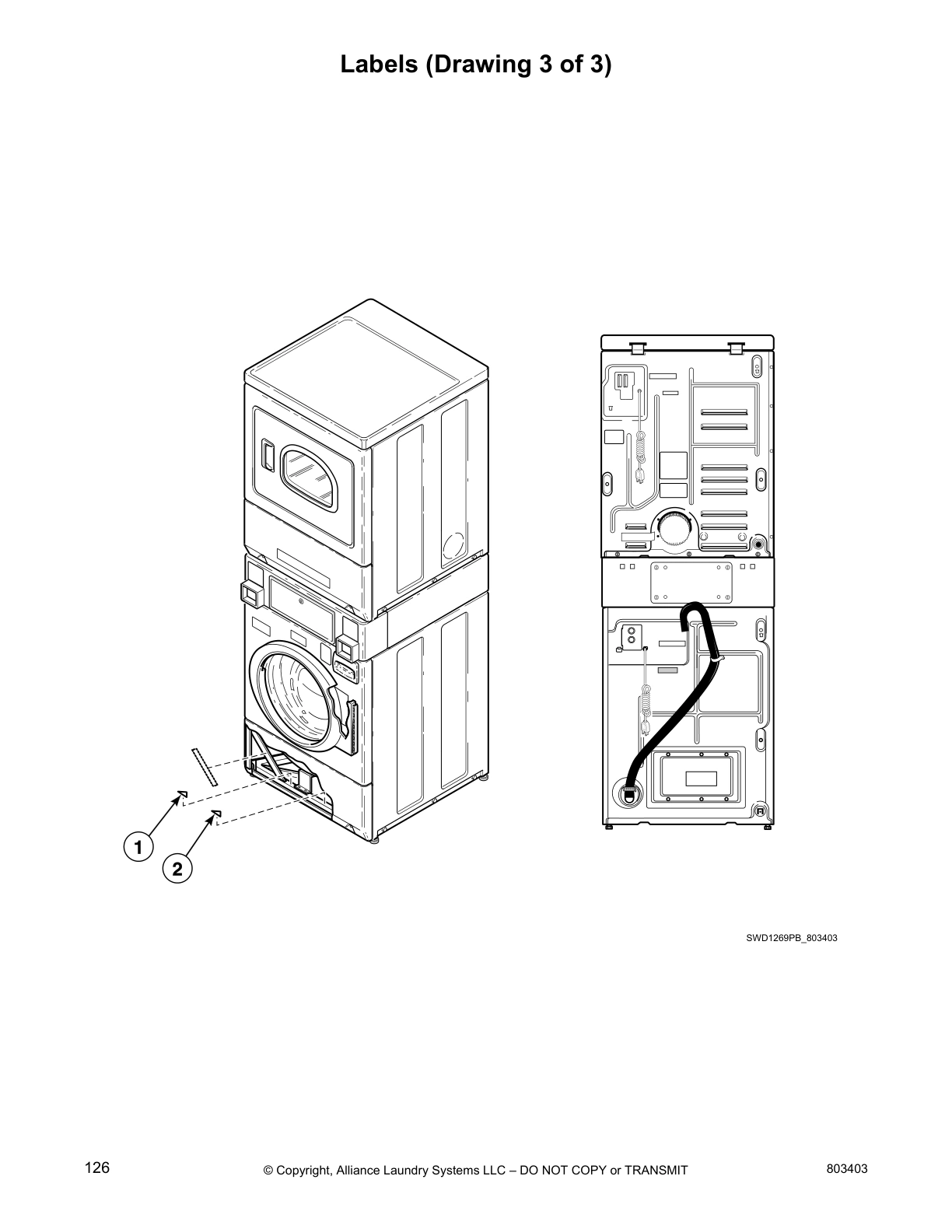

Labels (Drawing 3 of 3)

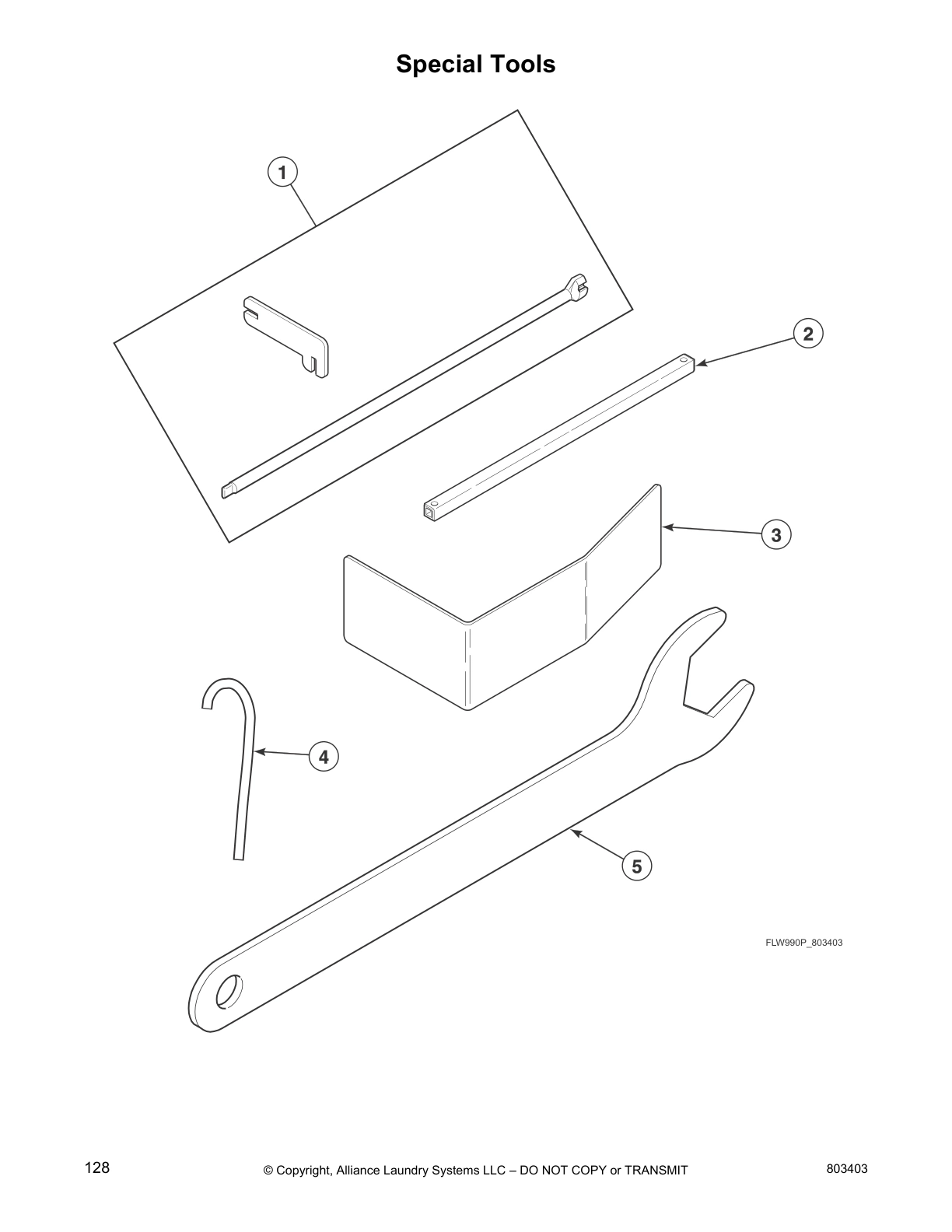

Special Tools

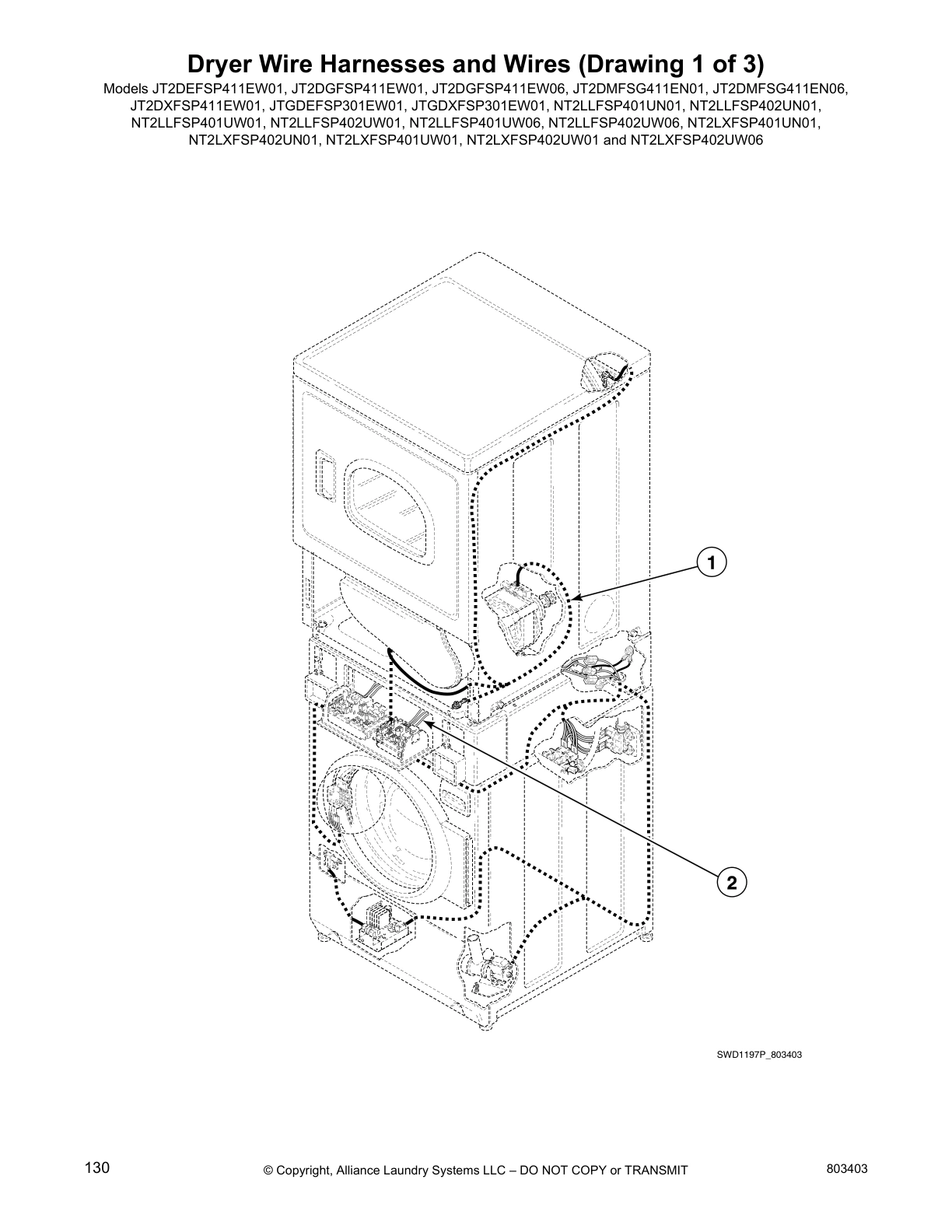

Dryer Wire Harnesses and Wires (Drawing 1 of 3)

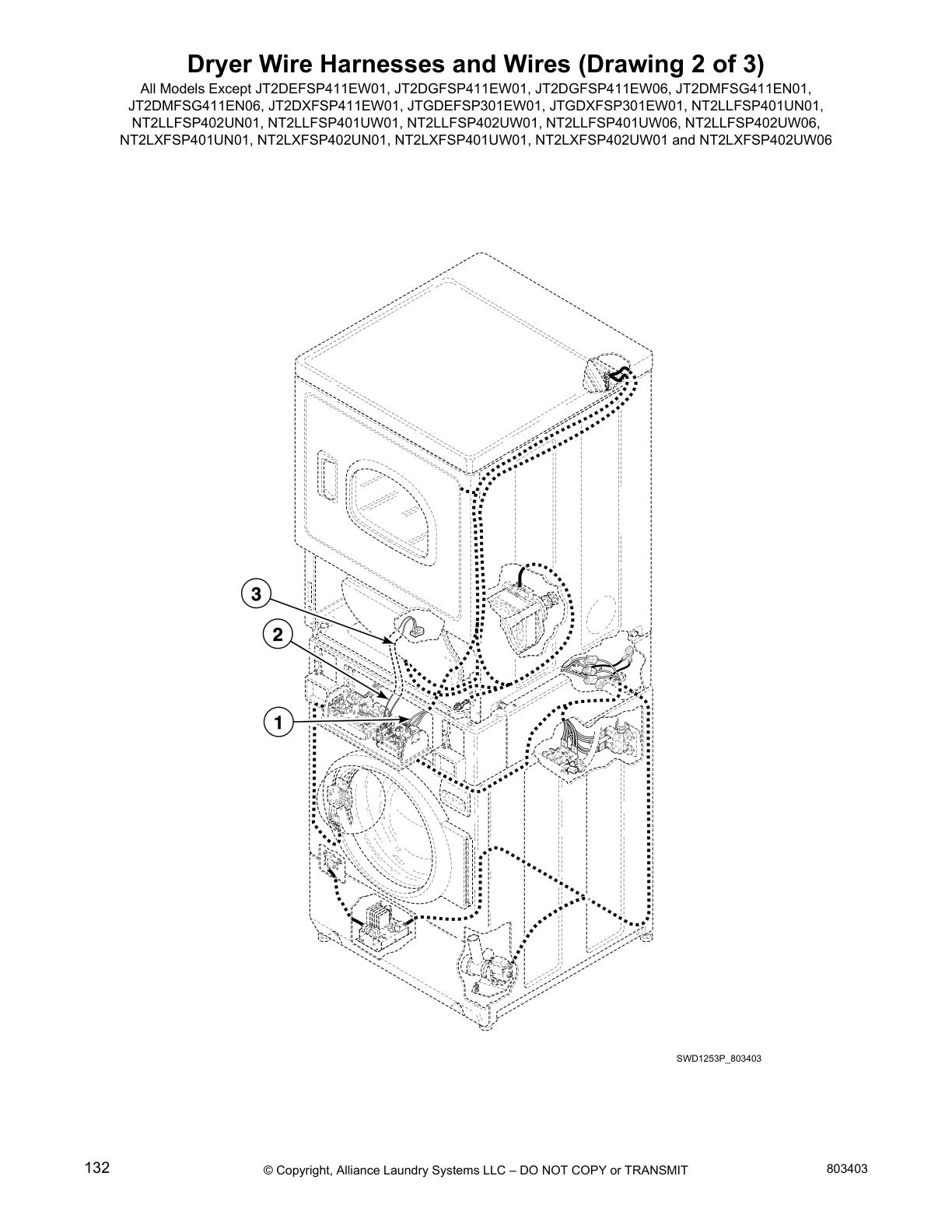

Dryer Wire Harnesses and Wires (Drawing 2 of 3)

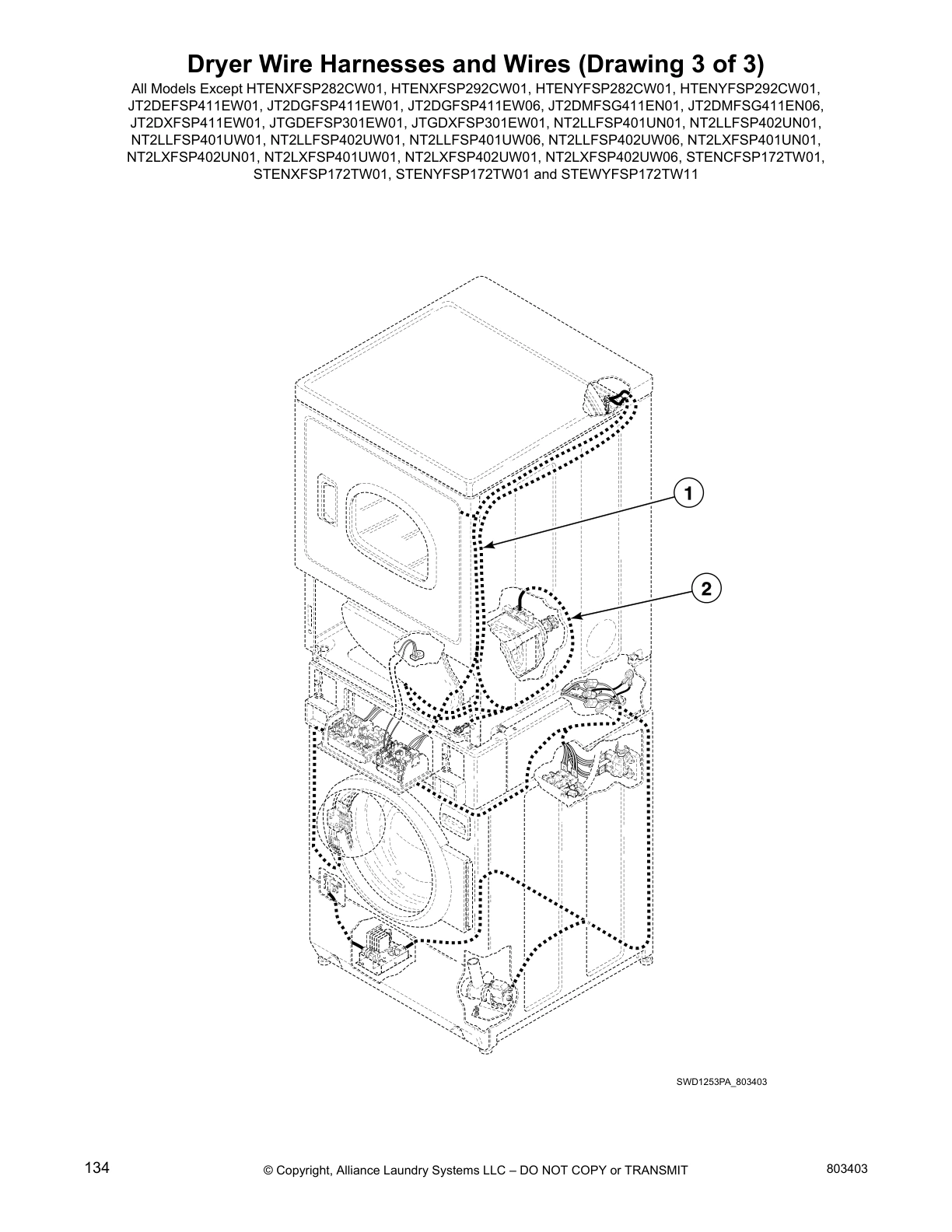

Dryer Wire Harnesses and Wires (Drawing 3 of 3)

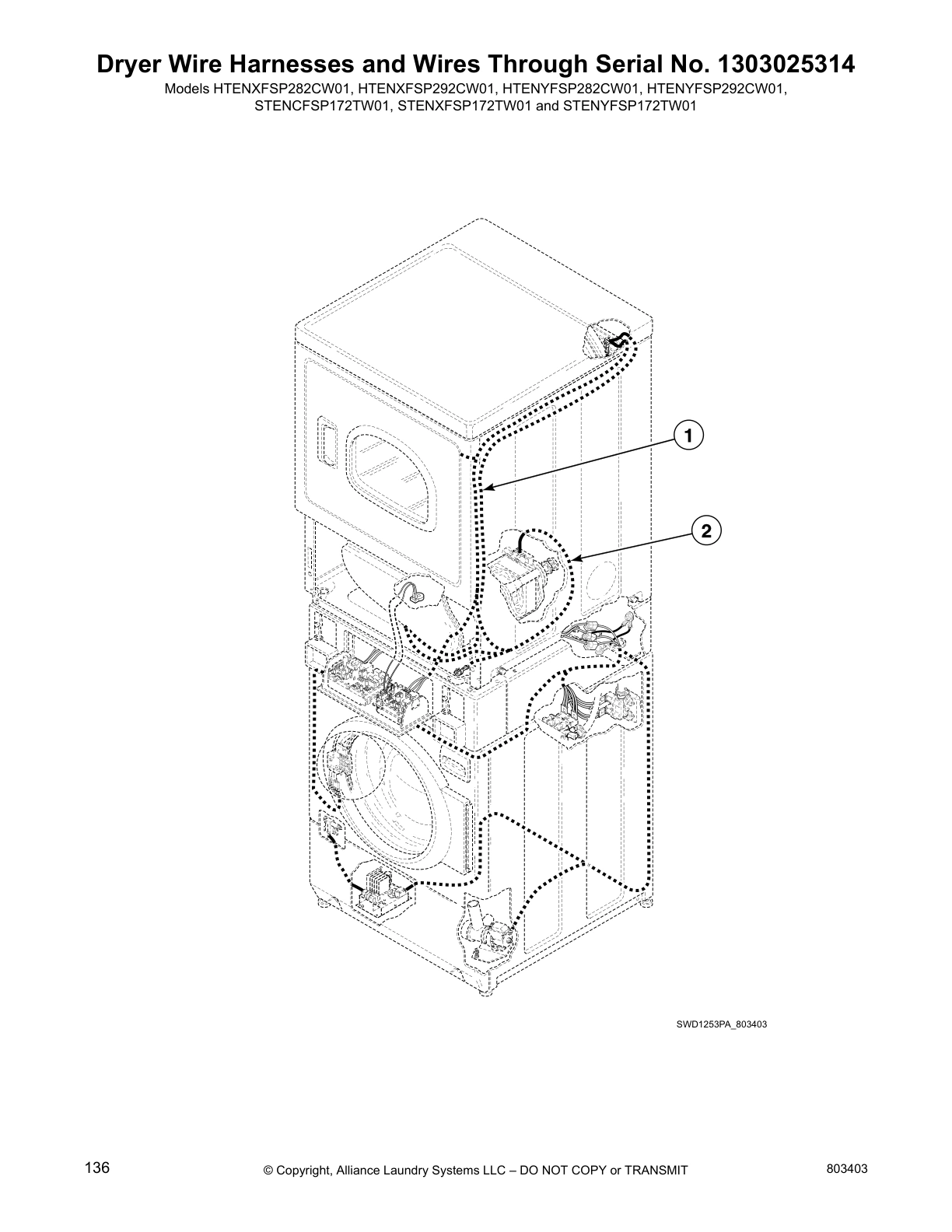

Dryer Wire Harnesses and Wires Through Serial No. 1303025314

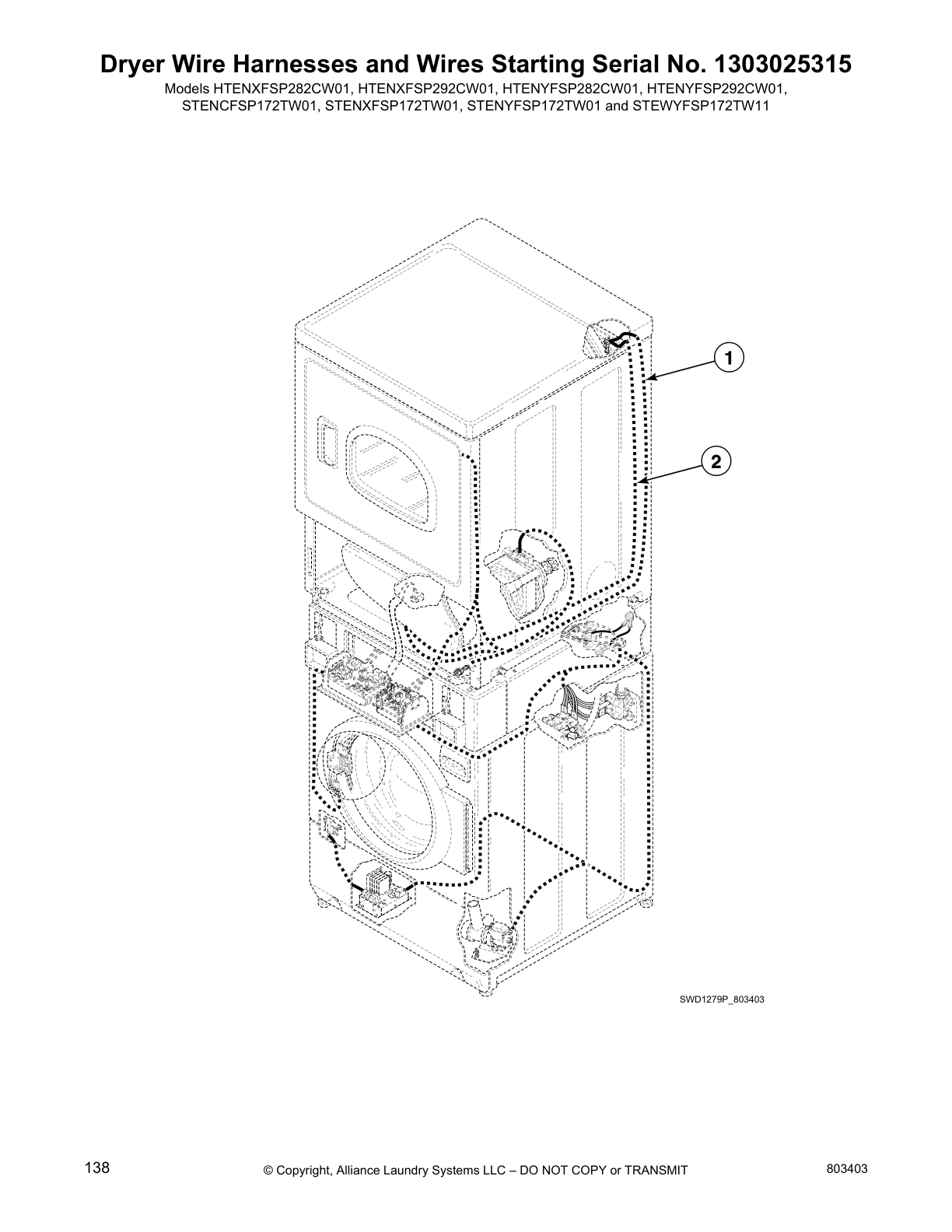

Dryer Wire Harnesses and Wires Starting Serial No. 1303025315

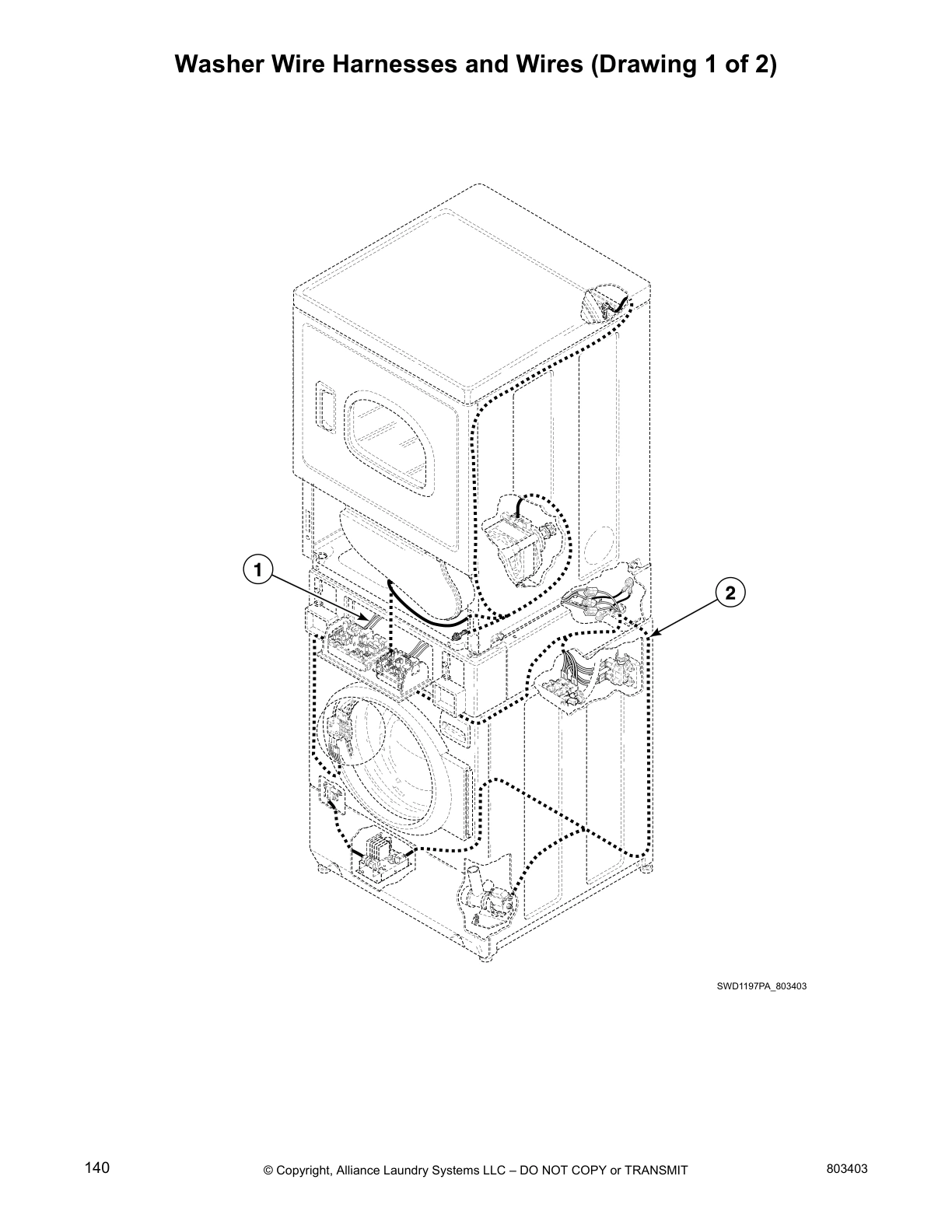

Washer Wire Harnesses and Wires (Drawing 1 of 2)

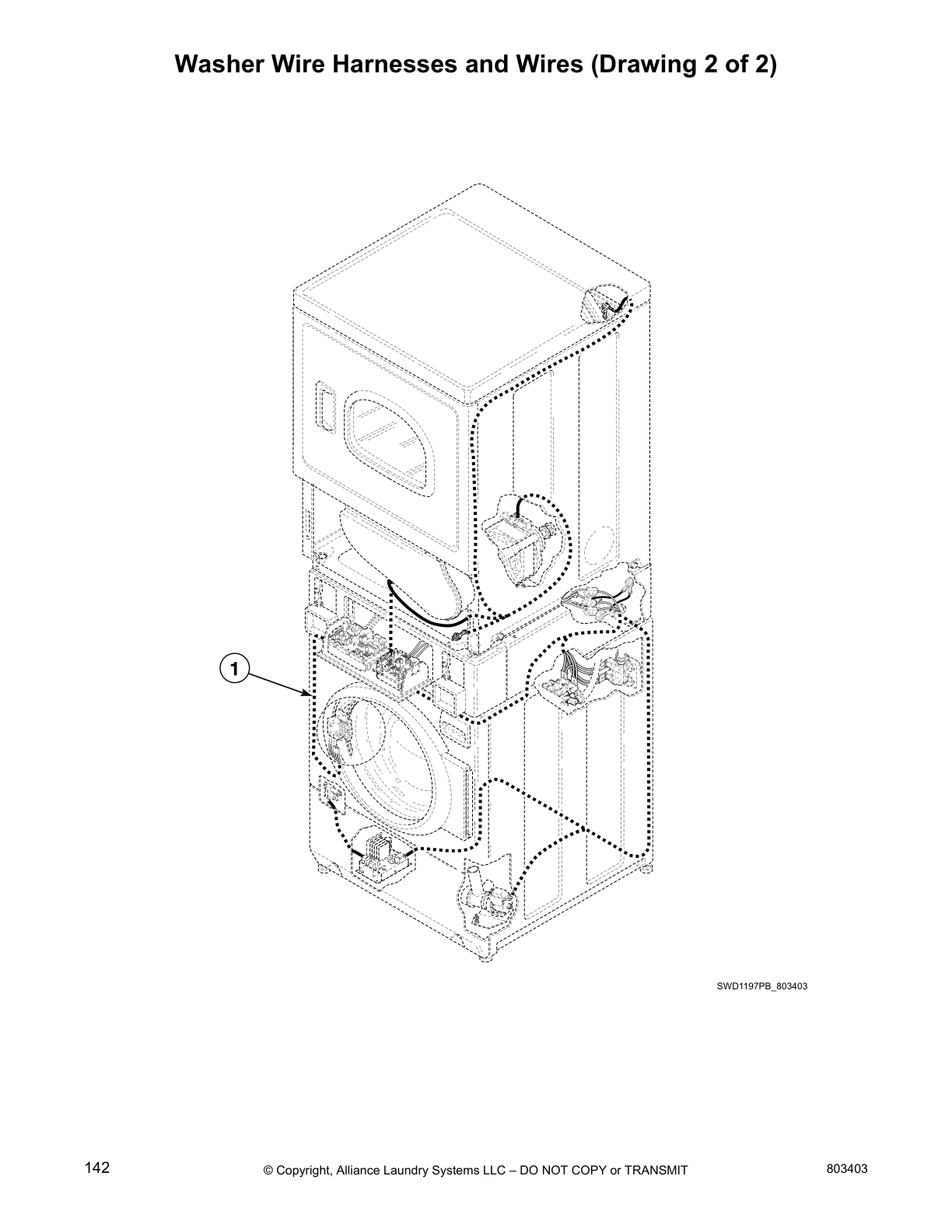

Washer Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Alliance NT1LXFSP401UW01 Stacked Washer and Dryer
3
Panel Locator SPQ 62853 Contact Us For Availability
3
Coin Drop Wire Harness SPQ 70294106 Contact Us For Availability
4
Drain Hose Elbow SPQ 985P3 Contact Us For Availability
5
Security Cabinet Front Assembly SPQ 70441601P No Longer Available
6
Dispenser Assembly SPQ 801476P Contact Us For Availability
7
Key SPQ 54612 Contact Us For Availability
14
Pump Housing Assembly SPQ 802429P Contact Us For Availability
16
Inner Basket Assembly SPQ 800428P Contact Us For Availability
16
Gasket SPQ 802434P Contact Us For Availability
17
Lid Assembly SPQ 802428 Contact Us For Availability
18
Standpipe Strap SPQ 802427 Contact Us For Availability
19
Clamp Ring SPQ 800312 Contact Us For Availability
× ![]()
