Model Huebsch HTGBCASP113TW01 Stacked Washer and Dryer – Common Parts & Diagrams

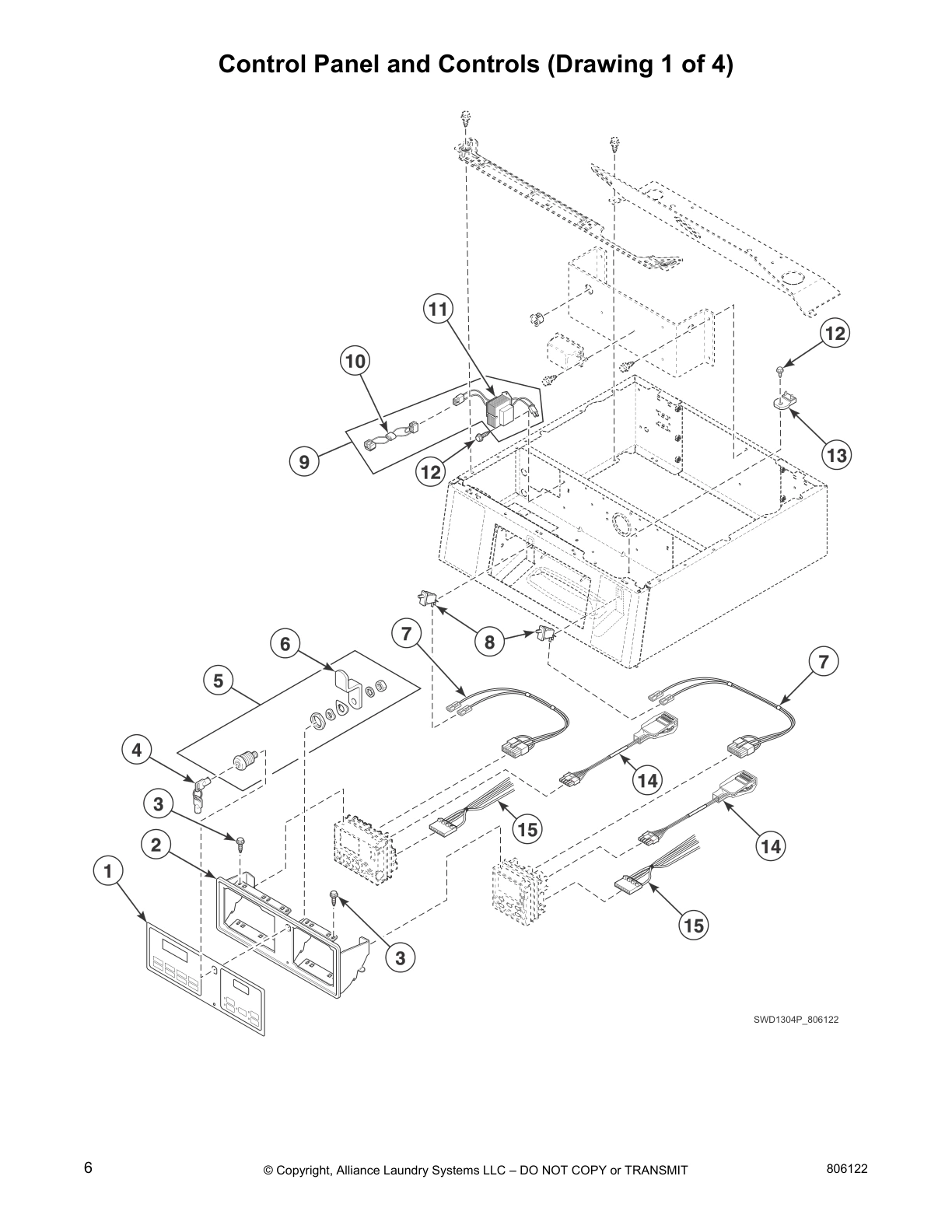

Control Panel and Controls (Drawing 1 of 4)
Control Panel and Controls (Drawing 2 of 4)
Control Panel and Controls (Drawing 3 of 4)
Control Panel and Controls (Drawing 4 of 4)
Control Panel and Cabinet Wrapper
Non-Electronic Coin Drop
Electronic Coin Drop
Card Reader and Non-Vend Control Cabinet
Front Panel, Door Assembly and Door Seal
Front Panel Assembly
Dispenser Assembly
Mixing Valve and Valve-to-Dispenser Hose
Fill Hose
Outer Tub, Front and Clamp Ring
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt
Drain Hoses and Valve
Drain Hose and Pump
Base, Side Panels and Rear Panel
Washer Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips
Dryer Loading Door (Drawing 1 of 3)
Dryer Loading Door (Drawing 2 of 3)
Dryer Loading Door (Drawing 3 of 3)
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Thermistor, Shields and Idler Assembly
Front Bulkhead, Felt Seal and Cylinder
Air Duct Assembly
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Burner Orifice Spuds - For Higher Elevations
Dryer Cabinet, Exhaust Duct and Base
Dryer Power Cord
Dryer Terminals and Terminal Extractor Tools
Terminals
Dryer Labels
Washer Labels
Shipping Materials
Special Tools
Washer Wire Harnesses and Wires
Dryer Wire Harnesses and Wires
Common parts from model Huebsch HTGBCASP113TW01 Stacked Washer and Dryer
SPQ 70441601P SPQ 70441601P Contact Us For Availability
9
Central Pay Kit SPQ 54612 No Longer Available
17
Pump Housing SPQ 802434P Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
× ![]()
