Model Speed Queen SDENCRGS173TW01 Dryer – Common Parts & Diagrams

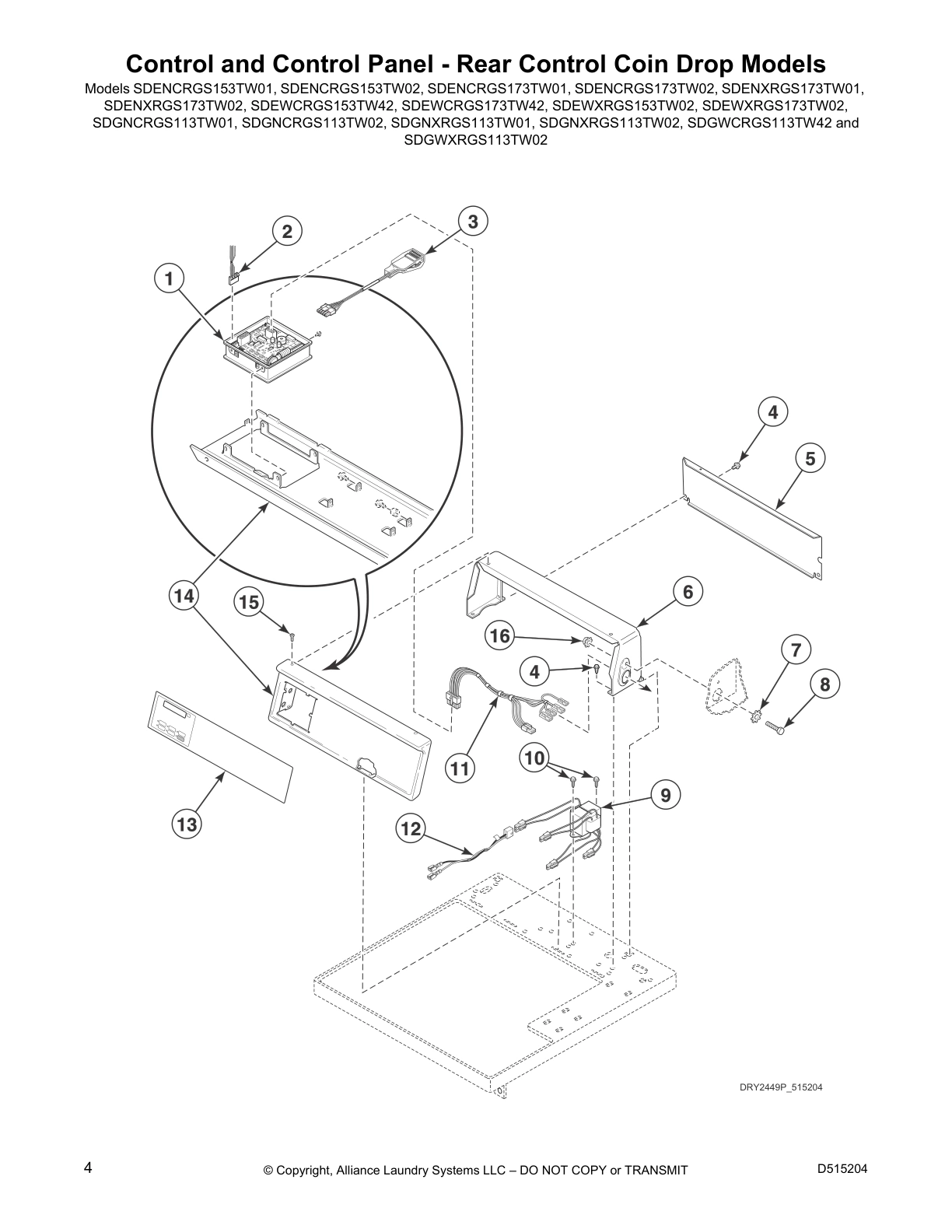

Control and Control Panel - Rear Control Coin Drop Models
Control and Control Panel - Rear Control Card Ready Models
Meter Case - Rear Control Coin Drop Models
Non-Electronic Coin Drop - Rear Control Coin Drop Models
Electronic Coin Drop - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Control Panel and Controls -
Coin Drop and Card Front Control Models (Drawing 1 of 2)
Control Panel and Controls -
Coin Drop and Card Front Control Models (Drawing 2 of 2)
Control Panel and Controls - Front Control
Control Cabinet Controls - Front Control Coin Drop Models
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Loading Door without Window
Loading Door with Window
Access Panel, Front Panel and Seal
Motor, Exhaust Fan and Belt
Front Bulkhead, Air Duct and Felt Seal
Cylinder Assembly
Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block
Heater Duct and Element Assembly - Electric Model Dryers
Heater Duct Assembly - Gas Model Dryers
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base
Terminal Block and Terminals (Drawing 1 of 2)
Terminal Block and Terminals (Drawing 2 of 2)
Terminals and Terminal Extractor Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
Label Location on Rear of Cabinet
Common parts from model Speed Queen SDENCRGS173TW01 Dryer
× ![]()
