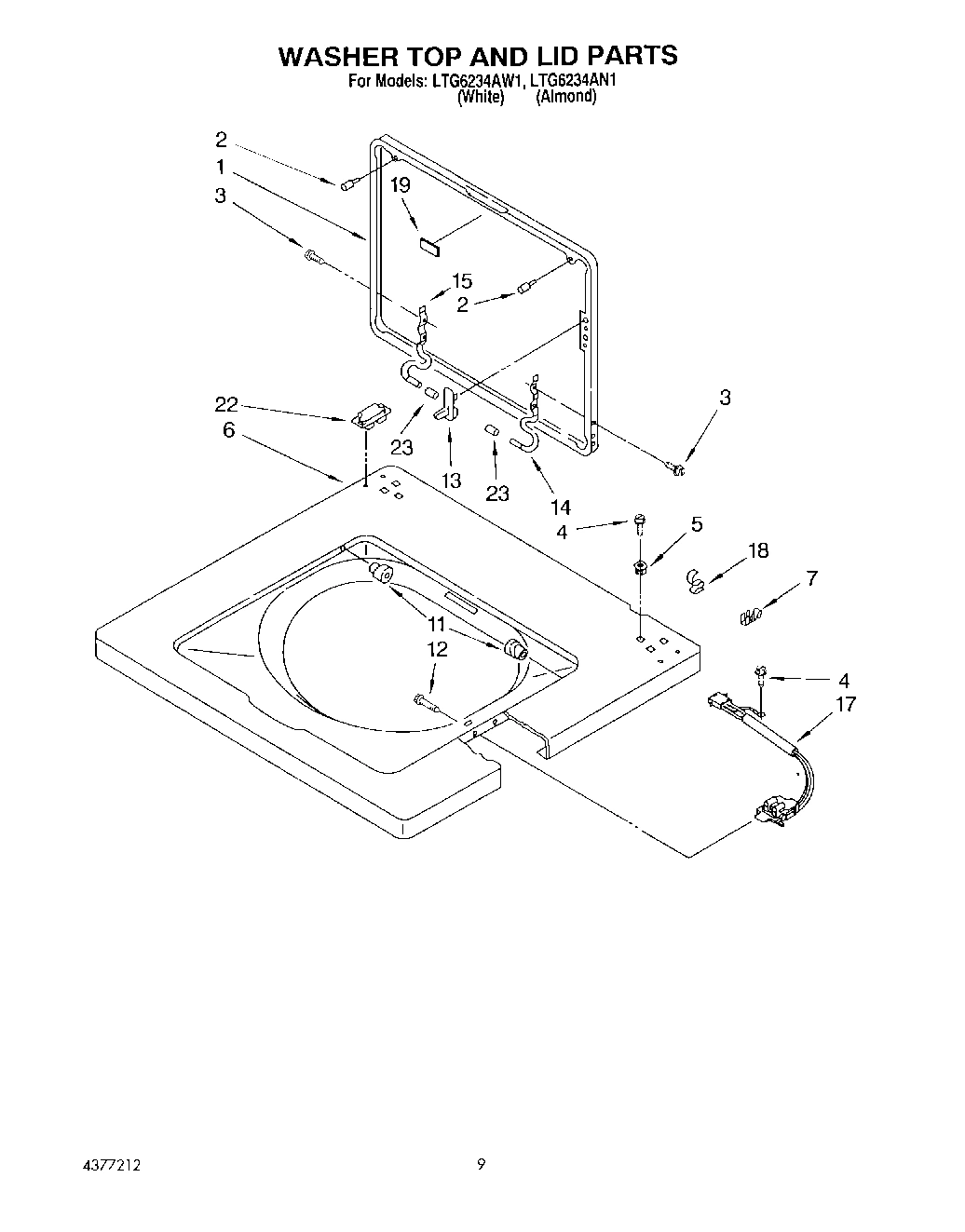

Model Whirlpool LTG6234AW1 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Kit, Exhaust Deflector WPL 694609 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Label, Operating Instruction WPL LIT3394996 Contact Us For Availability

Instructions, Installation WPL LIT3395326 Contact Us For Availability

Guide, Use And Care WPL LIT3396301 Contact Us For Availability

Tag, Energy Guide WPL LIT3397738 Contact Us For Availability

Label, Wiring Diagram WPL LIT3398987 Contact Us For Availability

1

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

1

3349770 Whirlpool Clip Backorder WPL 3349770 $9.35

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

1

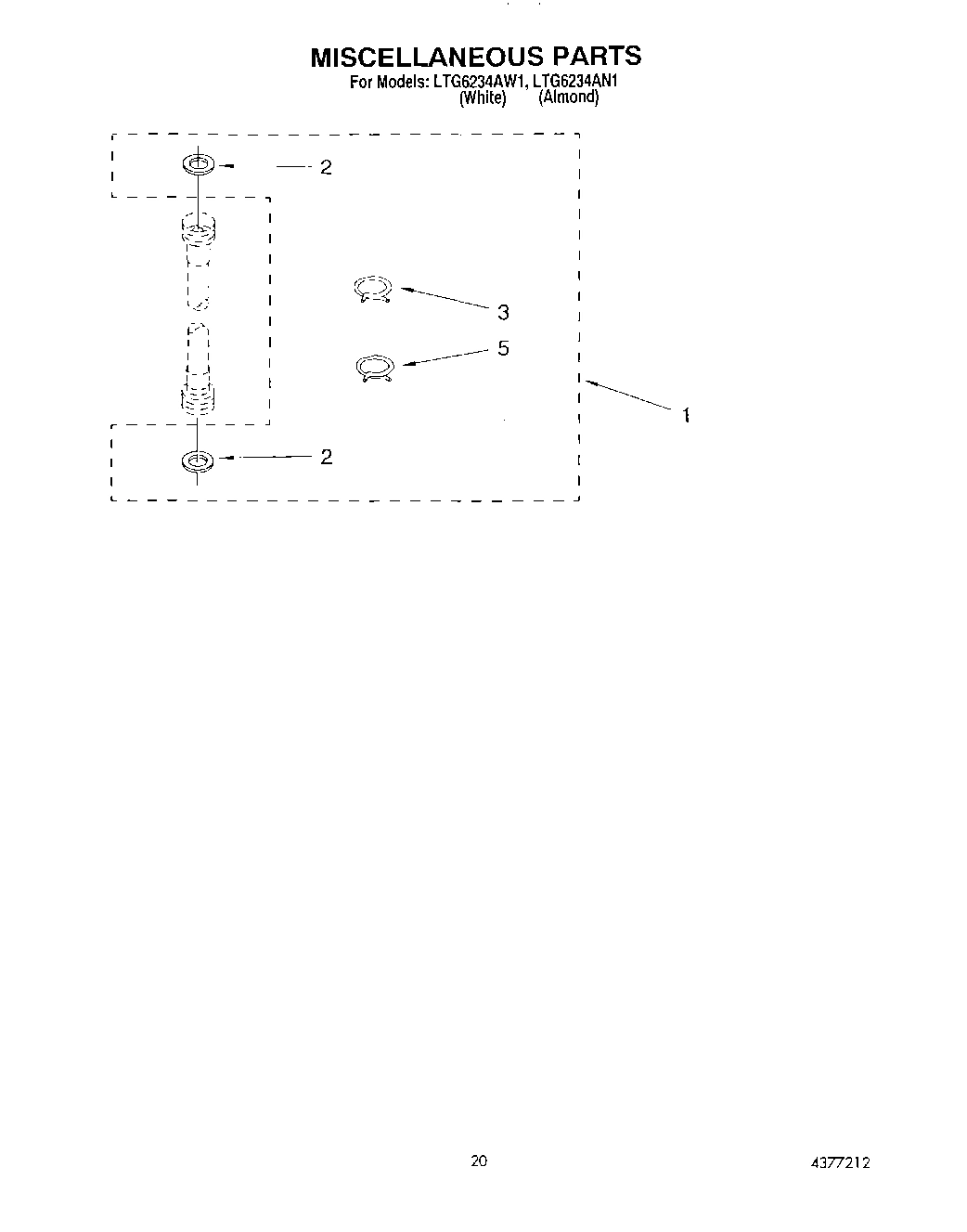

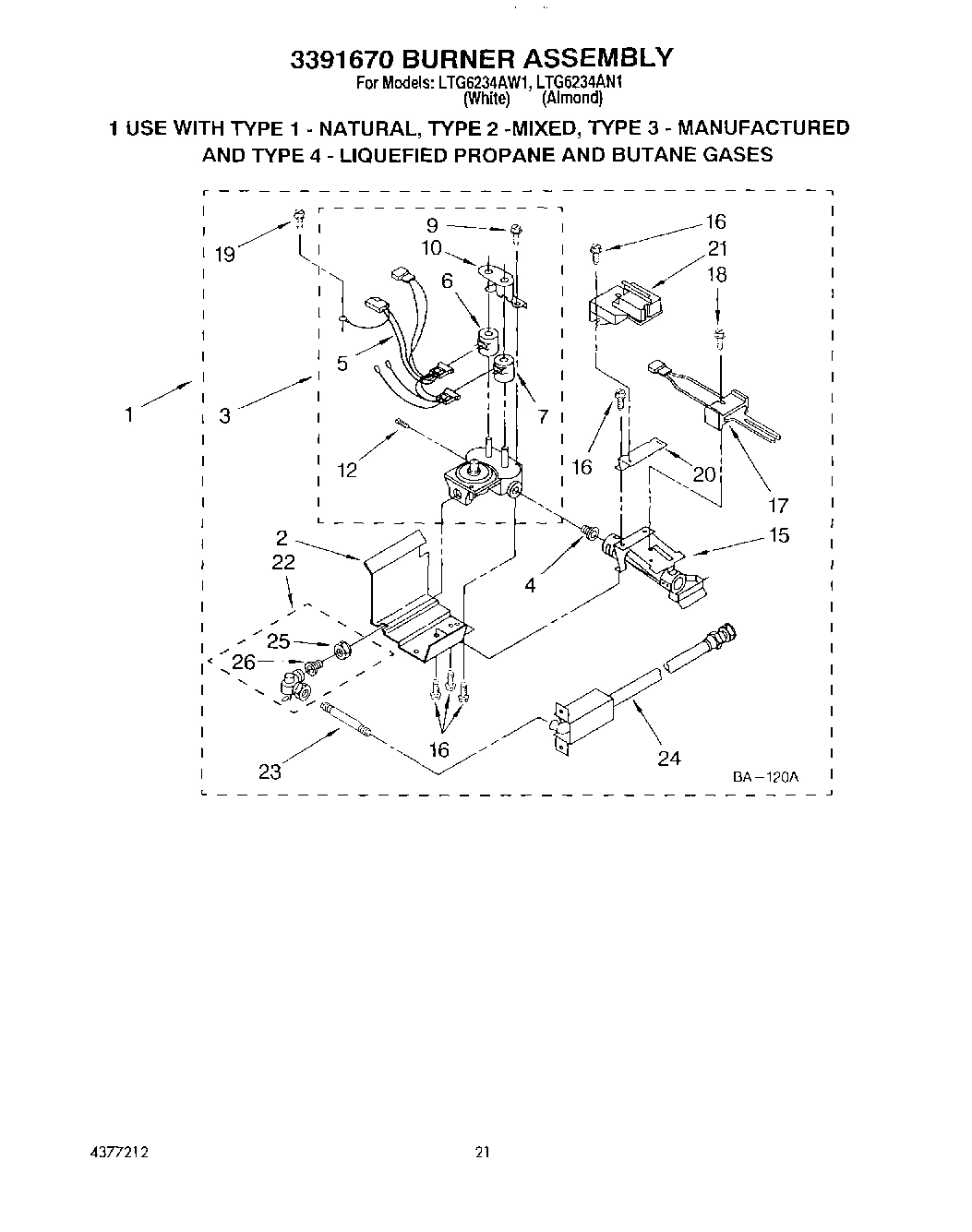

Burner Assembly 60 Hz. WPL 3391670 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3356714 Contact Us For Availability

1

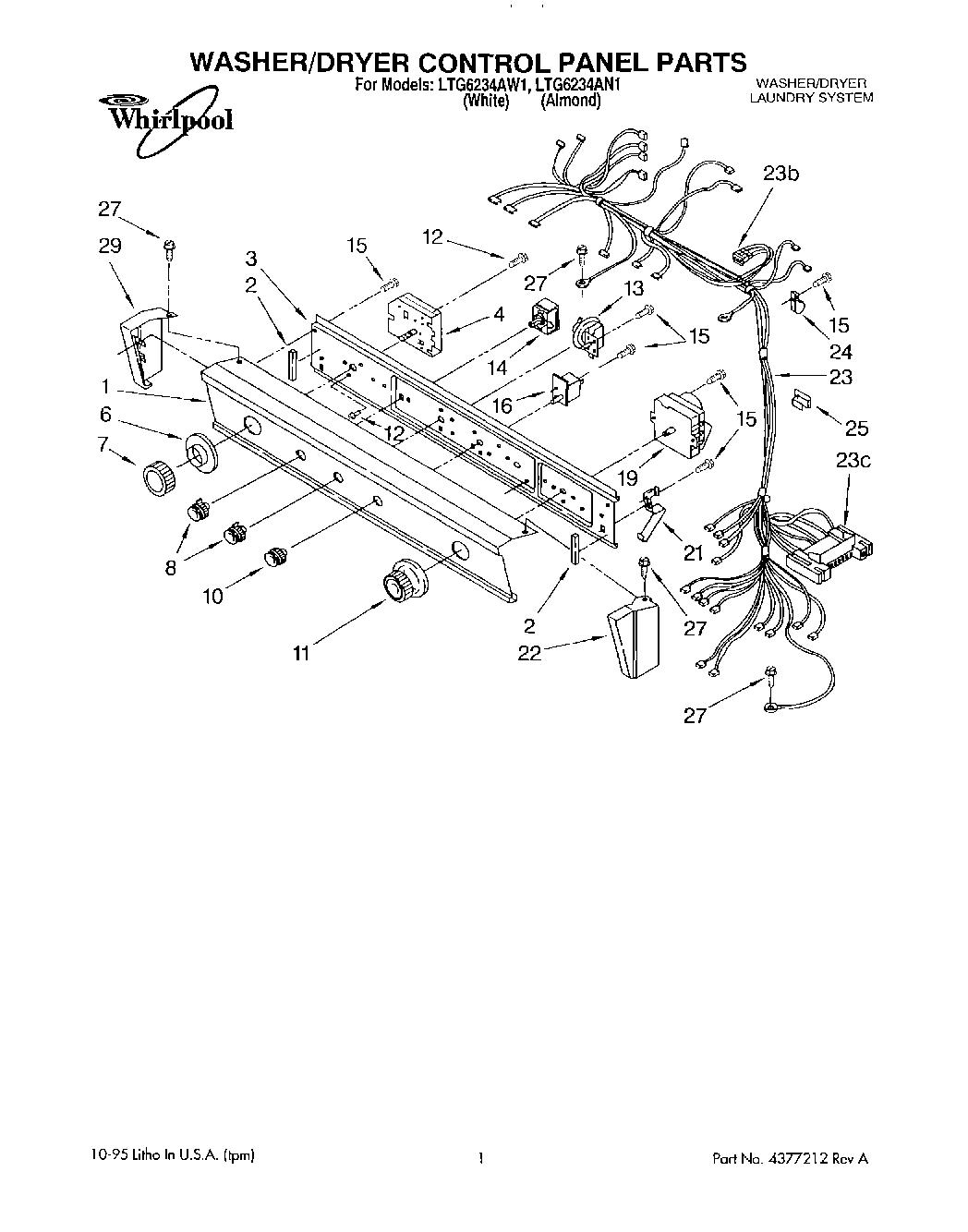

Panel, Control (White) WPL 3396683 Contact Us For Availability

1

Panel, Control (Almond) WPL 3396684 Contact Us For Availability

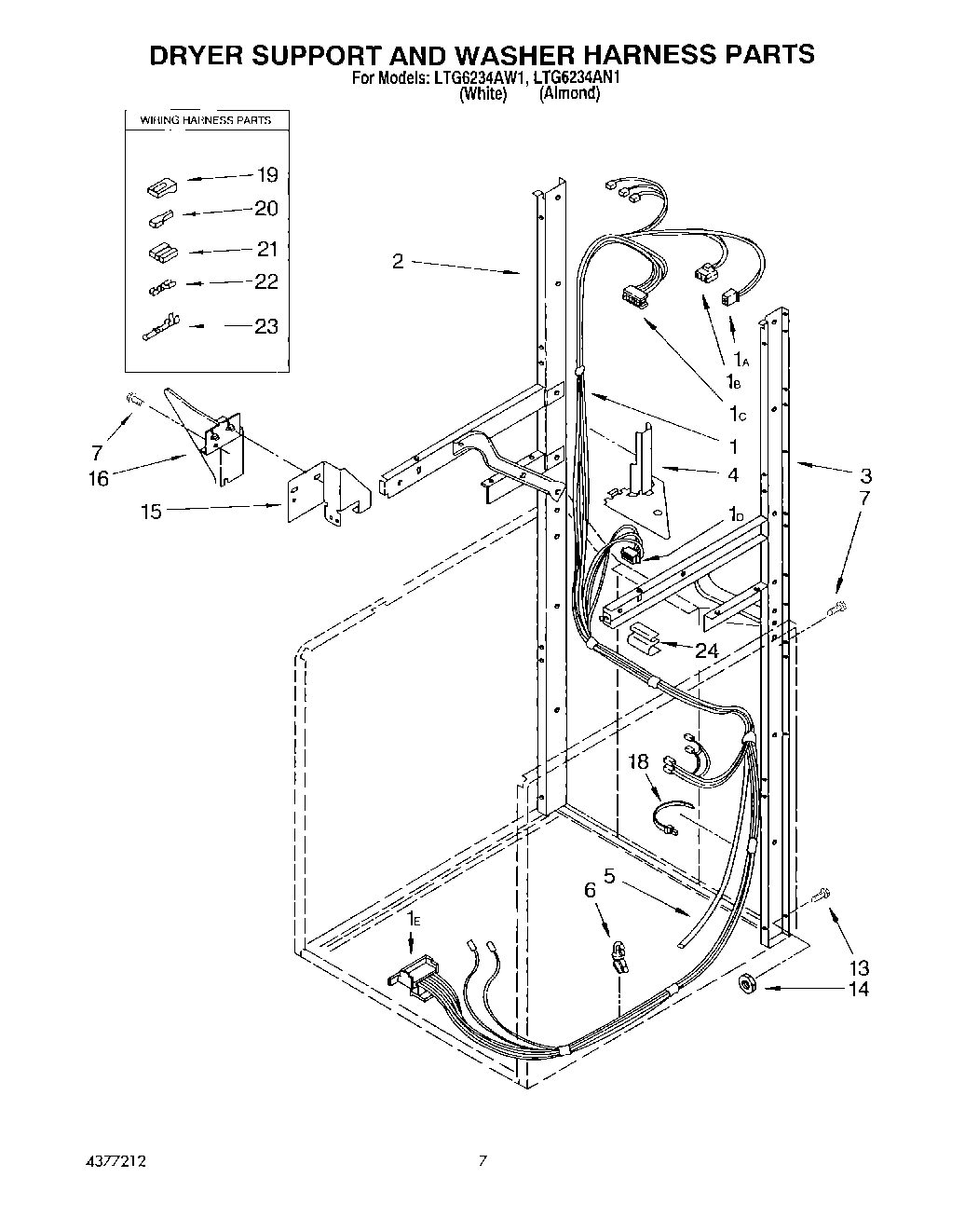

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

2

285751 Whirlpool Washer Agitator Cam and 4 Do In Stock WPL 285751 $9.99

2

3390688 Whirlpool Bumper Assembly Backorder WPL 3390688 $5.51

2

3391699 Whirlpool Base Backorder WPL 3391699 $30.93

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

279889 Whirlpool Valve Assembly Backorder WPL 279889 $236.47

3

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

3

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

3

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Bracket, Control (Includes Illus. 2) WPL 3390689 Contact Us For Availability

4

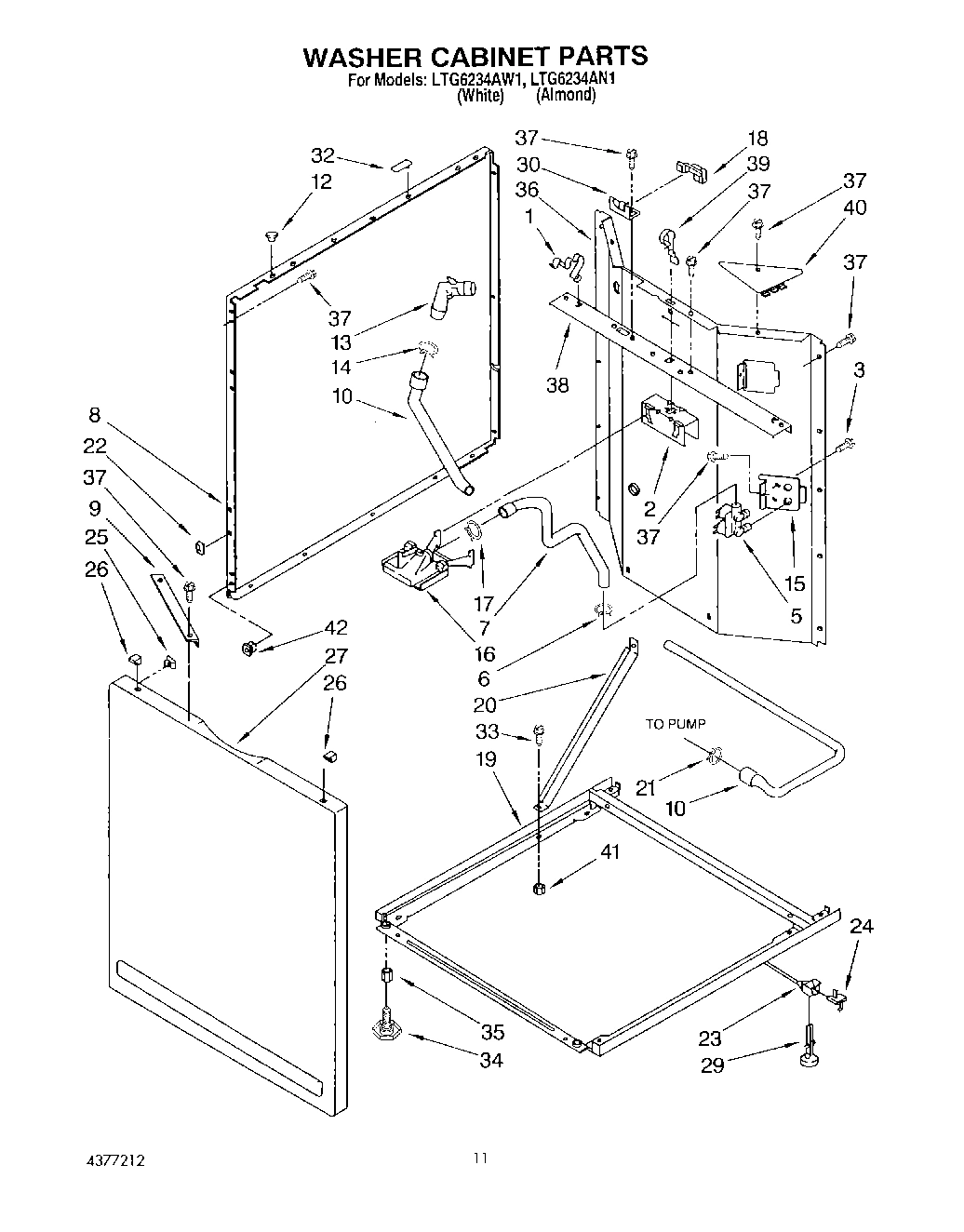

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

285938 Whirlpool Washer Timer In Stock WPL 285938 $173.83

4

WP234822 Whirlpool Gas Orifice Backorder WPL WP234822 $18.30

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP347744 Whirlpool Gas Orifice Backorder WPL WP347744 $54.59

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

5

285550 Whirlpool Cap Backorder WPL 285550 $59.06

5

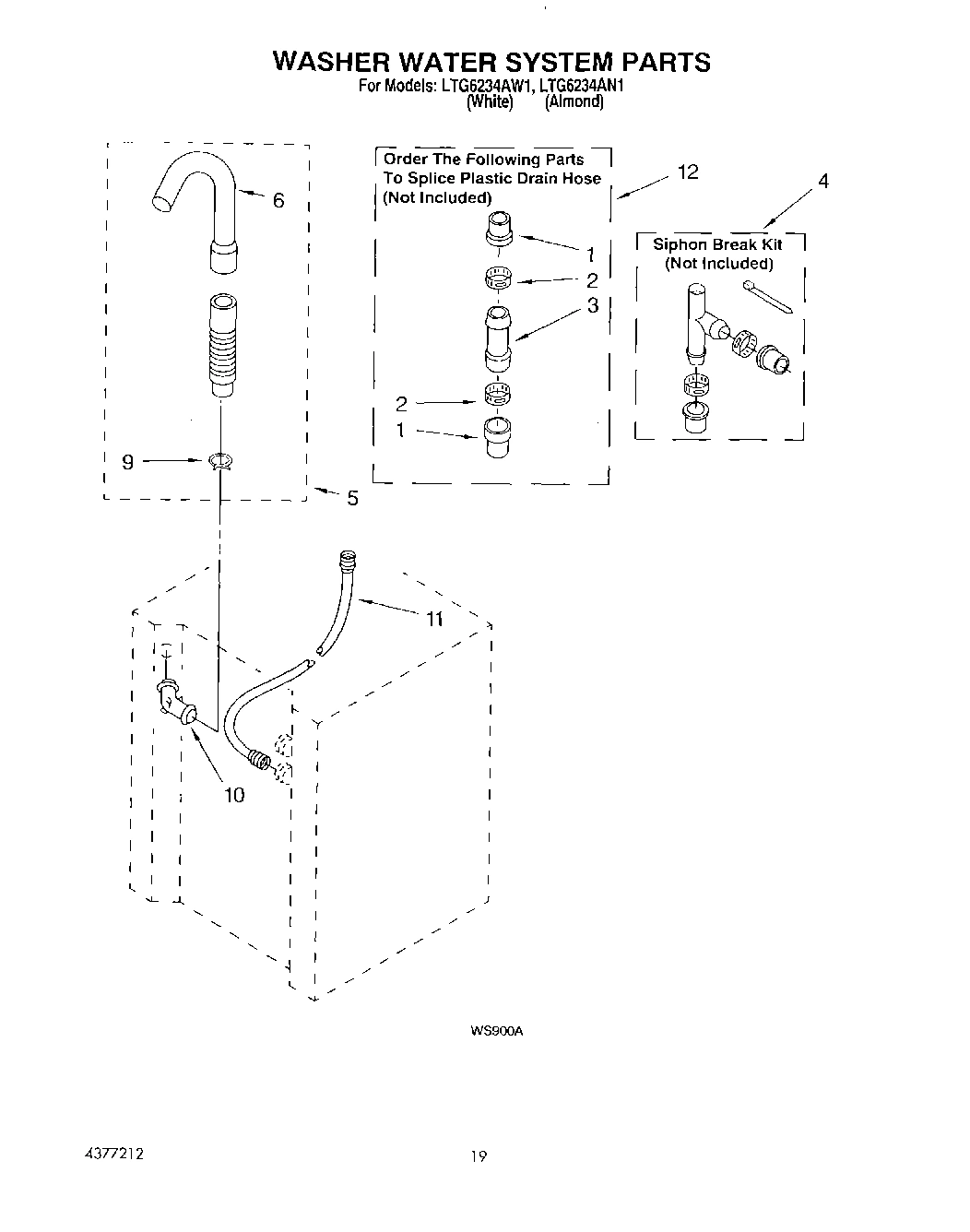

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

5

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

W11107903 Whirlpool Bracket In Stock WPL W11107903 $35.25

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

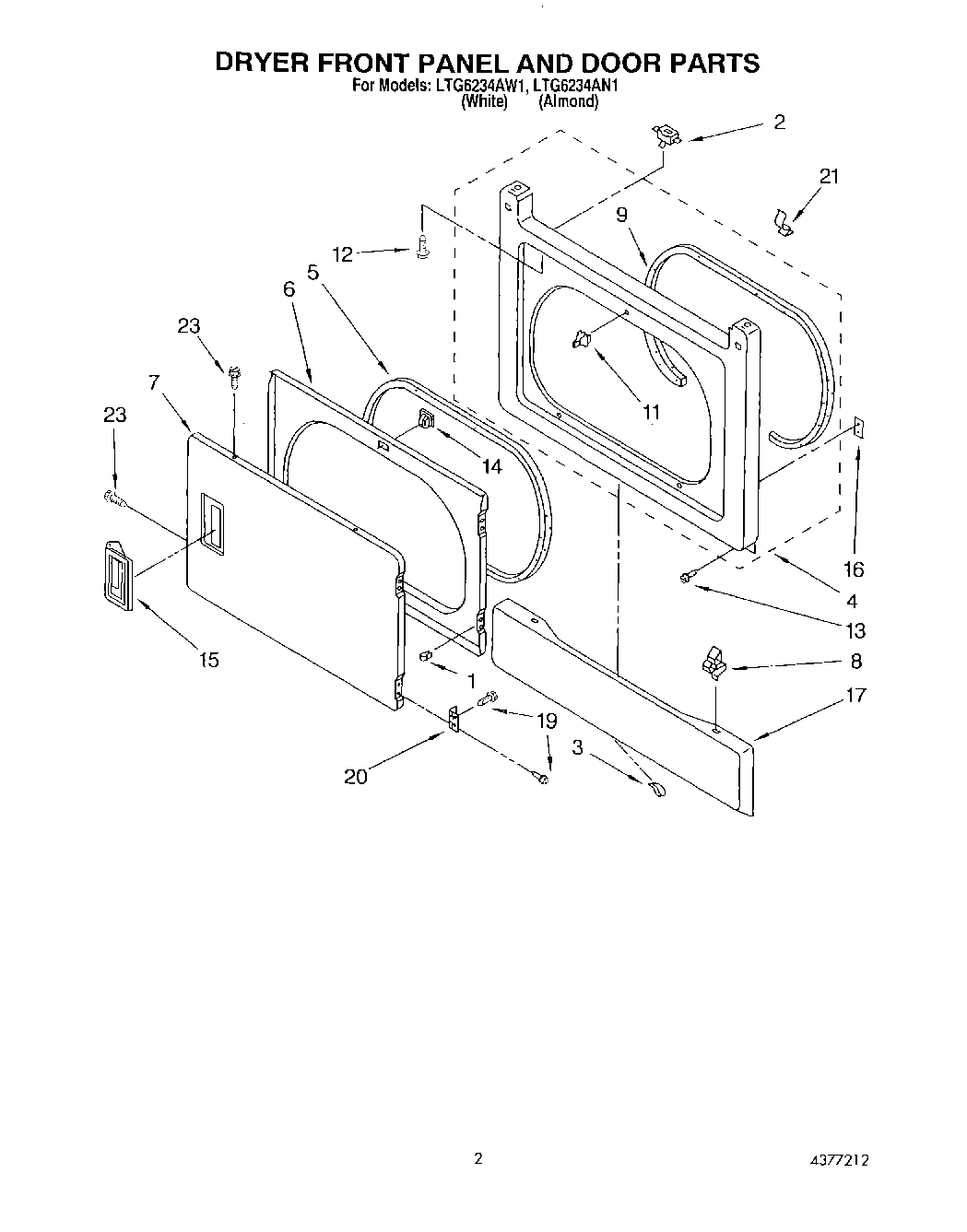

5

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

5

WP3401849 Whirlpool Wire Harness Backorder WPL WP3401849 $79.60

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $41.10

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

Top, Console (White) WPL 3349798 Contact Us For Availability

6

Skirt, Timer Knob (Washer) (White) WPL 3398327 Contact Us For Availability

6

Skirt, Timer Knob (Washer) (Almond) WPL 3398328 Contact Us For Availability

6

Panel, Rear WPL 3389847 Contact Us For Availability

7

285620 Whirlpool Washer In Stock WPL 285620 $7.86

7

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $18.51

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

8

279814 Whirlpool Cover Backorder WPL 279814 $66.36

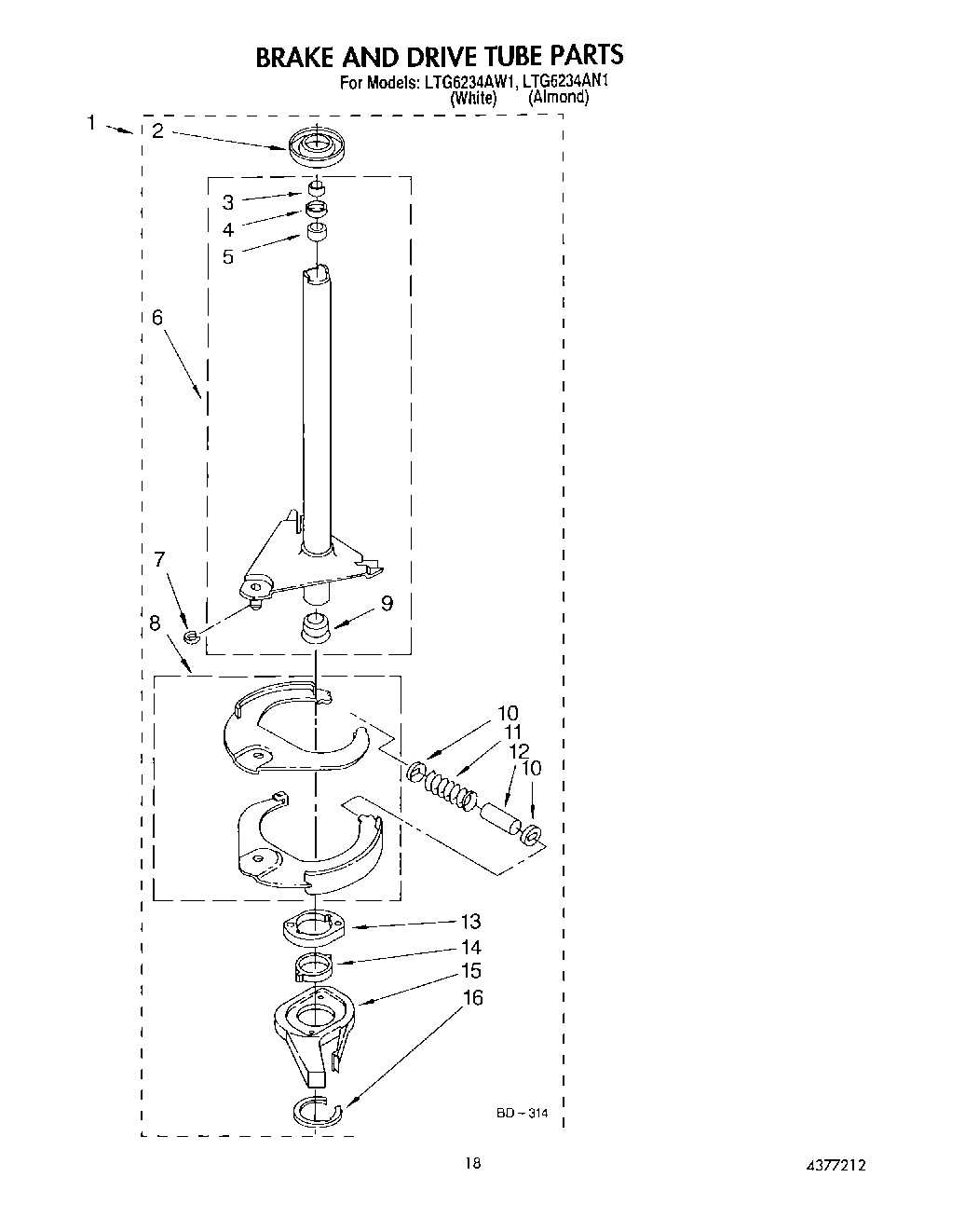

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

3957797 Whirlpool Knob In Stock WPL 3957797 $35.99

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $210.40

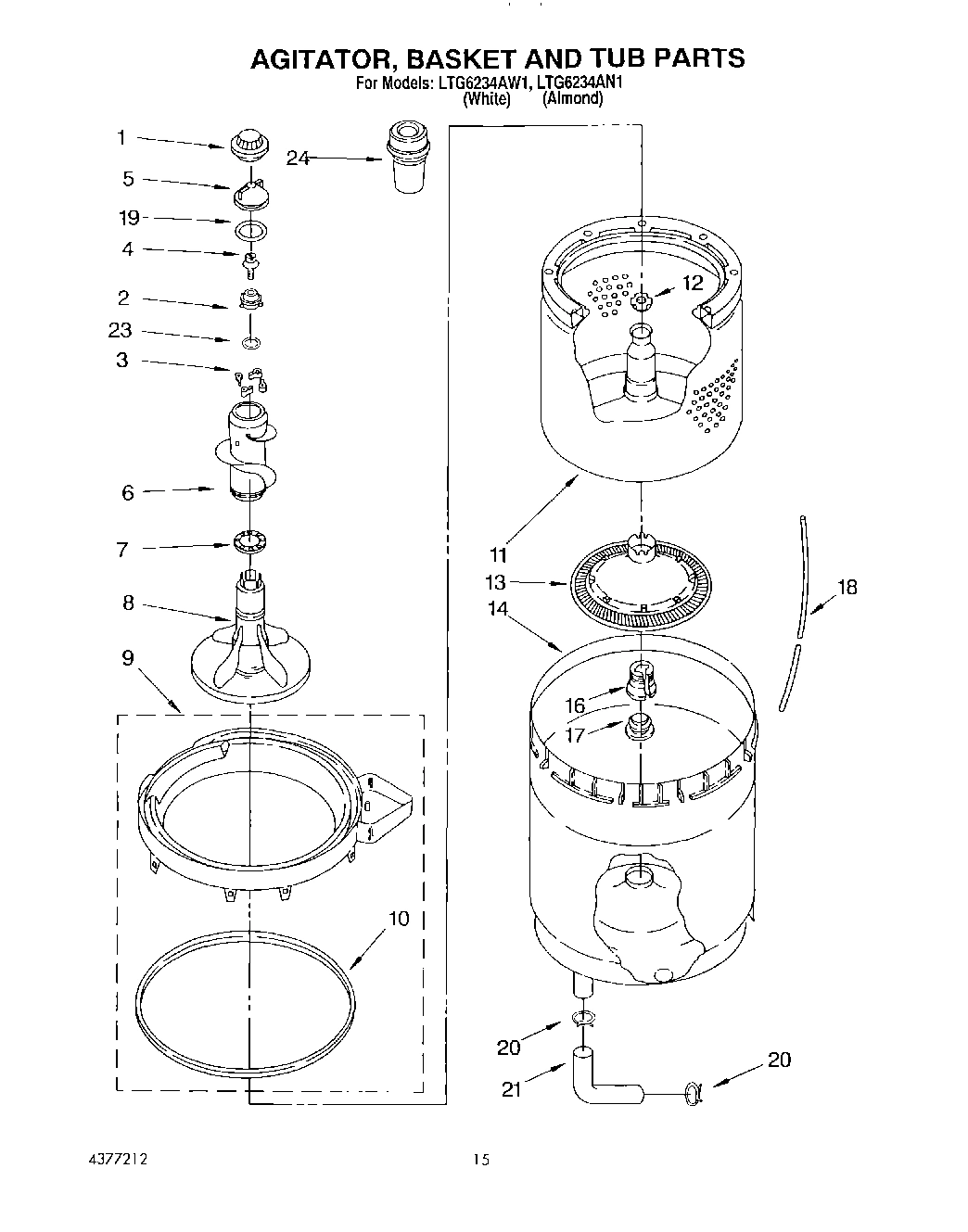

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $119.31

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

8

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

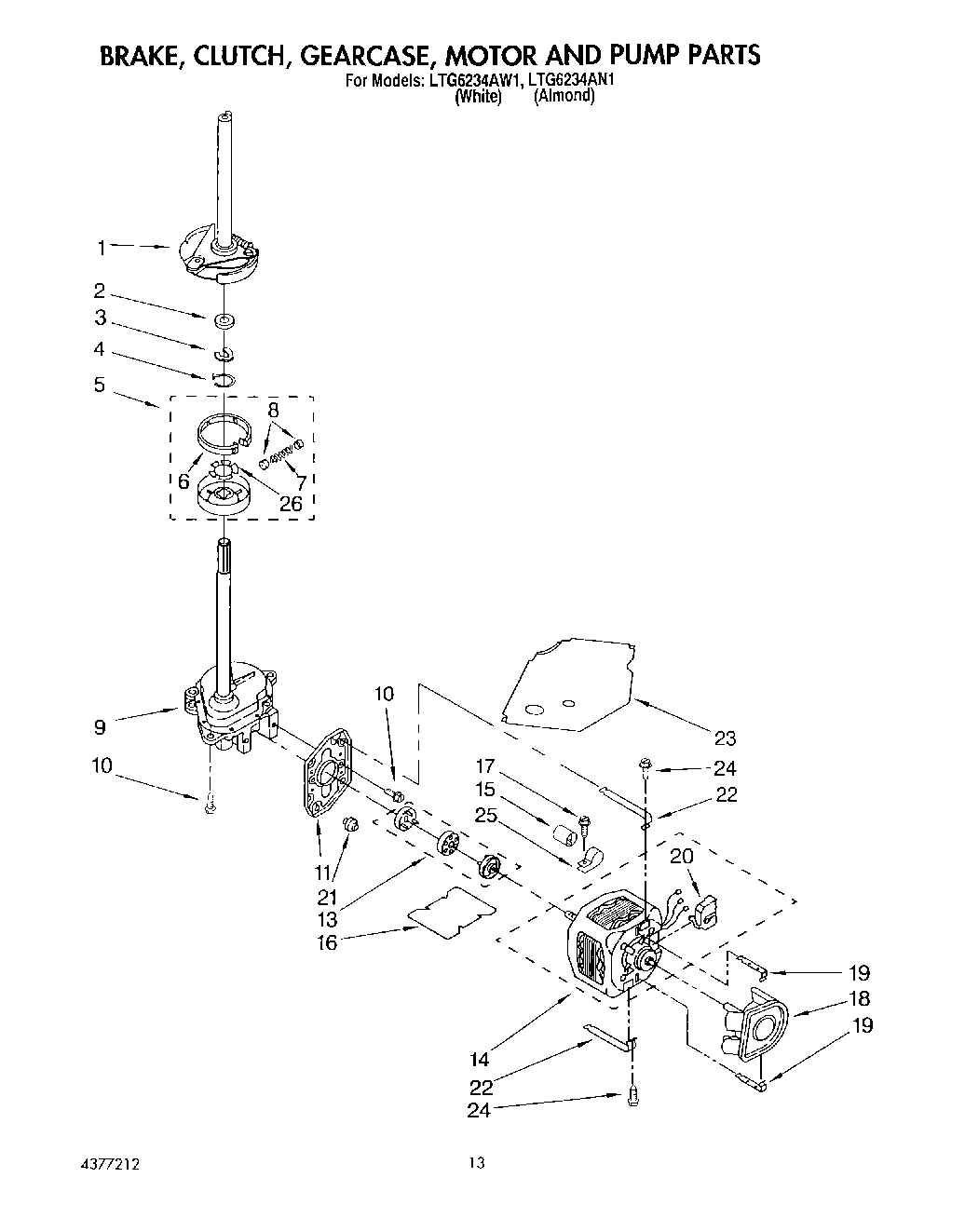

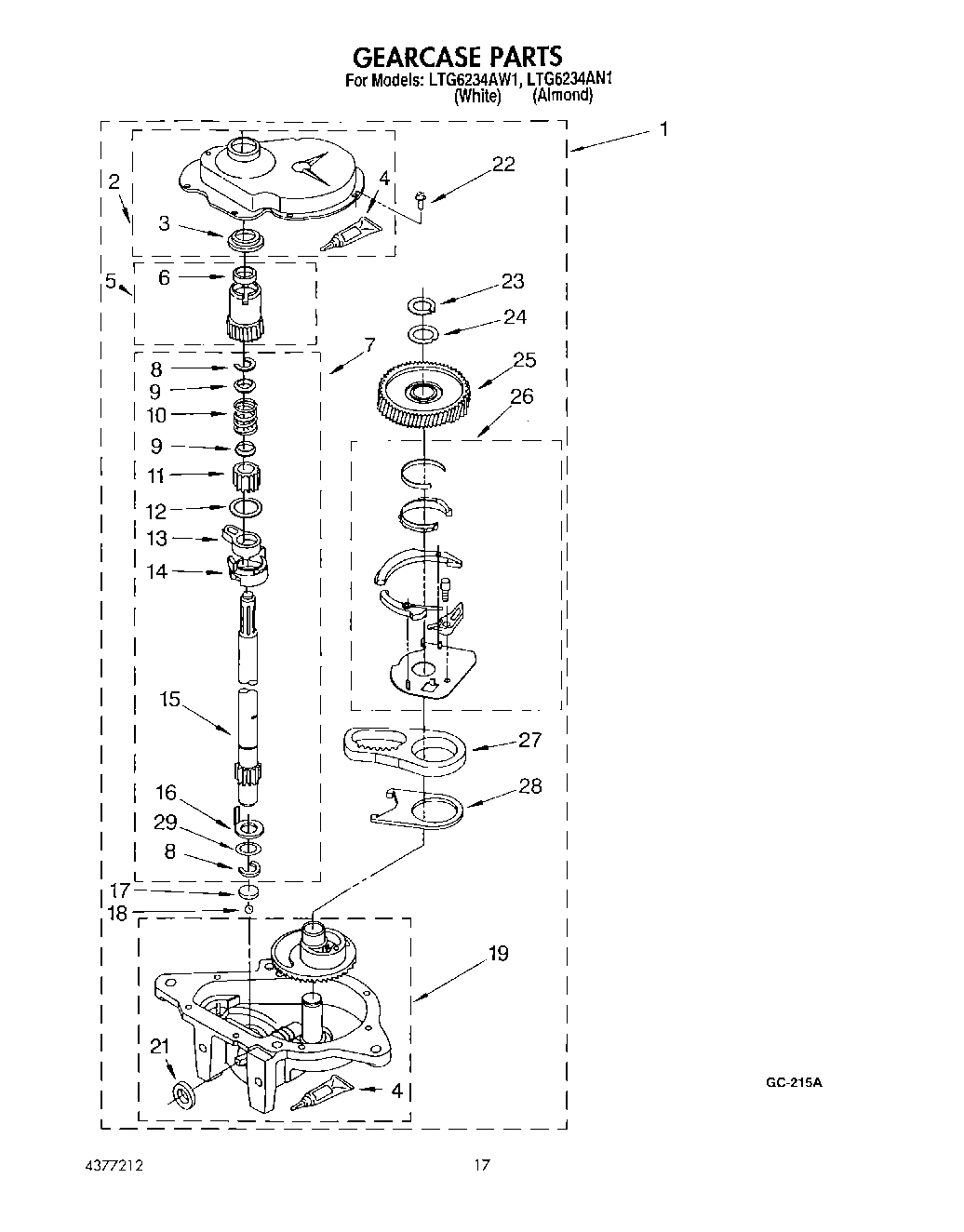

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

9

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

9

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

3389256 Whirlpool Panel Backorder WPL 3389256 $212.24

3389264 Whirlpool Panel Assembly Backorder WPL 3389264 $214.62

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

W11213338 Whirlpool Connector Backorder WPL W11213338 $47.92

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $48.56

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

Hose, Drain WPL 3353841 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Panel, Side (Almond (R.H.)) WPL 3389257 Contact Us For Availability

Panel, Side (Almond (L.H.)) WPL 3389265 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3957750 Whirlpool Knob Backorder WPL WP3957750 $43.19

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

Basket WPL 3352234 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Switch, Pressure WPL 3360910 Contact Us For Availability

Clip WPL 697438 Contact Us For Availability

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $161.55

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability

Switch, Temperature WPL 3348352 Contact Us For Availability

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $9.45

3389231 Whirlpool Clip Front Panel In Stock WPL 3389231 $12.59

3389522 Whirlpool Handle Backorder WPL 3389522 $53.31

8578392 Whirlpool Burner Backorder WPL 8578392 $100.52

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Switch, Push-To-Start WPL 660936 Contact Us For Availability

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

3388958 Whirlpool Panel Backorder WPL 3388958 $85.58

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

BRACKET Backorder WPL W11100260 $12.40

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $36.99

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.57

W10834213 Whirlpool Hose Backorder WPL W10834213 $21.86

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $245.98

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

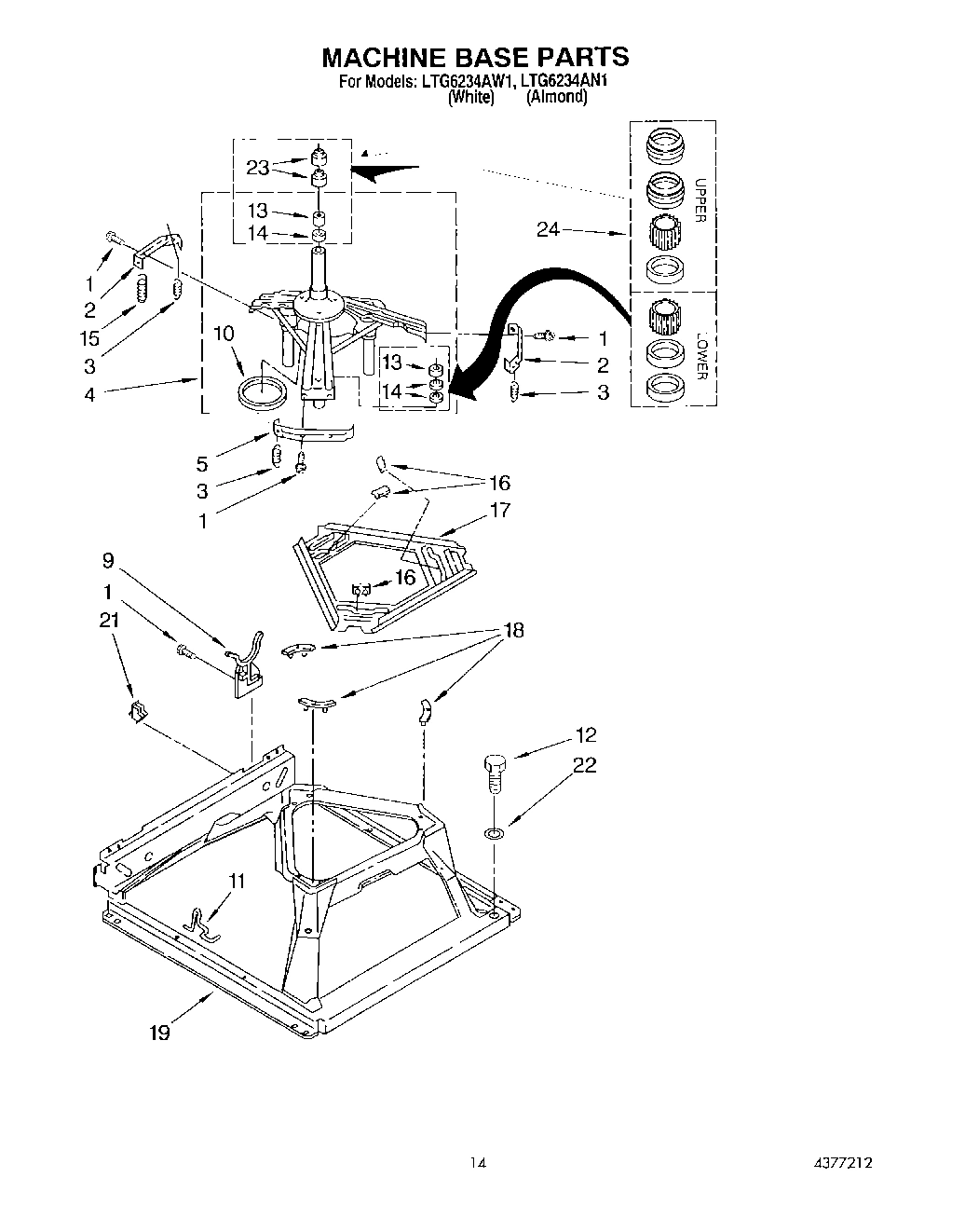

Base Assembly (Includes Illus. 6, 7, 18 & 26) WPL 3349343 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

Bracket, Sensor WPL 697409 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

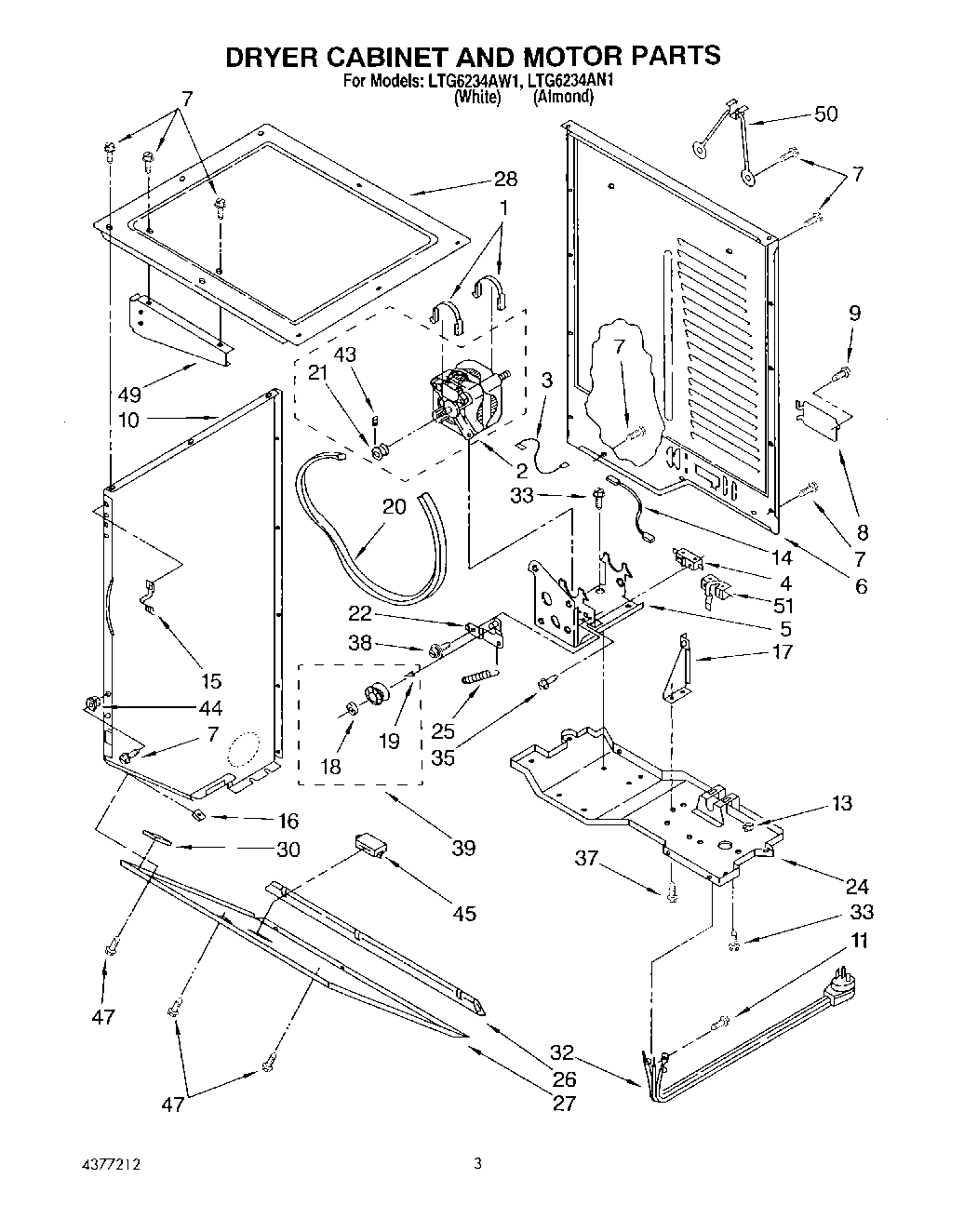

279811 Whirlpool Dryer Drive Motor In Stock WPL 279811 $245.64

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

3349749 Whirlpool Restrainer Backorder WPL 3349749 $8.23

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $59.13

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

W11116924 Whirlpool Locator Backorder WPL W11116924 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

WPW10547294 Whirlpool Idler Pulley In Stock WPL WPW10547294 $15.99

Terminal, Female WPL 352088 Contact Us For Availability

Washer (2) WPL 3349340 Contact Us For Availability

Valve, Shutoff WPL 697441 Contact Us For Availability

End Cap-Right Hand (White) WPL 3389456 Contact Us For Availability

End Cap-Right Hand (Almond) WPL 3389457 Contact Us For Availability

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Seal, Agitator WPL 64002 Contact Us For Availability

Ring, Retaining WPL 95082 Contact Us For Availability

Nipple, Short WPL 3391845 Contact Us For Availability

Harness - Dryer WPL 3398981 Contact Us For Availability

23B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

7111P002-60 Whirlpool Clamp Backorder WPL 7111P002-60 $4.41

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $67.99

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

Washer Kit, Thrust WPL 285292 Contact Us For Availability

Supply Line (Gas) WPL 3391118 Contact Us For Availability

Base, Dryer WPL 3391668 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

Nut, Compression WPL 233076 Contact Us For Availability

Clip, Harness (2) WPL 3390422 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $84.51

3392235A Whirlpool Gas Conversion Kit In Stock WPL 3392235A $42.99

3393767 Whirlpool Pipe Backorder WPL 3393767 $90.96

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $216.46

27

Panel, Transition (White) WPL 3397881 Contact Us For Availability

27

Panel, Transition (Almond) WPL 3397882 Contact Us For Availability

28

Top, Dryer WPL 3389537 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

End Cap-Left Hand (White) WPL 3389464 Contact Us For Availability

End Cap (LH) (Almond) WPL 3389465 Contact Us For Availability

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $36.90

30

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.85

32

WPW10581952 Whirlpool Power Cord In Stock WPL WPW10581952 $75.51

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.77

35

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $4.82

37

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

39

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.68

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

43

Screw, Set WPL 3392285 Contact Us For Availability

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

45

Catch, Magnetic WPL 3390192 Contact Us For Availability

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

49

3390722 Whirlpool Shield Assembly Backorder WPL 3390722 $54.13

50

Cable WPL 3388580 Contact Us For Availability

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $85.99

51

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

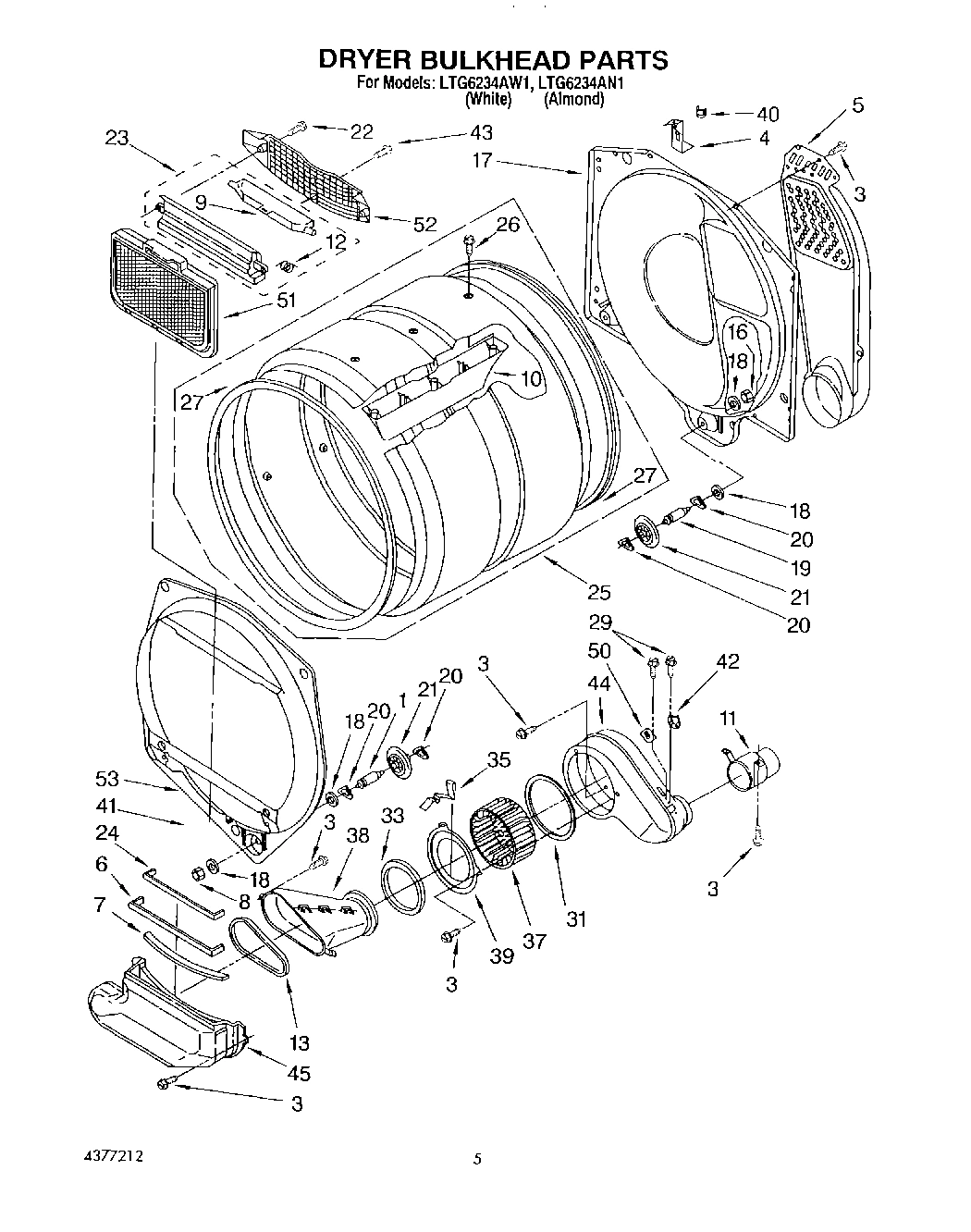

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39
