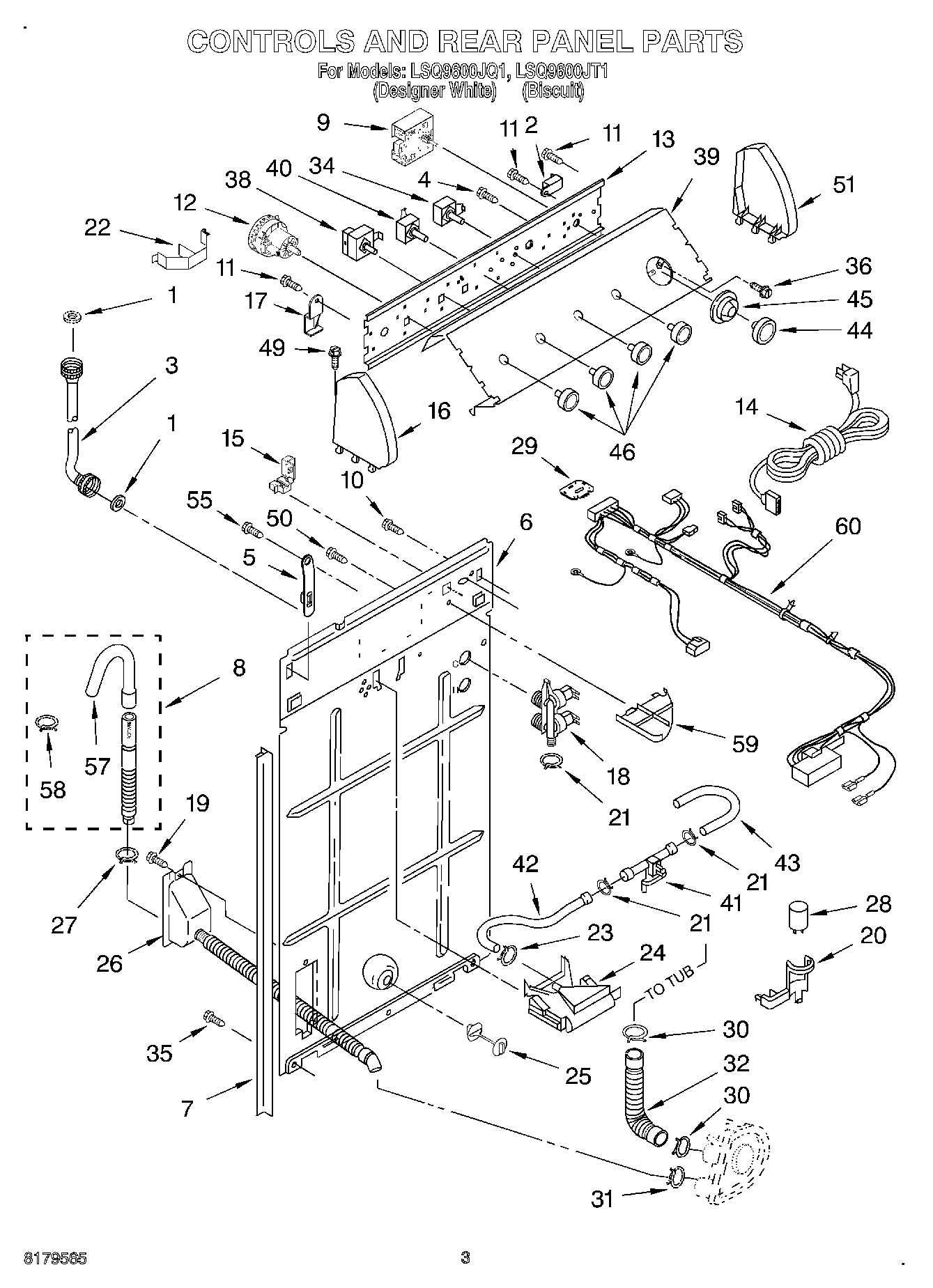

Model Whirlpool LSQ9600JT1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

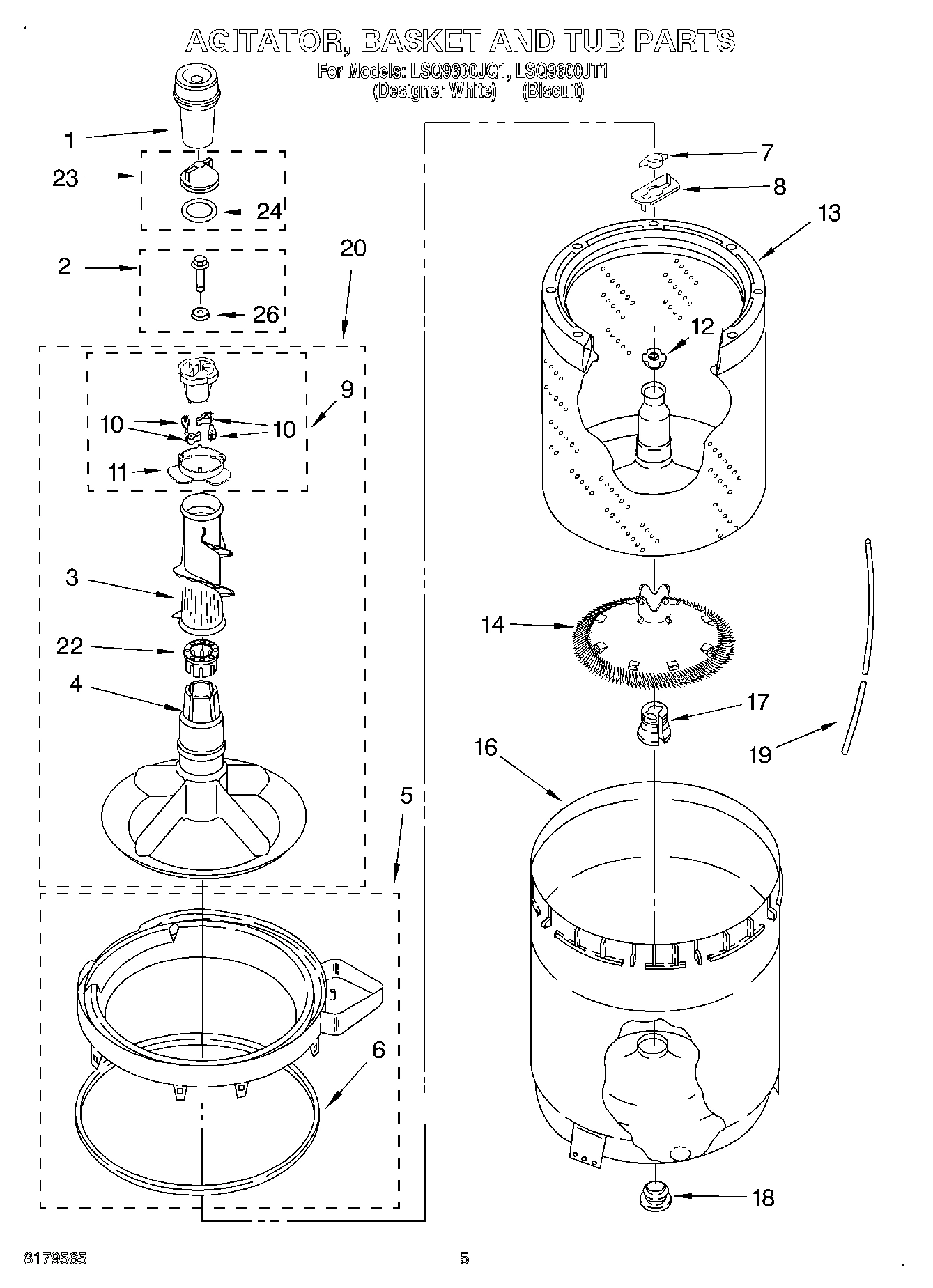

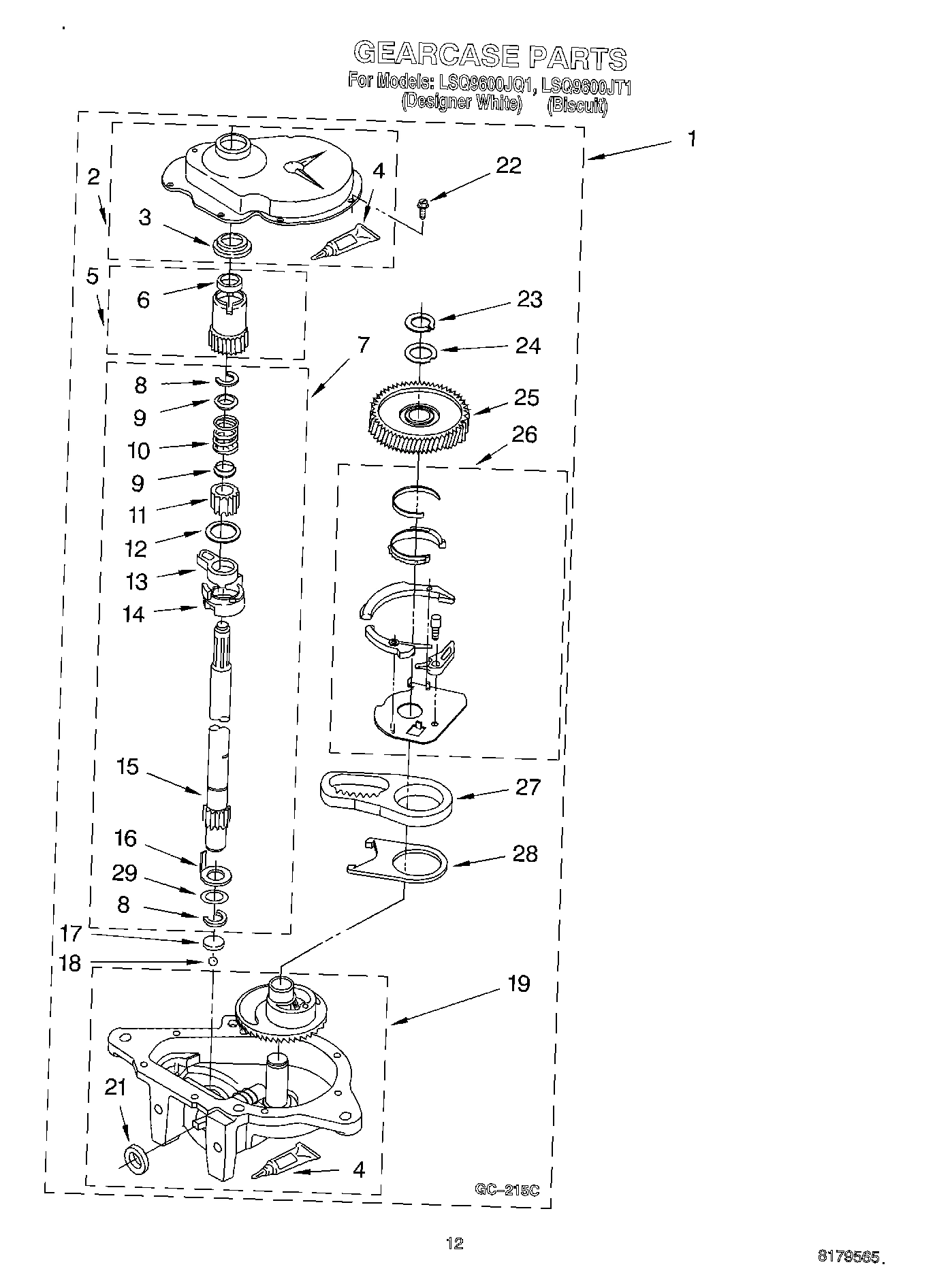

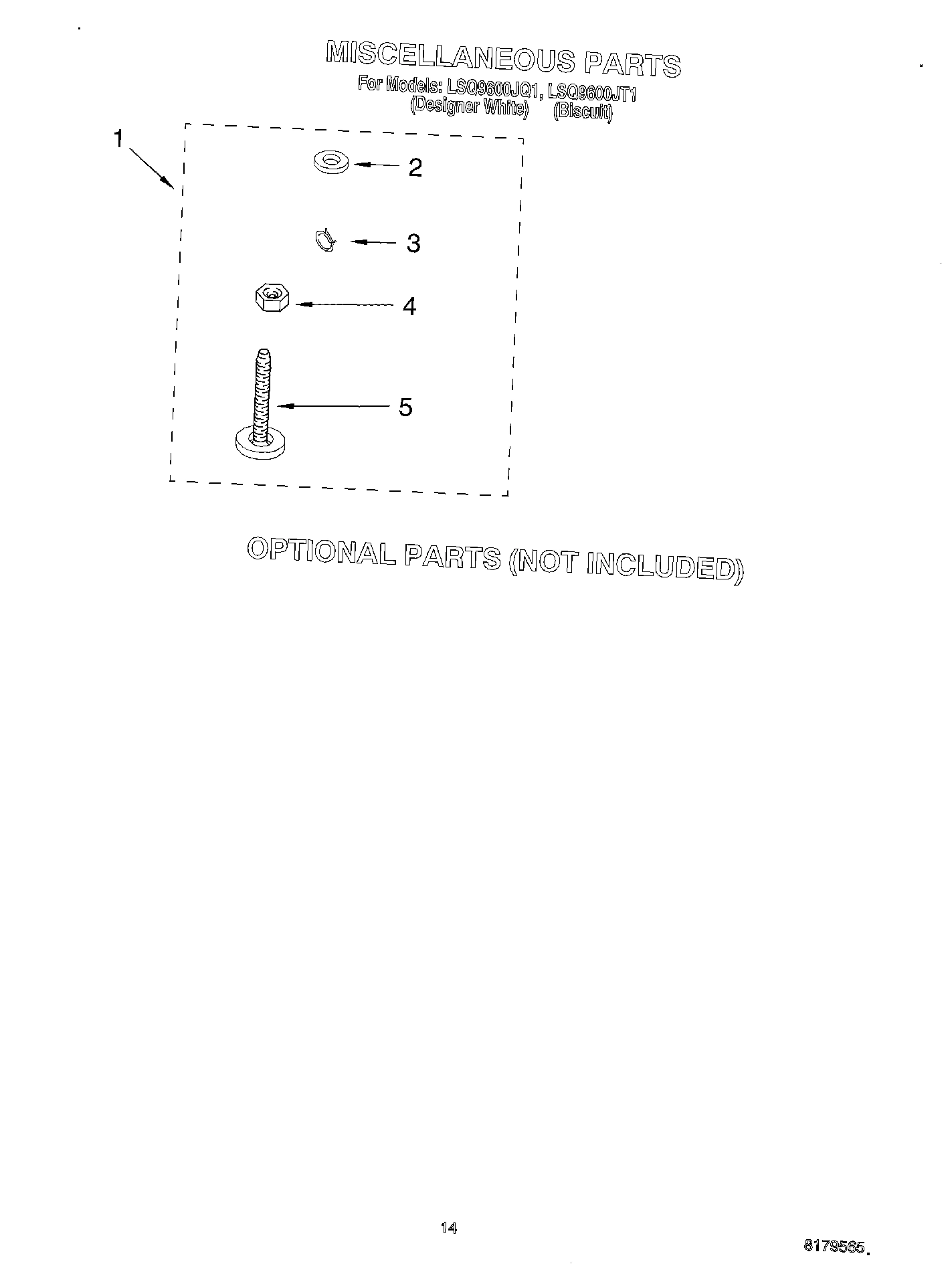

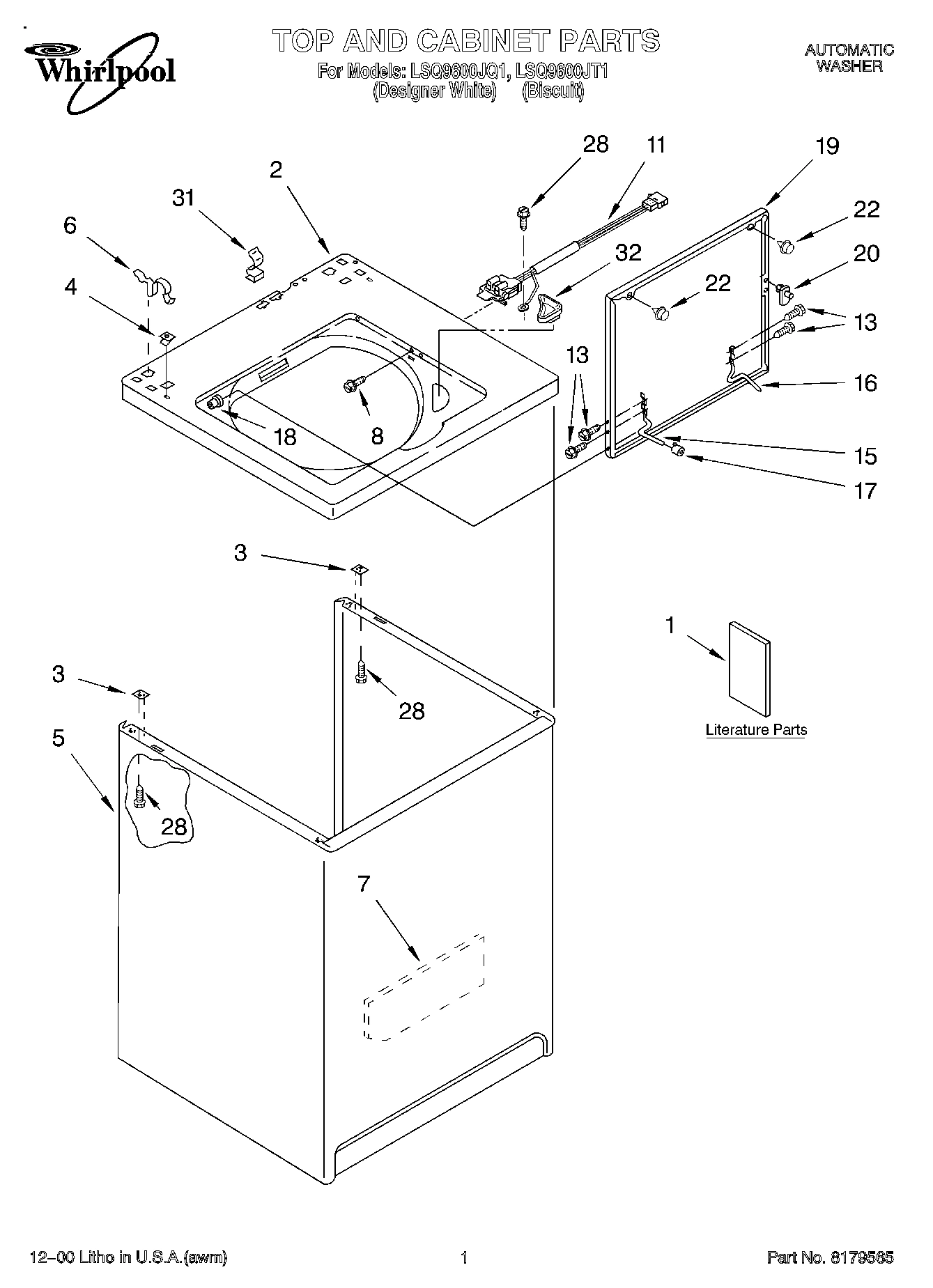

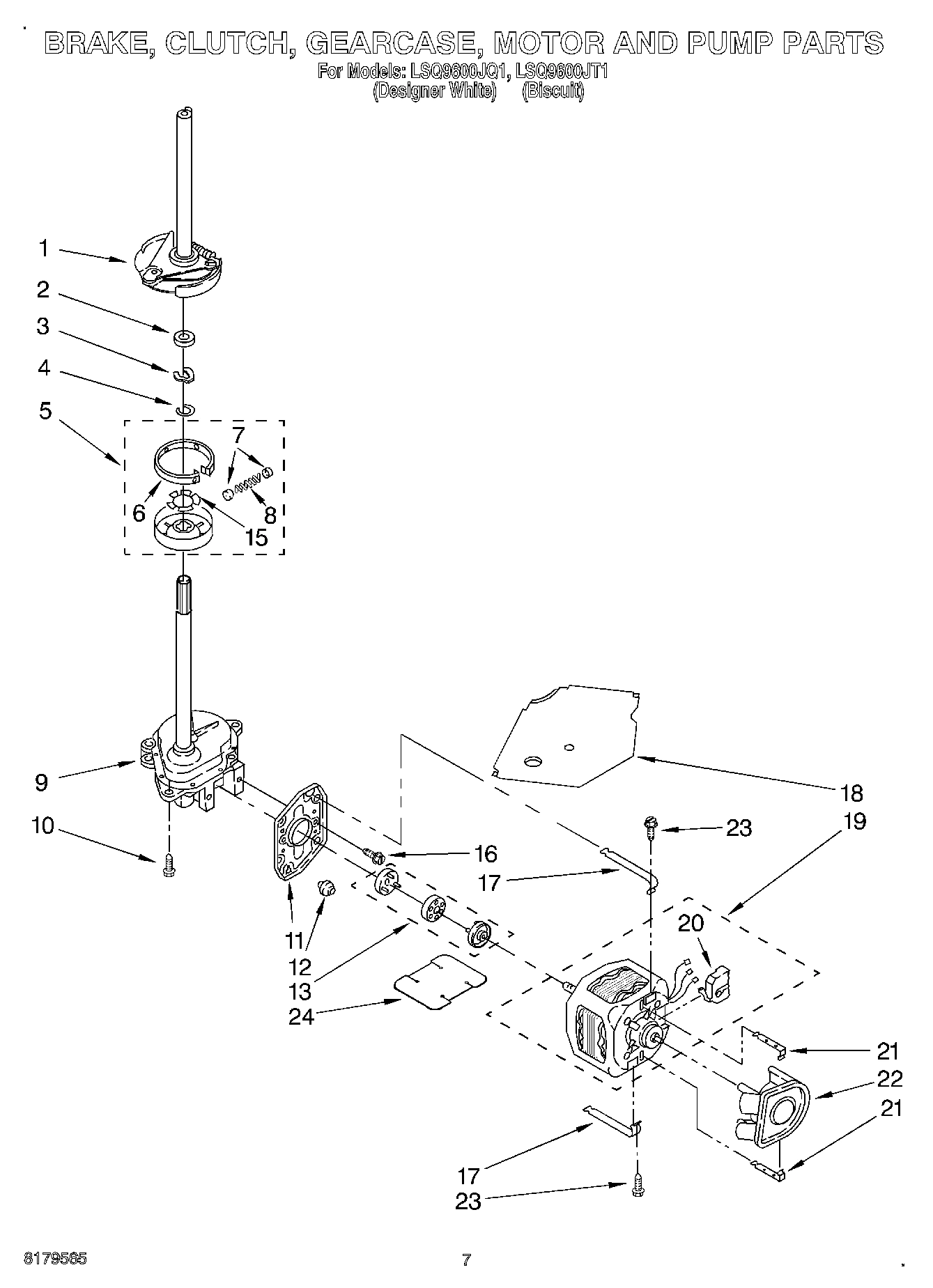

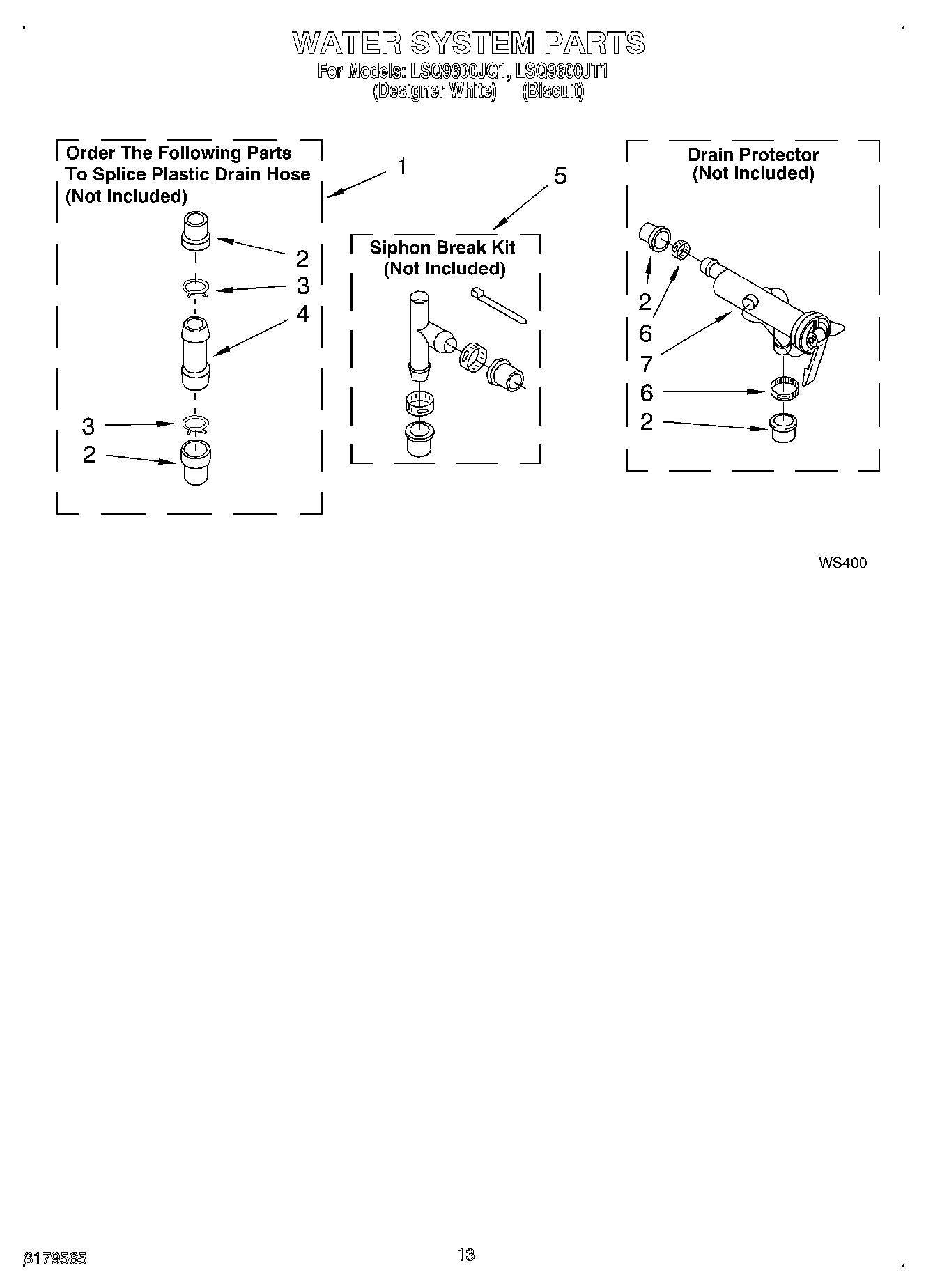

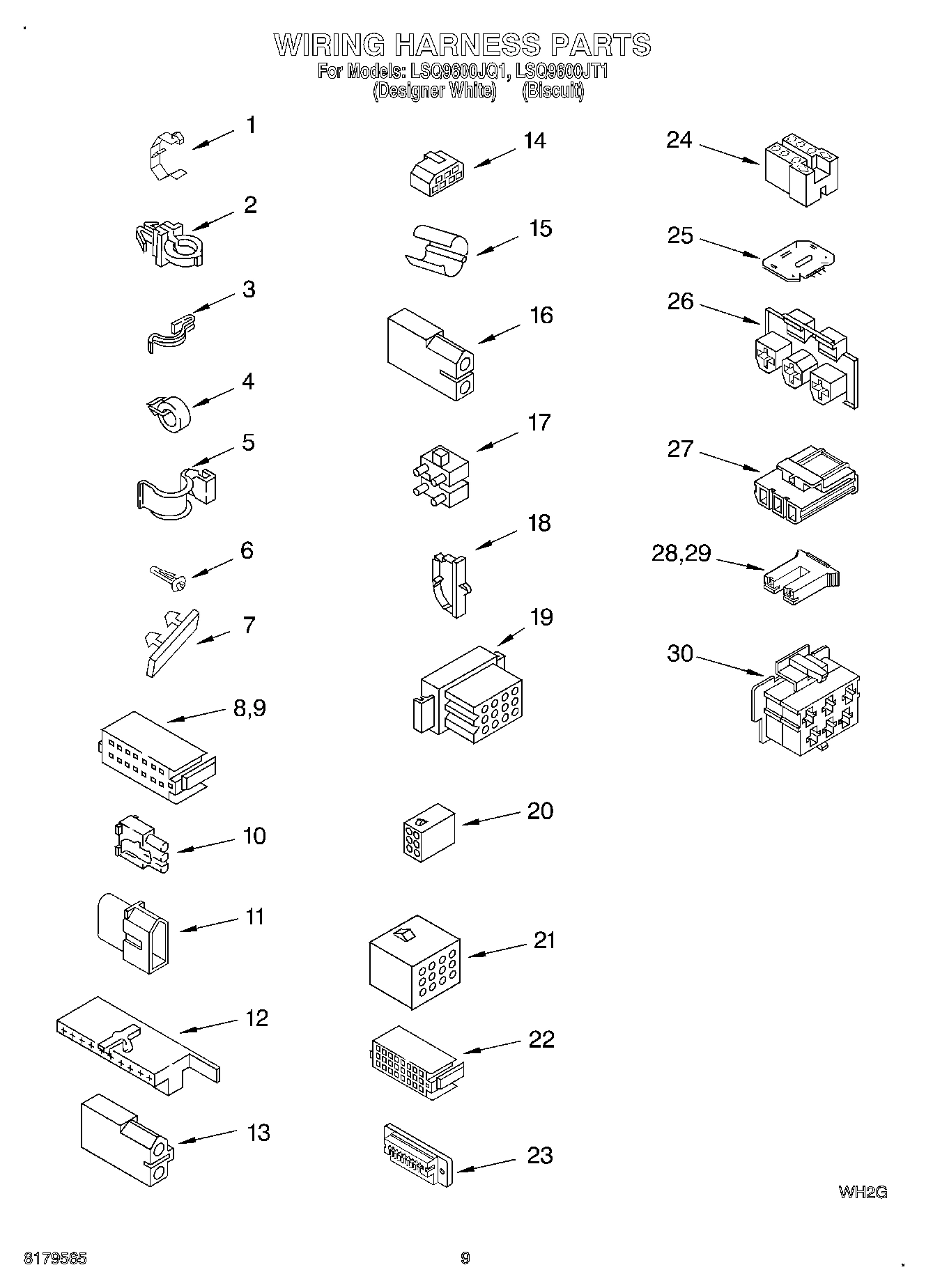

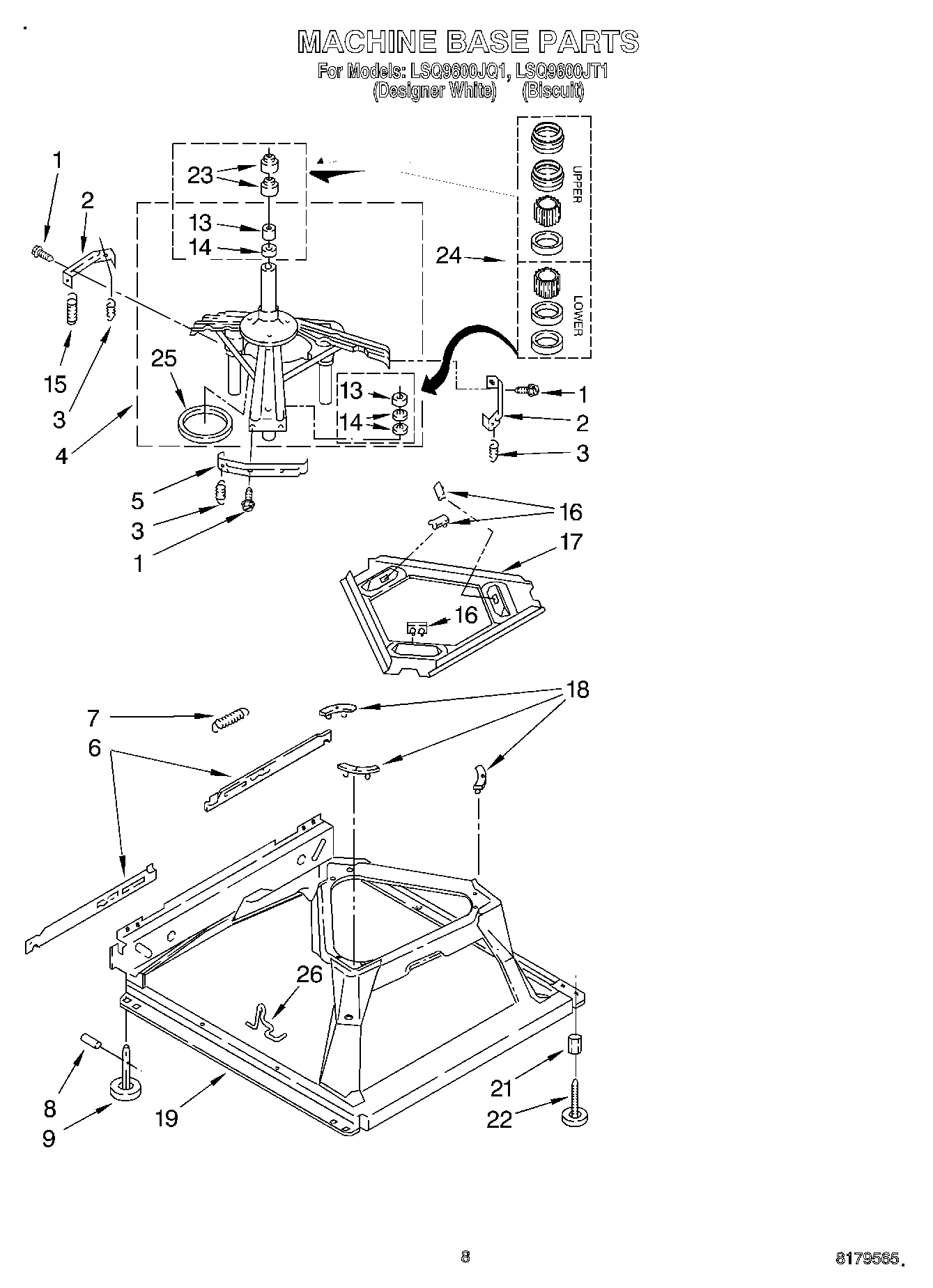

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (French) WPL LIT3954820 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (English) WPL LIT3955154 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

2

Top (White) WPL 8271378 Contact Us For Availability

2

Top (Biscuit) WPL 8271380 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

5

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Cabinet-Sound Damper WPL 3349654 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $6.99

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

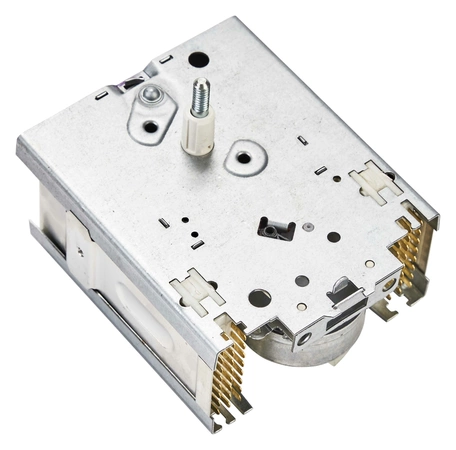

WP3954071 Whirlpool Timer Backorder WPL WP3954071 $240.48

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

353424 Whirlpool Connector Backorder WPL 353424 $14.02

3949247V Whirlpool Washer Lid Switch Assembly In Stock WPL 3949247V $49.99

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $4.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $95.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Clip, Harness WPL 3352944 Contact Us For Availability

WP3352287 Whirlpool Drive Motor In Stock WPL WP3352287 $305.99

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

Lid (White) WPL 3361405 Contact Us For Availability

Lid (Biscuit) WPL 3361407 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

23

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

25

Control, ETC WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

41

Sensor-ETC-Inline WPL 3352282 Contact Us For Availability

42

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.99

43

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

57

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50
