Model Whirlpool LBV5133AN0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Label, Wiring Diagram WPL LIT3351736 Contact Us For Availability

Guide, Use WPL LIT3357459 Contact Us For Availability

WPL LIT3358643 WPL LIT3358643 Contact Us For Availability

WPL LIT3358964 WPL LIT3358964 Contact Us For Availability

WPL LIT4313896 WPL LIT4313896 Contact Us For Availability

WPL LIT881012 WPL LIT881012 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $4.19

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $53.62

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Clip, Harness WPL 62749 Contact Us For Availability

2

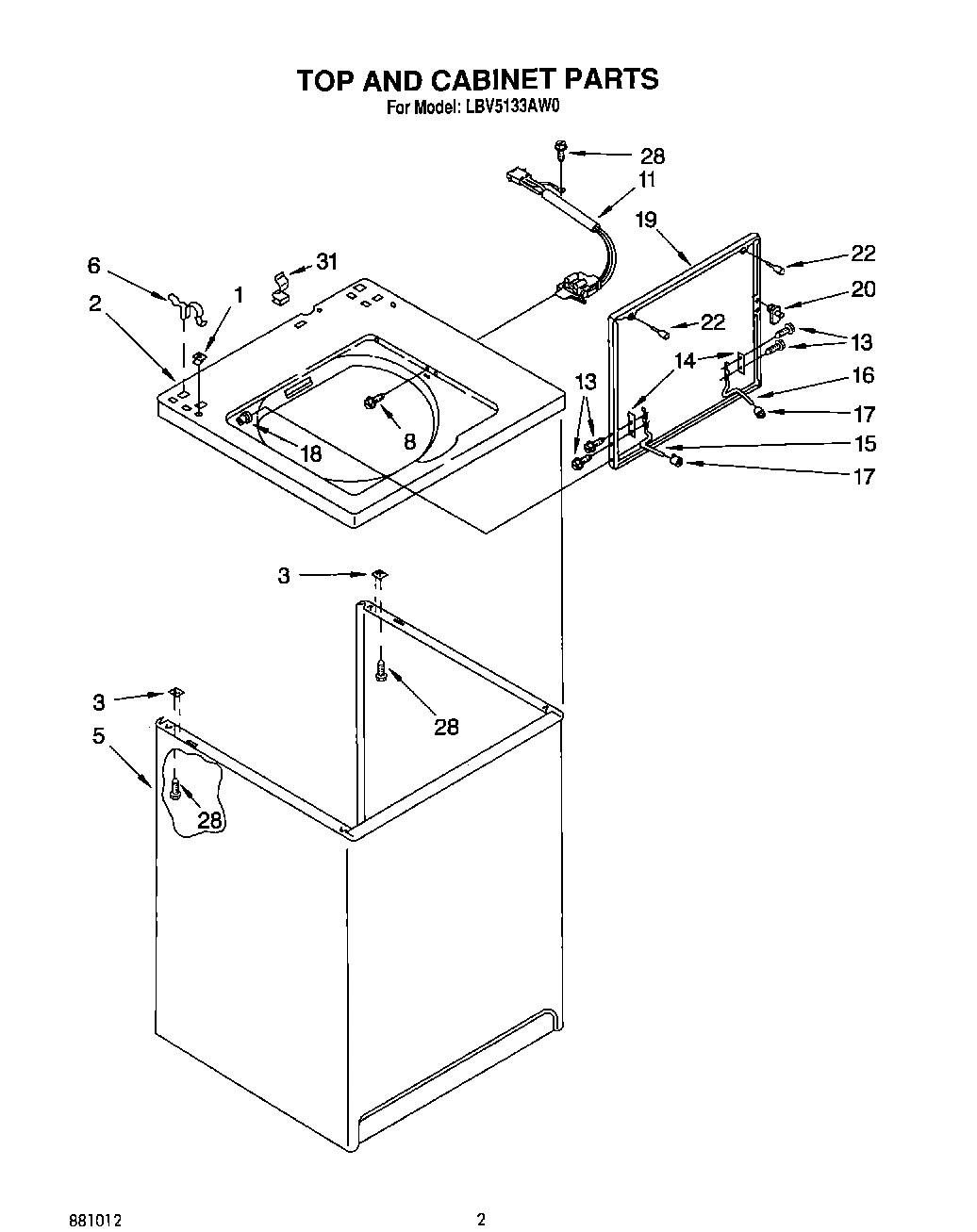

Top (White) WPL 3358239 Contact Us For Availability

2

Top (For Almond Model) WPL 3358240 Contact Us For Availability

2

Top (Golden Harvest) WPL 3358241 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $94.88

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.77

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

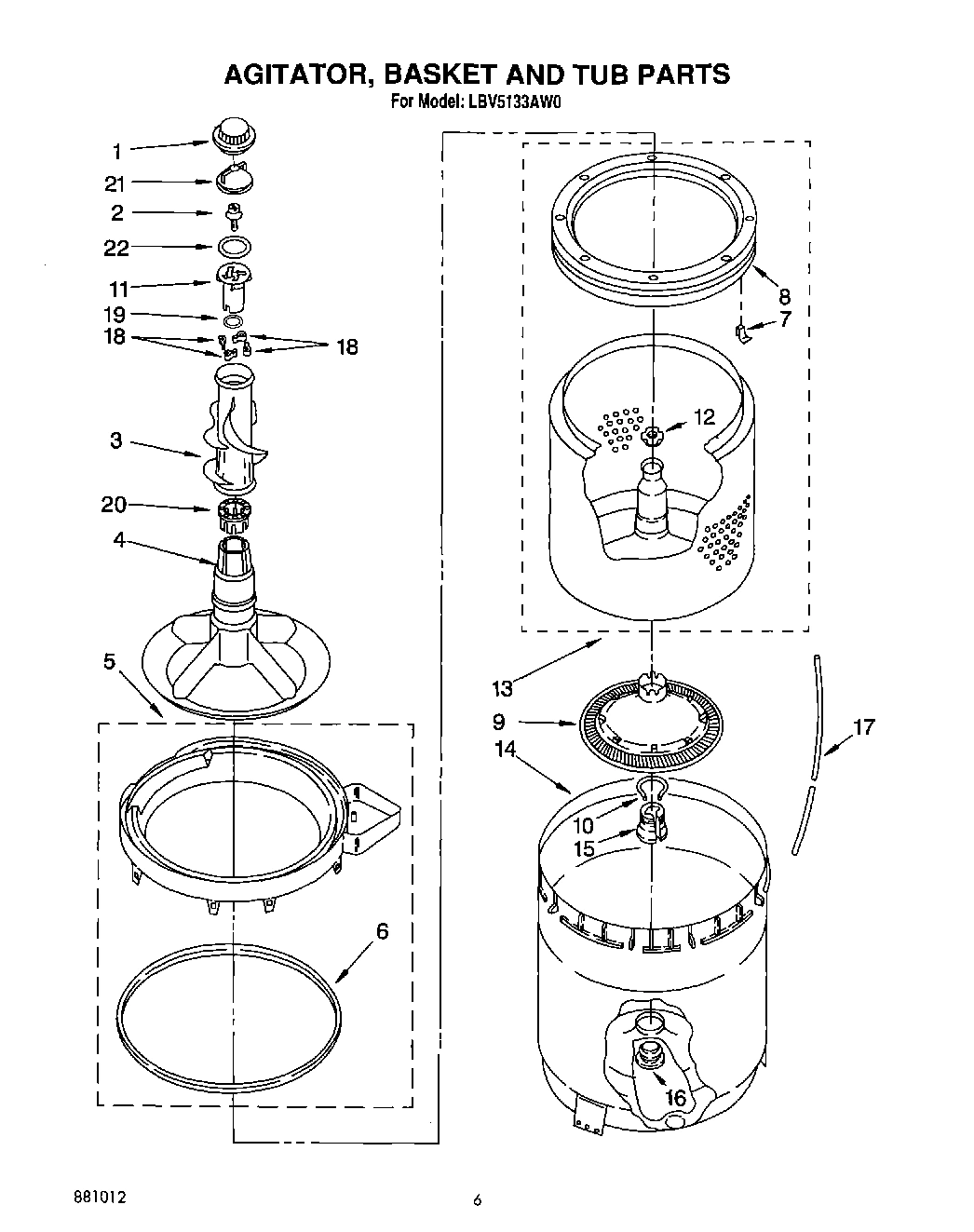

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $81.87

5

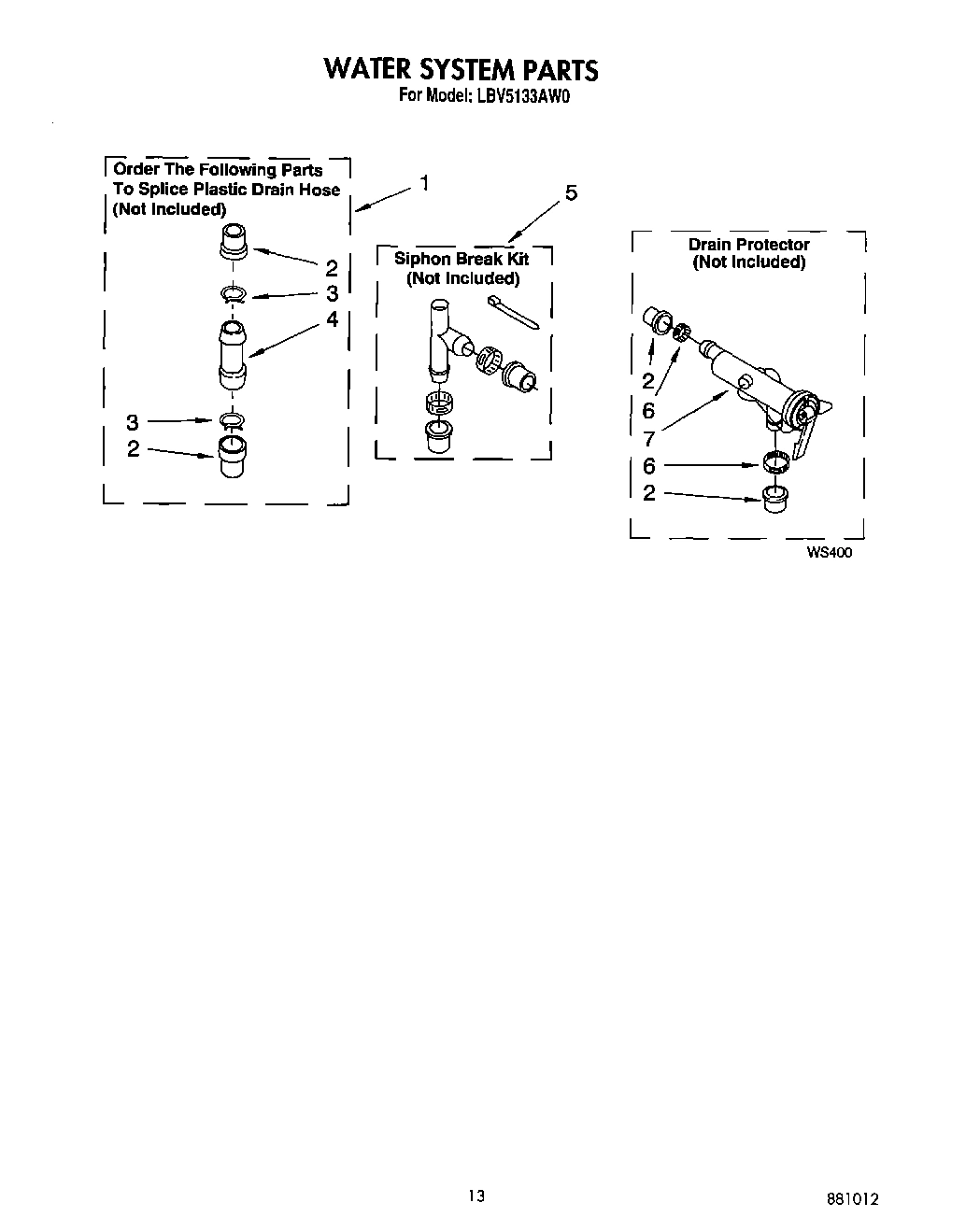

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Cabinet (White) WPL 63128 Contact Us For Availability

5

Cabinet (Almond) WPL 63129 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63132 Contact Us For Availability

5

Tub Ring WPL 387966 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $58.43

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

7

WP3956205 Whirlpool Balance Ring Backorder WPL WP3956205 $100.62

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

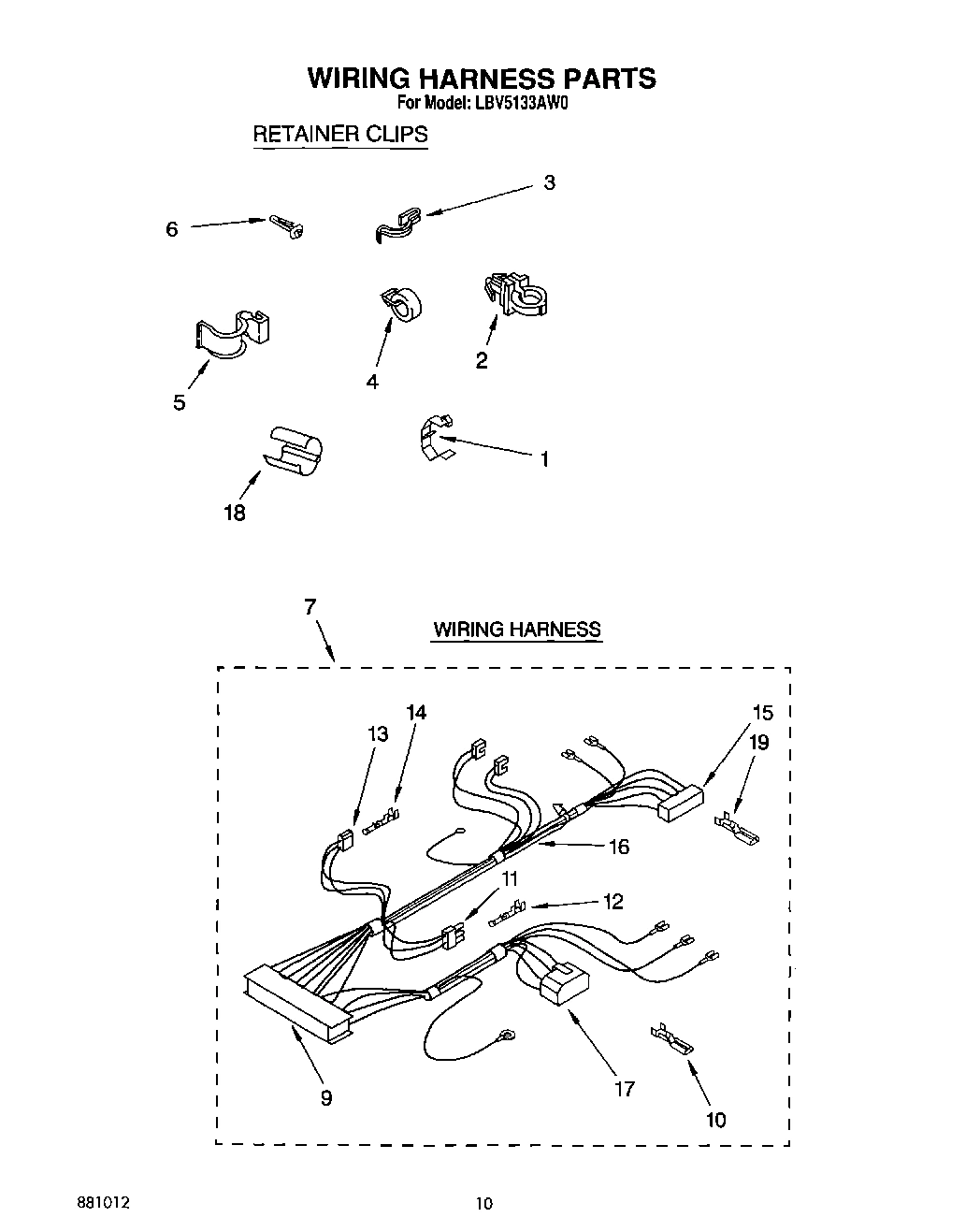

Wiring Harness & Pressure Switch Hose WPL 3359860 Contact Us For Availability

8

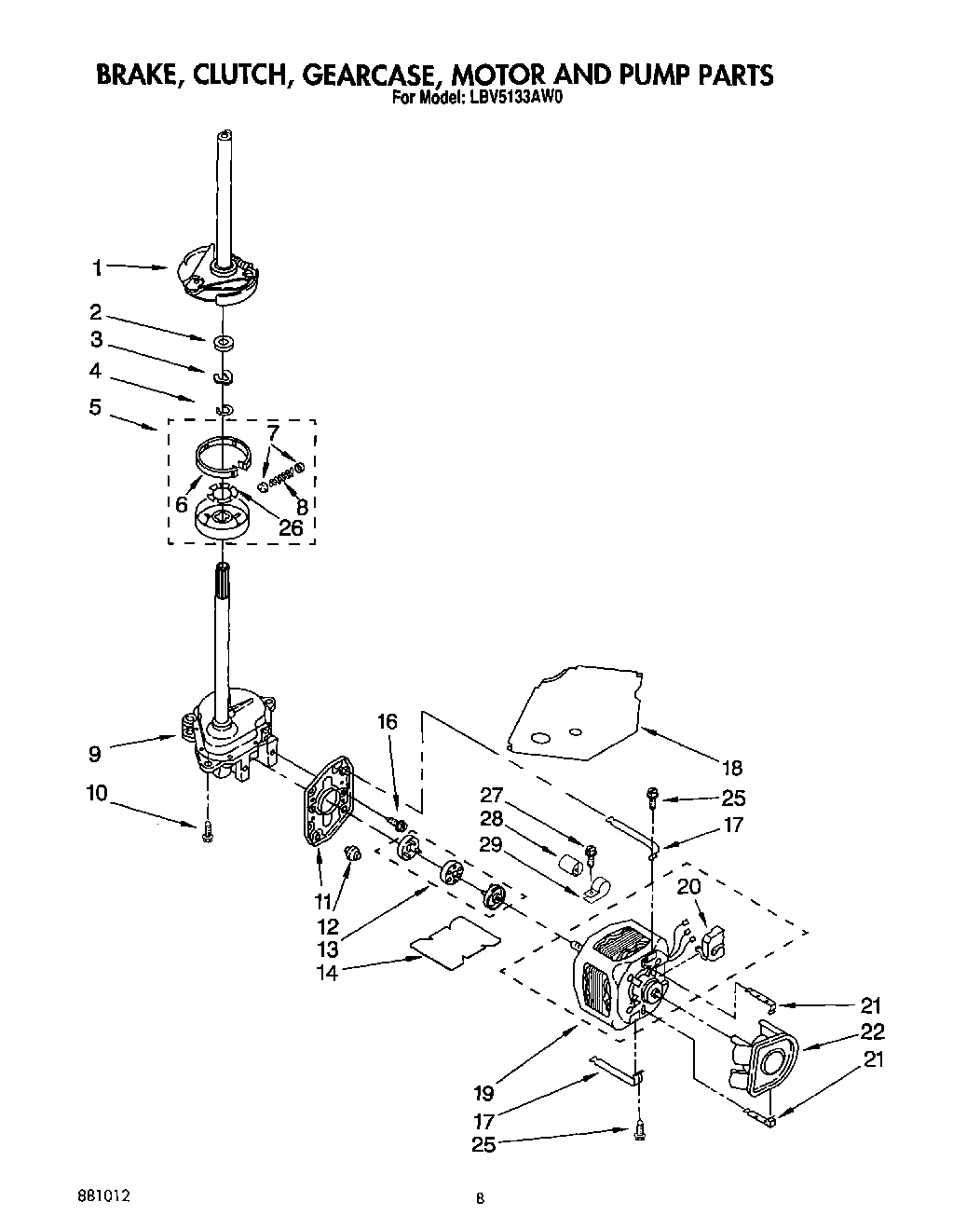

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $3.22

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.67

9

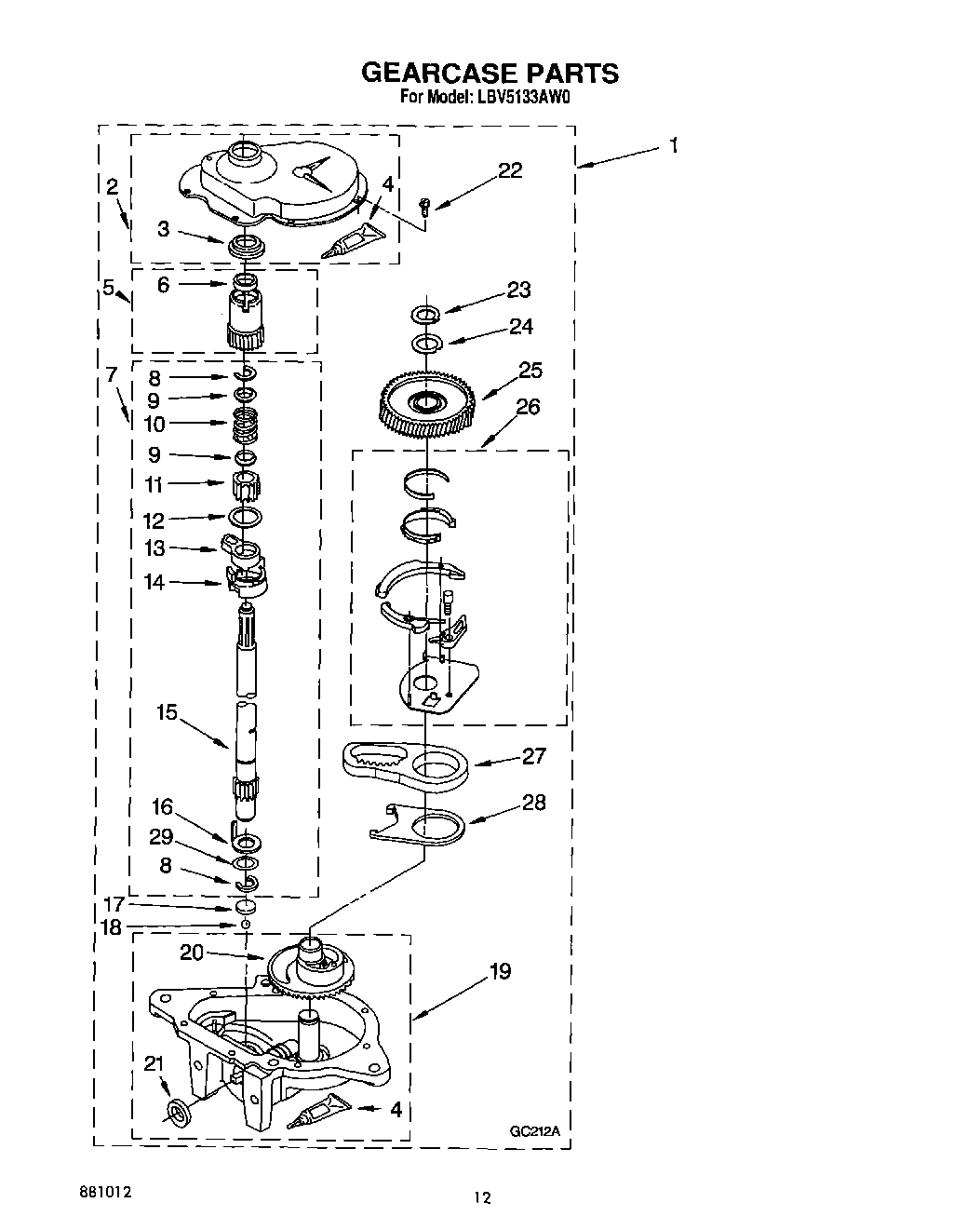

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

9

Block, Disconnect (Black) (Timer) WPL 3369366 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

Lock, Filter WPL 62942 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Terminal, Female WPL 3354924 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.98

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.51

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP62647 Whirlpool Spring Pressure Backorder WPL WP62647 $5.47

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP3356467 Whirlpool Washer Water Level Switch In Stock WPL WP3356467 $107.06

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $3.22

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

Basket & Balance Ring WPL 387713 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.19

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

WP596797 Whirlpool Terminal Backorder WPL WP596797 $4.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

Tub WPL 63125 Contact Us For Availability

15

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

15

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.83

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Block, Disconnect (Temperature Switch) WPL 3347243 Contact Us For Availability

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Protector, Harness WPL 63523 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Seal, Agitator WPL 357574 Contact Us For Availability

Terminal WPL 3371761 Contact Us For Availability

Lid (White) WPL 3354575 Contact Us For Availability

Lid (Almond) WPL 3354576 Contact Us For Availability

Lid (Golden Harvest) WPL 3354579 Contact Us For Availability

20

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.68

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

21

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

22

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $32.62

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

27

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

29

357030 Whirlpool Clamp Backorder WPL 357030 $13.77

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.44

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $5.76
