Model Whirlpool LA6800XTN1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

2

Clip, Harness WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $159.32

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

Support & Brake, Tub WPL 389350 Contact Us For Availability

5

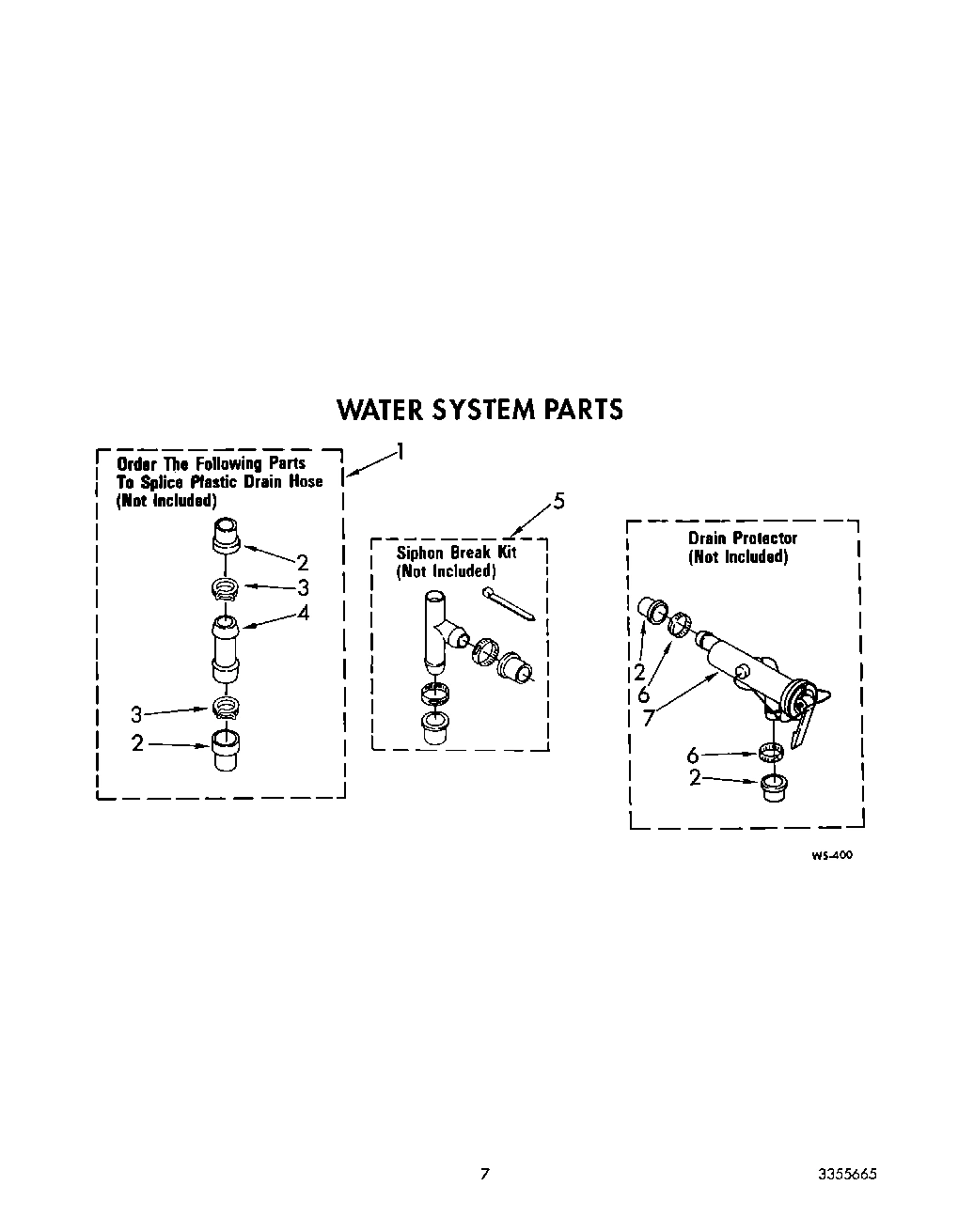

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Wiring Harness & Pressure Switch Hose WPL 3348271 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

9

WP3351744 Whirlpool Timer Backorder WPL WP3351744 $223.91

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.99

Terminal, Female WPL 352088 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Spring, Brake WPL 387806 Contact Us For Availability

3361596 Whirlpool Outer Tub Primary In Stock WPL 3361596 $222.78

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Lock, Filter WPL 62942 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Cap, End (L.H.) WPL 63789 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Hose, Bleach WPL 63323 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3352259 Contact Us For Availability

20

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Seal, Agitator WPL 357574 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

24

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

25

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.84

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

35

Switch, Water Temperature WPL 3354238 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

37

Knob, Water Level WPL 386636 Contact Us For Availability

39

Panel, Console WPL 3348397 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 3347726 Contact Us For Availability

45

Dial, Timer WPL 64140 Contact Us For Availability

47

Button, Push (4) WPL 3354109 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

54

WPL 364089 WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

56

WPL 3350222 WPL 3350222 Contact Us For Availability

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

60

WPL 3348424 WPL 3348424 Contact Us For Availability

61

WPL 3348392 WPL 3348392 Contact Us For Availability

62

WPL 3348102 WPL 3348102 Contact Us For Availability

62

WPL 3349096 WPL 3349096 Contact Us For Availability

62

WPL 661524 WPL 661524 Contact Us For Availability
