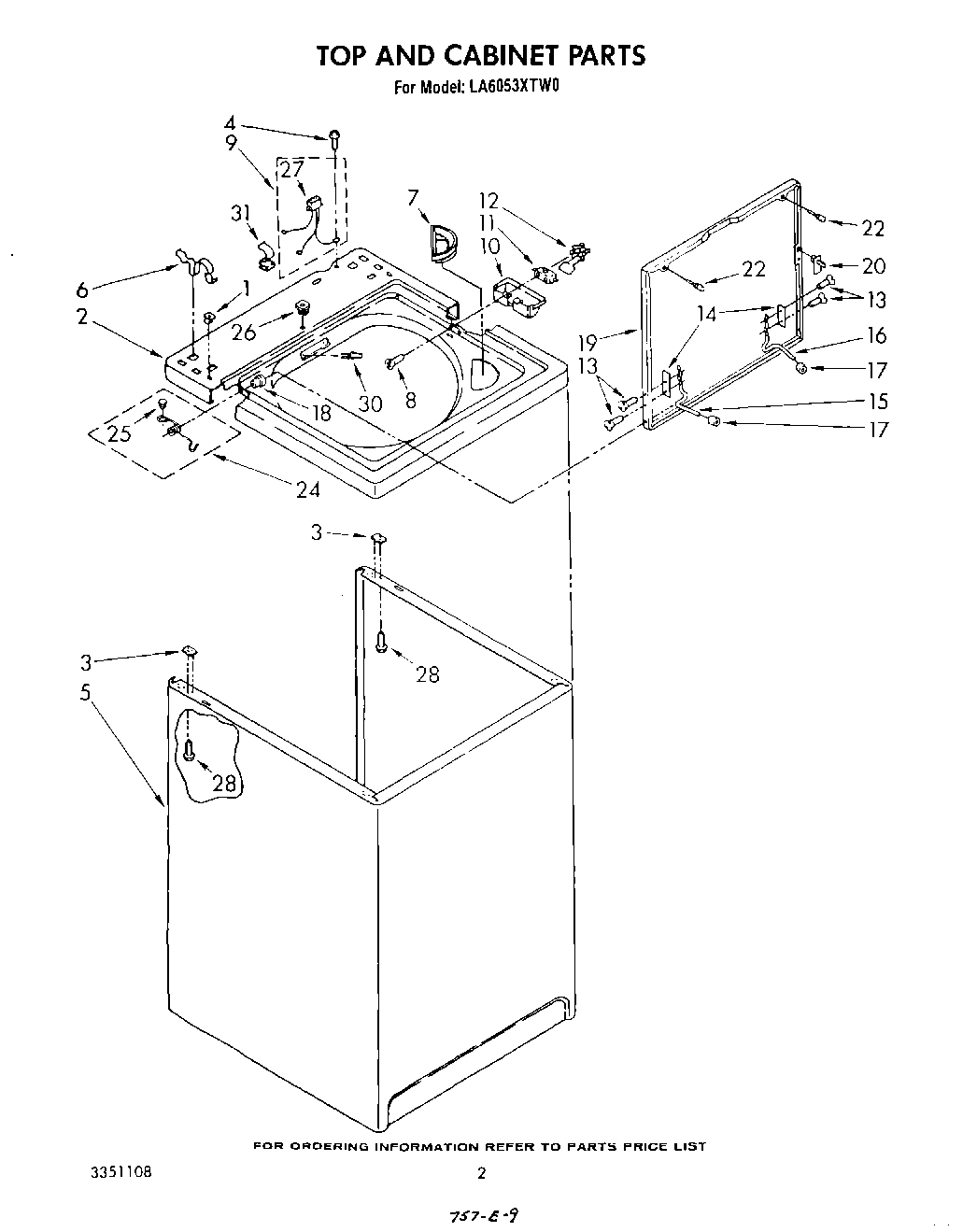

Model Whirlpool LA6053XTF0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 387980 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Strap, Ground WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Tub Ring WPL 387966 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

6

Panel, Rear WPL 3348430 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Balance Ring WPL 387868 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

9

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

9

285952 Whirlpool Timer Assembly Backorder WPL 285952 $271.63

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Retainer, Drain Hose WPL 3350222 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Terminal, Female WPL 352088 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Seal, Agitator WPL 357574 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Switch, Water Level WPL 63834 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Basket & Balance Ring WPL 387713 Contact Us For Availability

Bracket, Control WPL 3349983 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.84

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Cord, Power WPL 62734 Contact Us For Availability

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Lock, Filter WPL 62942 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

Cap, End (L.H.) WPL 63789 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 389149 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

20

Switch, Main Drive Motor WPL 62851 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Hose, Bleach Dispenser WPL 63323 Contact Us For Availability

22

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

23

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

Clip, Motor Shield WPL 3349322 Contact Us For Availability

25

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $58.08

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3355454 Whirlpool Clip Assembly In Stock WPL WP3355454 $4.82

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

35

Switch, Water Temperature (Alt.) WPL 334711 Contact Us For Availability

35

Switch, Water Temperature (Alt.) WPL 358935 Contact Us For Availability

35

Switch, Water Temperature WPL 661538 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

39

WPL 3348559 WPL 3348559 Contact Us For Availability

40

WPL 689559 WPL 689559 Contact Us For Availability

42

WPL 355326 WPL 355326 Contact Us For Availability

44

WPL 3347727 WPL 3347727 Contact Us For Availability

45

WPL 64141 WPL 64141 Contact Us For Availability

47

WPL 386639 WPL 386639 Contact Us For Availability

48

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

49

WPL 64211 WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

WPL 63795 WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

53

WPL 63020 WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

56

WPL 357247 WPL 357247 Contact Us For Availability

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36
