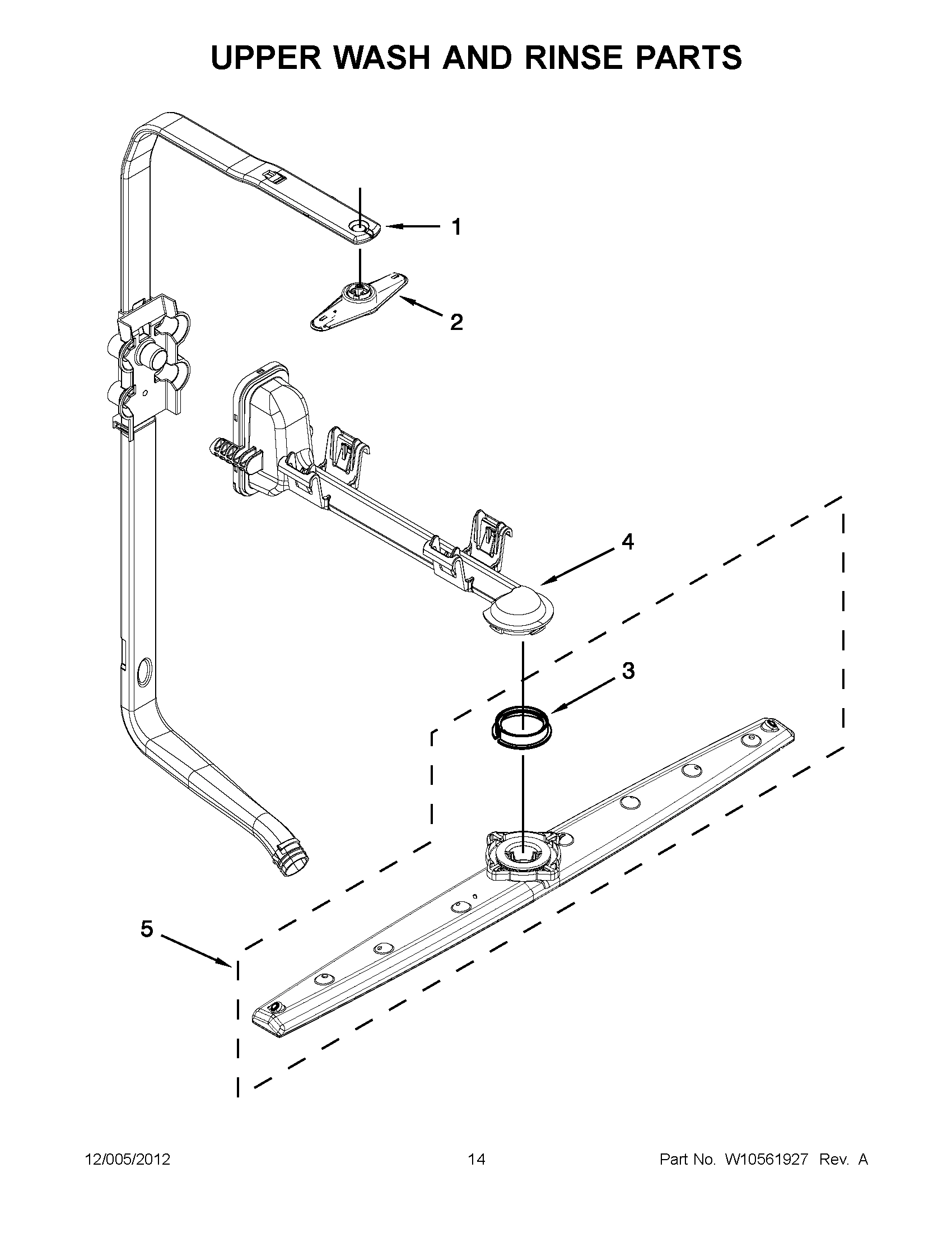

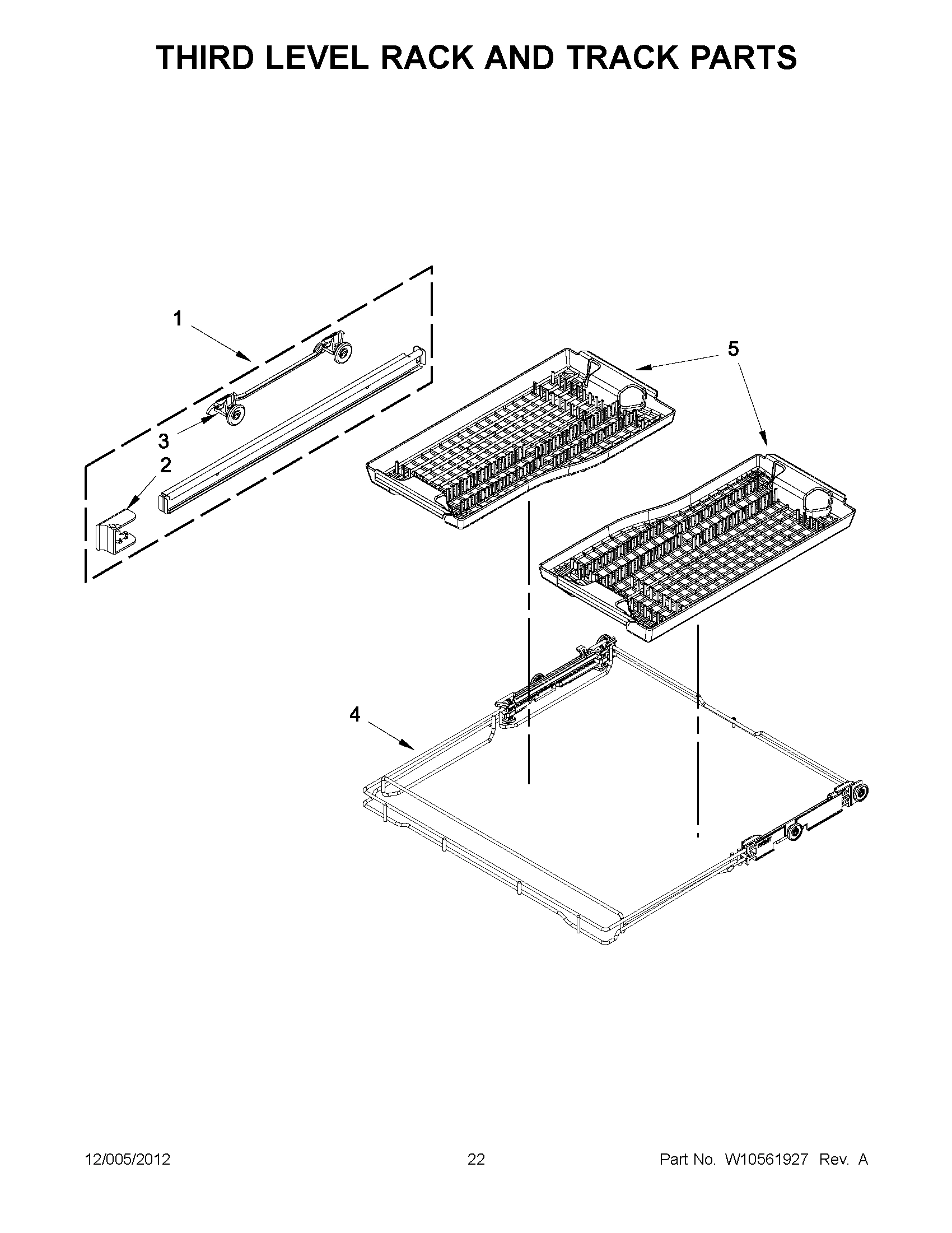

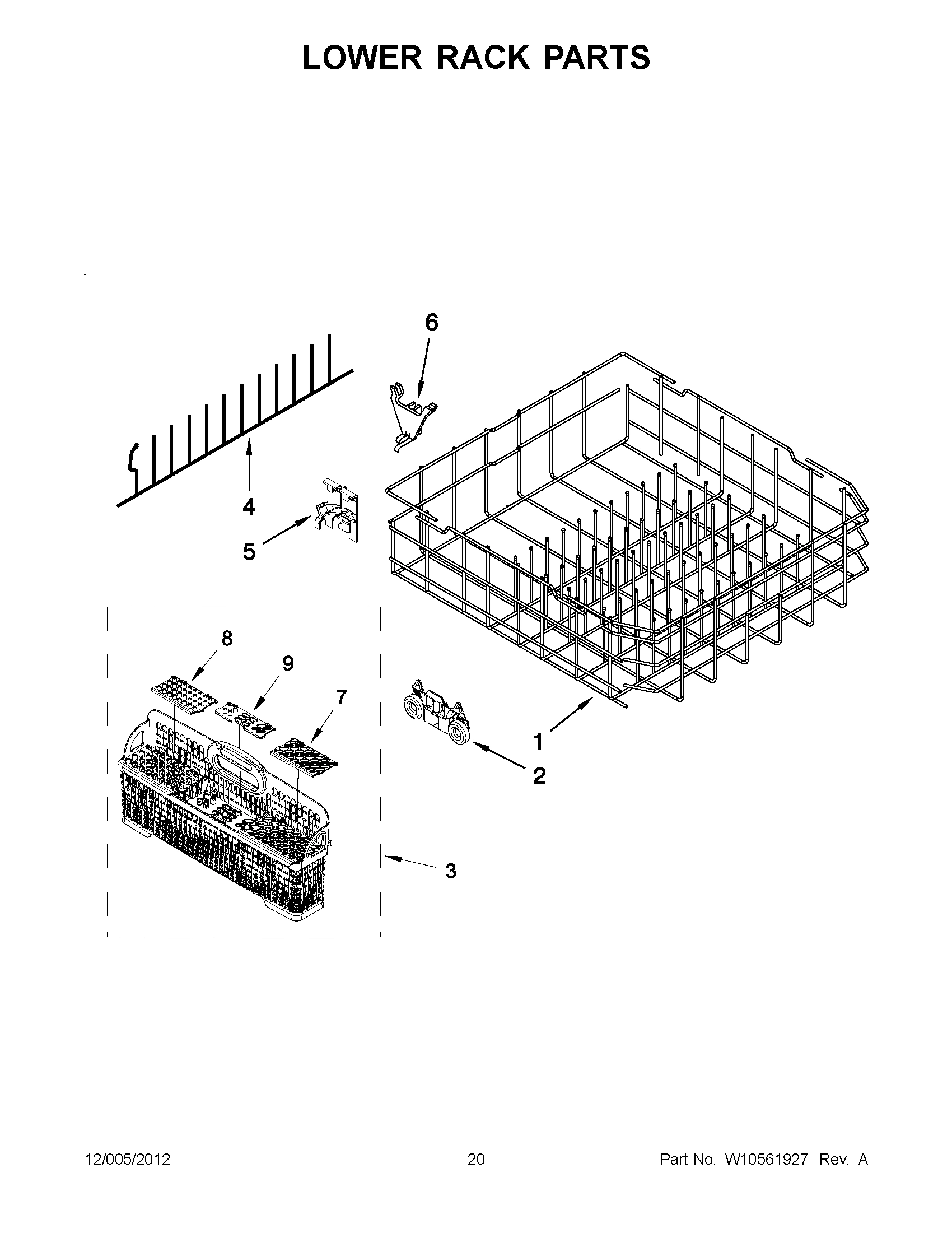

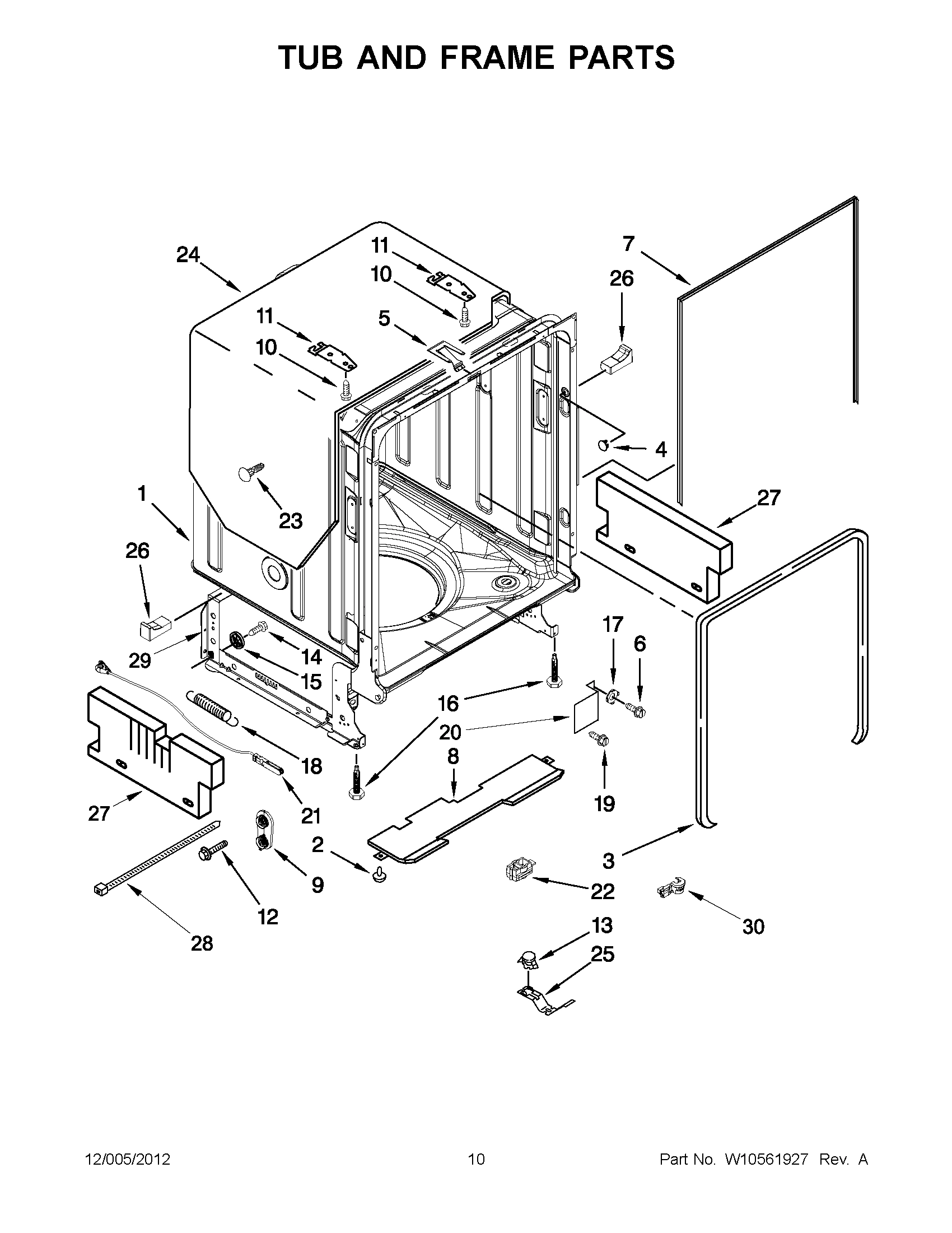

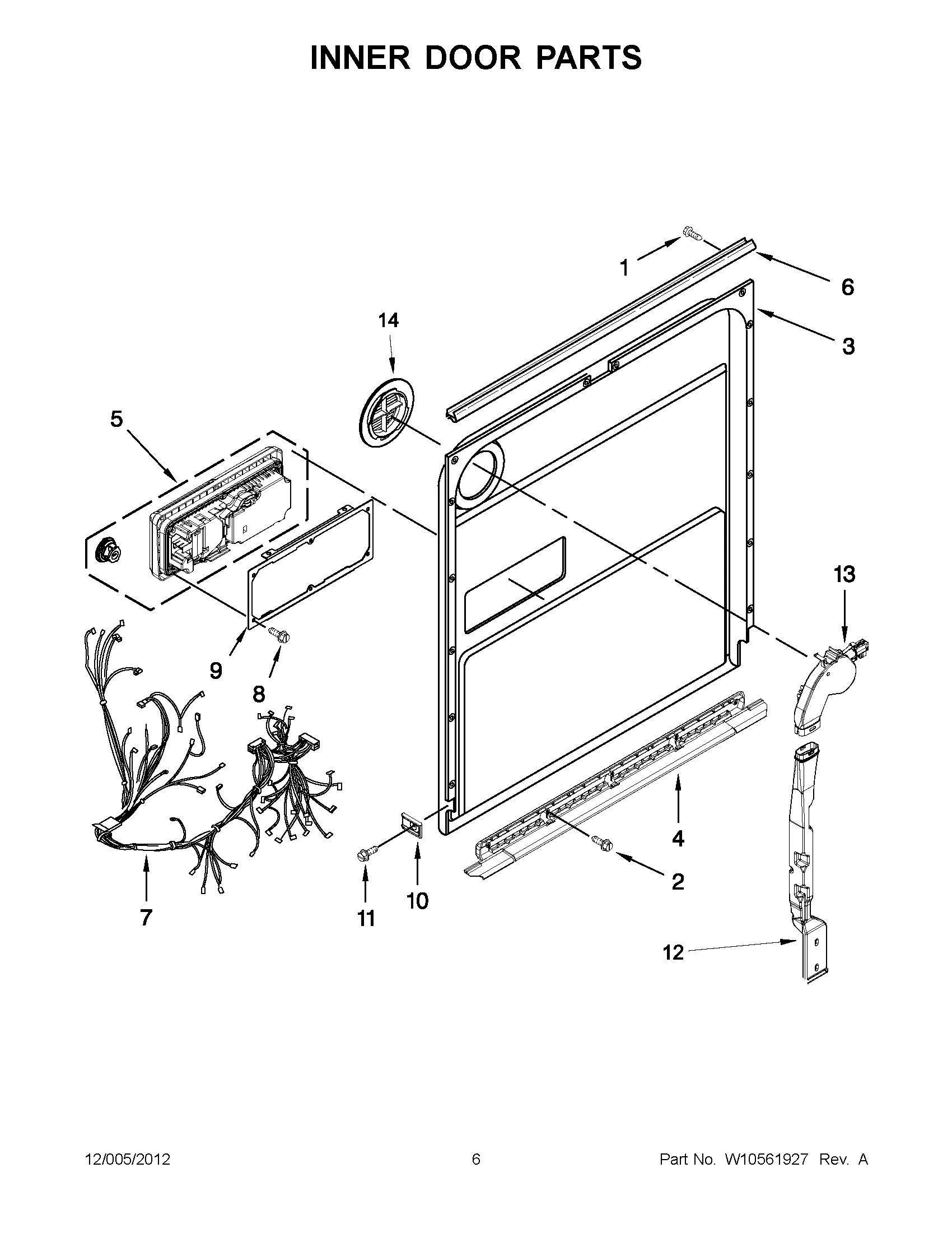

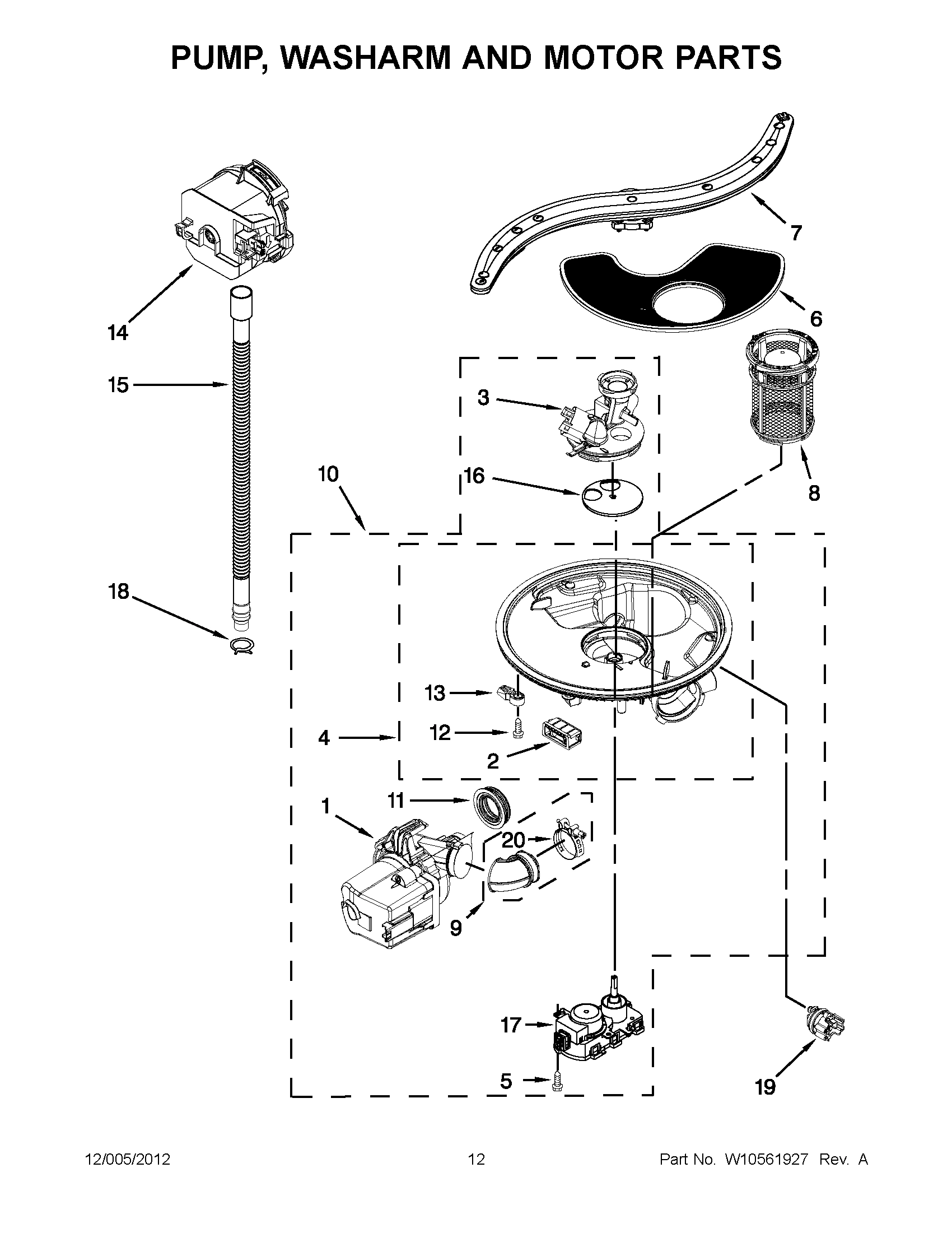

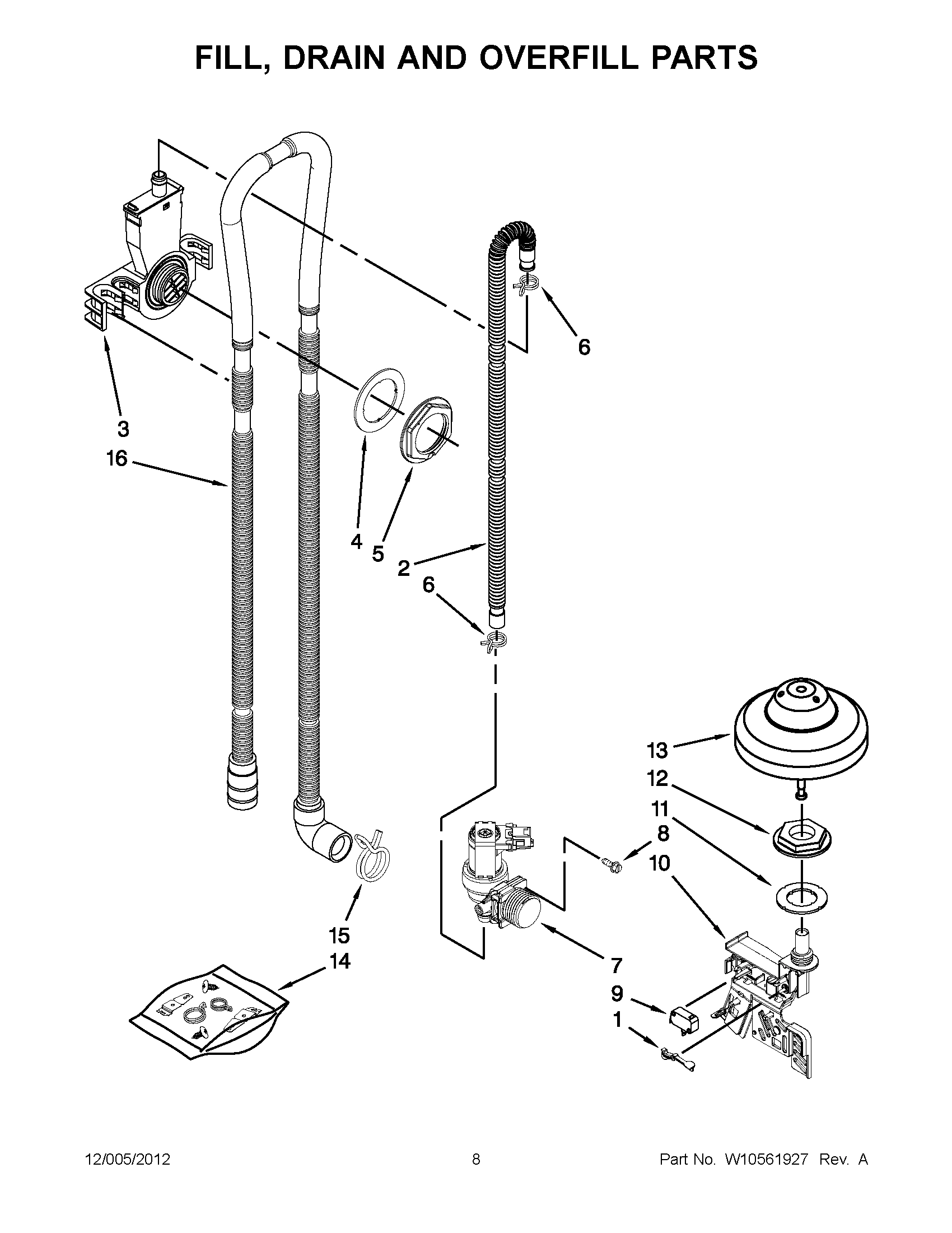

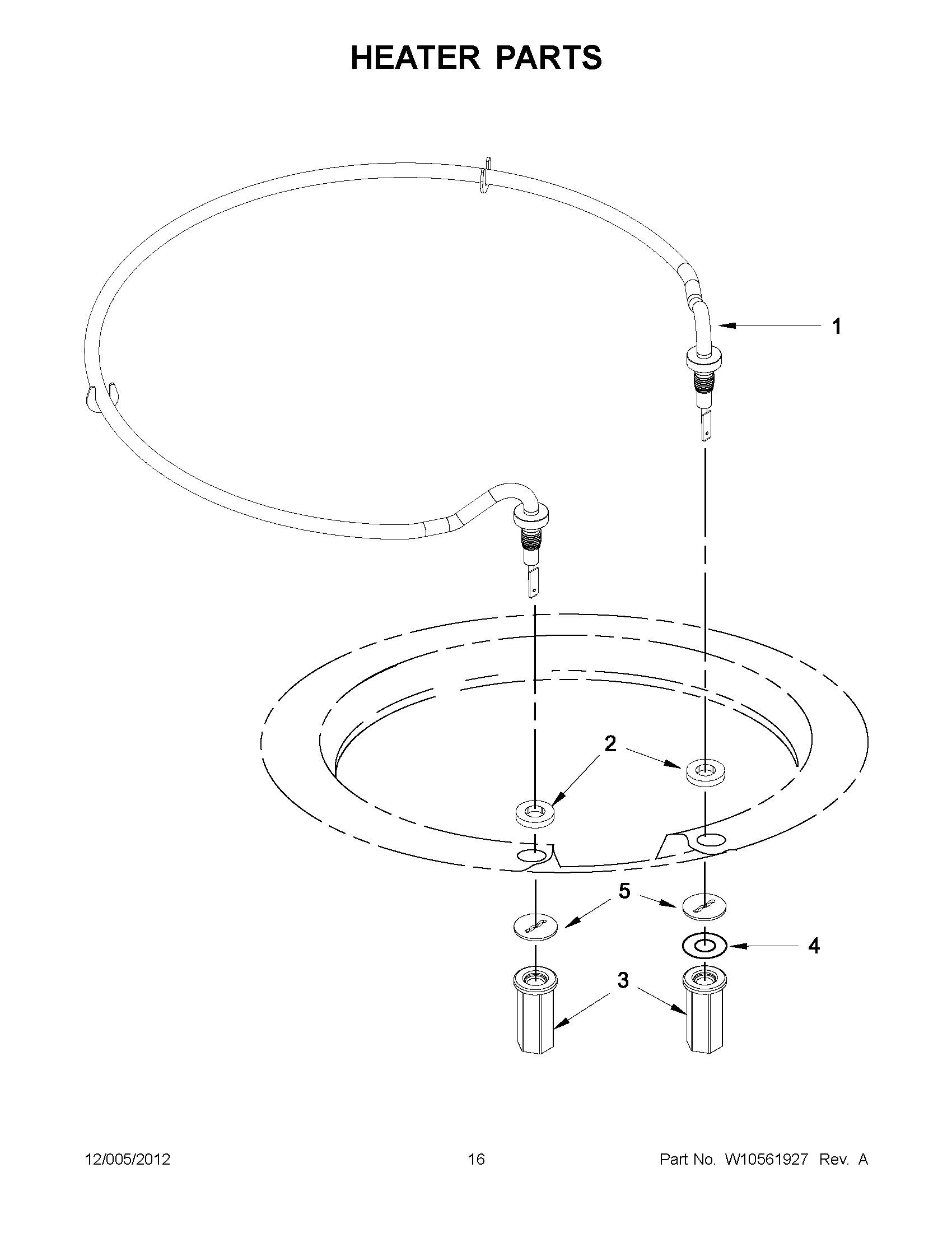

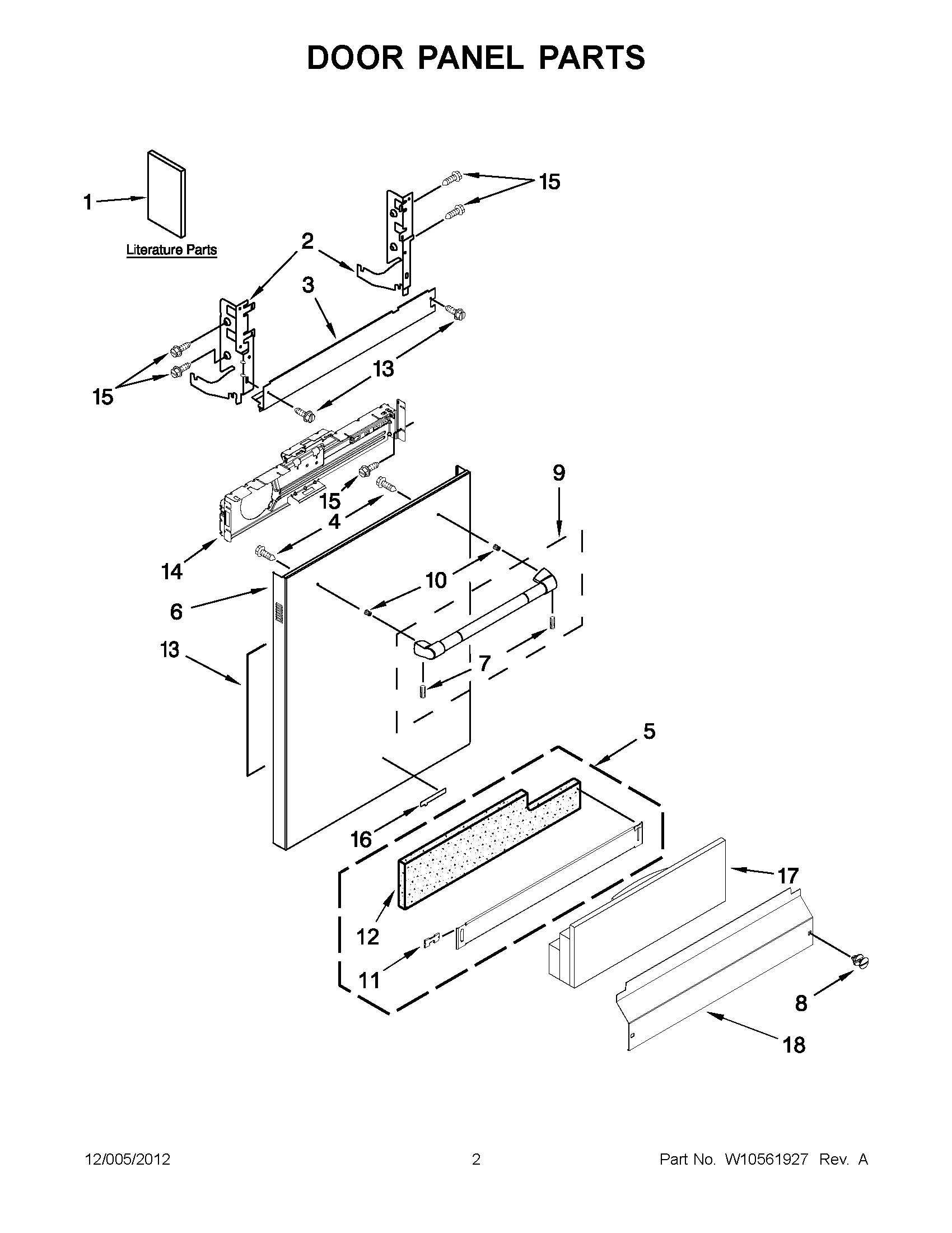

Model Whirlpool JDB8700AWP1 DISHWASHER – Common Parts &amp; Diagrams

1

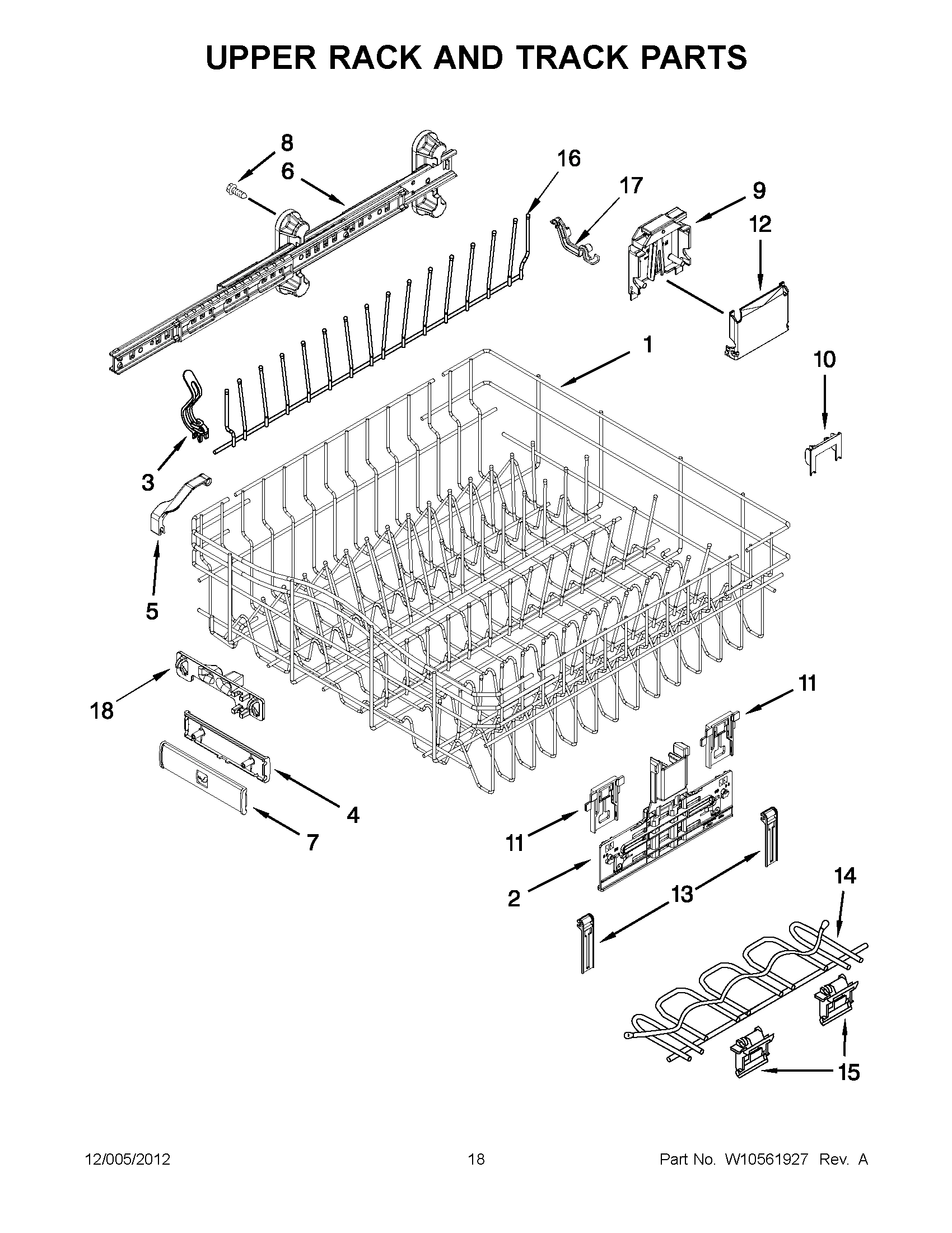

W11661174 Whirlpool Dishwasher Dishrack Backorder WPL W11661174 $136.41

1

WPW10195037 Whirlpool Lever Assembly In Stock WPL WPW10195037 $7.61

1

WPW10195238 Whirlpool Dishwasher Track Assemb Backorder WPL WPW10195238 $96.94

1

WPW10195240 Whirlpool Dishwasher Track Backorder WPL WPW10195240 $96.94

1

WPW10340745 Whirlpool Water Feed Tube In Stock WPL WPW10340745 $67.49

1

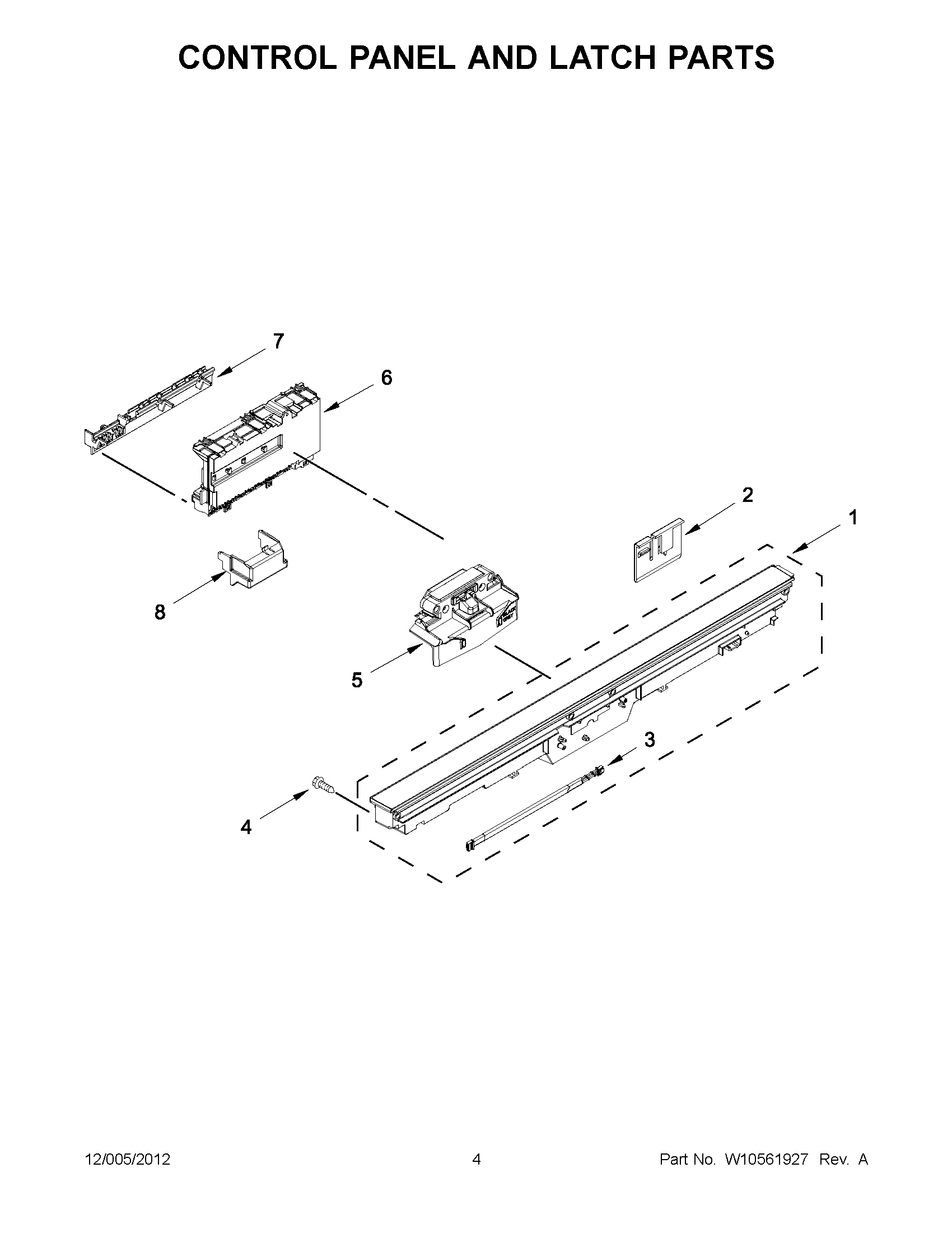

CONSOLE ASSEMBLY (INCLUDES INSERT) (APOLLO GR WPL W10418369 Contact Us For Availability

2

W10195416V Whirlpool Dishwasher Roller Wheel In Stock WPL W10195416V $32.65

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $45.56

2

W11243394 Whirlpool Dishwasher Support Backorder WPL W11243394 $8.56

2

W11256107 Whirlpool Dishwasher Clip Backorder WPL W11256107 $14.02

2

W11631670 Whirlpool Screw In Stock WPL W11631670 $15.02

2

W11806565 Whirlpool Hinge-Door In Stock WPL W11806565 $93.56

2

HINGE-DOOR In Stock WPL W11806608 $93.56

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.49

2

WPW10327455 Whirlpool Dishwasher Spray Arm In Stock WPL WPW10327455 $55.73

3

W10315814 Whirlpool Dishwasher Wire Harness Backorder WPL W10315814 $15.63

3

W10850371 Whirlpool Dishwasher Door Brace In Stock WPL W10850371 $23.08

3

W11177741 Whirlpool Dishwasher Door Gasket In Stock WPL W11177741 $63.83

3

WP8564899 Whirlpool Dishwasher Mount Assembly In Stock WPL WP8564899 $92.88

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $61.61

3

WPW10311153 Whirlpool Dishwasher Basket Ware Backorder WPL WPW10311153 $114.17

3

WPW10467367 Whirlpool Dishwasher Inner Door Backorder WPL WPW10467367 $230.12

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $5.30

3

CLIP, NO FLIP WPL W10238406 Contact Us For Availability

3

COVER, OUTLET WPL W10500282 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $7.30

4

W10826179 Whirlpool Dishwasher Screw In Stock WPL W10826179 $5.30

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $22.96

4

WPW10056351 Whirlpool Dishwasher Tine Row Backorder WPL WPW10056351 $56.14

4

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $4.43

4

WPW10455268 Whirlpool Sump In Stock WPL WPW10455268 $112.70

4

WPW10497235 Whirlpool Dishwasher Lower Door S In Stock WPL WPW10497235 $5.67

4

NUT, SPEED WPL 3400931 Contact Us For Availability

4

HANDLE, DISHRACK (REAR) WPL W10056298 Contact Us For Availability

5

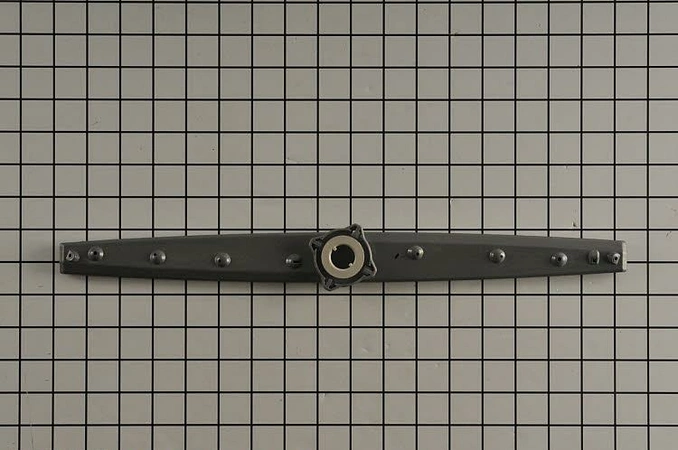

W10453933 Whirlpool Dishwasher Spray Arm Backorder WPL W10453933 $54.25

5

W11032769 Whirlpool Dishwasher Dispenser In Stock WPL W11032769 $111.11

5

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $5.02

5

WPW10213825 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10213825 $4.82

5

WPW10238411 Whirlpool Dishwasher Retainer Backorder WPL WPW10238411 $4.82

5

WPW10267076 Whirlpool Guard Clip Backorder WPL WPW10267076 $19.02

5

WPW10300779 Whirlpool Dishwasher Strike Backorder WPL WPW10300779 $67.42

5

WPW10343251 Whirlpool Dishwasher Shield In Stock WPL WPW10343251 $6.64

5

WPW10418356 Whirlpool Dishwasher Basket Ware Backorder WPL WPW10418356 $76.47

6

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $4.82

6

WPW10195007 Whirlpool Dishwasher Seal Backorder WPL WPW10195007 $112.08

6

WPW10238412 Whirlpool Dishwasher Pivot Backorder WPL WPW10238412 $8.25

6

WPW10409492 Whirlpool Dishwasher Panel Backorder WPL WPW10409492 $229.18

6

WPW10463906 Whirlpool Dishwasher Screen Filte In Stock WPL WPW10463906 $19.65

7

W10276608 Whirlpool Dishwasher Screw Backorder WPL W10276608 $32.54

7

W10587967 Whirlpool Dishwasher Handle Backorder WPL W10587967 $13.52

7

W10861608 Whirlpool Dishwasher Wire Harness Backorder WPL W10861608 $188.62

7

W10864081 Whirlpool Dishwasher Seal In Stock WPL W10864081 $55.58

7

WPW10462395 Whirlpool Dishwasher Brace Backorder WPL WPW10462395 $13.19

7

SPRAYARM, LOWER WPL W10453957 Contact Us For Availability

8

WP302868 Whirlpool Screw In Stock WPL WP302868 $4.26

8

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $5.64

8

WPW10309090 Whirlpool Dishwasher Screw In Stock WPL WPW10309090 $48.02

9

W10445975 Whirlpool Dishwasher Sump Hose with In Stock WPL W10445975 $68.41

9

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $19.77

9

WPW10195039 Whirlpool Dishwasher Float Switch In Stock WPL WPW10195039 $37.23

9

WPW10409518 Whirlpool Dishwasher Handle Backorder WPL WPW10409518 $205.46

9

WPW10462232 Whirlpool Dishwasher Dispenser Mo In Stock WPL WPW10462232 $21.99

9

WPW10588164 Whirlpool Dishwasher Left Hand Ho In Stock WPL WPW10588164 $12.31

9

WPW10588165 Whirlpool Adjuster Housing In Stock WPL WPW10588165 $37.27

W10195837 Whirlpool Dishwasher Barrier Backorder WPL W10195837 $18.39

W10873429 Whirlpool Housing In Stock WPL W10873429 $16.84

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $12.77

CLIP LOCK WPL W10418320 Contact Us For Availability

11

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $6.65

11

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $11.93

11

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $28.14

WP3400074 Whirlpool Dishwasher Screw Backorder WPL WP3400074 $5.02

WPW10195028 Whirlpool Dishwasher Vent Backorder WPL WPW10195028 $51.70

WPW10195038 Whirlpool Dishwasher Nut In Stock WPL WPW10195038 $5.30

WPW10250162 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10250162 $5.30

WPW10348407 Whirlpool Dishwasher Screw Backorder WPL WPW10348407 $4.82

W11126003 Whirlpool Dishwasher Insulation Pad Backorder WPL W11126003 $42.19

WPW10195036 Whirlpool Dishwasher Float In Stock WPL WPW10195036 $51.10

WPW10195839 Whirlpool Dishwasher Rack Adjuste In Stock WPL WPW10195839 $27.34

WPW10372113 Whirlpool Dishwasher Sump Tab Backorder WPL WPW10372113 $18.45

WPW10469574 Whirlpool Dishwasher Vent In Stock WPL WPW10469574 $65.80

W11116870 Whirlpool Dishwasher Control Bracke Backorder WPL W11116870 $56.83

WPW10195032 Whirlpool Dishwasher Deflector Backorder WPL WPW10195032 $53.81

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $32.61

WPW10348411 Whirlpool Roller Wheel Screw In Stock WPL WPW10348411 $7.02

WPW10531320 Whirlpool Drain Pump In Stock WPL WPW10531320 $56.27

CUPSHELF WPL W10208697 Contact Us For Availability

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $17.55

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $5.02

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $9.80

MOUNT, CUPSHELF WPL W10238407 Contact Us For Availability

16

W10194862 Whirlpool Dishwasher Tine Row Backorder WPL W10194862 $57.34

16

W11636815 Whirlpool Nameplate Backorder WPL W11636815 $29.54

16

WPW10476221 Whirlpool Dishwasher Diffuser Backorder WPL WPW10476221 $16.55

17

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $4.82

17

CLIP, PIVOT WPL W10238404 Contact Us For Availability

18

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $4.82

18

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $23.99

18

POSITIONER, DUAL WPL W10238405 Contact Us For Availability

19

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $4.82

20

COVR-BOX Backorder WPL W11779375 $19.13

22

W10292870 Whirlpool Dishwasher Housing Backorder WPL W10292870 $15.58

24

W10877094 Whirlpool Shield In Stock WPL W10877094 $97.99

25

W10300703 Whirlpool Dishwasher Bracket Stat Backorder WPL W10300703 $12.93

26

W10195630 Whirlpool Dishwasher Spacer Backorder WPL W10195630 $10.90

26

W10195631 Whirlpool Dishwasher Tank Spacer Backorder WPL W10195631 $10.82

30

STRAIN RELIEF WPL W10337661 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $52.65

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $22.74

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $21.36

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $23.09

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $29.39

8212489 Whirlpool Dishwasher Panel Backorder WPL 8212489 $181.39

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $22.53

W10195736A Whirlpool Dishwasher Handle Backorder WPL W10195736A $42.90

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $25.99

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $35.67

WPL W10195738A WPL W10195738A Contact Us For Availability

ACCESSORIES, ARCHITECT II HANDLES (BLACK) WPL W10195735A Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL WPL 8171659 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (BLACK) WPL 8171657 Contact Us For Availability
