Model Huebsch HTEBXASP133DW01 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 4)

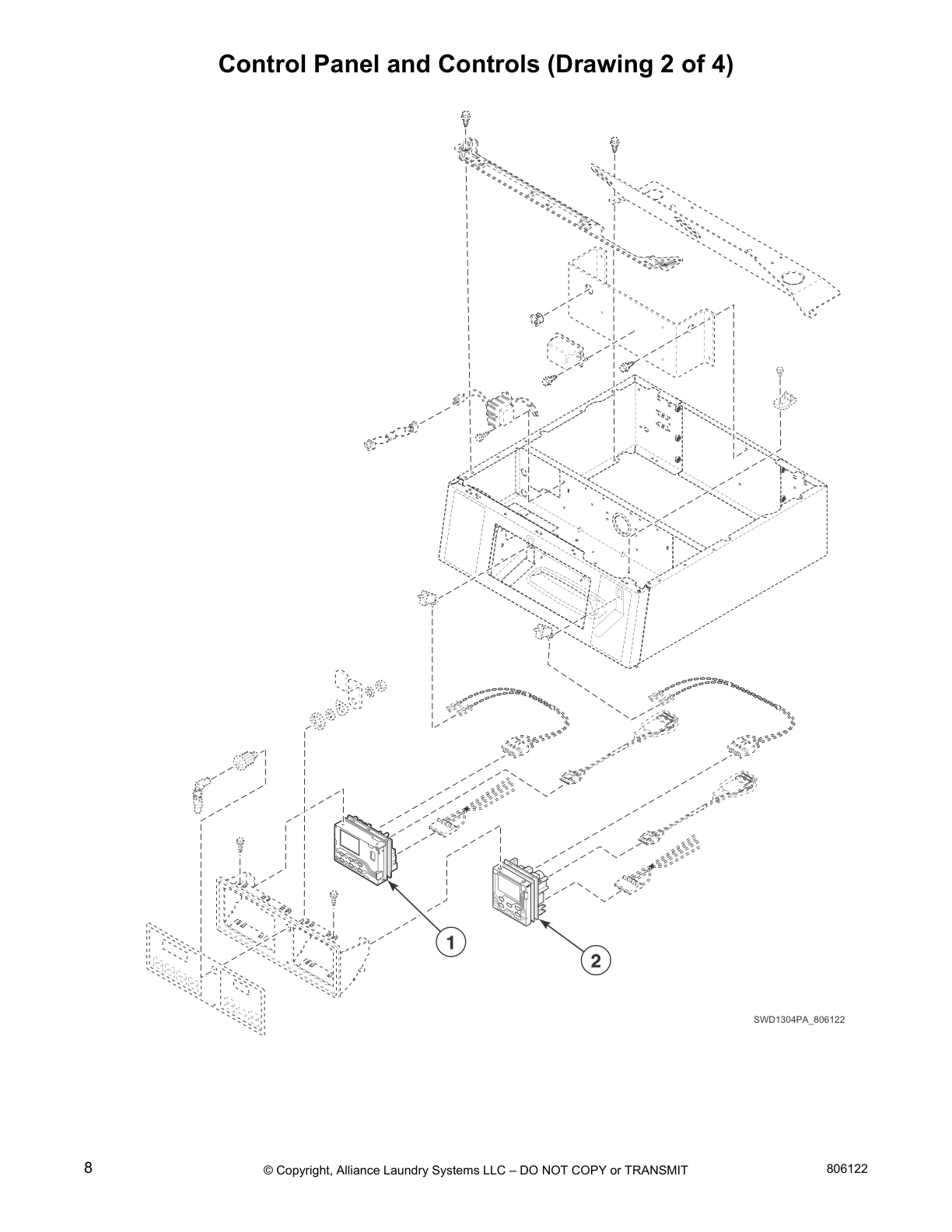

Control Panel and Controls (Drawing 2 of 4)

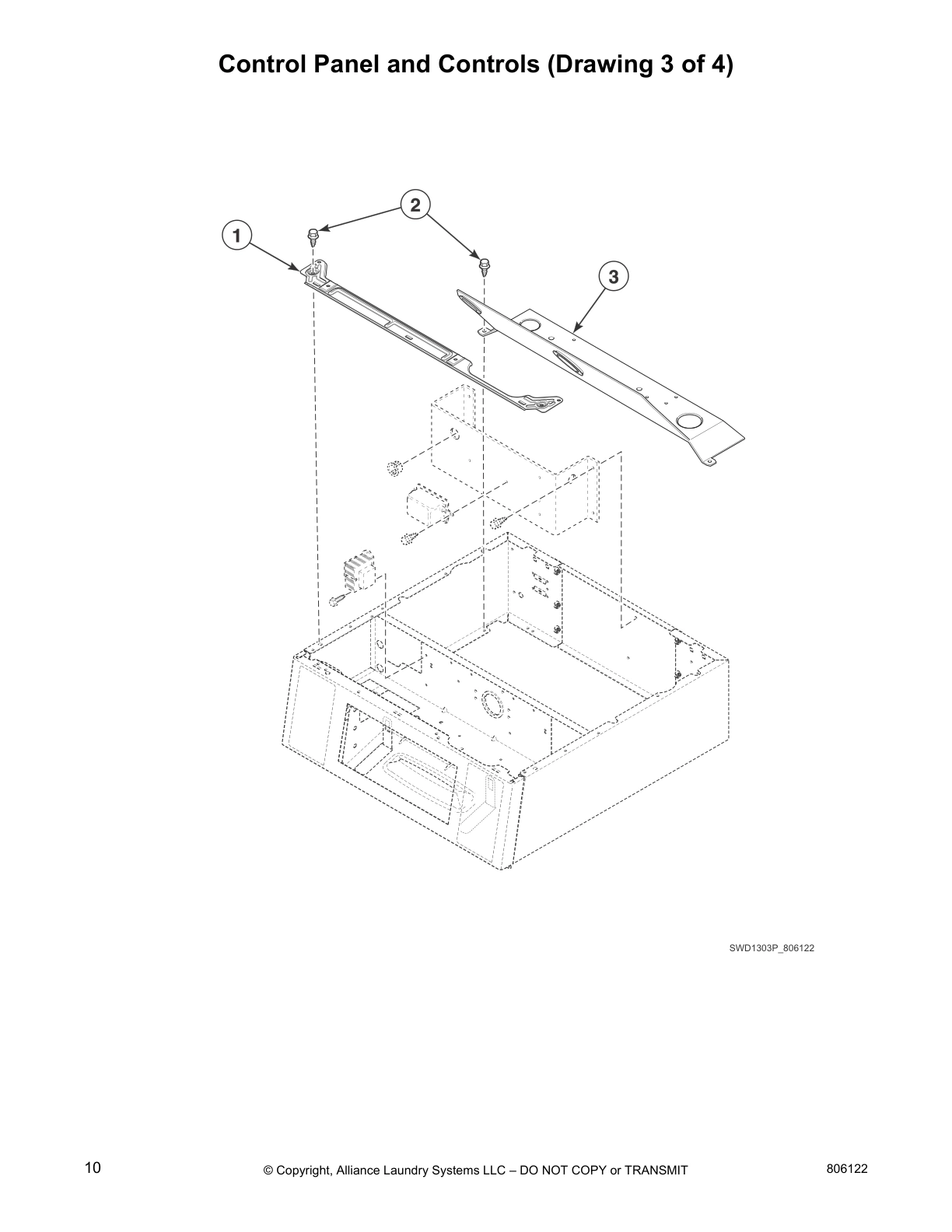

Control Panel and Controls (Drawing 3 of 4)

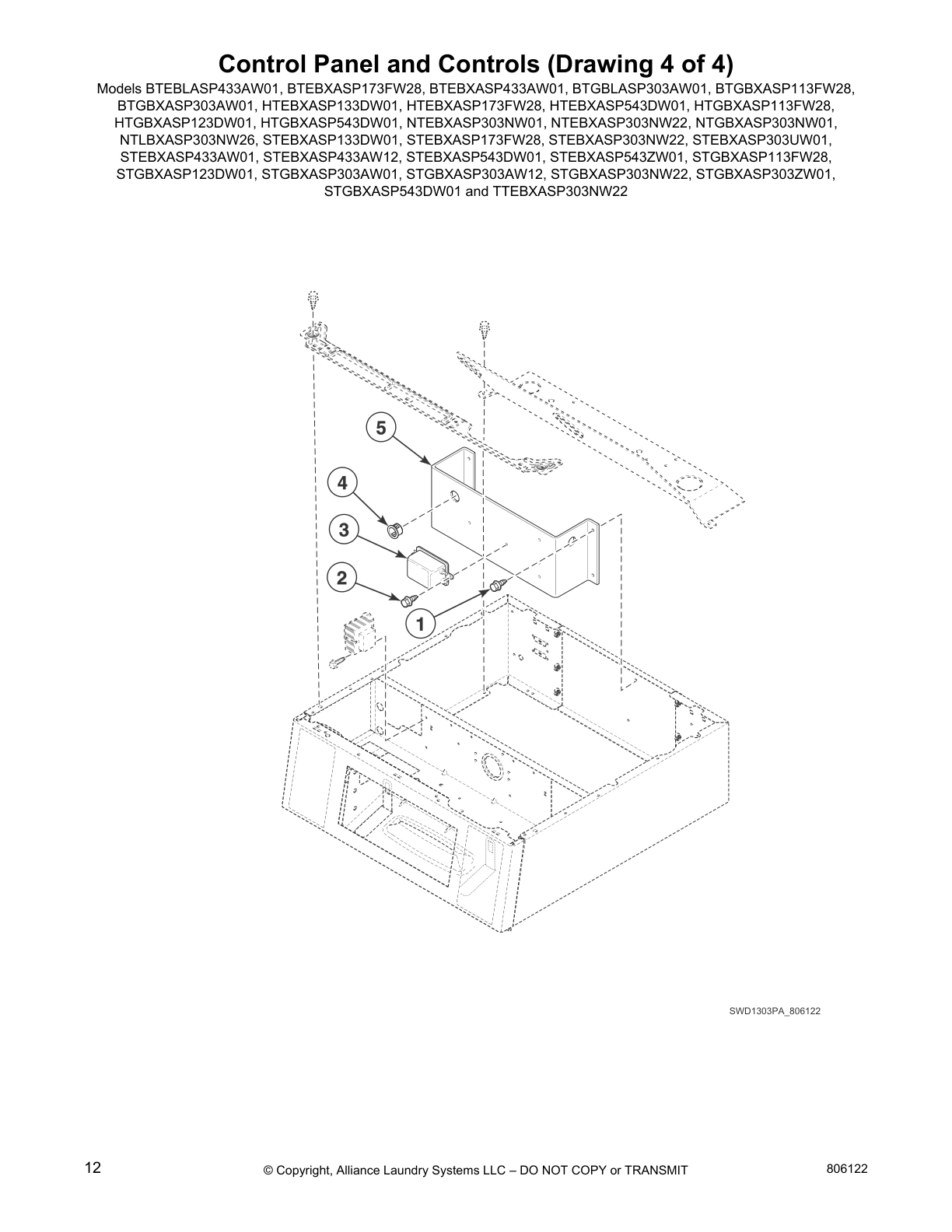

Control Panel and Controls (Drawing 4 of 4)

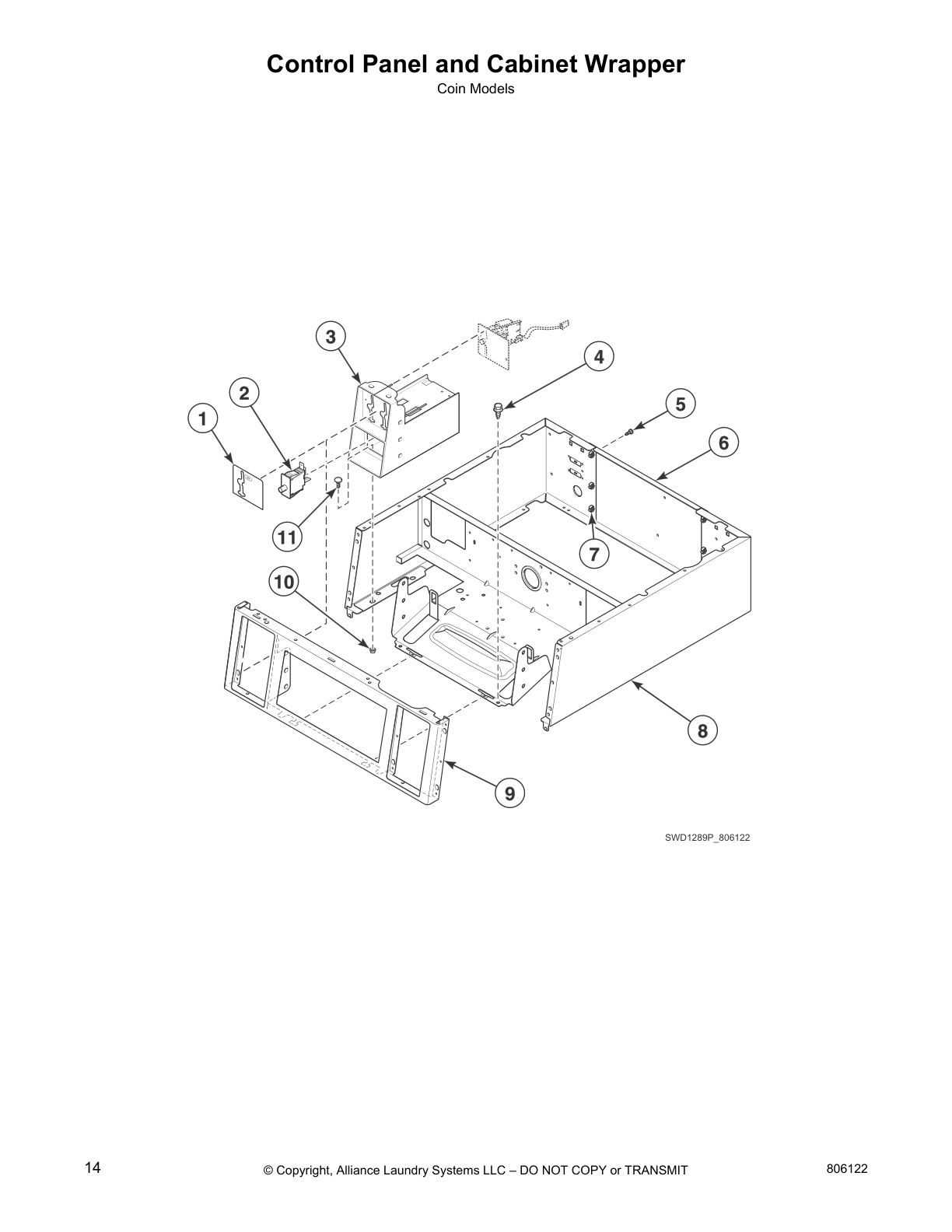

Control Panel and Cabinet Wrapper
Non-Electronic Coin Drop

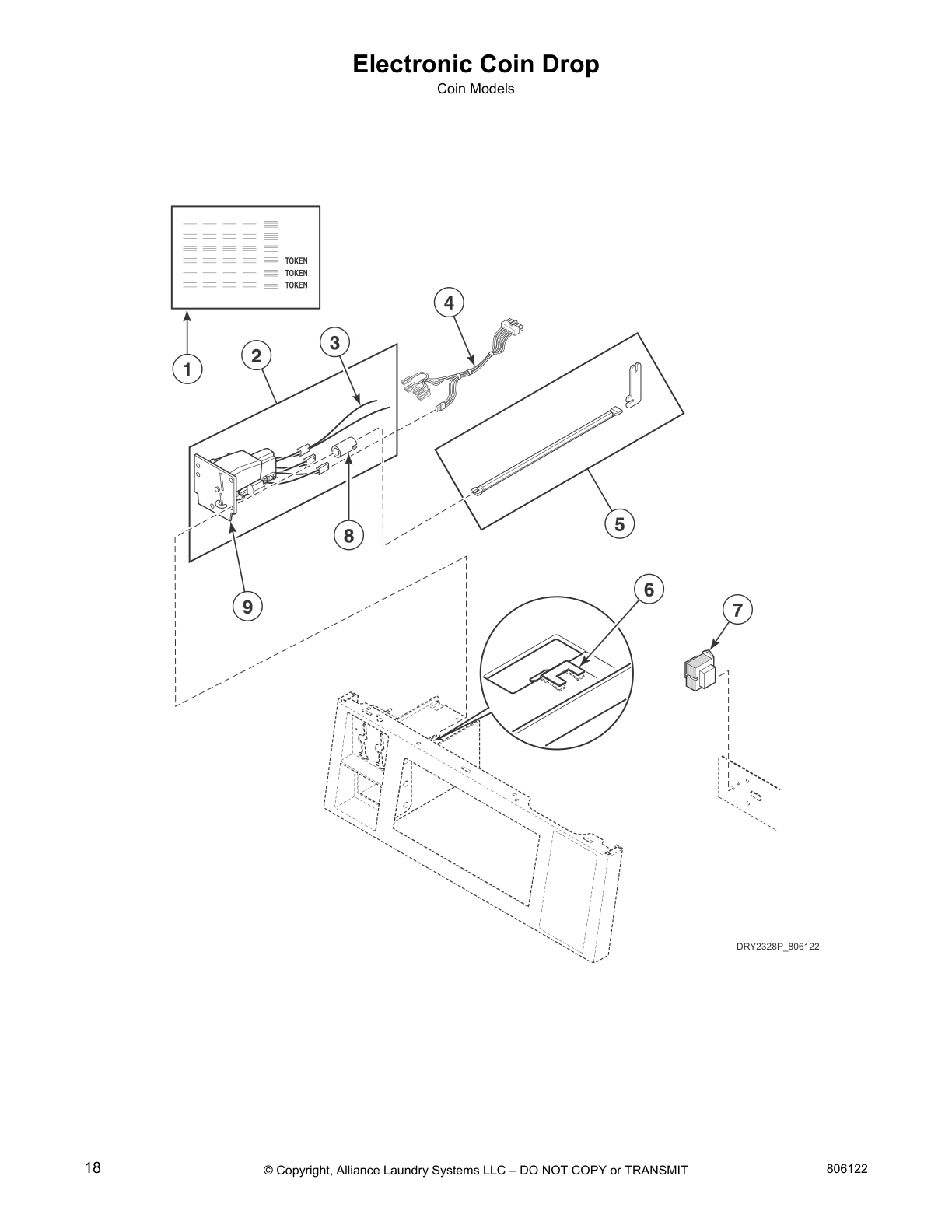

Electronic Coin Drop

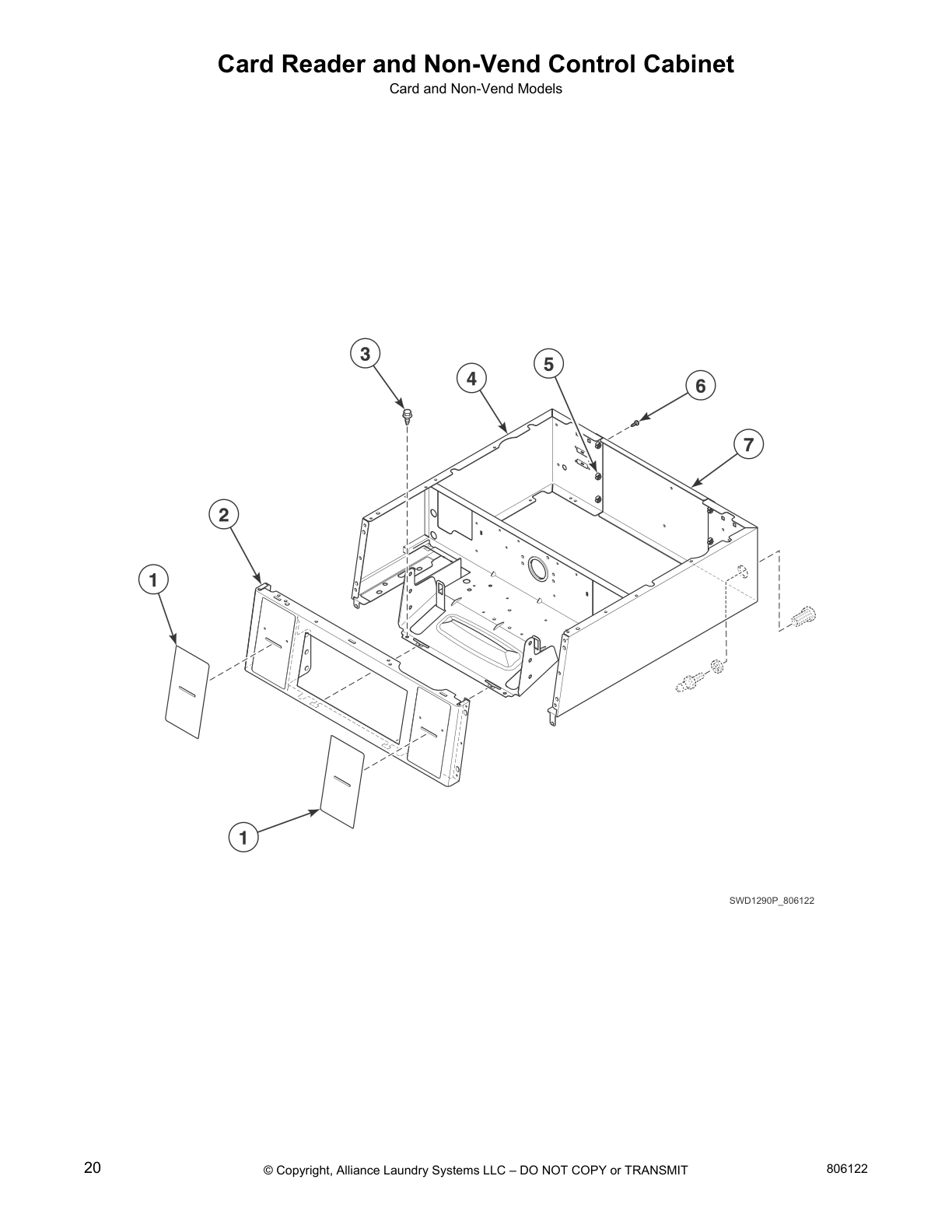

Card Reader and Non-Vend Control Cabinet

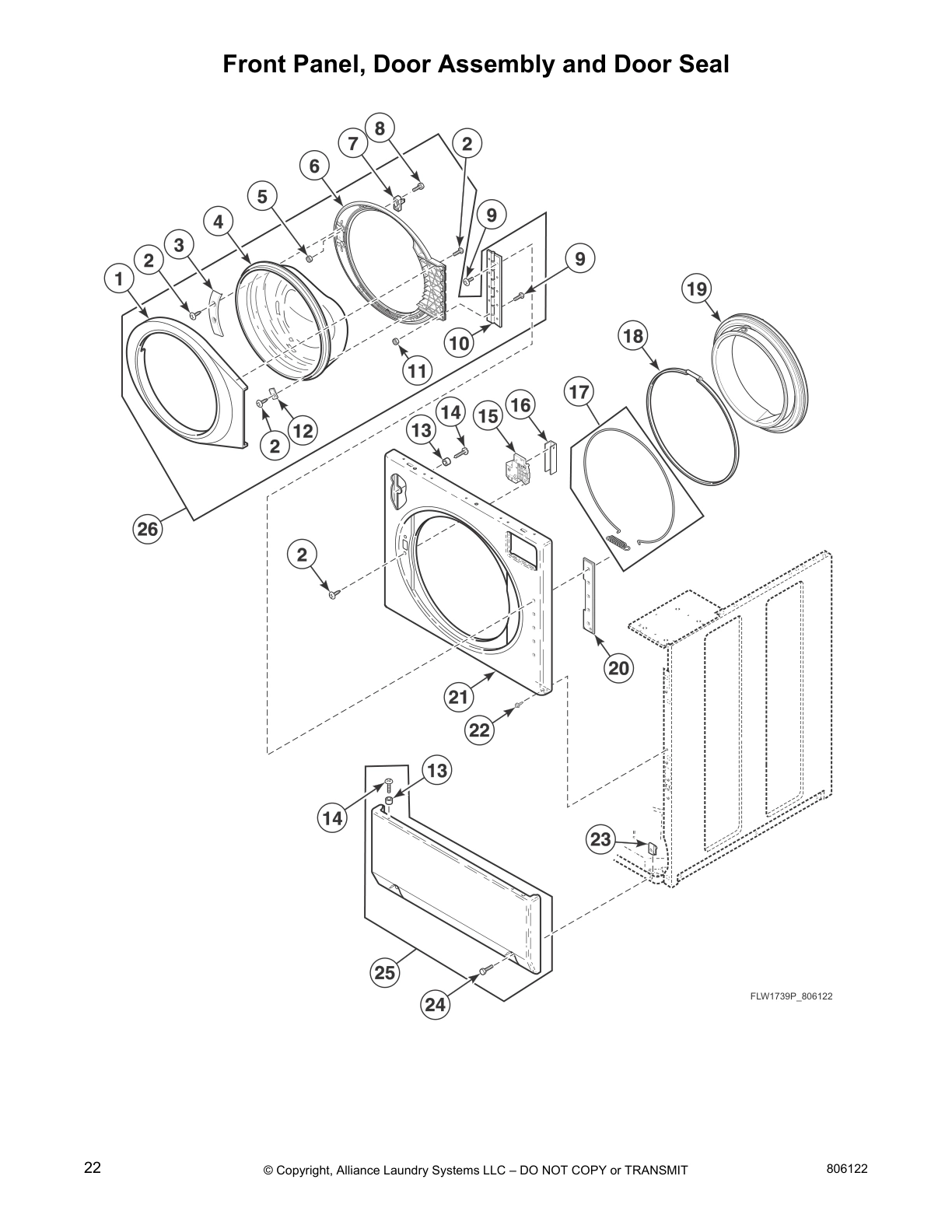

Front Panel, Door Assembly and Door Seal
Dispenser Assembly

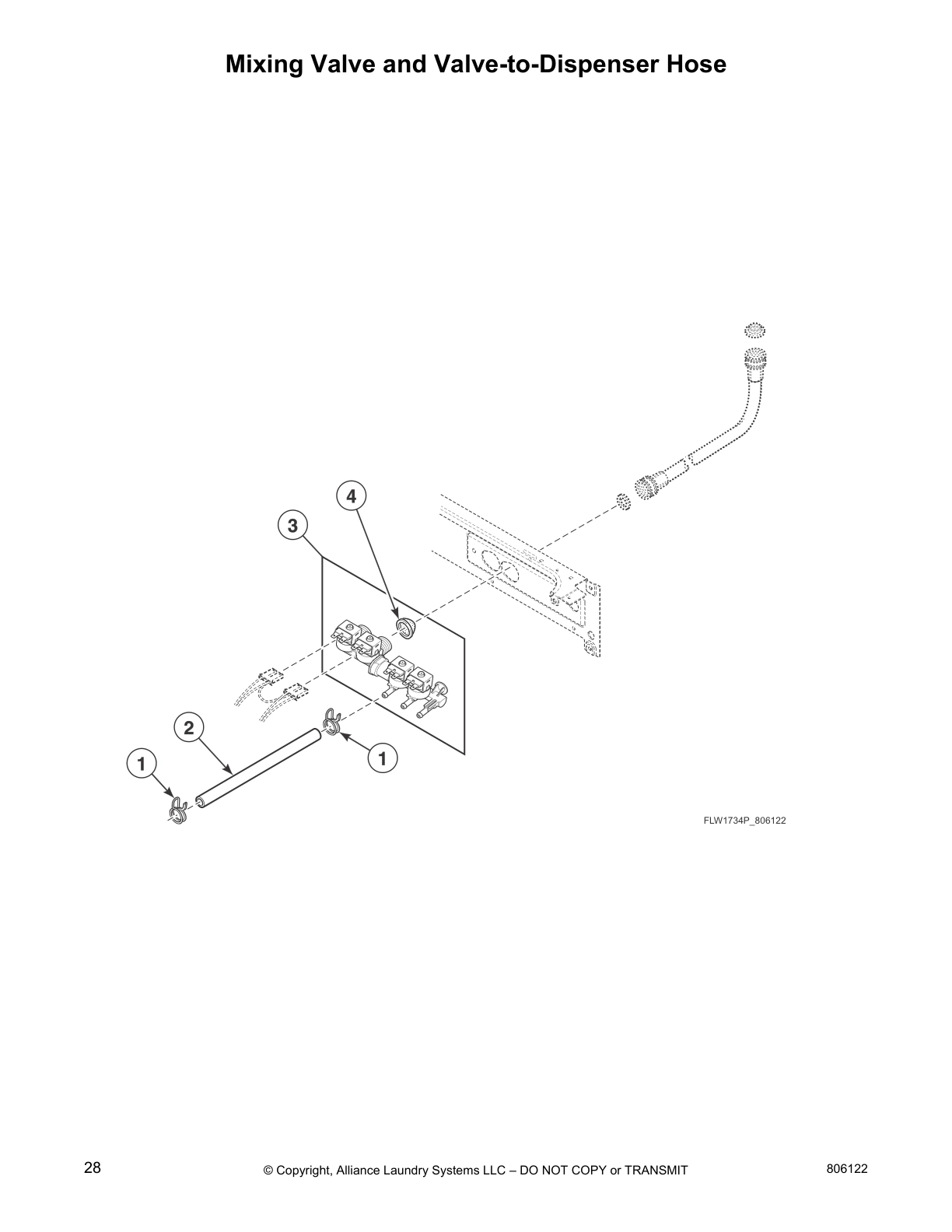

Mixing Valve and Valve-to-Dispenser Hose
Fill Hose

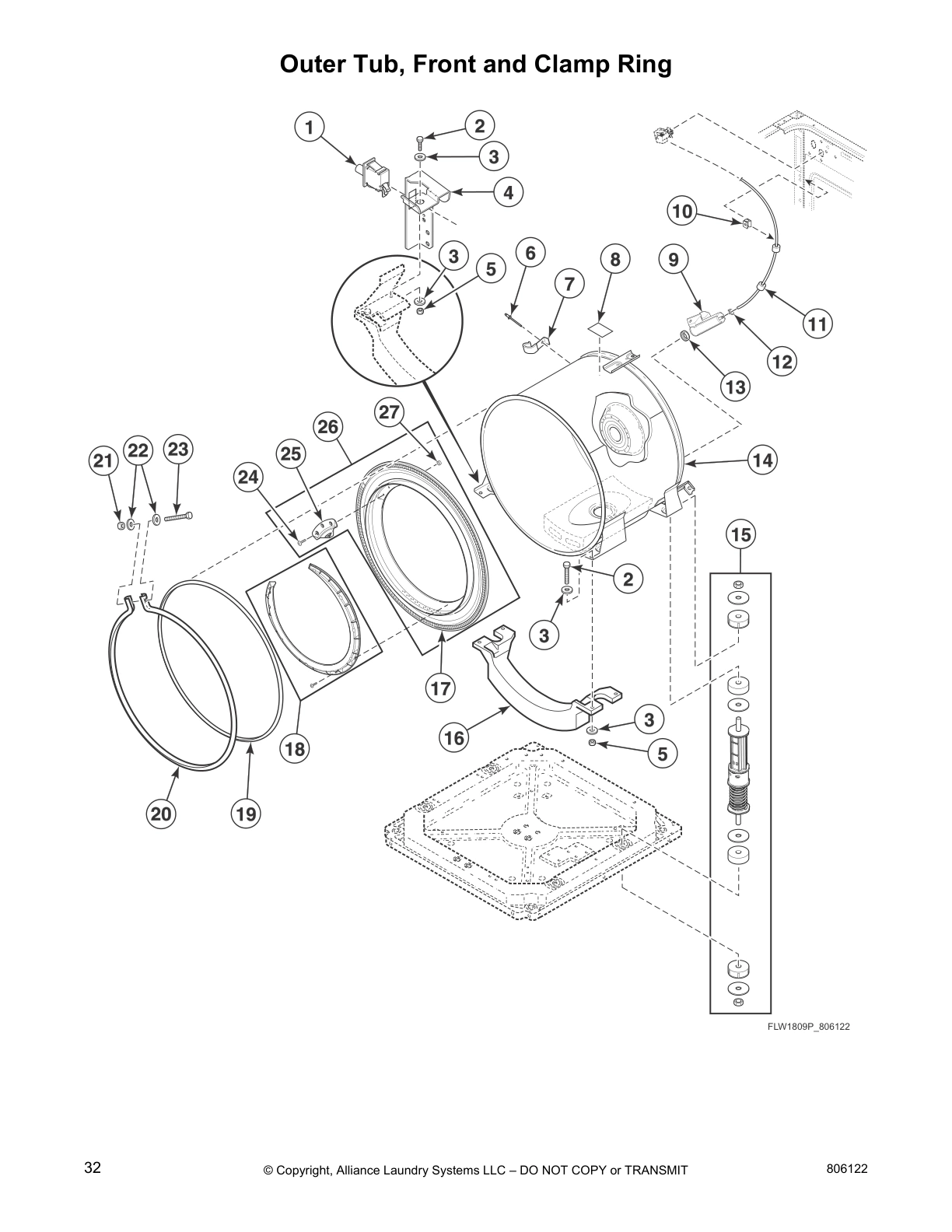

Outer Tub, Front and Clamp Ring

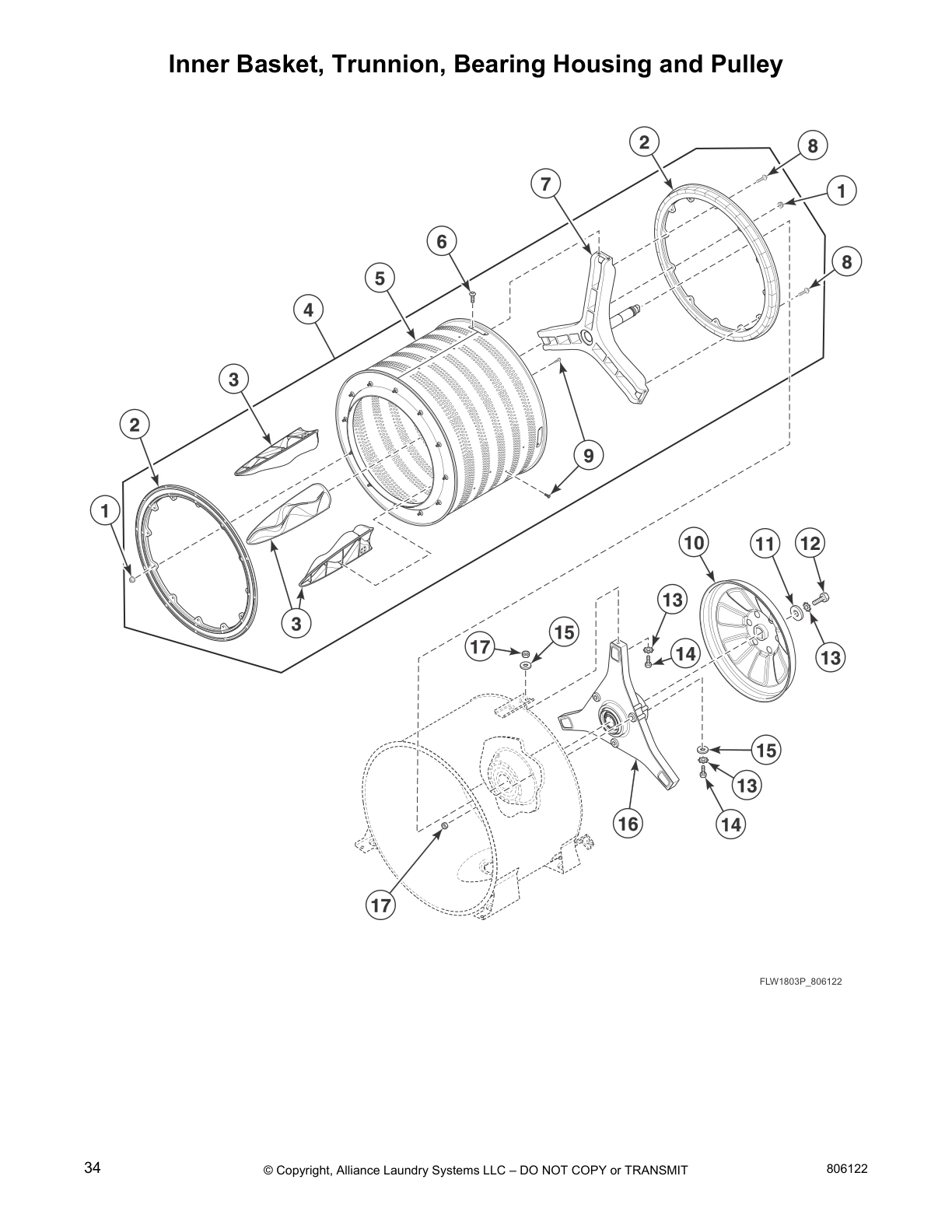

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

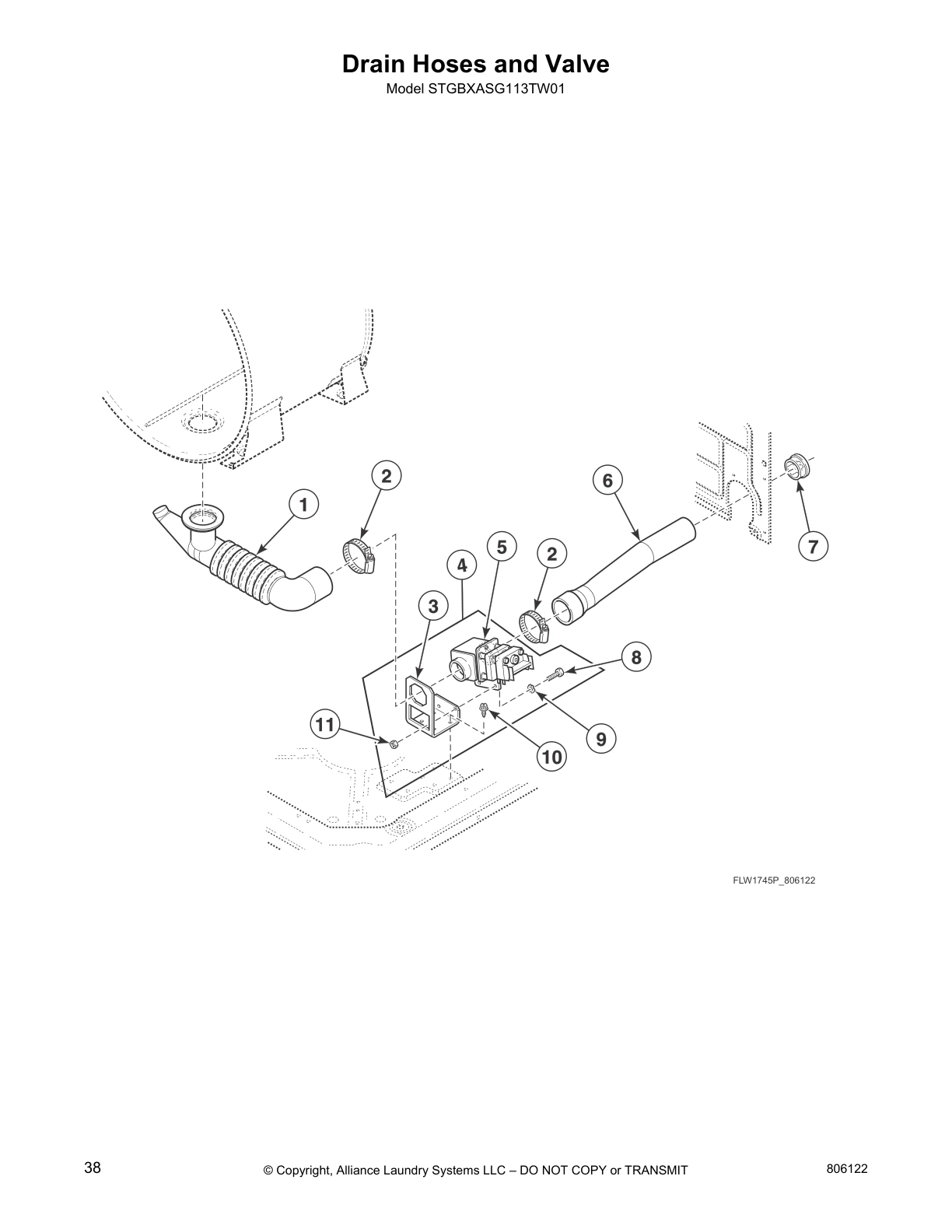

Drain Hoses and Valve

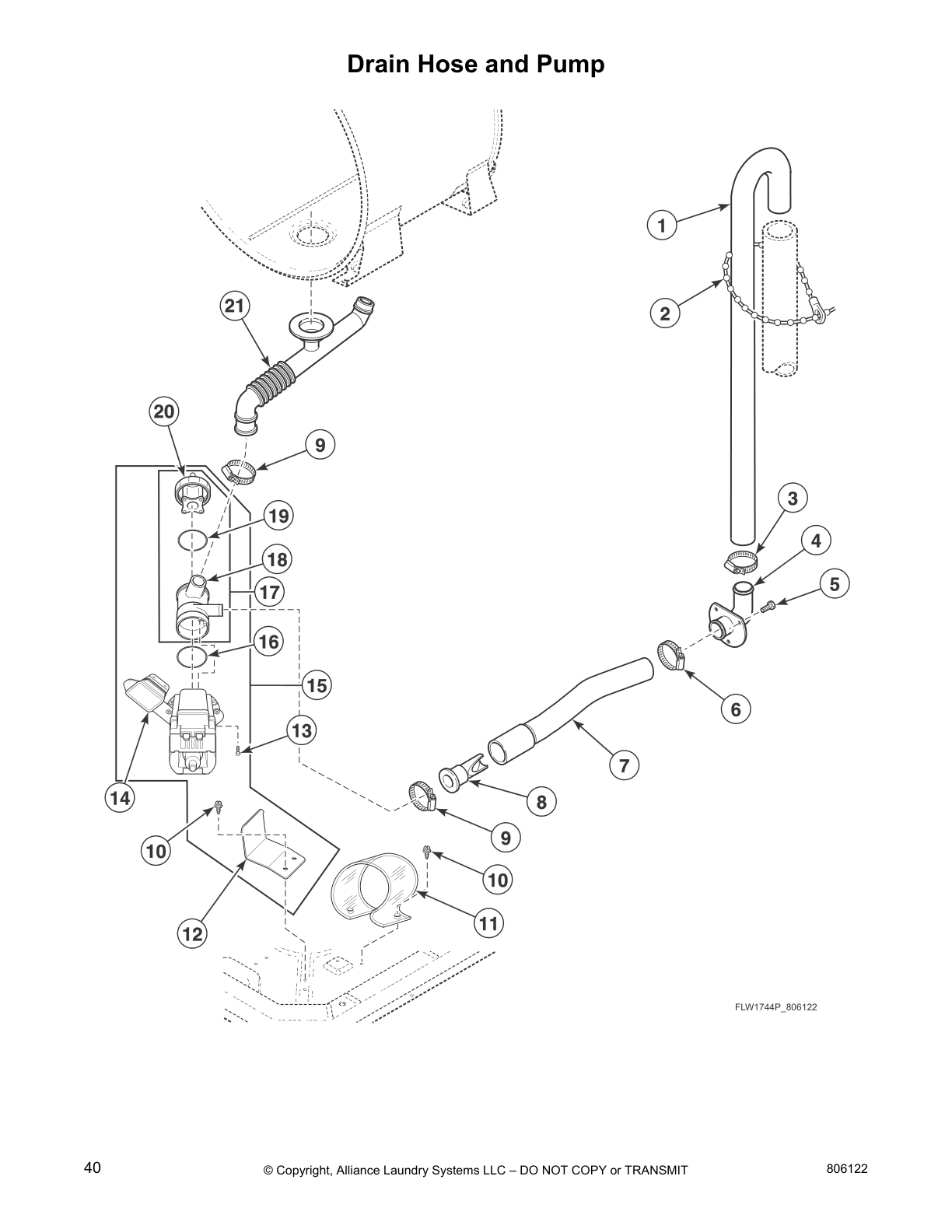

Drain Hose and Pump
Base, Side Panels and Rear Panel

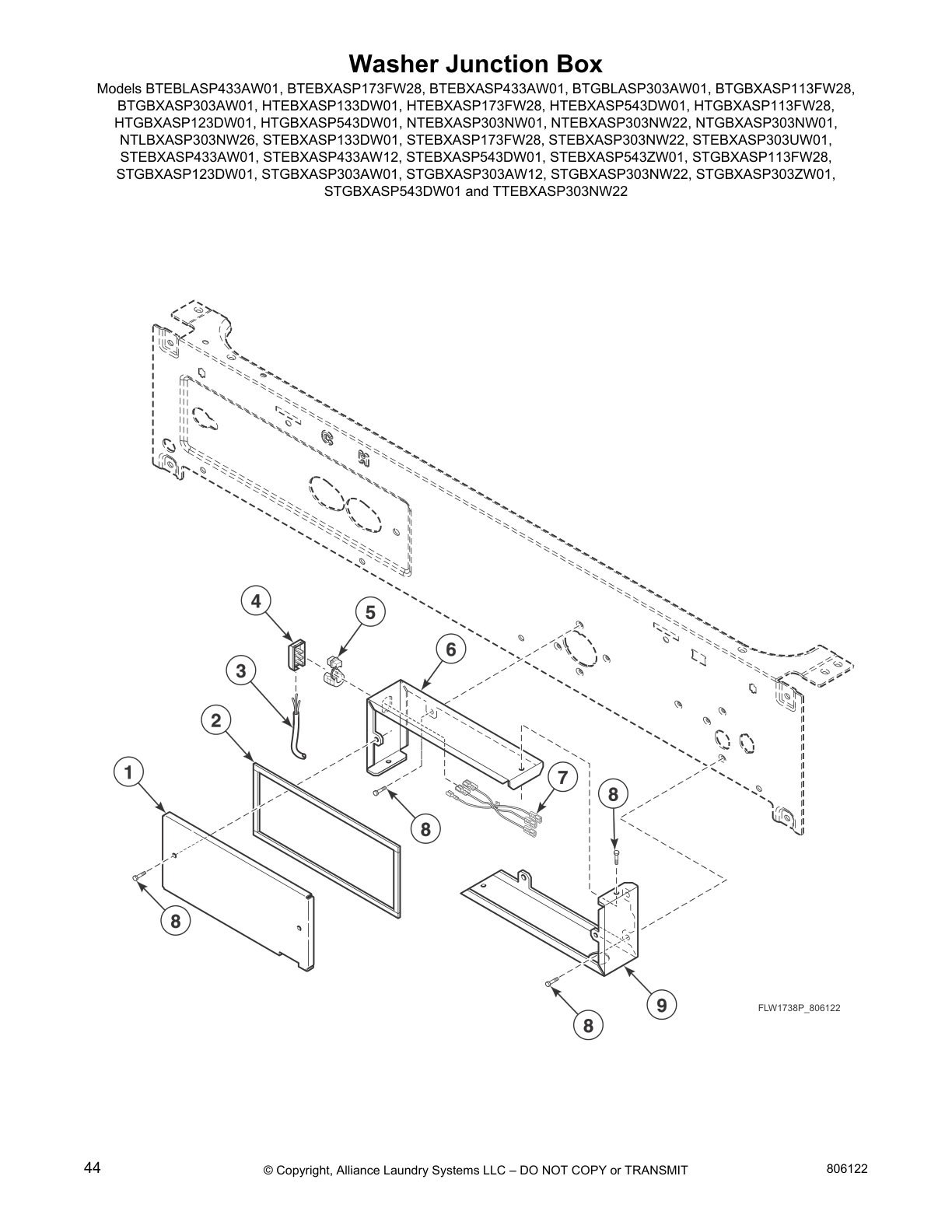

Washer Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips

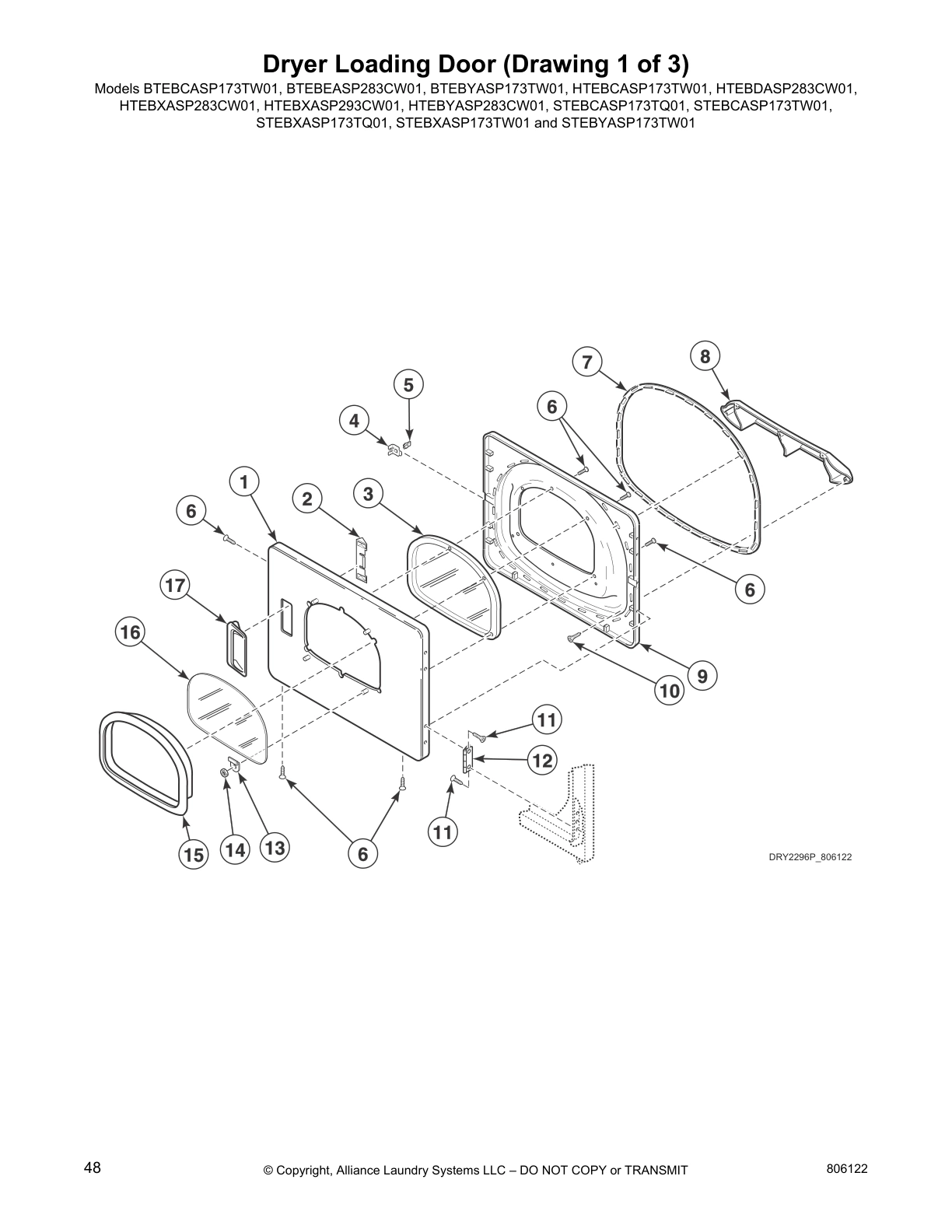

Dryer Loading Door (Drawing 1 of 3)

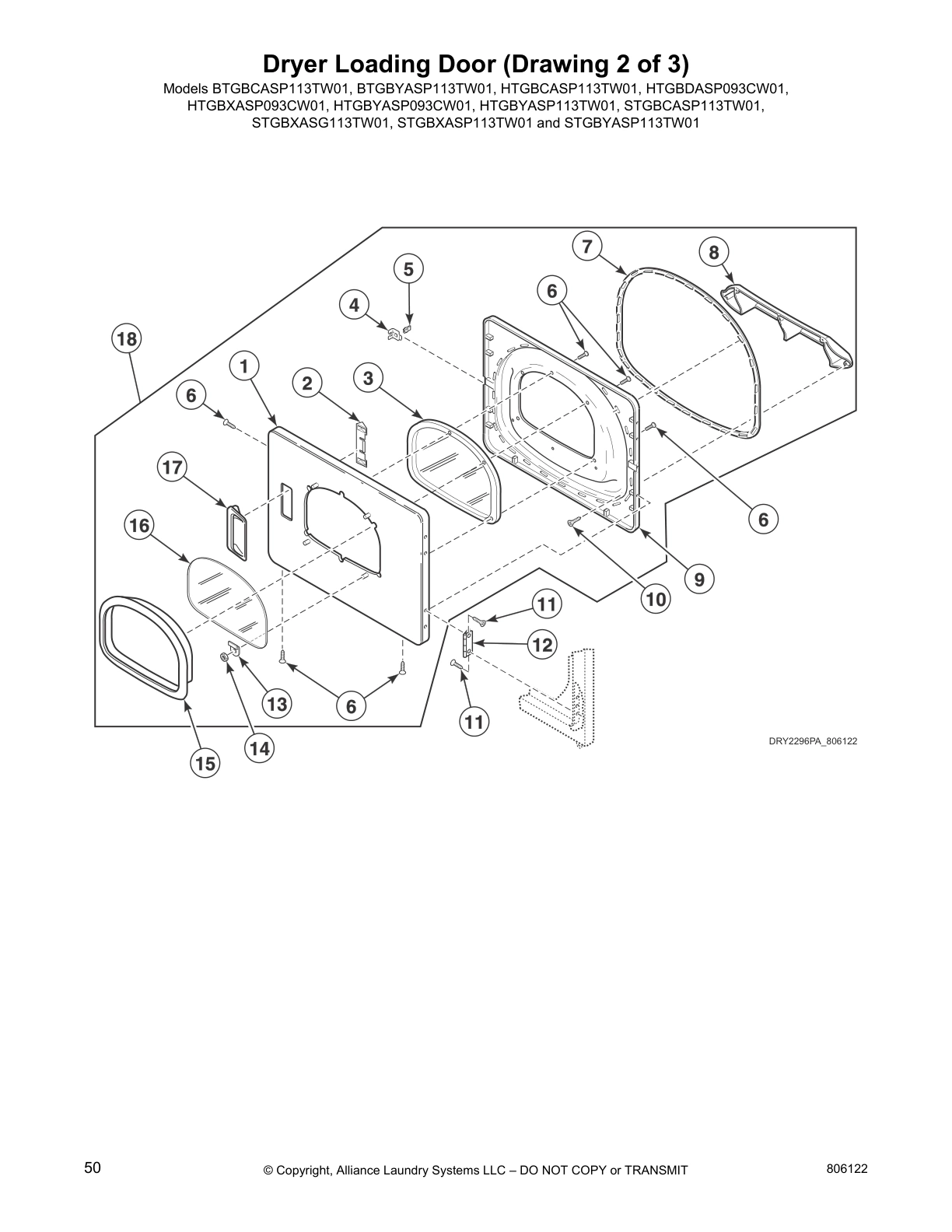

Dryer Loading Door (Drawing 2 of 3)

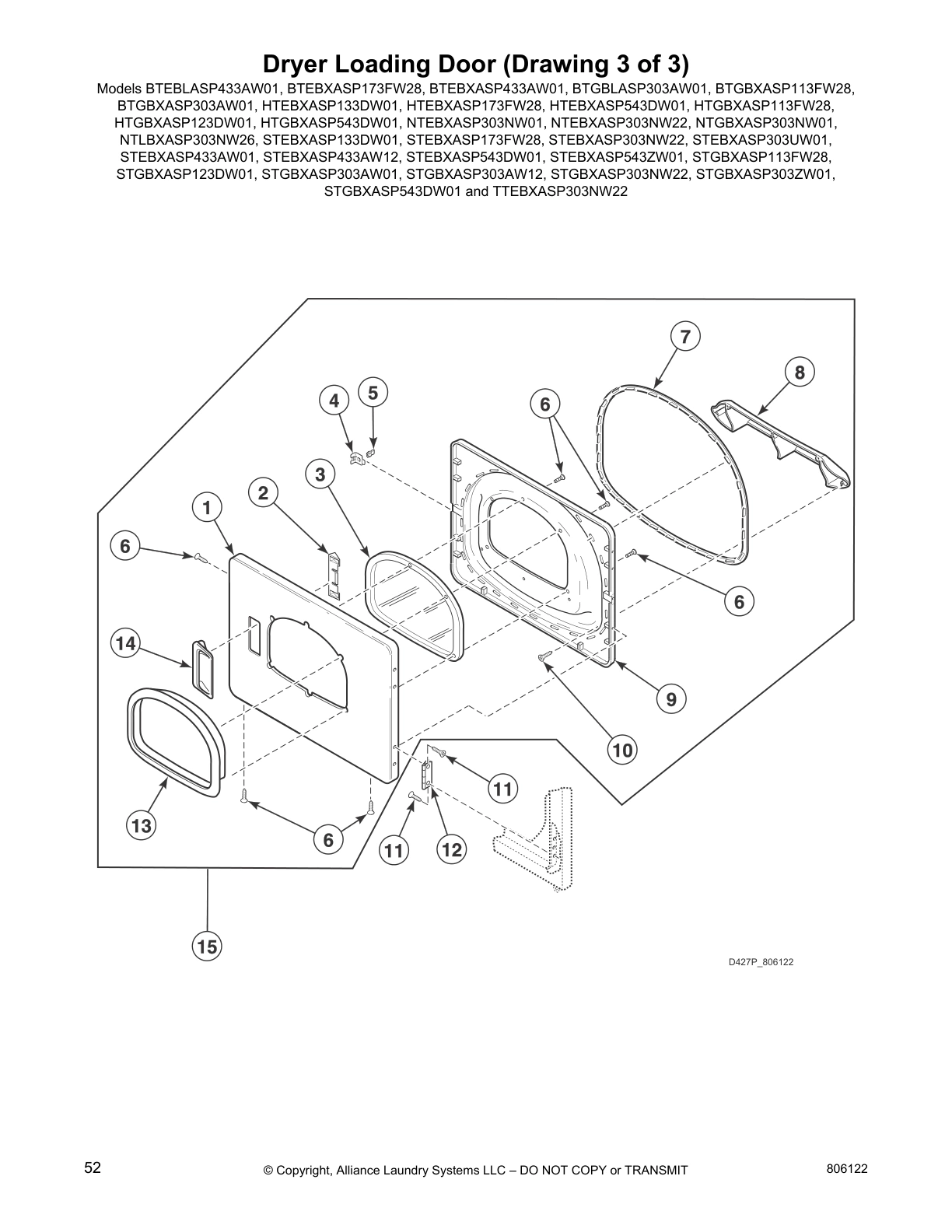

Dryer Loading Door (Drawing 3 of 3)

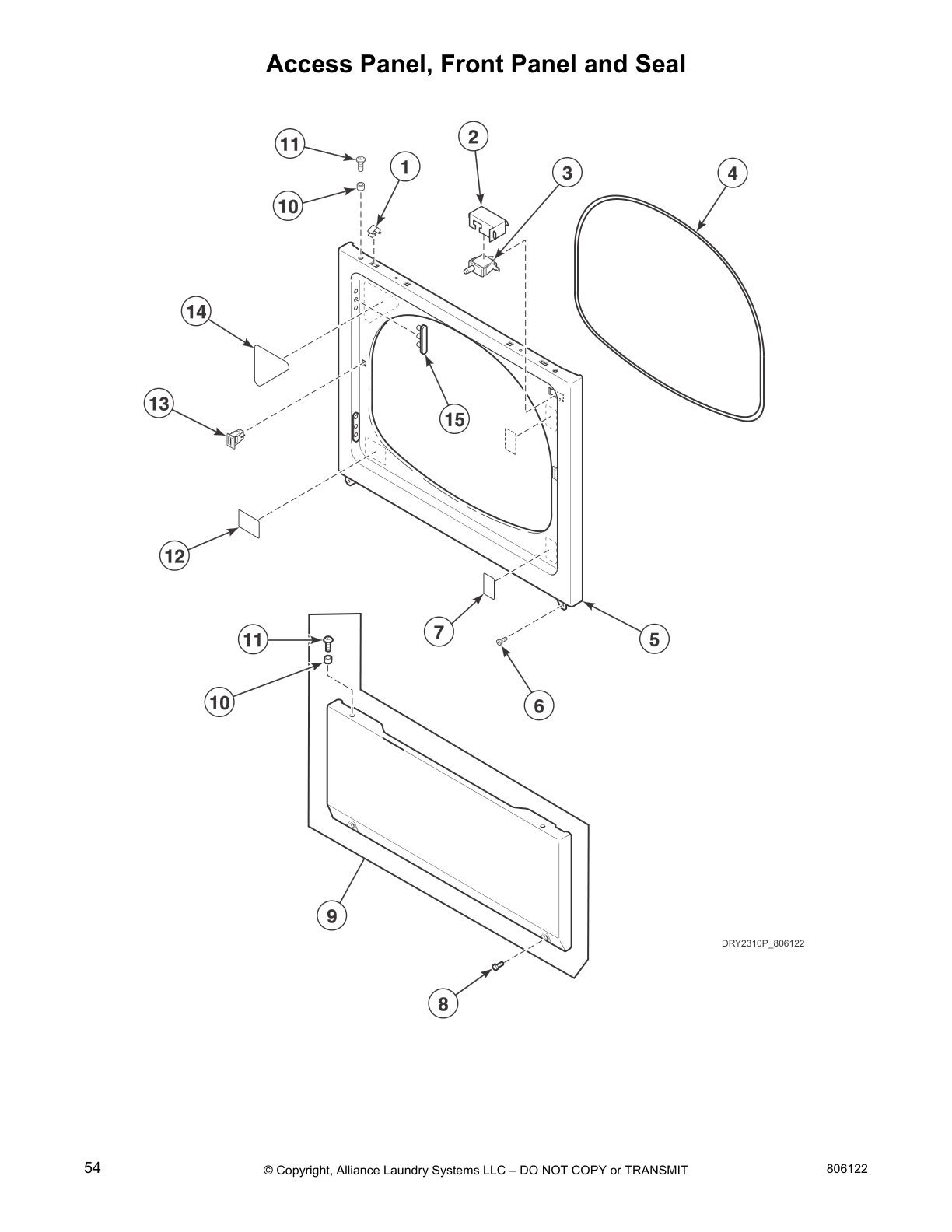

Access Panel, Front Panel and Seal

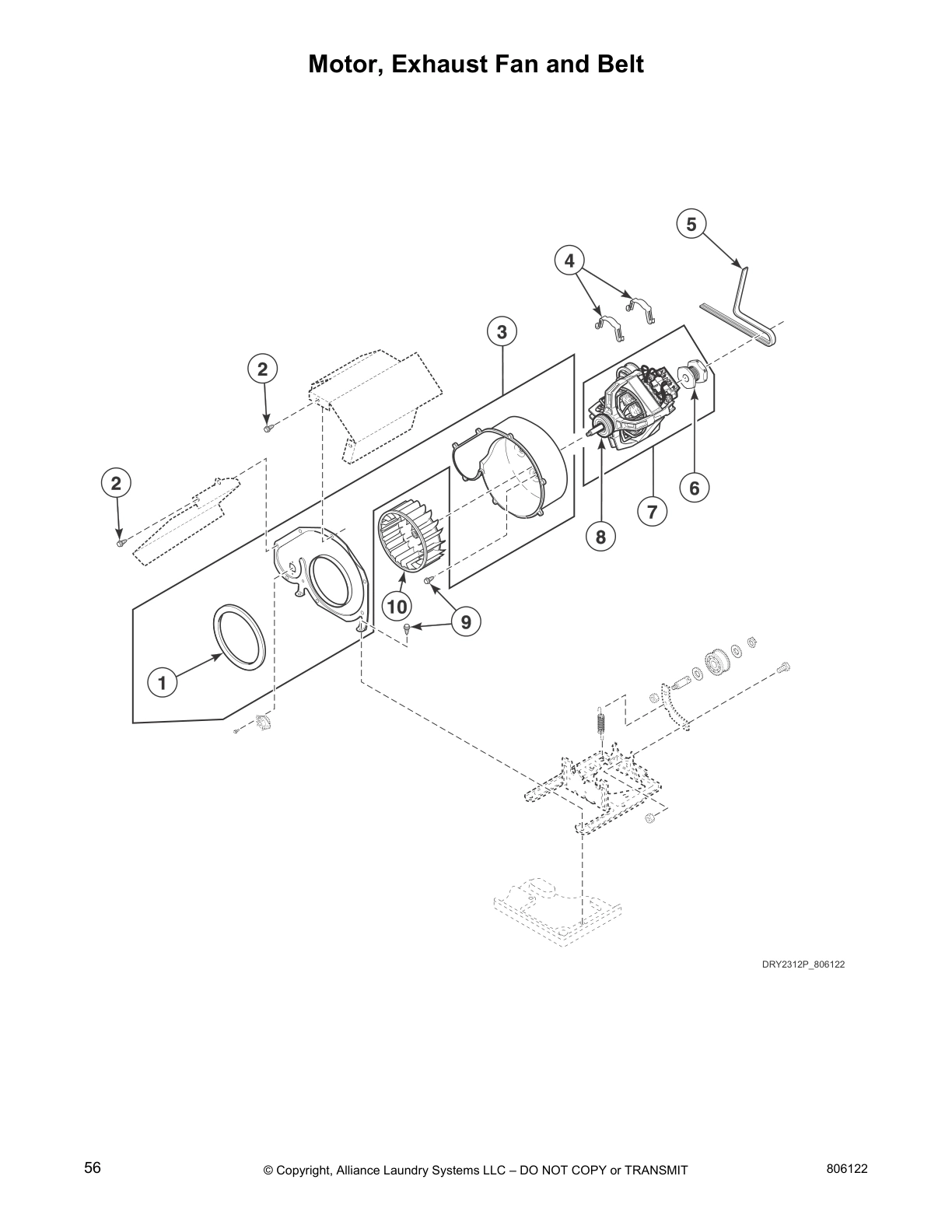

Motor, Exhaust Fan and Belt

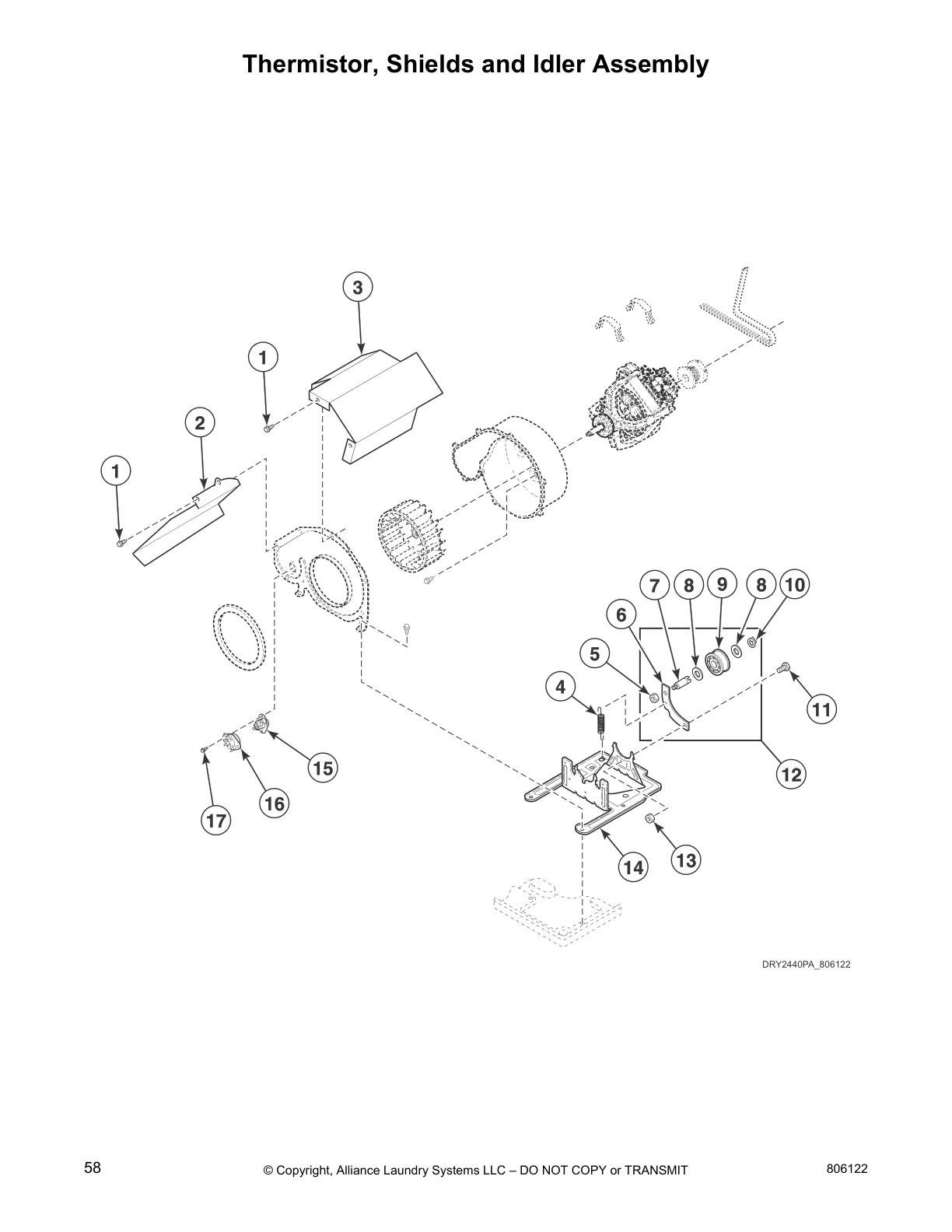

Thermistor, Shields and Idler Assembly

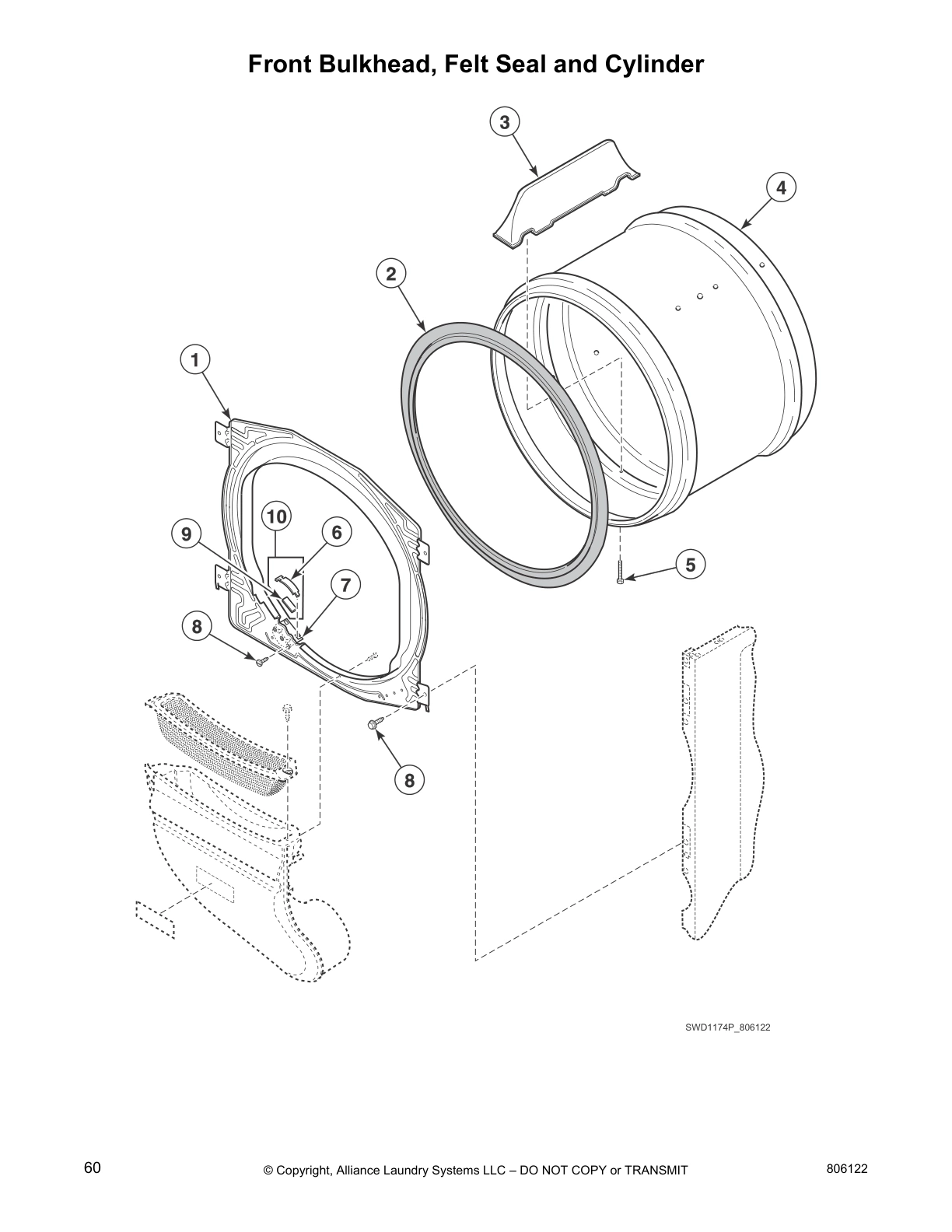

Front Bulkhead, Felt Seal and Cylinder

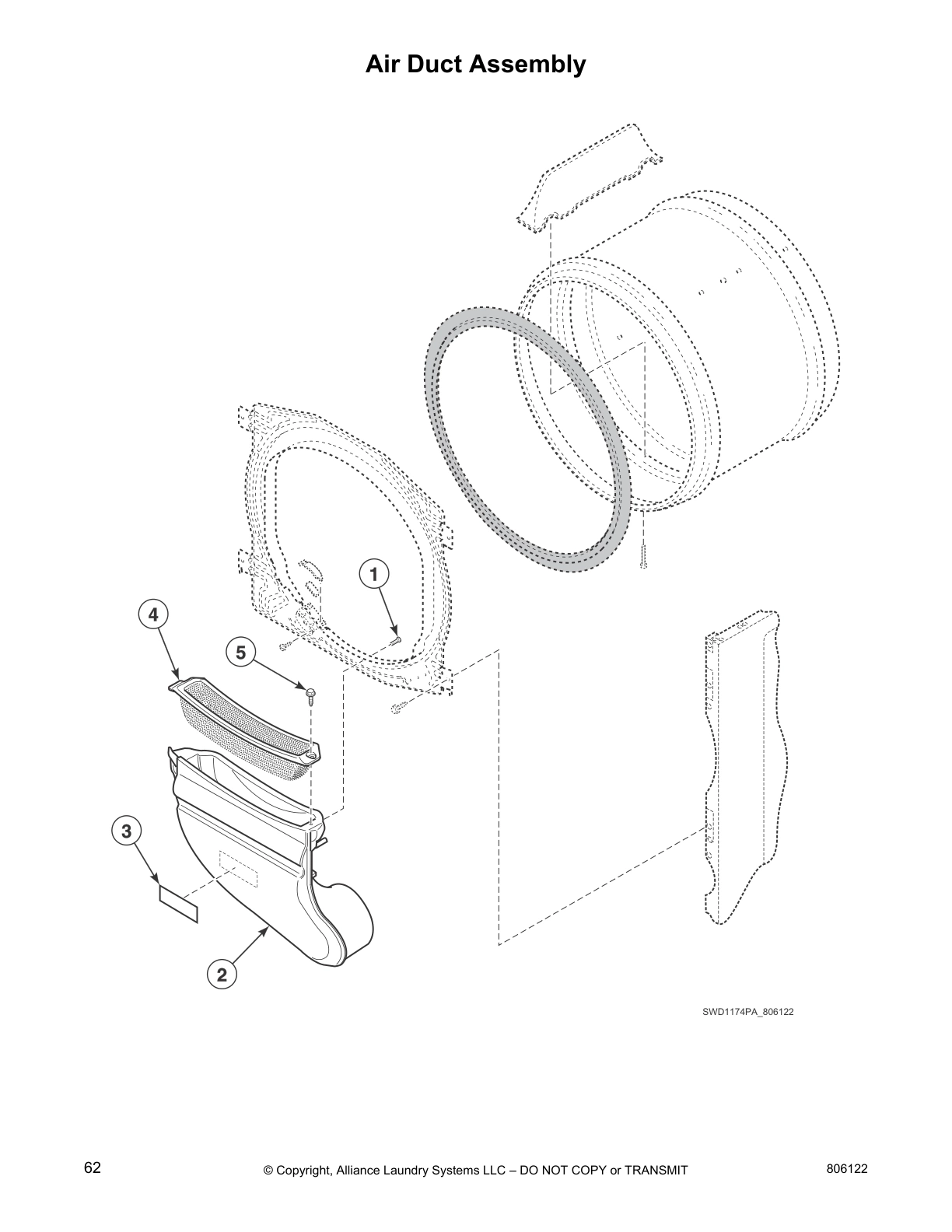

Air Duct Assembly

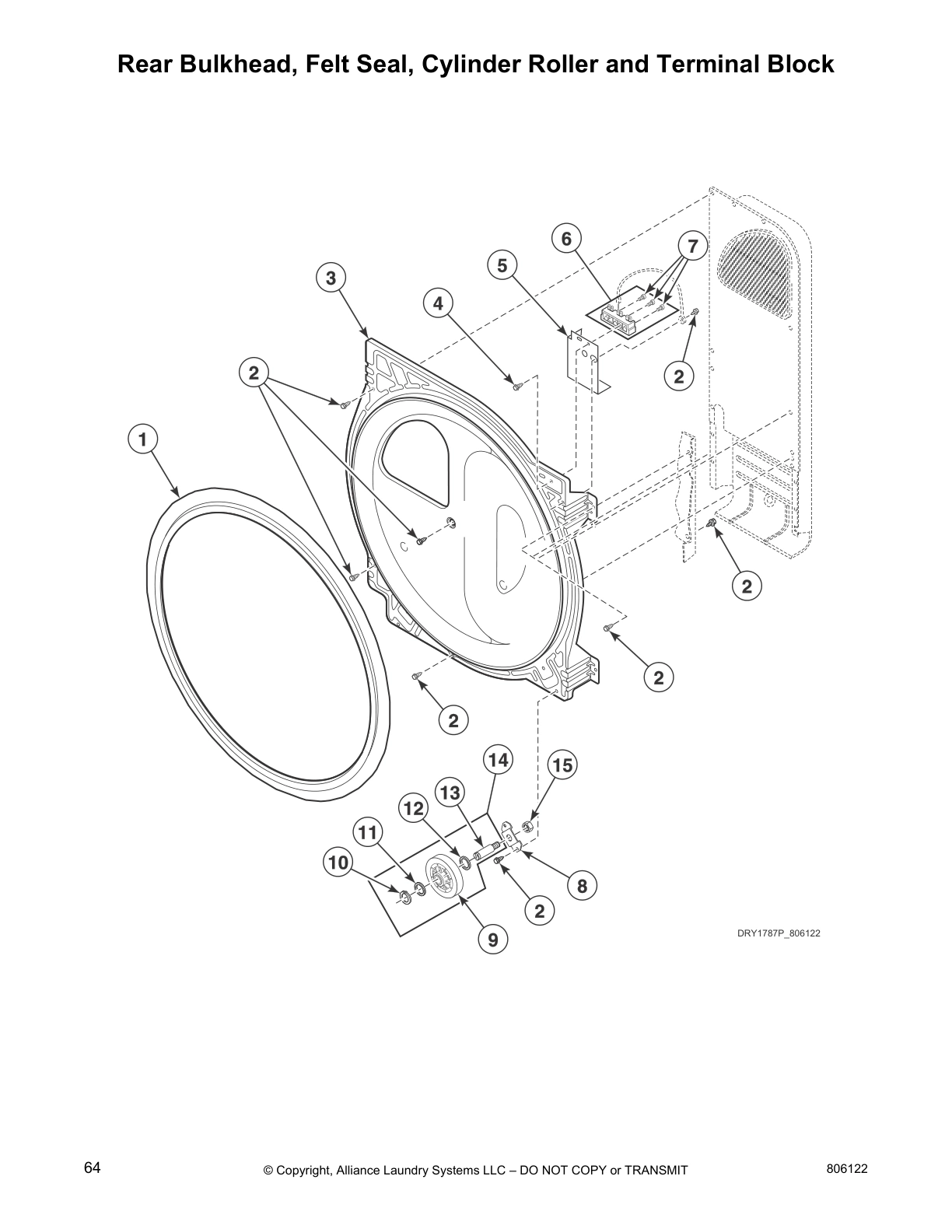

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

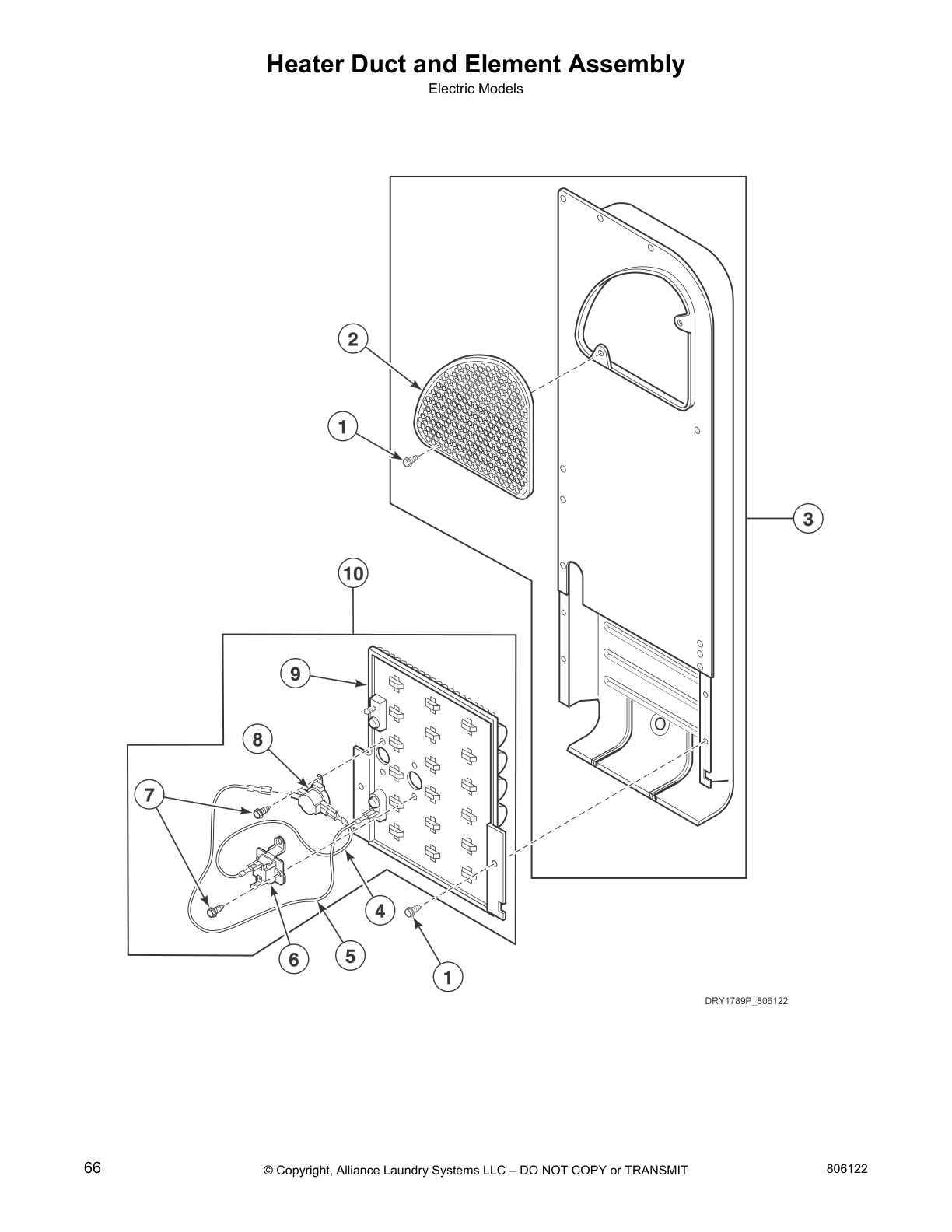

Heater Duct and Element Assembly
Heater Duct Assembly

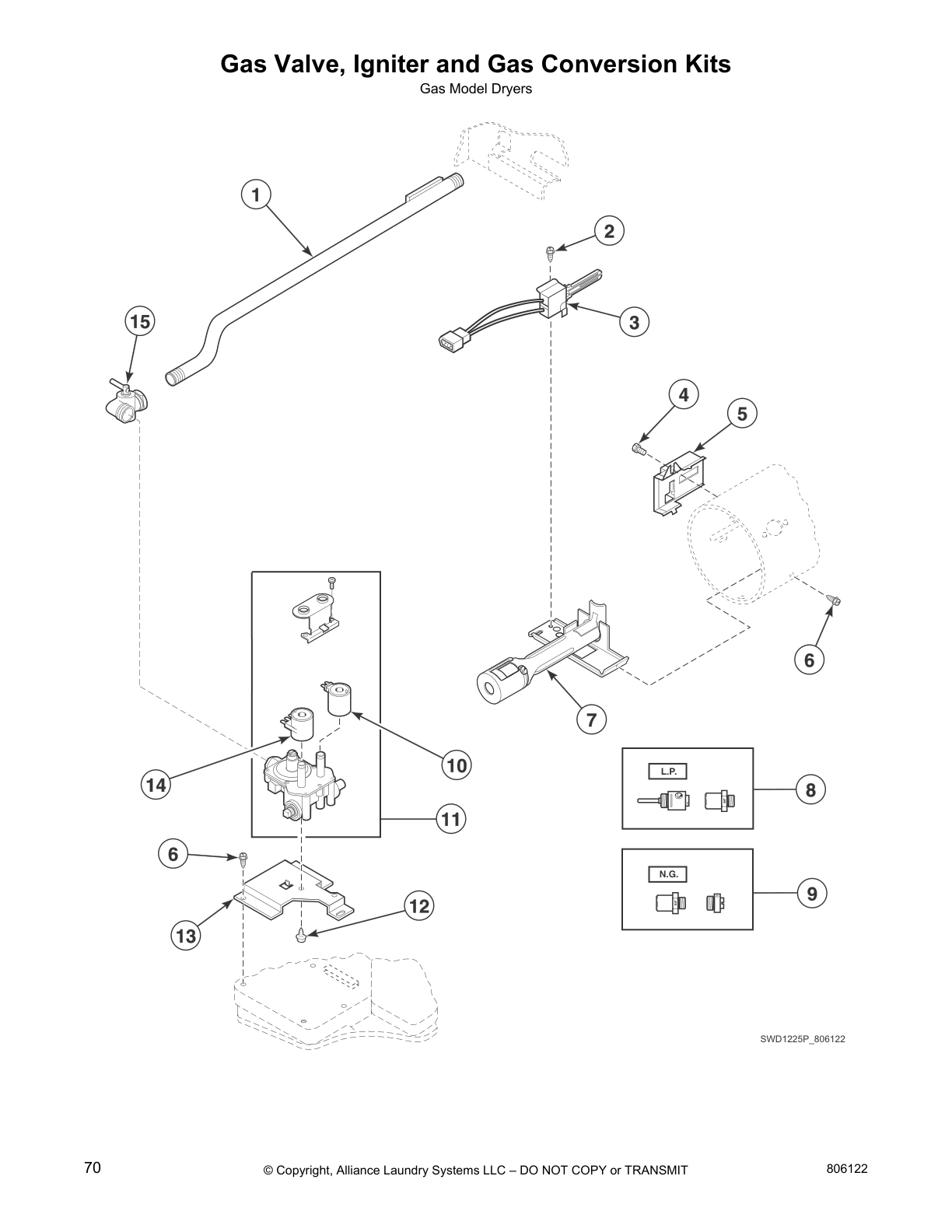

Gas Valve, Igniter and Gas Conversion Kits

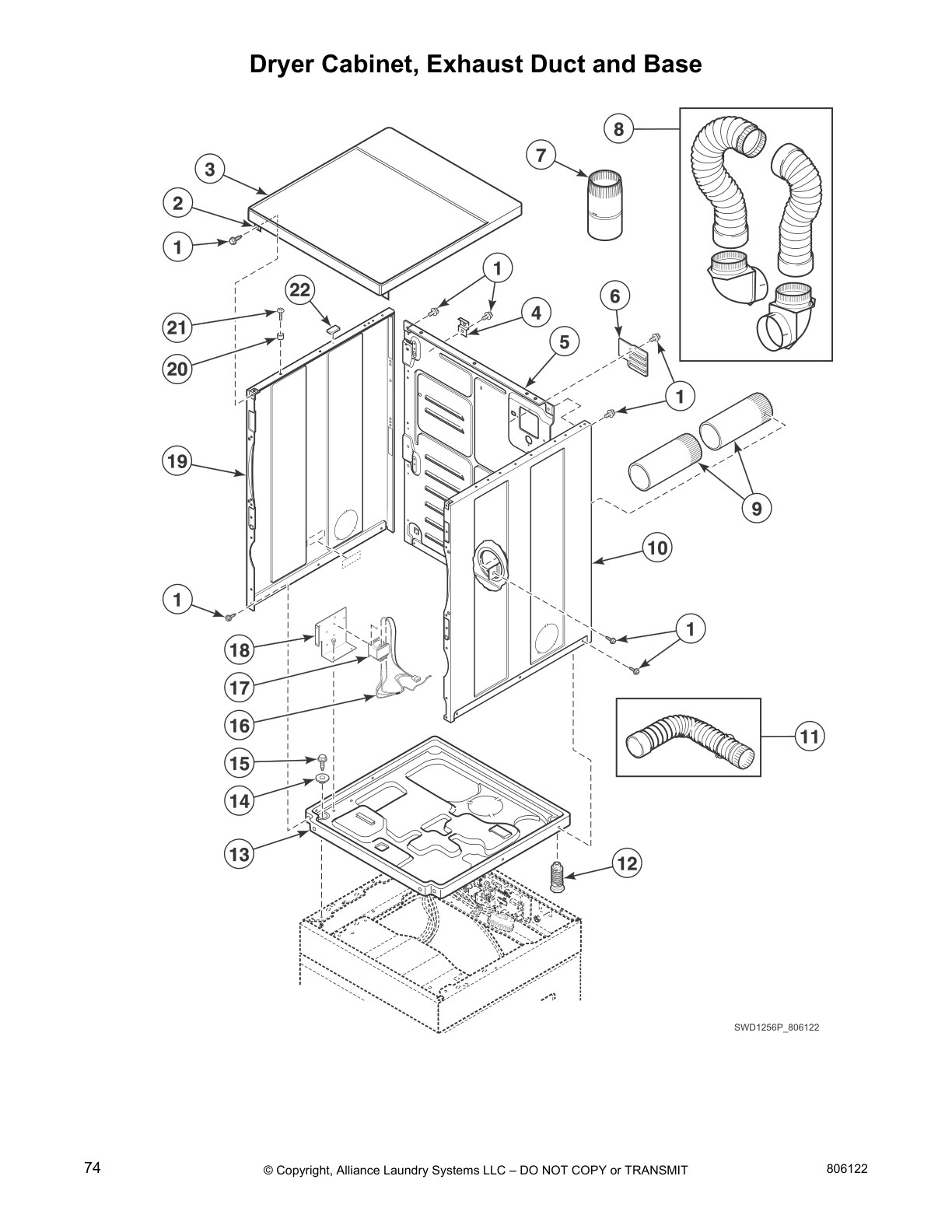

Dryer Cabinet, Exhaust Duct and Base

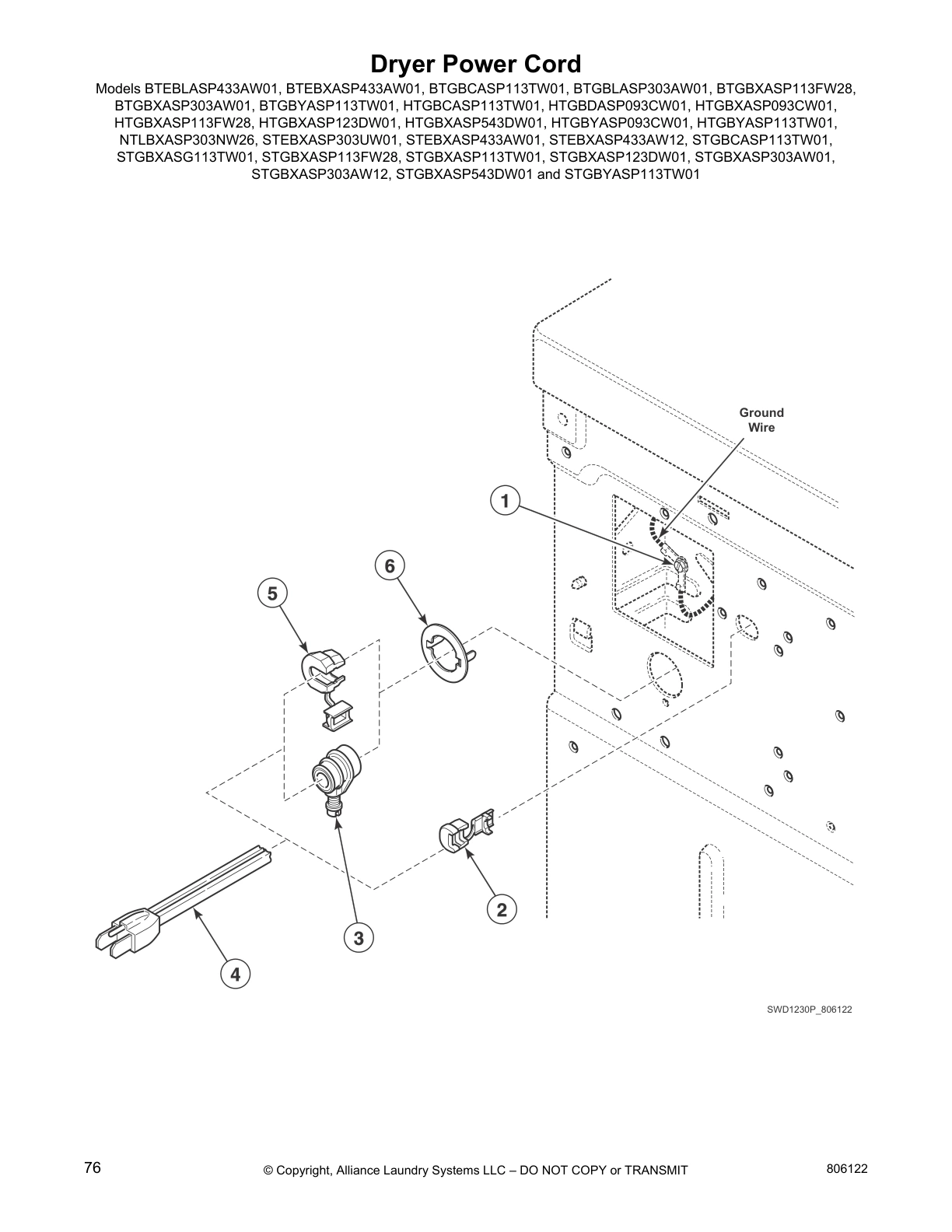

Dryer Power Cord

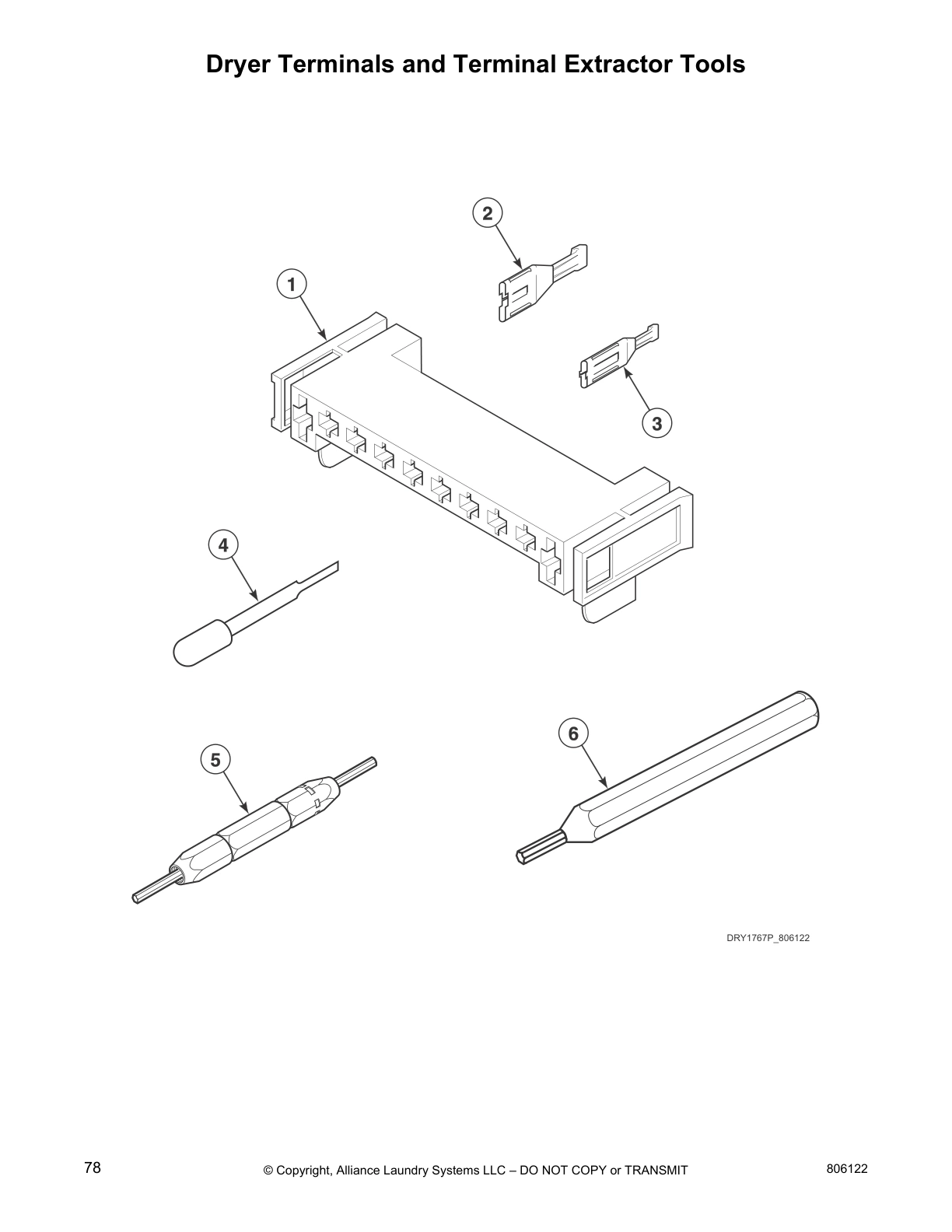

Dryer Terminals and Terminal Extractor Tools

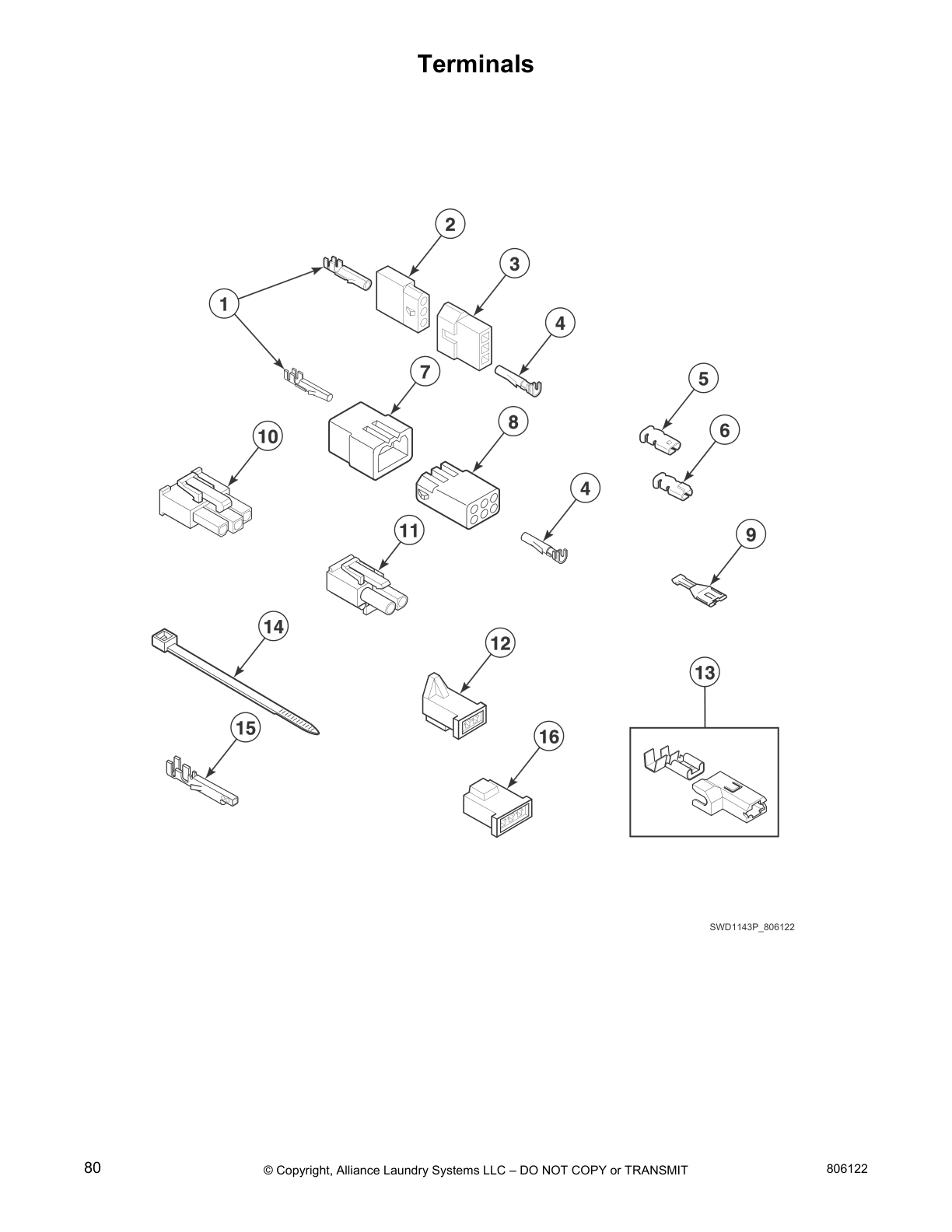

Terminals
Dryer Labels

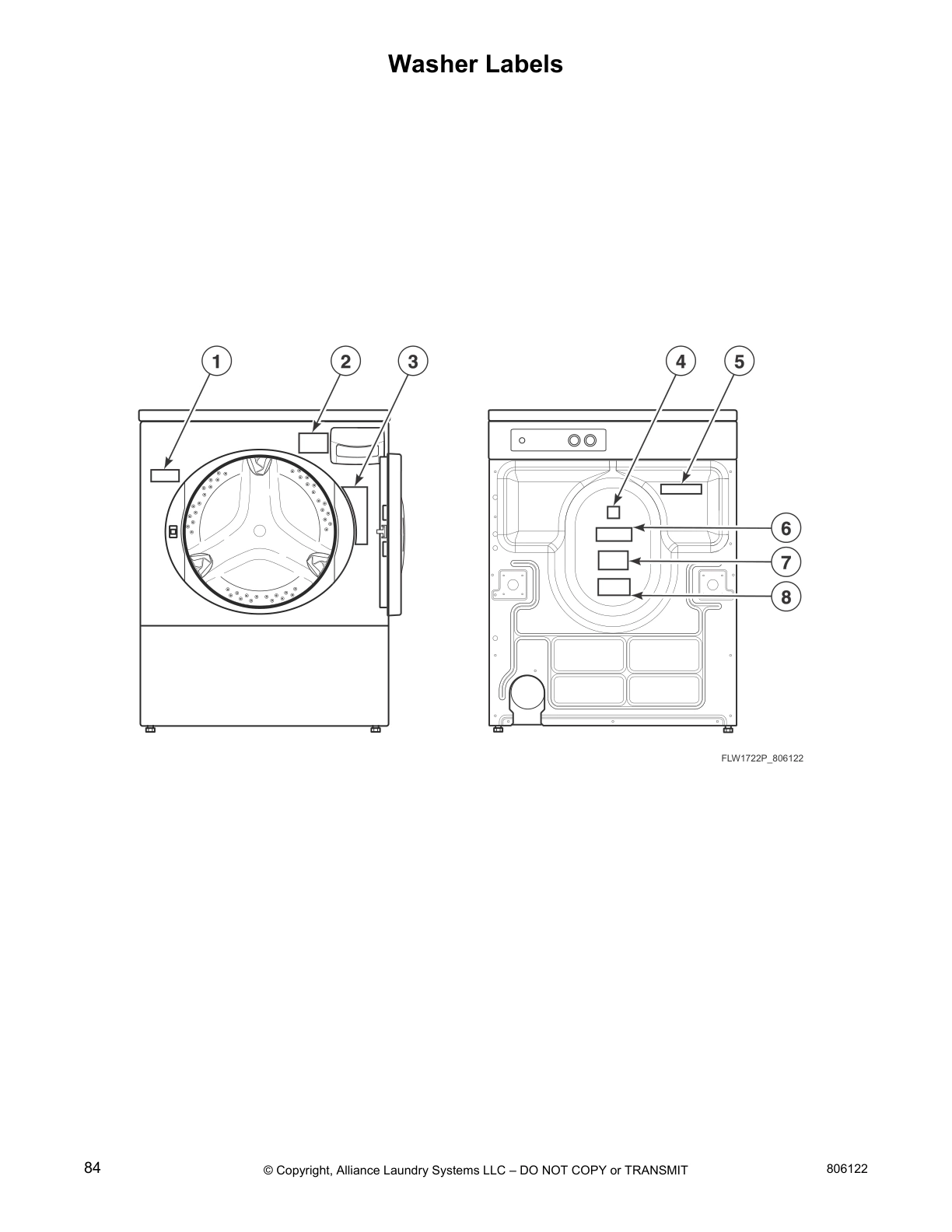

Washer Labels
Shipping Materials
Special Tools

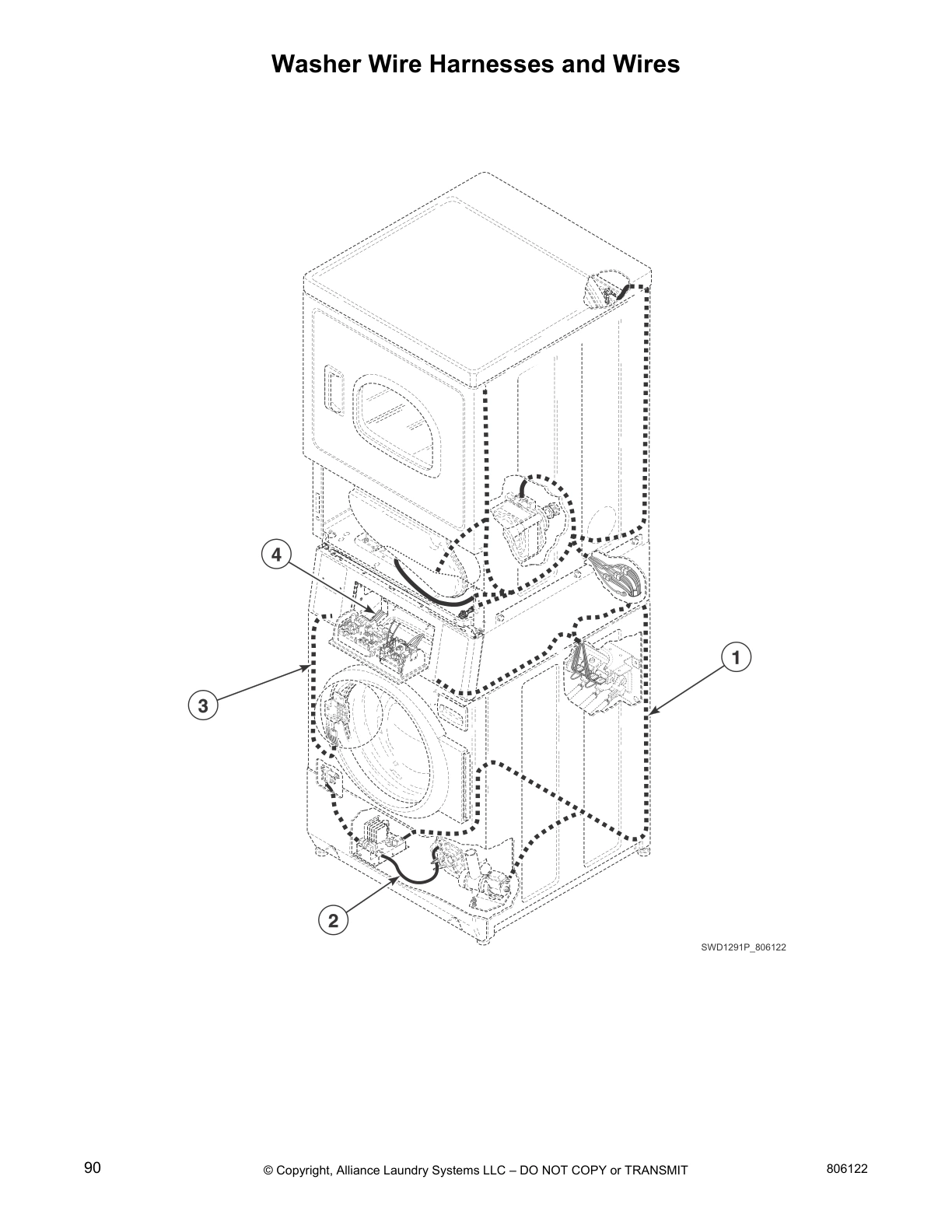

Washer Wire Harnesses and Wires

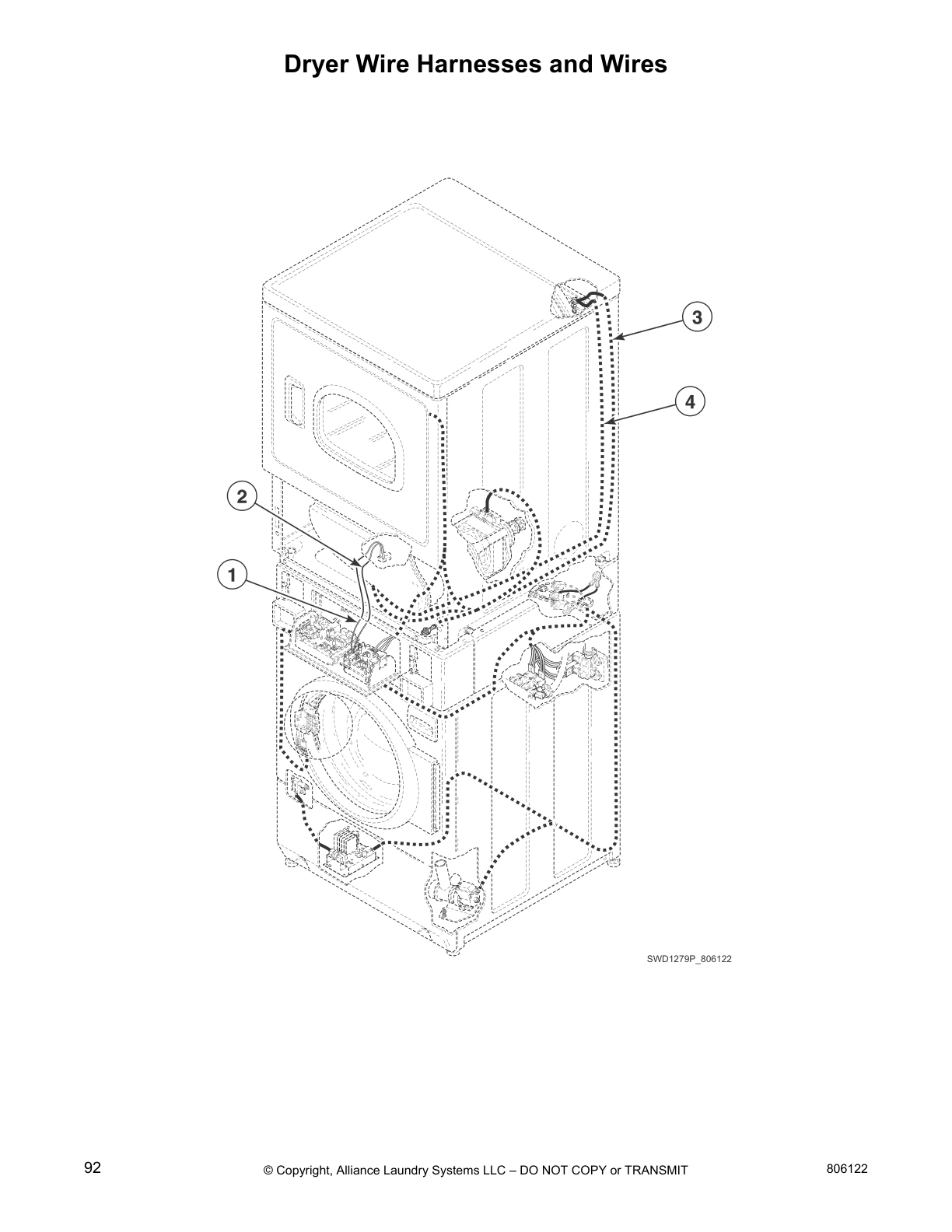

Dryer Wire Harnesses and Wires
Common parts from model Huebsch HTEBXASP133DW01 Stacked Washer and Dryer
SPQ 70441601P SPQ 70441601P Contact Us For Availability
9
Central Pay Kit SPQ 54612 No Longer Available
17
Pump Housing SPQ 802434P Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
× ![]()
