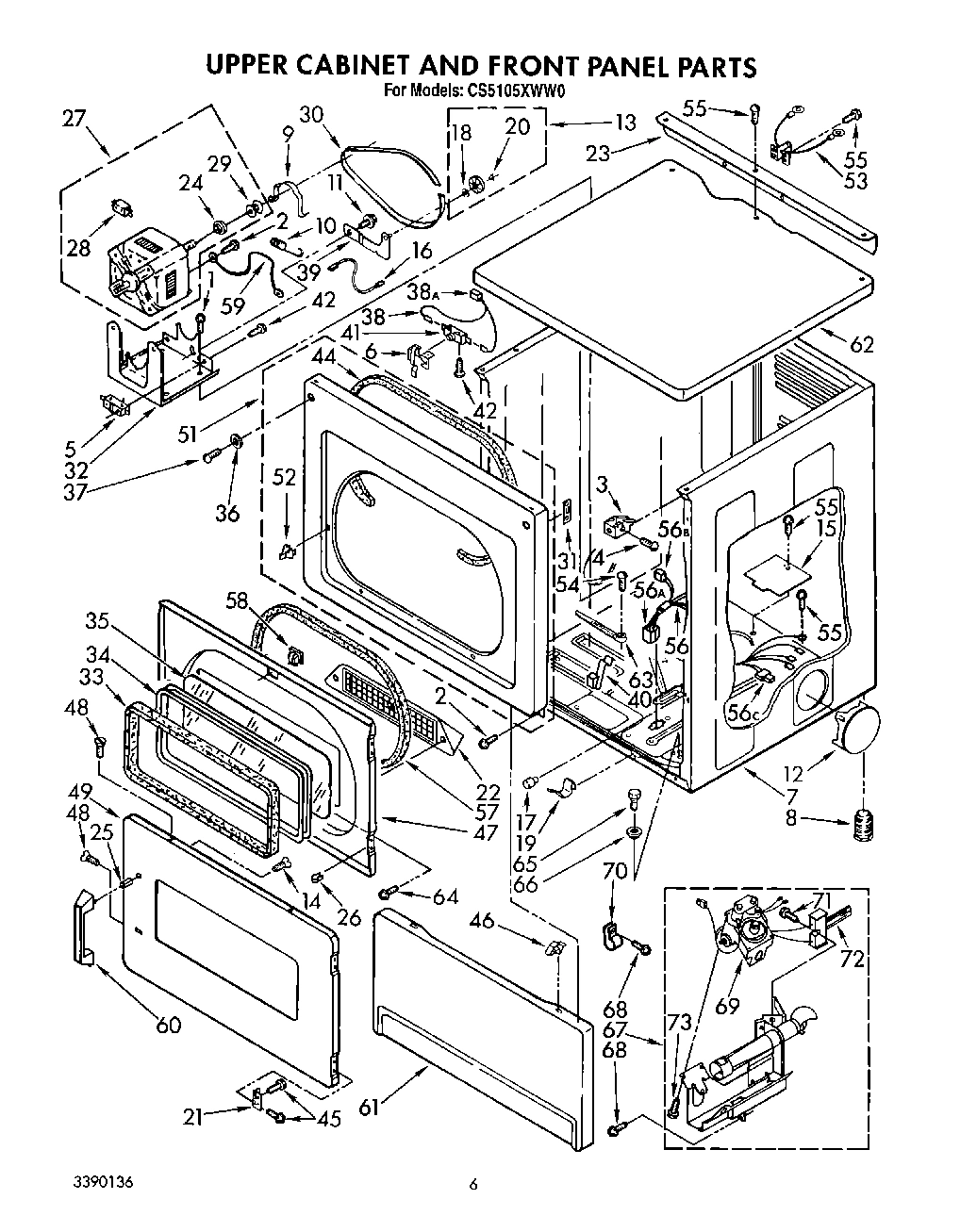

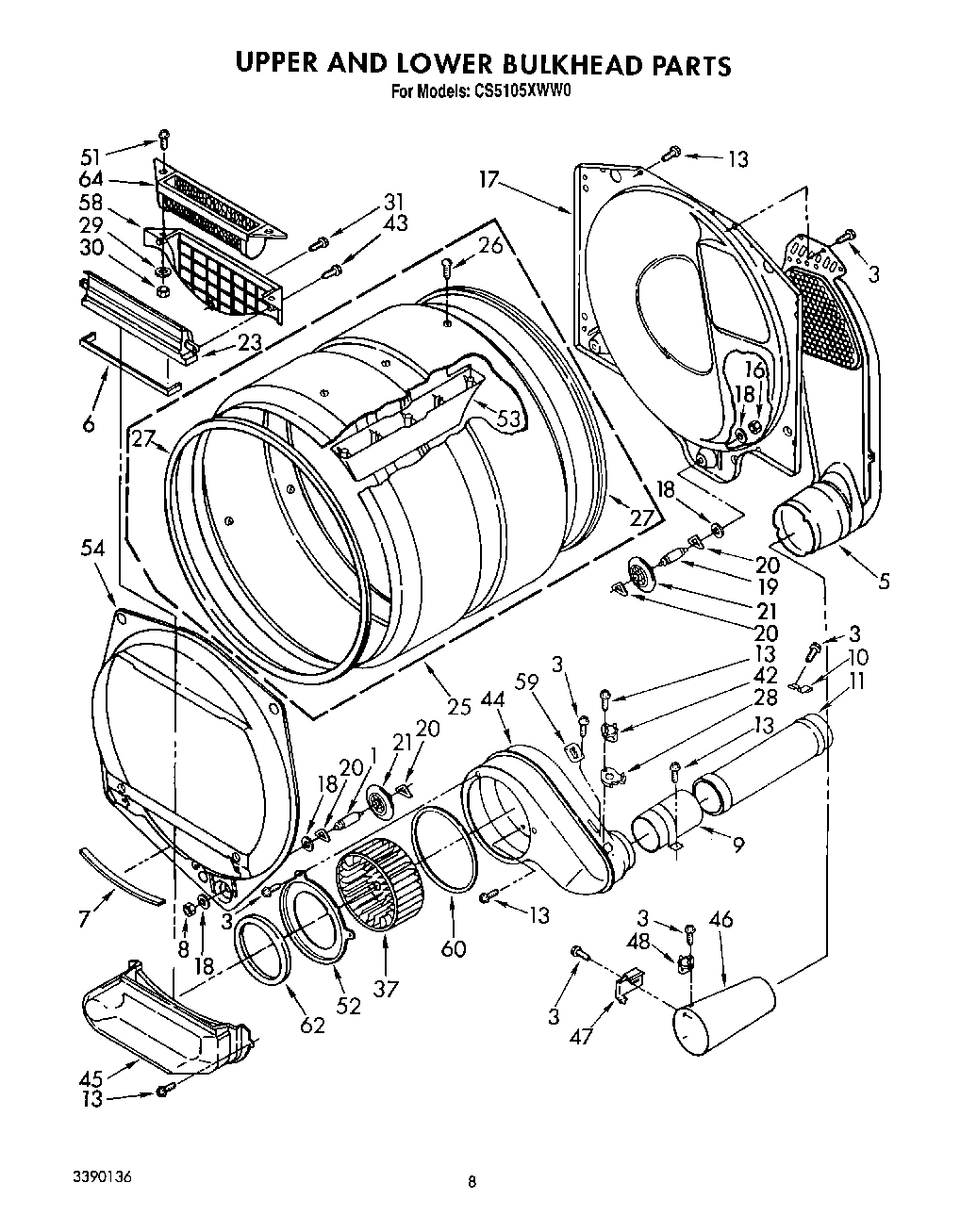

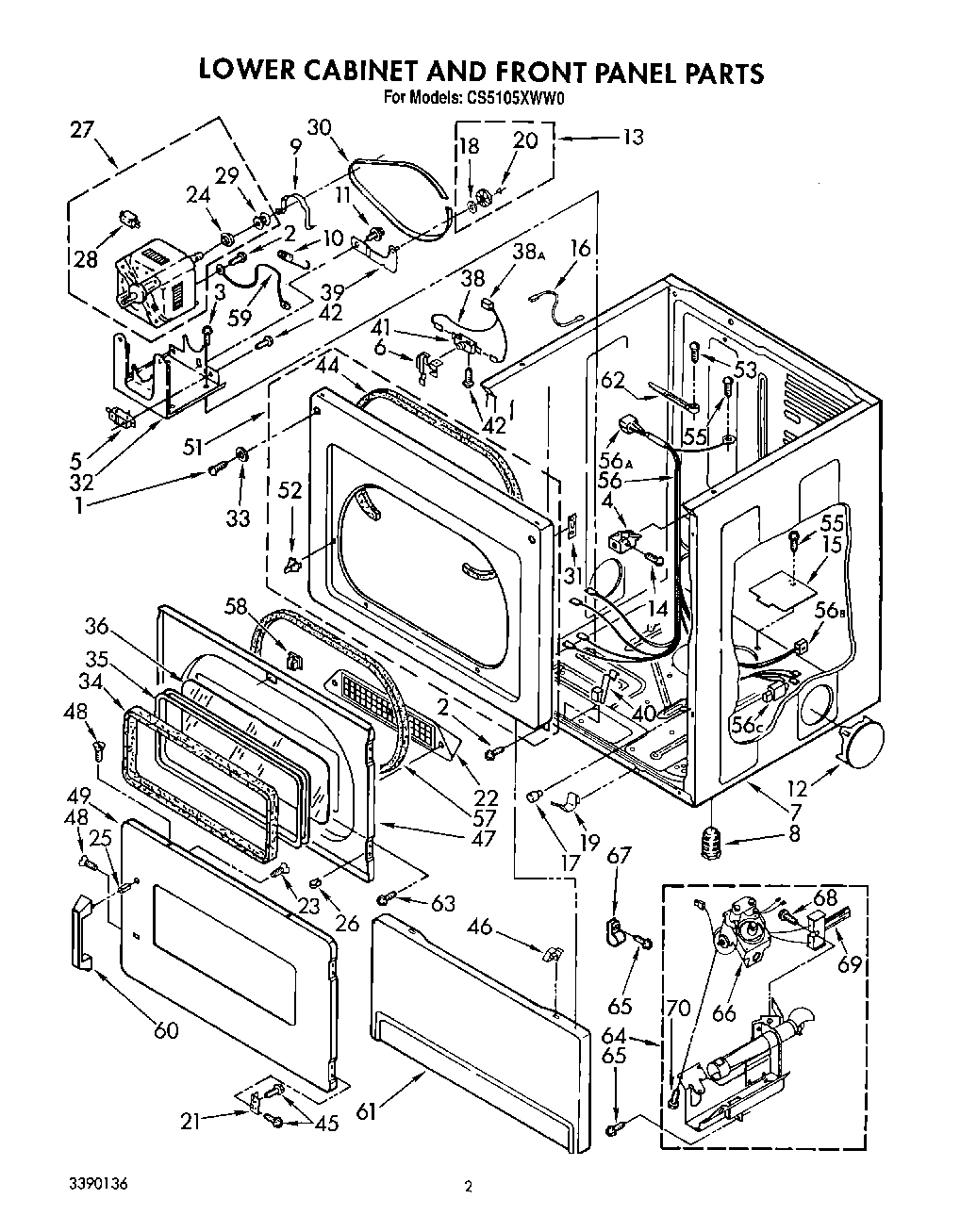

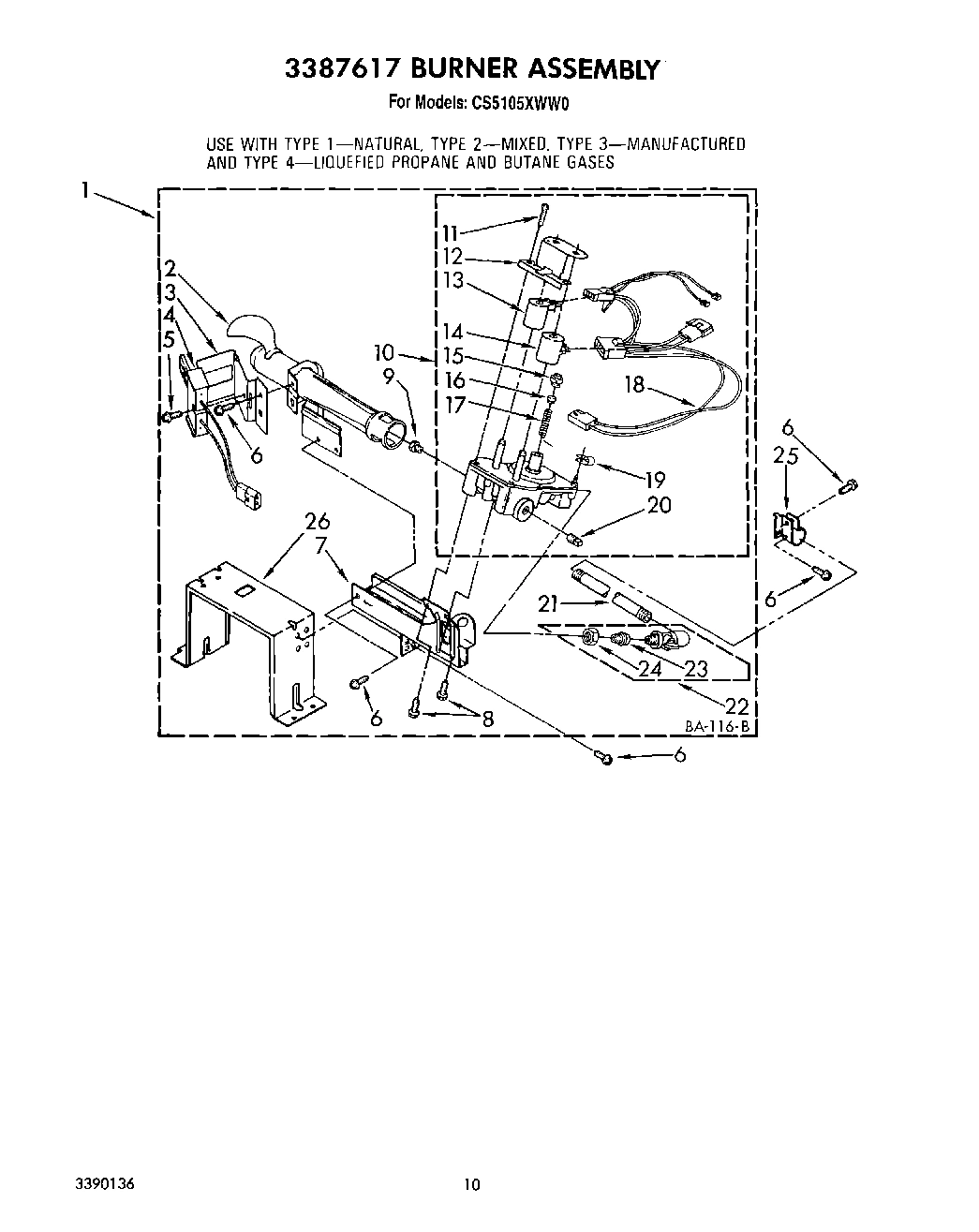

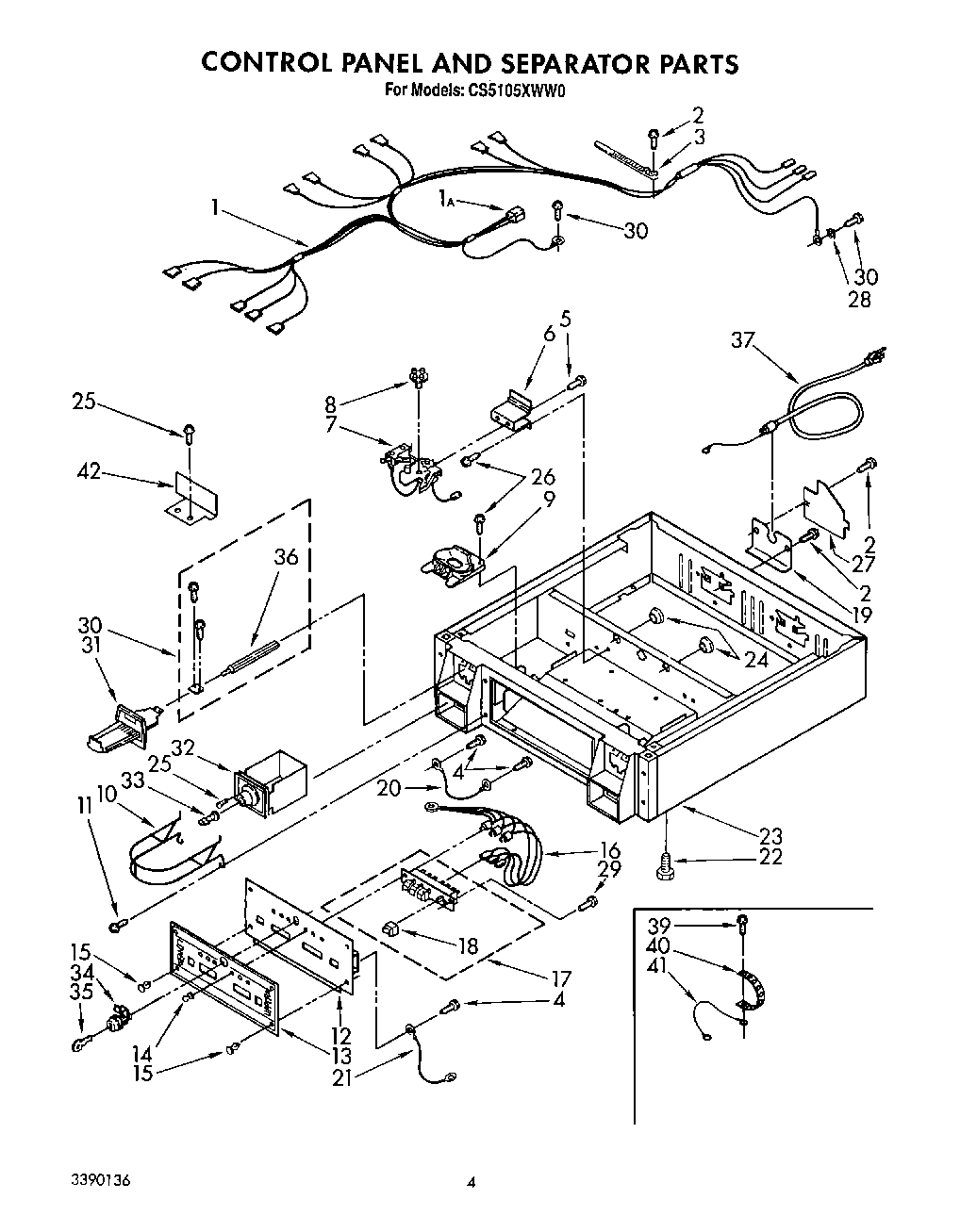

Model Whirlpool CS5105XWN0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

Golden Wheat WPL 261890 Contact Us For Availability

Golden Wheat (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3390136 WPL LIT3390136 Contact Us For Availability

WPL LIT3395314 WPL LIT3395314 Contact Us For Availability

1

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.03

1

Harness, Wire (2) WPL 3393364 Contact Us For Availability

1

Receptacle (2) (Uses Terminals 94614) WPL 385826 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $84.00

2

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.59

3

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $15.66

4

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $7.24

4

3391846 Whirlpool Clip In Stock WPL 3391846 $11.77

5

Air Duct Assembly WPL 3387259 Contact Us For Availability

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $52.58

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.20

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

7

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $214.14

7

Base, Burner WPL 3389871 Contact Us For Availability

7

Cabinet, Lower (White) WPL 3389369 Contact Us For Availability

7

Cabinet, Lower (Almond) WPL 3389370 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.80

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $4.80

8

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.75

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.19

8

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.77

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $15.45

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $15.45

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $15.45

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $4.20

9

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $60.48

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

9

Funnel, Coin (2) WPL 3389224 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $10.82

10

Protector, Slide (2) WPL 3389232 Contact Us For Availability

10

Clip, Multivent WPL 3347000 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $11.80

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.22

Screw, 10-32 x 3/8 (4) WPL 342043 Contact Us For Availability

Extension, Exhaust Pipe WPL 3388649 Contact Us For Availability

694538 Whirlpool Bracket Backorder WPL 694538 $62.30

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $69.98

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $58.34

Panel, Control WPL 3389625 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $20.96

13

Insert, Decorative WPL 3390036 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $20.40

14

681615 Whirlpool Screw Backorder WPL 681615 $14.93

14

Lens, Light (6) WPL 3389520 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $4.19

15

Rivet (4) WPL 356388 Contact Us For Availability

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.81

Indicator, Light (2) WPL 3389968 Contact Us For Availability

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

Wire, Belt Switch WPL 3387377 Contact Us For Availability

693152 Whirlpool Bumper In Stock WPL 693152 $5.02

W11299300 Whirlpool Bulkhead Assembly In Stock WPL W11299300 $155.67

WP694422 Whirlpool Spring Backorder WPL WP694422 $12.06

WPW10330137 Whirlpool Push Button Switch In Stock WPL WPW10330137 $235.07

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.88

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $171.90

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $3.22

Button, Pushbutton (8) WPL 3348587 Contact Us For Availability

3390189 Whirlpool Relief Valve Backorder WPL 3390189 $13.17

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $34.05

Clip, Harness WPL 694510 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $13.77

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.53

20

Strut WPL 3393463 Contact Us For Availability

W11175815 Whirlpool Hinge Backorder WPL W11175815 $37.73

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $13.98

Pipe, Gas Supply WPL 3387224 Contact Us For Availability

Wire, Ground WPL 340025 Contact Us For Availability

22

697441 Whirlpool Valve Backorder WPL 697441 $153.82

22

Bolt, 5-16 x 18 (2) WPL 122007 Contact Us For Availability

22

Grill WPL 3391611 Contact Us For Availability

3393767 Whirlpool Pipe Backorder WPL 3393767 $69.67

Collar (White) WPL 3389394 Contact Us For Availability

Collar (Almond) WPL 3389395 Contact Us For Availability

Housing, Outlet WPL 697768 Contact Us For Availability

Screw, 8-18 x 3/4 (Door Handle) WPL 718032 Contact Us For Availability

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $62.33

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Bushing, Snap (2) WPL 3390057 Contact Us For Availability

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $226.48

25

WP356418 Whirlpool Screw Backorder WPL WP356418 $3.22

25

Fastener, Tubular WPL 3393933 Contact Us For Availability

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.56

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

Screw (8) WPL 98437 Contact Us For Availability

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $148.75

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.11

27

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $25.32

28

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.91

28

Heater, Thermostat WPL 61894 Contact Us For Availability

28

Retainer, Terminal (2) WPL 3390443 Contact Us For Availability

29

W10850756 Whirlpool Screw Backorder WPL W10850756 $3.22

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.98

29

Washer, No. 10 WPL 3391948 Contact Us For Availability

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.11

30

Slide Extension Bag Assembly WPL ARI144872A Contact Us For Availability

30

Nut, Hex WPL 120614 Contact Us For Availability

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $6.11

31

Slide Mechanism (When Ordering, Specify Numbe WPL ARI144873A Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $54.08

32

Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI144874A Contact Us For Availability

33

Key, Money Box (When Ordering, Specify Vender WPL ARI144875A Contact Us For Availability

33

Washer WPL 3392186 Contact Us For Availability

34

Security Lock & Cam Assembly WPL ARI144876A Contact Us For Availability

34

Gasket, Window WPL 3392915 Contact Us For Availability

35

3392914 Whirlpool Window Frame Backorder WPL 3392914 $174.42

35

Key, Service Door WPL ARI144877A Contact Us For Availability

36

Bolt, Slide Mechanism WPL ARI144878A Contact Us For Availability

36

Window (2) WPL 3392918 Contact Us For Availability

37

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $54.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.52

38

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $5.47

38

Harness, Door Switch WPL 3389967 Contact Us For Availability

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $23.41

39

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

40

Strap, Ground WPL 22965 Contact Us For Availability

40

Clip, Lint Duct WPL 3388600 Contact Us For Availability

41

WP3391902 Whirlpool Lid Switch In Stock WPL WP3391902 $36.70

41

Wire, Ground WPL 364089 Contact Us For Availability

42

3390424 Whirlpool Extension Backorder WPL 3390424 $37.13

42

WP3395530 Whirlpool Screw Backorder WPL WP3395530 $3.22

42

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.18

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.23

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $98.38

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.85

45

Lint Duct Assembly WPL 3390531 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.53

46

Funnel, Burner WPL 697757 Contact Us For Availability

47

W10244331 Whirlpool Rear Door Backorder WPL W10244331 $172.17

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $40.93

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $49.53

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $3.22

49

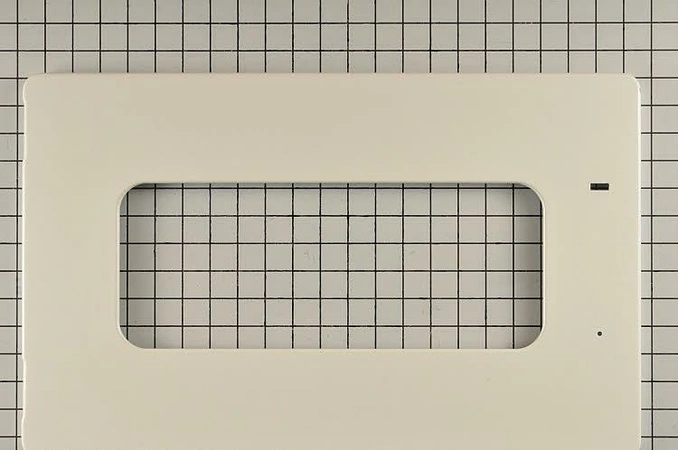

W10322548 Whirlpool Door Assembly Backorder WPL W10322548 $62.37

49

Door, Front (Almond) WPL 3392881 Contact Us For Availability

51

279723 Whirlpool Panel Assembly Backorder WPL 279723 $273.23

51

WP179051 Whirlpool Screw Backorder WPL WP179051 $3.22

51

Lower Front Panel (White) WPL 3393081 Contact Us For Availability

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $33.97

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $65.06

54

WP308544 Whirlpool Screw Backorder WPL WP308544 $3.22

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $104.47

Harness (Lower) WPL 3389966 Contact Us For Availability

Plug, Mult- Term WPL 3390423 Contact Us For Availability

WPL 691707 WPL 691707 Contact Us For Availability

WPL 717252 WPL 717252 Contact Us For Availability

57

WP3390735 Whirlpool Door Seal Backorder WPL WP3390735 $49.73

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.90

58

Cover, Lint Screen WPL 3389516 Contact Us For Availability

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $12.79

59

WPL 3387376 WPL 3387376 Contact Us For Availability

60

WP3392906 Whirlpool Door Handle Backorder WPL WP3392906 $52.02

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.81

60

WPL 3392907 WPL 3392907 Contact Us For Availability

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $99.45

61

WPL 697216 WPL 697216 Contact Us For Availability

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $30.81

62

WPL 3389969 WPL 3389969 Contact Us For Availability

63

WPL 697777 WPL 697777 Contact Us For Availability

64

WPL 3387617 WPL 3387617 Contact Us For Availability

64

Screen, Lint WPL 3389510 Contact Us For Availability

65

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

66

279923 Whirlpool Gas Valve In Stock WPL 279923 $169.13

68

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.75

69

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $36.46

70

3387561 Whirlpool Clamp Backorder WPL 3387561 $15.96

70

WP693995 Whirlpool Screw In Stock WPL WP693995 $2.85
