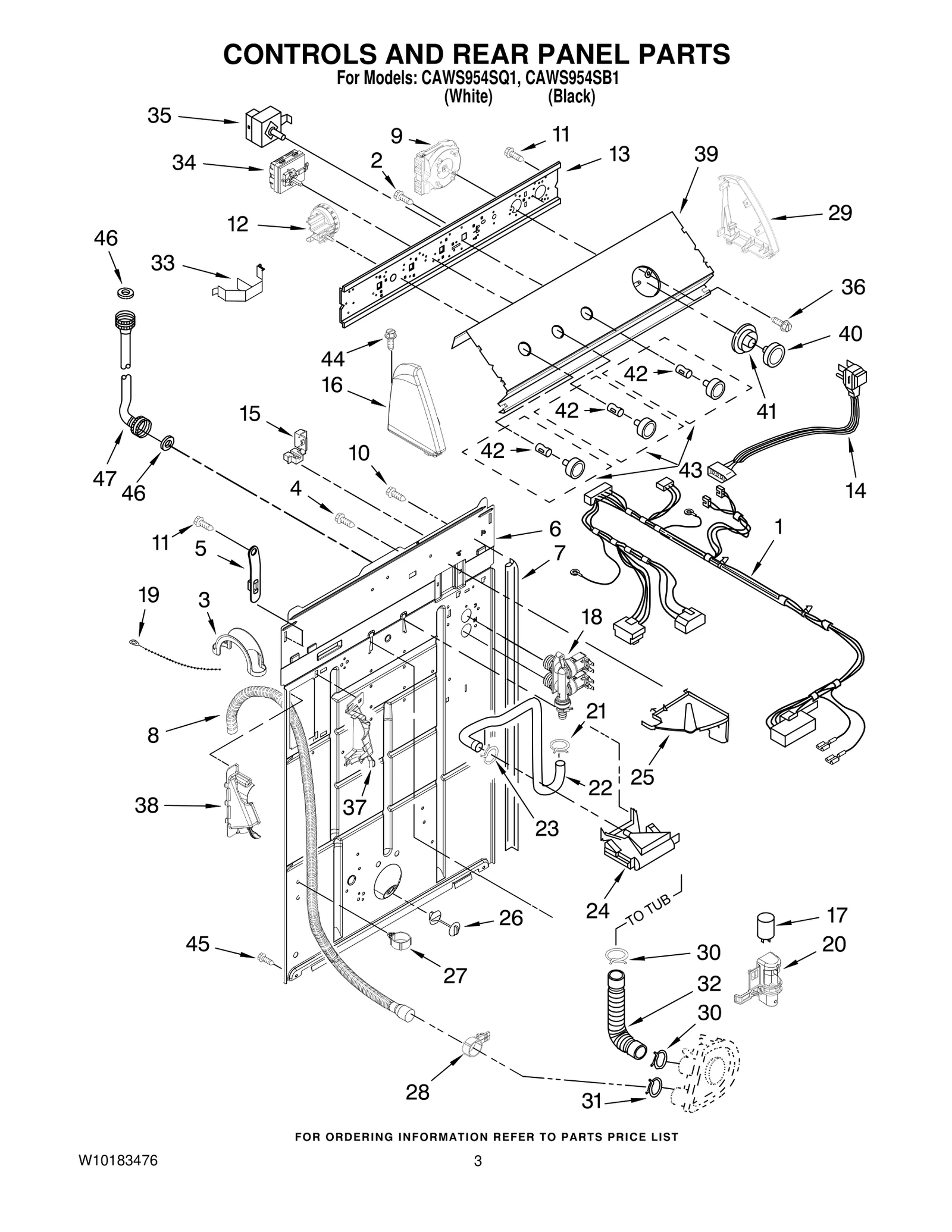

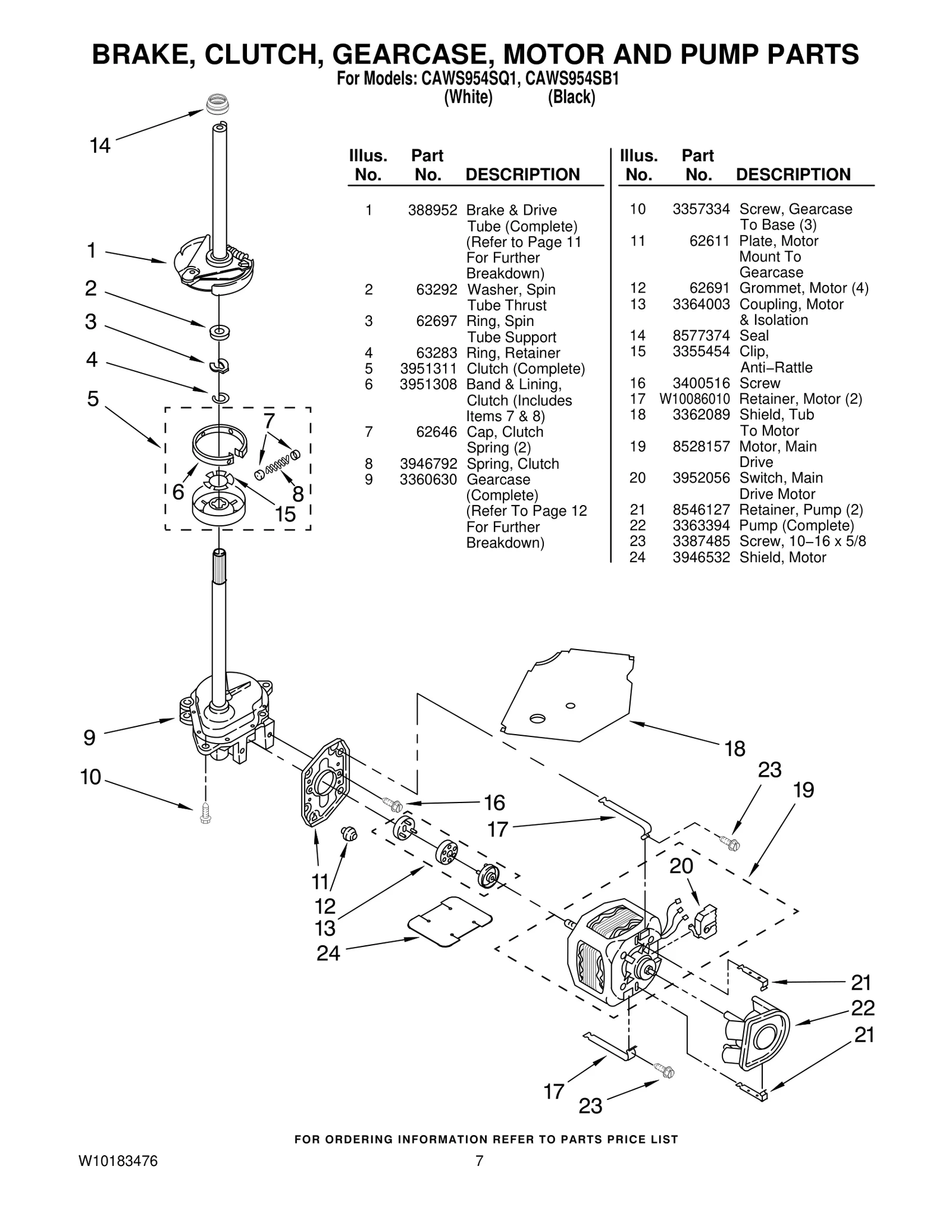

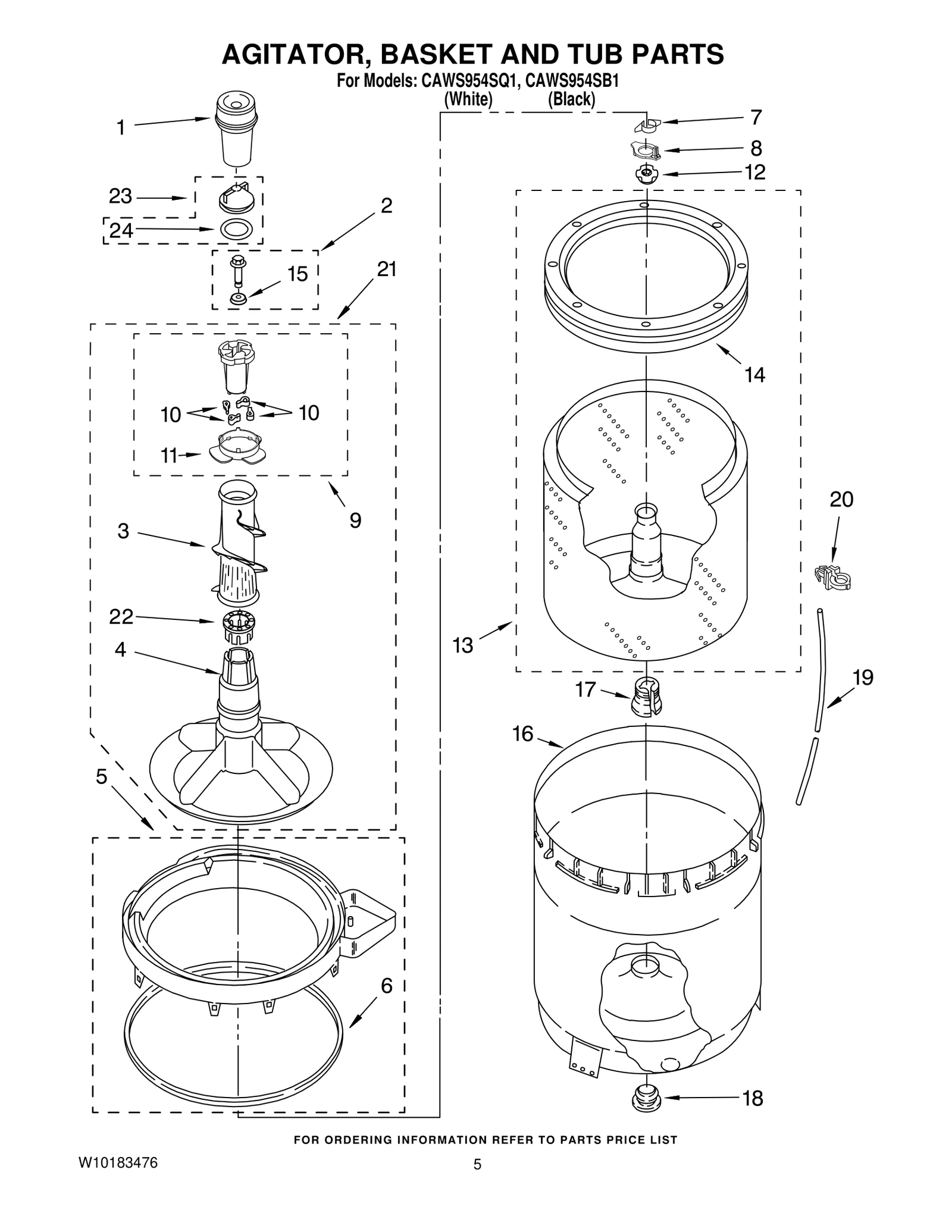

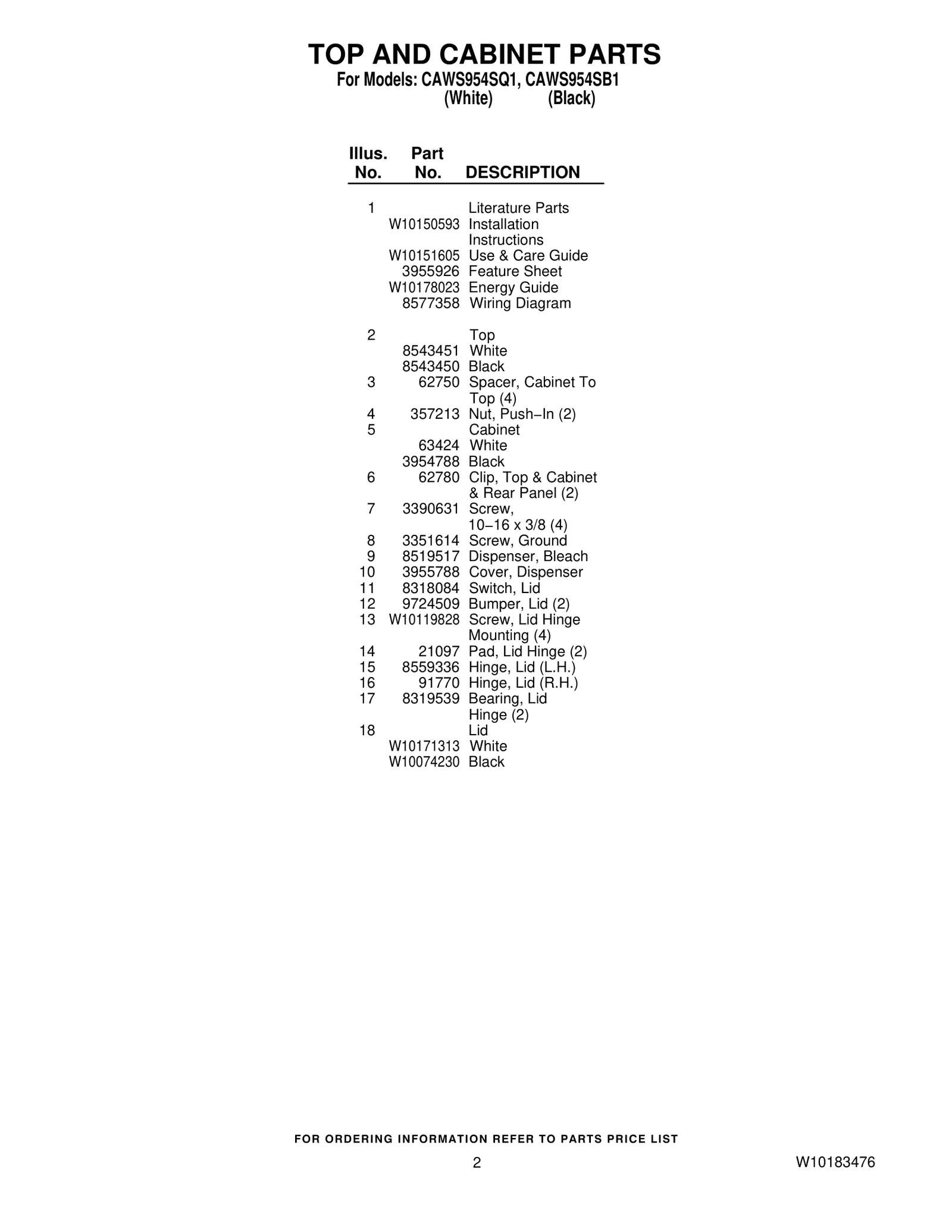

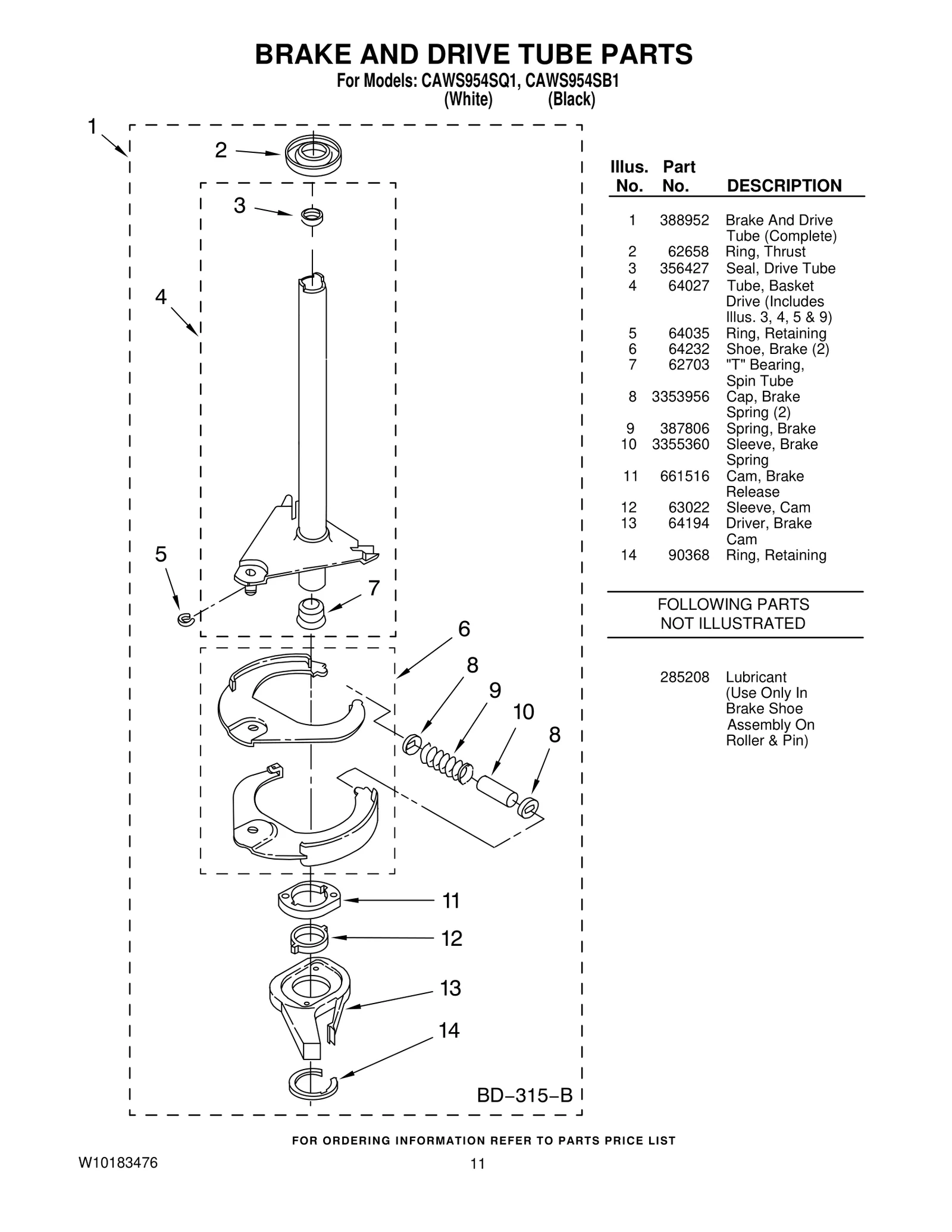

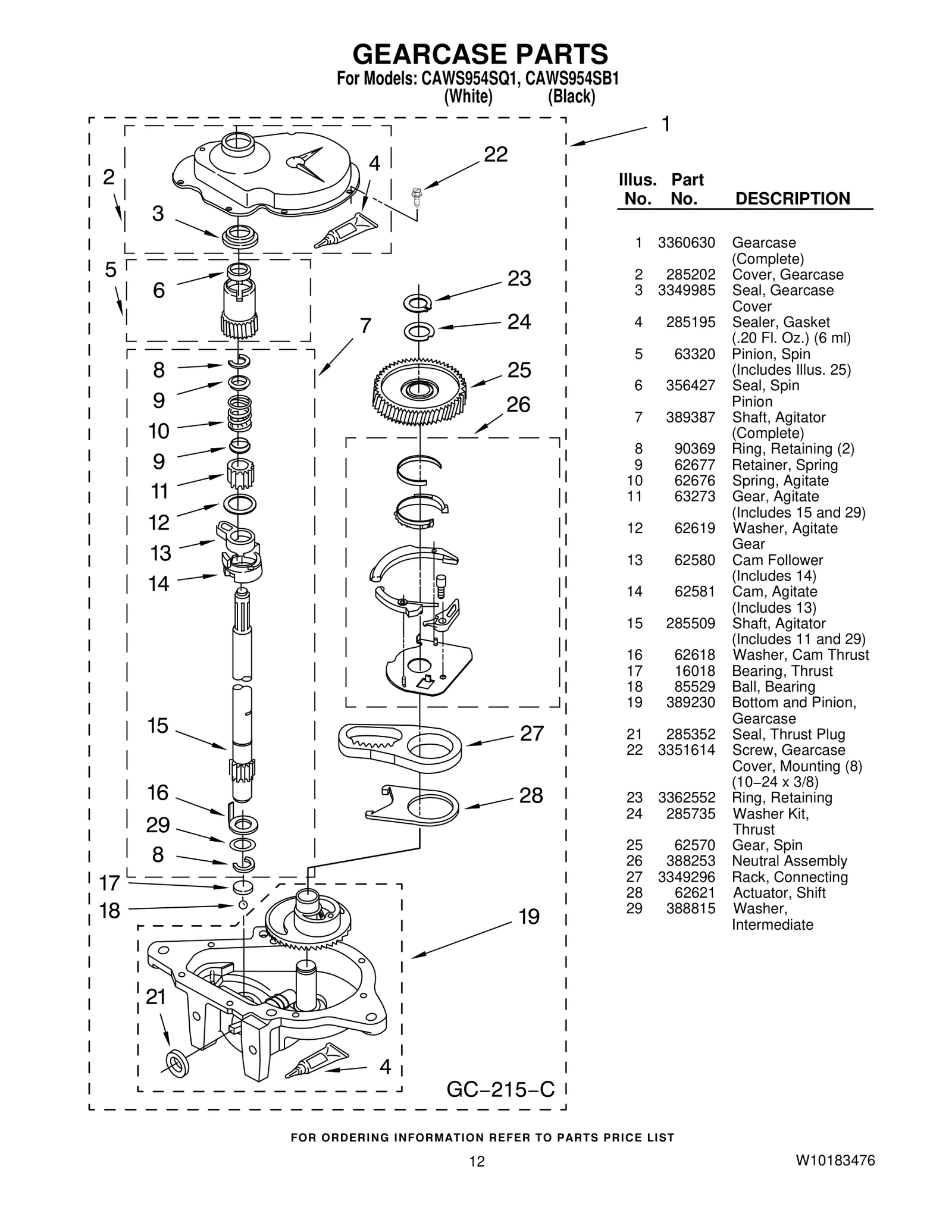

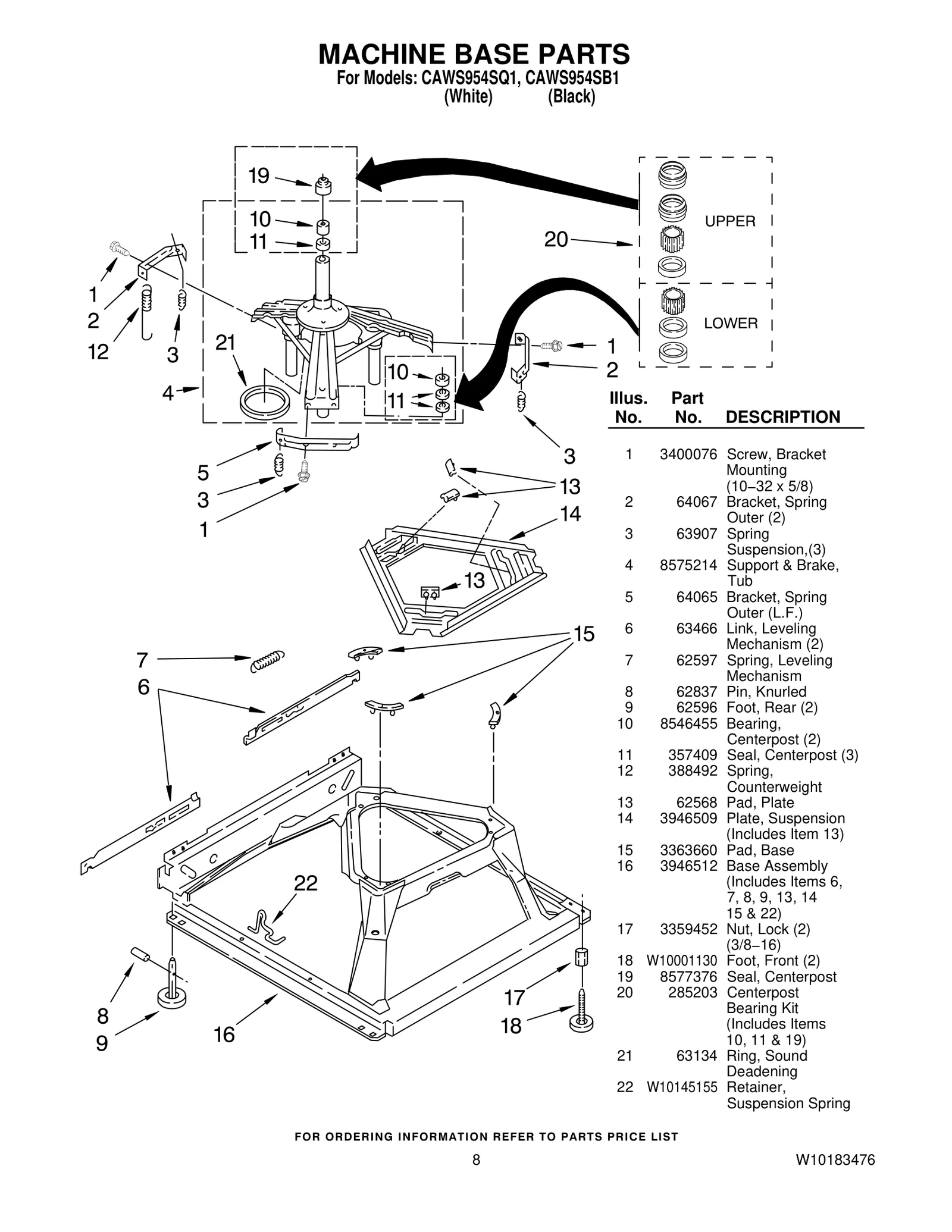

Model Whirlpool CAWS954SQ1 Automatic Washer – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

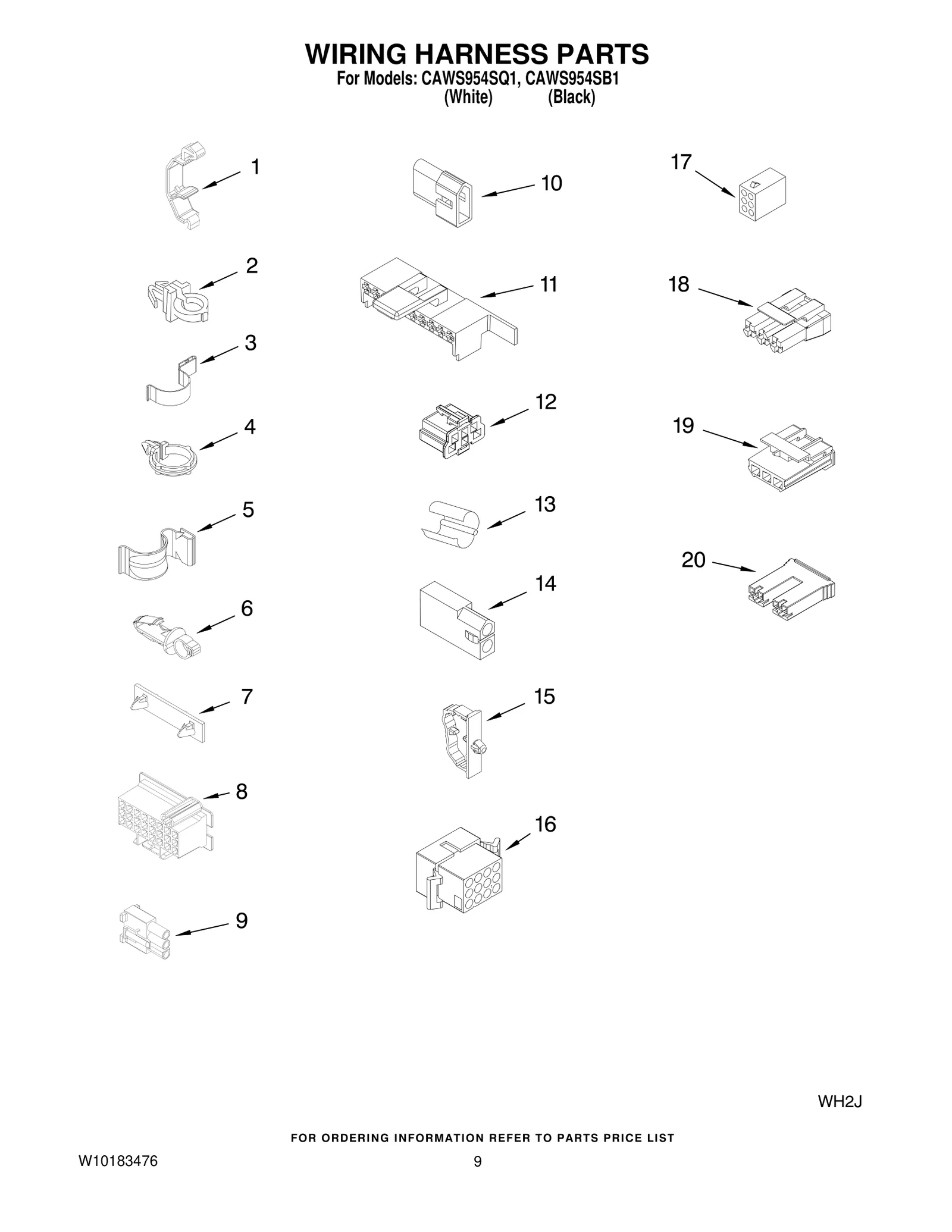

Harness, Wiring (For Details See Pages 9 & 10 WPL W10044160 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $170.47

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $87.45

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $8.64

8

Timer, Block Disconnect — Natural WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8577356 Whirlpool Washer Timer In Stock WPL WP8577356 $134.93

9

Dispenser, Bleach WPL 8519517 Contact Us For Availability

9

Spring, Brake WPL 387806 Contact Us For Availability

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

Cover, Dispenser WPL 3955788 Contact Us For Availability

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

For Models: CAWS954SQ1, CAWS954SB1 (White) (B WPL N/S Contact Us For Availability

13

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $5.30

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

15

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

16

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

19

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

19

Plug (T.P.A) WPL 3360056 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

Clip, Capacitor WPL 8318046 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

21

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

22

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $5.30

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

Shield, Suds WPL 8539874 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

26

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

28

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

38

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $48.95

40

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $54.89

41

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $39.15

42

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

43

WP8538957 Whirlpool Knob Backorder WPL WP8538957 $42.60

44

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

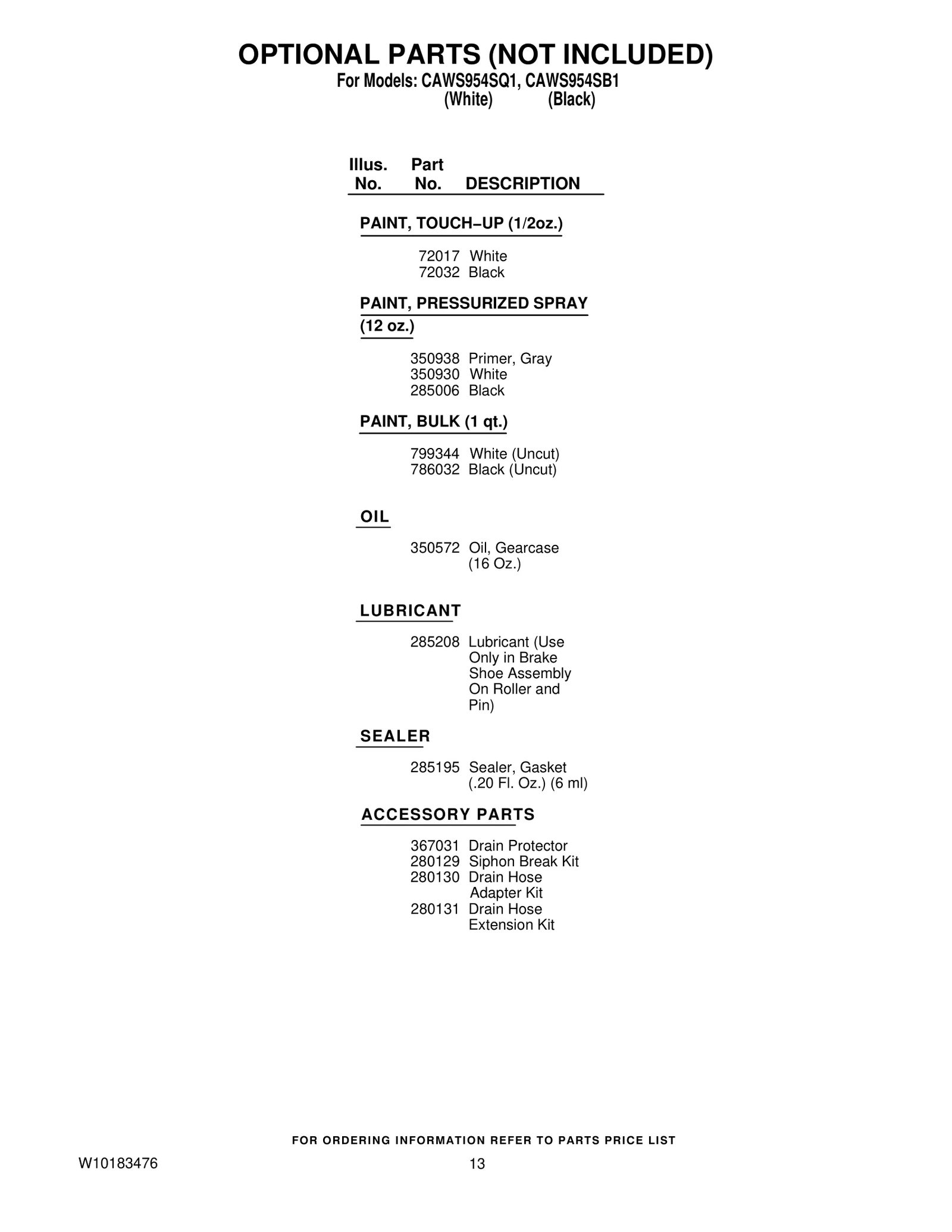

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

OPT-3

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-4

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-5

285006 Whirlpool Spray In Stock WPL 285006 $52.65

OPT-6

White (Uncut) WPL 799344 Contact Us For Availability

OPT-7

Black (Uncut) WPL 786032 Contact Us For Availability

OPT-8

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

OPT-9

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-10

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

OPT-11

Drain Protector WPL 367031 Contact Us For Availability

OPT-12

280129A Whirlpool Break Switch Backorder WPL 280129A $74.01

OPT-13

Drain Hose WPL 280130 Contact Us For Availability

OPT-14

40922 Whirlpool Drain Hose Extension Kit Backorder WPL 40922 $38.31
