Model Whirlpool 110.82881800 Washer (Kenmore 11082881800) – Common Parts &amp; Diagrams

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

(338471) (ALT.) WPL N/P Contact Us For Availability

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

Installation Instructions WPL LIT3350300 Contact Us For Availability

1C

Operating Instructions WPL LIT3351622 Contact Us For Availability

1D

Technical Sheet WPL LIT3349383 Contact Us For Availability

1E

Wiring Diagram WPL LIT3351130 Contact Us For Availability

1F

Energy Guide WPL LIT3351228 Contact Us For Availability

1G

Parts List WPL LIT3350445 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

285321 Whirlpool Sleeve Backorder WPL 285321 $57.93

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Washer Water-Level Pressure Switch WPL 387383 Contact Us For Availability

2A

Top W P WPL 388996 Contact Us For Availability

2B

Top WPL 389000 Contact Us For Availability

2C

Top Al P WPL 388997 Contact Us For Availability

2D

Top To P WPL 388998 Contact Us For Availability

2E

Top Pl P WPL 388999 Contact Us For Availability

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Washer Temperature Switch WPL 661546 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

4

Appliance O-Ring WPL 357574 Contact Us For Availability

5

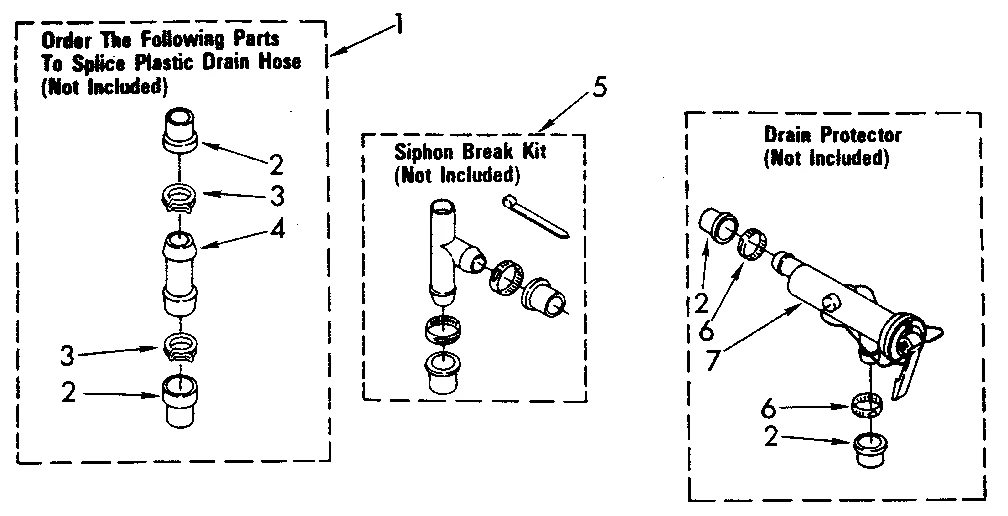

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

Bracket WPL 64065 Contact Us For Availability

5A

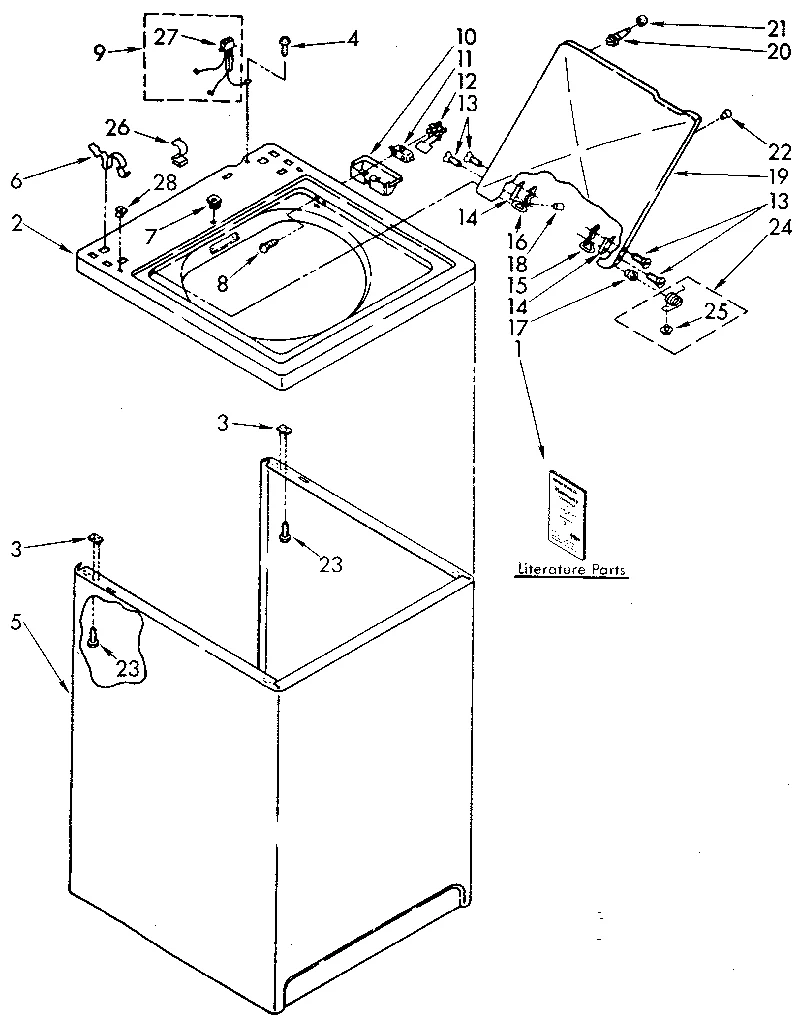

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Natural Gas Cabinet WPL 63428 Contact Us For Availability

5C

Cabnt Al WPL 63425 Contact Us For Availability

5D

Cabnt To WPL 63426 Contact Us For Availability

5E

Cabnt Pl WPL 63427 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Terminal WPL 352088 Contact Us For Availability

7

98460 Whirlpool Nut Backorder WPL 98460 $8.89

7

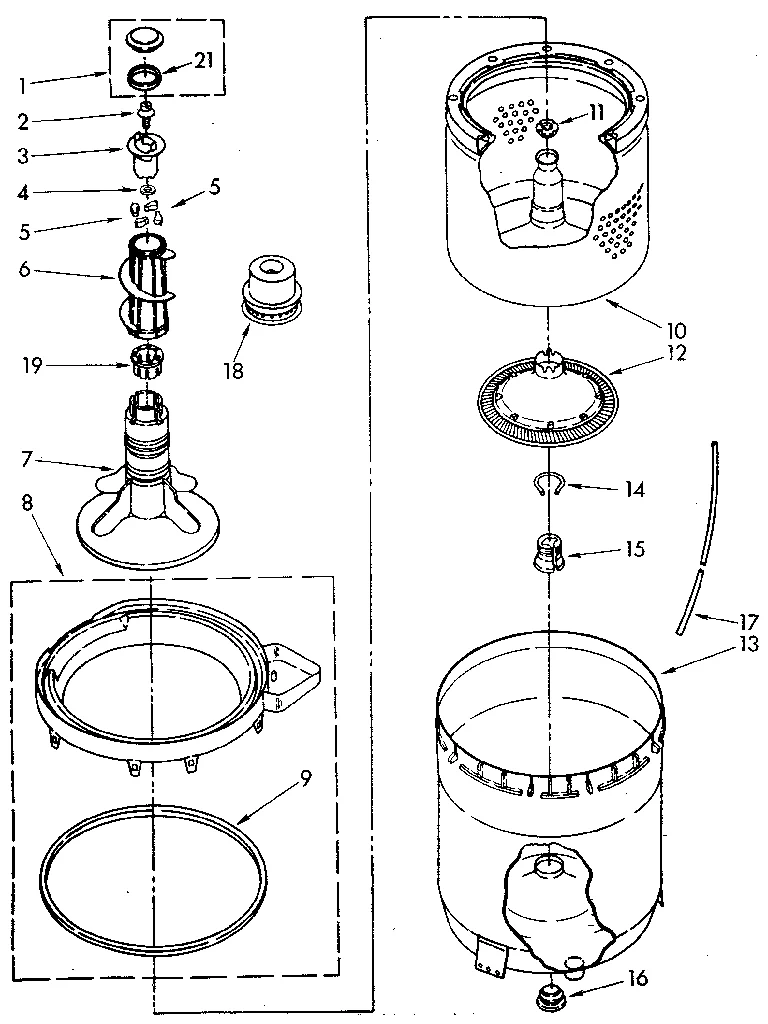

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Washer Drain Protector WPL 367031 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

8

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

8

Retaining Ring WPL 90369 Contact Us For Availability

9

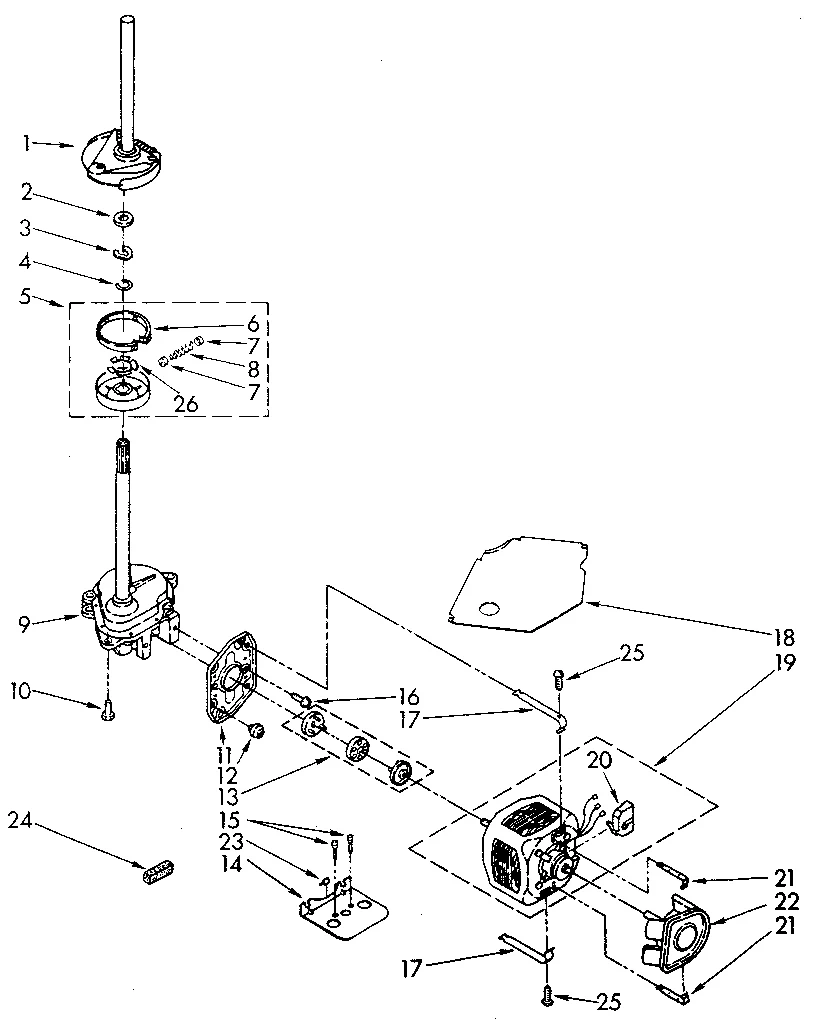

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

9

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

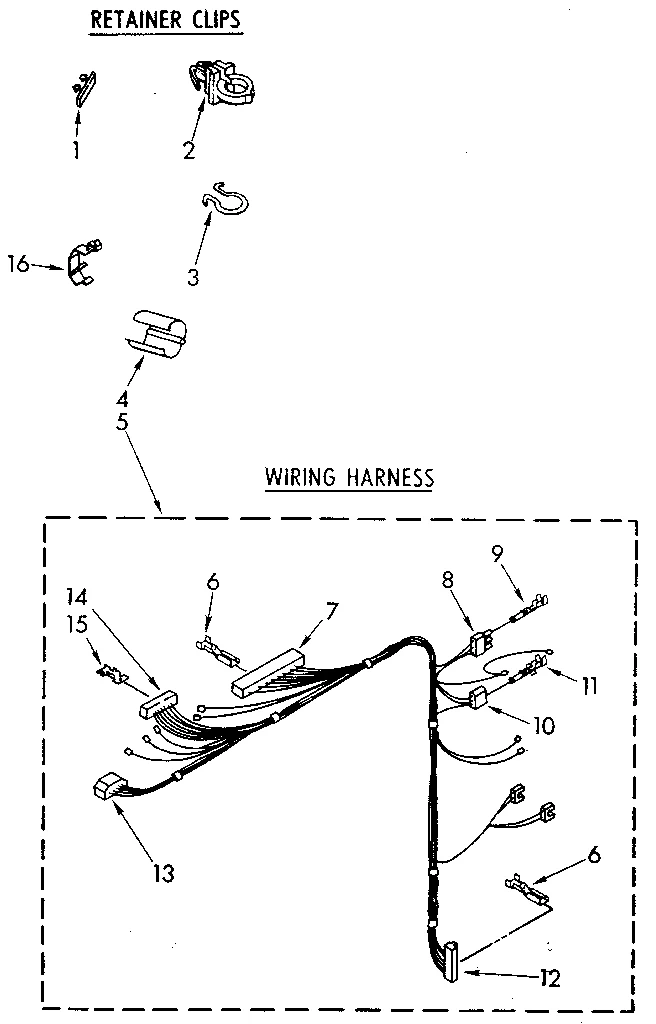

Harness WPL 388193 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Hinge Panel WPL 387402 Contact Us For Availability

Washer Terminal Connector WPL 353424 Contact Us For Availability

Spring WPL 62676 Contact Us For Availability

Screw WPL 3349491 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $4.82

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

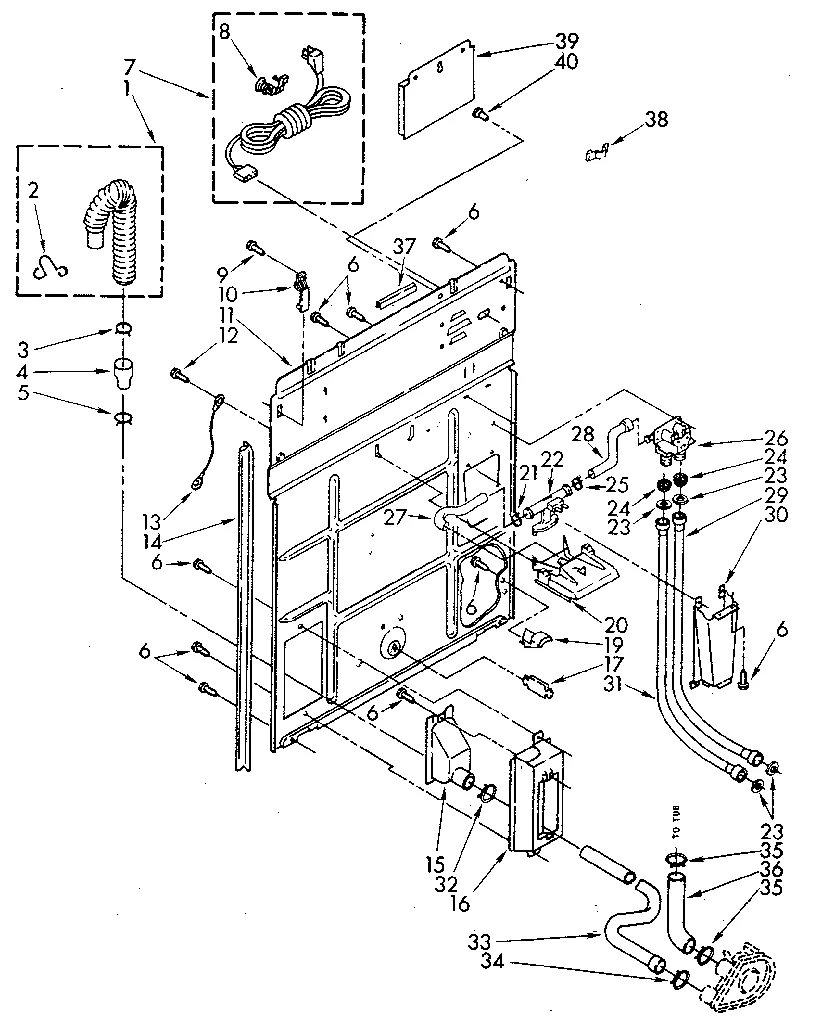

Rear Panel WPL 3349369 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Actuator WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Ground Wire WPL 364089 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

Shaft WPL 389231 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

Bracket WPL 64218 Contact Us For Availability

Washer WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $23.37

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

Washer Timer WPL 3351119 Contact Us For Availability

Pin WPL 63162 Contact Us For Availability

Gear Case WPL 389229 Contact Us For Availability

19A

Lid (White) WPL 63076 Contact Us For Availability

19B

Lid WPL 63080 Contact Us For Availability

19C

Lid (Almond) WPL 63077 Contact Us For Availability

19D

Lid WPL 385440 Contact Us For Availability

19E

Lid (Platinum) WPL 385441 Contact Us For Availability

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

Strike WPL 357141 Contact Us For Availability

Gear WPL 62528 Contact Us For Availability

Switch WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Sensor-etc WPL 3349345 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

Ring WPL 95082 Contact Us For Availability

23

Clip WPL 3349322 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

3350013 Whirlpool Foam Seal Backorder WPL 3350013 $62.14

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

Washer Kit WPL 285292 Contact Us For Availability

24A

Spring WPL 53749 Contact Us For Availability

24B

Spring WPL 53748 Contact Us For Availability

25

W11573574 Whirlpool Screw In Stock WPL W11573574 $11.38

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Plug WPL 54690 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP3355454 Whirlpool Clip Assembly In Stock WPL WP3355454 $4.82

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

27

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

Plug WPL 62888 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

Hose-etc WPL 3349366 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

30

Bracket WPL 64219 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

33

Washer Pump Drain Hose WPL 3348664 Contact Us For Availability

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

37

Protector WPL 303294 Contact Us For Availability

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

39

Rack WPL 3388908 Contact Us For Availability

40

Fastener WPL 3389802 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
