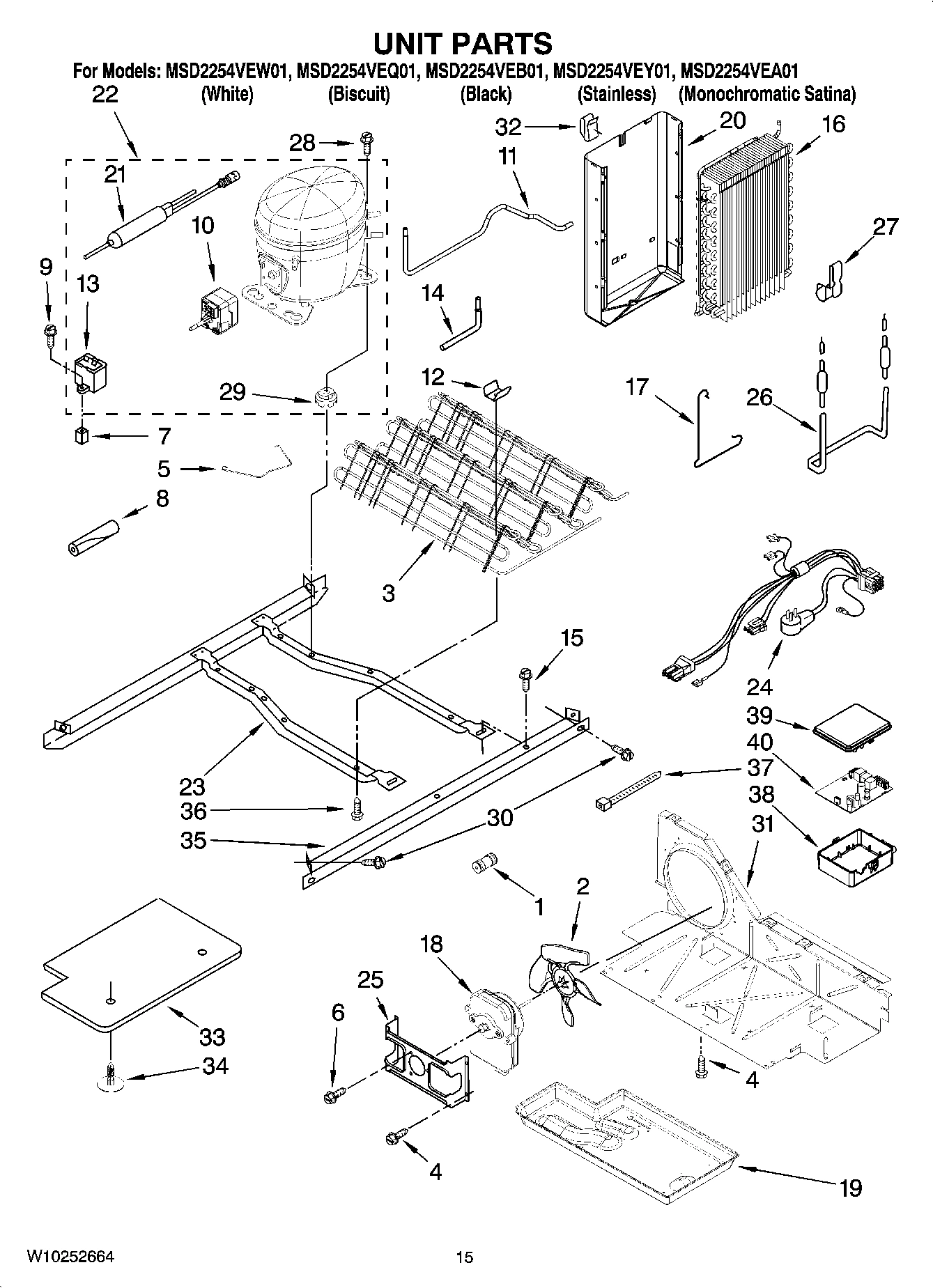

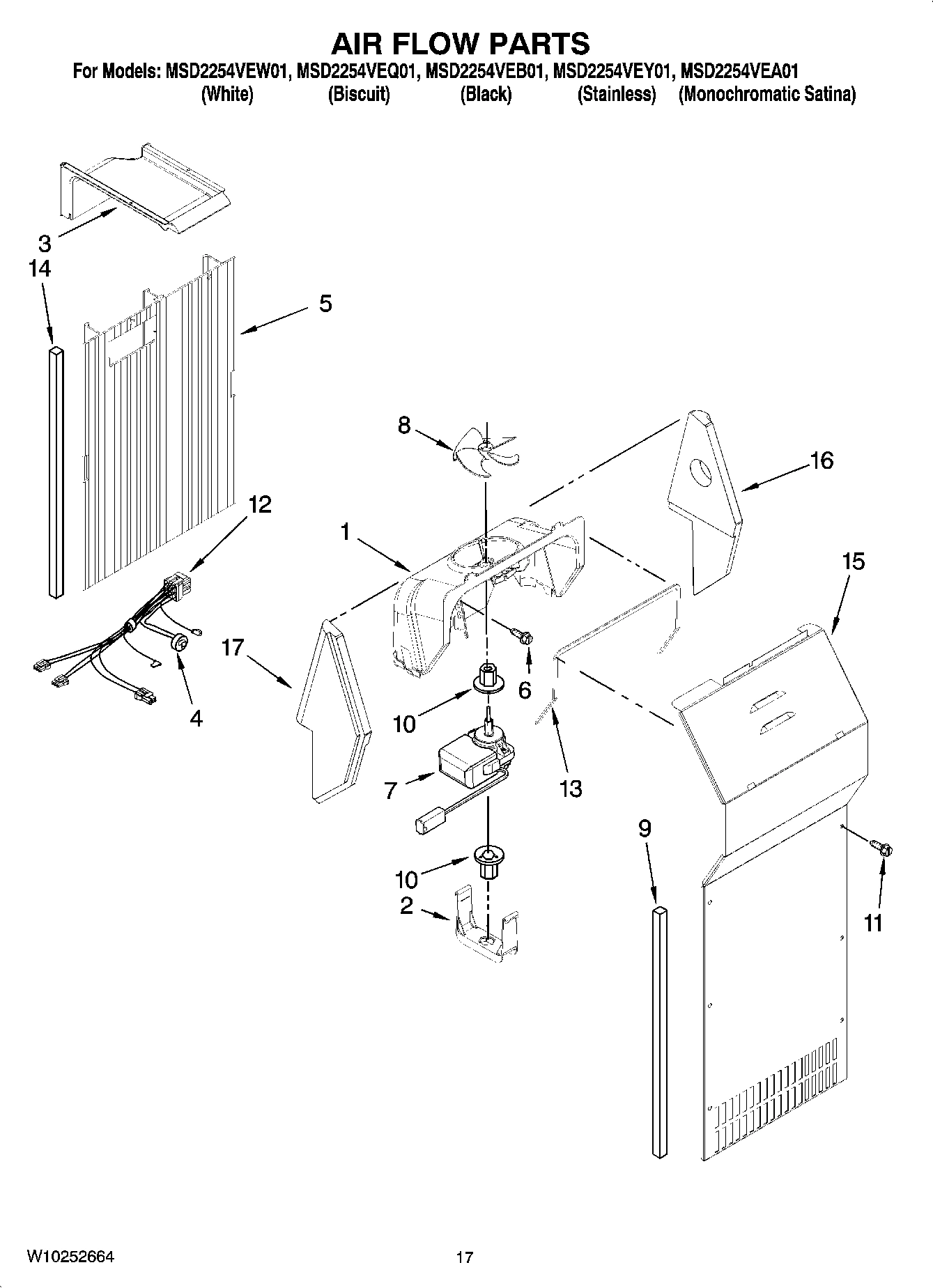

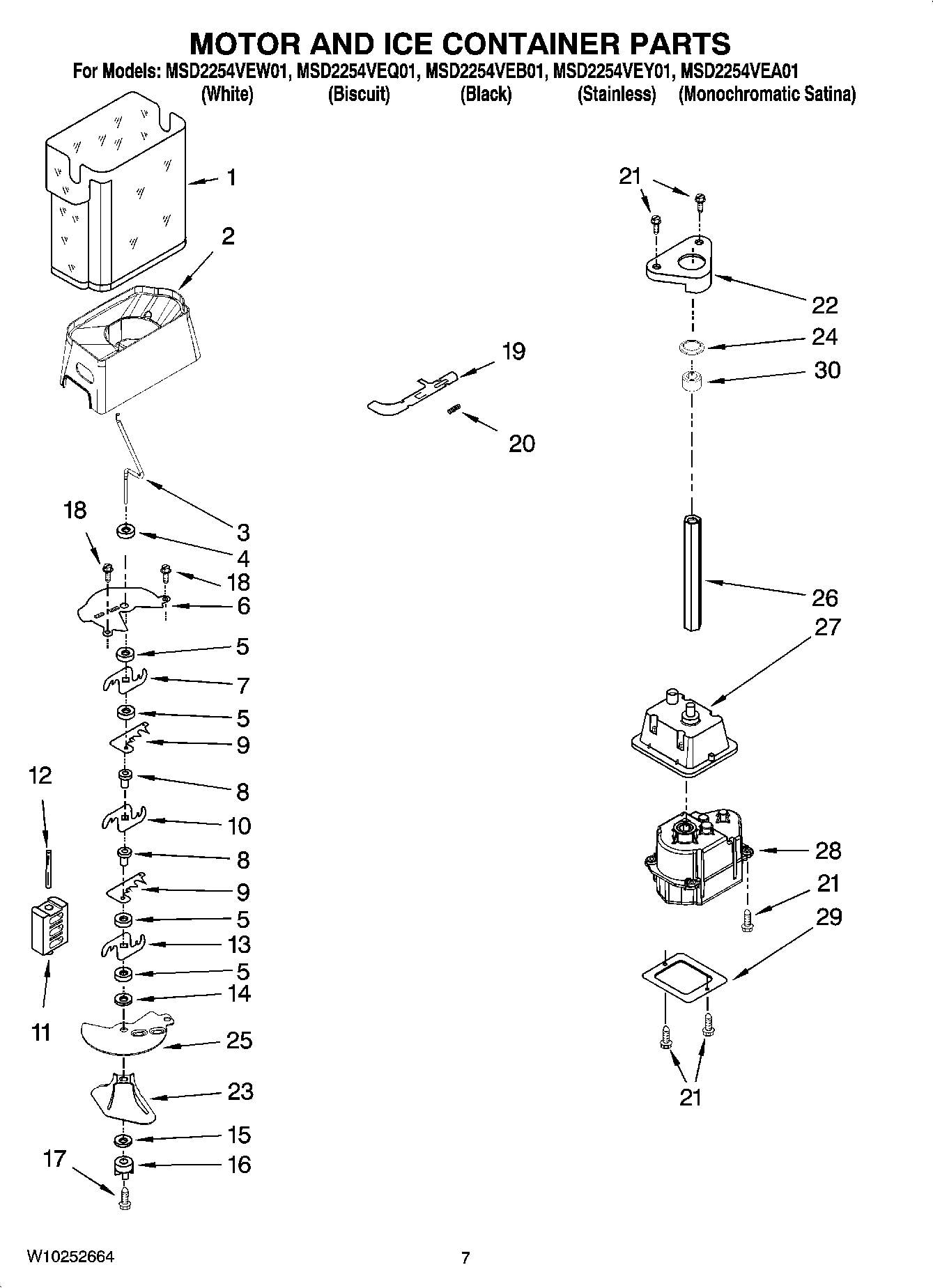

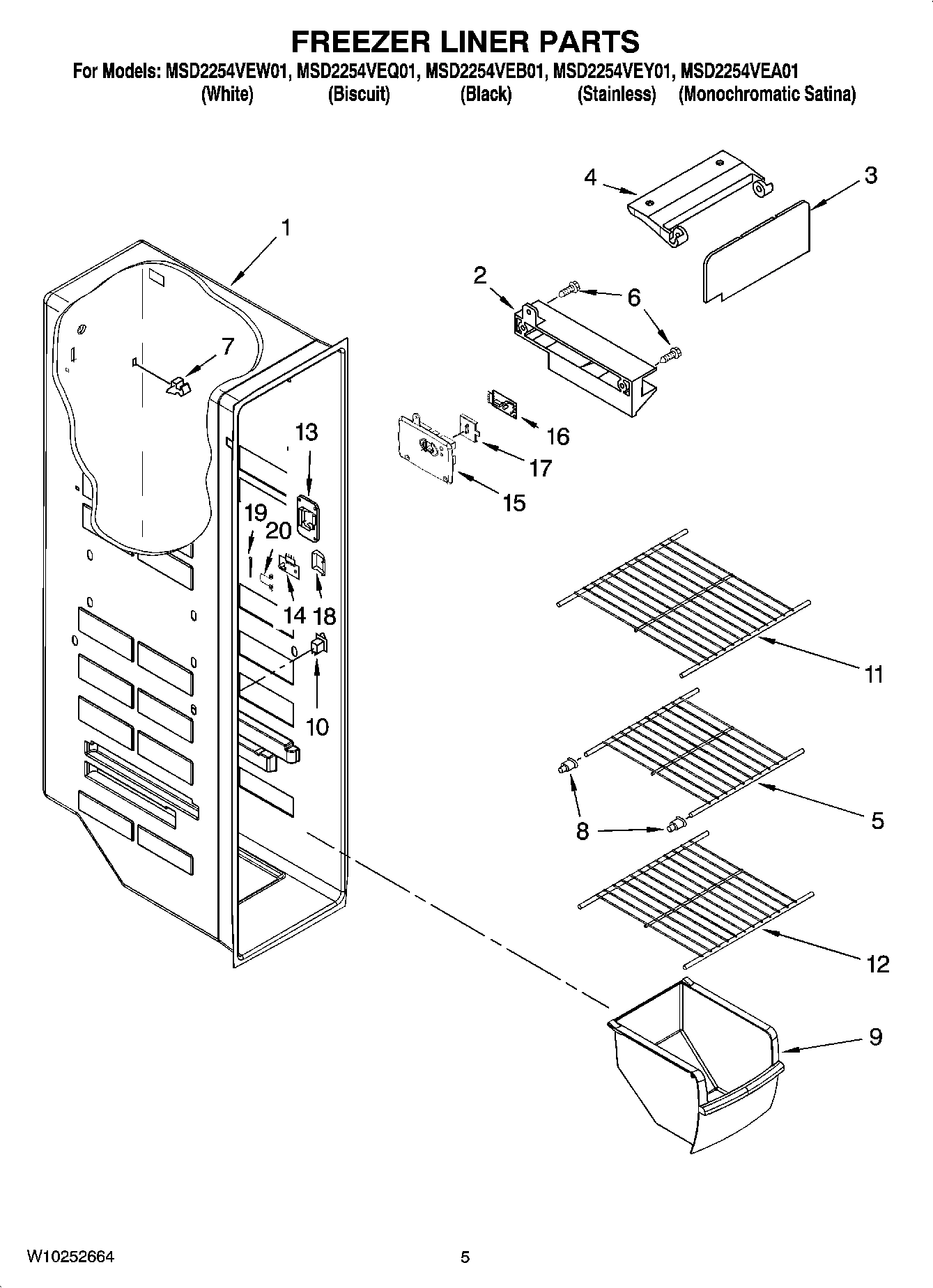

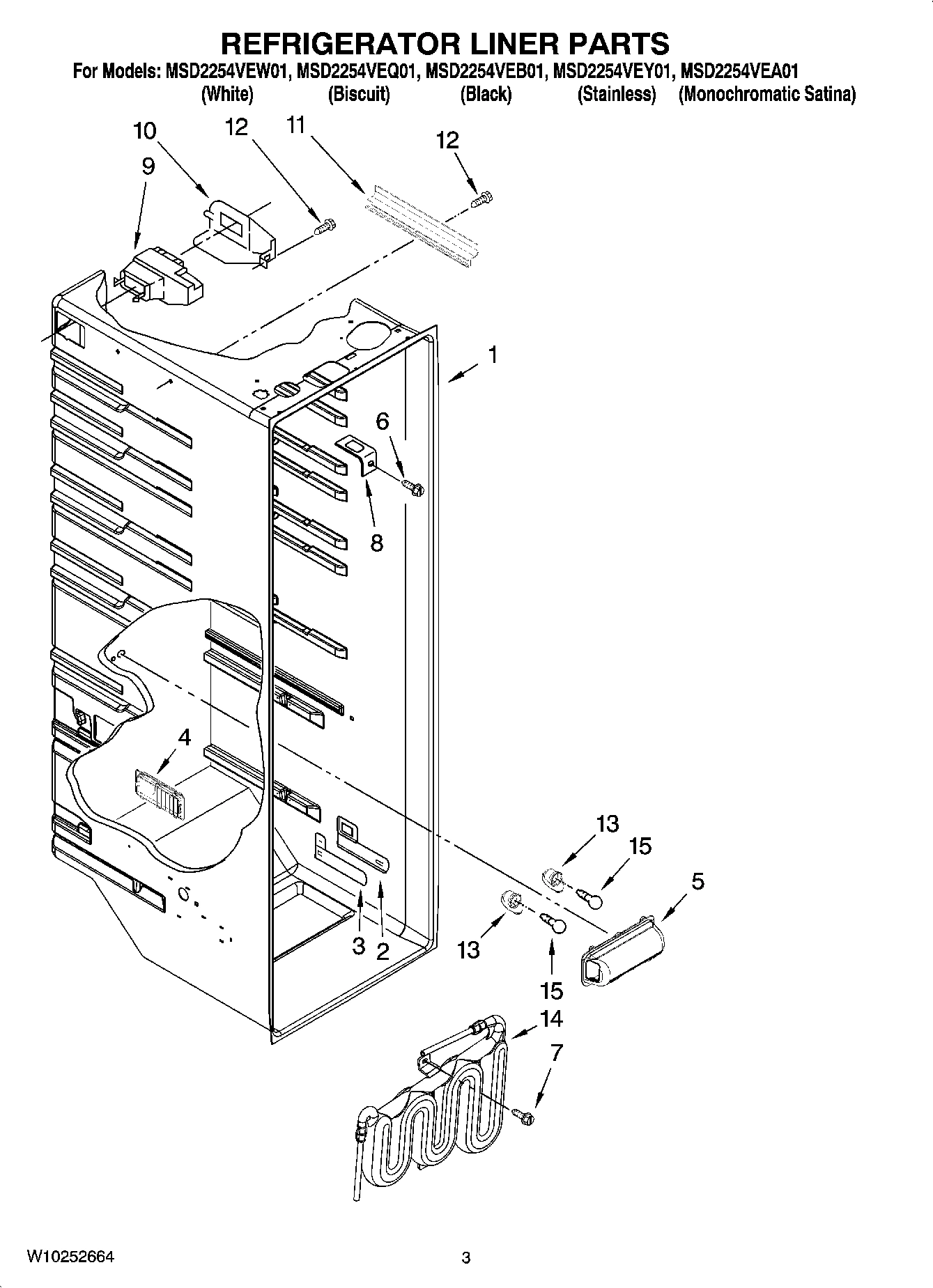

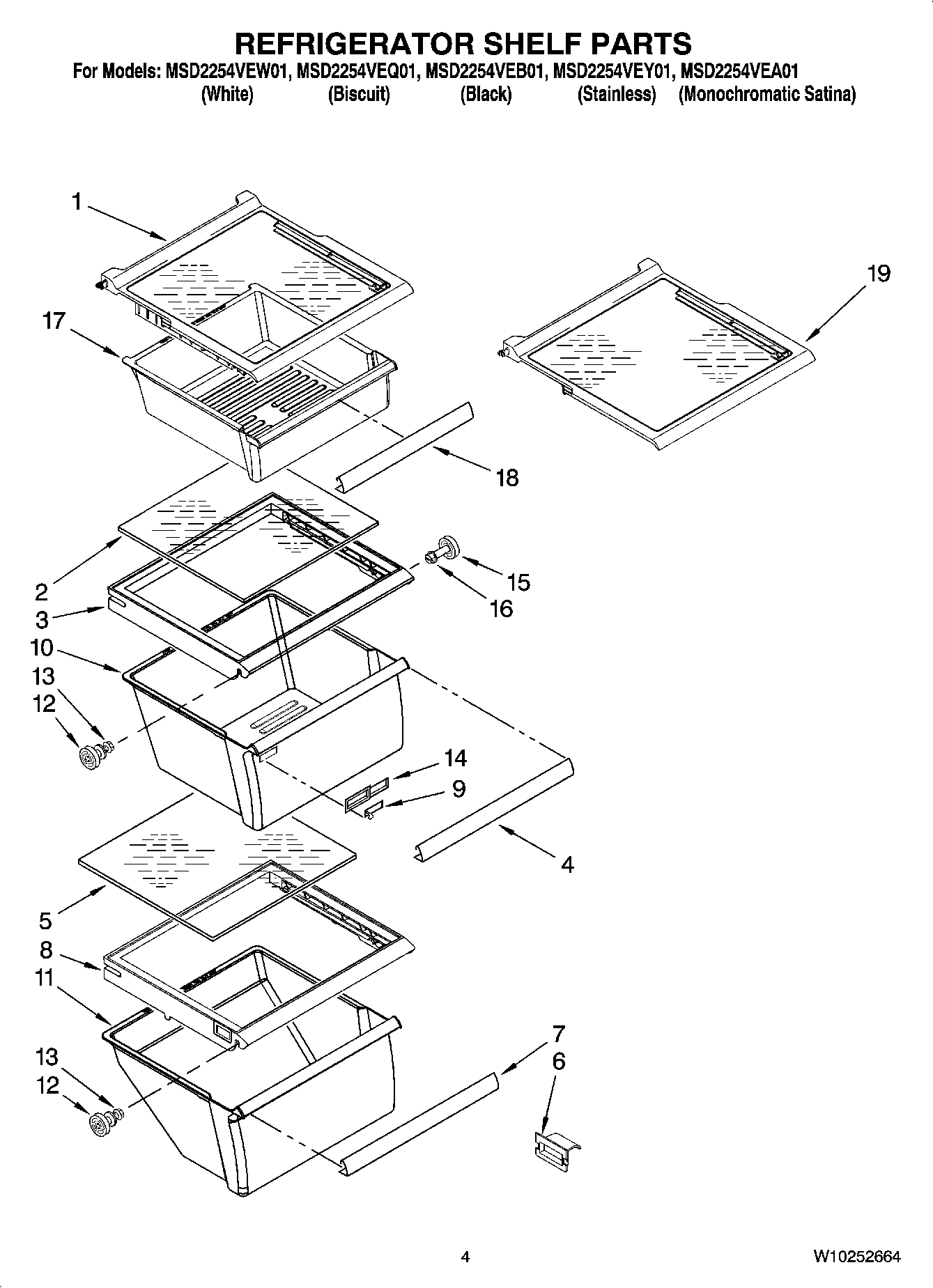

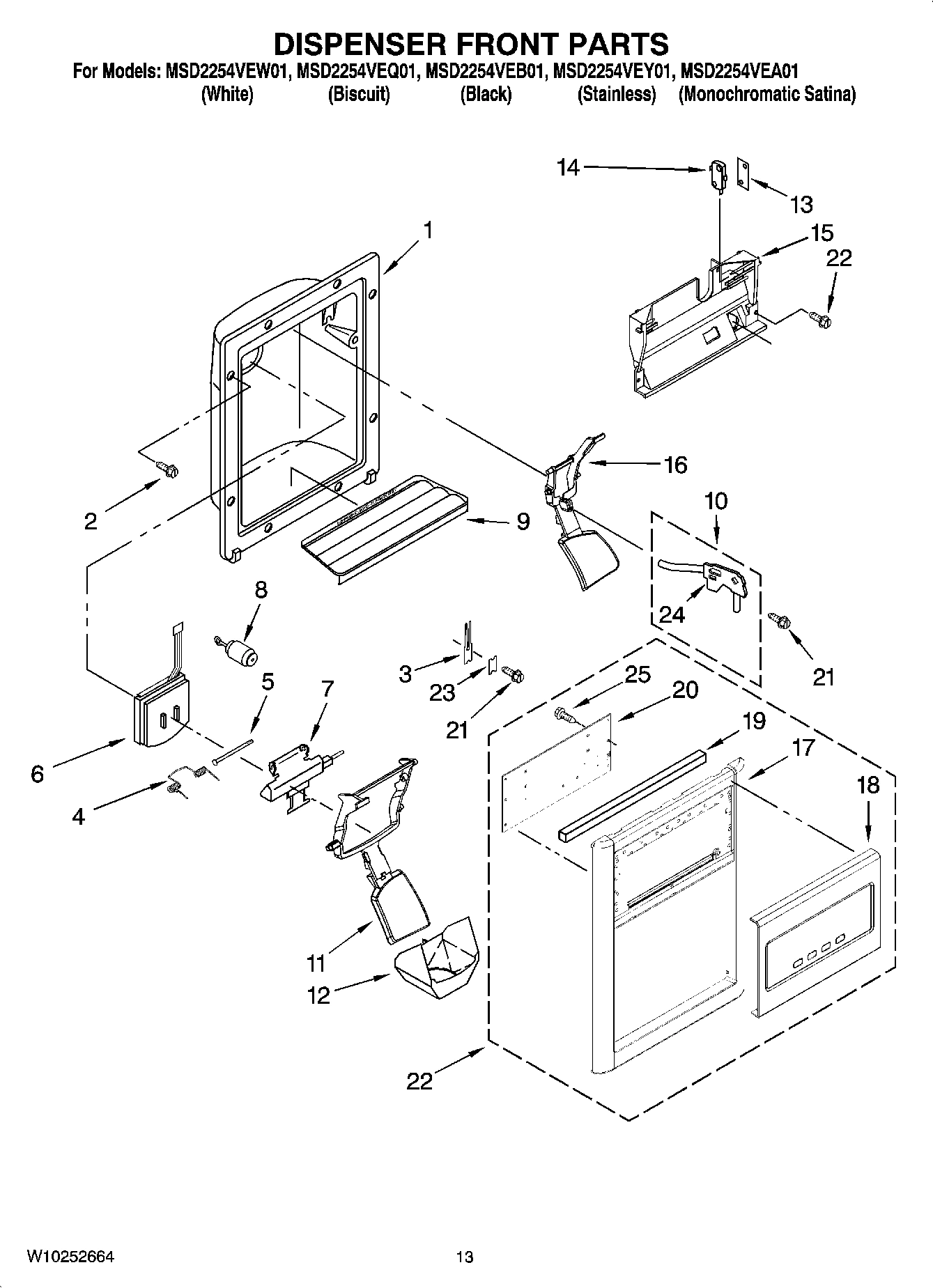

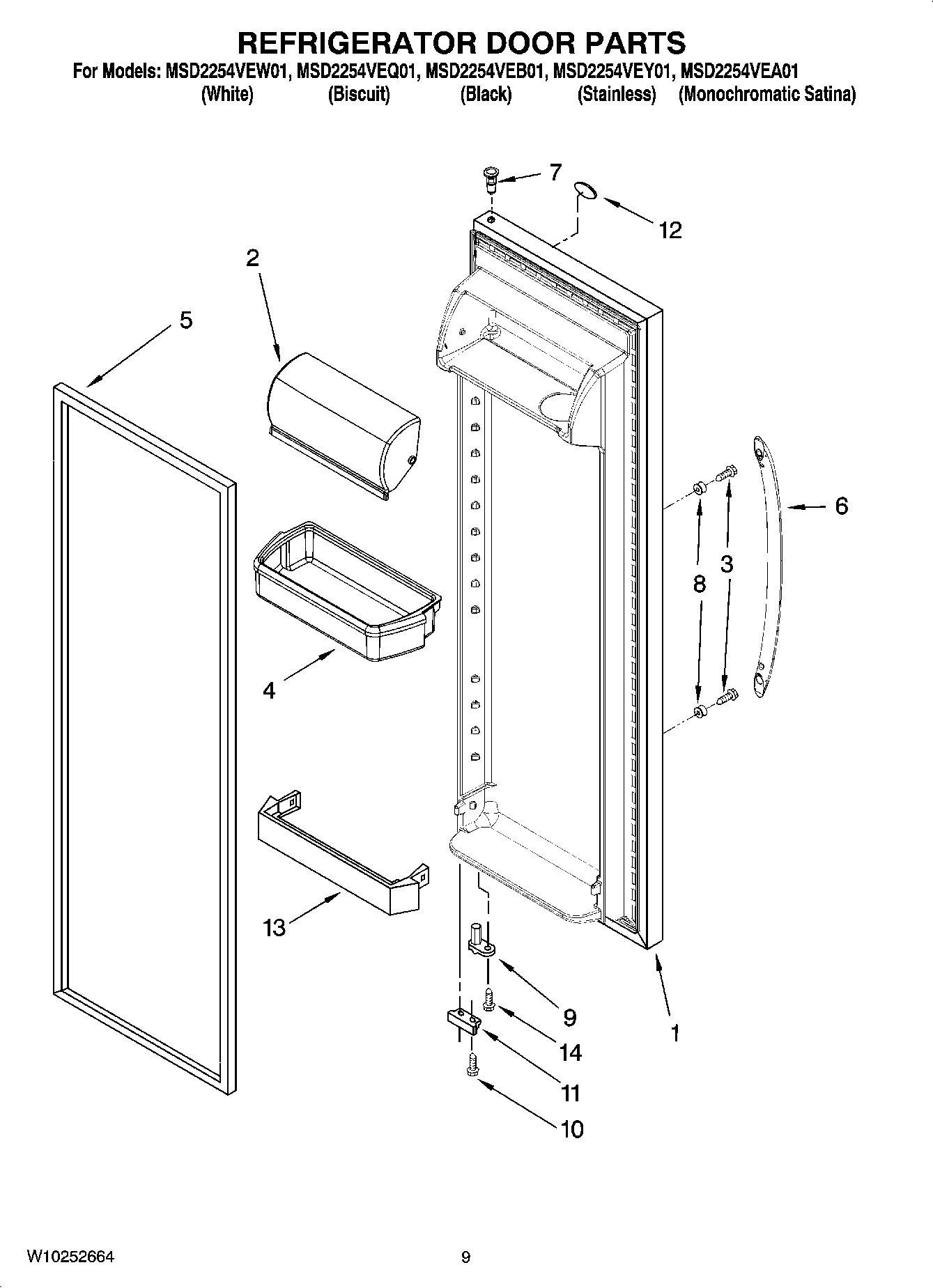

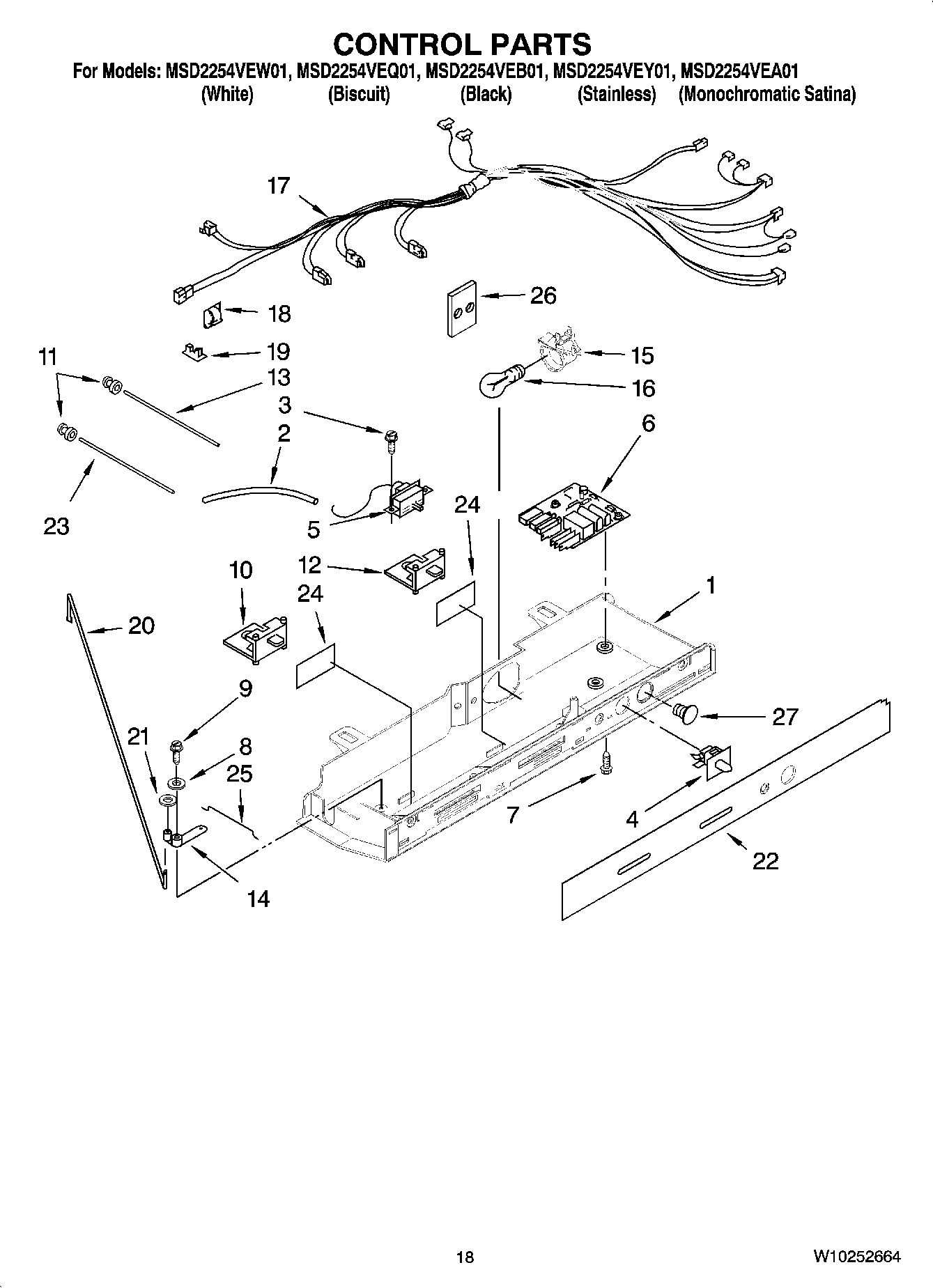

Model Whirlpool MSD2254VEB01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10141645 Whirlpool Screw Backorder WPL WPW10141645 $4.82

1

Ice Bin WPL 2317246 Contact Us For Availability

1

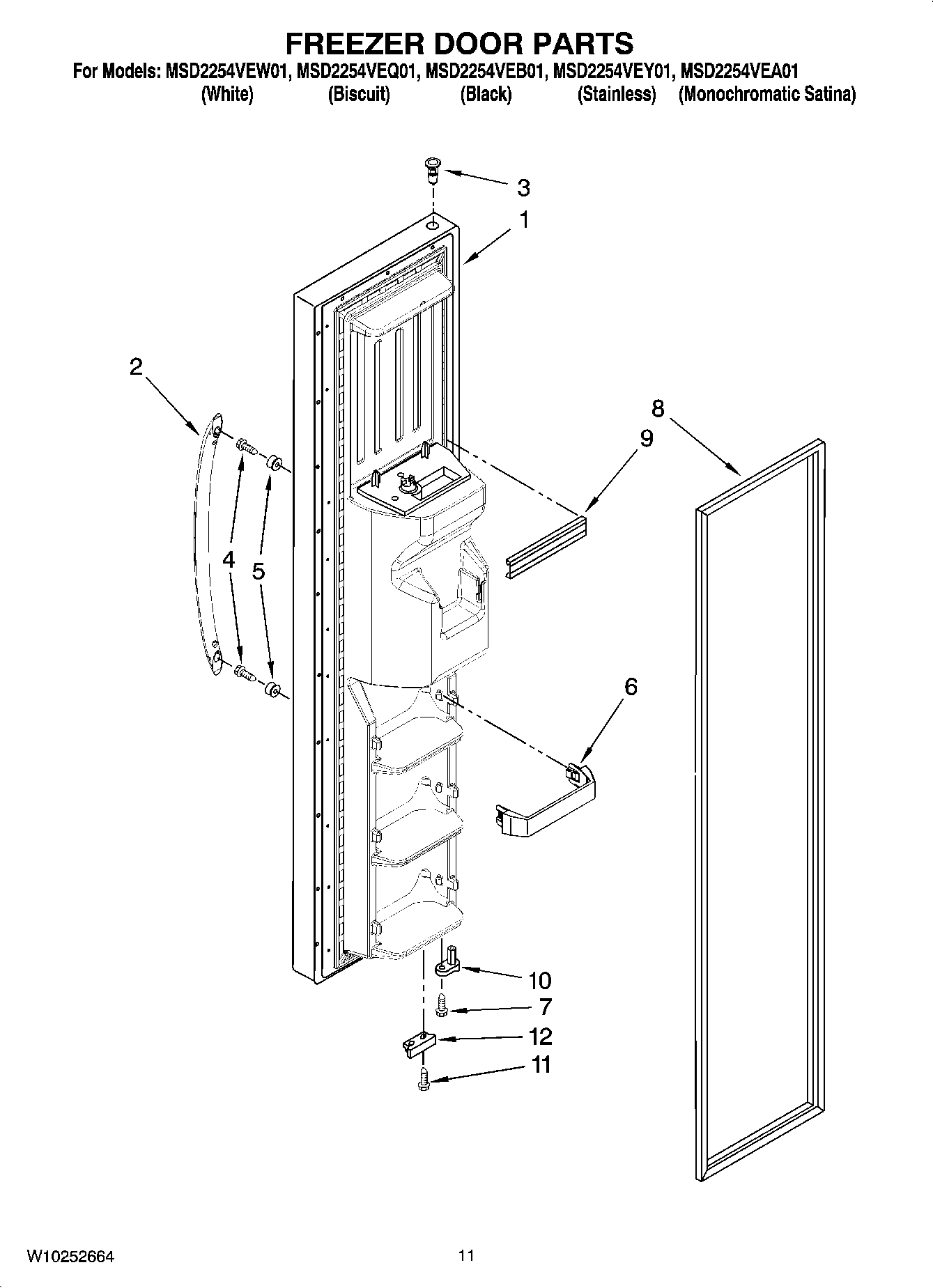

Freezer Door (Includes Item 8 And Dispenser F WPL W10175196 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10175197 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10175198 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL W10175199 Contact Us For Availability

2

13004701W Whirlpool Refrigerator Handle Backorder WPL 13004701W $127.56

2

67006982 Whirlpool Refrigerator Handle Assemb Backorder WPL 67006982 $133.79

2

W11690159 Whirlpool Handle Backorder WPL W11690159 $104.21

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.47

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

2

Slide, Ice Maker WPL 2212321 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL W10176384 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $76.47

3

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $55.46

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $5.30

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WPW10140630 Whirlpool Refrigerator Fitting Backorder WPL WPW10140630 $98.16

3

Slide Meat Pan Control WPL 2182757 Contact Us For Availability

3

Auger WPL 2317247 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.66

4

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

4

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $35.32

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Washer WPL 2258220 Contact Us For Availability

5

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $127.70

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $131.60

5

W11661170 Whirlpool Clip Backorder WPL W11661170 $7.27

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin Backorder WPL WP2196195 $12.02

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $66.48

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $7.53

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $6.02

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $13.85

6

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $41.24

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $61.38

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $158.40

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $106.10

8

2159080 Whirlpool Refrigerator Door Gasket Backorder WPL 2159080 $234.64

8

W10136733 Whirlpool Refrigerator FIP Gasket In Stock WPL W10136733 $141.20

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $78.64

8

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.70

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $42.58

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $49.30

9

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $93.28

9

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $153.06

9

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $93.61

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $74.56

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $55.67

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.34

W10210787 Whirlpool Refrigerator Tube Backorder WPL W10210787 $179.97

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP489483 Whirlpool Screw Backorder WPL WP489483 $7.61

Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $53.90

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $15.02

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $16.88

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

Bracket, Door Stop (Chrome) WPL 2323534 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $61.31

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $60.17

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $71.95

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $67.28

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $61.18

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $14.27

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

Washer, Plain WPL 489235 Contact Us For Availability

Pivot Arm WPL 2161306 Contact Us For Availability

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $6.50

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

Cover, Receiver WPL W10173569 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL W10207507 Contact Us For Availability

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $70.27

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $15.02

W11629923 Whirlpool Coupling In Stock WPL W11629923 $23.13

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $221.06

Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $233.07

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $39.49

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.49

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $6.32

18

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $17.66

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

18

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $96.51

19

2317274 Whirlpool Refrigerator Bin Latch Backorder WPL 2317274 $74.26

19

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

19

Bracket, Mounting WPL W10131253 Contact Us For Availability

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $102.30

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $91.35

Control Board, LCD WPL 2321748 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $6.02

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $6.02

Grille (White) WPL W10184869 Contact Us For Availability

Grille (Black) WPL W10184880 Contact Us For Availability

Motor (Not Serviced, Order 20) WPL ARI5738A62 Contact Us For Availability

23

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

23

Wiper WPL 2317243 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $17.54

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $8.29

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $88.99

CONNECTING ROD, SHORT WPL 2161307 Contact Us For Availability

26

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

26

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $72.59

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

27

Enclosure, Motor WPL 2322488 Contact Us For Availability

27

Clip (2) WPL 2161324 Contact Us For Availability

28

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $110.89

29

Cover WPL 2212305 Contact Us For Availability

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $32.02

30

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $46.37

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $23.69

31

Air Baffle WPL W10163483 Contact Us For Availability

34

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

41

WPL 2223751 WPL 2223751 Contact Us For Availability

100

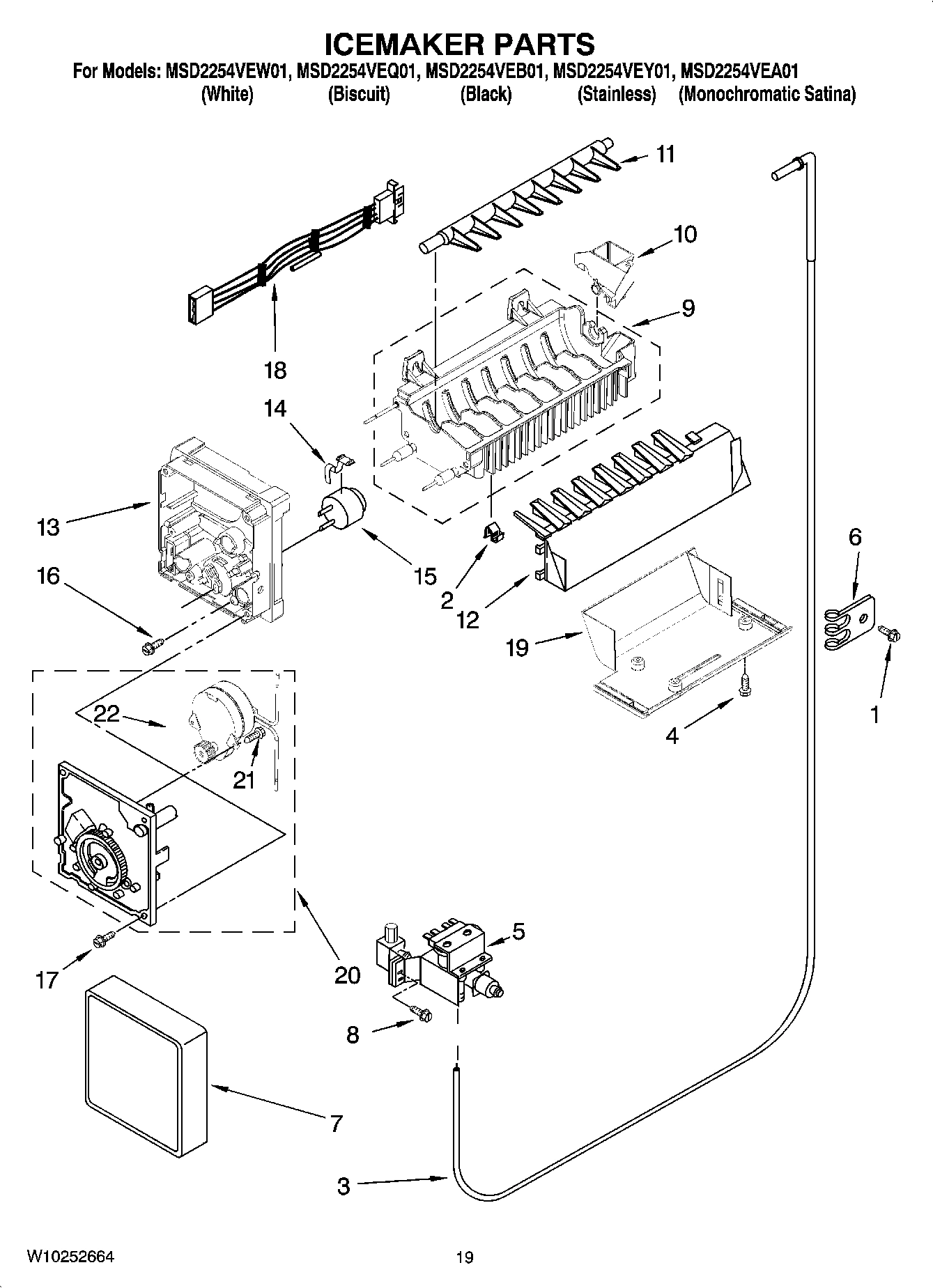

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $157.86

100

Ice Container (Complete) WPL W10204457 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.41

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $20.75

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $56.75

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 qt.) (Biscuit) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black) WPL 799340 Contact Us For Availability

Kit, Evaporator Repair (Aluminum Epoxy) WPL 799833 Contact Us For Availability

PAINT, BULK ( WPL 8171358 Contact Us For Availability

WPL ARI5739A93 WPL ARI5739A93 Contact Us For Availability

WPL ARI5740A57 WPL ARI5740A57 Contact Us For Availability

WPL ARI5741A56 WPL ARI5741A56 Contact Us For Availability
