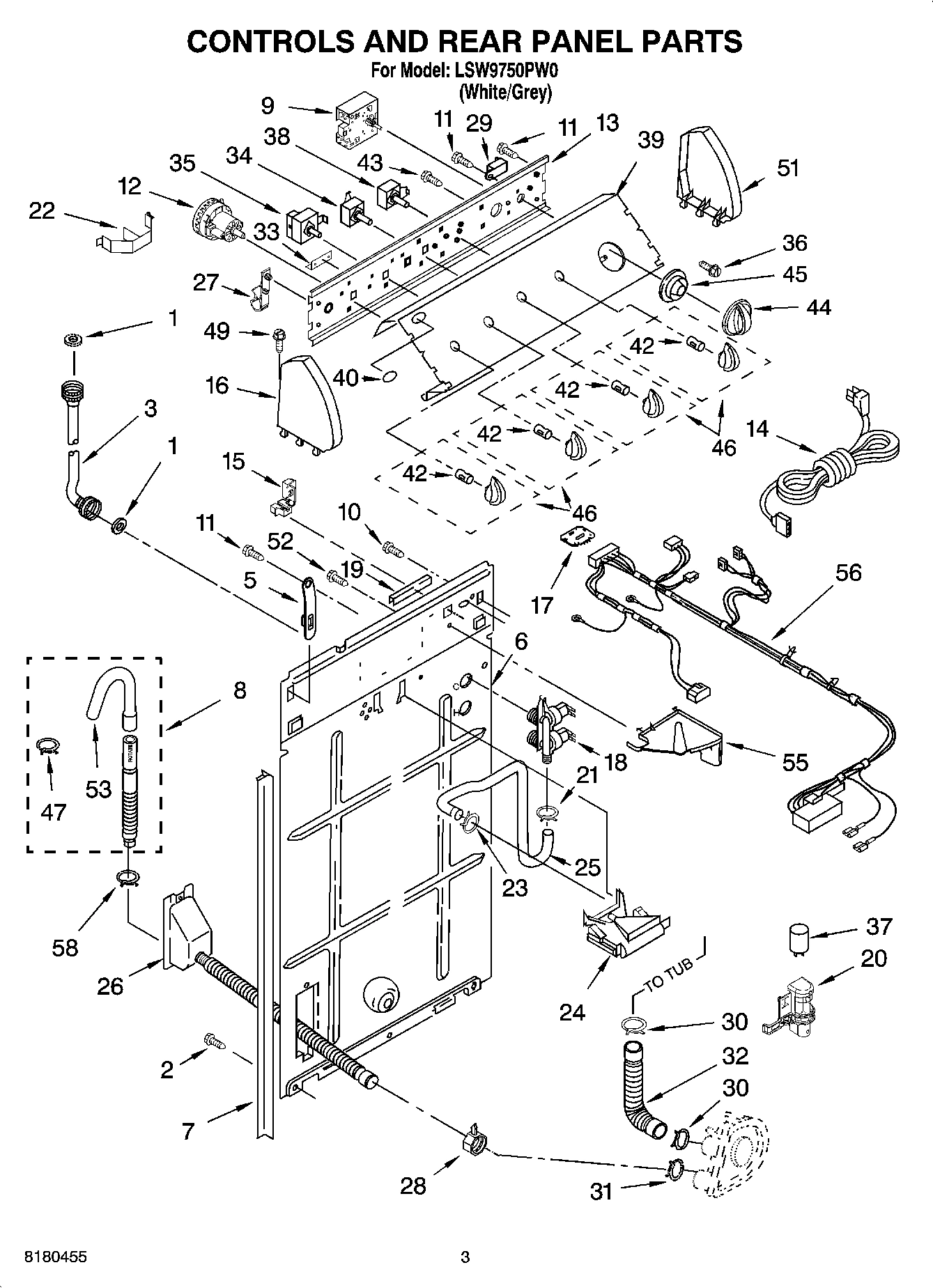

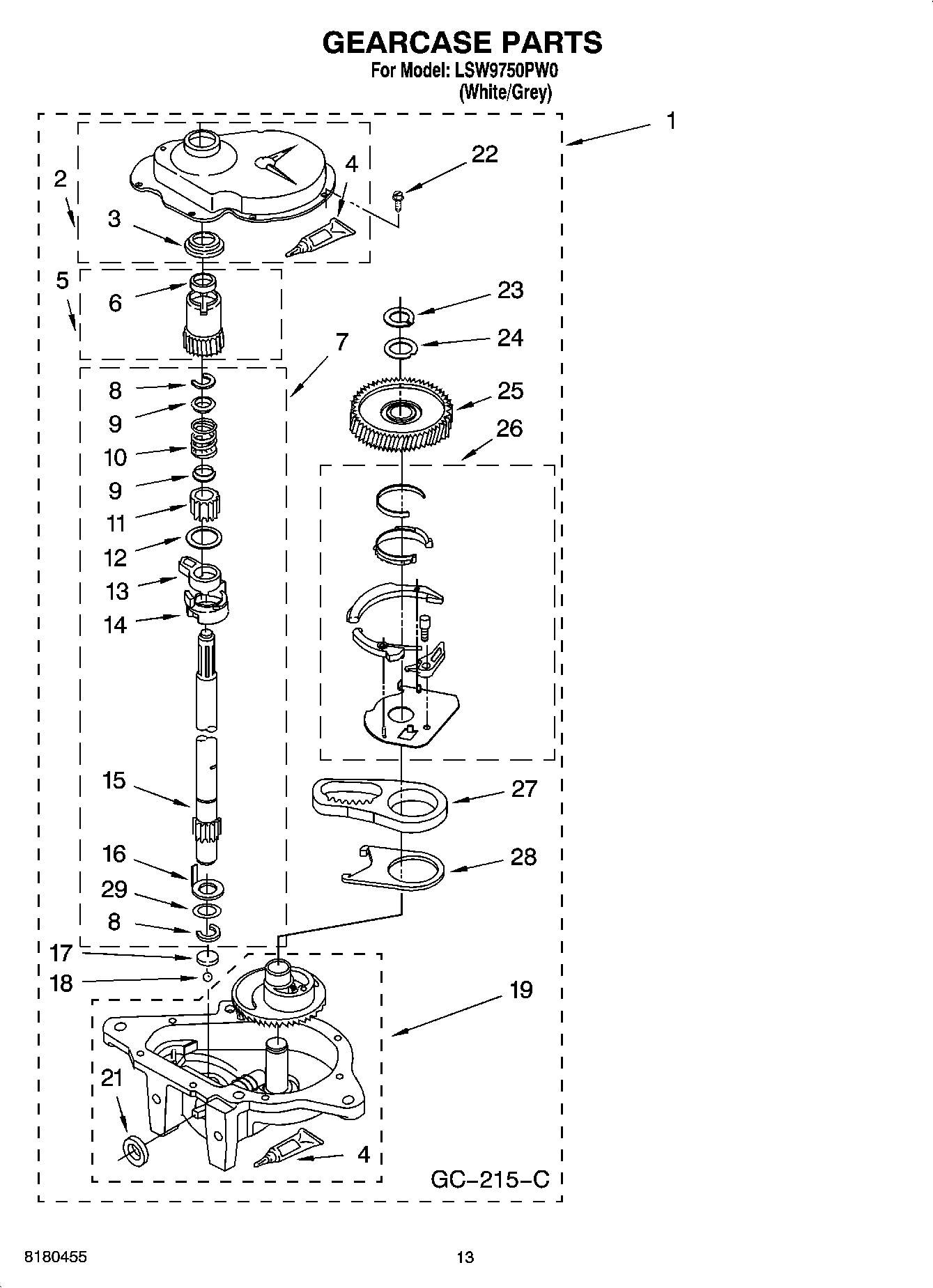

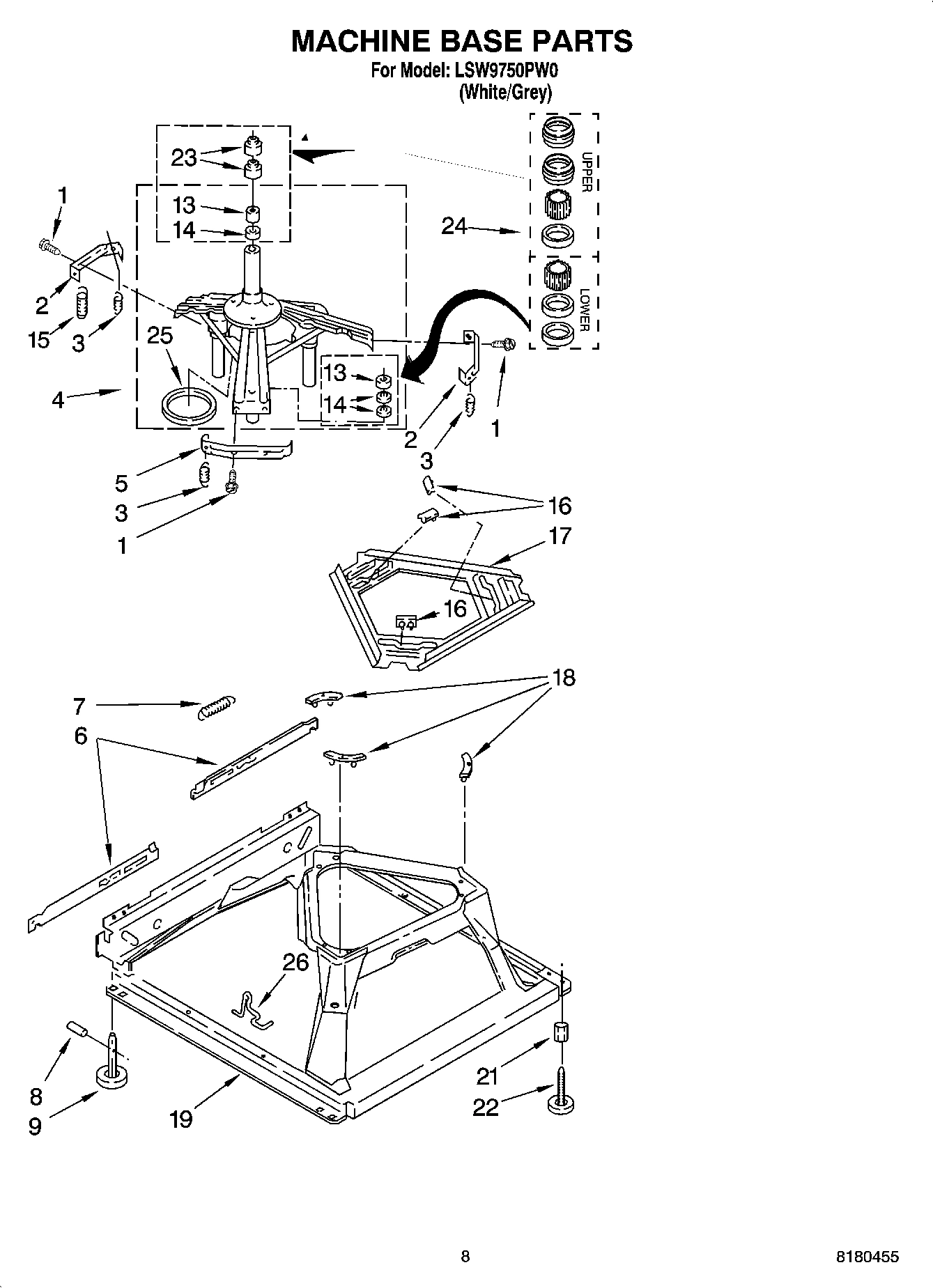

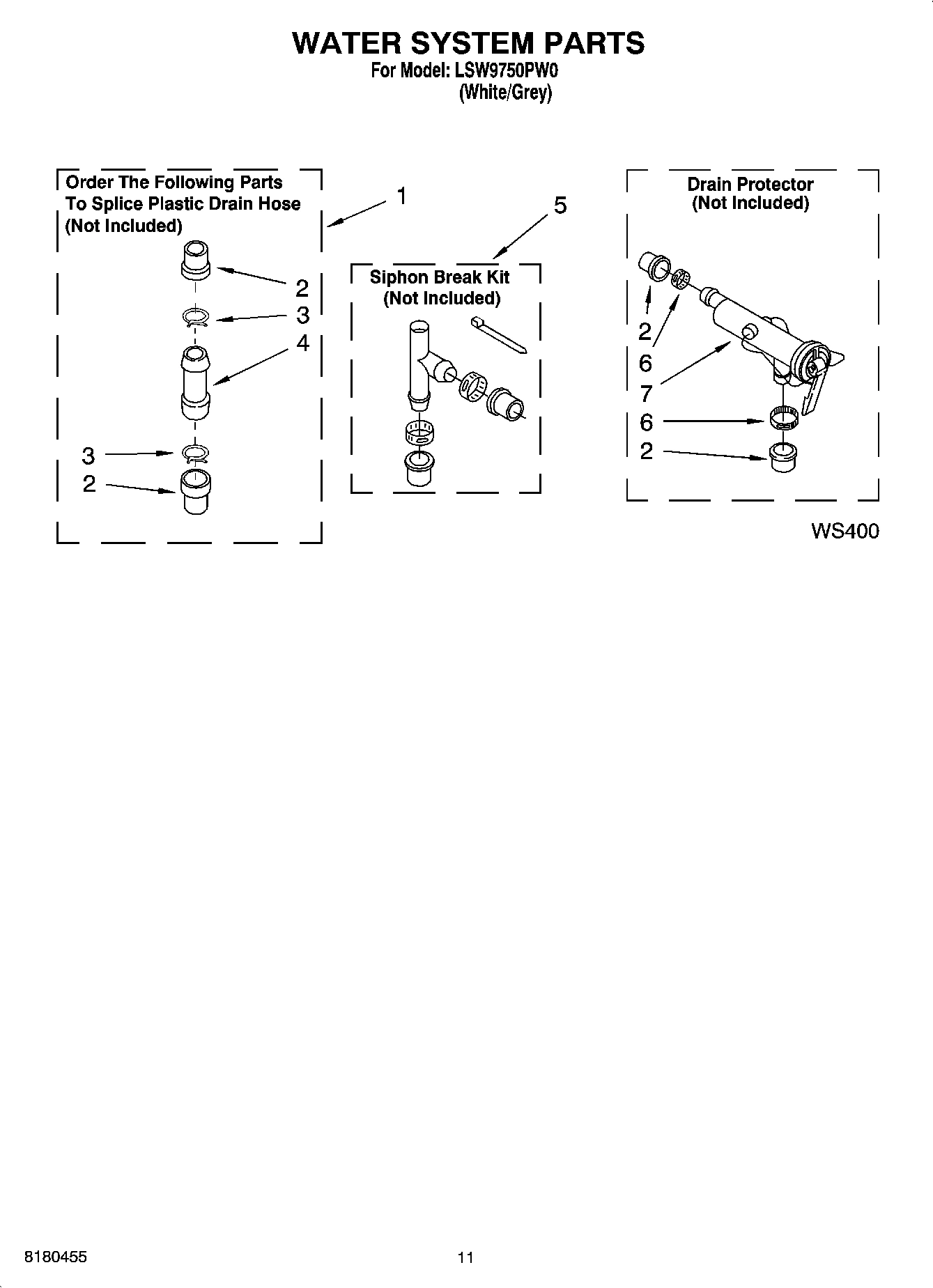

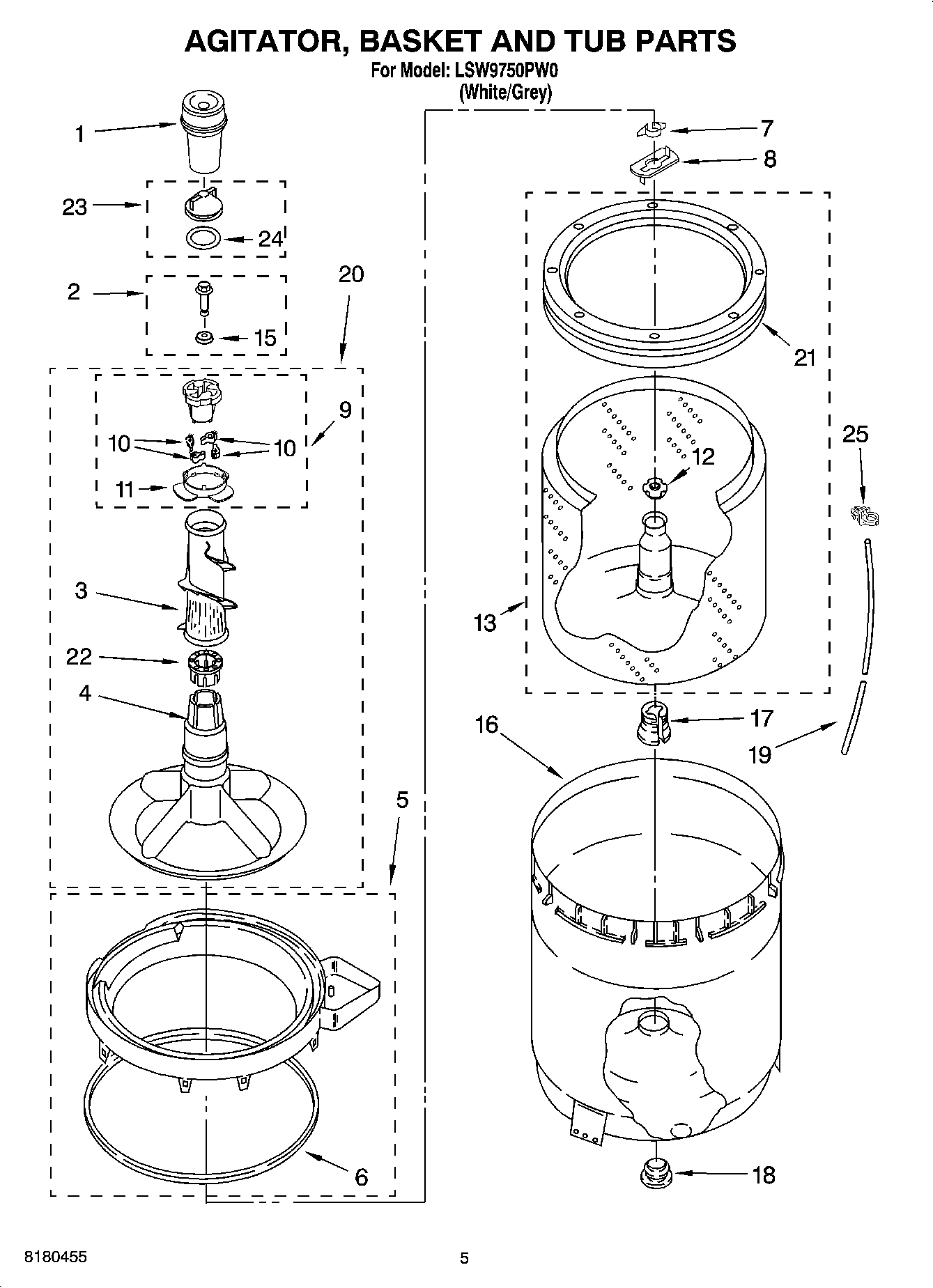

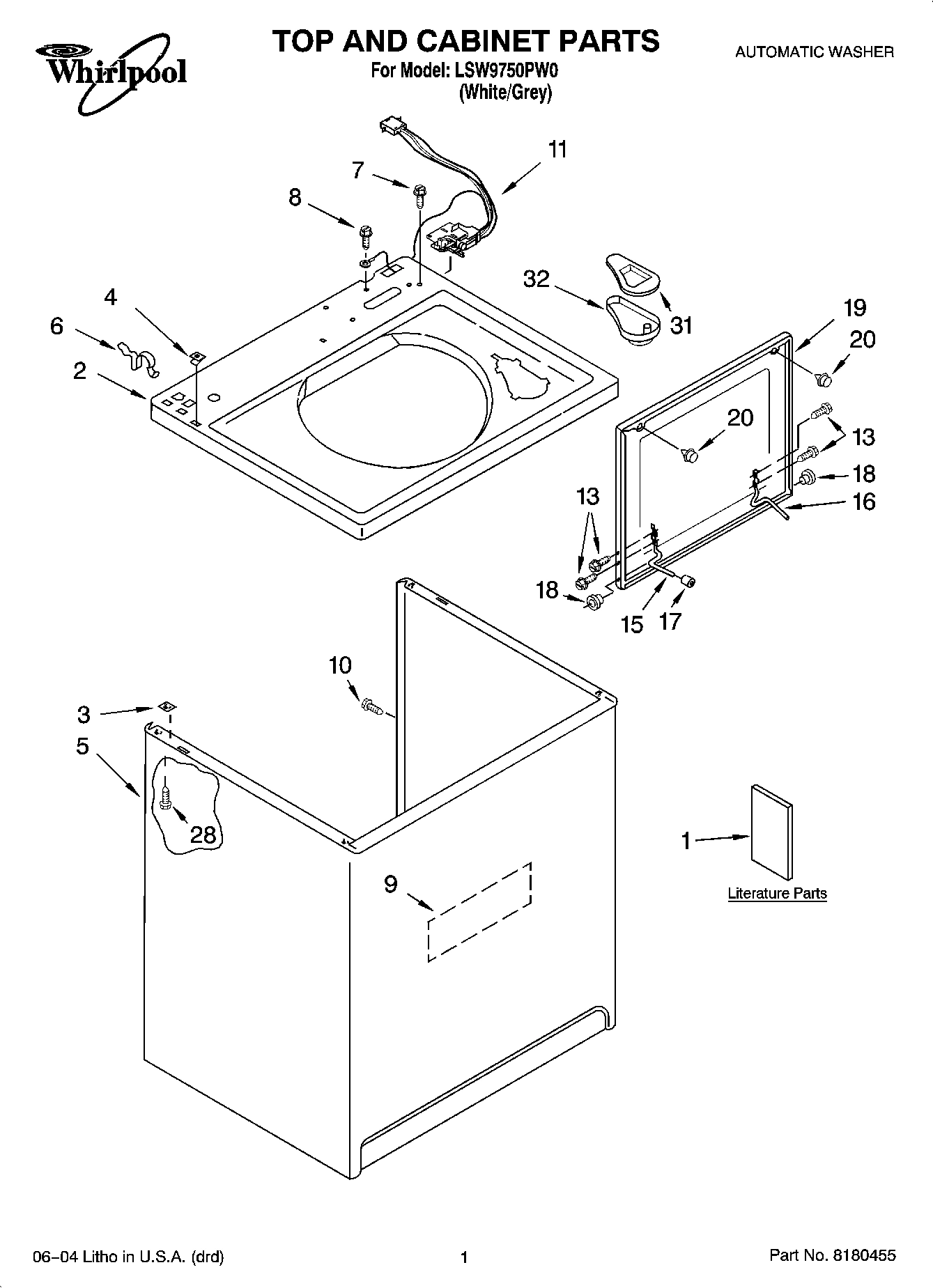

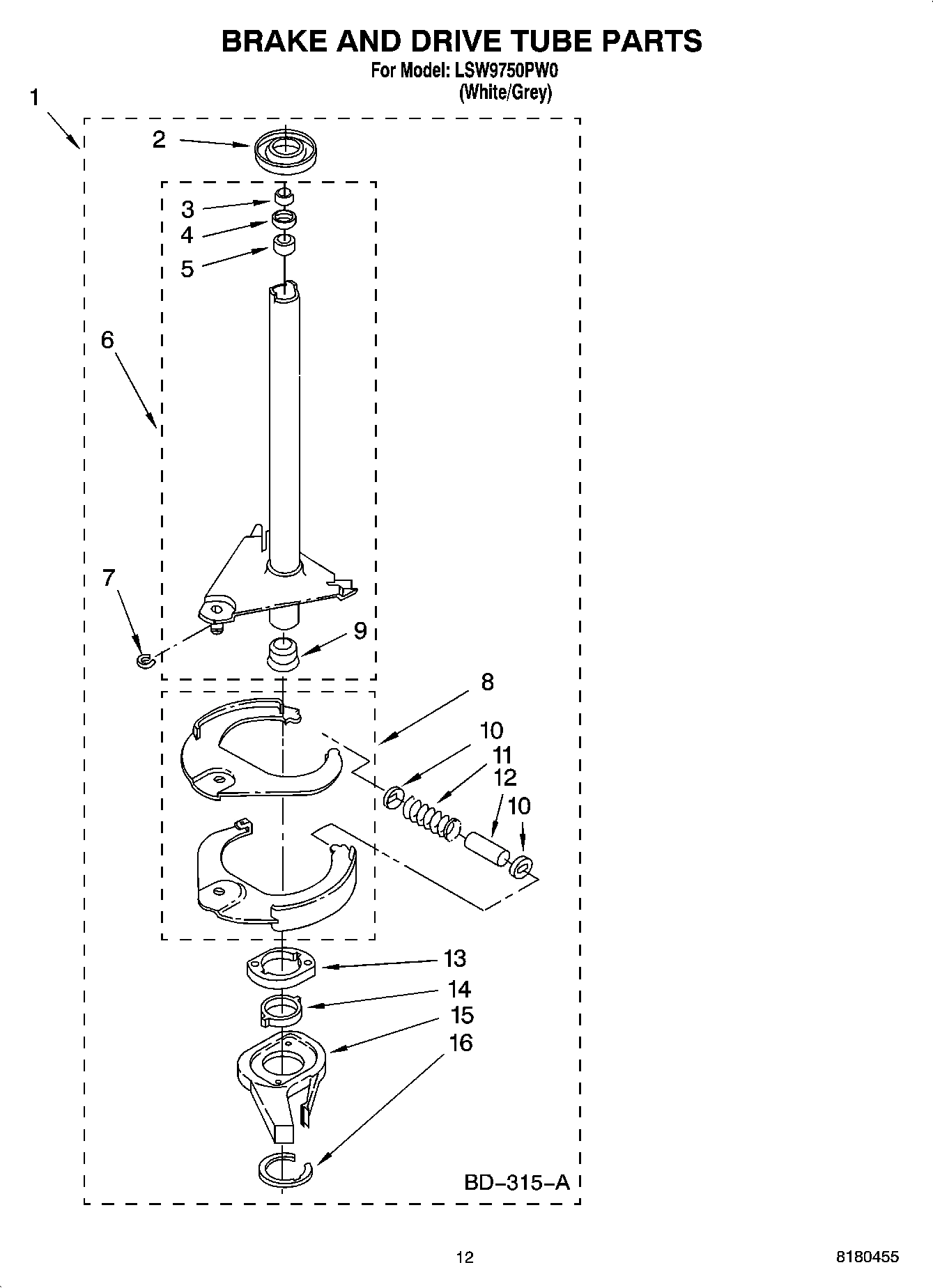

Model Whirlpool LSW9750PW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

PAINT, BULK ( WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

WPL ARI158807A WPL ARI158807A Contact Us For Availability

WPL ARI158808A WPL ARI158808A Contact Us For Availability

WPL ARI158809A WPL ARI158809A Contact Us For Availability

WPL ARI158810A WPL ARI158810A Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Do-It-Yourself Manual (Washer) WPL 4313896 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $222.60

6

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8557301 Whirlpool Timer In Stock WPL WP8557301 $288.78

9

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

10

353424 Whirlpool Connector Backorder WPL 353424 $14.02

10

Spring, Agitate WPL 62676 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

11

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Switch, Water Level WPL 8528337 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

Bracket, Control WPL 8544893 Contact Us For Availability

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14

Cord, Power (Includes Item 15) WPL 661661 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

16

Cap, End (L.H.) WPL 8271365 Contact Us For Availability

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Control-ATC WPL 3955787 Contact Us For Availability

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

18

WP3979346 Whirlpool Water Inlet Valve In Stock WPL WP3979346 $51.99

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

19

Edge Protector WPL 303294 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Clip, Capacitor WPL 8318046 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $52.99

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $13.45

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

Retainer, Harness WPL 8317975 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Shield, ATC WPL 8316039 Contact Us For Availability

34

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $92.01

35

Switch, Water Temperature WPL 8557872 Contact Us For Availability

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

38

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $107.37

39

Panel, Console WPL 3956610 Contact Us For Availability

40

Medallion WPL 3400985 Contact Us For Availability

42

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

43

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

44

Knob, Timer WPL 8544945 Contact Us For Availability

45

WP8544947 Whirlpool Dial Backorder WPL WP8544947 $50.35

46

Knob, Control WPL 8544937 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

Cap, End (R.H.) WPL 8271359 Contact Us For Availability

52

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

53

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

55

Shield, Suds WPL 8539874 Contact Us For Availability

56

Harness, Wiring (For Detail See Pages 9 & 10) WPL 3957016 Contact Us For Availability
