Model Whirlpool LSR8433KQ2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

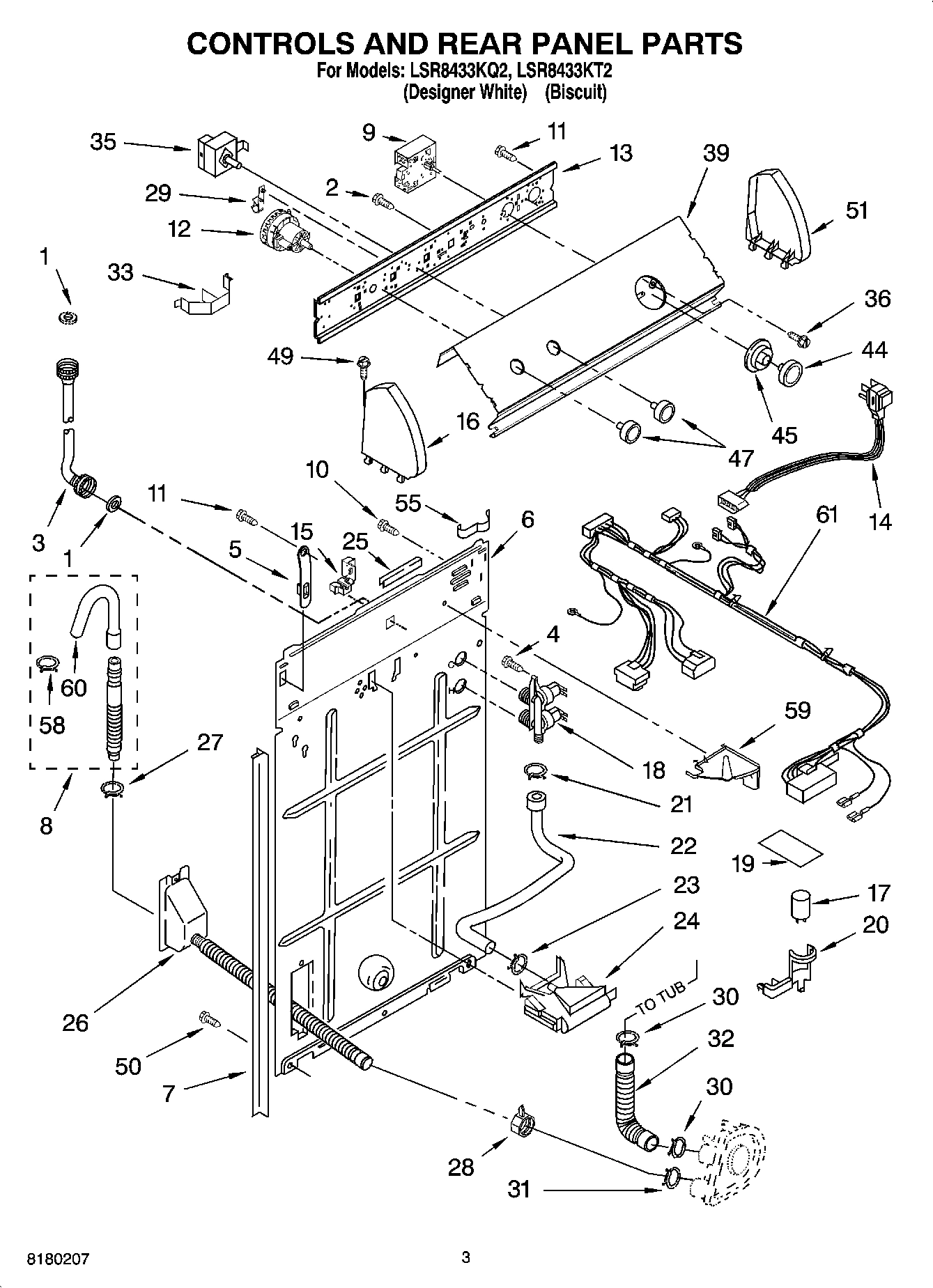

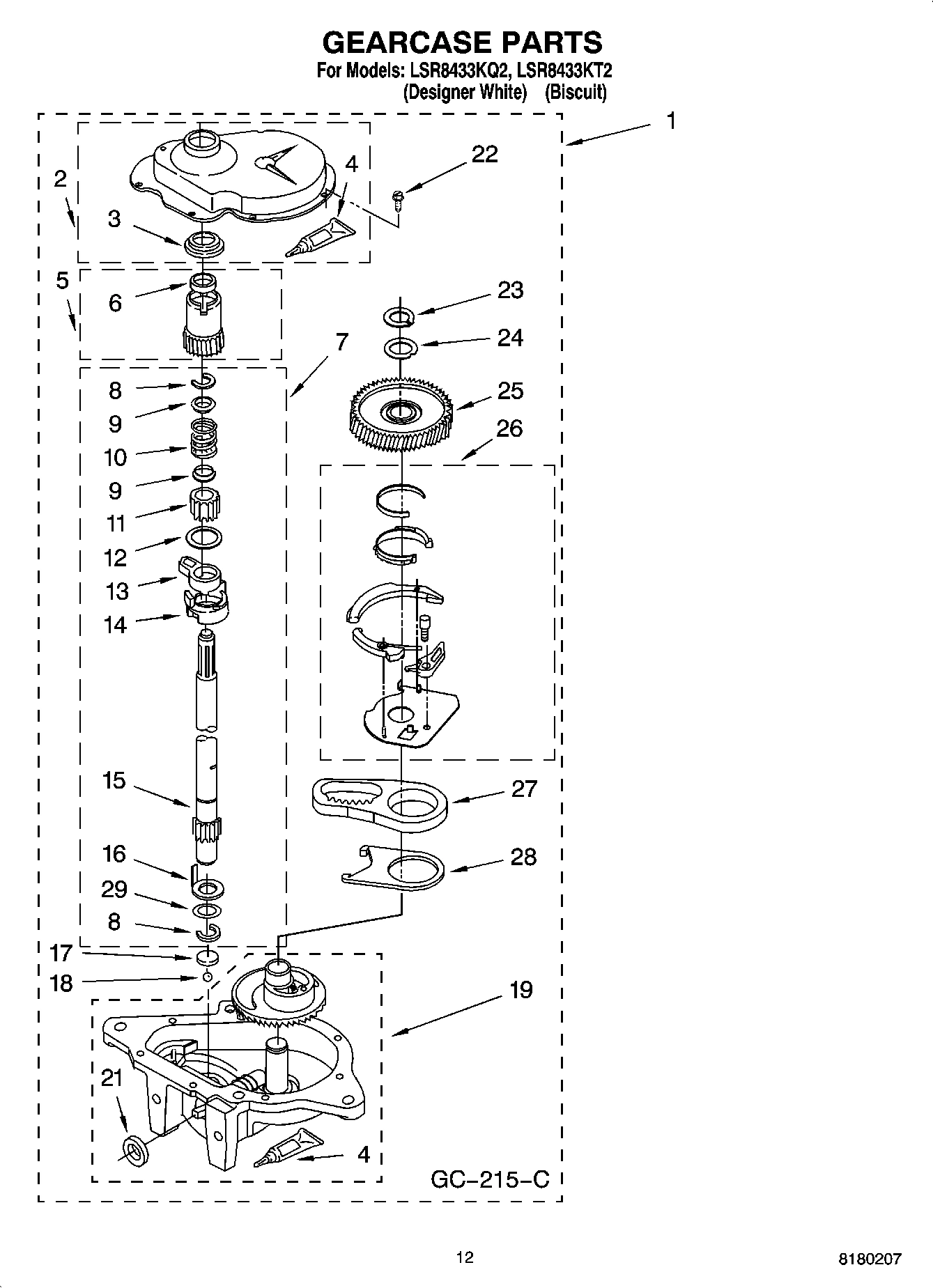

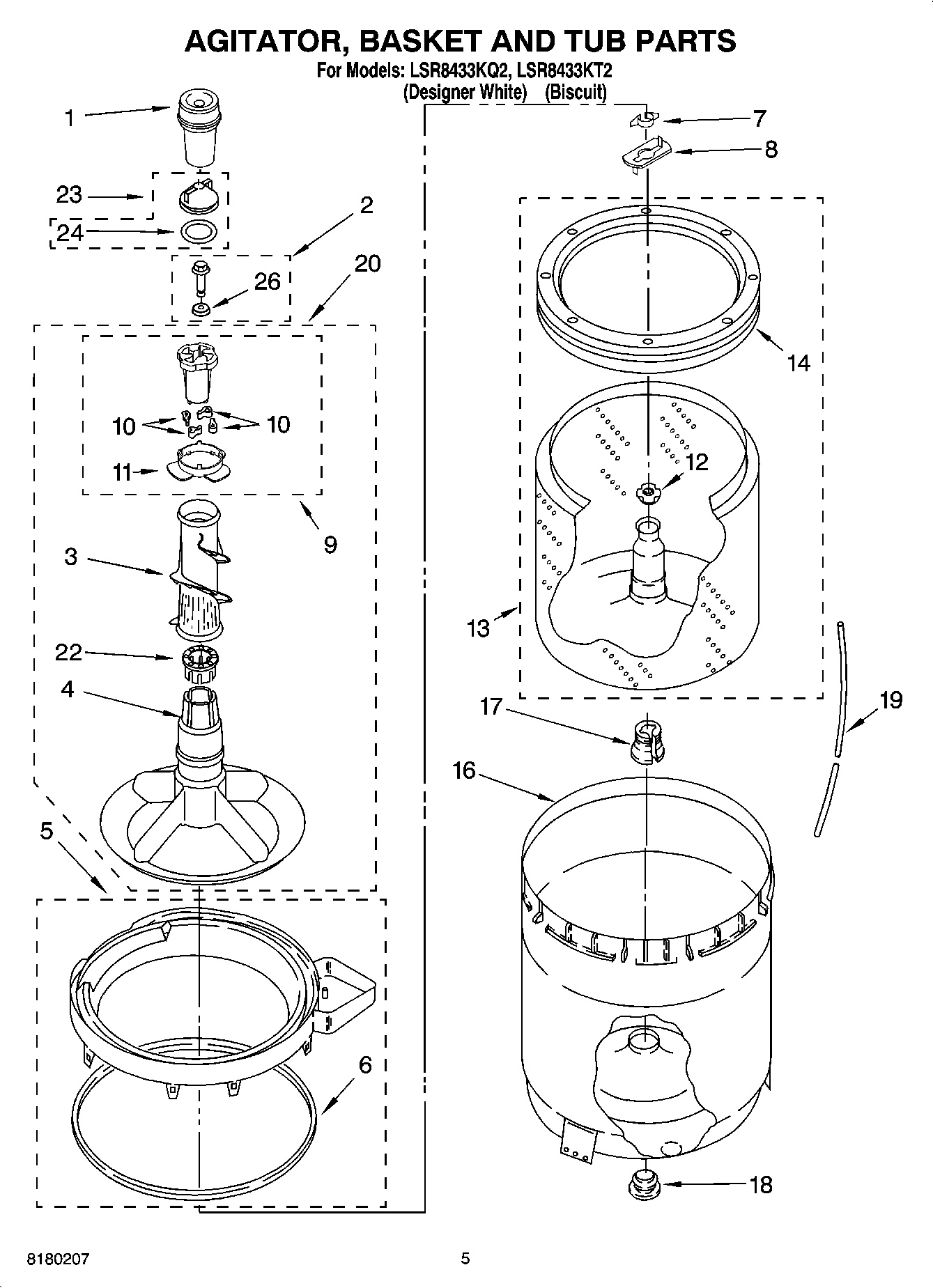

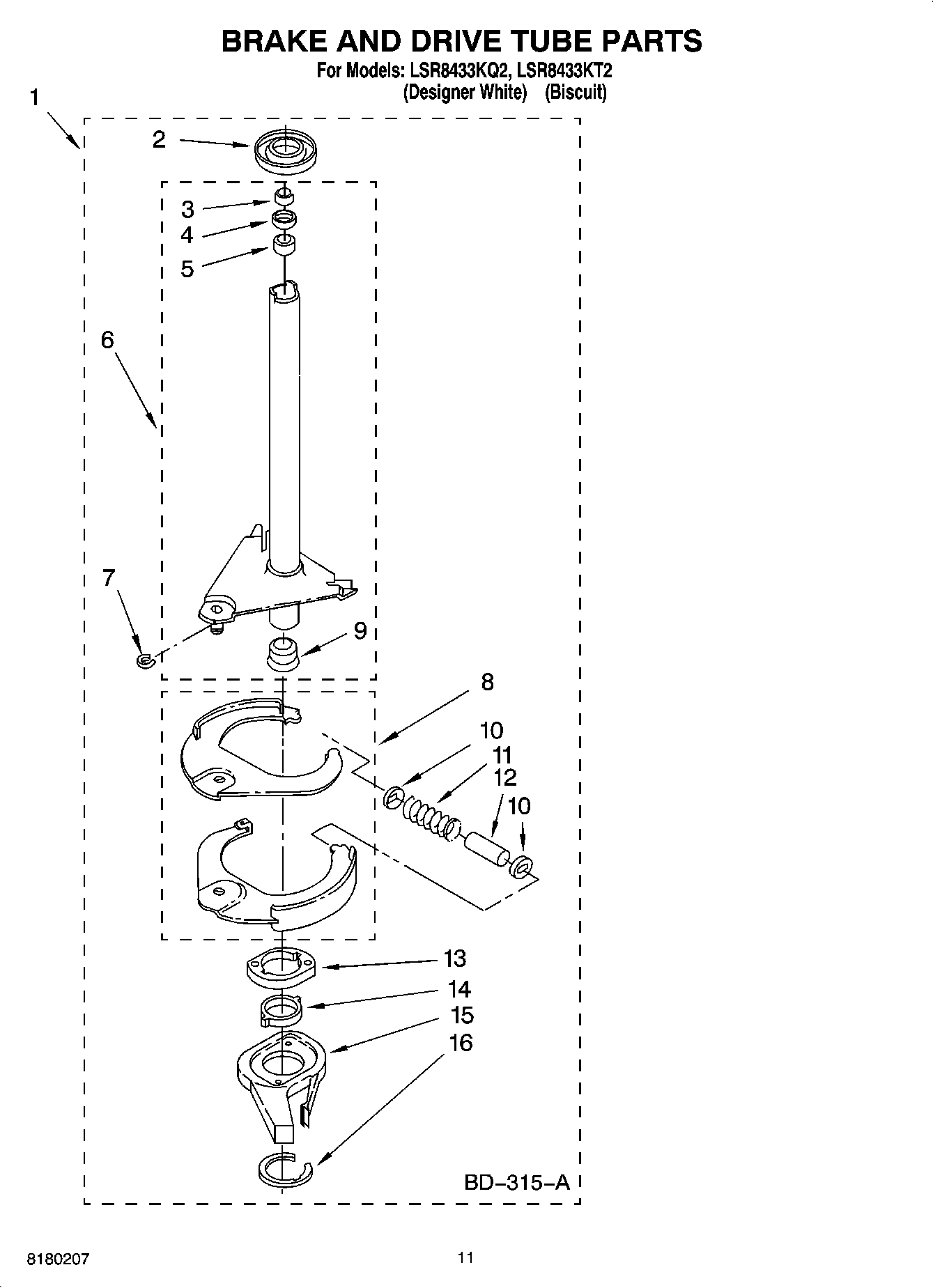

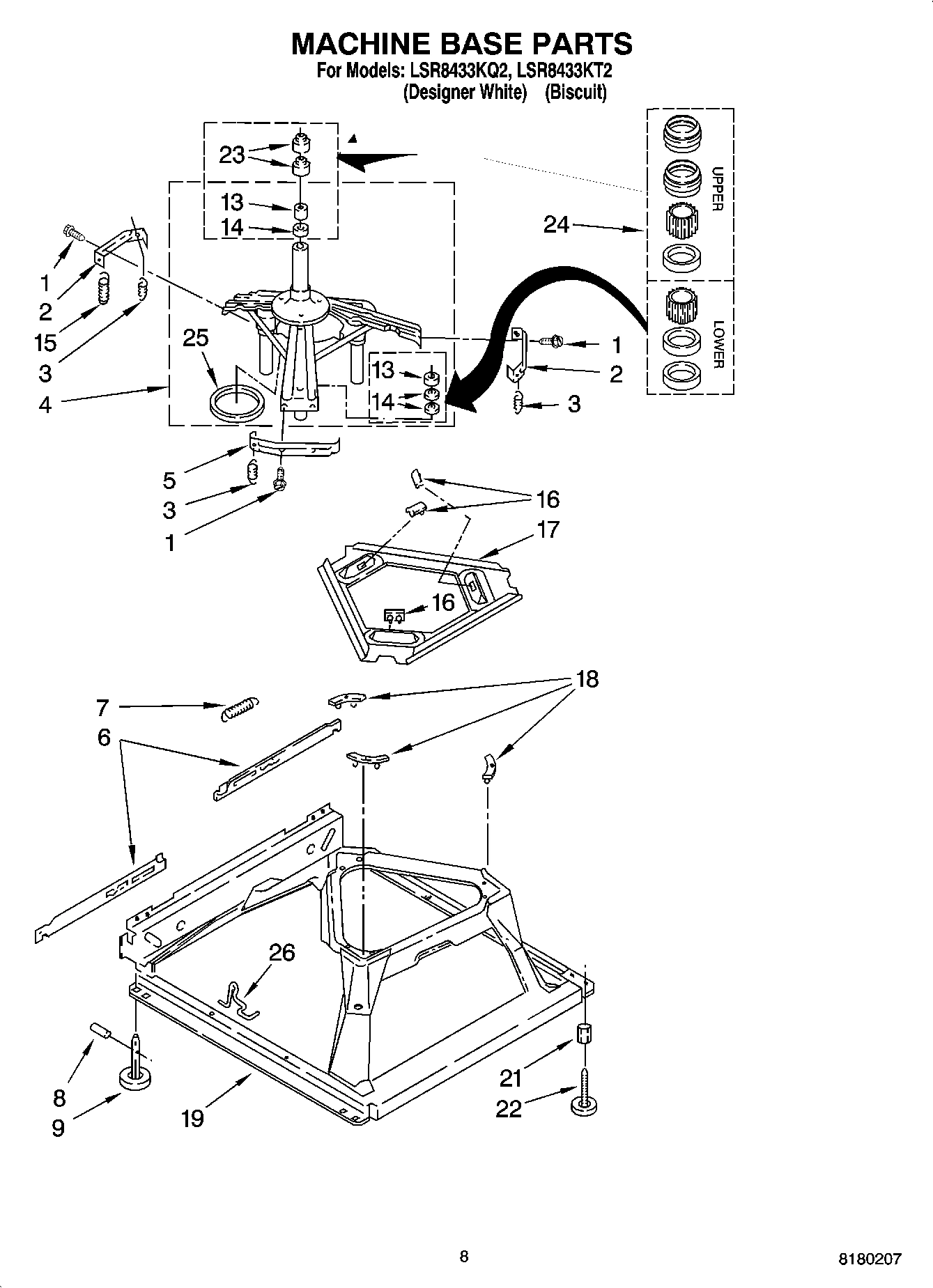

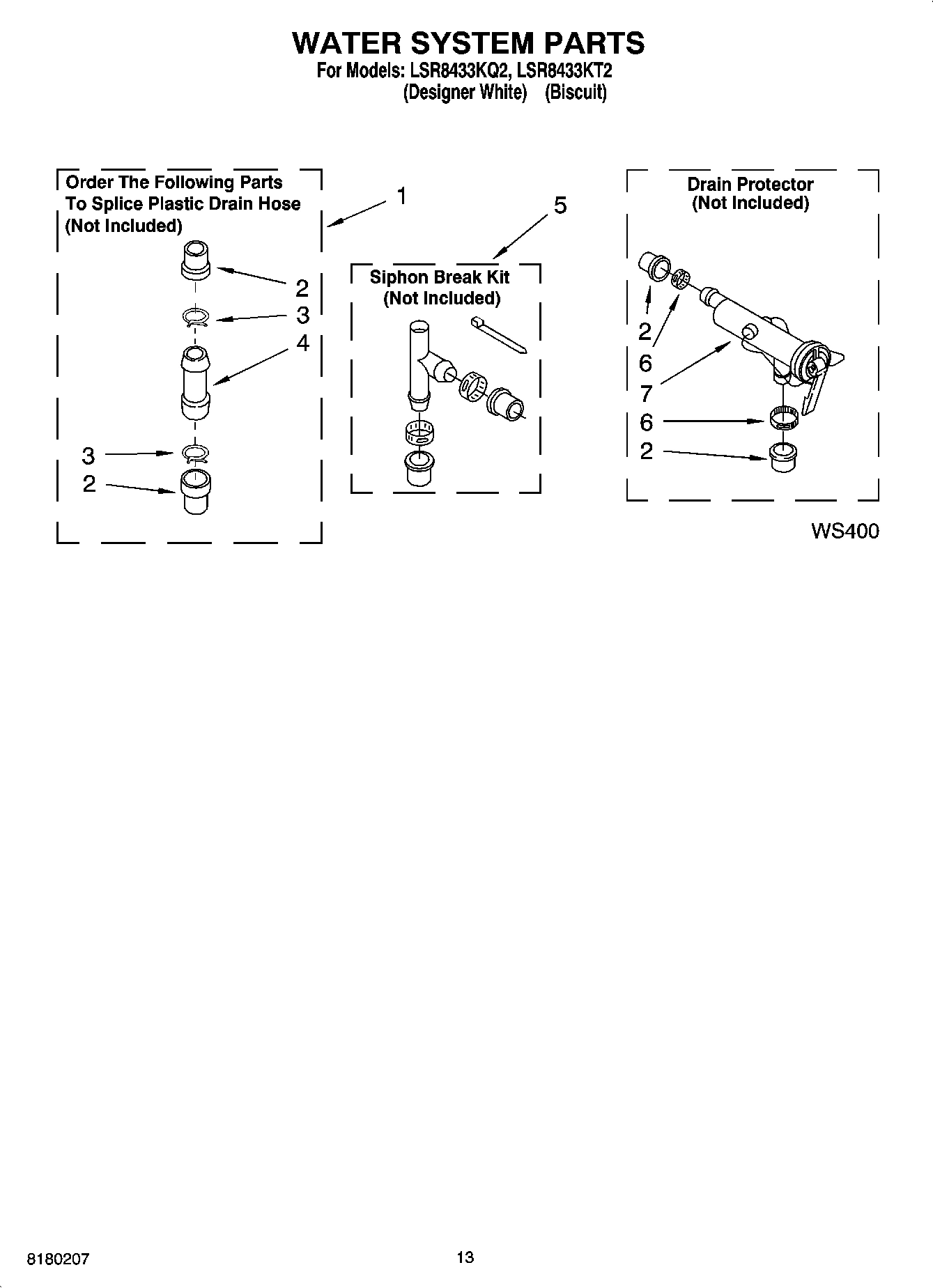

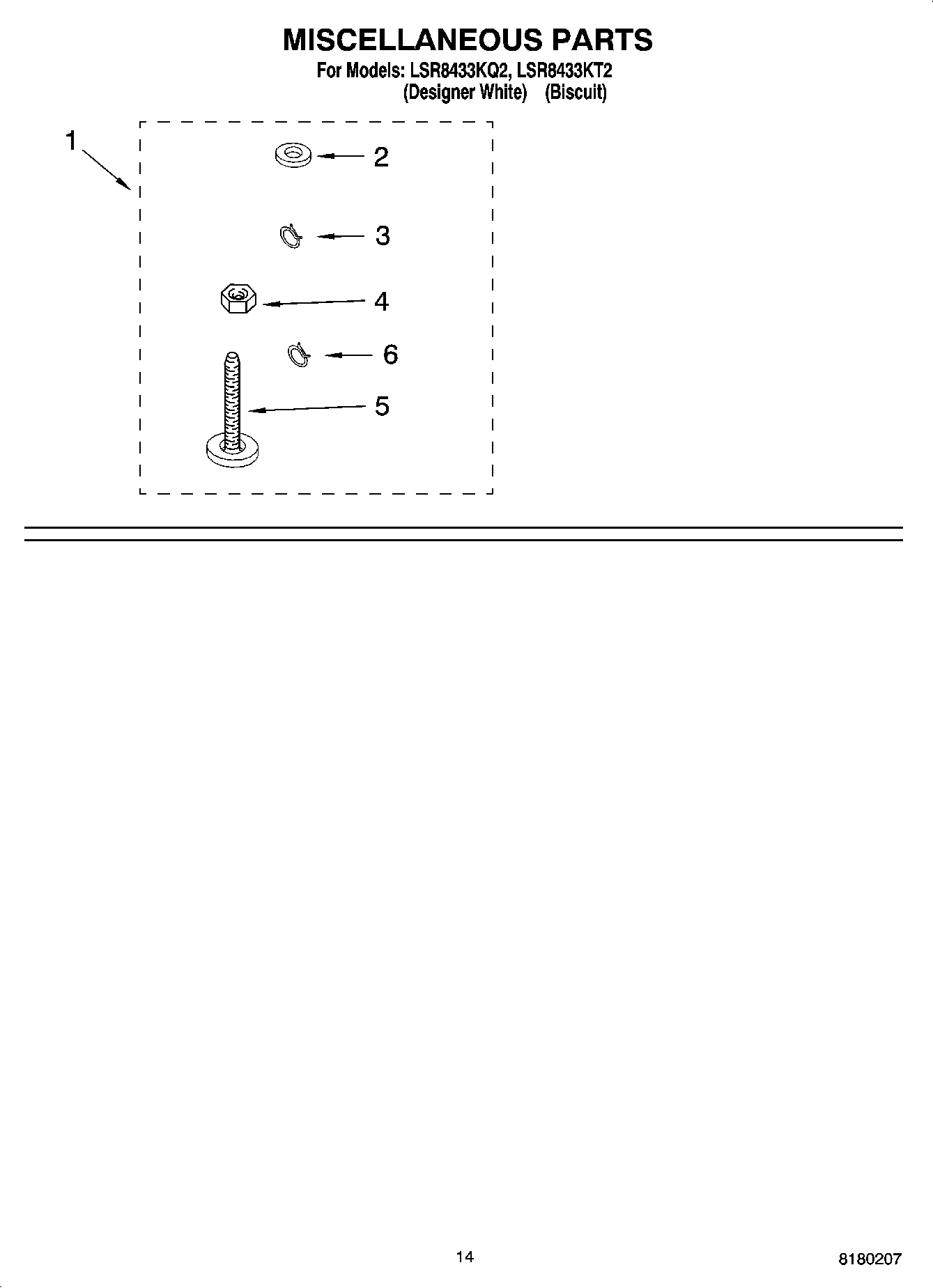

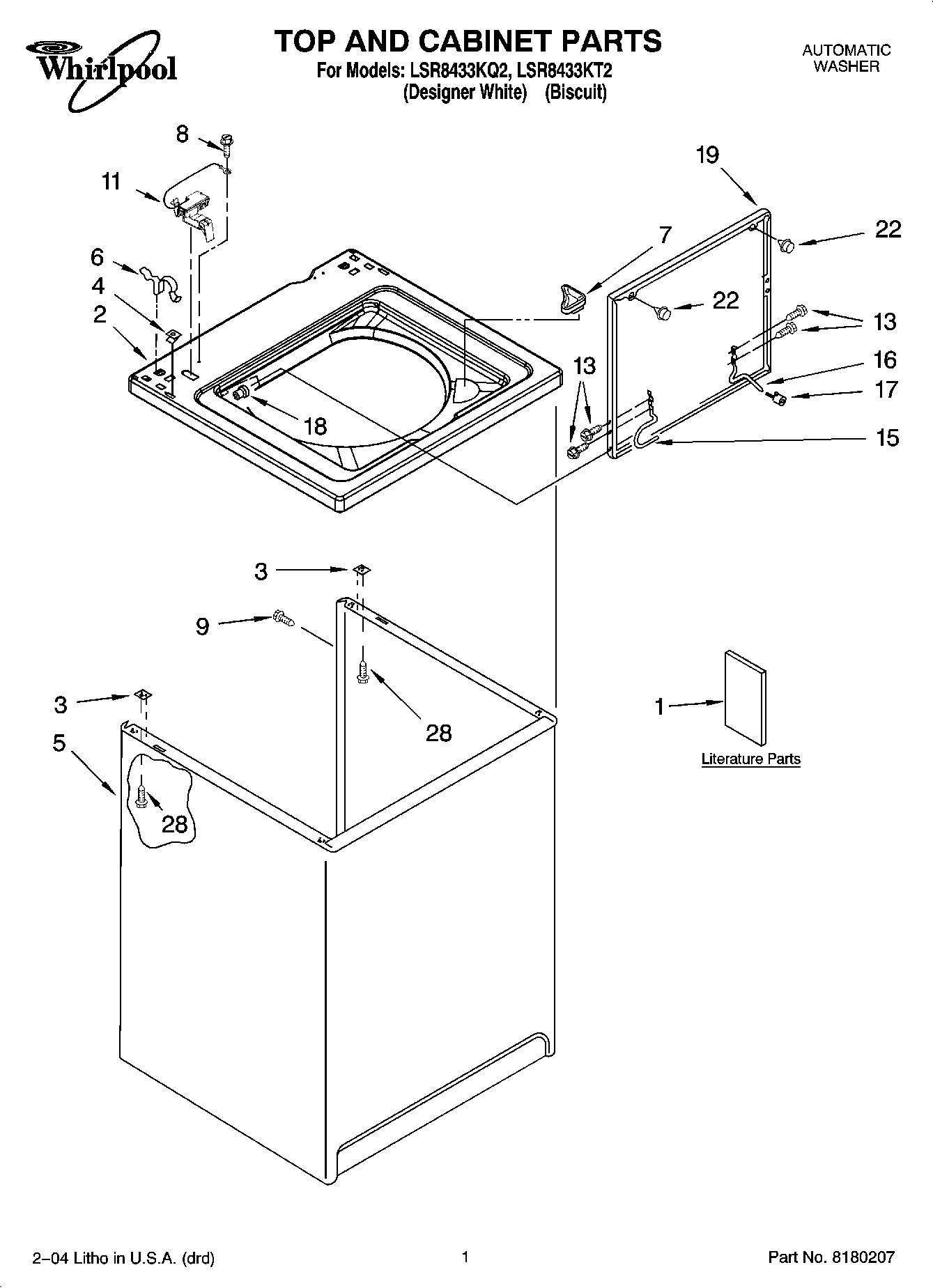

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Clip, Harness WPL 388498 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

6

Drain Protector WPL 367031 Contact Us For Availability

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

6

OIL WPL ARI158687A Contact Us For Availability

6

LUBRICANT WPL ARI158688A Contact Us For Availability

6

SEALER WPL ARI158689A Contact Us For Availability

6

ACCESSORY PARTS WPL ARI158690A Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $4.20

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $5.76

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $11.83

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

9

WP8542050 Whirlpool Timer In Stock WPL WP8542050 $242.96

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.16

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.51

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

W10389329 Whirlpool Microwave Basket Backorder WPL W10389329 $209.04

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.18

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $78.56

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

Protector WPL 63523 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.43

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.80

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.59

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI158686A Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.86

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

20

E.T.C. Control WPL 3407125 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP2172937 Whirlpool Connector Backorder WPL WP2172937 $11.08

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.68

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

3354925 Whirlpool Connector Backorder WPL 3354925 $16.76

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.14

Ring, Retaining WPL 3362552 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

Block, Connector (Hot Valve) WPL 3354926 Contact Us For Availability

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

28

Clamp, Hose WPL 3976395 No Longer Available

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

59

WPL 8539874 WPL 8539874 Contact Us For Availability

60

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75
