  • Whirlpool LSQ9665JQ4

Model Whirlpool LSQ9665JQ4 AUTOMATIC WASHER – Common Parts & Diagrams

Manual, (Washer)
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
View on Model
1
Clip, Harness
Clip, Harness WPL 3349557 Contact Us For Availability
View on Model
1
LITERATURE PARTS
LITERATURE PARTS WPL ARI158409A Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT3951578 Contact Us For Availability
View on Model
1
Literature Parts (Installation Instructions)
Literature Parts (Installation Instructions) WPL LIT3952817 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide) (Energy G
Literature Parts (Use & Care Guide) (Energy G WPL LIT3954543 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide) (Wiring D
Literature Parts (Use & Care Guide) (Wiring D WPL LIT3954723 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide) (French)
Literature Parts (Use & Care Guide) (French) WPL LIT3954820 Contact Us For Availability
View on Model
1
Literature Parts (Use & Care Guide) (English)
Literature Parts (Use & Care Guide) (English) WPL LIT3955154 Contact Us For Availability
View on Model
1

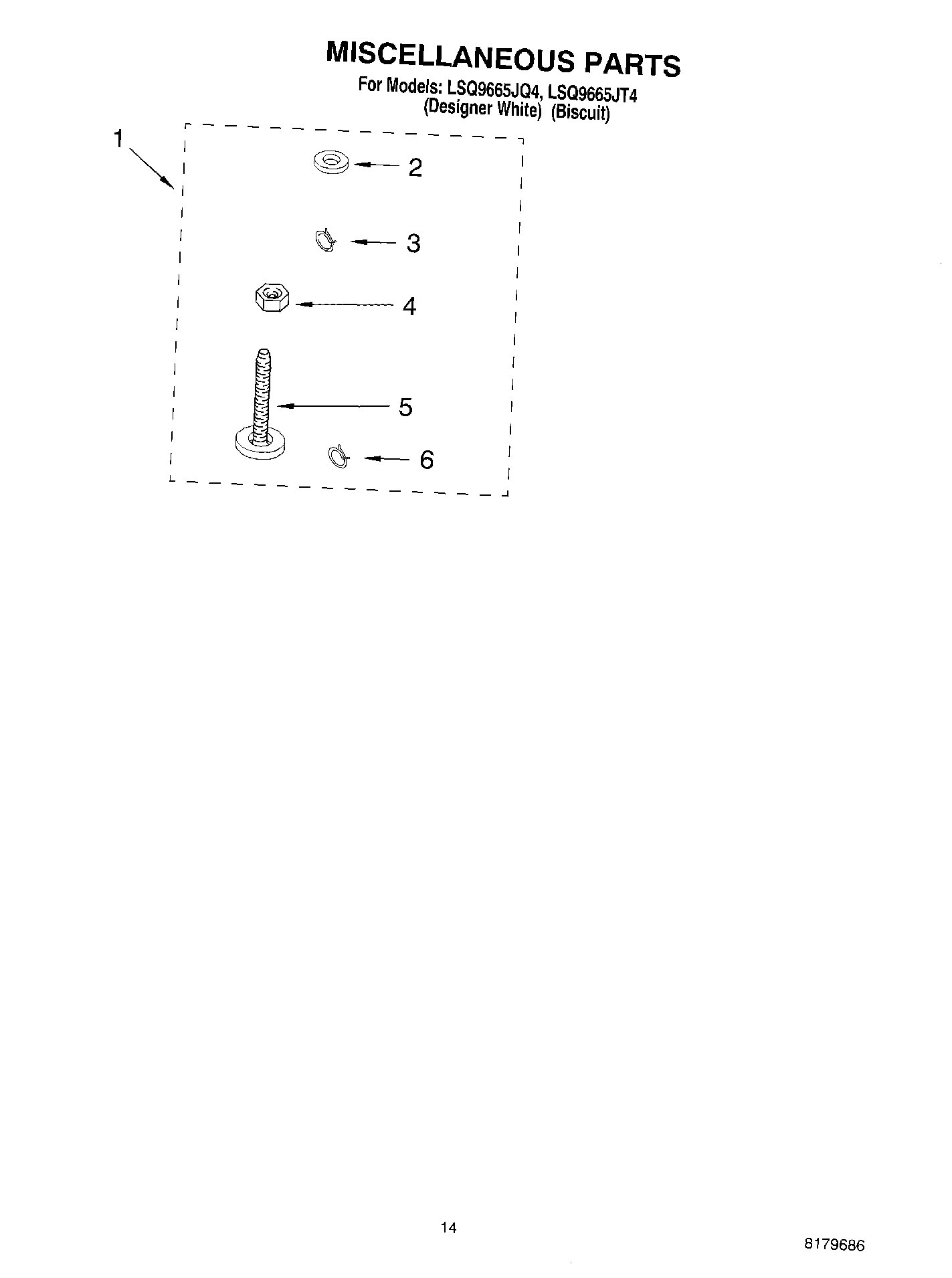

Miscellaneous Parts Bag
Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability
View on Model
2

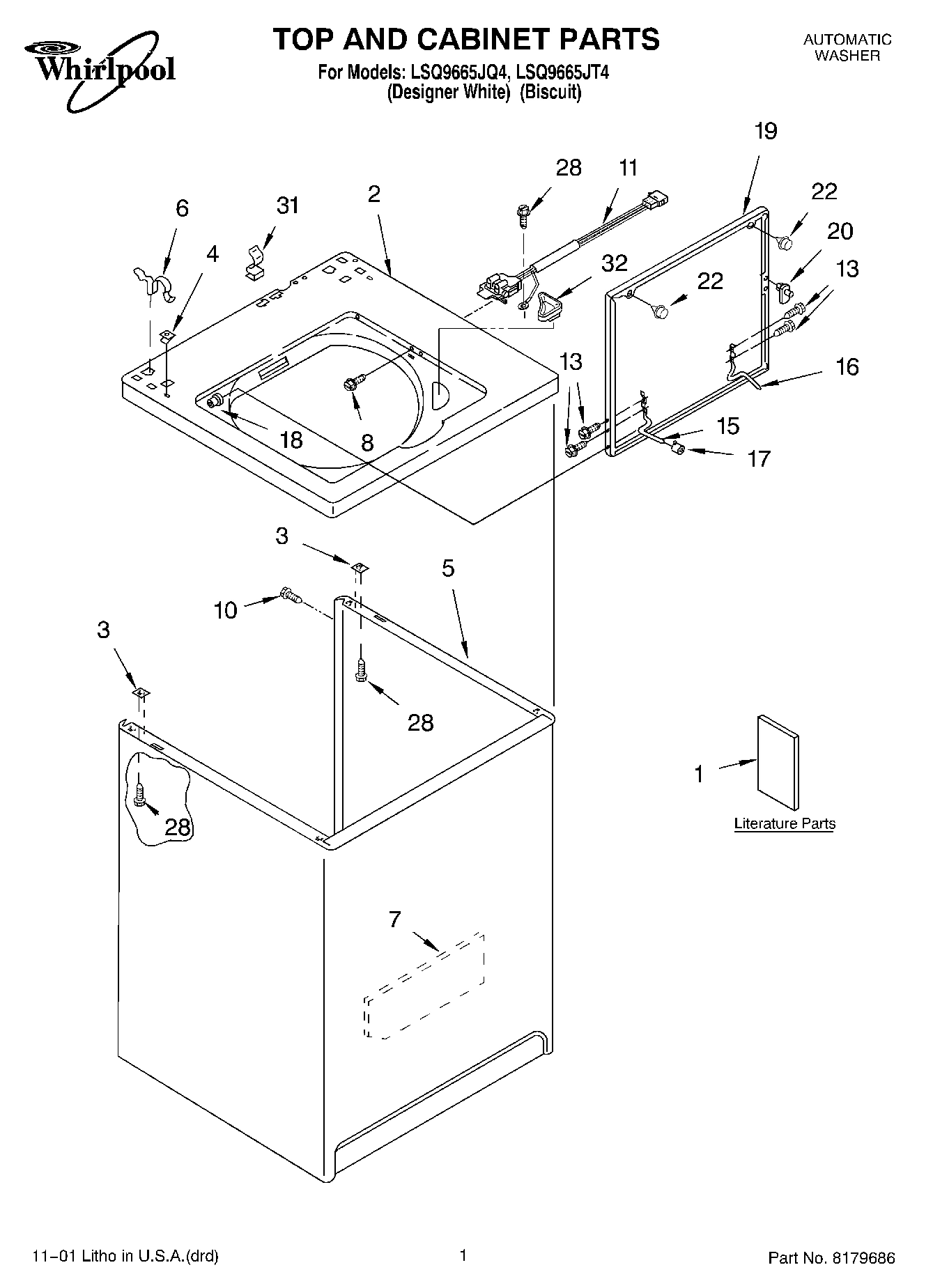

Top (White)
Top (White) WPL 8271378 Contact Us For Availability
View on Model
2
Top (Biscuit)
Top (Biscuit) WPL 8271380 Contact Us For Availability
View on Model
2
Clip, Harness
Clip, Harness WPL 388498 Contact Us For Availability
View on Model
5

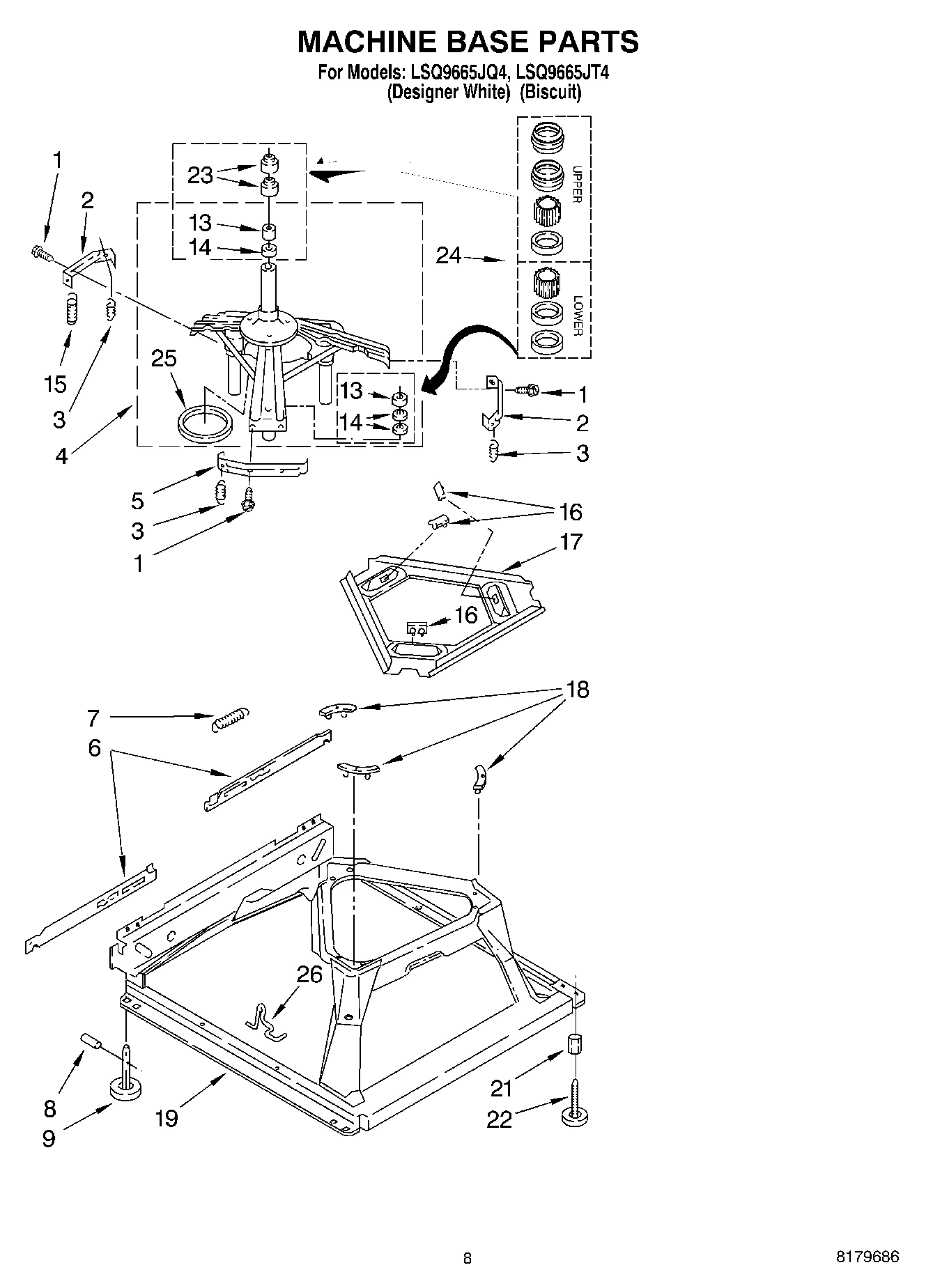

Bracket, Spring Outer (L.F.)
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
View on Model
5
Cabinet (Biscuit)
Cabinet (Biscuit) WPL 3954357 Contact Us For Availability
View on Model
6
Link, Leveling Mechanism (2)
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
View on Model
6
Clip, Harness
Clip, Harness WPL 3390496 Contact Us For Availability
View on Model
6

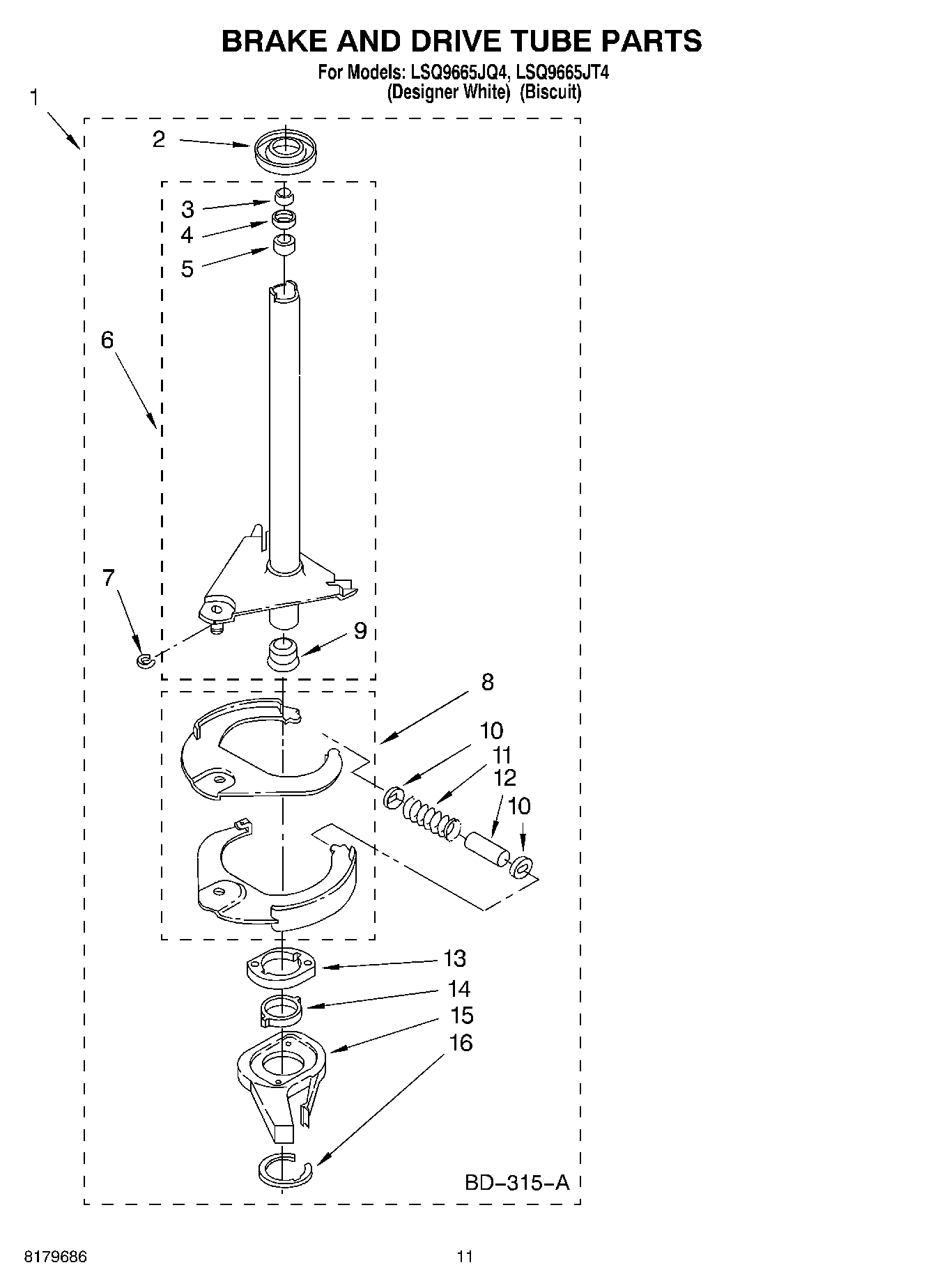

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
View on Model
6
Shipping Kit
Shipping Kit WPL 3348675 Contact Us For Availability
View on Model
6

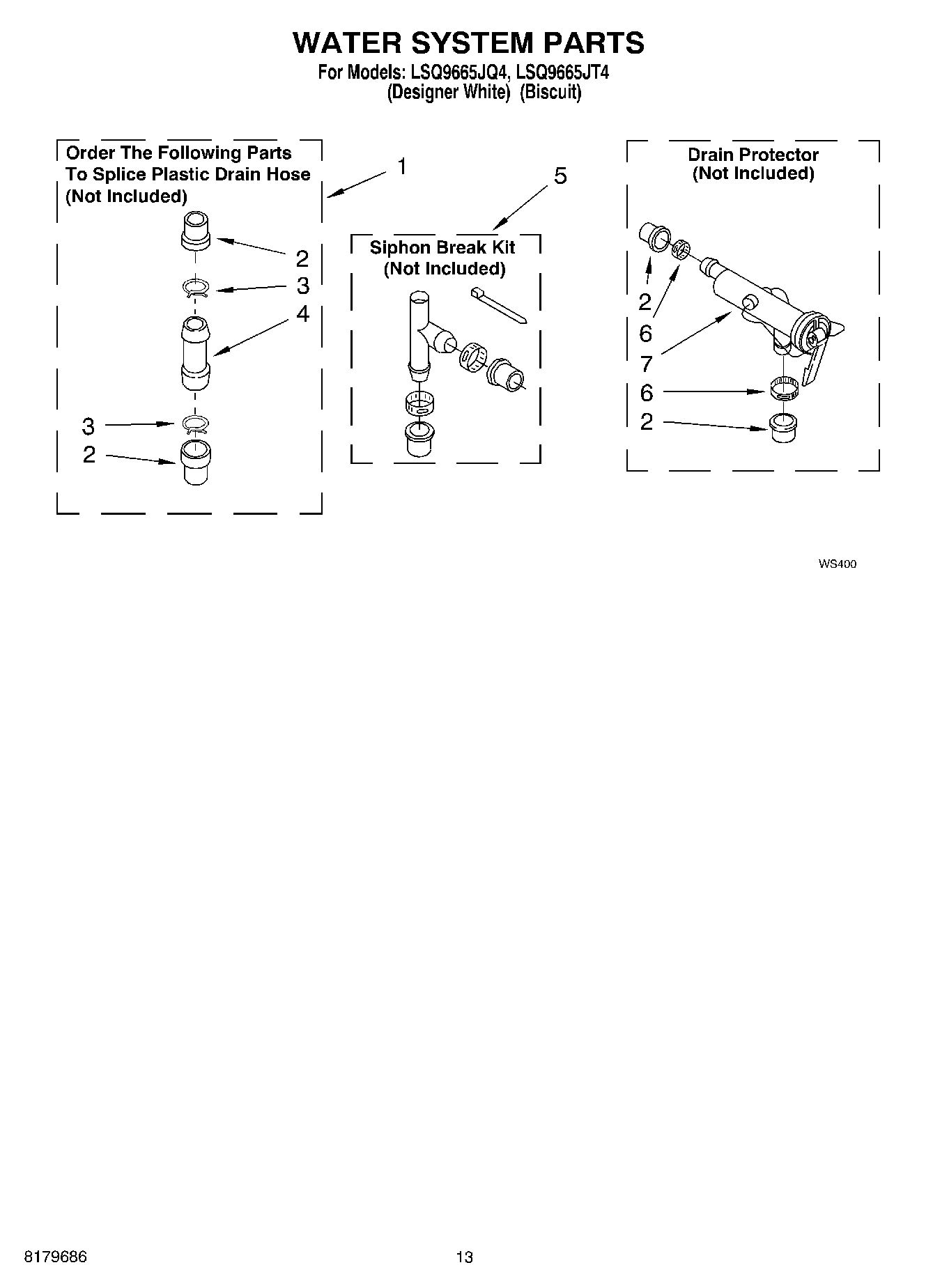

Drain Protector
Drain Protector WPL 367031 Contact Us For Availability
View on Model
6
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
View on Model
7
Cabinet - Sound Damper
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
View on Model
8
Timer, Block Disconnect (White)
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
View on Model
8
Ring, Retaining (2)
Ring, Retaining (2) WPL 90369 Contact Us For Availability
View on Model
10

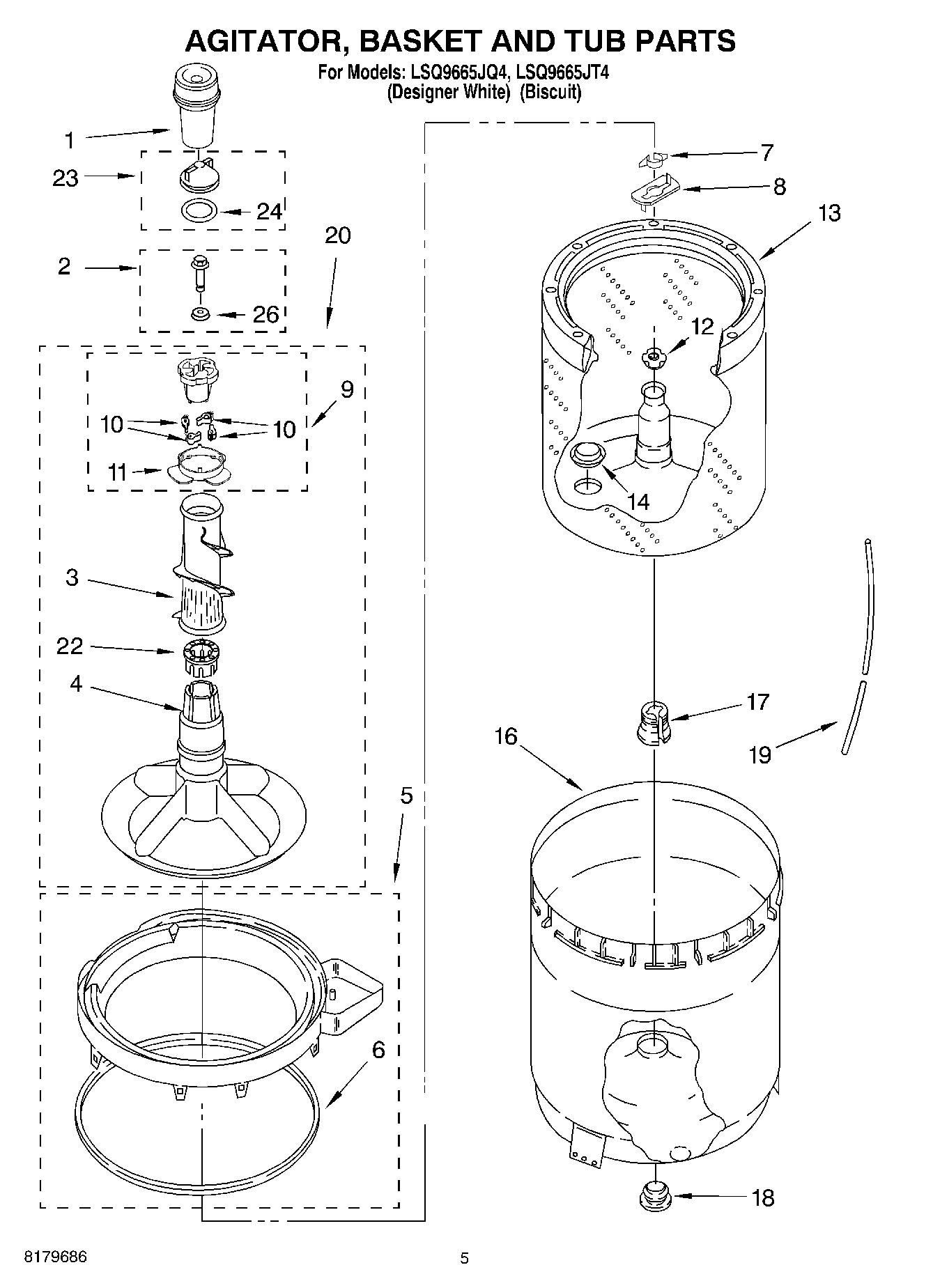

Spring, Agitator
Spring, Agitator WPL 62676 Contact Us For Availability
View on Model
13

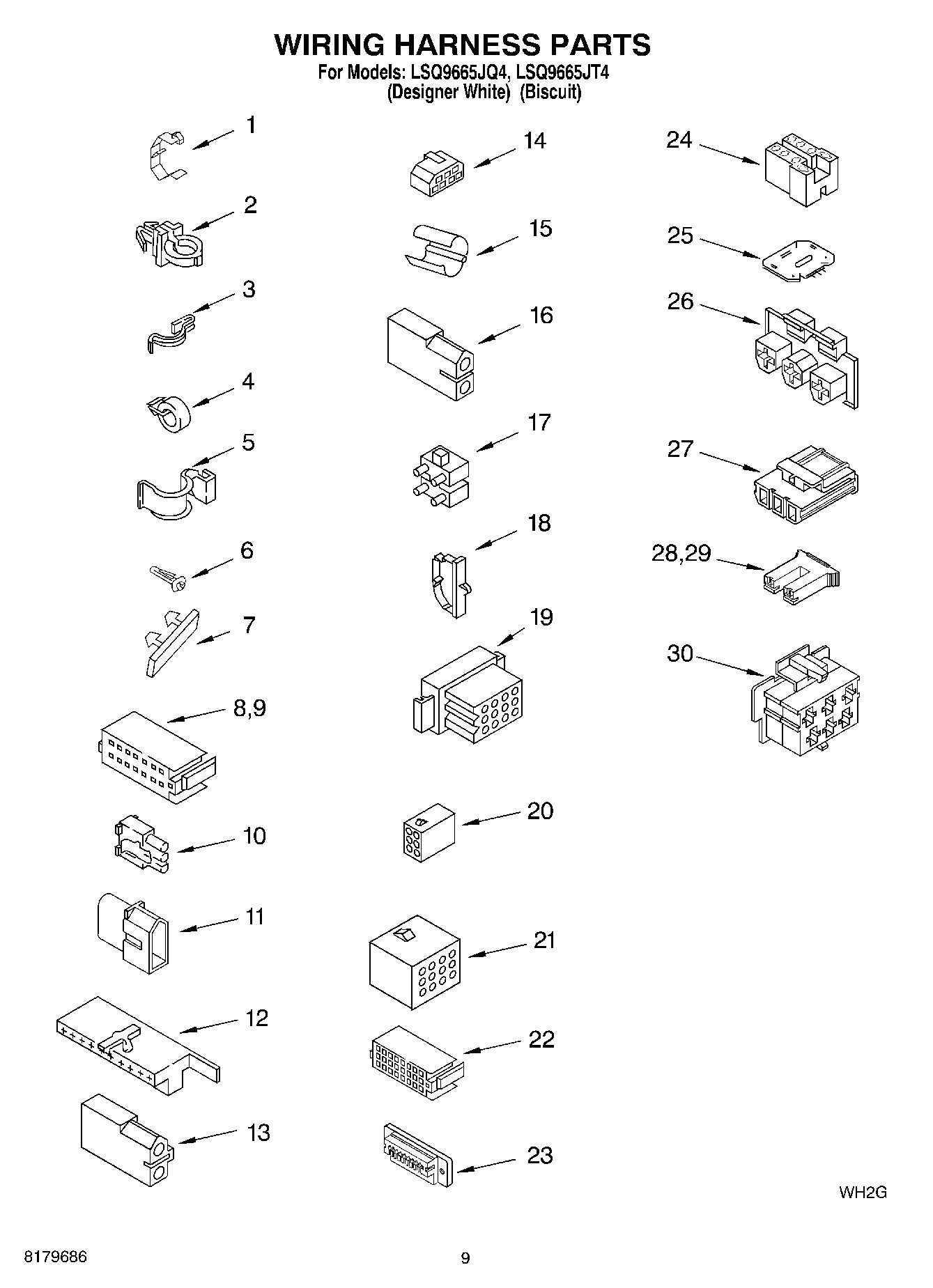

Block, Disconnect (Motor 3 Speed) (Use Term.
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
View on Model
14
Block, Disconnect (Use Term. 352088)
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
View on Model
15
Protector
Protector WPL 63523 Contact Us For Availability
View on Model
16
Connector (2-Way) (Use Term. 94614)
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
View on Model
16
Washer, Cam Thrust
Washer, Cam Thrust WPL 62618 Contact Us For Availability
View on Model
17
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
View on Model
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
View on Model
18
Clip, Harness
Clip, Harness WPL 3352944 Contact Us For Availability
View on Model
19
Lid (White)
Lid (White) WPL 3954489 Contact Us For Availability
View on Model
19
Lid (Biscuit)
Lid (Biscuit) WPL 3954491 Contact Us For Availability
View on Model
19
Block, Disconnect (12-Way) (Timer) (Use Term.
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
View on Model
19

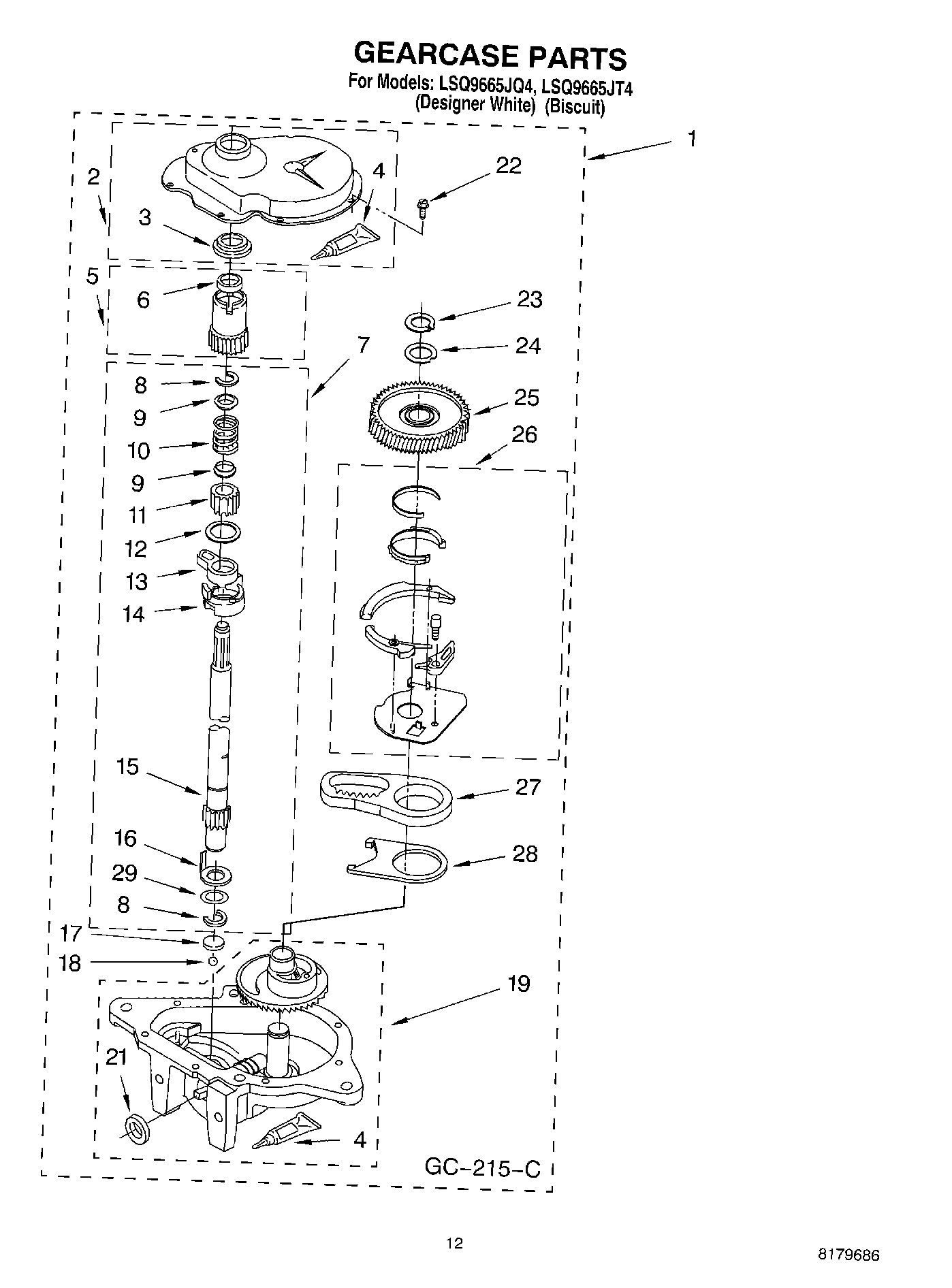

Bottom and Pinion, Gearcase
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
View on Model
20
Switch, Main Drive Motor
Switch, Main Drive Motor WPL 8529896 Contact Us For Availability
View on Model
20
Receptacle, (6-Way) (Use Term. 94613)
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
View on Model
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
View on Model
22
Timer, Block Disconnect (Black) (Amp) (Use Te
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
View on Model
23
Connector, Etc
Connector, Etc WPL 3349494 Contact Us For Availability
View on Model
23
Ring, Retaining
Ring, Retaining WPL 3362552 Contact Us For Availability
View on Model
24
Connector, Relay (Use Term. 308569)
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
View on Model
24
Washer Kit, Thrust
Washer Kit, Thrust WPL 285735 Contact Us For Availability
View on Model
25
Control, ETC
Control, ETC WPL 3407125 Contact Us For Availability
View on Model
28
Clamp, Hose
Clamp, Hose WPL 3976395 No Longer Available
View on Model
29
WPL 3354926
WPL 3354926 WPL 3354926 Contact Us For Availability
View on Model
30
WPL 3948615
WPL 3948615 WPL 3948615 Contact Us For Availability
View on Model
41
Sensor-ETC-Inline
Sensor-ETC-Inline WPL 3352282 Contact Us For Availability
