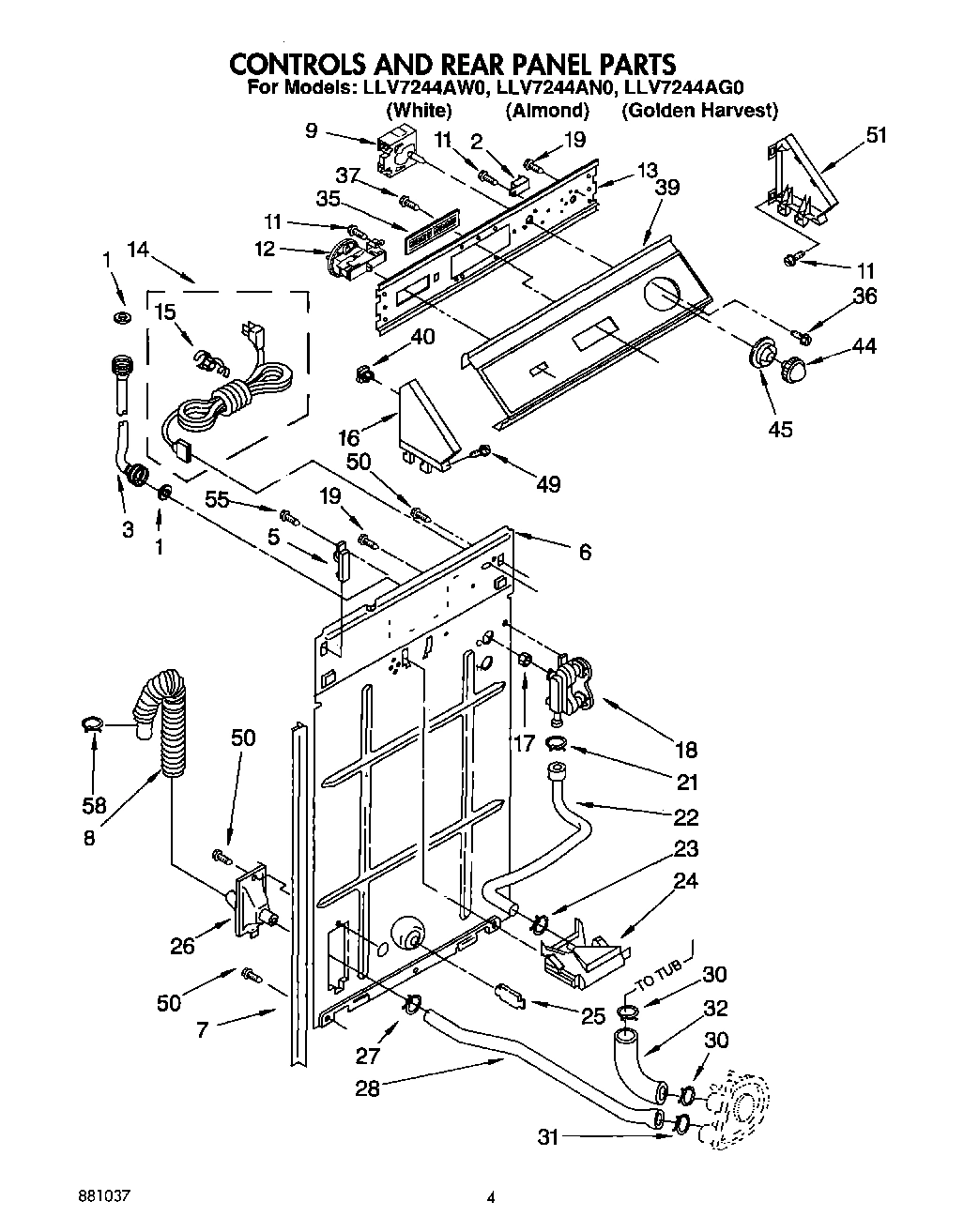

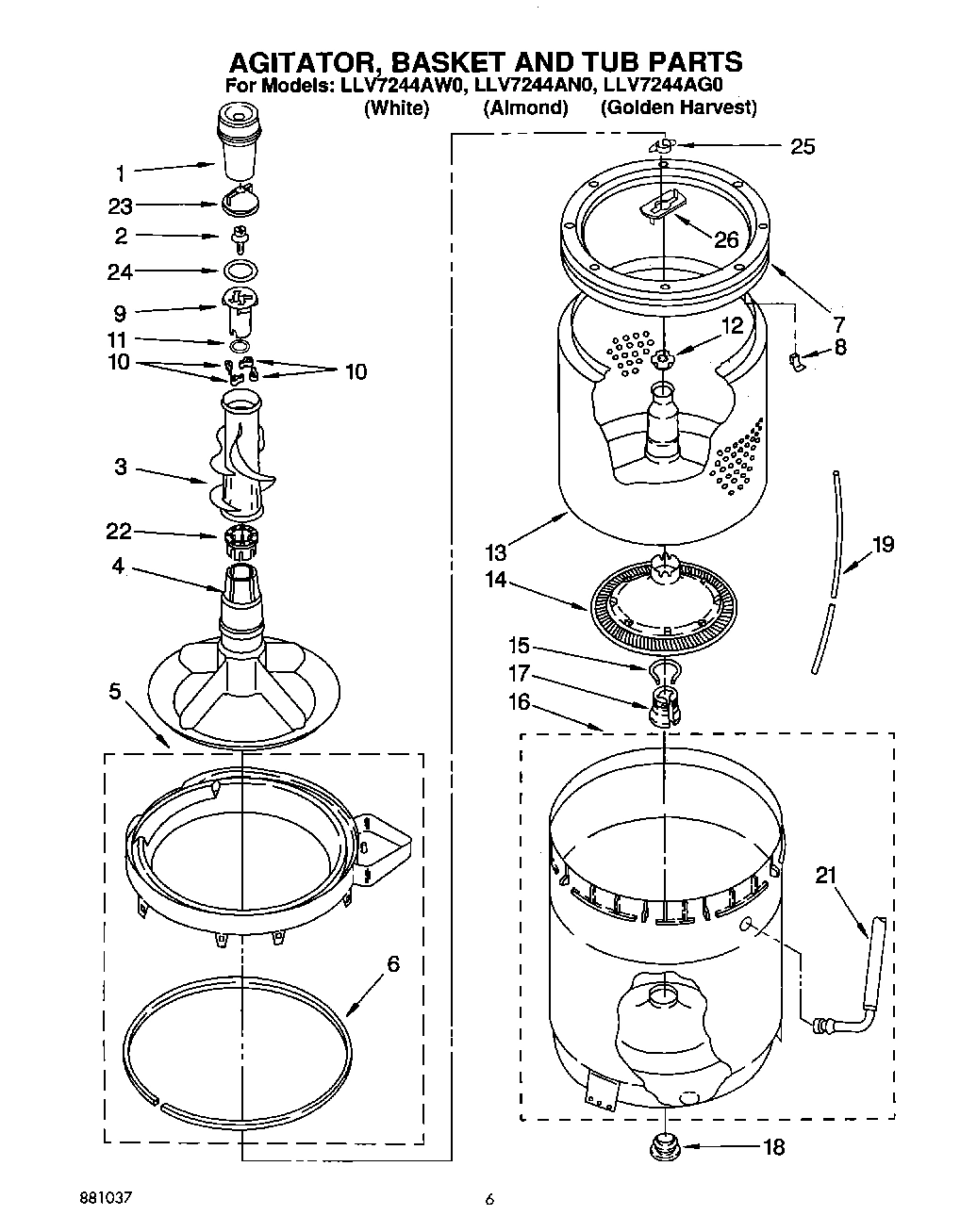

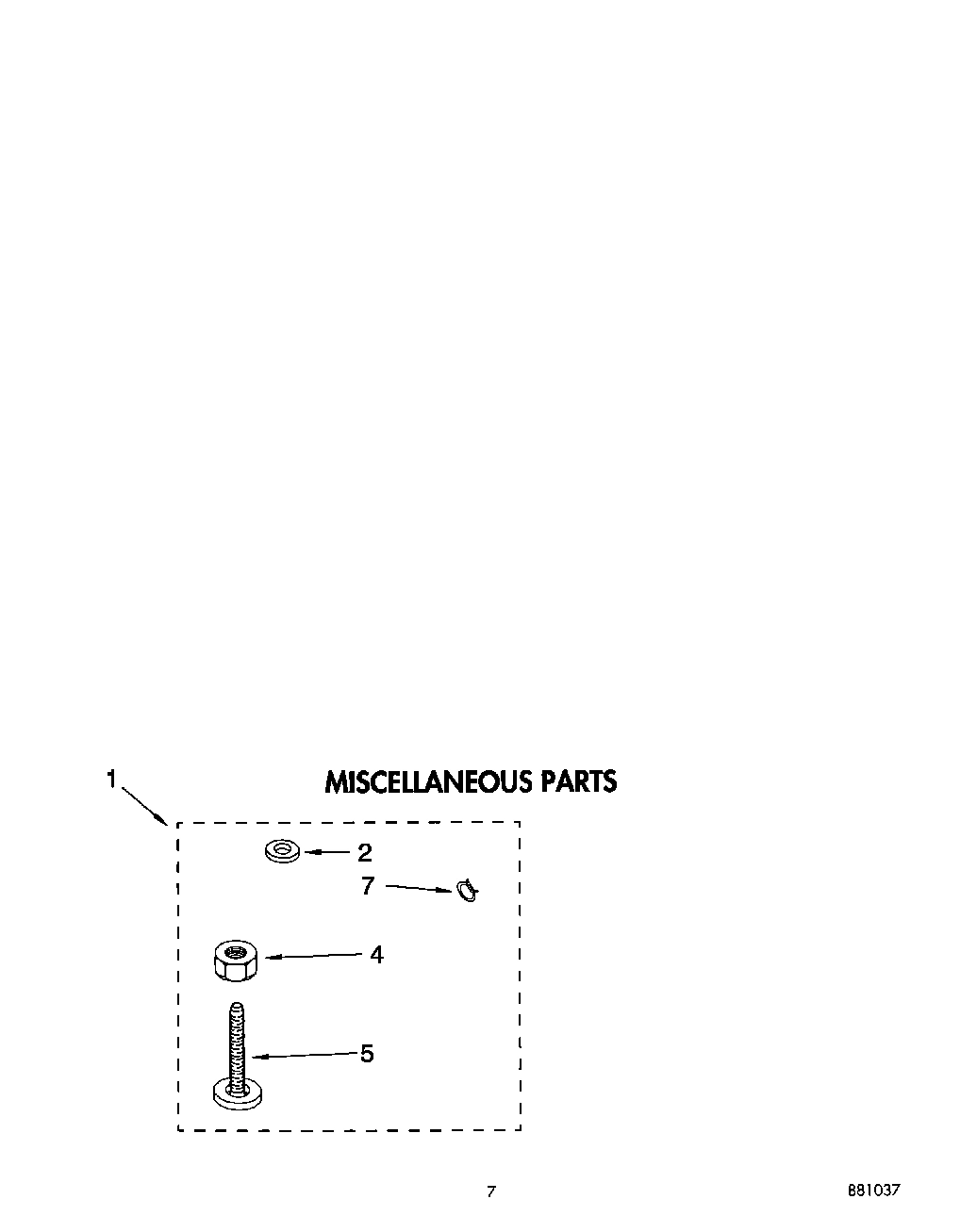

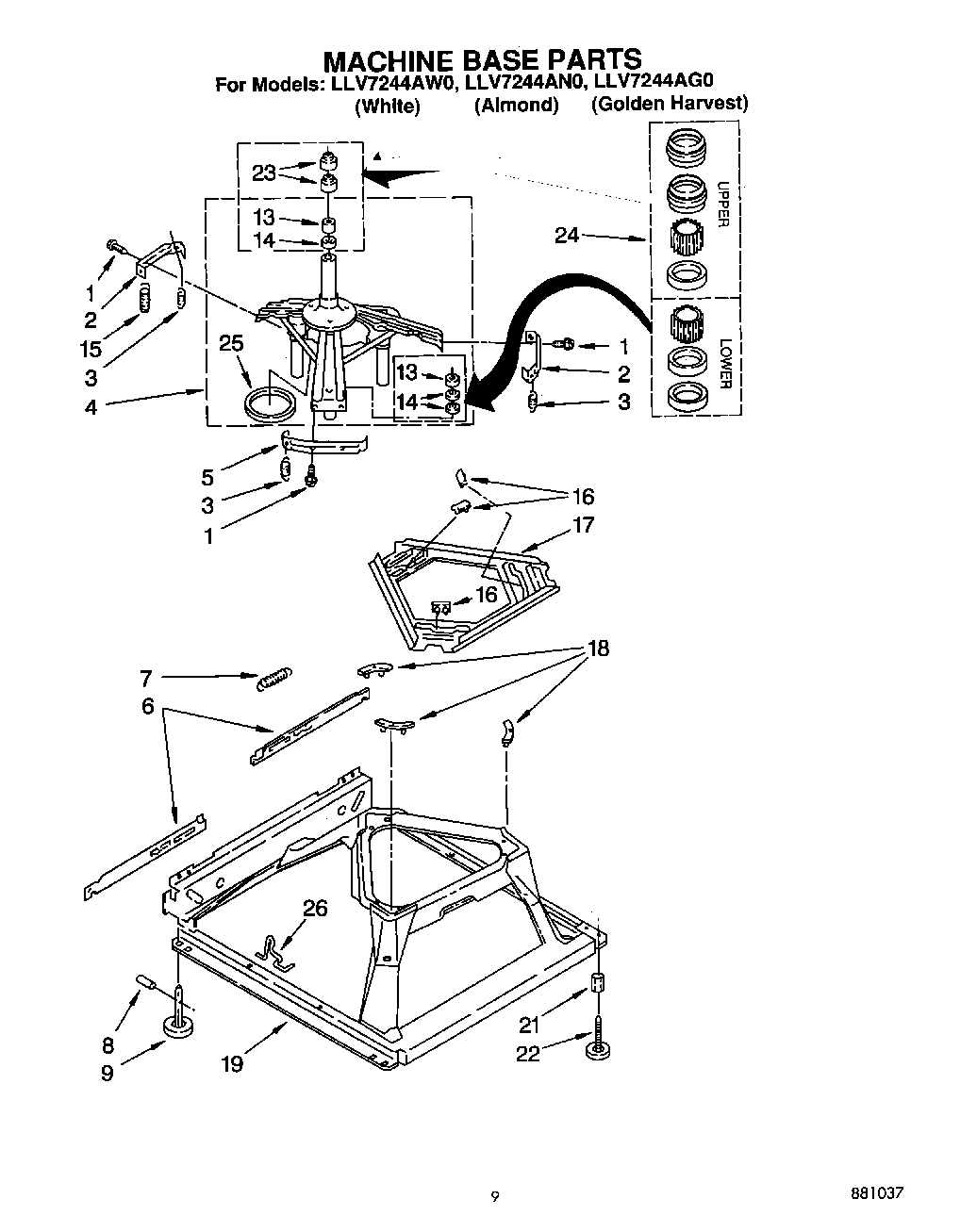

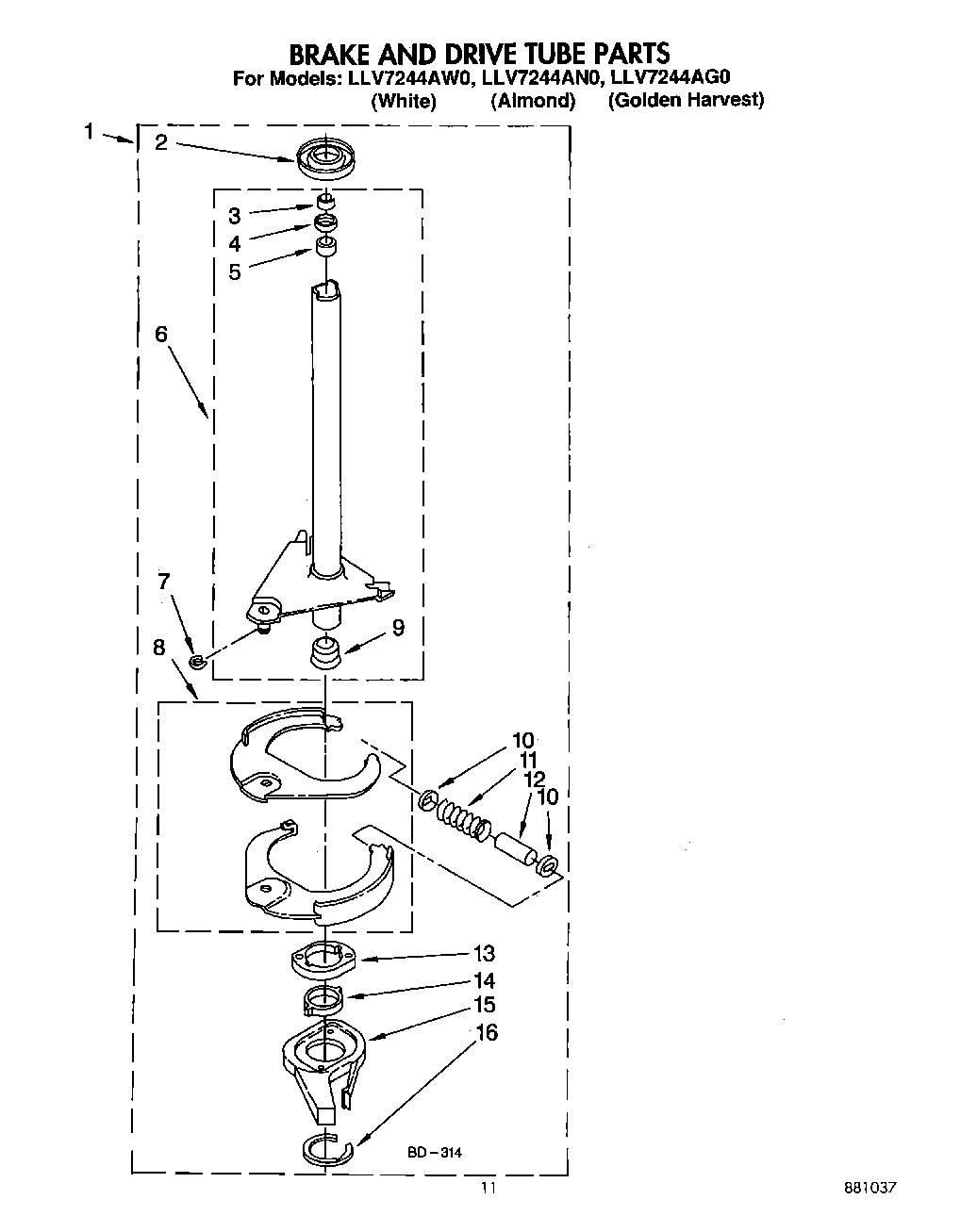

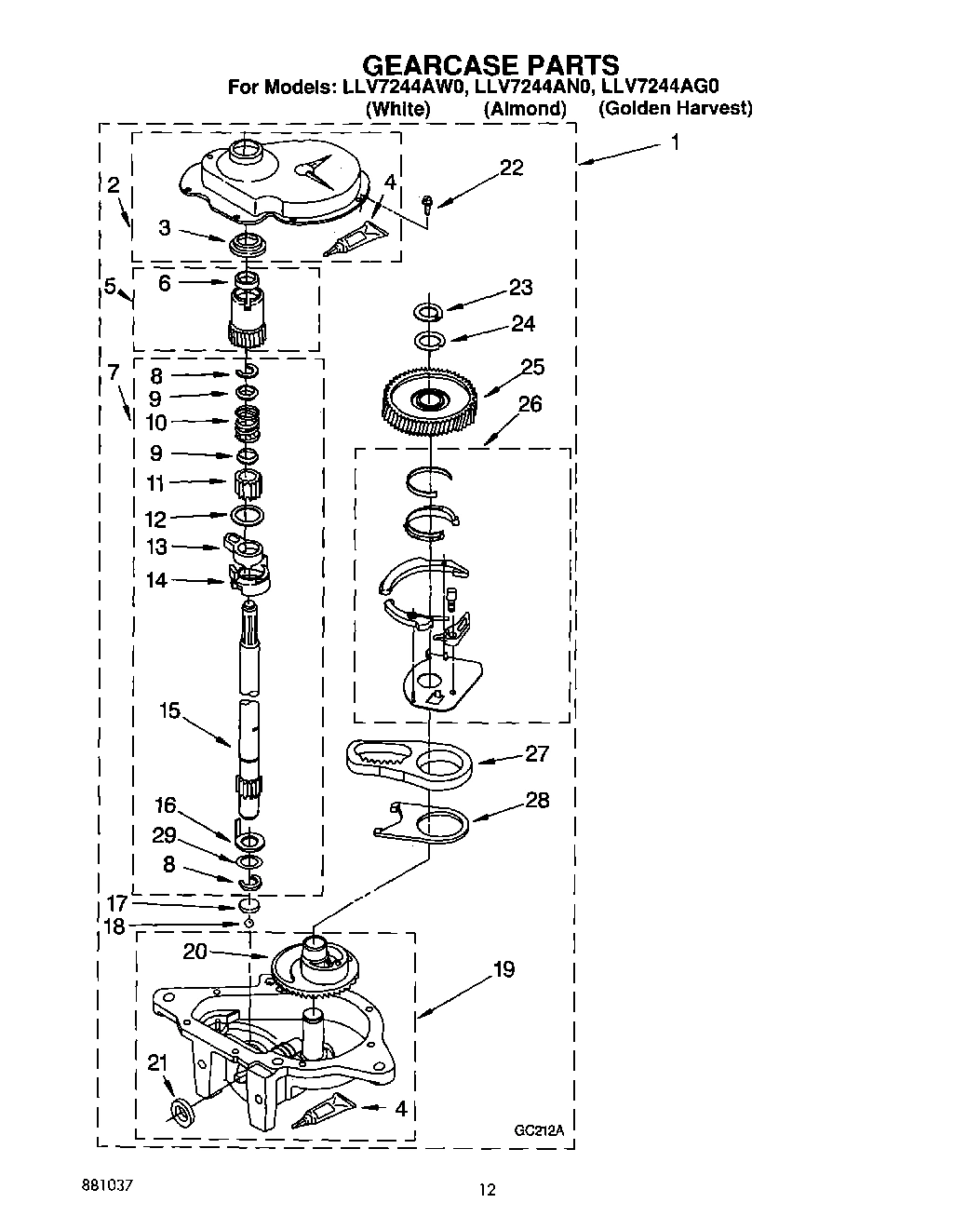

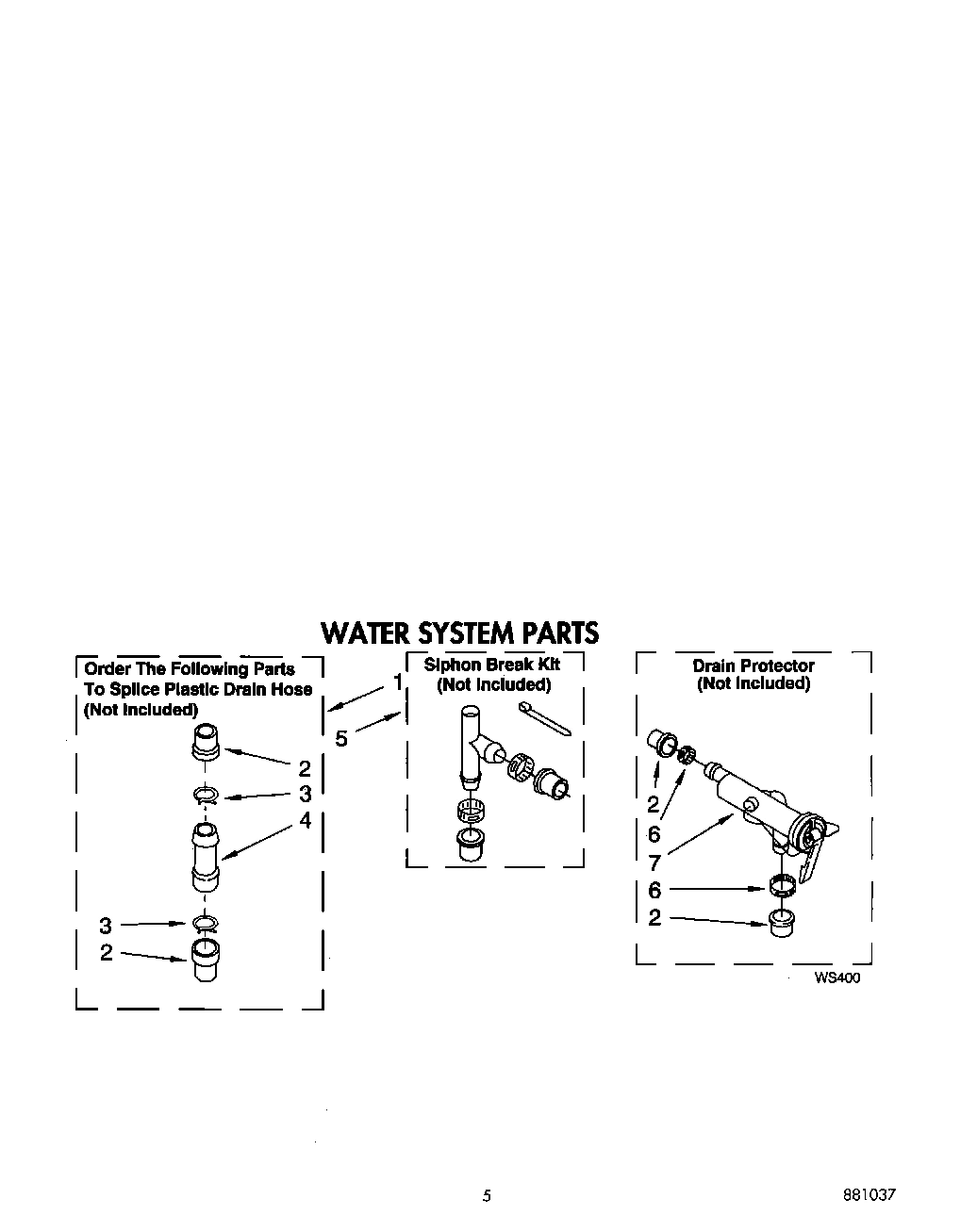

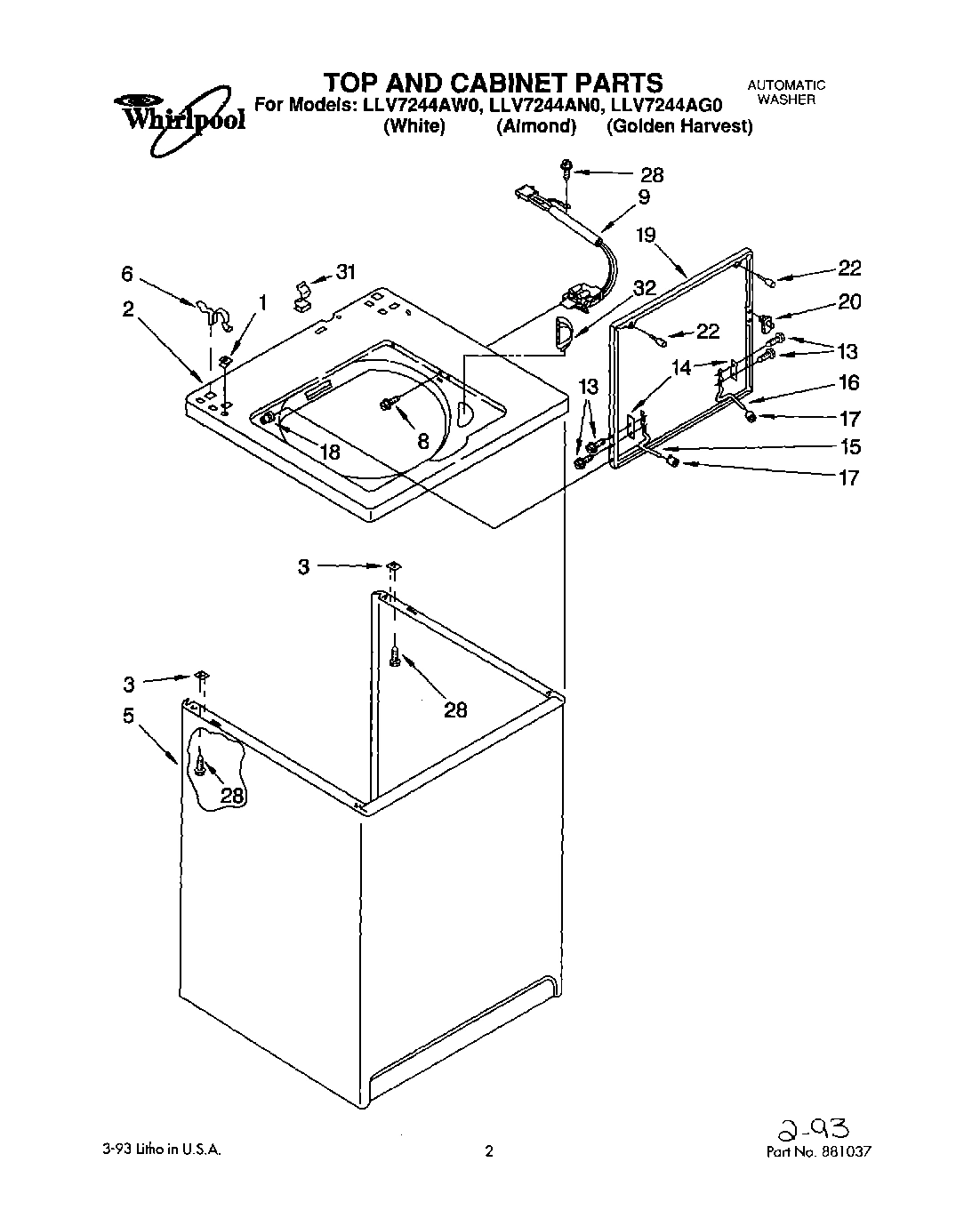

Model Whirlpool LLV7244AW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

Stand-Pipe Kit WPL 89121 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Guide, Use and Care WPL LIT3357461 Contact Us For Availability

Energy Guide WPL LIT3358669 Contact Us For Availability

Sheet, In WPL LIT3358964 Contact Us For Availability

WPL LIT3359514 WPL LIT3359514 Contact Us For Availability

WPL LIT4313896 WPL LIT4313896 Contact Us For Availability

WPL LIT881037 WPL LIT881037 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 3359460 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

2

Top (White) WPL 3358200 Contact Us For Availability

2

Top (Almond) WPL 3358201 Contact Us For Availability

2

Top (Golden Harvest) WPL 3358202 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

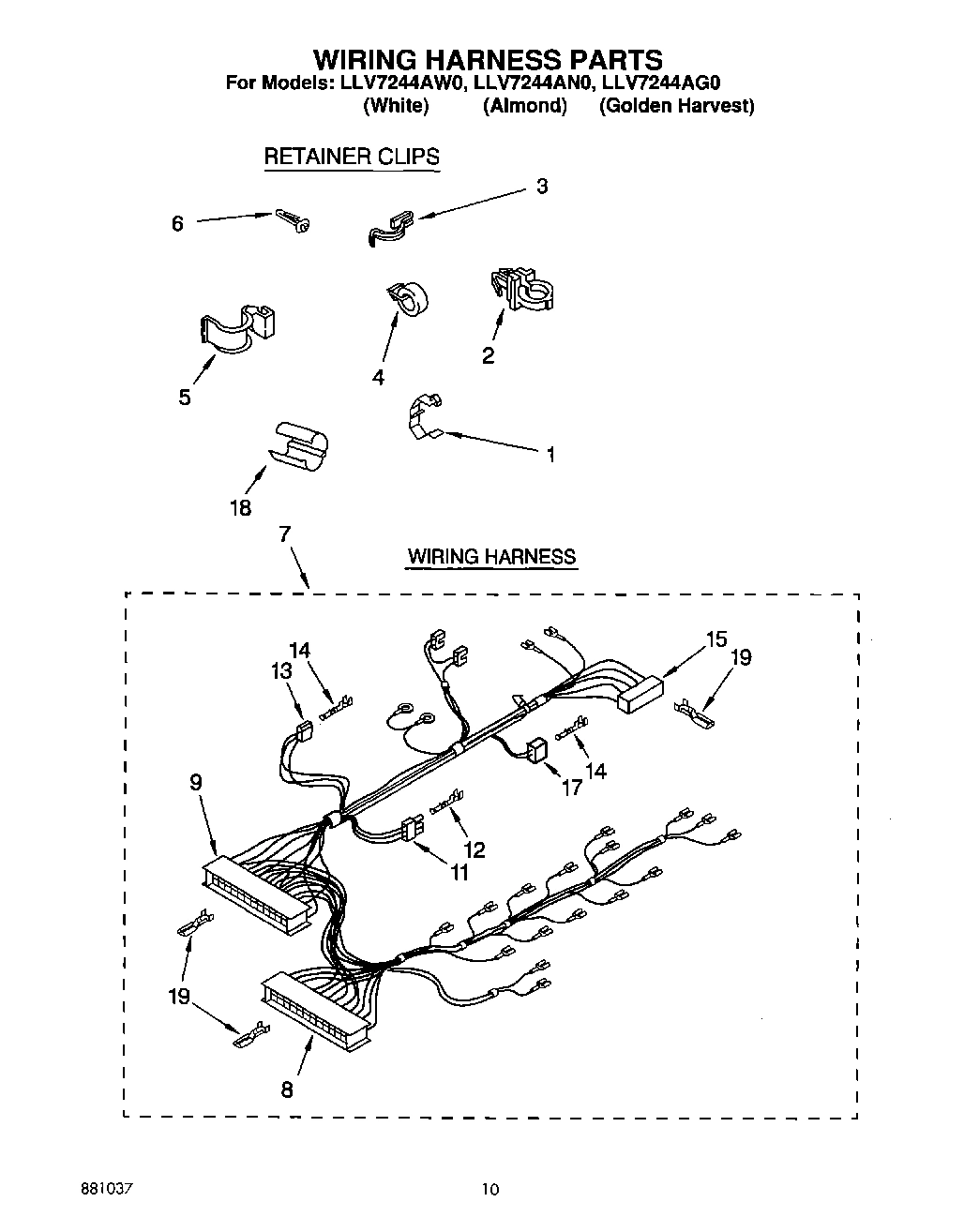

Wiring Harness WPL 3359851 Contact Us For Availability

8

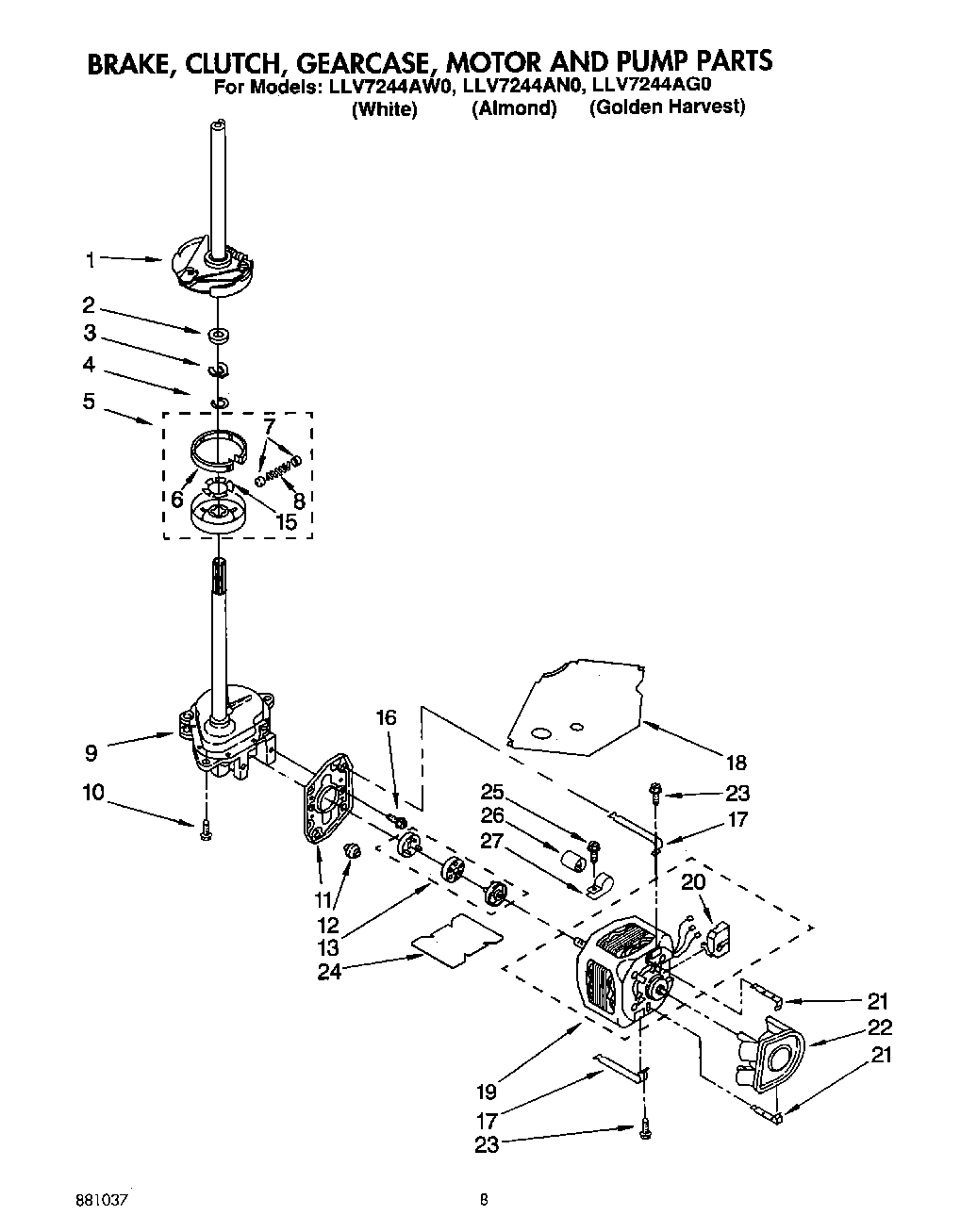

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Block, Disconnect WPL 352090 Contact Us For Availability

9

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.99

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

10

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

11

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

11

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

11

Seal, Agitator WPL 357574 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

353424 Whirlpool Connector Backorder WPL 353424 $14.02

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Lock, Filter WPL 62942 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Connector WPL 3348075 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Protector, Harness WPL 63523 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Lid (White) WPL 3351659 Contact Us For Availability

Lid (Almond) WPL 3351660 Contact Us For Availability

Lid (Golden Harvest) WPL 3351661 Contact Us For Availability

Terminal WPL 3371761 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

25

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

35

Switch, Touch-Pad (8) WPL 3359557 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

37

Screw, 8-18 x 7/8 WPL 3397537 Contact Us For Availability

39

Panel, Console (For White Model) WPL 3359296 Contact Us For Availability

39

Panel, Console (For Almond Model) WPL 3359297 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

45

280193 Whirlpool Timer Knob Backorder WPL 280193 $40.76

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap, End (R.H.) (White/Chrome) WPL 3358516 Contact Us For Availability

51

Cap, End (R.H.) (Almond/Chrome) WPL 3358517 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99
