Model Whirlpool LA7000XSW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $11.02

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

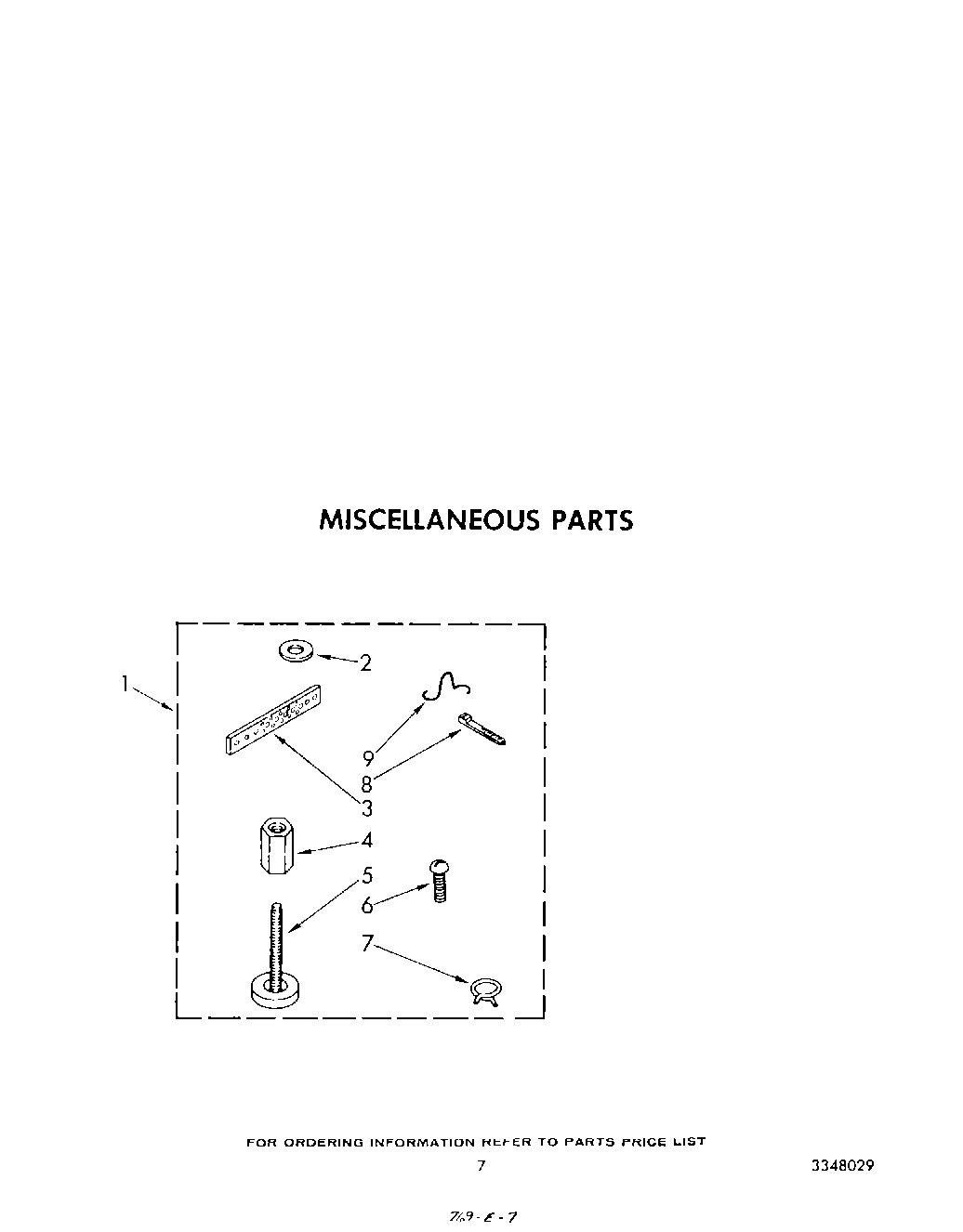

Miscellaneous Parts Bag WPL 384254 Contact Us For Availability

2

285321 Whirlpool Sleeve Backorder WPL 285321 $53.62

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.46

2

Top (White) WPL 388345 Contact Us For Availability

2

Top (Almond) WPL 388346 Contact Us For Availability

2

Top (Toast) WPL 388347 Contact Us For Availability

2

Top (Platinum) WPL 388348 Contact Us For Availability

2

Top (Golden Harvest) WPL 388349 Contact Us For Availability

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.46

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

3

Filter, Barrel WPL 64210 Contact Us For Availability

3

Strap, Ground WPL 22965 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.77

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.77

4

Screw, 6-20 X 1/2 WPL 339583 Contact Us For Availability

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Cabinet (Almond) WPL 63425 Contact Us For Availability

5

Cabinet (Toast) WPL 63426 Contact Us For Availability

5

Cabinet (Platinum) WPL 63427 Contact Us For Availability

5

Cabinet (Golden Harvest) WPL 63428 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Agitator WPL 64214 Contact Us For Availability

6

Panel, Rear WPL 3348430 Contact Us For Availability

6

Screw, Ground (10-24 x 1) WPL 132848 Contact Us For Availability

7

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $100.66

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.56

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.23

8

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

8

Screw & Washer, Lid Switch (2) WPL 354764 Contact Us For Availability

8

Spring, Clutch WPL 381046 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

9

WP3351744 Whirlpool Timer Backorder WPL WP3351744 $225.05

9

Harness, Lid Switch WPL 63833 Contact Us For Availability

9

Retainer, Drain Hose WPL 357247 Contact Us For Availability

W10389328 Whirlpool Basket Backorder WPL W10389328 $227.40

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.81

Terminal, Female WPL 352088 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.67

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $32.75

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $3.22

Actuator, Lid Switch WPL 357347 Contact Us For Availability

Switch, Water Level WPL 64103 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

Lock, Filter WPL 62942 Contact Us For Availability

Bracket, Control WPL 63687 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $4.19

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

Cord, Power WPL 62734 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.50

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

Cap, End (L.H.) WPL 63789 Contact Us For Availability

17

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.83

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $37.68

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Hose, Bleach WPL 63323 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

Lid (White) WPL 388425 Contact Us For Availability

Lid (Almond) WPL 388426 Contact Us For Availability

Lid (Toast) WPL 388427 Contact Us For Availability

Lid (Platinum) WPL 388428 Contact Us For Availability

Lid (Golden Harvest) WPL 388429 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.85

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $29.83

Spring & Button, Lid ((R.H.)) WPL 53748 Contact Us For Availability

Spring & Button, Lid ((L.H.)) WPL 53749 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

25

Plug, Button WPL 54690 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.63

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

27

Plug, Terminal (3-Way) WPL 62888 Contact Us For Availability

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $40.10

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.44

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

33

357030 Whirlpool Clamp Backorder WPL 357030 $13.77

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

35

Switch, Water Temperature WPL 3347791 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $3.22

37

Knob, Water Level WPL 386636 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.53

39

Panel, Console WPL 387794 Contact Us For Availability

40

WP689559 Whirlpool Nut Backorder WPL WP689559 $5.76

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 3347726 Contact Us For Availability

45

Dial, Timer WPL 64140 Contact Us For Availability

47

Button, Push (4) WPL 3347774 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

53

Rack WPL 63020 Contact Us For Availability

54

WPL 364089 WPL 364089 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

57

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.15

58

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $37.24

60

WPL 3348424 WPL 3348424 Contact Us For Availability

61

WPL 3348392 WPL 3348392 Contact Us For Availability

62

WPL 3348102 WPL 3348102 Contact Us For Availability
