Model Whirlpool KSRU25ILSS01 REFRIGERATOR – Common Parts & Diagrams

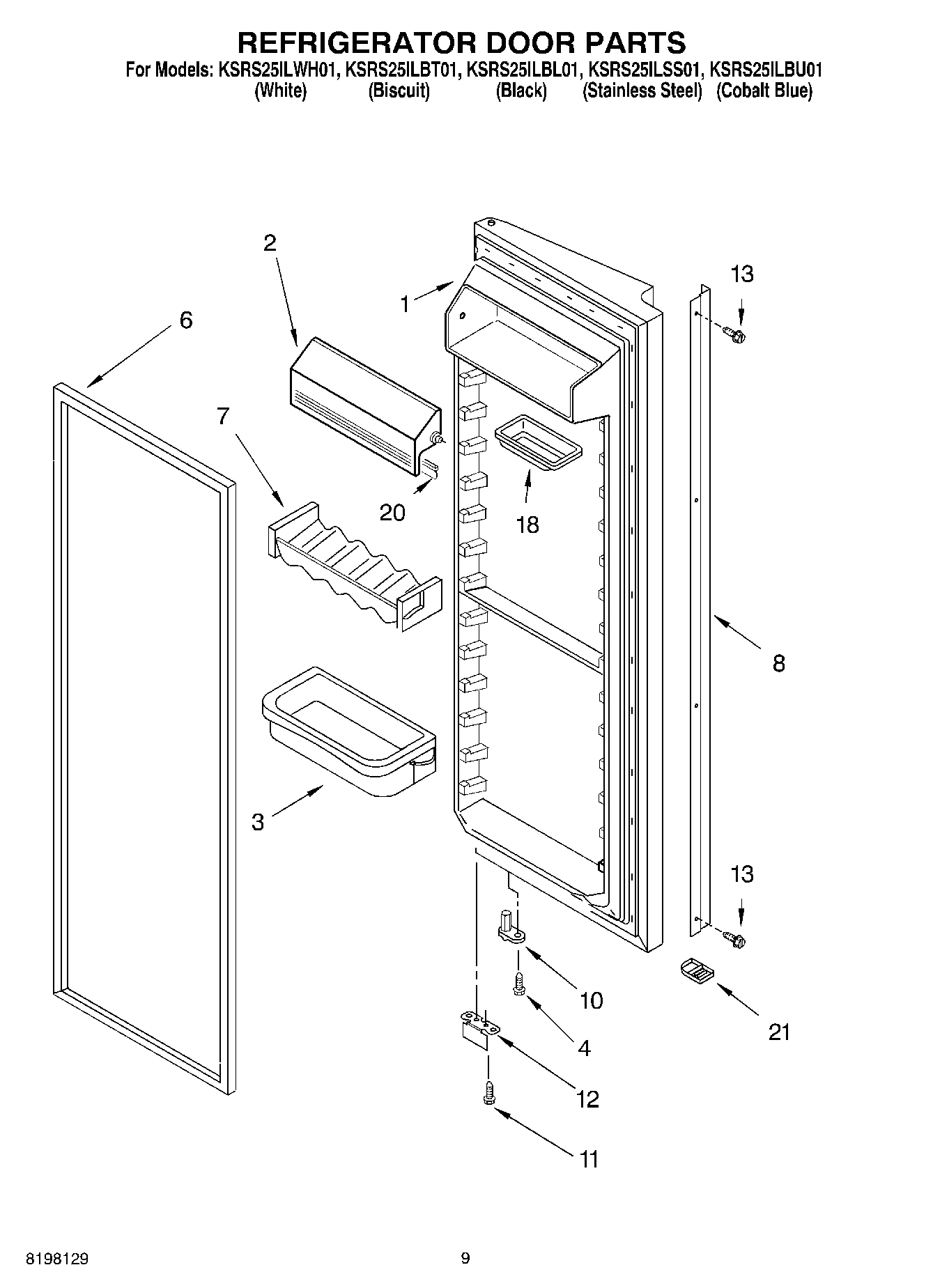

06 - REFRIGERATOR DOOR

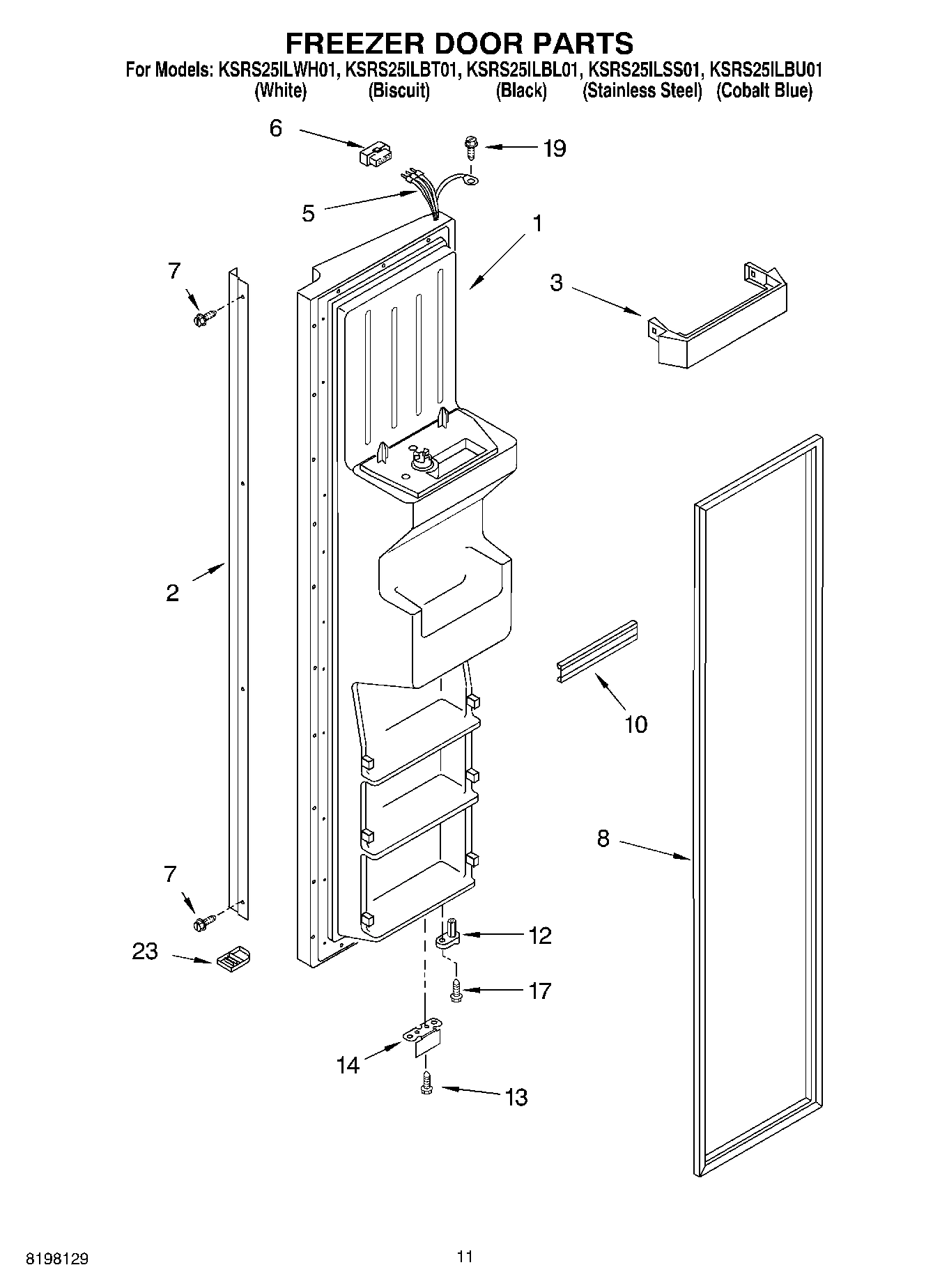

07 - FREEZER DOOR

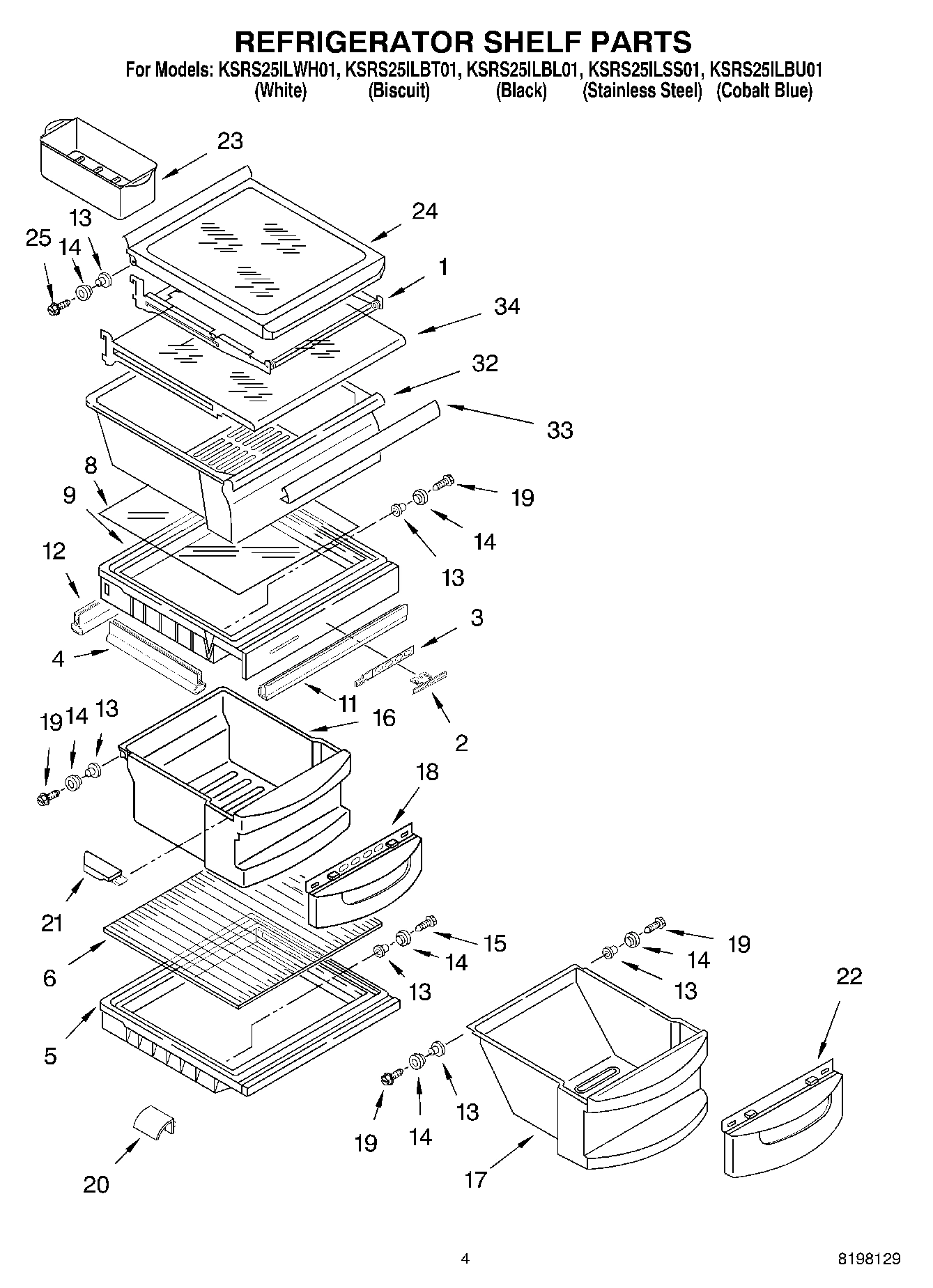

03 - REFRIGERATOR SHELF

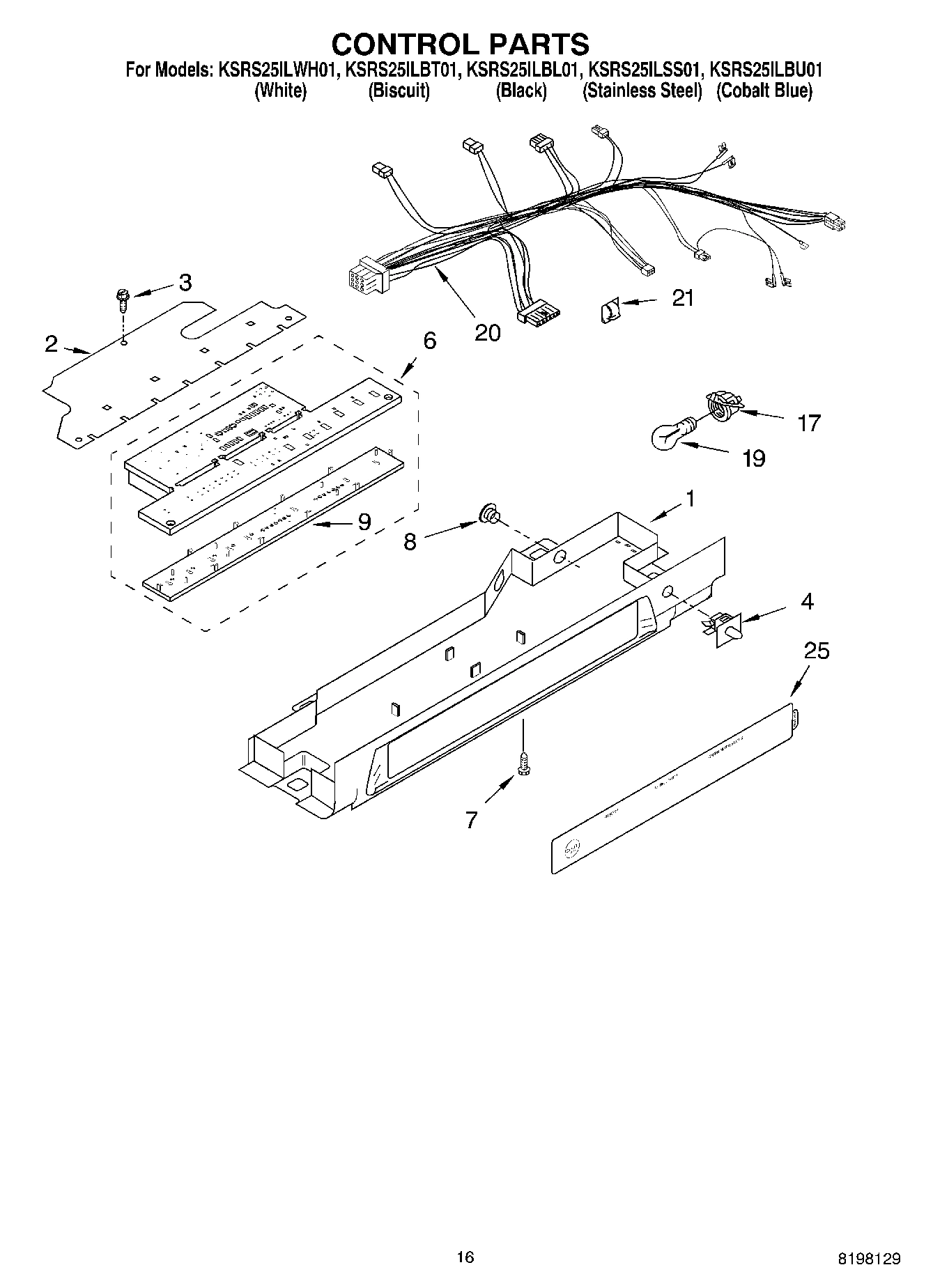

10 - CONTROL

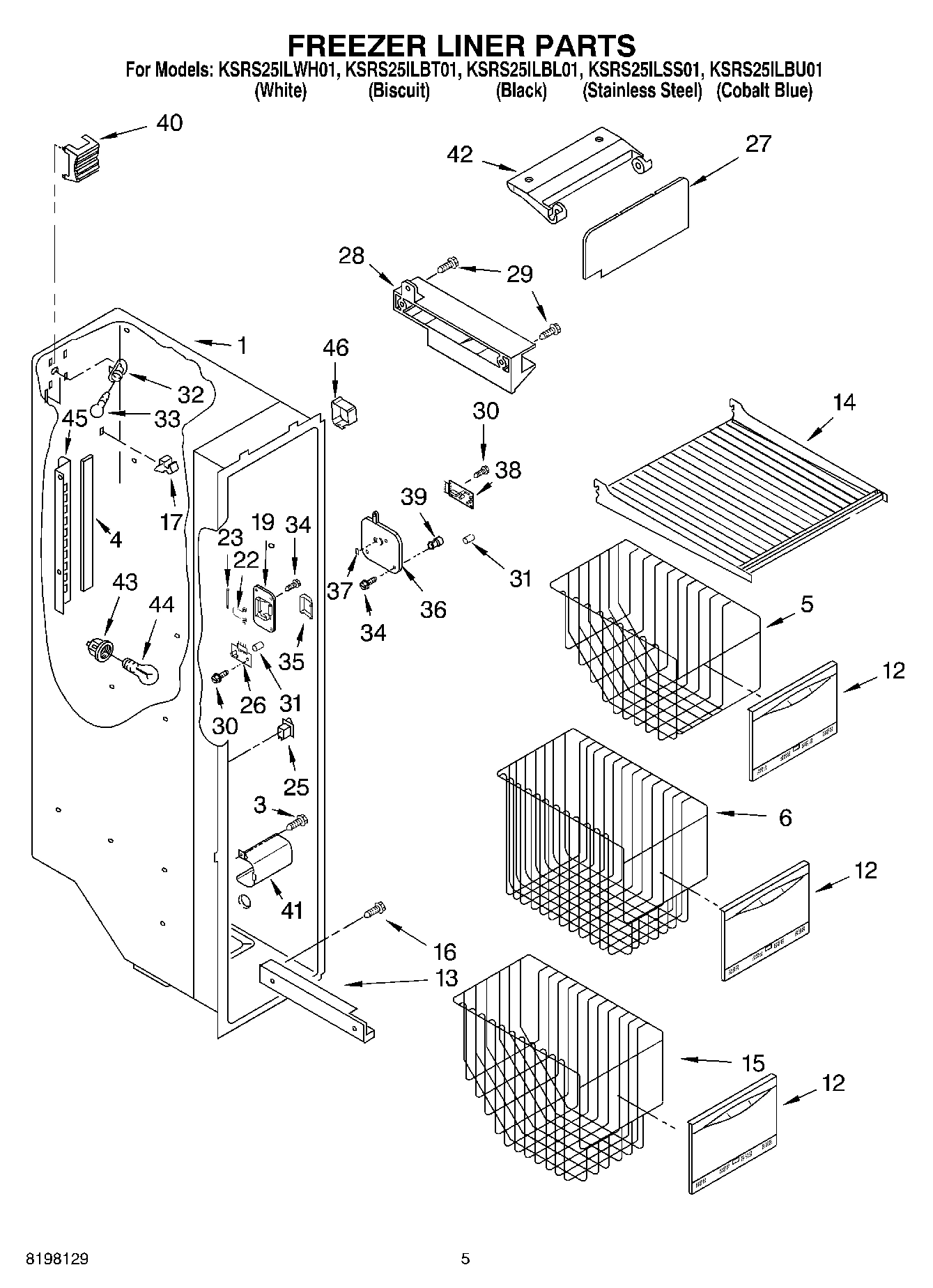

04 - FREEZER LINER

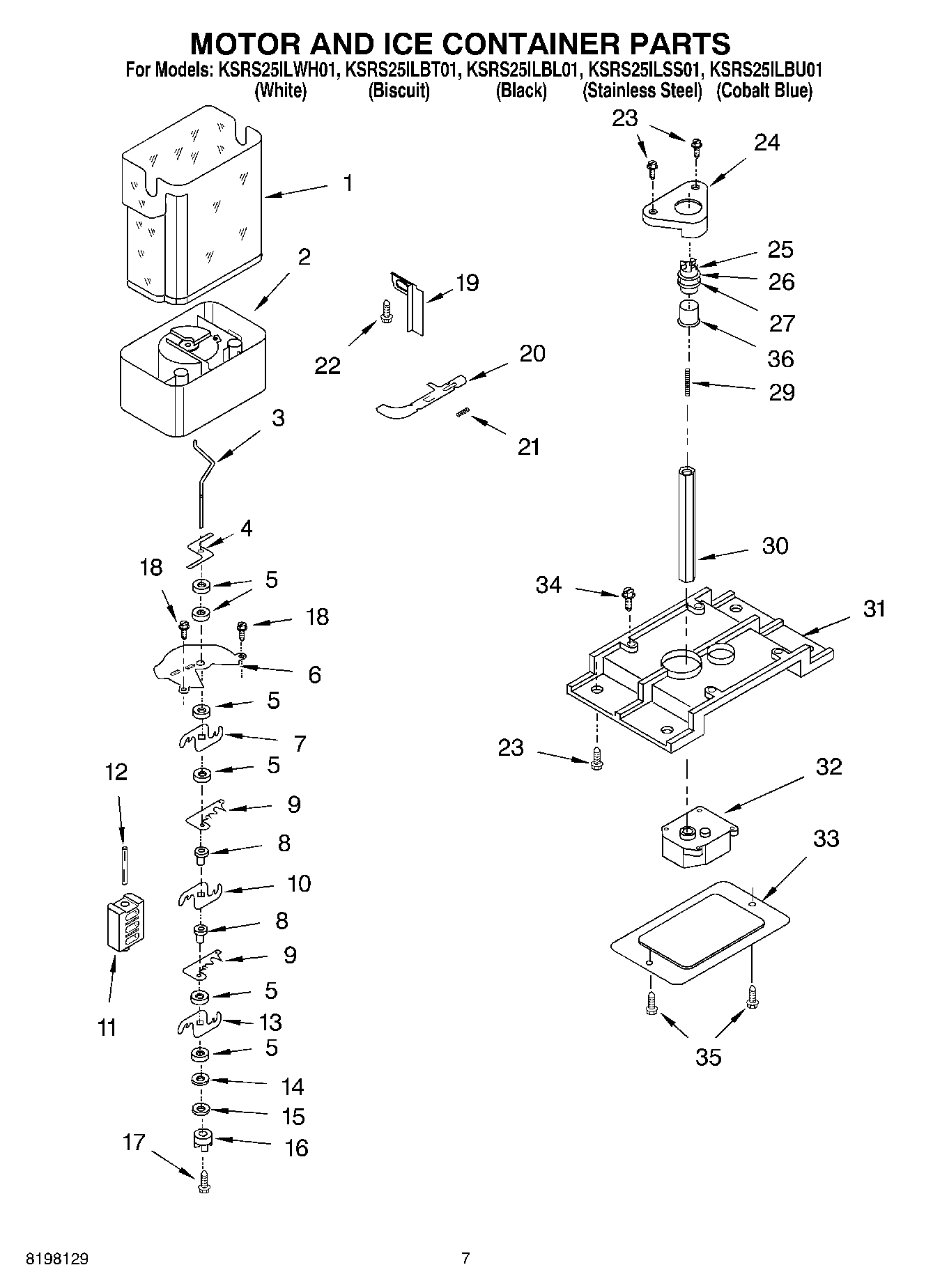

05 - MOTOR AND ICE CONTAINER

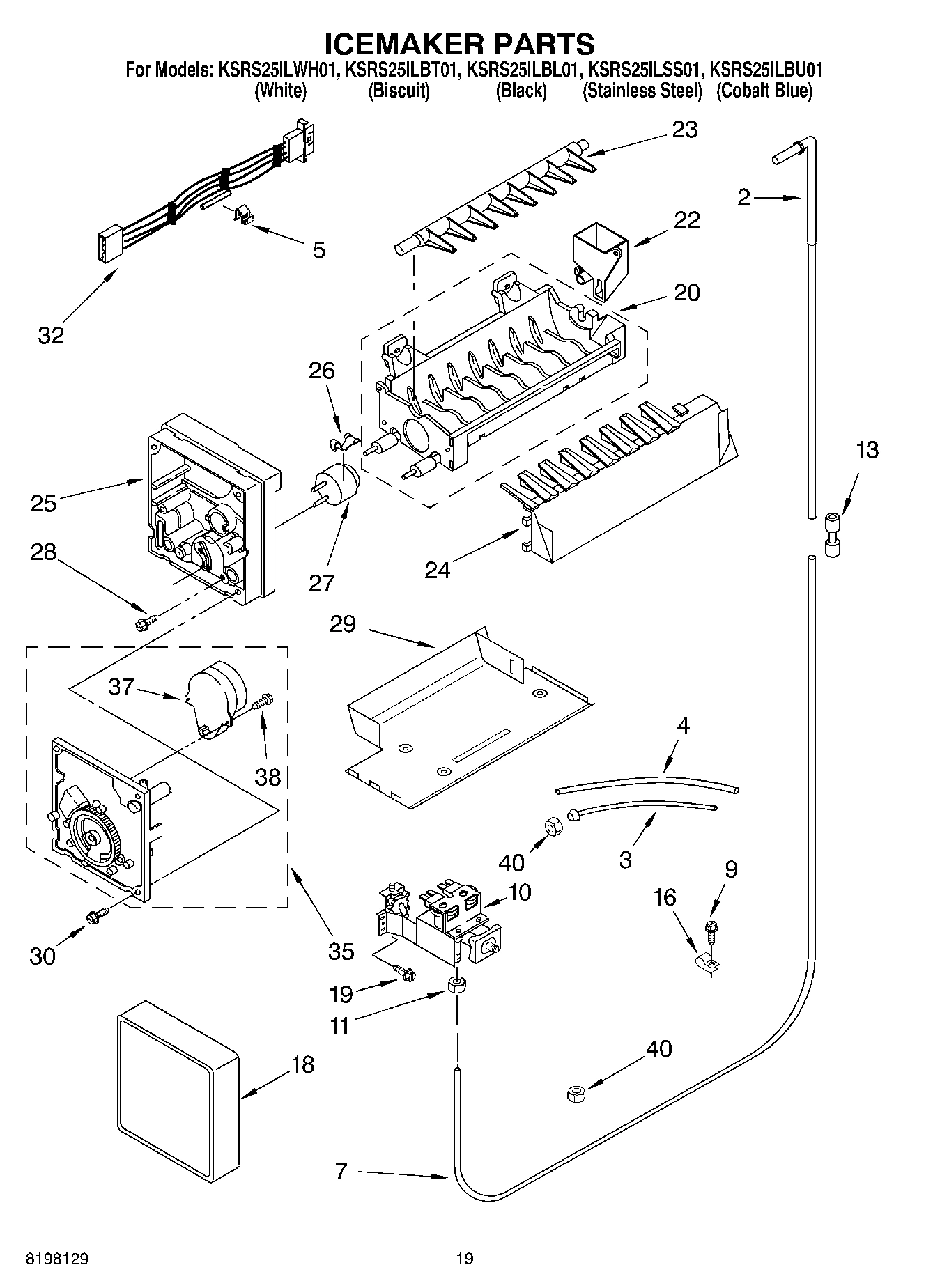

12 - ICE MAKER, OPTIONAL

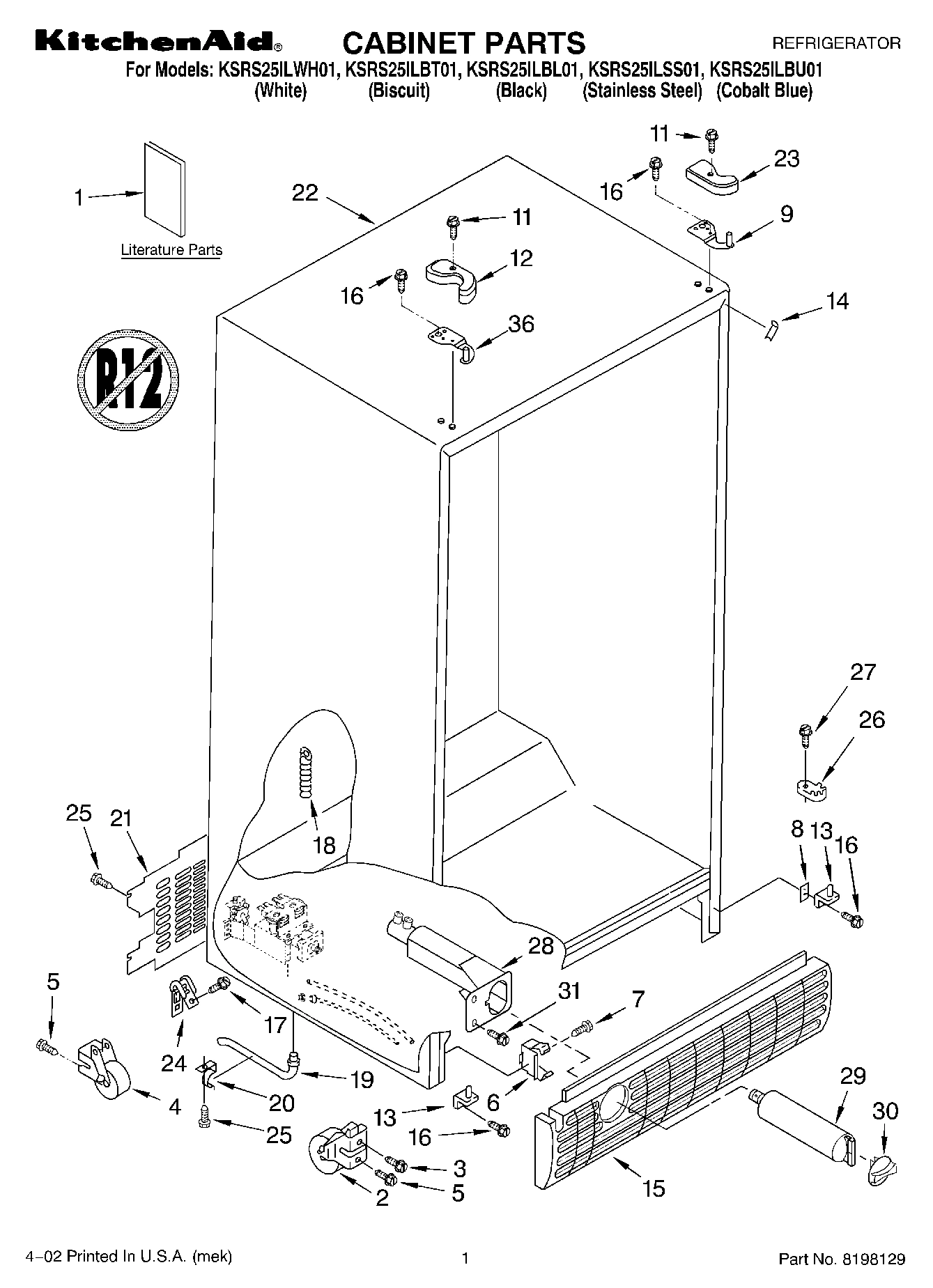

01 - CABINET, LITERATURE

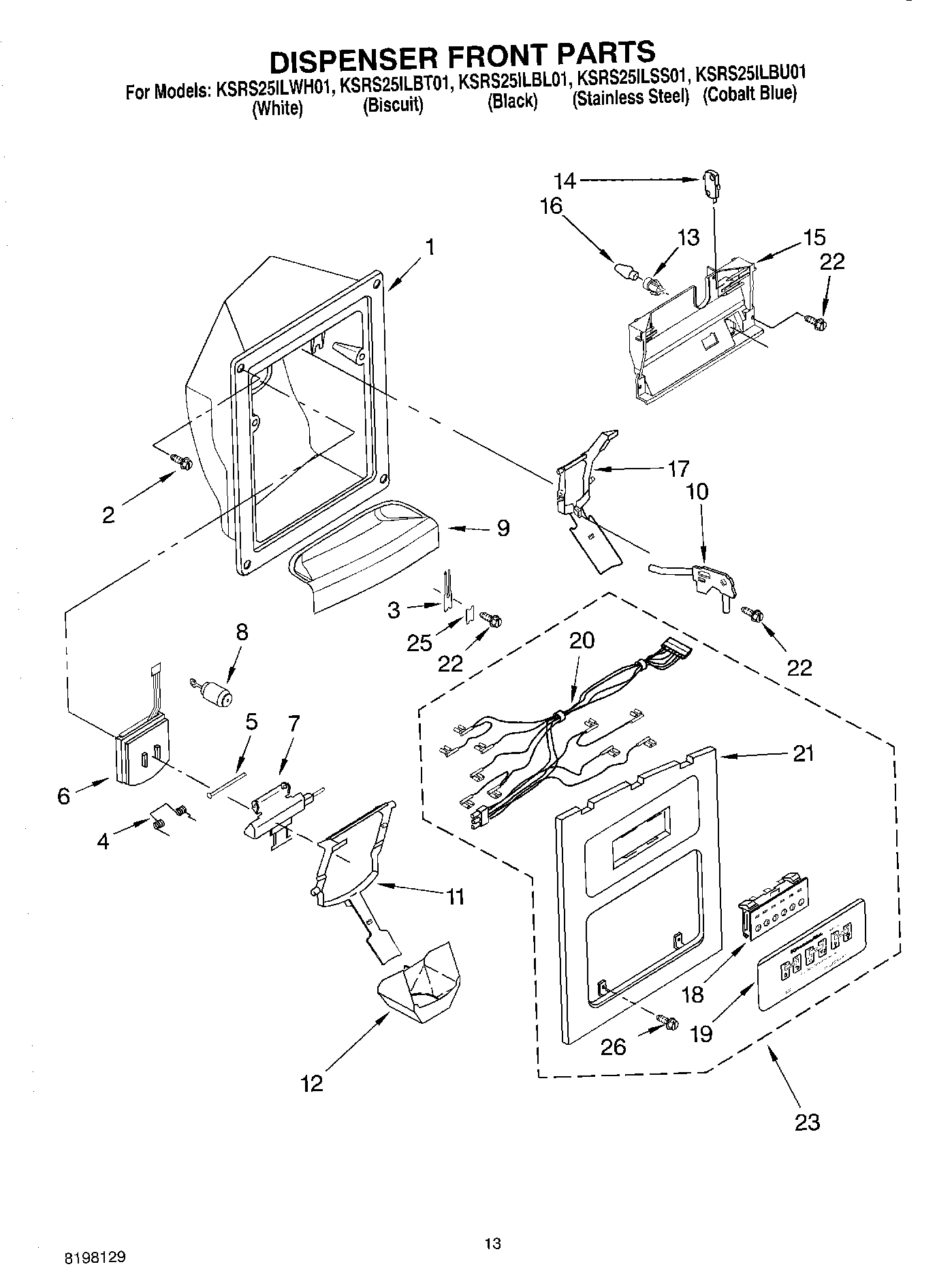

08 - DISPENSER FRONT

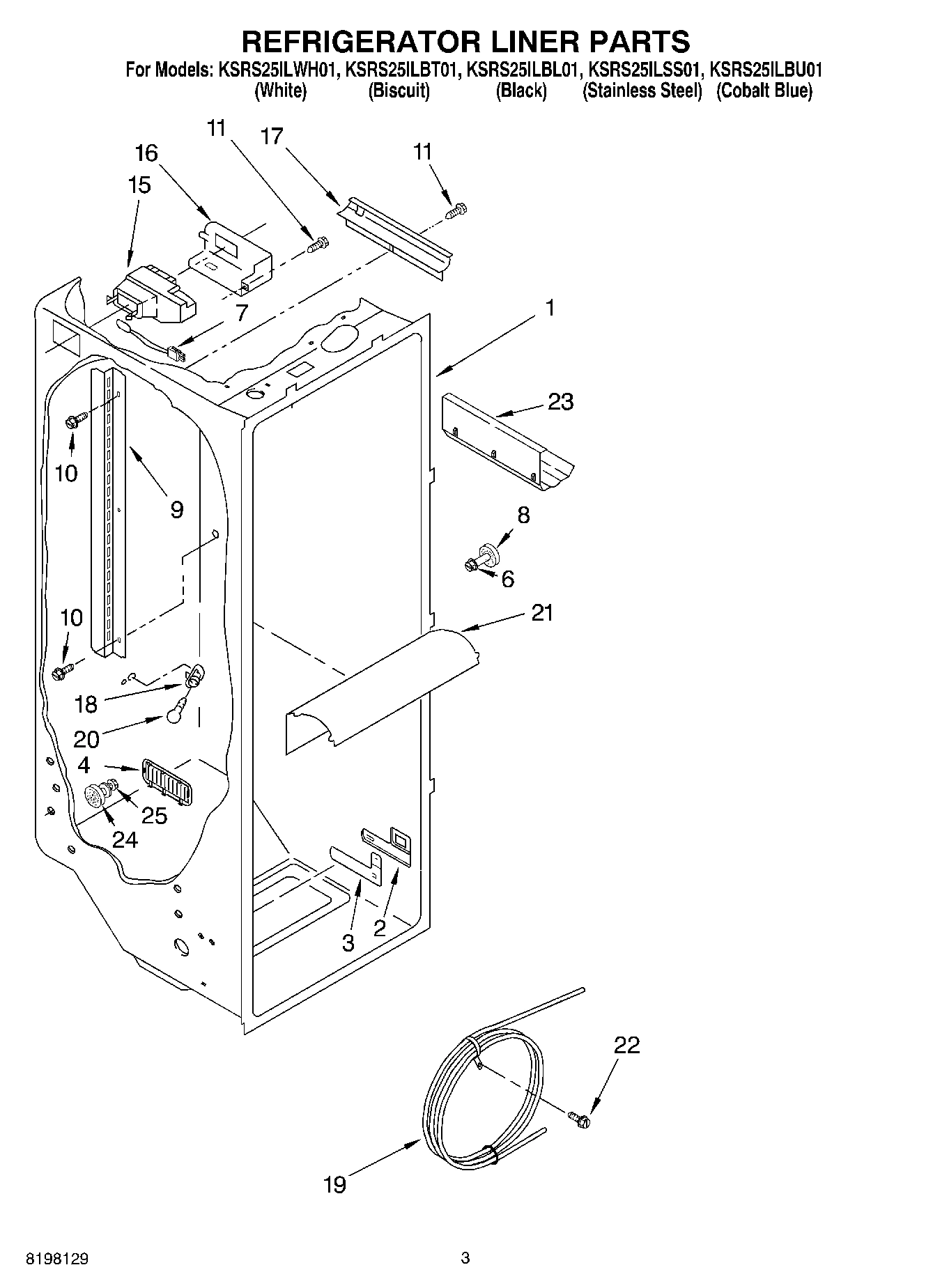

02 - REFRIGERATOR LINER

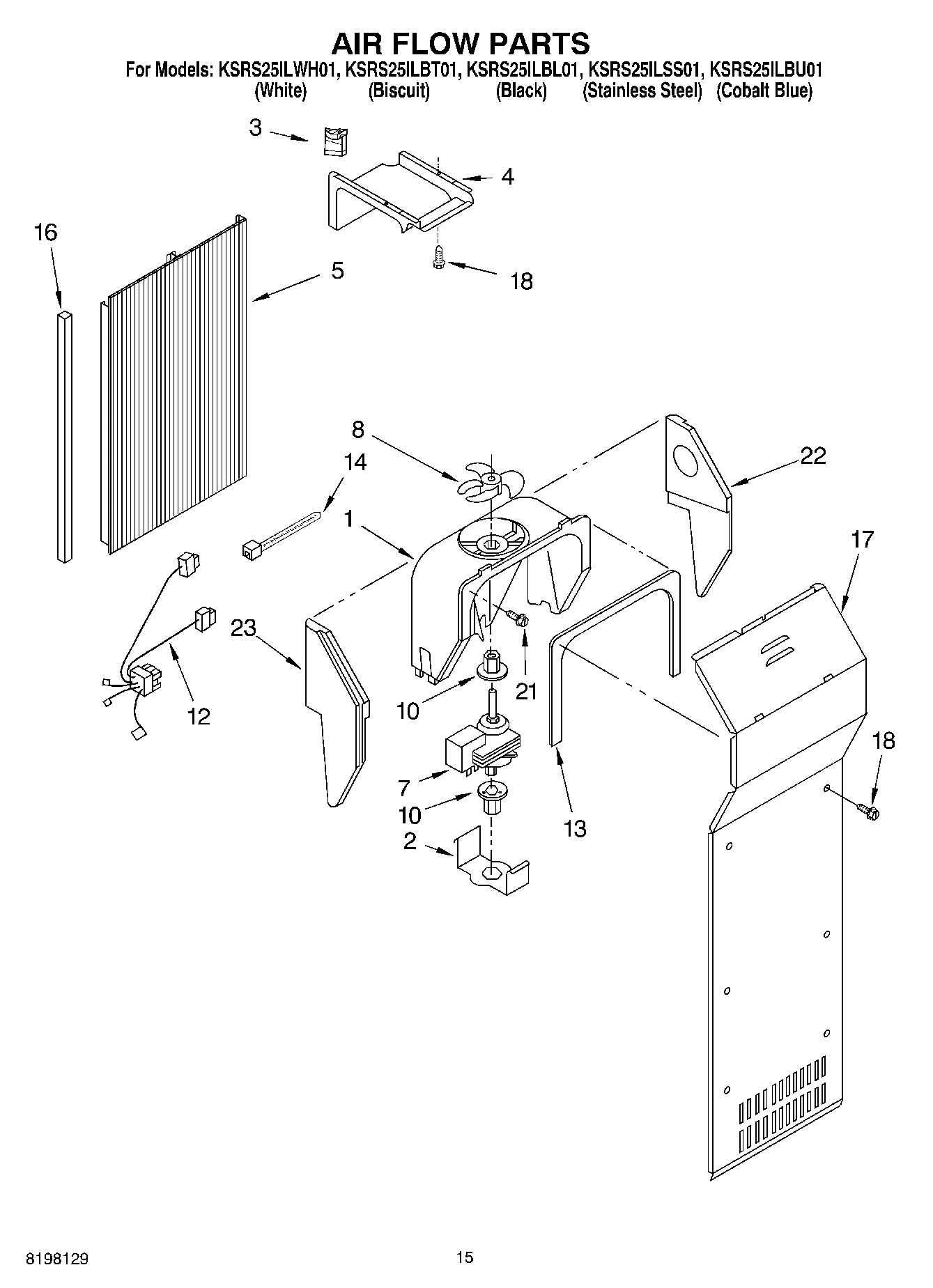

09 - AIR FLOW

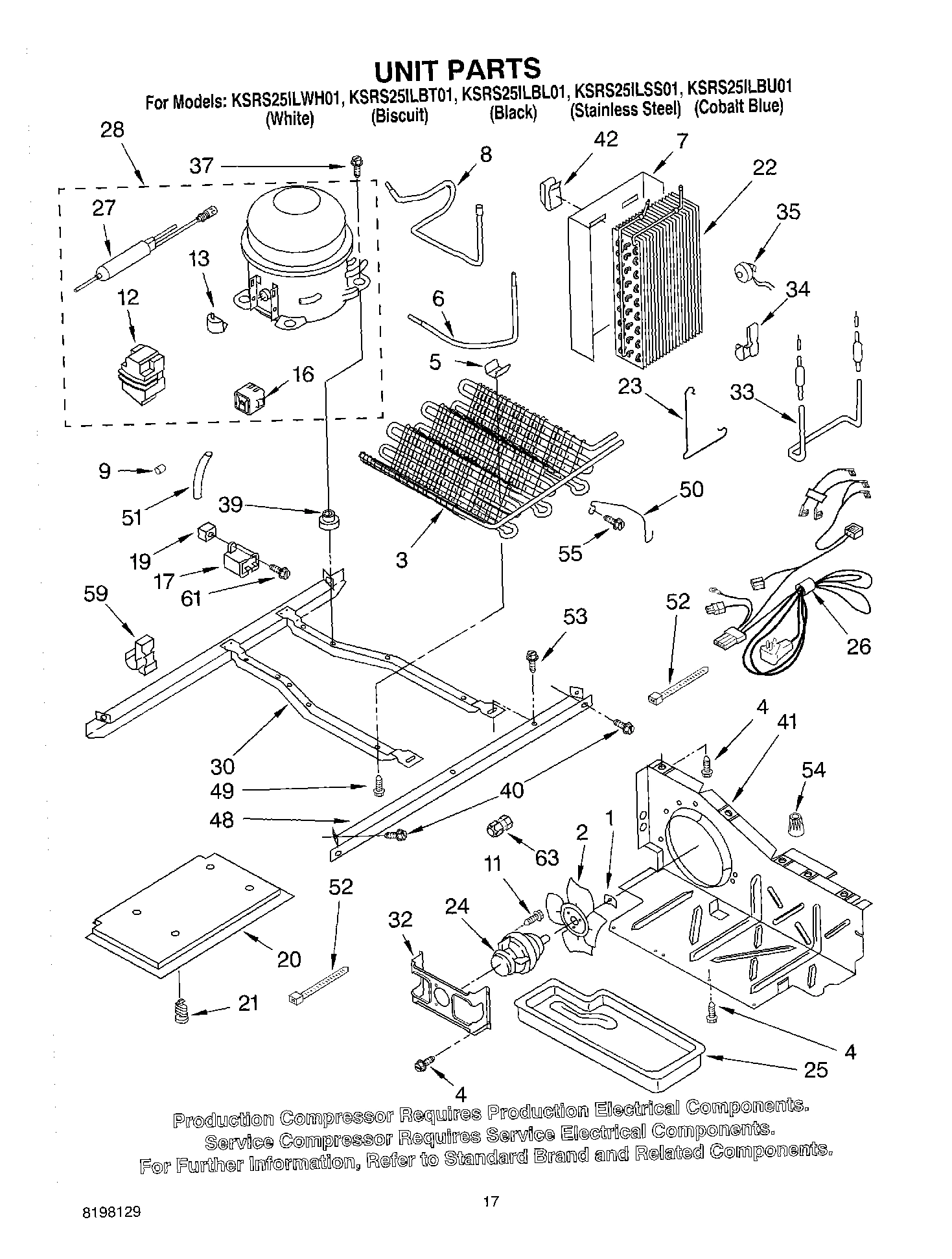

11 - UNIT
Common parts from model Whirlpool KSRU25ILSS01 REFRIGERATOR
Icemaker WPL LIT787316 Contact Us For Availability
Refrigerator WPL LIT787808 Contact Us For Availability
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216445 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220541 Contact Us For Availability
1
Literature Parts (Owner`s Manual) WPL LIT2254906 Contact Us For Availability
1
Housing, Dispenser (Not Serviced) WPL ARI104291A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI104289A Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Crusher Bin WPL 2212367 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2198595 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Air Duct, Upper WPL 2212377 Contact Us For Availability
5
Dispenser Harness WPL 2206178 Contact Us For Availability
5
Air Duct Freezer WPL 2198580 Contact Us For Availability
6
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
7
Screw (Black) WPL 3400899 Contact Us For Availability
7
Door Mechanism Assembly WPL 2206423 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability
8
TUBE, SUCTION WPL 2205765 Contact Us For Availability
8
Shim (1) WPL 2209697 Contact Us For Availability
8
Mechanism Delay WPL 2205686 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grille, Overflow (Cobalt Blue) WPL 2207109BU Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability
9
Grille, Overflow (White) WPL 2207109W Contact Us For Availability
9
Shelf Ladder WPL 2206273 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Block, Blade WPL 2198602 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability
11
Lever, Ice Dispenser (Cobalt Blue) WPL 2207151 Contact Us For Availability
12
Hinge Cover (Cobalt Blue) WPL 2203407BU Contact Us For Availability
12
Harness, Fan Evaporator And Heater WPL 2216116 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
14
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
14
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
14
Filler, Wrapper (Cobalt Blue) WPL 2205991 Contact Us For Availability
15
Grille (Cobalt Blue) WPL 2186881BU Contact Us For Availability
15
Grille (Biscuit) WPL 2186881T Contact Us For Availability
16
Start Device, Combination (Start Relay and Ov WPL 2212194 Contact Us For Availability
17
Lever, Water Dispenser (Cobalt Blue) WPL 2207149 Contact Us For Availability
17
Cover, Evaporator WPL 2206314 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Switch Assembly (Not Available, Order No.23) WPL ARI104292A Contact Us For Availability
19
Overlay, Front Cover (Not Available, Order No WPL ARI104293A Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2206281 Contact Us For Availability
21
Light Lens WPL 2254920 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI104294A Contact Us For Availability
22
Cabinet (Not A Serviceable Part) WPL ARI104288A Contact Us For Availability
22
Screw WPL 488280 Contact Us For Availability
23
Clip WPL 2161324 Contact Us For Availability
23
Hinge Cover (Cobalt Blue) WPL 2203408BU Contact Us For Availability
23
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability
24
Holder WPL 2212369 Contact Us For Availability
25
Overlay, Control Box WPL 2220255 Contact Us For Availability
26
Harness, Unit WPL 2187398 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability
30
Cap, Water Filter (Cobalt Blue) WPL 2186884BU Contact Us For Availability
34
Clip, Heater WPL 2161330 Contact Us For Availability
37
Screw WPL 489473 Contact Us For Availability
40
WPL 80051 WPL 80051 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Torx Key WPL 1117510 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cleaner, Stainless Steel WPL 2006783 Contact Us For Availability
40
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 8171358 WPL 8171358 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
50
Guard, Fan WPL 2186495 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
