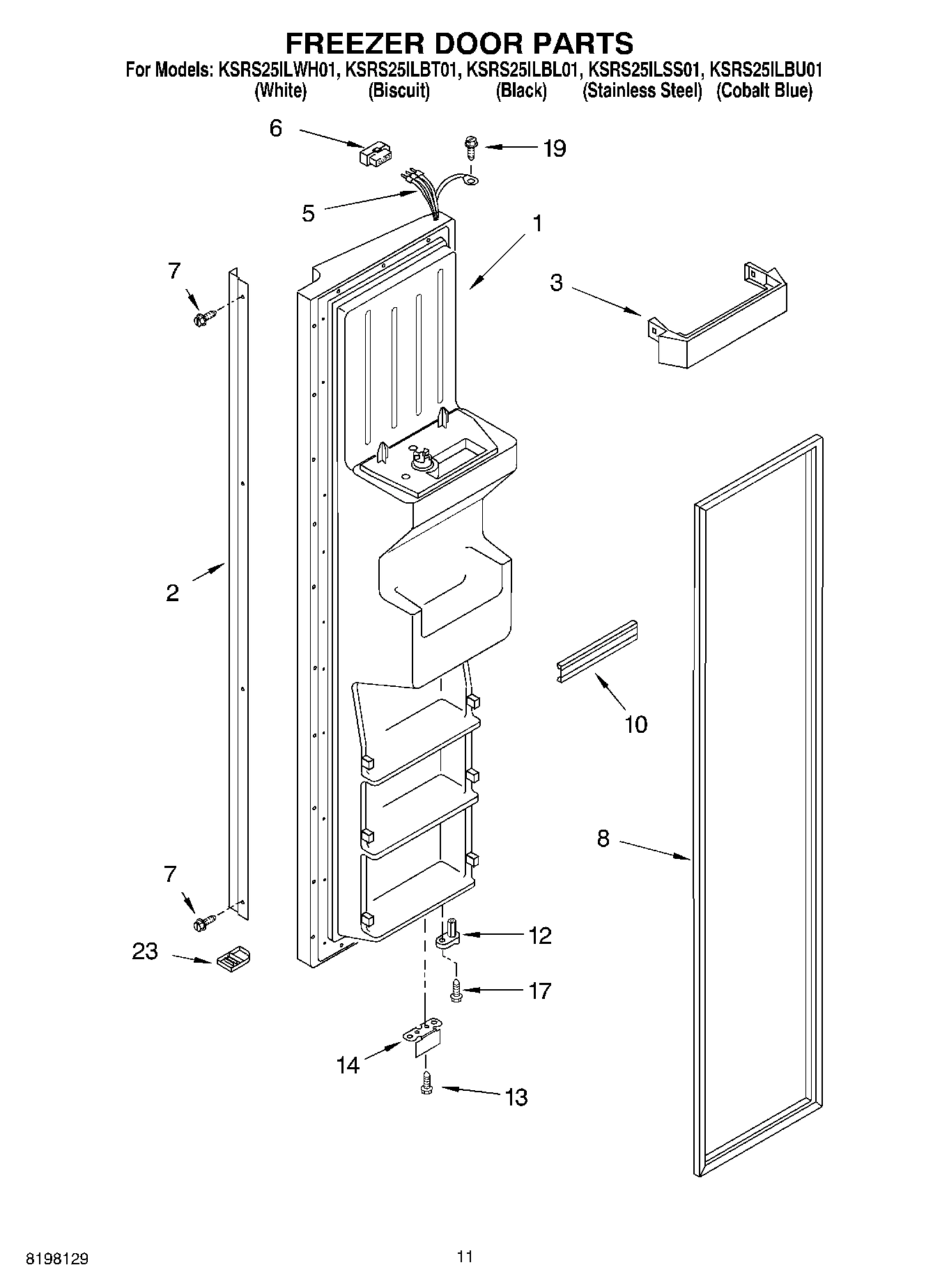

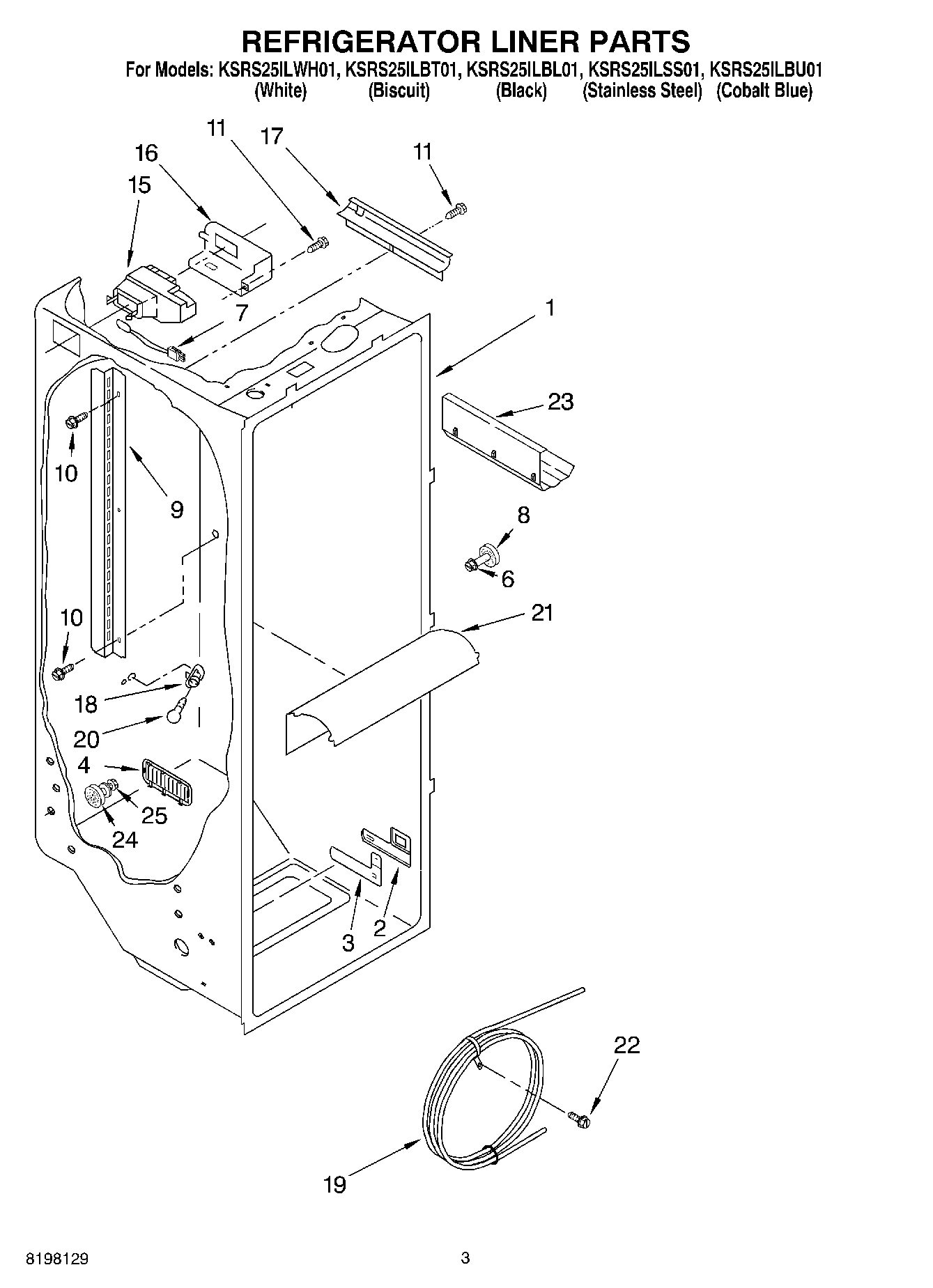

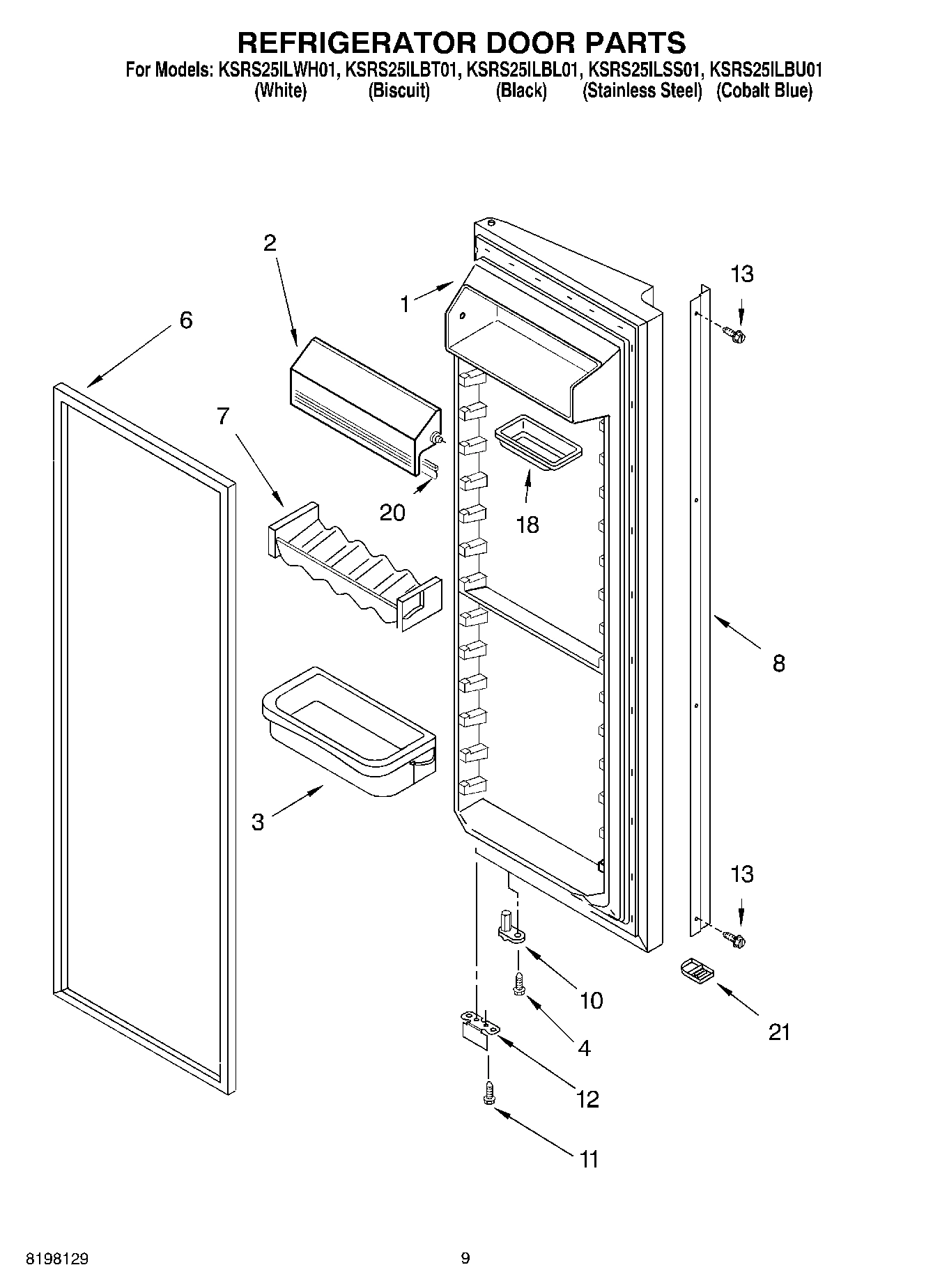

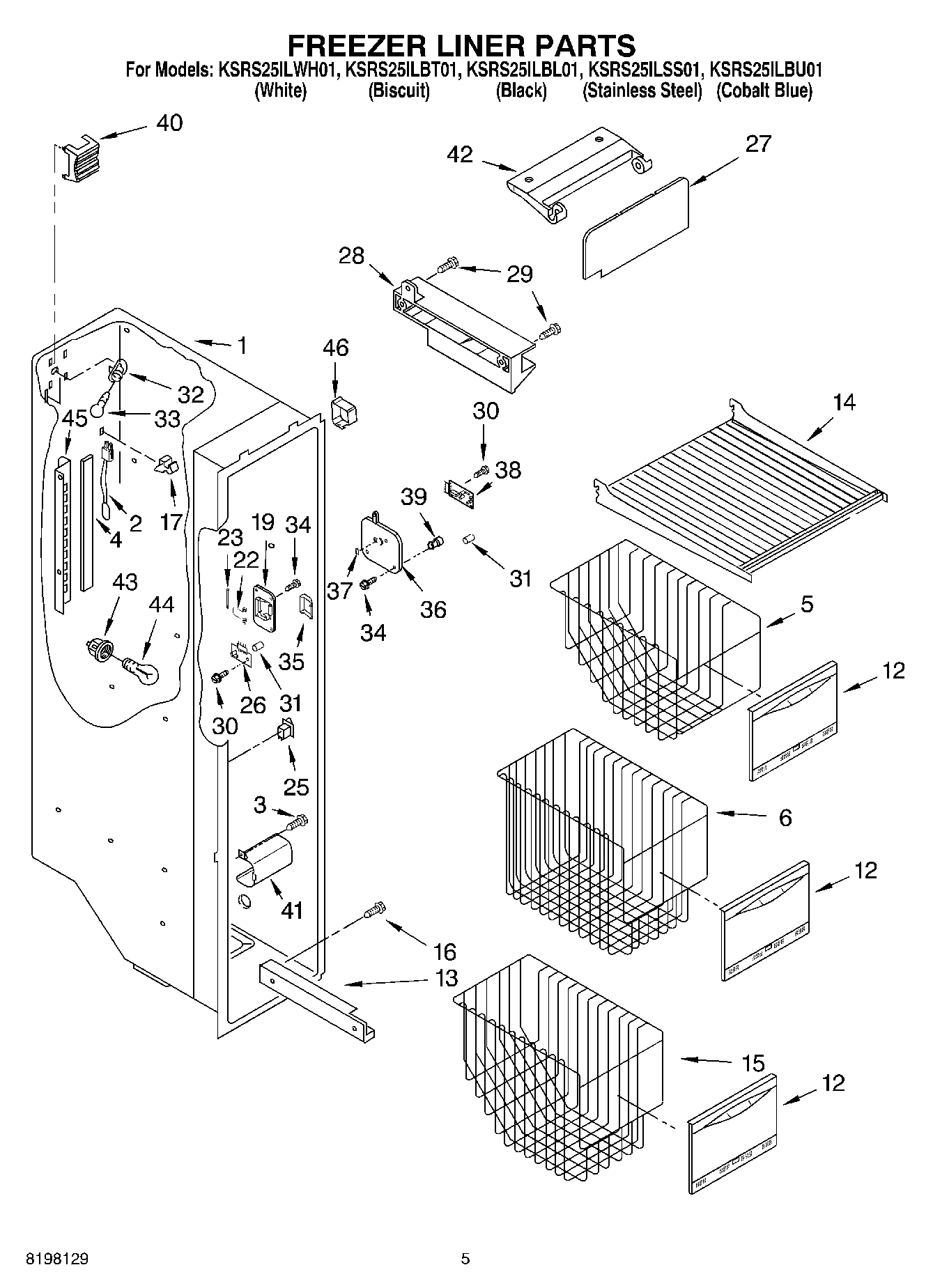

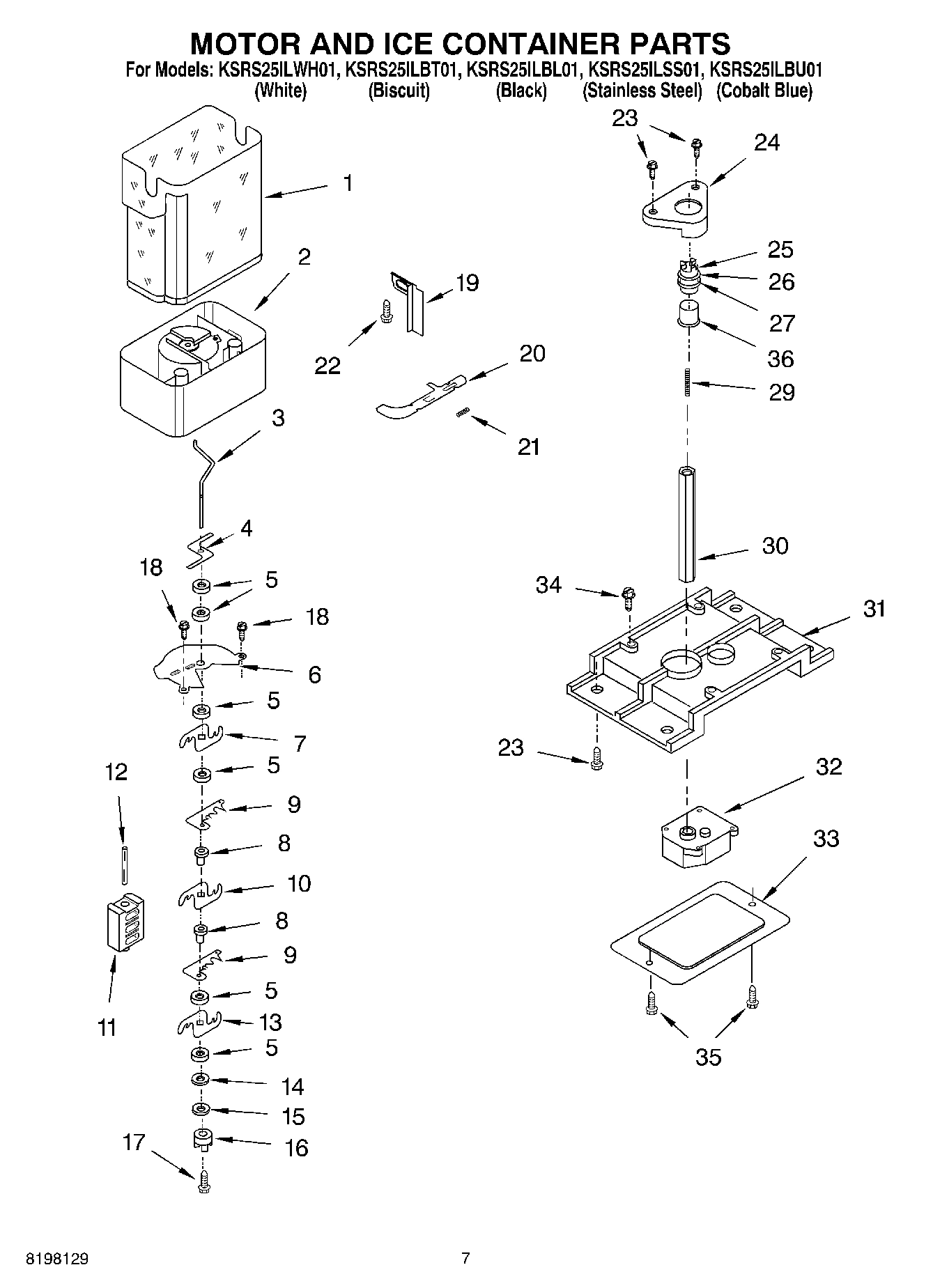

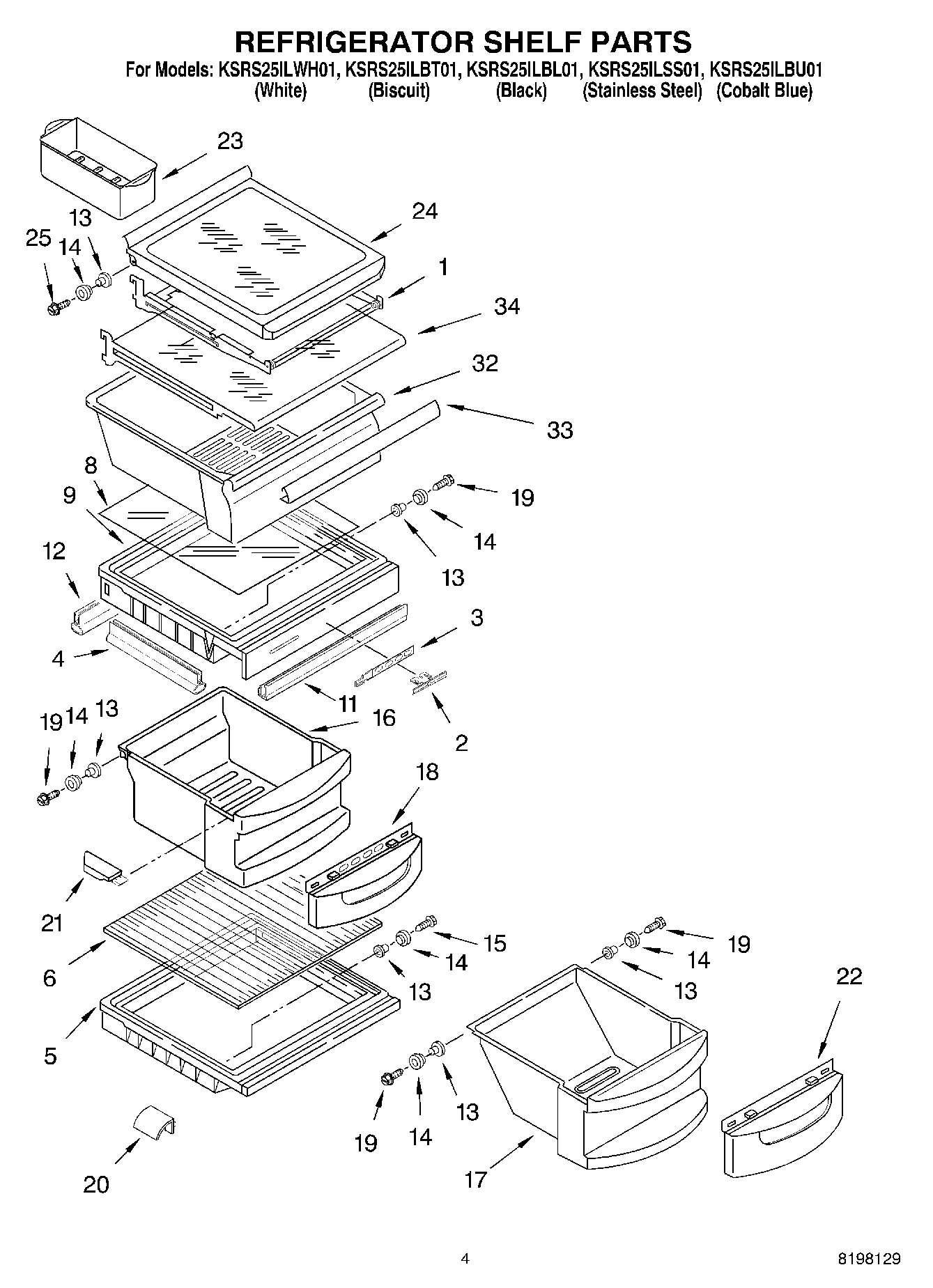

Model Whirlpool KSRS25ILBL01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $16.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP2258236 Whirlpool Ice Container and Auger A Backorder WPL WP2258236 $296.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

Caution: The spray paint is n WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Caution: The spray paint is not to be used wh WPL 2006783 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

WPL 542639 WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

WPL ARI102102A WPL ARI102102A Contact Us For Availability

WPL ARI102103A WPL ARI102103A Contact Us For Availability

WPL ARI102104A WPL ARI102104A Contact Us For Availability

WPL ARI102105A WPL ARI102105A Contact Us For Availability

WPL ARI102091A WPL ARI102091A Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI102092A Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216445 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2220541 Contact Us For Availability

1

Literature Parts (Owner`s Manual) WPL LIT2254906 Contact Us For Availability

1

Literature Parts (Icemaker) WPL LIT787316 Contact Us For Availability

1

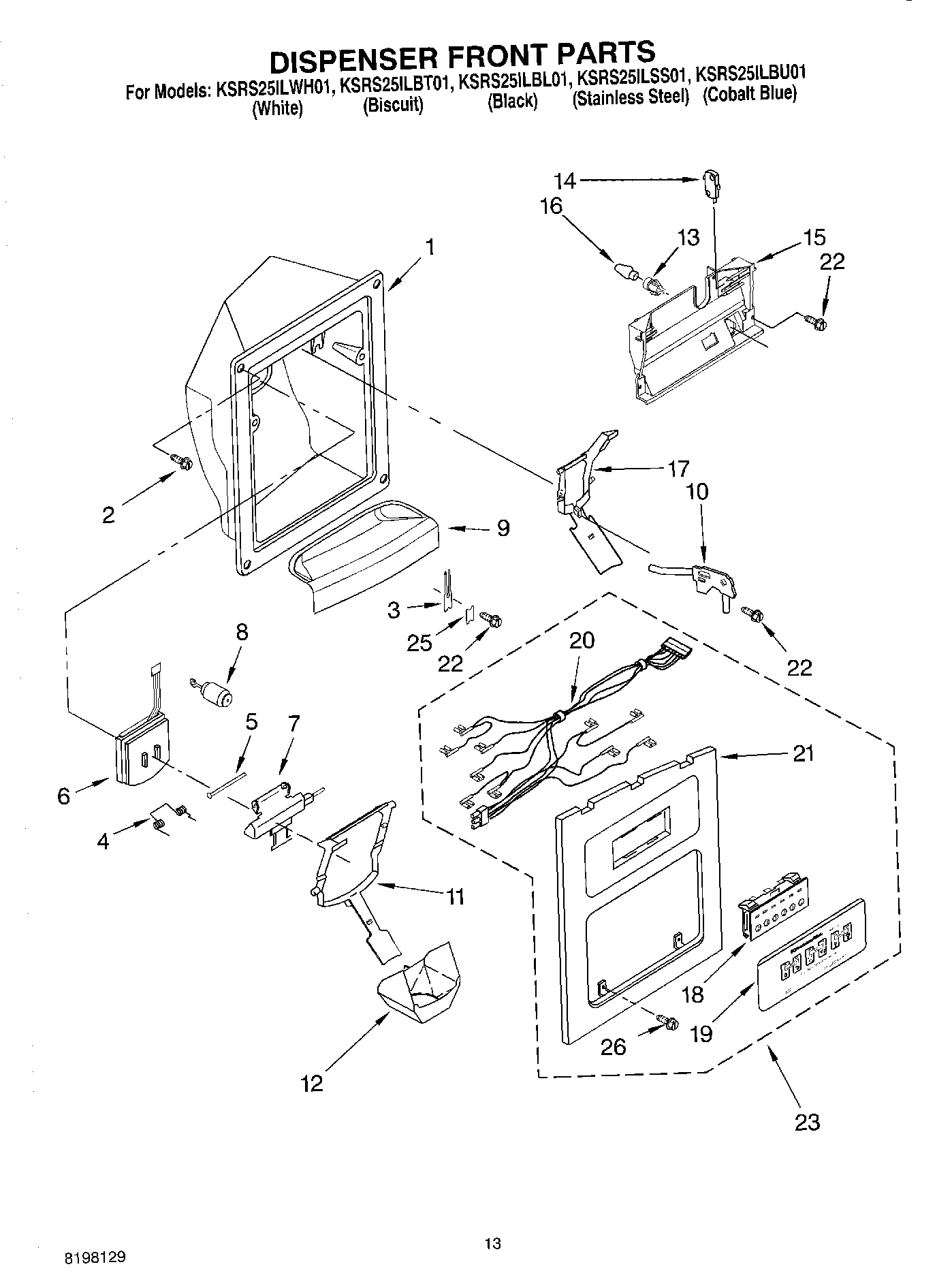

Housing, Dispenser (Not Serviced) WPL ARI102096A Contact Us For Availability

1

Shelf Assembly, Cantilever (2) WPL 2195978 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2212367 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.71

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $25.54

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Blade, Stirring WPL 2198603 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Dispenser Harness WPL 2206178 Contact Us For Availability

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

6

Glass, Cover WPL 2174148 Contact Us For Availability

6

Cover, Crusher WPL 2198591 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

Screw (Black) WPL 3400899 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Shim (1) WPL 2209697 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

8

Glass, Cover WPL 2189526 Contact Us For Availability

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207109B Whirlpool Refrigerator Grille Backorder WPL WP2207109B $45.40

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Grille, Overflow (Cobalt Blue) WPL 2207109BU Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207109T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207109W Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $100.57

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2186850 Contact Us For Availability

Lever, Ice Dispenser (Cobalt Blue) WPL 2207151 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

Hinge Cover (Cobalt Blue) WPL 2203407BU Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

Eyelet, Roller WPL 2174478 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Filler, Wrapper (Cobalt Blue) WPL 2205991 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $78.99

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

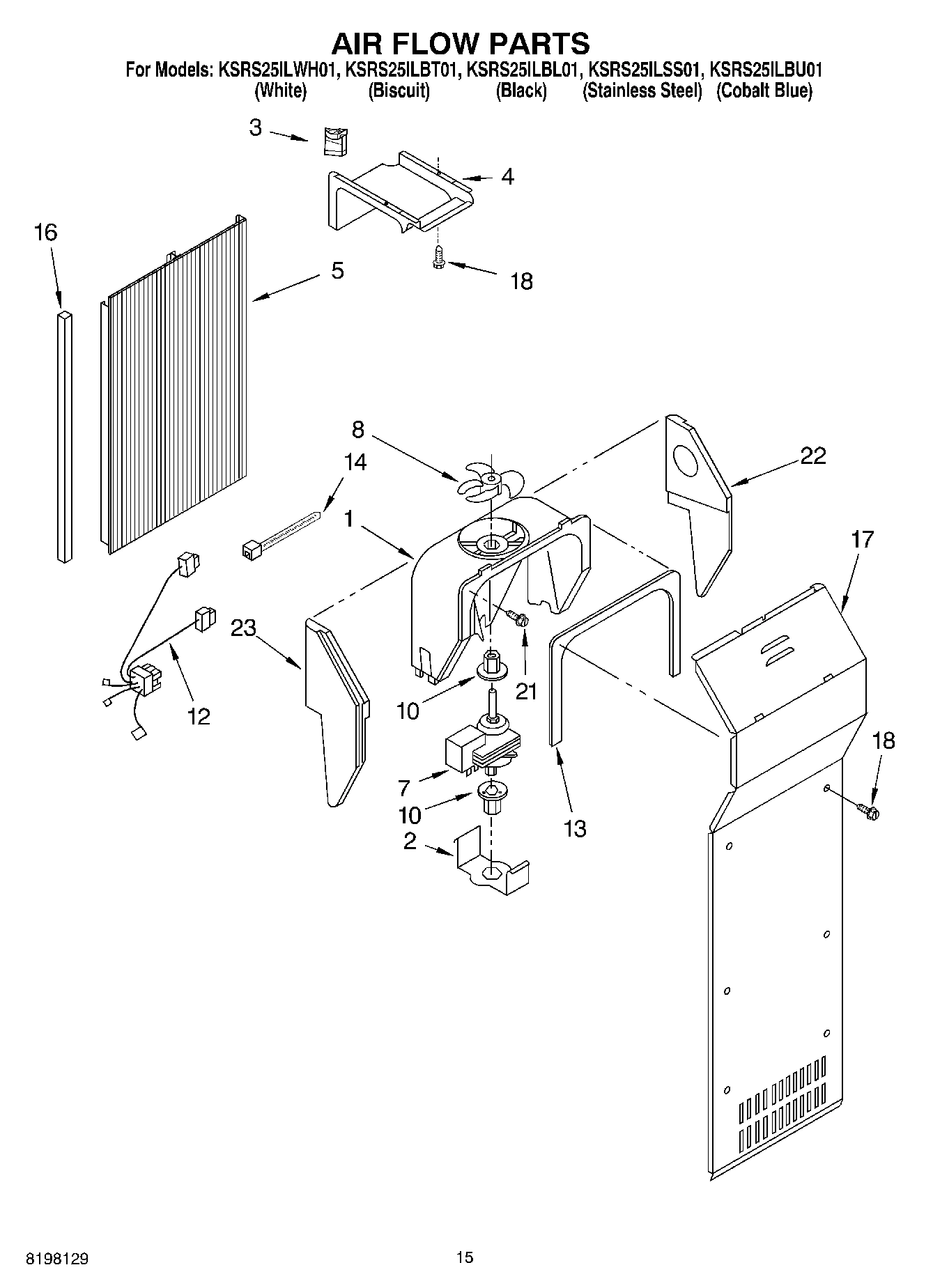

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Grille (Cobalt Blue) WPL 2186881BU Contact Us For Availability

Grille (Biscuit) WPL 2186881T Contact Us For Availability

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Lever, Water Dispenser (Cobalt Blue) WPL 2207149 Contact Us For Availability

Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Window, Crisper WPL 2174076 Contact Us For Availability

Switch Assembly (Not Available, Order 23) WPL ARI102097A Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $4.82

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Overlay, Front Cover (Not Available, Order 23 WPL ARI102098A Contact Us For Availability

2176095 Whirlpool Refrigerator Deflector Backorder WPL 2176095 $59.87

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

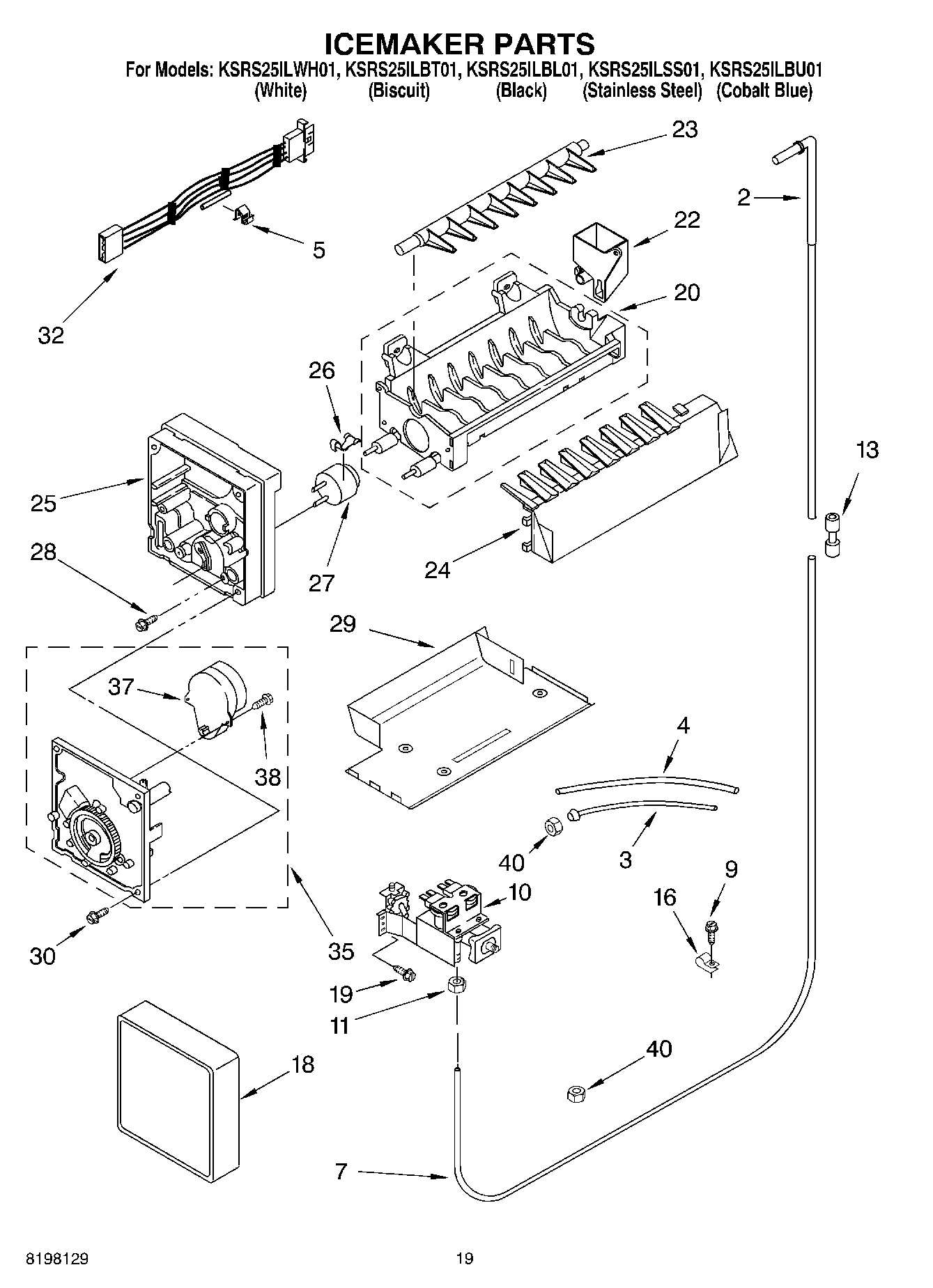

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

Latch, Bin WPL 2212371 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Light Lens WPL 2254920 Contact Us For Availability

Front Cover, Housing (Not Available, Order 23 WPL ARI102099A Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

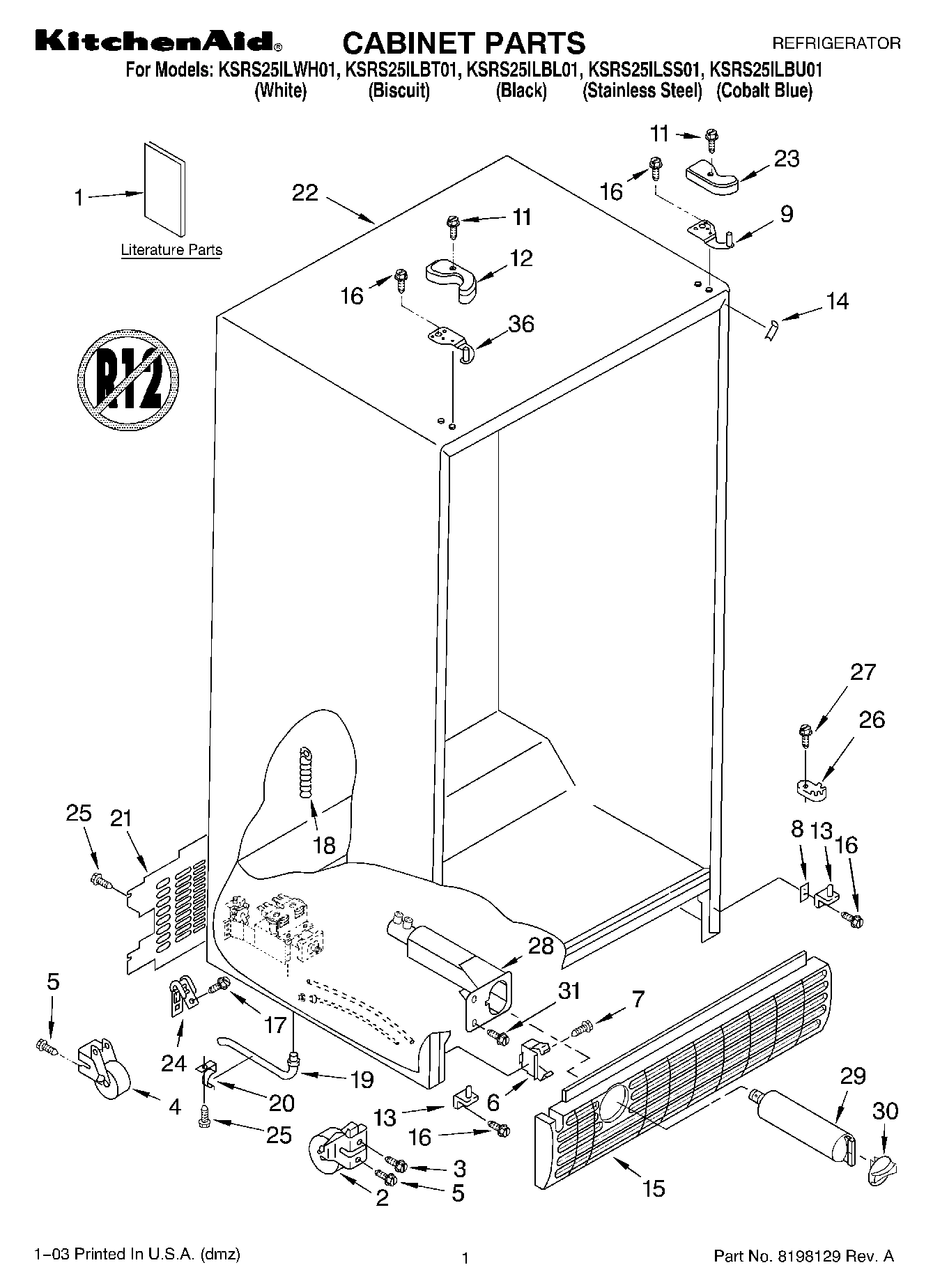

Cabinet (Not A Serviceable Part) WPL ARI102093A Contact Us For Availability

Window, Meat Pan WPL 2174362 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Hinge Cover (Cobalt Blue) WPL 2203408BU Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153BU Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207153W Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

Holder WPL 2212369 Contact Us For Availability

Shelf & Roller Assembly WPL 2174021 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

NLA:SCREW Backorder WPL WPW10141645 $4.82

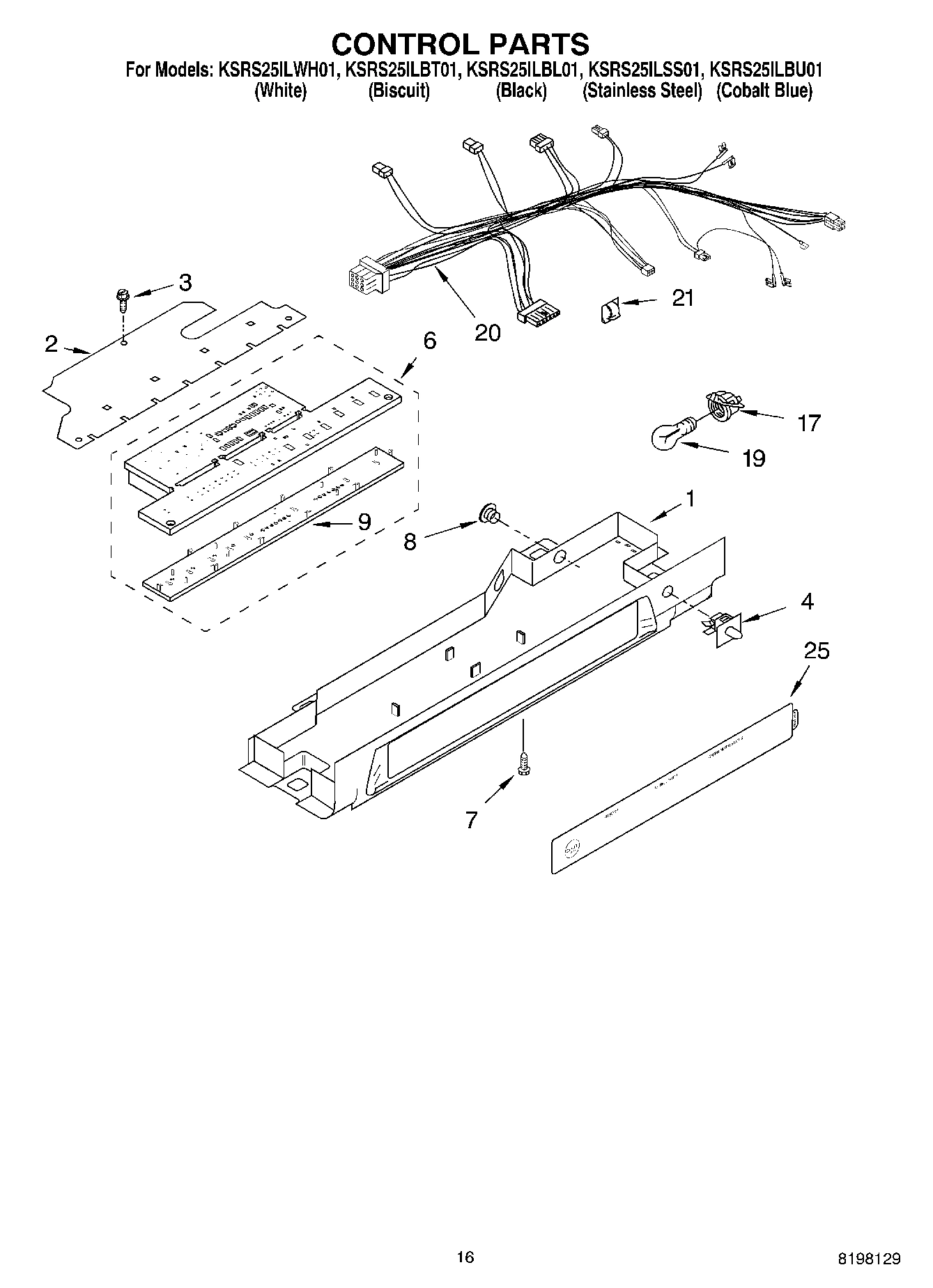

Overlay, Control Box WPL 2220255 Contact Us For Availability

Screw WPL 489439 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

27

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Cap, Water Filter (Cobalt Blue) WPL 2186884BU Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

Bracket, Motor WPL 2198655 Contact Us For Availability

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Shelf, Snack Pan WPL 2206346 Contact Us For Availability

34

Screw WPL 8281162 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $115.71

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

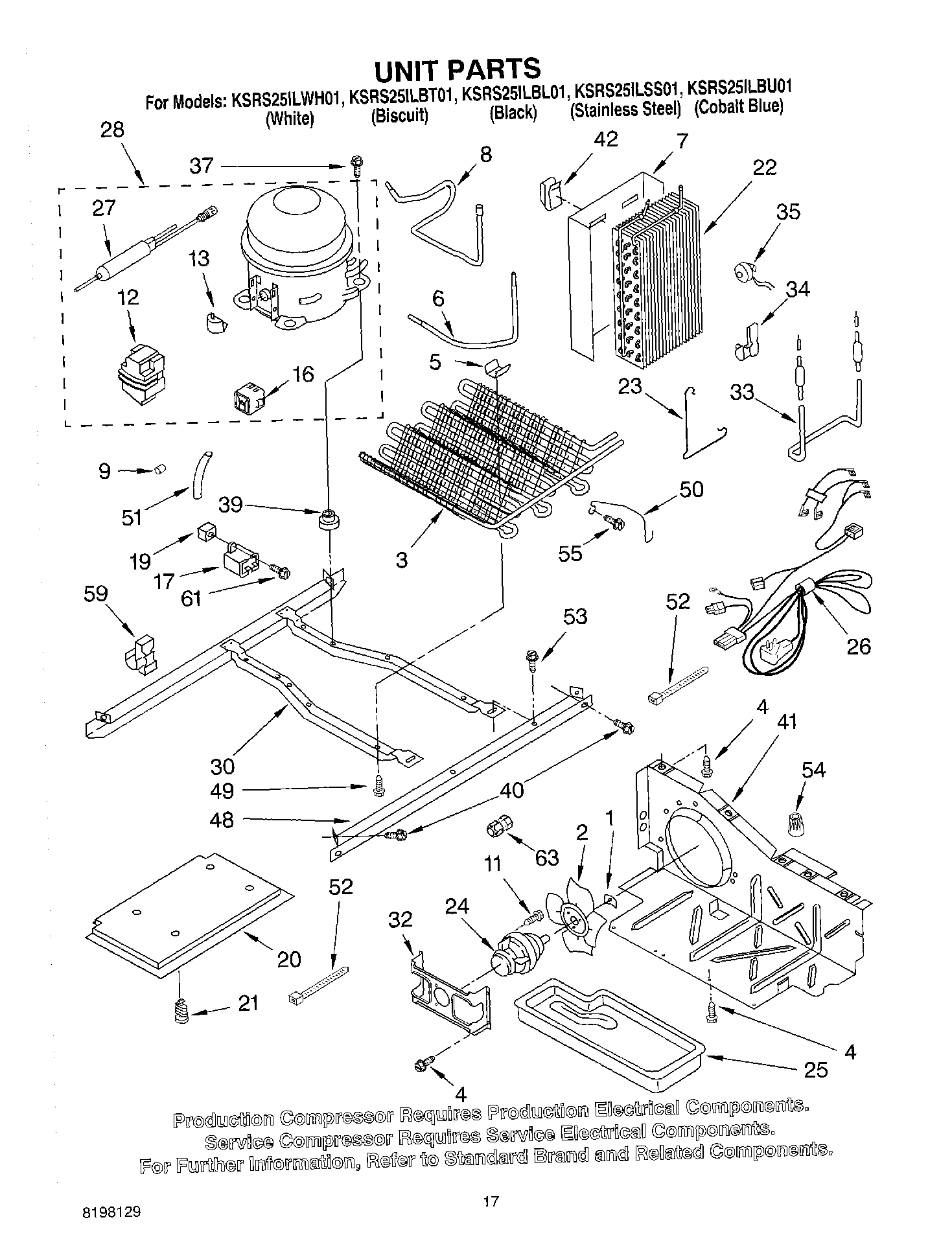

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI102100A Contact Us For Availability

REFRIGER WPL ARI102101A Contact Us For Availability
