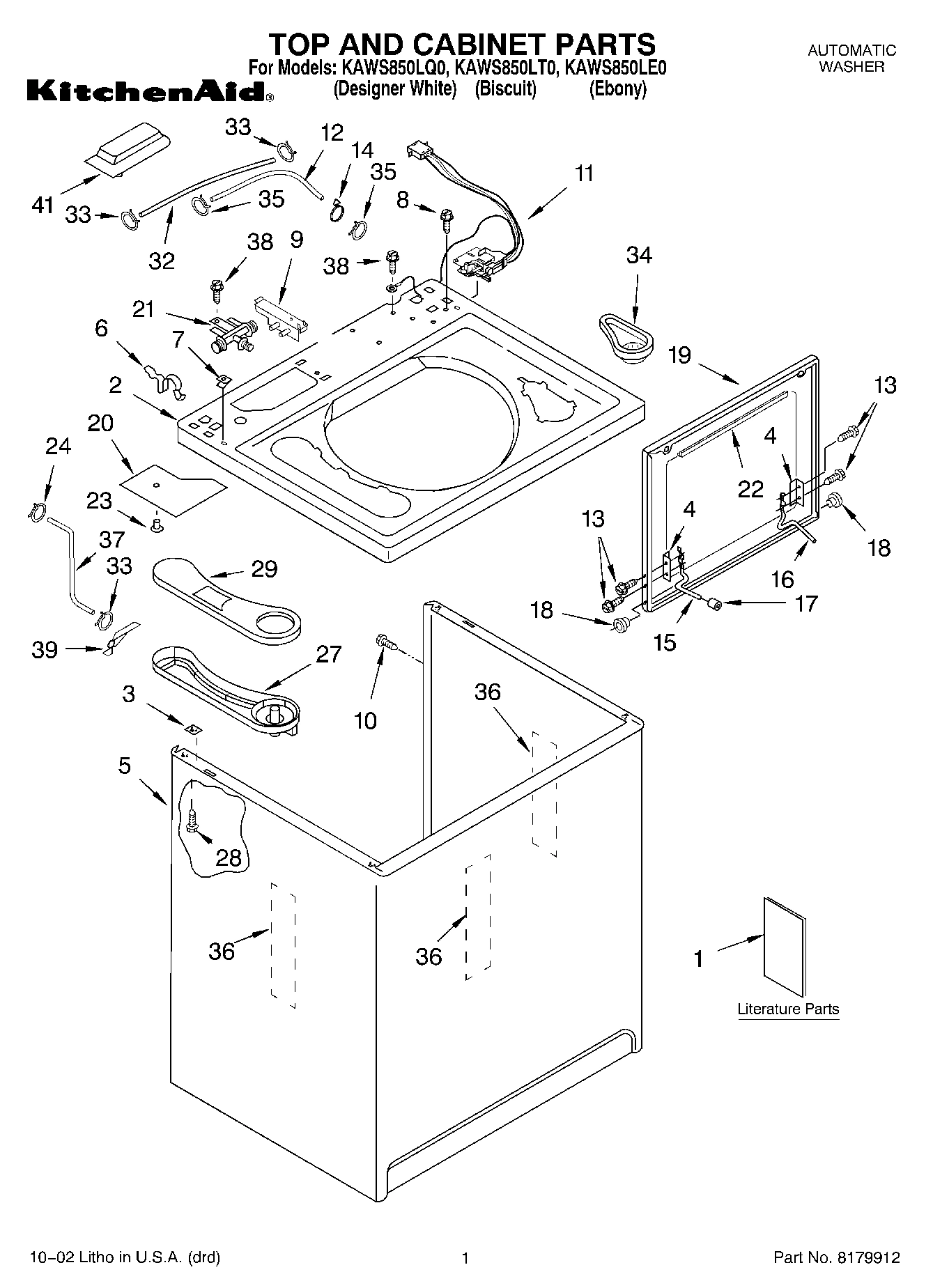

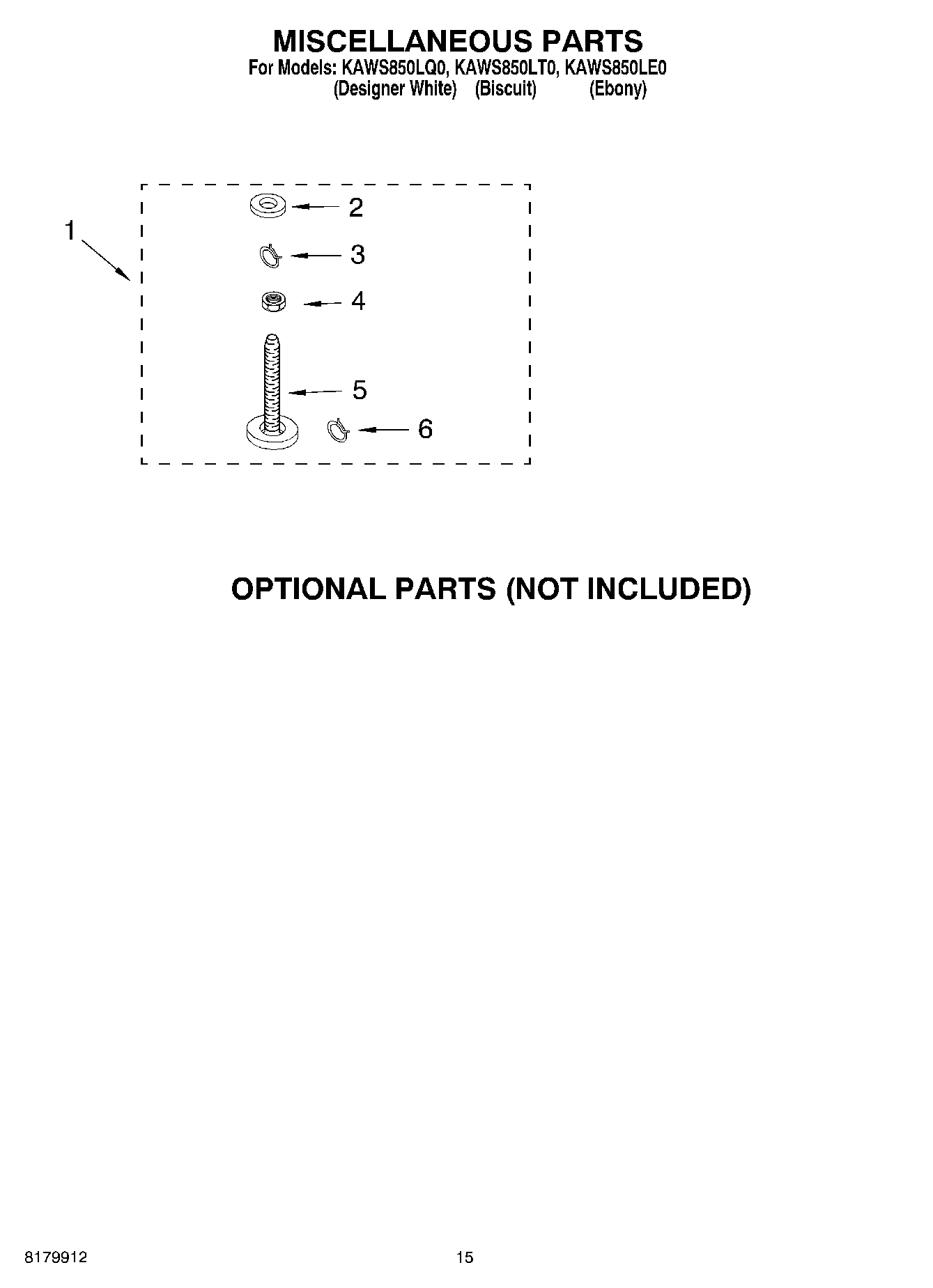

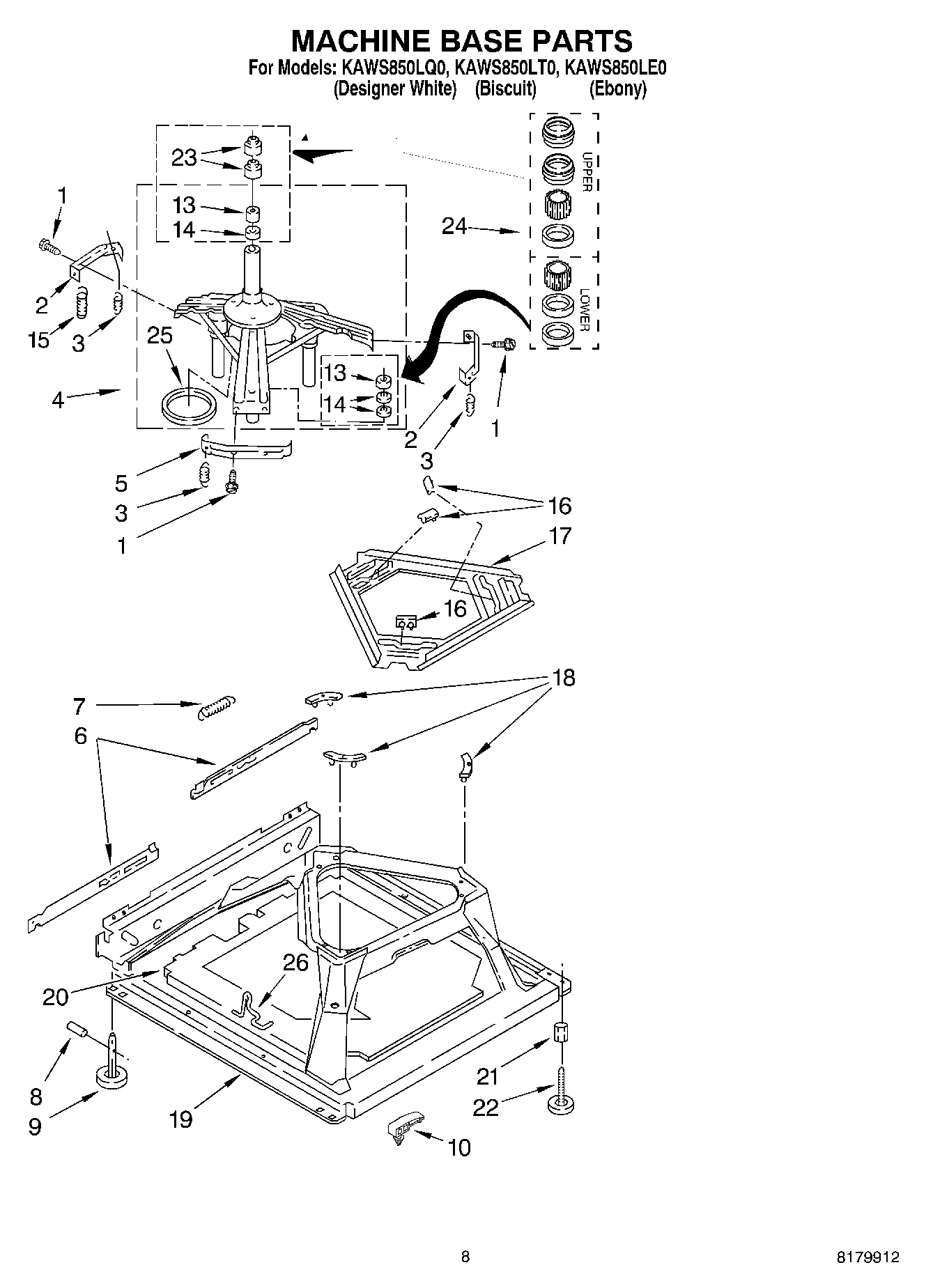

Model Whirlpool KAWS850LE0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

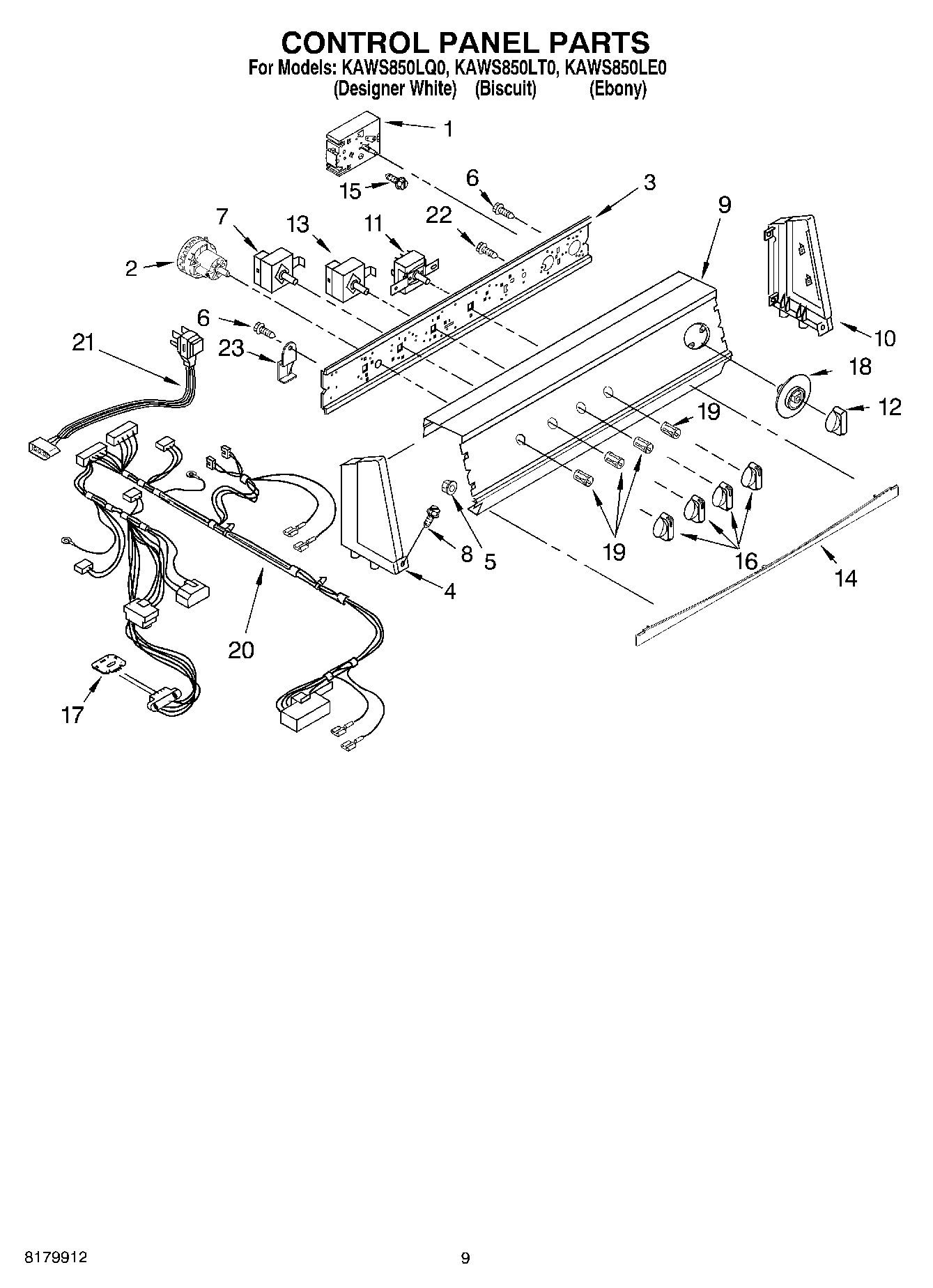

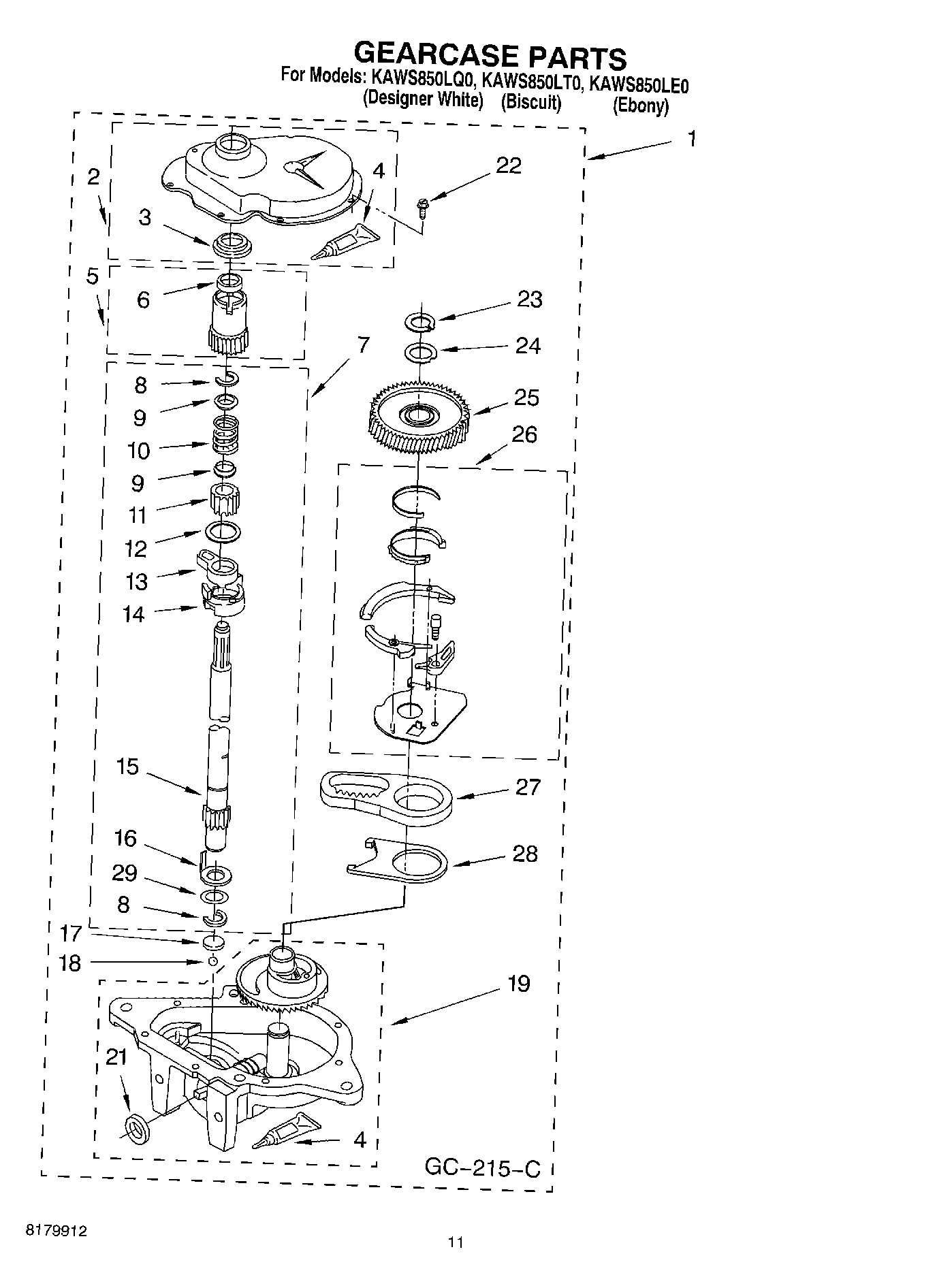

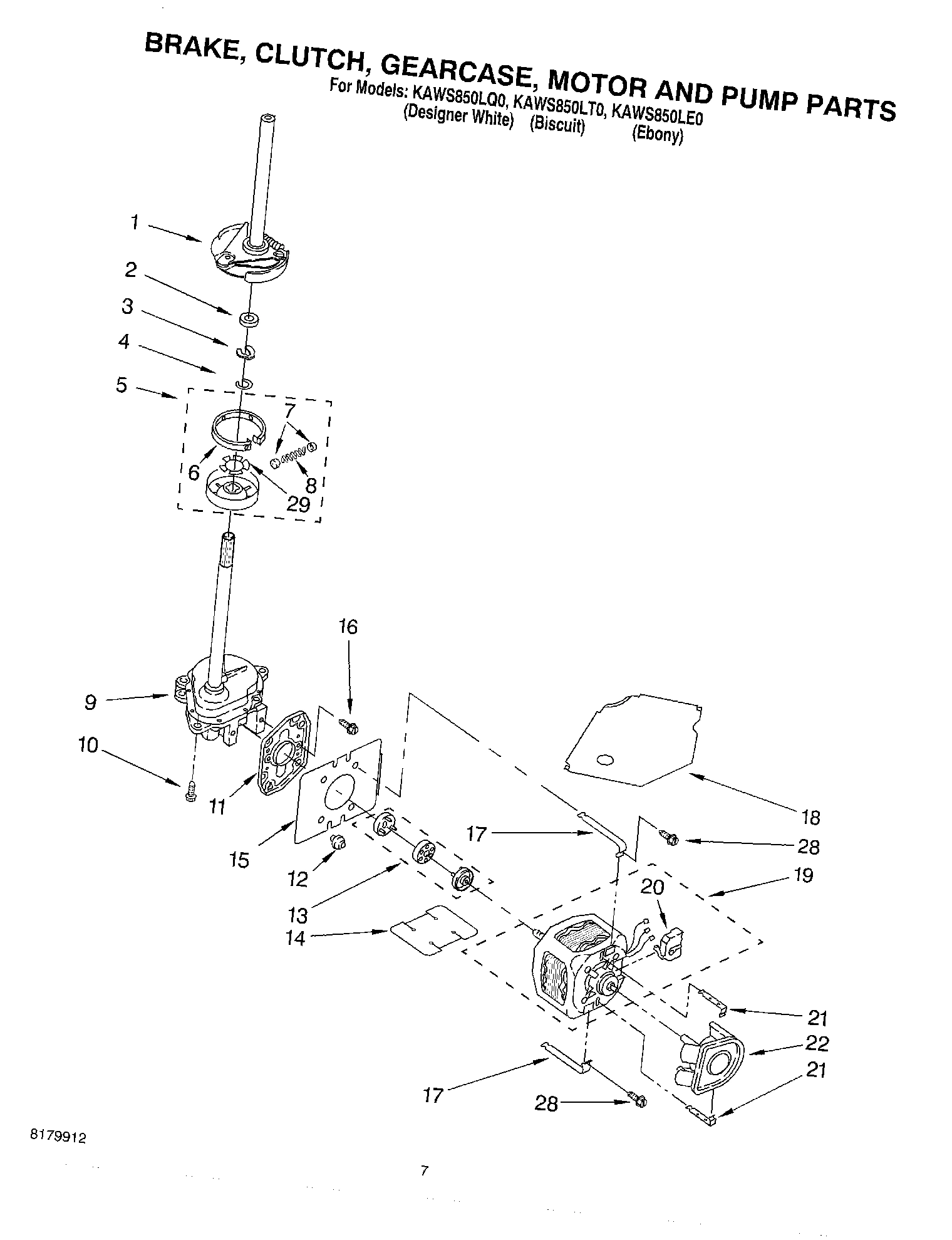

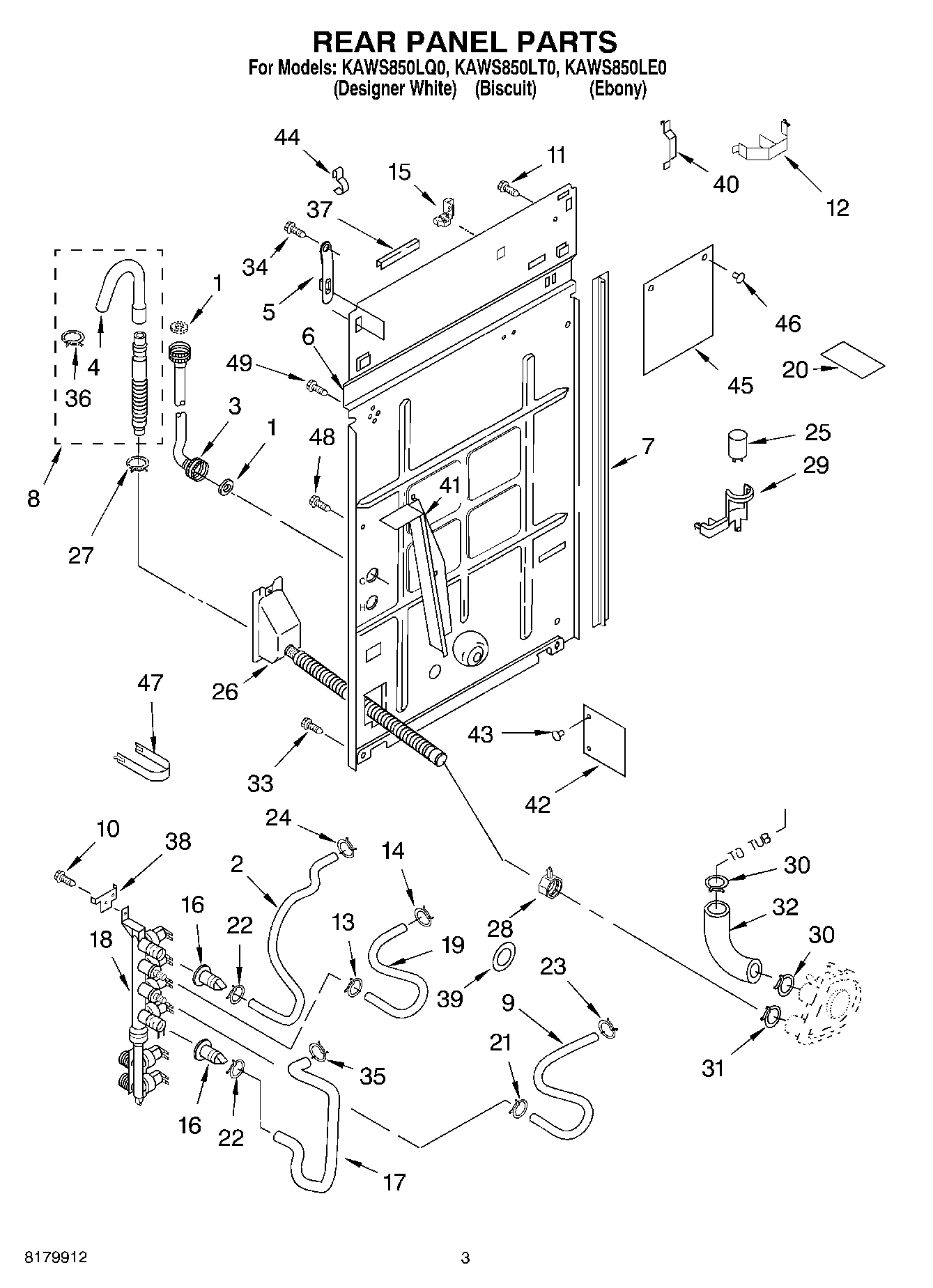

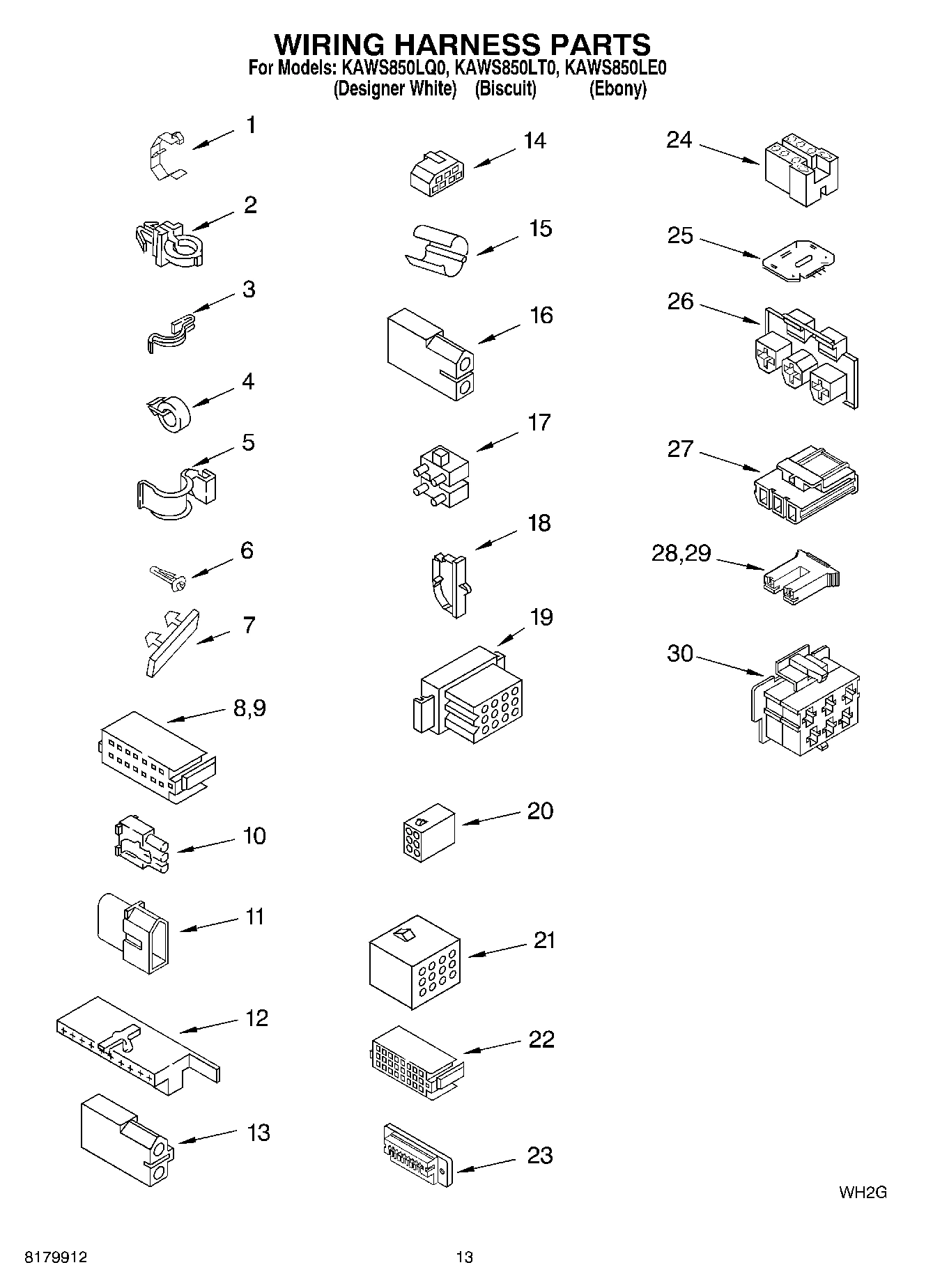

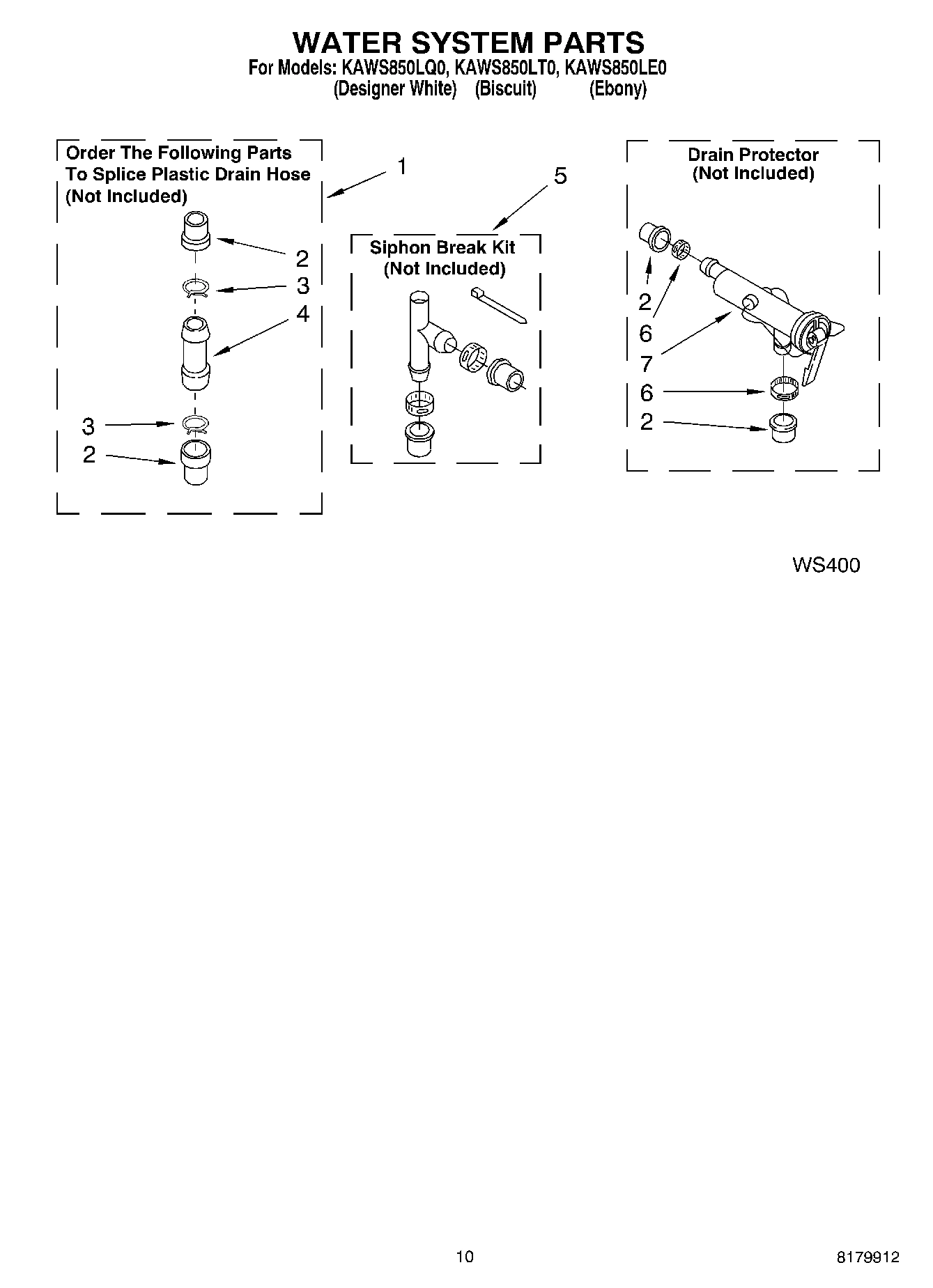

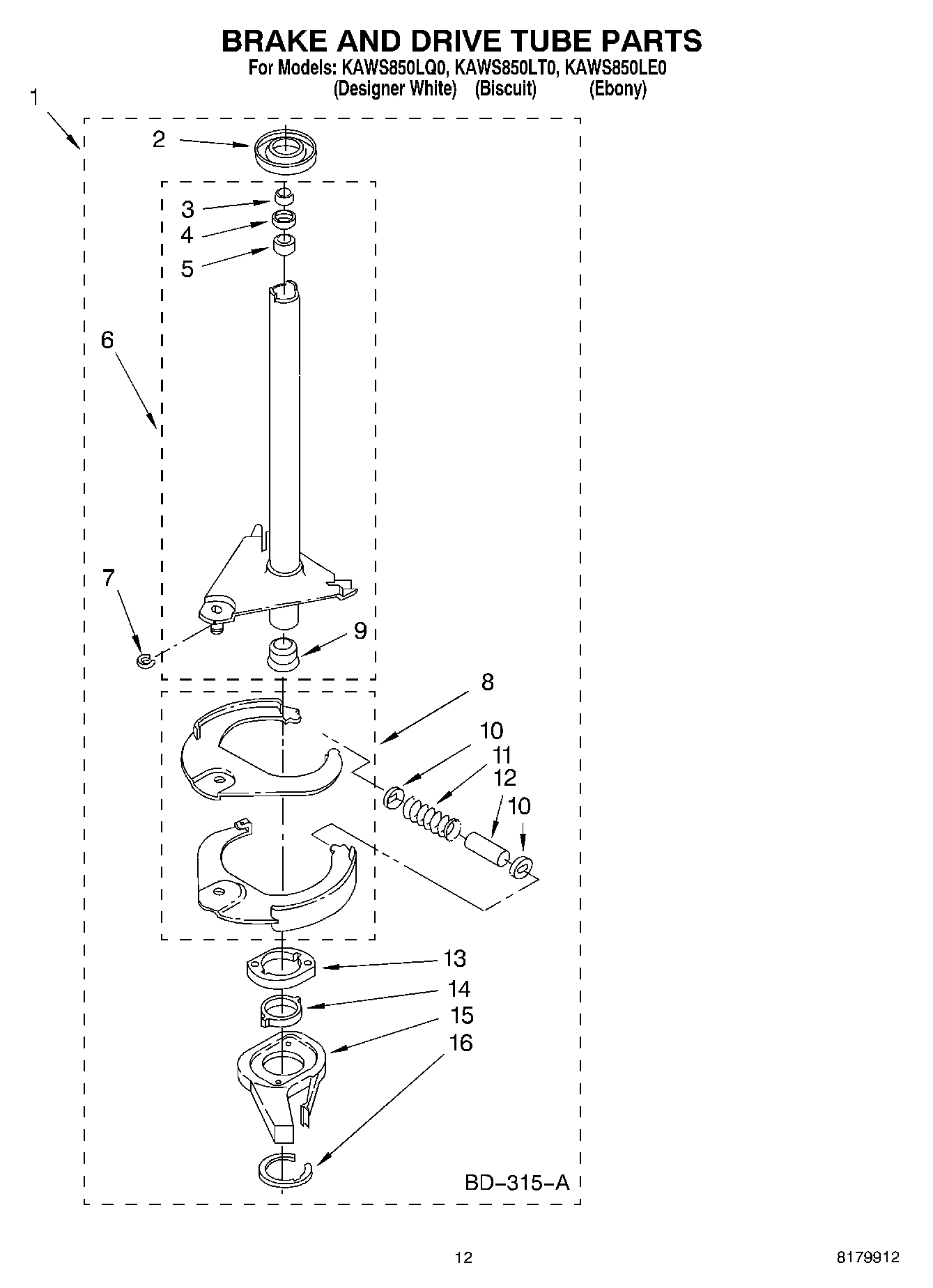

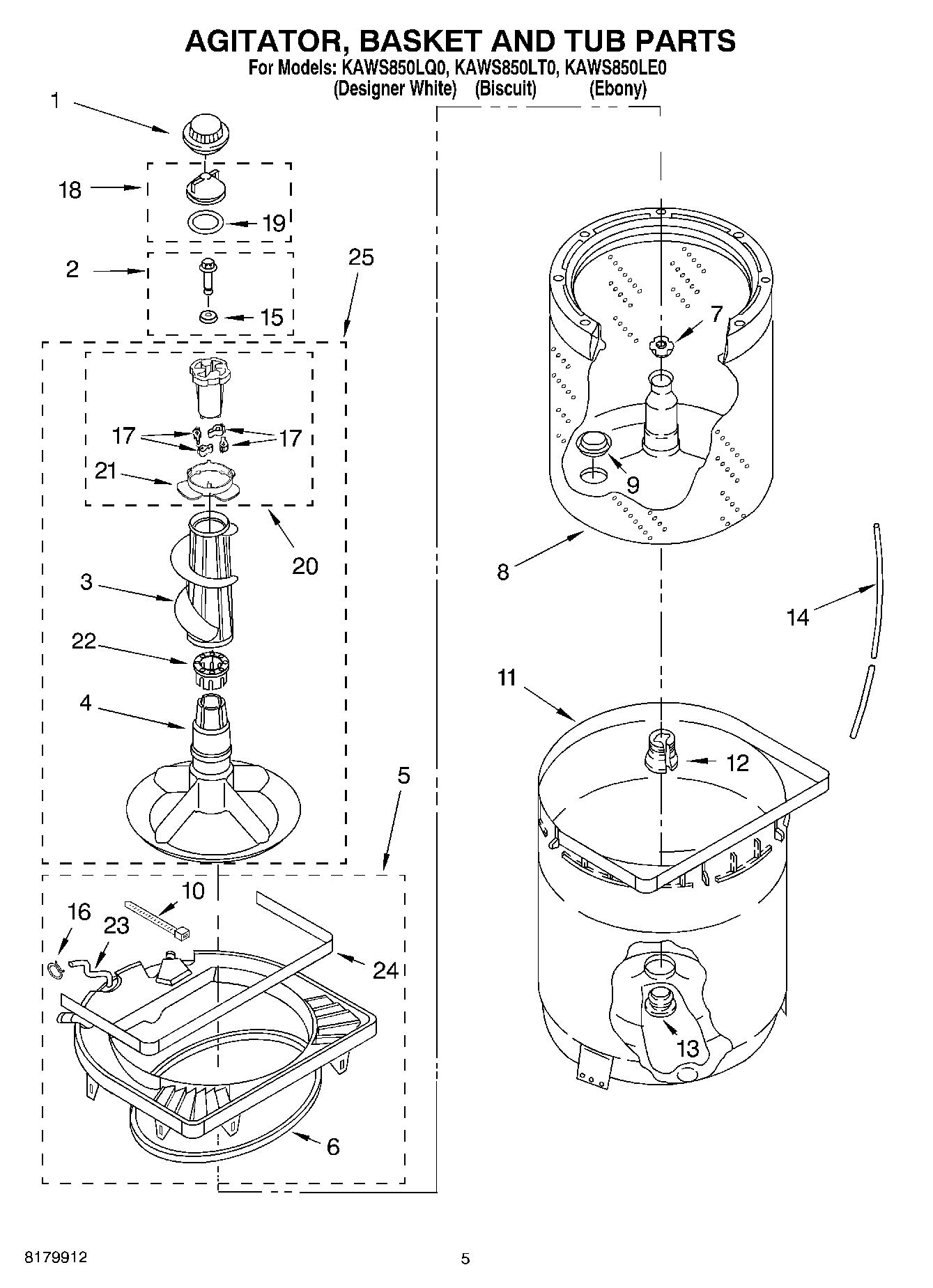

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Timer, Control (60 Hz) (Motor Not Serviced) WPL 3955761 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT3955571 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT3955763 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT3955871 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

Hose, Bleach WPL 8271984 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

2

Top (Black) WPL 3956155 Contact Us For Availability

2

Top (White) WPL 8274365 Contact Us For Availability

2

Top (Biscuit) WPL 8274367 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

Clothes Mover WPL 3950581 Contact Us For Availability

4

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

Agitator WPL 3950580 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

5

Cabinet (Black) WPL 3954788 Contact Us For Availability

5

Tub Ring WPL 8271852 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $58.36

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Gasket, Tub Ring WPL 8054355 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

7

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

W10389328 Whirlpool Basket Backorder WPL W10389328 $246.99

8

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

Hose, Detergent WPL 8271982 Contact Us For Availability

9

Connector, 2-Port WPL 8055243 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Spring, Agitate WPL 62676 Contact Us For Availability

TIE-WIRE WPL 8532166 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

Switch, Rotary WPL 3952578 Contact Us For Availability

Tub WPL 8055061 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Hose, Detergent WPL 8055267 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Protector WPL 63523 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Check Valve, Duck Bill WPL 8055306 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

Valve, Inlet WPL 8528052 Contact Us For Availability

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

Hose, Fabric Softener WPL 8271983 Contact Us For Availability

Motor, Main Drive WPL 8529936 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Lid (White) WPL 3956149 Contact Us For Availability

Lid (Biscuit) WPL 3956150 Contact Us For Availability

Lid (Black) WPL 3956151 Contact Us For Availability

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $11.96

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Shield, Spill WPL 8272149 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $95.99

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

Connector, Venturi WPL 8272010 Contact Us For Availability

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.99

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

Seal, Lid (Grey) WPL 8054939 Contact Us For Availability

Seal, Lid (Black) WPL 8283532 Contact Us For Availability

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

Hose Assembly, Bleach Outlet WPL 8526794 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

Rivet, Shield WPL 8280537 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

Shield, Splash WPL 8054357 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

Agitator (Complete) WPL 3950579 Contact Us For Availability

25

E.T.C. Control WPL 3407125 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

26

Drain Hose Assembly WPL 8317941 Contact Us For Availability

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

WP8055237 Whirlpool Dispenser Backorder WPL WP8055237 $54.82

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Cover, Dispenser WPL 8272009 Contact Us For Availability

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

32

Hose, Pump To Tub WPL 8055063 Contact Us For Availability

32

Hose, Fabric Softener WPL 8055266 Contact Us For Availability

34

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

34

Dispenser, Detergent WPL 8055238 Contact Us For Availability

36

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

36

Sound-Damper (Cabinet) WPL 3976348 Contact Us For Availability

37

WP8283537 Whirlpool Hose Assembly Backorder WPL WP8283537 $17.78

37

Edge Protector WPL 303294 Contact Us For Availability

38

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

38

Bracket, Valve WPL 8271909 Contact Us For Availability

39

Restraint, Hose WPL 8318500 Contact Us For Availability

39

Restraint WPL 8271943 Contact Us For Availability

40

Clip, Harness WPL 8054658 Contact Us For Availability

41

Shield, Upper Valve (Incl. No.42 & No.43) WPL 8280536 Contact Us For Availability

41

Cover, Hose Disconnect WPL 8055247 Contact Us For Availability

42

Shield, Splash Valve WPL 8272150 Contact Us For Availability

43

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

45

Drape, Rear Panel WPL 8282565 Contact Us For Availability

46

Clip, Drape WPL 8282566 Contact Us For Availability

47

Restraint, Hose WPL 8272128 Contact Us For Availability

48

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99
