Model Huebsch HTEBXASP304NW22 Stacked Washer and Dryer – Common Parts & Diagrams
Control Panel and Controls (Drawing 1 of 3)

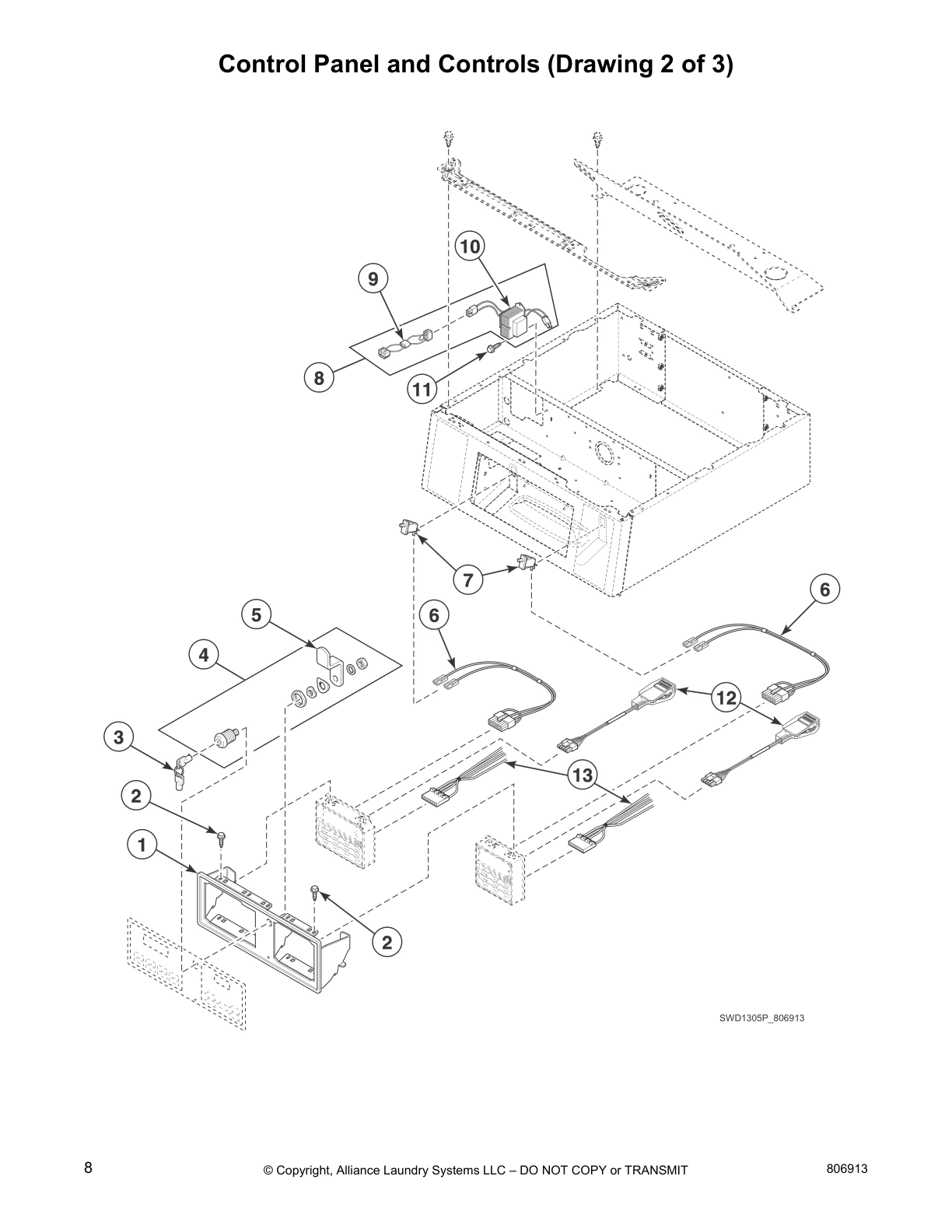

Control Panel and Controls (Drawing 2 of 3)

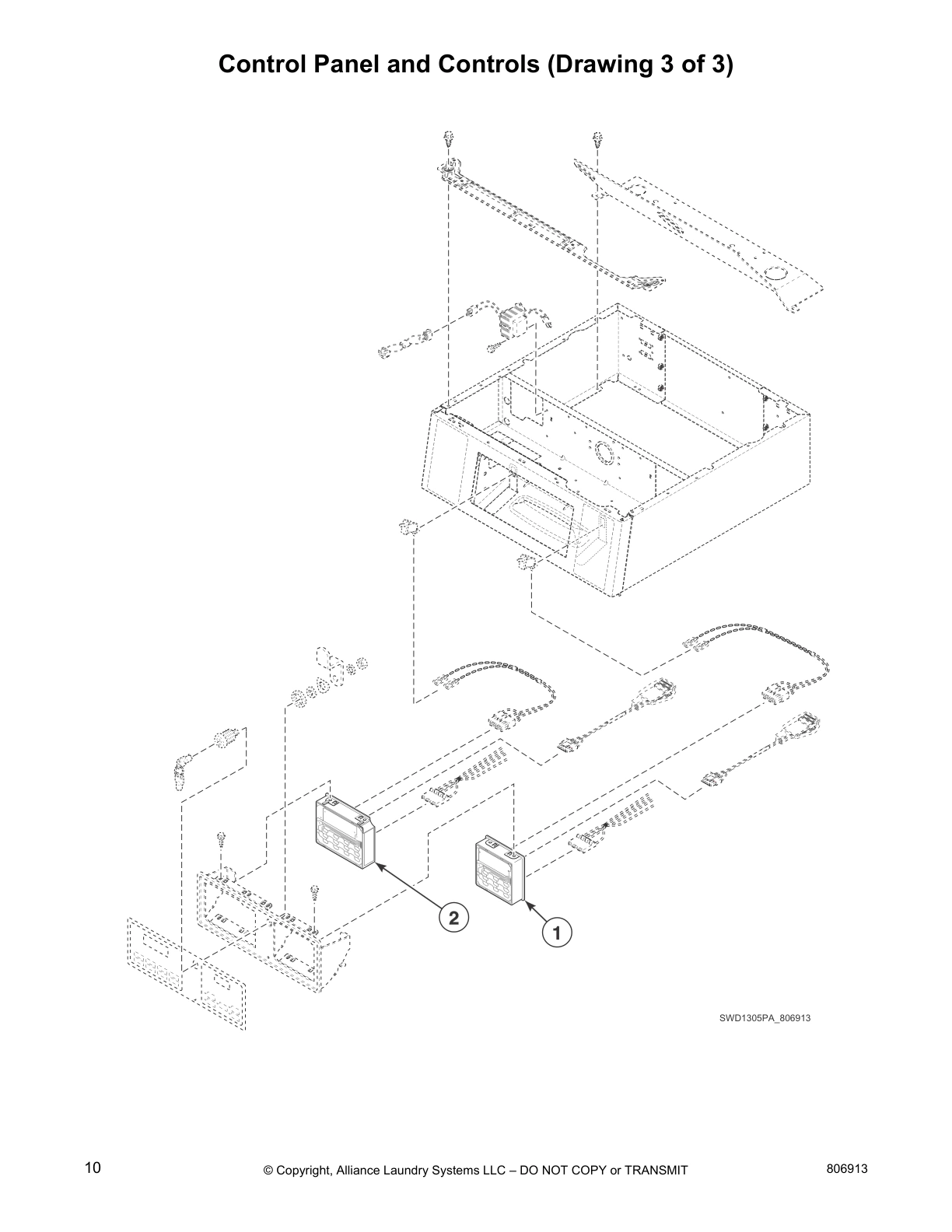

Control Panel and Controls (Drawing 3 of 3)

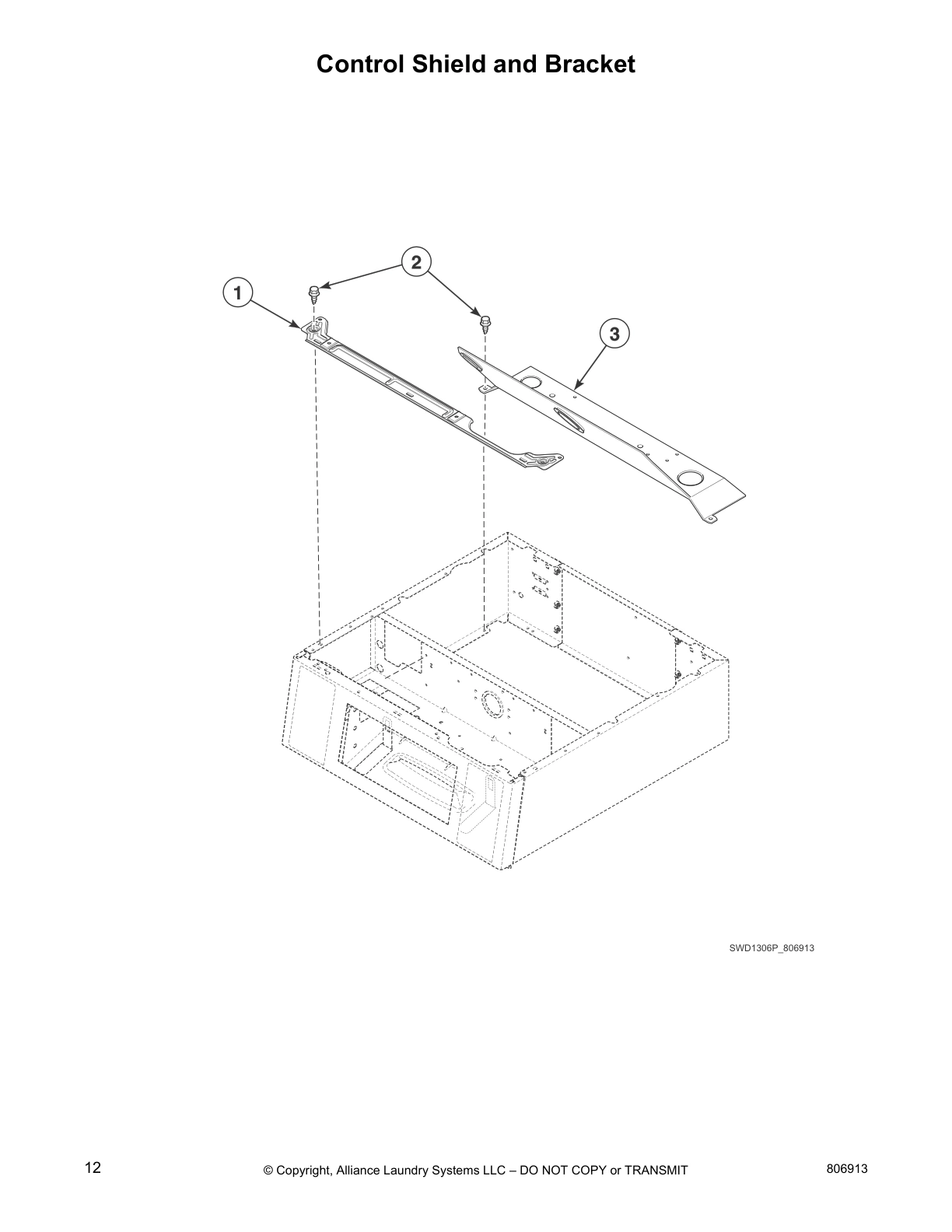

Control Shield and Bracket

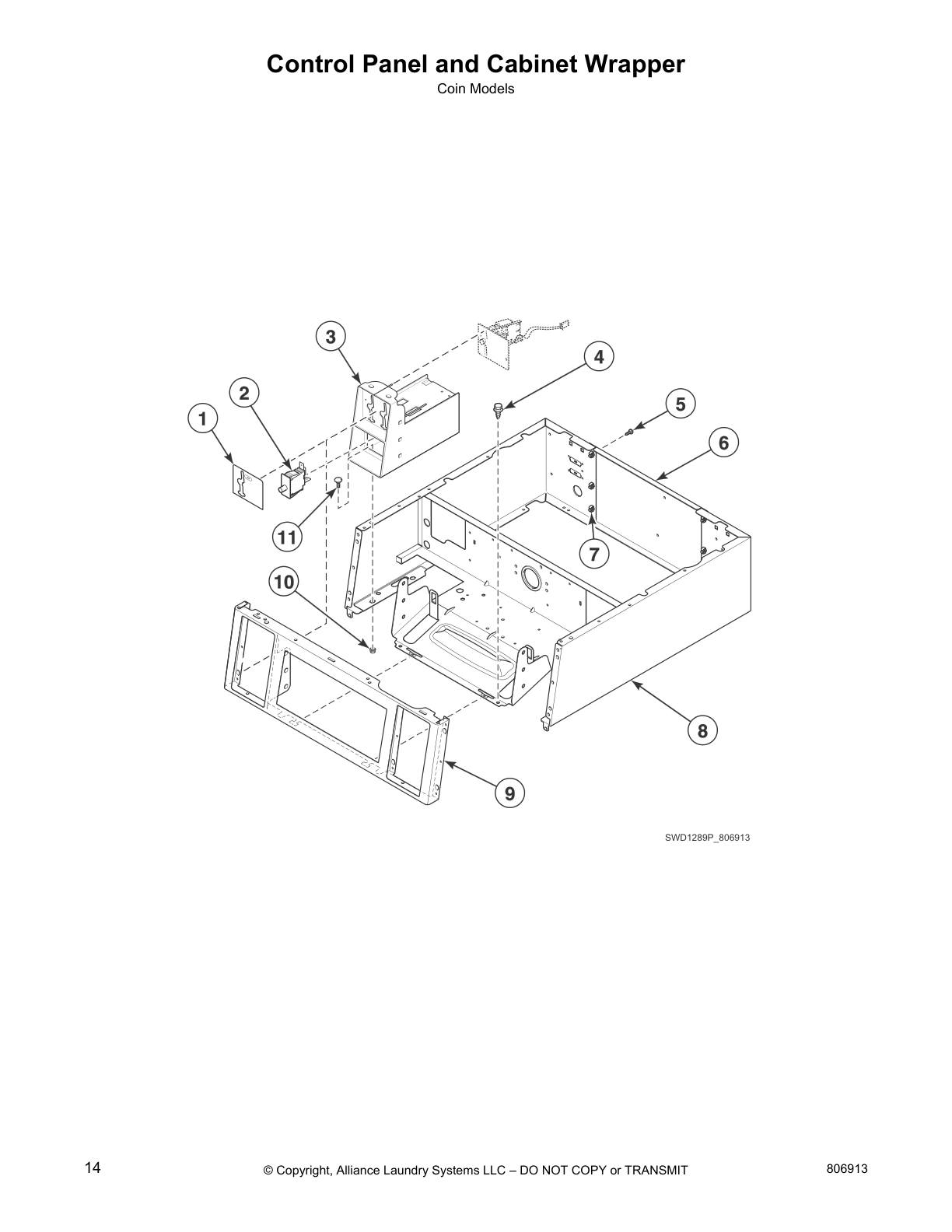

Control Panel and Cabinet Wrapper

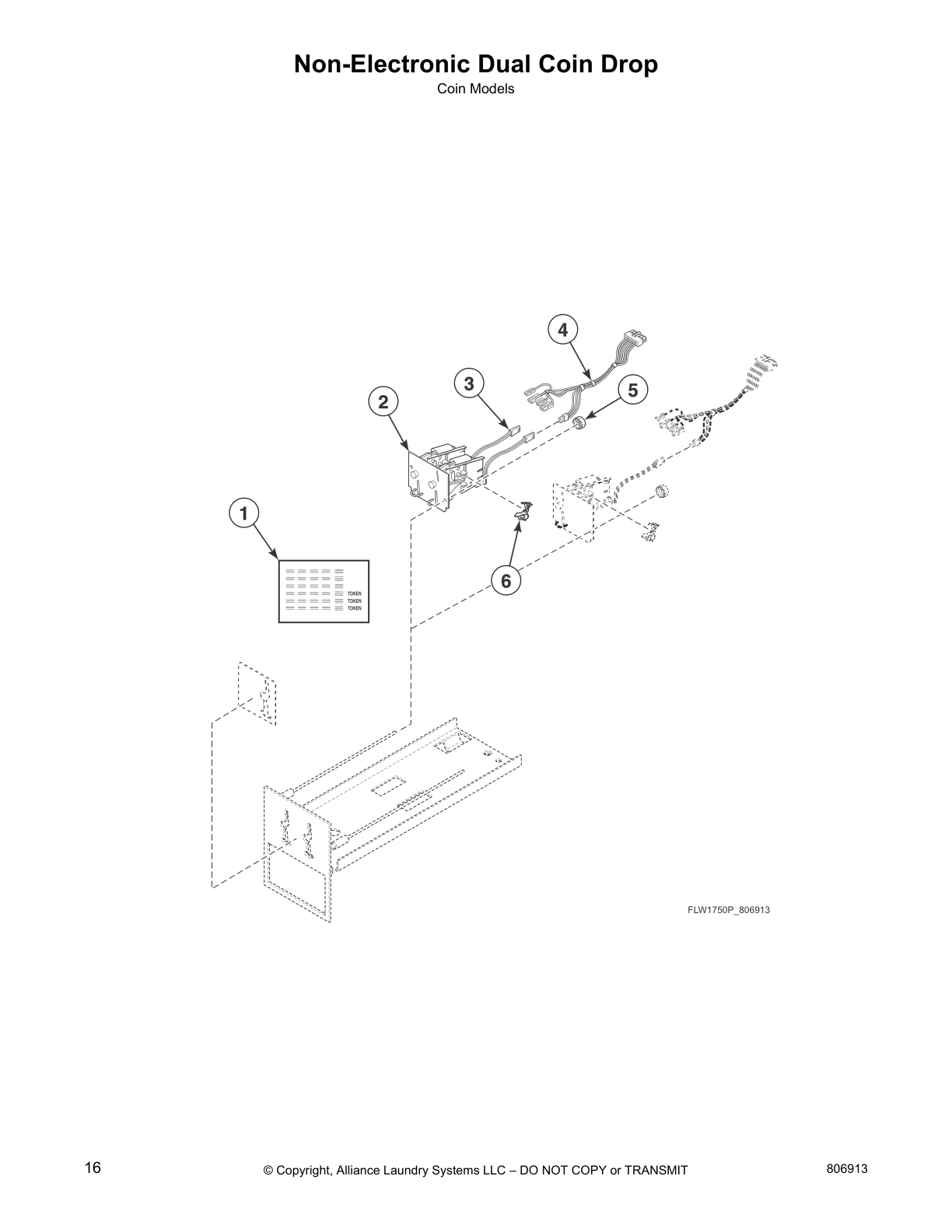

Non-Electronic Dual Coin Drop

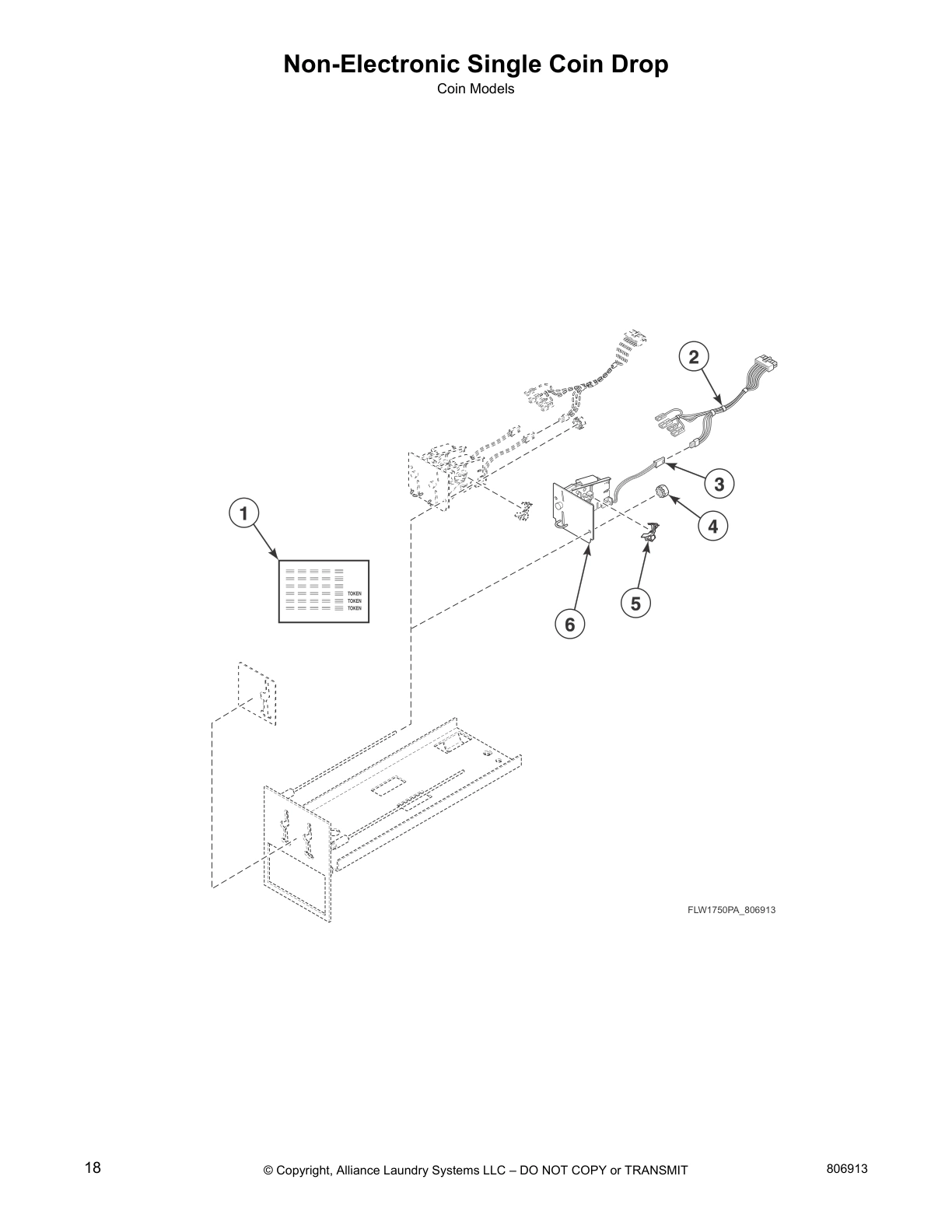

Non-Electronic Single Coin Drop

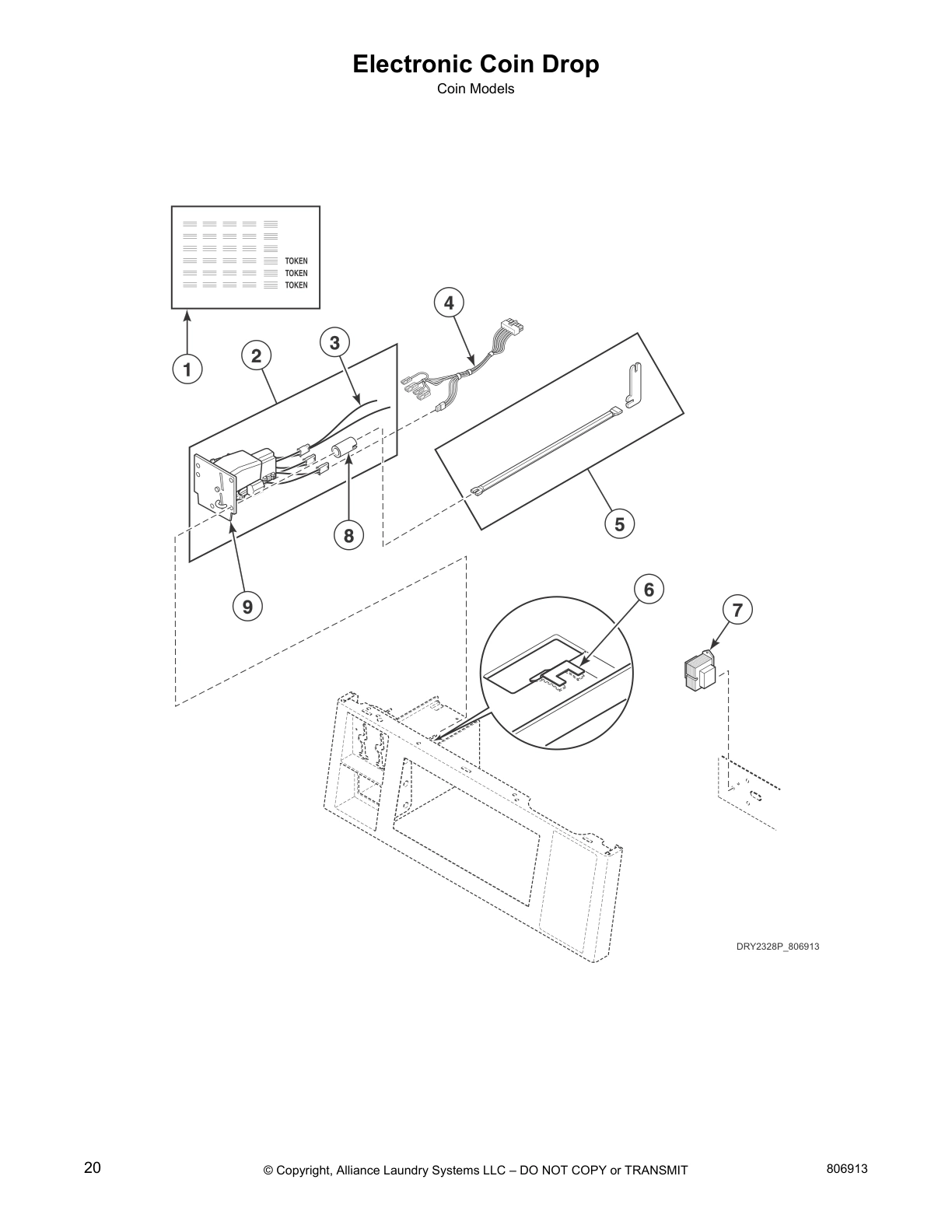

Electronic Coin Drop

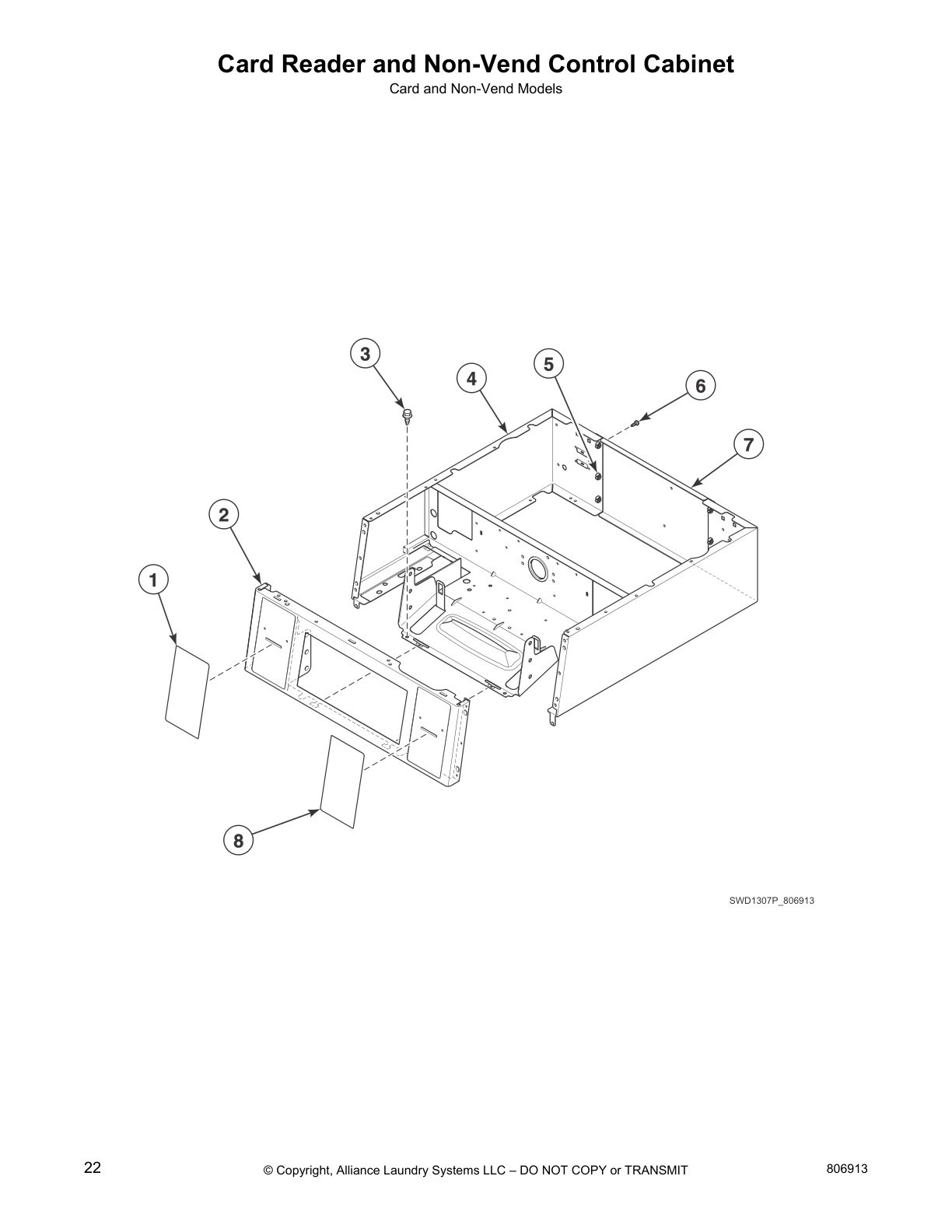

Card Reader and Non-Vend Control Cabinet

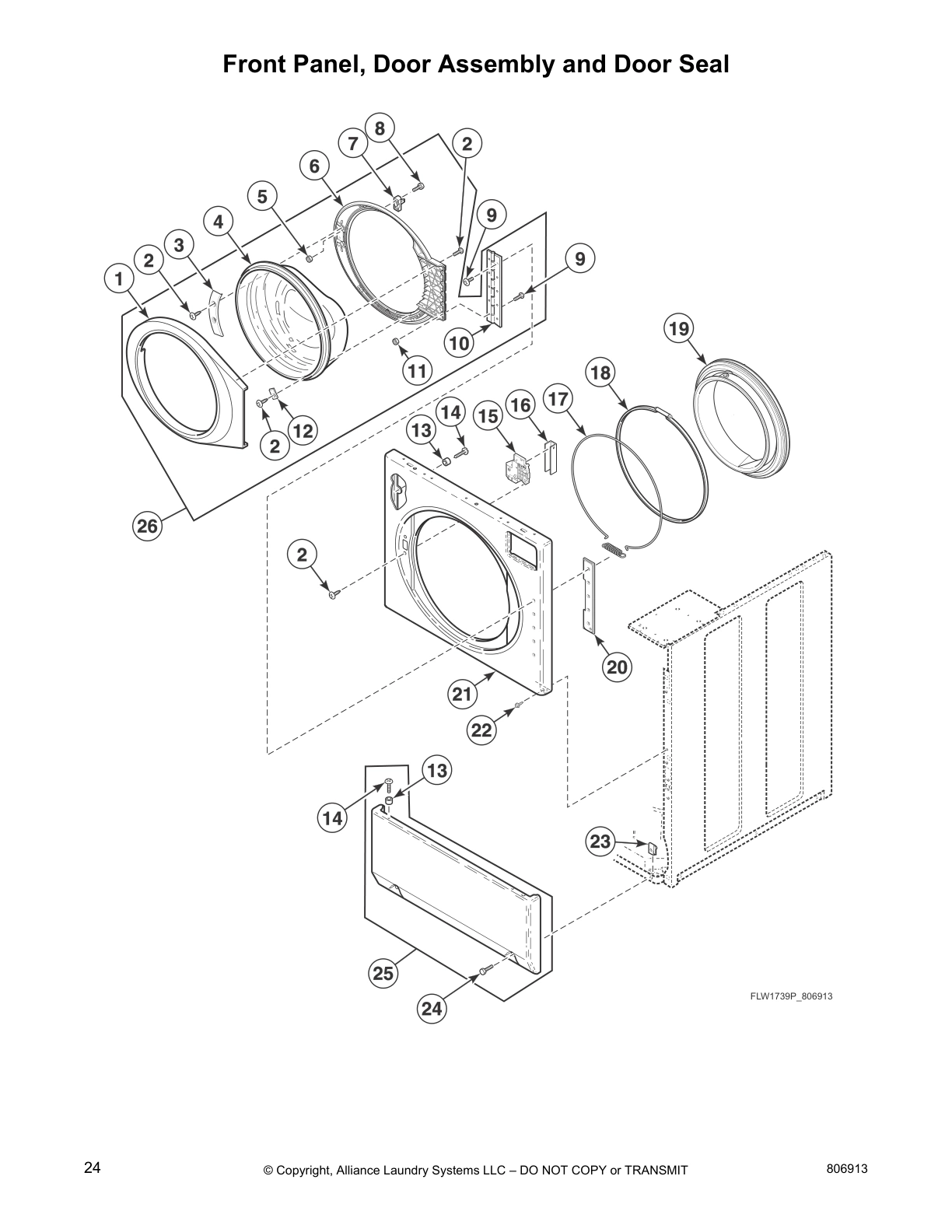

Front Panel, Door Assembly and Door Seal
Dispenser Assembly
Mixing Valve

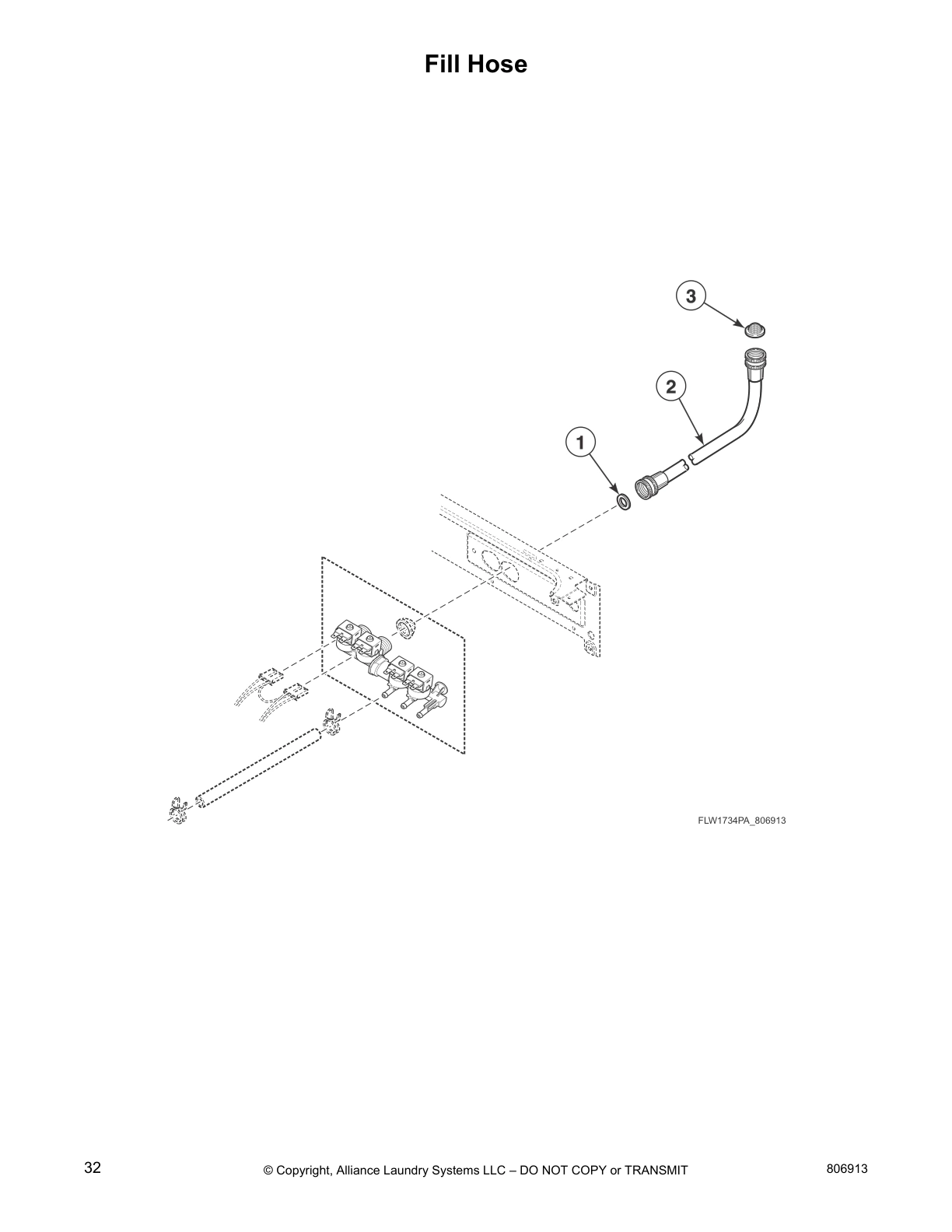

Fill Hose

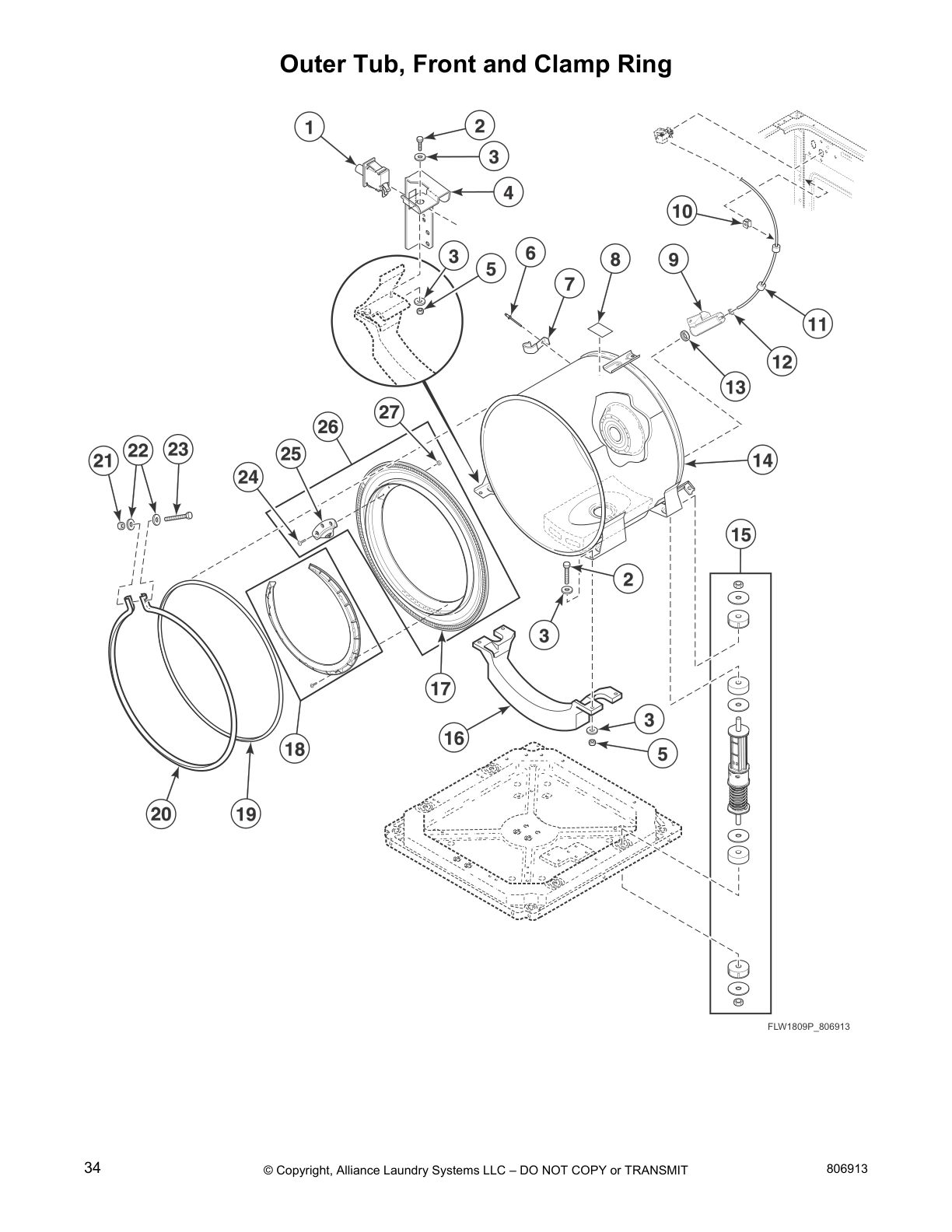

Outer Tub, Front and Clamp Ring

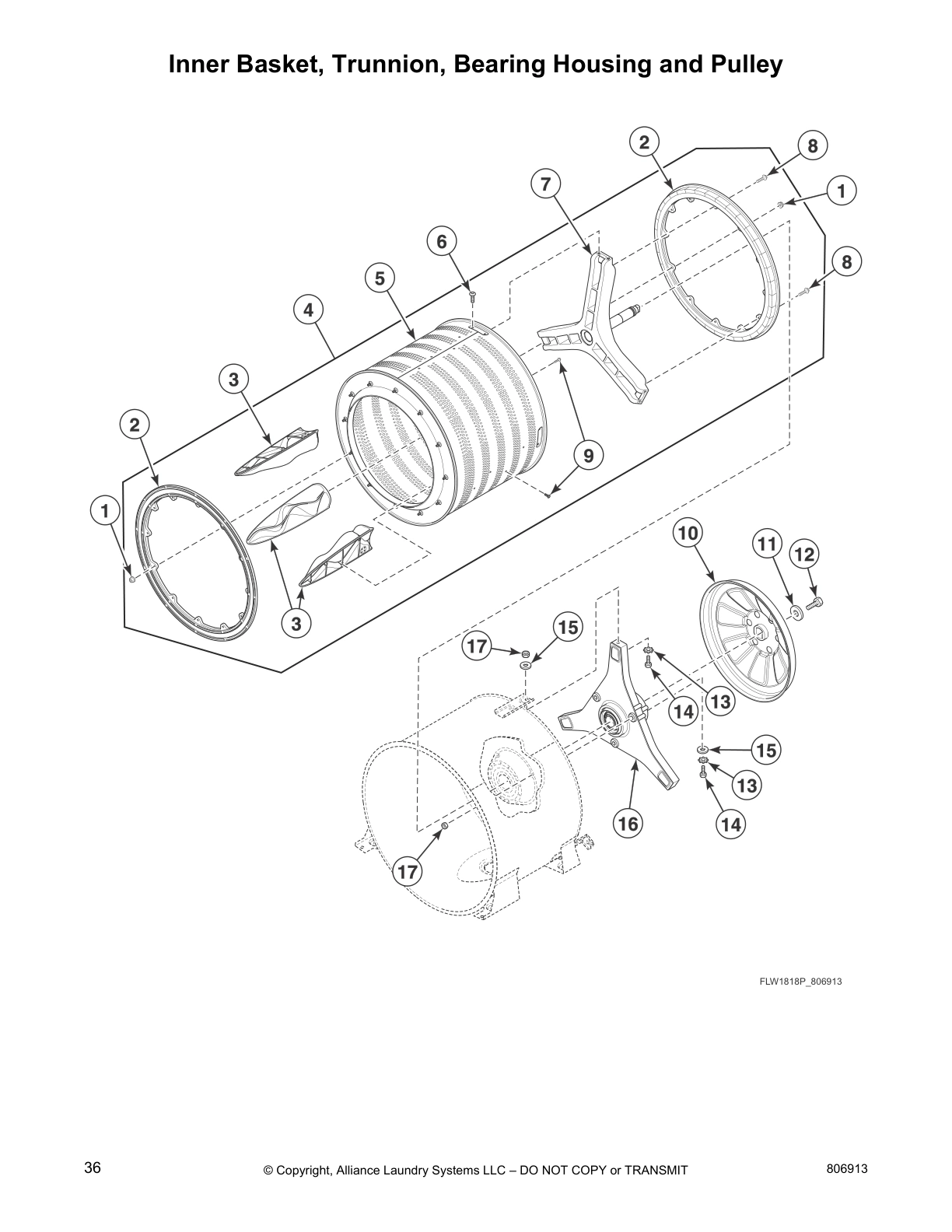

Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

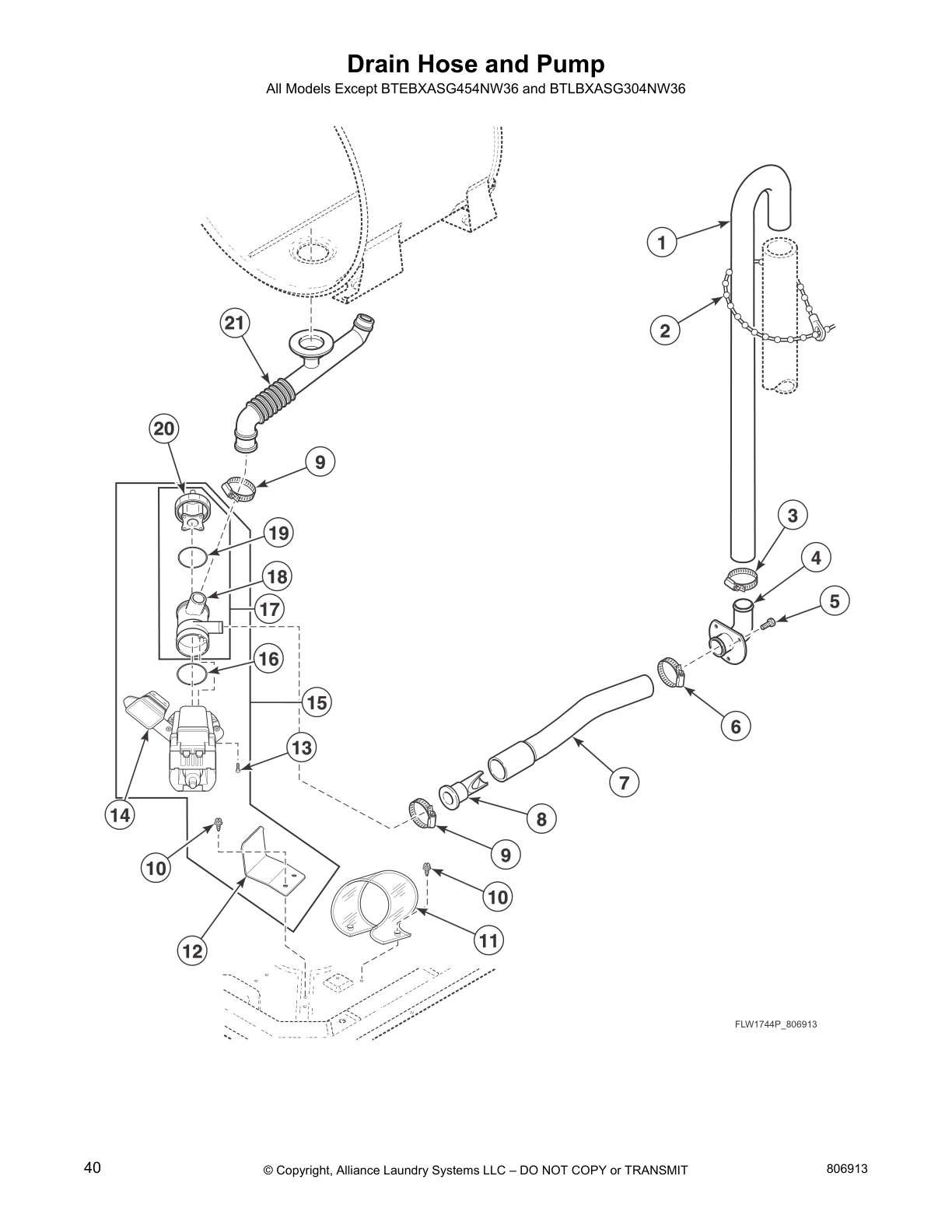

Drain Hose and Pump

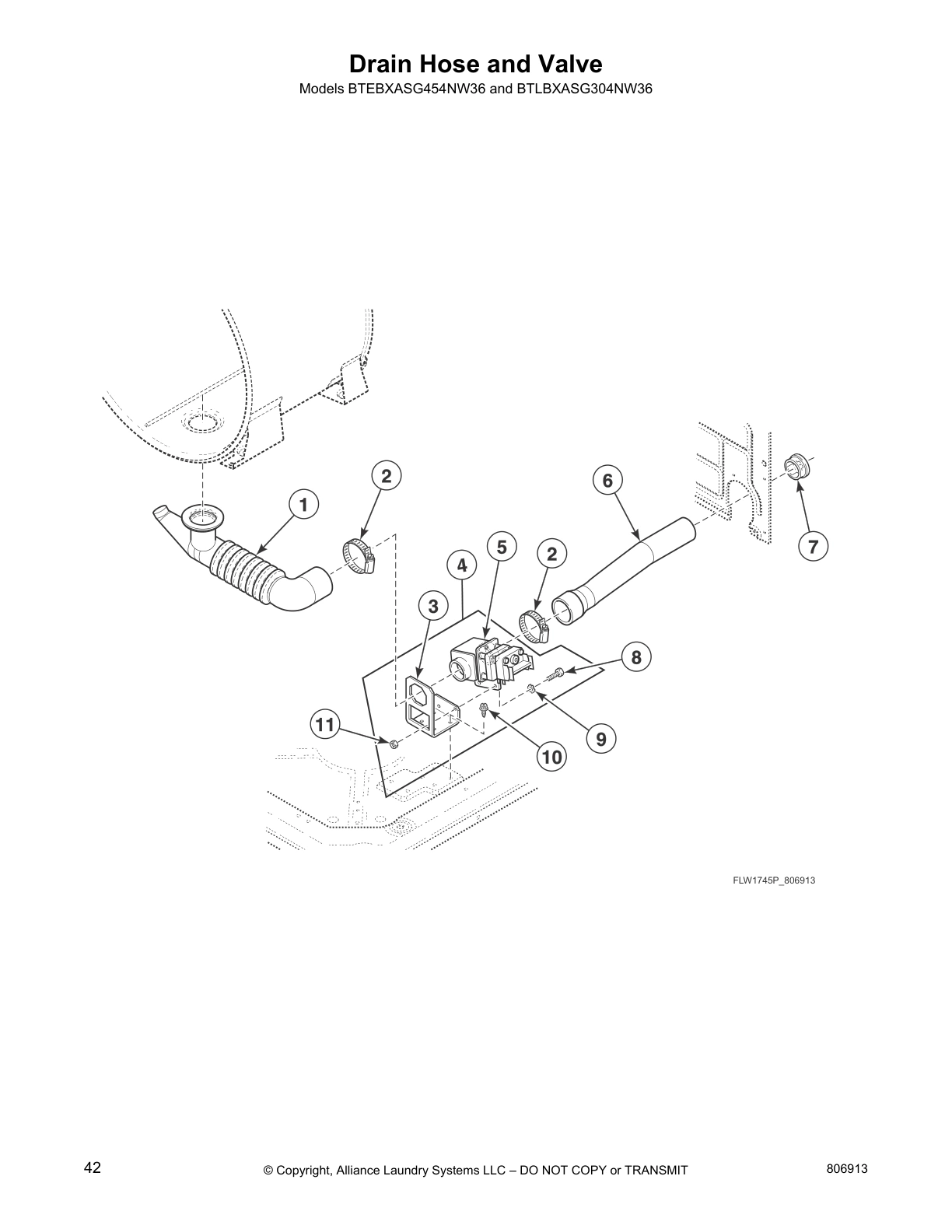

Drain Hose and Valve

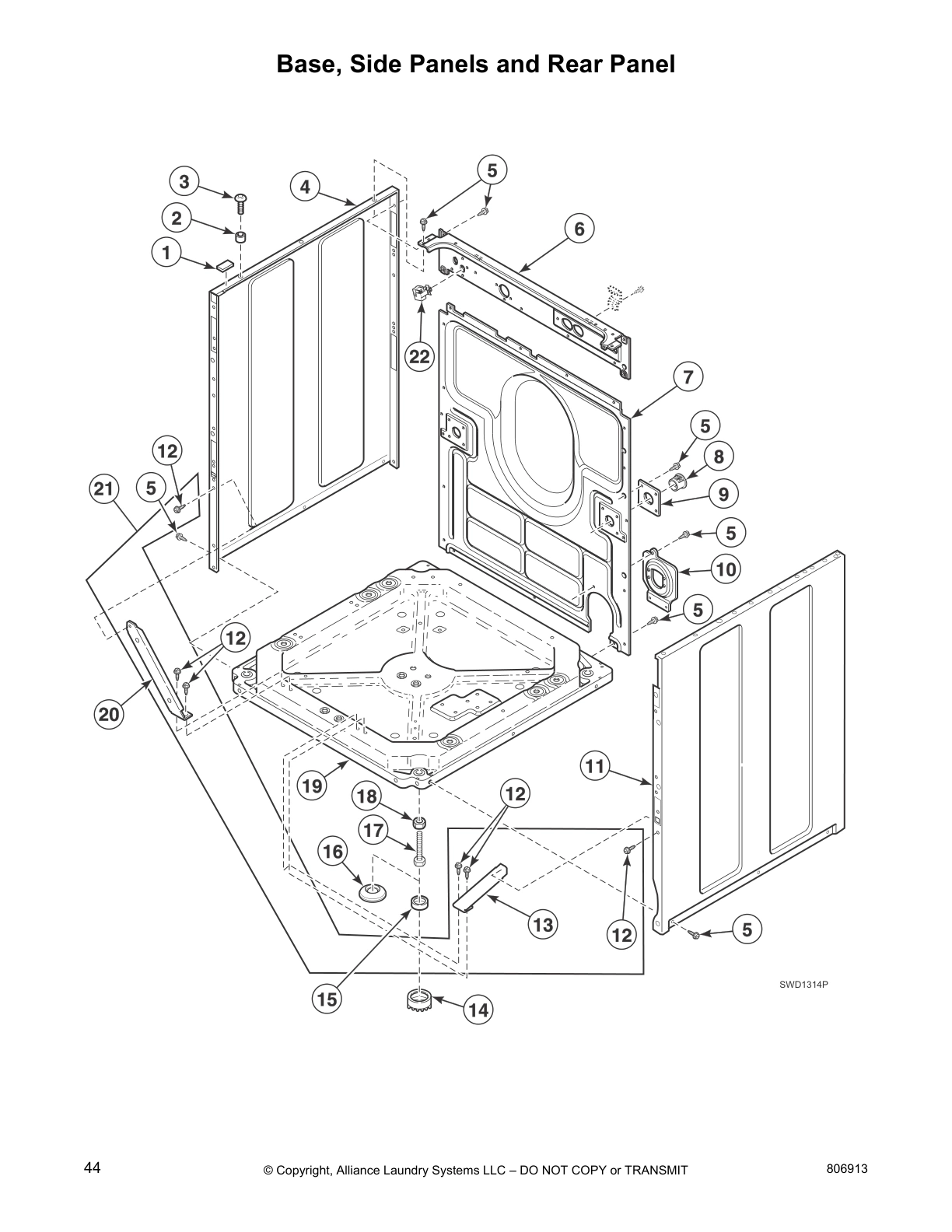

Base, Side Panels and Rear Panel

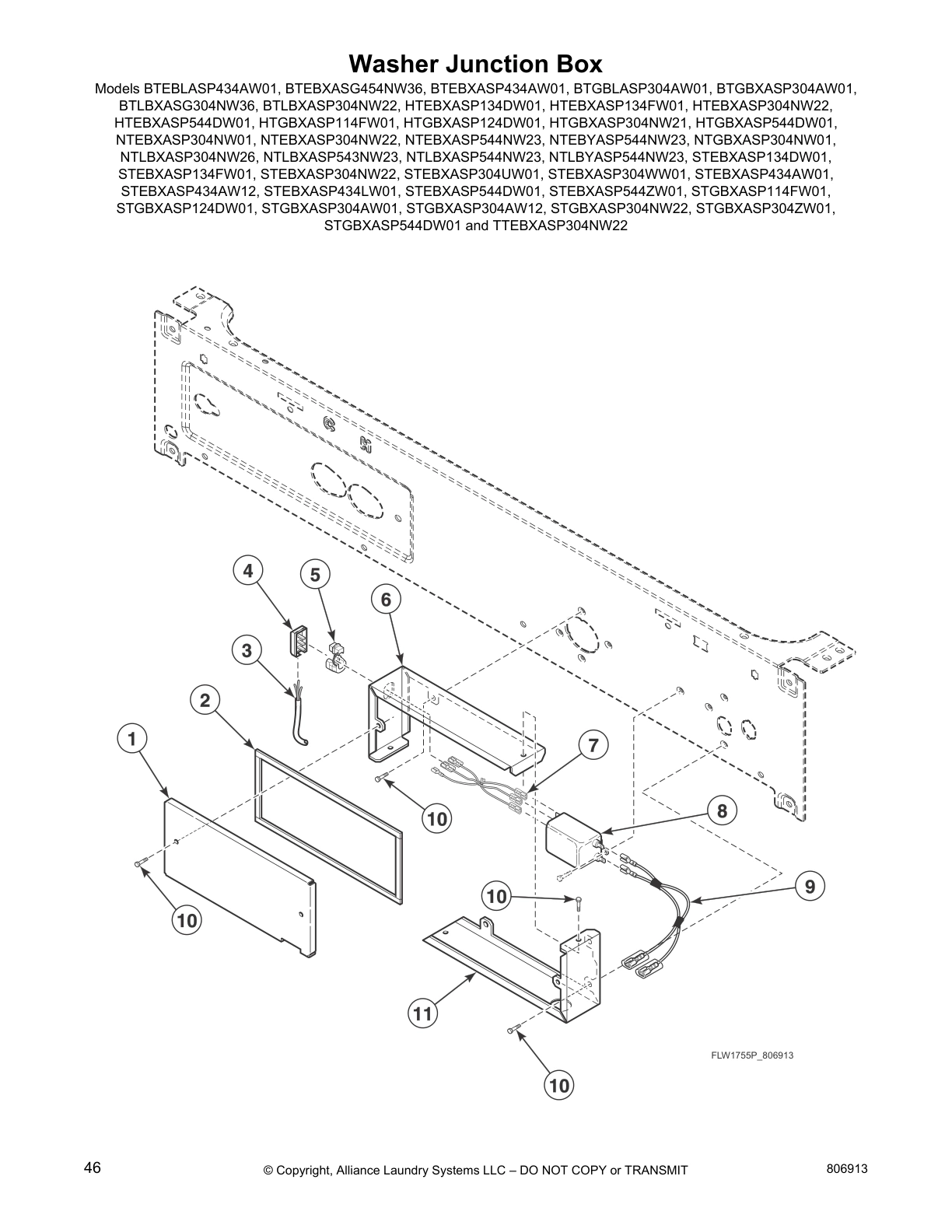

Washer Junction Box
Washer Lead-In Cord, Wire Ties and Harness Clips

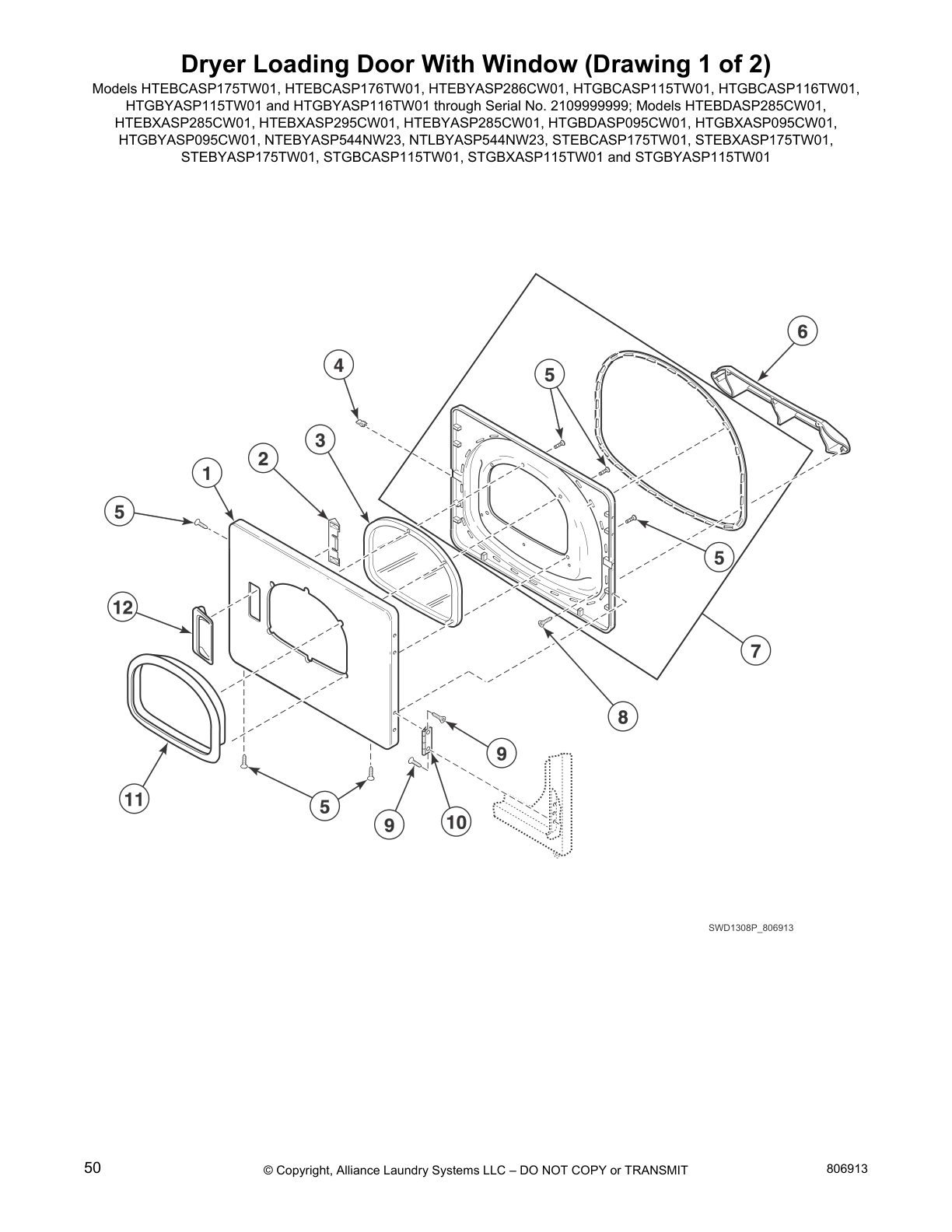

Dryer Loading Door With Window (Drawing 1 of 2)

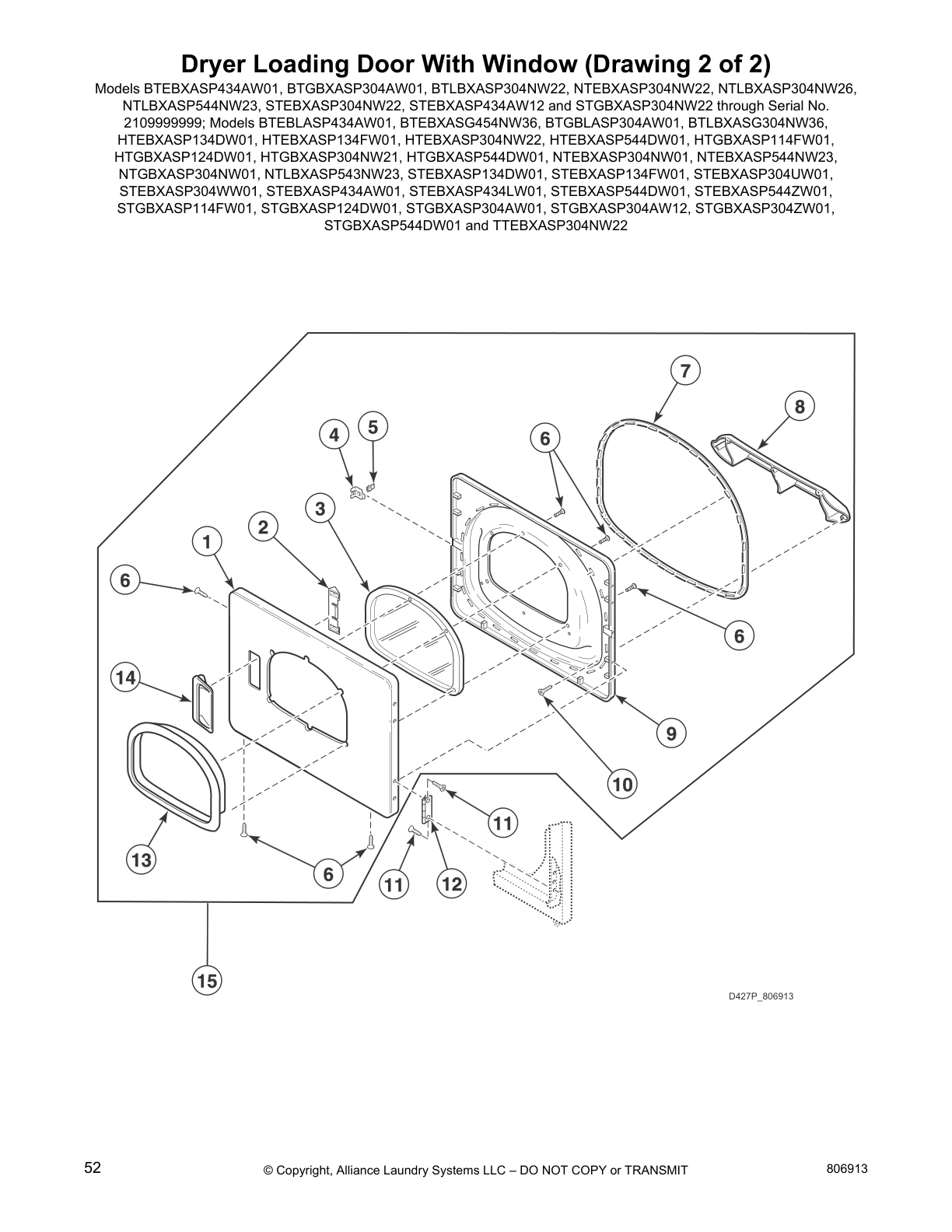

Dryer Loading Door With Window (Drawing 2 of 2)

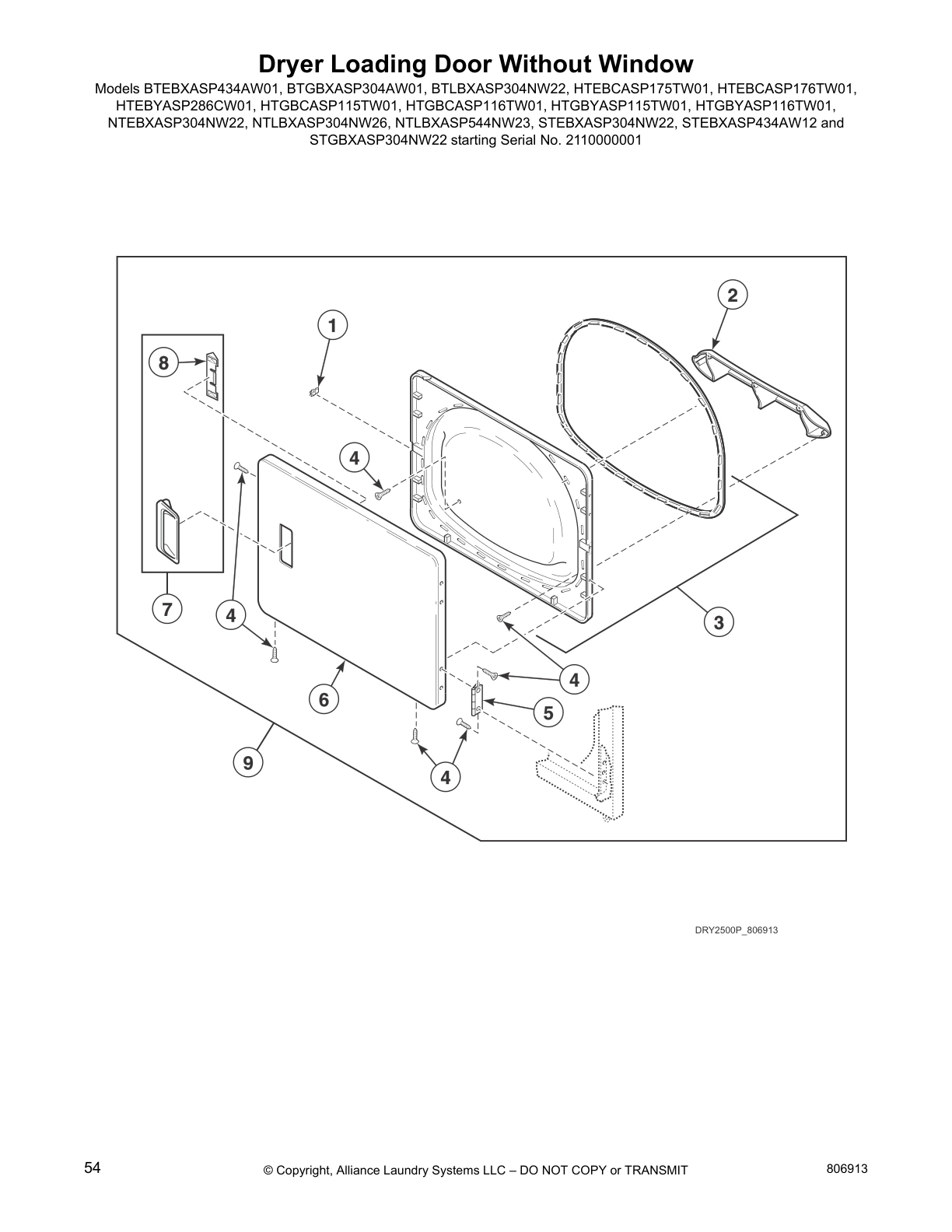

Dryer Loading Door Without Window

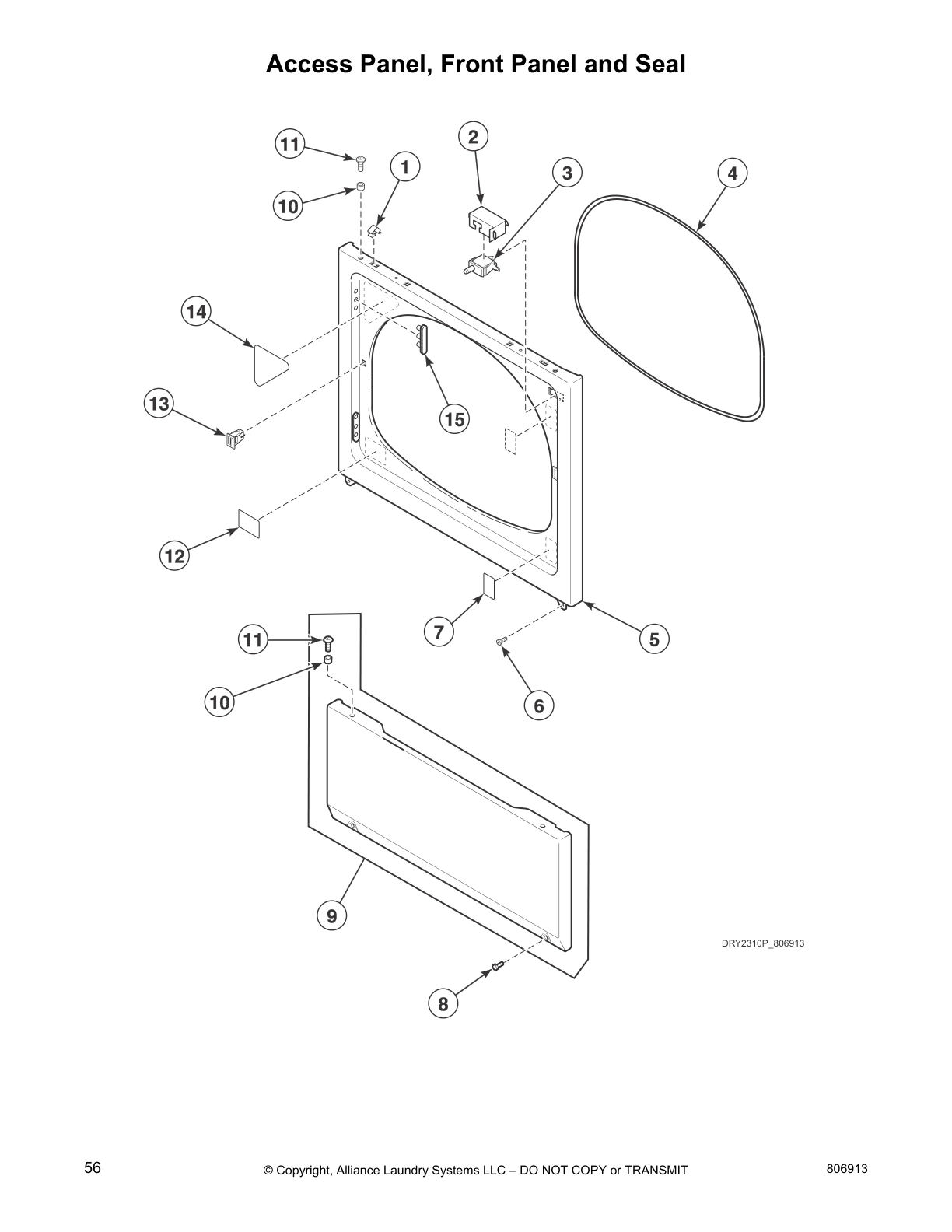

Access Panel, Front Panel and Seal

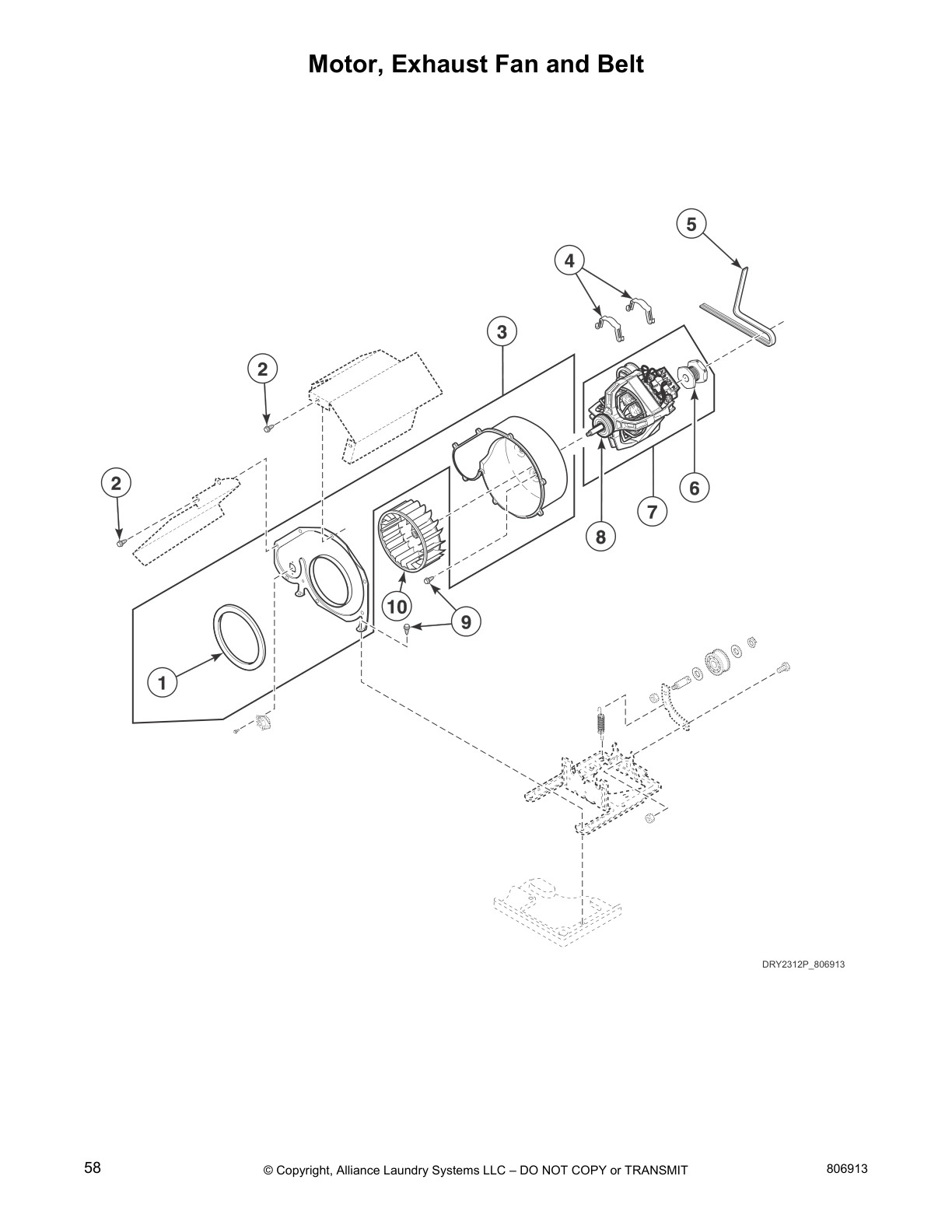

Motor, Exhaust Fan and Belt

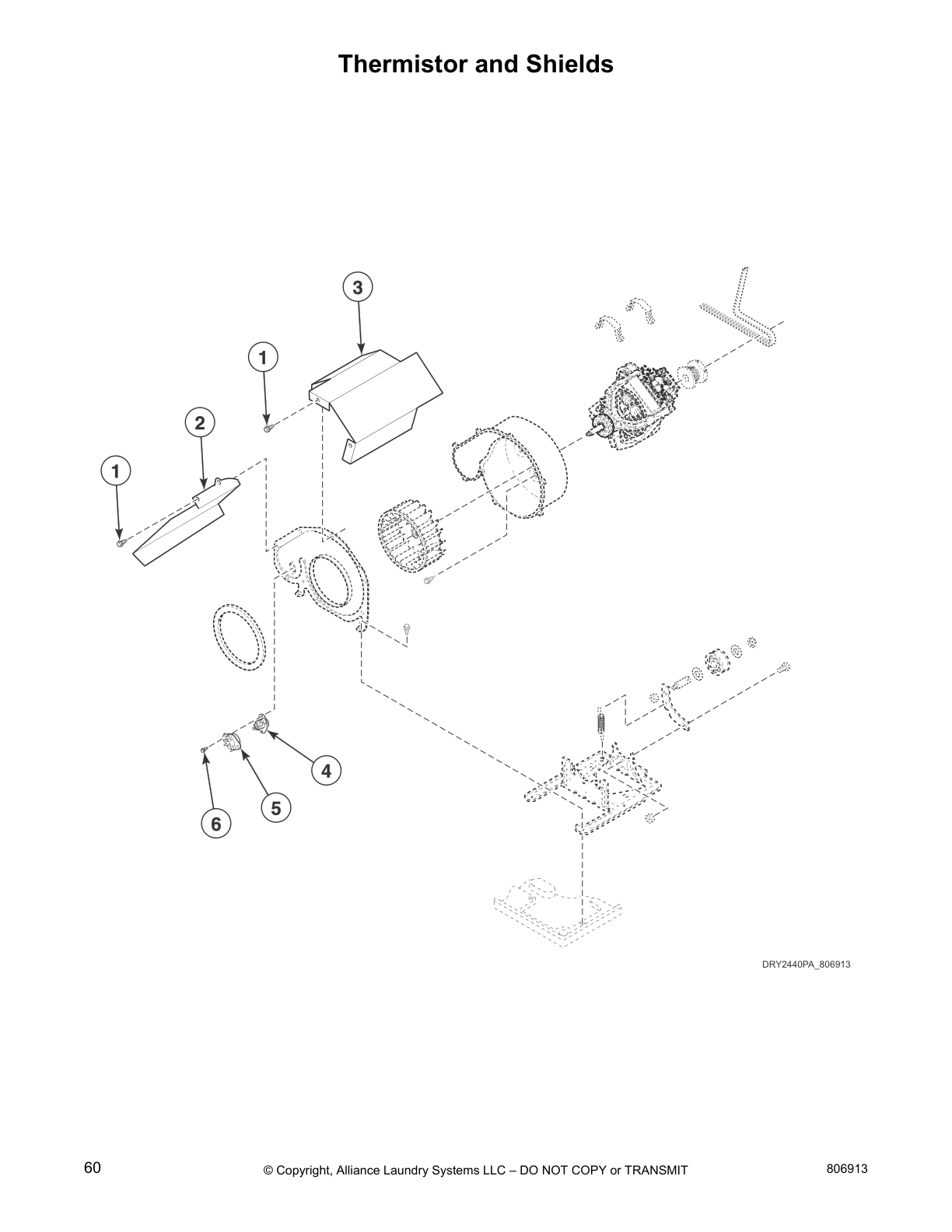

Thermistor and Shields

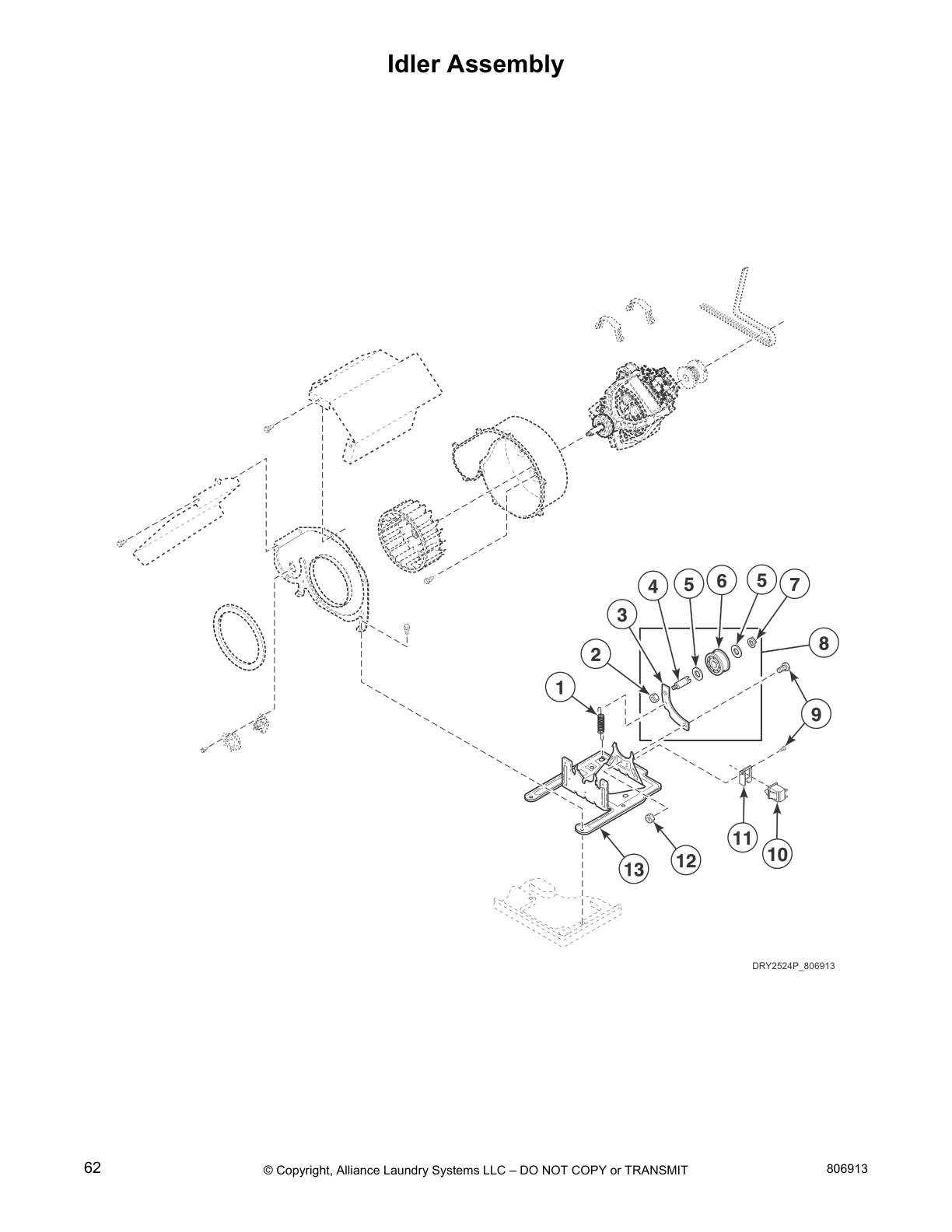

Idler Assembly

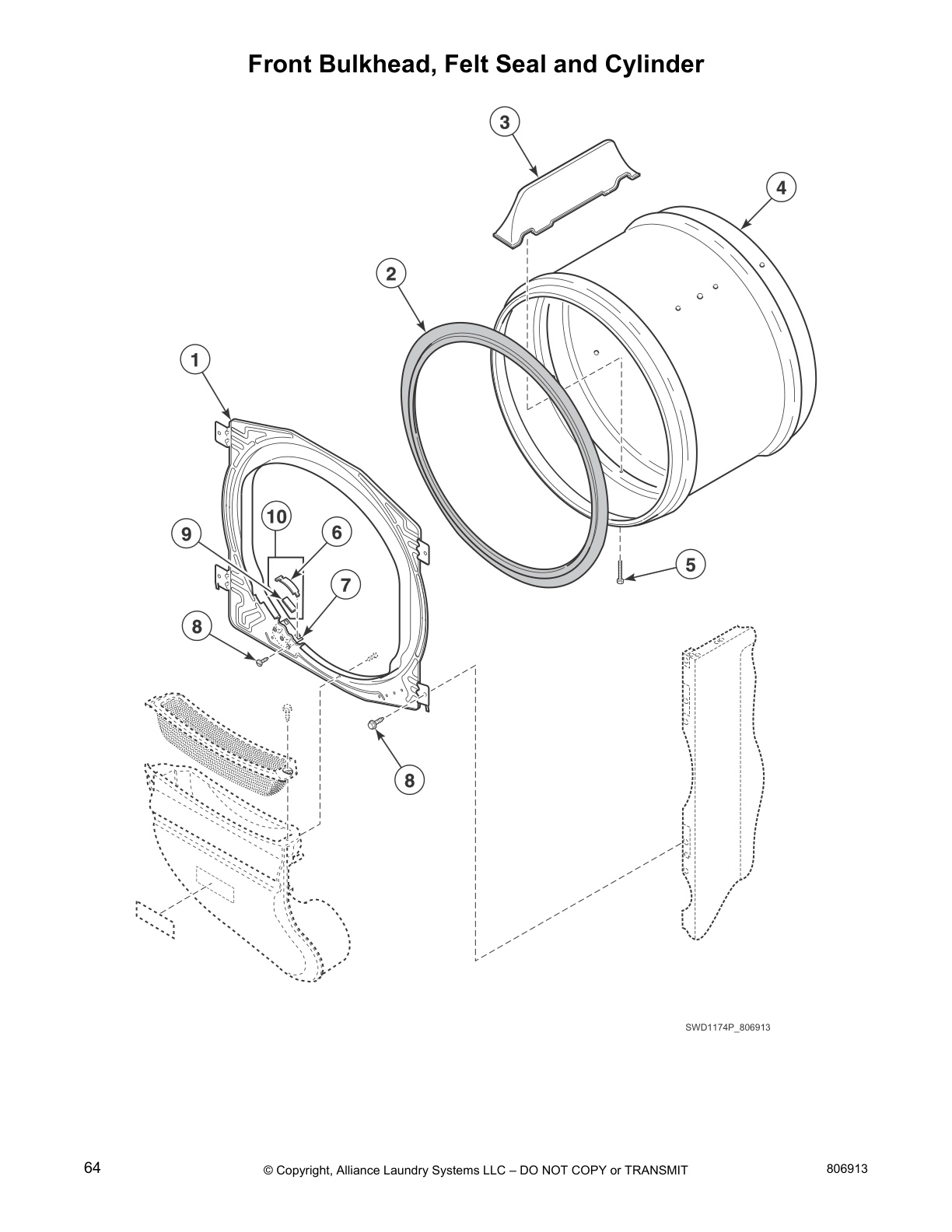

Front Bulkhead, Felt Seal and Cylinder

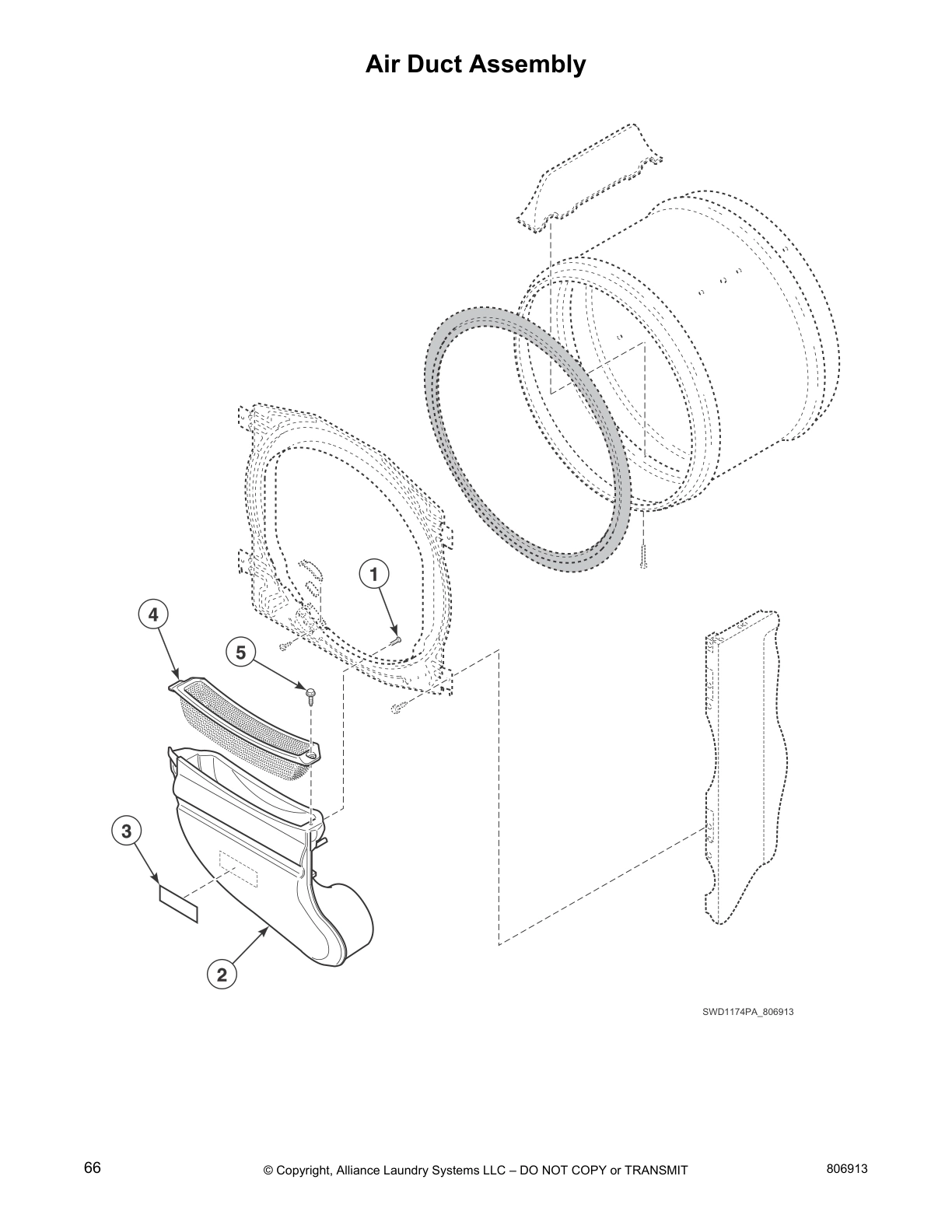

Air Duct Assembly

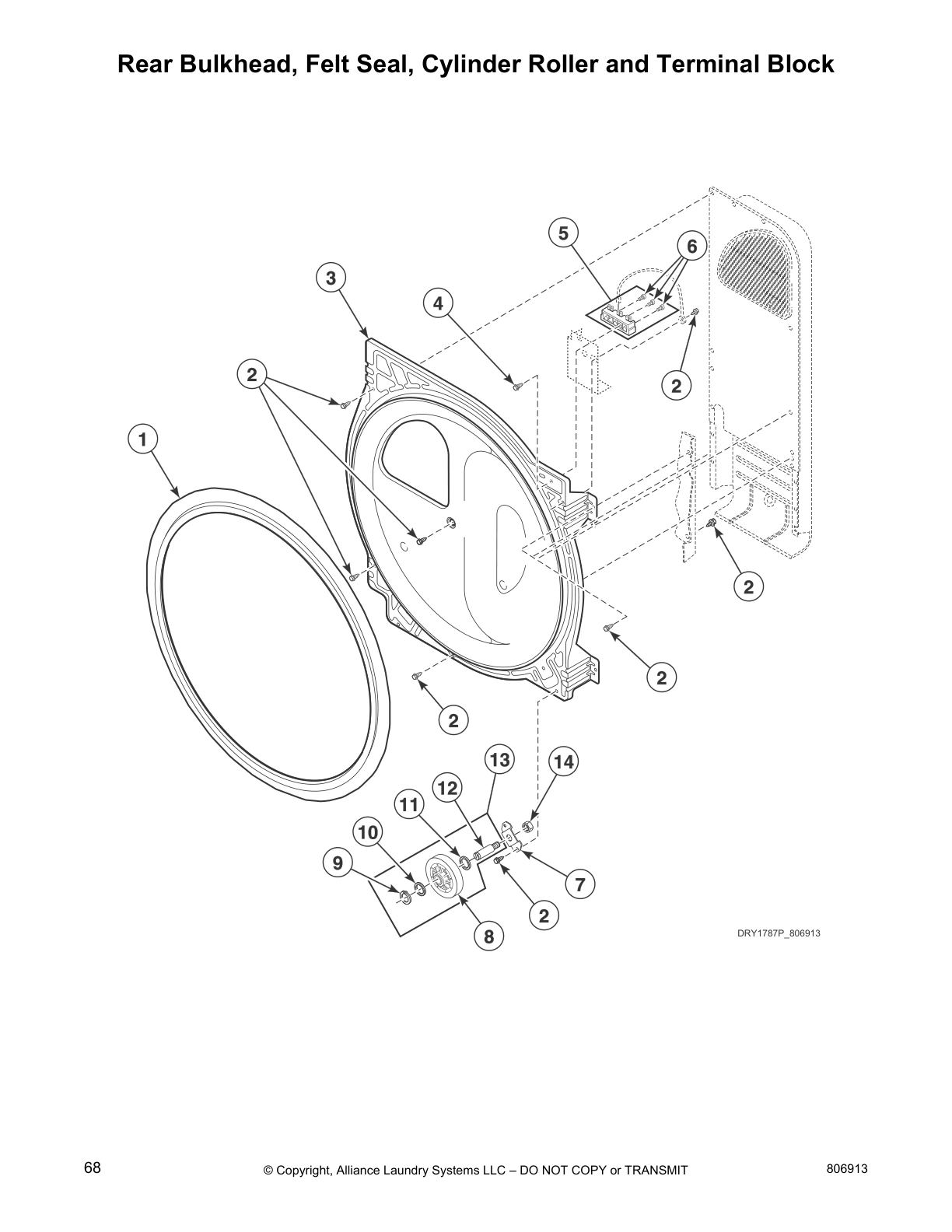

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

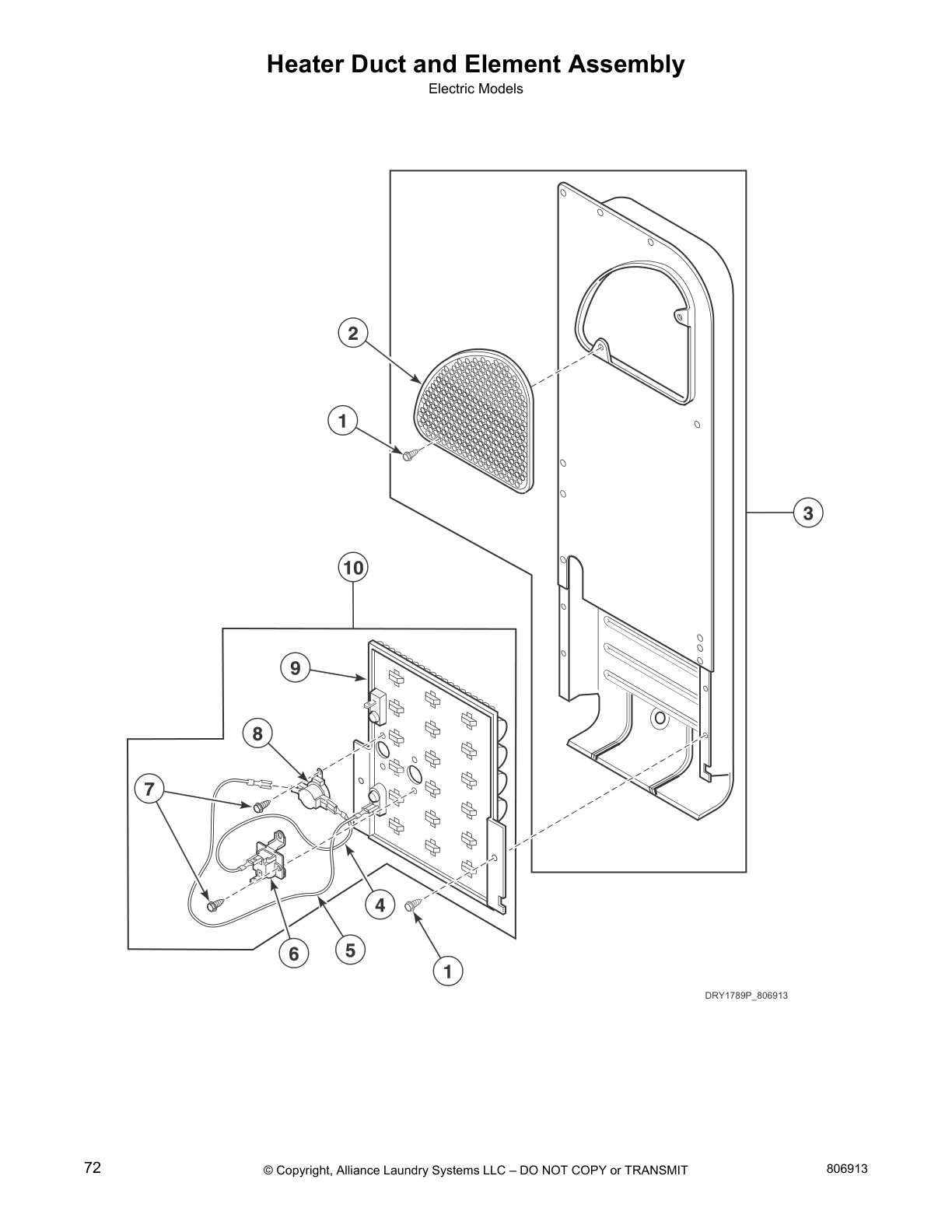

Heater Duct and Element Assembly
Heater Duct Assembly

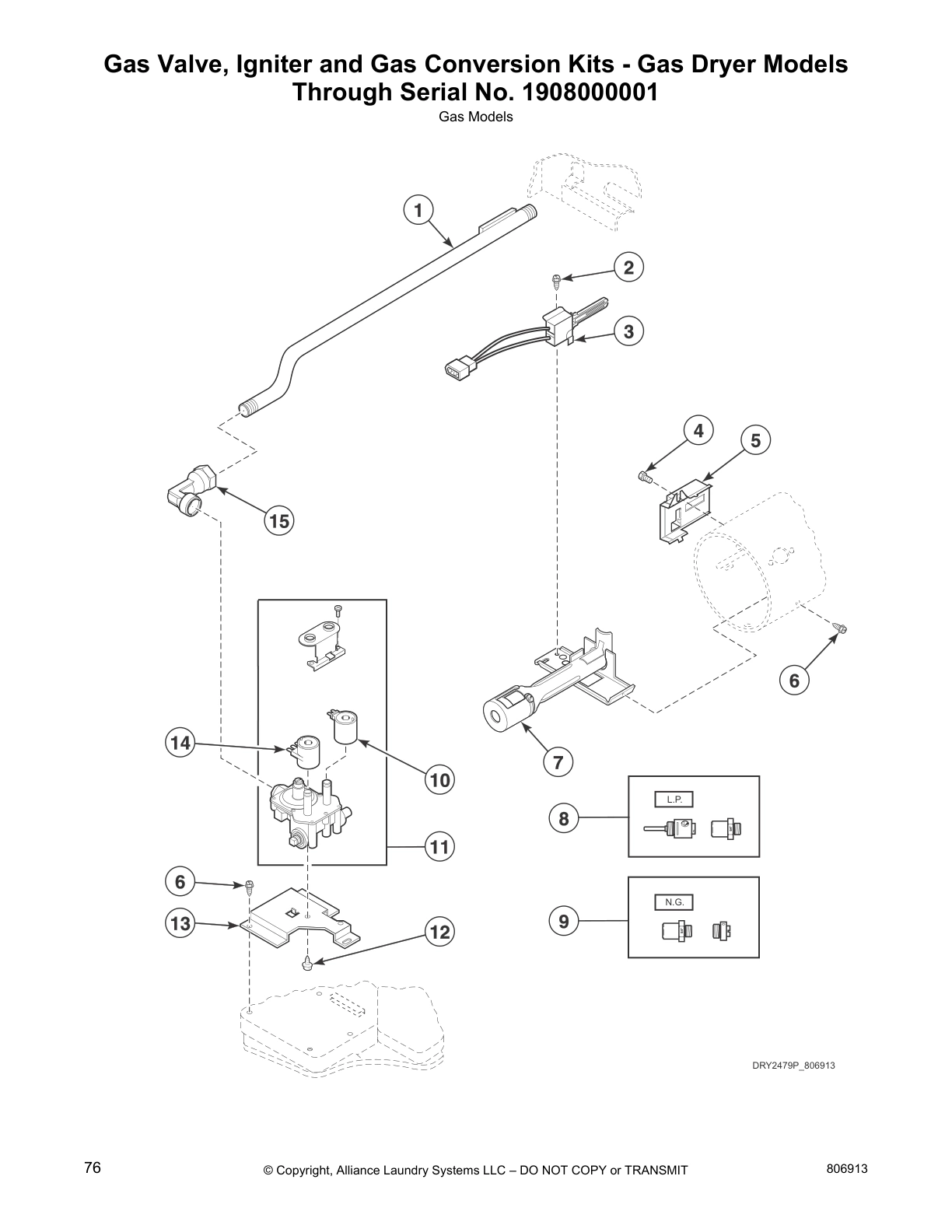

Gas Valve, Igniter and Gas Conversion Kits - Gas Dryer Models
Through Serial No. 1908000001

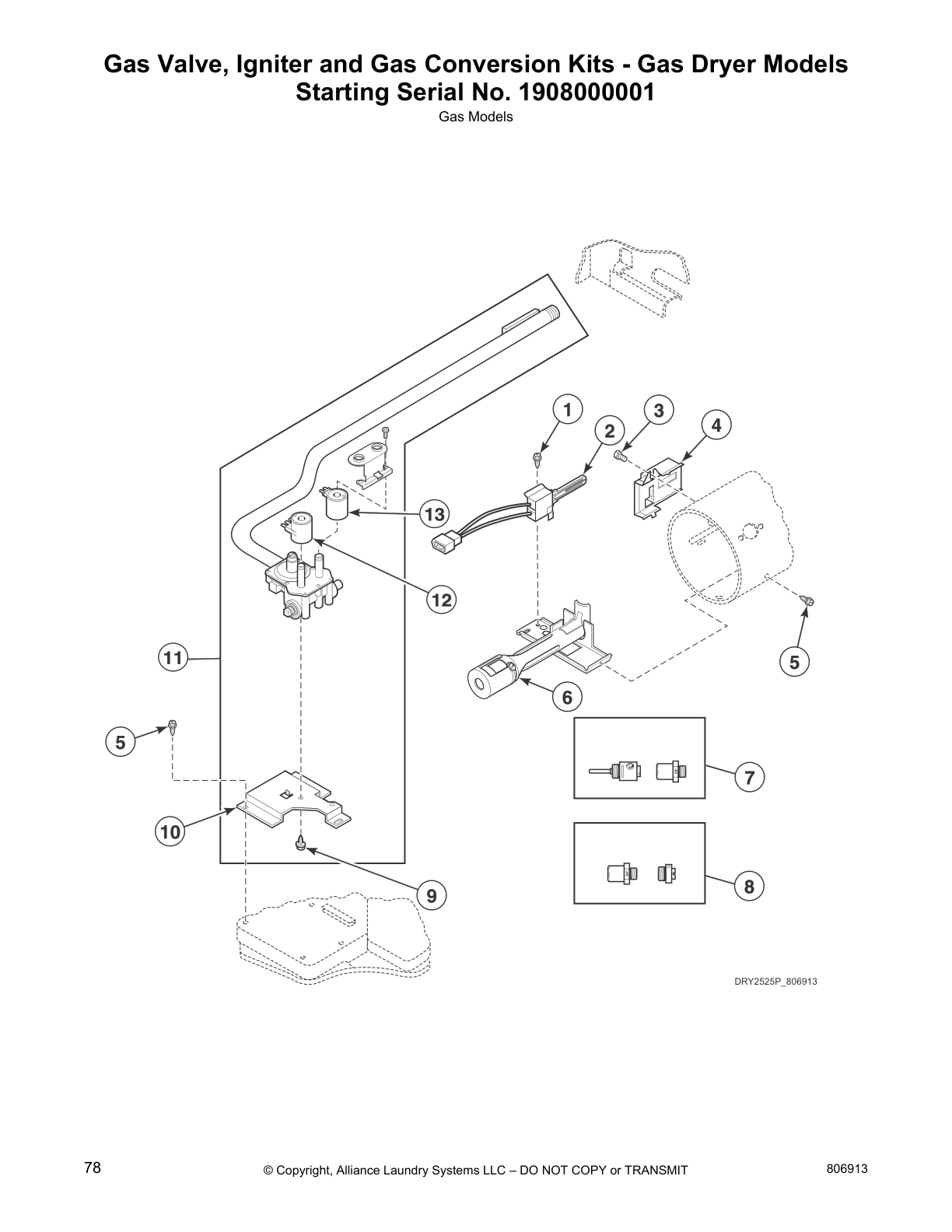

Gas Valve, Igniter and Gas Conversion Kits - Gas Dryer Models
Starting Serial No. 1908000001

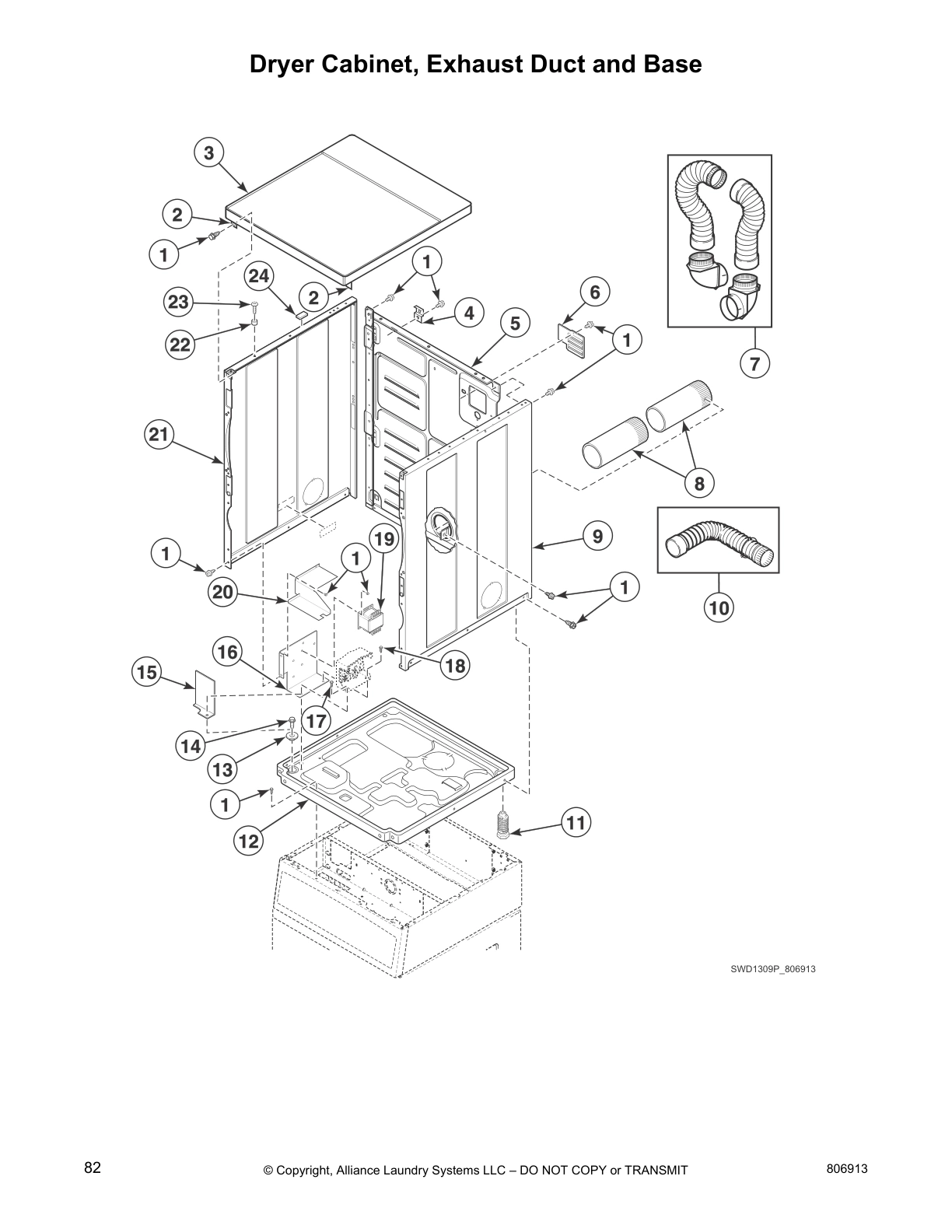

Dryer Cabinet, Exhaust Duct and Base

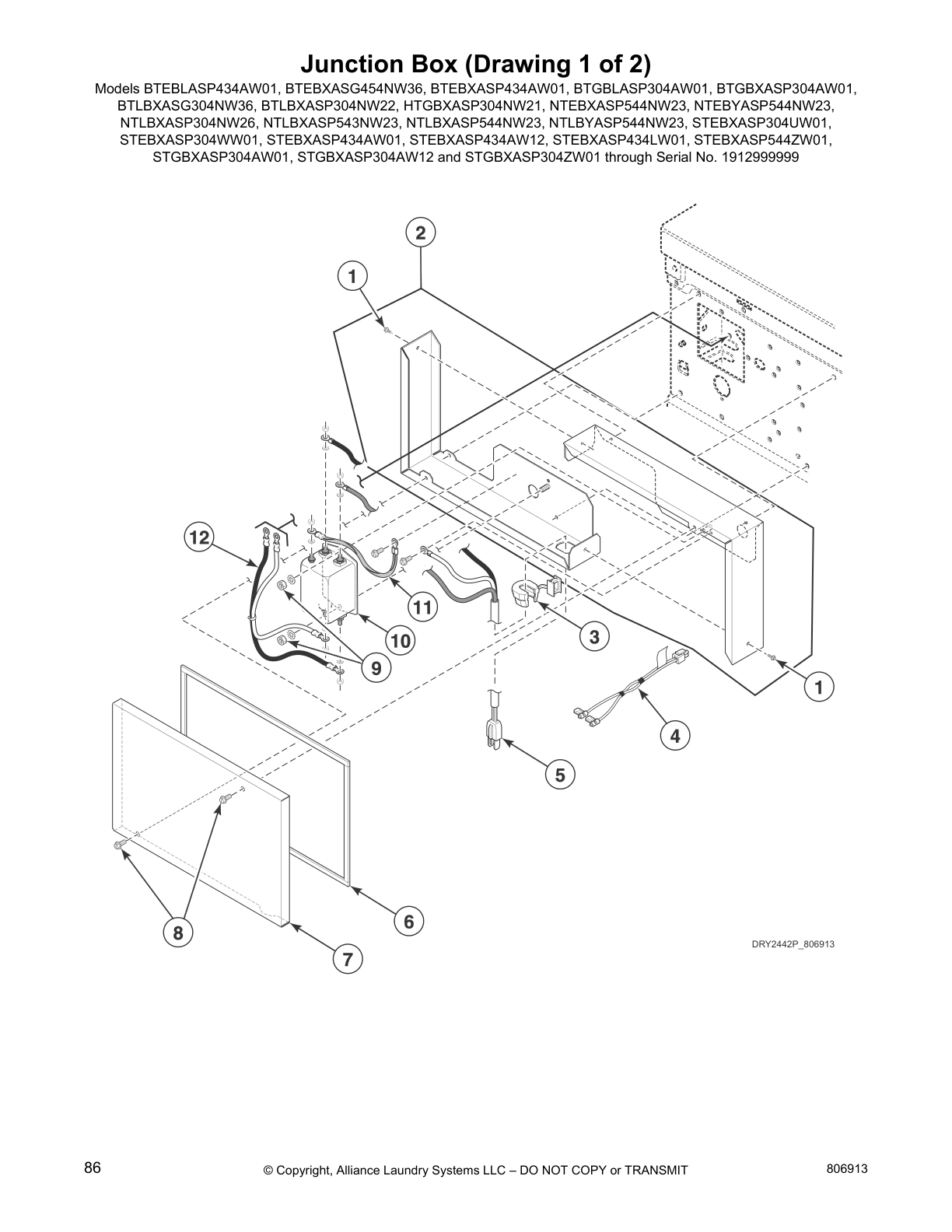

Junction Box (Drawing 1 of 2)

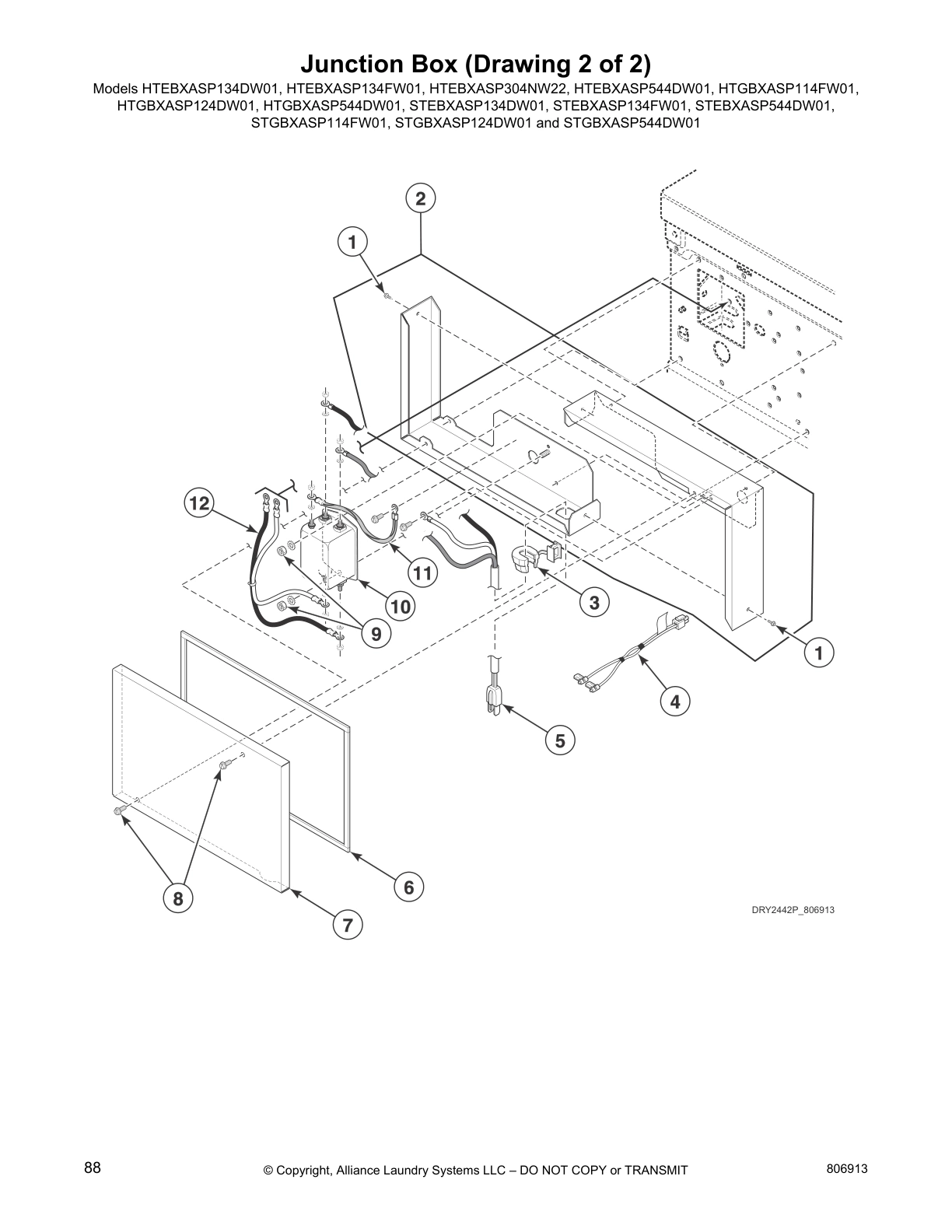

Junction Box (Drawing 2 of 2)

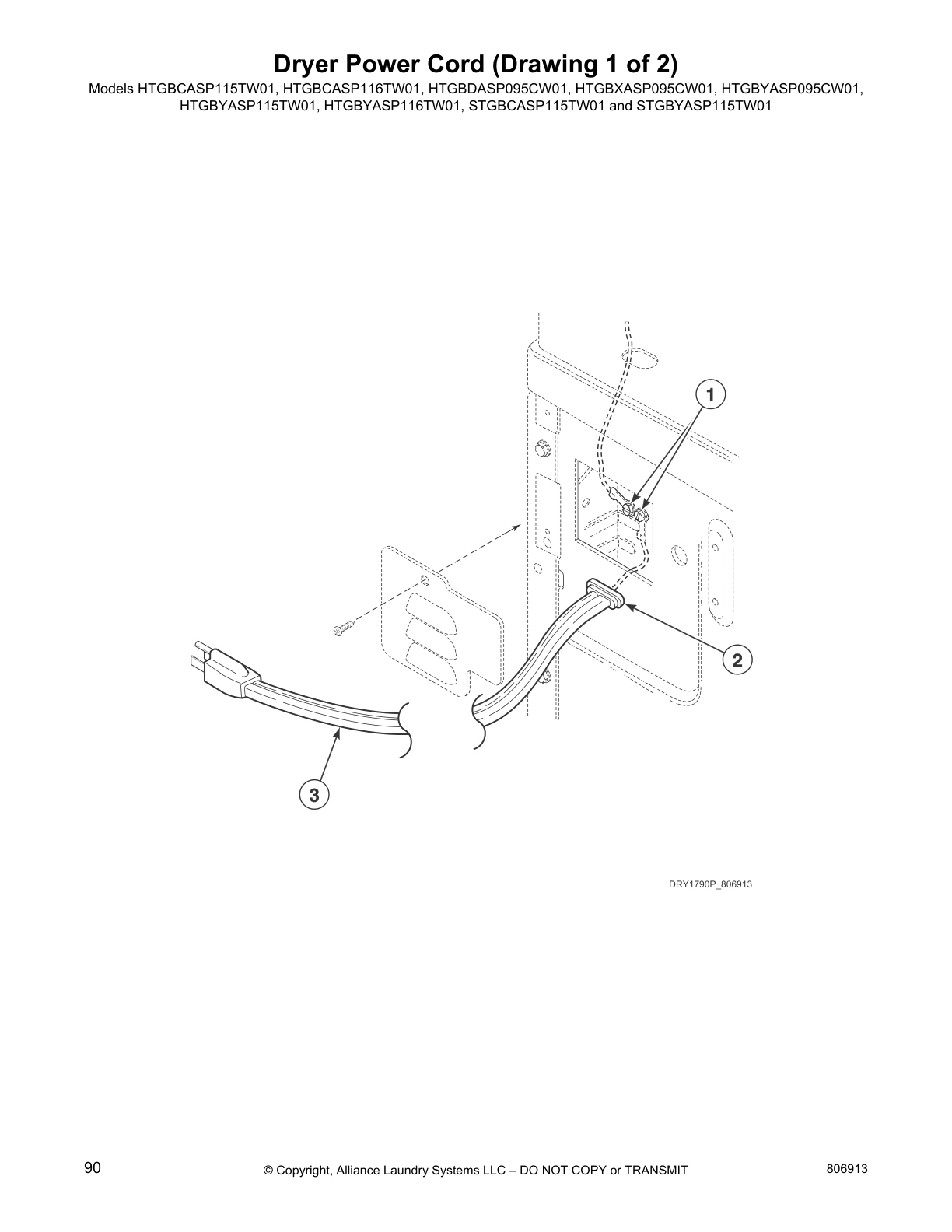

Dryer Power Cord (Drawing 1 of 2)

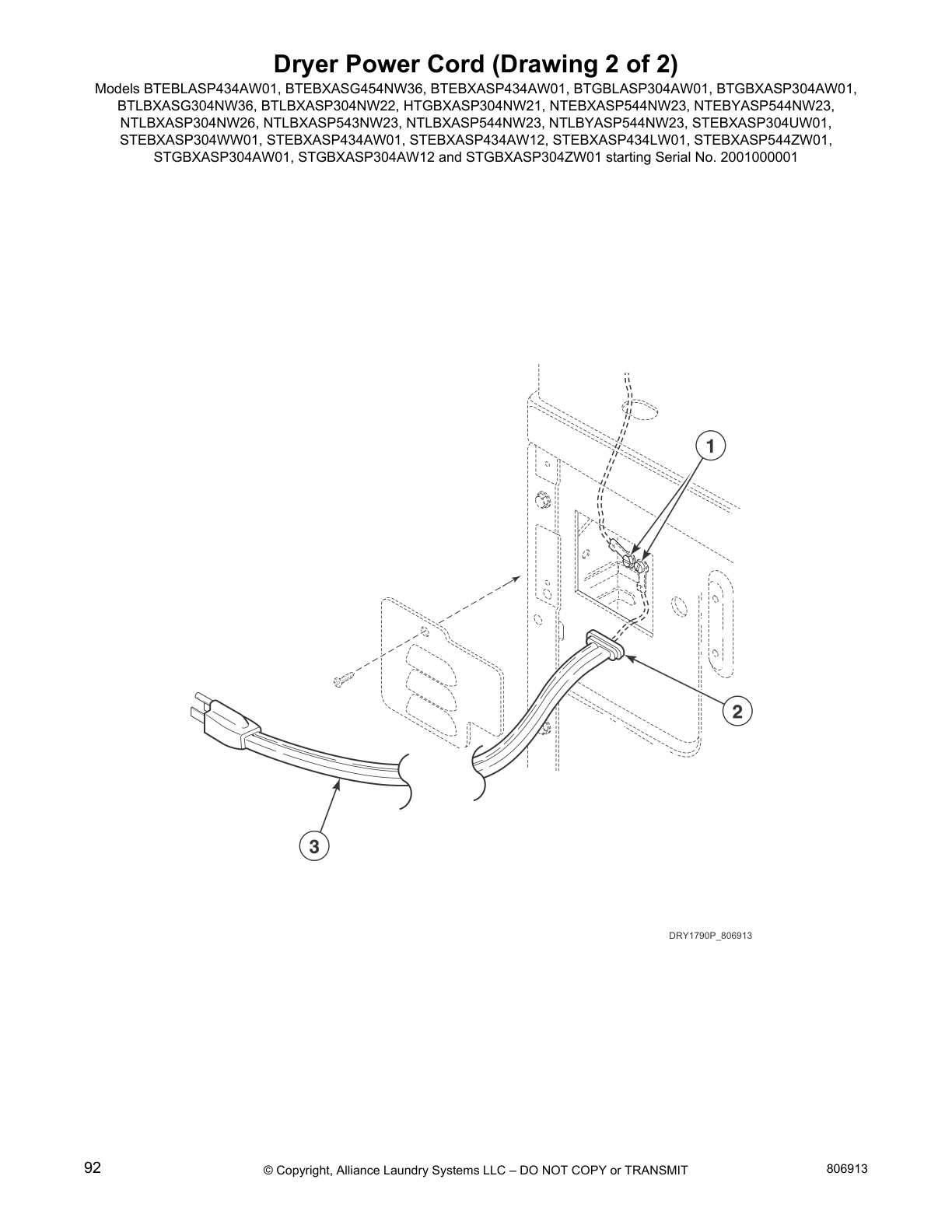

Dryer Power Cord (Drawing 2 of 2)

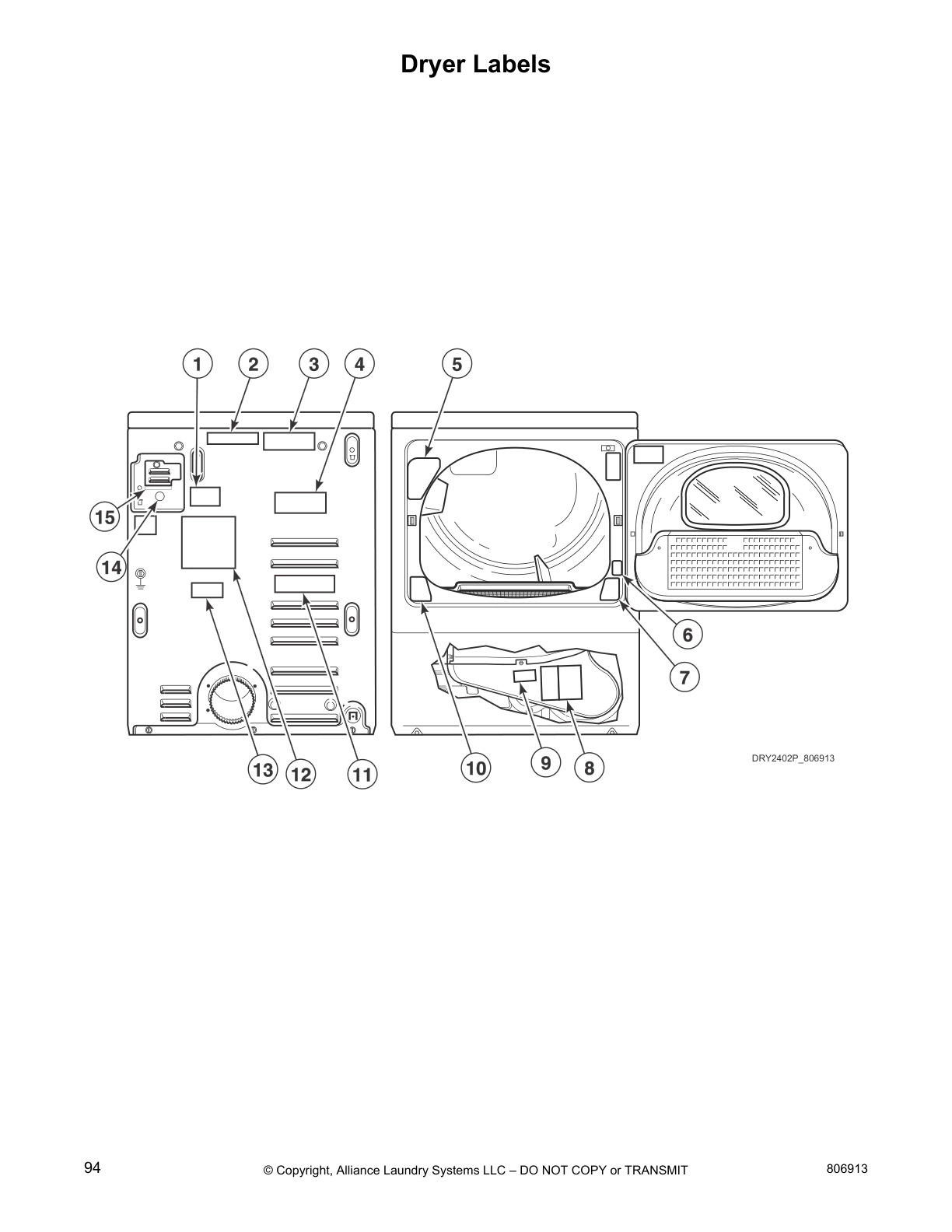

Dryer Labels

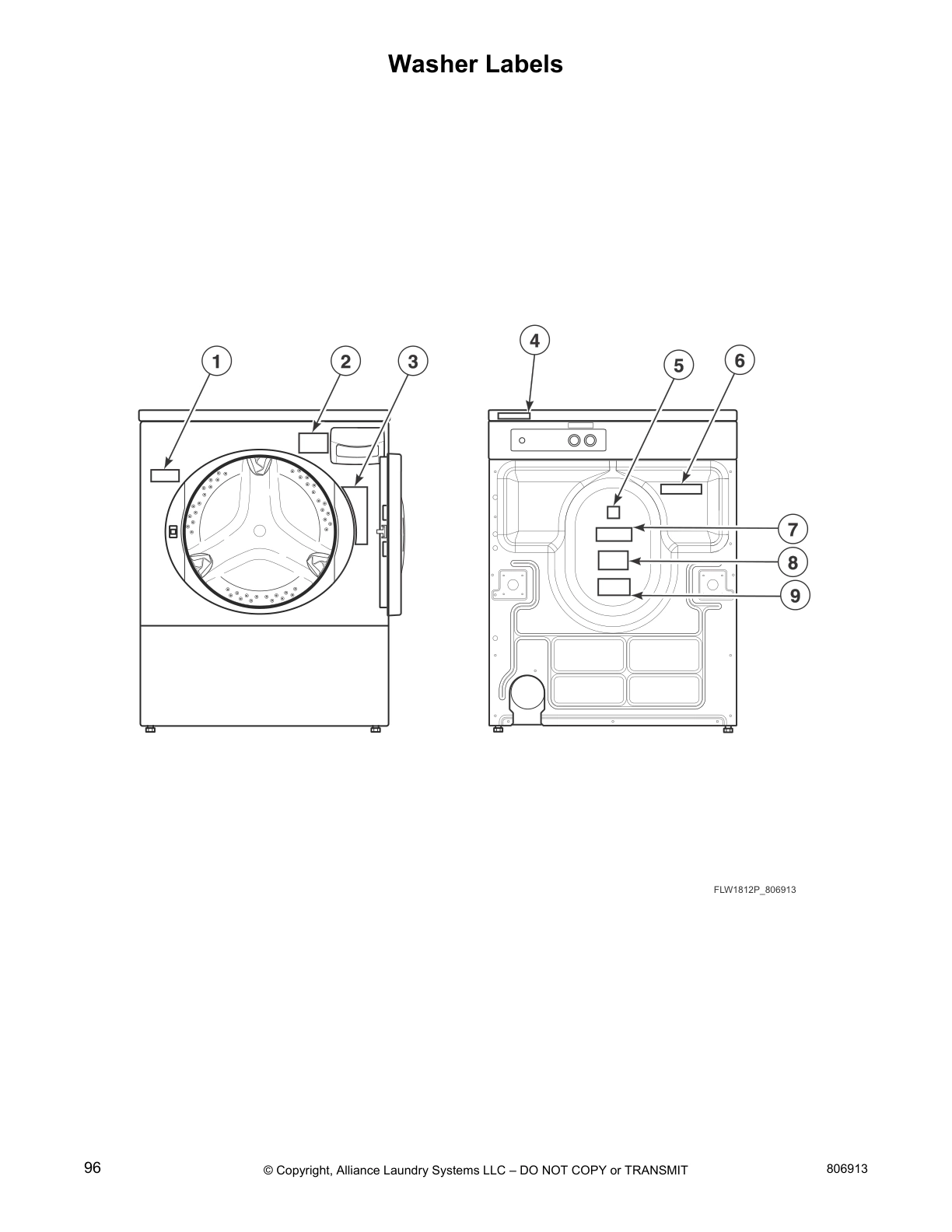

Washer Labels
Shipping Materials
Special Tools

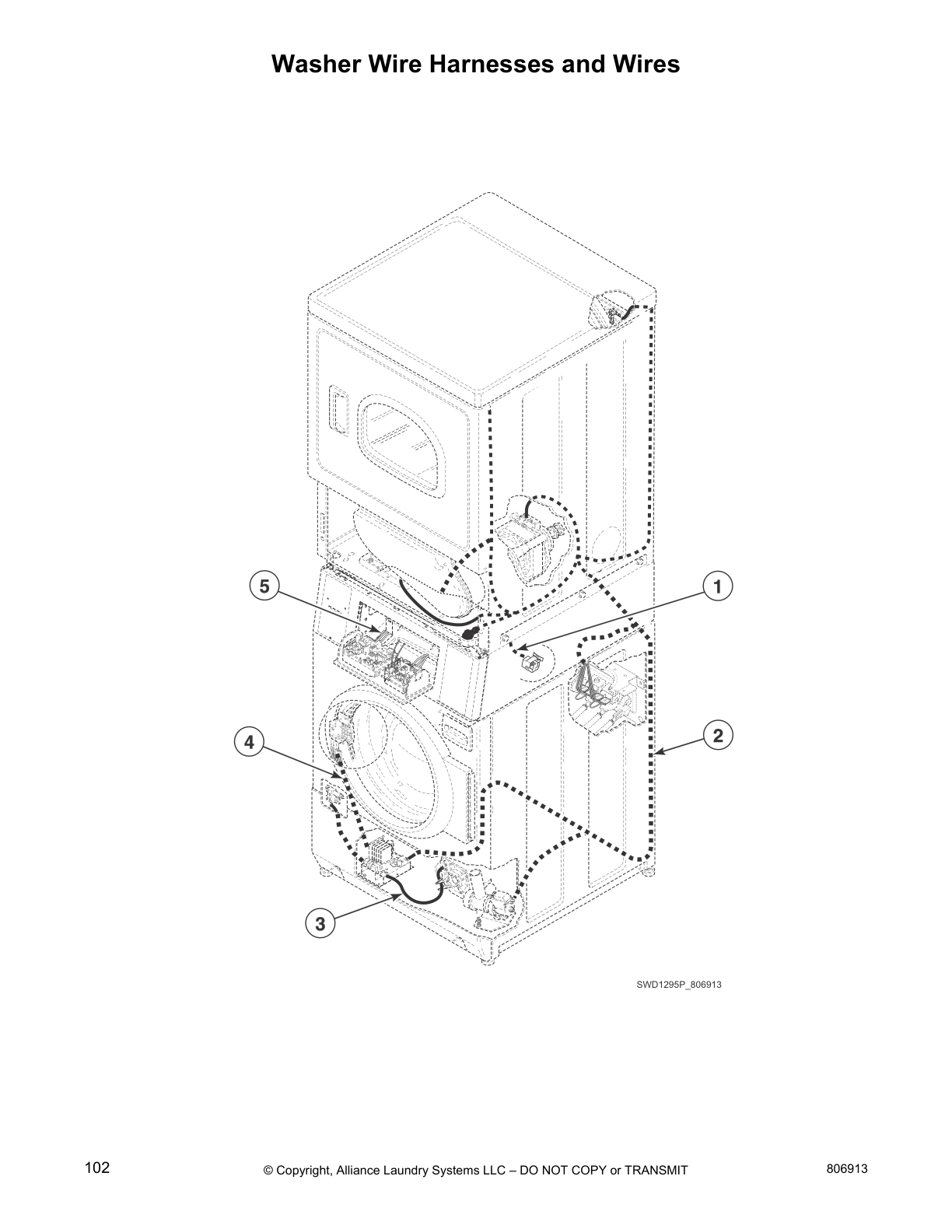

Washer Wire Harnesses and Wires

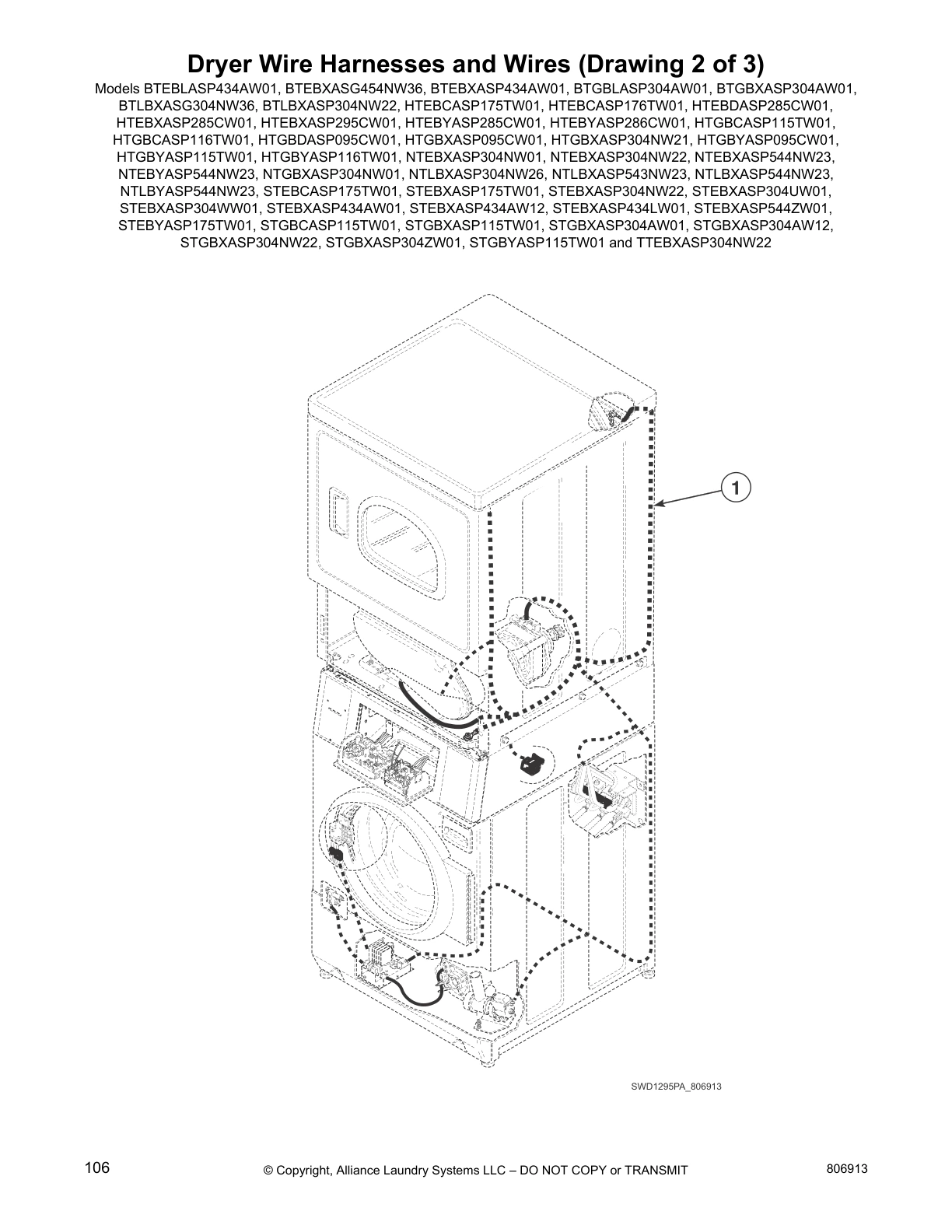

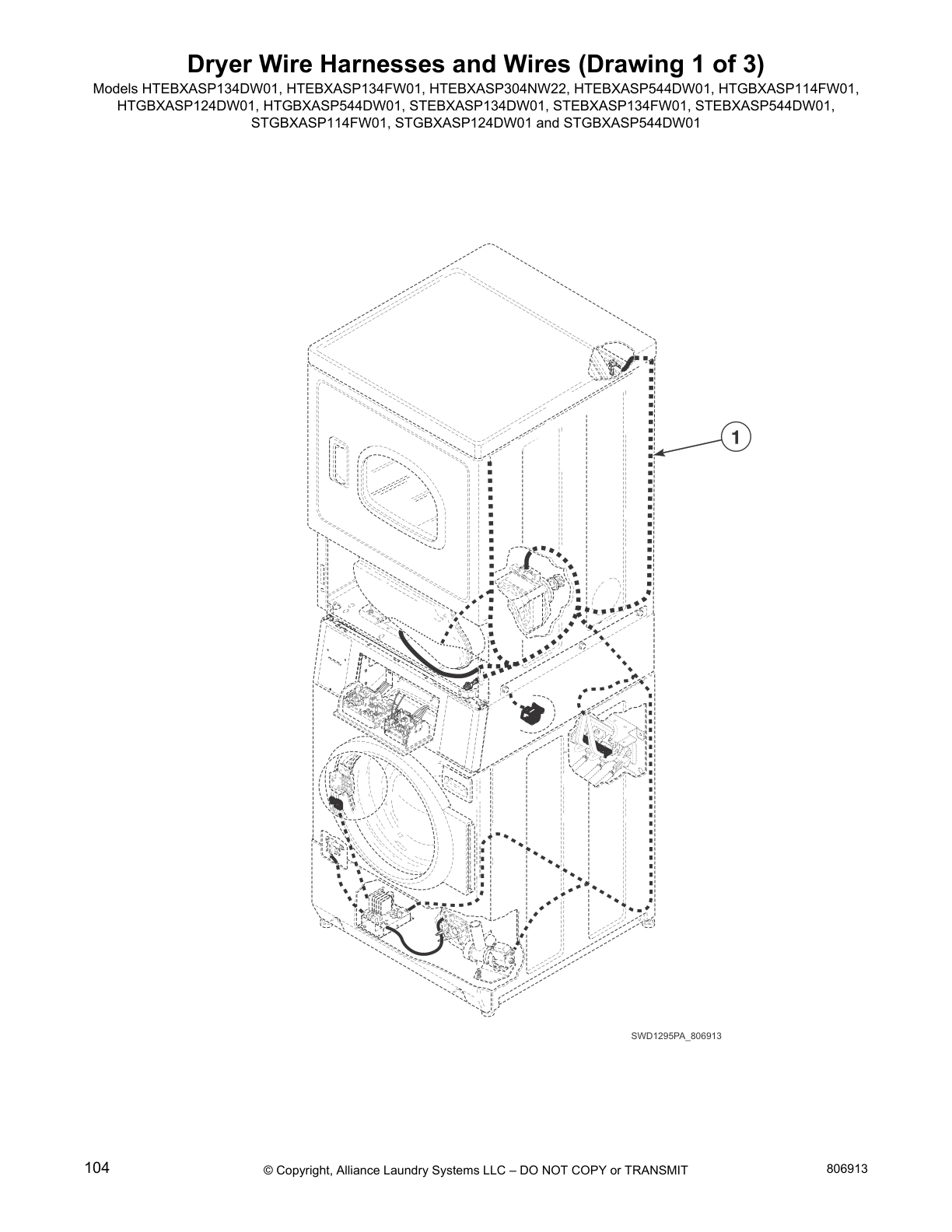

Dryer Wire Harnesses and Wires (Drawing 1 of 3)
Dryer Wire Harnesses and Wires (Drawing 2 of 3)

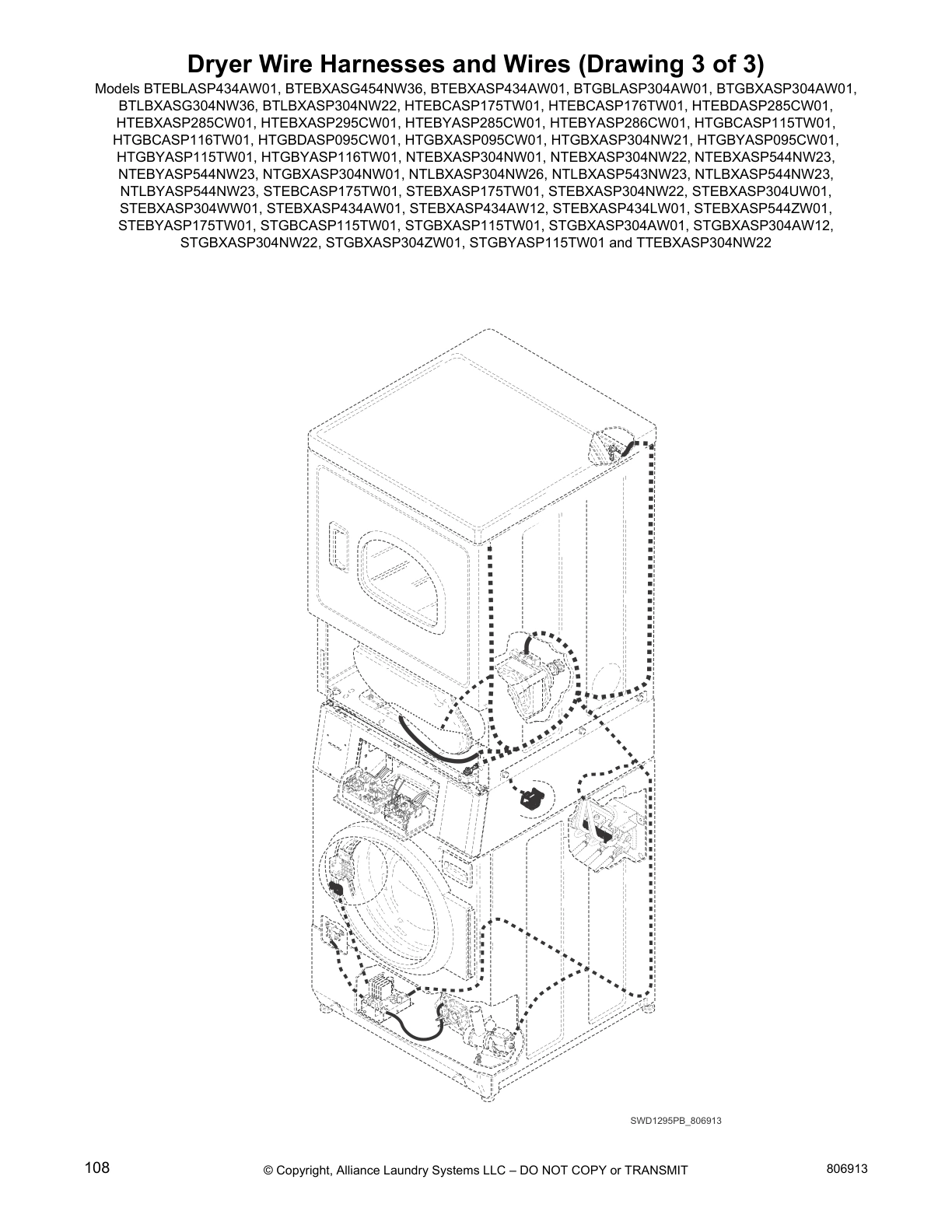

Dryer Wire Harnesses and Wires (Drawing 3 of 3)
Common parts from model Huebsch HTEBXASP304NW22 Stacked Washer and Dryer
4
Lock Cam SPQ 54612 Contact Us For Availability
16
Pump Housing Assembly SPQ 802429P Contact Us For Availability
17
Pump Housing SPQ 802434P Contact Us For Availability
18
Gasket SPQ 802428 Contact Us For Availability
19
Standpipe Strap SPQ 802427 Contact Us For Availability
NI
SPQ 70441601P No Longer Available
× ![]()
