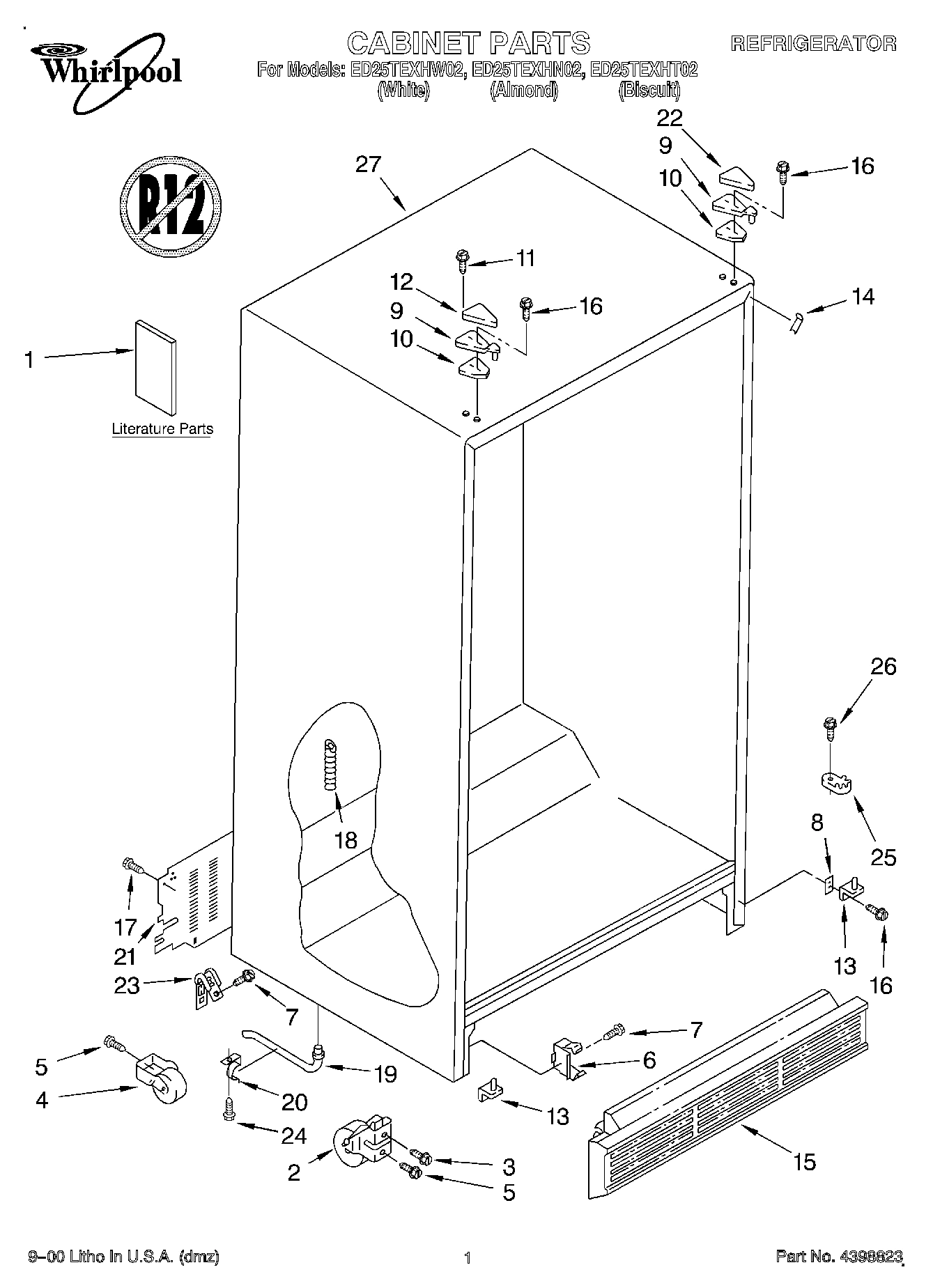

Model Whirlpool ED25TEXHN02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.19

1

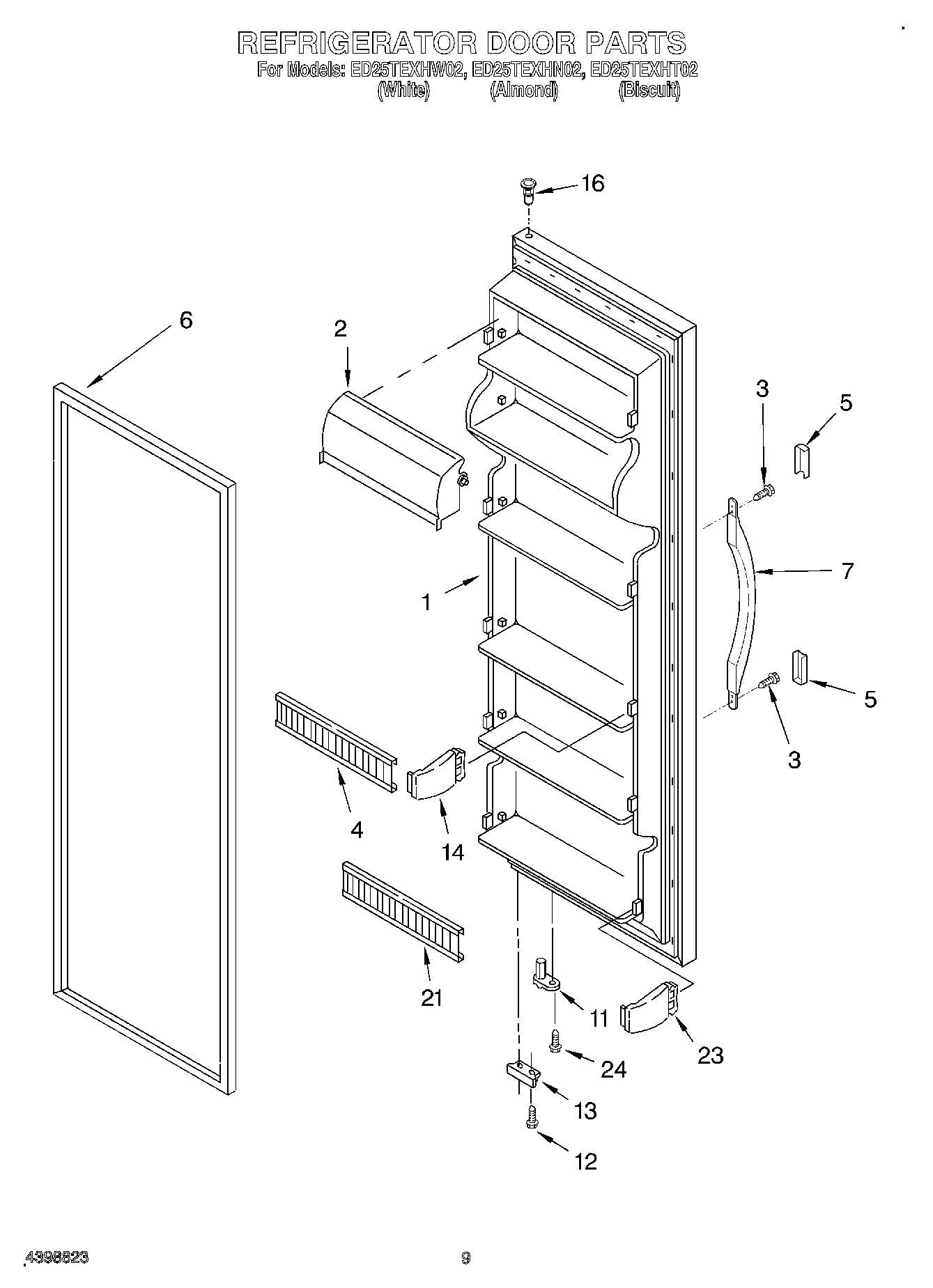

Refrigerator Door (Includes Item 6) (Almond) WPL 2198499N Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2198499T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2198499W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI28038A2 Contact Us For Availability

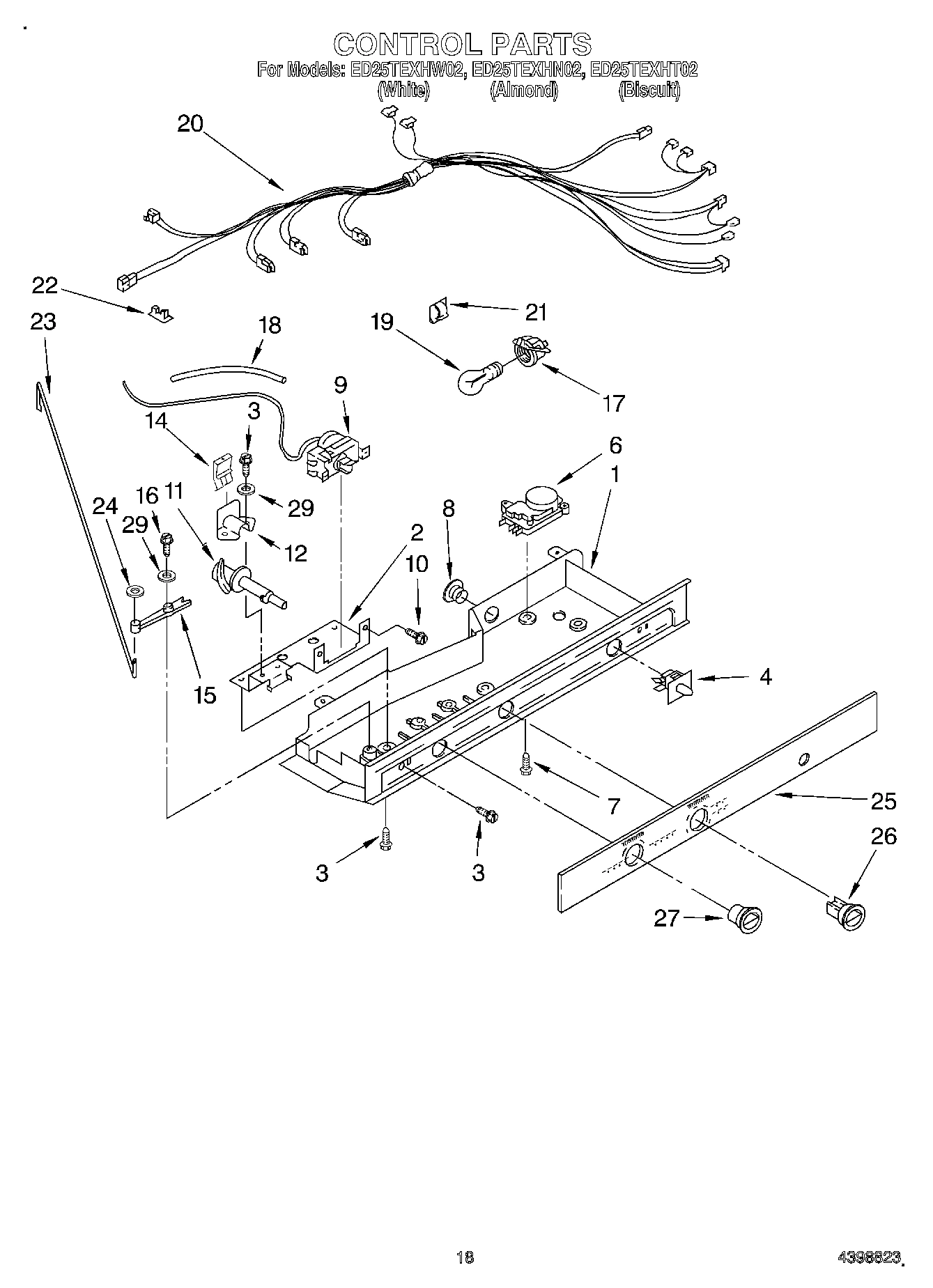

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.63

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $58.04

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $53.39

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.22

3

Air Scoop WPL 2161231 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $41.83

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.59

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $37.24

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $16.76

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $4.20

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

5

Endcap, Handle (2) (Biscuit) WPL 2193353T Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $166.31

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $23.78

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.32

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $14.93

7

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $200.15

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $15.96

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $40.95

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.21

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $59.22

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $3.38

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

Glass (3) WPL 2177986 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $35.85

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.31

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $85.27

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.33

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.35

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $59.99

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $16.16

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.32

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.67

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.26

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $7.15

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.29

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $8.09

15

Pivot Arm WPL 1110559 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $11.71

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.59

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $252.65

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $98.86

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $41.92

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

18

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $13.86

Overlay, Front Cover (Almond) WPL 2205691N Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2205691T Contact Us For Availability

Overlay, Front Cover (White) WPL 2205691W Contact Us For Availability

20

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $217.91

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.77

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

Trim, Door (1) WPL 2198486 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI28039A6 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $3.22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $16.76

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $7.65

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

25

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $12.20

Shield, Ice Door WPL 987121 Contact Us For Availability

Heat Shield WPL 2149294 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $26.71

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Switch WPL 2180254 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $31.62

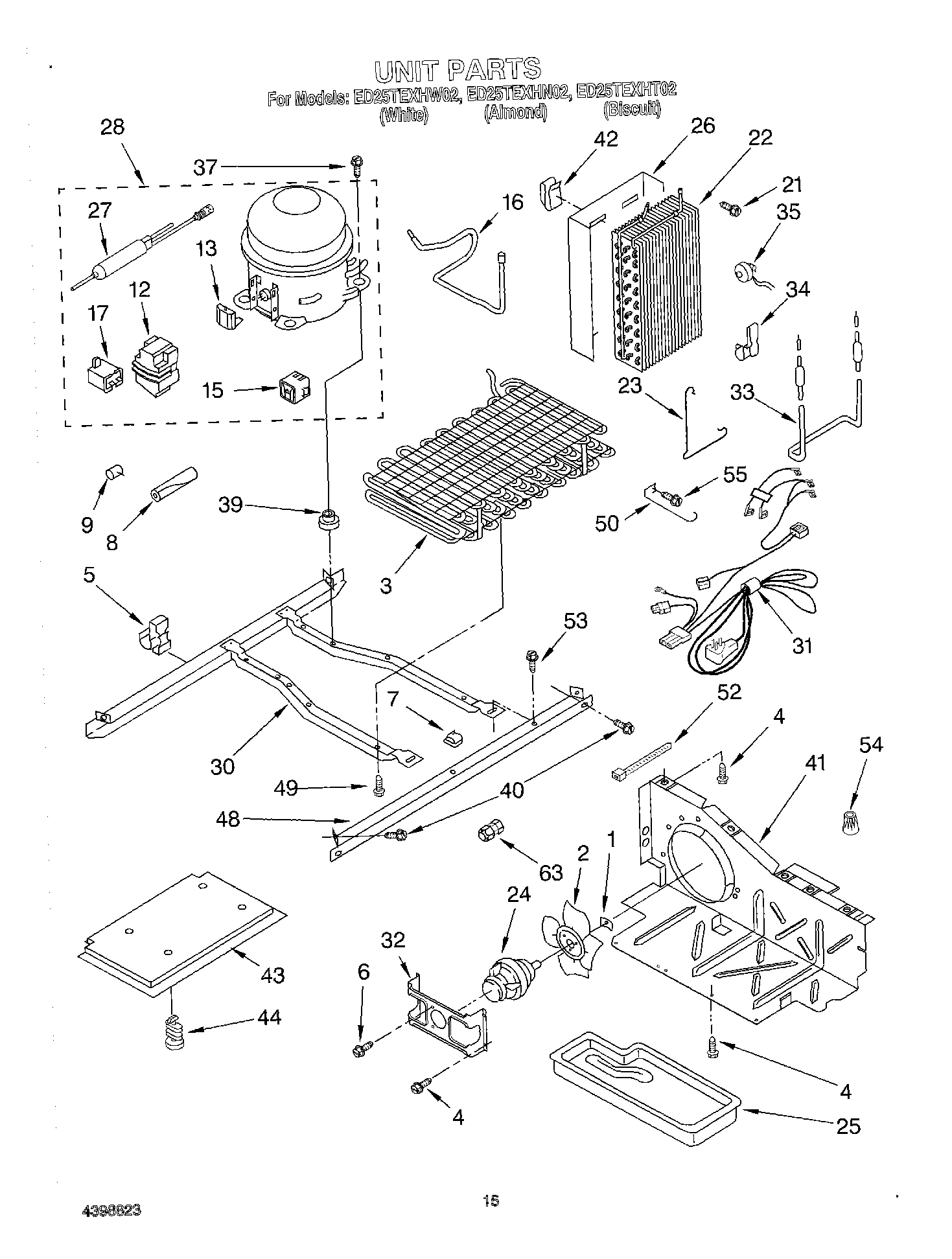

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $467.42

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $61.51

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.78

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.77

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $183.01

30

Floating Baffle WPL 2181722 Contact Us For Availability

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $60.29

31

Shelf (2) WPL 2174268 Contact Us For Availability

31

Unit, Harness WPL 2211336 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.34

34

Clip WPL 2161330 Contact Us For Availability

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.89

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.04

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $5.84

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $63.20

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $36.47

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $53.90

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 1110663 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $6.04

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.68

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
