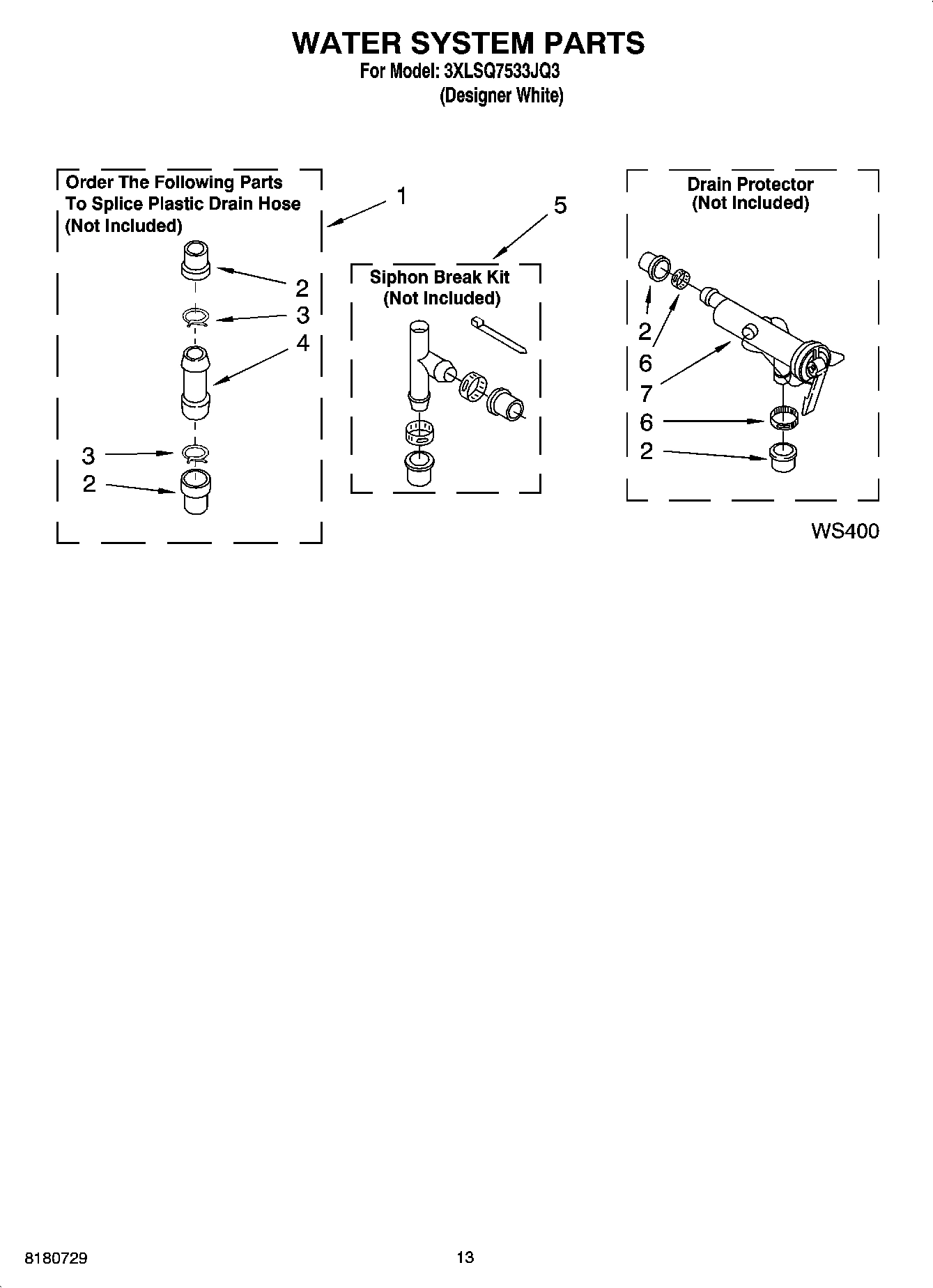

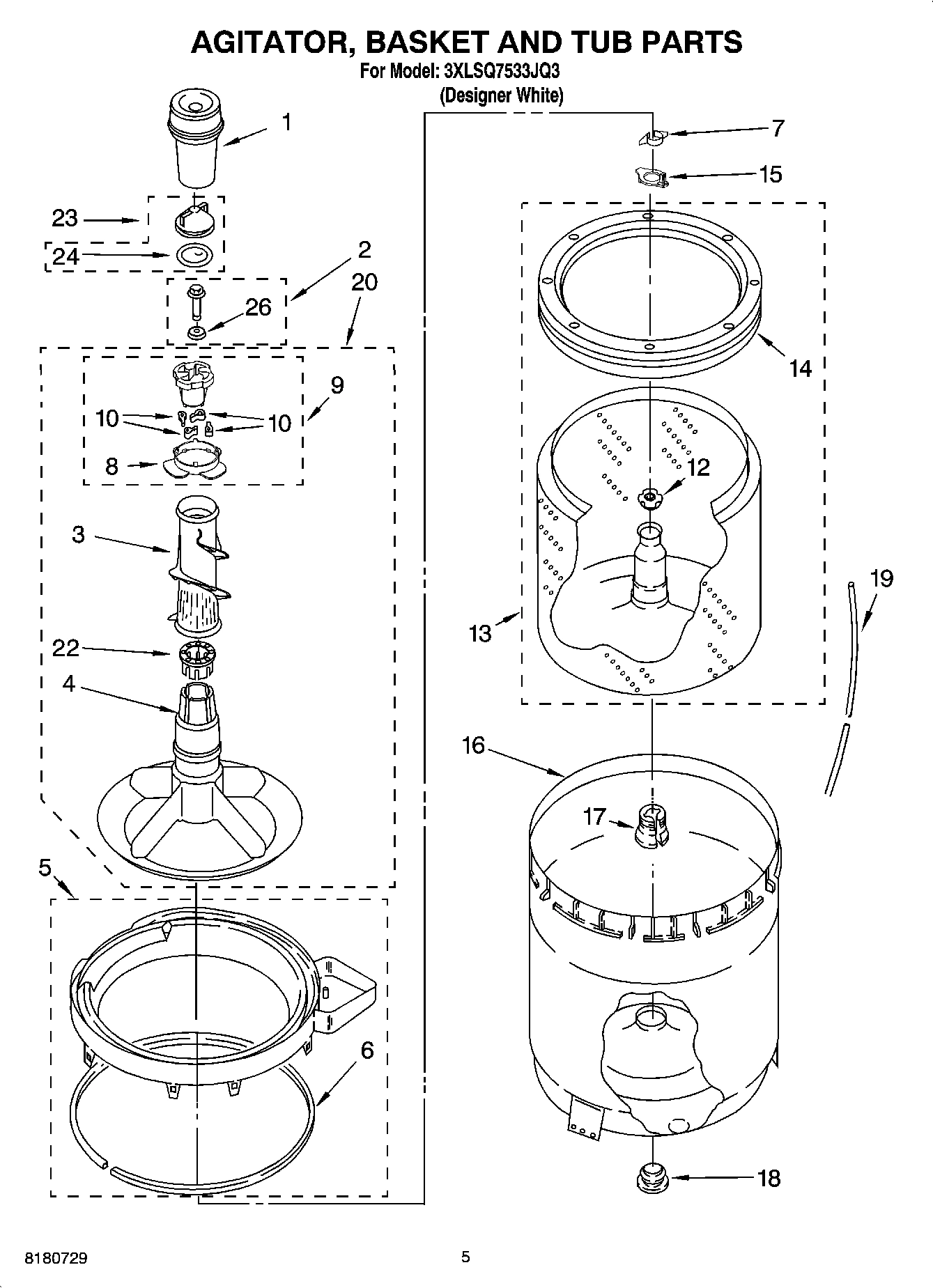

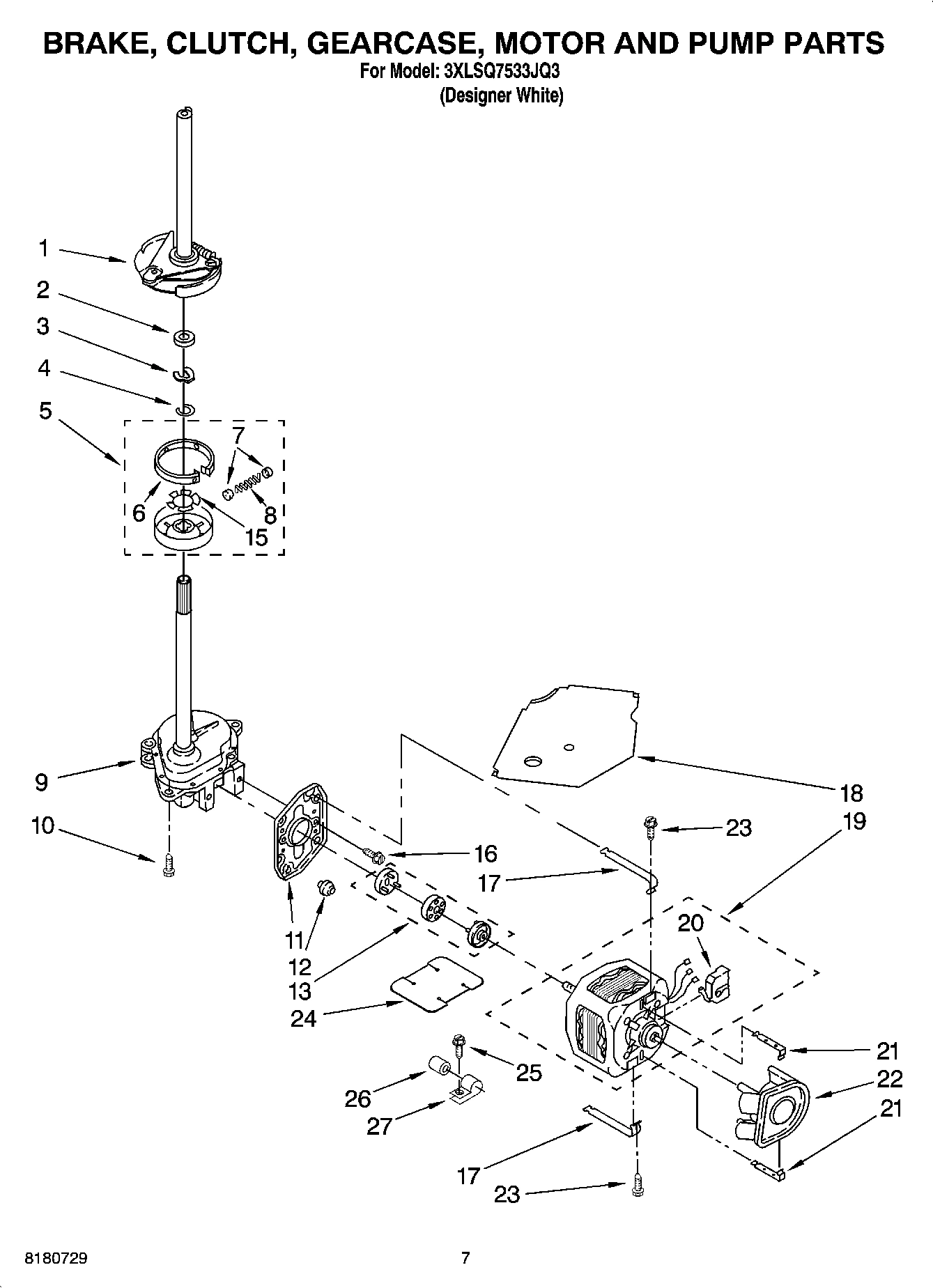

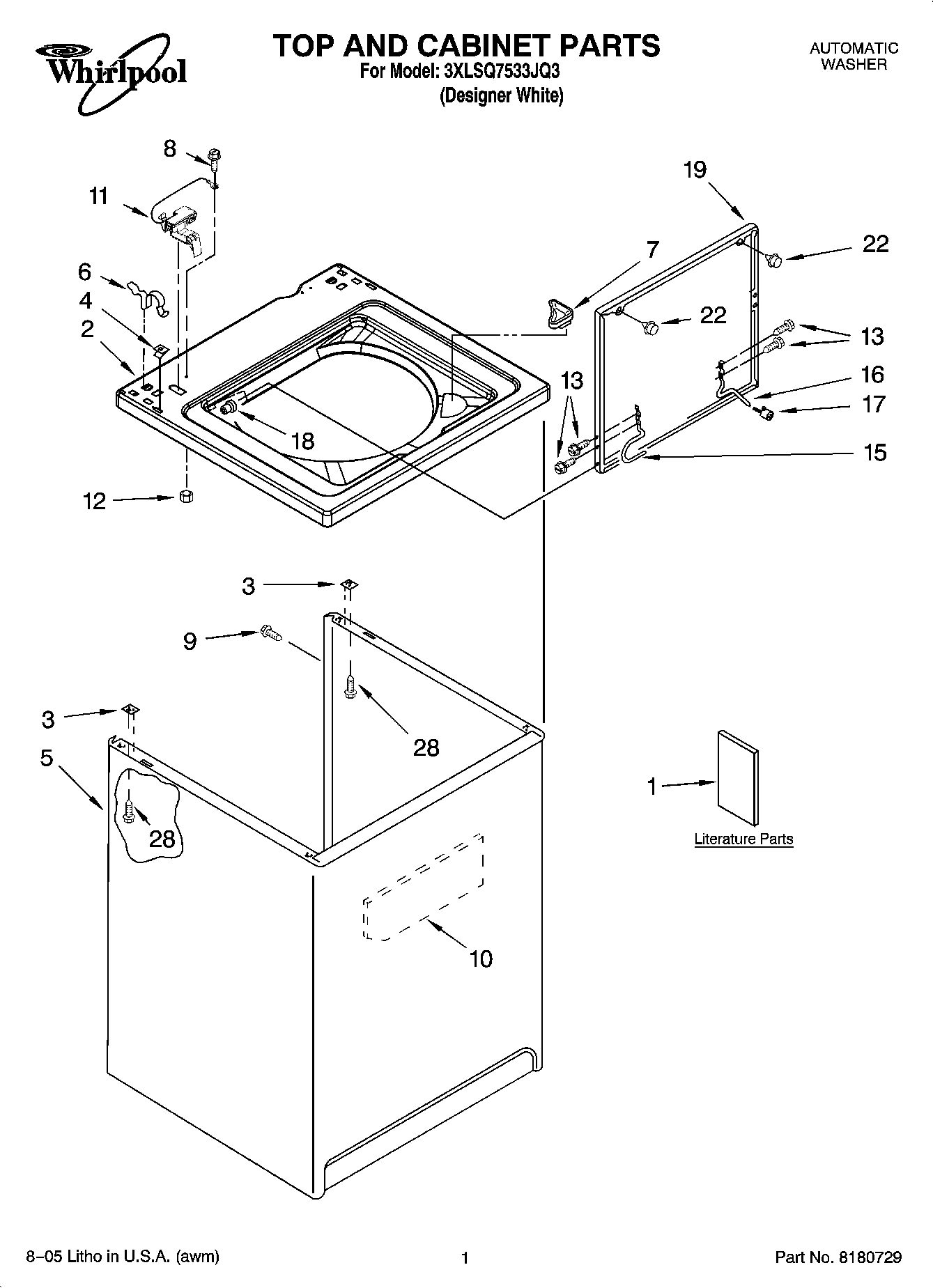

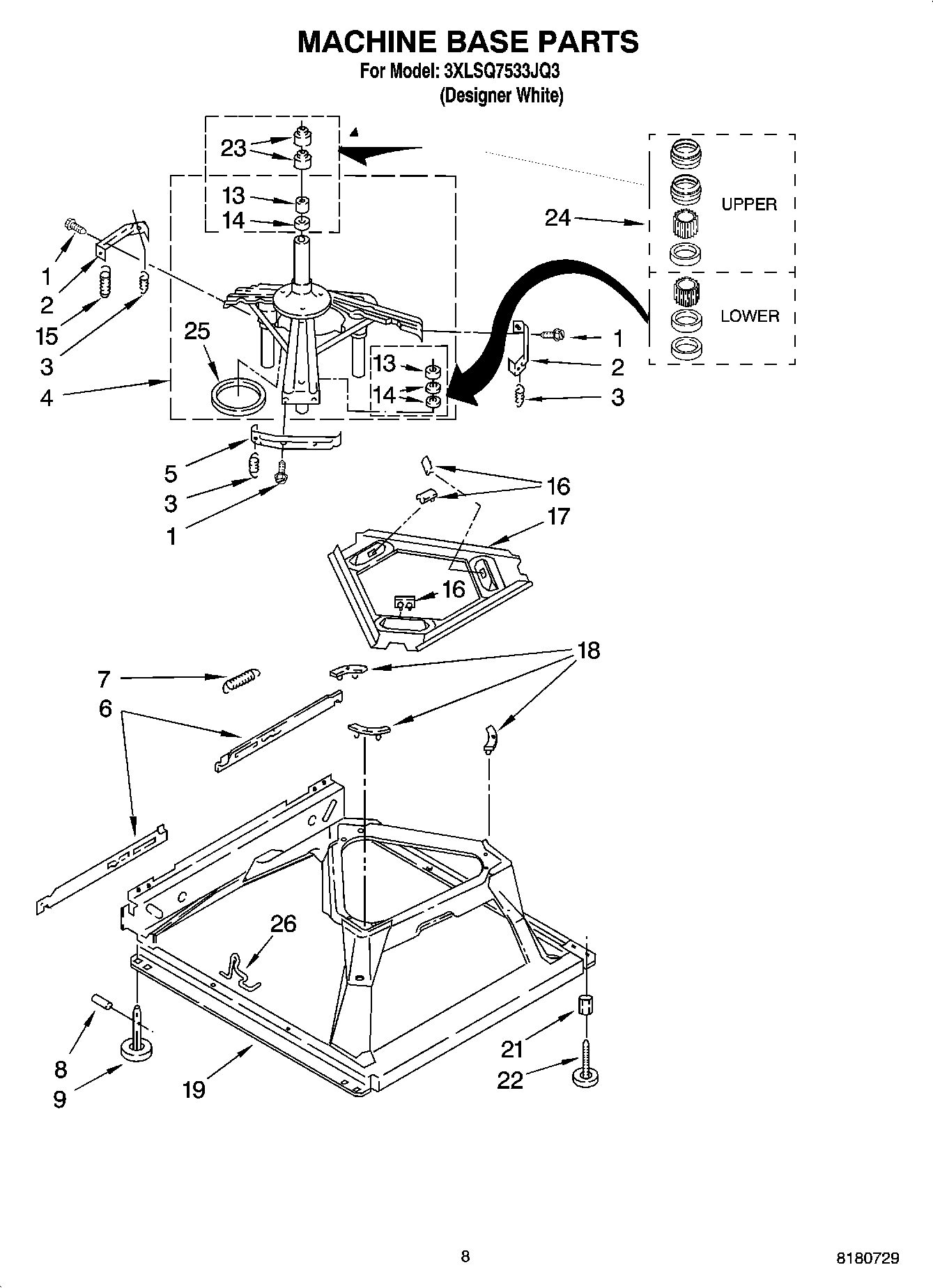

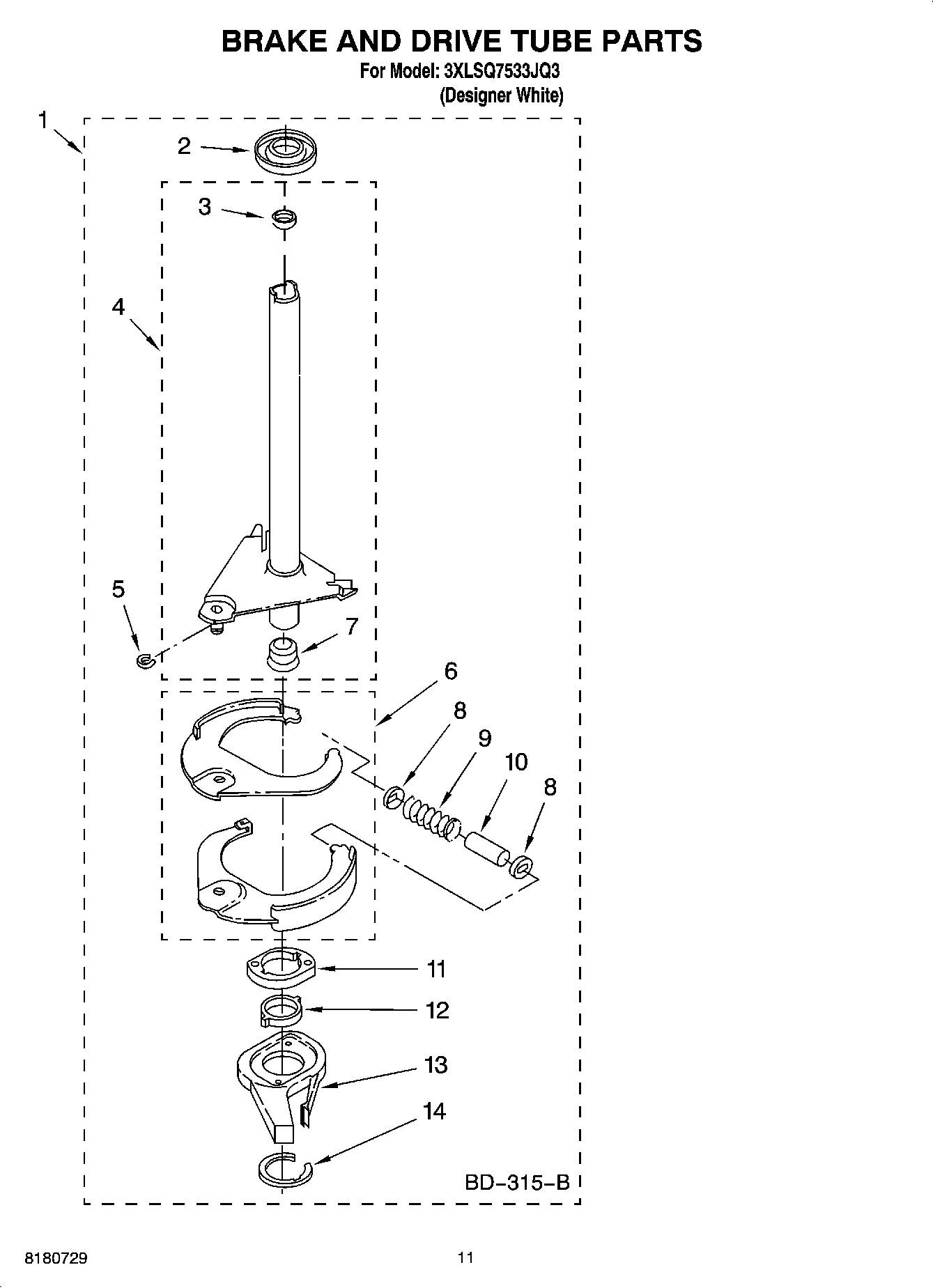

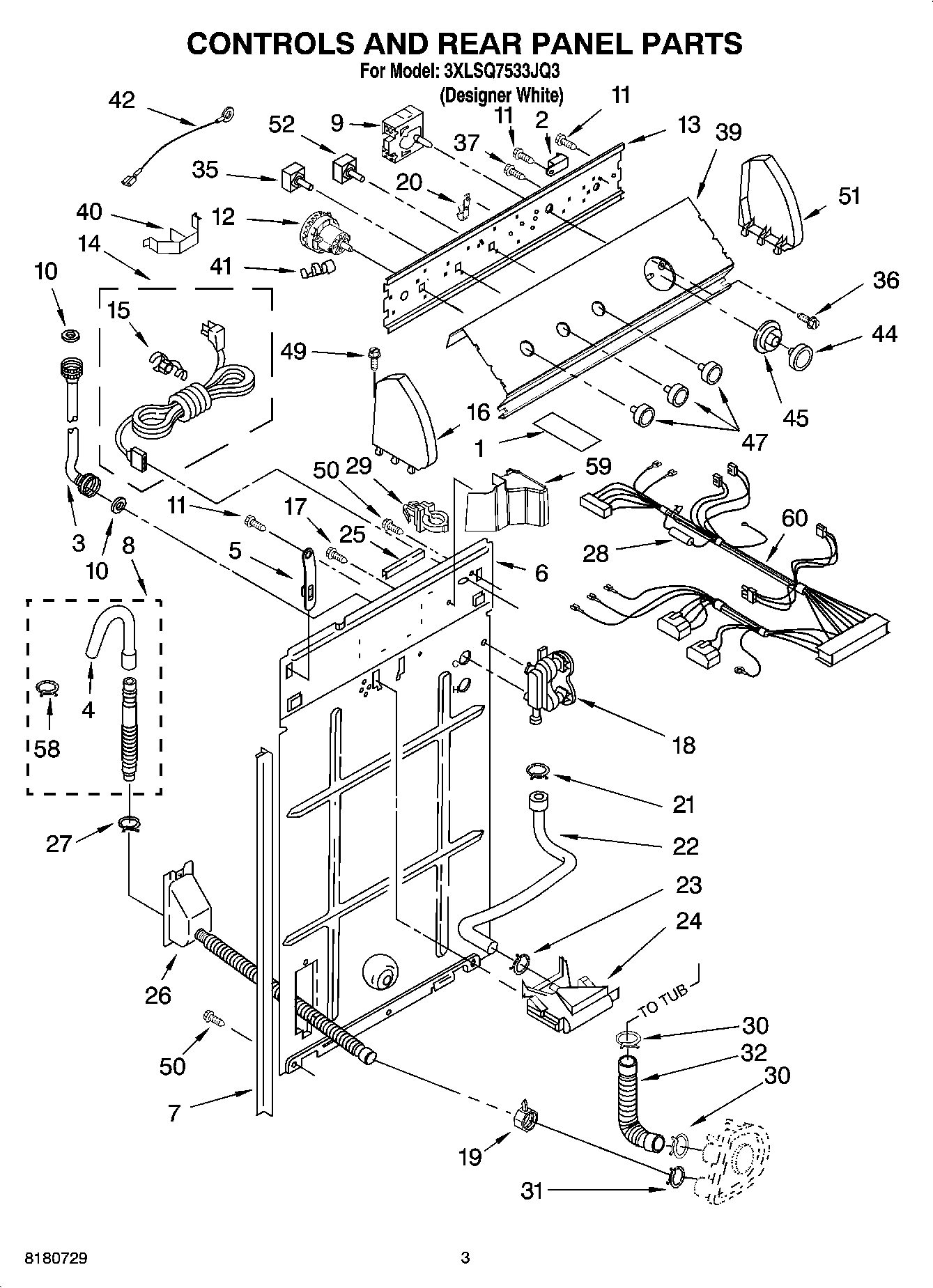

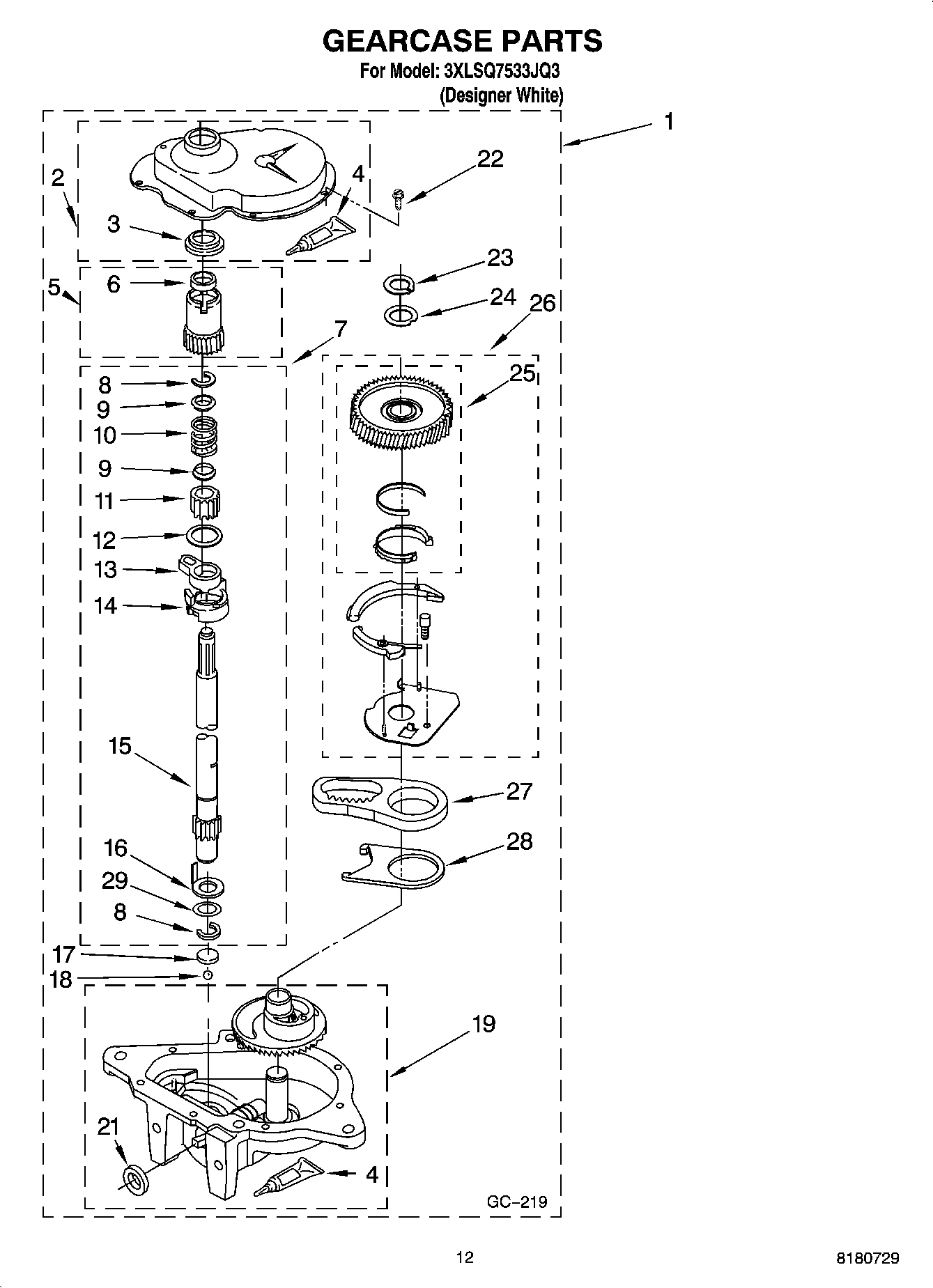

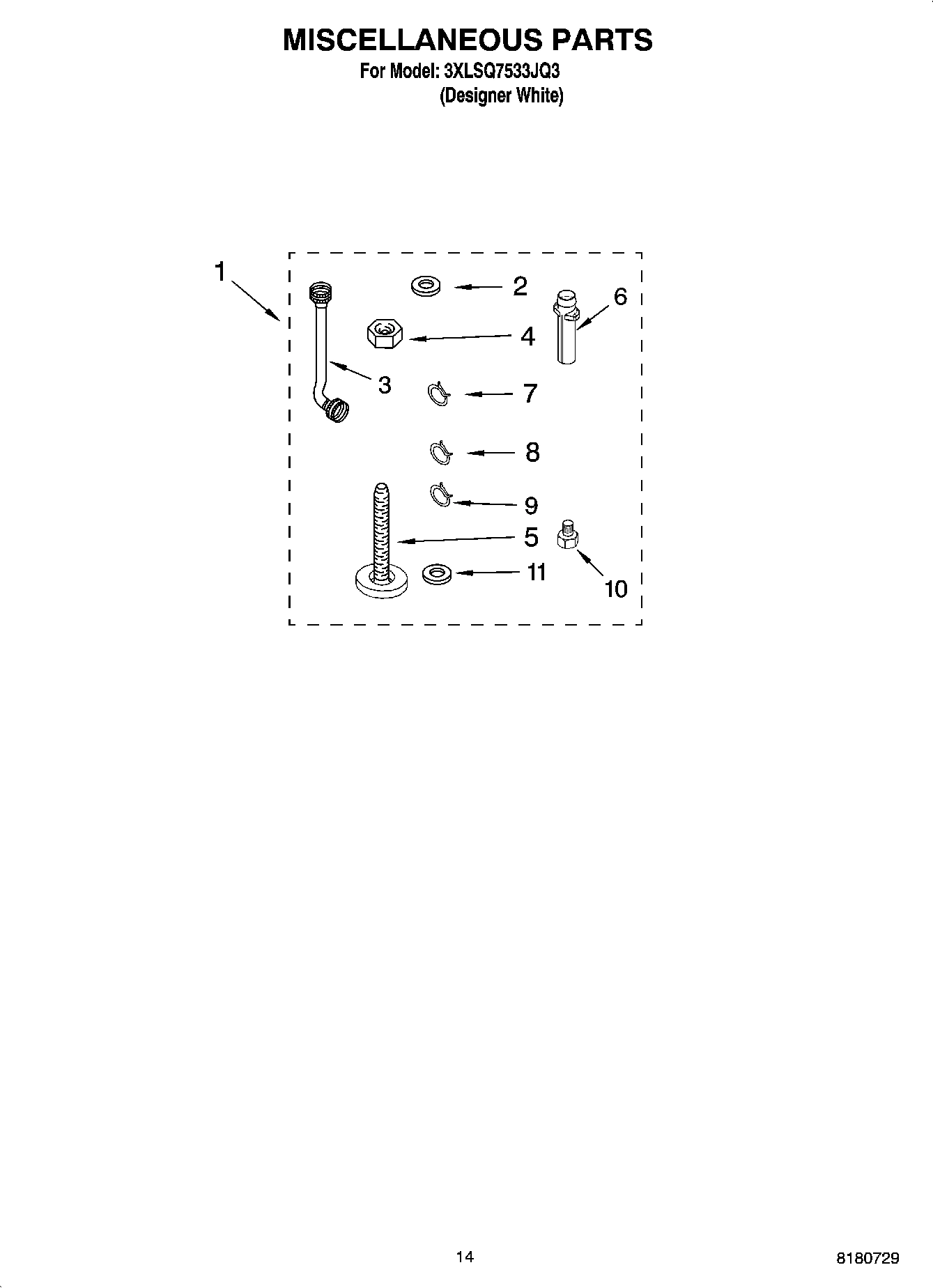

Model Whirlpool 3XLSQ7533JQ3 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Shield Extension WPL 3950829 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

285321 Whirlpool Sleeve Backorder WPL 285321 $53.62

2

3952439 Whirlpool Buzzer Backorder WPL 3952439 $59.57

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

3

WPW10615809 Whirlpool Fill Hose Backorder WPL WPW10615809 $64.45

3

WPW10615831 Whirlpool Fill Hose Backorder WPL WPW10615831 $64.45

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.77

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 8318405 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.56

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.23

8

285702 Whirlpool Extensions Backorder WPL 285702 $59.11

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

3363395 Whirlpool Gearcase Backorder WPL 3363395 $305.17

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3954730 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $16.76

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

Sound Dampener, Cabinet WPL 3976348 Contact Us For Availability

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

62619 Whirlpool Washer Backorder WPL 62619 $14.93

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $102.78

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $75.47

14

Cord, Power WPL 8316045 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.43

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $242.71

19

Clamp, Hose WPL 3976395 No Longer Available

19

Motor, Main Drive WPL 3950297 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

20

Retainer, Harness WPL 8317975 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.85

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

8316060 Whirlpool Shield Backorder WPL 8316060 $49.13

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $29.83

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

Edge Protector WPL 303294 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $50.59

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.63

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

27

Clamp, Capacitor WPL 3949496 Contact Us For Availability

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

28

WPW10111181 Whirlpool Fuse Assembly Backorder WPL WPW10111181 $19.45

29

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $44.86

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

29

GC-219 WPL ARI140524A Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.15

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $61.77

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $3.22

37

Screw, Ground WPL 3179795 Contact Us For Availability

39

Panel, Console WPL 8318780 Contact Us For Availability

40

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $6.11

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $34.49

45

WP3957849 Whirlpool Timer Dial Backorder WPL WP3957849 $31.11

47

WP3957799 Whirlpool Knob Backorder WPL WP3957799 $37.03

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

51

W10820038 Whirlpool Endcap In Stock WPL W10820038 $53.45

52

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $66.37

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

59

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

60

Harness, Wiring (For Detail See WPL 3956871 Contact Us For Availability
