Model Whirlpool 3RLSQ8533JQ4 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

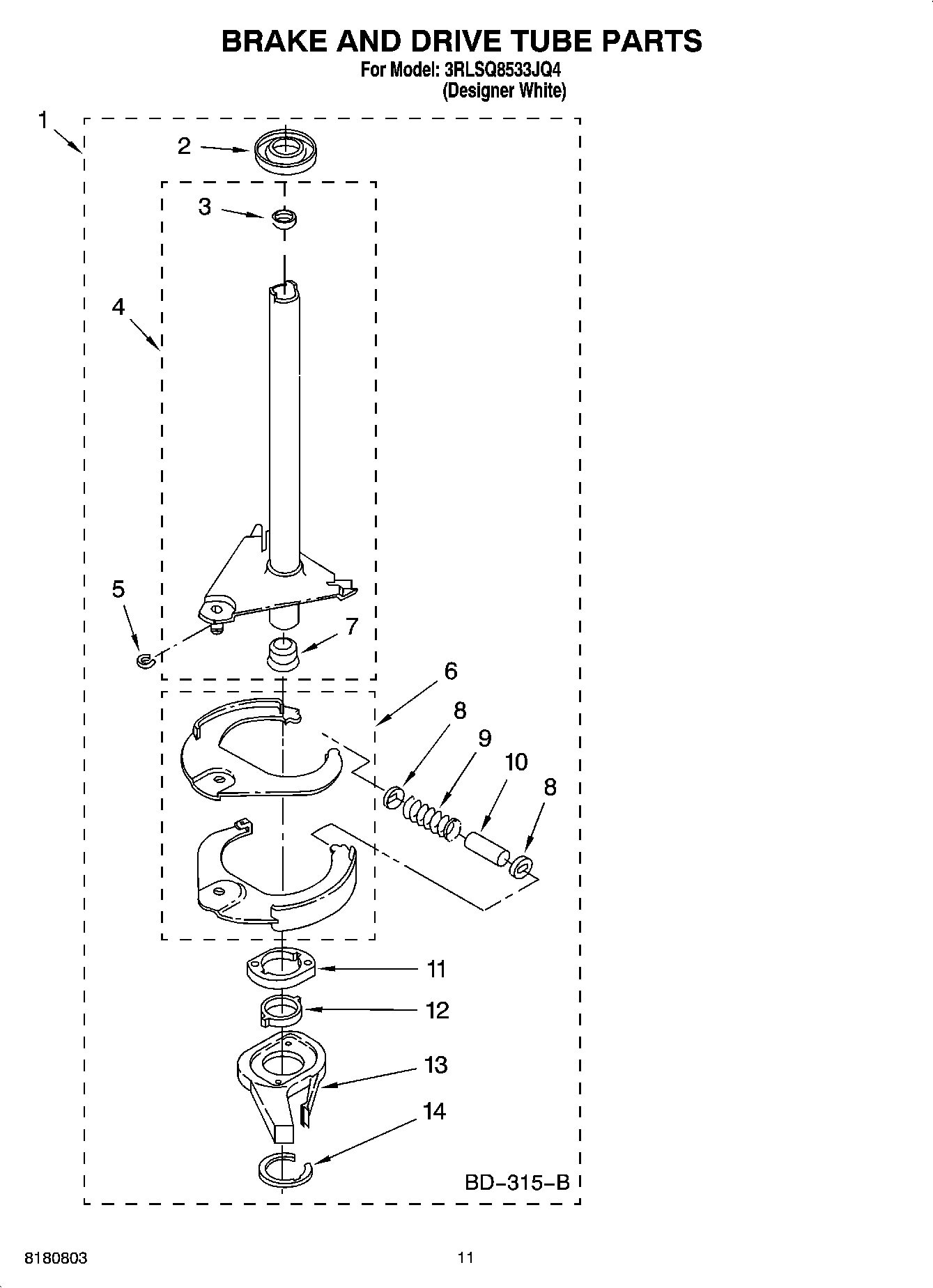

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.99

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Miscellaneous Parts Bag WPL 8541754 Contact Us For Availability

1

Wiring Diagram WPL 3954738 Contact Us For Availability

1

Installation & User Guide WPL 8315975 Contact Us For Availability

1

Use & Care Guide WPL 8316481 Contact Us For Availability

1

Installation Instructions WPL 8318424 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

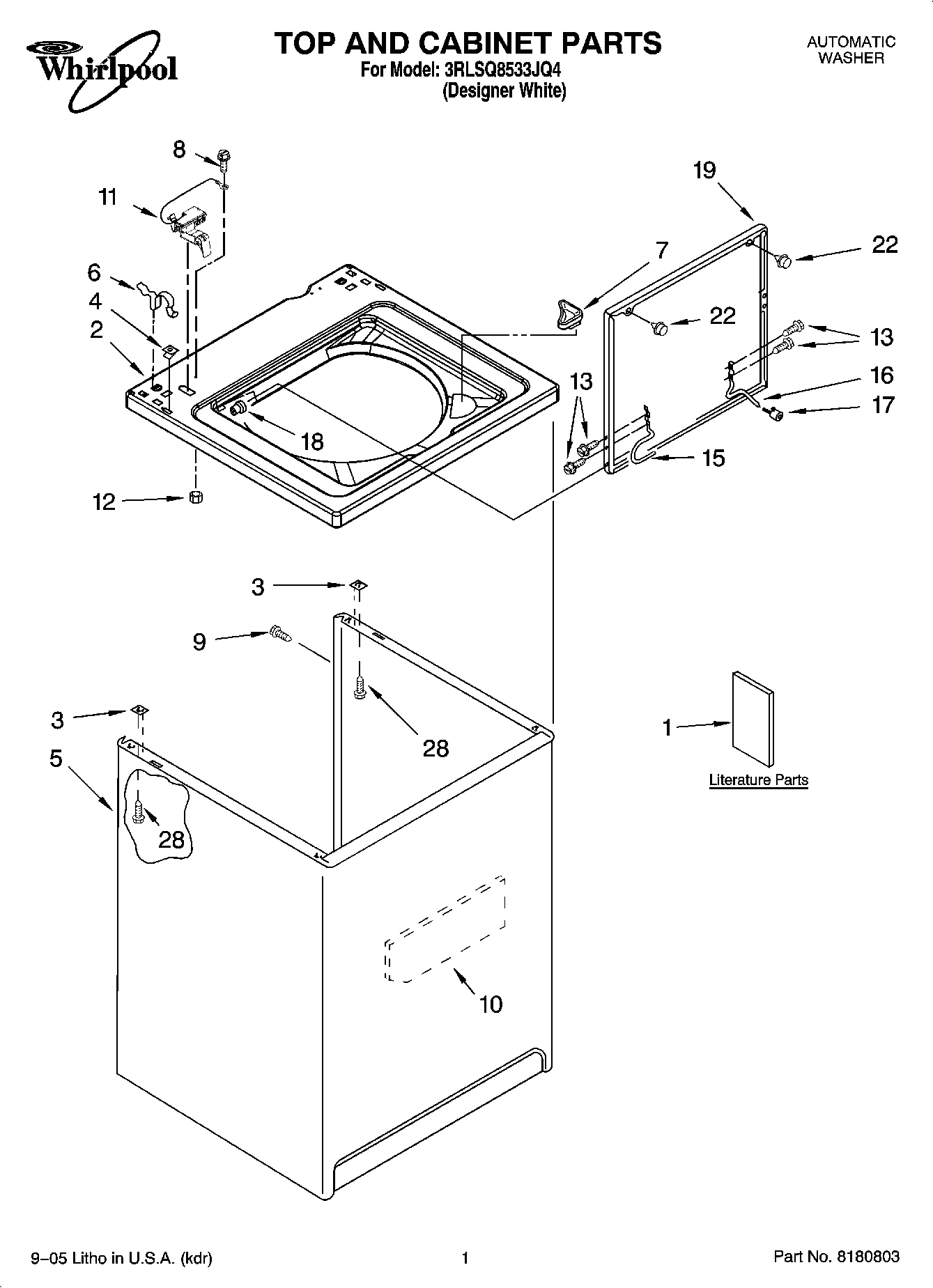

TOP WPL 8318064 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WPW10615809 Whirlpool Fill Hose Backorder WPL WPW10615809 $65.07

3

WPW10615831 Whirlpool Fill Hose Backorder WPL WPW10615831 $65.07

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

4

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

4

Support & Brake, Tub WPL 8575214 Contact Us For Availability

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

5

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

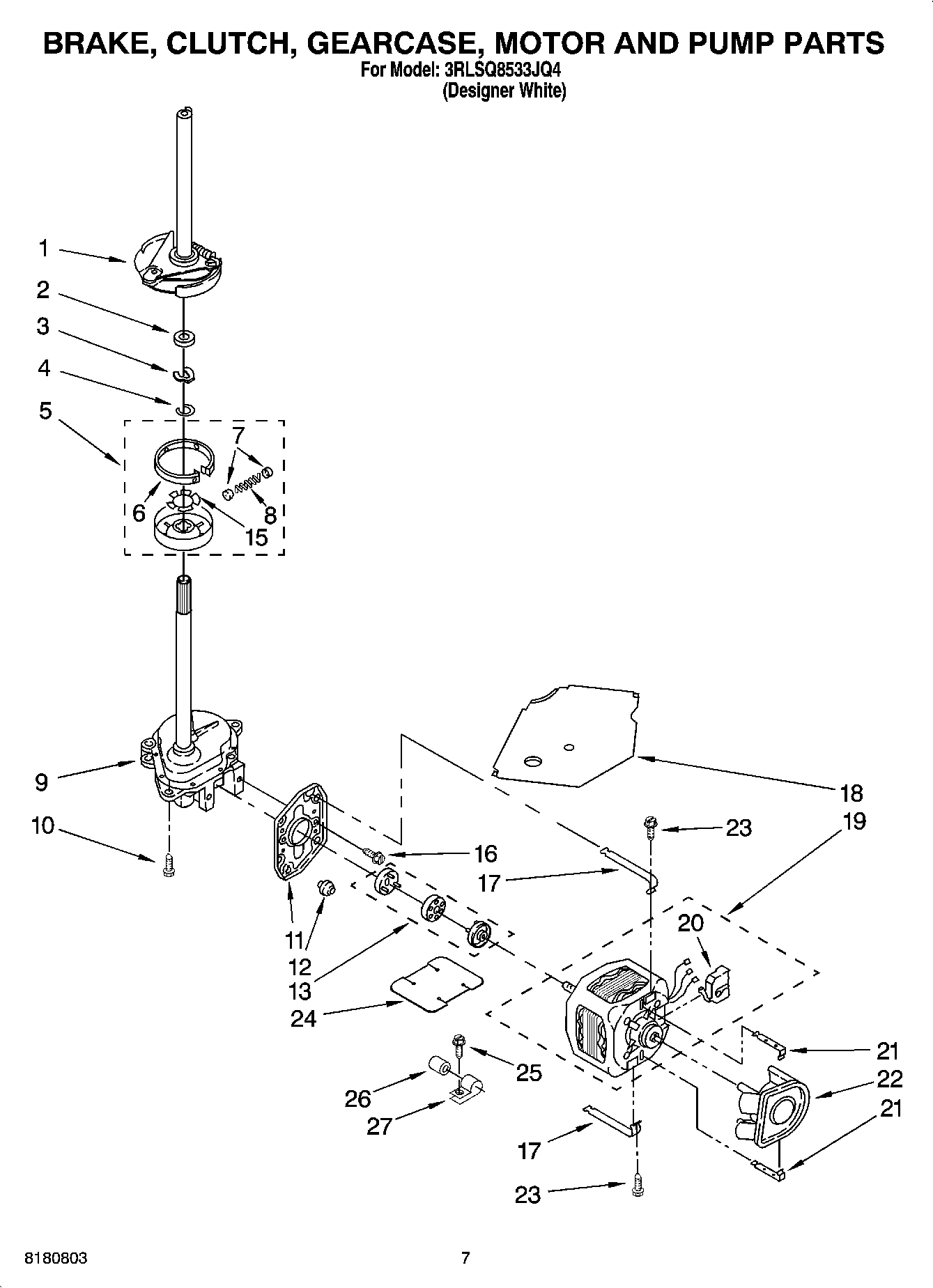

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

6

3363920A Whirlpool Adapter Assembly Backorder WPL 3363920A $5.13

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

8

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

8

WP3952374 Whirlpool Bearing In Stock WPL WP3952374 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

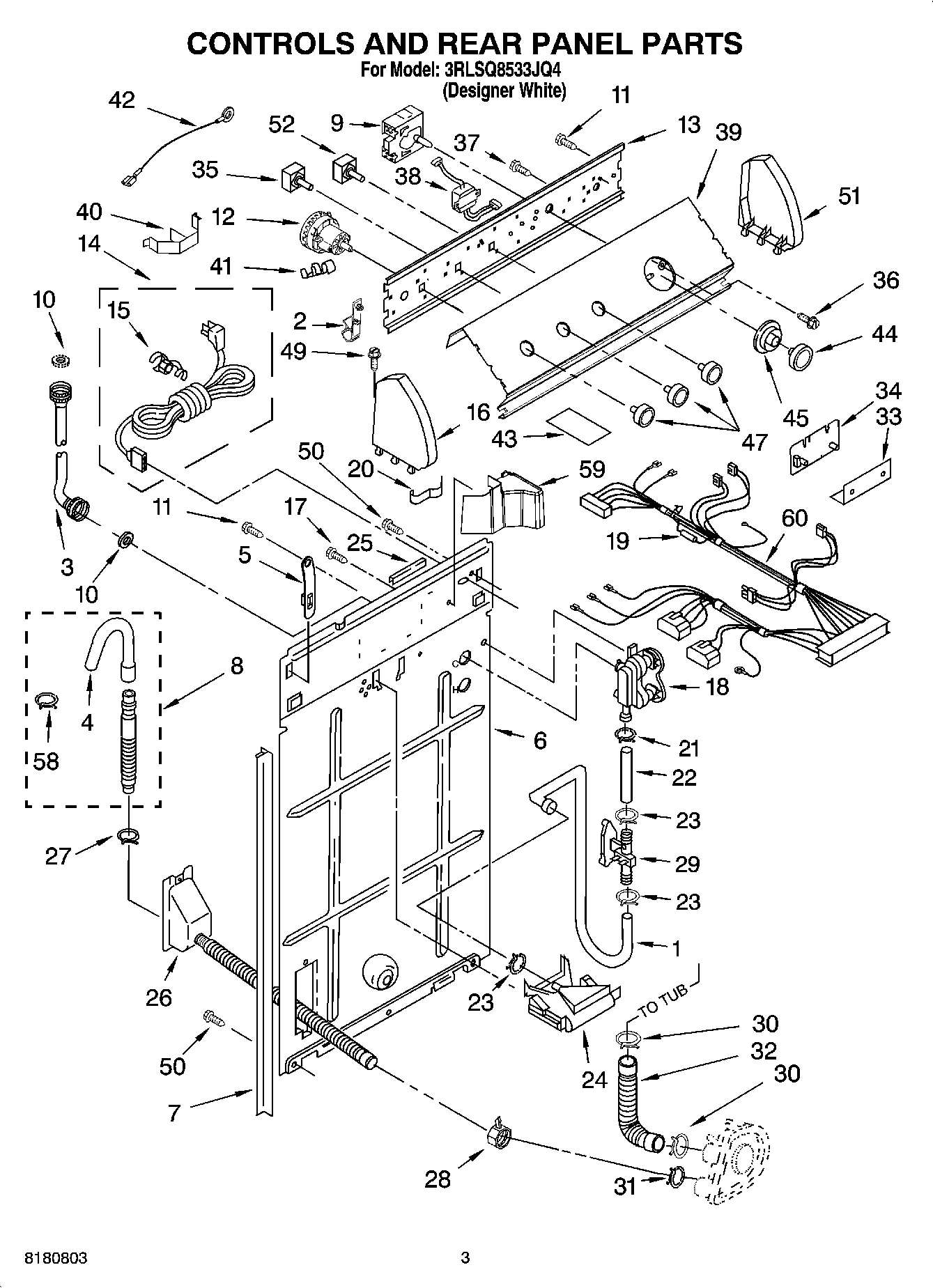

Timer, Block Disconnect (White) WPL 3948614 Contact Us For Availability

9

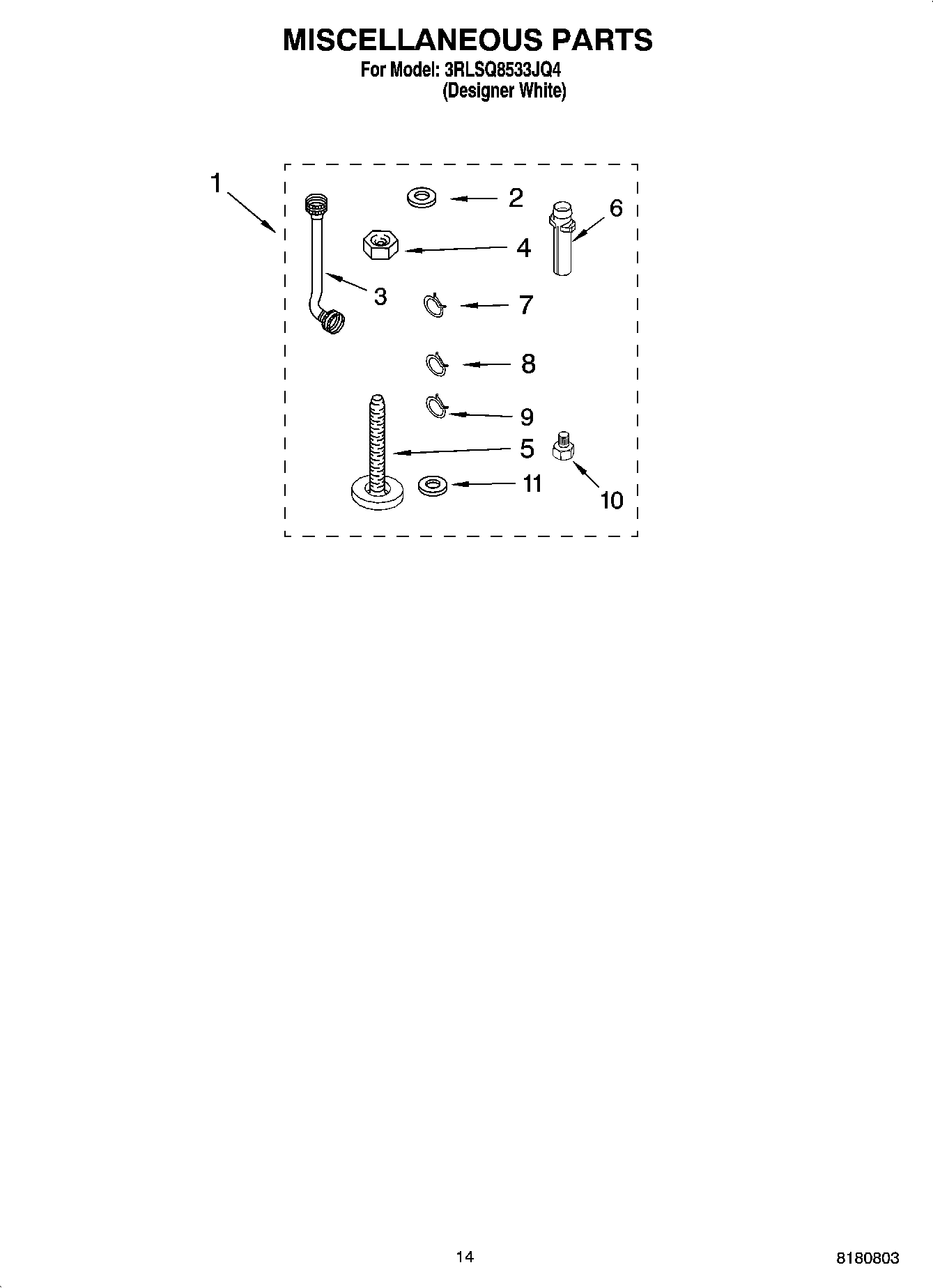

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

285809 Whirlpool Washer Agitator Cam Kit In Stock WPL 285809 $6.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

Spring, Brake WPL 387806 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

WP3357397 Whirlpool Adapter Backorder WPL WP3357397 $59.73

Sound Dampener, Cabinet WPL 3976348 Contact Us For Availability

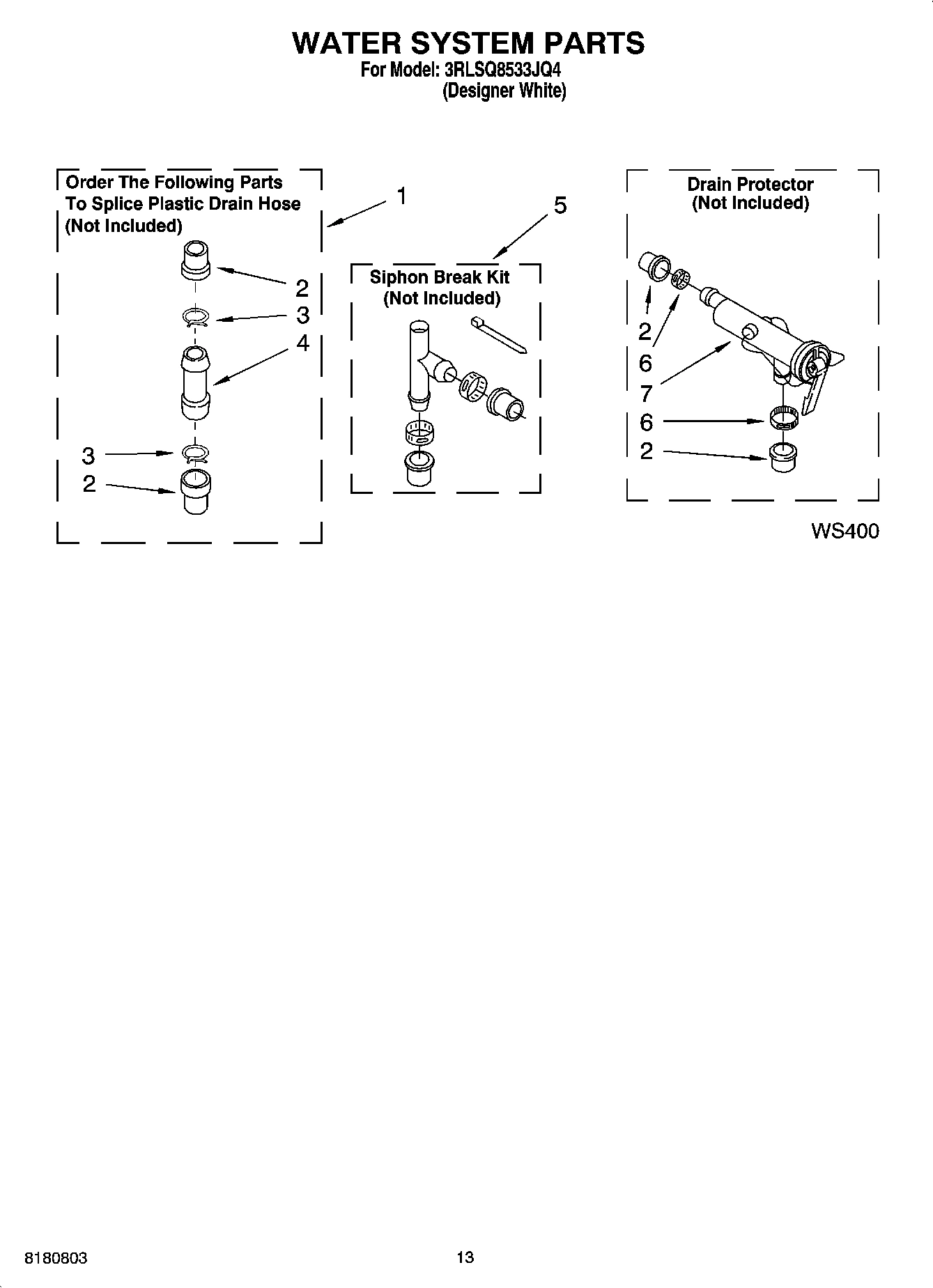

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

WP3357450 Whirlpool Washer Assembly Backorder WPL WP3357450 $7.11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Drain Protector WPL 367031 Contact Us For Availability

OIL WPL ARI140296A Contact Us For Availability

LUBRICANT WPL ARI140297A Contact Us For Availability

SEALER WPL ARI140298A Contact Us For Availability

ACCESSORY PARTS WPL ARI140299A Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

W10389329 Whirlpool Washer Basket Backorder WPL W10389329 $217.99

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $119.89

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI140294A Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.91

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3360397 Whirlpool Valve Backorder WPL WP3360397 $178.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

Motor, Main Drive WPL 3950297 Contact Us For Availability

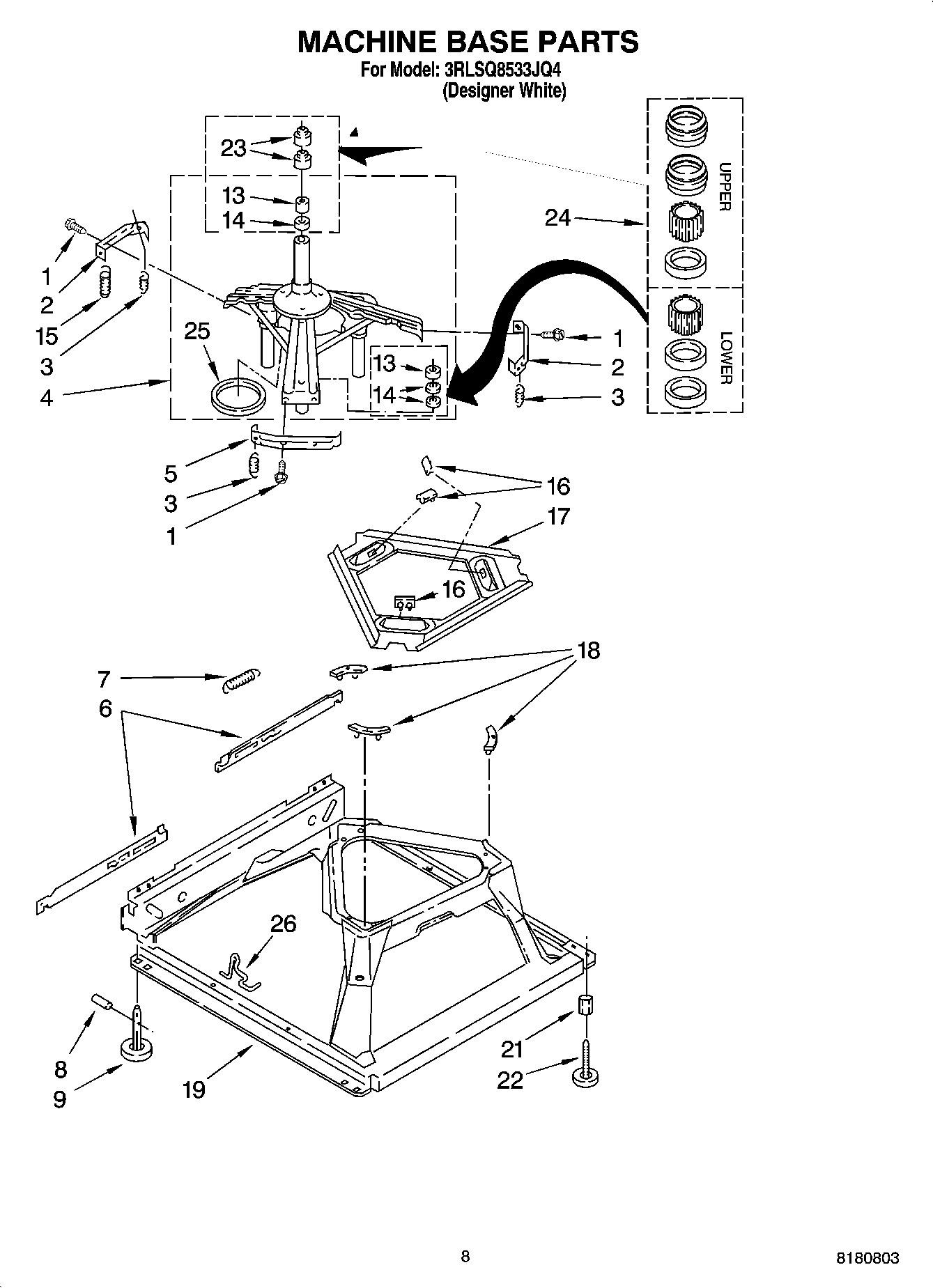

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

Lid WPL 8541743 Contact Us For Availability

20

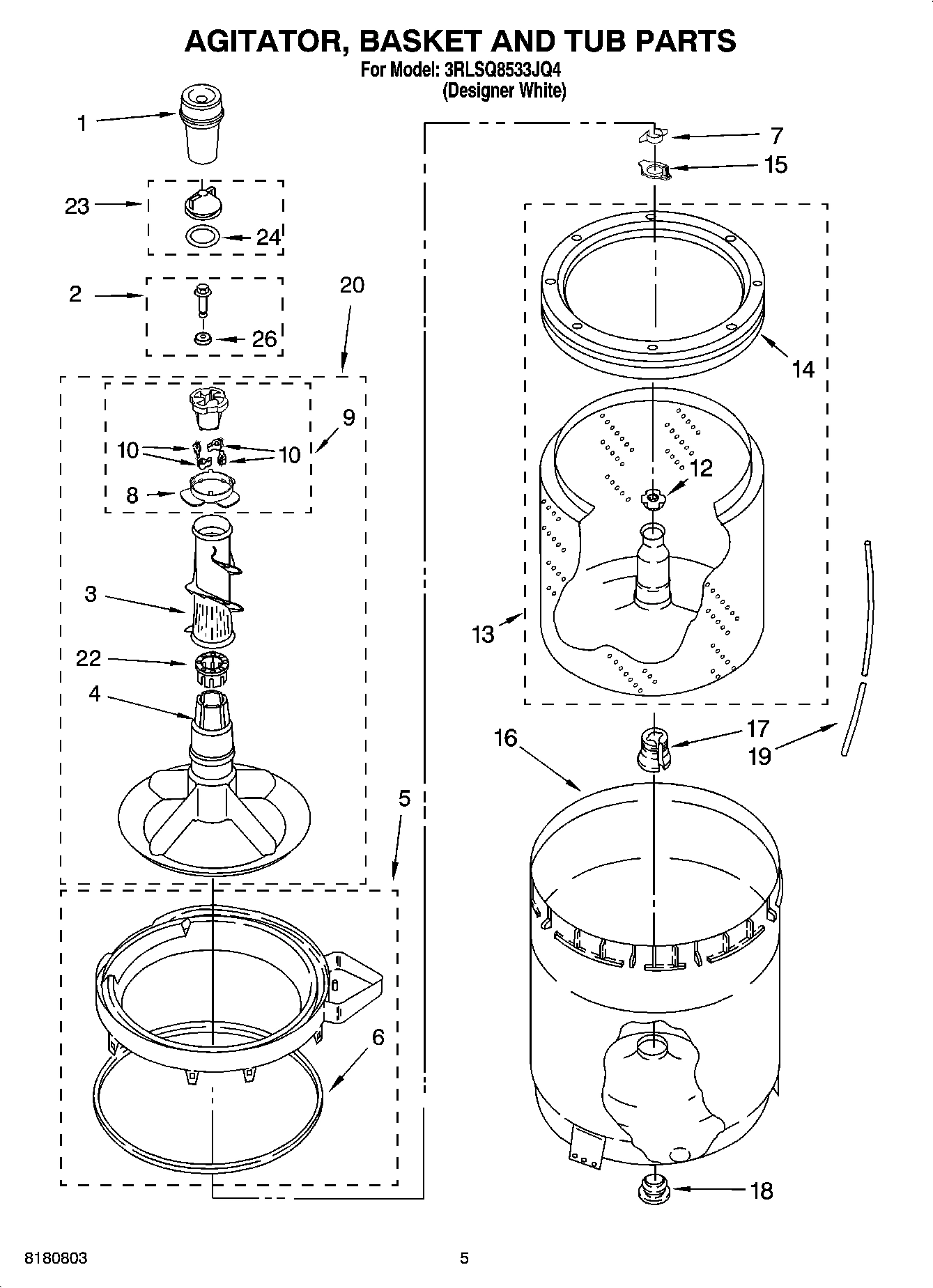

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

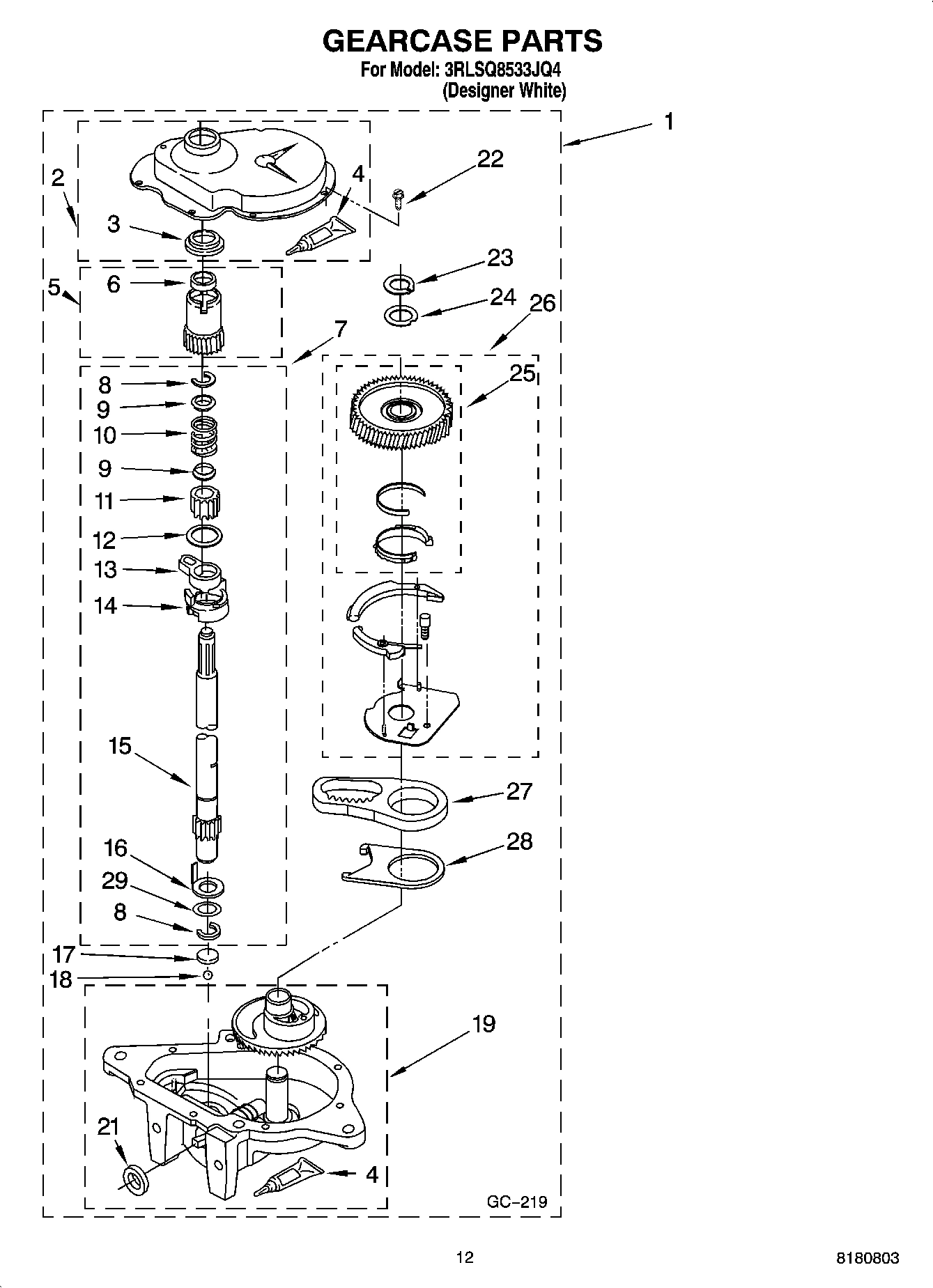

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Connector (T.P.A.) (3-Circuit) (Pressure Swit WPL 3360056 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.59

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

8316060 Whirlpool Shield Backorder WPL 8316060 $49.60

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WP482156 Whirlpool Refrigerator Capacitor Backorder WPL WP482156 $75.73

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

27

Clamp, Capacitor WPL 3949496 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

Clamp, Hose WPL 3976395 Contact Us For Availability

29

Sensor, Inline WPL 3352282 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82
