Model Whirlpool 110.92585800 Washer (Kenmore 11092585800) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP3362061 Whirlpool Cap Backorder WPL WP3362061 $47.57

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1A

Laundry Guide WPL LIT3349103 Contact Us For Availability

1B

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

1B

Installation Instructions WPL LIT3361036 Contact Us For Availability

1C

Operating Instructions WPL LIT3362737 Contact Us For Availability

1D

Wiring Diagram WPL LIT3363545 Contact Us For Availability

1E

Energy Guide WPL LIT3362286 Contact Us For Availability

1F

Technical Sheet WPL LIT3362940 Contact Us For Availability

1G

Parts List WPL LIT3361293 Contact Us For Availability

1H

Repair Manual WPL LIT4314044 Contact Us For Availability

2

WP3356465 Whirlpool Washer Water Level Switch In Stock WPL WP3356465 $119.90

2

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2A

Top W WPL 388918 Contact Us For Availability

2B

Top Al WPL 388919 Contact Us For Availability

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

5

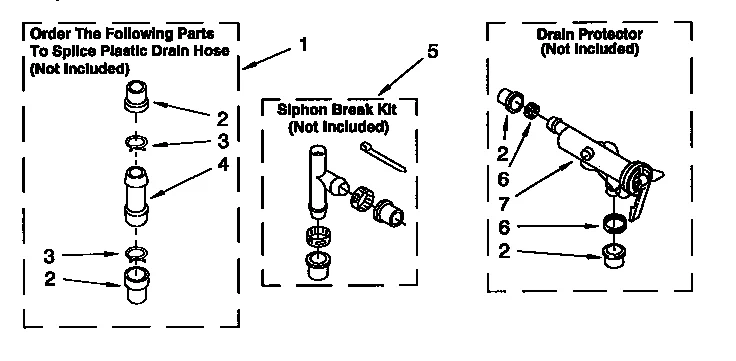

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

5

Bracket WPL 64065 Contact Us For Availability

5A

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Cabnt Al WPL 63425 Contact Us For Availability

6

WP3360824 Whirlpool Agitator Auger In Stock WPL WP3360824 $147.95

6

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Power Cord WPL 3360514 Contact Us For Availability

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

10

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Hinge Panel WPL 387402 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $26.57

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

Washer Terminal Connector WPL 353424 Contact Us For Availability

Rear Panel WPL 3356472 Contact Us For Availability

12

62619 Whirlpool Washer Backorder WPL 62619 $8.89

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

14

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

14

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

19

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $23.37

19

Base WPL 3359886 Contact Us For Availability

19A

Lid WPL 3360662 Contact Us For Availability

19B

Lid WPL 3360663 Contact Us For Availability

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

Switch WPL 62850 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

Clip WPL 3355454 Contact Us For Availability

27

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

27

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

28

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $54.90

29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

33

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $54.39

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

41

Shield Valve WPL 3348424 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Shipig Blk WPL 3348675 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability
