Model Whirlpool 110.82672110 Washer (Kenmore 11082672110) – Common Parts &amp; Diagrams

1

285664 Whirlpool Drain Hose In Stock WPL 285664 $30.66

1

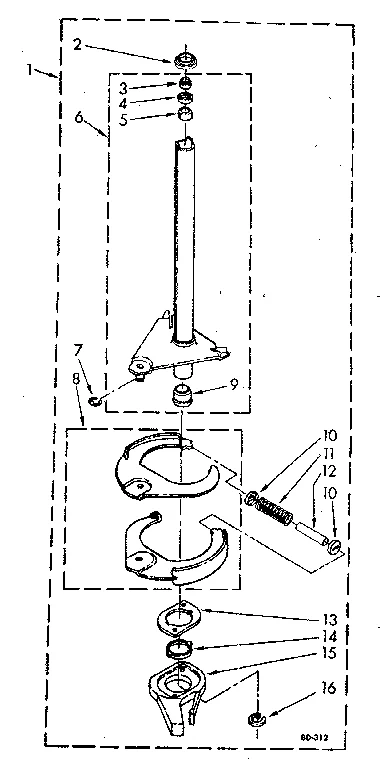

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

(338471) (ALT.) WPL N/P Contact Us For Availability

1A

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.87

1A

Guide WPL LIT63548 Contact Us For Availability

1B

Installation Instructions WPL LIT388255 Contact Us For Availability

1C

Operating Instructions WPL LIT388859 Contact Us For Availability

1D

Installation Instruction Sheet WPL LIT63994 Contact Us For Availability

1E

Wiring Diagram WPL LIT388892 Contact Us For Availability

1F

Energy Guide WPL LIT386100 Contact Us For Availability

1G

Parts List WPL LIT387626 Contact Us For Availability

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Washer Water-Level Pressure Switch WPL 387383 Contact Us For Availability

2

Retainer WPL 357247 Contact Us For Availability

2A

Top W WPL 389002 Contact Us For Availability

2B

Top WPL 389006 Contact Us For Availability

2C

Top Al WPL 389003 Contact Us For Availability

2D

Top To WPL 389004 Contact Us For Availability

2E

Top (Platinum) WPL 389005 Contact Us For Availability

3

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

4

Appliance O-Ring WPL 357574 Contact Us For Availability

4

Support WPL 389350 Contact Us For Availability

5

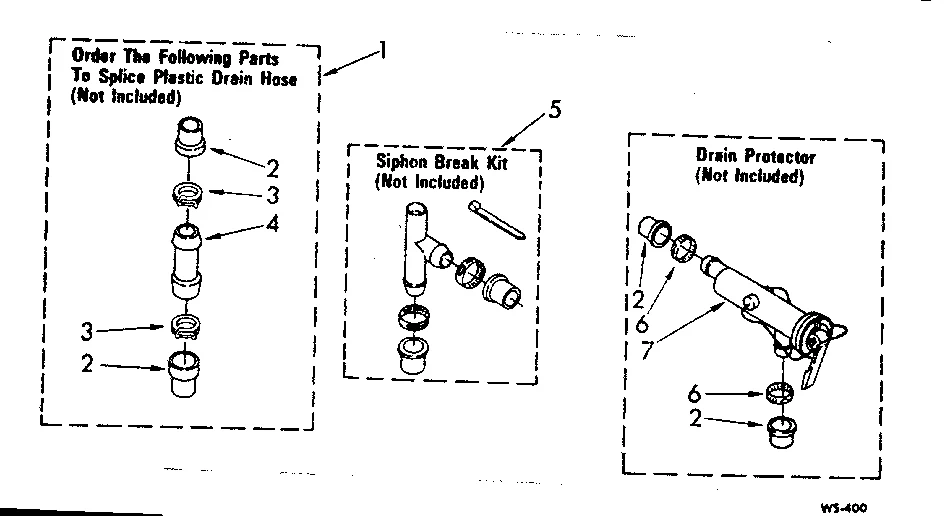

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

Bracket WPL 64065 Contact Us For Availability

5A

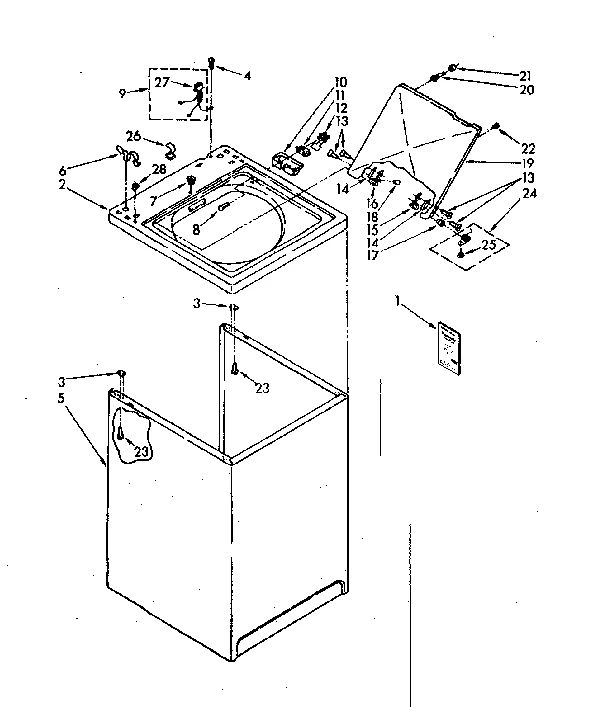

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5B

Natural Gas Cabinet WPL 63428 Contact Us For Availability

5C

Cabnt Al WPL 63425 Contact Us For Availability

5D

Cabnt To WPL 63426 Contact Us For Availability

5E

Cabnt Pl WPL 63427 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

6

Terminal WPL 352088 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

98460 Whirlpool Nut Backorder WPL 98460 $8.89

7

WP389386 Whirlpool Agitator Assembly Backorder WPL WP389386 $141.88

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

Cord WPL 62734 Contact Us For Availability

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

8

Washer Power Cord Strain Relief WPL 63848 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

8

Spring WPL 381046 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

9

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

9

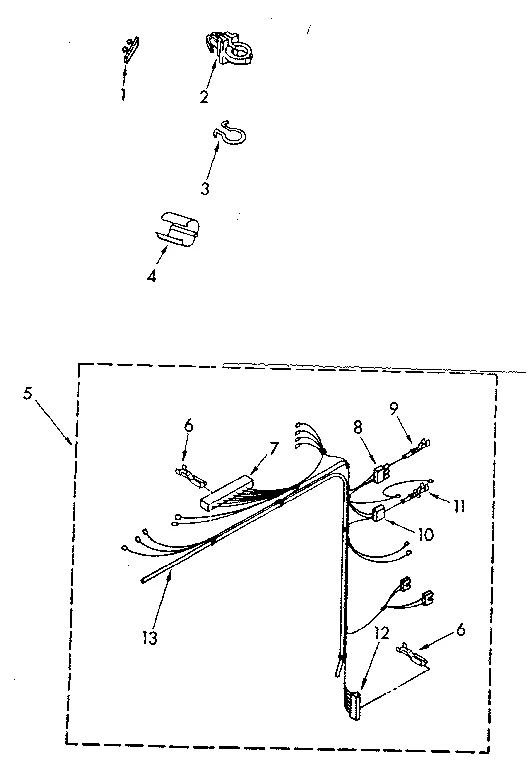

Harness WPL 388193 Contact Us For Availability

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Hinge Panel WPL 387402 Contact Us For Availability

Washer Terminal Connector WPL 353424 Contact Us For Availability

Screw WPL 62735 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP388257 Whirlpool Trim Ring Backorder WPL WP388257 $4.82

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

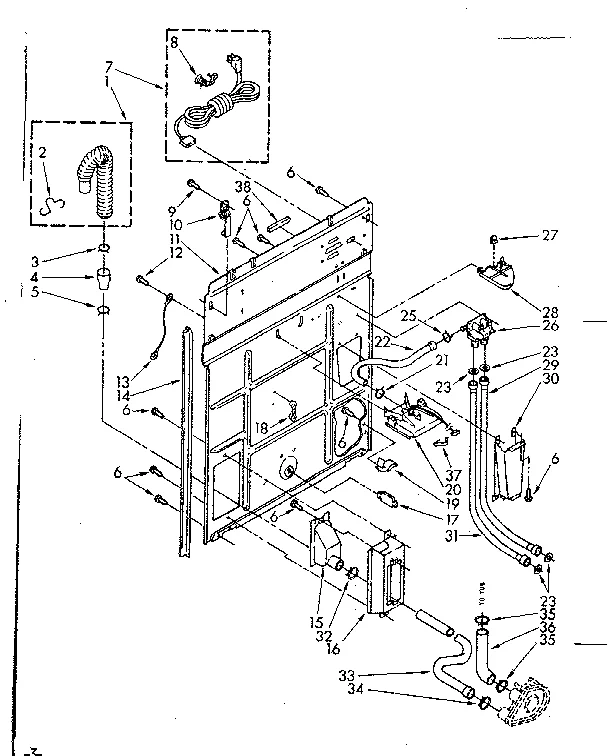

Rear Panel WPL 387960 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

Actuator WPL 357347 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WP3362624 Whirlpool Washer Timer Knob In Stock WPL WP3362624 $27.37

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Ground Wire WPL 364089 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

End Cap Clip WPL 689559 Contact Us For Availability

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

Ground Wire WPL 388853 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Bracket WPL 64218 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Motor WPL 63493 Contact Us For Availability

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $148.95

Washer Timer WPL 388757 Contact Us For Availability

Pin WPL 63162 Contact Us For Availability

Base WPL 388007 Contact Us For Availability

19A

Lid (White) WPL 63070 Contact Us For Availability

19B

Lid WPL 63074 Contact Us For Availability

19C

Lid (Almond) WPL 63071 Contact Us For Availability

19D

Lid WPL 385436 Contact Us For Availability

19E

Platinum (Platinum) WPL 385437 Contact Us For Availability

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

Strike WPL 357141 Contact Us For Availability

Switch WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

Nut WPL 124829 Contact Us For Availability

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

Washer Tub Fill Nozzle Hose WPL 387863 Contact Us For Availability

23

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

24A

Spring WPL 53749 Contact Us For Availability

24B

Spring WPL 53748 Contact Us For Availability

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

Control Panel WPL 388215 Contact Us For Availability

Plug WPL 54690 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

Control Panel WPL 388230 Contact Us For Availability

27

Nut WPL 388494 Contact Us For Availability

27

Plug WPL 62888 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

Shield Valve WPL 388904 Contact Us For Availability

29

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $27.25

30

Bracket WPL 64219 Contact Us For Availability

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

33

Washer Pump Drain Hose WPL 3348664 Contact Us For Availability

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

37

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

38

Protector WPL 303294 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
