Model Whirlpool 110.20902991 Compact Washer (Kenmore 11020902991) – Common Parts &amp; Diagrams

1

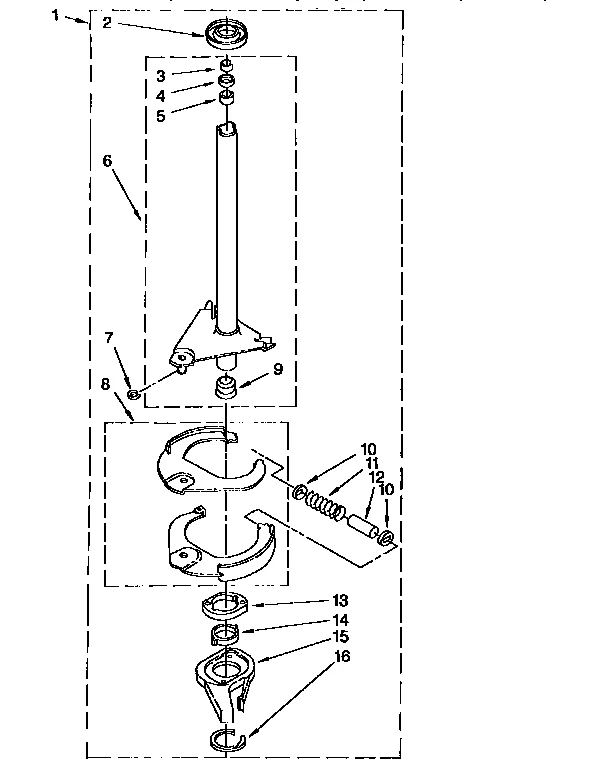

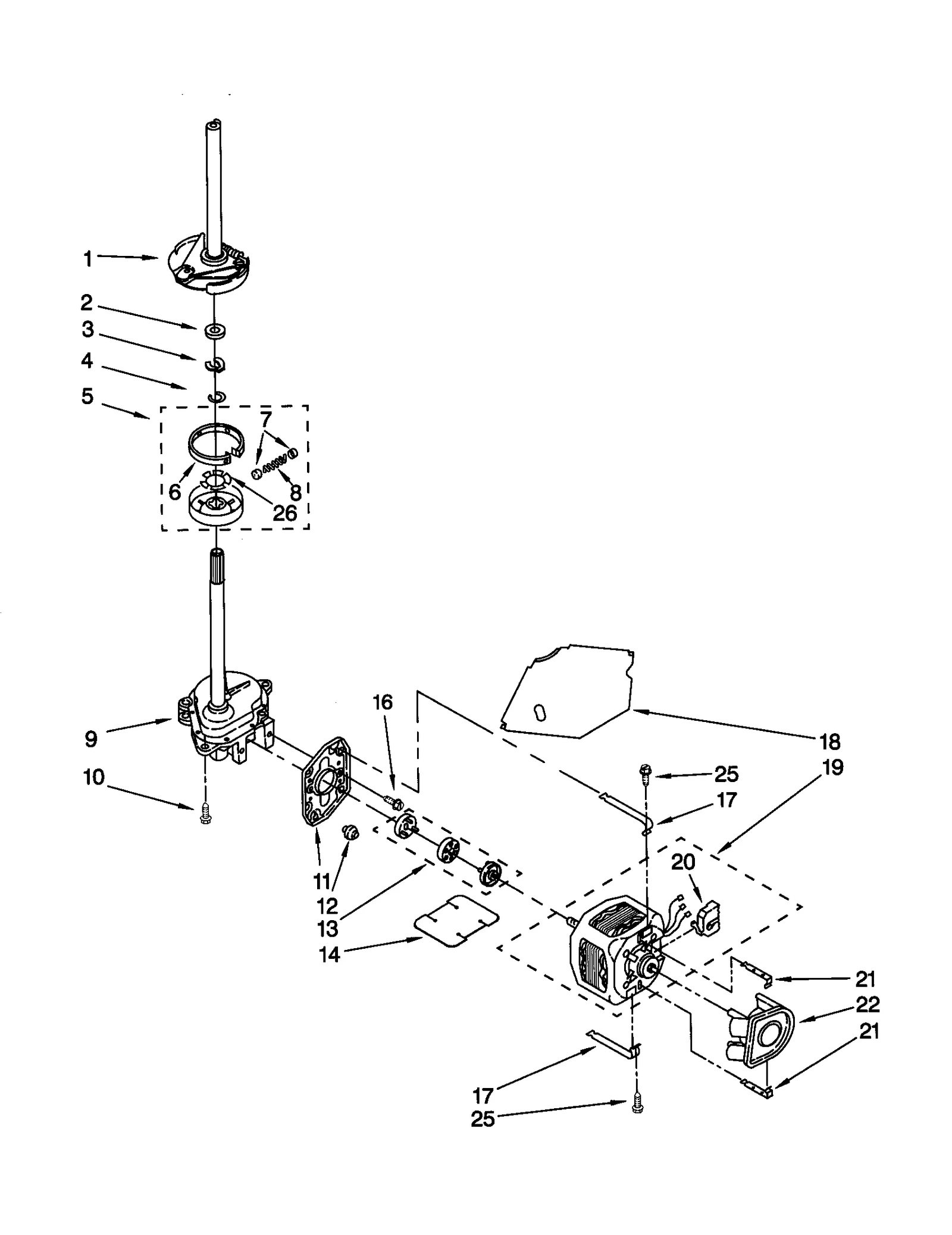

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

1

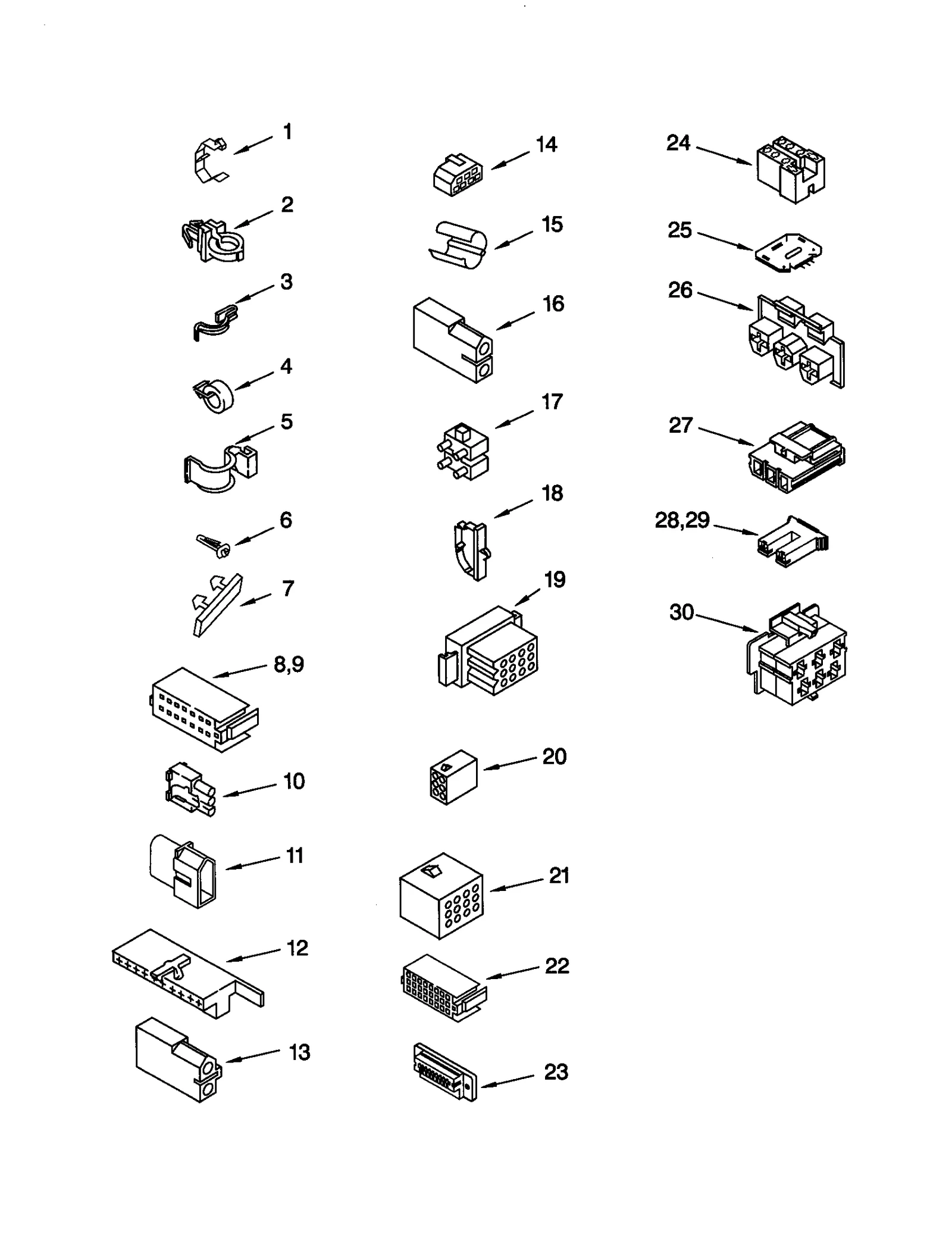

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Owner's Manual WPL LIT3953631 Contact Us For Availability

1A

Installation Instructions WPL LIT3952895 Contact Us For Availability

1B

Wiring Diagram WPL LIT3953250 Contact Us For Availability

1C

Technical Sheet WPL LIT3953819 Contact Us For Availability

1D

Energy Guide WPL LIT3955305 Contact Us For Availability

1E

Parts List WPL LIT3955101 Contact Us For Availability

1F

Repair Manual WPL LIT4314044 Contact Us For Availability

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

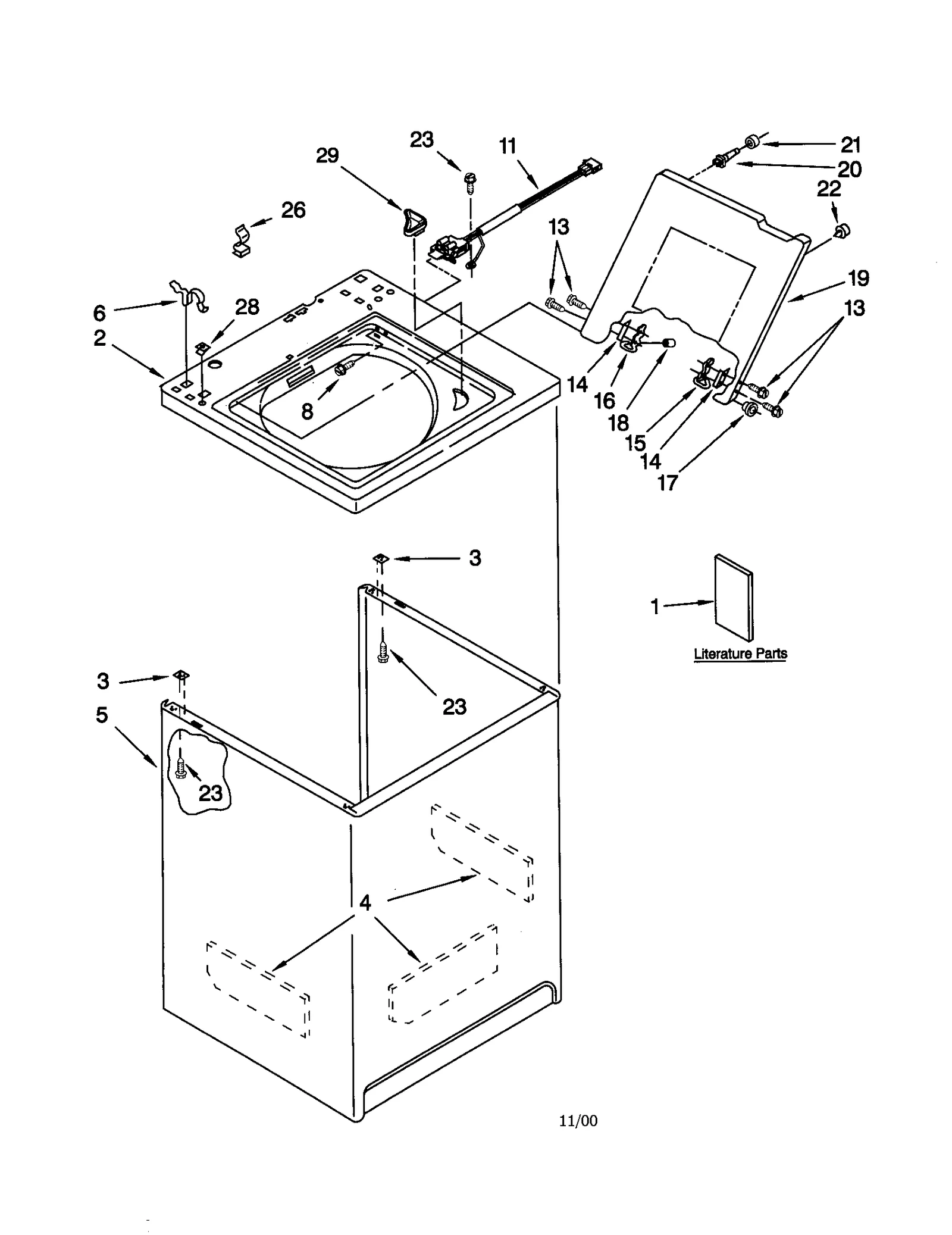

Washer Top Panel (White) WPL 3949958 Contact Us For Availability

2A

Top WPL 3954464 Contact Us For Availability

2B

Top Al P WPL 3949959 Contact Us For Availability

3

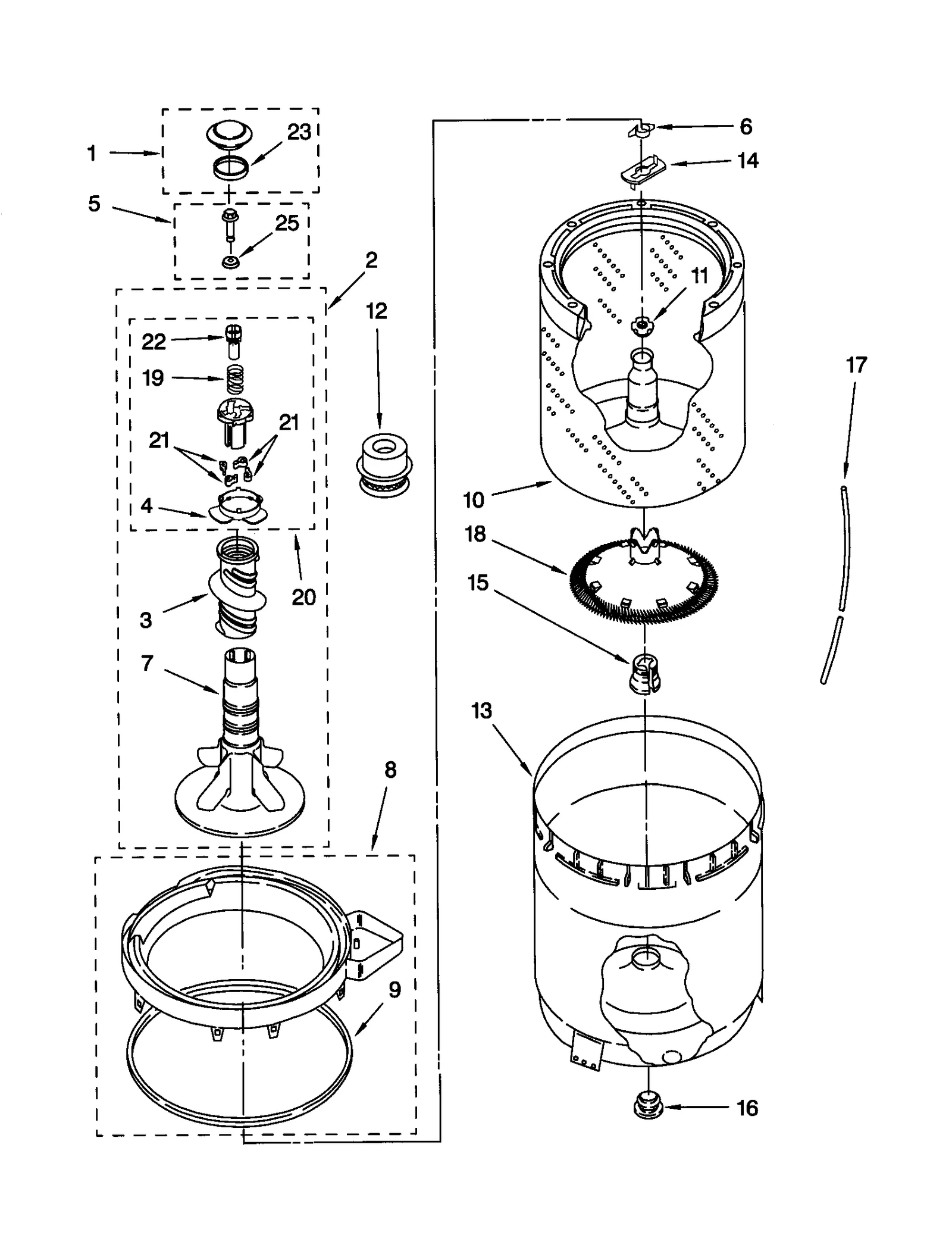

W11480892 Whirlpool Washer Agitator Auger In Stock WPL W11480892 $52.63

3

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Washer Water Temperature Switch WPL 661615 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

4

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

4

Support WPL 3362087 Contact Us For Availability

4

Sound Absorber WPL 3349654 Contact Us For Availability

5

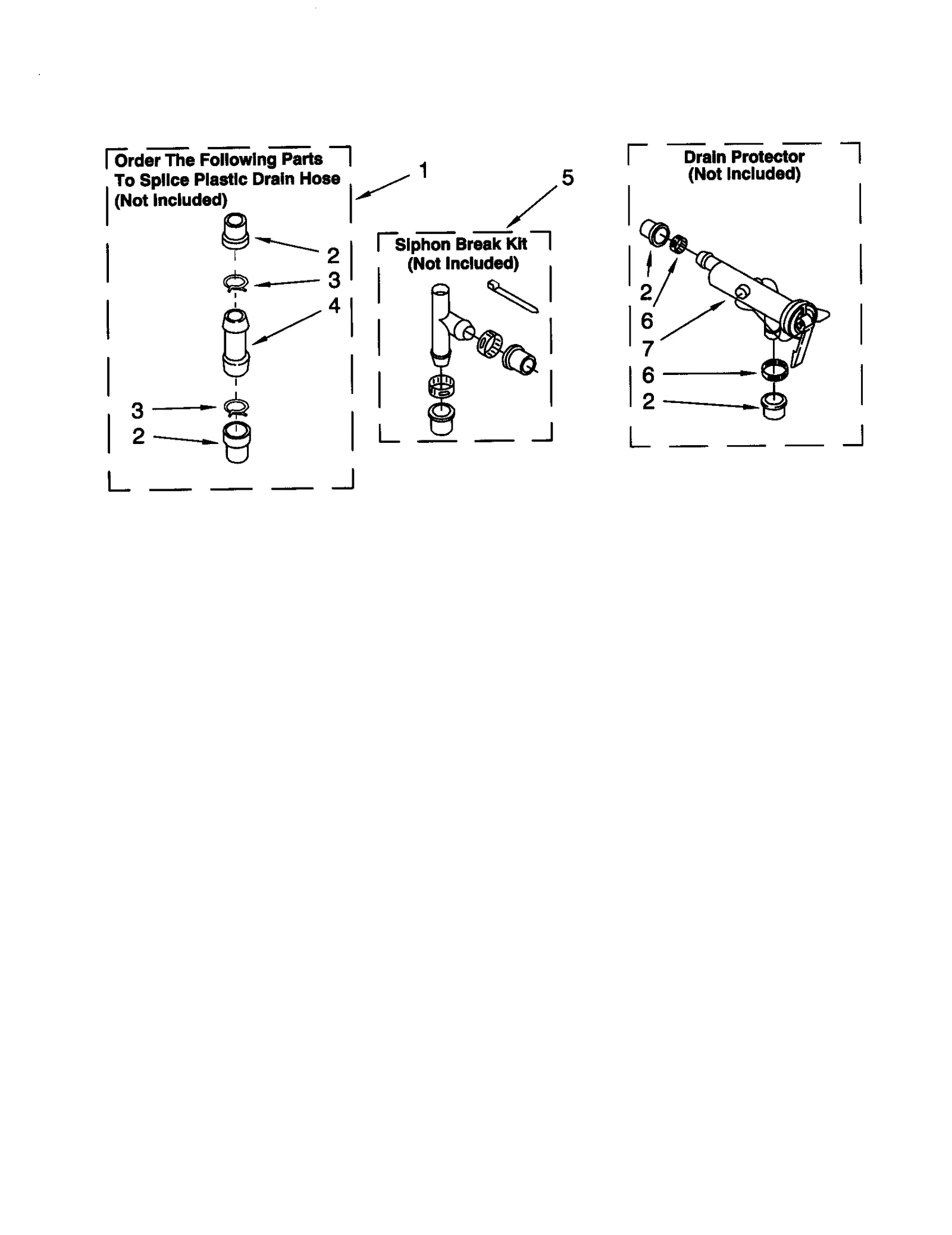

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $28.58

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

5

Bracket WPL 64065 Contact Us For Availability

5

Spacer WPL 356937 Contact Us For Availability

5A

Washer Cabinet WPL 3954357 Contact Us For Availability

5B

Cabnt Al WPL 63425 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

6

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $200.68

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3947517 Whirlpool Agitator Backorder WPL WP3947517 $143.00

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $91.39

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Relief Stirrer WPL 3952821 Contact Us For Availability

9

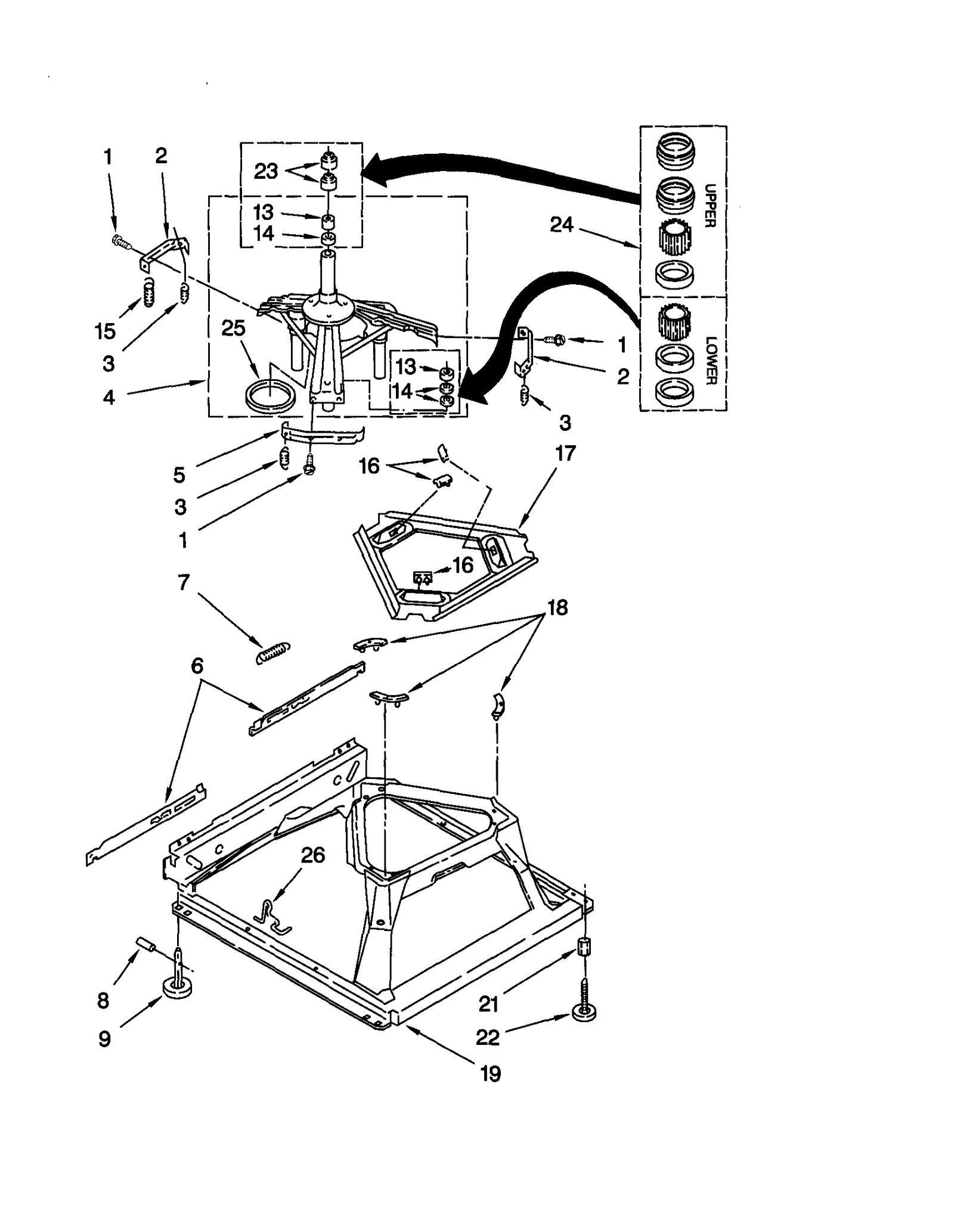

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

9

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

9

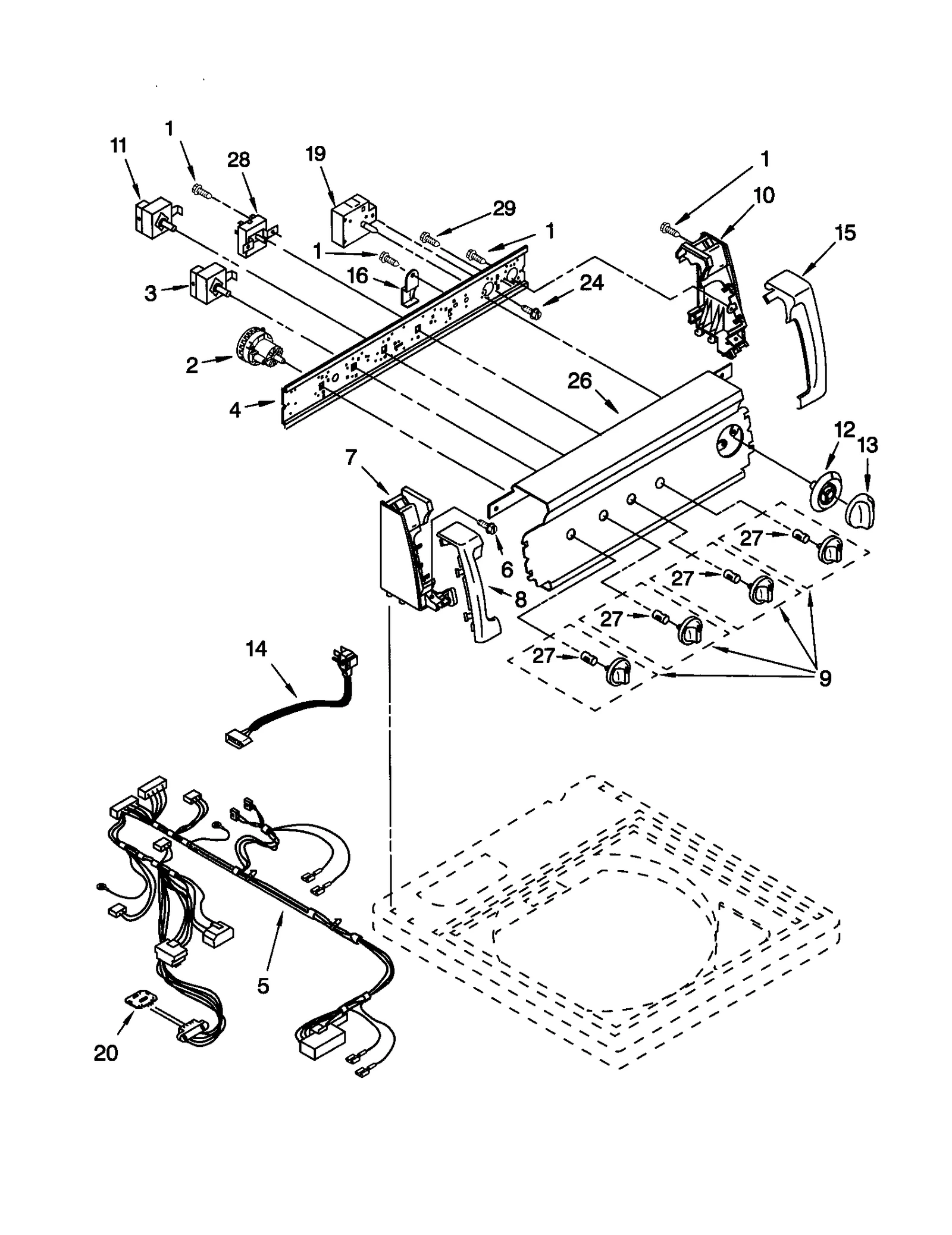

Washer Control Knob WPL 3402572 Contact Us For Availability

9A

Washer Control Knob WPL 3402574 Contact Us For Availability

9C

Dryer Timer Knob (White) WPL 3402575 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $35.46

WP62611 Whirlpool Plate In Stock WPL WP62611 $81.99

Washer Terminal Connector WPL 353424 Contact Us For Availability

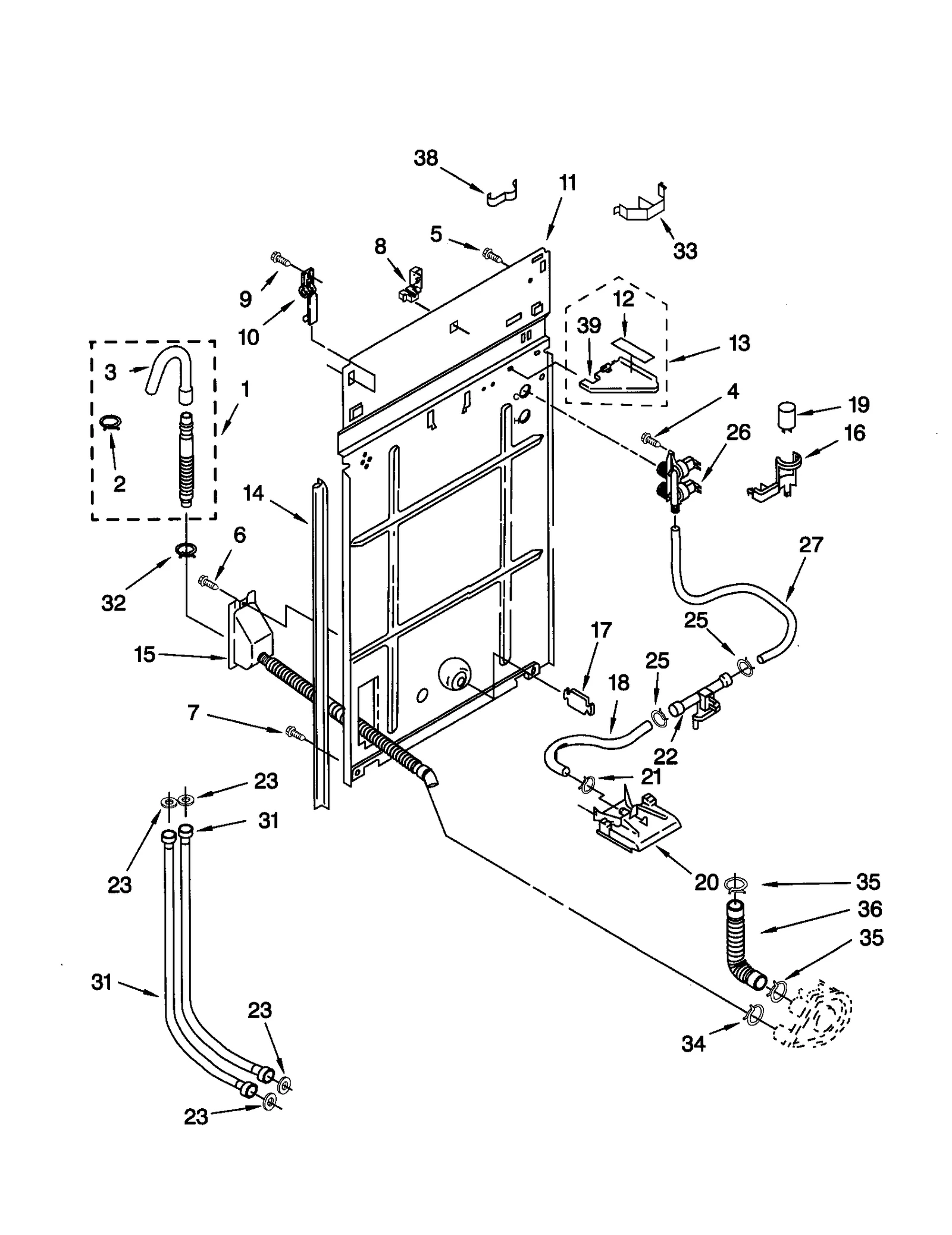

Rear Panel WPL 3356472 Contact Us For Availability

Spring WPL 387806 Contact Us For Availability

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63594 Whirlpool Dispenser In Stock WPL WP63594 $23.37

Washer Timer Dial WPL 3949428 Contact Us For Availability

Extension Shield WPL 3950829 Contact Us For Availability

12C

Washer Timer Dial (Bisque) WPL 3949431 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

Shield-sud WPL 3950830 Contact Us For Availability

13C

Washer Control Knob WPL 3948415 Contact Us For Availability

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $69.08

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $22.96

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Clip WPL 8318201 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP3349365 Whirlpool Hose In Stock WPL WP3349365 $14.26

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

WP3352287 Whirlpool Drive Motor Backorder WPL WP3352287 $258.27

WP3953248 Whirlpool Timer In Stock WPL WP3953248 $199.22

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $54.90

Base WPL 3946512 Contact Us For Availability

Lid WPL 3953779 Contact Us For Availability

19A

Washer Lid WPL 3954463 Contact Us For Availability

19B

Lid WPL 3953780 Contact Us For Availability

20

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $37.27

20

Switch WPL 62851 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP3946995 Whirlpool Retainer Backorder WPL WP3946995 $20.40

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

Washer Water Temperature Sensor WPL 3352282 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP358912 Whirlpool Gasket Backorder WPL WP358912 $4.82

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

SCREW, 10-16 X 5/8 (2) WPL 3367485 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $3.50

Clip WPL 3355454 Contact Us For Availability

27

WP3357319 Whirlpool Hose In Stock WPL WP3357319 $17.73

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

Connector WPL 3360056 Contact Us For Availability

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

28

Washer Cycle Selector Switch WPL 3953144 Contact Us For Availability

29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

31

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

32

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

33

Retainer WPL 8055003 Contact Us For Availability

34

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

35

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

36

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

38

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

39

Shield Valve WPL 3348424 Contact Us For Availability

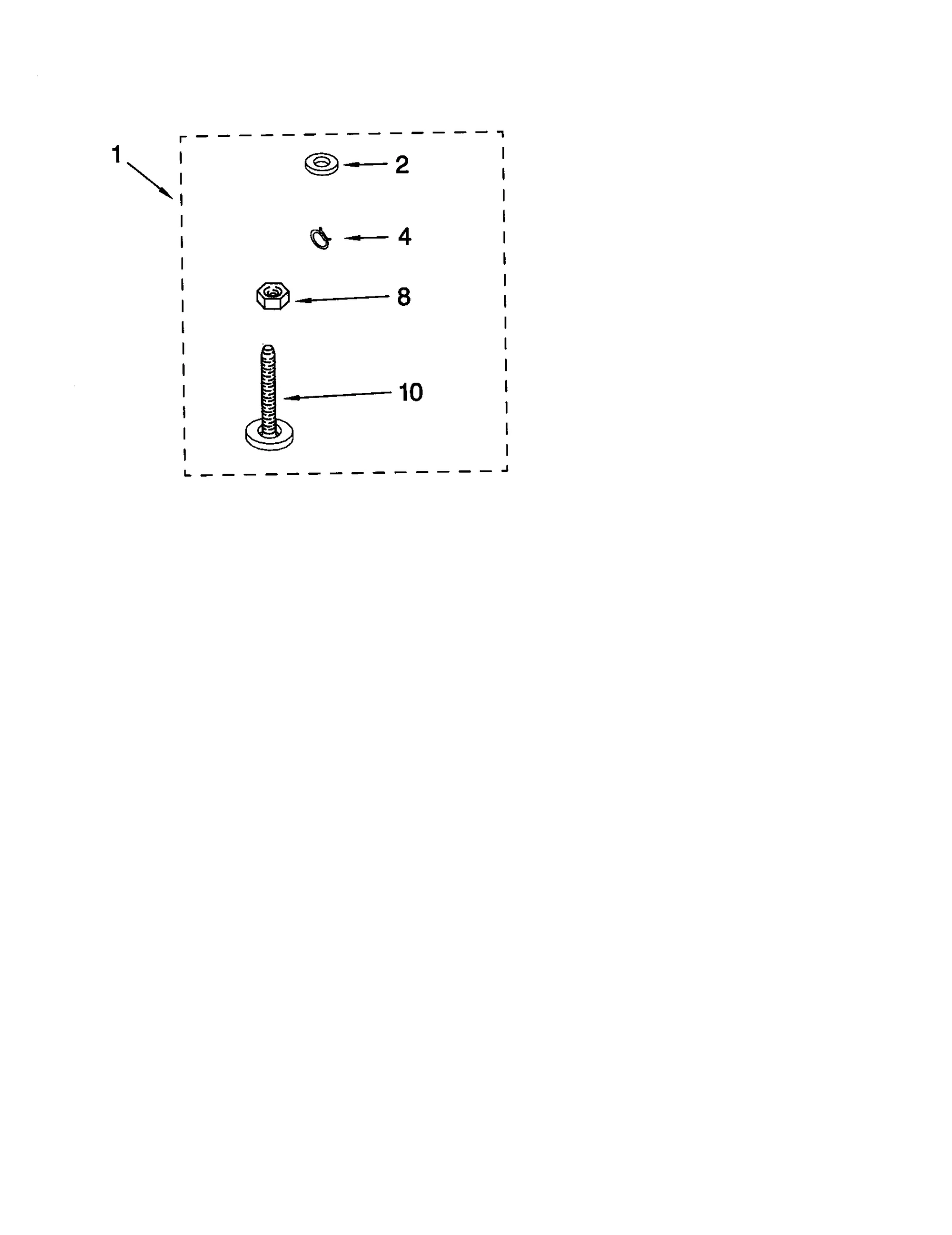

99

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability
