Model Whirlpool WTW58ESVW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

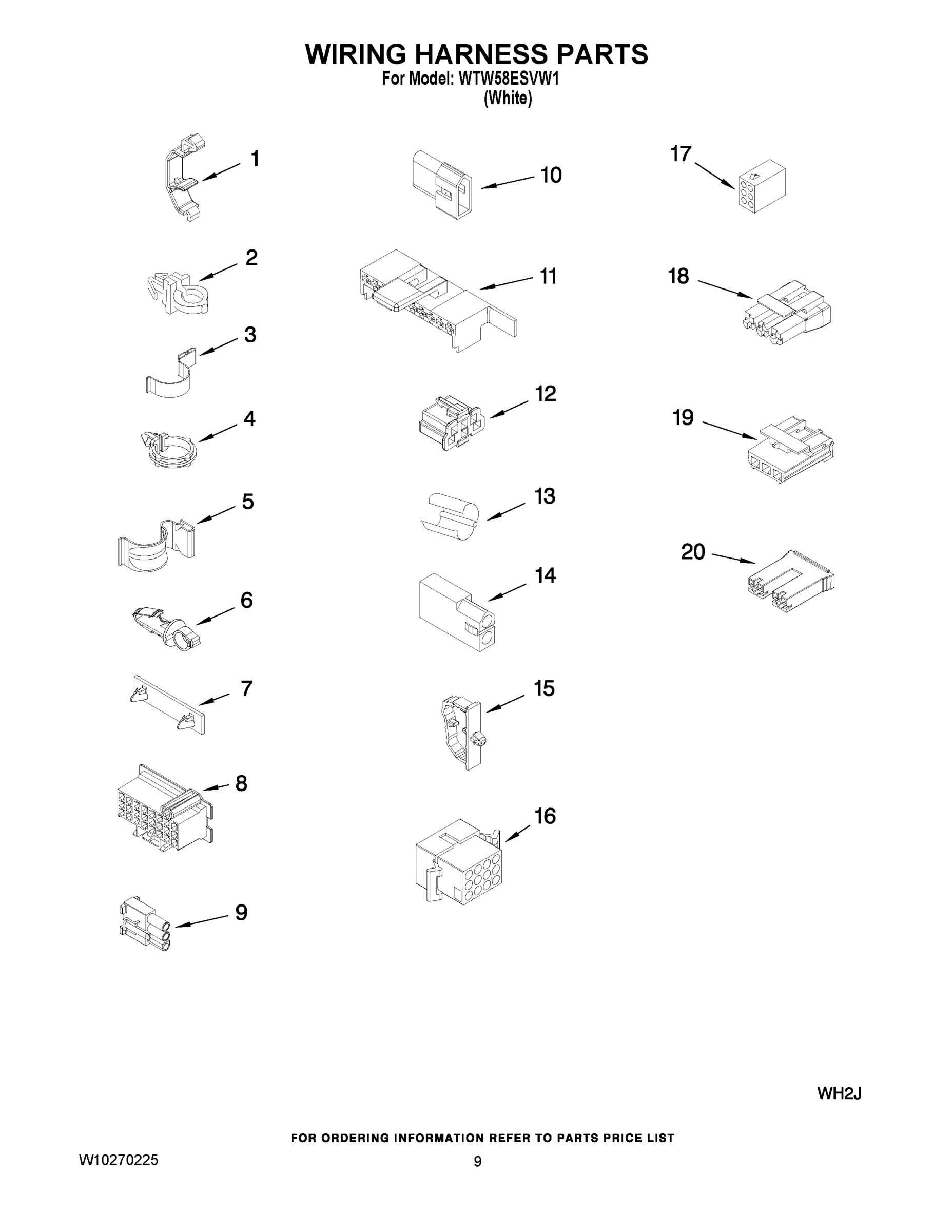

HARNESS, WIRING (FOR DETAIL SEE PAGES 9 & 10) WPL W10244926 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.20

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

4

WPW10192089 Whirlpool Washer Bleach Dispenser In Stock WPL WPW10192089 $4.19

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $39.58

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

9

WPW10177827 Whirlpool Timer In Stock WPL WPW10177827 $252.89

10

353424 Whirlpool Connector Backorder WPL 353424 $16.76

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

10

Hinge, Lid (L.H.) WPL W10225136 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

11

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.51

14

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

15

W10165554 Whirlpool Screw Backorder WPL W10165554 $14.93

15

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $78.56

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

16

W11096159 Whirlpool Sound ABS Assembly Backorder WPL W11096159 $12.32

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

18

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

18

WPW10175893 Whirlpool Valve In Stock WPL WPW10175893 $158.13

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.64

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

20

Flowmeter WPL W10176591 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

W11087528 Whirlpool Hose Backorder WPL W11087528 $31.91

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

W10166731 Whirlpool Hose Backorder WPL W10166731 $50.39

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

28

W10180780 Whirlpool Cycle Switch Backorder WPL W10180780 $127.12

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

29

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.19

33

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $16.76

37

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

38

ATC-AUTO LOAD SENSING SWITCH WPL W10248240 Contact Us For Availability

40

Knob, Timer WPL W10034730 Contact Us For Availability

41

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $35.44

42

Knob, Control WPL W10034380 Contact Us For Availability

285448A Whirlpool Washer In Stock WPL 285448A $3.01

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.59

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $25.48

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $23.40

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $13.44

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $16.24

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05
