Model Whirlpool WTW57ESVW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

Manual, Washer WPL 4313896 Contact Us For Availability

1

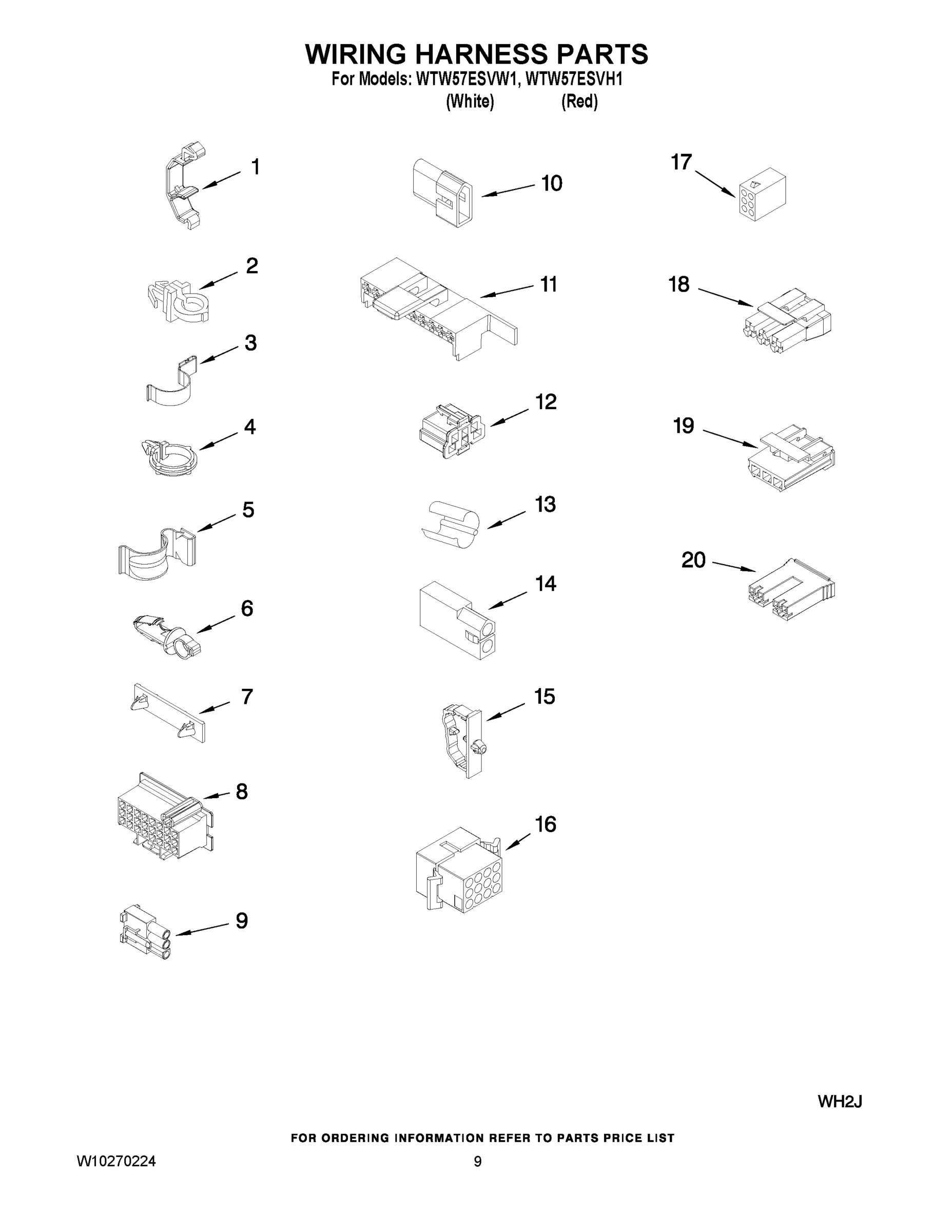

HARNESS, WIRING (FOR DETAIL SEE PAGES 9 & 10) WPL W10244926 Contact Us For Availability

1

Retainer, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.20

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

4

WPW10192089 Whirlpool Washer Bleach Dispenser In Stock WPL WPW10192089 $4.19

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

WP8568314 Whirlpool Strap In Stock WPL WP8568314 $4.19

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $32.68

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

WP8543666 Whirlpool Washer In Stock WPL WP8543666 $6.46

8

WPW10189267 Whirlpool Drain Hose In Stock WPL WPW10189267 $39.58

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

9

WPW10177827 Whirlpool Timer In Stock WPL WPW10177827 $252.89

10

353424 Whirlpool Connector Backorder WPL 353424 $16.76

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

10

Hinge, Lid (L.H.) WPL W10225136 Contact Us For Availability

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

11

WP91770 Whirlpool Hinge Backorder WPL WP91770 $11.26

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $2.85

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

14

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

14

WP8577374 Whirlpool Seal Shaft In Stock WPL WP8577374 $4.51

14

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

W10165554 Whirlpool Screw Backorder WPL W10165554 $14.93

WP387240 Whirlpool Balance Ring Backorder WPL WP387240 $78.56

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

WPW10175893 Whirlpool Valve In Stock WPL WPW10175893 $158.13

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $162.24

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.64

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

Flowmeter WPL W10176591 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

W11087528 Whirlpool Hose Backorder WPL W11087528 $31.91

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

24

W10166731 Whirlpool Hose Backorder WPL W10166731 $50.39

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

24

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.53

25

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.39

27

Clamp, Capacitor WPL 3949496 Contact Us For Availability

28

W10180780 Whirlpool Cycle Switch Backorder WPL W10180780 $127.12

29

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.19

33

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $16.76

37

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

38

ATC-AUTO LOAD SENSING SWITCH WPL W10248240 Contact Us For Availability

39

PANEL, CONSOLE WPL W10240470 Contact Us For Availability

40

Knob, Timer WPL W10034730 Contact Us For Availability

41

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $35.44

42

Knob, Control WPL W10034380 Contact Us For Availability

285448A Whirlpool Washer In Stock WPL 285448A $3.01

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.59

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

8212487RP Whirlpool 5' Industrial Grade Nylon In Stock WPL 8212487RP $25.48

8212545RP Whirlpool Washer Commercial Grade 5 In Stock WPL 8212545RP $23.40

8212546RP Whirlpool Washer 4' Black Rubber Fi In Stock WPL 8212546RP $13.44

8212641RP Whirlpool Washer Hose Kit Black EPD In Stock WPL 8212641RP $16.24

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $16.63

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05
