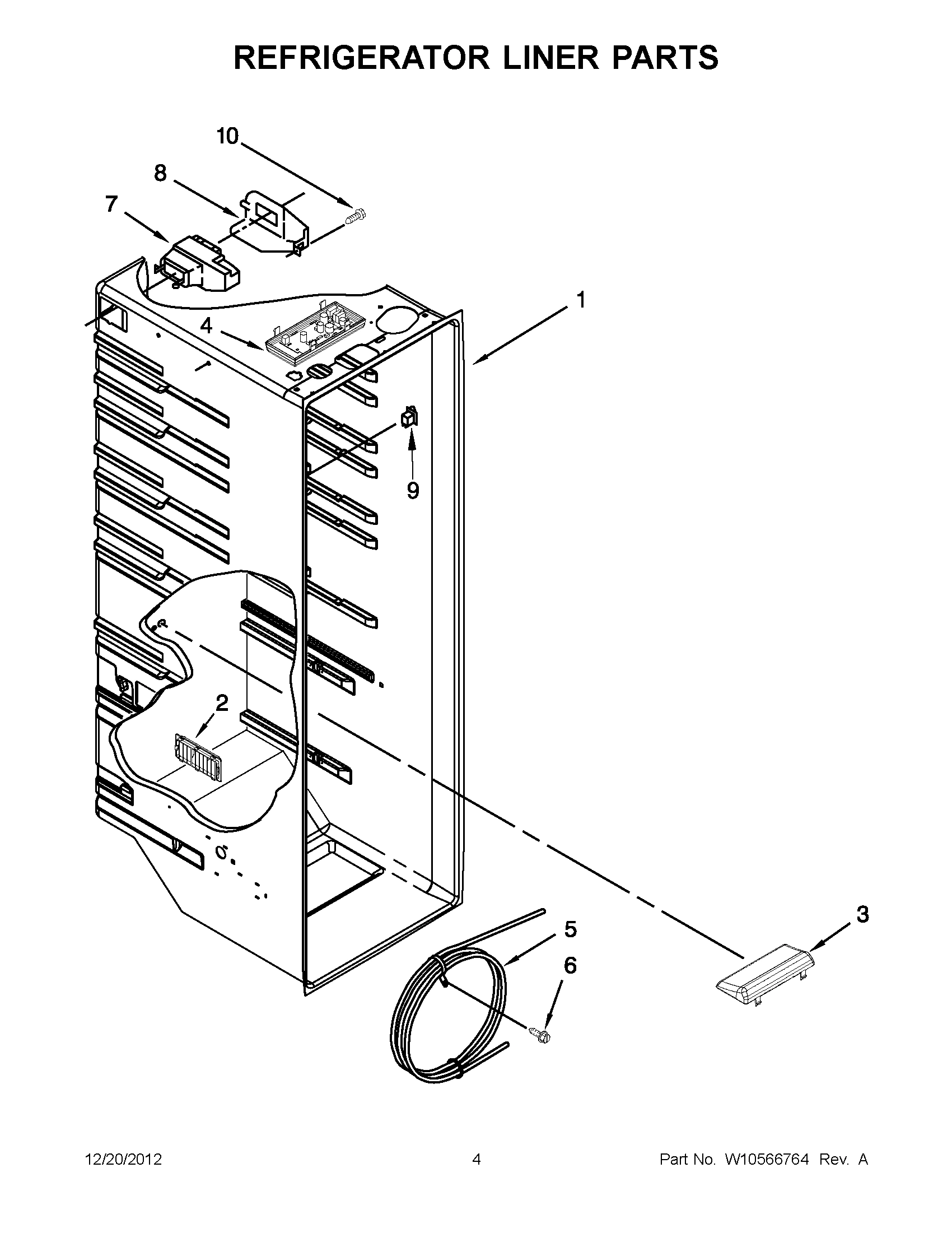

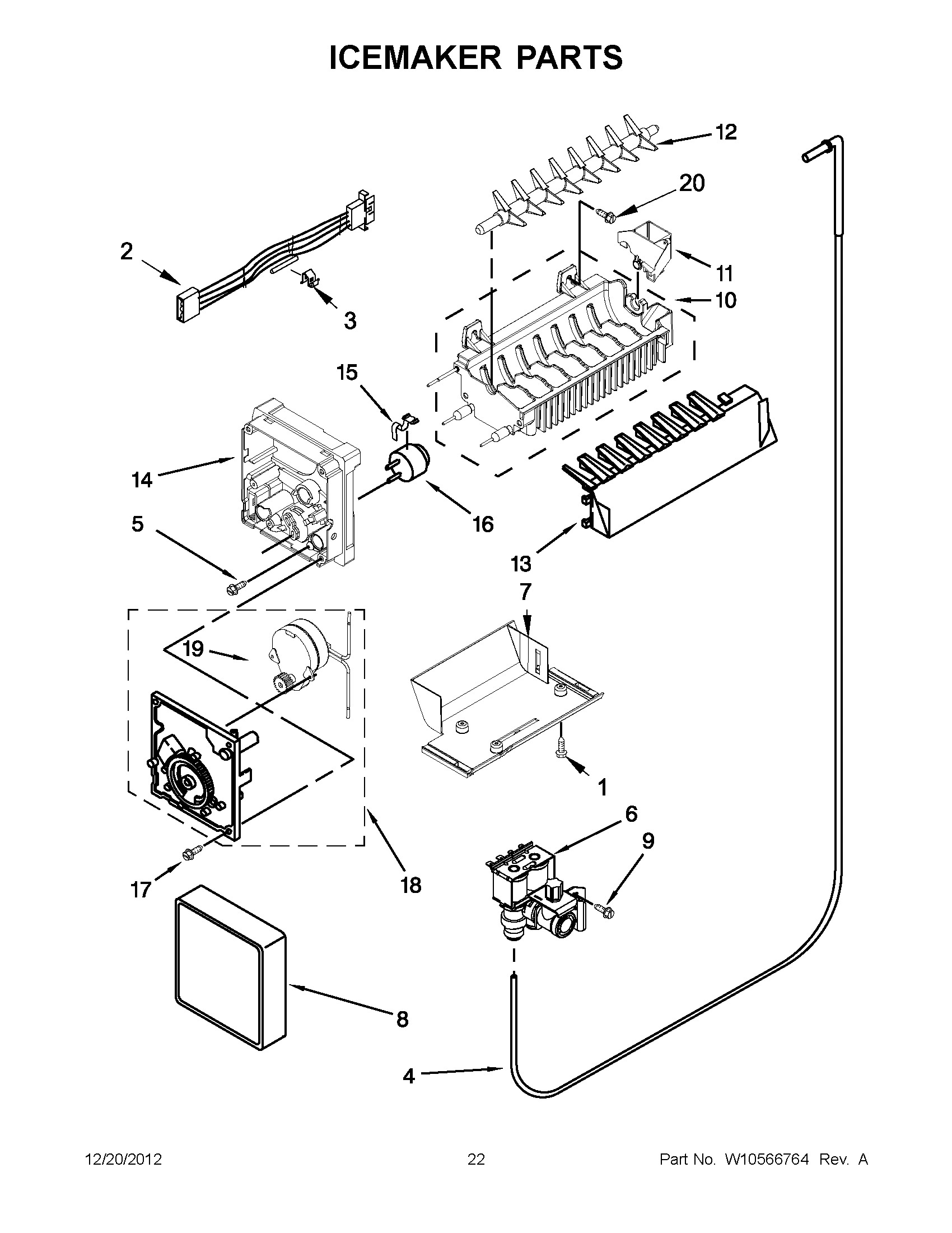

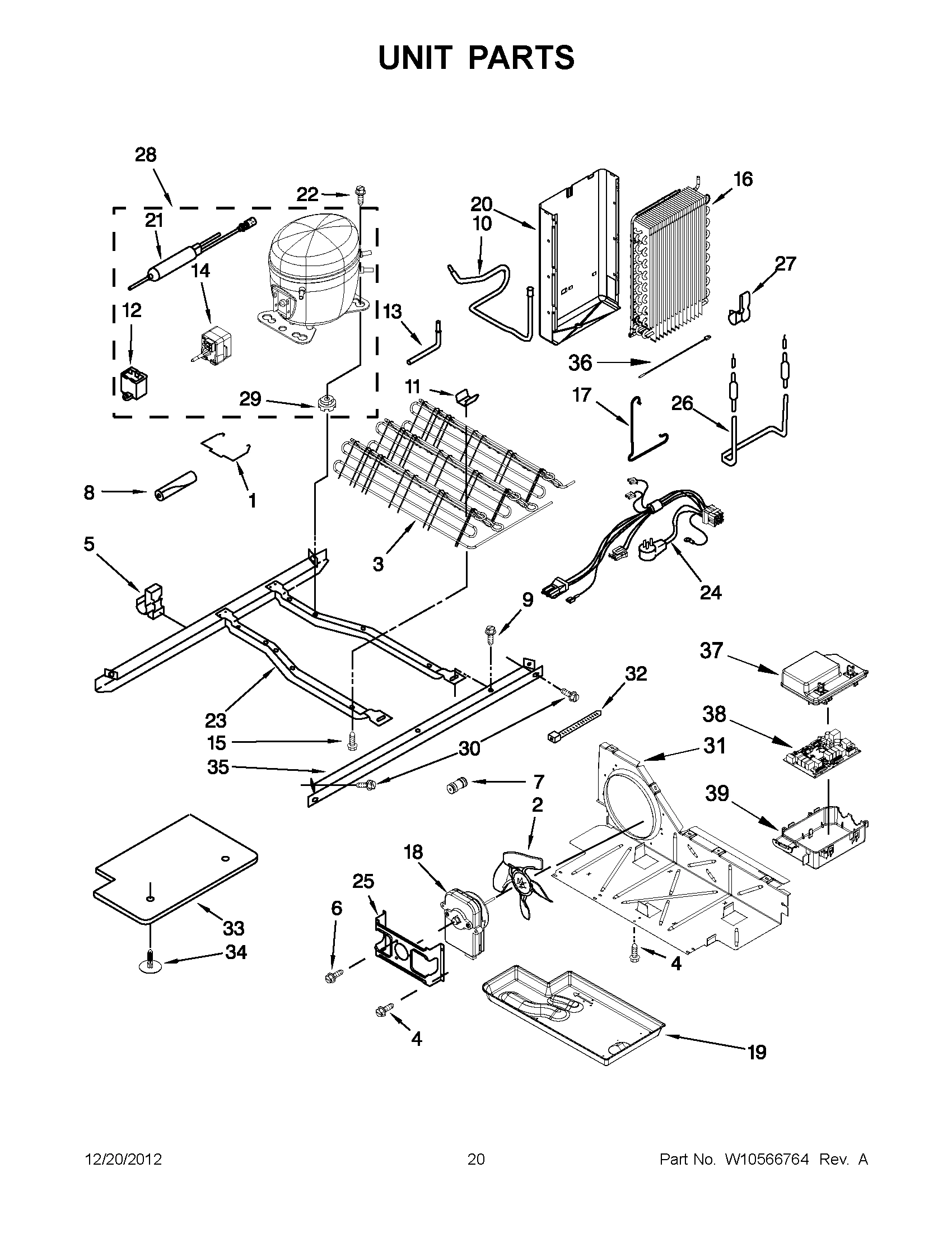

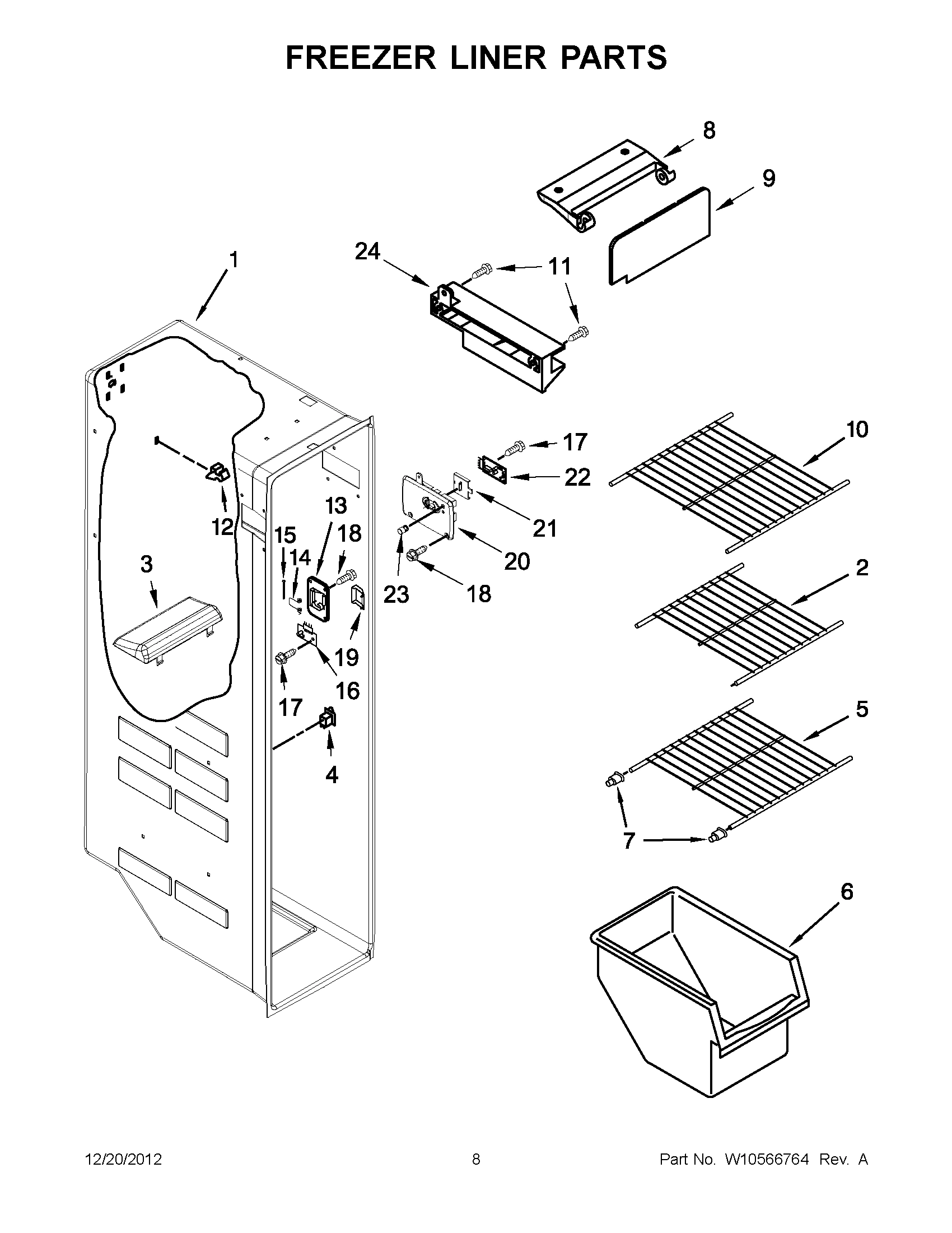

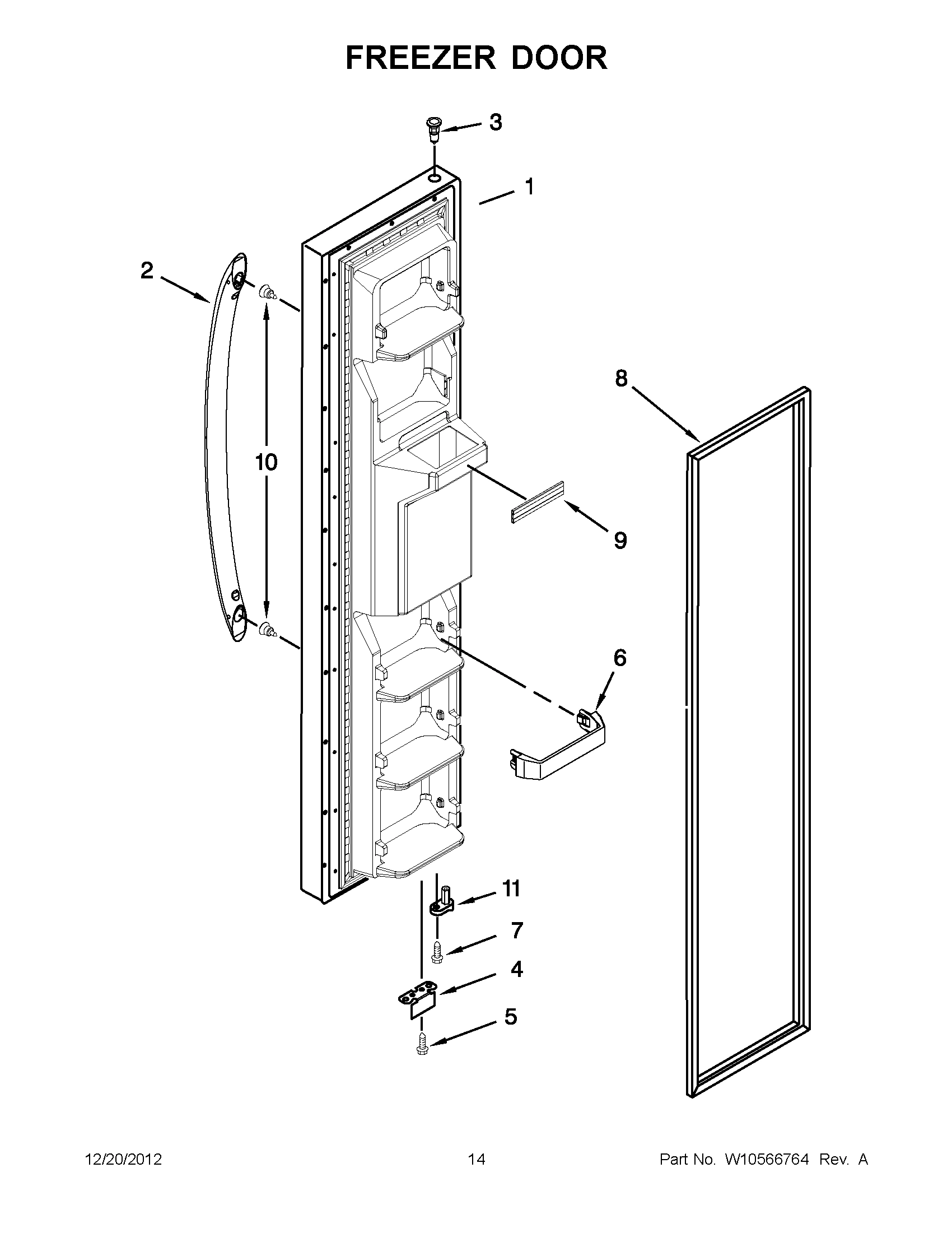

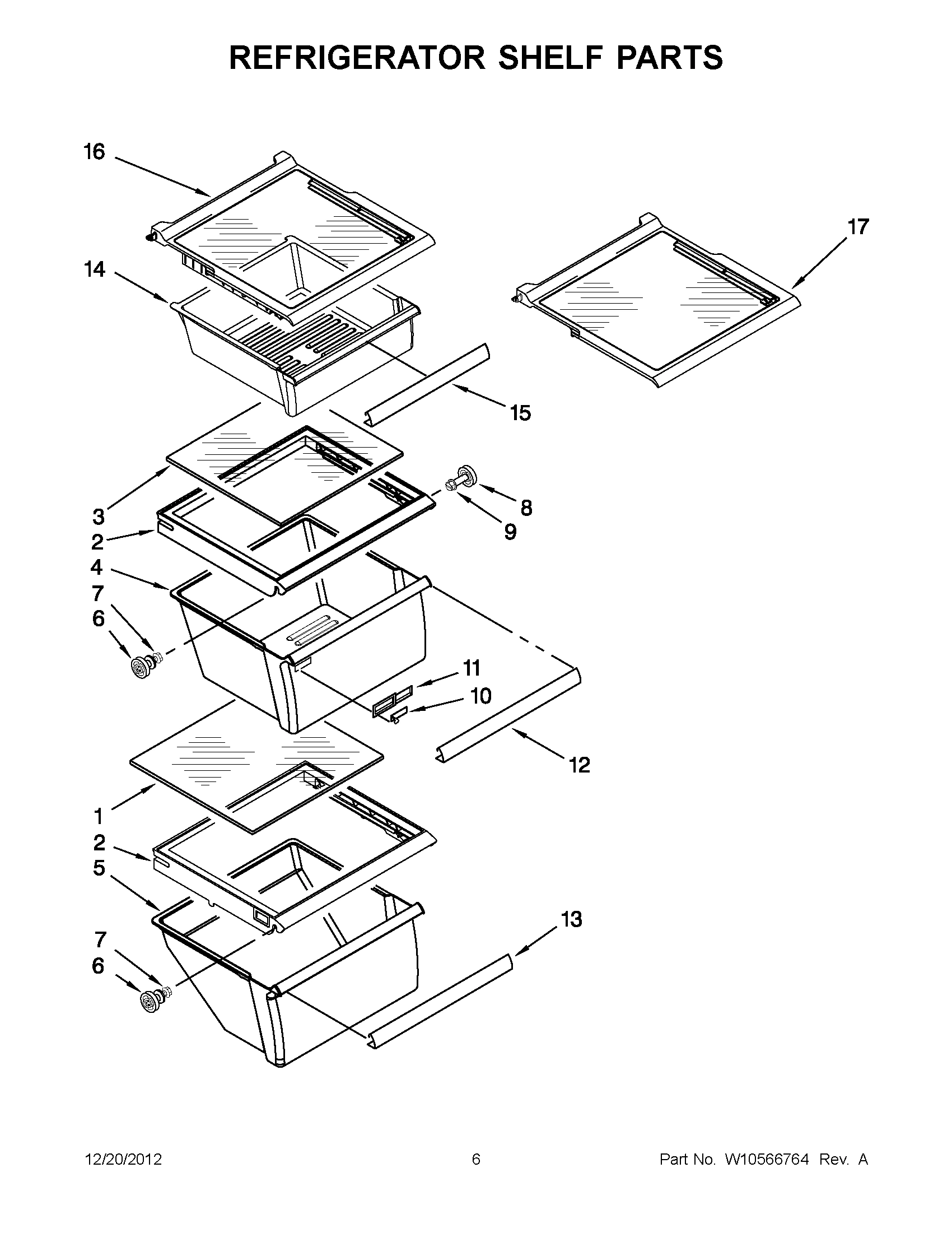

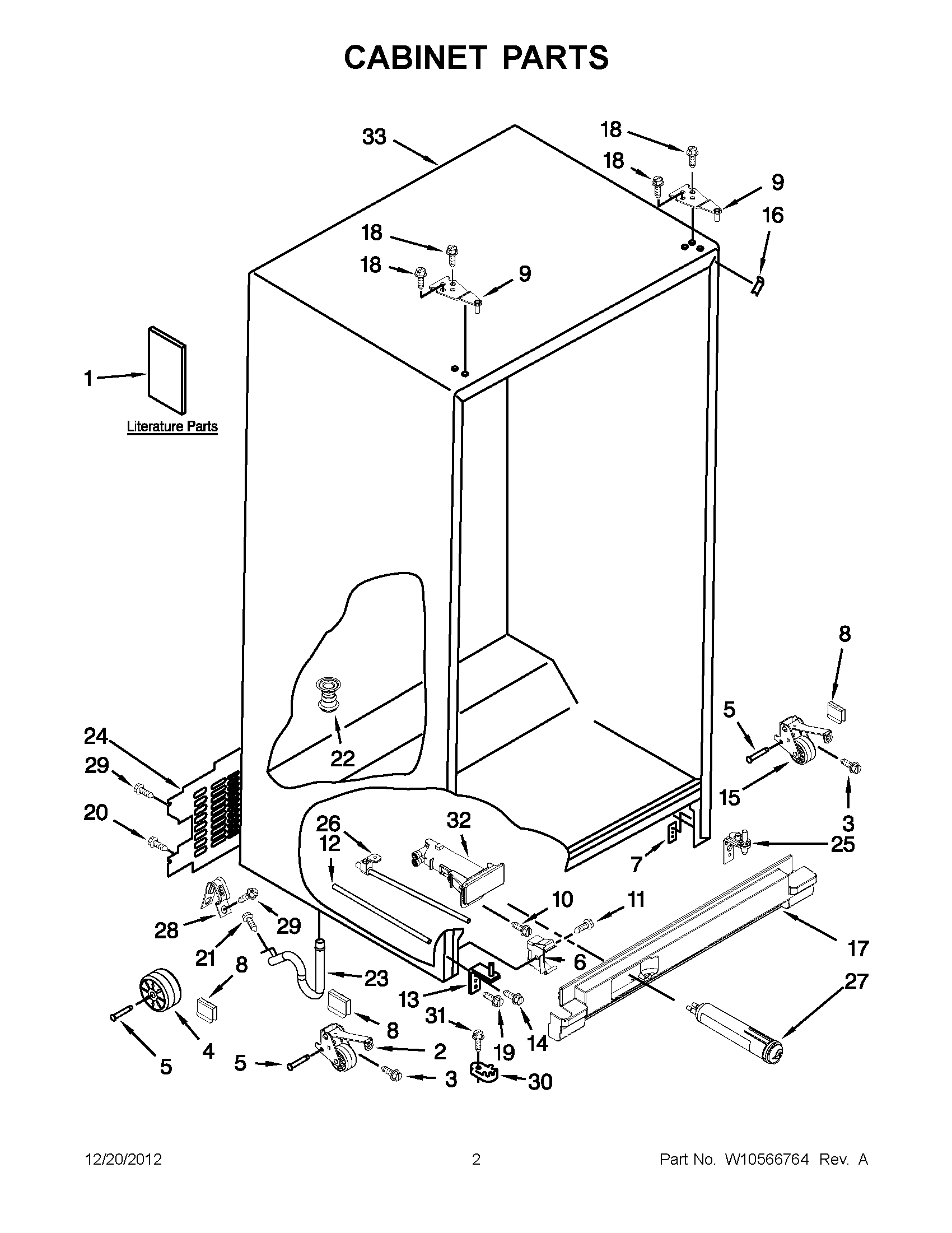

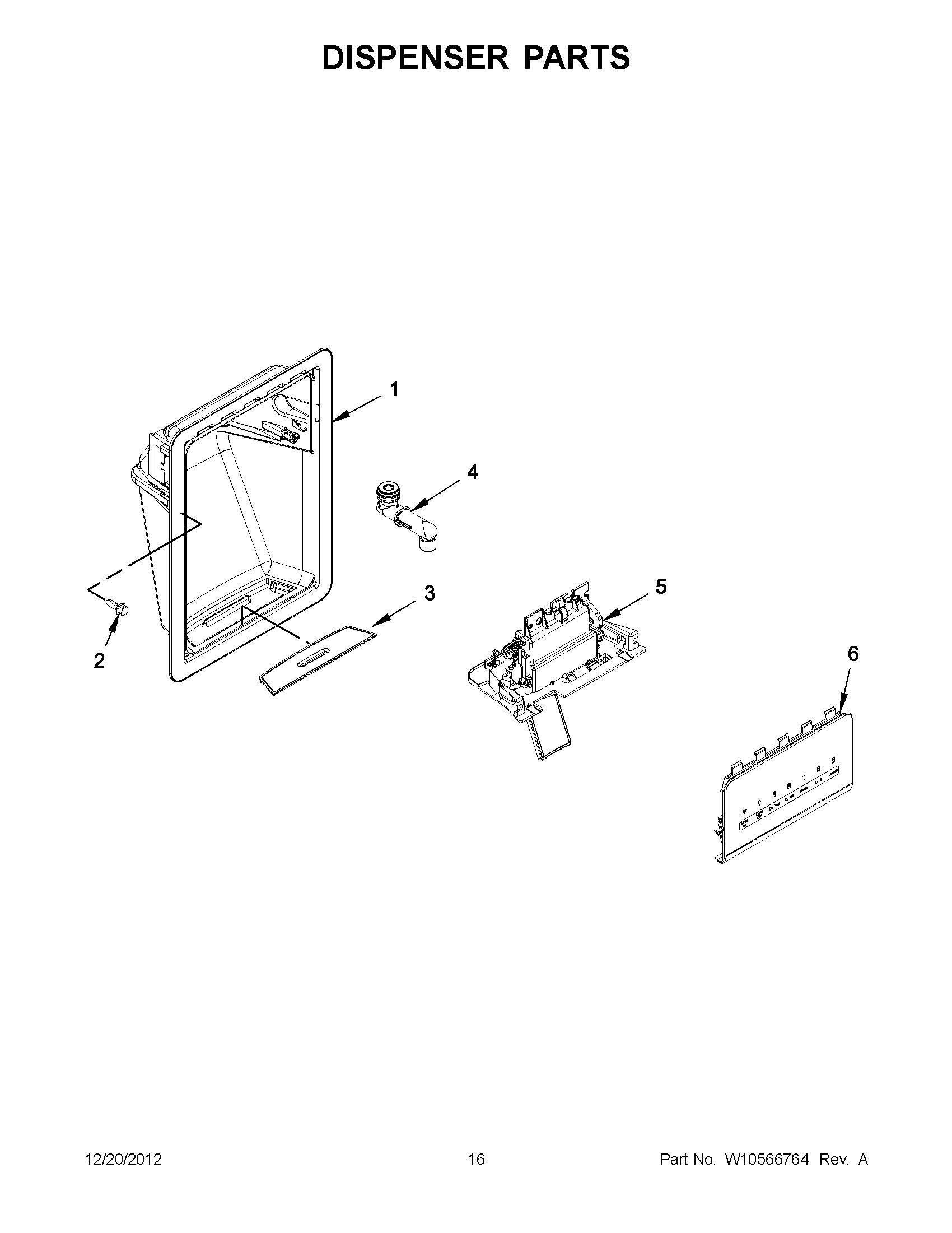

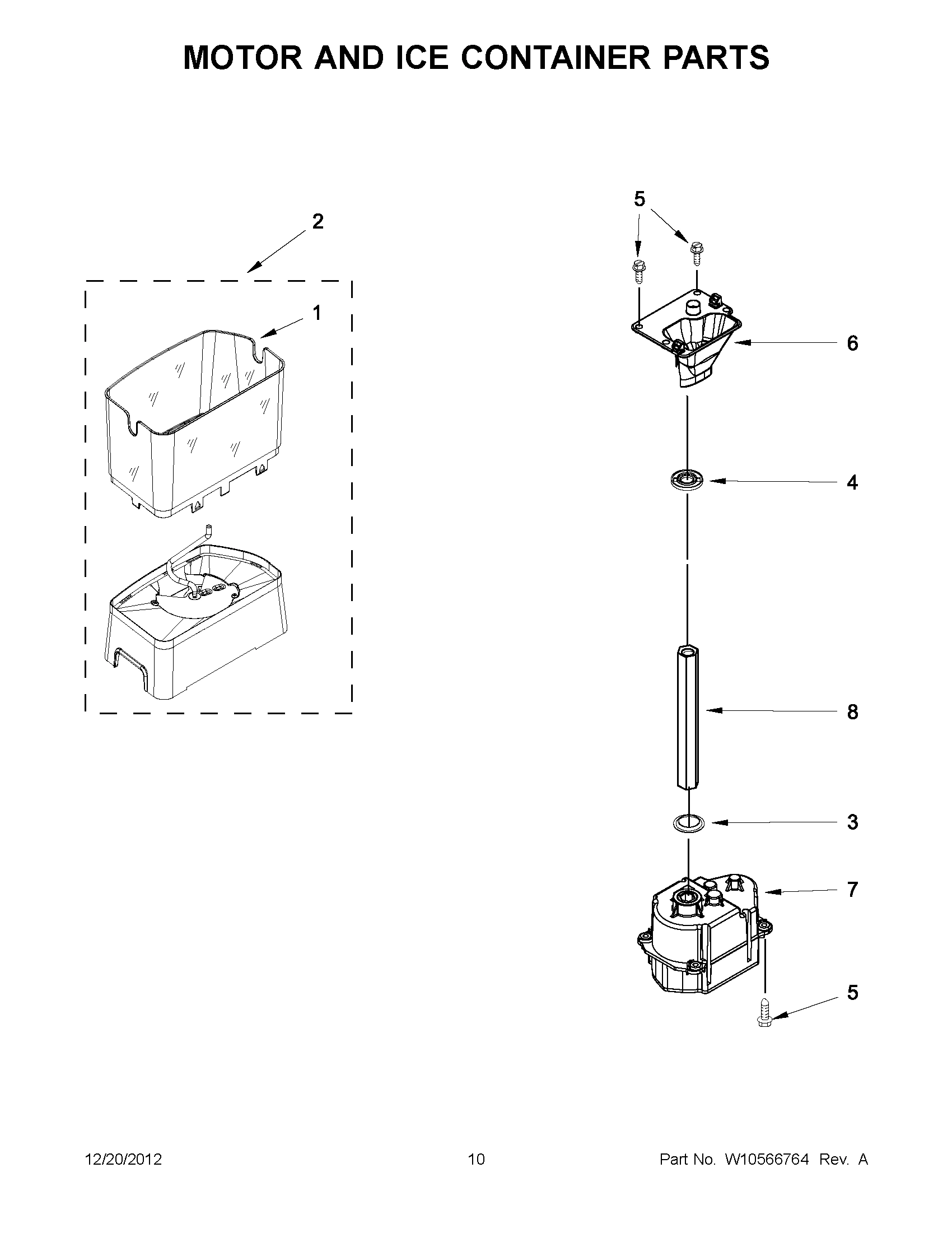

Model Whirlpool WRS346FIAT00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

2

W11643622 Whirlpool Wire Harness Backorder WPL W11643622 $16.14

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WPW10304660 Whirlpool Wheel Assembly In Stock WPL WPW10304660 $49.99

2

WPW10318961 Whirlpool Refrigerator Wire Shelf In Stock WPL WPW10318961 $65.99

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $208.07

3

W10803534 Whirlpool Screw In Stock WPL W10803534 $7.98

3

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

WPW10254073 Whirlpool Refrigerator Washer Backorder WPL WPW10254073 $6.23

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $30.99

3

WPW10397392 Whirlpool Refrigerator Grille In Stock WPL WPW10397392 $33.67

3

WPW10397394 Whirlpool Refrigerator Grille In Stock WPL WPW10397394 $43.67

3

WPW10397395 Whirlpool Refrigerator Grille In Stock WPL WPW10397395 $43.99

4

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

4

WPW10178772 Whirlpool Crisper Pan Backorder WPL WPW10178772 $136.55

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

4

WPW10397435 Whirlpool Refrigerator Fitting Backorder WPL WPW10397435 $88.57

4

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $14.57

4

Fitting, Water WPL 2303216 Contact Us For Availability

5

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

5

W10848410 Whirlpool Refrigerator Handle Backorder WPL W10848410 $128.93

5

W10899551 Whirlpool Door Handle In Stock WPL W10899551 $106.92

5

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

5

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $69.99

5

WPW10318947 Whirlpool Wire Shelf Backorder WPL WPW10318947 $76.99

5

WPW10398789 Whirlpool Refrigerator Handle Backorder WPL WPW10398789 $183.10

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $51.84

6

WPW10179146 Whirlpool Refrigerator Water Inle In Stock WPL WPW10179146 $97.96

6

UI ASSEMBLY CONTROL (BLACK) WPL W10441752 Contact Us For Availability

7

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $143.62

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

7

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $58.99

7

WPW10130299 Whirlpool Refrigerator Cup In Stock WPL WPW10130299 $9.70

7

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

8

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $67.89

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2174706 Whirlpool Refrigerator Pin Hitch Backorder WPL WP2174706 $6.93

8

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8

DRIVE SHAFT WPL W10445798 Contact Us For Availability

9

W11164088 Whirlpool Refrigerator Door Hinge Backorder WPL W11164088 $47.39

9

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

9

W11579508 Whirlpool Top Hinge Backorder WPL W11579508 $23.99

9

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

9

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

9

Screw WPL W10191952 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $132.71

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $110.88

BRACKET, DOOR STOP (SILVER) WPL W10219801 Contact Us For Availability

TUBE, SUCTION WPL 2205765 Contact Us For Availability

W11676540 Whirlpool Refrigerator Cup Fill Backorder WPL W11676540 $13.58

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WPW10511972 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511972 $51.47

WPW10511975 Whirlpool Refrigerator Nameplate Backorder WPL WPW10511975 $52.31

DOOR CLOSER, UPPER CAM (SILVER) WPL 2323535 Contact Us For Availability

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $23.29

W10539759 Whirlpool Refrigerator Wire Harness Backorder WPL W10539759 $50.93

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

TRIM, CRISPER PAN WPL W10393041 Contact Us For Availability

W10646418 Whirlpool Refrigerator Door Hinge Backorder WPL W10646418 $25.02

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WPW10272161 Whirlpool Refrigerator Stripper A Backorder WPL WPW10272161 $49.54

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $109.99

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $72.58

15

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

15

WPW10304659 Whirlpool Wheel Assembly In Stock WPL WPW10304659 $49.99

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $74.19

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $15.52

W10851579 Whirlpool Refrigerator Filler Backorder WPL W10851579 $4.82

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.84

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $218.99

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.85

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $242.93

GRILLE (BLACK) WPL W10348651 Contact Us For Availability

GRILLE (WHITE) WPL W10348650 Contact Us For Availability

GRILLE (GREY) WPL W10350049 Contact Us For Availability

GRILLE (BISCUIT/BISQUE) WPL W10348652 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $85.91

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

WPW10308750 Whirlpool Refrigerator Screw Backorder WPL WPW10308750 $49.86

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $5.24

19

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

19

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

20

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $91.15

20

Cover, Receiver WPL W10173569 Contact Us For Availability

21

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

22

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

22

SCREW WPL W10476309 Contact Us For Availability

23

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $17.99

23

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

24

W10421551 Whirlpool Refrigerator Wire Harness Backorder WPL W10421551 $141.53

24

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

25

W11049959 Whirlpool Refrigerator Hinge In Stock WPL W11049959 $52.49

25

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

26

WPW10350007 Whirlpool Refrigerator Water Tube In Stock WPL WPW10350007 $74.99

27

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

30

DOOR CLOSER, FREEZER WPL 2223751 Contact Us For Availability

31

AIR BAFFLE WPL W10332806 Contact Us For Availability

W10861696 Whirlpool Refrigerator Housing In Stock WPL W10861696 $78.58

W10862456 Whirlpool Water Filter Housing In Stock WPL W10862456 $139.99

W10862460 Whirlpool Water Filter Housing In Stock WPL W10862460 $139.99

W10862461 Whirlpool Refrigerator Water Filter In Stock WPL W10862461 $140.99

33

UNIT COVER, BOTTOM WPL W10466698 Contact Us For Availability

34

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

35

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $98.39

36

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

37

W10334855 Whirlpool Refrigerator Cover Backorder WPL W10334855 $47.30

38

W11035833-includeCORE Whirlpool W11035833 Ref Backorder WPL W11035833-includeCORE $304.79

39

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $67.21

100

W11512152 Whirlpool Ice Maker Assembly In Stock WPL W11512152 $117.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS WPL 978029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
