Model Speed Queen SDENXRGS433AW01 Dryer – Common Parts & Diagrams

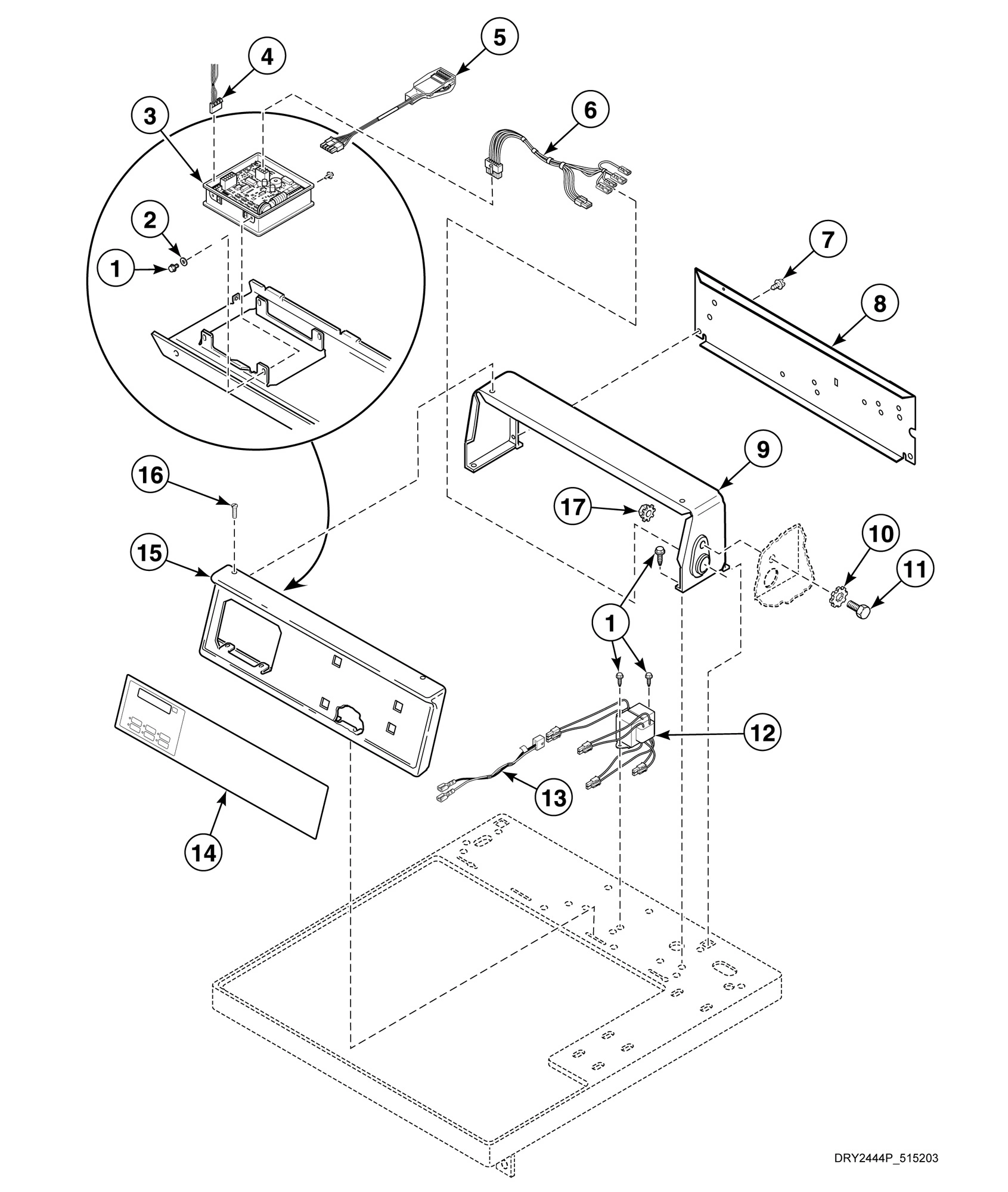

Control Panel and Controls - Rear Control Coin Drop Models
Control Panel and Controls - Rear Control Card Models

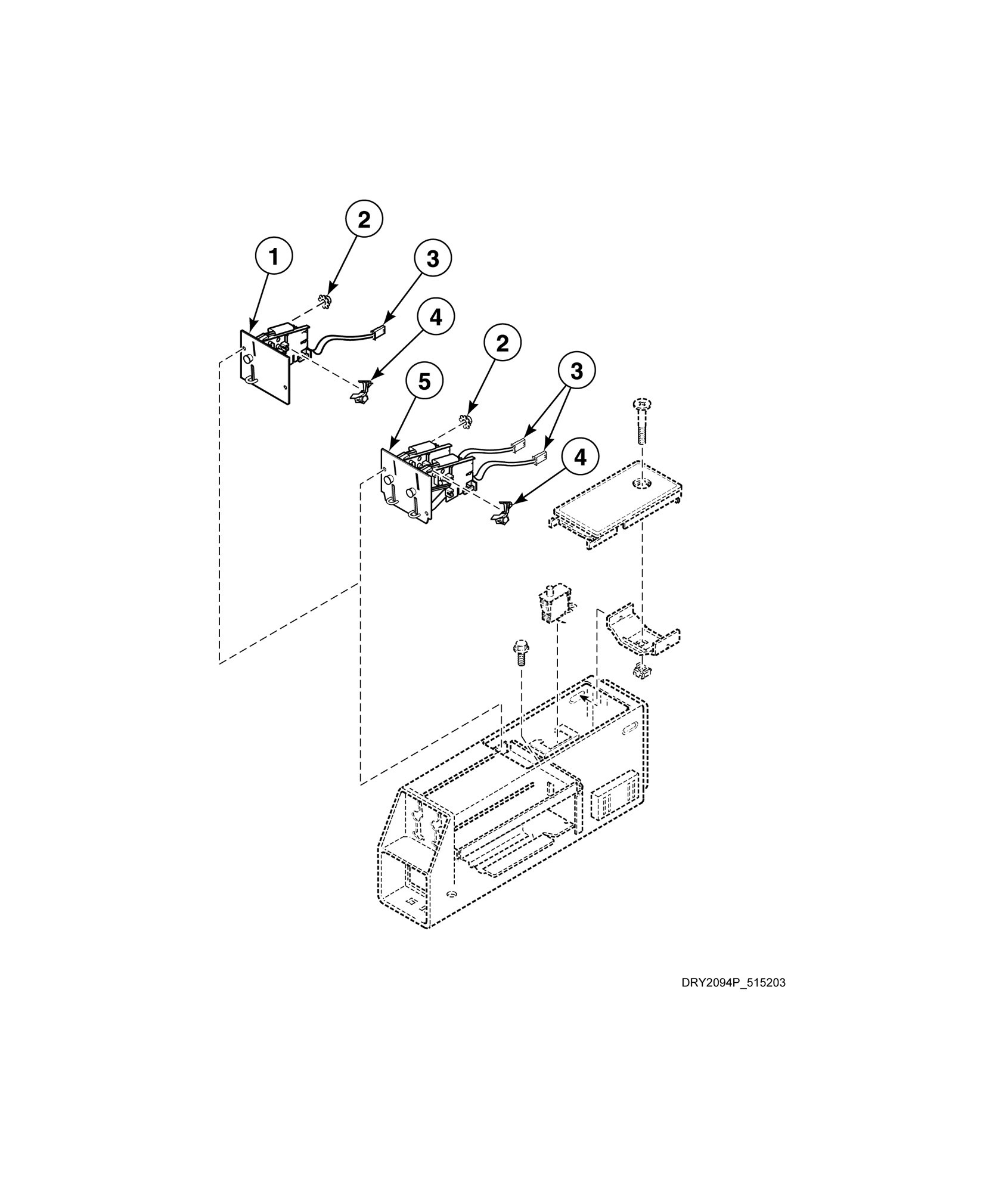

Non-Electronic Coin Drop - Rear Control Models

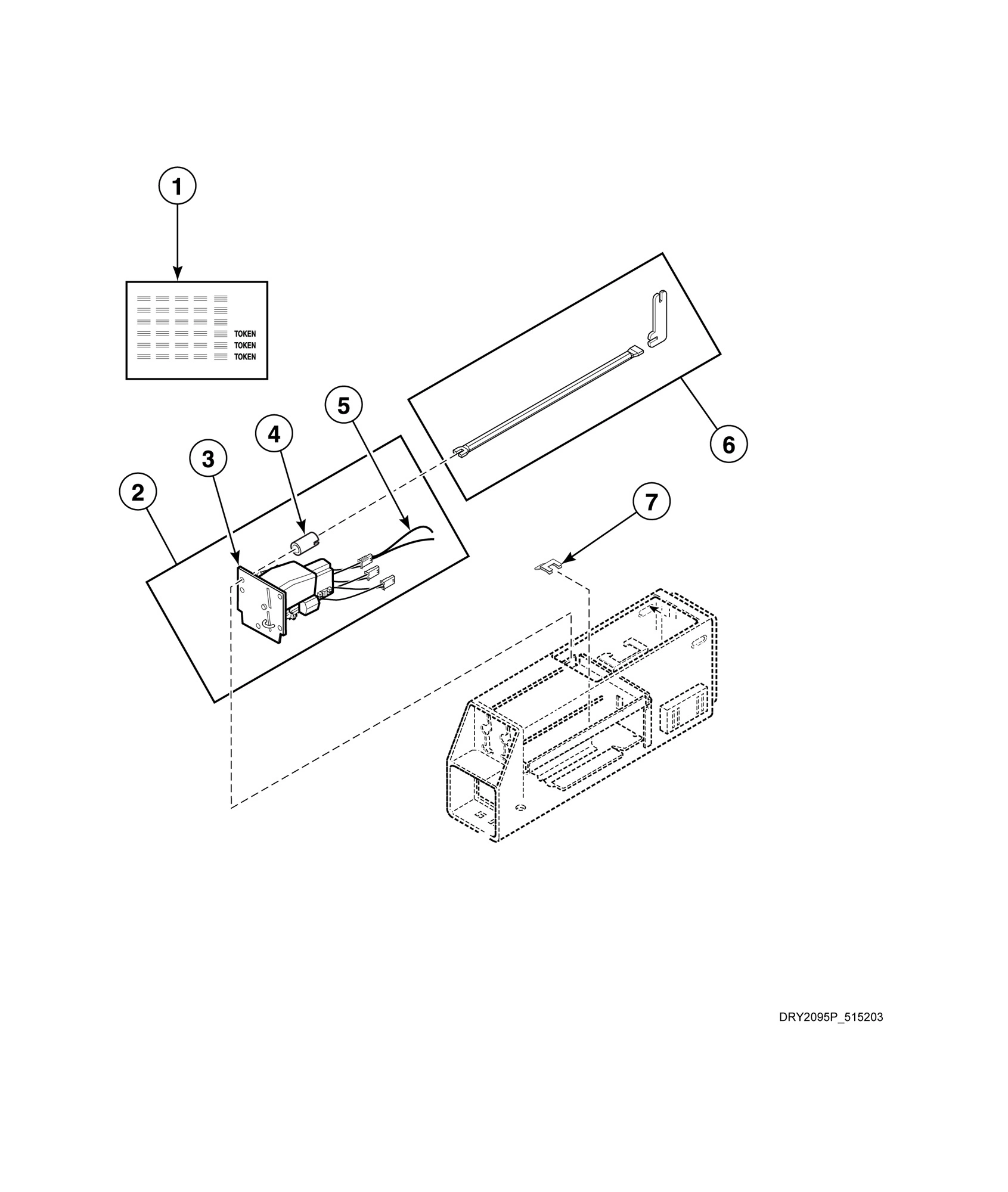

Electronic Coin Drop - Rear Control Models

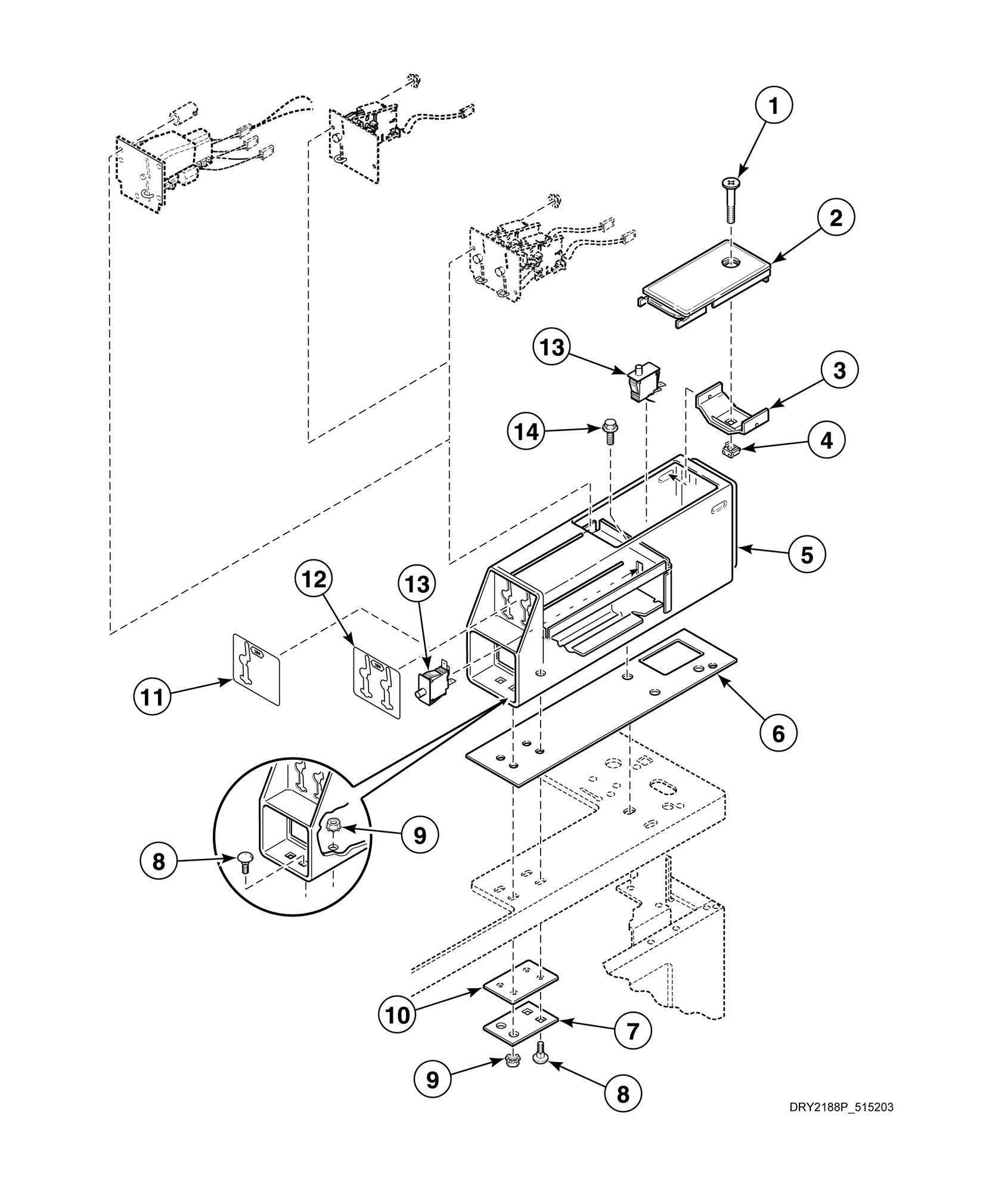

Meter Case - Rear Control Coin Drop Models

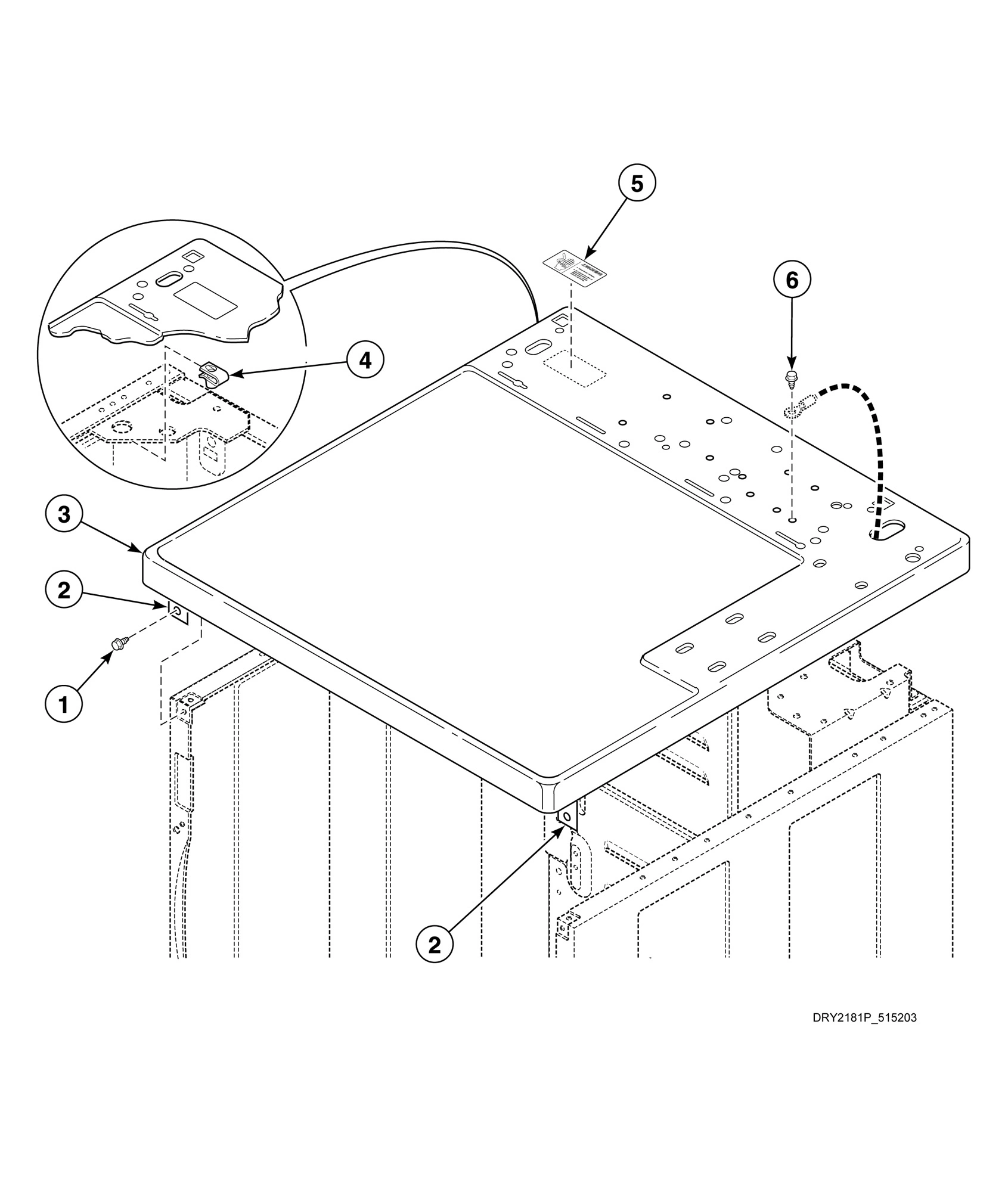

Cabinet Top - Rear Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)
Network Board Assembly
Non-Electronic Coin Drop - Front Control Models
Electronic Coin Drop - Front Control Models
Control Cabinet Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 1 of 2)
Control Cabinet - 45 Degree Front Control Models (Drawing 2 of 2)
Loading Door without Window
Loading Door with Window
Access Panel
Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Terminal Block - 3 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly
Gas Valve and Igniter - Through Serial No. 1908000001
Gas Valve and Igniter - Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base
Ignition Control Module
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)
Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Rear Control Models
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Control Panel And Controls - Rear Control Coin Drop Models
Terminals
Terminal Block And Terminals
Front Panel And Seal
Cabinet, Exhaust Duct And Base
Access Panel
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Terminal Block And Terminals
Terminals
Cabinet, Exhaust Duct And Base
Terminals
Terminal Block And Terminals
Terminal Block - Gas And 1 Phase Electric Models
Heater Duct And Element Assembly - 1 Phase Electric Models
Cylinder Assembly
Access Panel
Terminals
Motor Connection Block And Tools
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Meter Case - Rear Control Coin Drop Models
Control Panel And Controls - Rear Control Coin Drop Models
Terminal Block And Terminals
Label Location On Rear Of Cabinet
Cabinet, Exhaust Duct And Base
Junction Box Filter And Harnesses
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Cabinet, Exhaust Duct And Base
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Motor And Belt
Exhaust Fan And Idler
Motor Connection Block And Tools
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Exhaust Fan And Idler
Motor And Belt
Power Cord
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Control Panel And Controls - Rear Control Coin Drop Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Electronic Coin Drop - Rear Control Models
Non-electronic Coin Drop - Rear Control Models
Motor And Belt
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Access Panel
Motor Connection Block And Tools
Label Location On Rear Of Cabinet
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Terminal Block - Gas And 1 Phase Electric Models
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Label Location On Rear Of Cabinet
Terminals
Cabinet, Exhaust Duct And Base
Thermistor
Control Panel And Controls - Rear Control Coin Drop Models
Label Location On Rear Of Cabinet
Access Panel
Heater Duct And Element Assembly - 1 Phase Electric Models
Meter Case - Rear Control Coin Drop Models
Terminal Block - Gas And 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Junction Box Filter And Harnesses
Heater Duct And Element Assembly - 1 Phase Electric Models
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Cabinet, Exhaust Duct And Base
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Label Location On Rear Of Cabinet
Cabinet Top - Rear Control Models
Motor And Belt
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Heater Duct And Element Assembly - 1 Phase Electric Models
Exhaust Fan And Idler
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Loading Door Without Window
Exhaust Fan And Idler
Cabinet, Exhaust Duct And Base
Exhaust Fan And Idler
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet Top - Rear Control Models
Loading Door Without Window
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Loading Door Without Window
Access Panel
Motor And Belt
Loading Door Without Window
Exhaust Fan And Idler
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)
Terminal Block - Gas And 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Cylinder Assembly
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Heater Duct And Element Assembly - 1 Phase Electric Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cabinet, Exhaust Duct And Base
Loading Door Without Window
Front Panel And Seal
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor And Belt
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet Top - Rear Control Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Exhaust Fan And Idler
Front Panel And Seal
Wire Harnesses And Wires - Rear Control Models
Cabinet, Exhaust Duct And Base
Meter Case - Rear Control Coin Drop Models
Front Panel And Seal
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Cabinet, Exhaust Duct And Base
Wire Harnesses And Wires - Rear Control Models
Junction Box Filter And Harnesses
Control Panel And Controls - Rear Control Coin Drop Models
Cabinet, Exhaust Duct And Base
Access Panel
Terminal Block - Gas And 1 Phase Electric Models
Heater Duct And Element Assembly - 1 Phase Electric Models
Control Panel And Controls - Rear Control Coin Drop Models
Heater Duct And Element Assembly - 1 Phase Electric Models
Cabinet, Exhaust Duct And Base
Heater Duct And Element Assembly - 1 Phase Electric Models
Cabinet, Exhaust Duct And Base
Heater Duct And Element Assembly - 1 Phase Electric Models
Exhaust Fan And Idler
Heater Duct And Element Assembly - 1 Phase Electric Models
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Control Panel And Controls - Rear Control Coin Drop Models
Front Panel And Seal
Control Panel And Controls - Rear Control Coin Drop Models
Rear Bulkhead, Felt Seal And Cylinder Roller
Cylinder Assembly
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)
Heater Duct And Element Assembly - 1 Phase Electric Models
Power Cord
Non-electronic Coin Drop - Rear Control Models
Meter Case - Rear Control Coin Drop Models
Exhaust Fan And Idler
Control Panel And Controls - Rear Control Coin Drop Models
Common parts from model Speed Queen SDENXRGS433AW01 Dryer
2
Screw (comment: Use With Stainless Steel Pane SPQ D512921 Contact Us For Availability
2
Terminal Block Shield SPQ D514330 Contact Us For Availability
2
Outlet Cover SPQ D514475 Contact Us For Availability
3
Blower Housing Cover SPQ D511970 Contact Us For Availability
3
Control Assembly SPQ D514138P Contact Us For Availability
3
Junction Box Cover SPQ D514363 Contact Us For Availability
4
Electric Harness SPQ D513984 Contact Us For Availability
4
Ground Filter Harness (comment: Filter To Rea SPQ D514038 Contact Us For Availability
5
Disconnect Power Warning Label SPQ D505281 Contact Us For Availability
7
Screw (comment: Torx Head, Optional For Added SPQ 62853 Contact Us For Availability
7
SCREW SPQ WP3177991 Contact Us For Availability
9
Door Handle Wedge SPQ D510129 Contact Us For Availability
9
Warning Label SPQ D512263 Contact Us For Availability
9
NUT SPQ WP487939 Contact Us For Availability
10
Idler Lever SPQ D510133 Contact Us For Availability
10
Exhaust Duct (comment: Each Dryer Requires 2 SPQ D510137 Contact Us For Availability
17
NUT SPQ WPW10139757 Contact Us For Availability
NA
Junction Box Seal SPQ D514379P Contact Us For Availability
NA
Junction Box Assembly SPQ D514389P Contact Us For Availability
NA
Junction Box Assembly SPQ D514390 Contact Us For Availability
NA
Junction Box Assembly (comment: Includes Item SPQ D516153 Contact Us For Availability
NA
Pinched Fingers Label (comment: Icon, Crush H SPQ F8211301 Contact Us For Availability
NA
Network Controller Kit (comment: Wired) SPQ NK220 Contact Us For Availability
NA
Ethernet Gateway Kit (comment: Wireless) SPQ NK320 Contact Us For Availability
NA
Usb Gateway Kit (comment: Wireless) SPQ NK330 Contact Us For Availability
NA
SCREW SPQ WP3351614 Contact Us For Availability
NI
SPQ 70441601P SPQ 70441601P Contact Us For Availability
NI
SPQ 70294106 SPQ 70294106 Contact Us For Availability
× ![]()
