Model Speed Queen SDELCRGS171TW02 Dryer – Common Parts & Diagrams

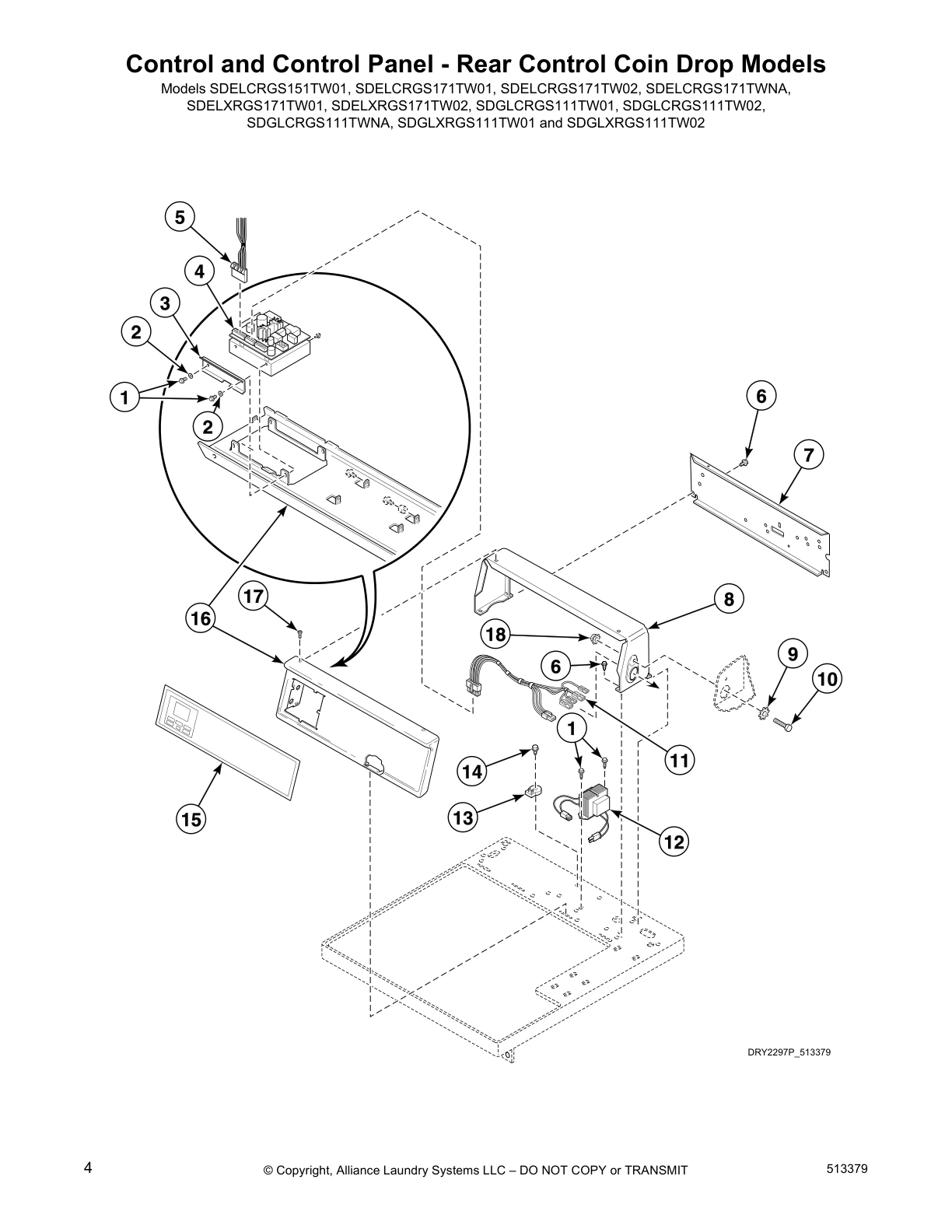

Control and Control Panel - Rear Control Coin Drop Models

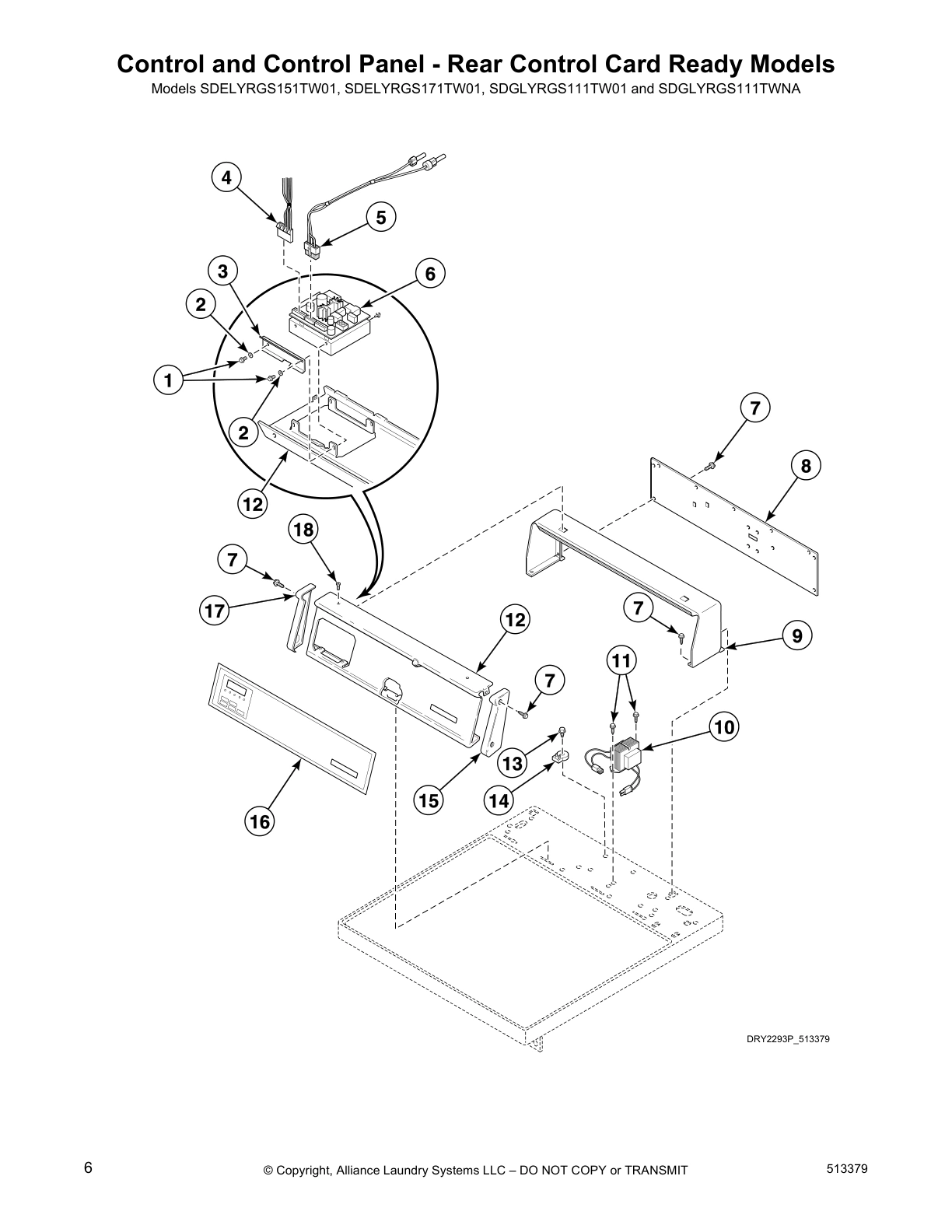

Control and Control Panel - Rear Control Card Ready Models

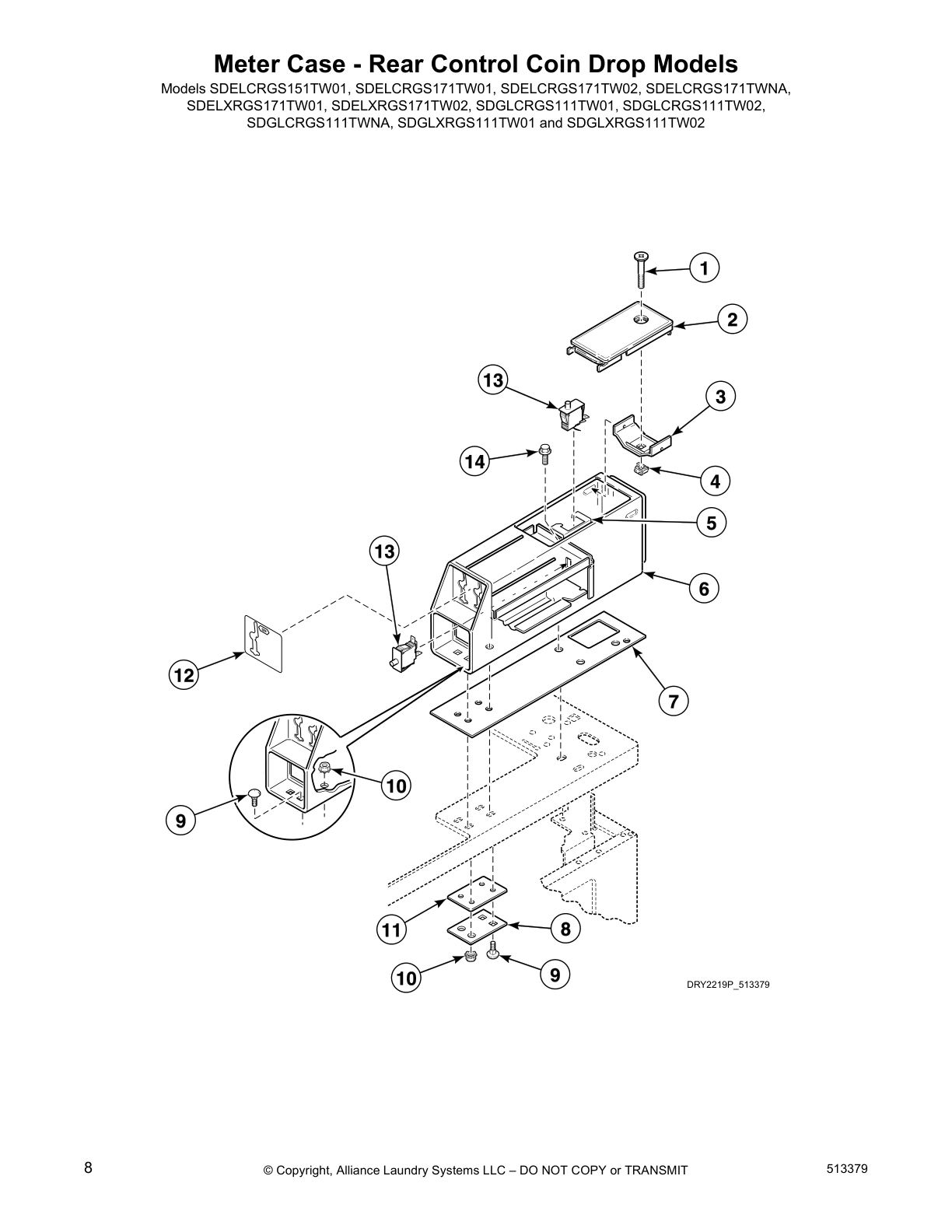

Meter Case - Rear Control Coin Drop Models

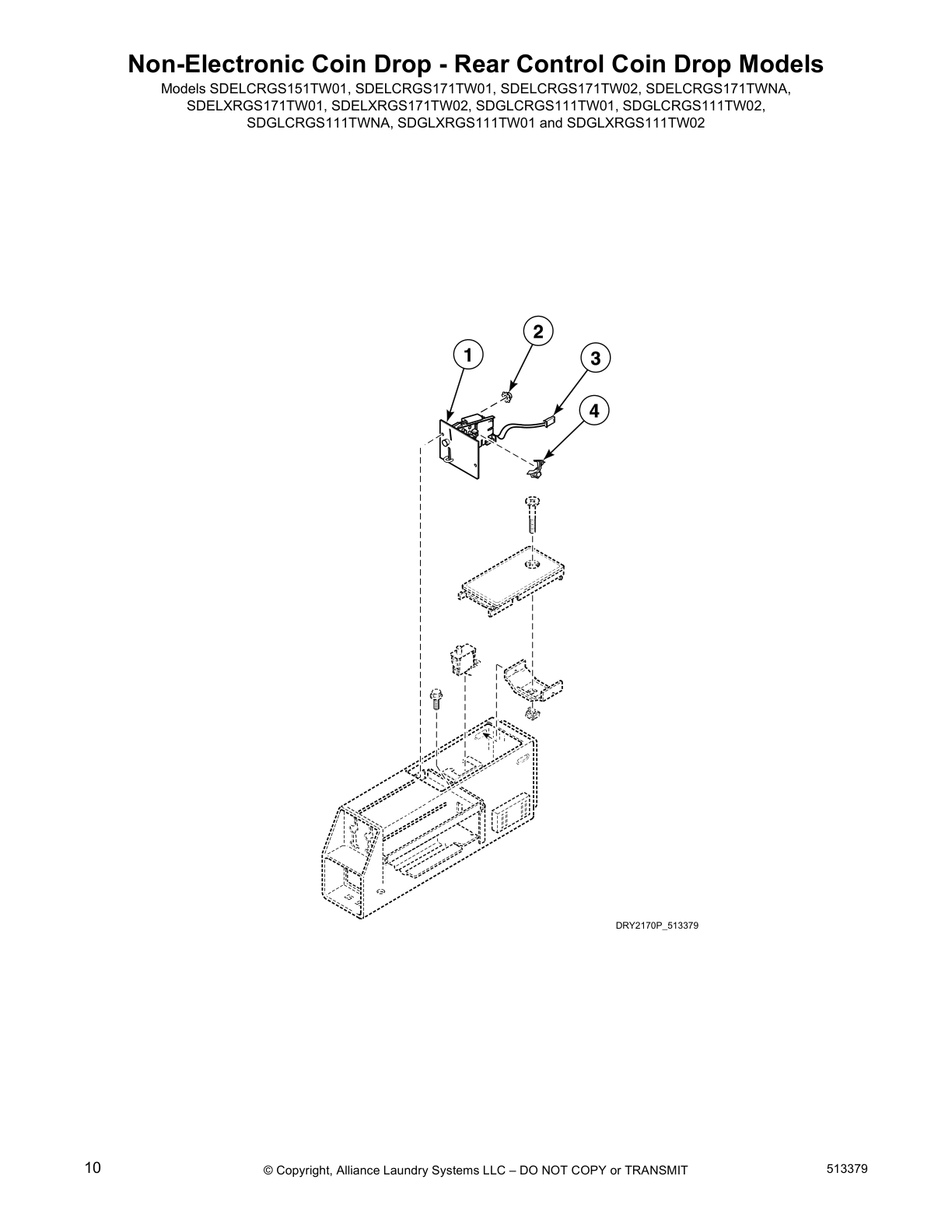

Non-Electronic Coin Drop - Rear Control Coin Drop Models

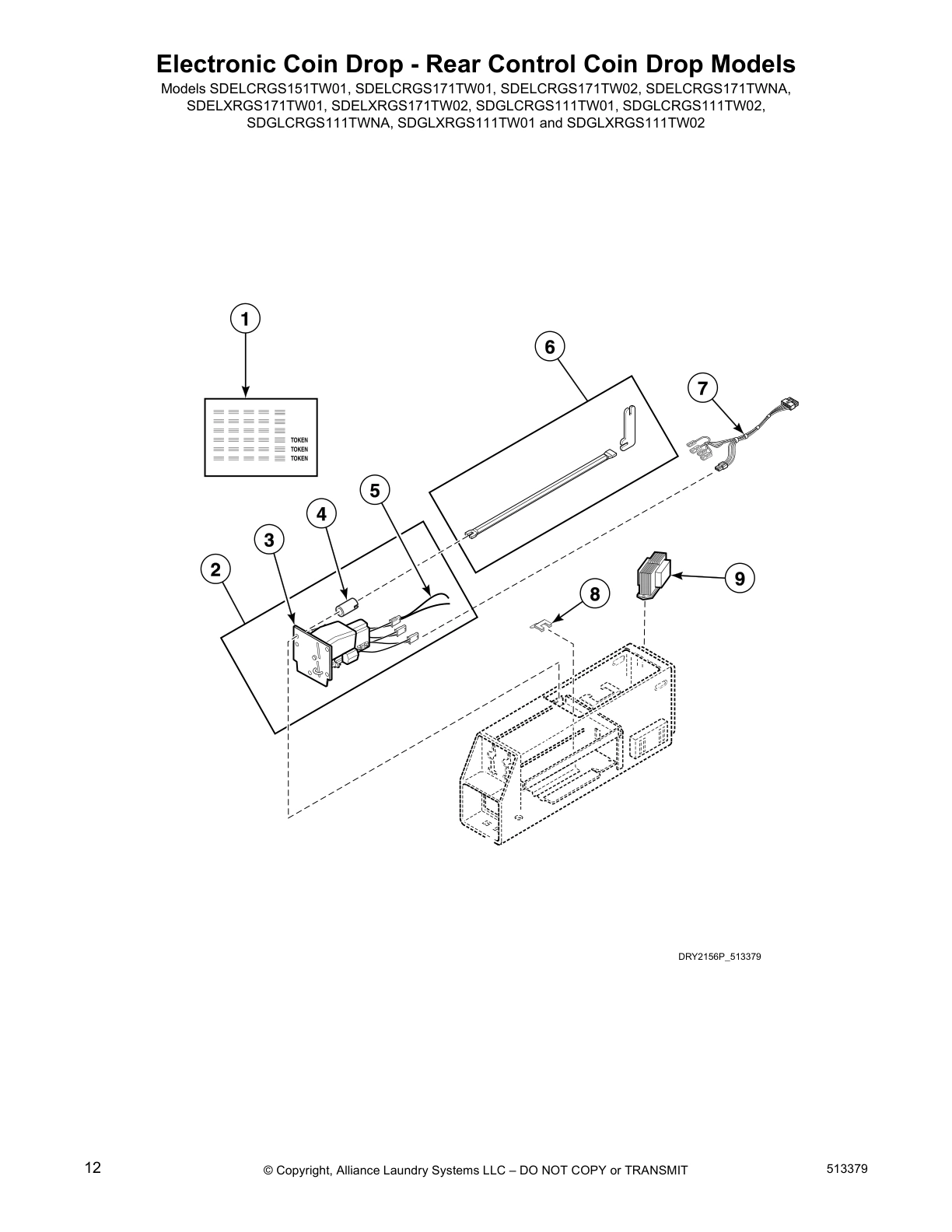

Electronic Coin Drop - Rear Control Coin Drop Models

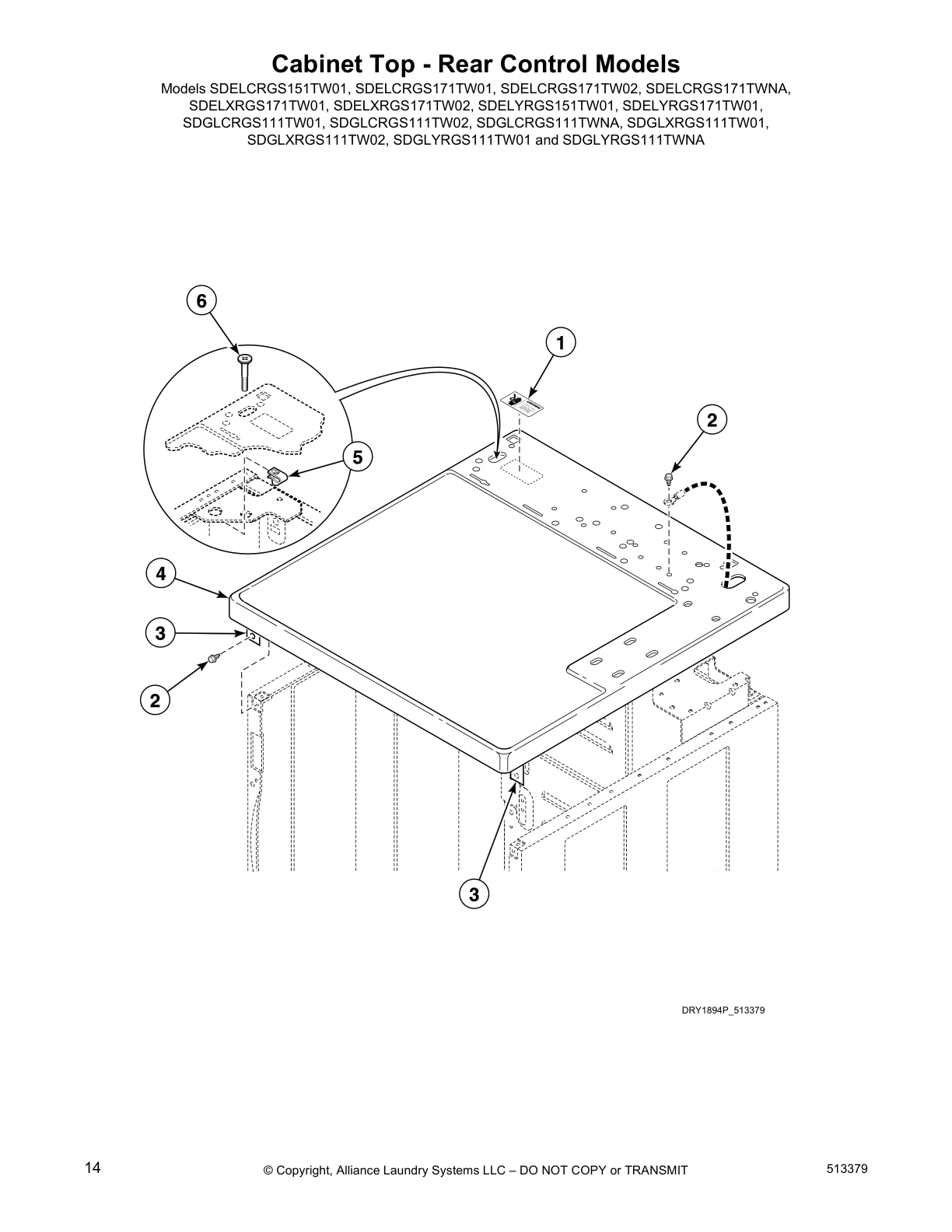

Cabinet Top - Rear Control Models

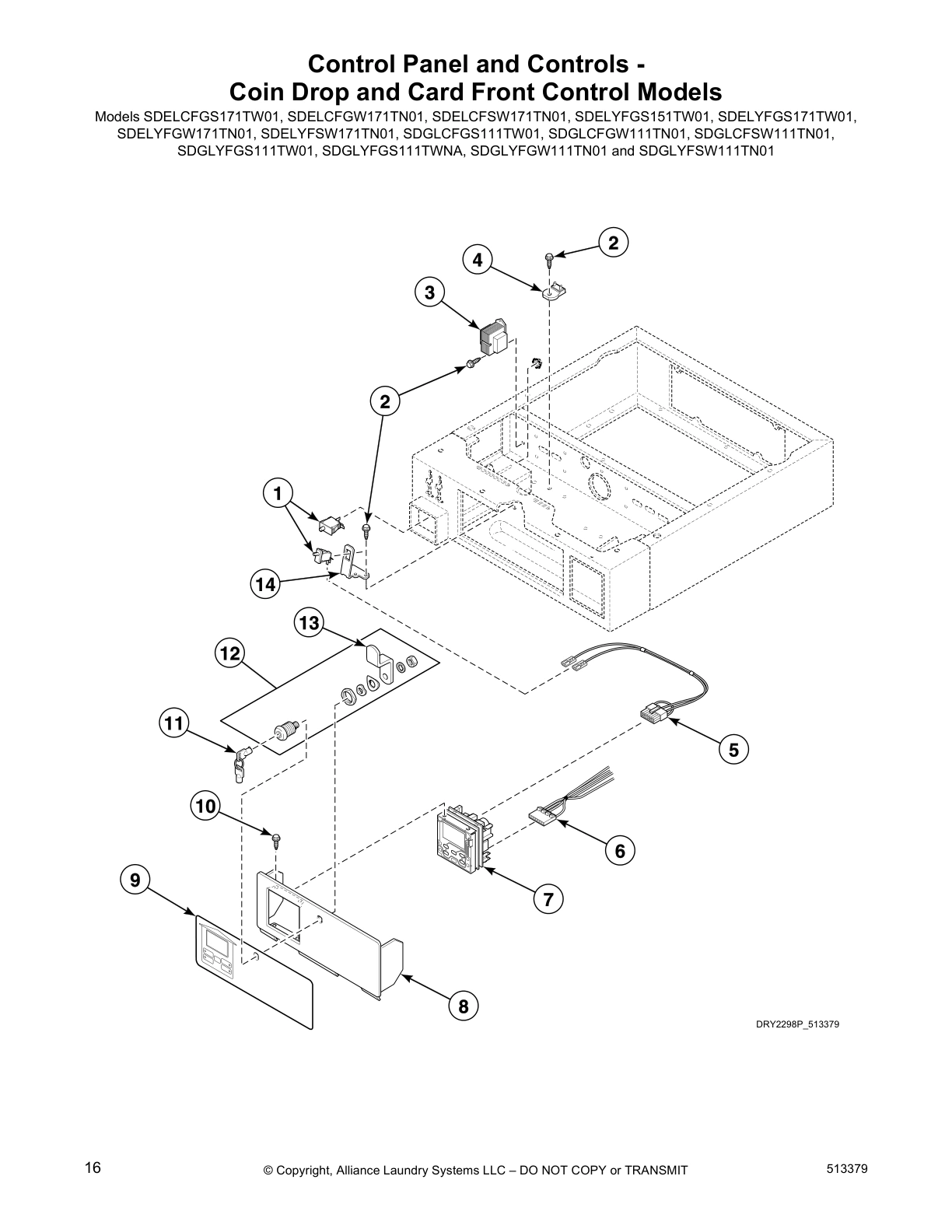

Control Panel and Controls - Coin Drop and Card Front Control Models

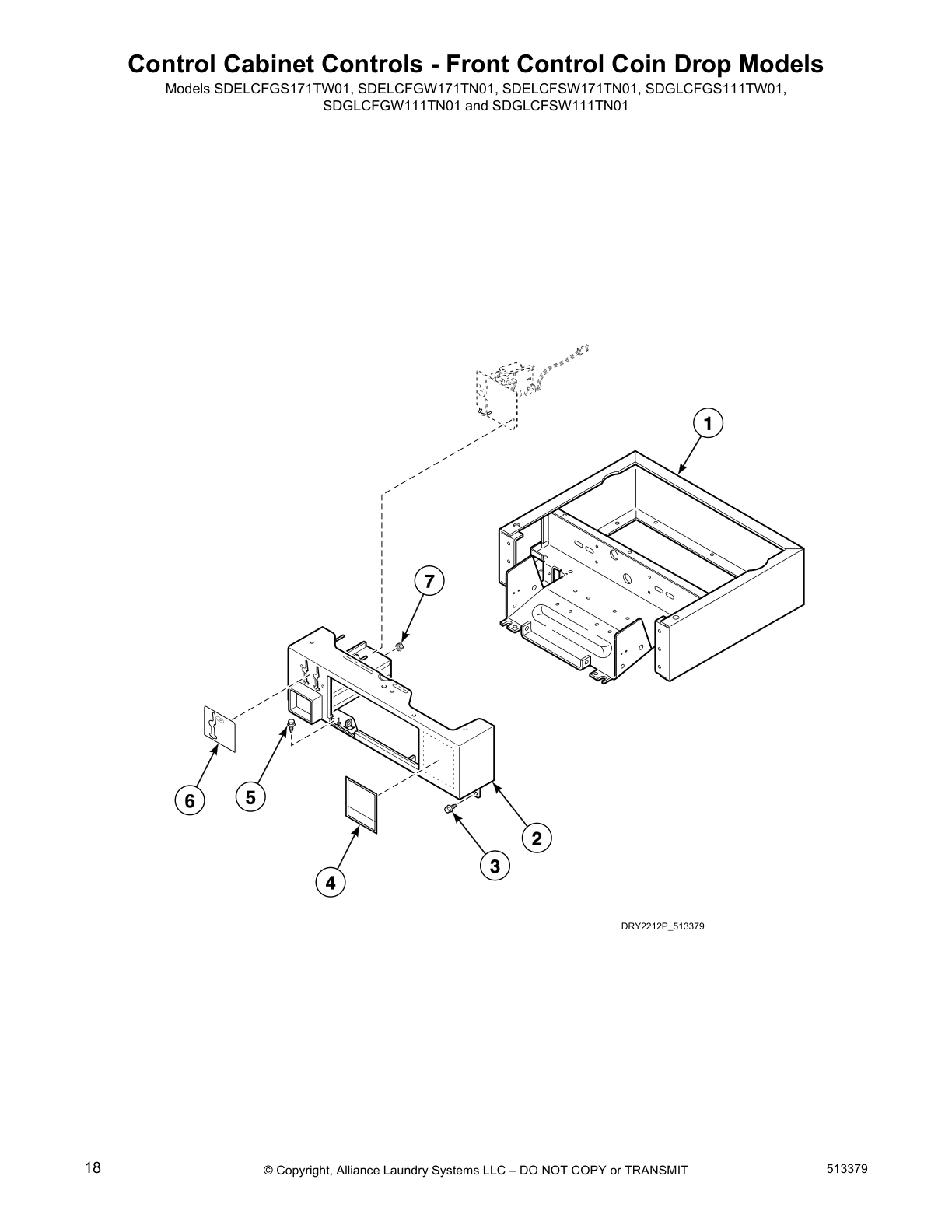

Control Cabinet Controls - Front Control Coin Drop Models

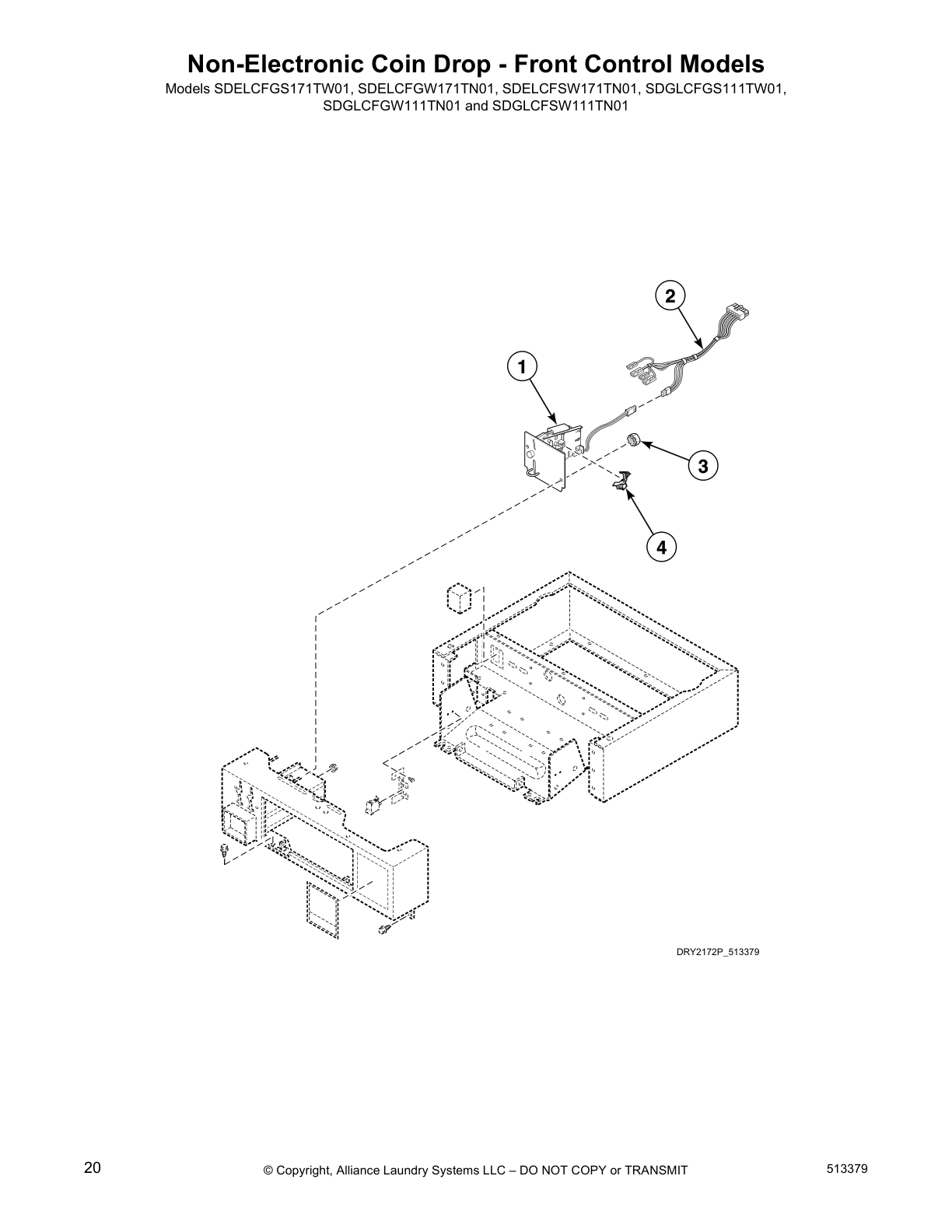

Non-Electronic Coin Drop - Front Control Models

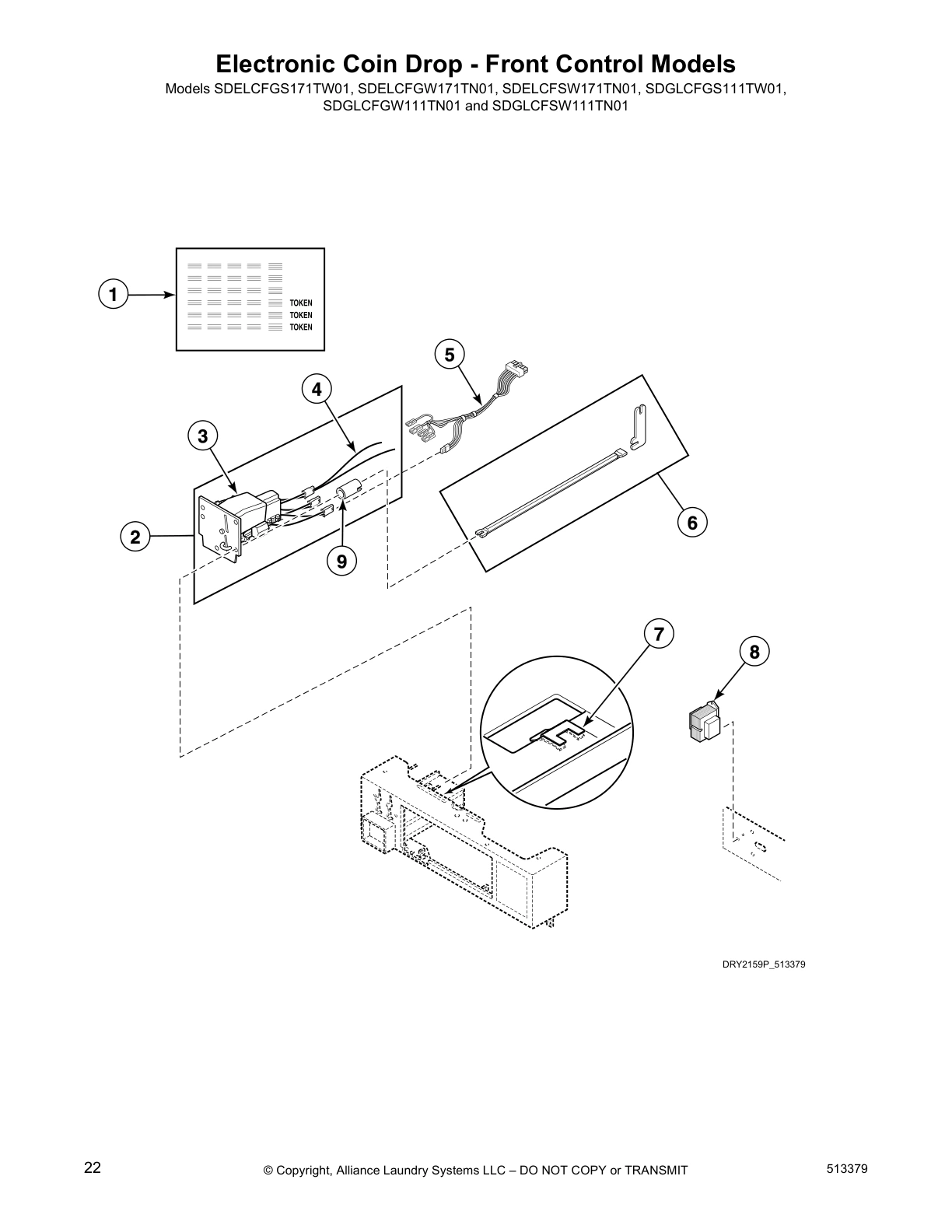

Electronic Coin Drop - Front Control Models

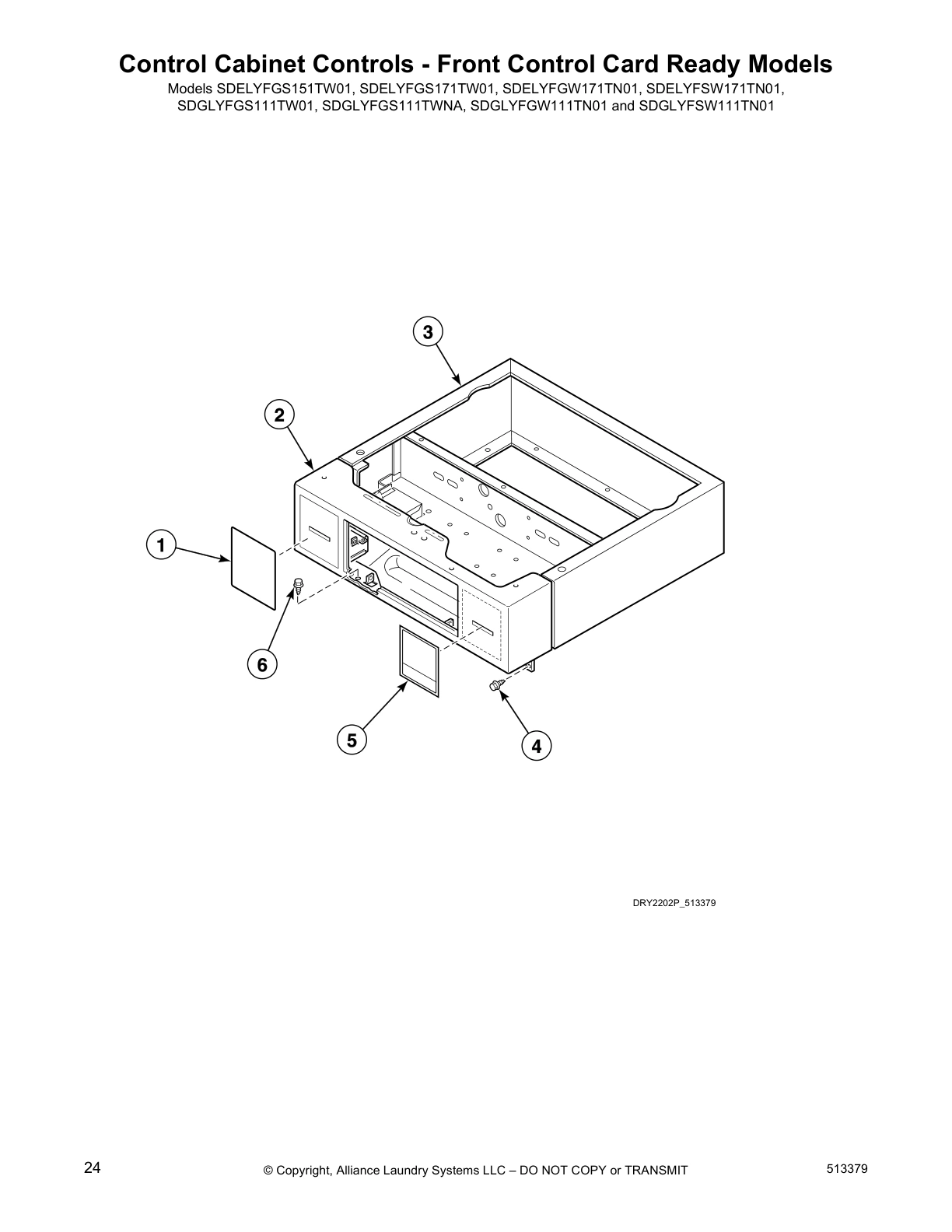

Control Cabinet Controls - Front Control Card Ready Models

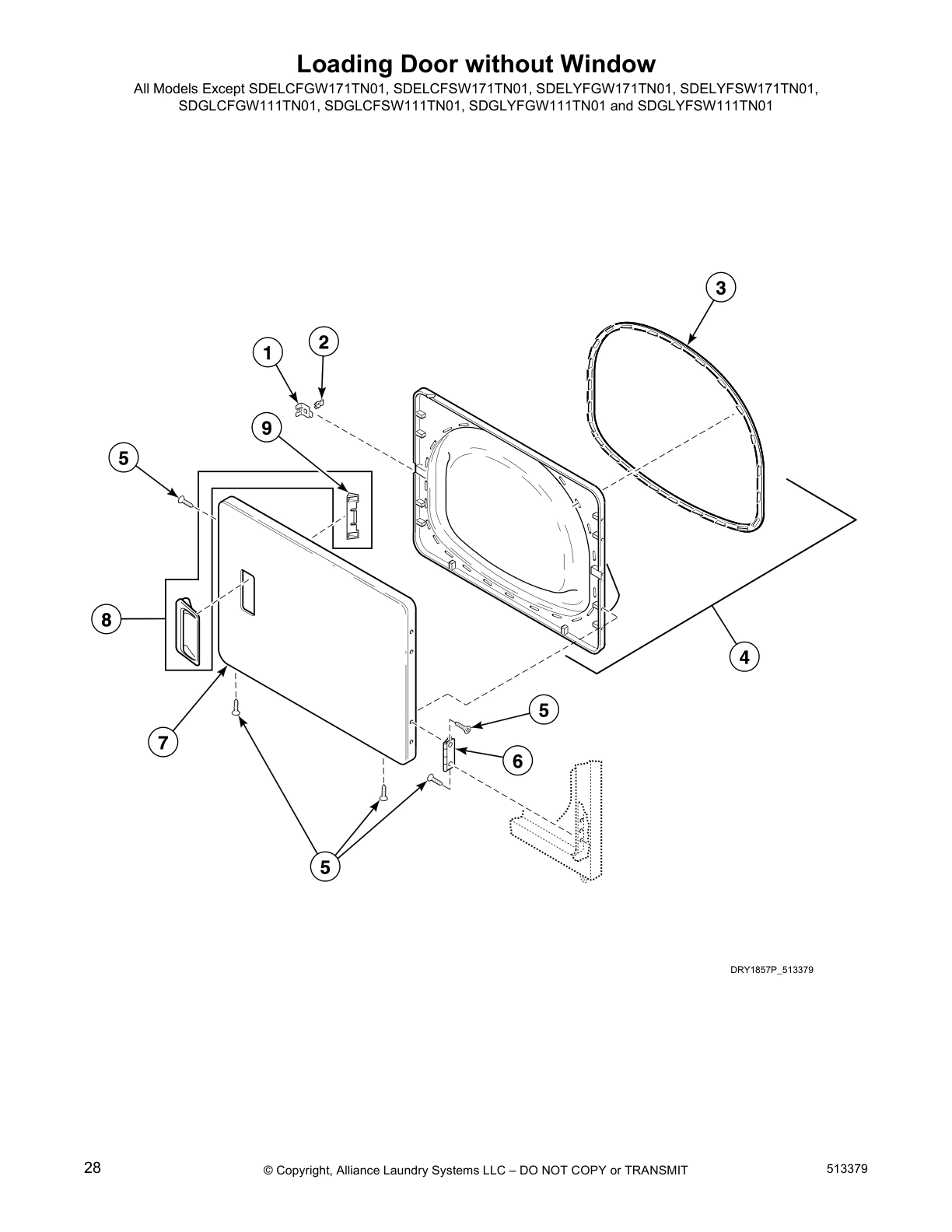

Loading Door without Window

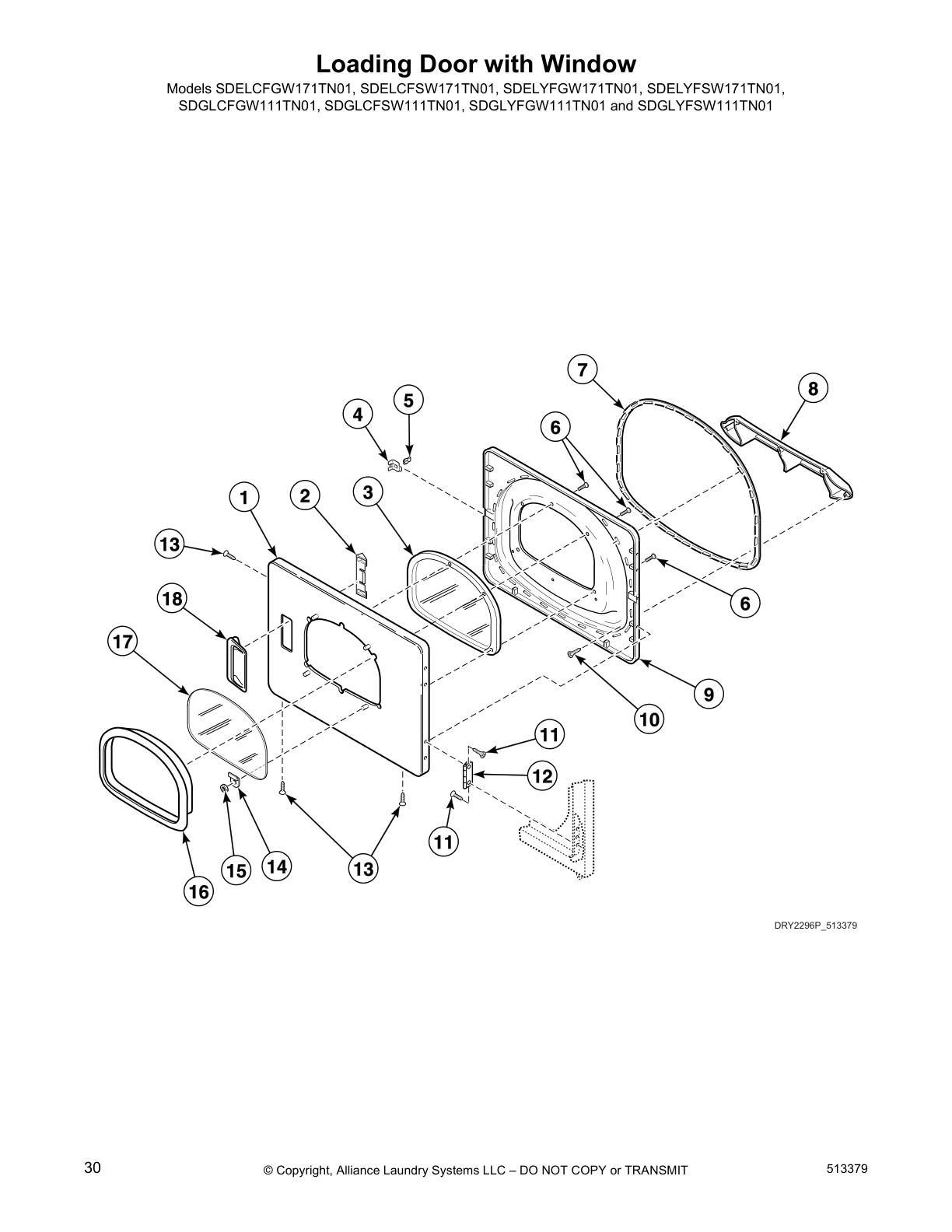

Loading Door with Window

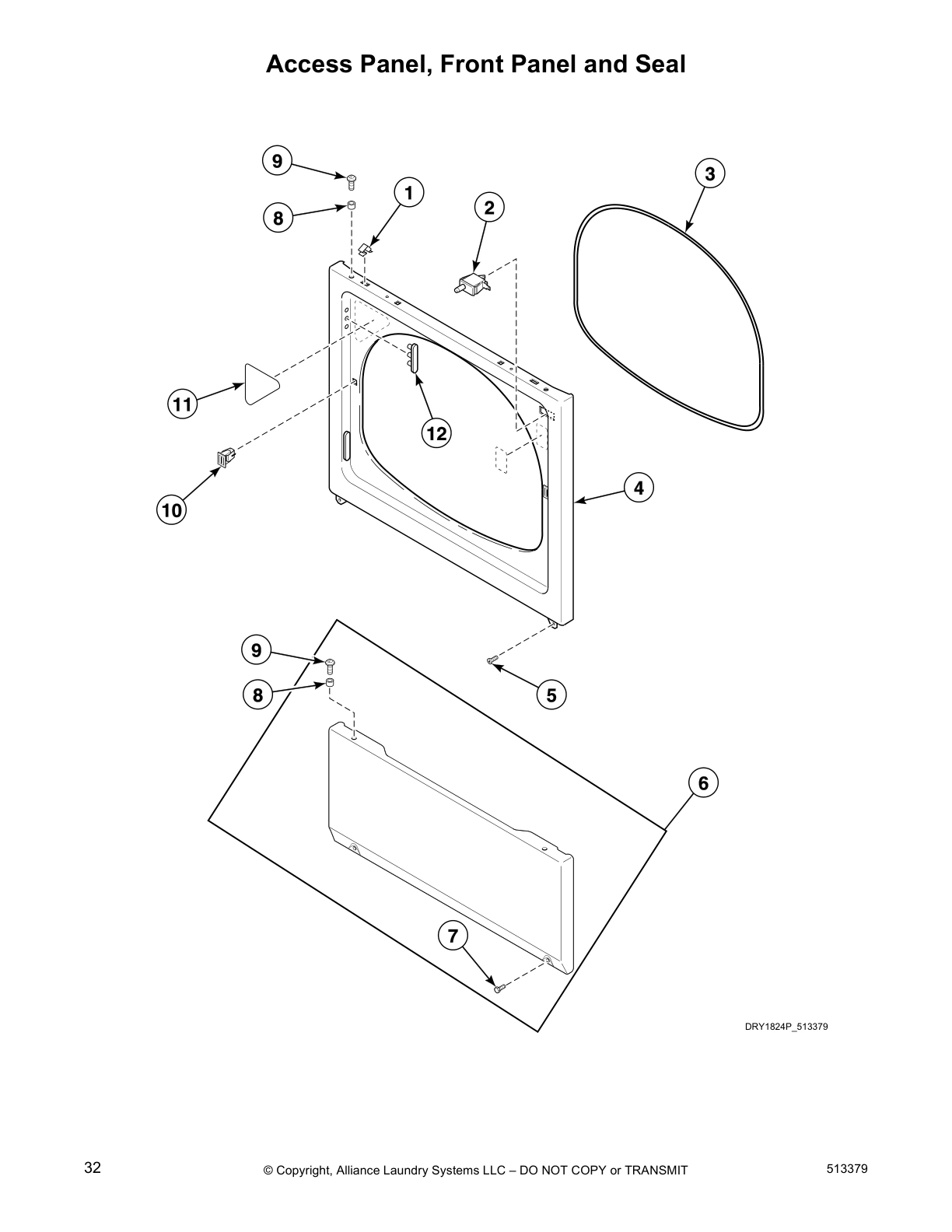

Access Panel, Front Panel and Seal

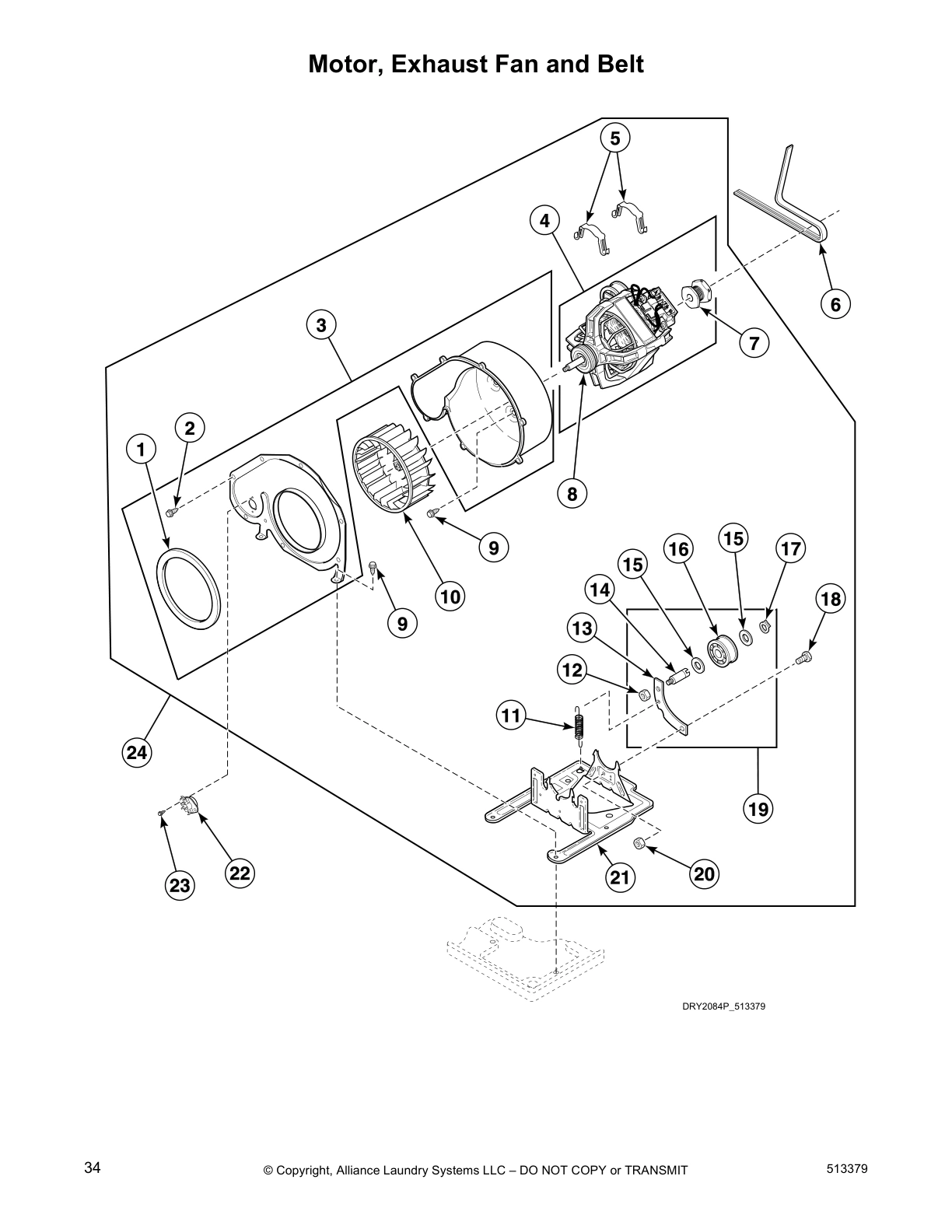

Motor, Exhaust Fan and Belt

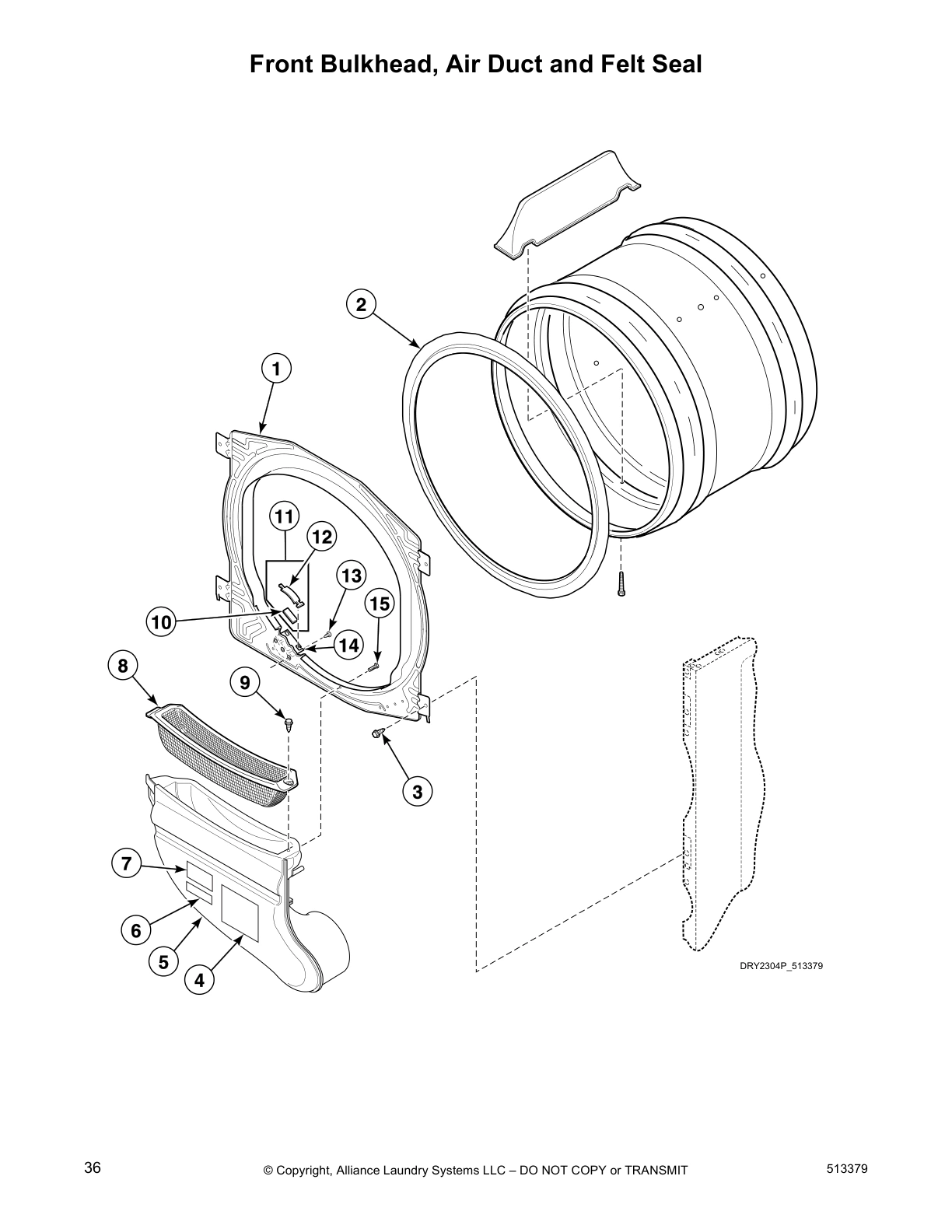

Front Bulkhead, Air Duct and Felt Seal

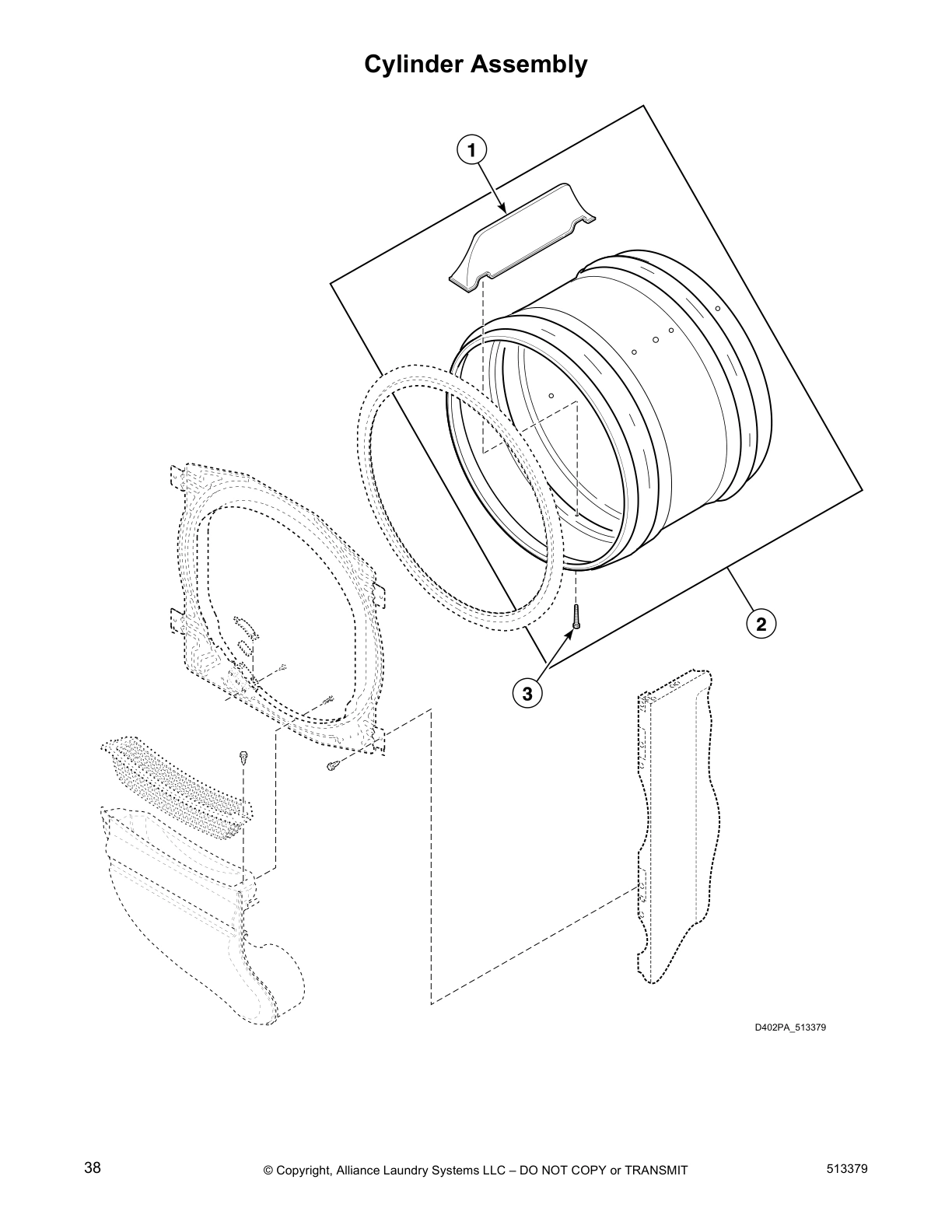

Cylinder Assembly

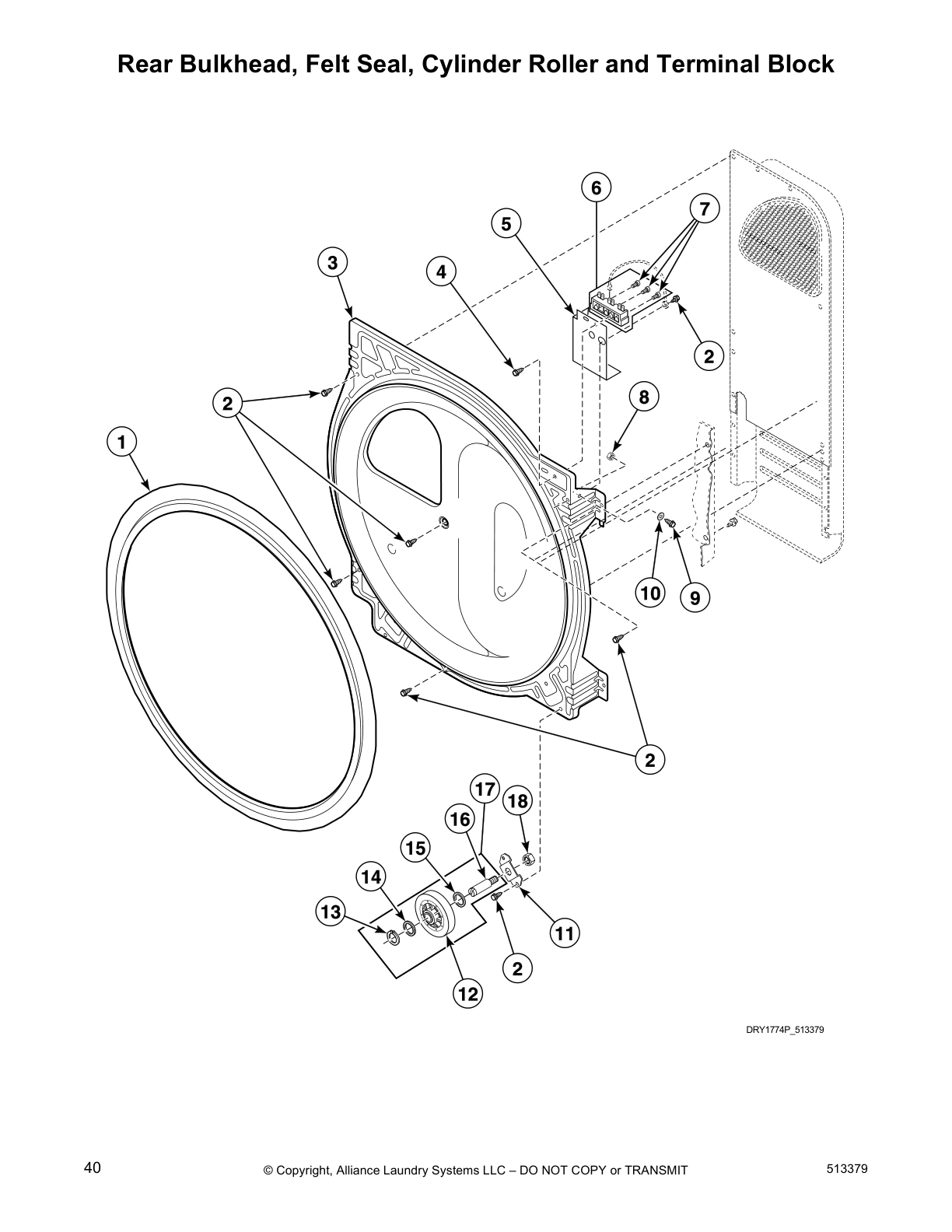

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

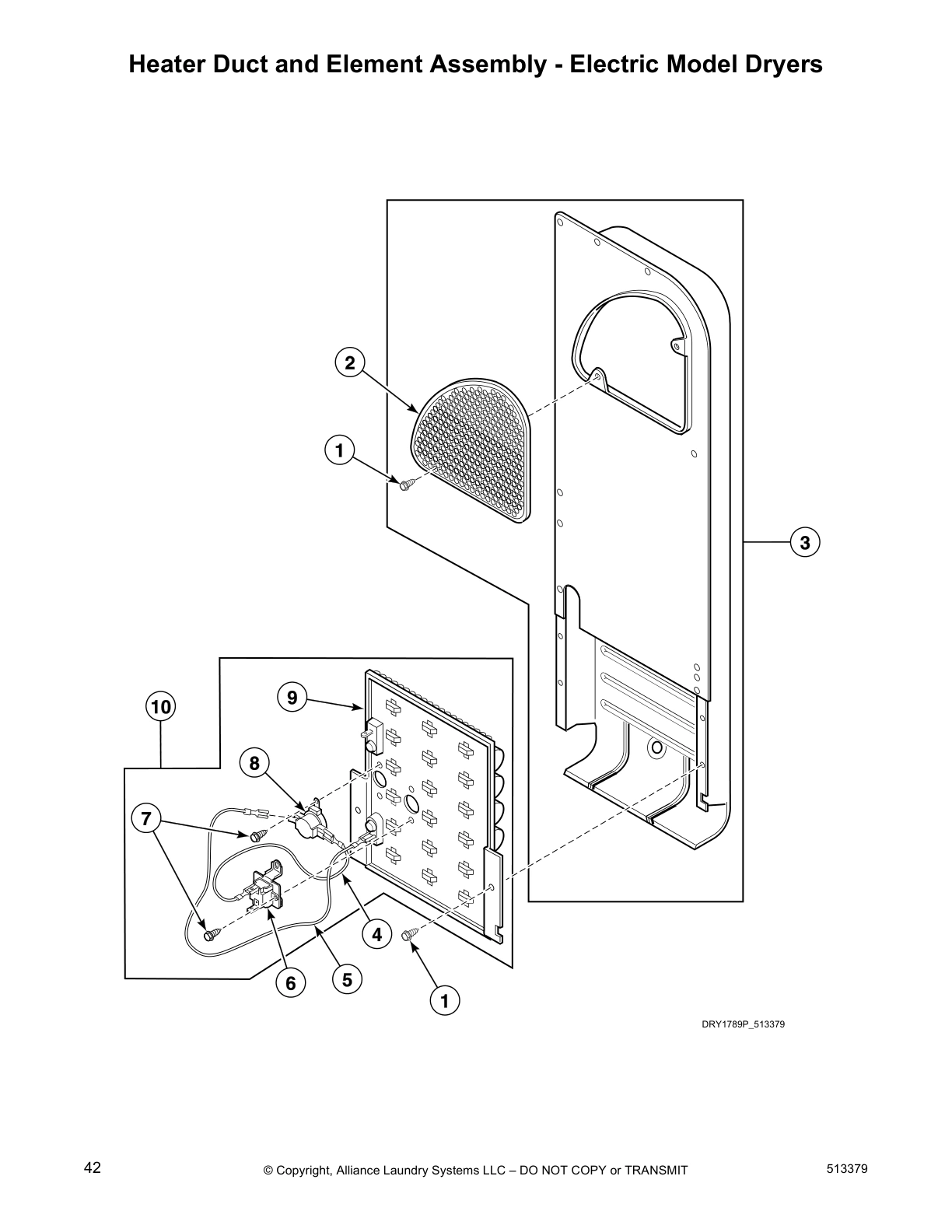

Heater Duct and Element Assembly - Electric Model Dryers

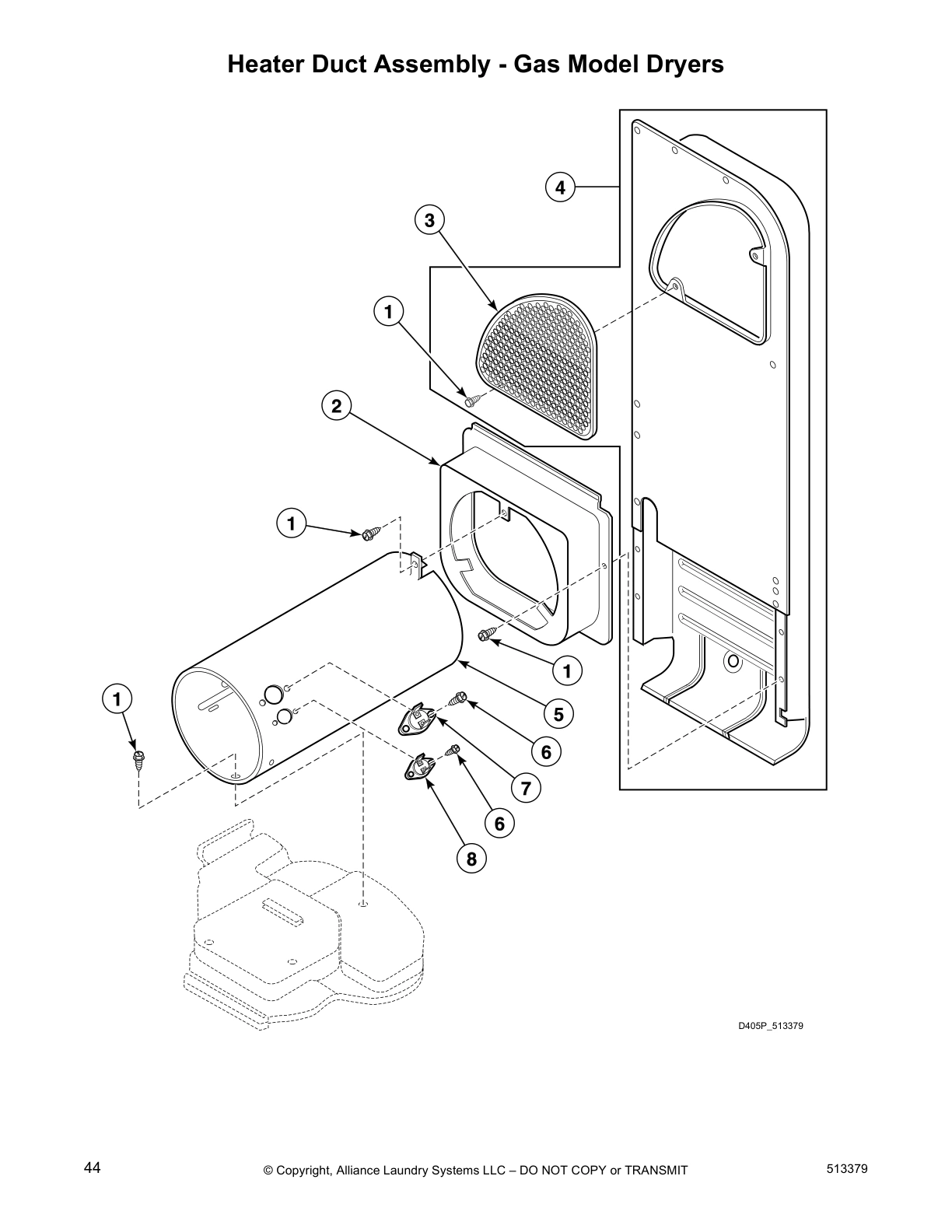

Heater Duct Assembly - Gas Model Dryers

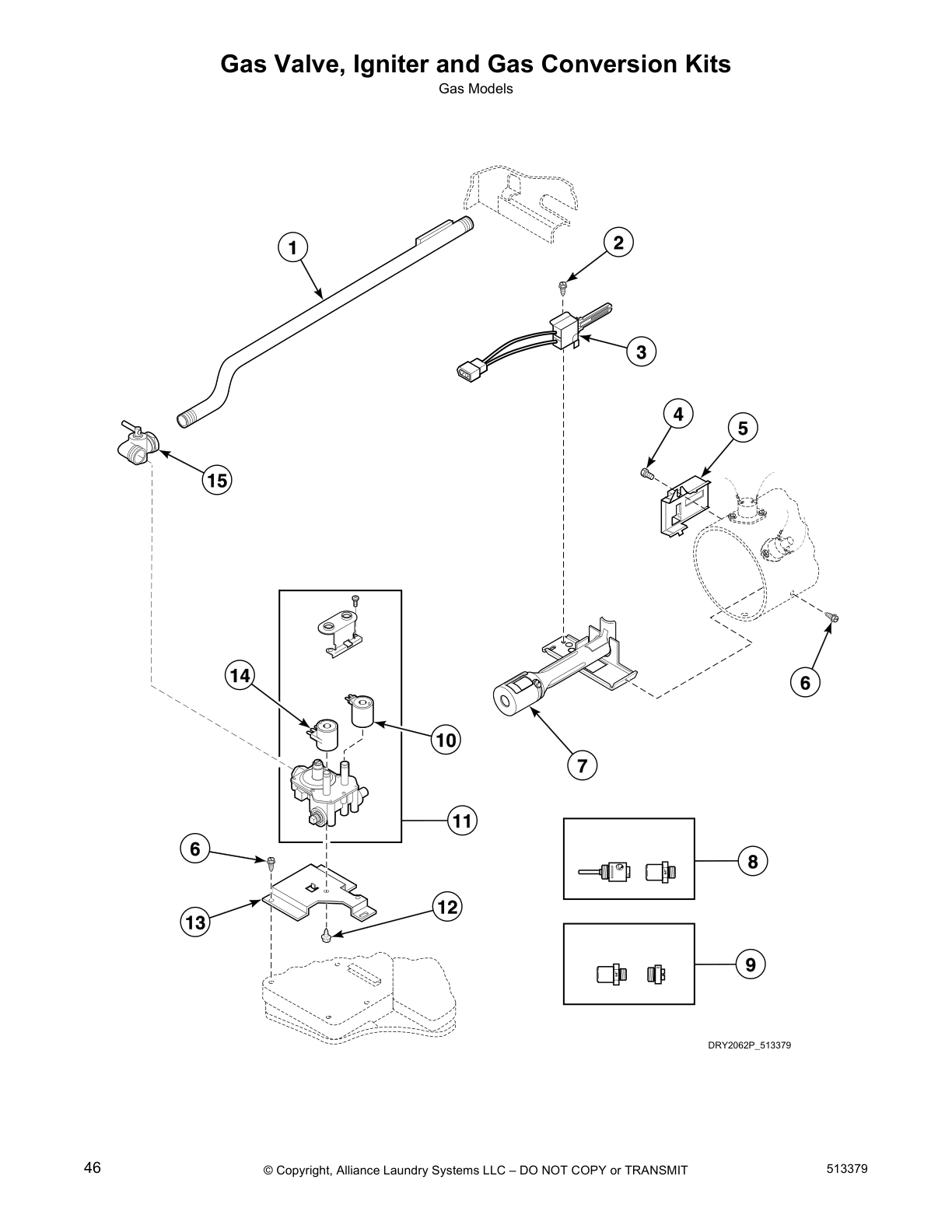

Gas Valve, Igniter and Gas Conversion Kits

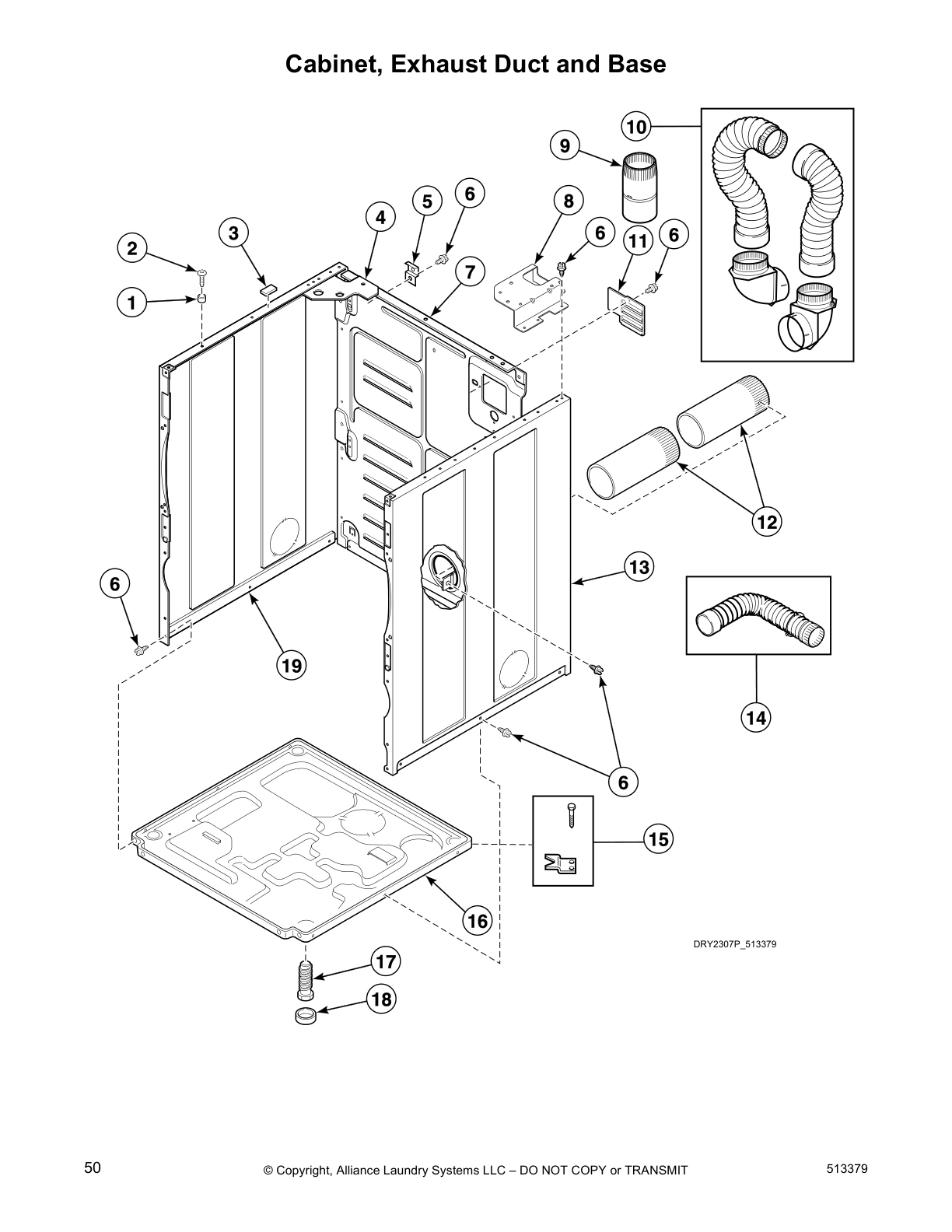

Cabinet, Exhaust Duct and Base

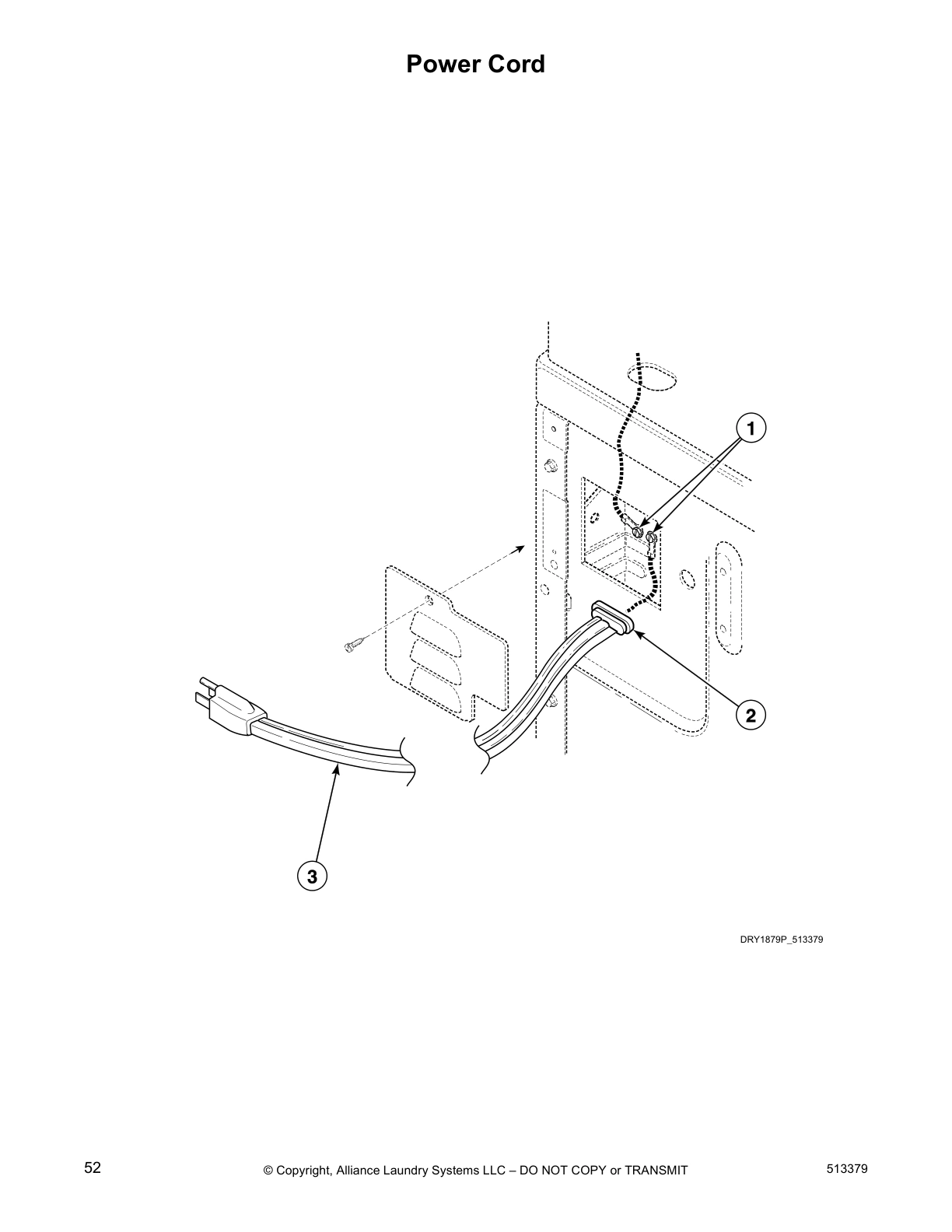

Power Cord

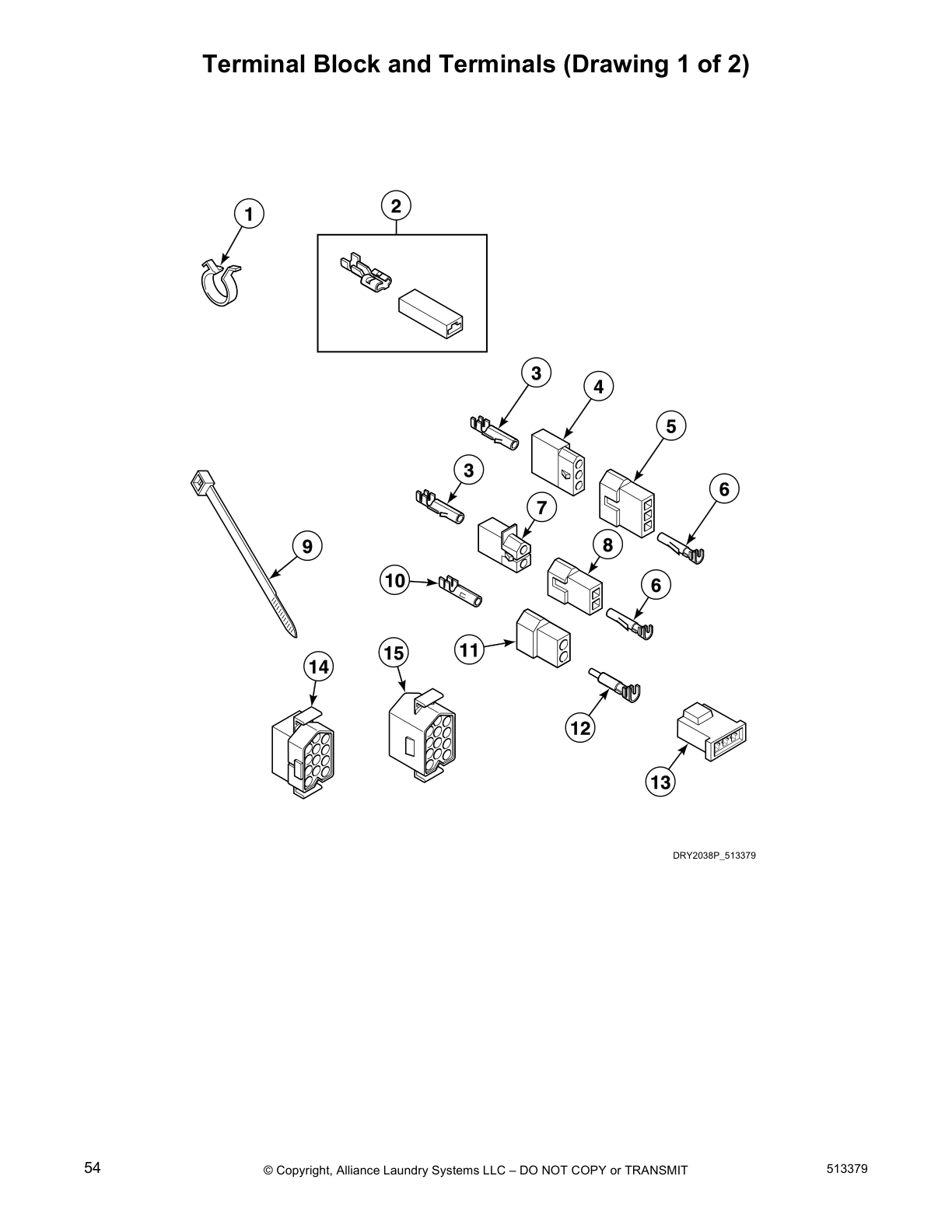

Terminal Block and Terminals (Drawing 1 of 2)

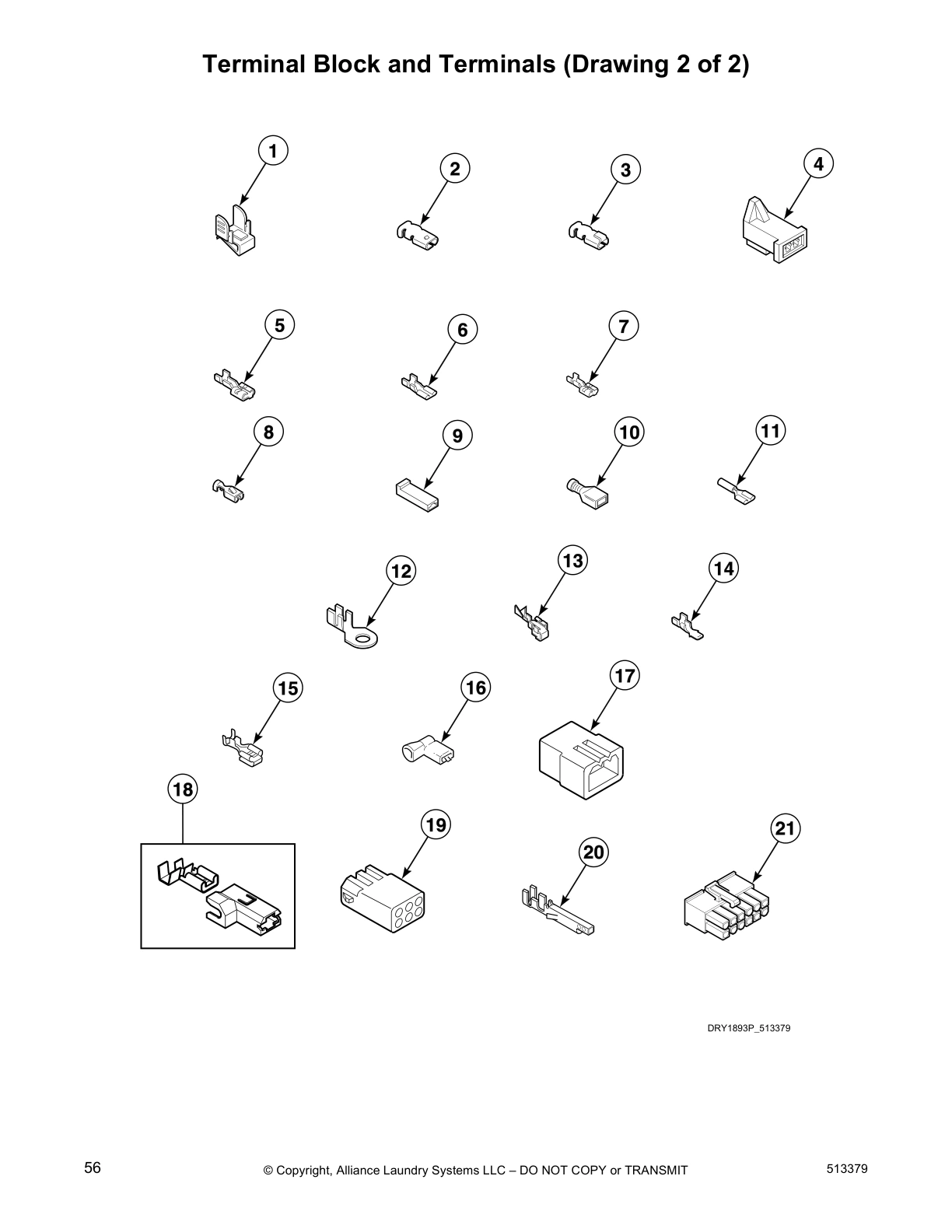

Terminal Block and Terminals (Drawing 2 of 2)

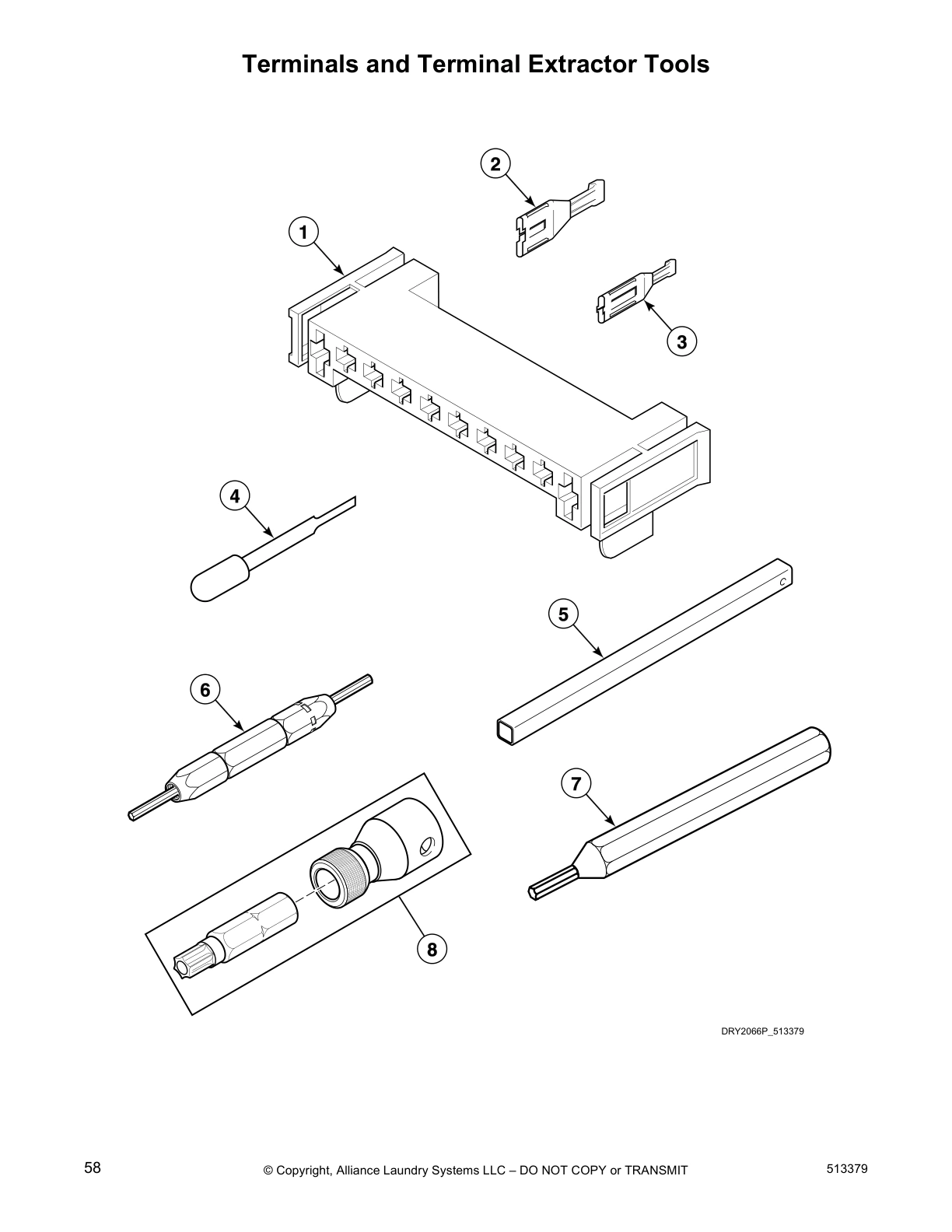

Terminals and Terminal Extractor Tools

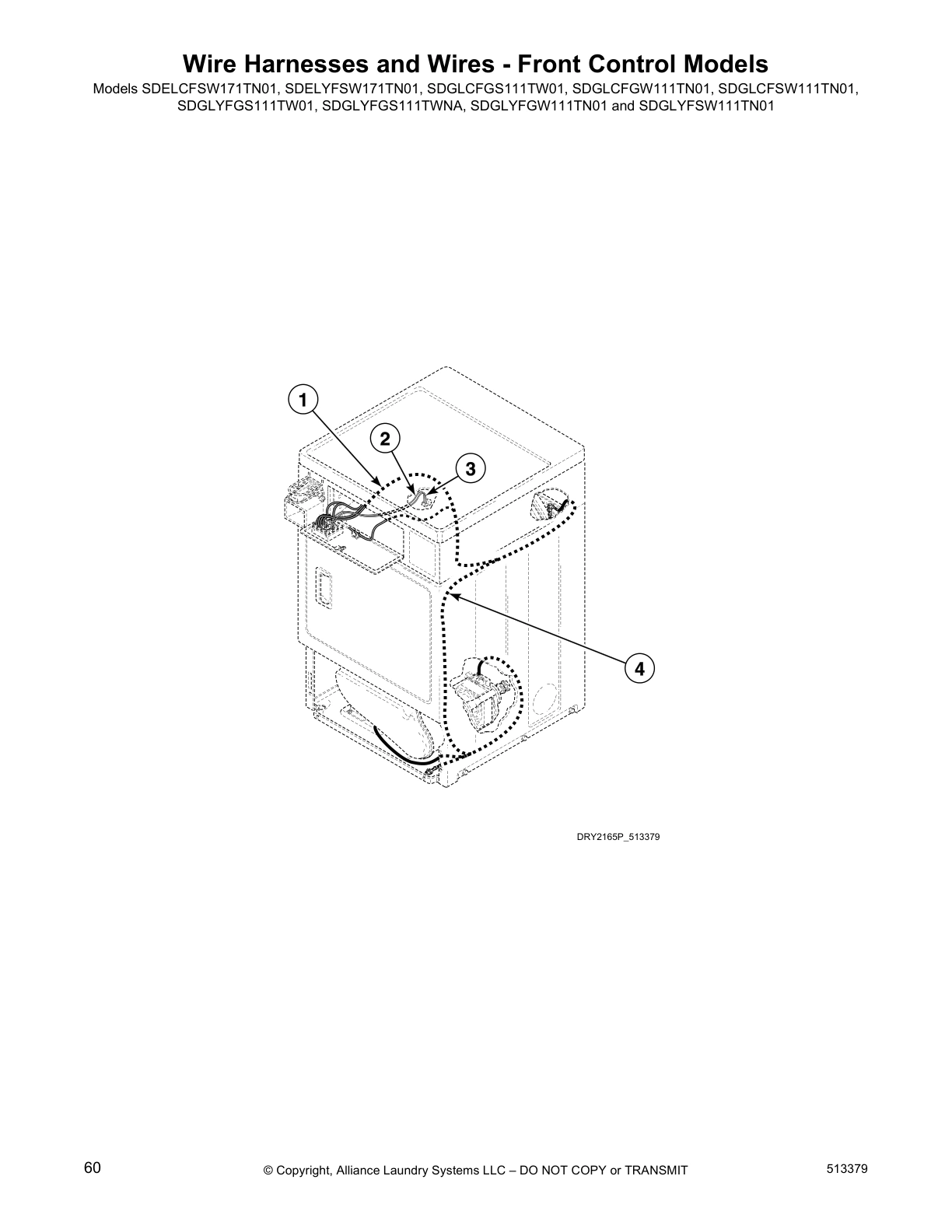

Wire Harnesses and Wires - Front Control Models

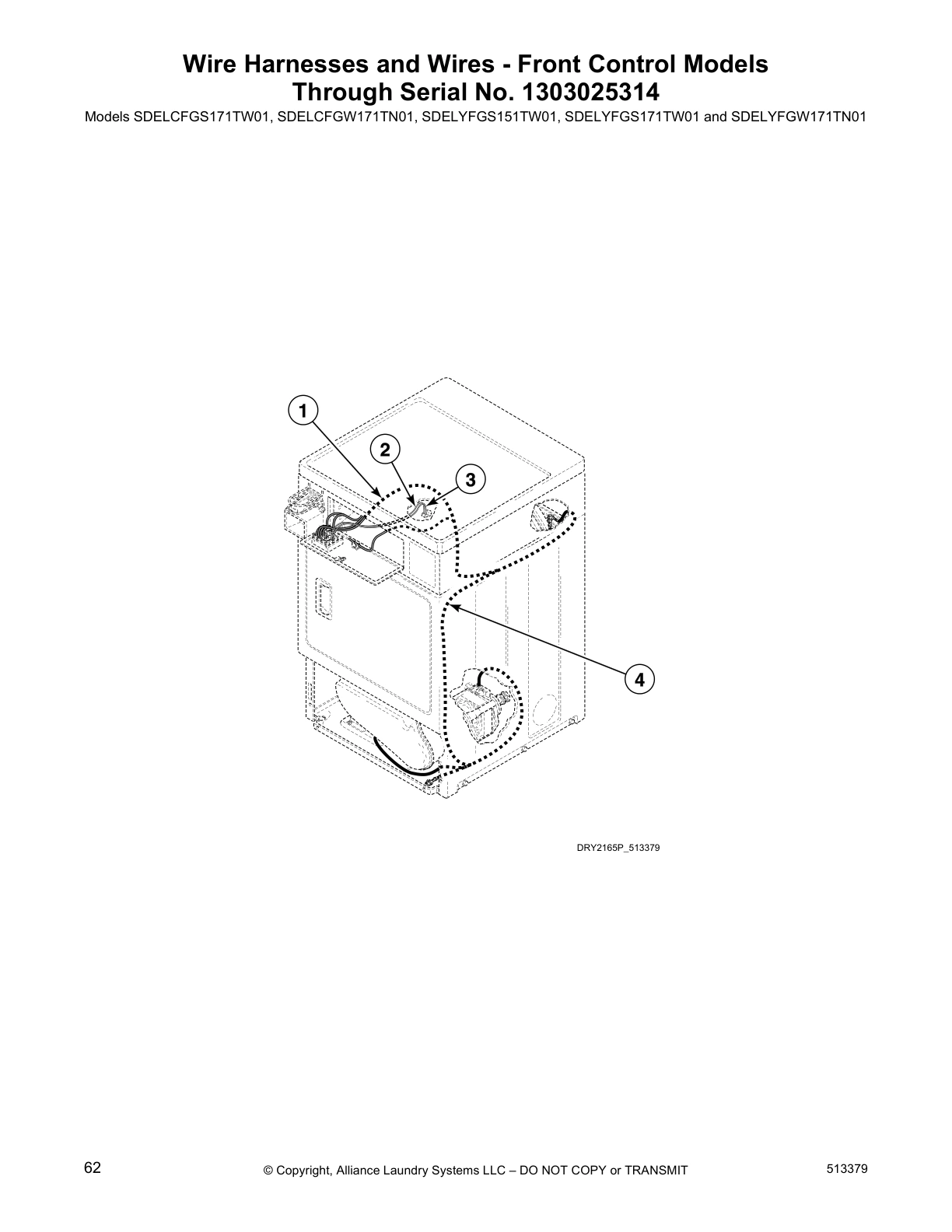

Wire Harnesses and Wires - Front Control Models Through Serial No. 1303025314

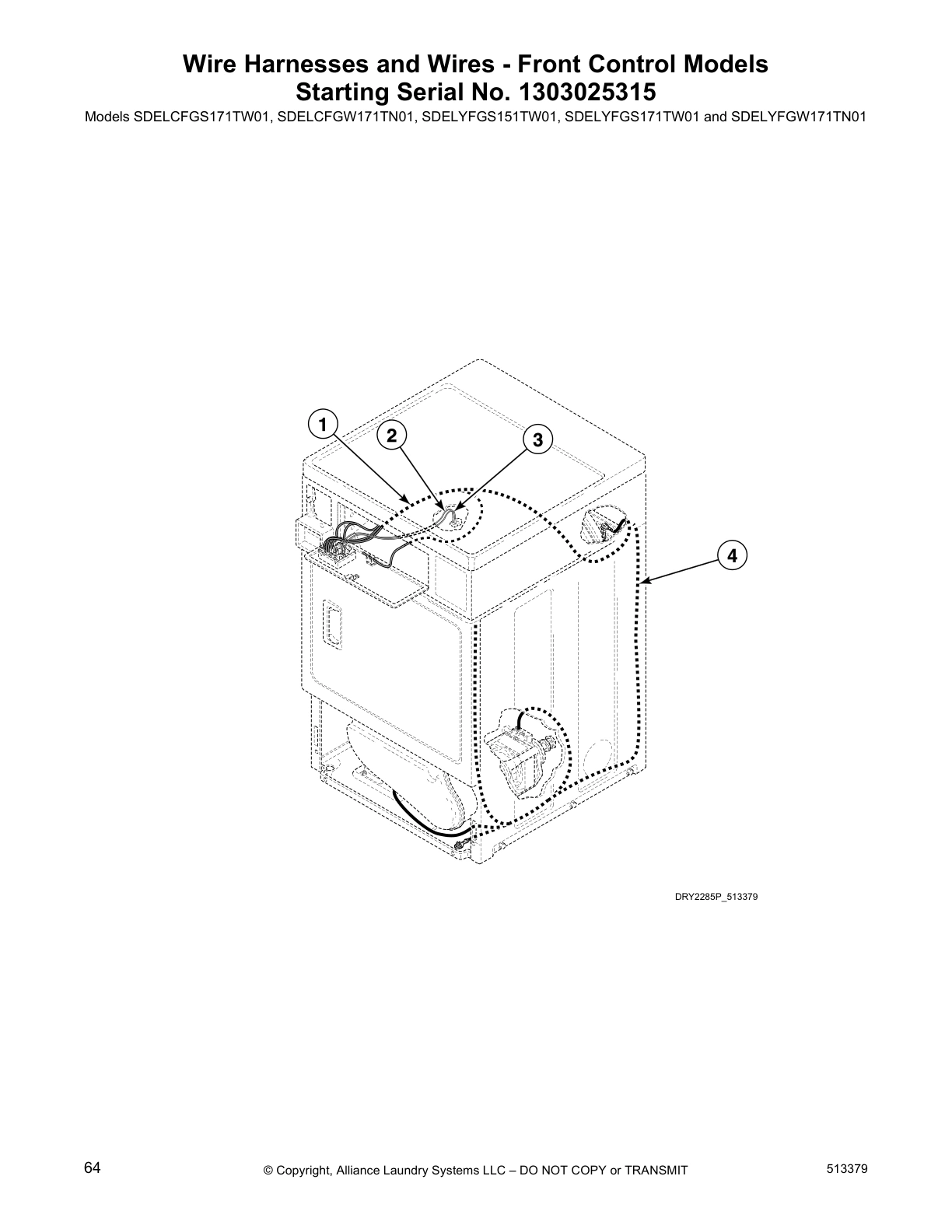

Wire Harnesses and Wires - Front Control Models Starting Serial No. 1303025315

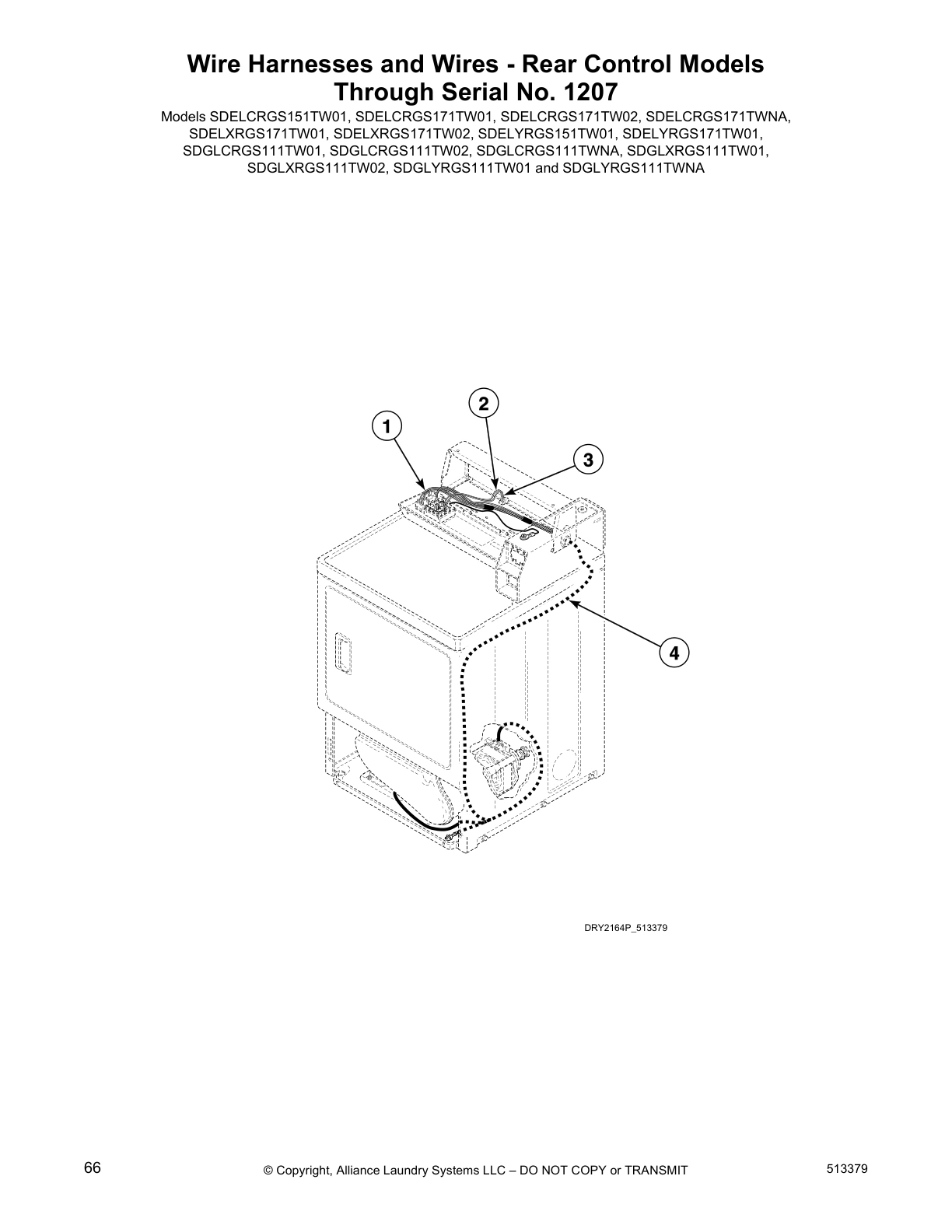

Wire Harnesses and Wires - Rear Control Models Through Serial No. 1207

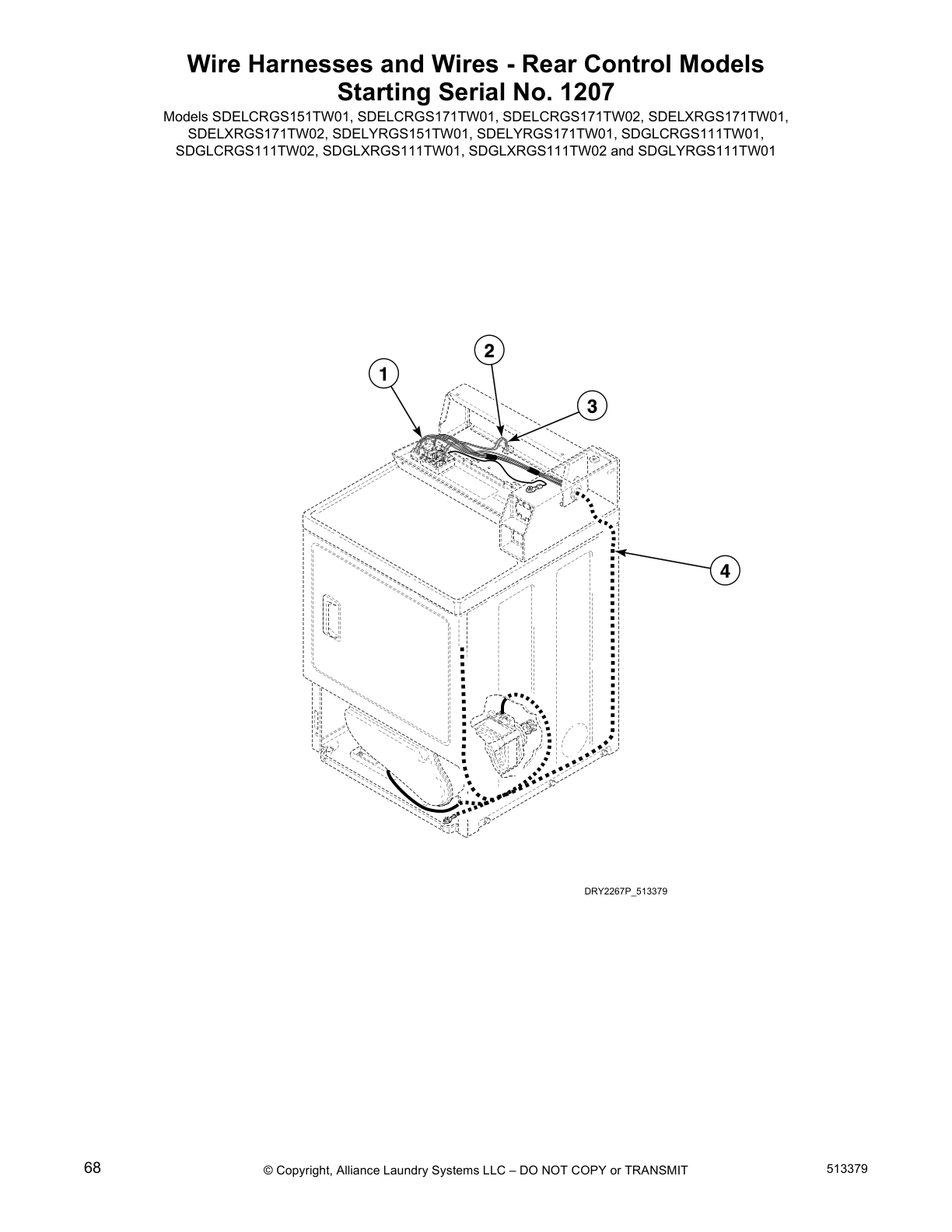

Wire Harnesses and Wires - Rear Control Models Starting Serial No. 1207

Common parts from model Speed Queen SDELCRGS171TW02 Dryer

200674P Speed Queen Opto I Coupler 12 Backorder SPQ 200674P $118.53

View on Model

26354 Speed Queen Metercase Gasket Backorder SPQ 26354 $7.32

View on Model

D503980W Speed Queen Dryer Lint Filter In Stock SPQ D503980W $26.42

View on Model

SPQ 62853 SPQ 62853 Contact Us For Availability

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $5.23

View on Model

38725 Speed Queen Coin Identifier Paper Backorder SPQ 38725 $5.23

View on Model

687500 Speed Queen Wire Clip 1.00 DIA Backorder SPQ 687500 $5.32

View on Model

D510102W Speed Queen White Cylinder Baffle In Stock SPQ D510102W $9.96

View on Model

D510238P Speed Queen Blower Housing Seal Pack Backorder SPQ D510238P $6.35

View on Model

D510266P Speed Queen Front Bulkhead Assembly In Stock SPQ D510266P $178.49

View on Model

Wire Harness Assembly SPQ 512422P Contact Us For Availability

View on Model

61928 Speed Queen Dryer Heating Element Assem In Stock SPQ 61928 $151.19

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $6.62

View on Model

D510207P Speed Queen Dryer Drum Felt Seal In Stock SPQ D510207P $37.97

View on Model

D510265WP Speed Queen Galvanized Dryer Cylind Backorder SPQ D510265WP $333.26

View on Model

D512273P Speed Queen Assembly Wire Configurat Backorder SPQ D512273P $11.16

View on Model

RB170002 Speed Queen Dryer Drum Support Rolle In Stock SPQ RB170002 $45.46

View on Model

Door Handle Wedge SPQ 510129 Contact Us For Availability

View on Model

38462P Speed Queen Coin Drop Token Assembly S Backorder SPQ 38462P $314.17

View on Model

39874WP Speed Queen Service Door Assembly Backorder SPQ 39874WP $68.74

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $5.23

View on Model

D500820 Speed Queen Washer Dryer Perforated O In Stock SPQ D500820 $24.68

View on Model

D510001WP Speed Queen Left Side Cabinet Panel Backorder SPQ D510001WP $178.49

View on Model

D510146 Speed Queen Top Mount Bracket Backorder SPQ D510146 $5.23

View on Model

D511056 Speed Queen Washer Dryer Front Seal P In Stock SPQ D511056 $9.54

View on Model

D512275P Speed Queen Wire Configuration Assem Backorder SPQ D512275P $11.16

View on Model

70441601P Speed Queen COINDROP USA .25 MUNZ L In Stock SPQ 70441601P $256.27

View on Model

D510127 Speed Queen Washer Dryer Door Strike In Stock SPQ D510127 $2.52

View on Model

D510163WP Speed Queen Liner Seal and Grill As Backorder SPQ D510163WP $176.06

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $74.17

View on Model

D511629P Speed Queen Motor and Pulley Assembl In Stock SPQ D511629P $323.05

View on Model

Front Panel SPQ 510066WP Contact Us For Availability

View on Model

00360 Speed Queen 1/4" Female Insulated Termi Backorder SPQ 00360 $1.03

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $65.34

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $3.32

View on Model

Wire Assembly SPQ 510528 Contact Us For Availability

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $5.23

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $5.23

View on Model

CK096 Speed Queen Mounting Tool Kit Backorder SPQ CK096 $16.32

View on Model

D511082P Speed Queen Rear Bulkhead Assembly w In Stock SPQ D511082P $138.81

View on Model

D511255P Speed Queen Dryer Rubber Face Cylind In Stock SPQ D511255P $26.73

View on Model

Wire Assembly SPQ 510527 Contact Us For Availability

View on Model

D500011 Speed Queen Dryer Motor Pulley In Stock SPQ D500011 $37.19

View on Model

D510013WP Speed Queen Dryer Door In Stock SPQ D510013WP $114.10

View on Model

D510147P Speed Queen Door Liner Seal Backorder SPQ D510147P $18.90

View on Model

D518649 Speed Queen Dryer Thermal Fuse In Stock SPQ D518649 $6.18

View on Model

310P4 Speed Queen Washer Dryer Ratchet Extens In Stock SPQ 310P4 $45.46

View on Model

590P3 Speed Queen Motor Hub Ring Kit Backorder SPQ 590P3 $51.29

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $5.23

View on Model

D510103QP Speed Queen Door Pull and Wedge Kit Backorder SPQ D510103QP $12.98

View on Model

D510190P Speed Queen Dryer Terminal Block Ass In Stock SPQ D510190P $6.62

View on Model

D515873 Speed Queen Green Limit Thermostat In Stock SPQ D515873 $22.85

View on Model

964P3 Speed Queen Washer-Dryer Combo Kit In Stock SPQ 964P3 $159.76

View on Model

D510139P Speed Queen Blower Fan Assembly In Stock SPQ D510139P $52.20

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $9.60

View on Model

D510189 Speed Queen Felt Pad In Stock SPQ D510189 $5.65

View on Model

RB170001 Speed Queen Dryer Seal Kit 1992 and In Stock SPQ RB170001 $110.41

View on Model

802905 Speed Queen Dual Coin Harness Assembly Backorder SPQ 802905 $37.28

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $2.31

View on Model

D510903 Speed Queen Access Cover Plate - 3 Lo In Stock SPQ D510903 $4.16

View on Model

D511637P Speed Queen Washer Dryer Adhesive Do In Stock SPQ D511637P $47.48

View on Model

RB170003 Speed Queen Dryer Glide Kit for 1992 In Stock SPQ RB170003 $28.77

View on Model

38717 Speed Queen Single Munz Overlay Backorder SPQ 38717 $9.10

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $5.45

View on Model

D510186 Speed Queen Hinge Hole Plug Backorder SPQ D510186 $3.18

View on Model

D511036 Speed Queen Door Hinge In Stock SPQ D511036 $4.81

View on Model

D513710 Speed Queen Cylinder Glide In Stock SPQ D513710 $9.79

View on Model

D516196 Speed Queen One-Piece Exhaust Duct Backorder SPQ D516196 $18.53

View on Model

210018P Speed Queen Transformer In Stock SPQ 210018P $96.21

View on Model

52864 Speed Queen Flat Head Screw, 8AB-18 x 5 Backorder SPQ 52864 $1.33

View on Model

D510100 Speed Queen Cylinder Roller Bracket In Stock SPQ D510100 $5.45

View on Model

Idler Lever SPQ 510133 Contact Us For Availability

View on Model

201375P Speed Queen Transformer 120V Dual Sec Backorder SPQ 201375P $81.81

View on Model

528P3 Speed Queen Directional Exhaust Kit In Stock SPQ 528P3 $84.67

View on Model

D510145 Speed Queen Cylinder Glide Bracket In Stock SPQ D510145 $11.01

View on Model

D510708P Speed Queen Cylinder Roller with Ins In Stock SPQ D510708P $17.07

View on Model

D512973 Speed Queen Washer Dryer Push Button In Stock SPQ D512973 $13.59

View on Model

210100 Speed Queen Resistor,VOLTAGE CONFIGURA Backorder SPQ 210100 $18.03

View on Model

D510002WP Speed Queen Right Side Cabinet Pane Backorder SPQ D510002WP $198.06

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.32

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $2.08

View on Model

D510142P Speed Queen Dryer Idler Pulley Wheel In Stock SPQ D510142P $12.48

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $5.45

View on Model

D504082 Speed Queen Washer Dryer Wave In Stock SPQ D504082 $5.55

View on Model

23033 Speed Queen 9-Circuit Plug Backorder SPQ 23033 $1.70

View on Model

56461P Speed Queen Washer Dryer Idler/Rolley In Stock SPQ 56461P $12.48

View on Model

D500824 Speed Queen Screw Backorder SPQ D500824 $5.23

View on Model

D510067W Speed Queen Control Panel Backorder SPQ D510067W $79.41

View on Model

D510135 Speed Queen Leveling Leg Backorder SPQ D510135 $6.35

View on Model

D516792 Speed Queen Dryer Idler Lever Pulley In Stock SPQ D516792 $31.62

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $5.23

View on Model

Blower and Fan Kit SPQ 510060 Contact Us For Availability

View on Model

D510523 Speed Queen Dryer Thermistor Assembly In Stock SPQ D510523 $24.30

View on Model

D510717P Speed Queen Blower and Fan Kit 120/6 Backorder SPQ D510717P $634.53

View on Model

201595P Speed Queen Wire Guard Backorder SPQ 201595P $29.20

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $7.86

View on Model

33562 Speed Queen Screw Tap Socket Head 10B-1 Backorder SPQ 33562 $5.23

View on Model

45001 Speed Queen 18GA Black Wire Backorder SPQ 45001 $0.49

View on Model

45380 Speed Queen Wire 12GA ORG/PER FT Backorder SPQ 45380 $5.23

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.89

View on Model

61199 Speed Queen Mach-HXWAHD 10-32 ST Screw Backorder SPQ 61199 $5.54

View on Model

802904P Speed Queen Coin Drop Harness Assembl Backorder SPQ 802904P $50.42

View on Model

807401W Speed Queen High Drop Meter Case Asse In Stock SPQ 807401W $285.25

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $5.23

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx Backorder SPQ D501285 $2.08

View on Model

D510103WP Speed Queen Washer/Dryer Door Pull In Stock SPQ D510103WP $8.09

View on Model

D510329P Speed Queen Heater Assembly 5.35 kW In Stock SPQ D510329P $157.17

View on Model

D514632P Speed Queen Rear Cabinet Panel Packa Backorder SPQ D514632P $93.30

View on Model
