Model Alliance NDGSXRGS543NW22 Dryer – Common Parts & Diagrams

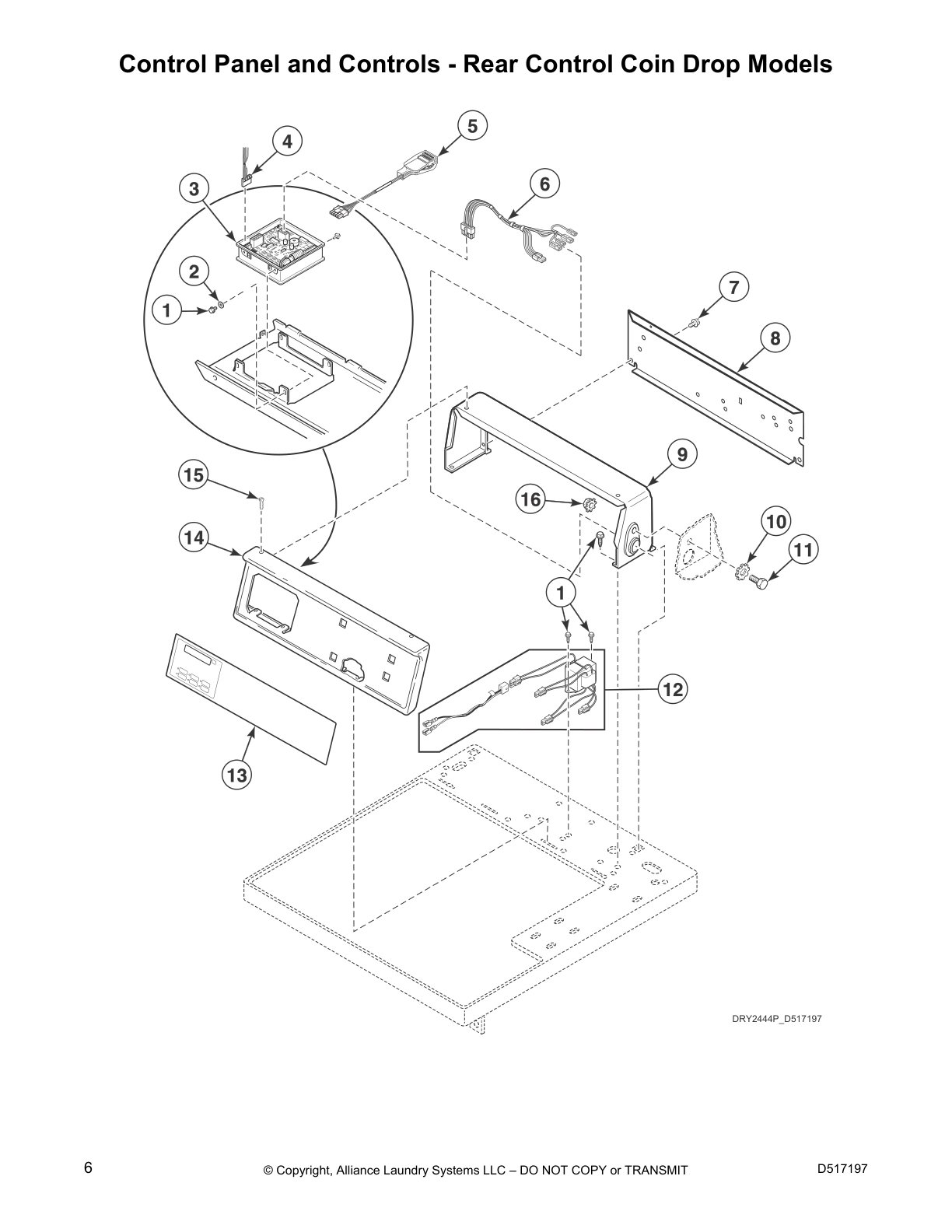

Control Panel and Controls - Rear Control Coin Drop Models

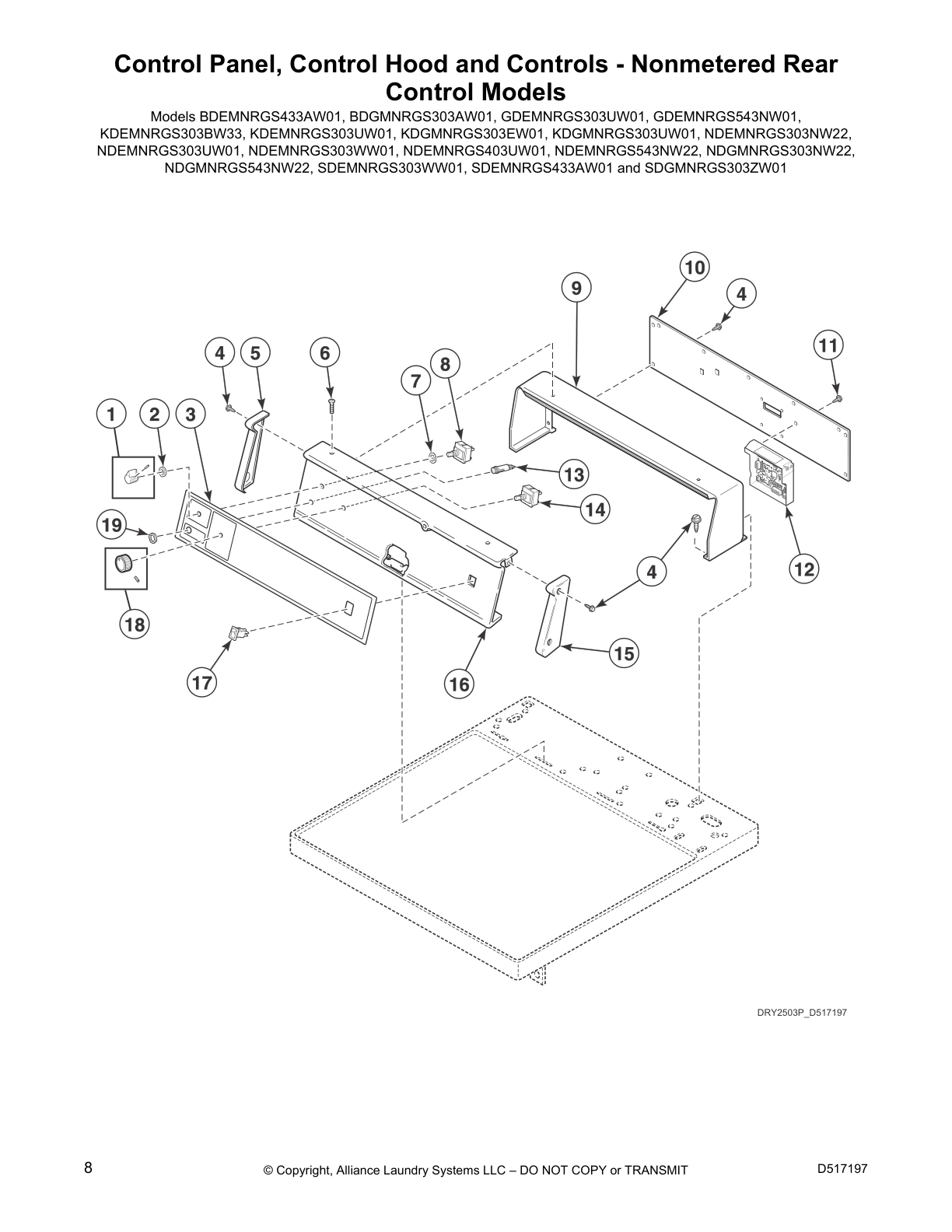

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models

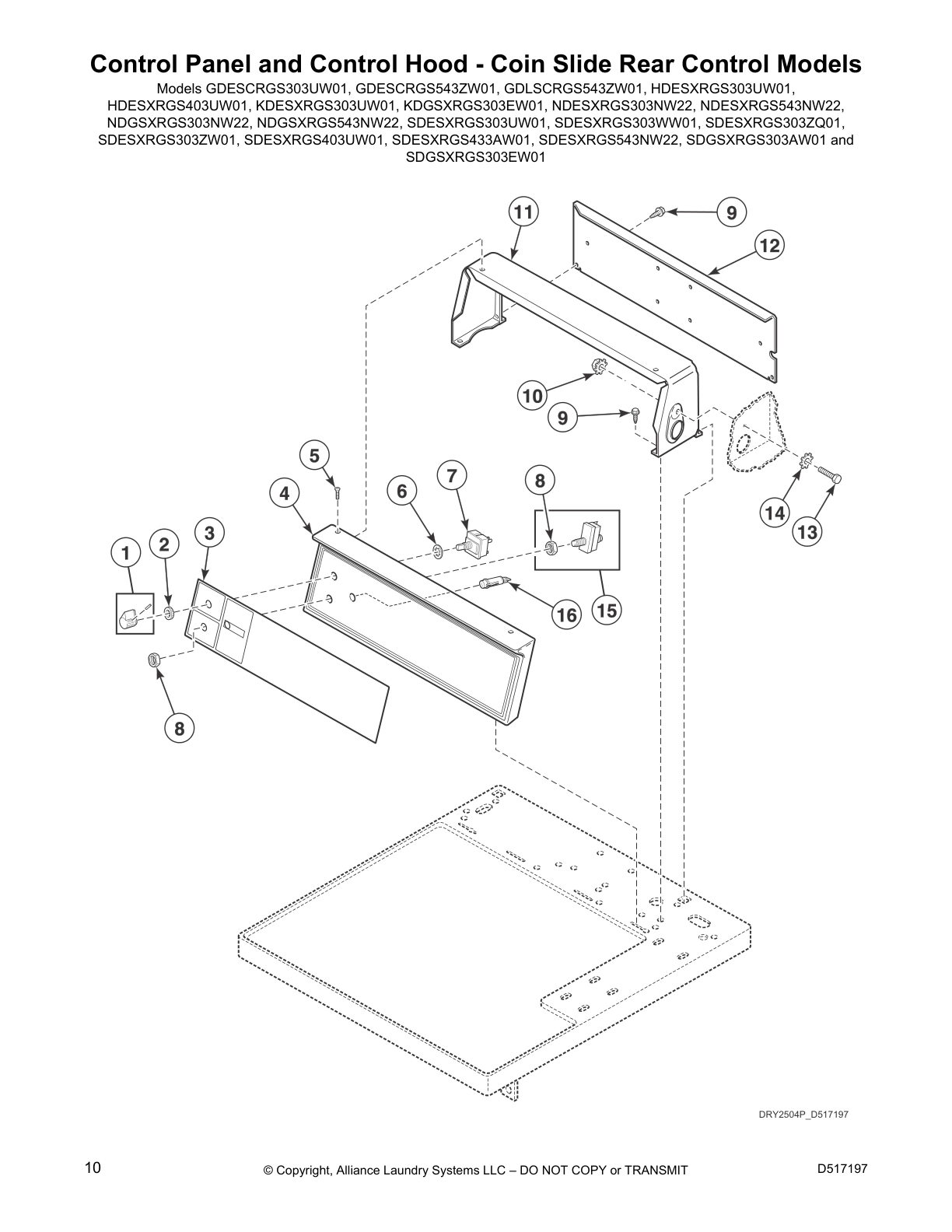

Control Panel and Control Hood - Coin Slide Rear Control Models

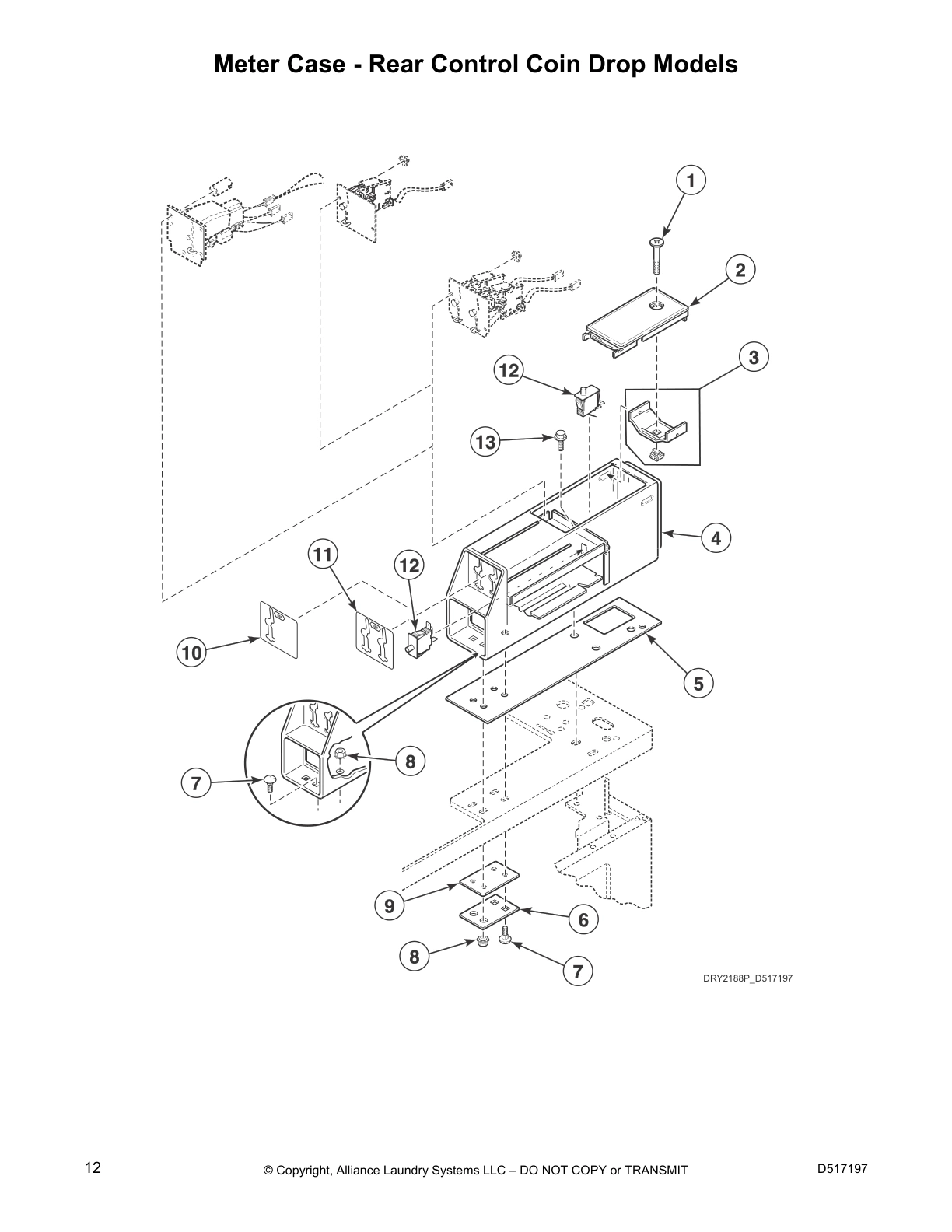

Meter Case - Rear Control Coin Drop Models

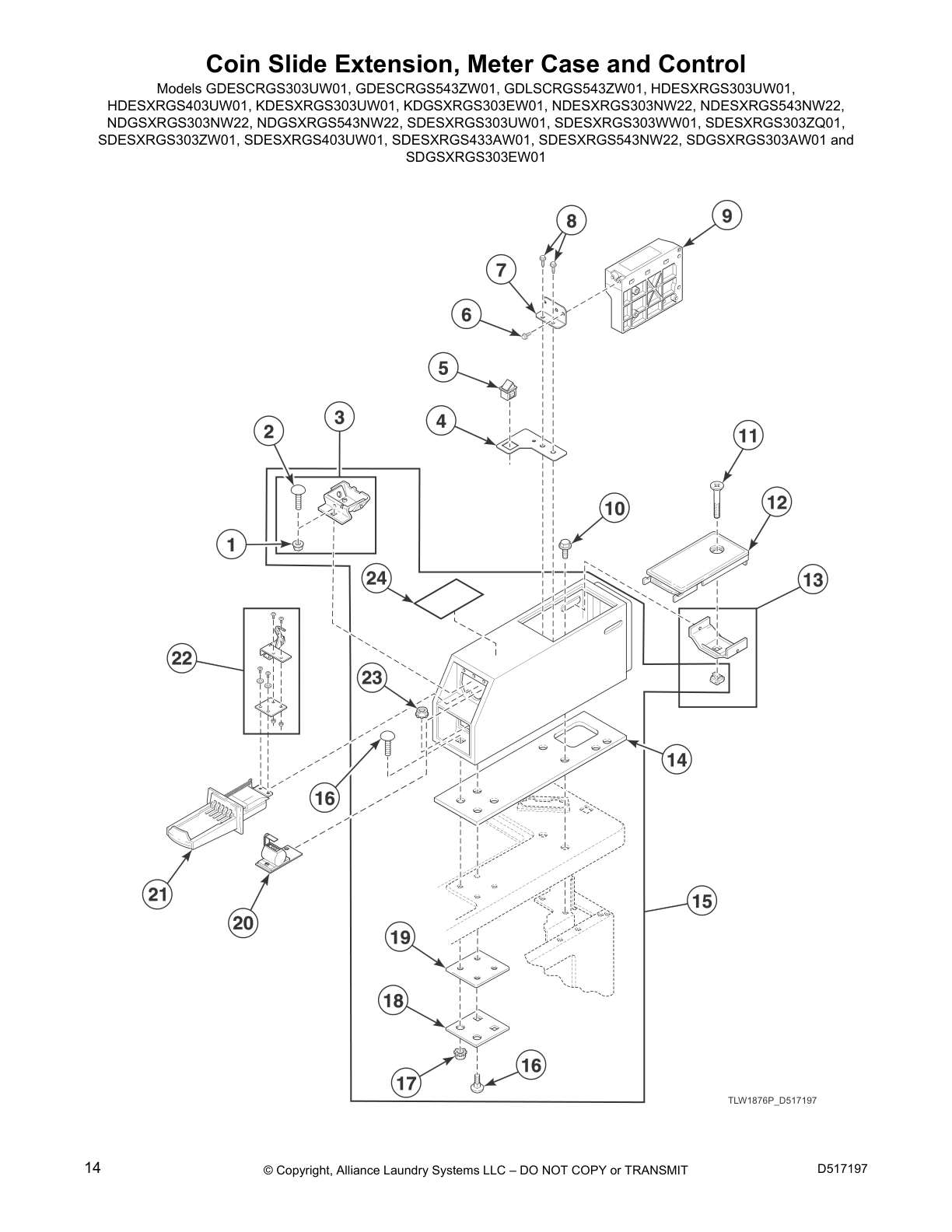

Coin Slide Extension, Meter Case and Control

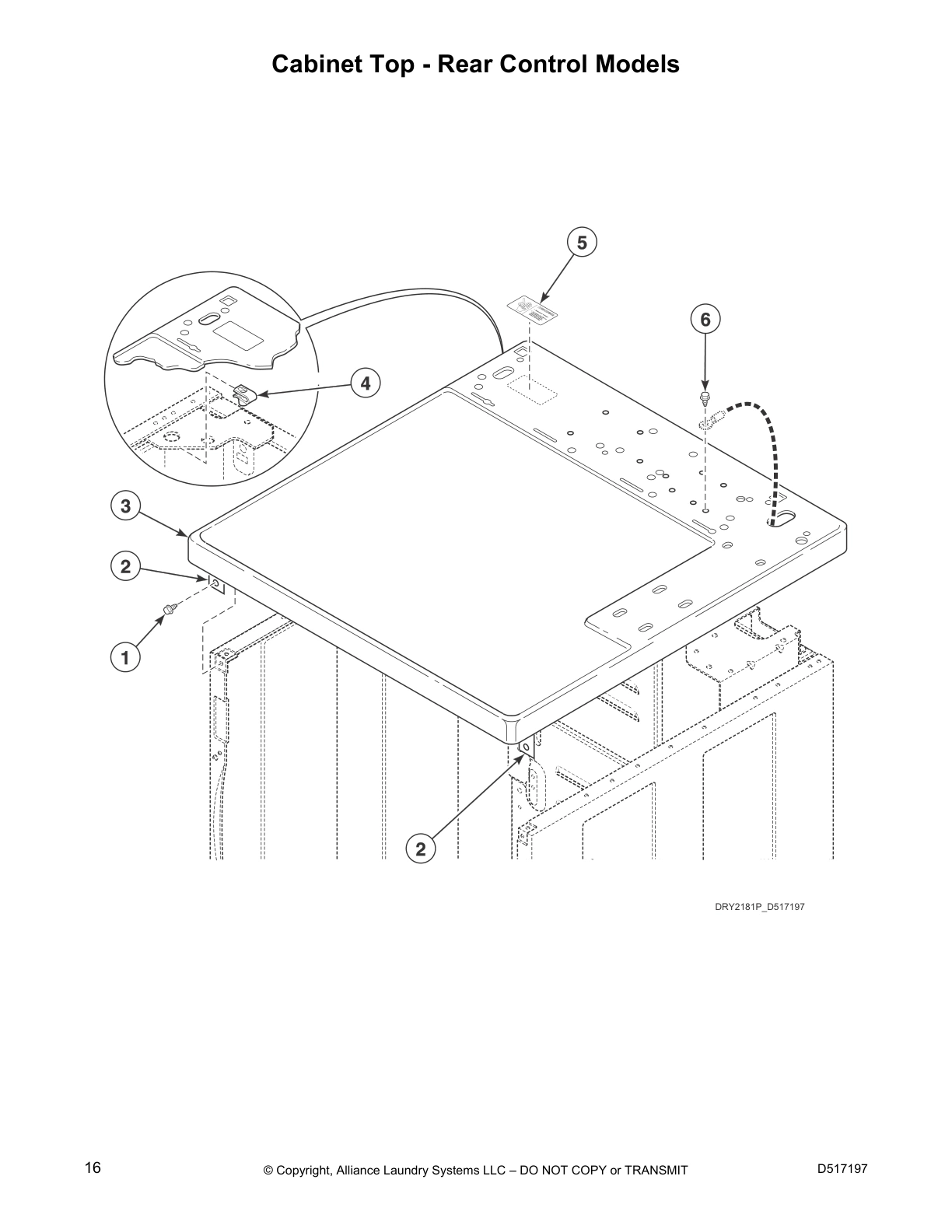

Cabinet Top - Rear Control Models

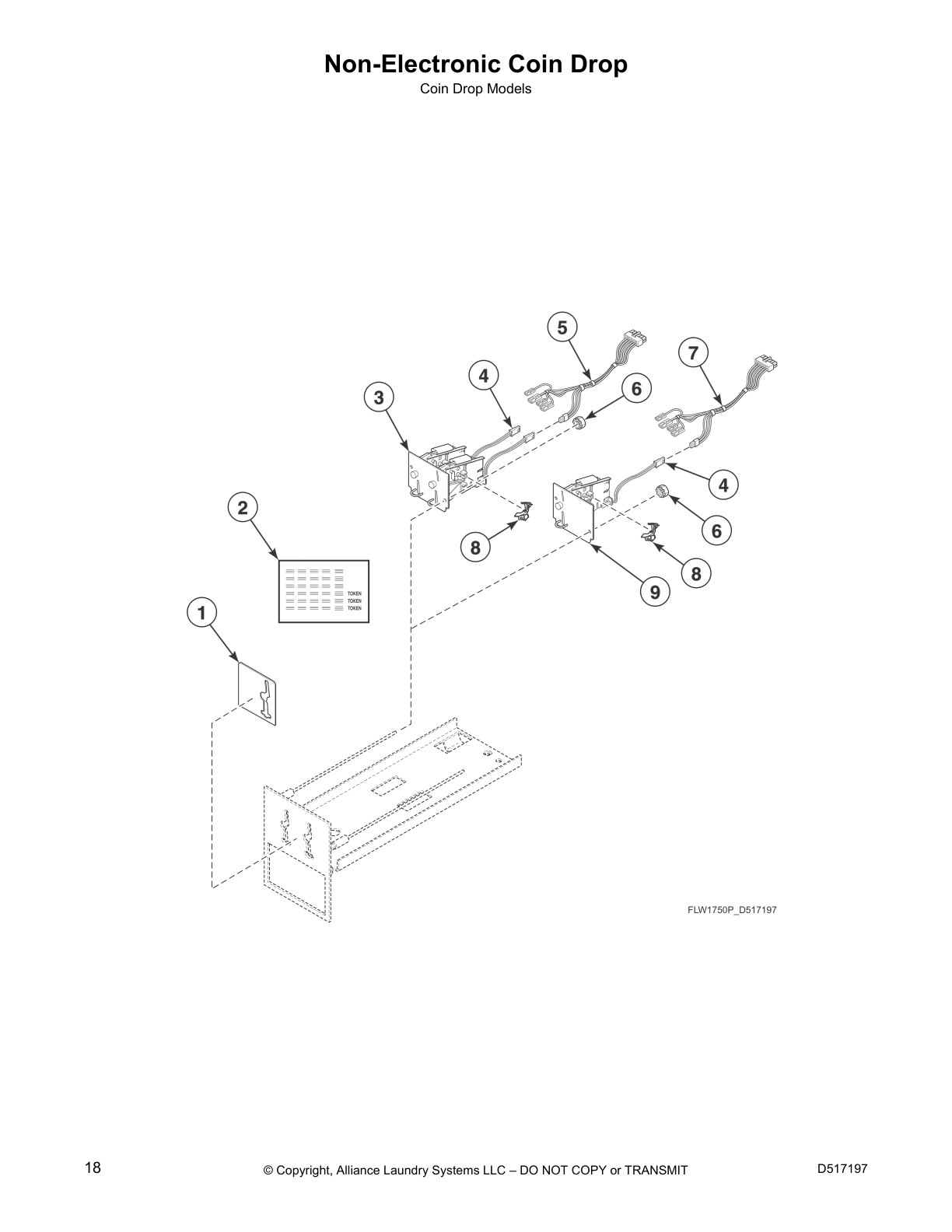

Non-Electronic Coin Drop

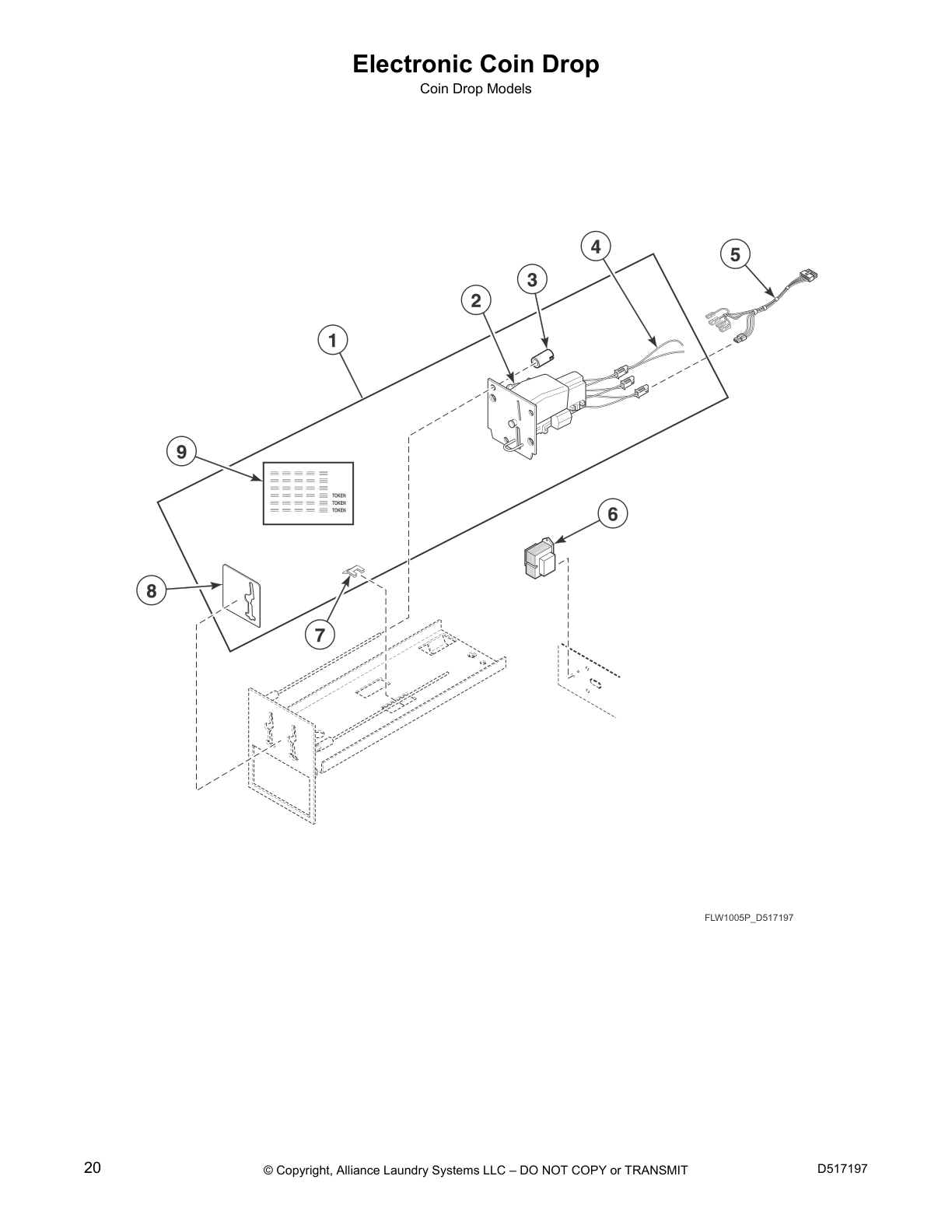

Electronic Coin Drop

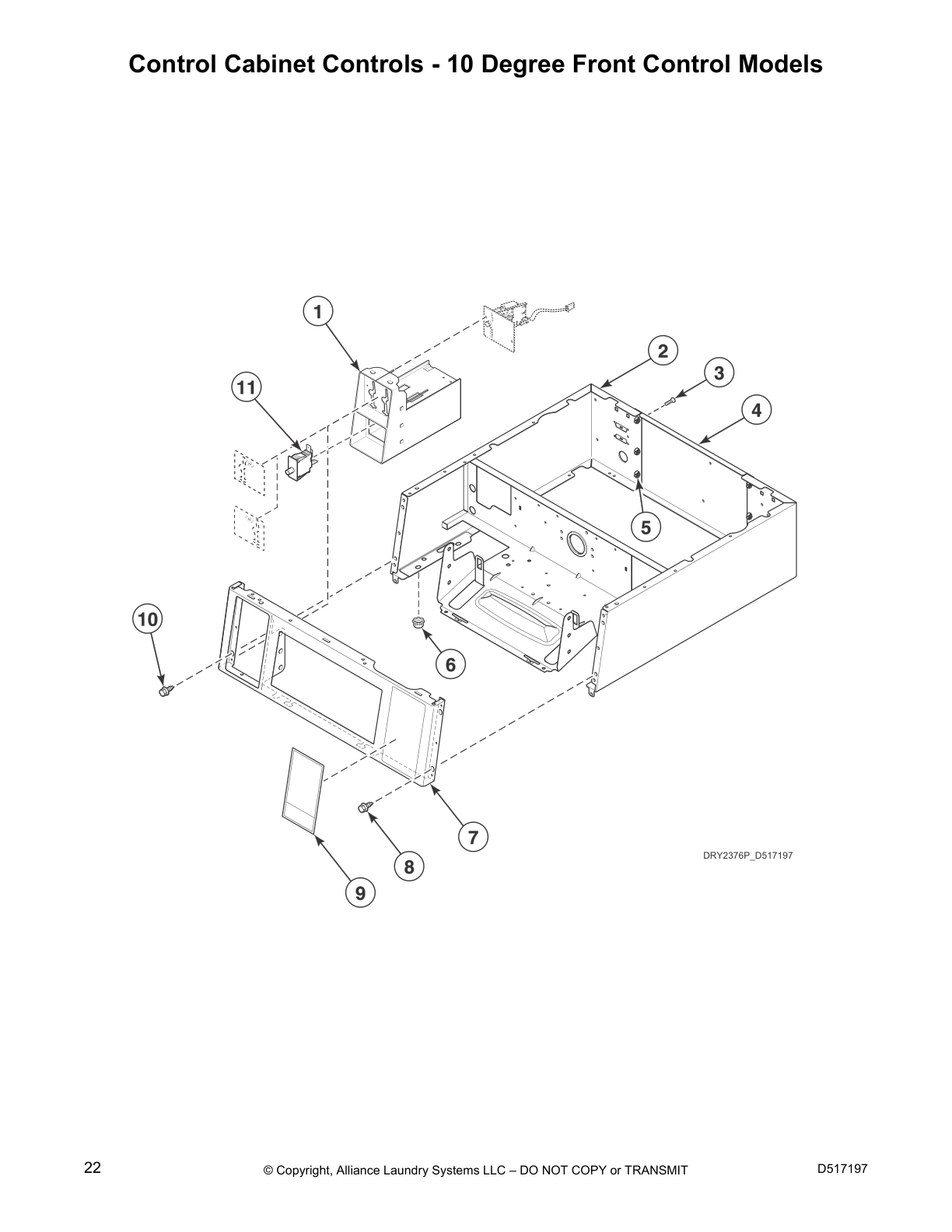

Control Cabinet Controls - 10 Degree Front Control Models
Control Panel and Controls - 10 Degree Front Control Models

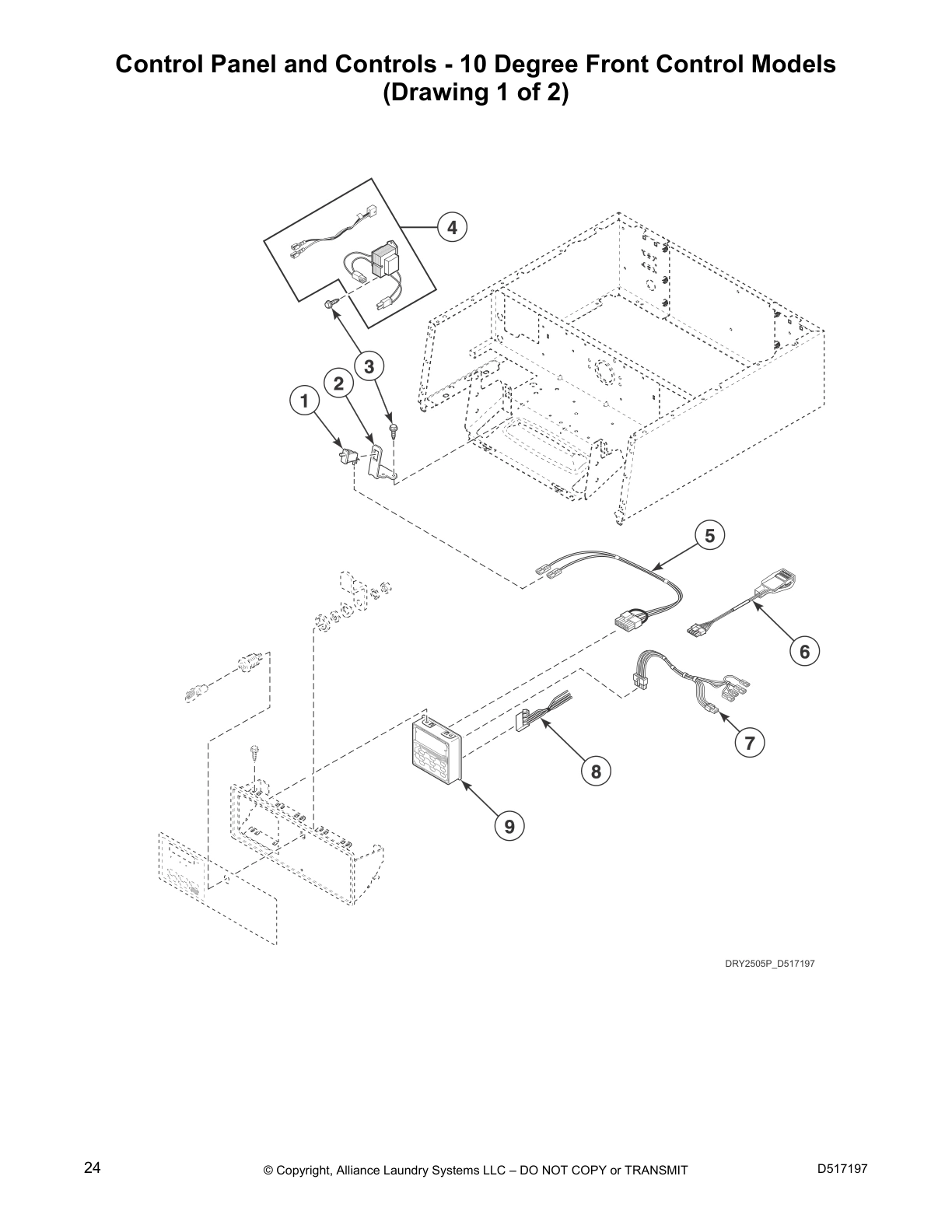

(Drawing 1 of 2)

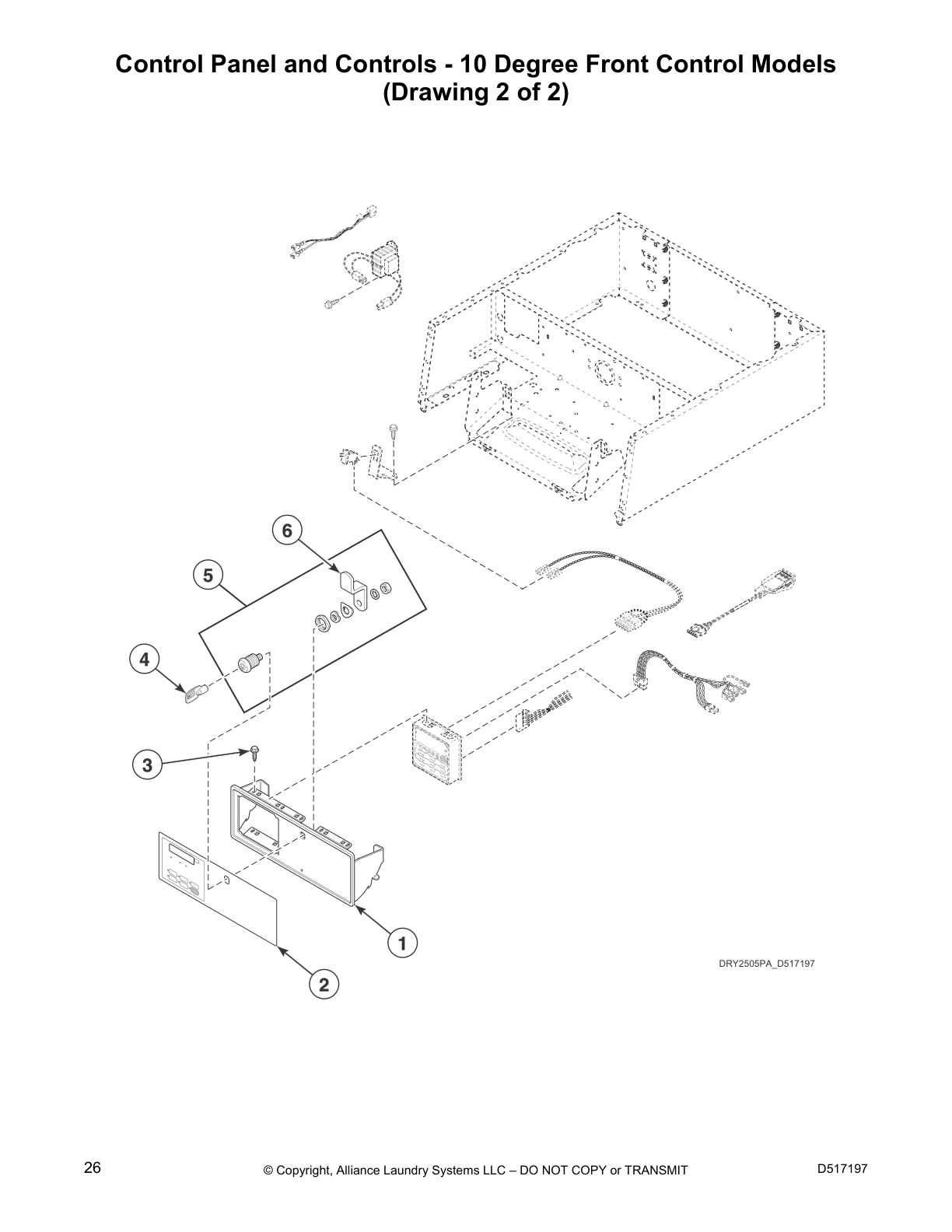

Control Panel and Controls - 10 Degree Front Control Models
(Drawing 2 of 2)

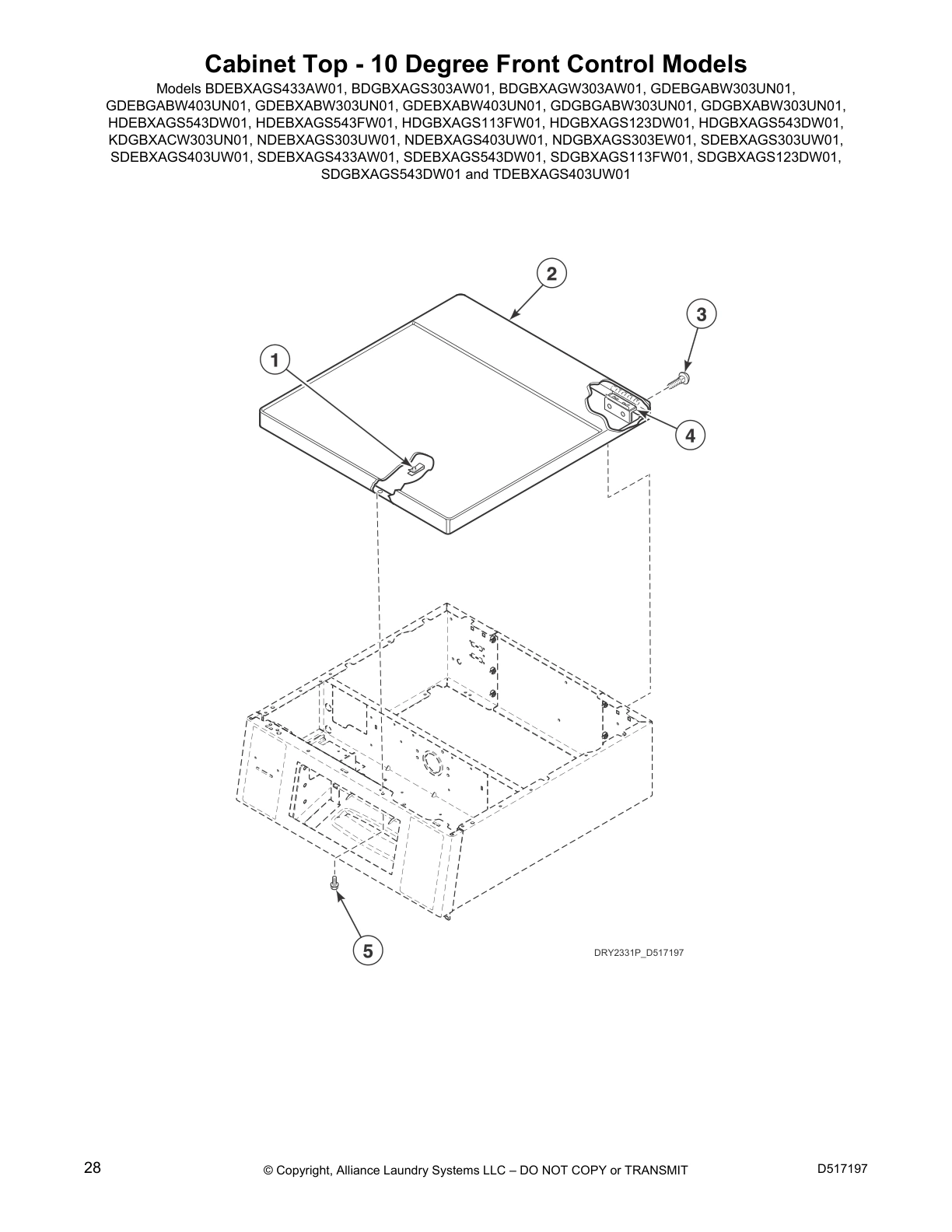

Cabinet Top - 10 Degree Front Control Models

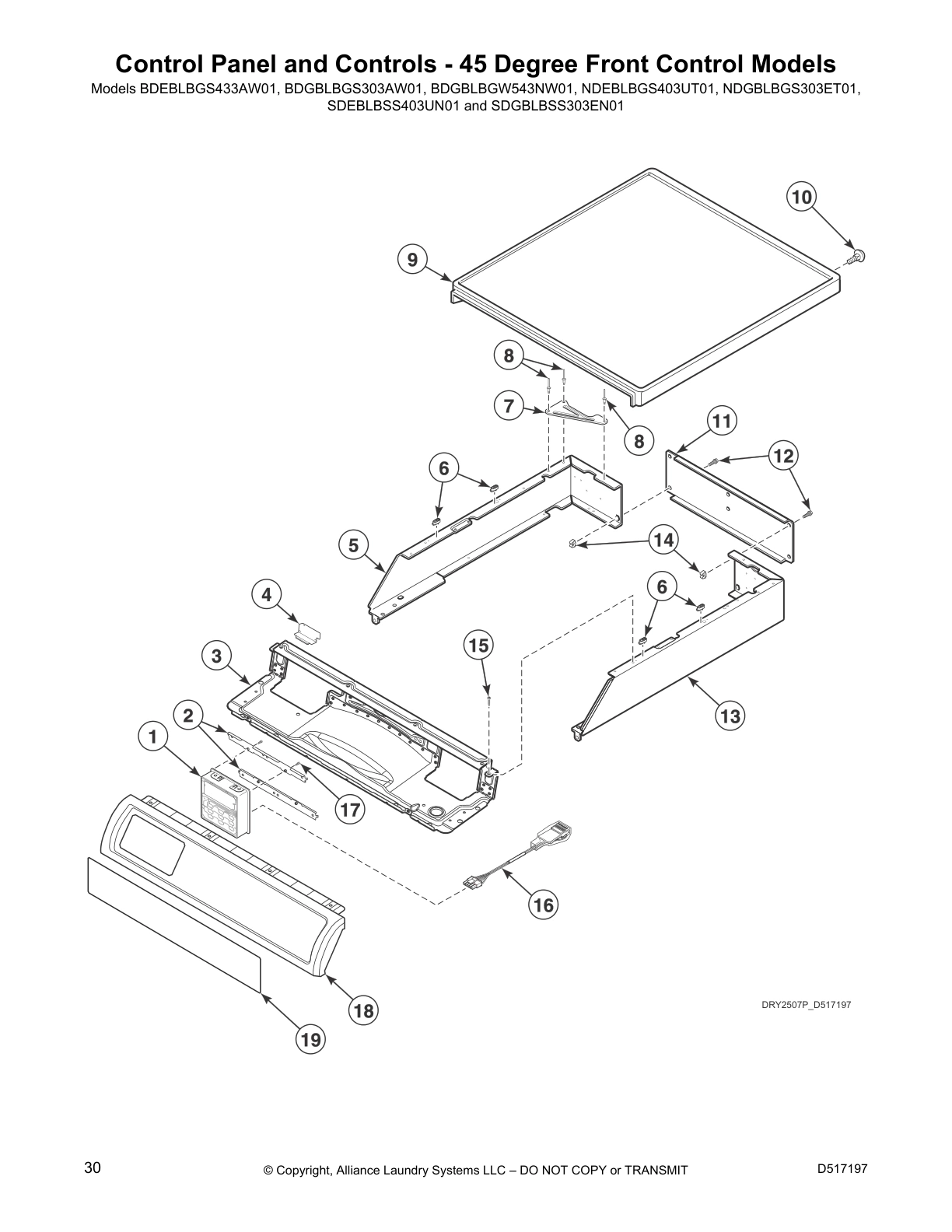

Control Panel and Controls - 45 Degree Front Control Models

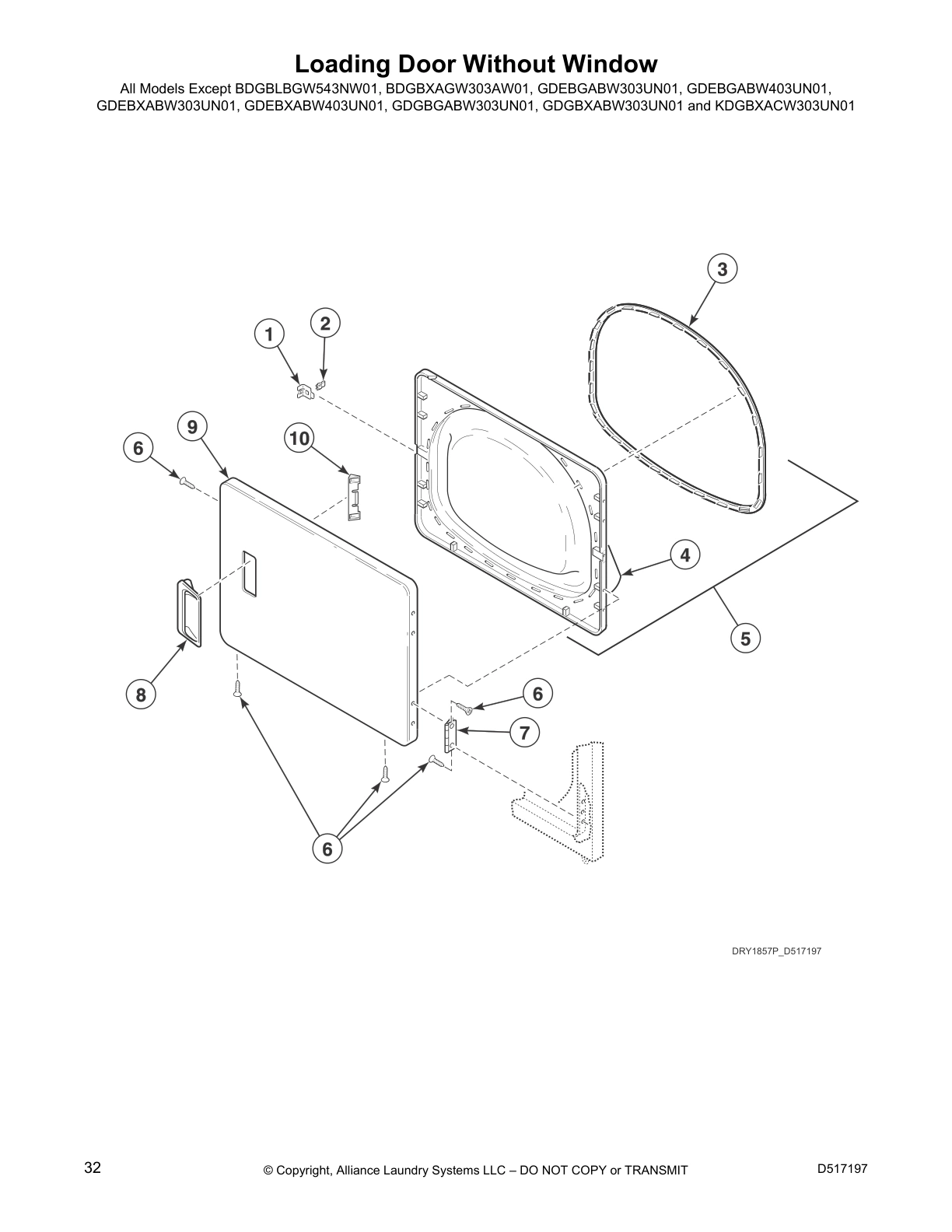

Loading Door Without Window

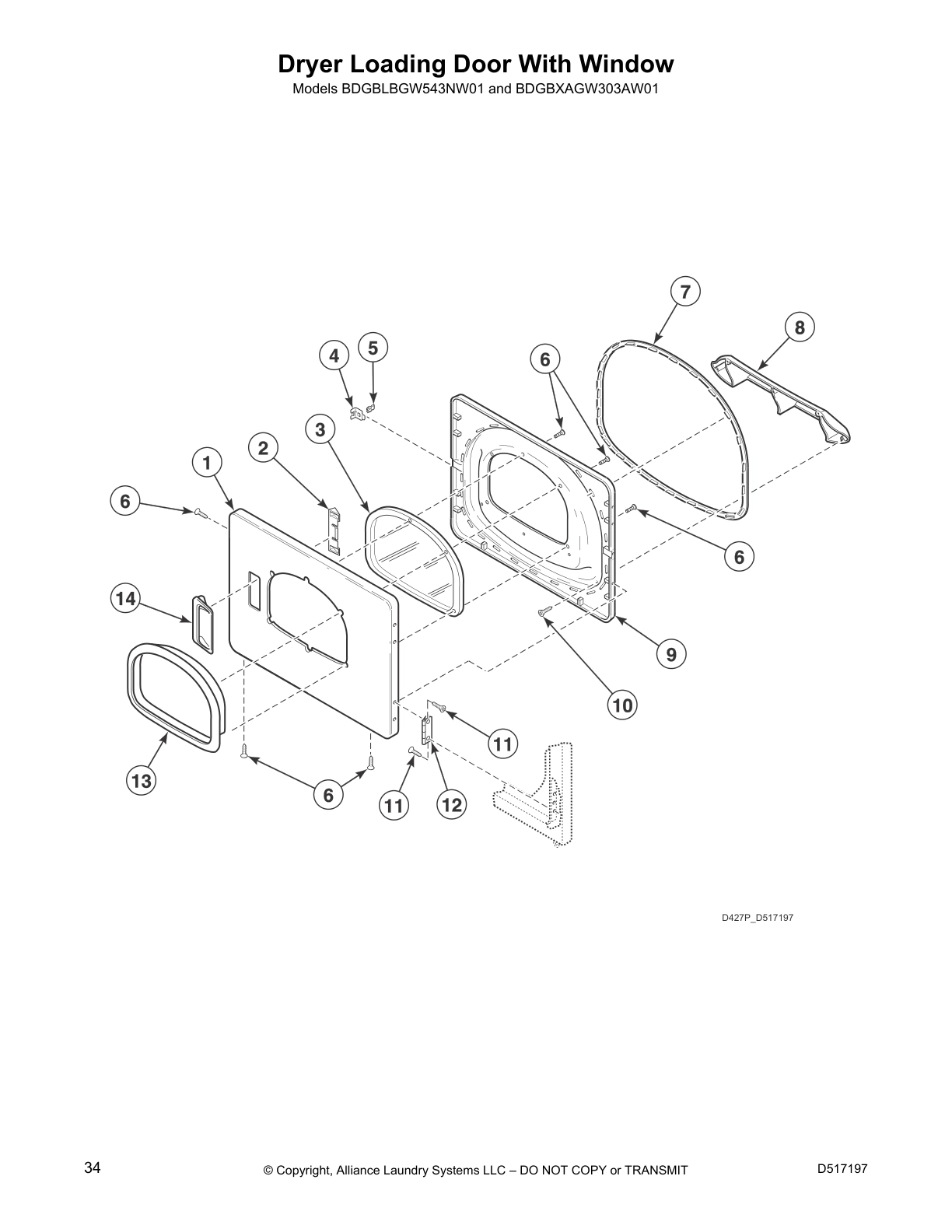

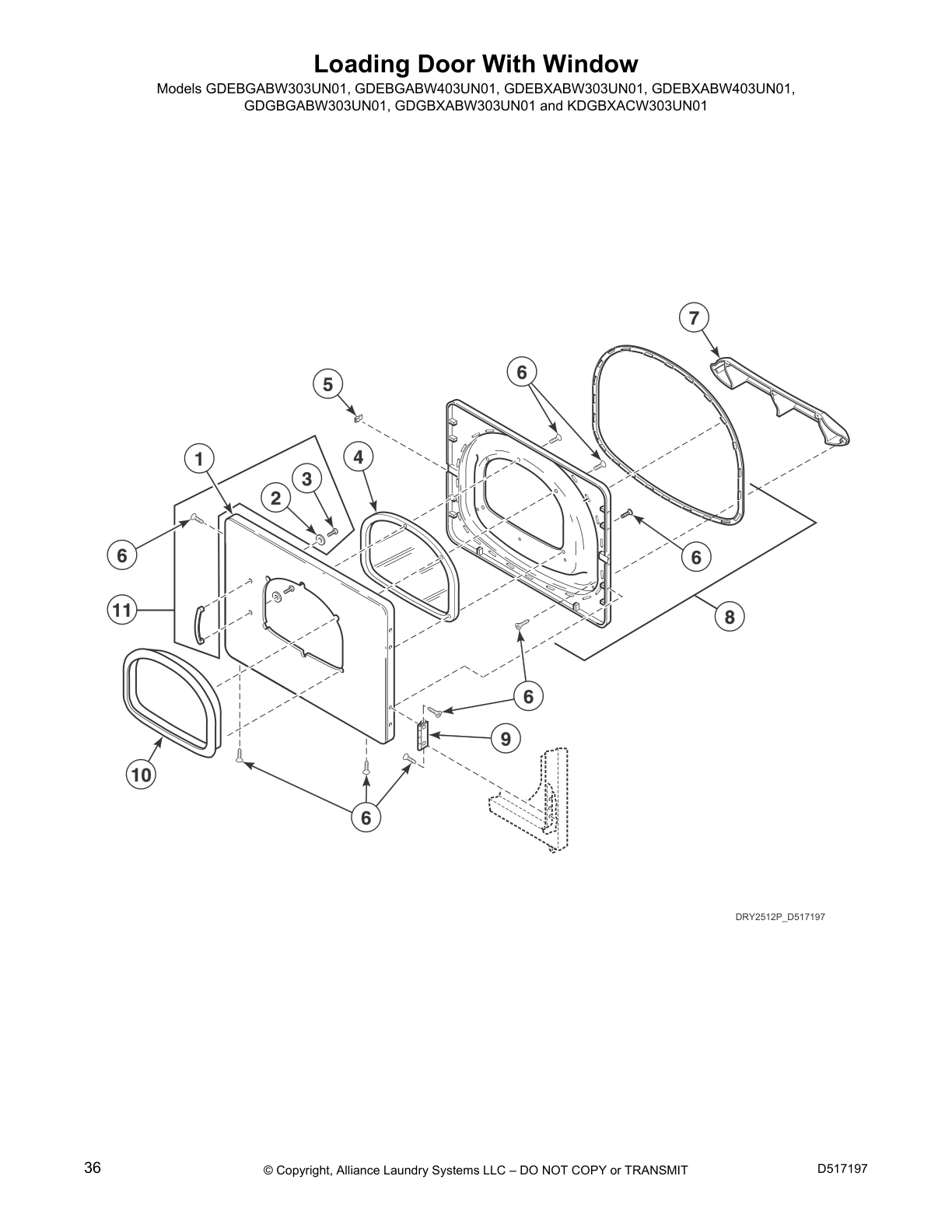

Loading Door With Window
Loading Door With Window

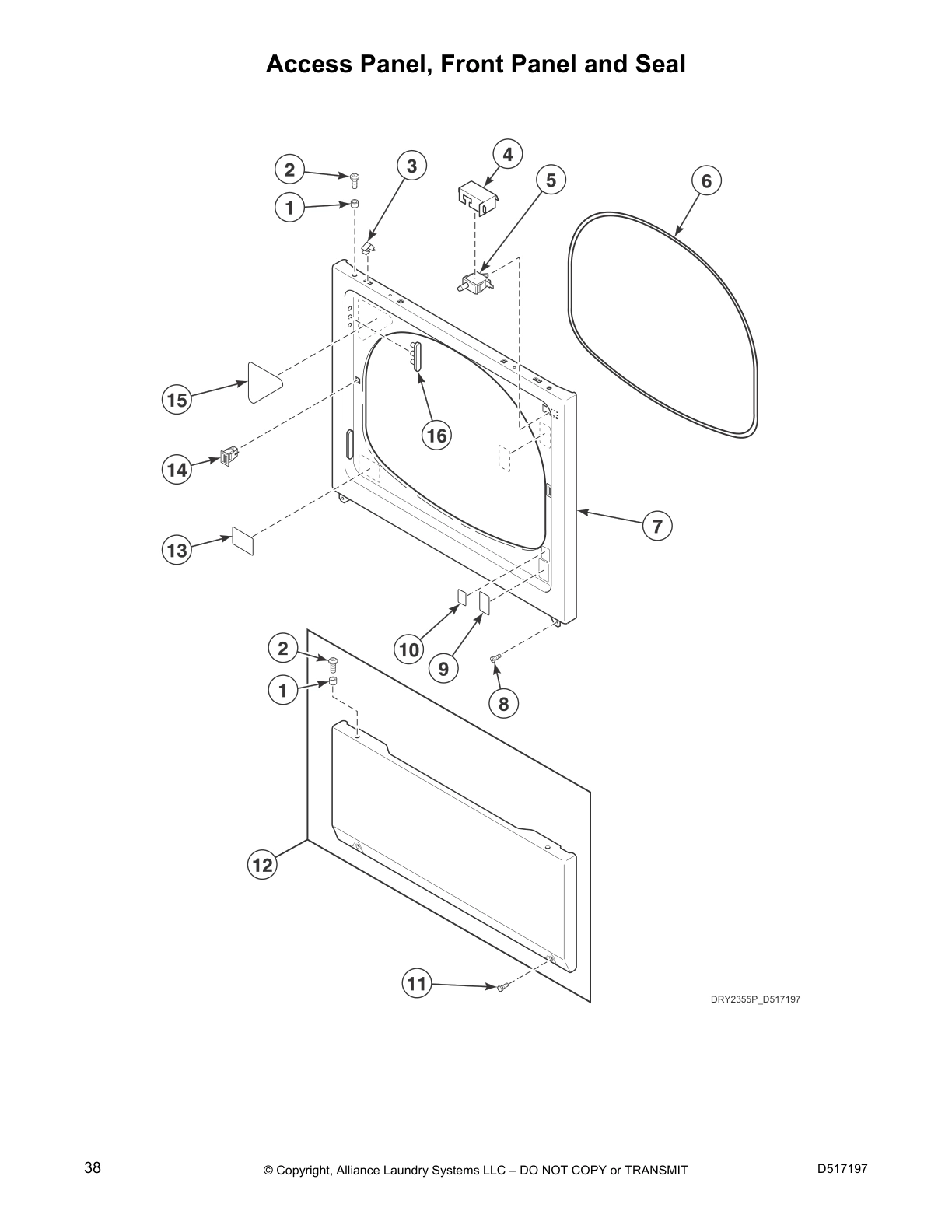

Access Panel, Front Panel and Seal
Motor and Belt

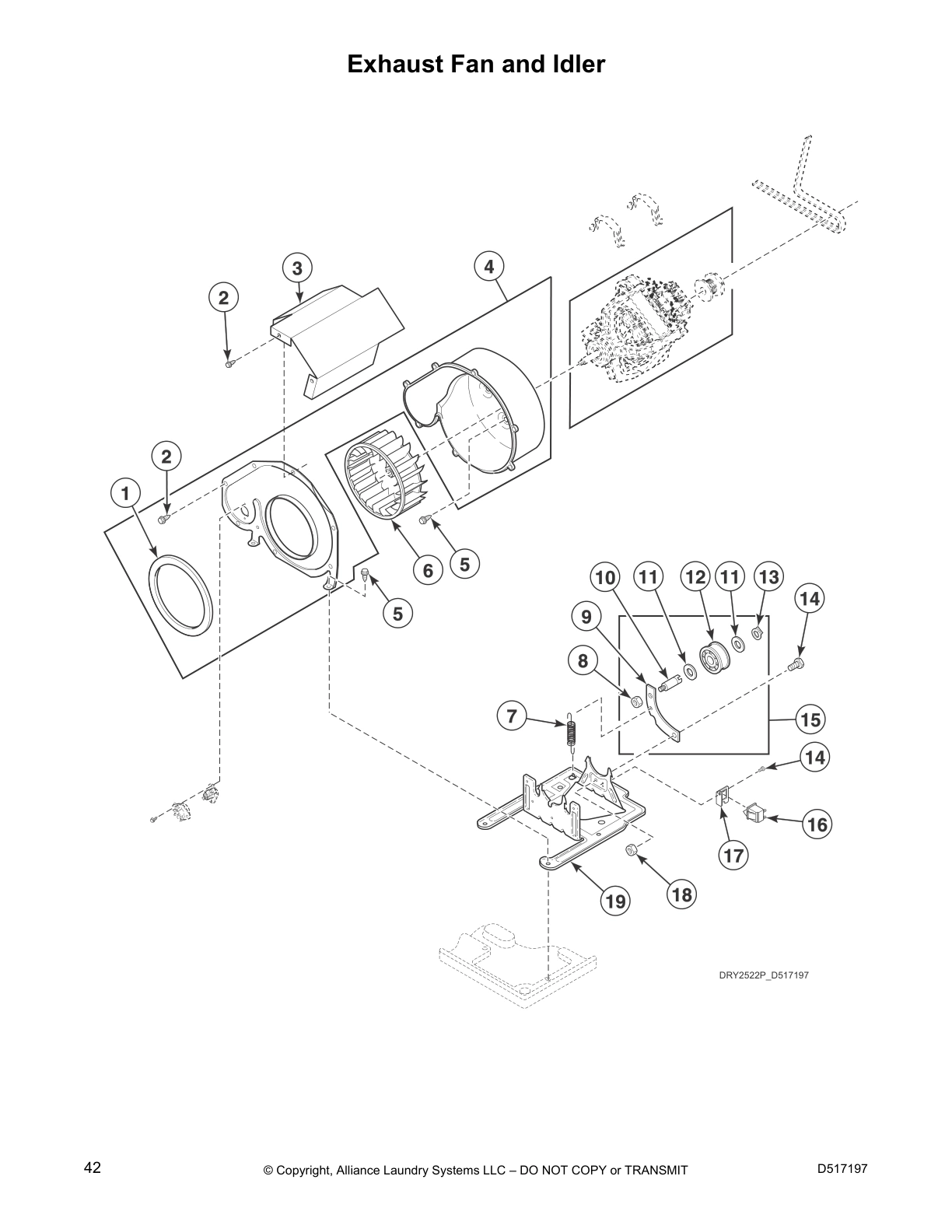

Exhaust Fan and Idler
Thermistor

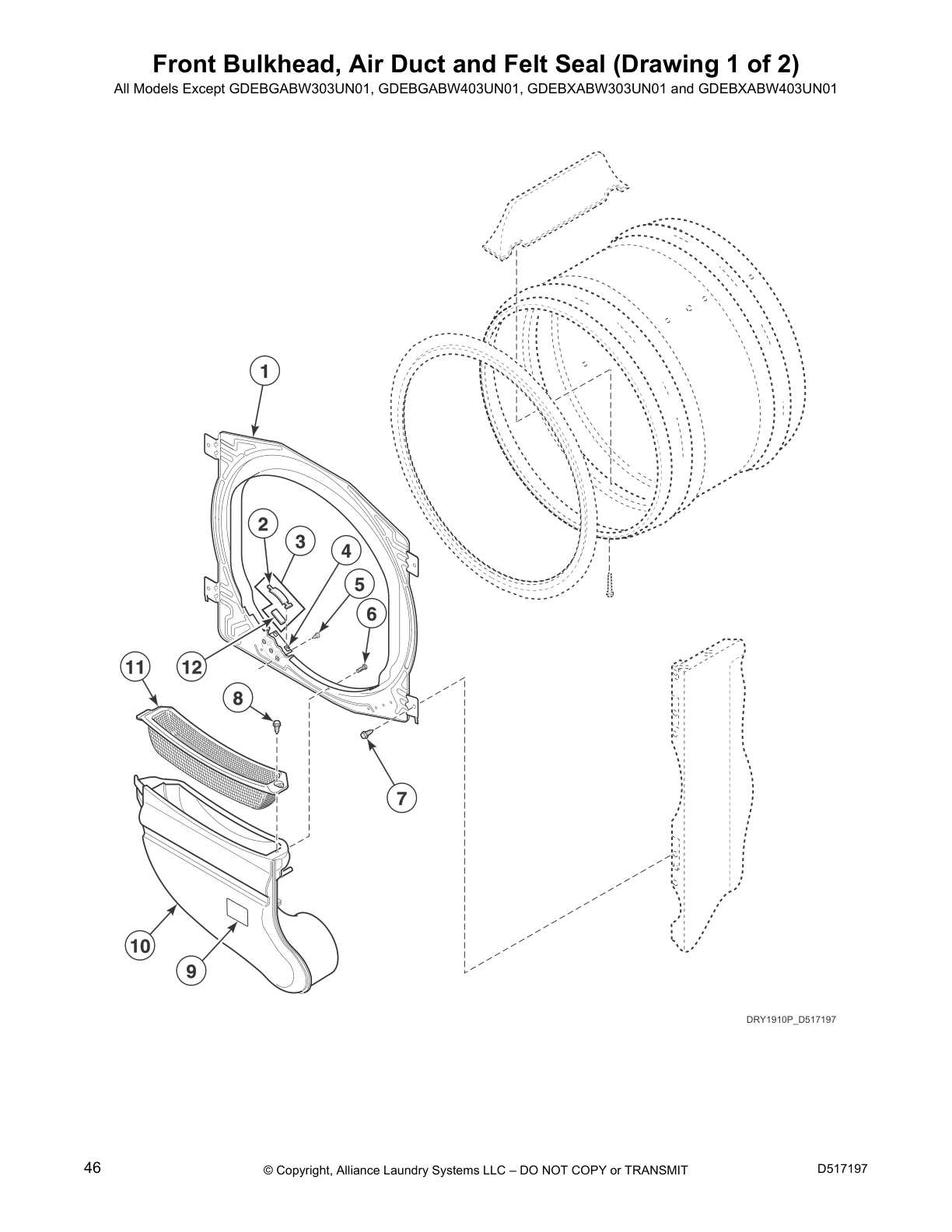

Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)

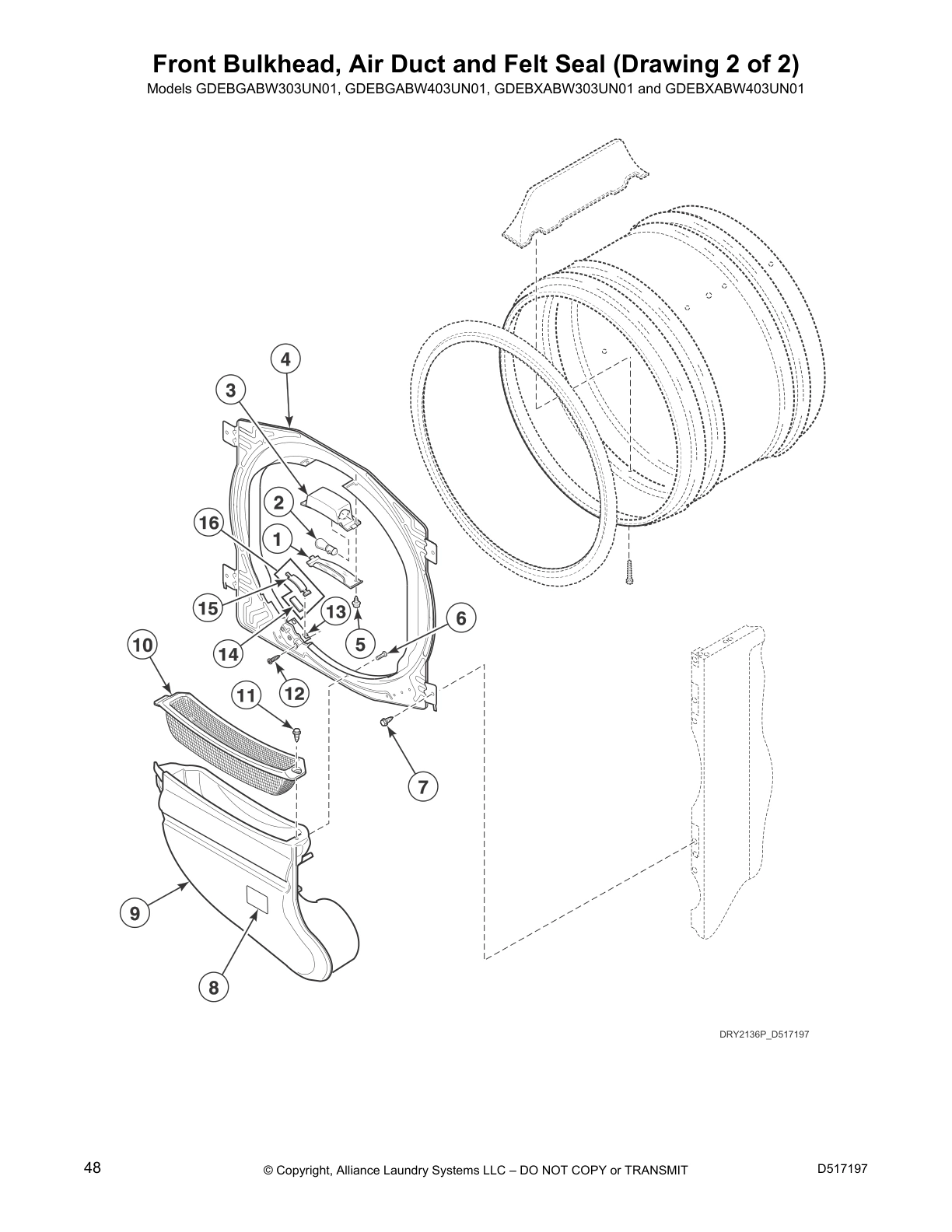

Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)

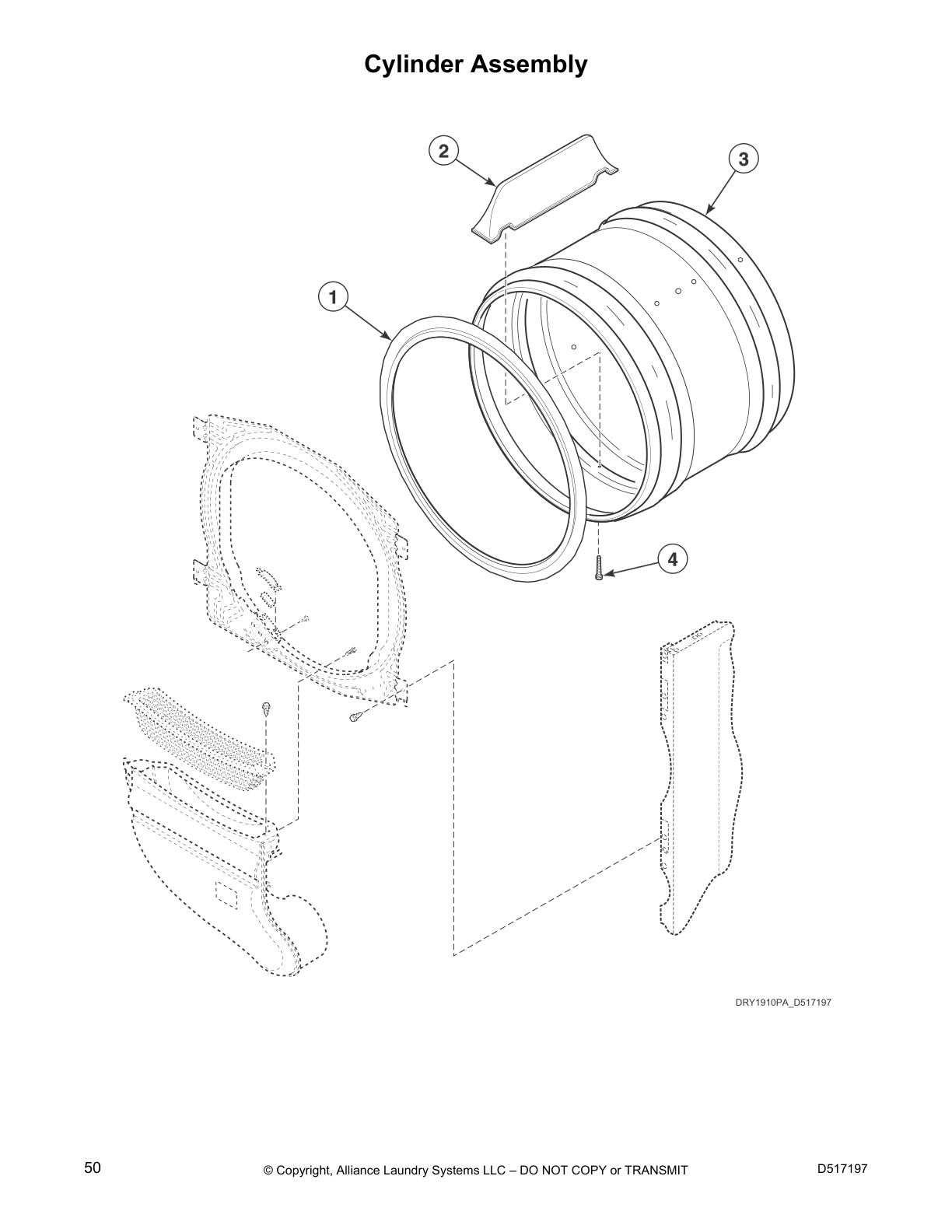

Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller

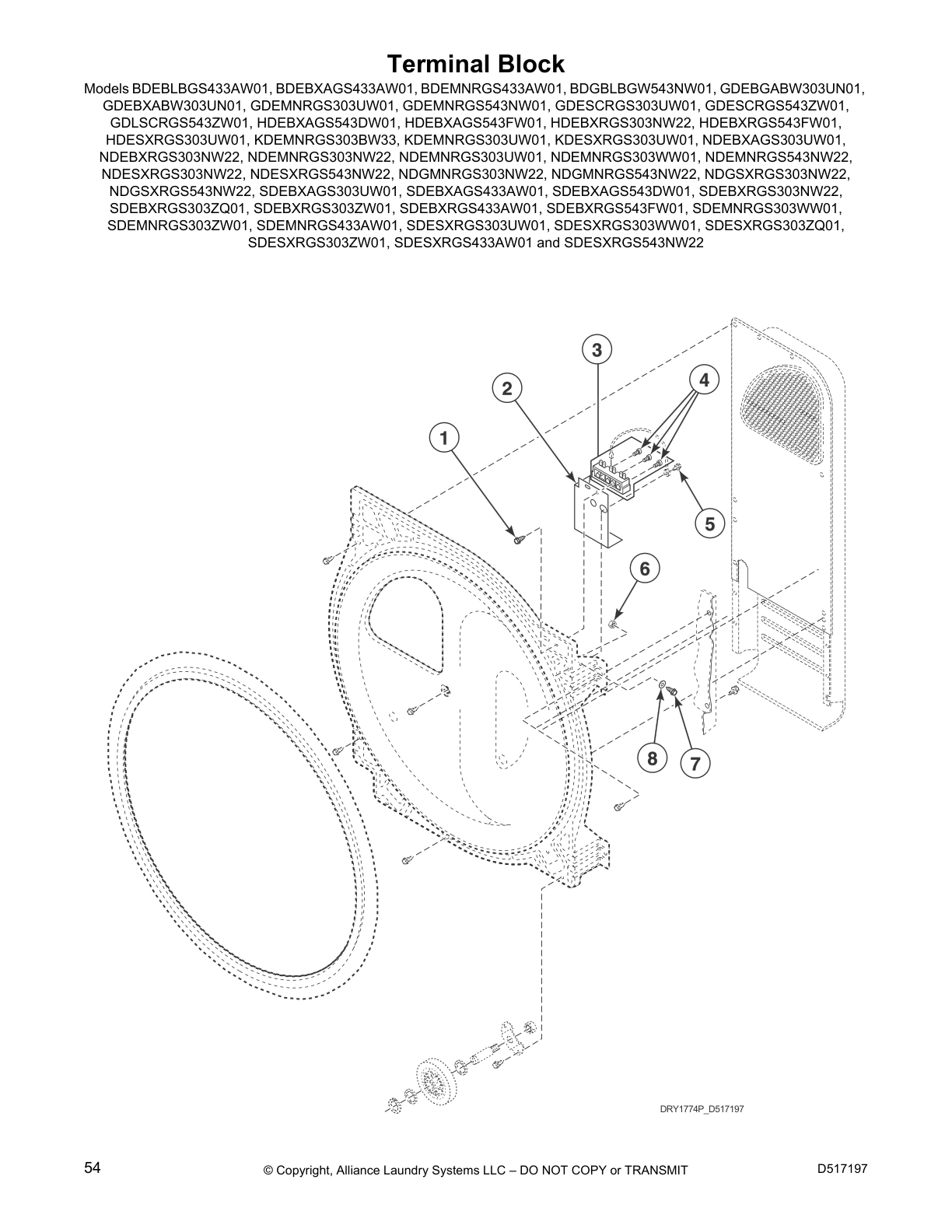

Terminal Block

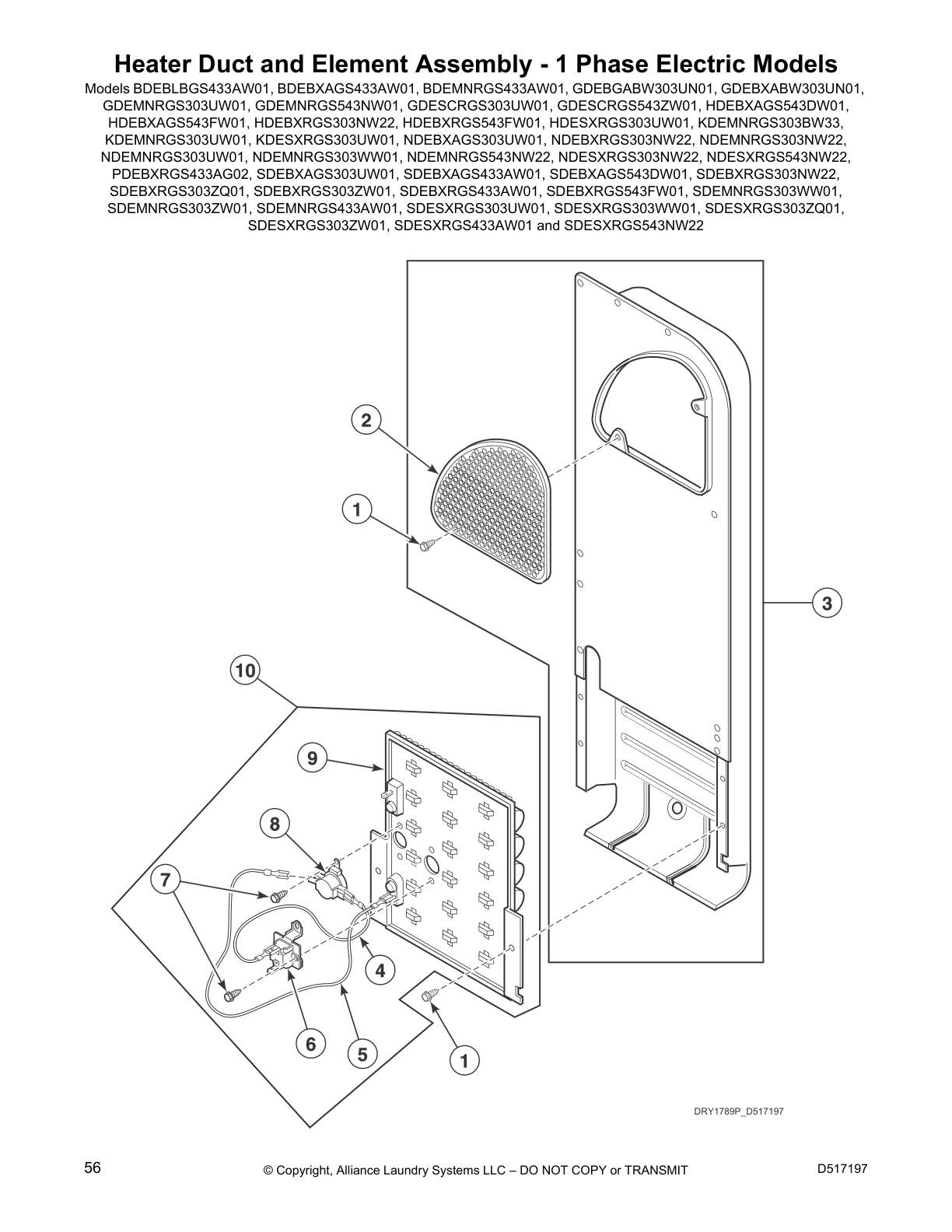

Heater Duct and Element Assembly - 1 Phase Electric Models

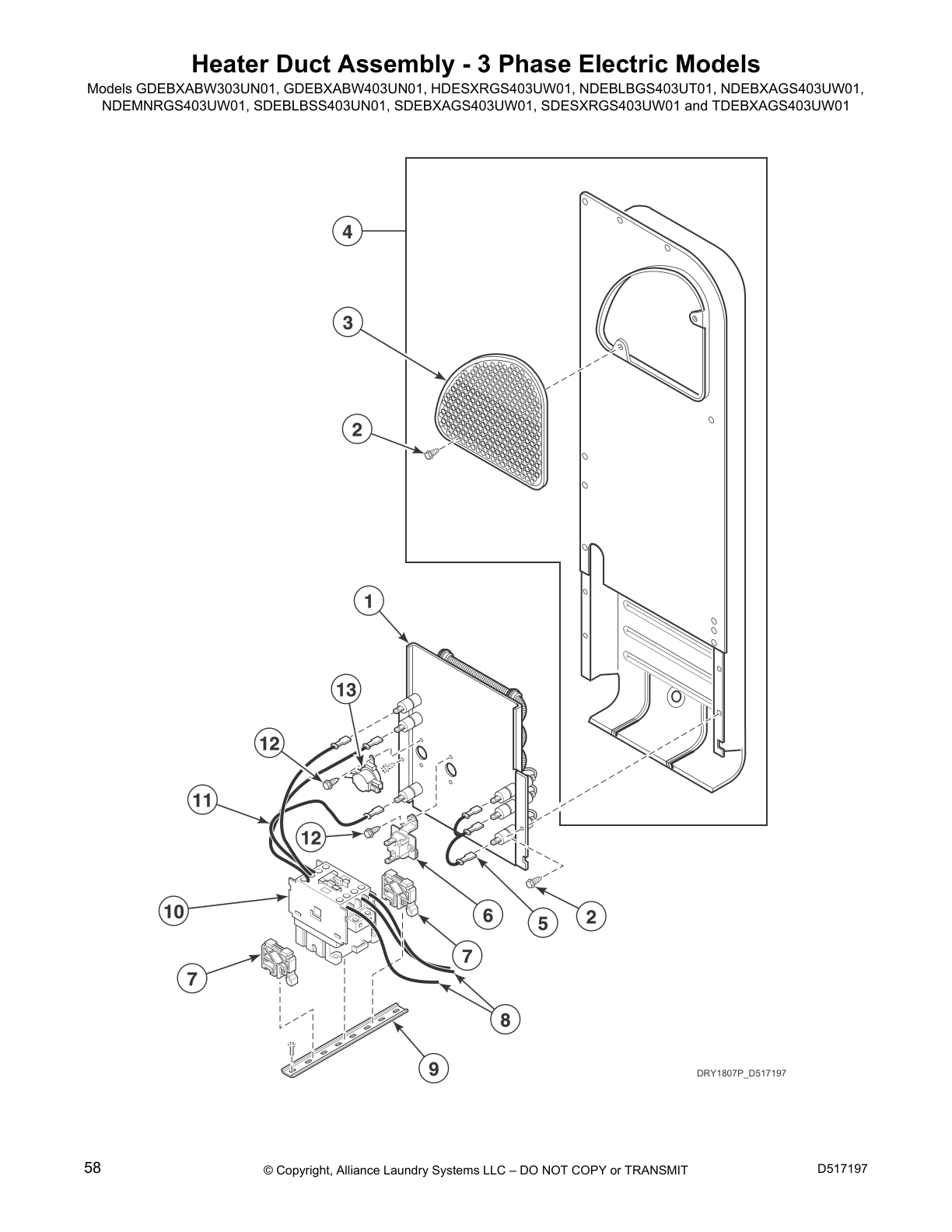

Heater Duct Assembly - 3 Phase Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits

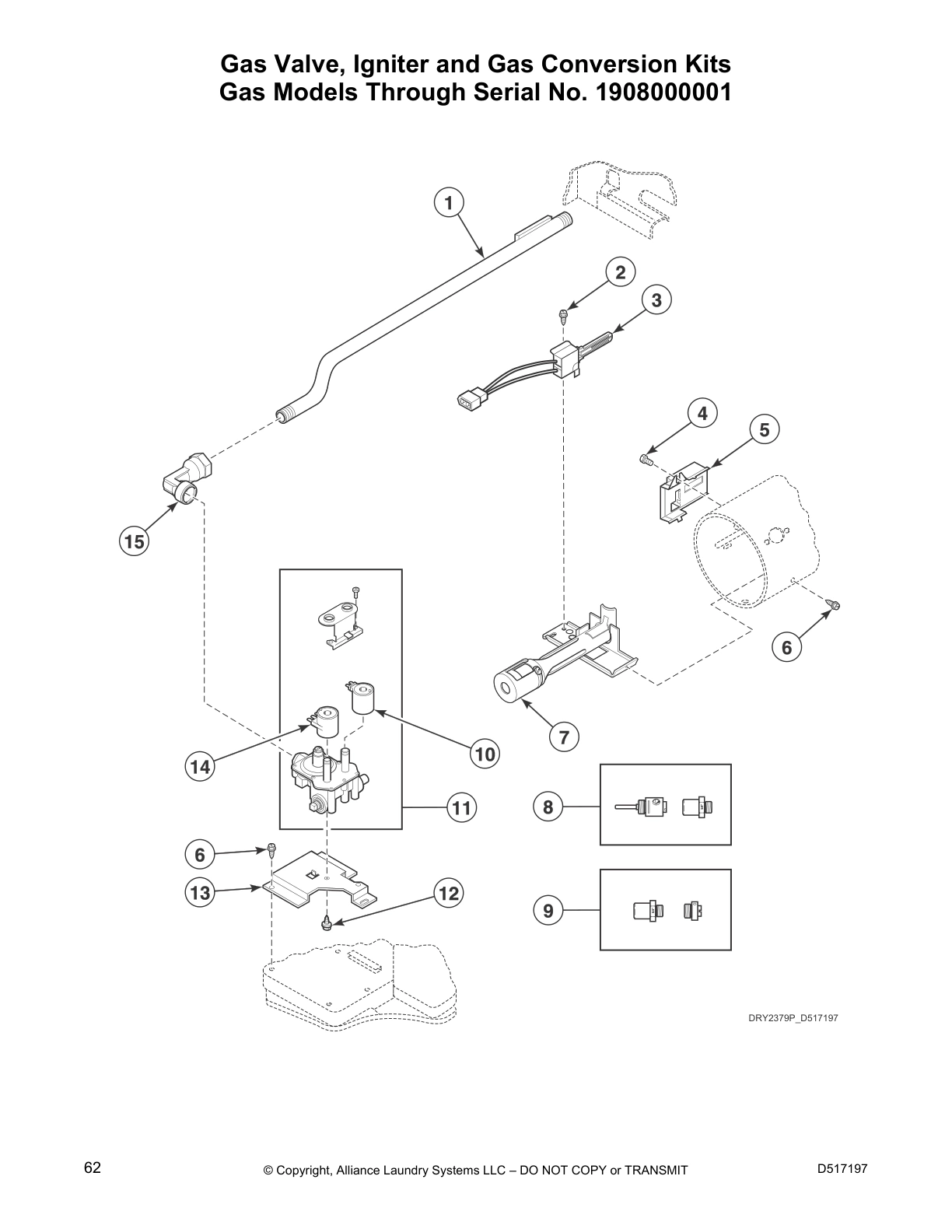

Gas Models Through Serial No. 1908000001

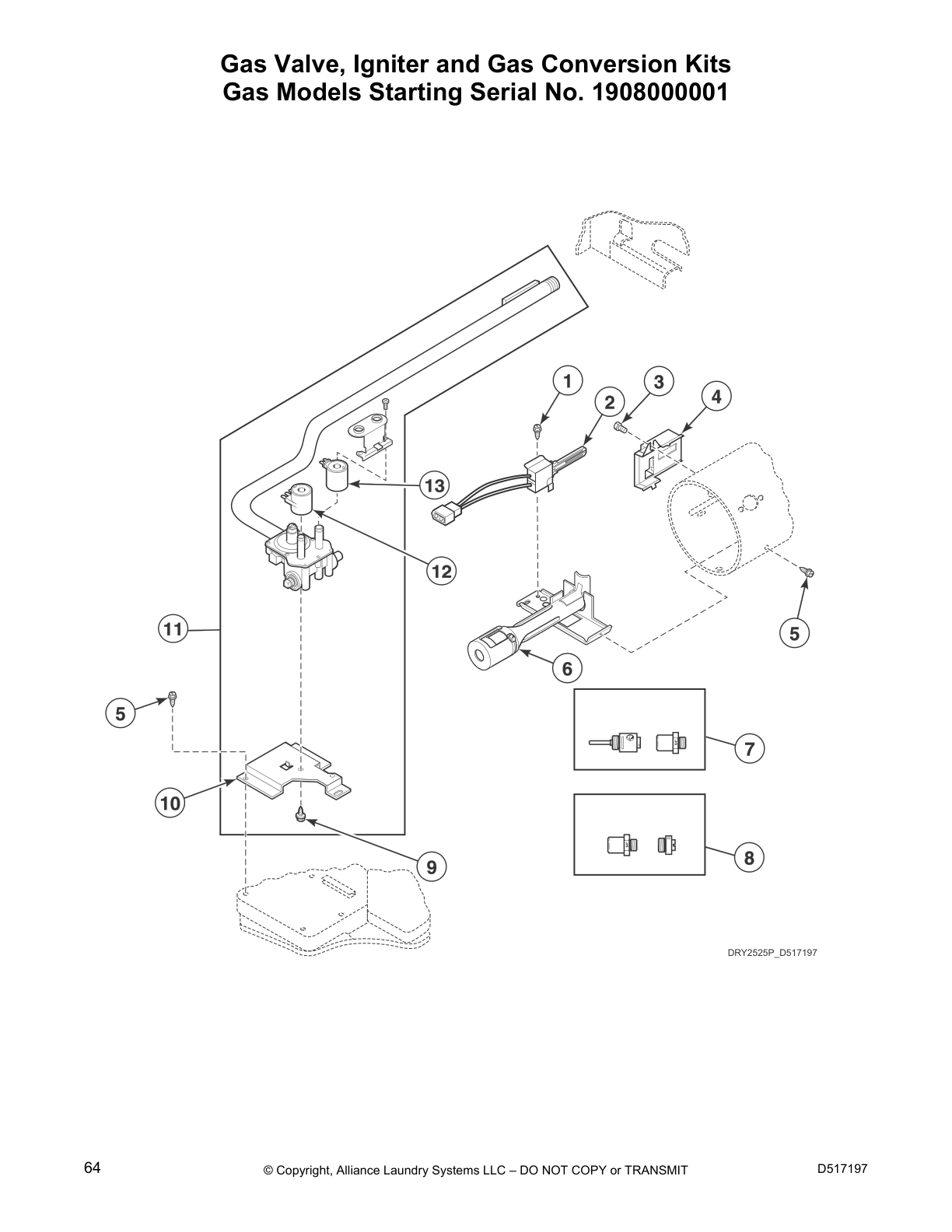

Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001

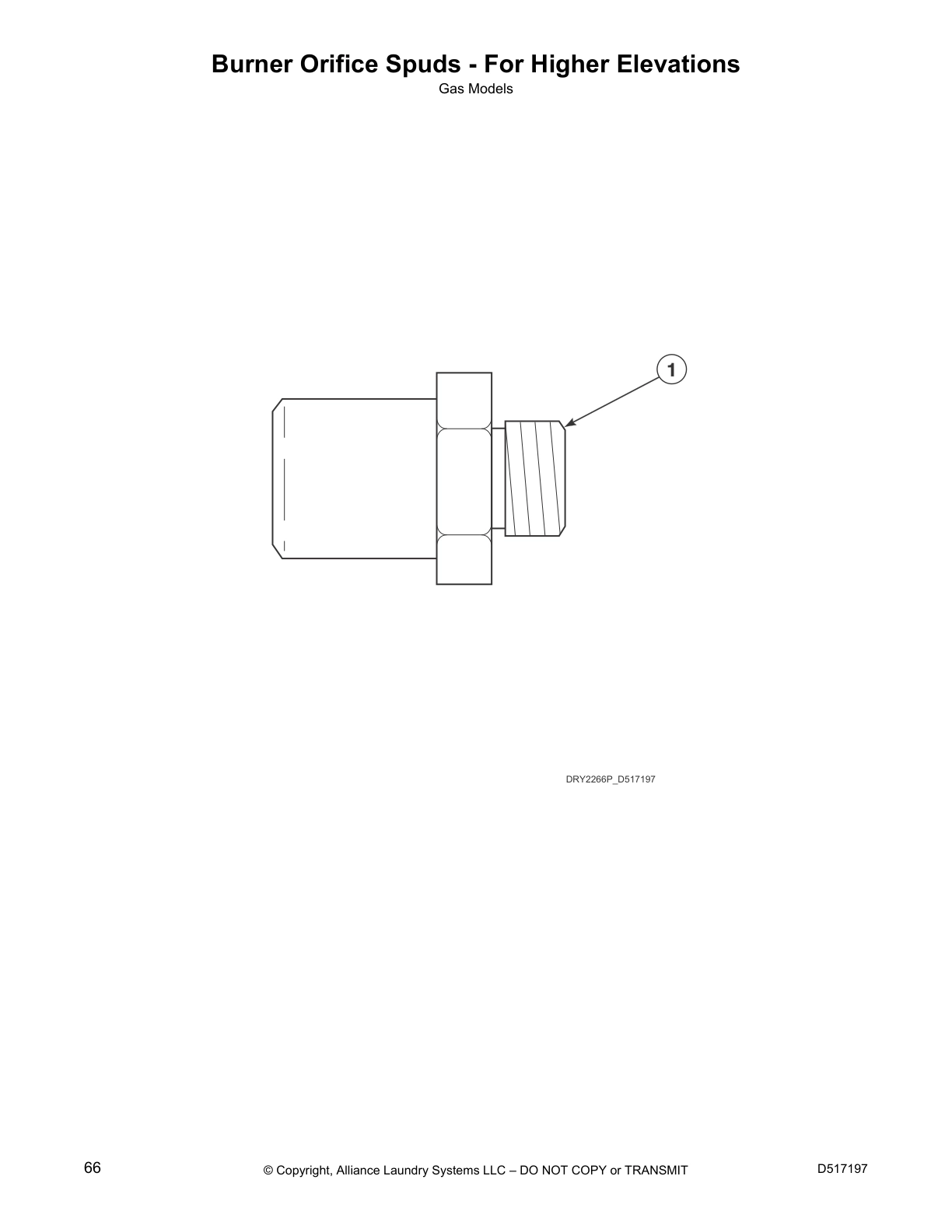

Burner Orifice Spuds - For Higher Elevations
Cabinet, Exhaust Duct and Base

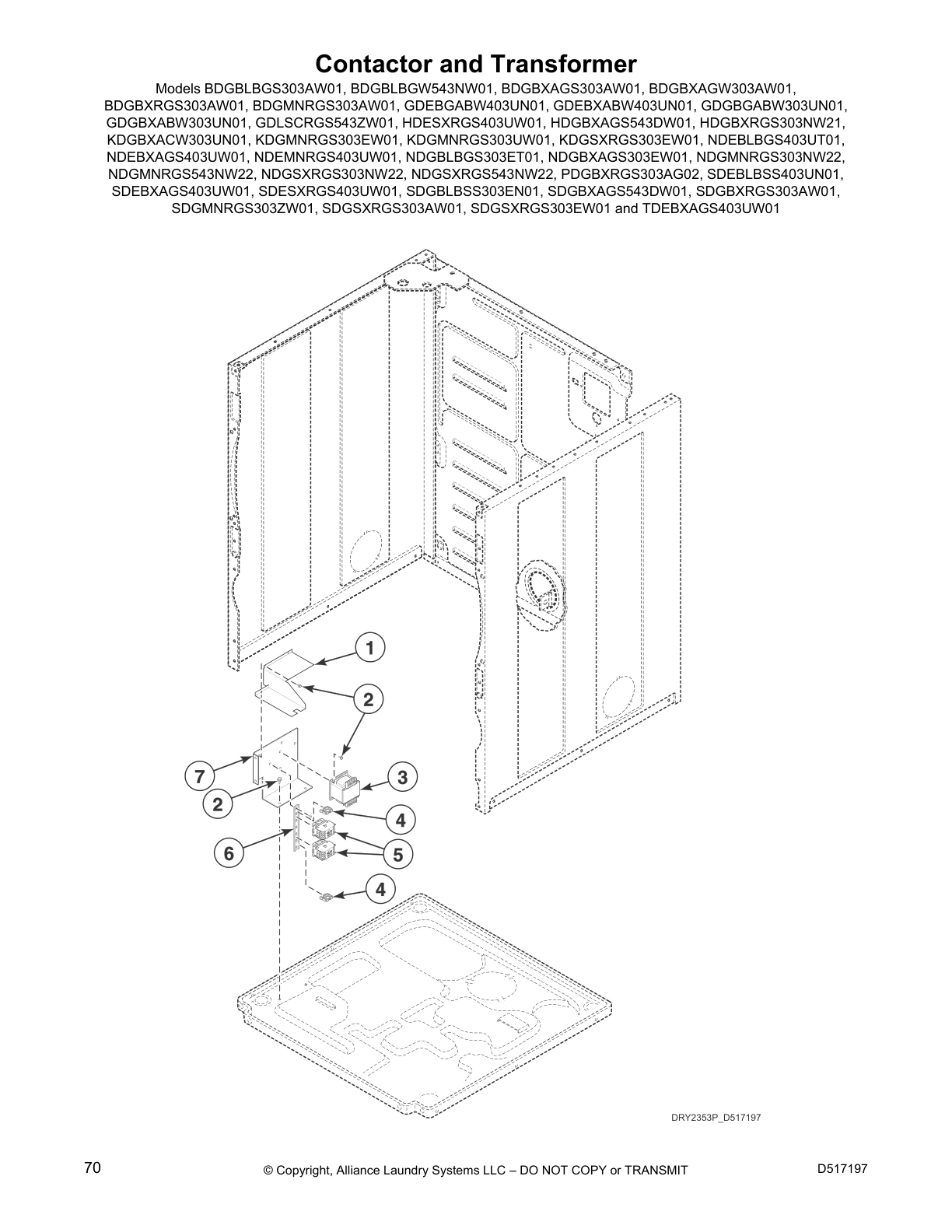

Contactor and Transformer

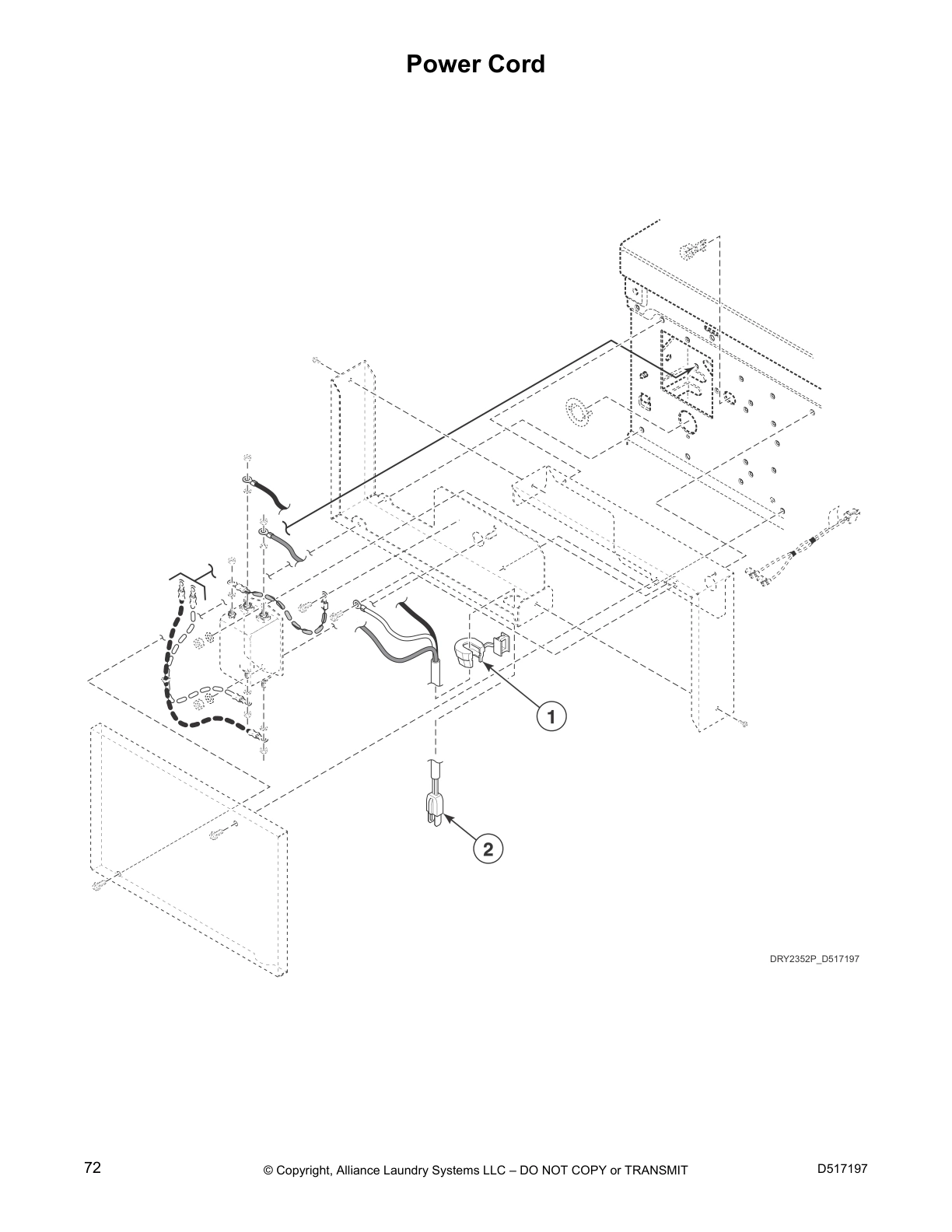

Power Cord

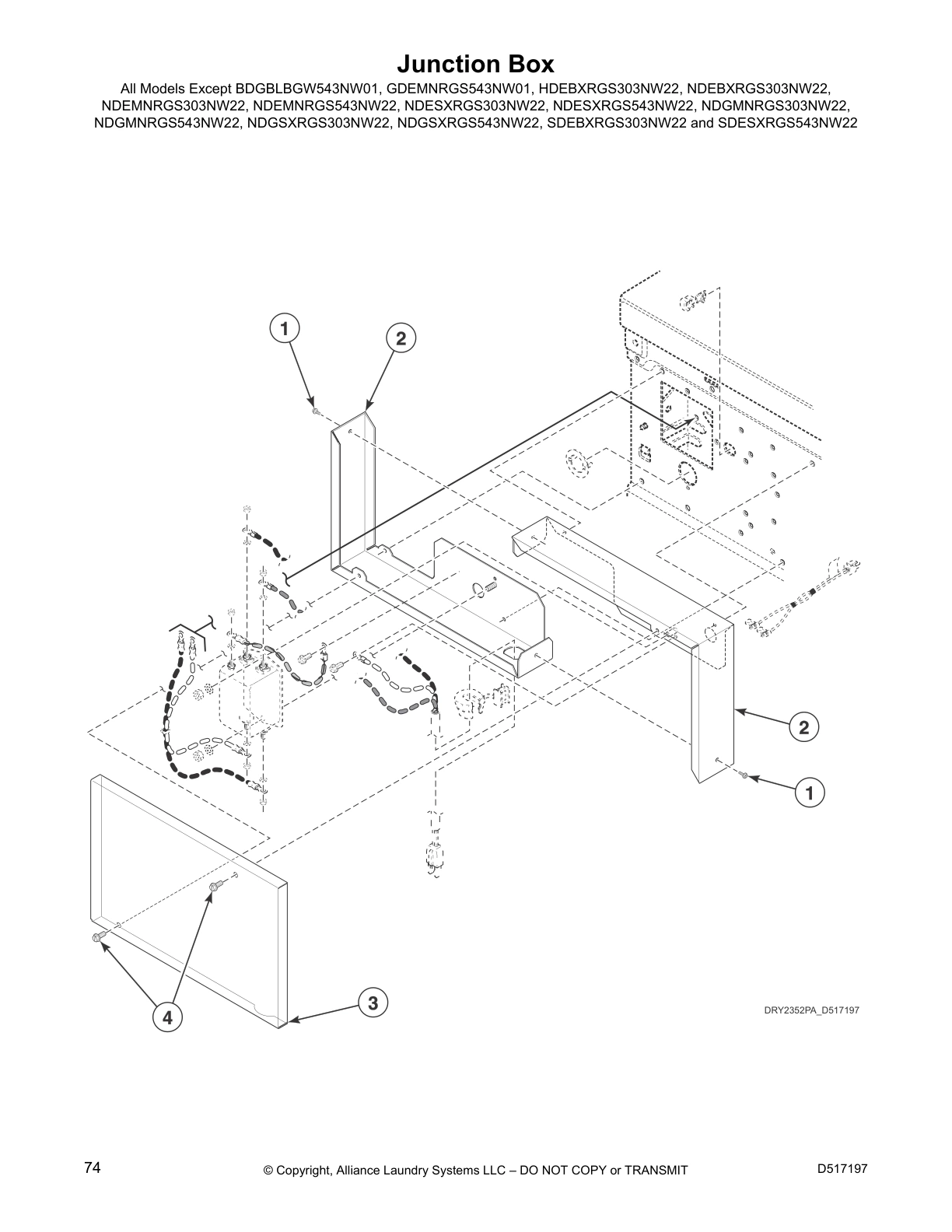

Junction Box
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools

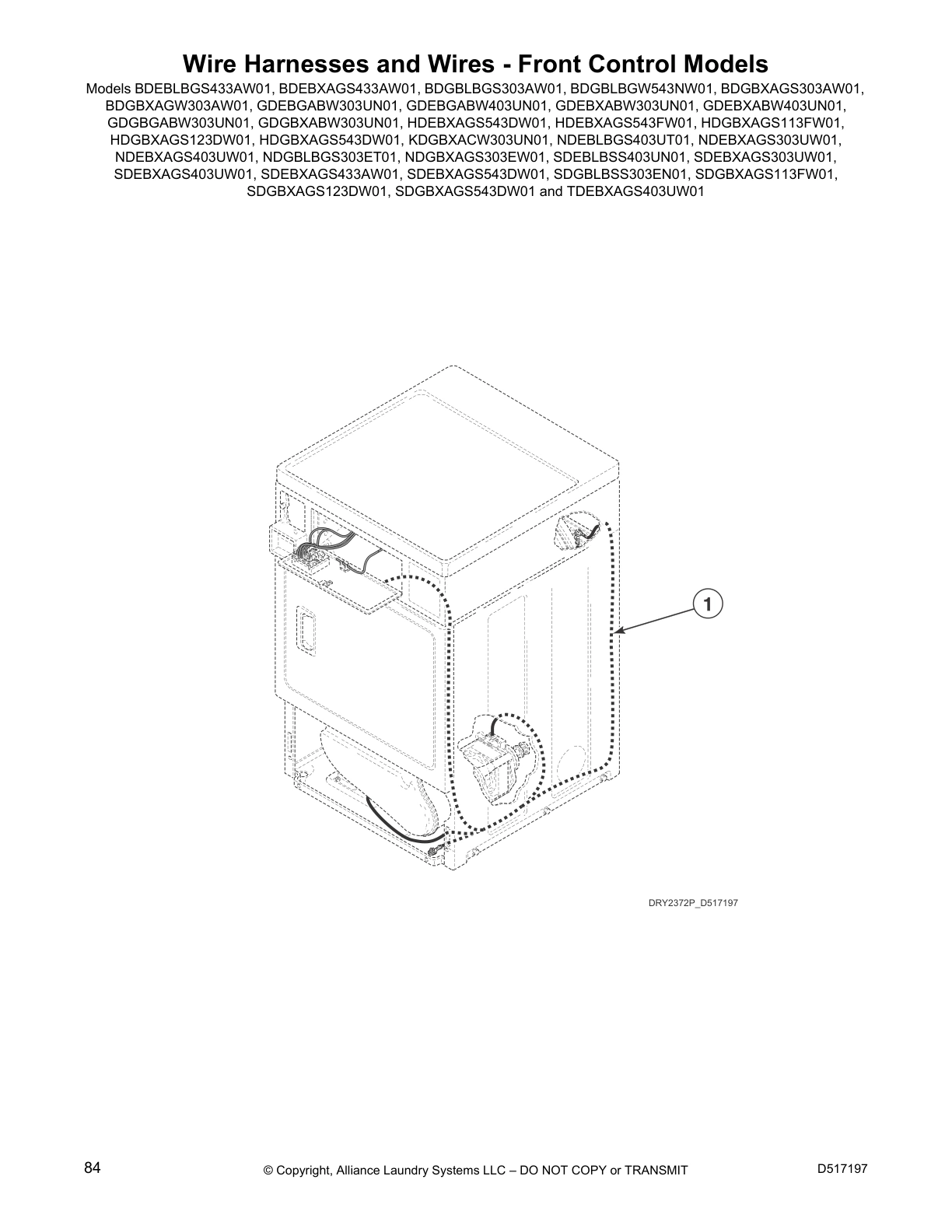

Wire Harnesses and Wires - Front Control Models

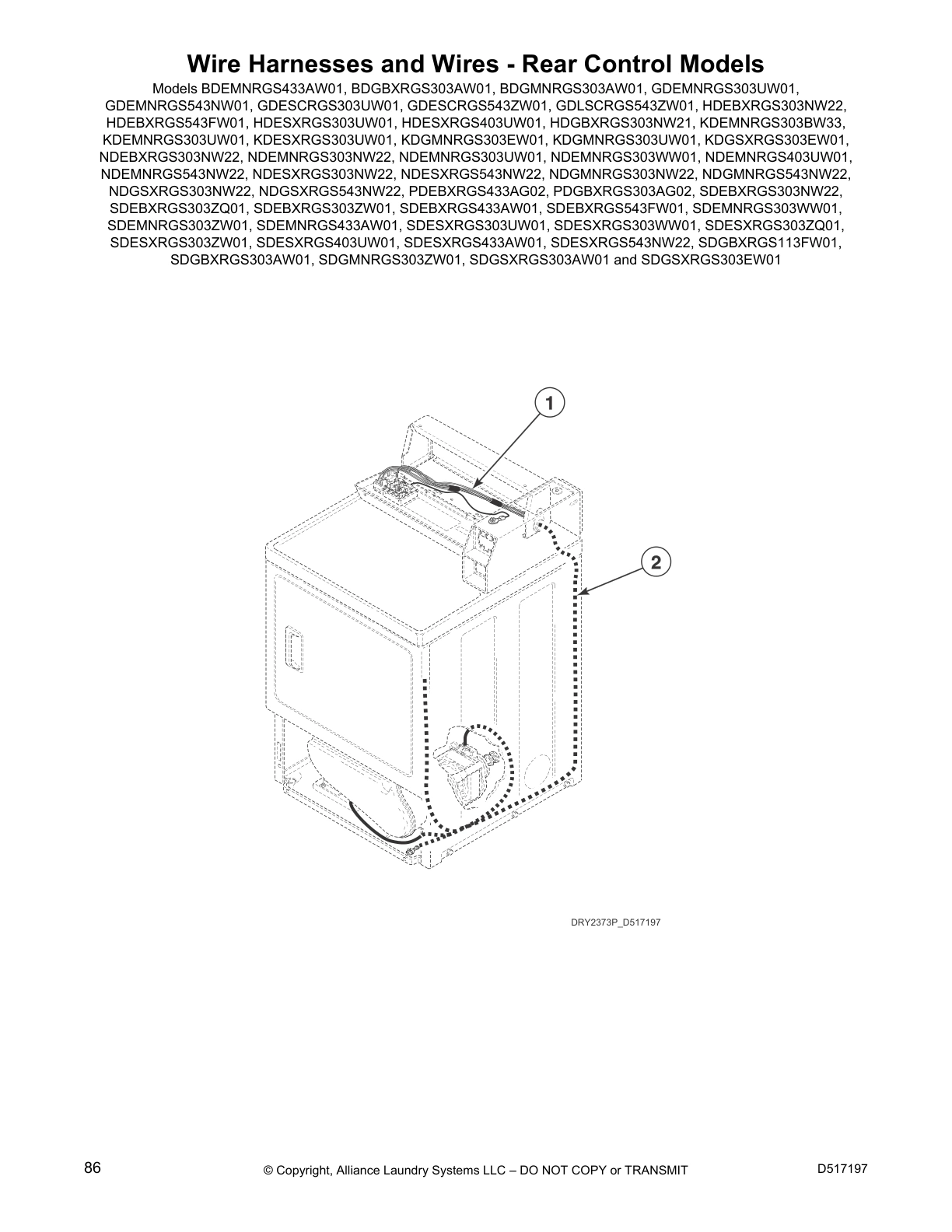

Wire Harnesses and Wires - Rear Control Models

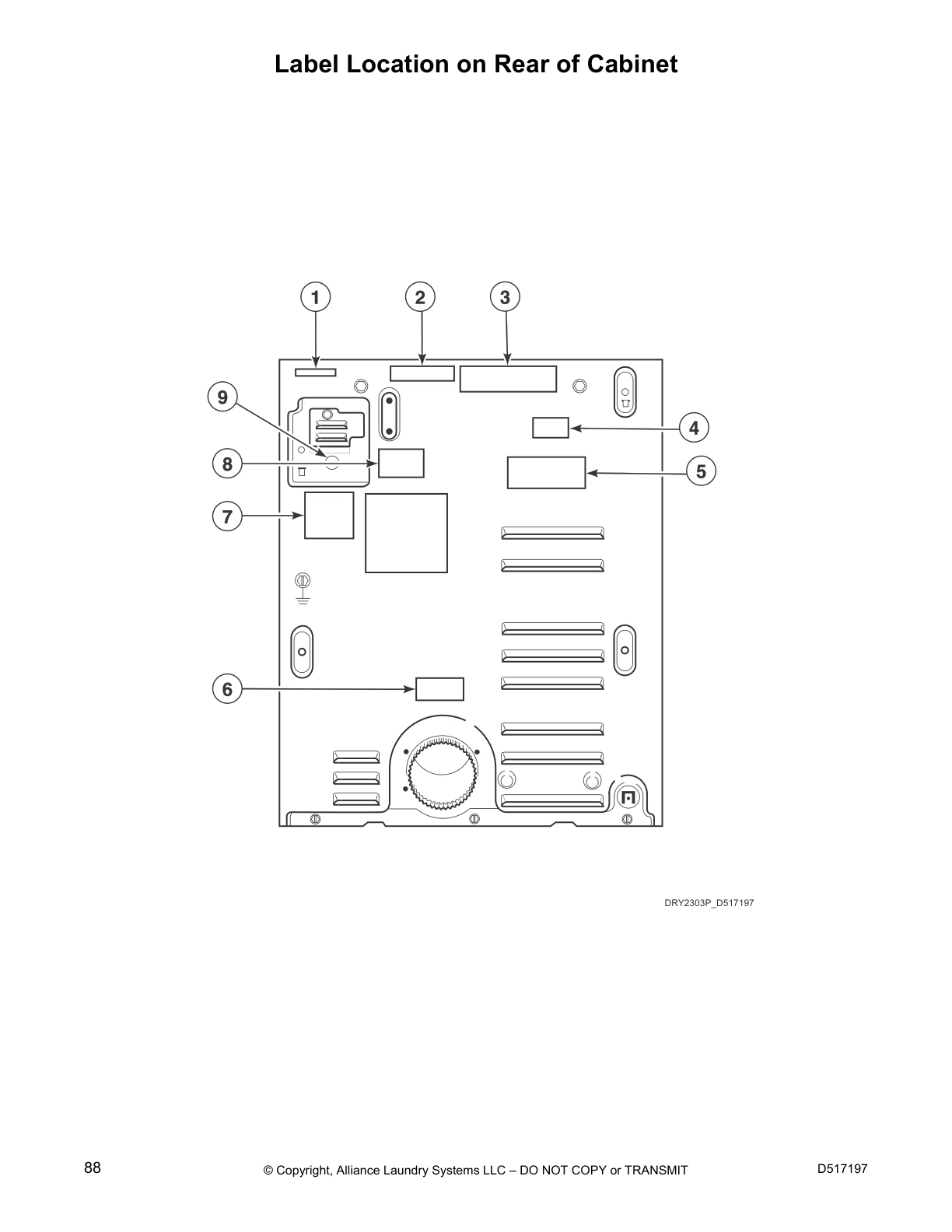

Label Location on Rear of Cabinet
Common parts from model Alliance NDGSXRGS543NW22 Dryer
16
Meter Case Lockdown Bracket SPQ 201010QP Contact Us For Availability
21
Coin Funnel Kit SPQ 201280P Contact Us For Availability
× ![]()
