Model Speed Queen LWS01M*-3088 Washer – Common Parts & Diagrams
Graphic Panel, Control Support Panel and Controls

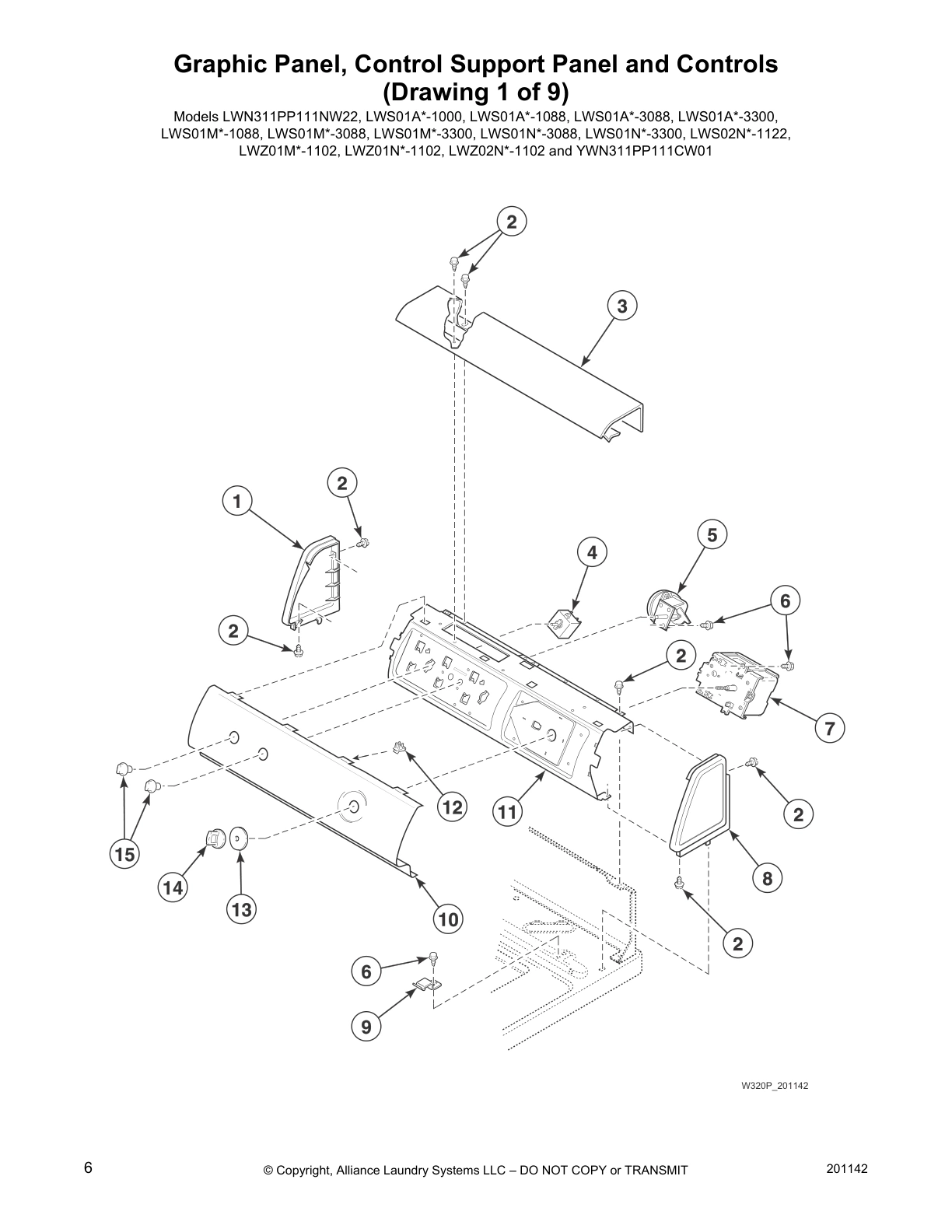

(Drawing 1 of 9)

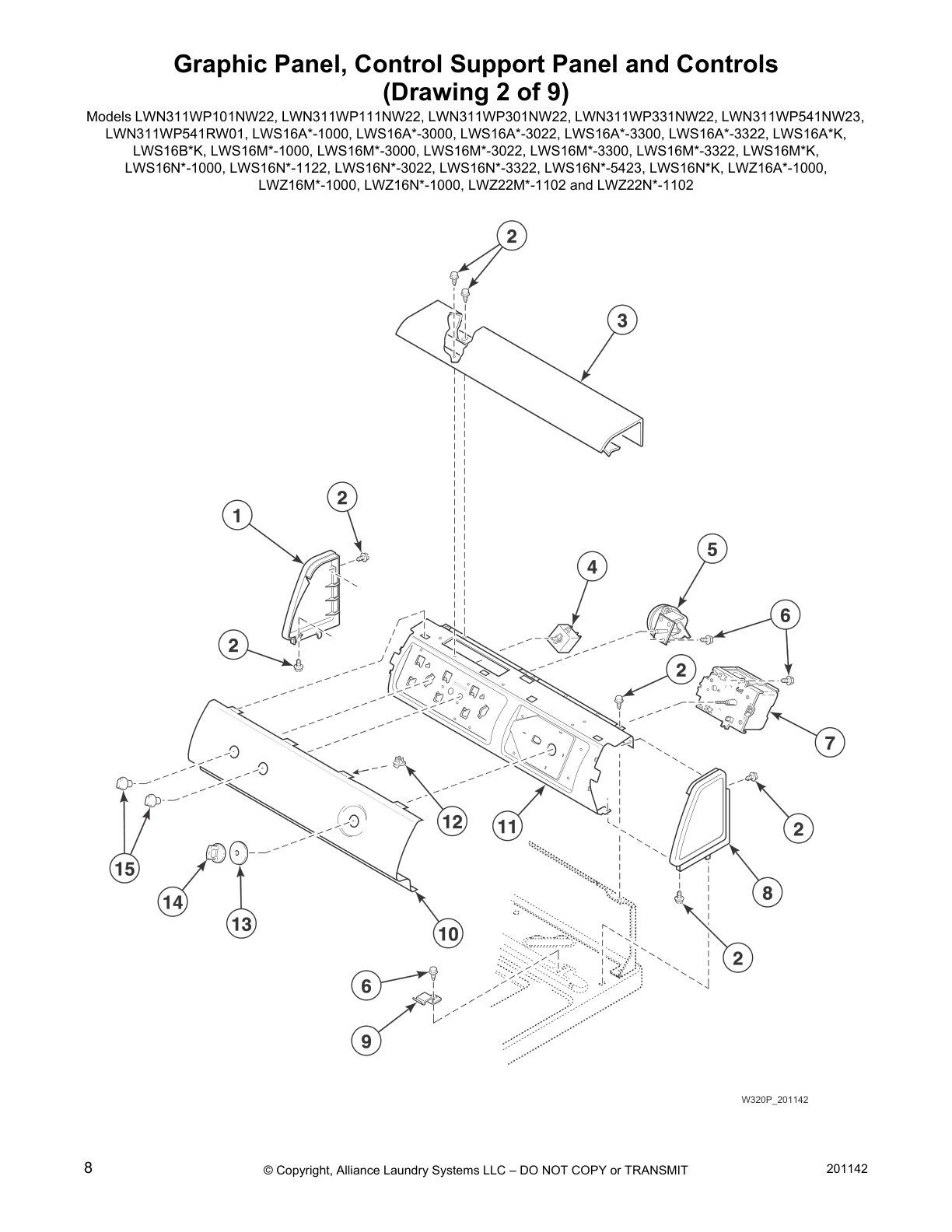

Graphic Panel, Control Support Panel and Controls
(Drawing 2 of 9)

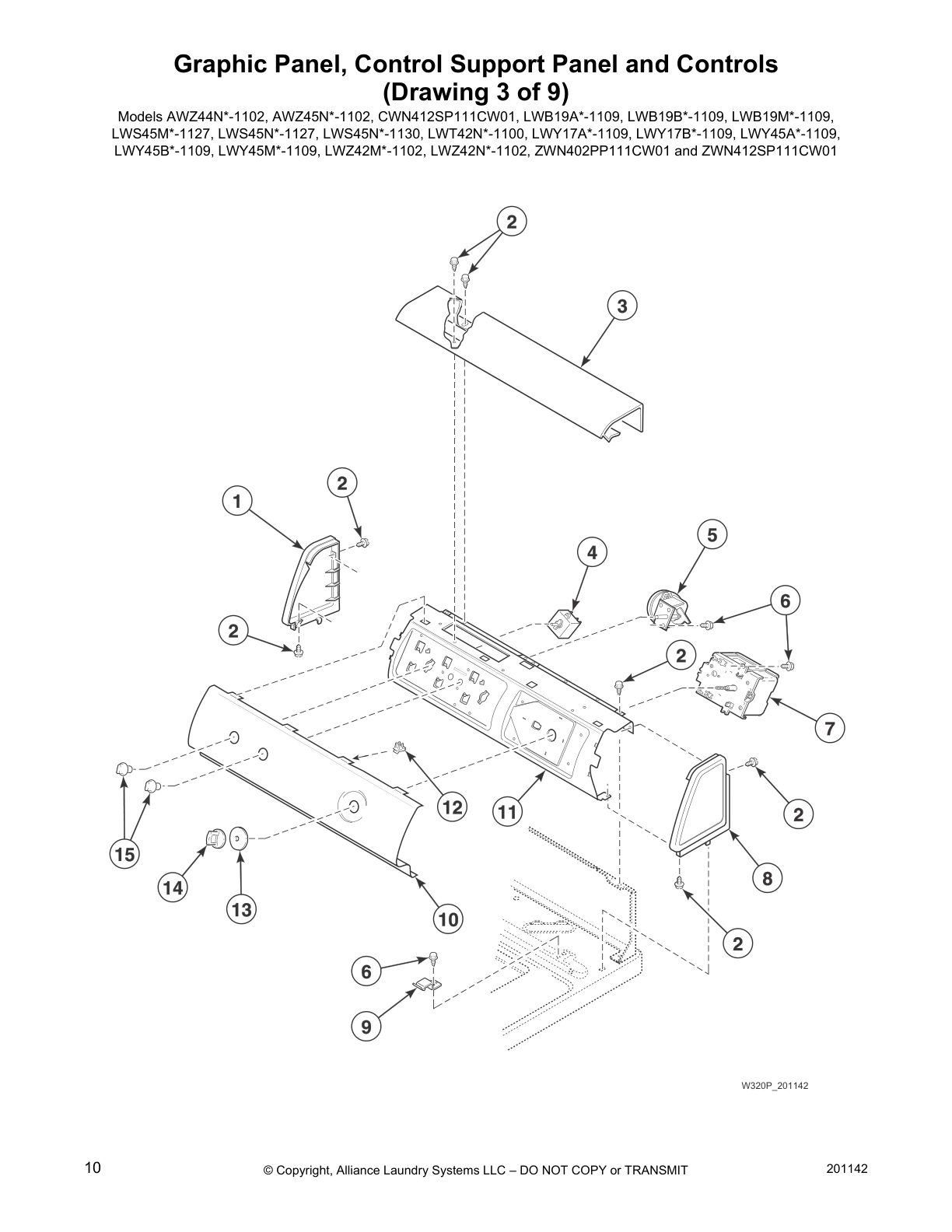

Graphic Panel, Control Support Panel and Controls
(Drawing 3 of 9)
Graphic Panel, Control Support Panel and Controls
(Drawing 4 of 9)

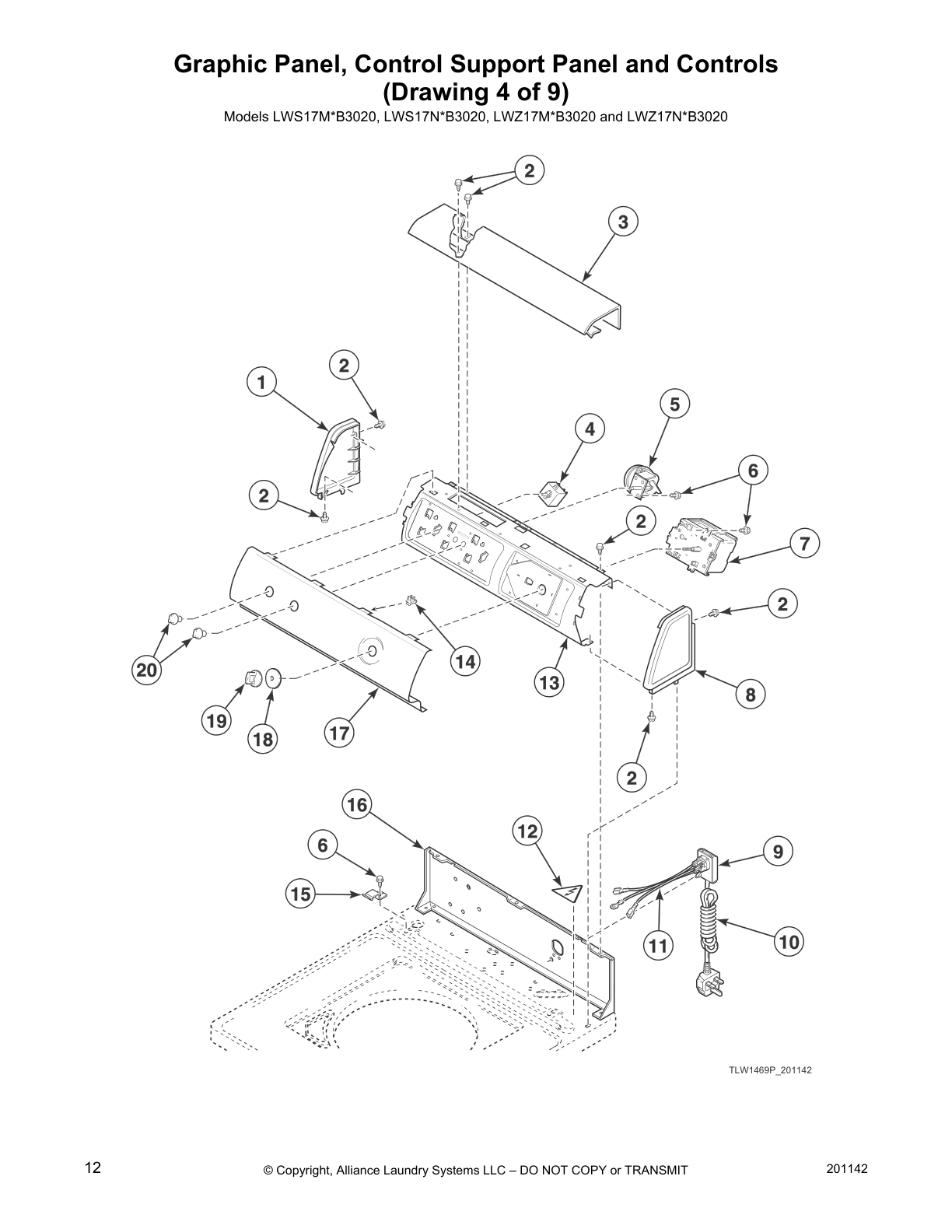

Graphic Panel, Control Support Panel and Controls

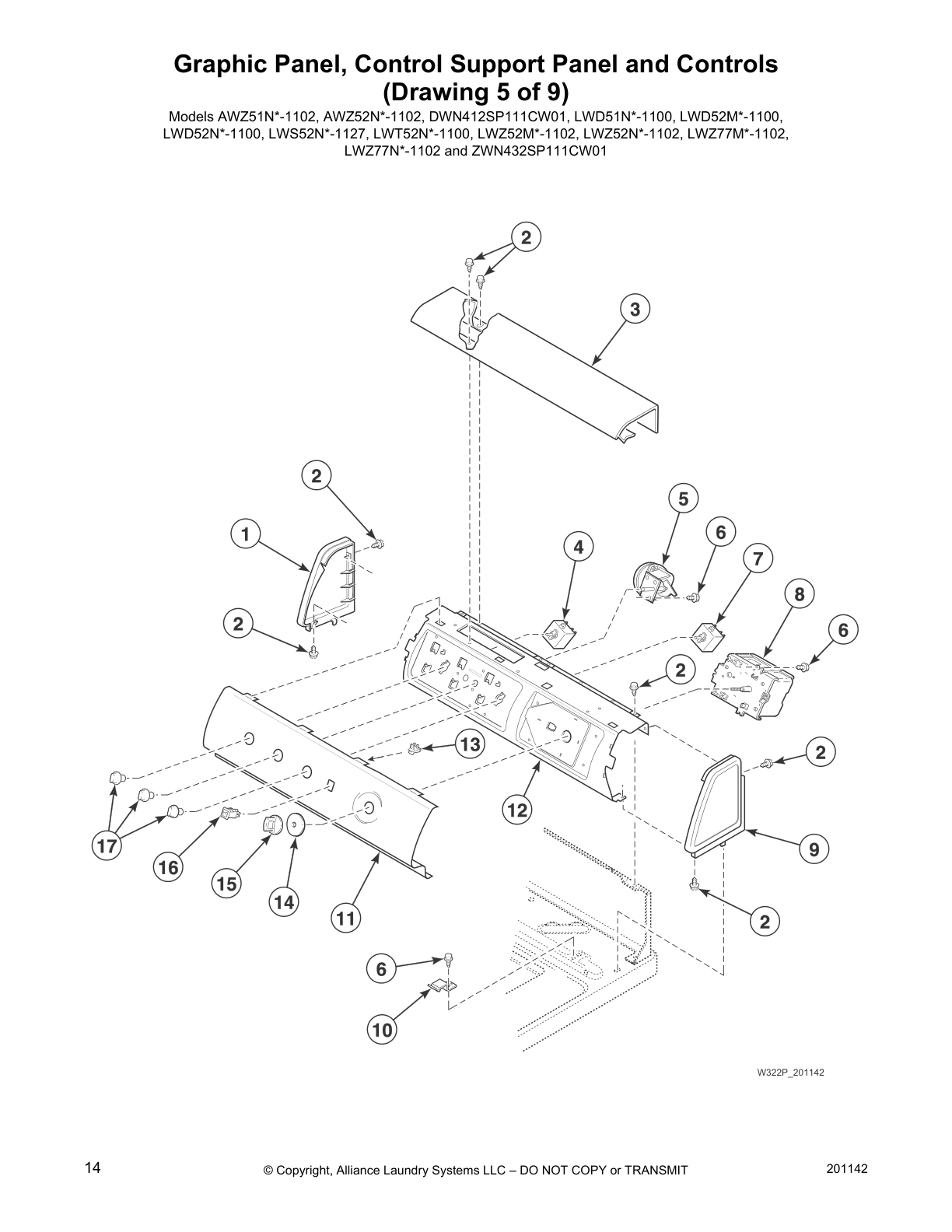

(Drawing 5 of 9)

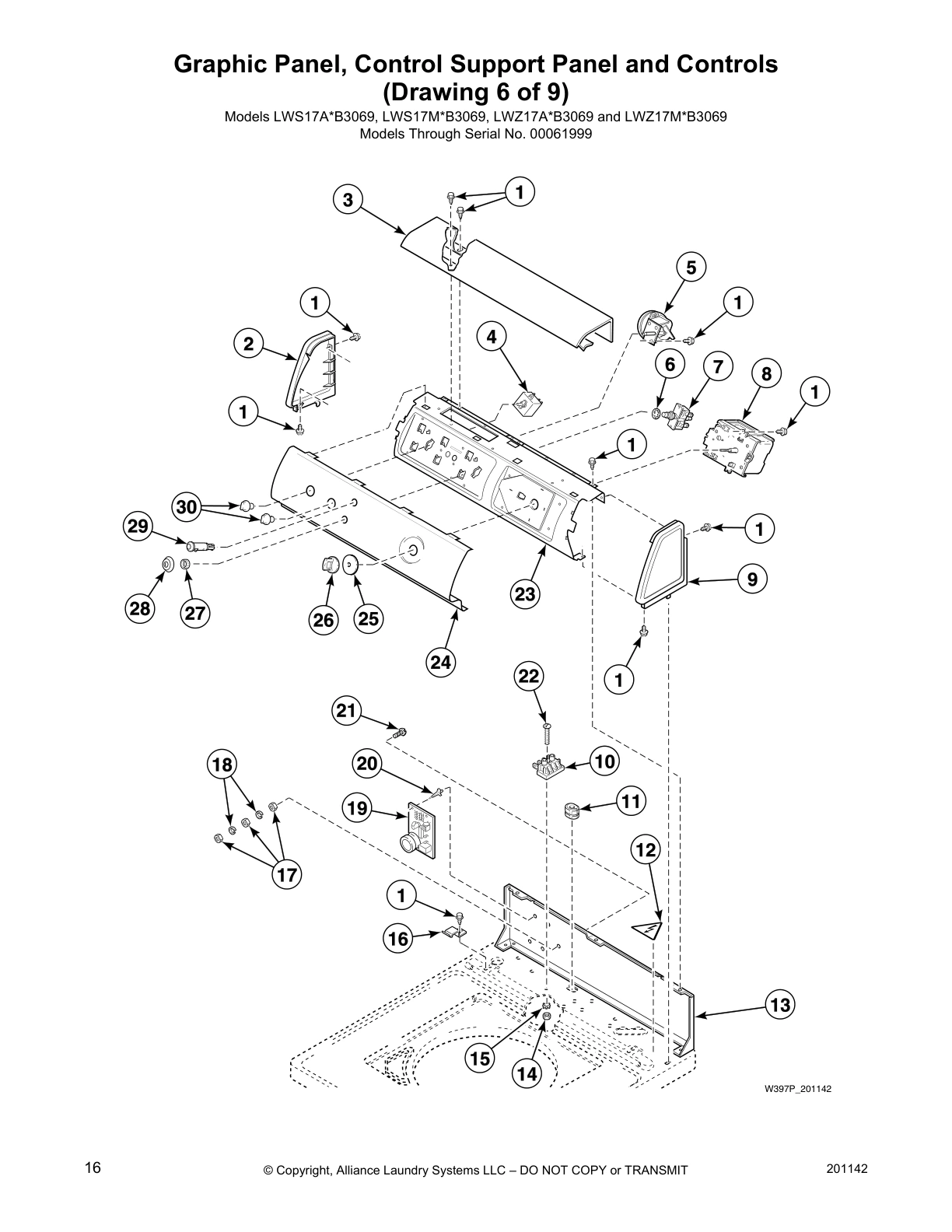

Graphic Panel, Control Support Panel and Controls
(Drawing 6 of 9)

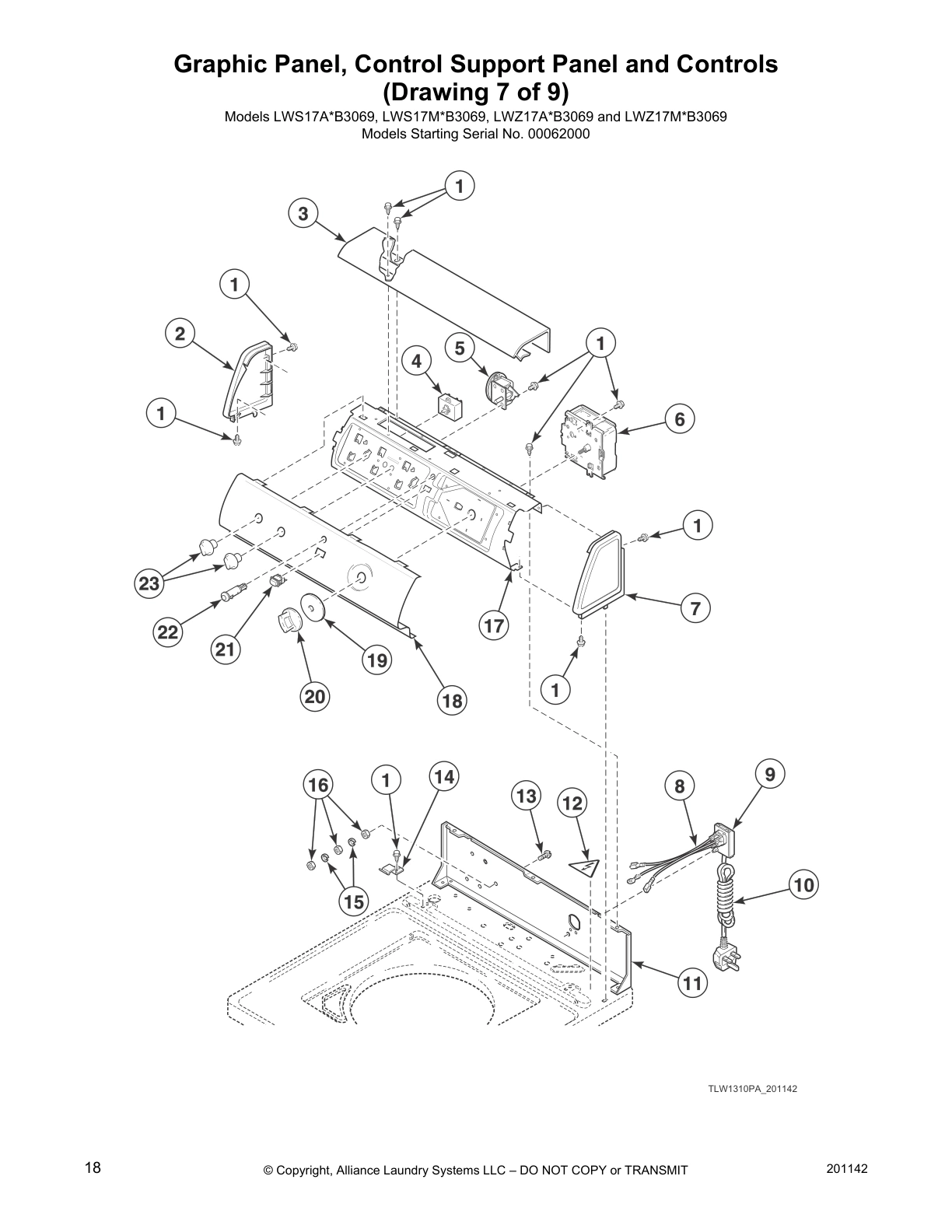

Graphic Panel, Control Support Panel and Controls
(Drawing 7 of 9)
Graphic Panel, Control Support Panel and Controls

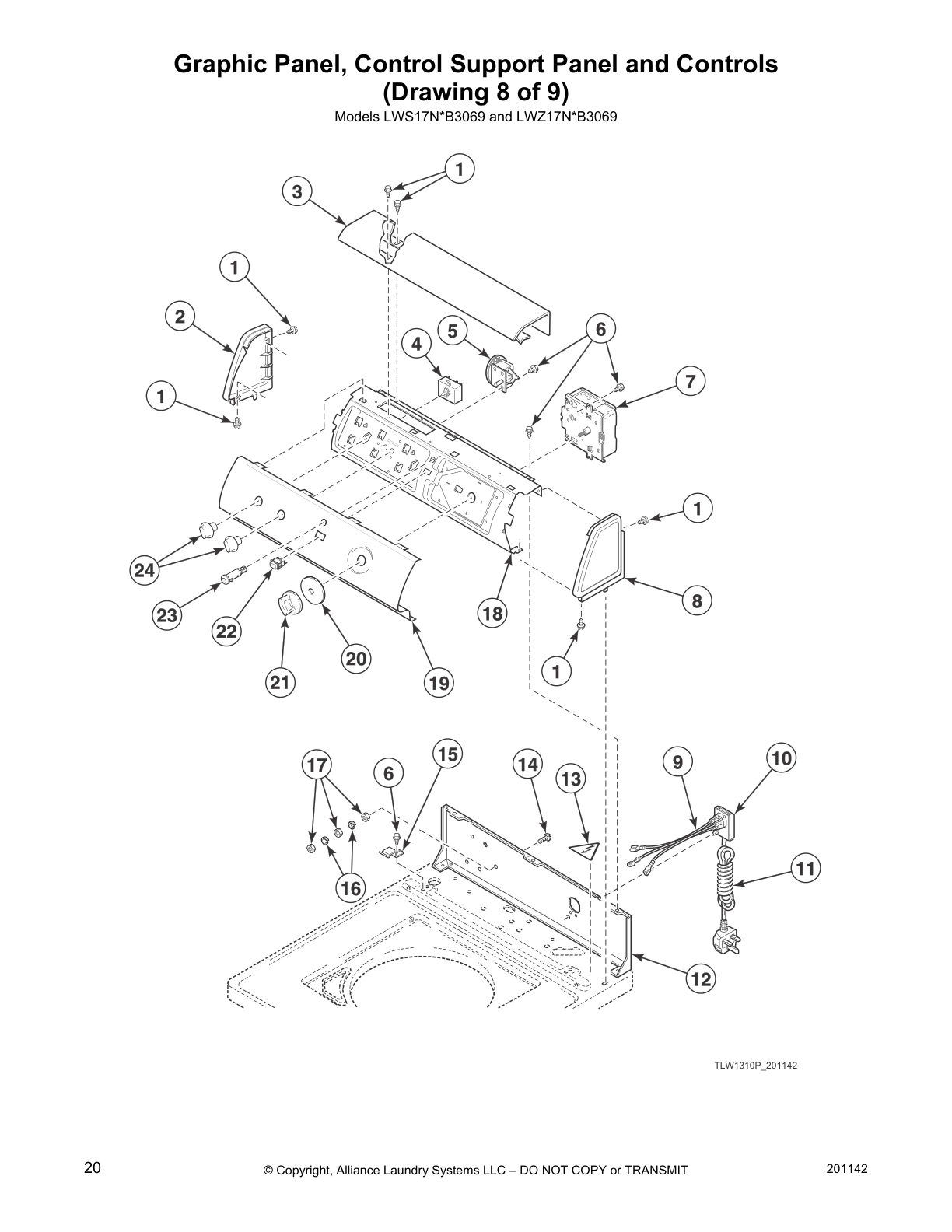

(Drawing 8 of 9)

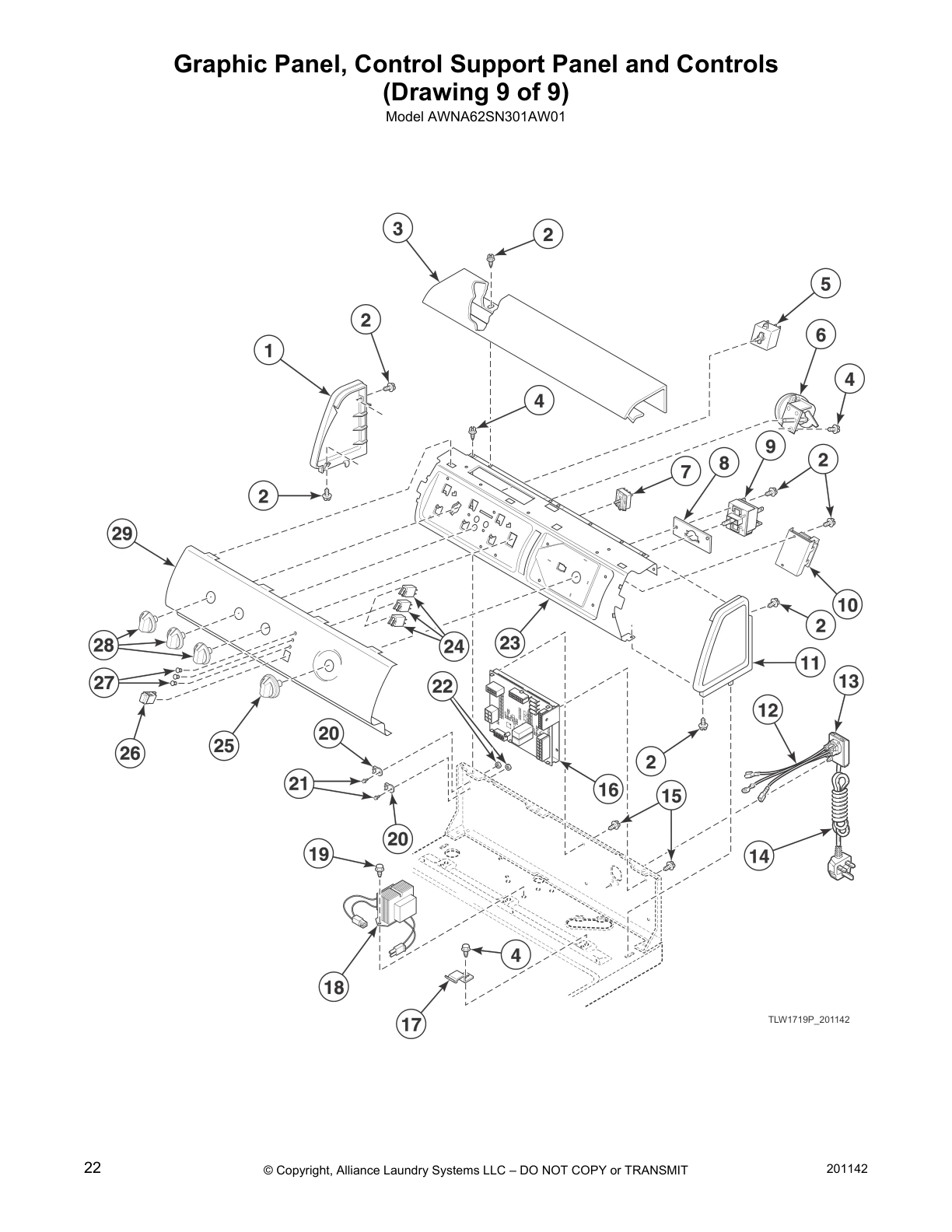

Graphic Panel, Control Support Panel and Controls
(Drawing 9 of 9)

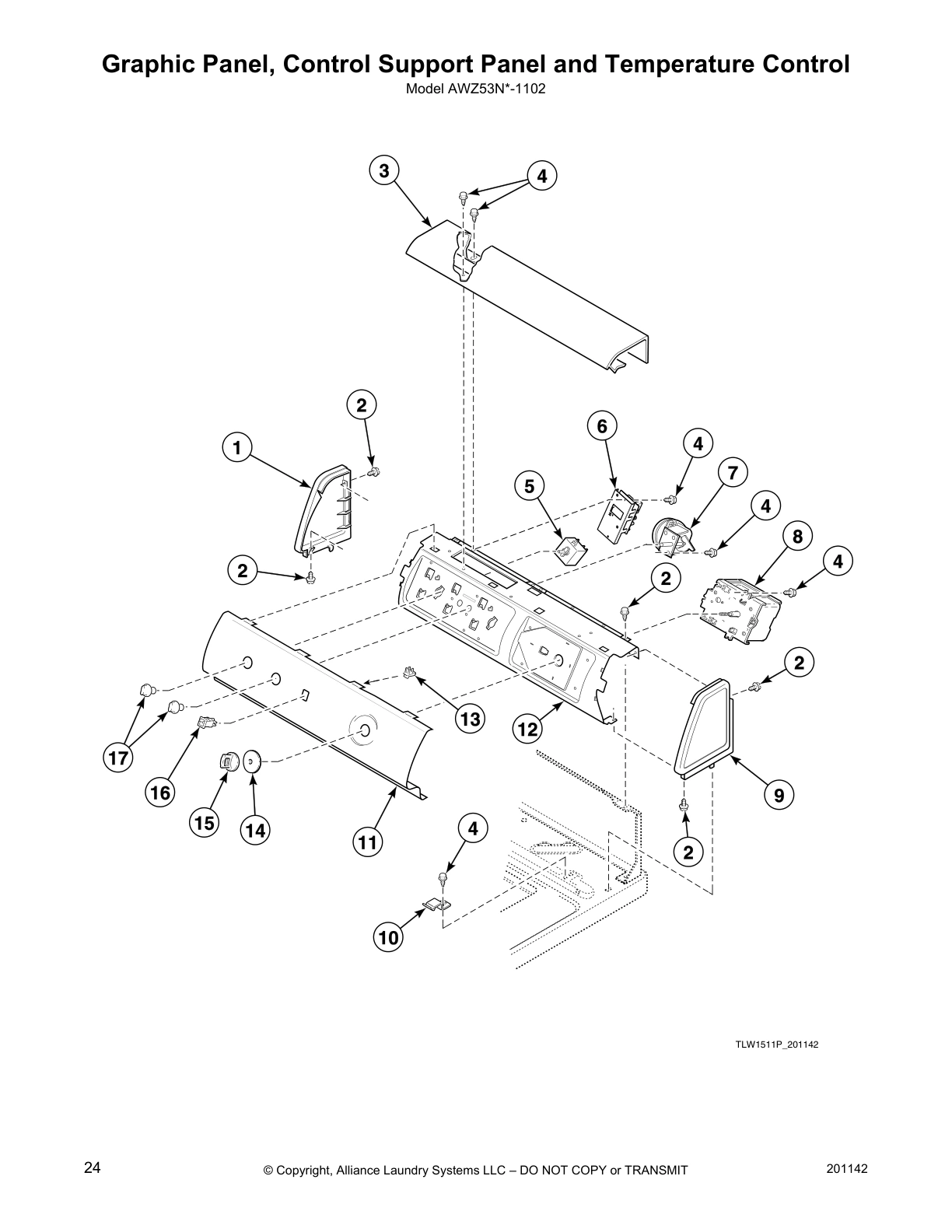

Graphic Panel, Control Support Panel and Temperature Control

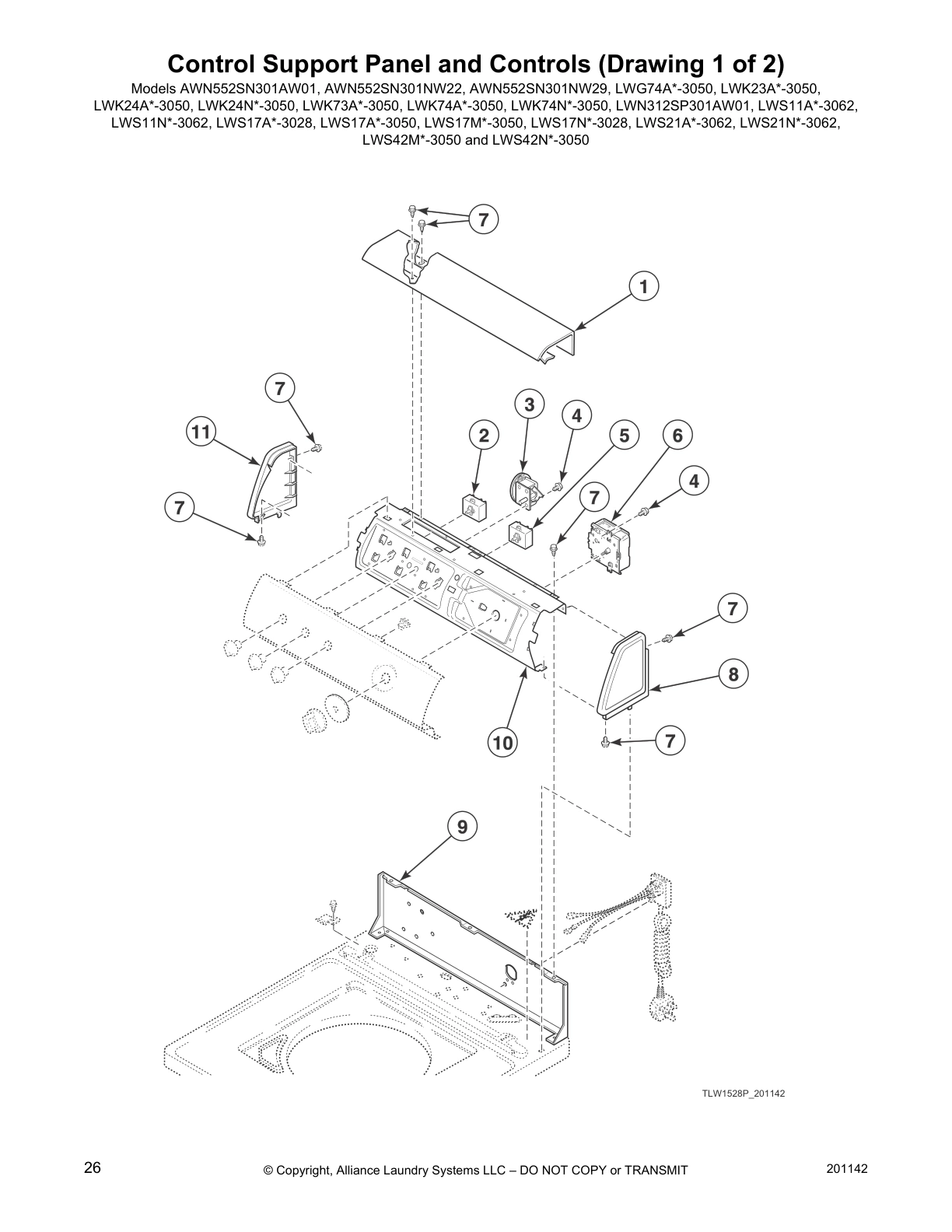

Control Support Panel and Controls (Drawing 1 of 2)

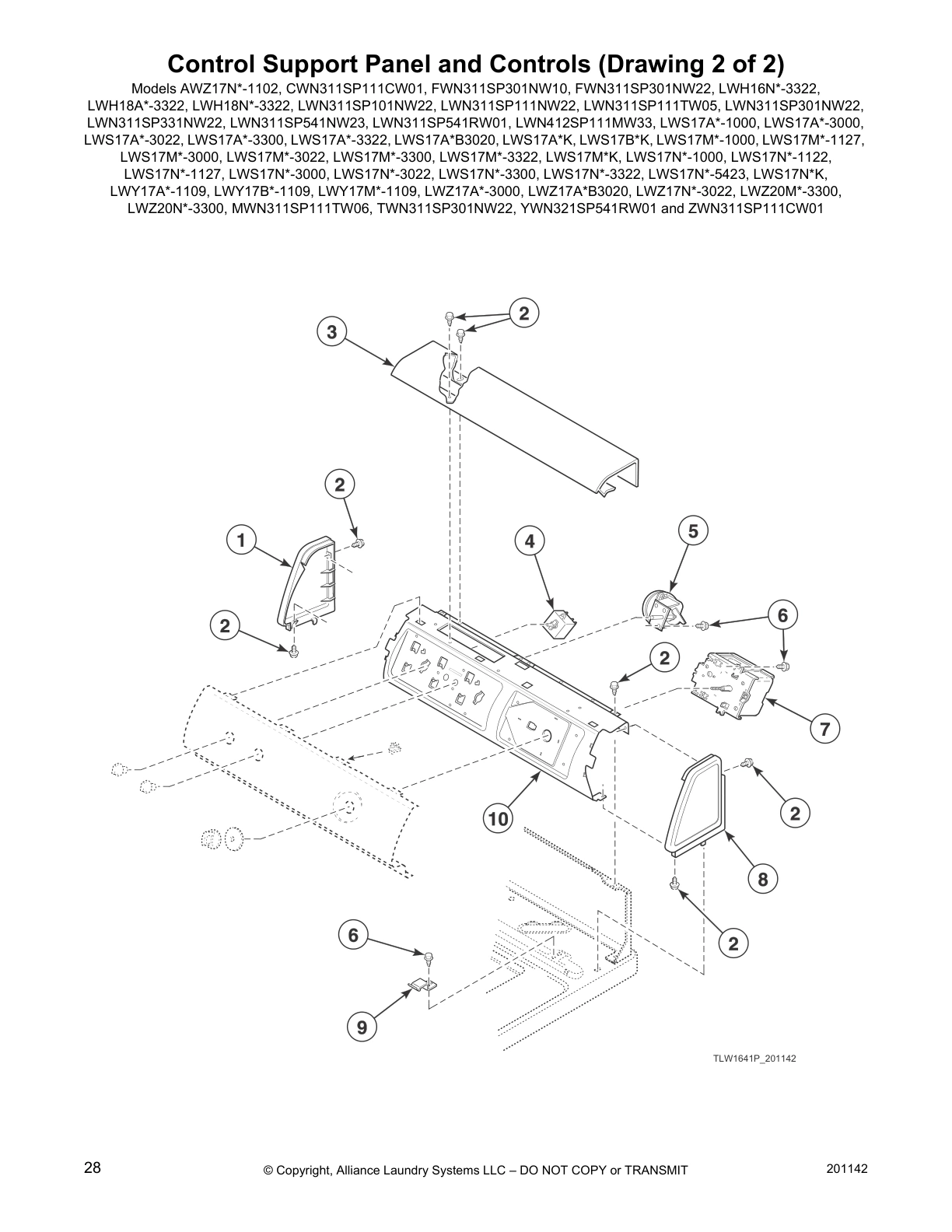

Control Support Panel and Controls (Drawing 2 of 2)

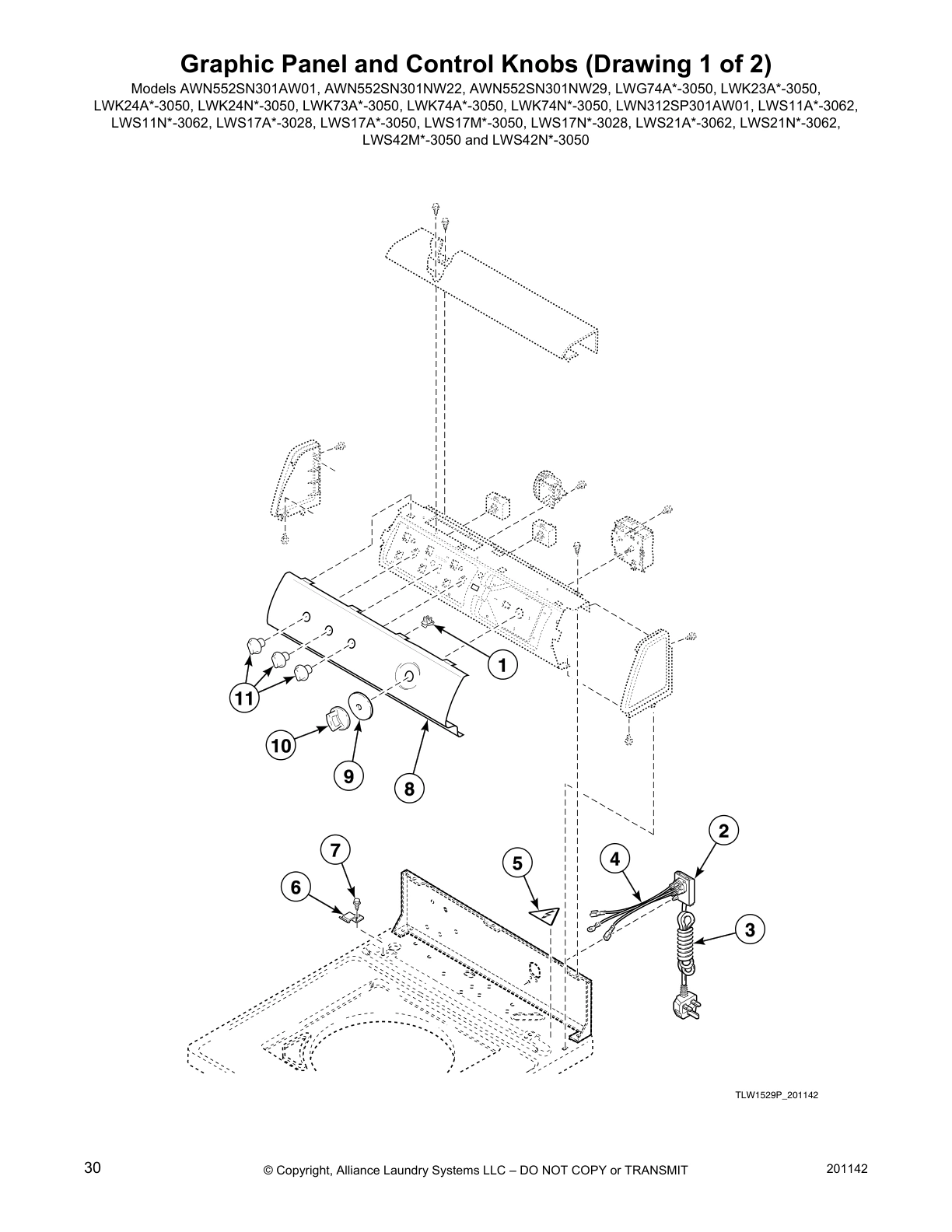

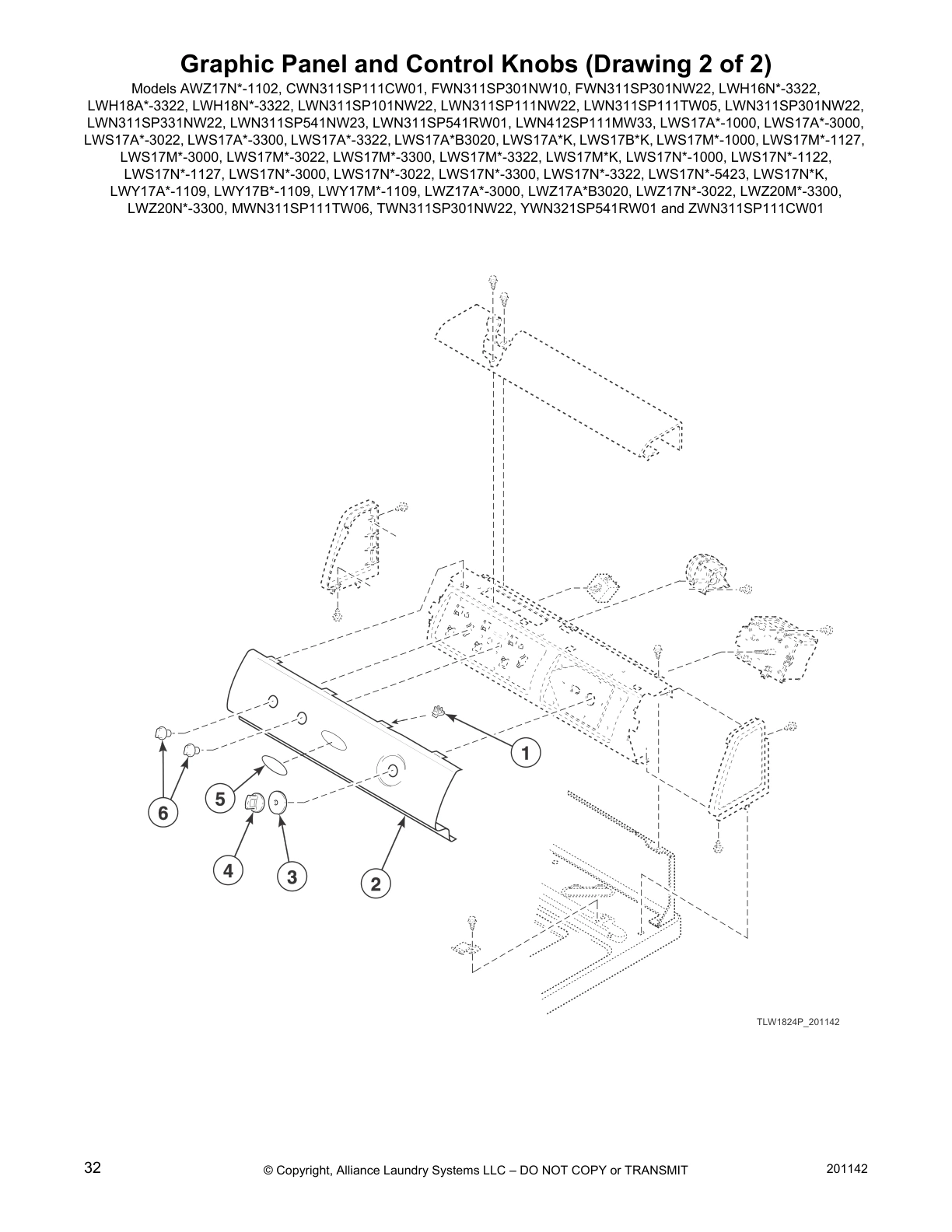

Graphic Panel and Control Knobs (Drawing 1 of 2)
Graphic Panel and Control Knobs (Drawing 2 of 2)

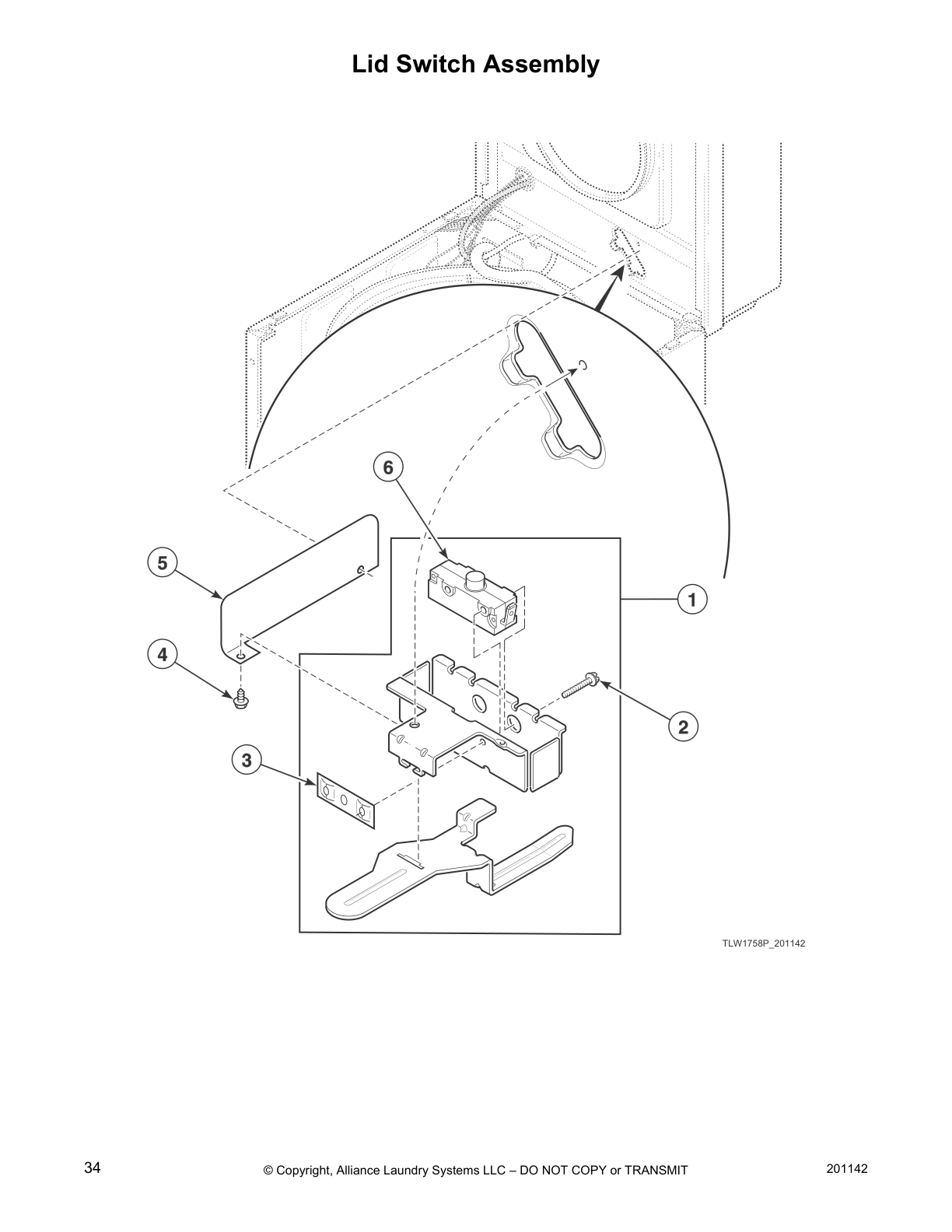

Lid Switch Assembly

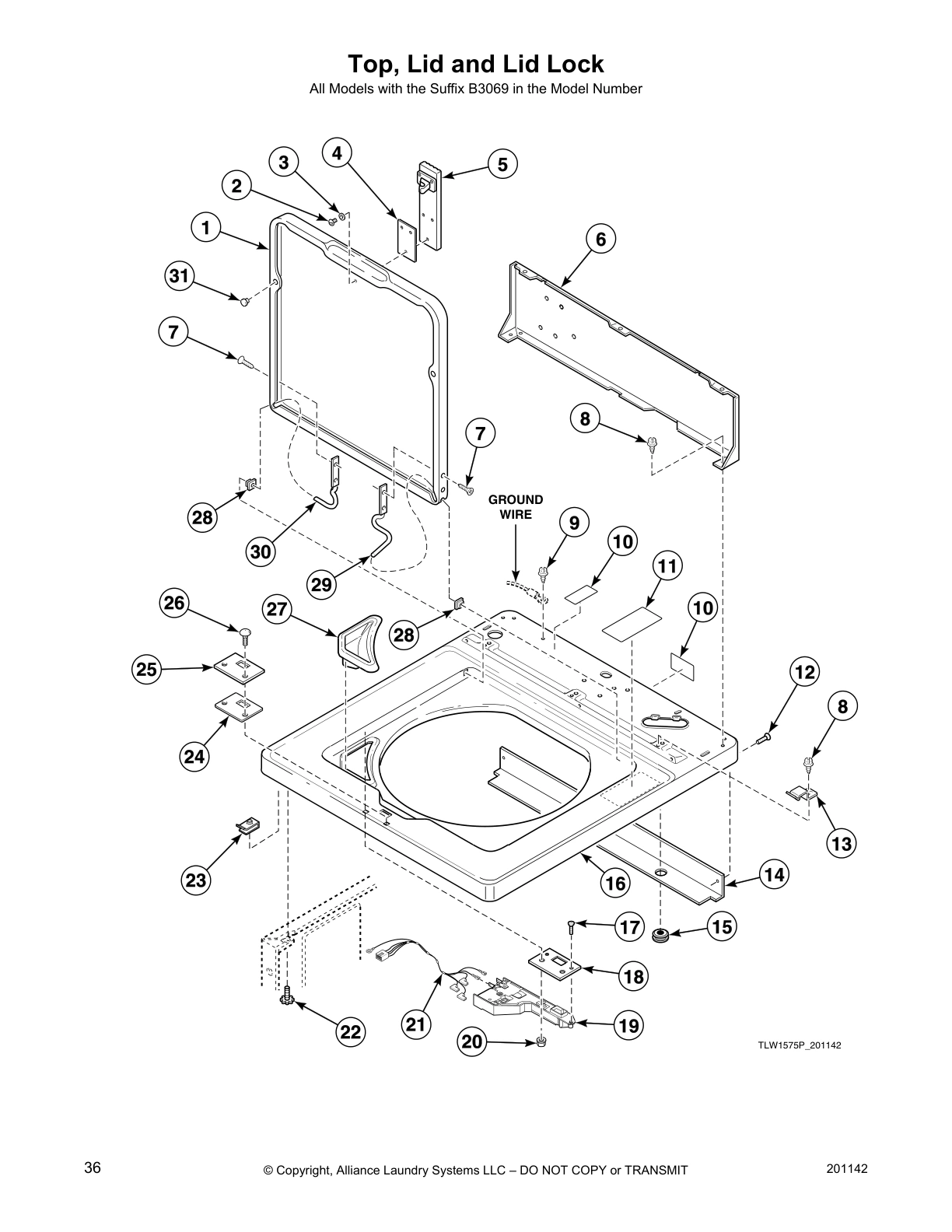

Top, Lid and Lid Lock

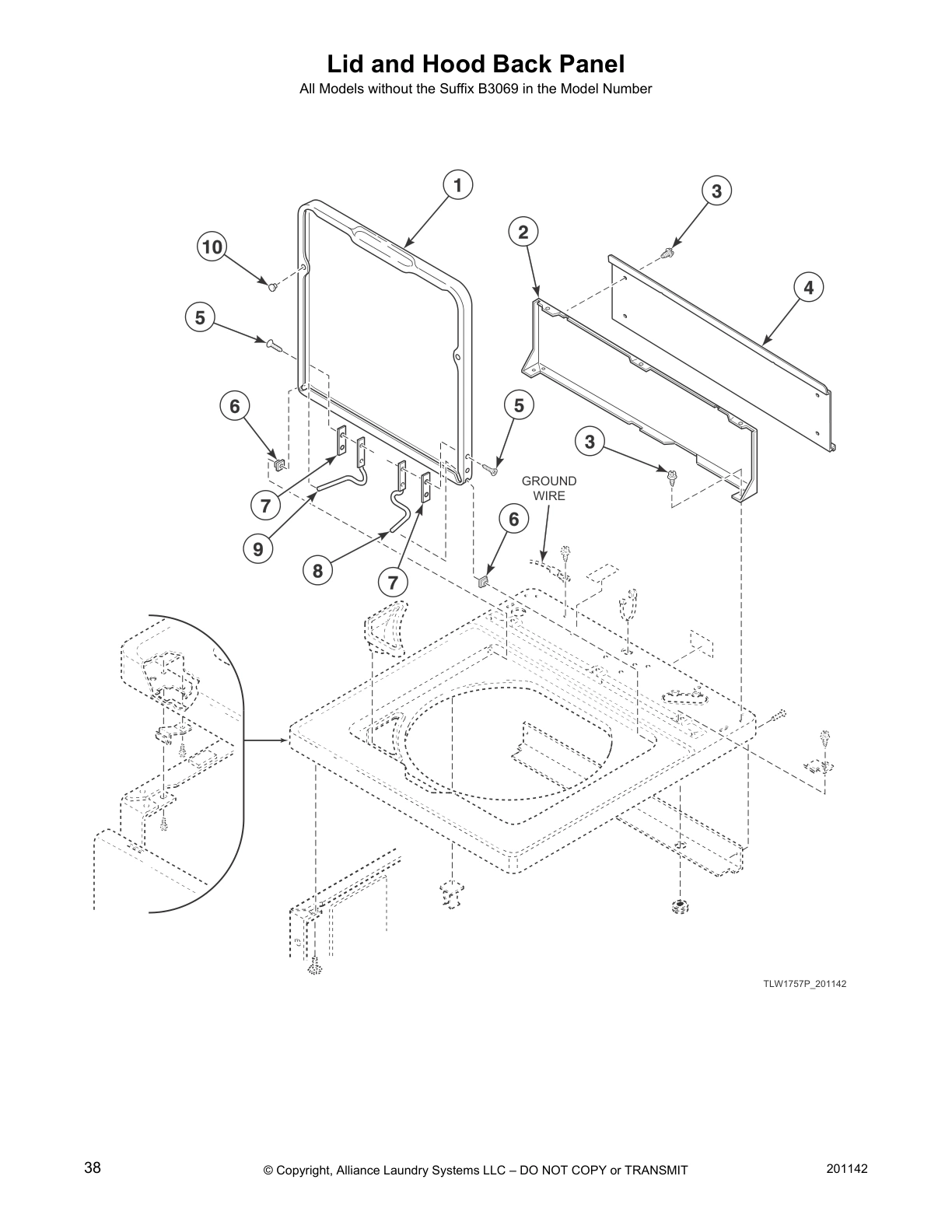

Lid and Hood Back Panel

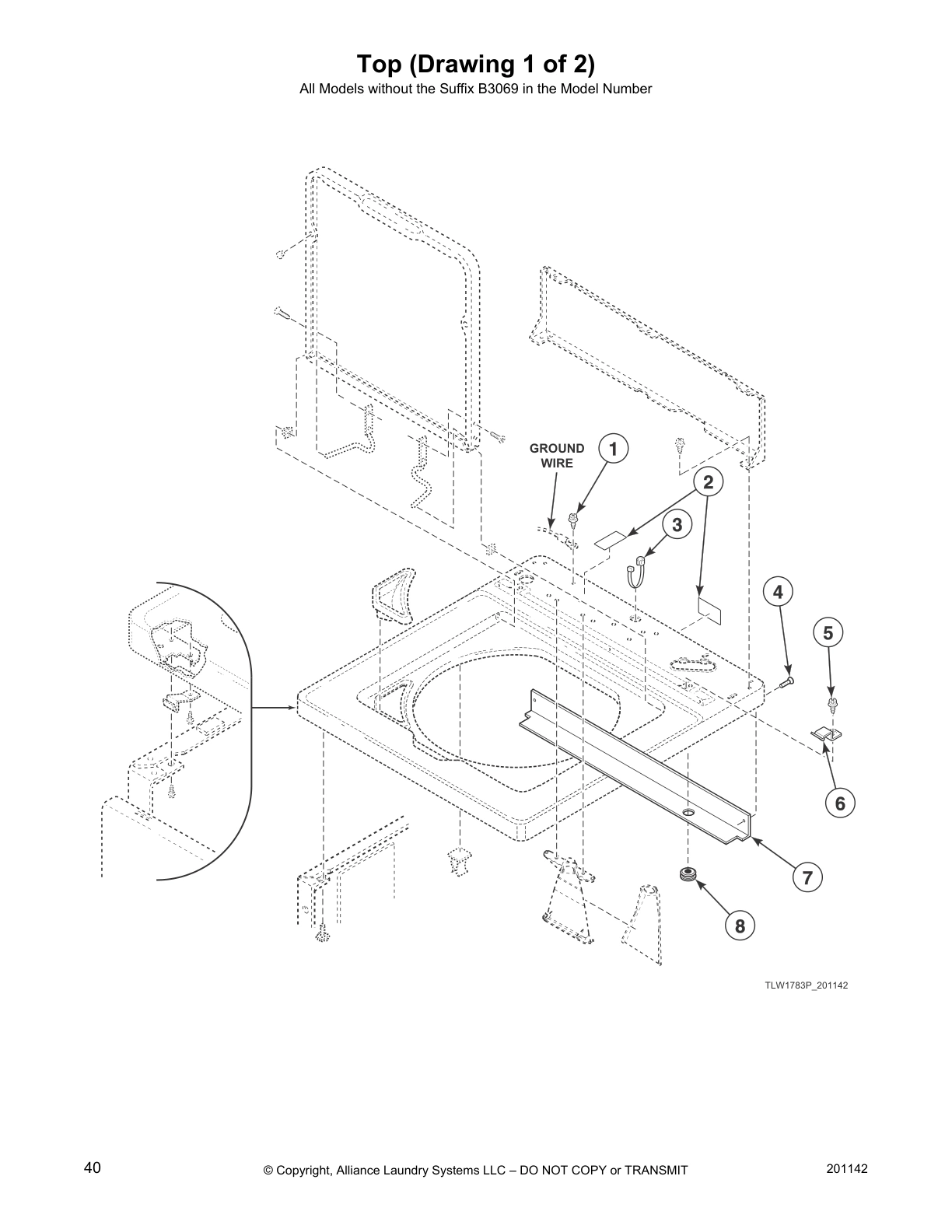

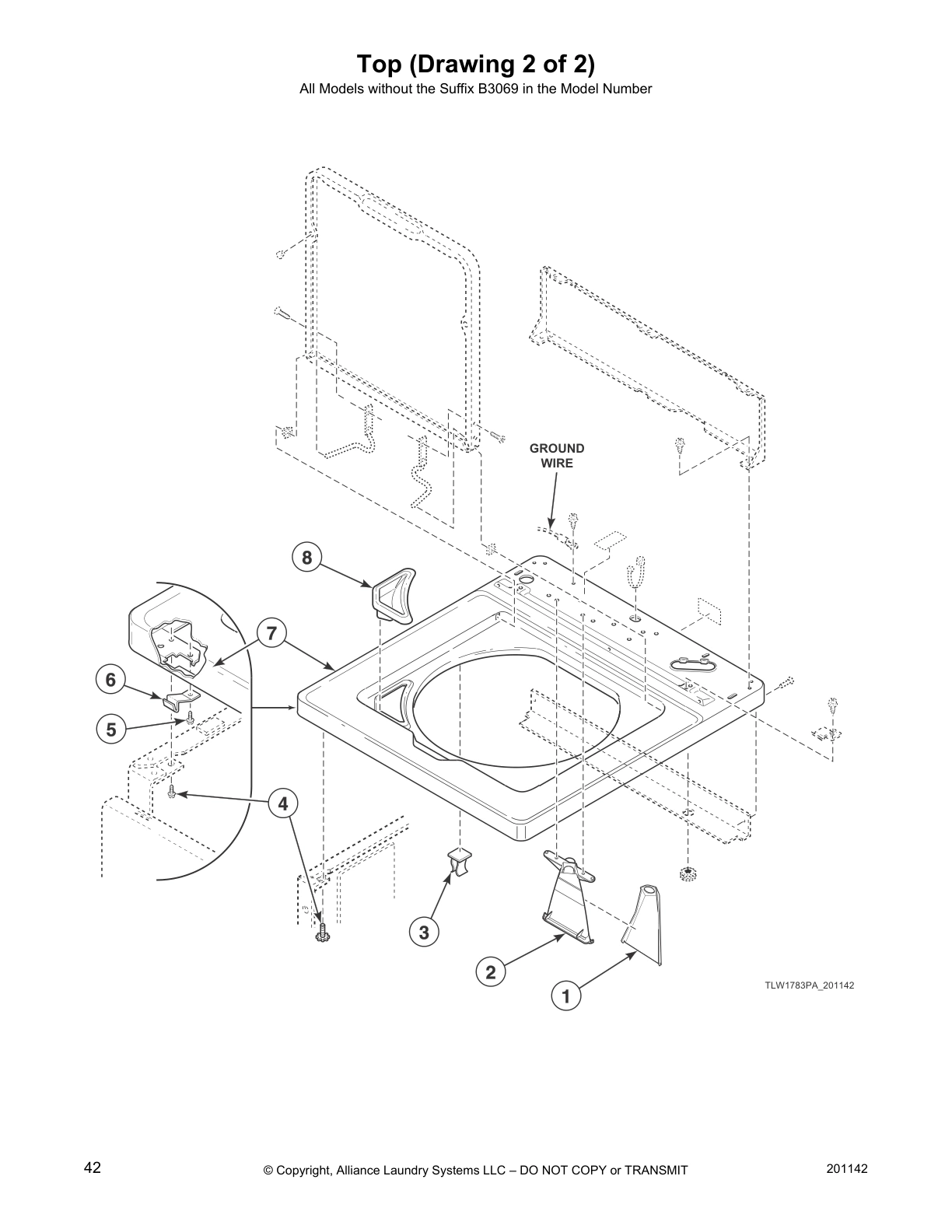

Top (Drawing 1 of 2)
Top (Drawing 2 of 2)

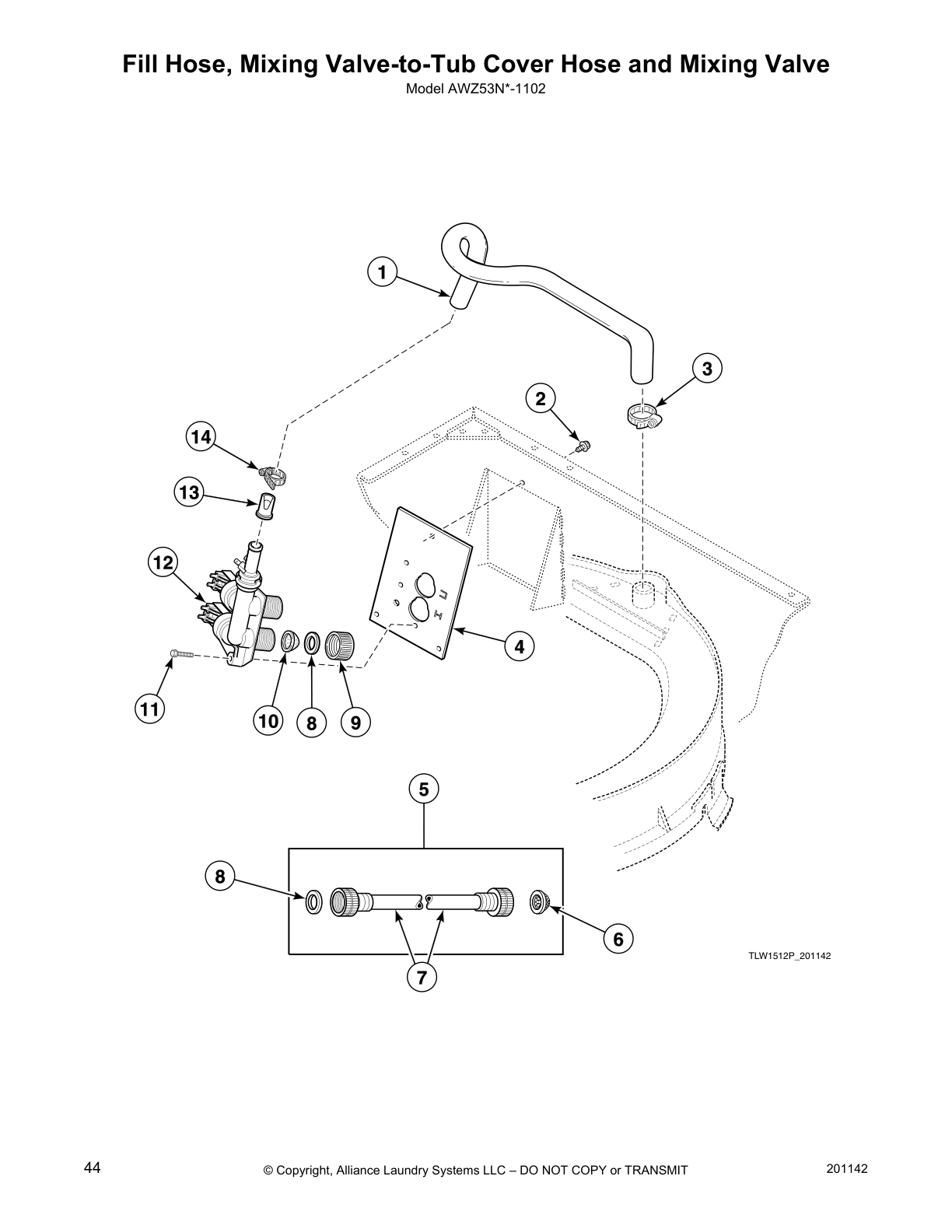

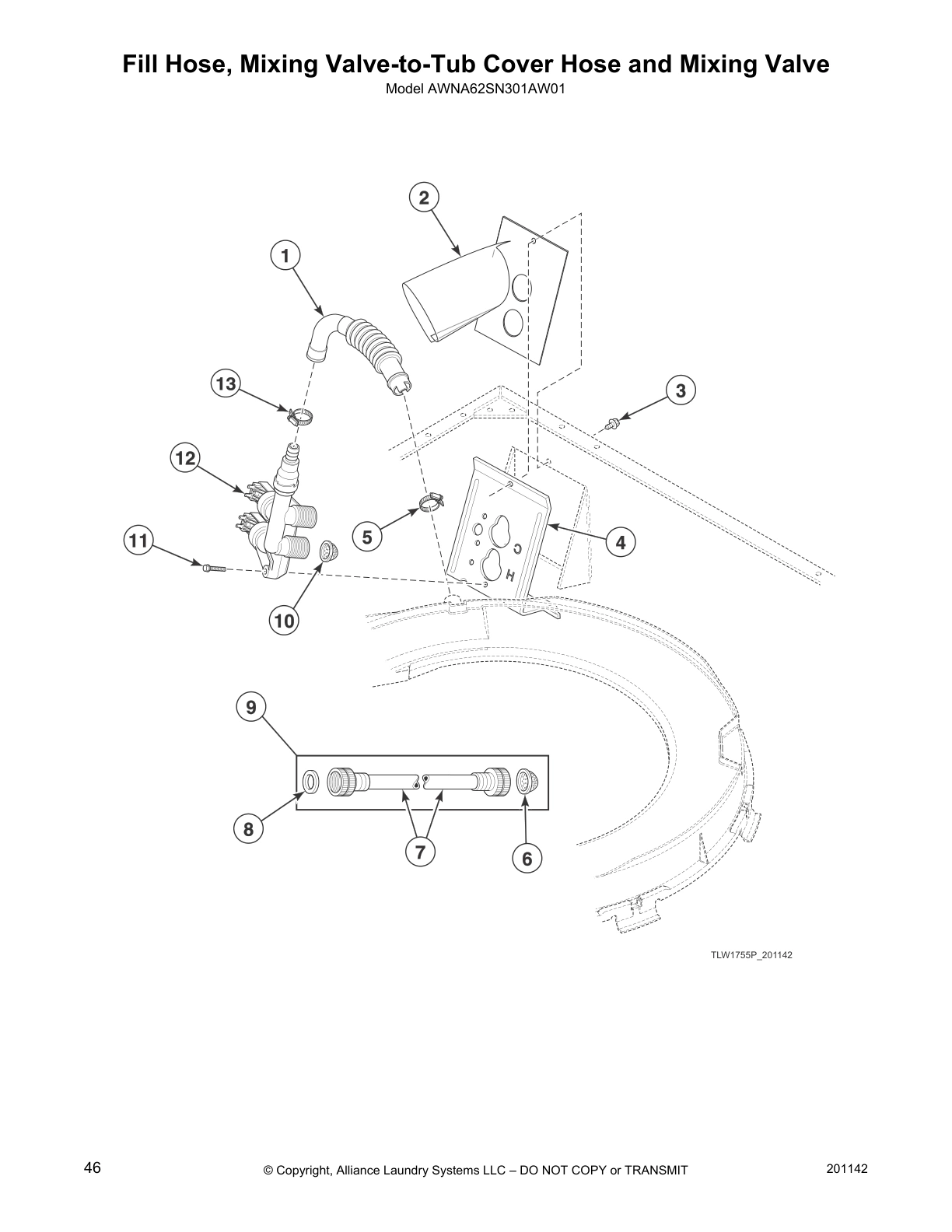

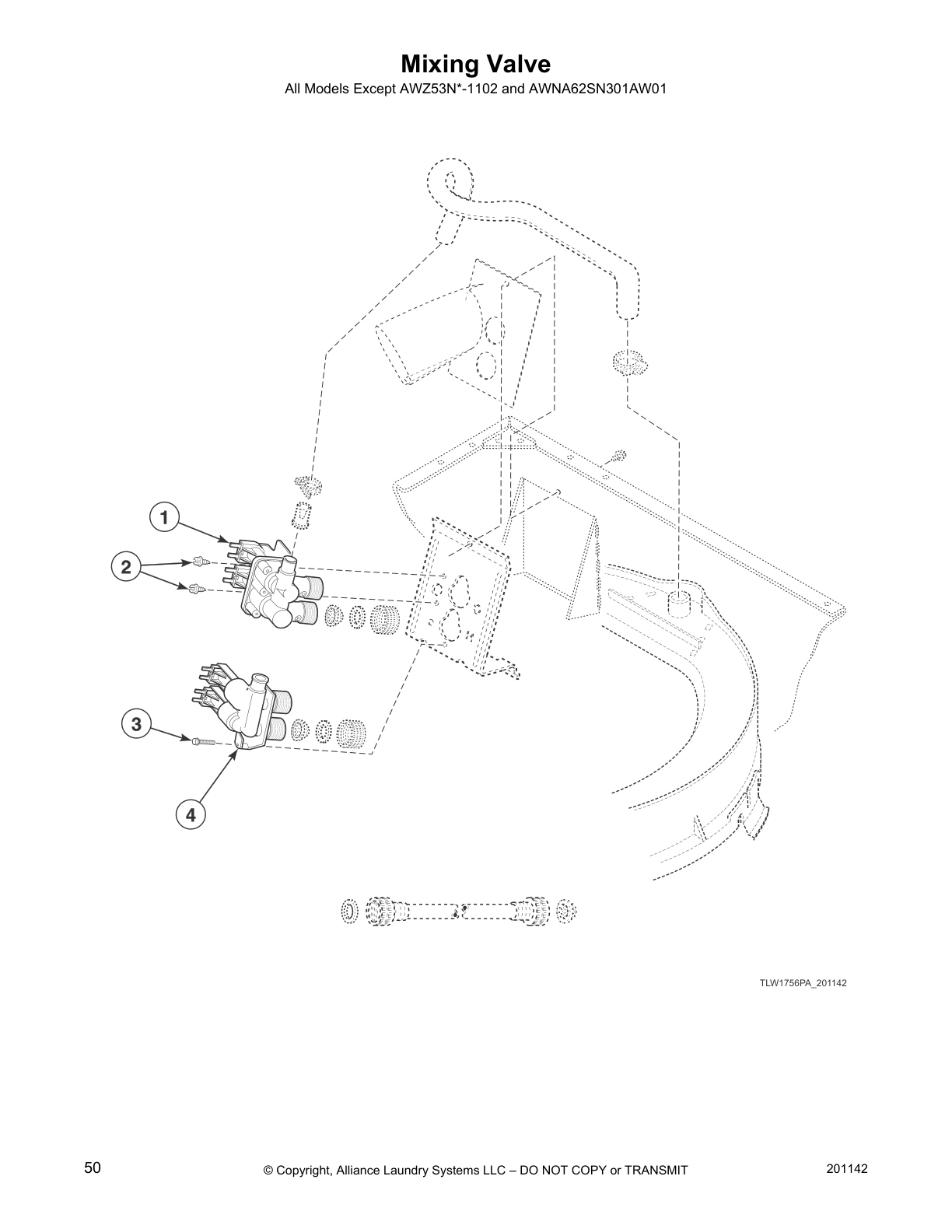

Fill Hose, Mixing Valve-to-Tub Cover Hose and Mixing Valve
Fill Hose, Mixing Valve-to-Tub Cover Hose and Mixing Valve

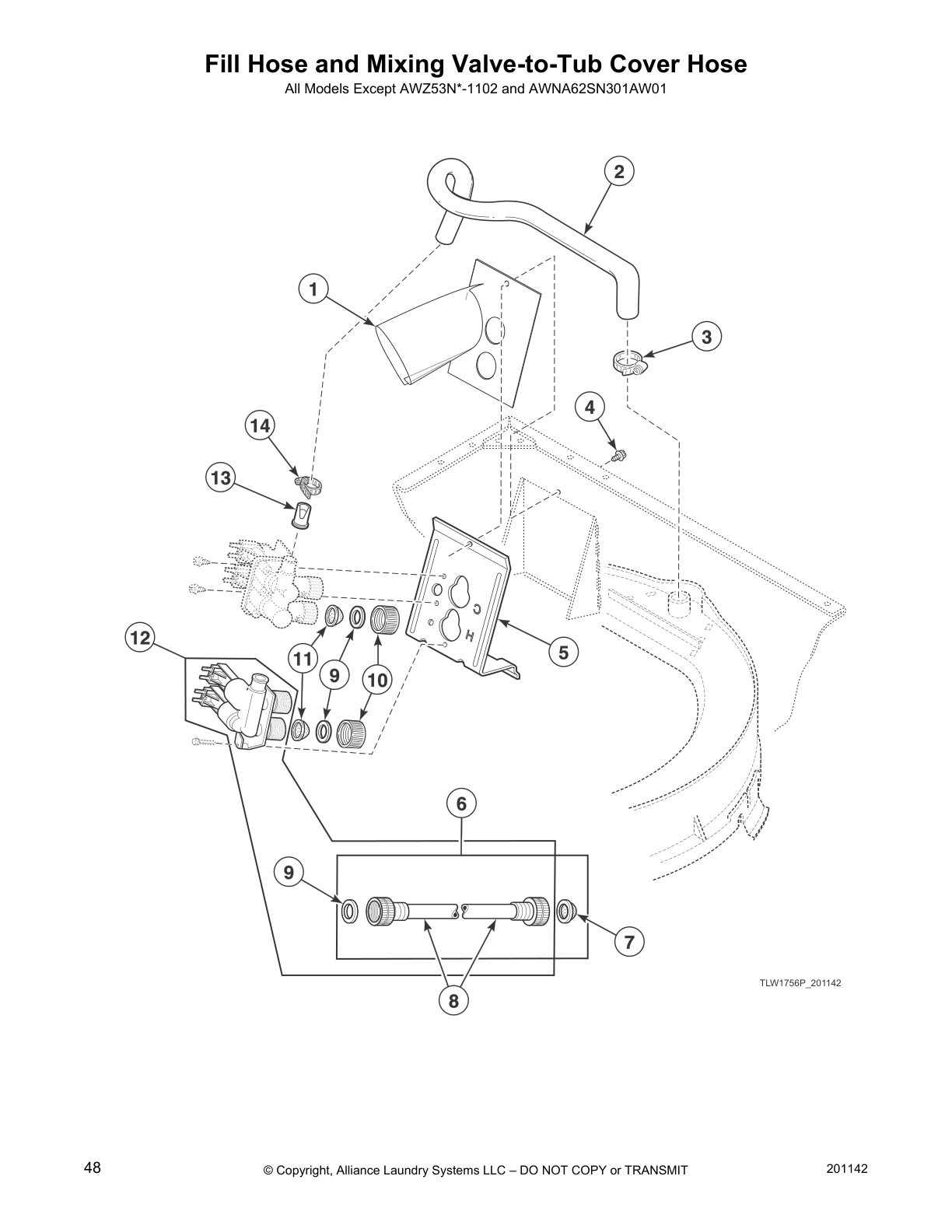

Fill Hose and Mixing Valve-to-Tub Cover Hose
Mixing Valve

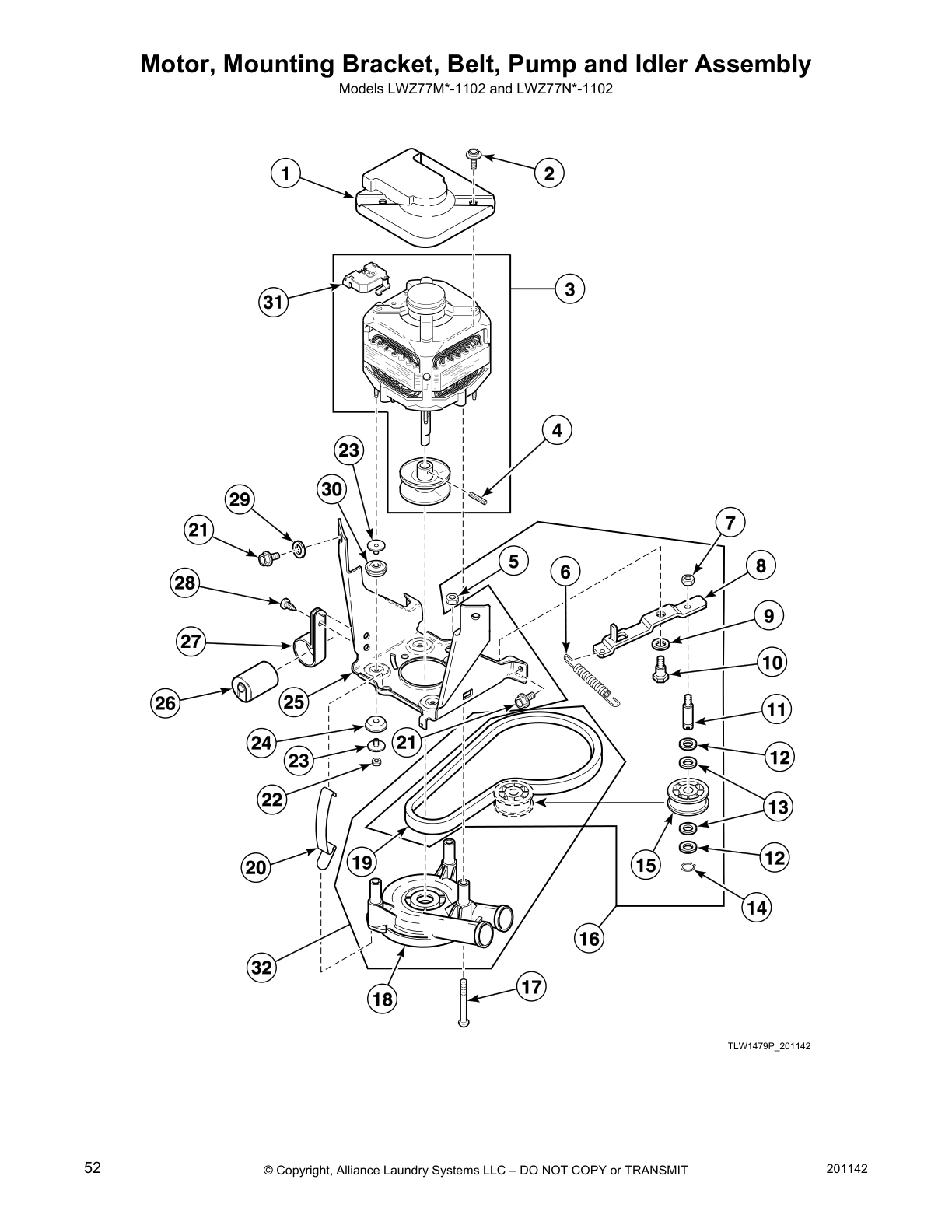

Motor, Mounting Bracket, Belt, Pump and Idler Assembly

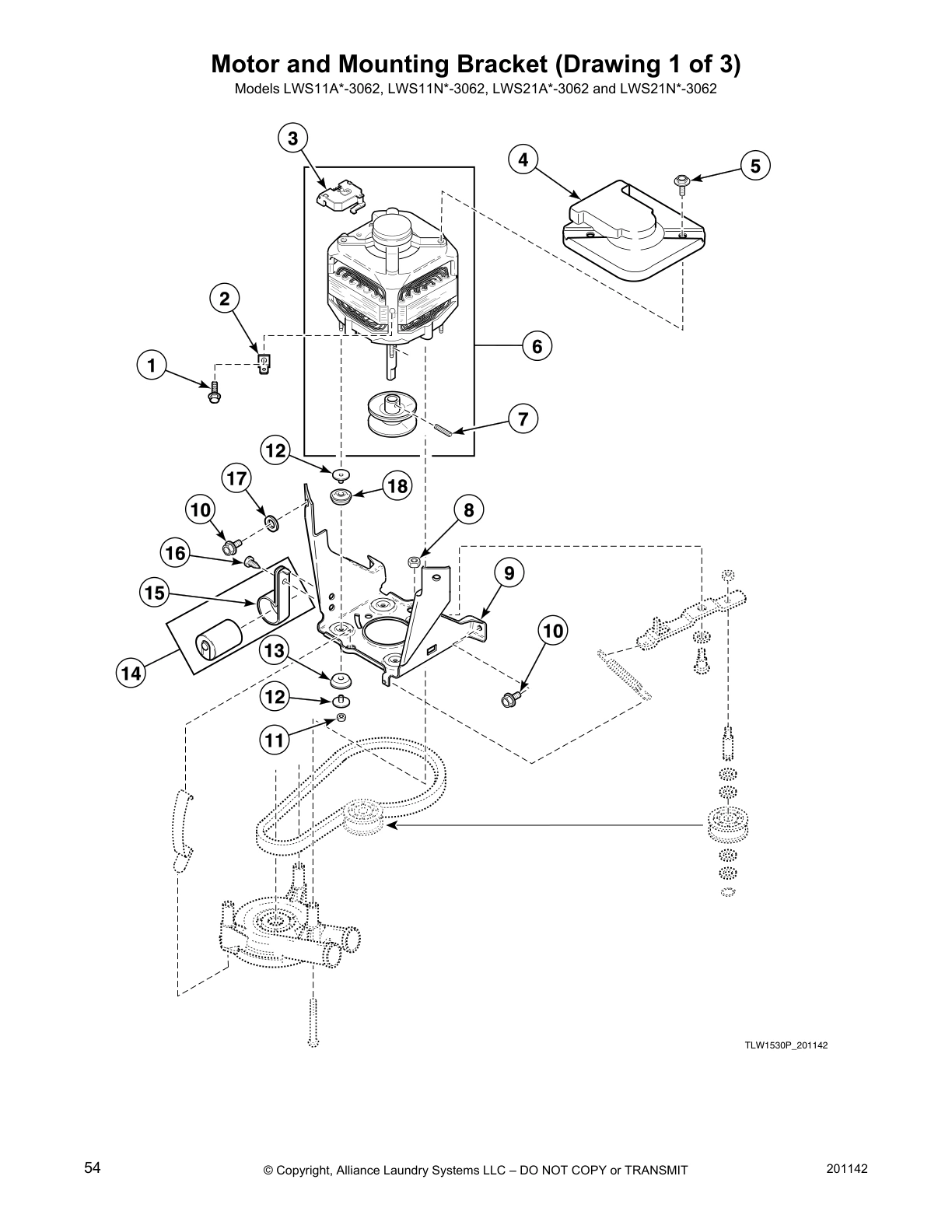

Motor and Mounting Bracket (Drawing 1 of 3)

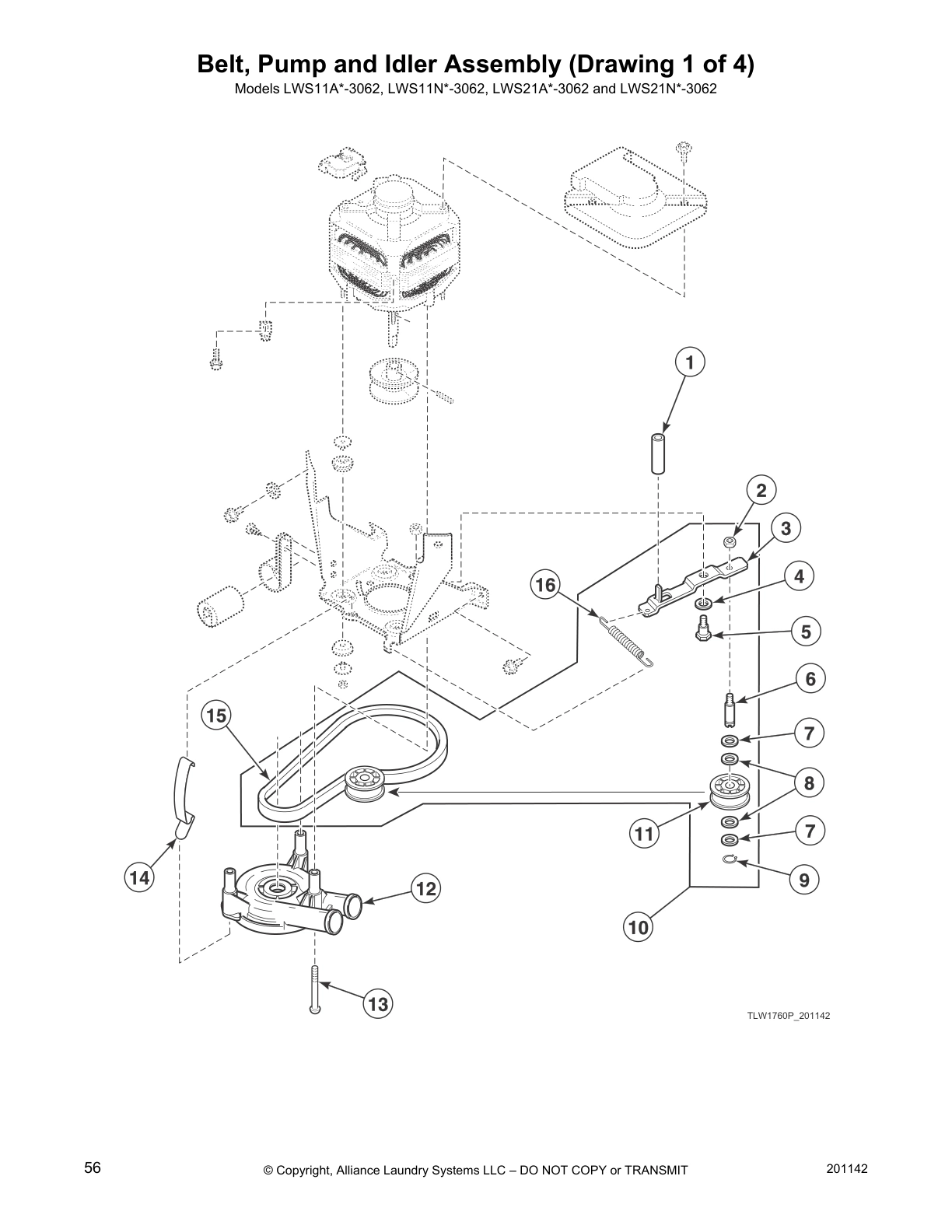

Belt, Pump and Idler Assembly (Drawing 1 of 4)

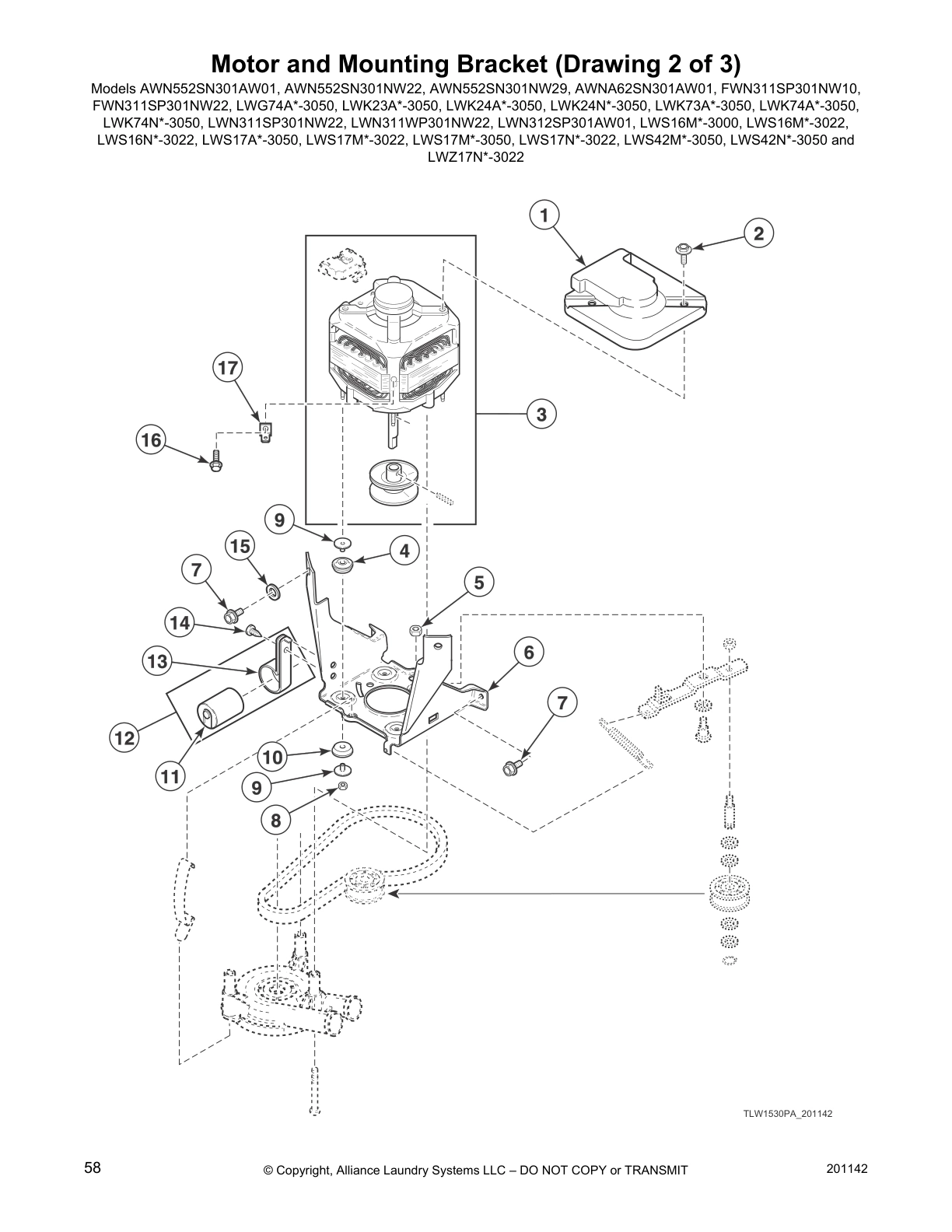

Motor and Mounting Bracket (Drawing 2 of 3)

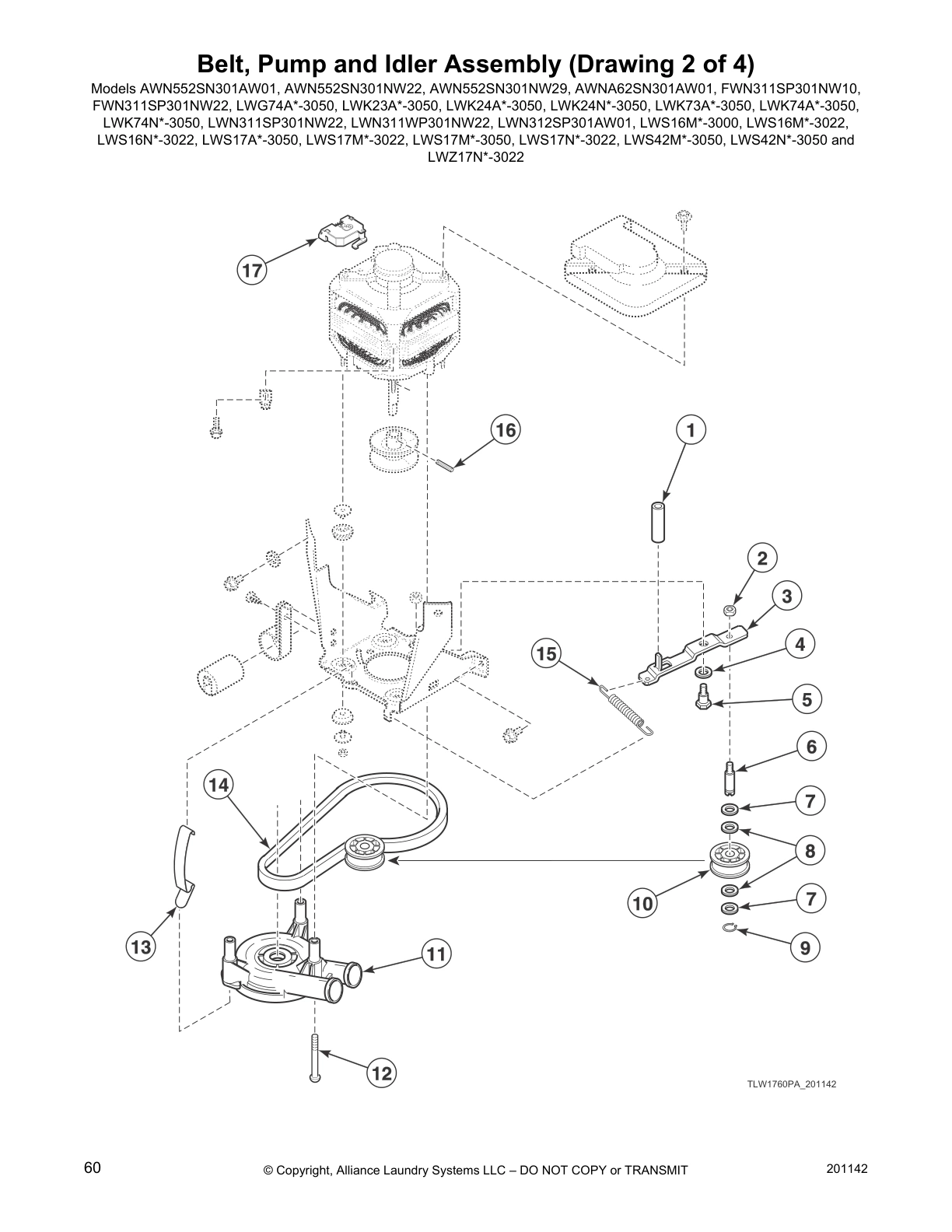

Belt, Pump and Idler Assembly (Drawing 2 of 4)

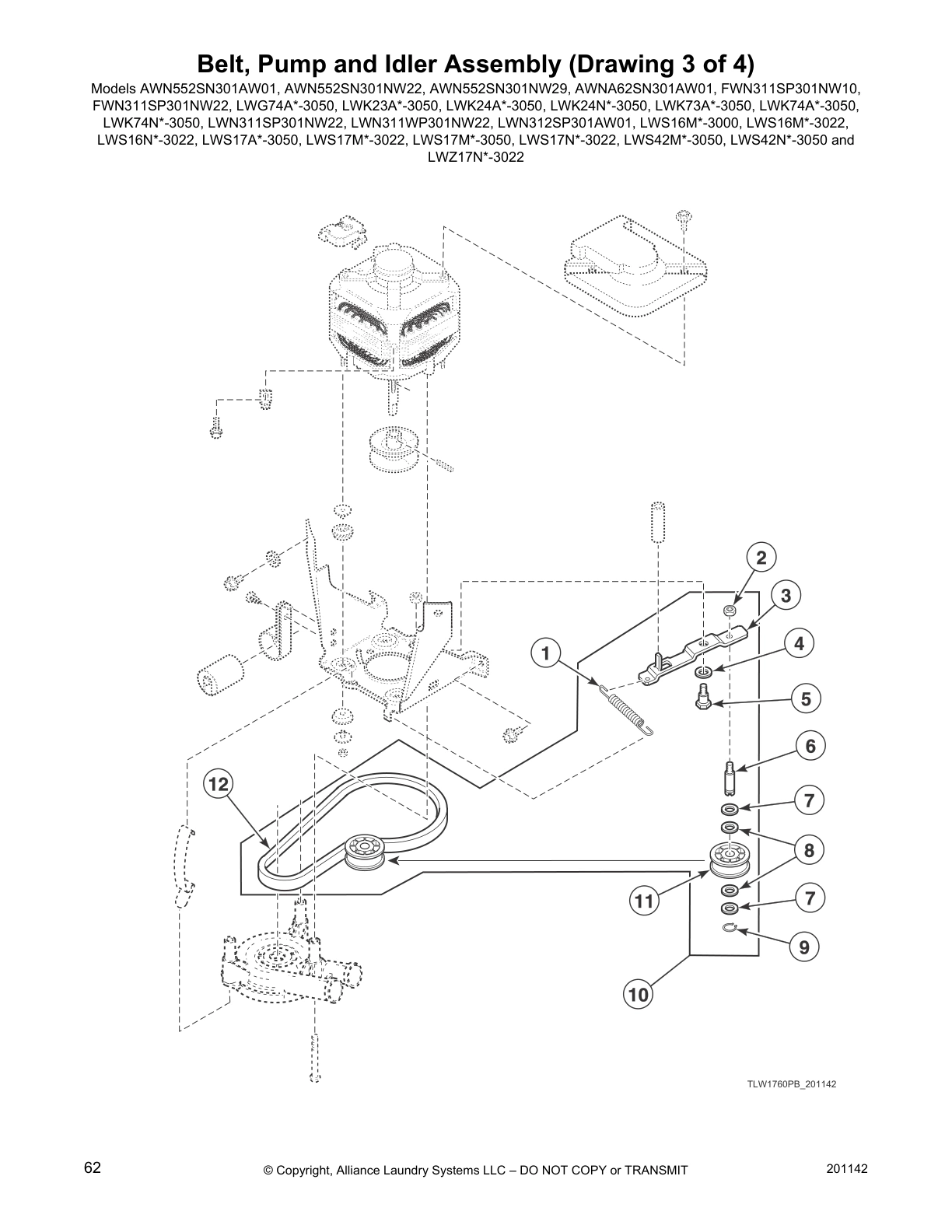

Belt, Pump and Idler Assembly (Drawing 3 of 4)

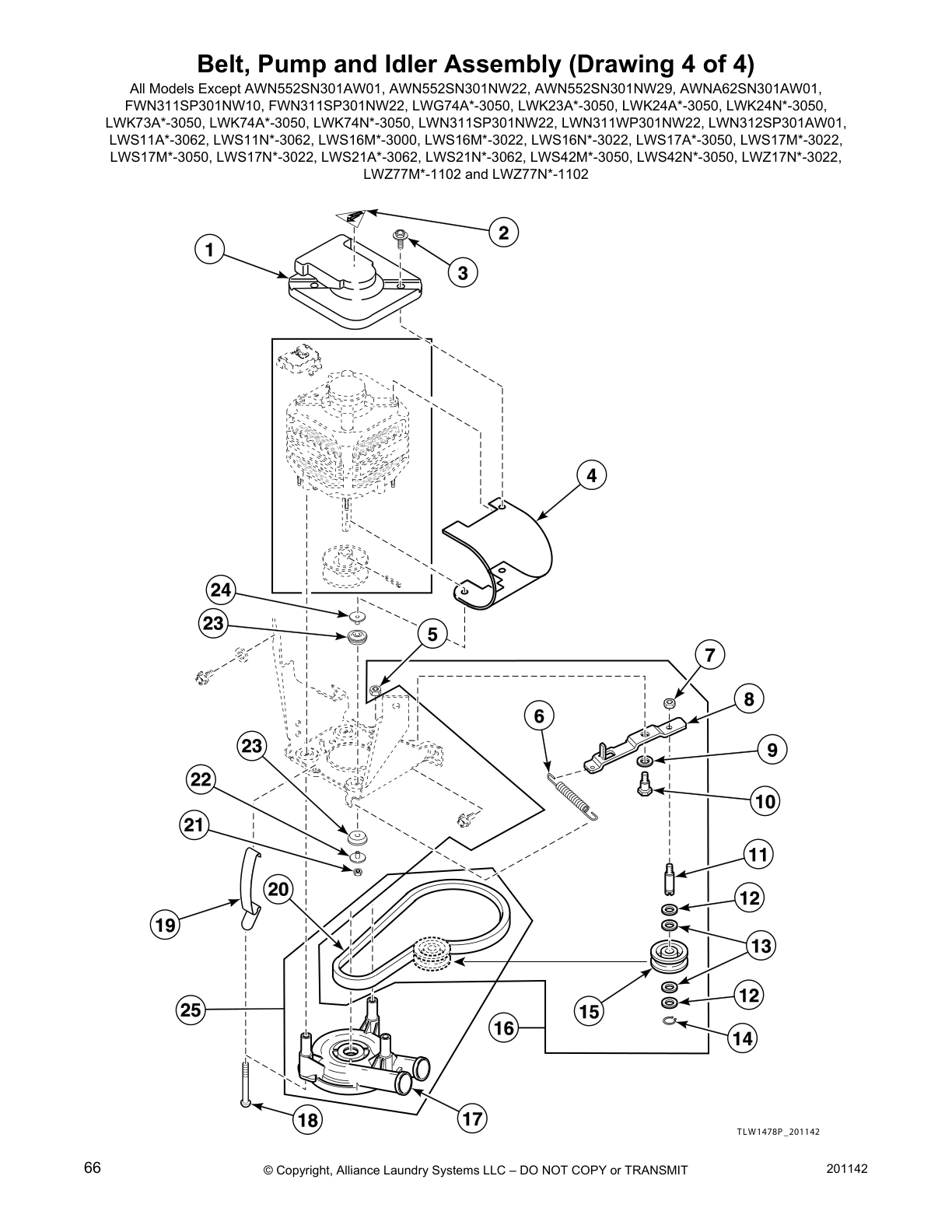

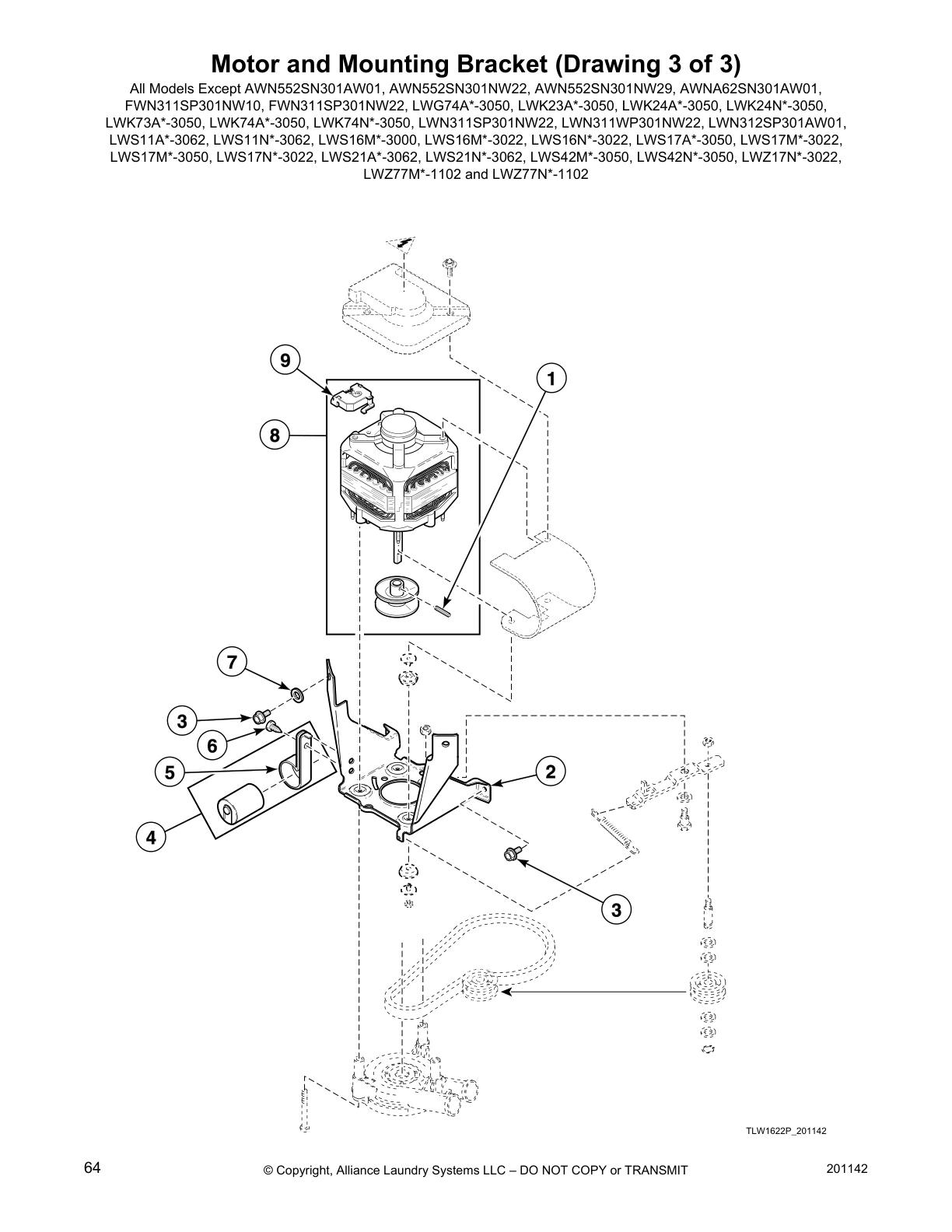

Motor and Mounting Bracket (Drawing 3 of 3)
Belt, Pump and Idler Assembly (Drawing 4 of 4)

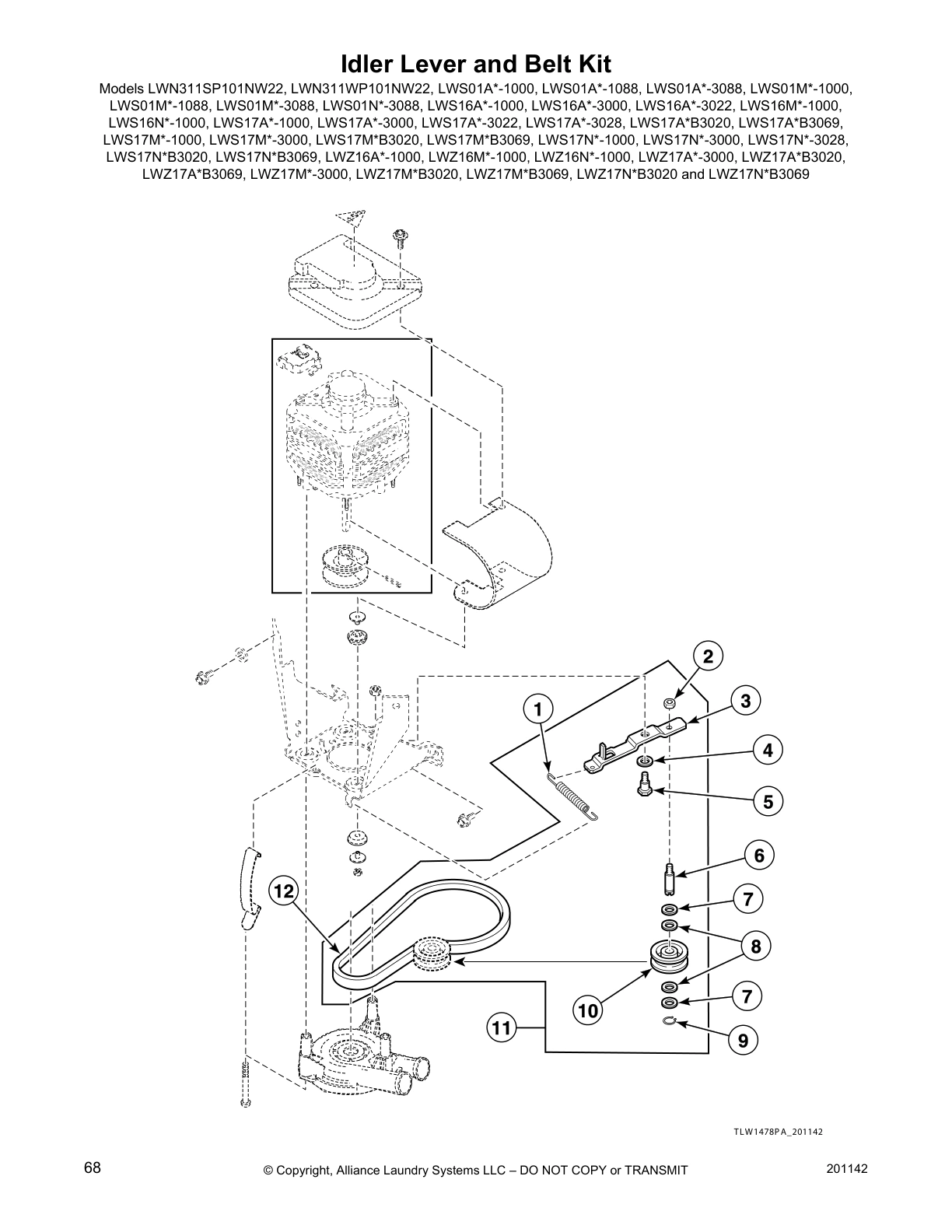

Idler Lever and Belt Kit

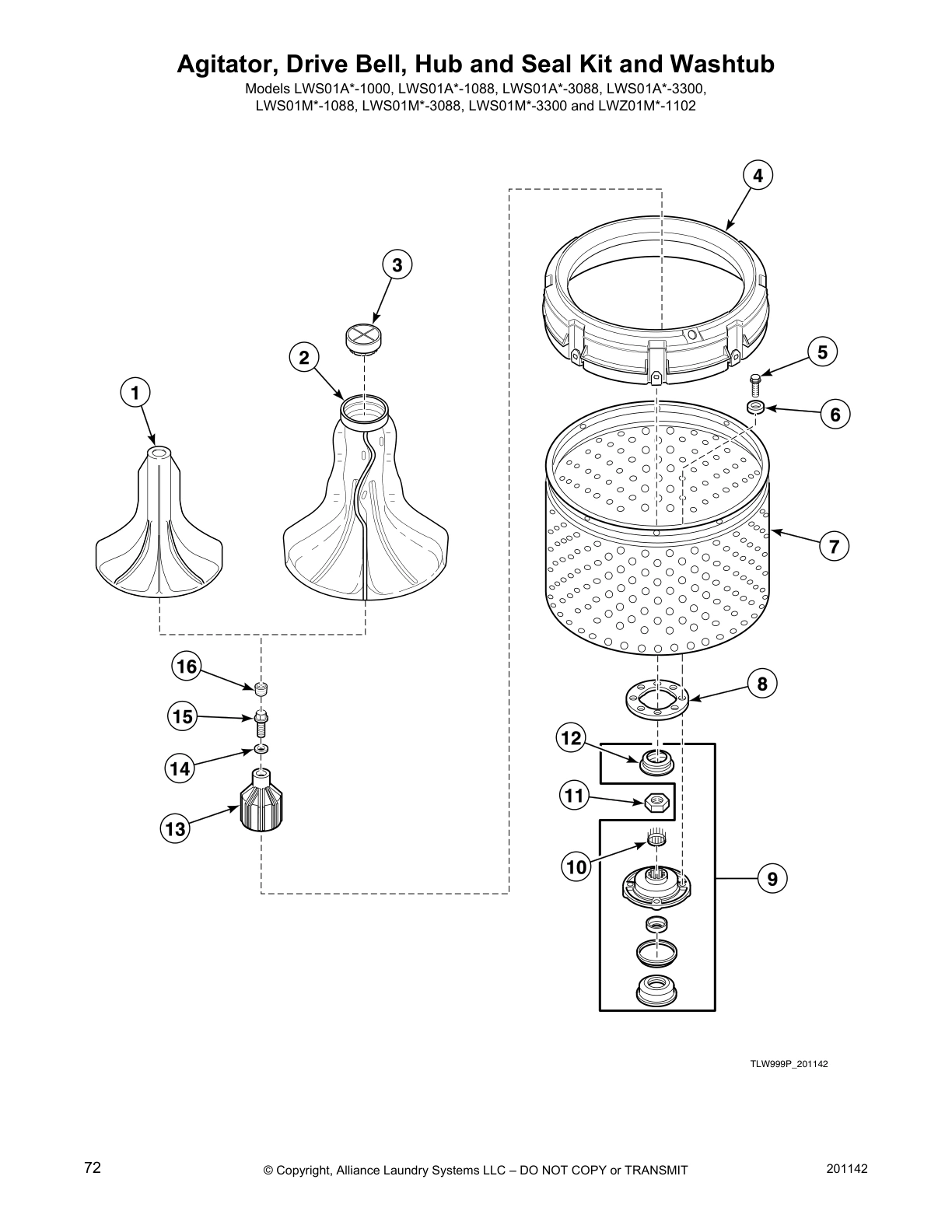

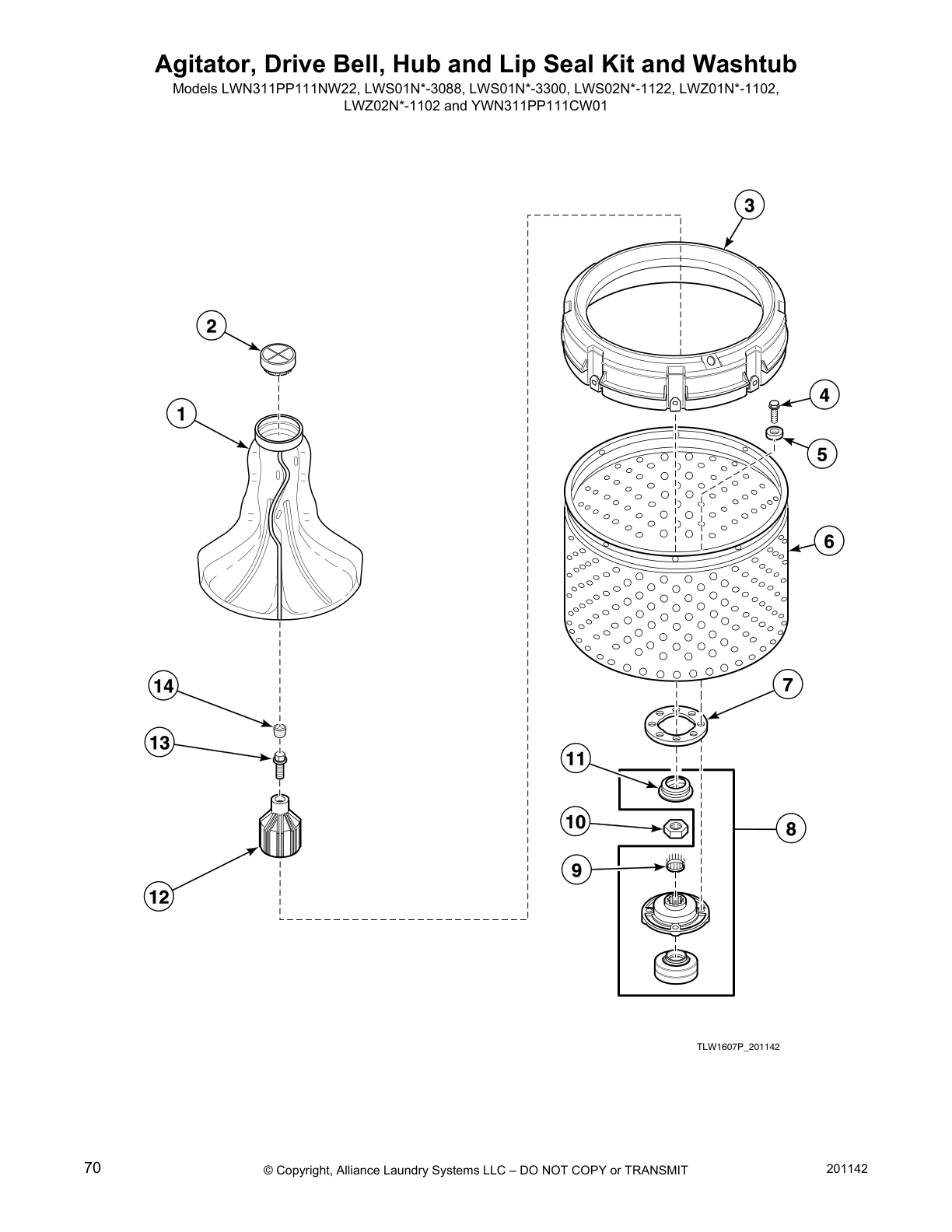

Agitator, Drive Bell, Hub and Lip Seal Kit and Washtub
Agitator, Drive Bell, Hub and Seal Kit and Washtub

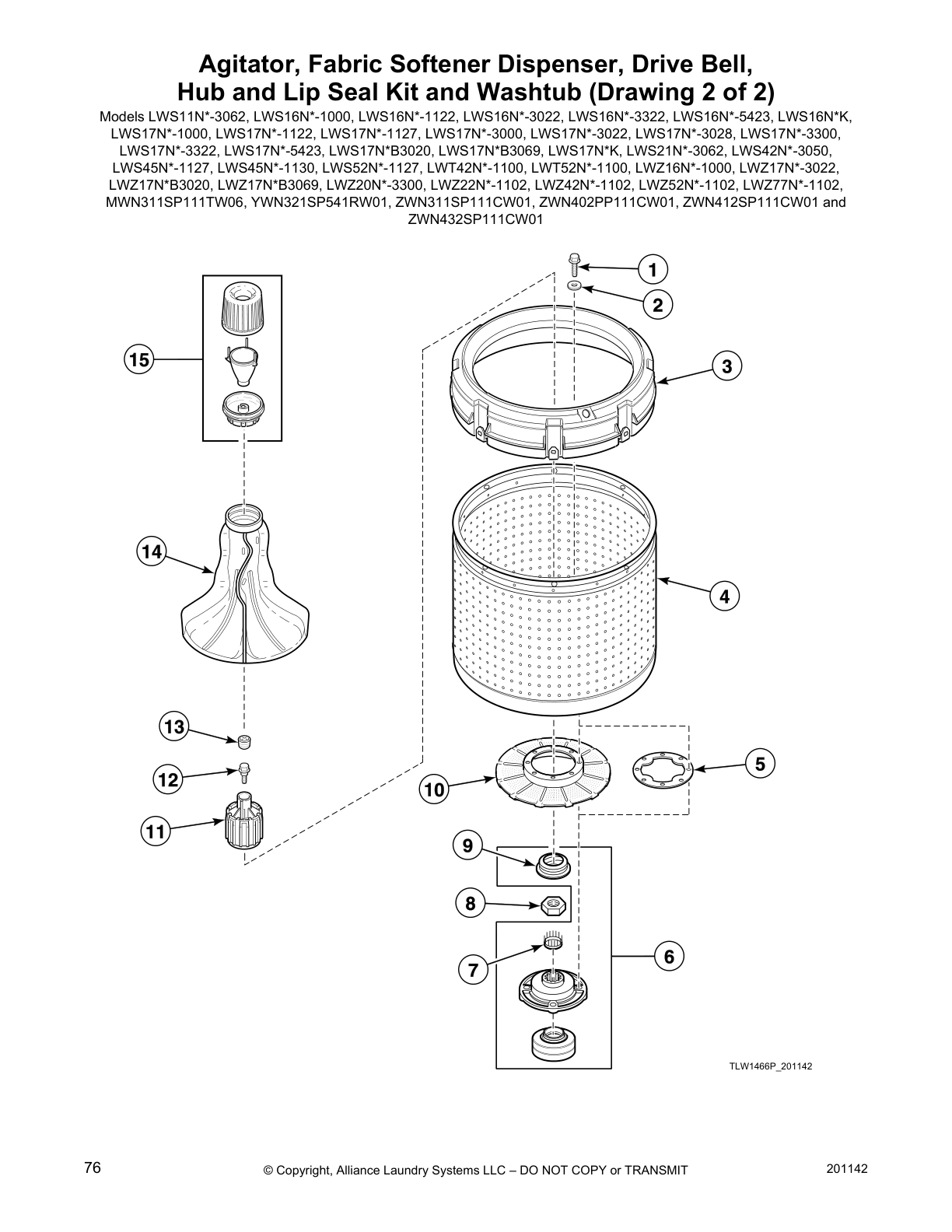

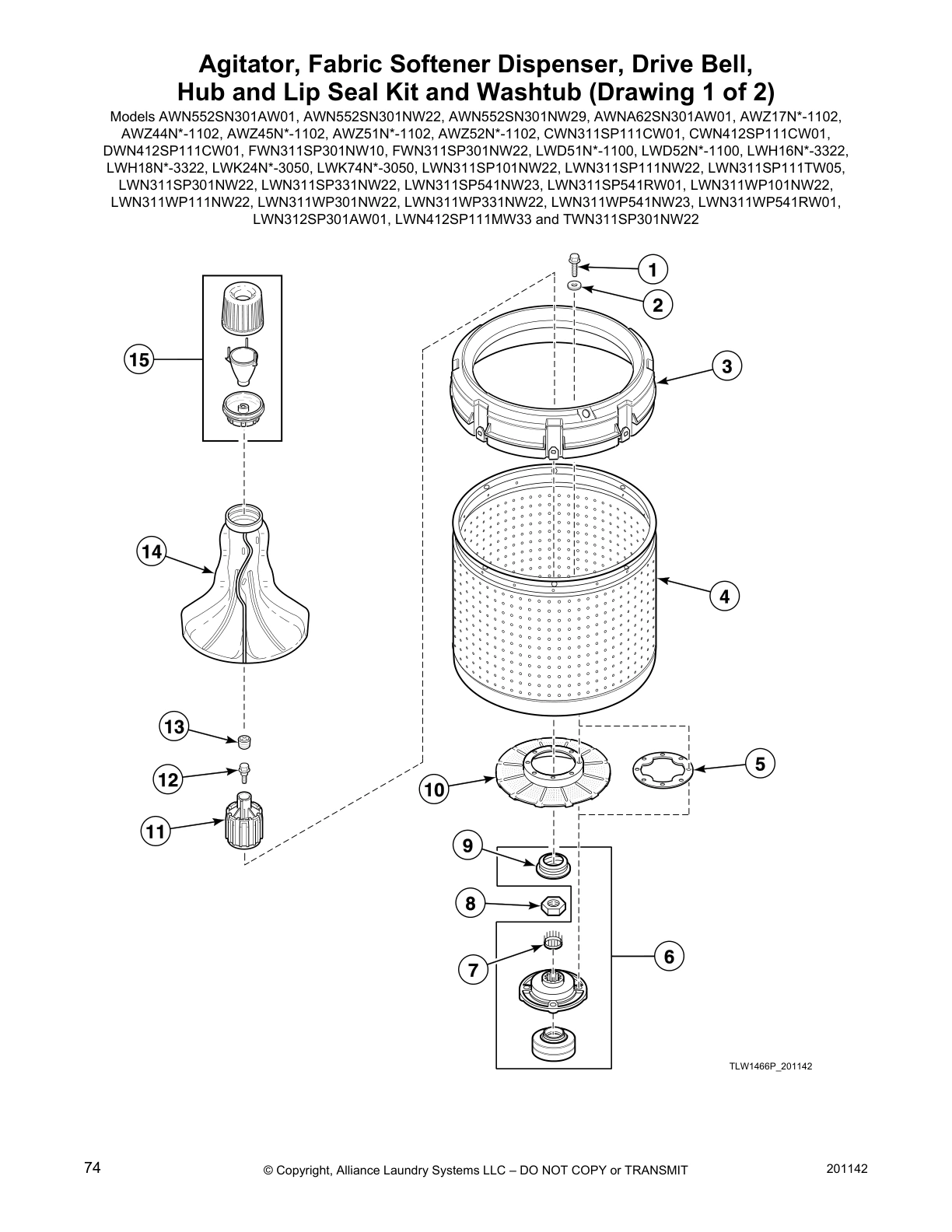

Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub (Drawing 1 of 2)
Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Lip Seal Kit and Washtub (Drawing 2 of 2)

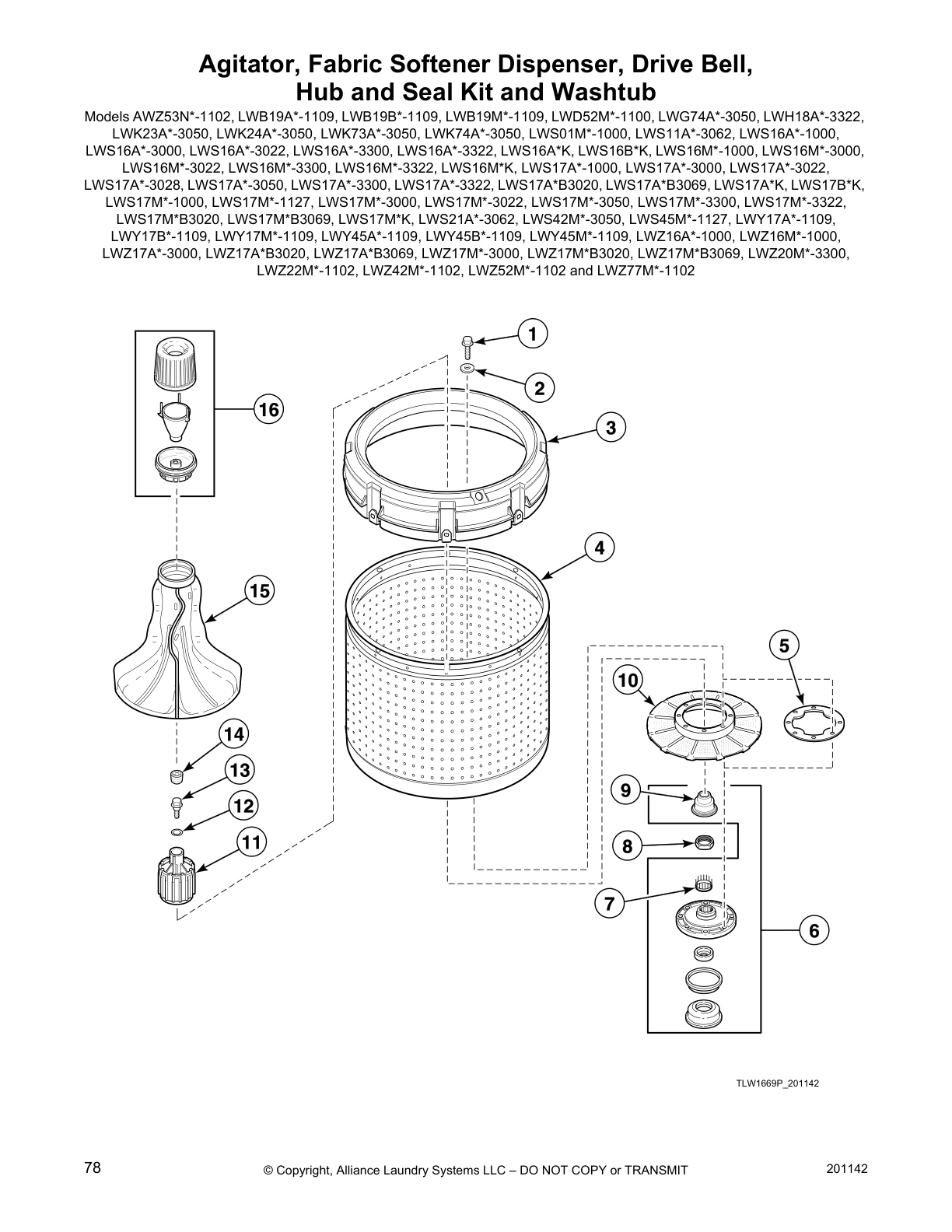

Agitator, Fabric Softener Dispenser, Drive Bell,
Hub and Seal Kit and Washtub

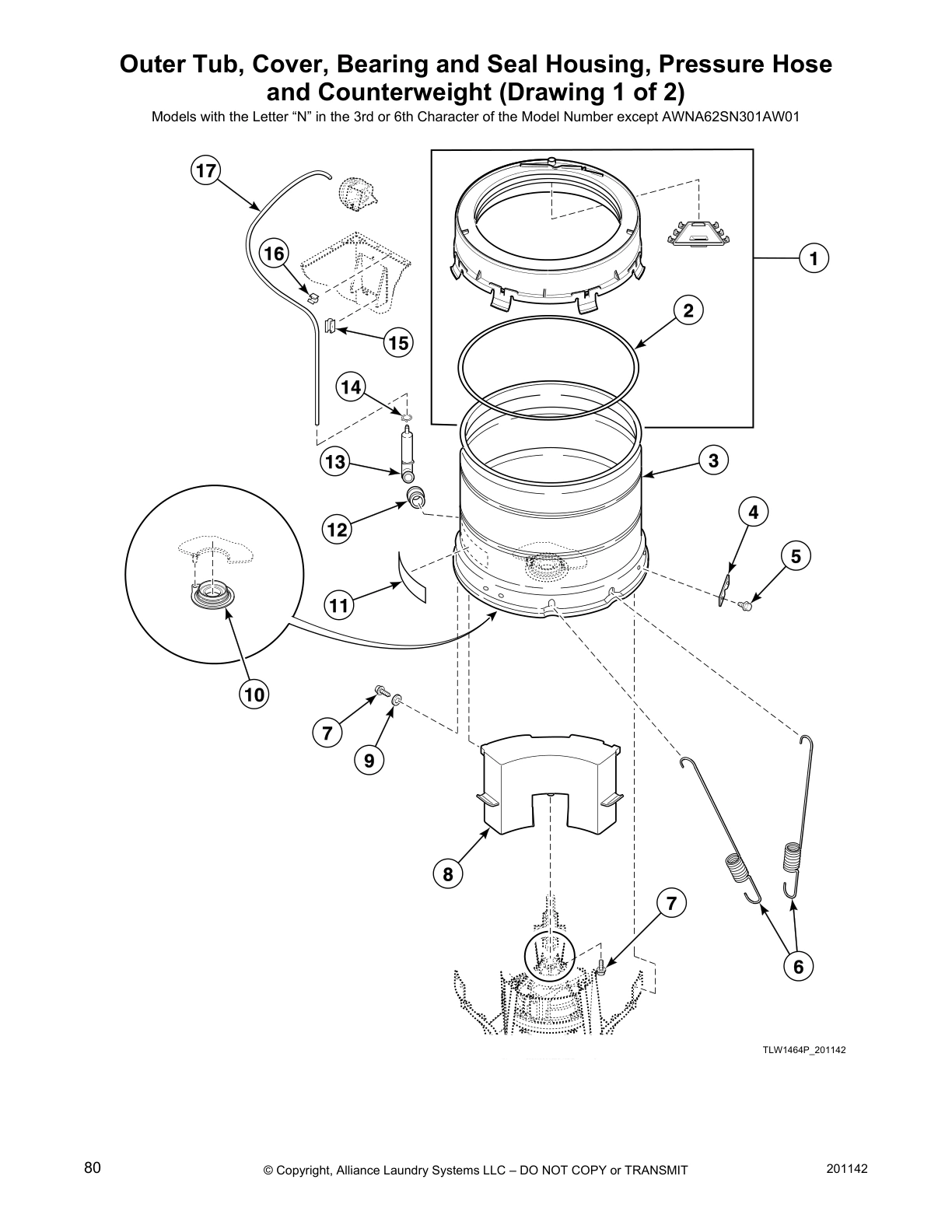

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight (Drawing 1 of 2)

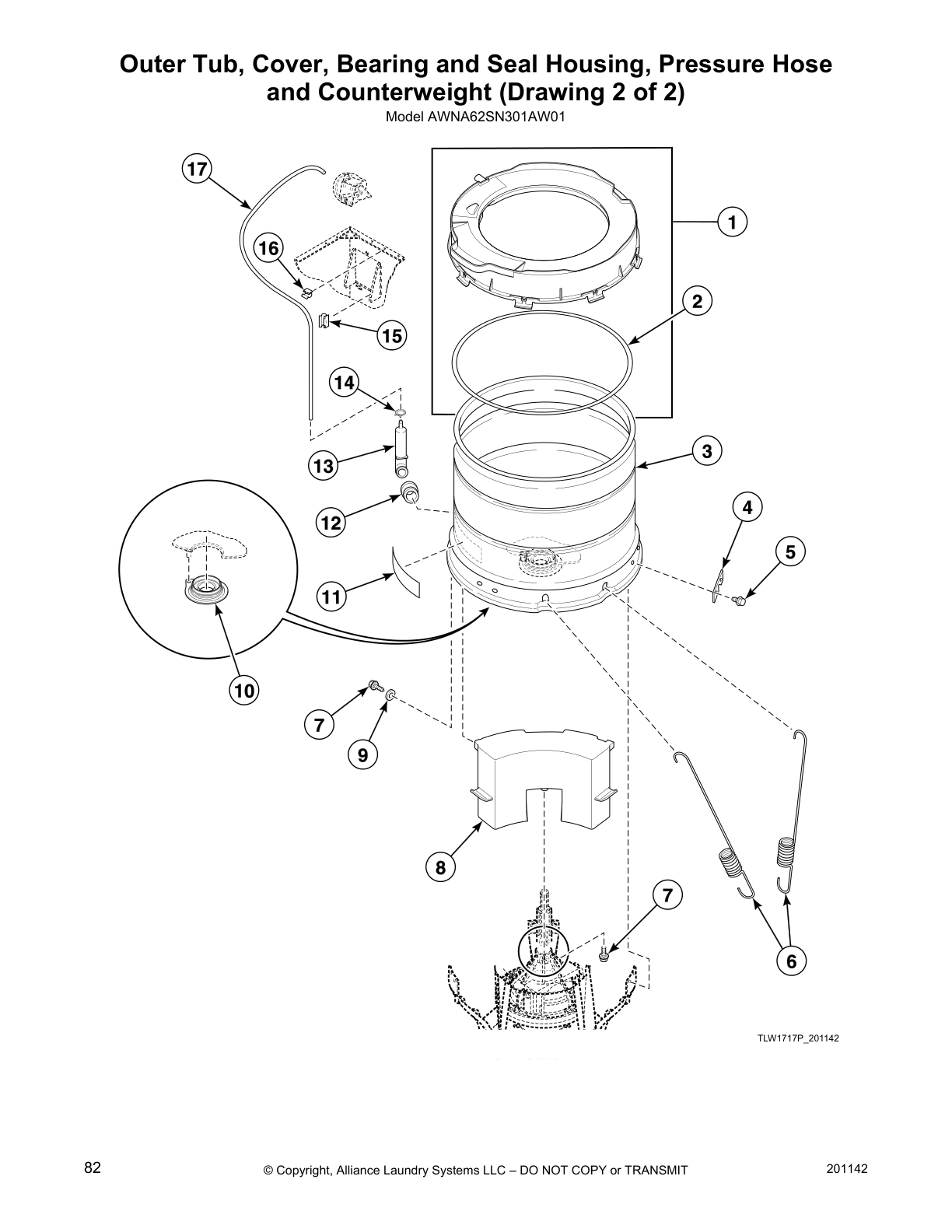

Outer Tub, Cover, Bearing and Seal Housing, Pressure Hose
and Counterweight (Drawing 2 of 2)

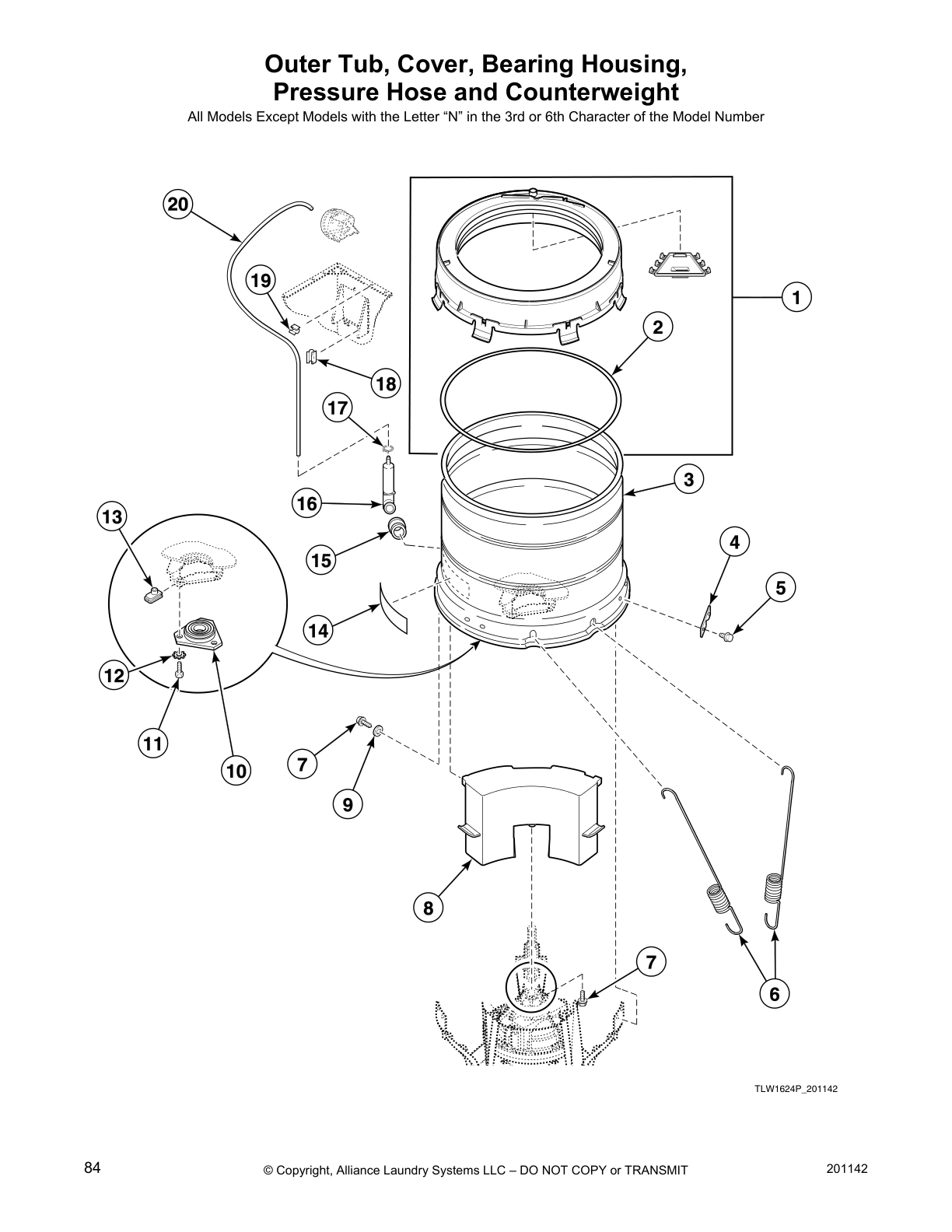

Outer Tub, Cover, Bearing Housing,
Pressure Hose and Counterweight

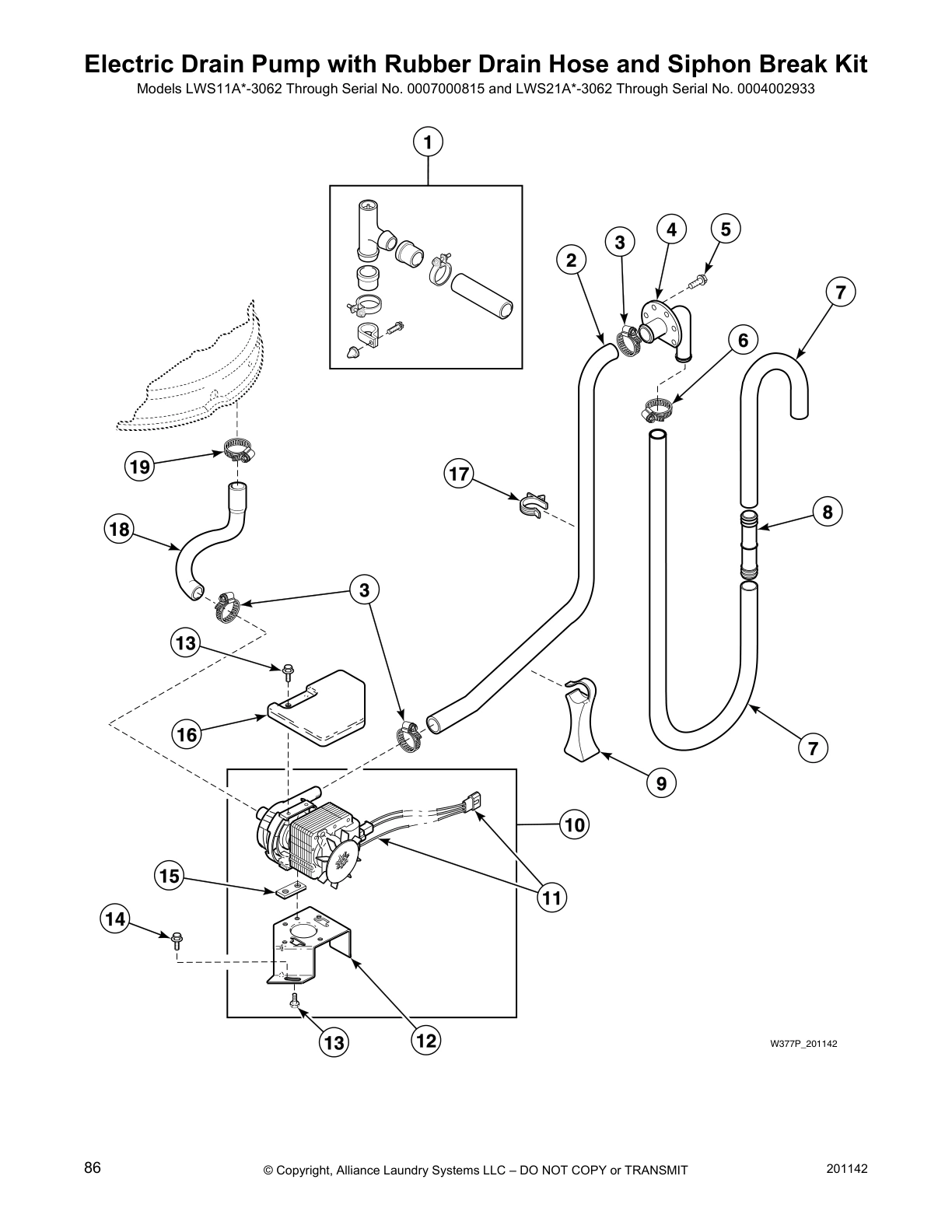

Electric Drain Pump with Rubber Drain Hose and Siphon Break Kit

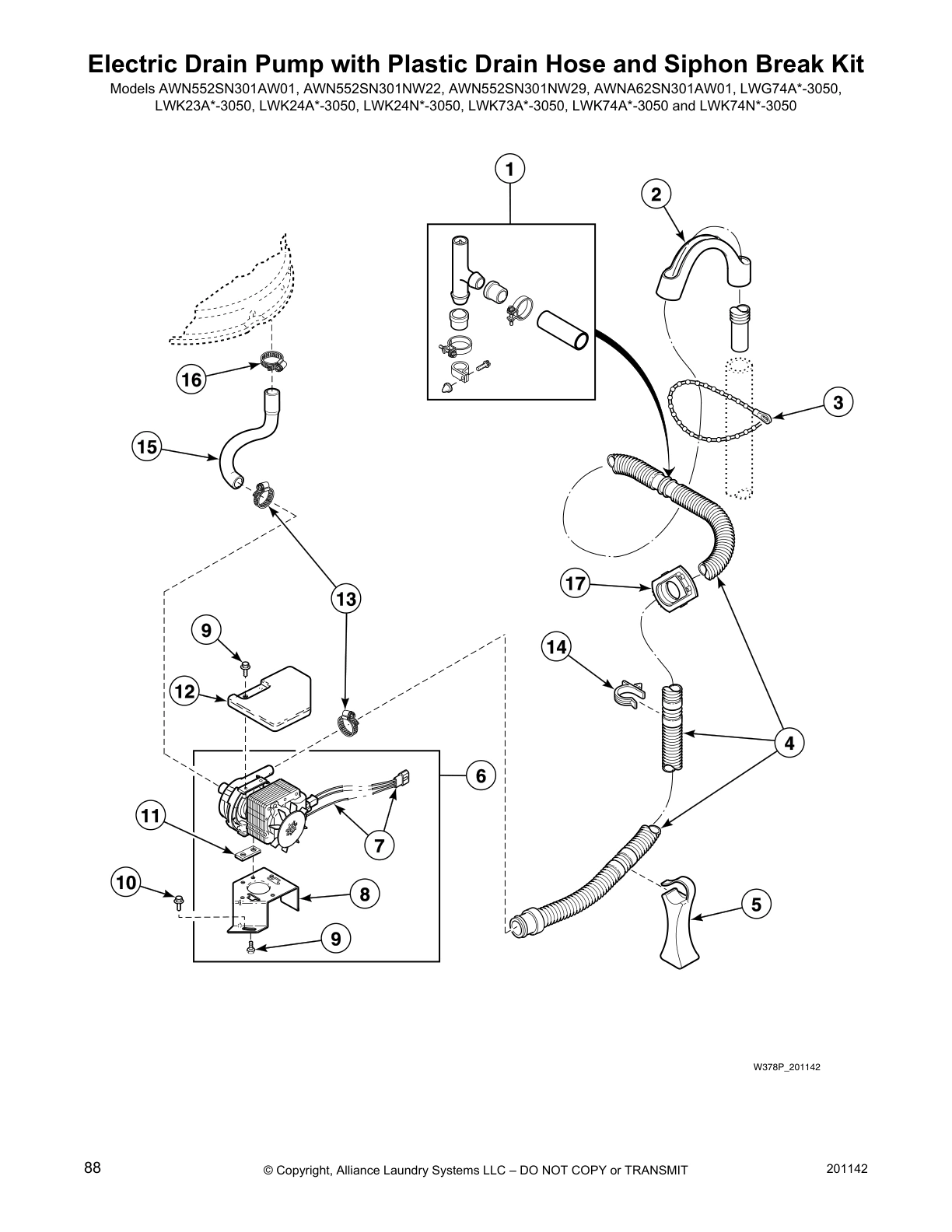

Electric Drain Pump with Plastic Drain Hose and Siphon Break Kit

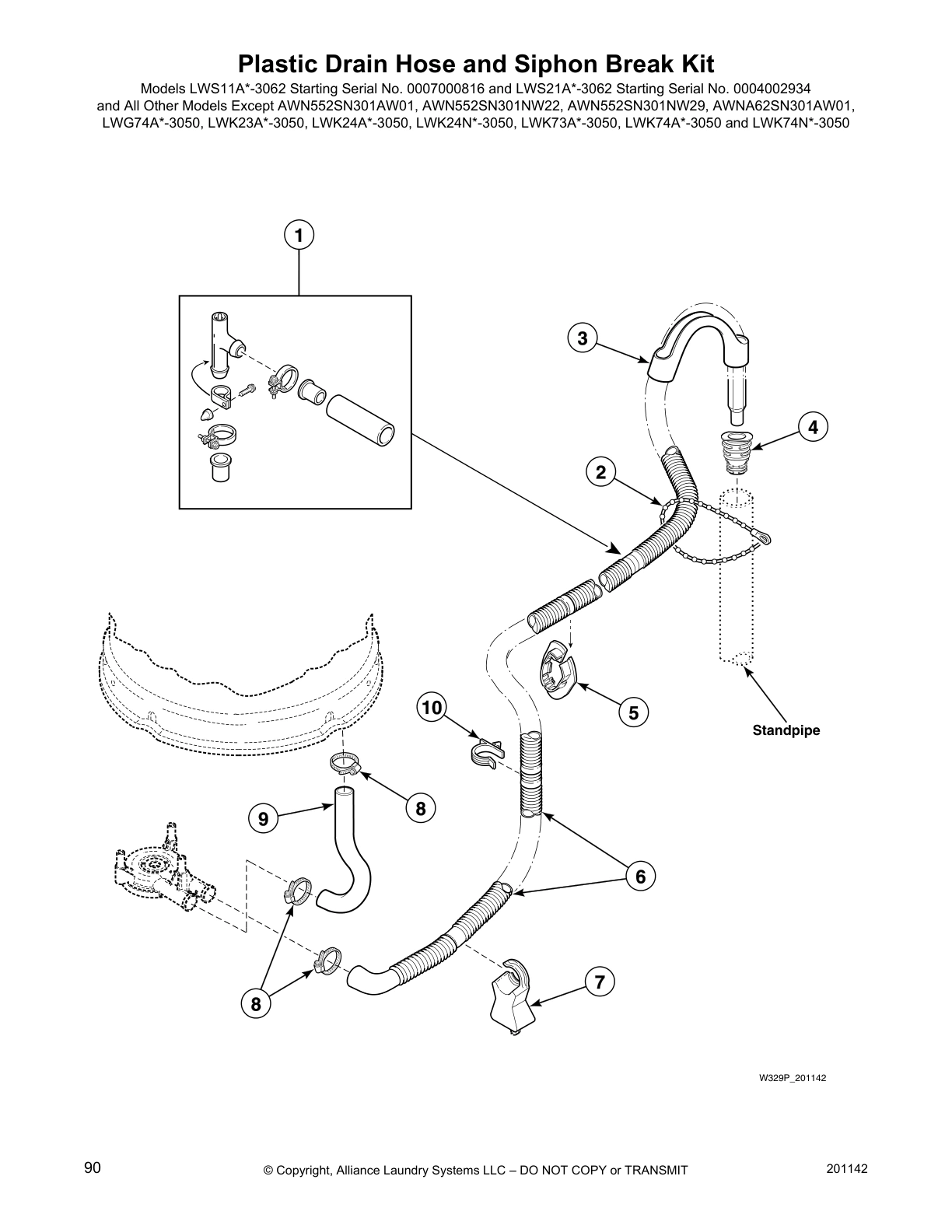

Plastic Drain Hose and Siphon Break Kit

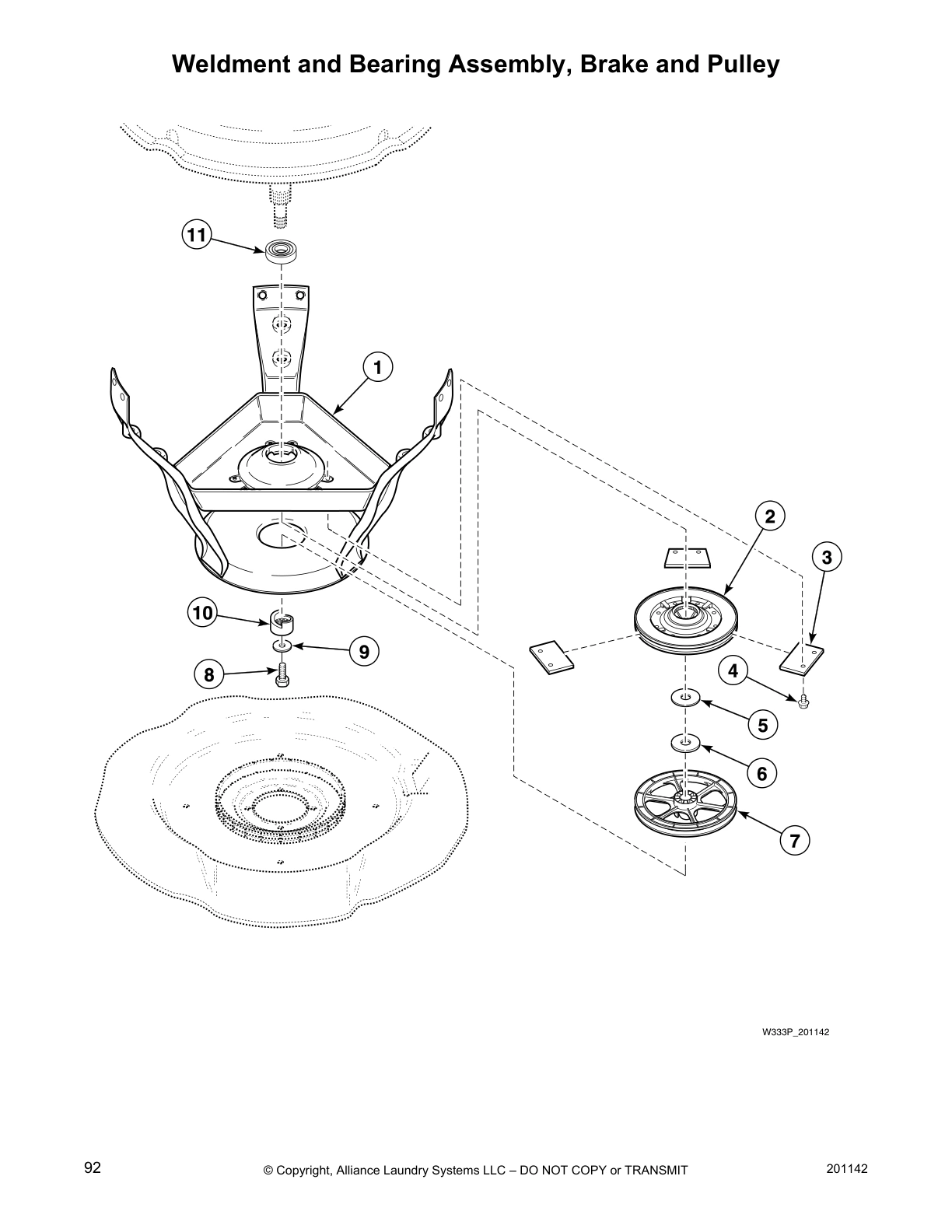

Weldment and Bearing Assembly, Brake and Pulley
