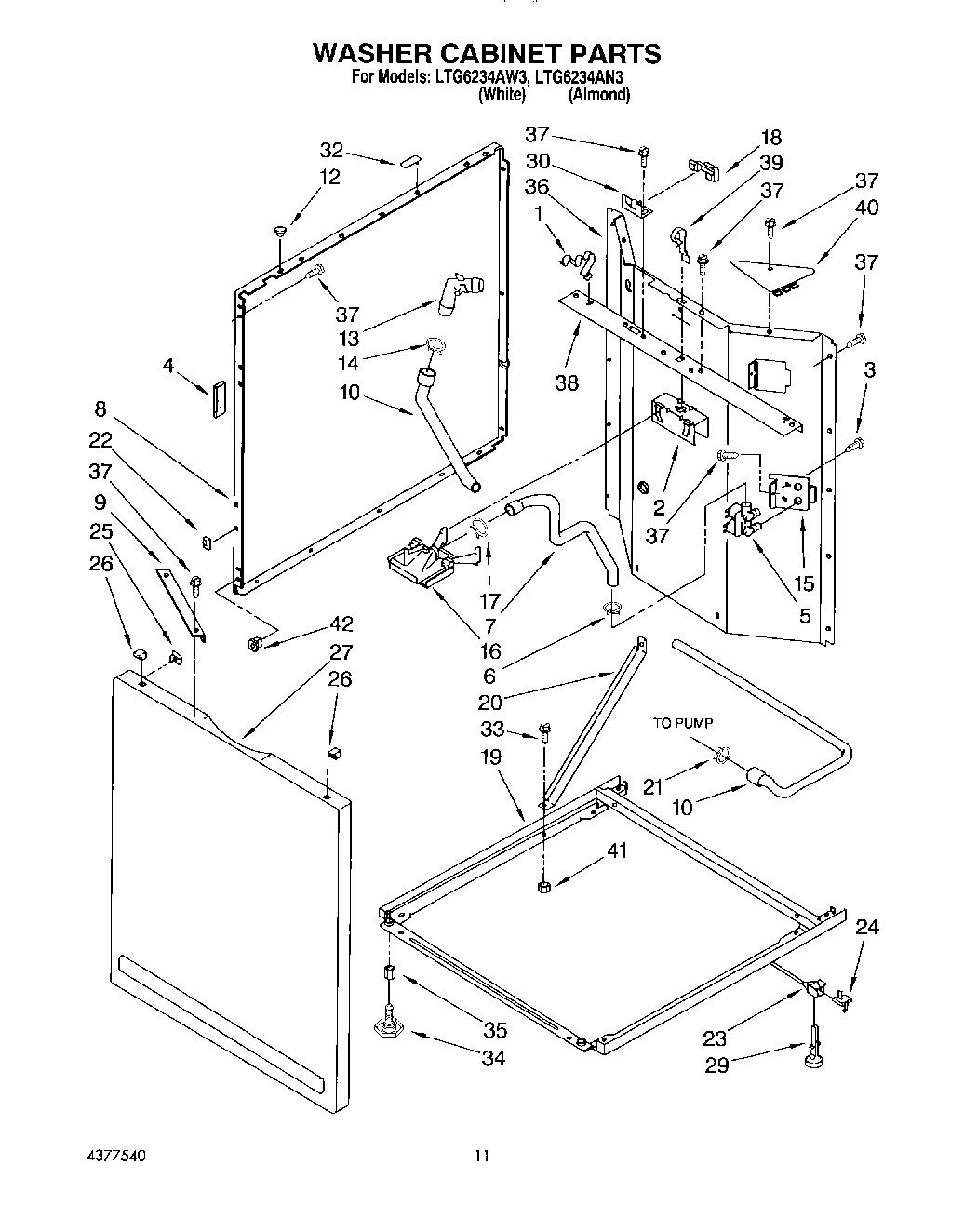

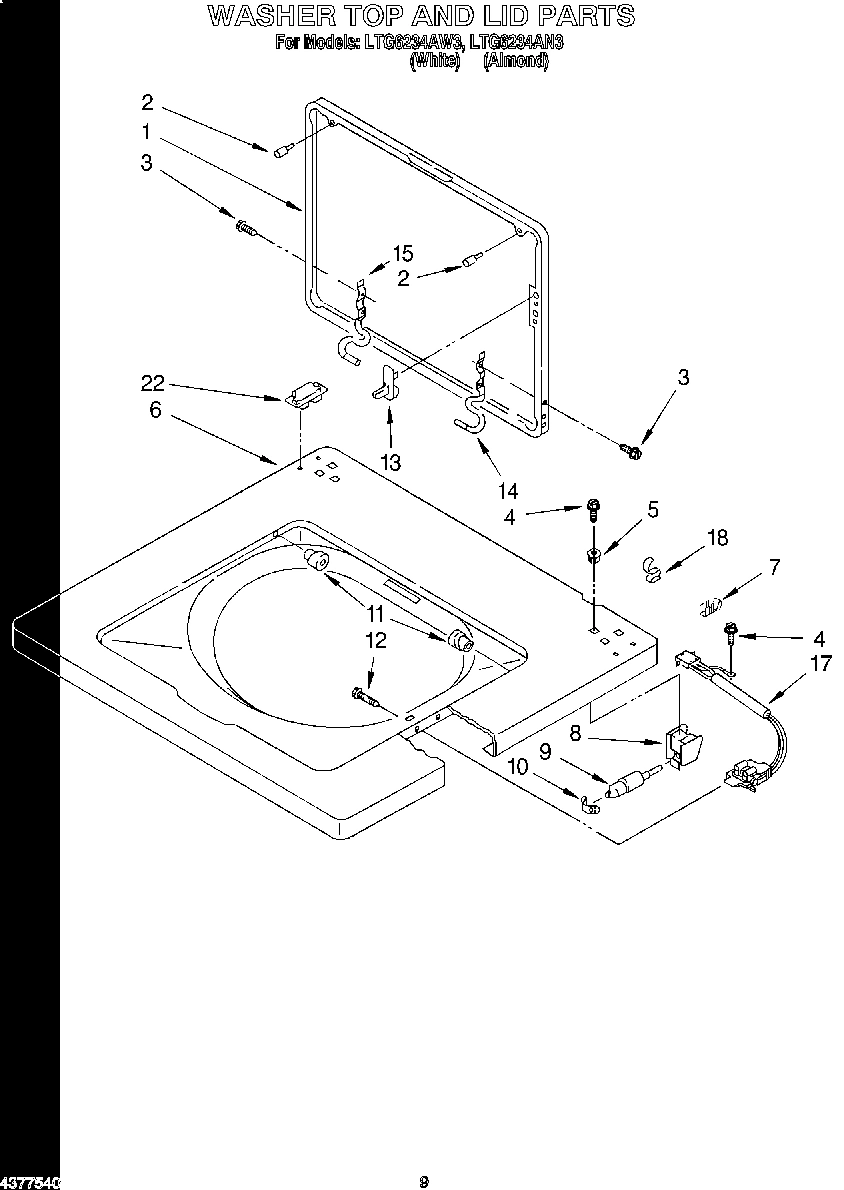

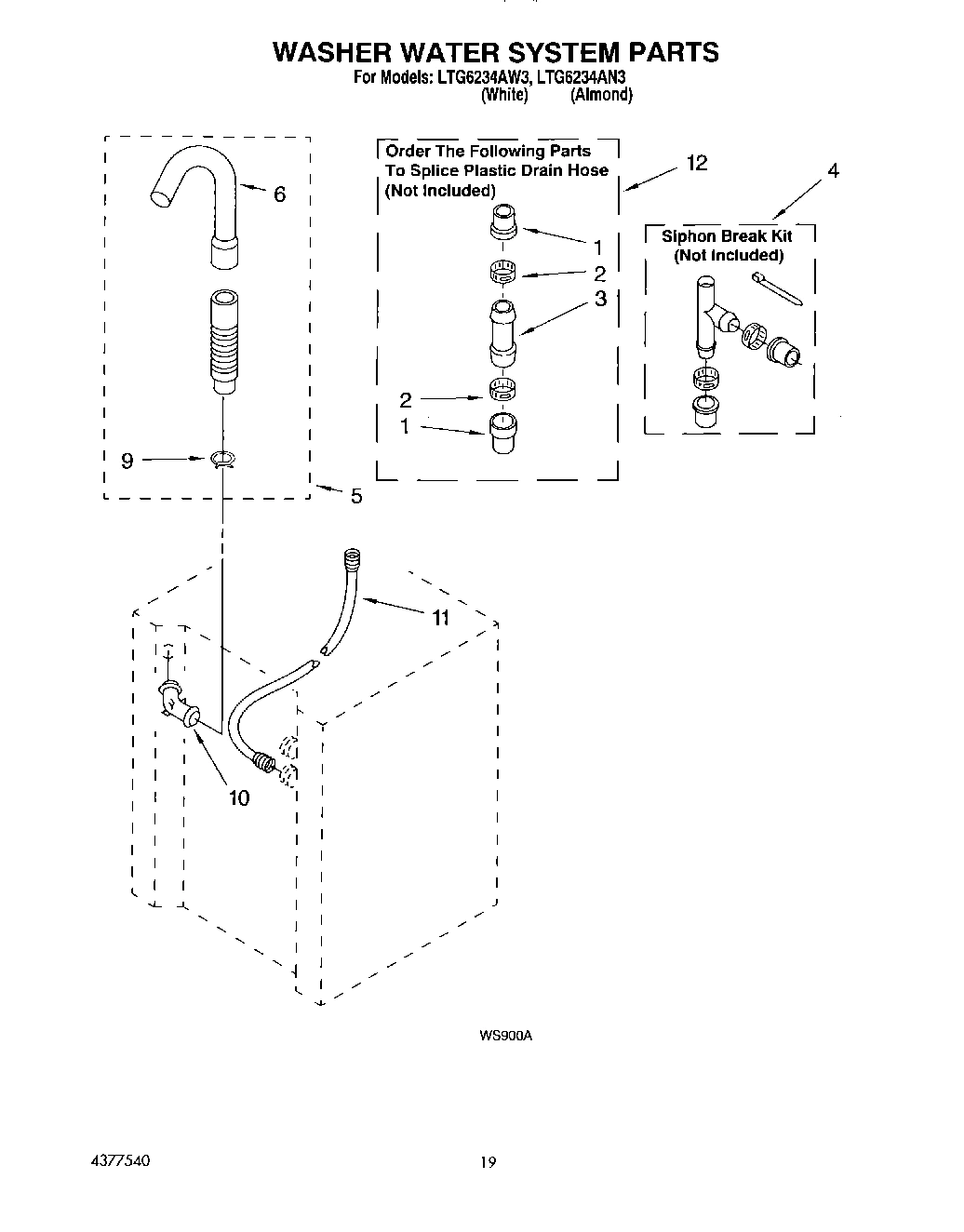

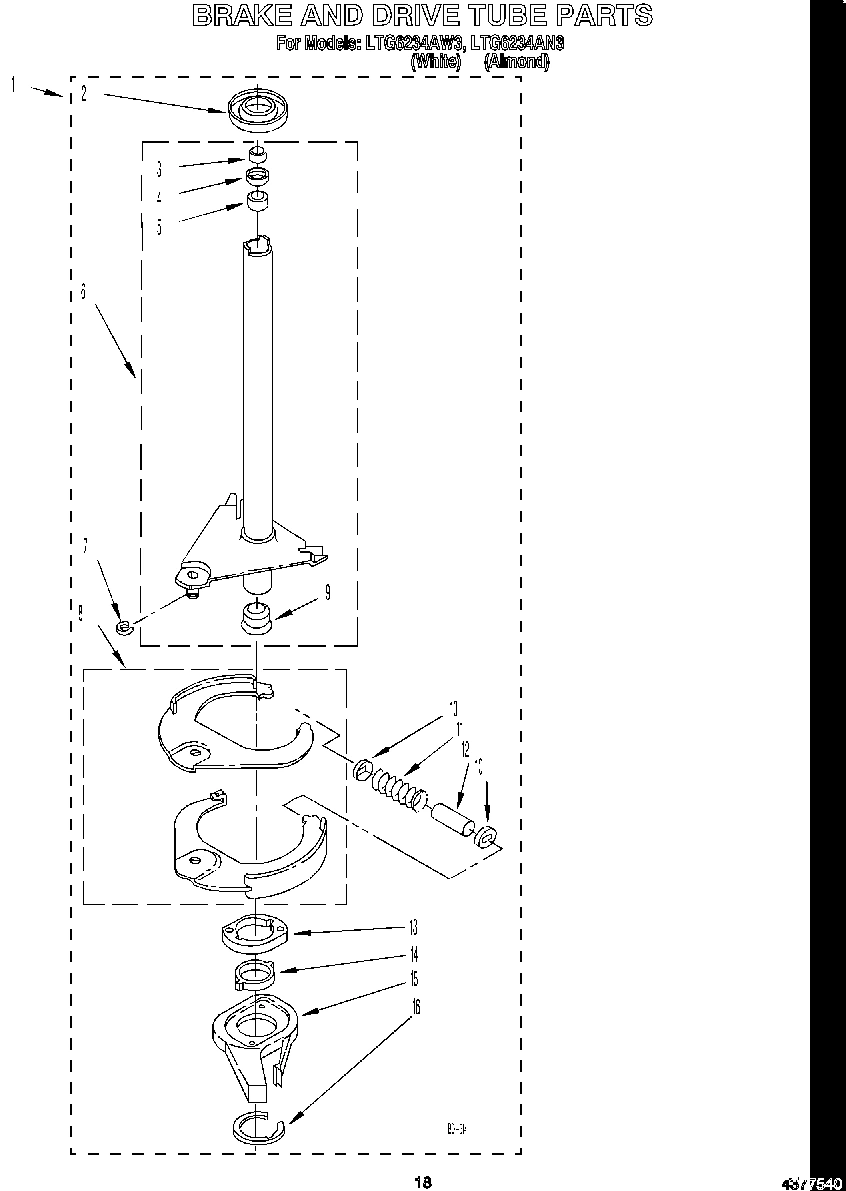

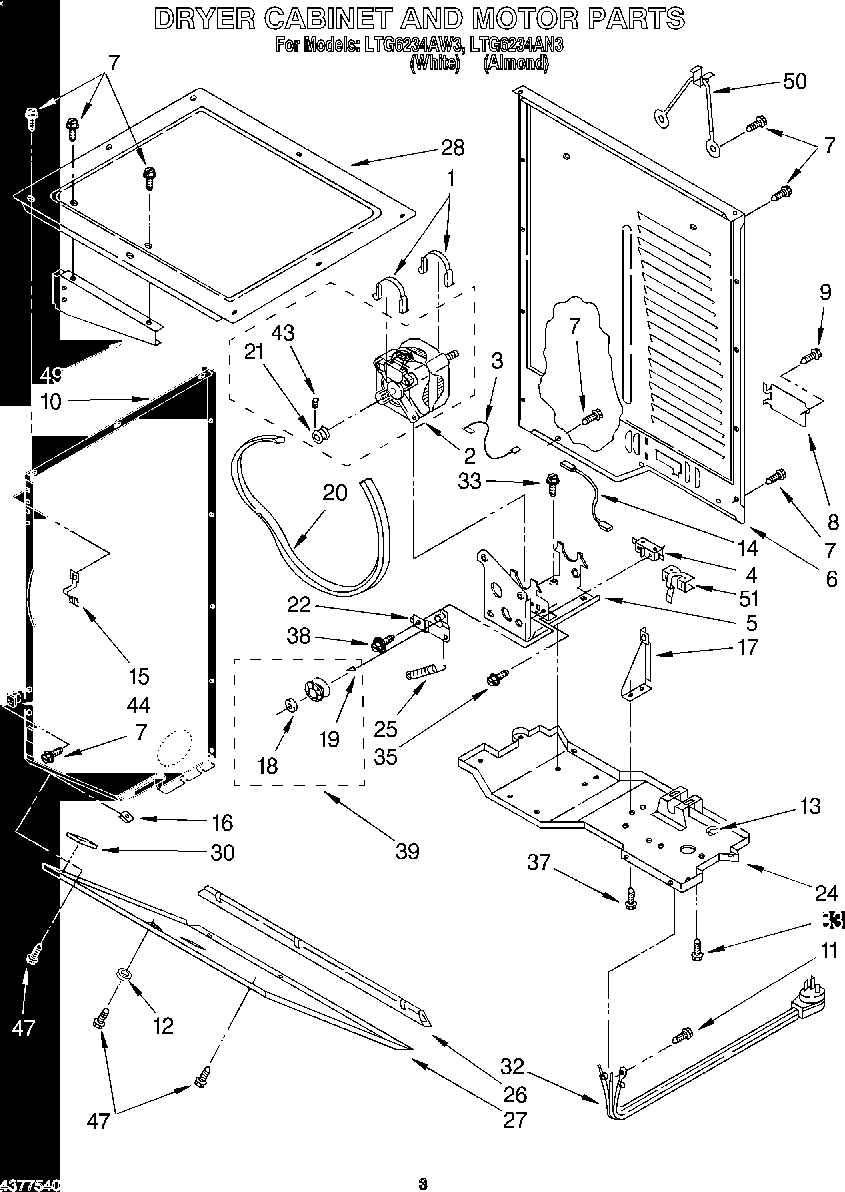

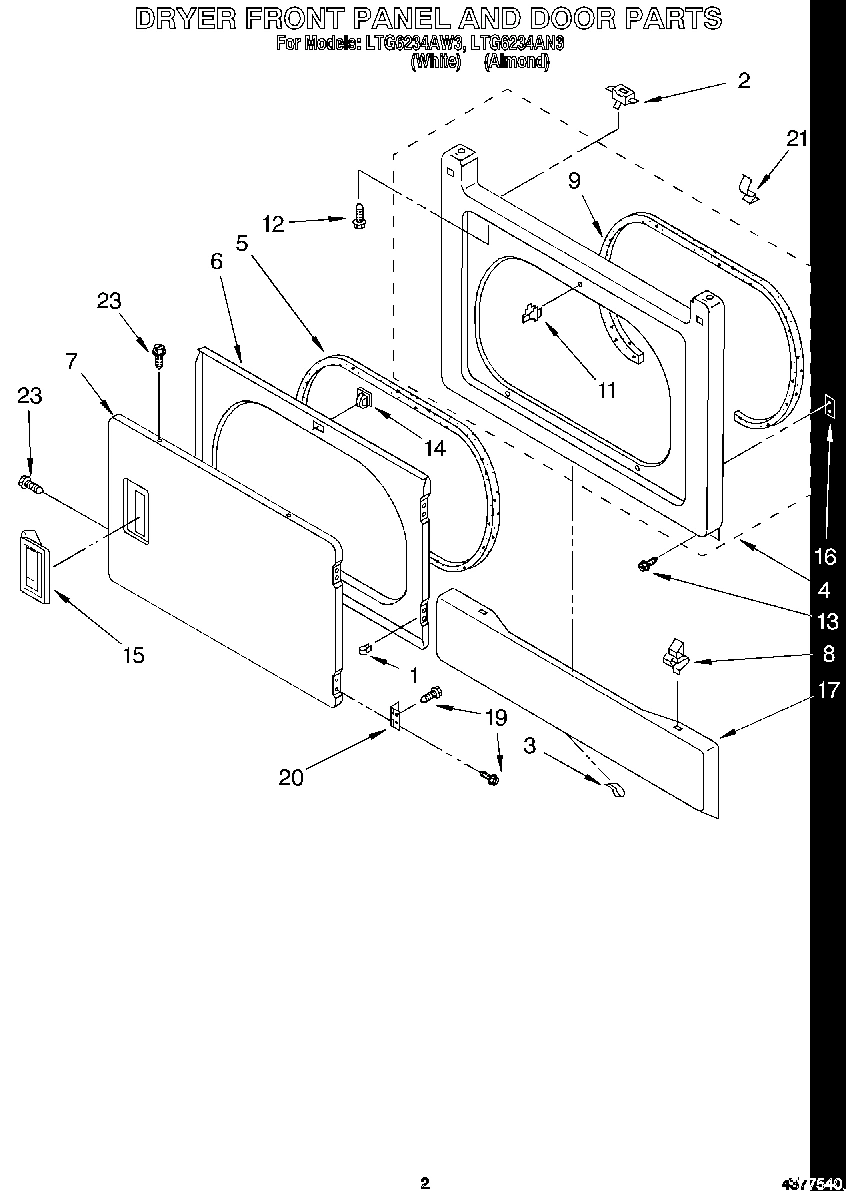

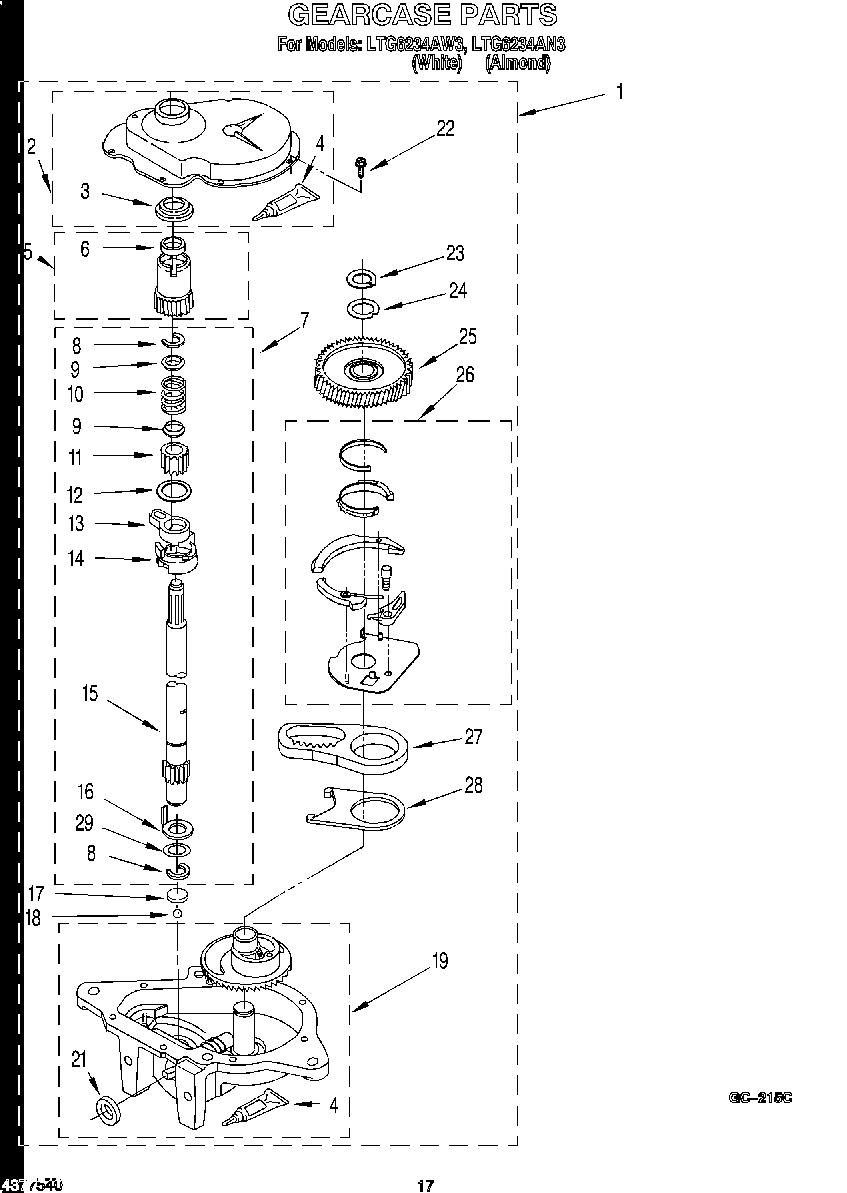

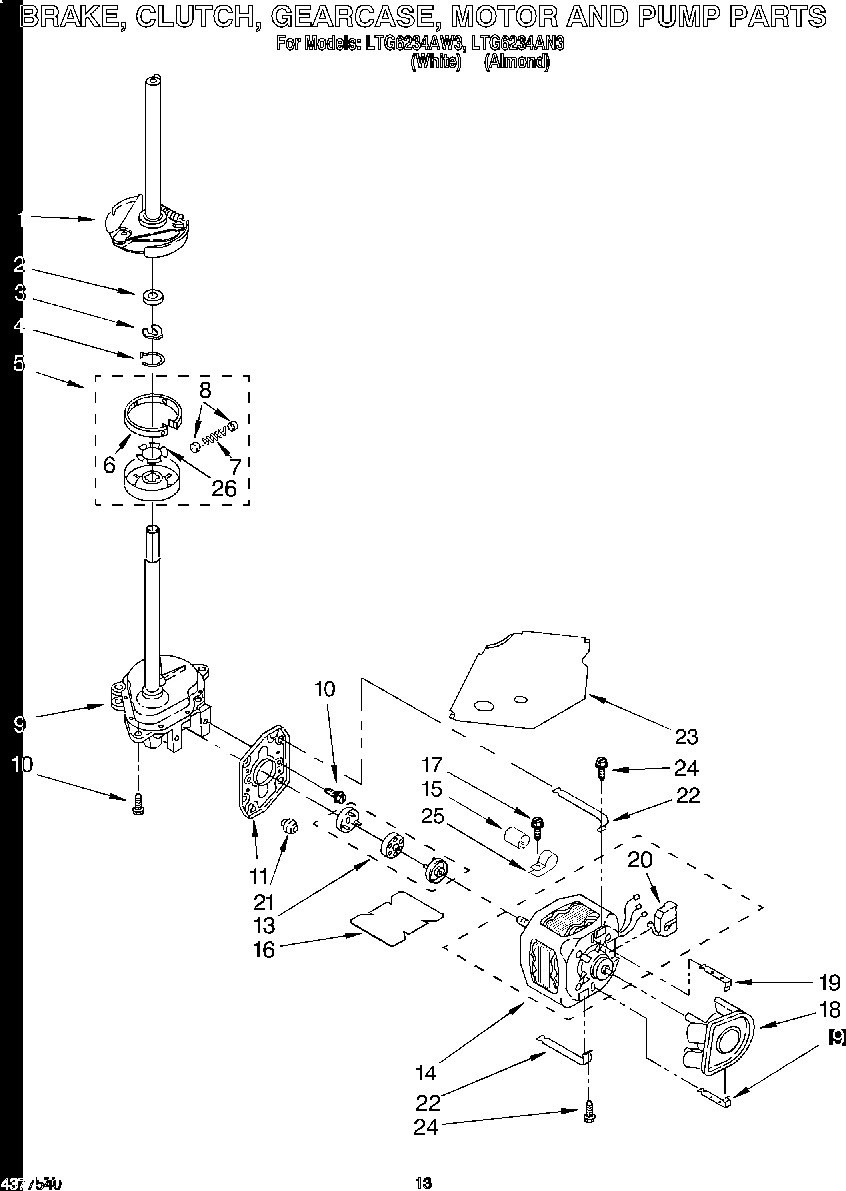

Model Whirlpool LTG6234AW3 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Kit, Exhaust Deflector WPL 694609 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Label, Operating Instruction WPL LIT3394996 Contact Us For Availability

Instructions, Installation WPL LIT3395326 Contact Us For Availability

Tag, Energy Guide WPL LIT3397738 Contact Us For Availability

Guide, Use And Care WPL LIT3401088 Contact Us For Availability

Label, Wiring Diagram WPL LIT3401848 Contact Us For Availability

1

3349770 Whirlpool Clip Backorder WPL 3349770 $9.35

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

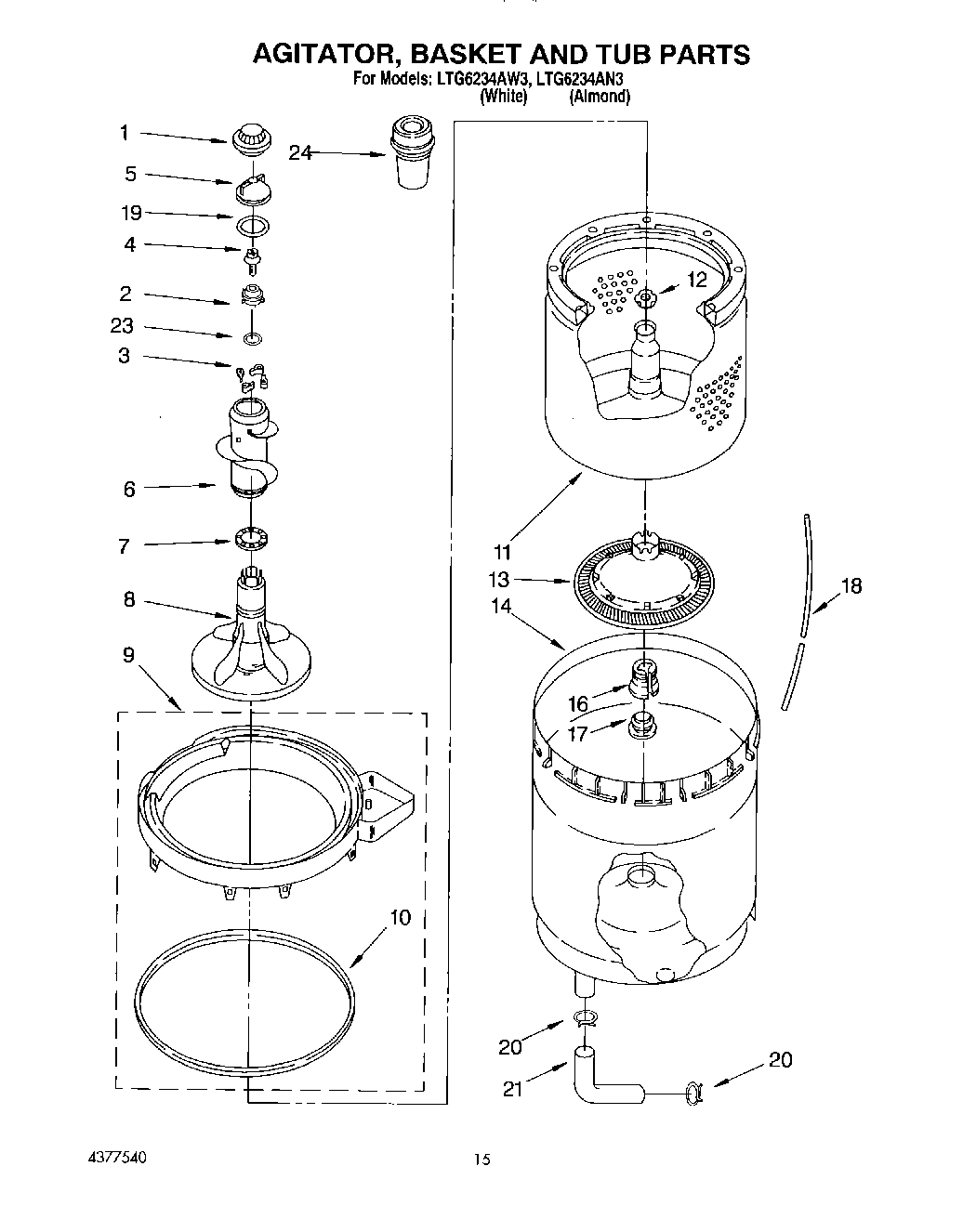

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

1

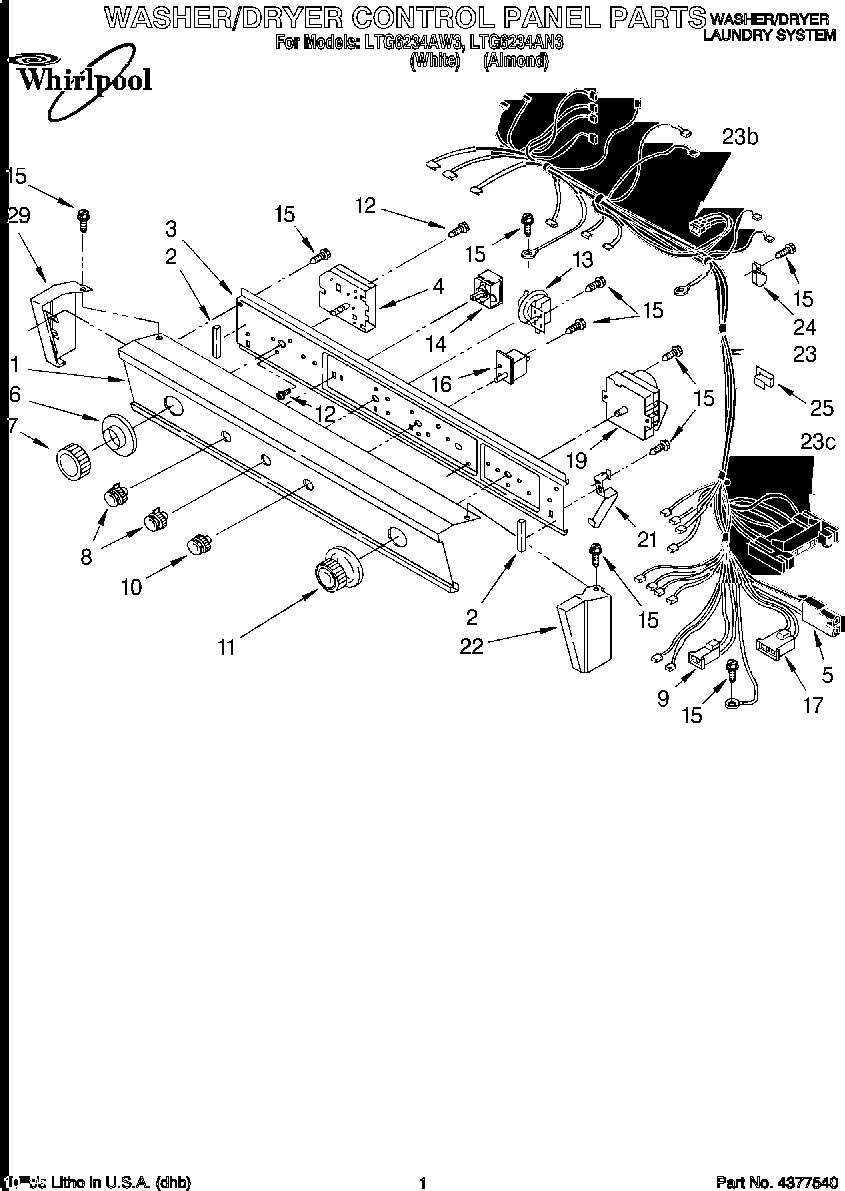

Panel, Control (White) WPL 3396683 Contact Us For Availability

1

Panel, Control (Almond) WPL 3396684 Contact Us For Availability

1

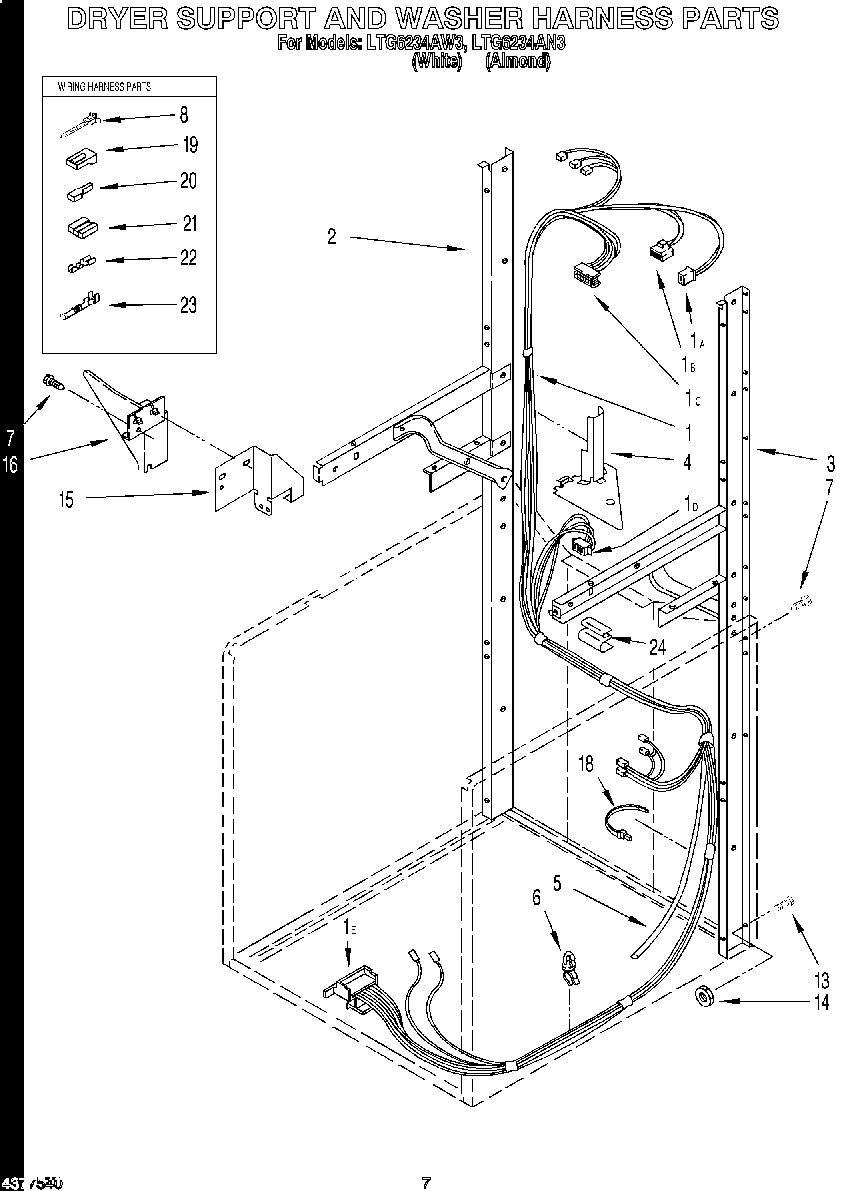

Harness - Washer WPL 3396691 Contact Us For Availability

1

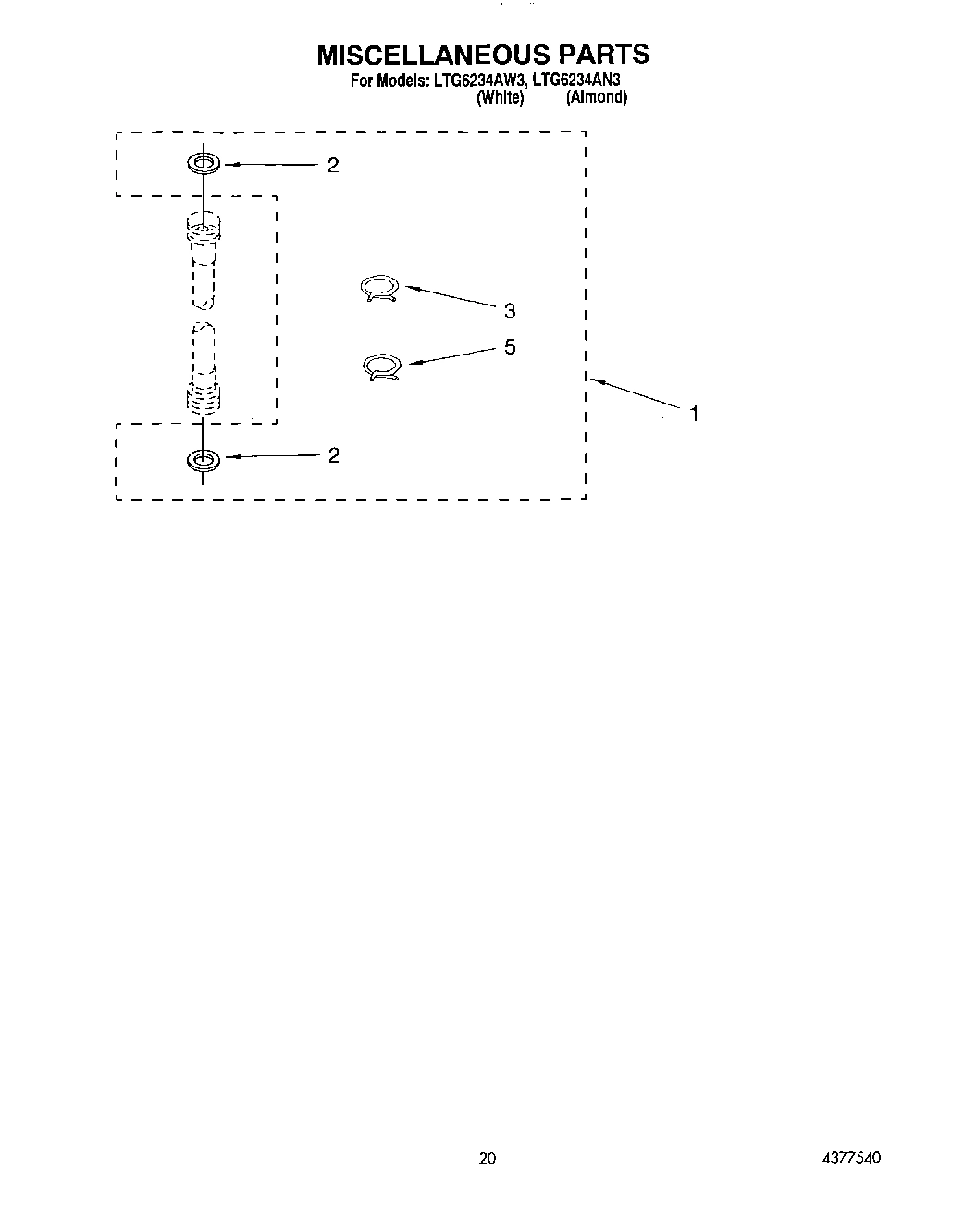

Miscellaneous Parts Bag WPL 3356714 Contact Us For Availability

1A

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1B

Connector, 5 Way (Uses Terminal 352088) WPL 3347243 Contact Us For Availability

1C

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

1D

Receptacle, 3 Way (Uses Terminal 94614) WPL 3350211 Contact Us For Availability

1E

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

3388851 Whirlpool Support Backorder WPL 3388851 $213.37

2

3390688 Whirlpool Bumper Assembly Backorder WPL 3390688 $5.51

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

3

3388850 Whirlpool Support Backorder WPL 3388850 $213.82

3

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Bracket, Control (Includes Illus. 2) WPL 3390689 Contact Us For Availability

4

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

285938 Whirlpool Washer Timer In Stock WPL 285938 $173.83

4

3390609 Whirlpool Shield Backorder WPL 3390609 $54.13

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

W10834213 Whirlpool Hose Backorder WPL W10834213 $21.86

5

W11107903 Whirlpool Bracket In Stock WPL W11107903 $35.25

5

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

5

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Receptacle, 2 Way WPL 717252 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $41.10

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

Top, Console (White) WPL 3349798 Contact Us For Availability

6

Skirt, Timer Knob (Washer) (White) WPL 3403097 Contact Us For Availability

6

Skirt, Timer Knob (Washer) (Almond) WPL 3403098 Contact Us For Availability

6

Panel, Rear WPL 3389847 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $18.51

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

7

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

8

279814 Whirlpool Cover Backorder WPL 279814 $66.36

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $5.44

8

3957797 Whirlpool Knob In Stock WPL 3957797 $35.99

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $210.40

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $119.31

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

8

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

8

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

8

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $192.48

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

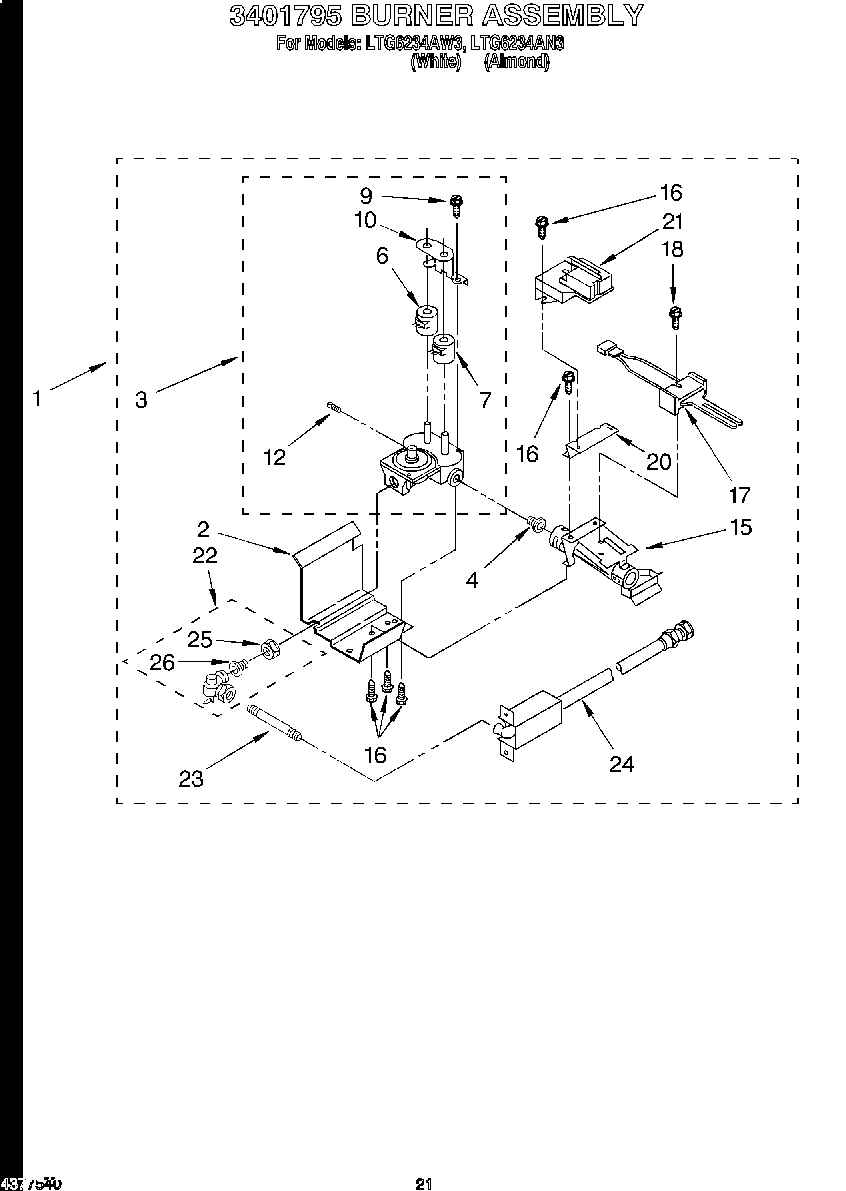

Connector, 2-Position (Gas Valve) WPL 3399964 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

3389256 Whirlpool Panel Backorder WPL 3389256 $212.24

3389264 Whirlpool Panel Assembly Backorder WPL 3389264 $214.62

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP3957800 Whirlpool Knob Backorder WPL WP3957800 $48.56

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

CLIP, CYLINDER RETAINER WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Panel, Side (Almond (R.H.)) WPL 3389257 Contact Us For Availability

Panel, Side (Almond (L.H.)) WPL 3389265 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3957750 Whirlpool Knob Backorder WPL WP3957750 $43.19

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

Basket WPL 3352234 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $7.32

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Switch, Pressure WPL 3360910 Contact Us For Availability

Clip WPL 697438 Contact Us For Availability

Bolt, 5/16-18 x 1/2 (4) WPL 9415810 Contact Us For Availability

3350101 Whirlpool Hinge Backorder WPL 3350101 $21.90

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $161.55

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability

Switch, Temperature WPL 3348352 Contact Us For Availability

Nut, Hex (4) WPL 3393930 Contact Us For Availability

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $9.45

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $22.45

3389231 Whirlpool Clip Front Panel In Stock WPL 3389231 $12.59

3389522 Whirlpool Handle Backorder WPL 3389522 $53.31

3392232 Whirlpool Shield Backorder WPL 3392232 $52.91

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

WP3395382 Whirlpool Push To Start Switch In Stock WPL WP3395382 $42.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

Shield, Thermostat WPL 3390336 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

3388958 Whirlpool Panel Backorder WPL 3388958 $85.58

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

BRACKET Backorder WPL W11100260 $12.40

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $36.99

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Connector, 3-Position (Gas Valve) WPL 3399963 Contact Us For Availability

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.57

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

Clip, Harness (2) WPL 3391249 Contact Us For Availability

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $245.98

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

Base Assembly (Includes Illus. 6, 7, 18 & 26) WPL 3349343 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

Insulator WPL 358736 Contact Us For Availability

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

WP285432 Whirlpool Terminal Backorder WPL WP285432 $4.82

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

279811 Whirlpool Dryer Drive Motor In Stock WPL 279811 $245.64

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

3349749 Whirlpool Restrainer Backorder WPL 3349749 $8.23

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $59.13

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Block, Terminal WPL 374230 Contact Us For Availability

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

W11116924 Whirlpool Locator Backorder WPL W11116924 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

WPW10547294 Whirlpool Idler Pulley In Stock WPL WPW10547294 $15.99

Terminal, Female WPL 352088 Contact Us For Availability

Washer (2) WPL 3349340 Contact Us For Availability

Valve, Shutoff WPL 697441 Contact Us For Availability

End Cap-Right Hand (White) WPL 3389456 Contact Us For Availability

End Cap-Right Hand (Almond) WPL 3389457 Contact Us For Availability

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Seal, Agitator WPL 64002 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

Harness - Dryer WPL 3398983 Contact Us For Availability

23B

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

23C

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

7111P002-60 Whirlpool Clamp Backorder WPL 7111P002-60 $4.41

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $67.99

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Base, Dryer WPL 3391668 Contact Us For Availability

Protector, Harness WPL 63523 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

Nut, Compression WPL 233076 Contact Us For Availability

Clip, Harness (2) WPL 3390422 Contact Us For Availability

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $84.51

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

3389272 Whirlpool Panel Backorder WPL 3389272 $168.24

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $216.46

Panel, Transition (Almond) WPL 3389273 Contact Us For Availability

28

Top, Dryer WPL 3389537 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

End Cap-Left Hand (White) WPL 3389464 Contact Us For Availability

End Cap (LH) (Almond) WPL 3389465 Contact Us For Availability

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $36.90

30

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.85

32

WPW10581952 Whirlpool Power Cord In Stock WPL WPW10581952 $75.51

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.77

35

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

37

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

39

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.68

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

43

Screw, Set WPL 3392285 Contact Us For Availability

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

49

3390722 Whirlpool Shield Assembly Backorder WPL 3390722 $54.13

50

Cable WPL 3388580 Contact Us For Availability

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $85.99

51

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

53

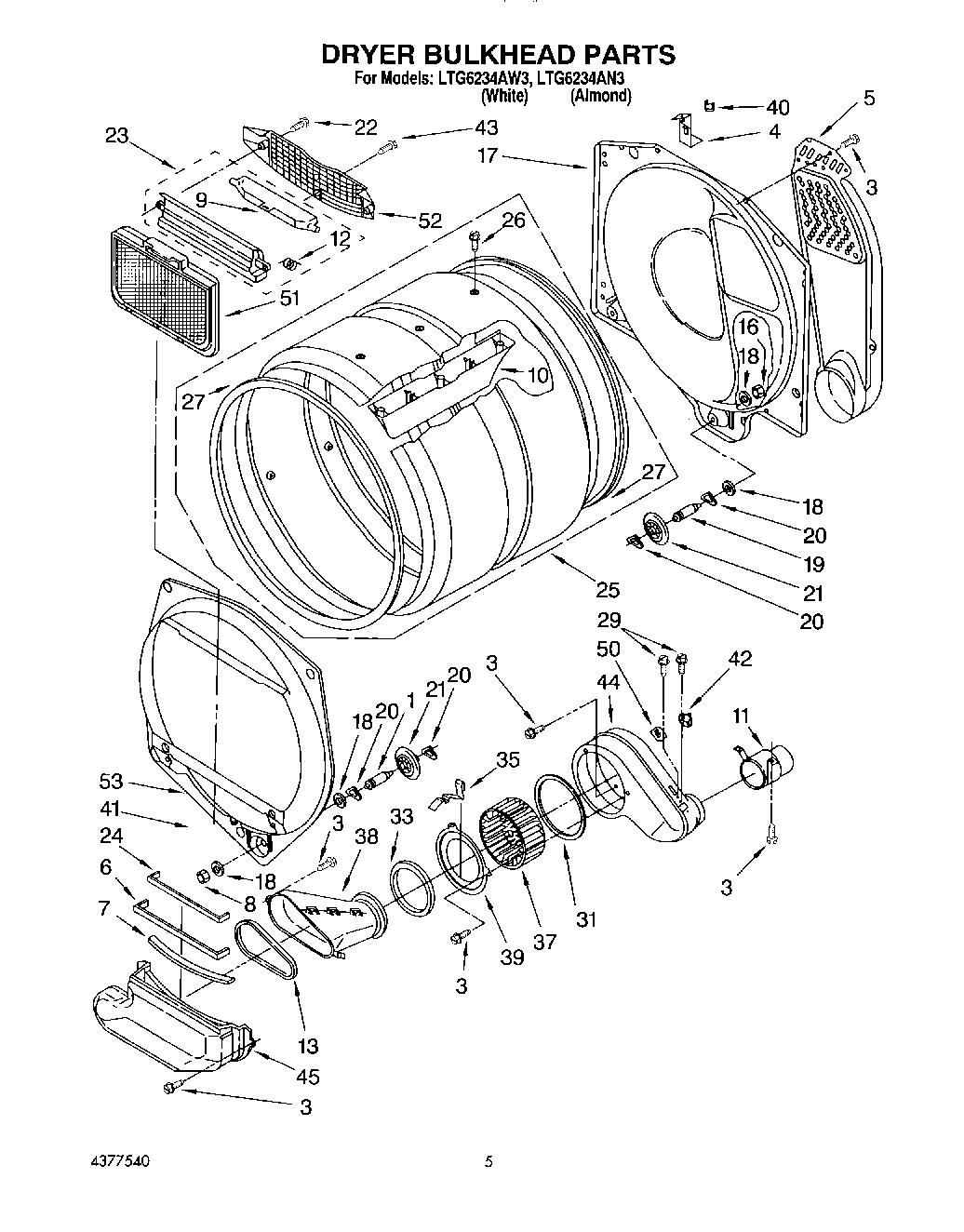

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39
