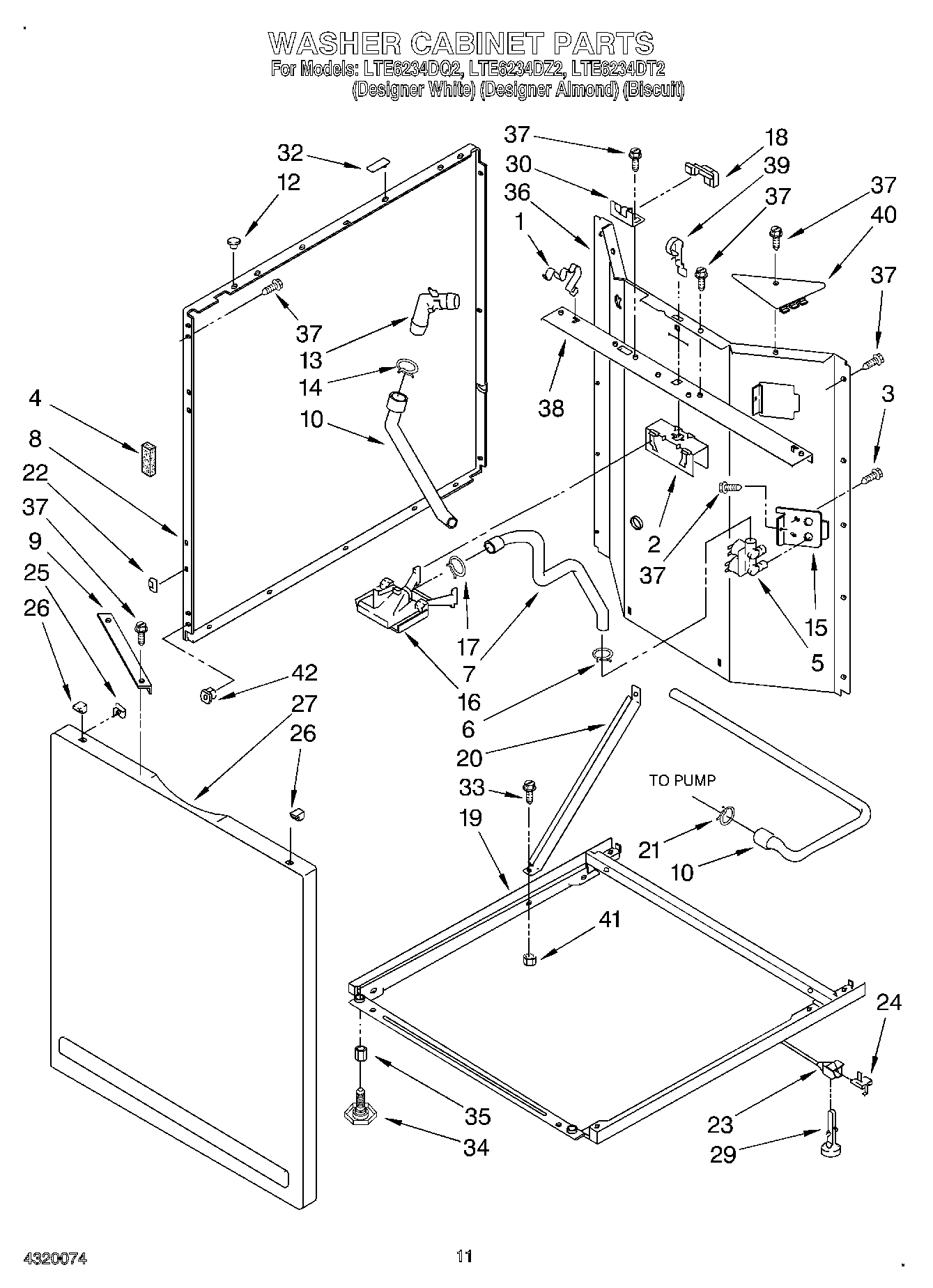

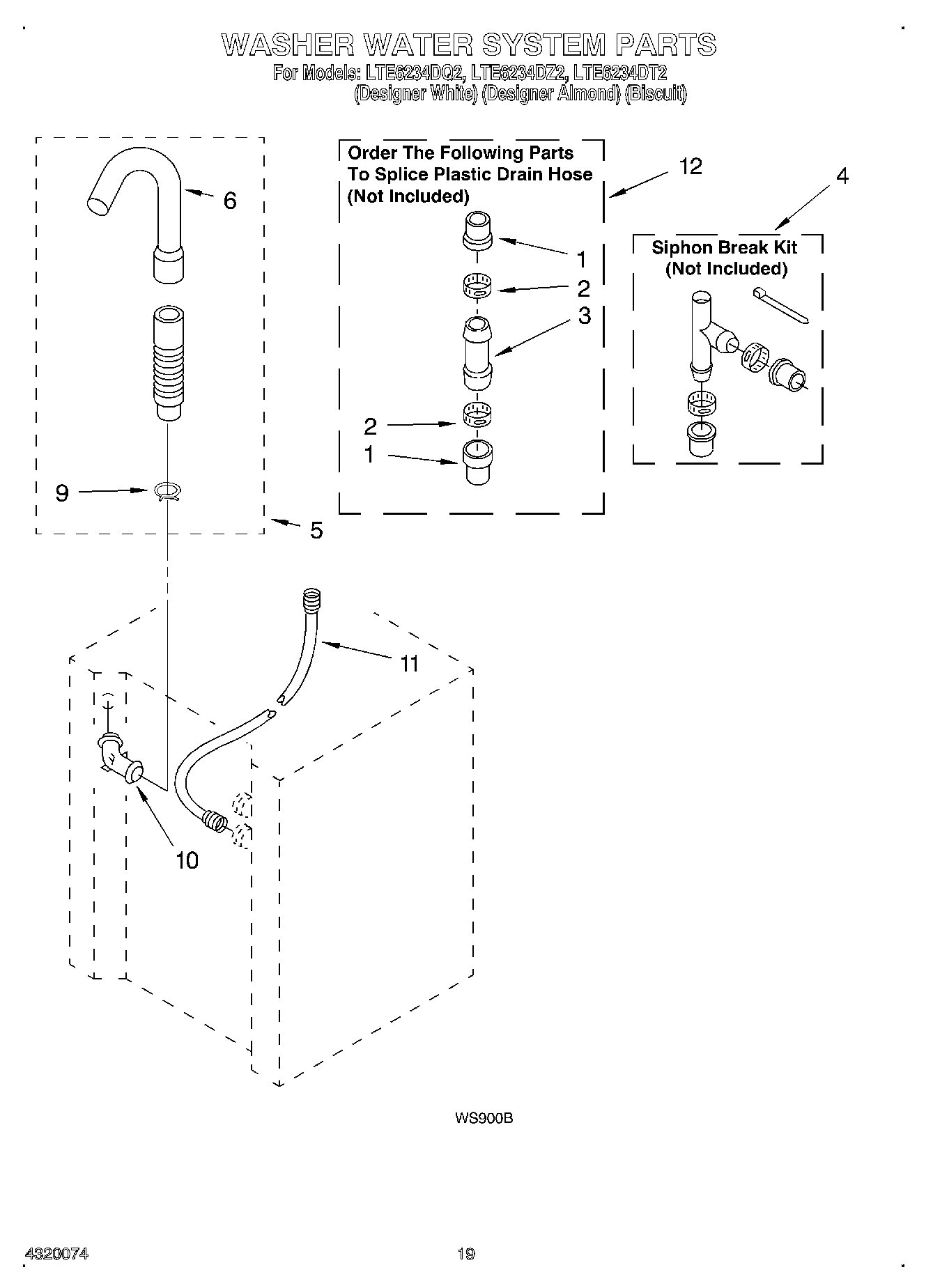

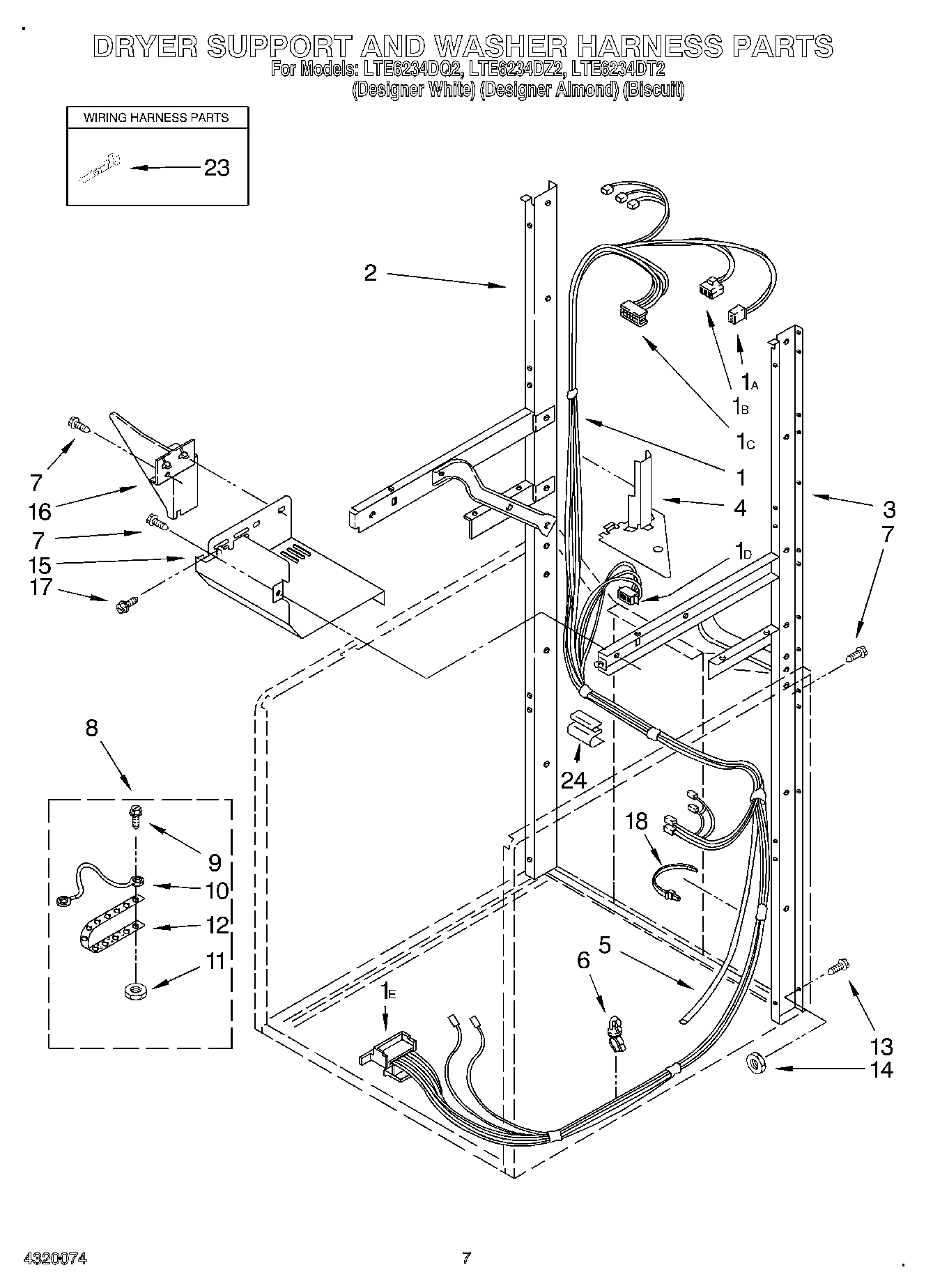

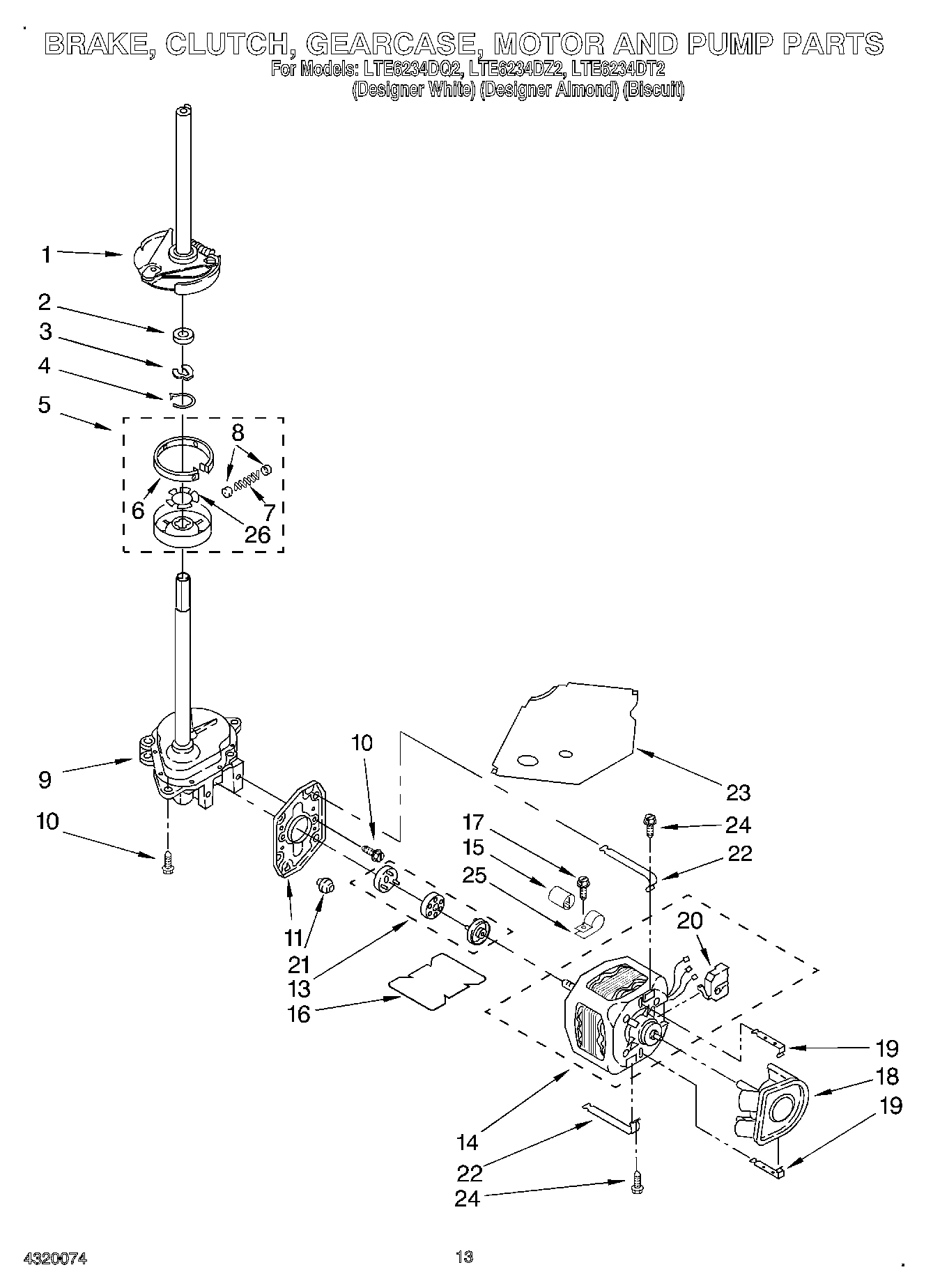

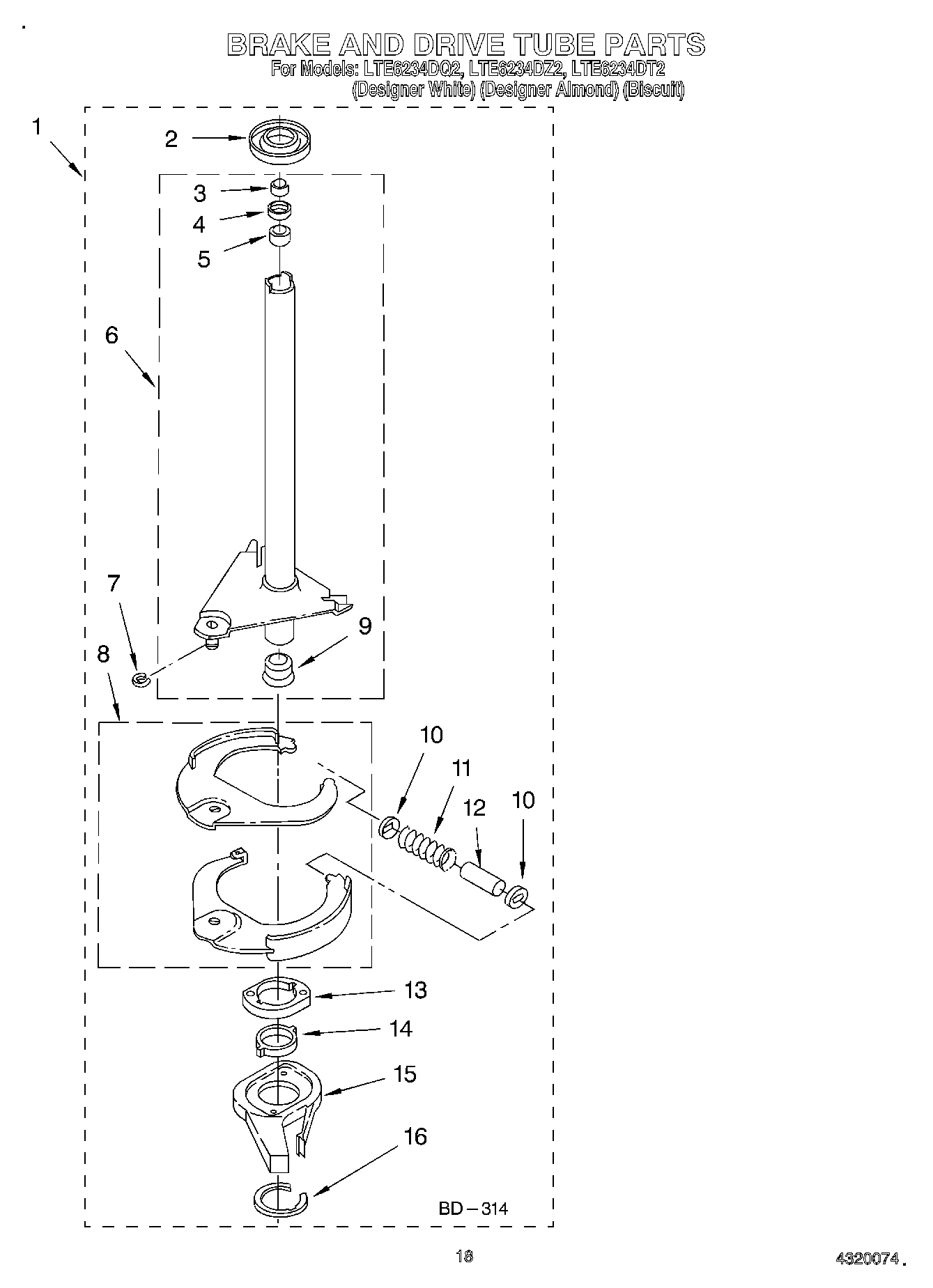

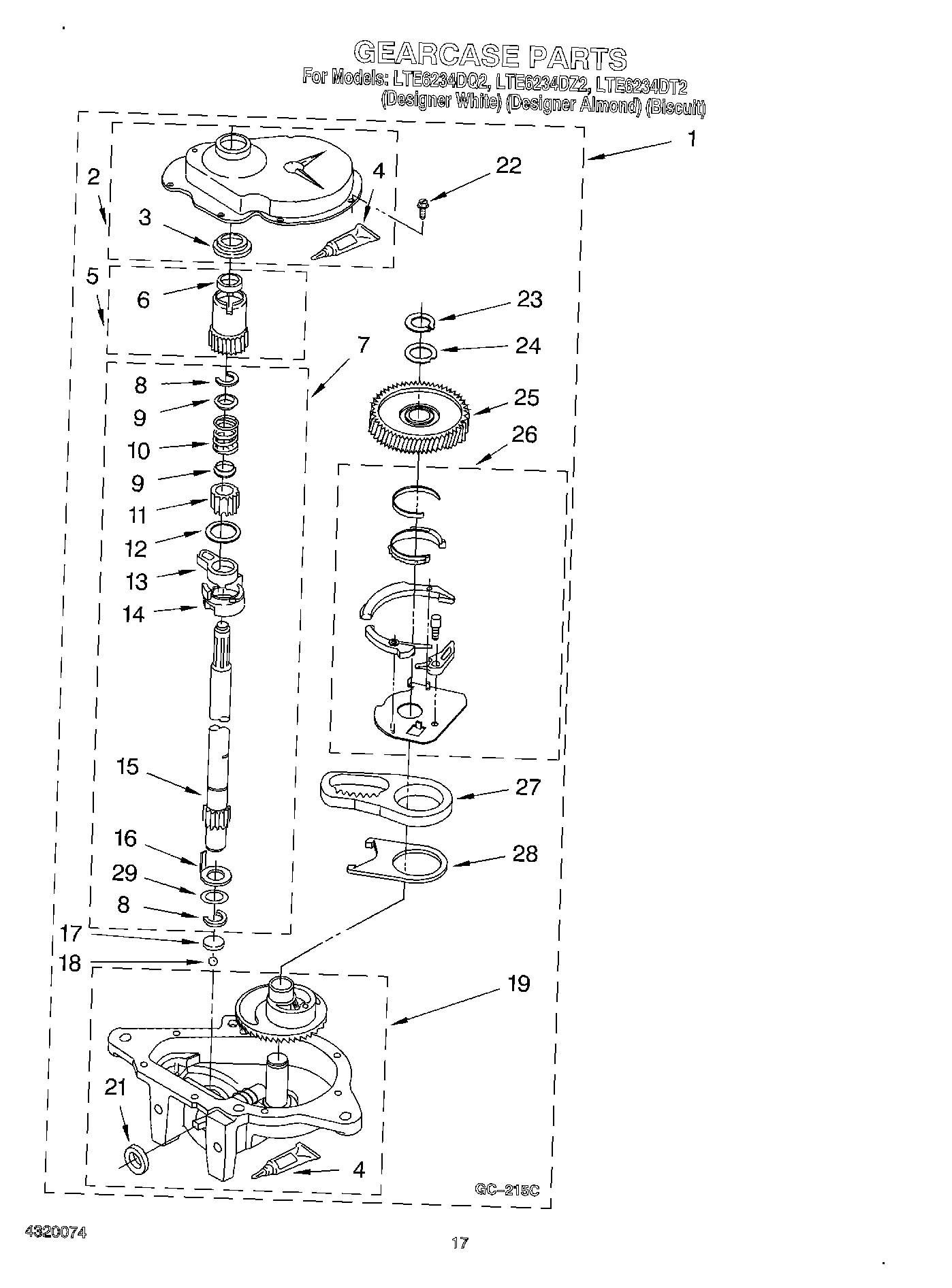

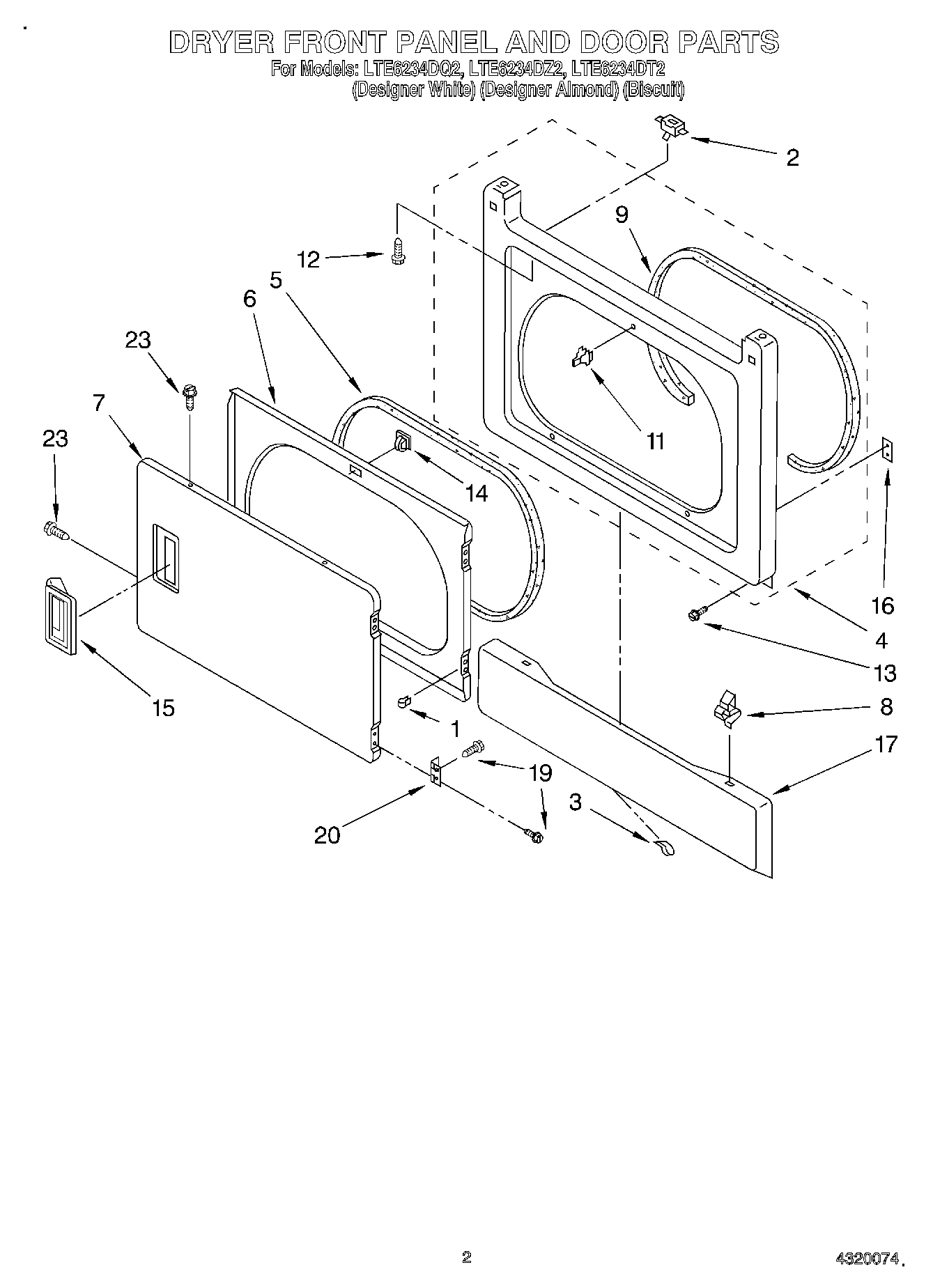

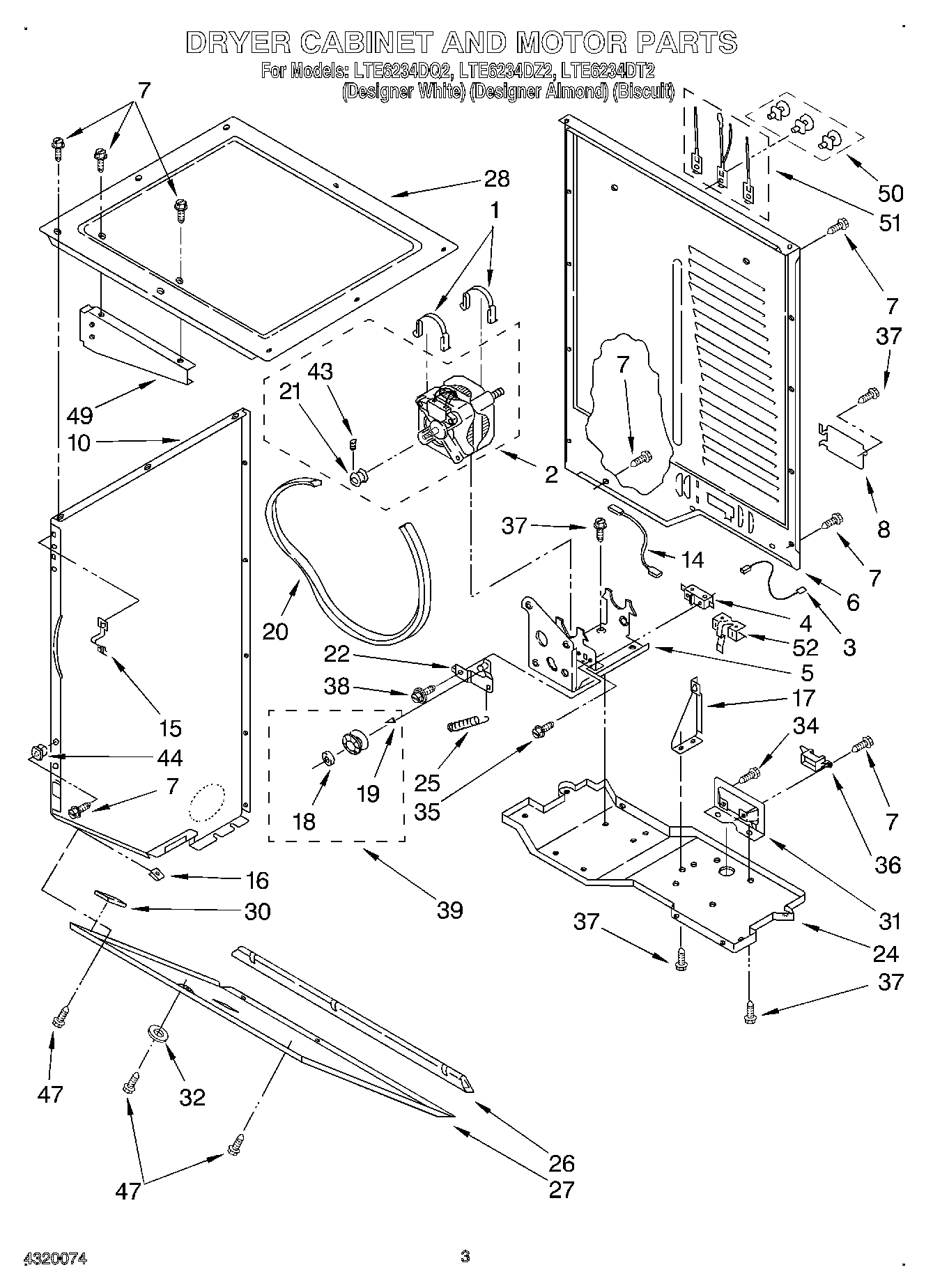

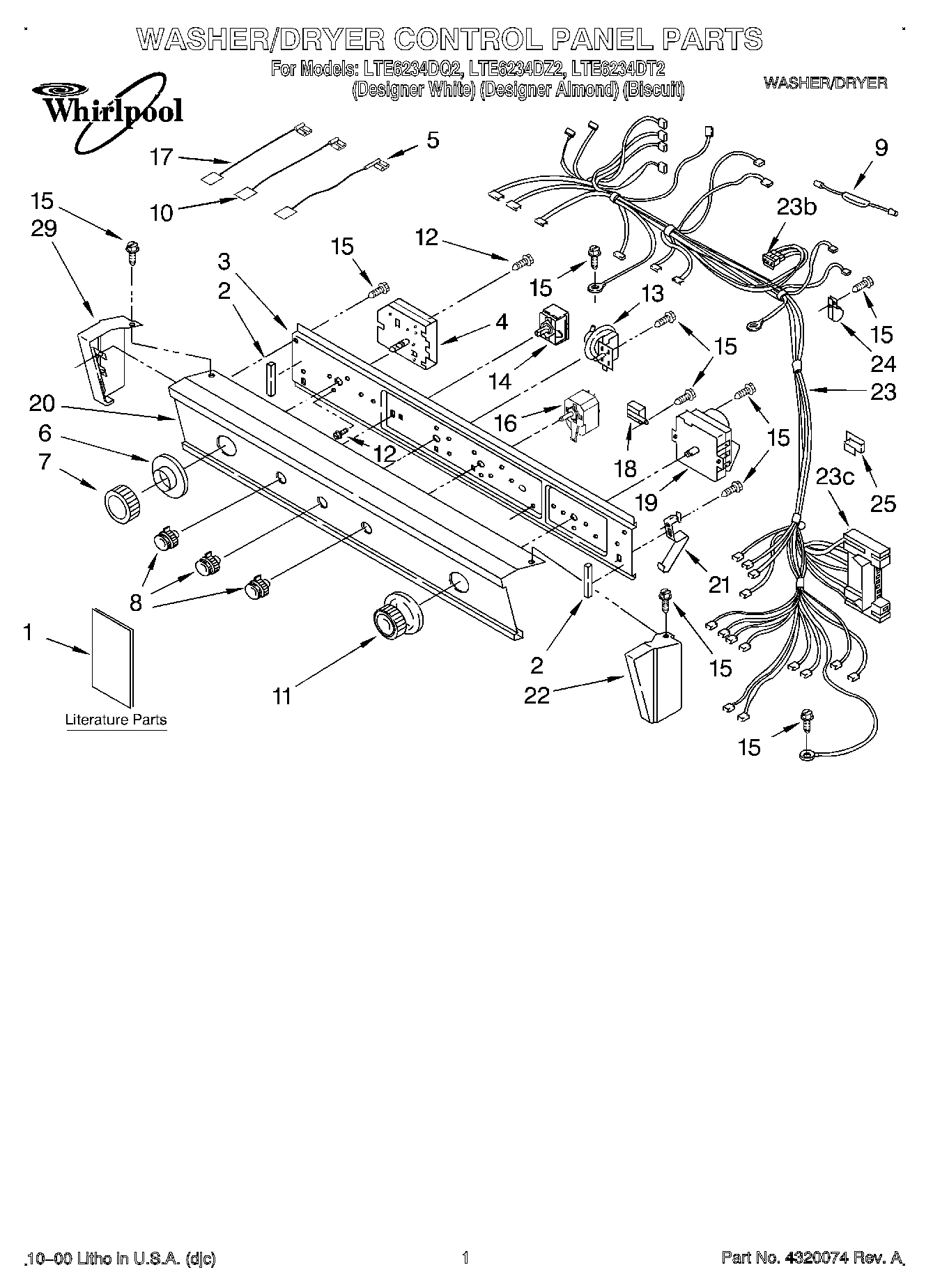

Model Whirlpool LTE6234DT2 WASHER/DRYER LAUNDRY SYSTEM – Common Parts &amp; Diagrams

1

3350130 Whirlpool Connector Backorder WPL 3350130 $8.82

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

1

LITERATURE PARTS WPL ARI158924A Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3397616 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3397634 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (English) WPL LIT3401097 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Arabic) WPL LIT3405528 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Energy G WPL LIT3954144 Contact Us For Availability

1

Literature Parts (Use & Care Guide) (Wire Dia WPL LIT8299786 Contact Us For Availability

1D

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285751 Whirlpool Washer Agitator Cam and 4 Do In Stock WPL 285751 $9.99

2

3390688 Whirlpool Bumper Assembly Backorder WPL 3390688 $5.51

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

2

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

3

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

3

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $2.61

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

Bracket, Control (Includes Illus. 2) WPL 3395708 Contact Us For Availability

4

279782 Whirlpool Lid Switch In Stock WPL 279782 $58.99

4

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

WP3948357 Whirlpool Timer Assembly In Stock WPL WP3948357 $269.99

5

279823 Whirlpool Exhaust Pipe Backorder WPL 279823 $90.30

5

285550 Whirlpool Cap Backorder WPL 285550 $59.06

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

5

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

5

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

5

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

5

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

5

W11107903 Whirlpool Bracket In Stock WPL W11107903 $35.25

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

5

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

5

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

5

Jumper Wire (Timer-Buzzer) WPL 3401674 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $41.10

6

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

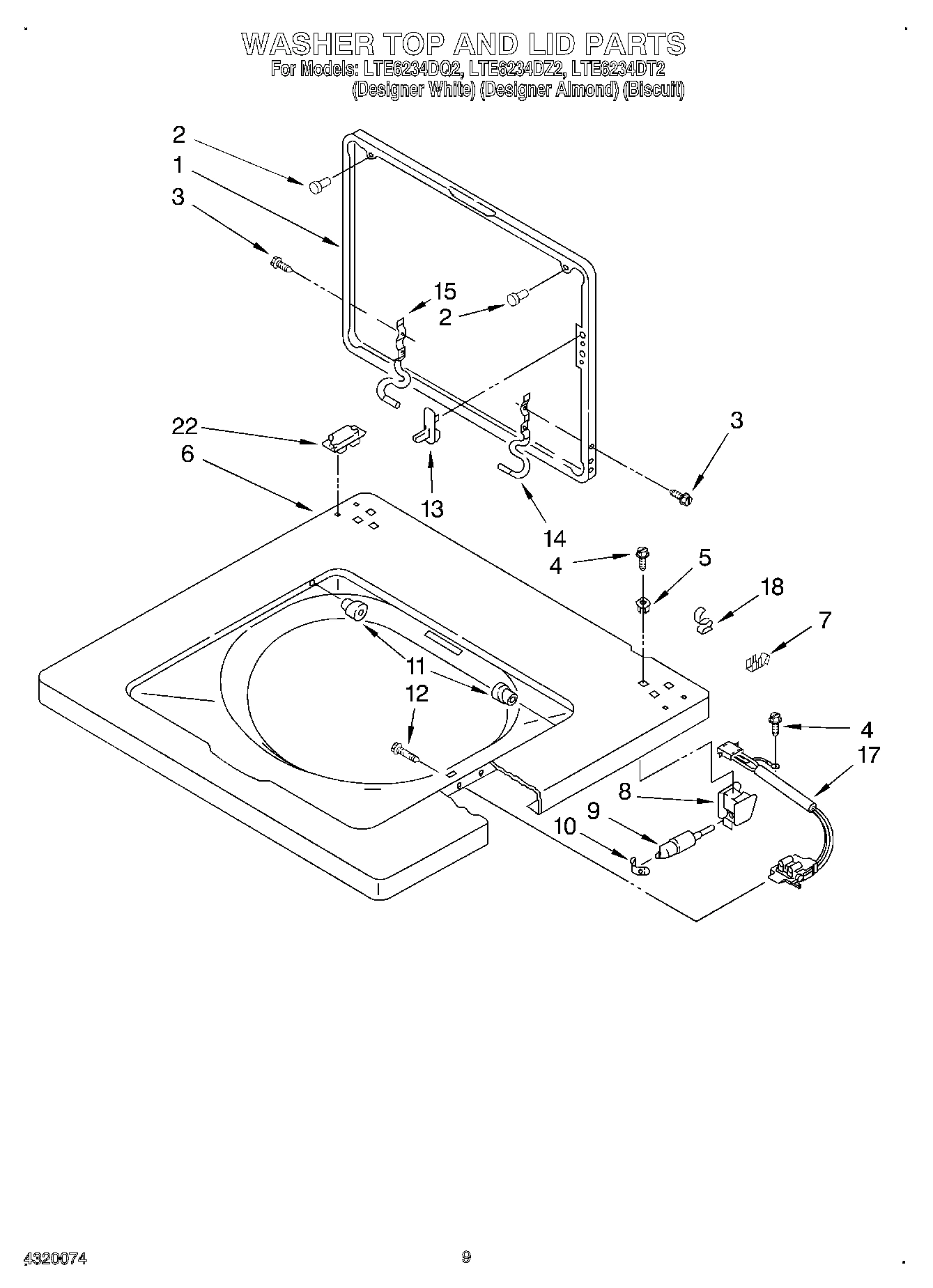

Top (White) WPL 3349798 Contact Us For Availability

6

Dial (Washer) (White) WPL 3403097 Contact Us For Availability

6

Dial (Washer) (Almond) WPL 3403098 Contact Us For Availability

6

Dial, (Washer) (Biscuit) WPL 3978870 Contact Us For Availability

6

Panel, Rear WPL 3389847 Contact Us For Availability

7

285620 Whirlpool Washer In Stock WPL 285620 $7.86

7

3352236 Whirlpool Hose Assembly Backorder WPL 3352236 $18.51

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

7

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

8

279814 Whirlpool Cover Backorder WPL 279814 $66.36

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

3354020 Whirlpool Bracket Backorder WPL 3354020 $5.44

8

3957797 Whirlpool Knob In Stock WPL 3957797 $35.99

8

WP3349455 Whirlpool Panel Backorder WPL WP3349455 $210.40

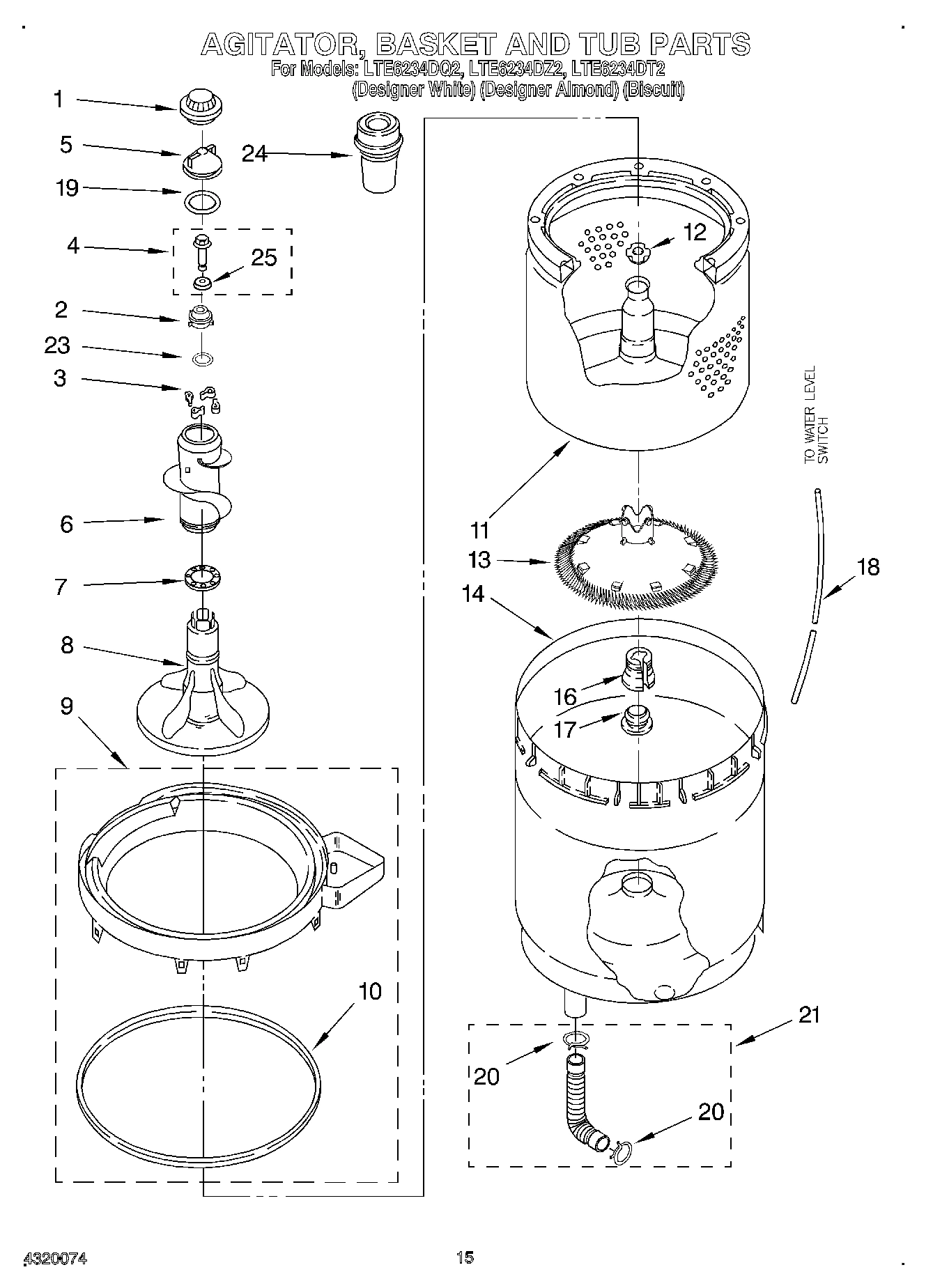

8

WP3349578 Whirlpool Agitator Backorder WPL WP3349578 $119.31

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

8

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

279872 Whirlpool Resistor In Stock WPL 279872 $52.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

W10880720 Whirlpool Tub Ring Backorder WPL W10880720 $129.85

9

WP3350152 Whirlpool Retainer In Stock WPL WP3350152 $192.48

9

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

3389256 Whirlpool Panel Backorder WPL 3389256 $212.24

3389264 Whirlpool Panel Assembly Backorder WPL 3389264 $214.62

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

Clip WPL 3350828 Contact Us For Availability

Hose, Drain WPL 3353841 Contact Us For Availability

Jumper, Wire (Aux Sw-Buzzer) WPL 3401684 Contact Us For Availability

Spring, Agitator WPL 62676 Contact Us For Availability

Panel, Side (L.H.) (Almond) WPL 3389257 Contact Us For Availability

Panel, Side (L.H.) (Biscuit) WPL 3389261 Contact Us For Availability

Panel, Side (L.H.) (Almond) WPL 3389265 Contact Us For Availability

Panel, Side (L.H.) (Biscuit Panel, Side (R.H. WPL 3389269 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WP3957750 Whirlpool Knob Backorder WPL WP3957750 $43.19

WP3957751 Whirlpool Knob Backorder WPL WP3957751 $33.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

Basket WPL 3352234 Contact Us For Availability

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

WP660975 Whirlpool Button Plug Backorder WPL WP660975 $4.82

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WP3952466 Whirlpool Washer Water Level Switch Backorder WPL WP3952466 $114.10

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

3350101 Whirlpool Hinge Backorder WPL 3350101 $21.90

WP3349292 Whirlpool Tub Assembly Backorder WPL WP3349292 $161.55

WP3387749 Whirlpool Heating Element In Stock WPL WP3387749 $215.99

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Wire, Broken Belt Switch WPL 3394081 Contact Us For Availability

Switch, Temperature WPL 3405157 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

3349673 Whirlpool Bracket Assembly Backorder WPL 3349673 $9.45

3350102 Whirlpool Hinge Assembly Backorder WPL 3350102 $22.45

3389231 Whirlpool Clip Front Panel In Stock WPL 3389231 $12.59

3389522 Whirlpool Handle Backorder WPL 3389522 $53.31

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3404233 Whirlpool Dryer Starter Switch In Stock WPL WP3404233 $71.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

3388958 Whirlpool Panel Backorder WPL 3388958 $85.58

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

BRACKET Backorder WPL W11100260 $12.40

WP3355458 Whirlpool Lid Switch In Stock WPL WP3355458 $36.99

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Jumper Wire WPL 3393810 Contact Us For Availability

3350145 Whirlpool Shield Assembly Backorder WPL 3350145 $8.57

W10834213 Whirlpool Hose Backorder WPL W10834213 $21.86

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.94

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

WP3402724 Whirlpool Washer Base Backorder WPL WP3402724 $142.63

WP3976569 Whirlpool Timer In Stock WPL WP3976569 $245.98

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $4.98

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

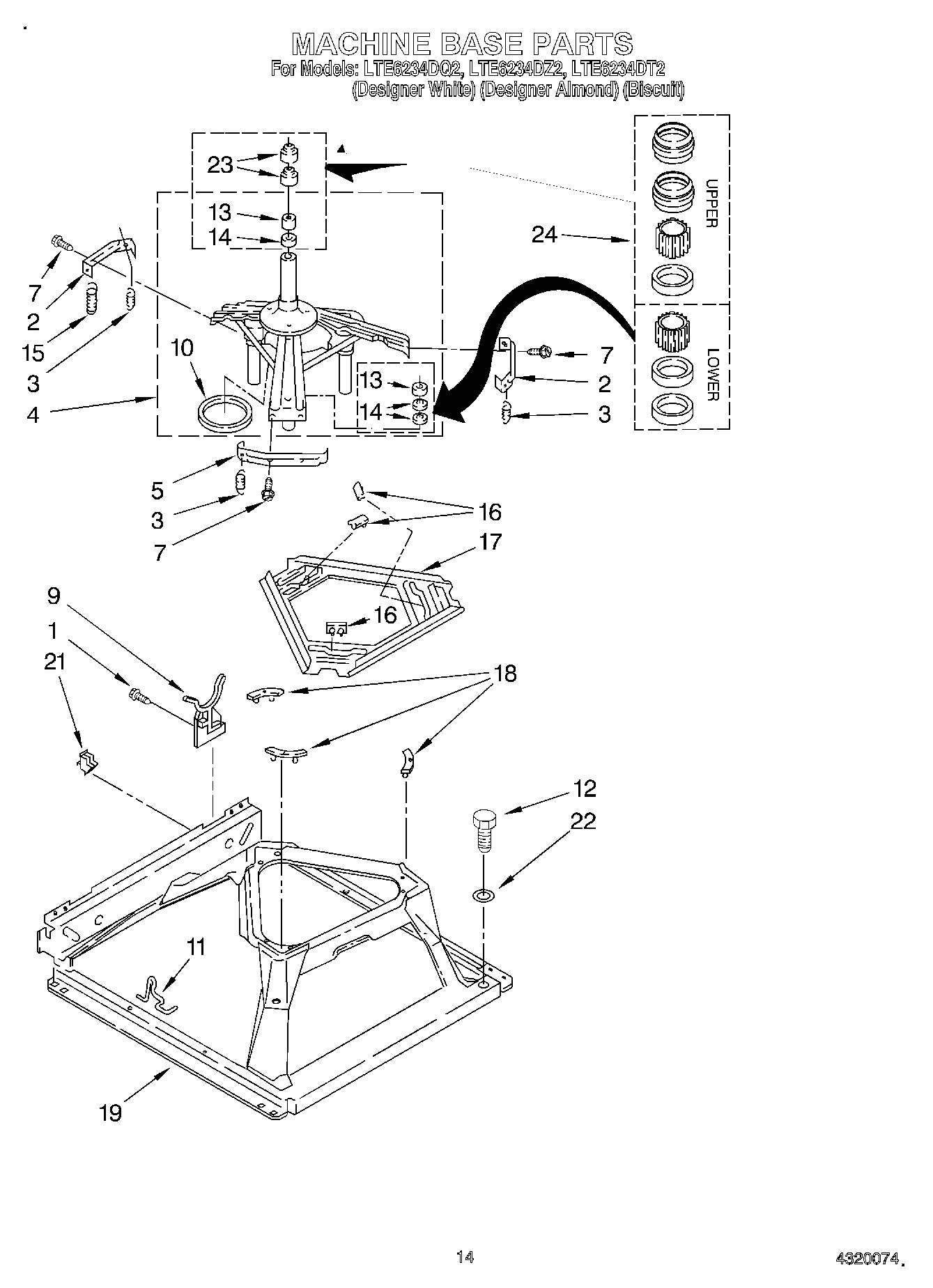

Base Assembly (Includes Illus. 11 & 18) WPL 3349343 Contact Us For Availability

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $13.56

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

Panel, Control (White) WPL 3396689 Contact Us For Availability

Panel, Control (Almond) WPL 3396690 Contact Us For Availability

Panel, Control (Biscuit) WPL 3406828 Contact Us For Availability

279811 Whirlpool Dryer Drive Motor In Stock WPL 279811 $245.64

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

3349749 Whirlpool Restrainer Backorder WPL 3349749 $8.23

3389453 Whirlpool Hinge Assembly Backorder WPL 3389453 $59.13

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $7.99

W11116924 Whirlpool Locator Backorder WPL W11116924 $14.02

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WPW10547294 Whirlpool Idler Pulley In Stock WPL WPW10547294 $15.99

Washer (2) WPL 3349340 Contact Us For Availability

End WPL 3389456 Contact Us For Availability

WPL 3389457 WPL 3389457 Contact Us For Availability

WPL 3389462 WPL 3389462 Contact Us For Availability

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP3349311 Whirlpool Link In Stock WPL WP3349311 $65.85

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Seal, Agitator WPL 64002 Contact Us For Availability

Ring, Retaining WPL 3362552 Contact Us For Availability

WPL 2154470 WPL 2154470 Contact Us For Availability

WPL 8299835 WPL 8299835 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

7111P002-60 Whirlpool Clamp Backorder WPL 7111P002-60 $4.41

W10864899 Whirlpool Fabric Softener Dispenser In Stock WPL W10864899 $67.99

WP359364 Whirlpool Clip In Stock WPL WP359364 $4.96

Washer Kit, Thrust WPL 285735 Contact Us For Availability

Base, Dryer WPL 3390026 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $20.83

WPL 3390422 WPL 3390422 Contact Us For Availability

26

3389683 Whirlpool Cover Assembly Backorder WPL 3389683 $84.51

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP345670 Whirlpool Lock In Stock WPL WP345670 $7.99

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

3389272 Whirlpool Panel Backorder WPL 3389272 $168.24

WP3349499 Whirlpool Panel Backorder WPL WP3349499 $216.46

Panel, Transition (Almond) WPL 3389273 Contact Us For Availability

Panel, Transition (Biscuit) WPL 3389277 Contact Us For Availability

28

Top, Dryer WPL 3389537 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $8.99

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

WPL 3389464 WPL 3389464 Contact Us For Availability

WPL 3389465 WPL 3389465 Contact Us For Availability

WPL 3389470 WPL 3389470 Contact Us For Availability

30

3350144 Whirlpool Bracket Backorder WPL 3350144 $36.90

30

3389682 Whirlpool Spacer Backorder WPL 3389682 $5.85

31

3393721 Whirlpool Bracket Backorder WPL 3393721 $13.15

32

WP3389431 Whirlpool Bumper Assembly Backorder WPL WP3389431 $7.32

32

Bumper, Lid Stop (Almond) WPL 3389432 Contact Us For Availability

32

Bumper, Lid Stop (Biscuit) WPL 3389436 Contact Us For Availability

34

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

35

3390935 Whirlpool Clip Backorder WPL 3390935 $7.77

35

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

36

WP3397659 Whirlpool Terminal Block In Stock WPL WP3397659 $17.95

37

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

39

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $26.77

39

3350135 Whirlpool Lever Spring Backorder WPL 3350135 $8.68

40

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

42

WP3387134 Whirlpool Dryer Cycling Thermostat In Stock WPL WP3387134 $26.78

43

Screw, Set WPL 3392285 Contact Us For Availability

44

WP692400 Whirlpool Nut In Stock WPL WP692400 $7.99

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $99.33

45

279700 Whirlpool Duct Lint Backorder WPL 279700 $118.95

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $85.99

47

279816 Whirlpool Dryer Thermal Cut-Off Fuse K In Stock WPL 279816 $44.99

47

WP693304 Whirlpool Screw Backorder WPL WP693304 $4.82

48

WP3390291 Whirlpool High Limit Thermostat In Stock WPL WP3390291 $51.83

49

3389648 Whirlpool Bracket Assembly Backorder WPL 3389648 $13.15

49

3390722 Whirlpool Shield Assembly Backorder WPL 3390722 $54.13

50

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

50

WP3403607 Whirlpool Thermoprotector In Stock WPL WP3403607 $23.99

51

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

51

WP3389644 Whirlpool Screen Assembly In Stock WPL WP3389644 $85.99

52

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

52

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

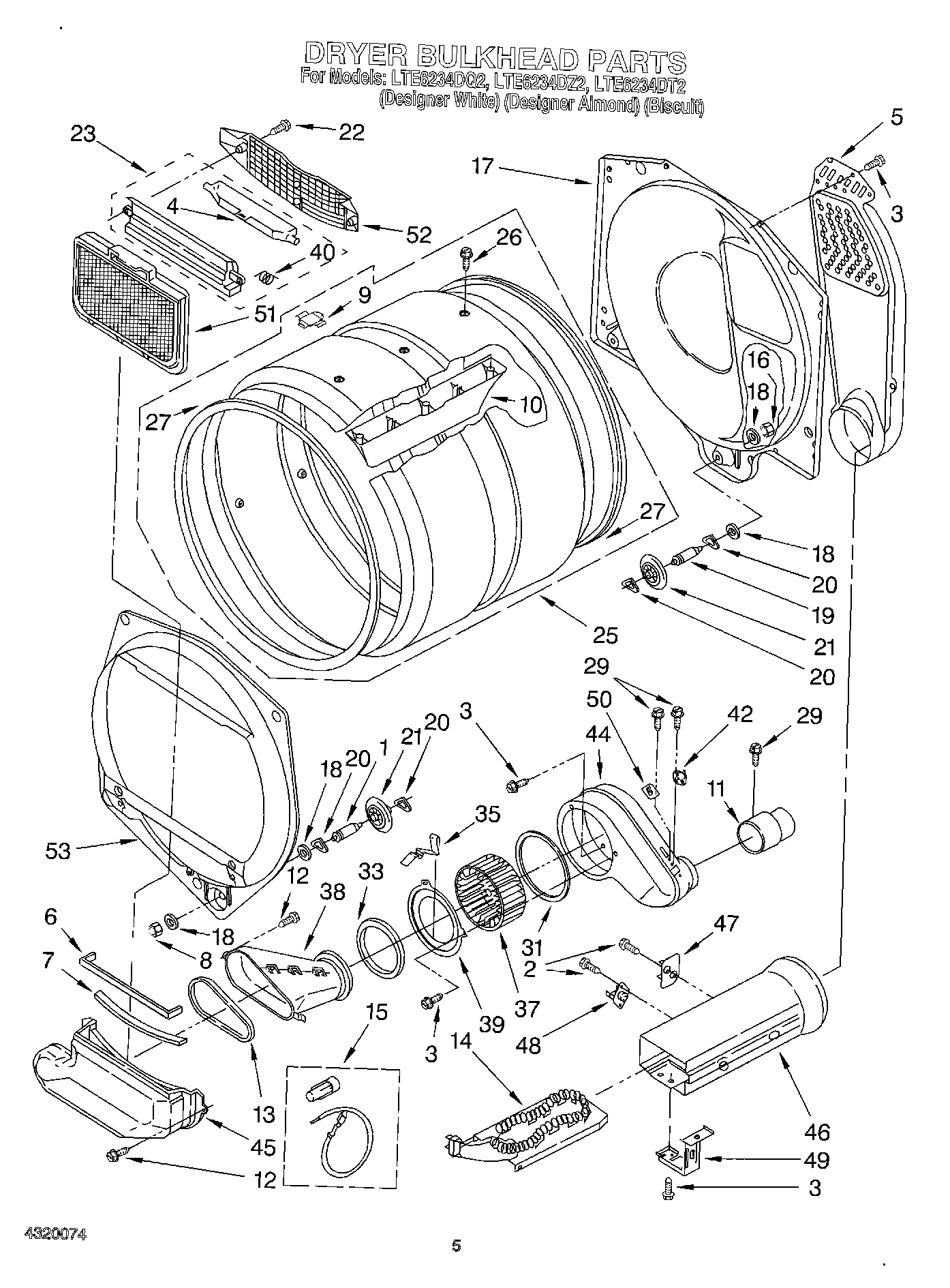

53

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39
