Model Whirlpool LSQ9549LQ1 AUTOMATIC WASHER – Common Parts & Diagrams

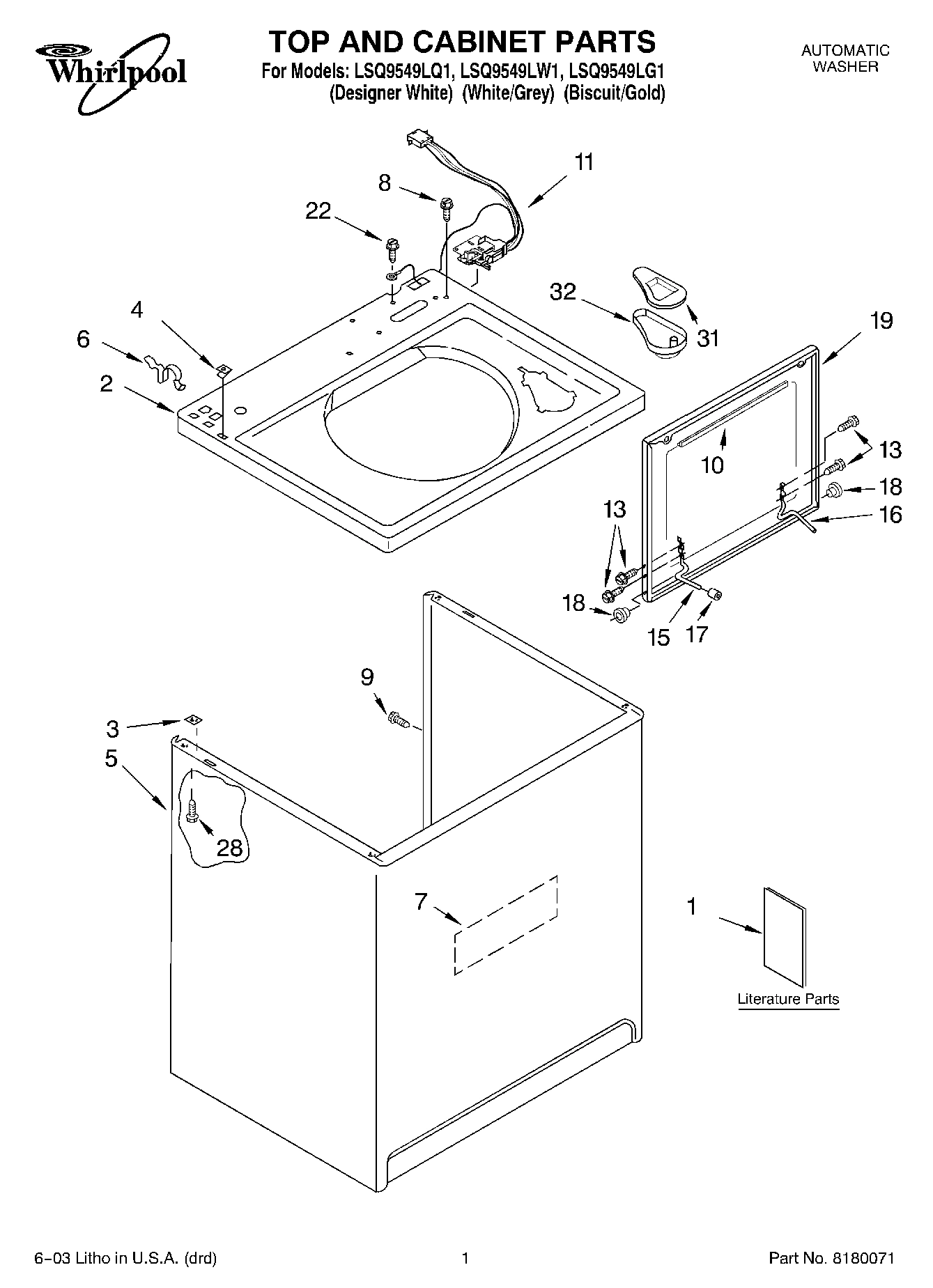

01 - TOP AND CABINET PARTS

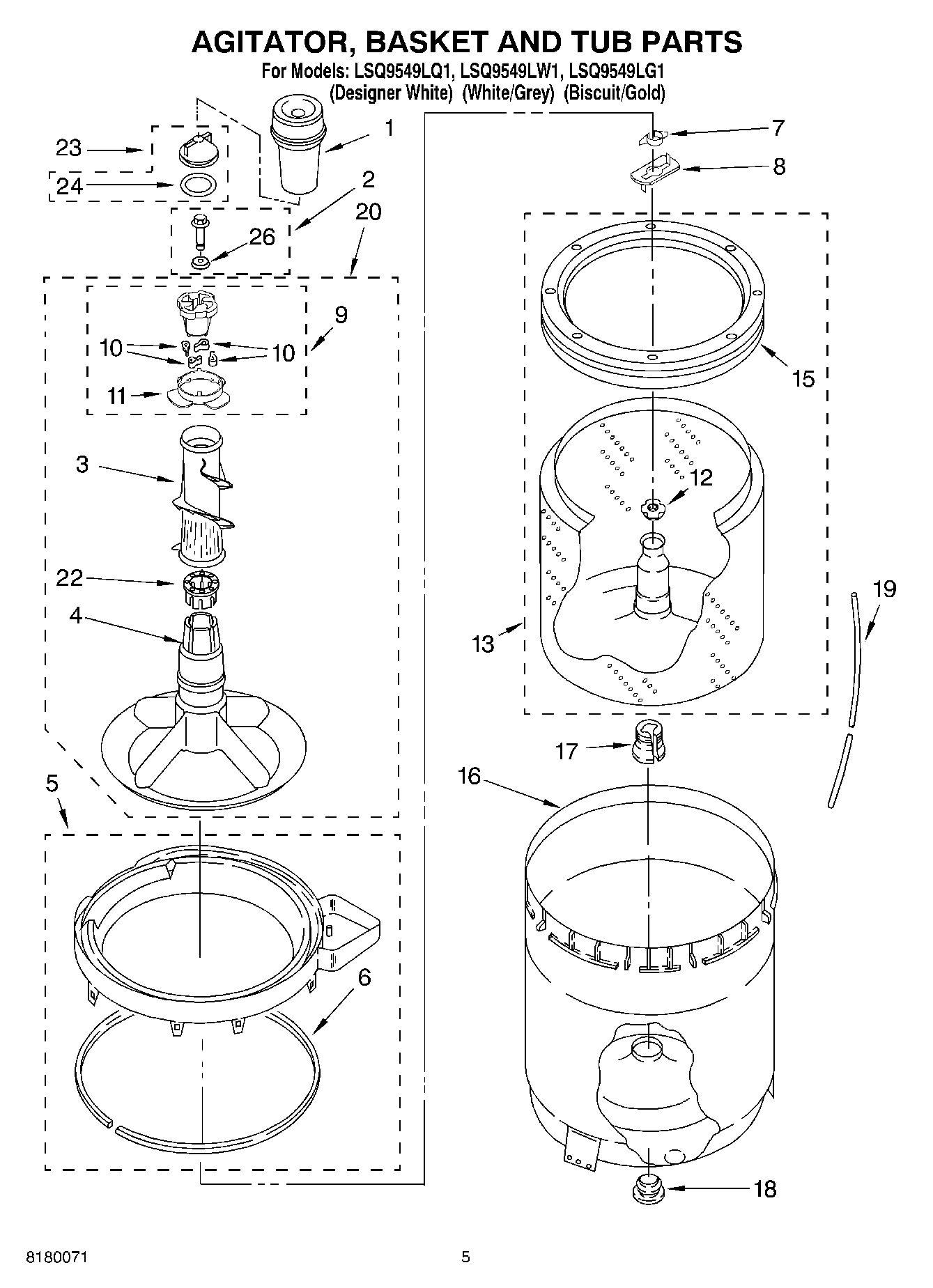

03 - AGITATOR, BASKET AND TUB PARTS

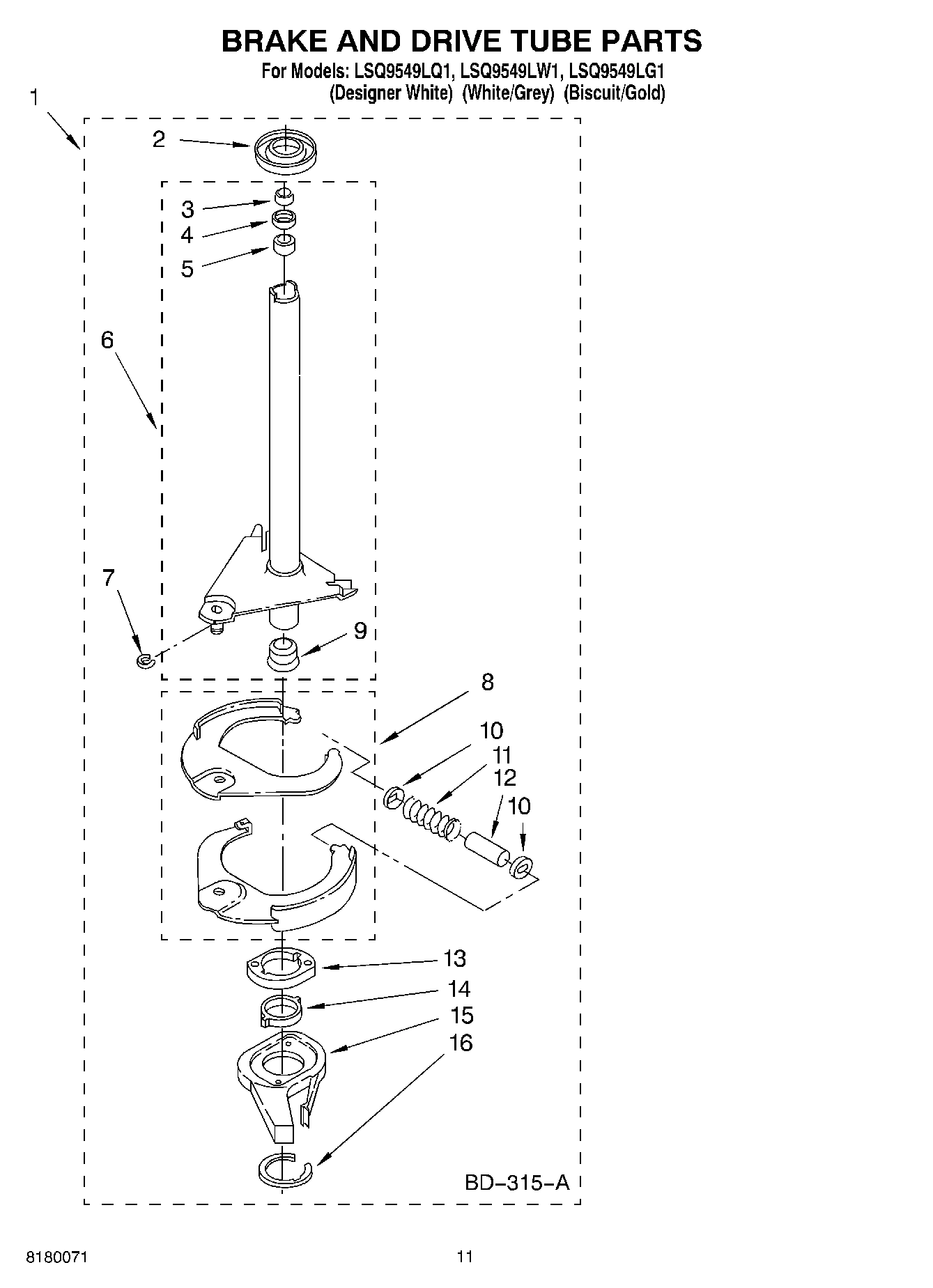

07 - BRAKE AND DRIVE TUBE PARTS

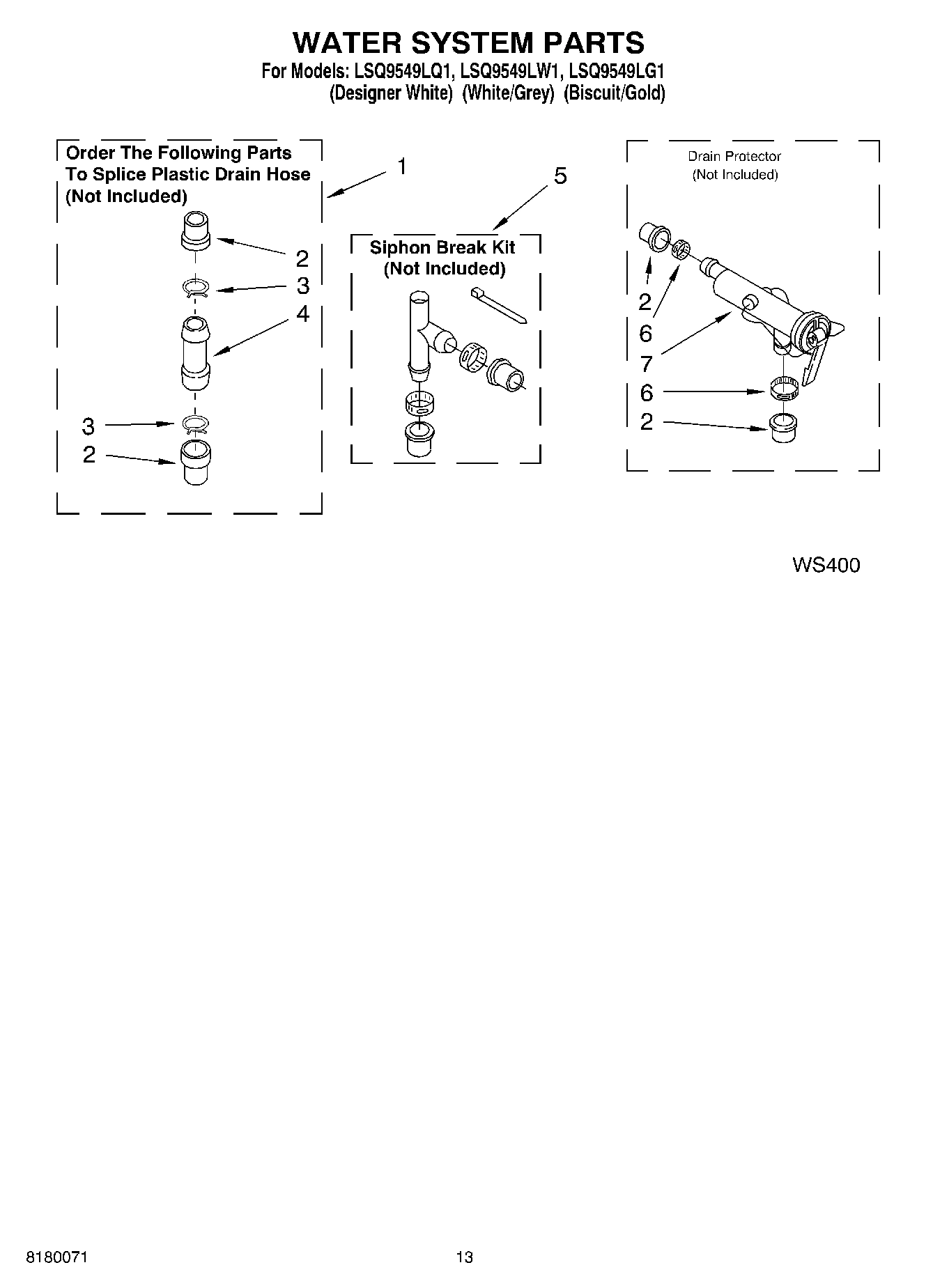

09 - WATER SYSTEM PARTS, MISCELLANEOUS PARTS

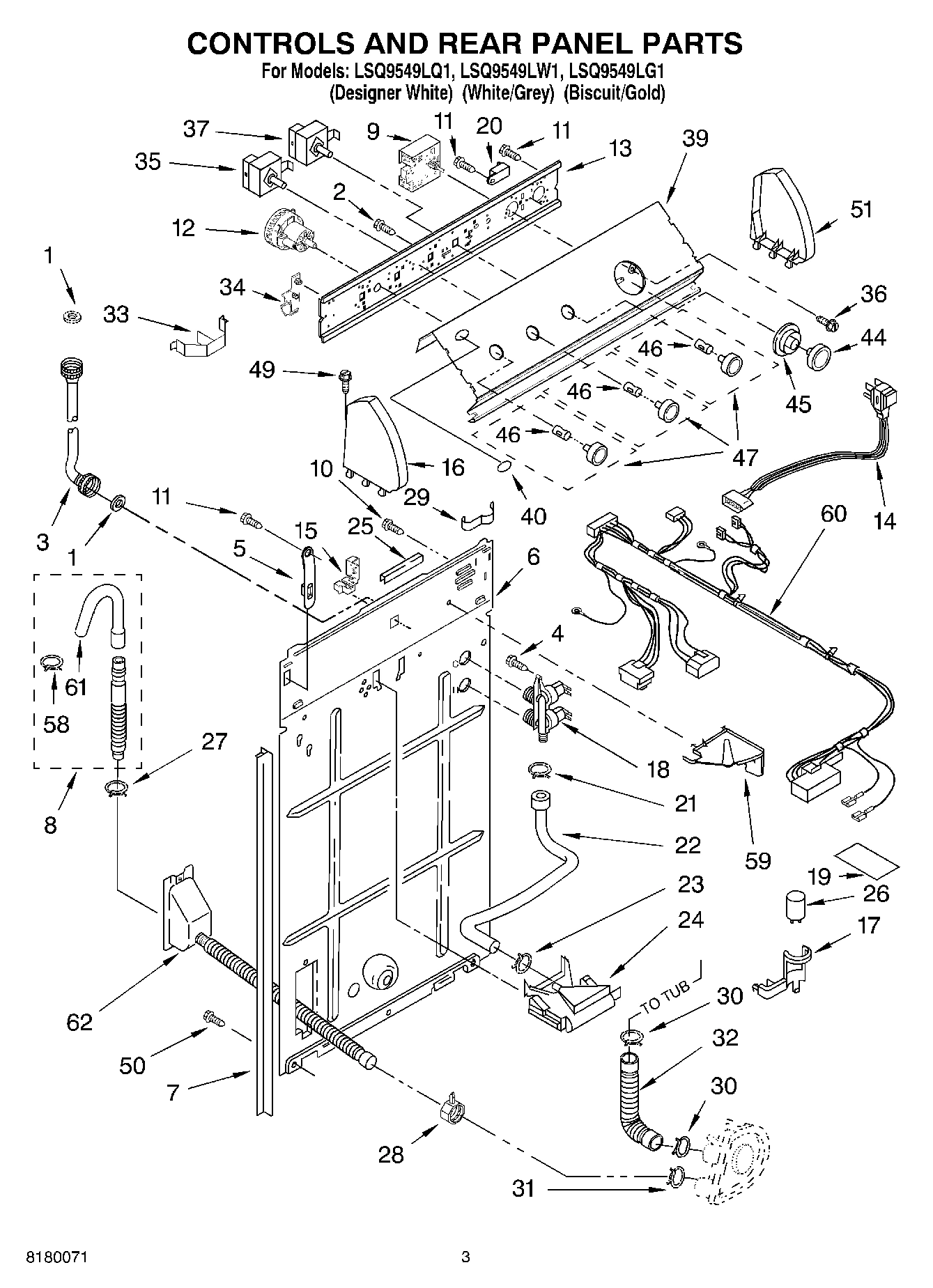

02 - CONTROLS AND REAR PANEL PARTS

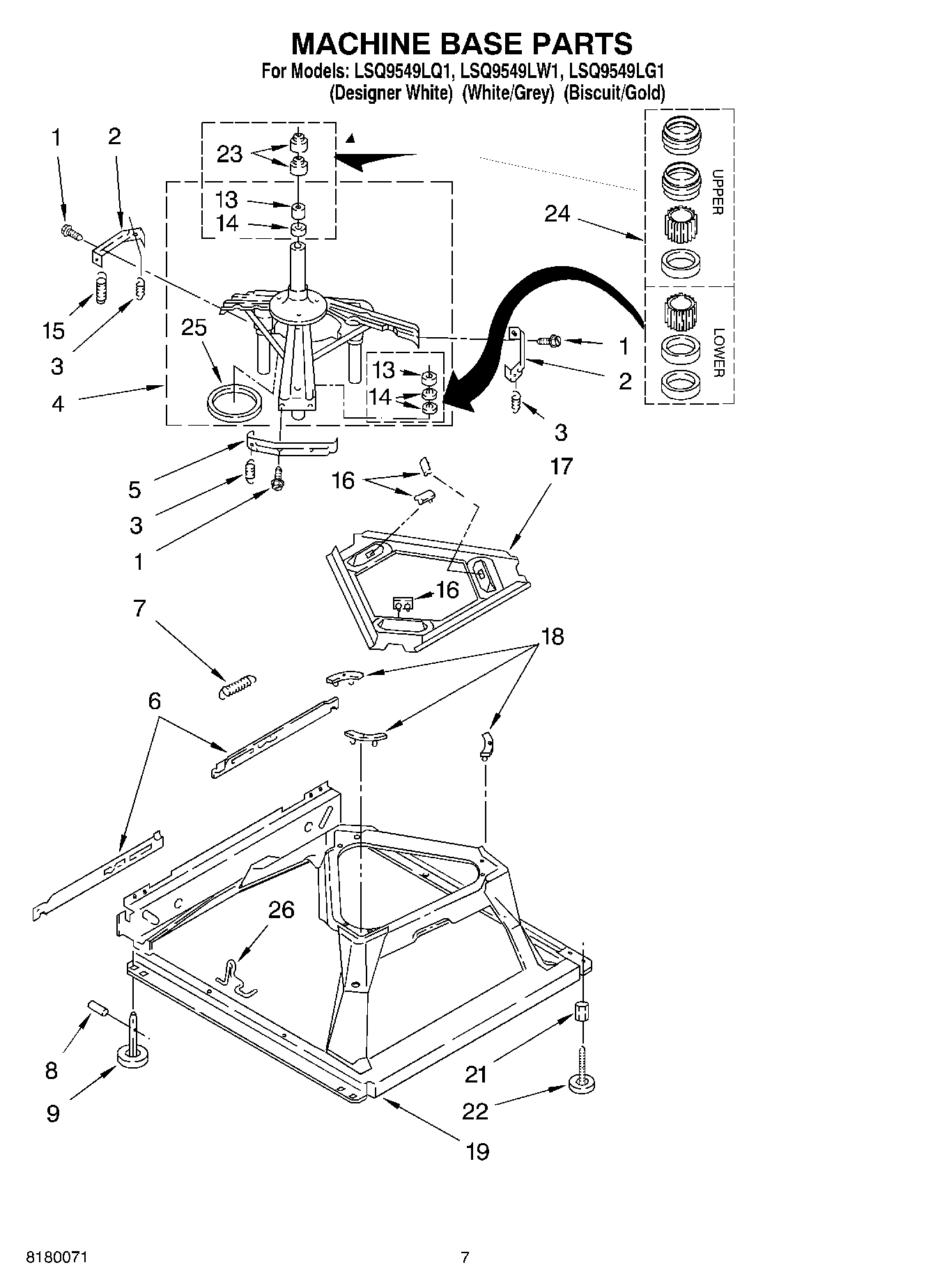

04 - MACHINE BASE PARTS

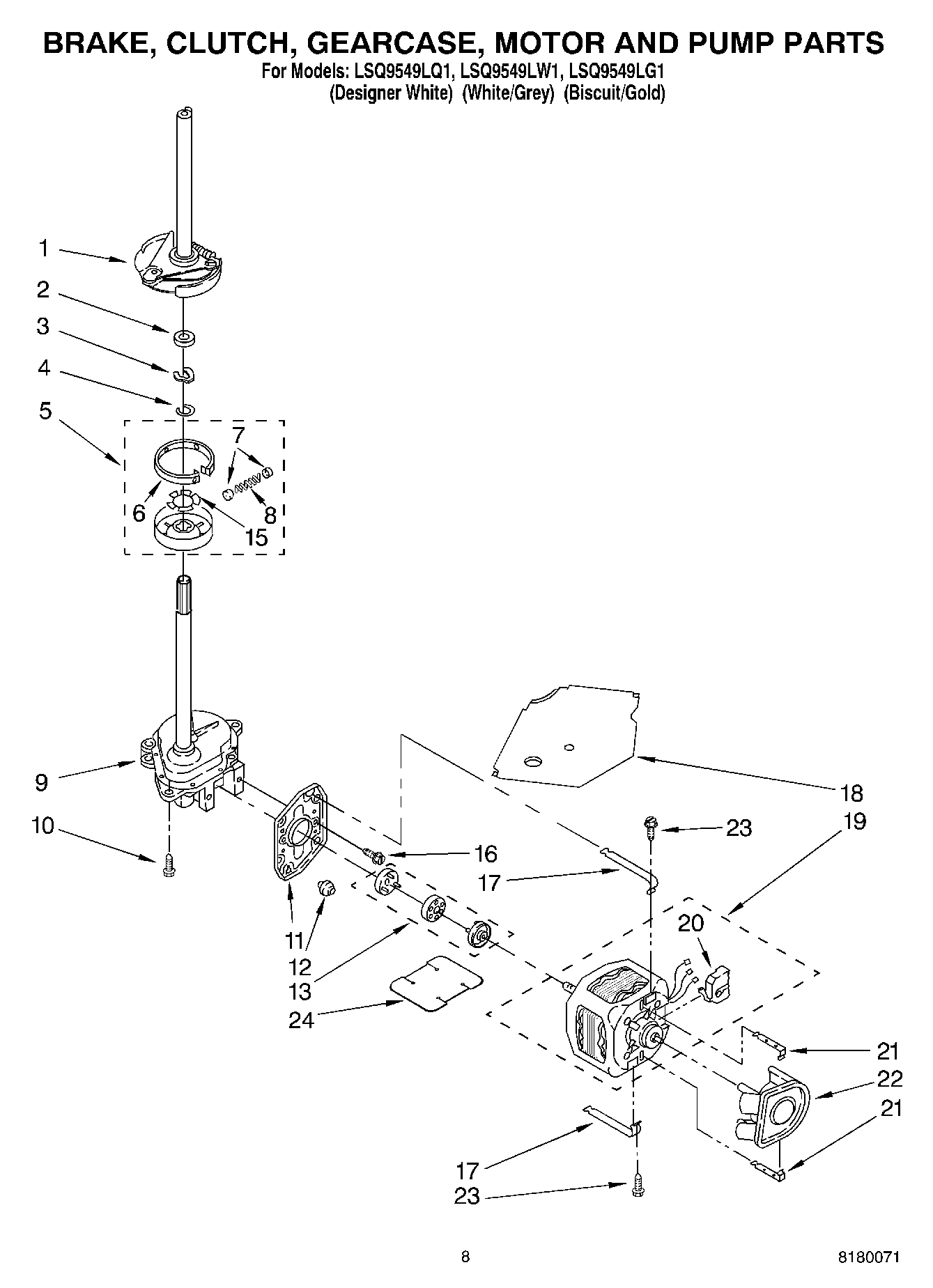

05 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

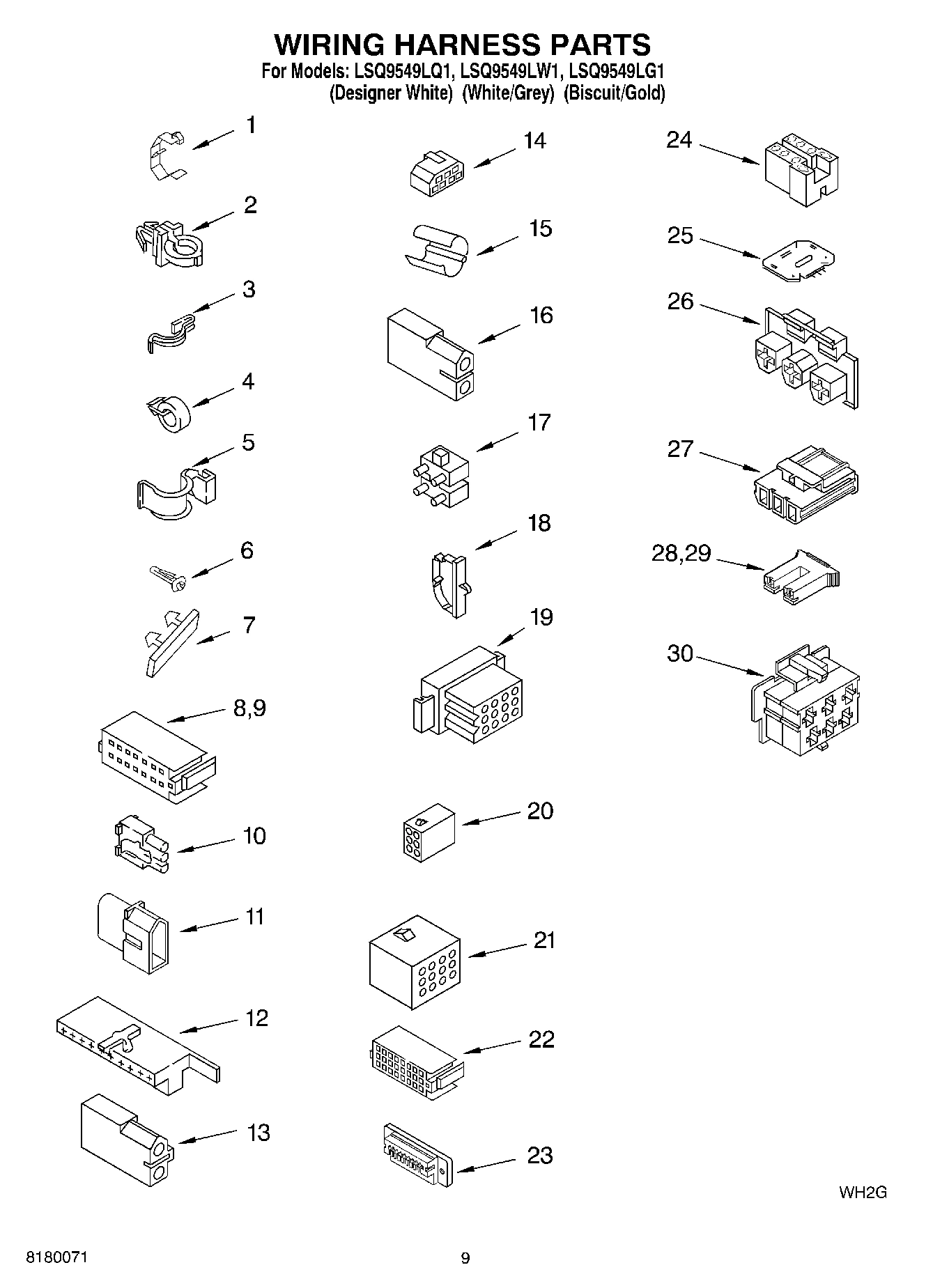

06 - WIRING HARNESS PARTS

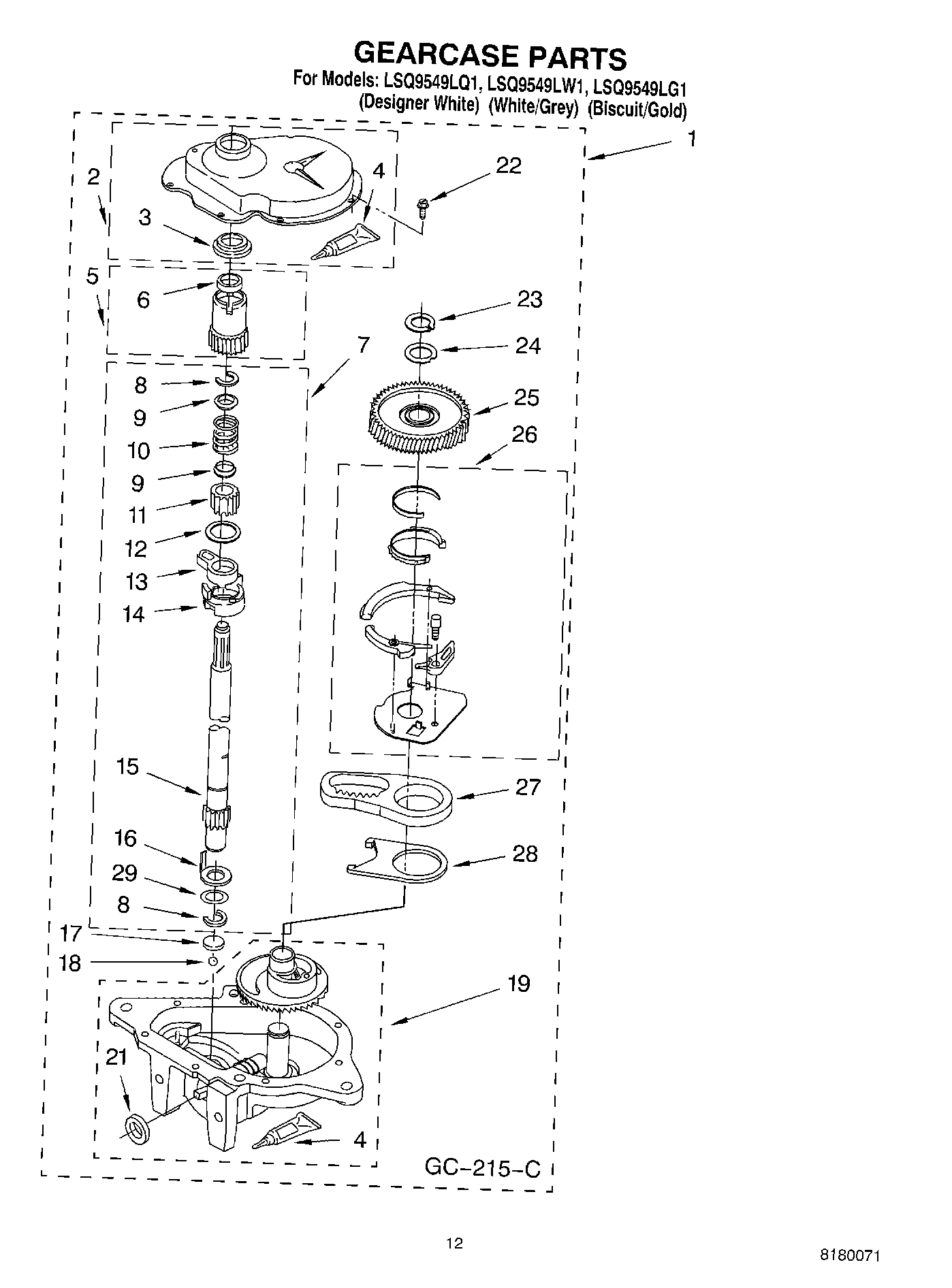

08 - GEARCASE PARTS
Common parts from model Whirlpool LSQ9549LQ1 AUTOMATIC WASHER
WPL ARI157942A WPL ARI157942A Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
4
Support & Brake, Tub WPL 3362087 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
8
Timer, Block Disconnect WPL 352090 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
10
Seal, Lid WPL 8054939 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability
15
Clip, Anti-Rattle WPL 3355454 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
20
Switch, Main Drive Motor WPL 3952056 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
E.T.C. Control WPL 3407125 Contact Us For Availability
27
Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability
28
Clamp, Hose WPL 3976395 Contact Us For Availability
29
Block, Conne WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
31
Cover, Dispenser WPL 3955788 Contact Us For Availability
32
Dispenser, Bleach WPL 8519517 Contact Us For Availability
35
Switch, Water Temperature WPL 661614 Contact Us For Availability
44
WPL 8538952 WPL 8538952 Contact Us For Availability
45
WPL 8538956 WPL 8538956 Contact Us For Availability
47
WPL 8538958 WPL 8538958 Contact Us For Availability
51
WPL 8271359 WPL 8271359 Contact Us For Availability
51
WPL 8271362 WPL 8271362 Contact Us For Availability
59
WPL 8539874 WPL 8539874 Contact Us For Availability
60
WPL 3956522 WPL 3956522 Contact Us For Availability
× ![]()
