Whirlpool LSN2000LG0 AUTOMATIC WASHER

Manual, (Washer) WPL LIT4313896 Contact Us For Availability

View on Model

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

View on Model

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

View on Model

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $129.24

View on Model

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $3.22

View on Model

1

Clip, Harness WPL 3349557 Contact Us For Availability

View on Model

1

Literature Parts (Energy Guide) WPL LIT3955559 Contact Us For Availability

View on Model

1

Literature Parts (Wiring Diagram) WPL LIT3955767 Contact Us For Availability

View on Model

1

Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability

View on Model

1

Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability

View on Model

1

Miscellaneous Parts Bag WPL 3976263 Contact Us For Availability

View on Model

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

View on Model

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

View on Model

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

View on Model

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $6.75

View on Model

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

View on Model

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

View on Model

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $60.62

View on Model

2

Top (White) WPL 3955792 Contact Us For Availability

View on Model

2

Top (Biscuit) WPL 3955793 Contact Us For Availability

View on Model

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

View on Model

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $108.72

View on Model

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

View on Model

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

View on Model

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

View on Model

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

View on Model

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $6.37

View on Model

4

285353 Whirlpool Ring Backorder WPL 285353 $4.05

View on Model

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

View on Model

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.57

View on Model

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $42.12

View on Model

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

View on Model

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

View on Model

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

View on Model

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

View on Model

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

View on Model

5

Cabinet (Biscuit) WPL 3954357 Contact Us For Availability

View on Model

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

View on Model

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.55

View on Model

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.94

View on Model

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

View on Model

6

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

View on Model

6

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

View on Model

6

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

View on Model

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

View on Model

6

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

View on Model

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

View on Model

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

View on Model

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

View on Model

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

View on Model

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $157.92

View on Model

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

View on Model

6

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

View on Model

6

Drain Protector WPL 367031 Contact Us For Availability

View on Model

6

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

View on Model

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.70

View on Model

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

View on Model

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.59

View on Model

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

View on Model

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

View on Model

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $93.92

View on Model

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.19

View on Model

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

View on Model

8

Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability

View on Model

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

View on Model

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

View on Model

9

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

View on Model

9

WP3955765 Whirlpool Timer Assembly Backorder WPL WP3955765 $218.61

View on Model

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.53

View on Model

10

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $10.03

View on Model

10

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $3.22

View on Model

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

View on Model

10

Seal, Lid WPL 8054939 Contact Us For Availability

View on Model

10

Spring, Agitate WPL 62676 Contact Us For Availability

View on Model

11

353424 Whirlpool Connector Backorder WPL 353424 $16.76

View on Model

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $44.98

View on Model

11

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.50

View on Model

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

View on Model

11

Spring, Brake WPL 387806 Contact Us For Availability

View on Model

12

62619 Whirlpool Washer Backorder WPL 62619 $14.93

View on Model

12

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

View on Model

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

View on Model

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

View on Model

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.79

View on Model

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $3.22

View on Model

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.07

View on Model

14

W10820044 Whirlpool Power Cord Backorder WPL W10820044 $73.90

View on Model

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.18

View on Model

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

View on Model

15

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

View on Model

15

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.80

View on Model

15

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

View on Model

15

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

View on Model

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.59

View on Model

16

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $166.13

View on Model

16

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $5.65

View on Model

16

Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability

View on Model

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

View on Model

17

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

View on Model

17

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

View on Model

17

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

View on Model

17

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.19

View on Model

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

View on Model

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.86

View on Model

18

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

View on Model

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $22.96

View on Model

18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

View on Model

19

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $279.24

View on Model

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

View on Model

19

Lid (White) WPL 3956016 Contact Us For Availability

View on Model

19

Lid (Biscuit) WPL 3956017 Contact Us For Availability

View on Model

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

View on Model

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $174.18

View on Model

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

View on Model

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

View on Model

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

View on Model

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $4.20

View on Model

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

View on Model

22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $50.49

View on Model

22

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $4.20

View on Model

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.74

View on Model

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

View on Model

23

Ring, Retaining WPL 3362552 Contact Us For Availability

View on Model

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

View on Model

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $12.87

View on Model

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

View on Model

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

View on Model

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

View on Model

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.79

View on Model

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

View on Model

26

Hose, Drain (Anchored) WPL 8317941 Contact Us For Availability

View on Model

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

View on Model

27

WP3360056 Whirlpool Connector Backorder WPL WP3360056 $13.54

View on Model

28

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

View on Model

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

View on Model

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

View on Model

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

View on Model

33

Clamp, Hose WPL 3976395 No Longer Available

View on Model

34

W10168264 Whirlpool Cycle Switch Backorder WPL W10168264 $89.38

View on Model

41

Switch, Rotary WPL 3956080 Contact Us For Availability

View on Model

43

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $13.00

View on Model

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

View on Model

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $3.22

View on Model

53

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

View on Model

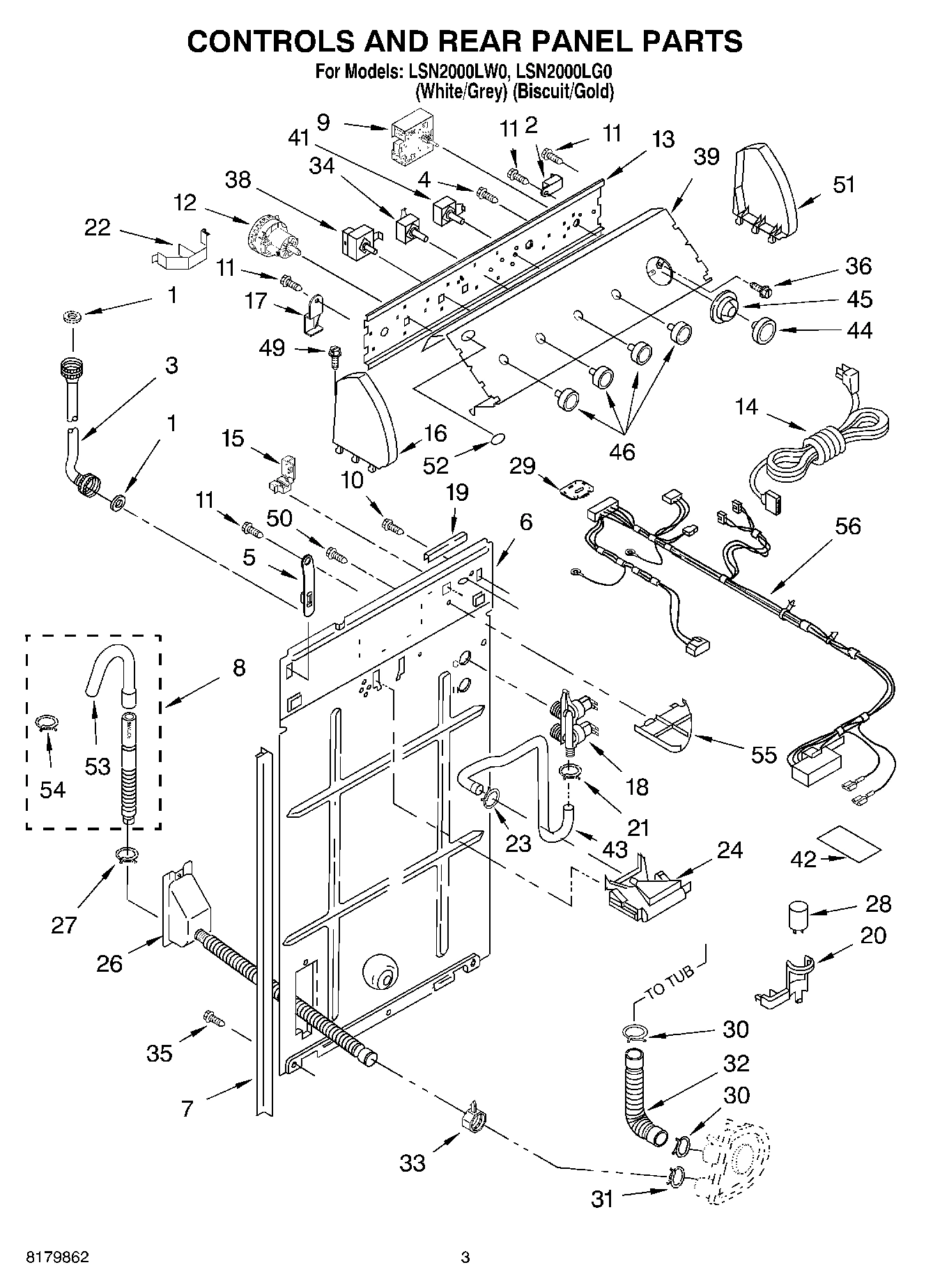

Model Whirlpool LSN2000LG0 AUTOMATIC WASHER – Common Parts & Diagrams

Common parts from model Whirlpool LSN2000LG0 AUTOMATIC WASHER

Search result for :
