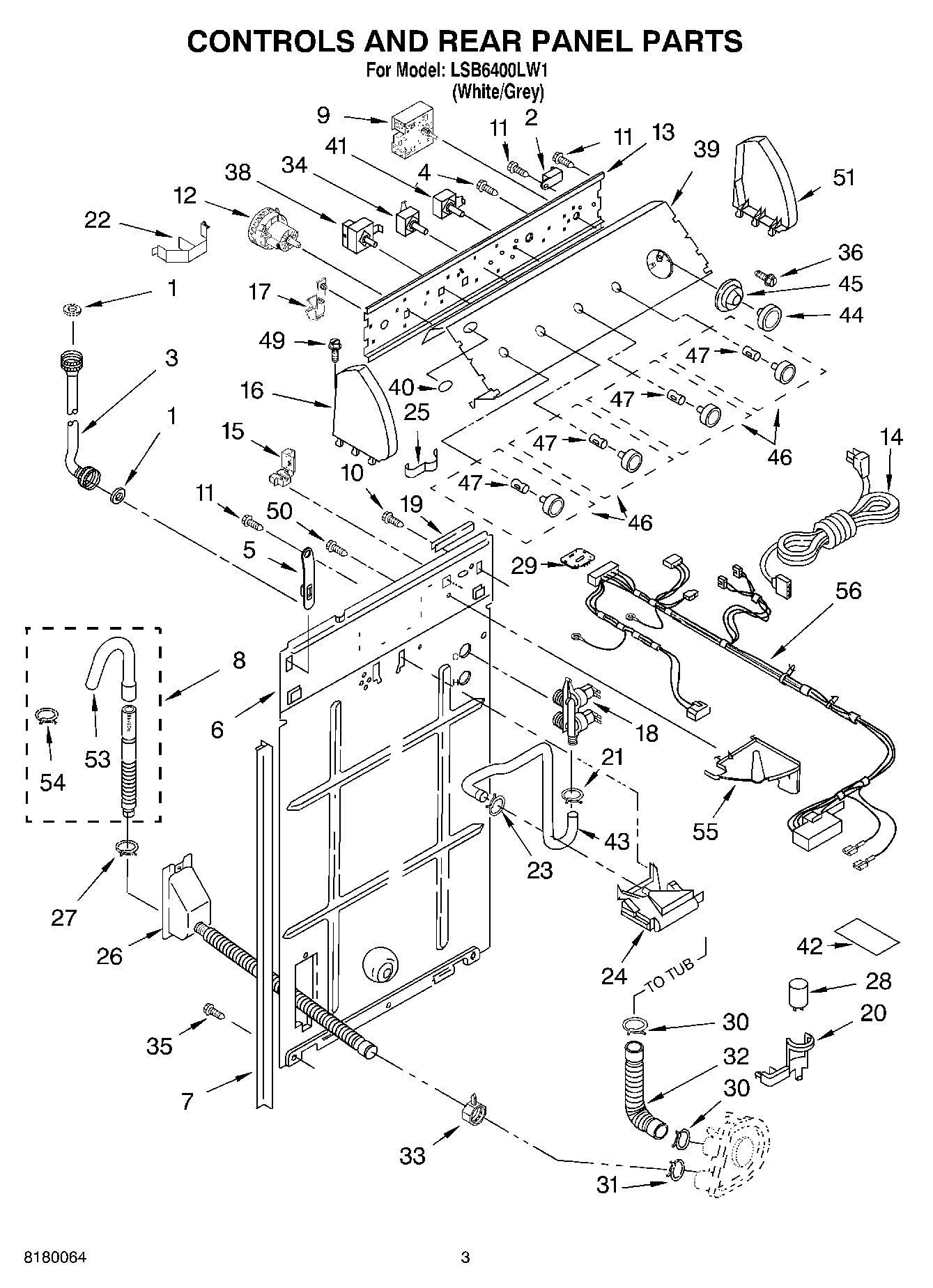

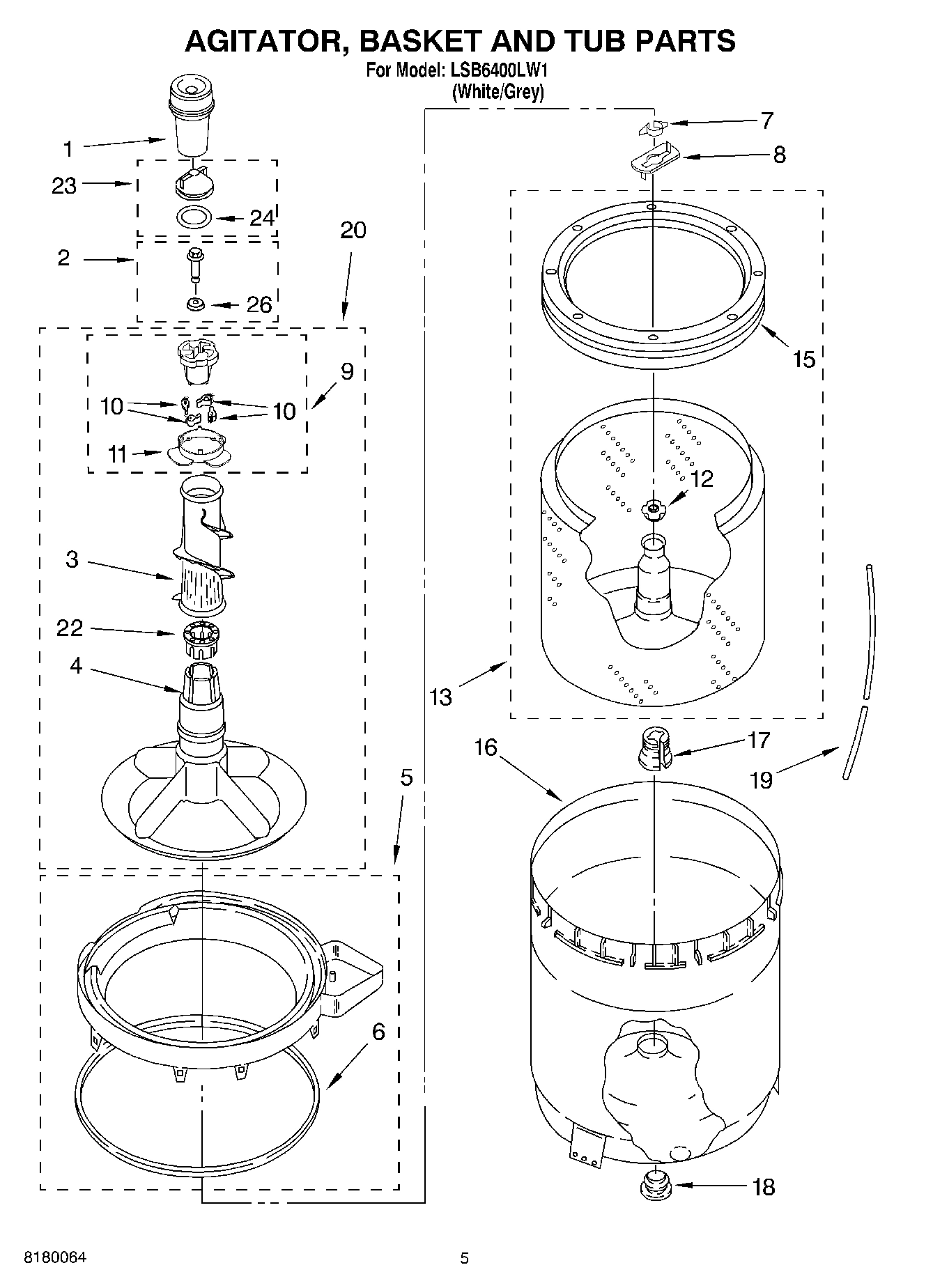

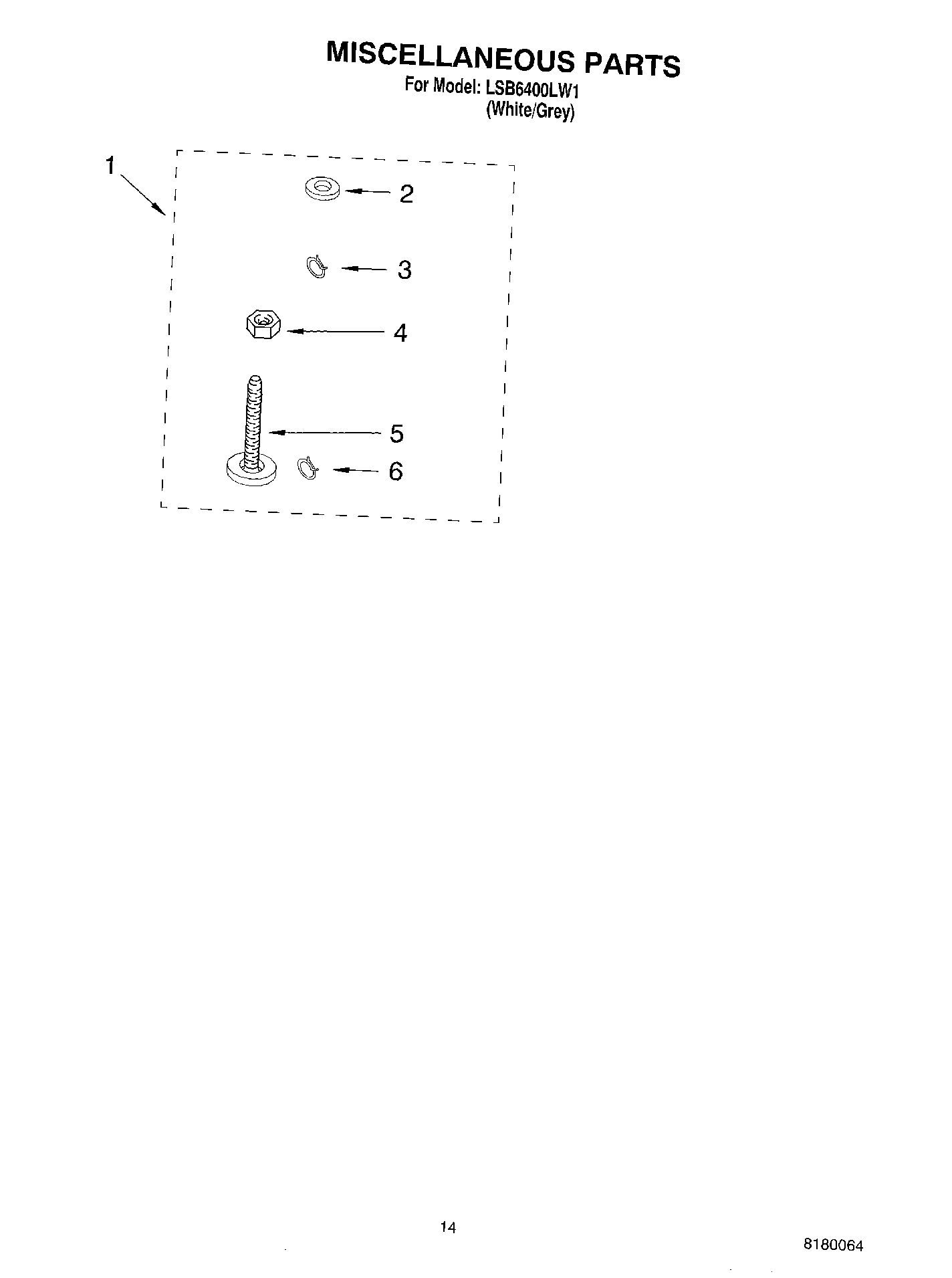

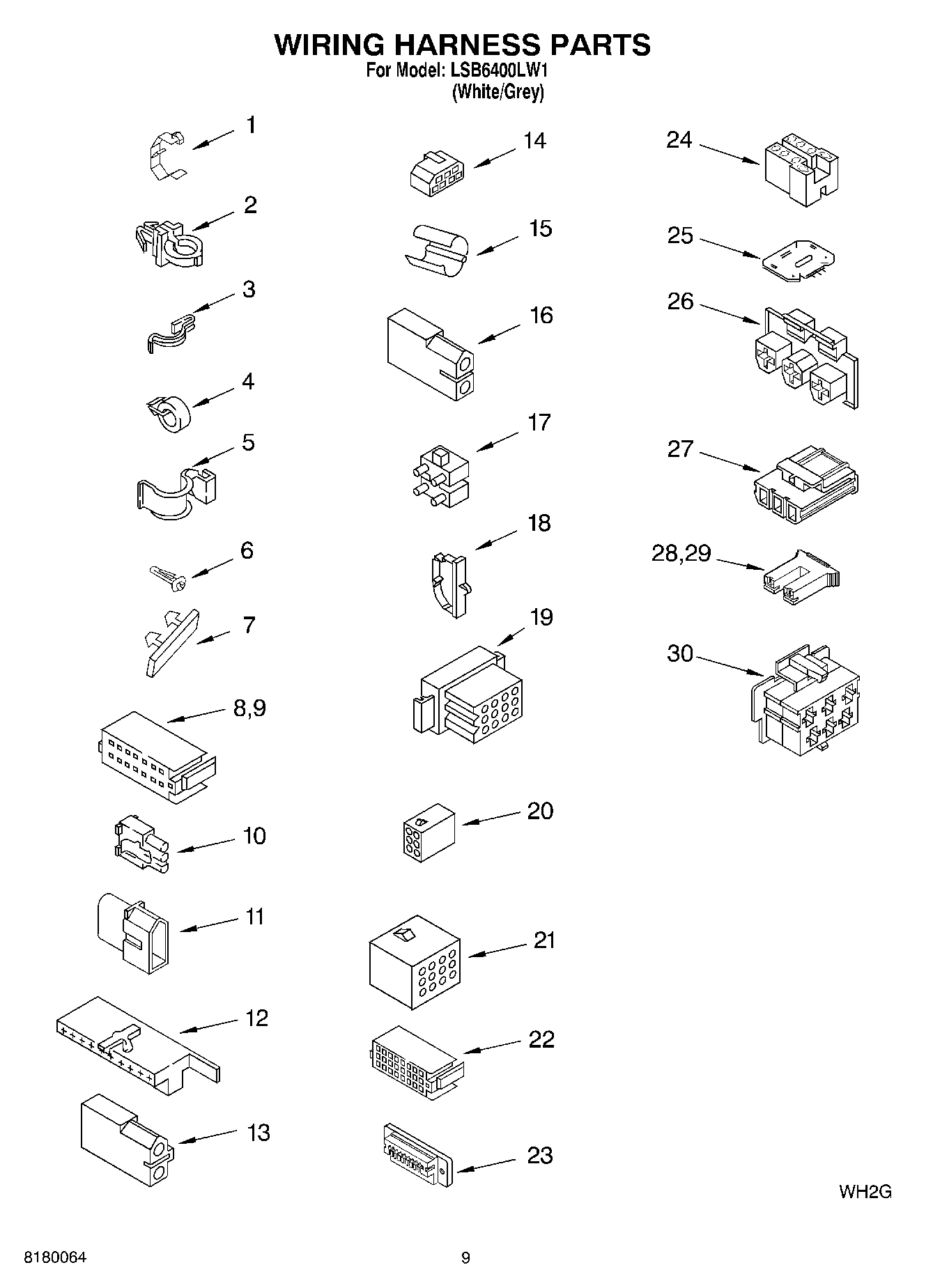

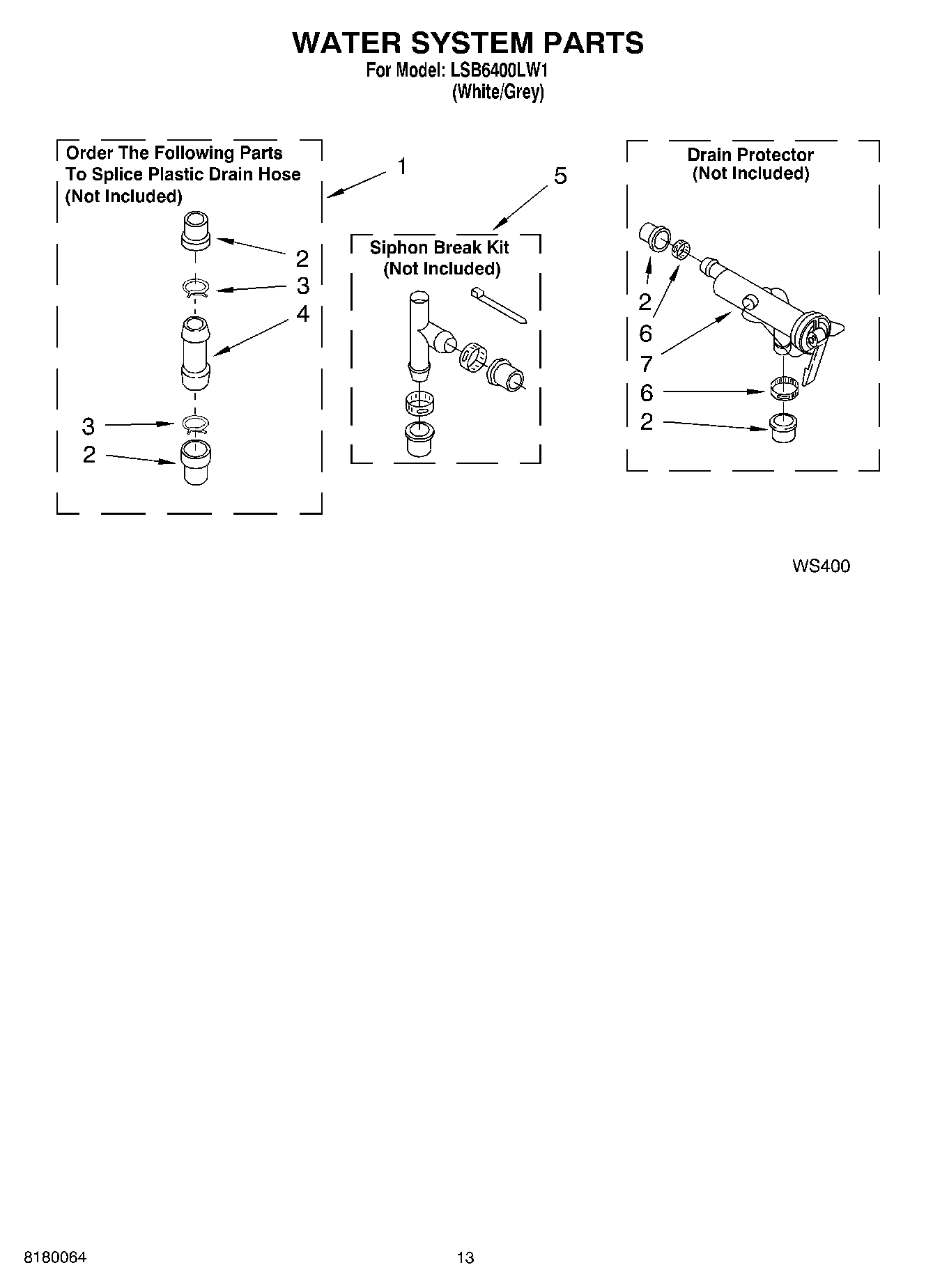

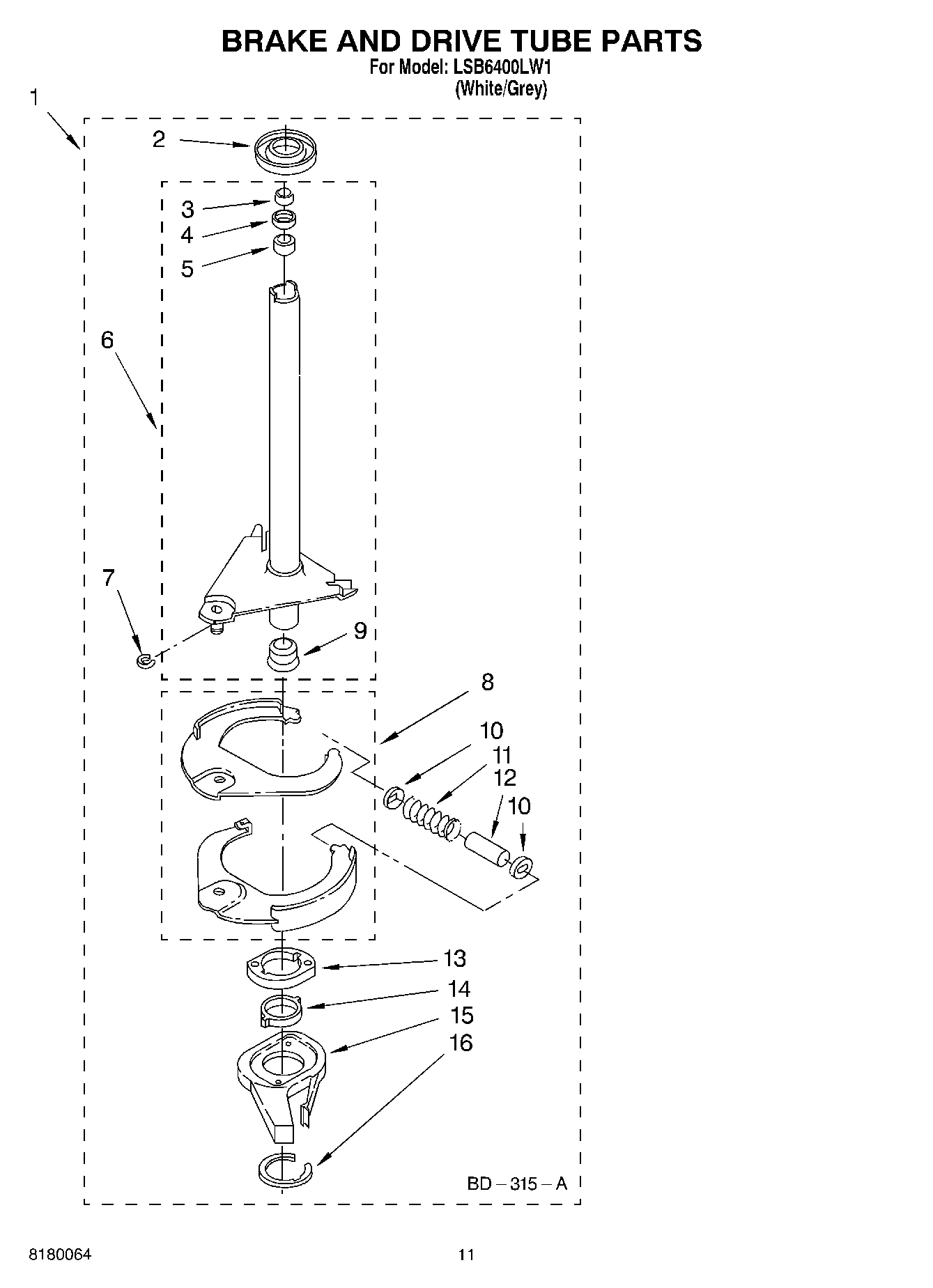

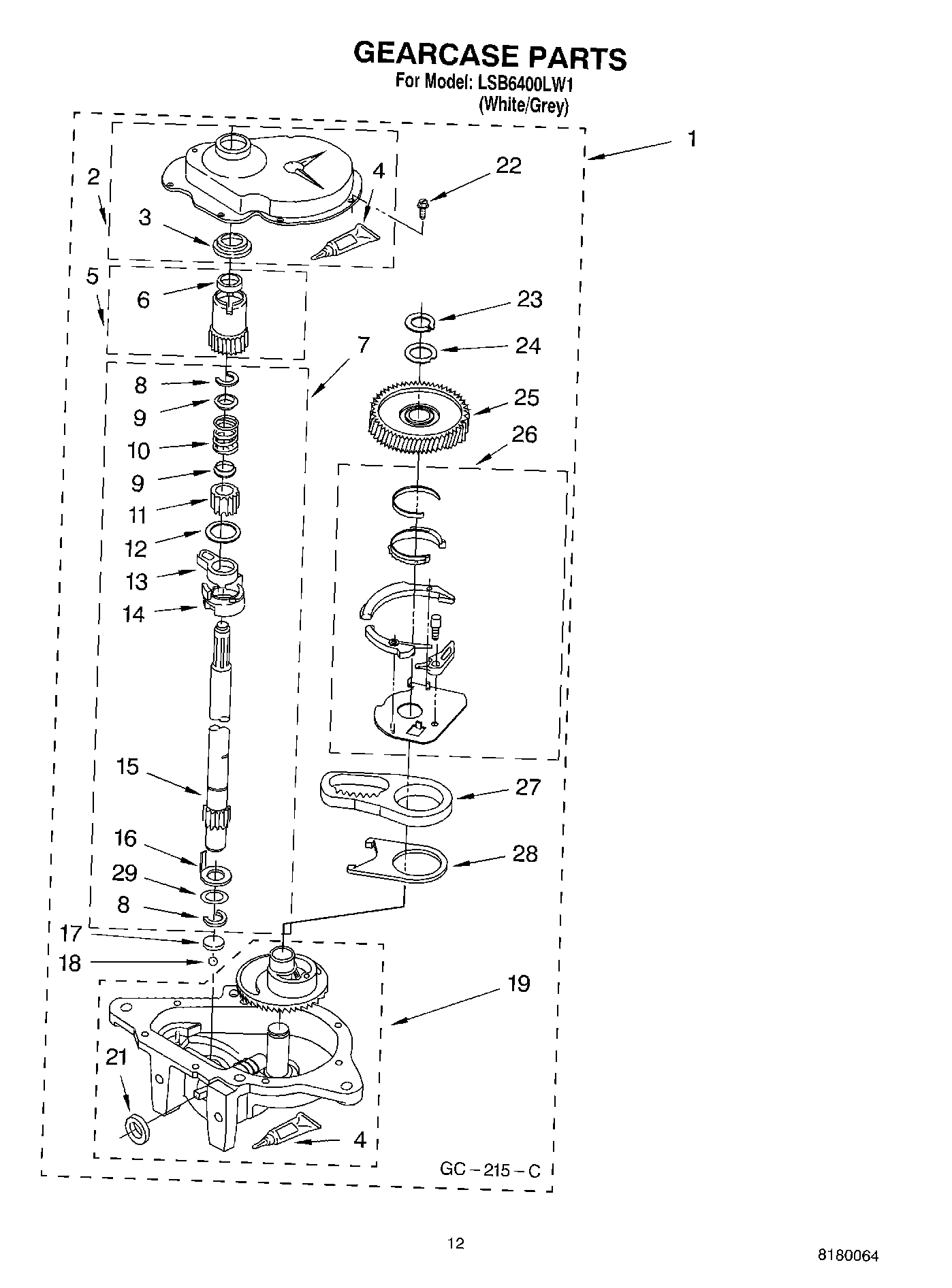

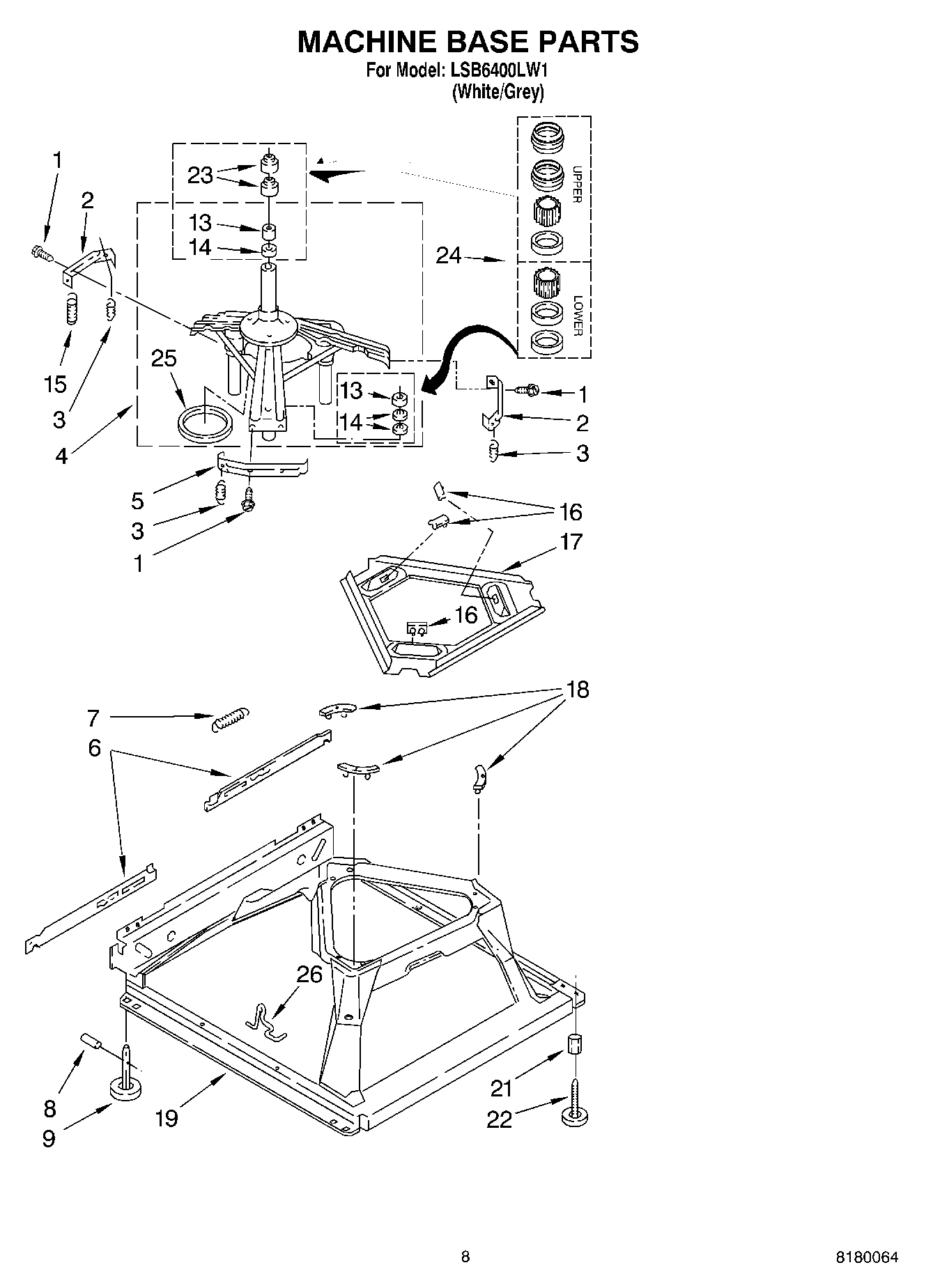

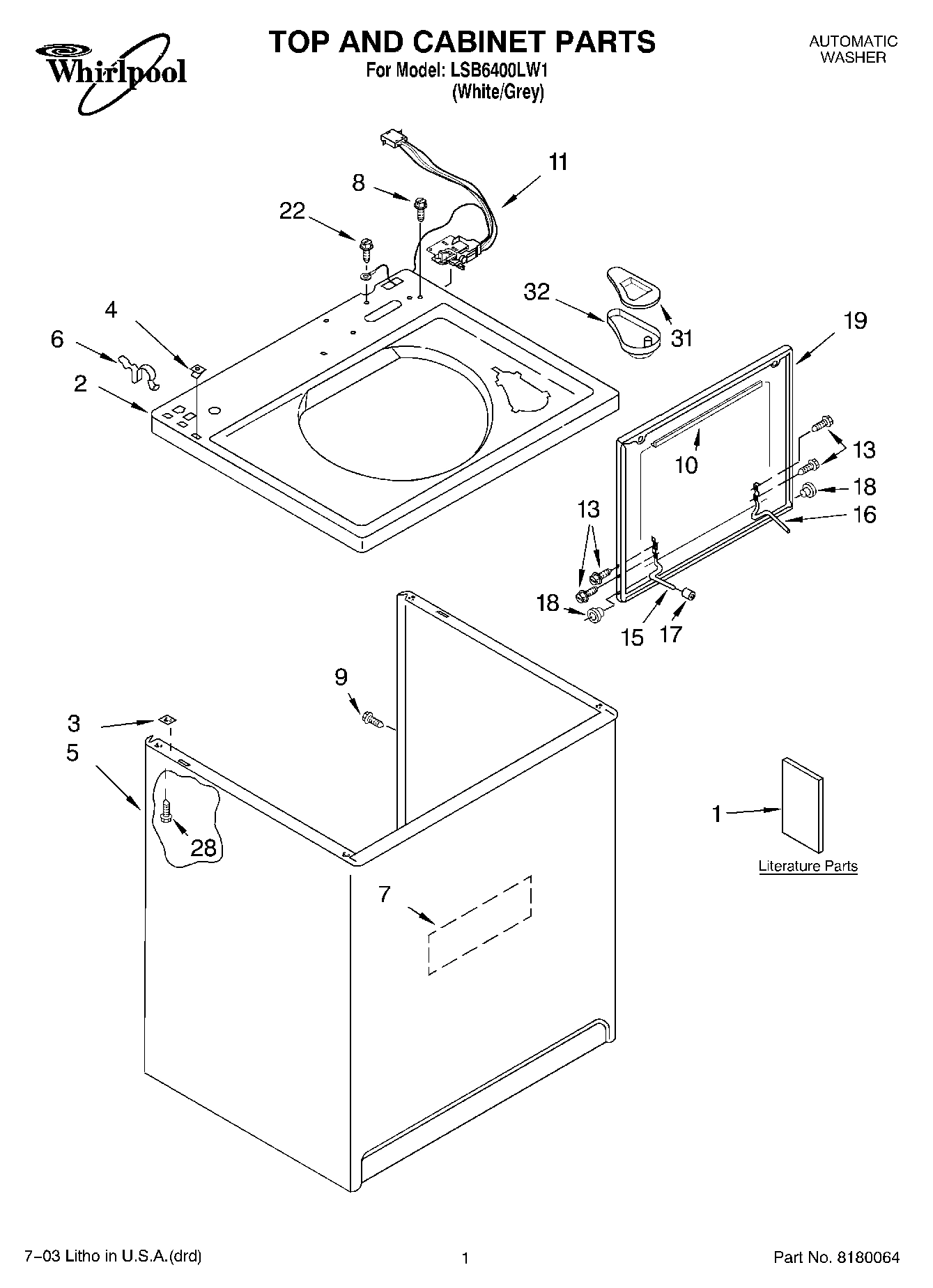

Model Whirlpool LSB6400LW1 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $88.11

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP3363003 Whirlpool Agitator Mover Backorder WPL WP3363003 $160.05

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WP3951632 Whirlpool Washer Lower Agitator In Stock WPL WP3951632 $95.99

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $12.99

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Cabinet - Sound Damper WPL 3976348 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP8541270 Whirlpool Timer Backorder WPL WP8541270 $233.82

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Seal, Lid WPL 8054939 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

285901 Whirlpool Spring Kit Assembly In Stock WPL 285901 $47.90

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

63849 Whirlpool Outer Tub Primary Assembly Backorder WPL 63849 $191.99

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI157195A Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability

19

WP8529935 Whirlpool Drive Motor Backorder WPL WP8529935 $238.33

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

20

285565 Whirlpool Agitator Assembly In Stock WPL 285565 $216.99

20

Switch, Main Drive Motor WPL 8529896 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP3951608 Whirlpool Washer Agitator Thrust Sp In Stock WPL WP3951608 $9.86

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

23

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

29

Control, ATC WPL 8539879 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

Cover, Dispenser WPL 3955788 Contact Us For Availability

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

Dispenser, Bleach WPL 8519517 Contact Us For Availability

33

Clamp, Hose WPL 3976395 Contact Us For Availability

34

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $92.01

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

38

W10168360 Whirlpool Temperature Switch Backorder WPL W10168360 $99.48

39

Panel, Console (Includes Item 40) WPL 3955848 Contact Us For Availability

40

Medallion WPL 3955775 Contact Us For Availability

41

W10851055 Whirlpool Cycle Switch Backorder WPL W10851055 $107.37

42

Shield, Capacitor WPL 3976286 Contact Us For Availability

43

WP8317926 Whirlpool Inlet Hose In Stock WPL WP8317926 $13.45

44

WP8538949 Whirlpool Knob In Stock WPL WP8538949 $54.89

45

WP8538955 Whirlpool Dial Backorder WPL WP8538955 $36.59

46

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $39.82

47

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

50

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

51

WPL 8271359 WPL 8271359 Contact Us For Availability

53

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

54

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

55

WPL 8539874 WPL 8539874 Contact Us For Availability

56

WPL 3956523 WPL 3956523 Contact Us For Availability
