Model Whirlpool LG5796XPW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

WPL LIT696751 WPL LIT696751 Contact Us For Availability

1

Panel, Rear Console WPL 386367 Contact Us For Availability

1

Lint Chute WPL 686215 Contact Us For Availability

2

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

3

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

3

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

3

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $8.78

4

Cap, End (L.H.) WPL 63789 Contact Us For Availability

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $39.44

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

6

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $11.99

6

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

6

Clip, Harness Retainer WPL 688412 Contact Us For Availability

7

Panel, Rear WPL 347736 Contact Us For Availability

8

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $33.63

8

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

9

WP691581 Whirlpool Actuator In Stock WPL WP691581 $7.99

9

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

10

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $27.54

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $23.48

10

SCREEN WPL 339392 Contact Us For Availability

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

Cover, Lint Screen (White) WPL 688150 Contact Us For Availability

Cover, Lint Screen (Almond) WPL 689310 Contact Us For Availability

Cover, Lint Screen (Golden Harvest) WPL 689313 Contact Us For Availability

Cover, Lint Screen (Toast) WPL 695022 Contact Us For Availability

Cover, Lint Screen (Platinum) WPL 695023 Contact Us For Availability

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12

WPW10044470 Whirlpool Hinge Assembly In Stock WPL WPW10044470 $5.99

12

WPW10044480 Whirlpool Hinge Assembly In Stock WPL WPW10044480 $5.99

13

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

14

Screw, 8-18 x 1 (2) WPL 64211 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 338471 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

Clip, Toe Panel (2) WPL 696232 Contact Us For Availability

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

Top (White) WPL 695507 Contact Us For Availability

Top (Almond) WPL 695508 Contact Us For Availability

Top (Golden Harvest) WPL 695509 Contact Us For Availability

Top (Toast) WPL 695510 Contact Us For Availability

Top (Platinum) WPL 695511 Contact Us For Availability

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $213.99

17

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

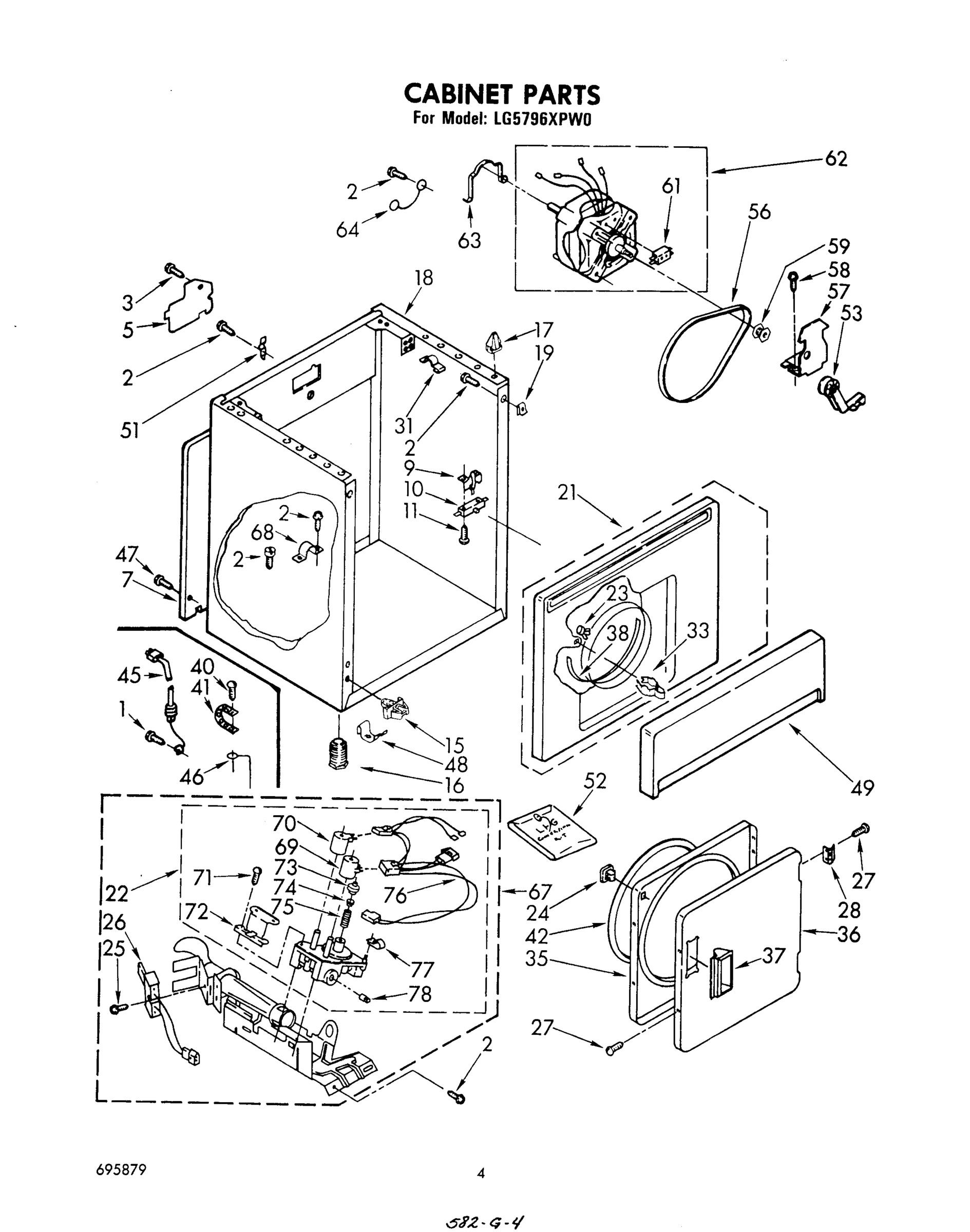

Cabinet (White) WPL 690847 Contact Us For Availability

Cabinet (Almond) WPL 690848 Contact Us For Availability

Cabinet (Golden Harvest) WPL 690851 Contact Us For Availability

Cabinet (Toast) WPL 694874 Contact Us For Availability

Cabinet (Platinum) WPL 694875 Contact Us For Availability

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

19

Control Knob, Temperature WPL 386629 Contact Us For Availability

20

Seal, Blower WPL 694630 Contact Us For Availability

Timer Assembly 60 Hz. WPL 690208 Contact Us For Availability

Alert, Lint WPL 690981 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693202 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693203 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 693206 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 695261 Contact Us For Availability

Front Panel Assembly (Also Includes Illus. 19 WPL 695262 Contact Us For Availability

22

279923 Whirlpool Gas Valve In Stock WPL 279923 $192.99

22

Heater, Thermostat WPL 61894 Contact Us For Availability

22

Harness, Wiring WPL 694690 Contact Us For Availability

23

279220 Whirlpool Clip In Stock WPL 279220 $18.99

23

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

24

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

24

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

24

Nut, Compression WPL 233076 Contact Us For Availability

25

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

25

Hose, Differential WPL 686577 Contact Us For Availability

26

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $44.99

26

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

27

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

28

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

29

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

30

98460 Whirlpool Nut Backorder WPL 98460 $8.89

31

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

35

280077 Whirlpool Door Backorder WPL 280077 $116.66

WP348205 Whirlpool Door Backorder WPL WP348205 $91.02

Door, Front (Almond) WPL 689314 Contact Us For Availability

Door Front (Golden Harvest) WPL 689319 Contact Us For Availability

Door, Front (Toast) WPL 695214 Contact Us For Availability

Door, Front (Platinum) WPL 695215 Contact Us For Availability

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.72

Handle, Door (Almond) WPL 689306 Contact Us For Availability

Handle, Door (Golden Harvest) WPL 689584 Contact Us For Availability

Handle, Door (Platinum) WPL 695286 Contact Us For Availability

38

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $60.99

39

Switch, Push-To-Start (Alt.) WPL 346364 Contact Us For Availability

39

Switch, Push-To-Start WPL 660936 Contact Us For Availability

39

Switch, Push-To-Start (Alt.) WPL 692021 Contact Us For Availability

40

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

41

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

41

Strap, WPL 22965 Contact Us For Availability

42

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $57.82

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $56.99

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $20.99

45

W11222083 Whirlpool Power Cord In Stock WPL W11222083 $79.58

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

46

WPL 364089 WPL 364089 Contact Us For Availability

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $4.82

47

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

48

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

48

Timer Knob Assembly WPL 695554 Contact Us For Availability

48

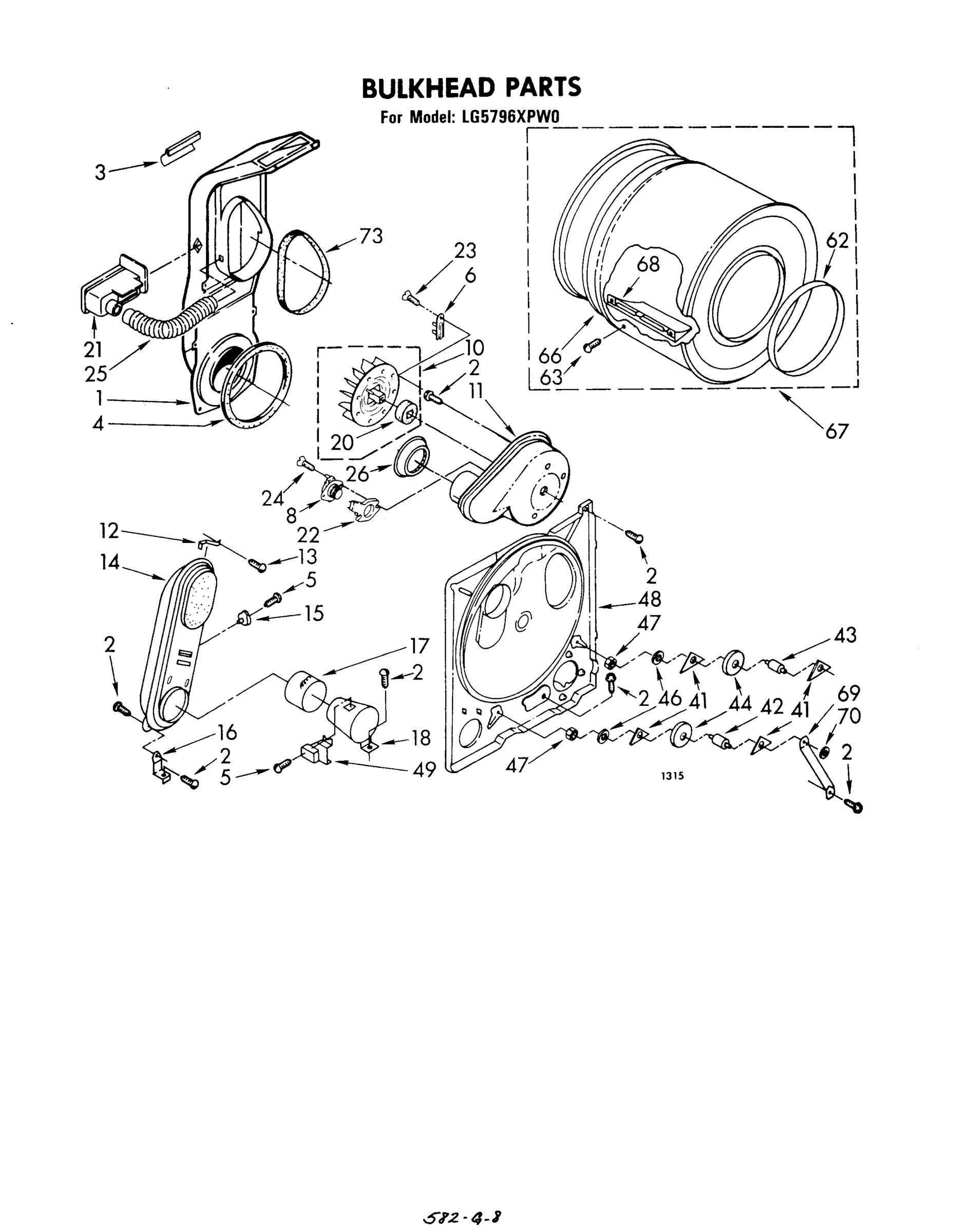

Bulkhead WPL 685775 Contact Us For Availability

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

WPL 237035 WPL 237035 Contact Us For Availability

WPL 689537 WPL 689537 Contact Us For Availability

WPL 689539 WPL 689539 Contact Us For Availability

WPL 694999 WPL 694999 Contact Us For Availability

WPL 695000 WPL 695000 Contact Us For Availability

51

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $4.82

52

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $19.99

52

WPL 279243 WPL 279243 Contact Us For Availability

53

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $8.58

53

Bracket, Control WPL 386627 Contact Us For Availability

54

PANEL, CONTROL WPL 695963 Contact Us For Availability

56

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $15.75

57

WP348780 Whirlpool Base In Stock WPL WP348780 $74.99

58

3400500 Whirlpool Screw In Stock WPL 3400500 $8.89

59

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $27.99

61

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $139.99

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $79.99

63

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

63

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

64

WPL 690236 WPL 690236 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $46.99

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $246.94

67

NUT, PUSH IN WPL 689559 Contact Us For Availability

67

WPL 694670 WPL 694670 Contact Us For Availability

68

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $97.97

69

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $26.92

69

Bracket, Support WPL 348945 Contact Us For Availability

70

WP90296 Whirlpool Clip Backorder WPL WP90296 $4.82

71

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

72

694538 Whirlpool Bracket Backorder WPL 694538 $51.47

72

Wire, Ground WPL 690853 Contact Us For Availability

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.98

73

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

74

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

75

353424 Whirlpool Connector Backorder WPL 353424 $14.02

75

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

75

Receptacle, 3-Way Terminal (Use W/94614) WPL 353425 Contact Us For Availability

76

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $173.55

77

WPL 694510 WPL 694510 Contact Us For Availability

78

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

79

Switch, Temperature Selector WPL 694720 Contact Us For Availability

81

Button, Push-To-Start WPL 695946 Contact Us For Availability

82

Stop, Push-In (2) WPL 358472 Contact Us For Availability

83

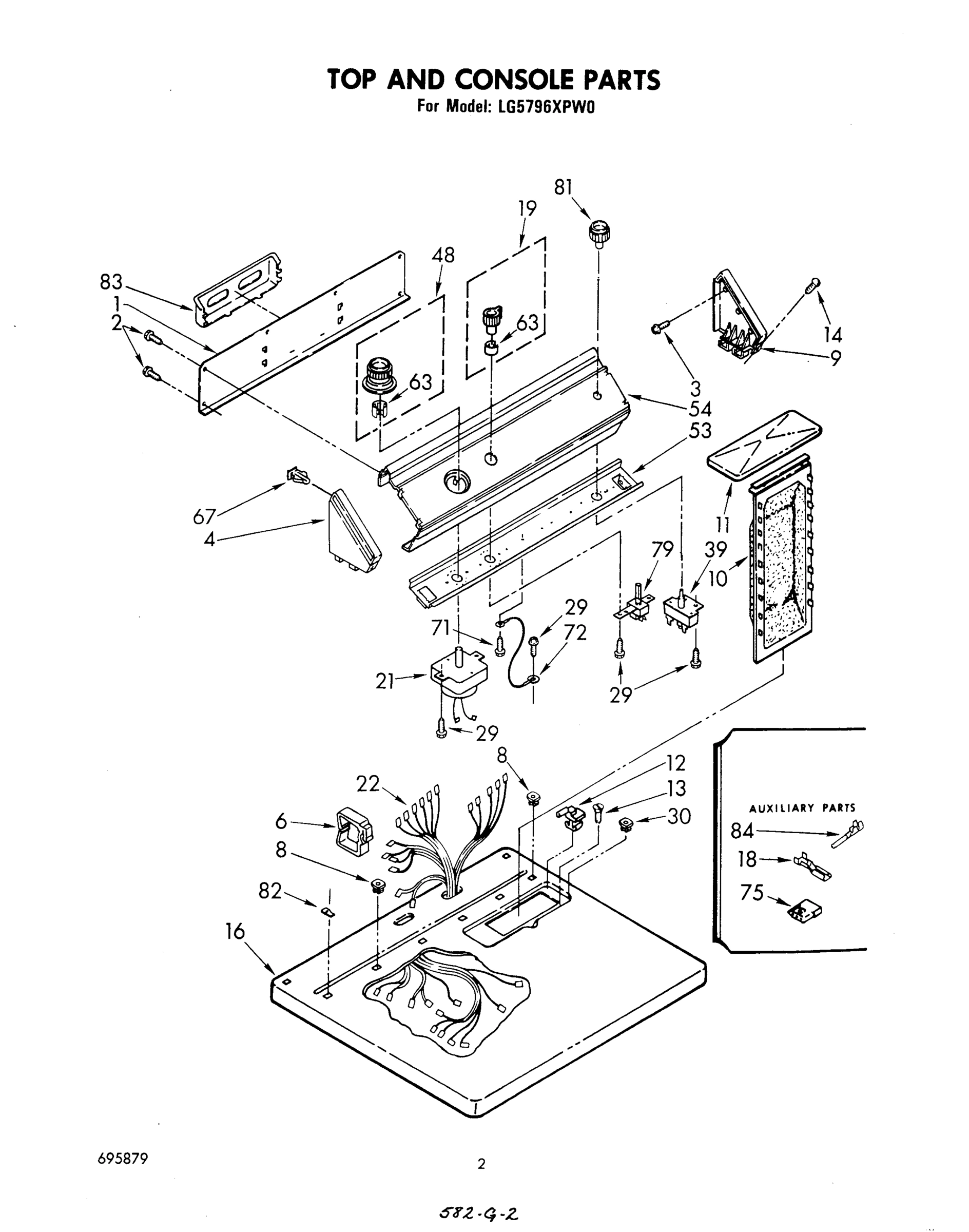

Rack, Literature WPL 63020 Contact Us For Availability
