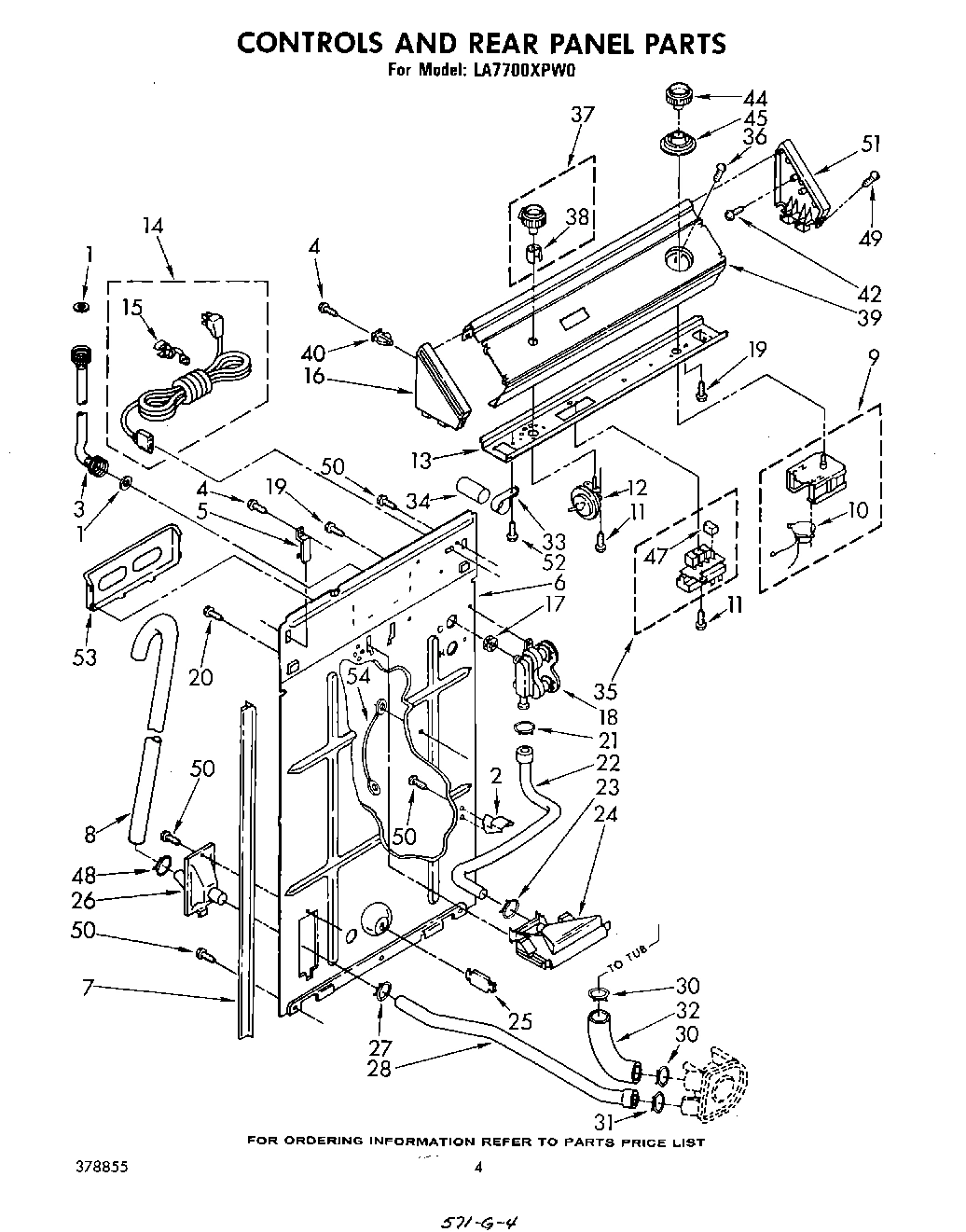

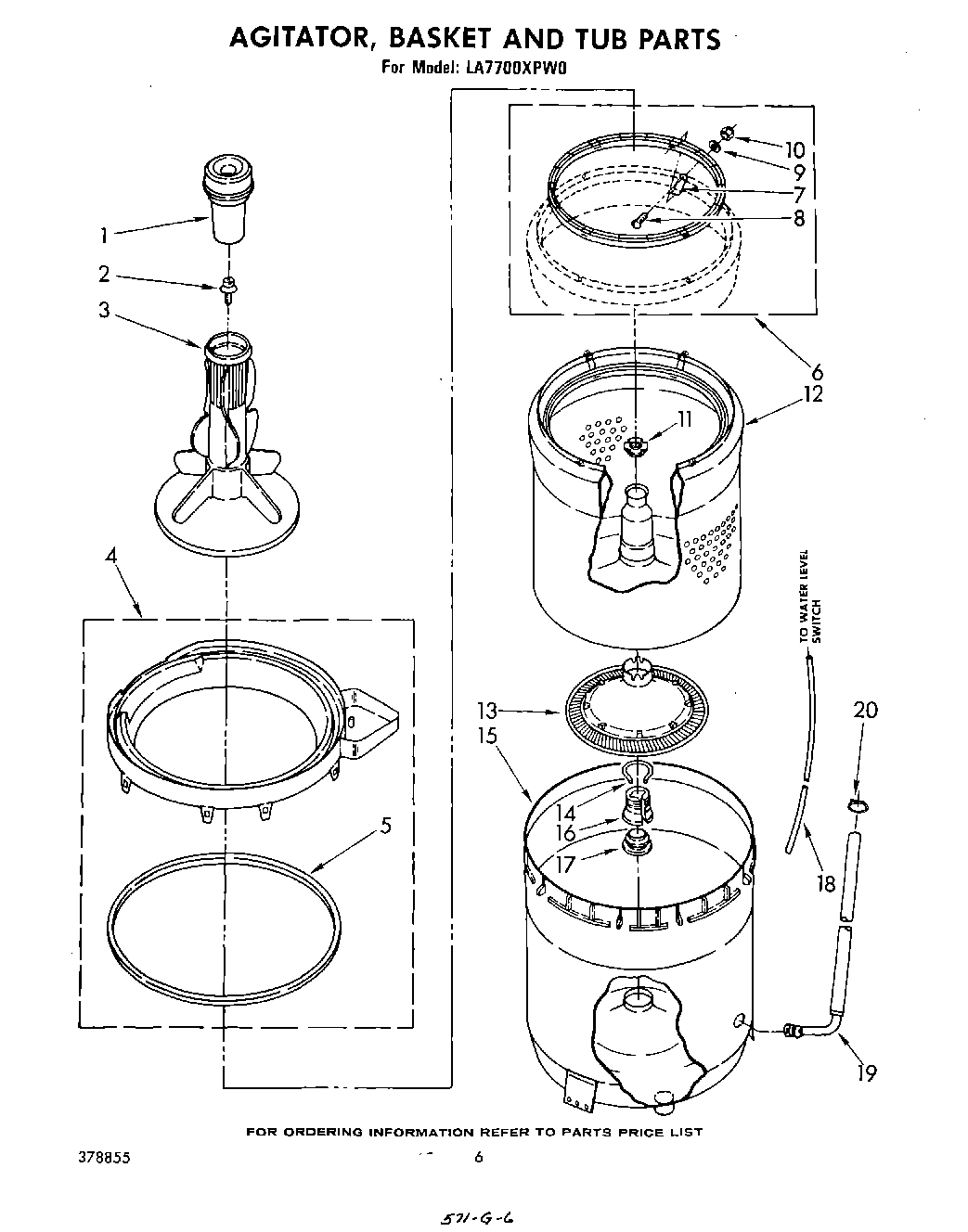

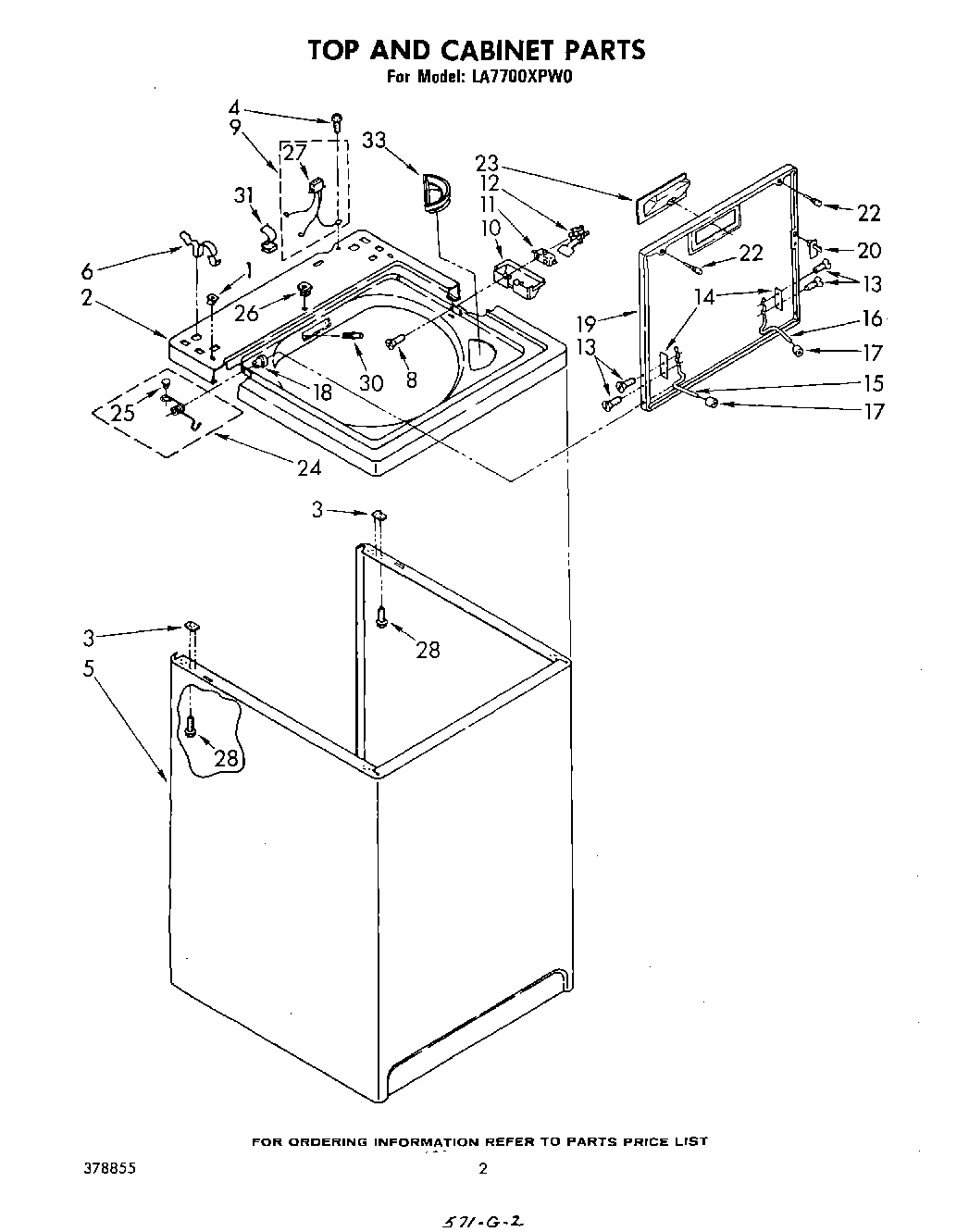

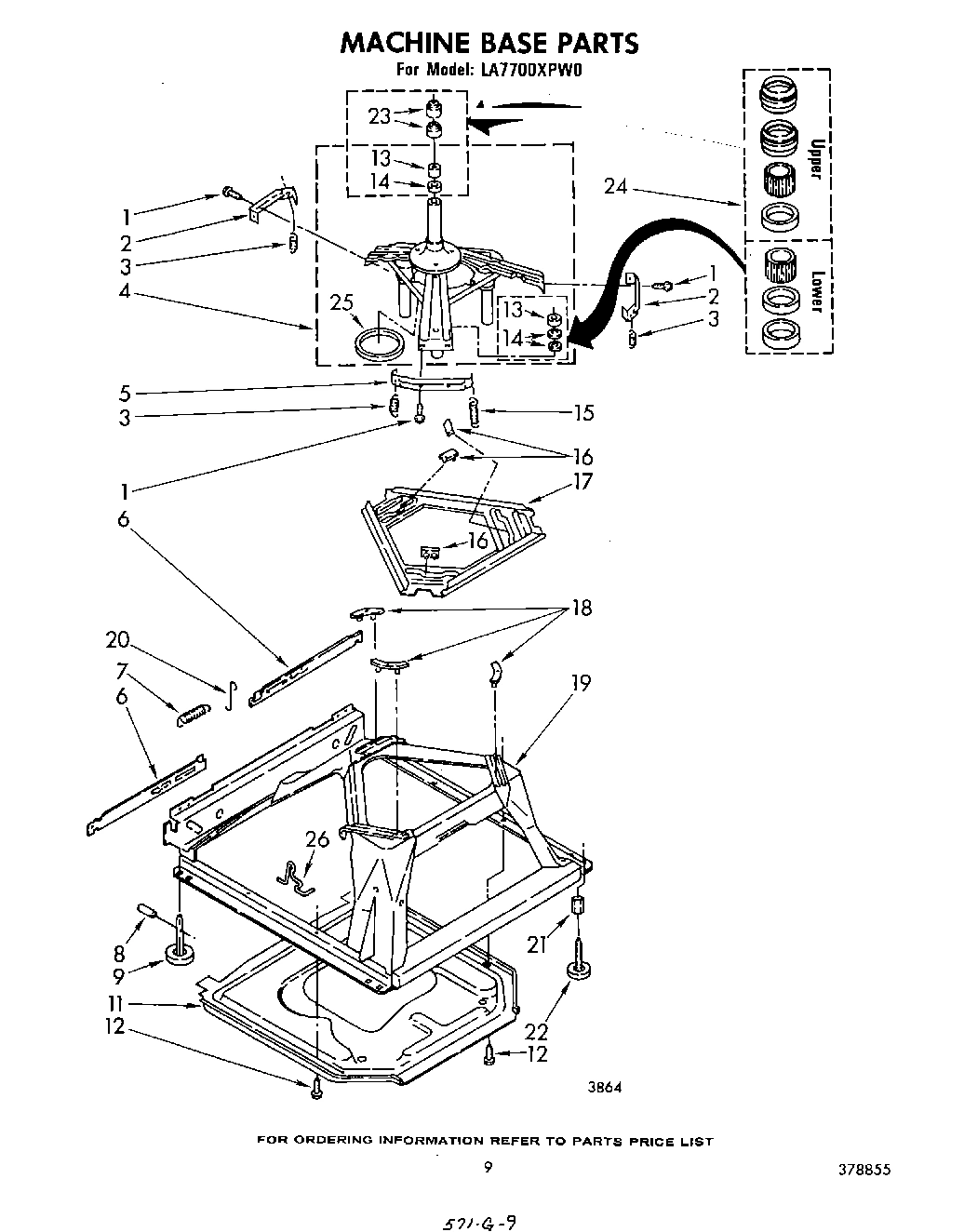

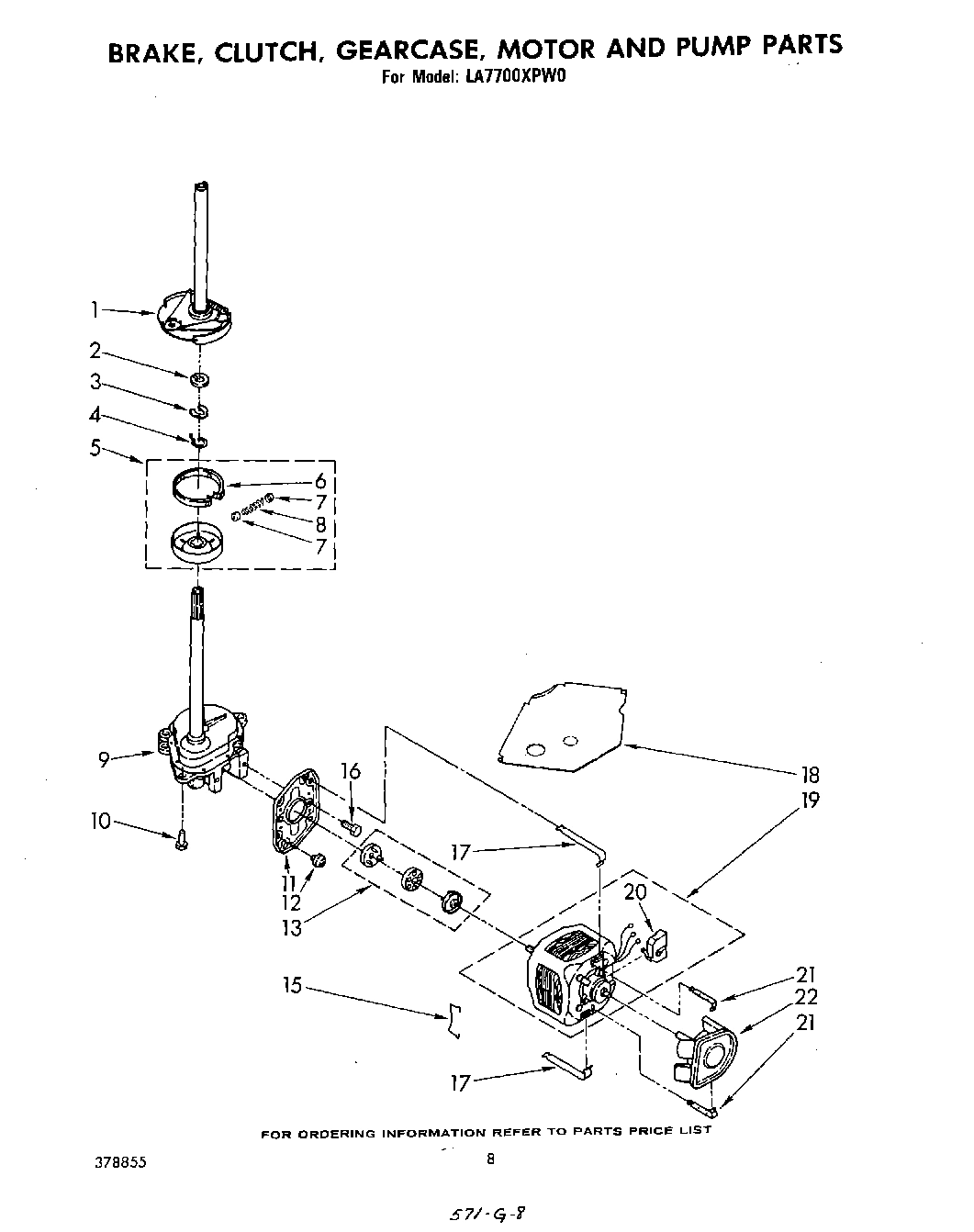

Model Whirlpool LA7700XPW0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

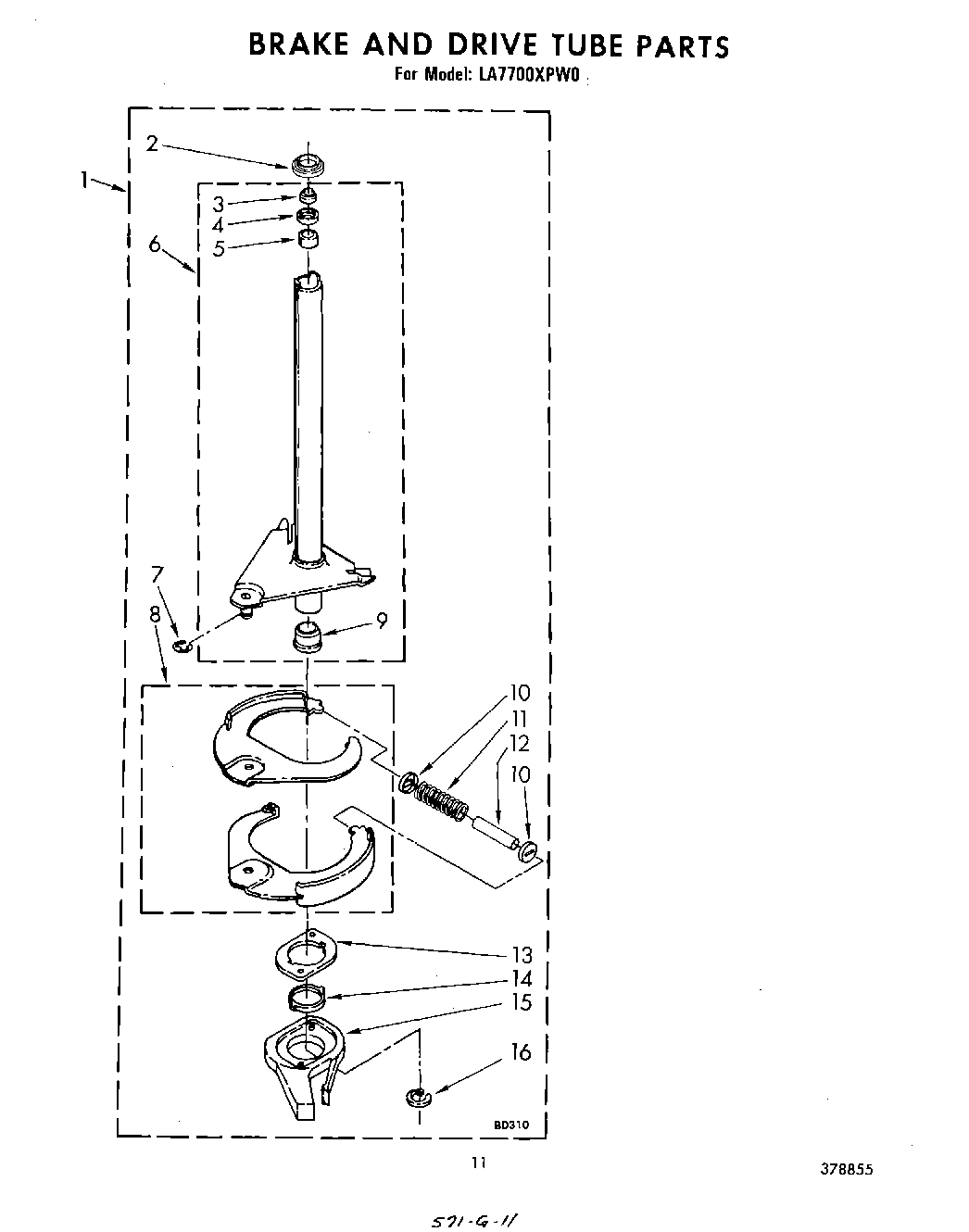

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 62732 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Pin, Cabinet Guide (2) WPL 63162 Contact Us For Availability

2

Clip, Harness WPL 62749 Contact Us For Availability

3

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $185.88

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

4

Tub Ring WPL 63223 Contact Us For Availability

4

Clip, Harness (3) WPL 357469 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Hinge, Console (2) WPL 62748 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Panel, Rear WPL 63633 Contact Us For Availability

6

Clothes Guard Repair Kit WPL 285350 Contact Us For Availability

6

Protector, Harness WPL 63523 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Clip, Clothes Guard (6) WPL 63552 Contact Us For Availability

7

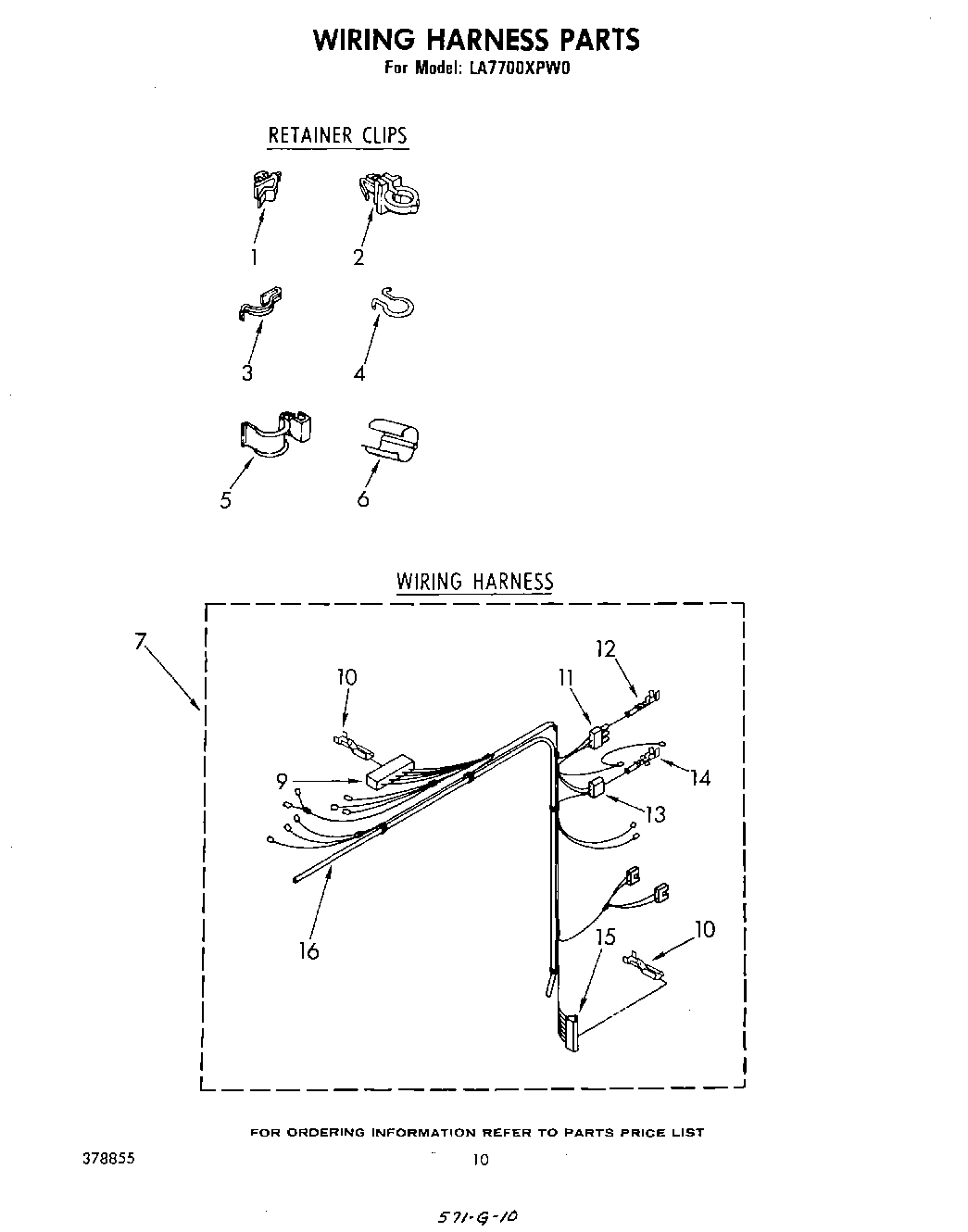

Wiring Harness & Pressure Switch Hose WPL 64111 Contact Us For Availability

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

8

Spring, Clutch WPL 381046 Contact Us For Availability

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

9

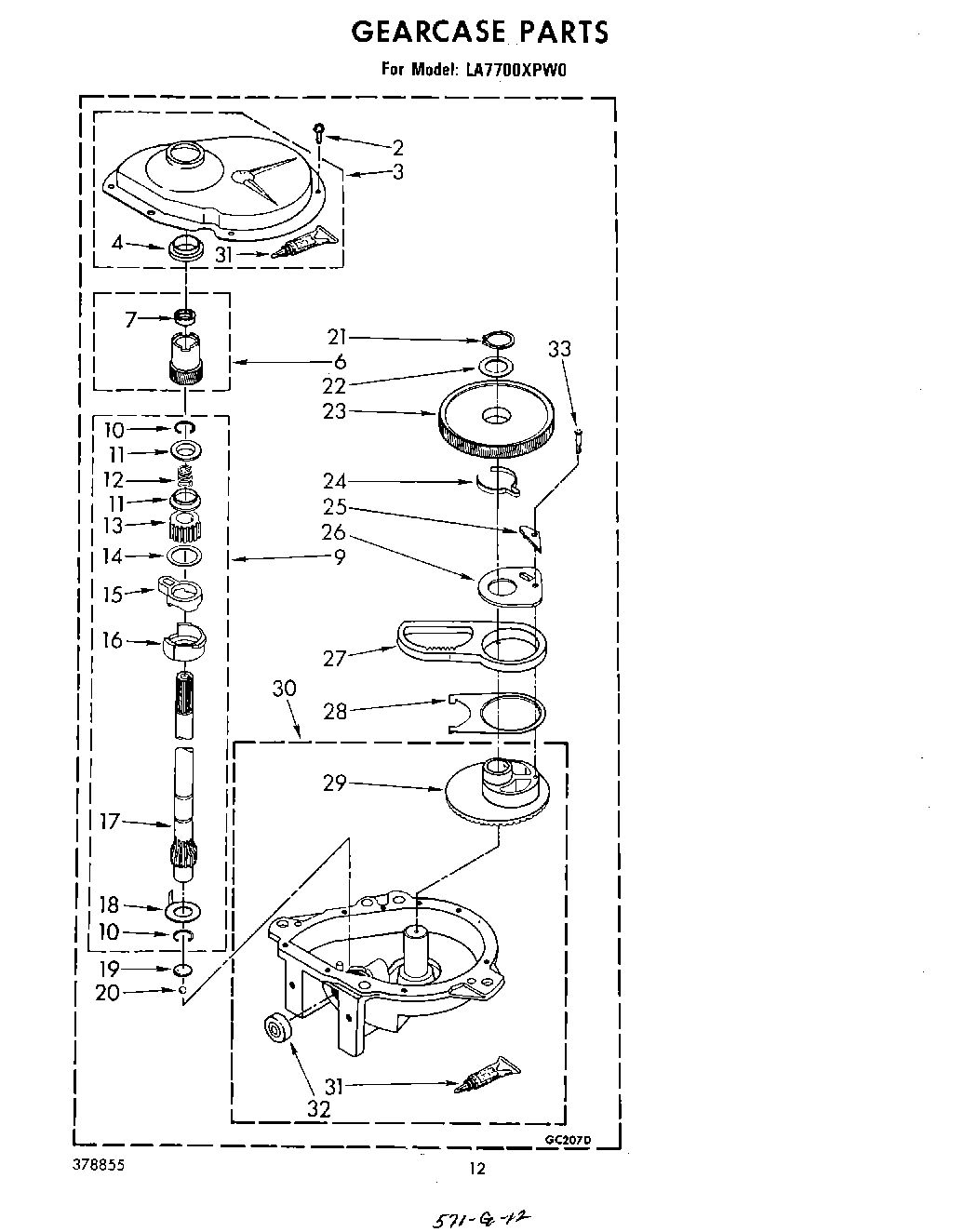

Gearcase (Complete) (Refer To Page 12 For Fur WPL 385899 Contact Us For Availability

9

Timer, Control (60 Hz.) WPL 63828 Contact Us For Availability

9

Washer, Nylon (6) WPL 680829 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

Terminal, Female WPL 352088 Contact Us For Availability

Ring, Retaining (2) WPL 90369 Contact Us For Availability

Motor, Timer WPL 63493 Contact Us For Availability

Locknut (2) WPL 285348 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

Spring, Agitator WPL 62676 Contact Us For Availability

Switch, Water Level WPL 63900 Contact Us For Availability

Basket & Clothes Guard (Includes Illus. 6) WPL 63780 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $13.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Bracket, Control WPL 63687 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Lock, Filter WPL 62942 Contact Us For Availability

Cord, Power WPL 62734 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Strain Relief, Power Cord WPL 62733 Contact Us For Availability

Tub WPL 63039 Contact Us For Availability

Clip, Motor Disconnect Block WPL 386838 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Cap, End (L.H.) WPL 63789 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

Hose, Bleach WPL 63323 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

21

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

21

Ring, Retaining WPL 95082 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

22

Washer Kit, Thrust WPL 285292 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

26

285715 Whirlpool Drain Kit Backorder WPL 285715 $92.62

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

29

Gear, Main Drive WPL 62528 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

30

Spin Pinion Assembly, Gearcase (Also Includes WPL 63167 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

WP62638 Whirlpool Screw Backorder WPL WP62638 $4.55

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT378855 WPL LIT378855 Contact Us For Availability

WPL LIT383979 WPL LIT383979 Contact Us For Availability

WPL LIT385238 WPL LIT385238 Contact Us For Availability

WPL LIT386201 WPL LIT386201 Contact Us For Availability

WPL LIT386898 WPL LIT386898 Contact Us For Availability

WPL LIT677818 WPL LIT677818 Contact Us For Availability

WPL LIT677821 WPL LIT677821 Contact Us For Availability

WPL LIT677967 WPL LIT677967 Contact Us For Availability

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

35

Switch, Water Temperature WPL 386935 Contact Us For Availability

36

WP356418 Whirlpool Screw In Stock WPL WP356418 $4.82

37

Knob, Water Level WPL 386629 Contact Us For Availability

38

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.98

39

Panel, Console WPL 63680 Contact Us For Availability

40

Nut, Push-In (2) WPL 689559 Contact Us For Availability

42

Screw, 13/16 x 5/8 (4) WPL 355326 Contact Us For Availability

44

Knob, Timer WPL 386570 Contact Us For Availability

45

Dial, Timer WPL 64138 Contact Us For Availability

47

Button, Water Temperature (4) WPL 386934 Contact Us For Availability

49

Screw, 8-18 (2) (Panel to Top) WPL 64211 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

Cap, End. (R.H.) WPL 63795 Contact Us For Availability

52

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

53

Rack, Literature WPL 63020 Contact Us For Availability

54

Wire, Ground WPL 364089 Contact Us For Availability
