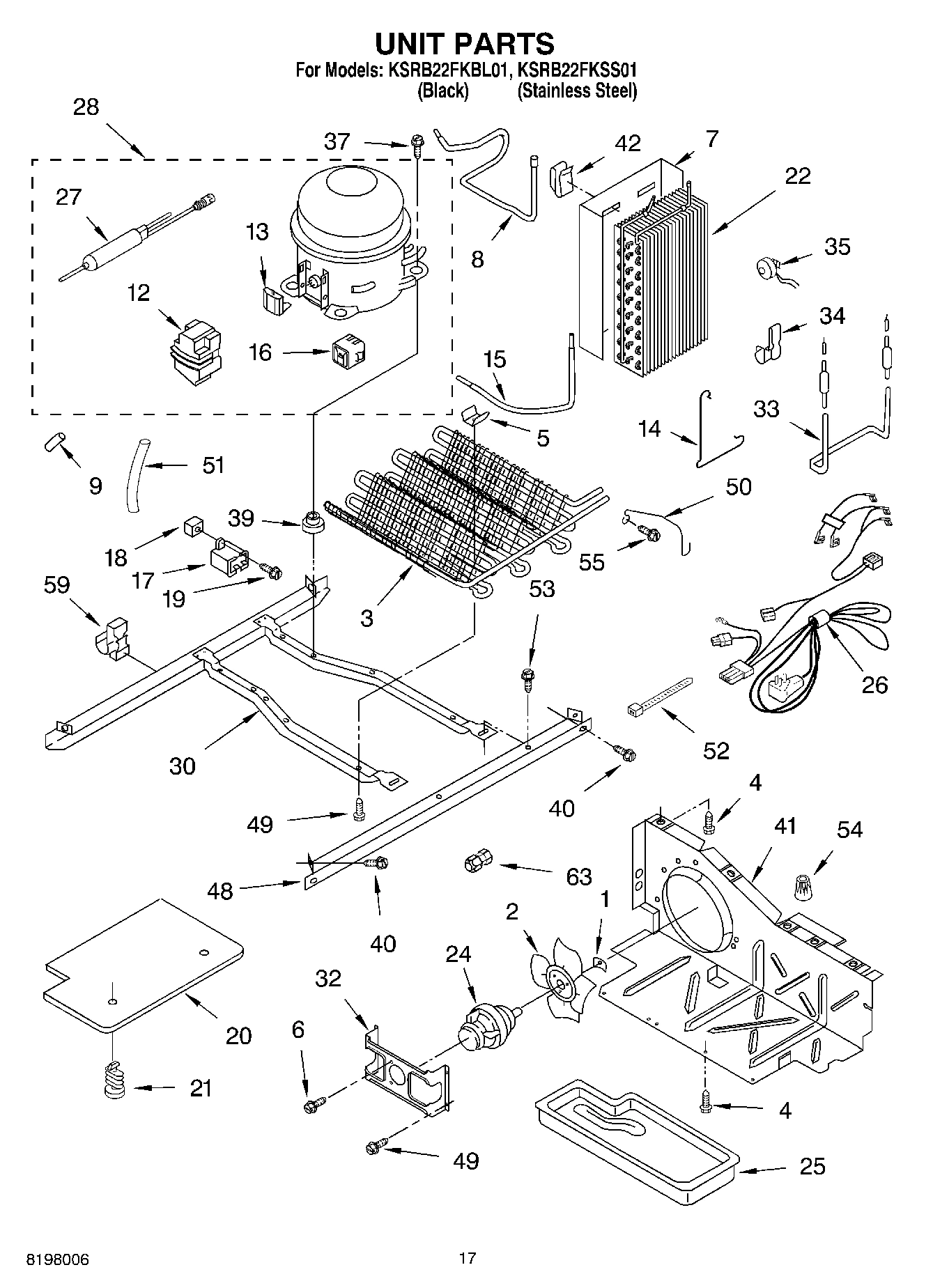

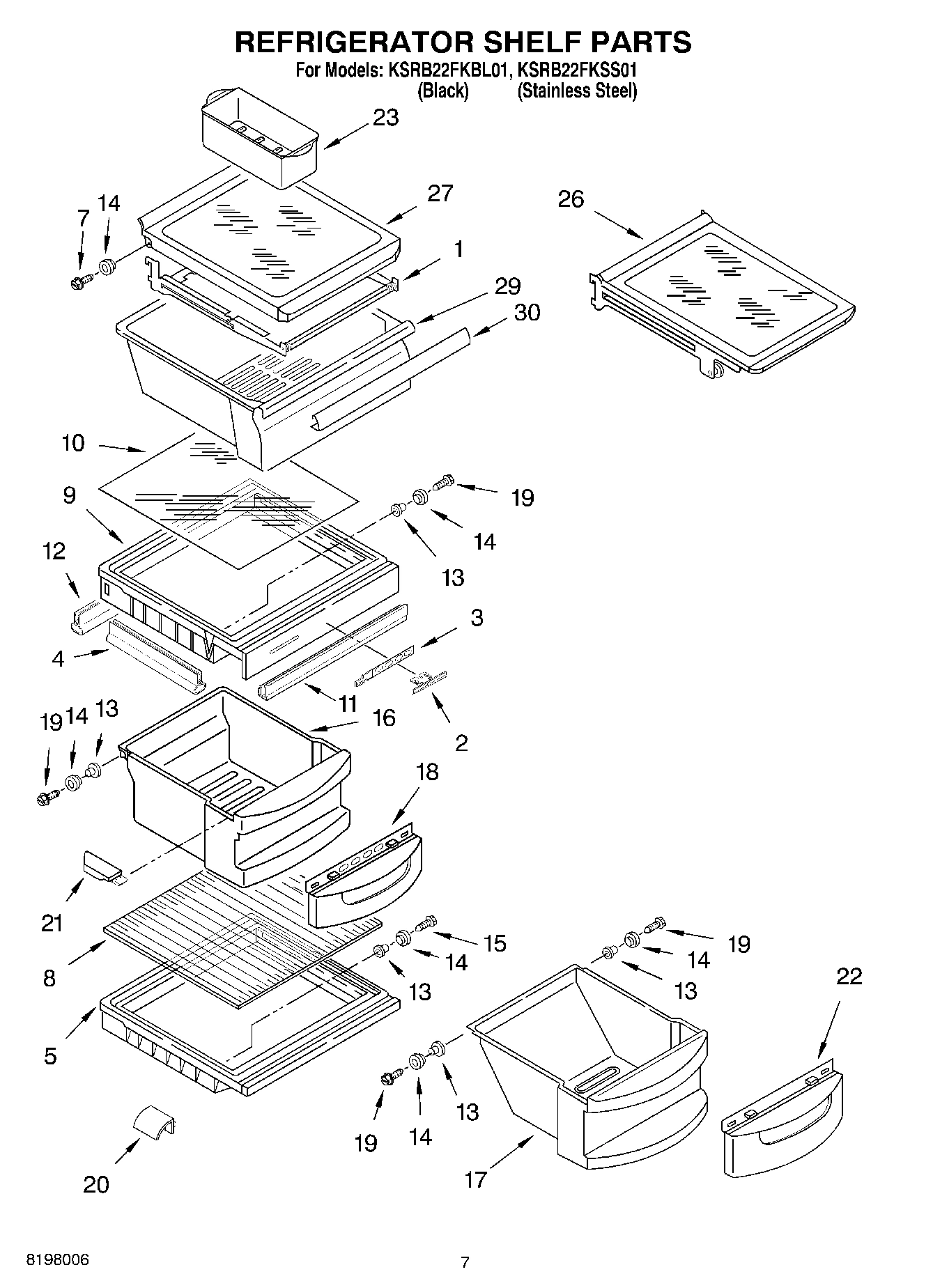

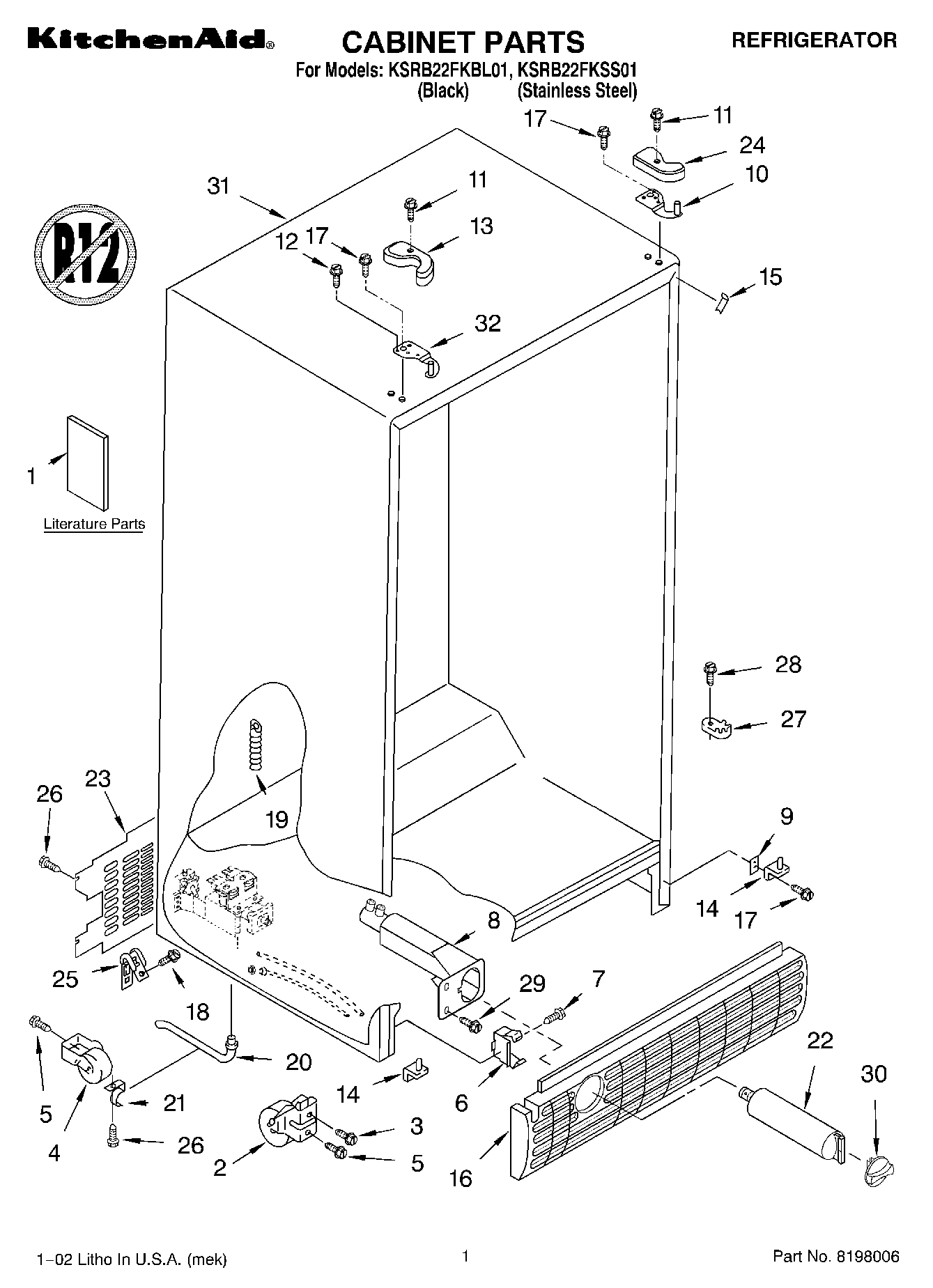

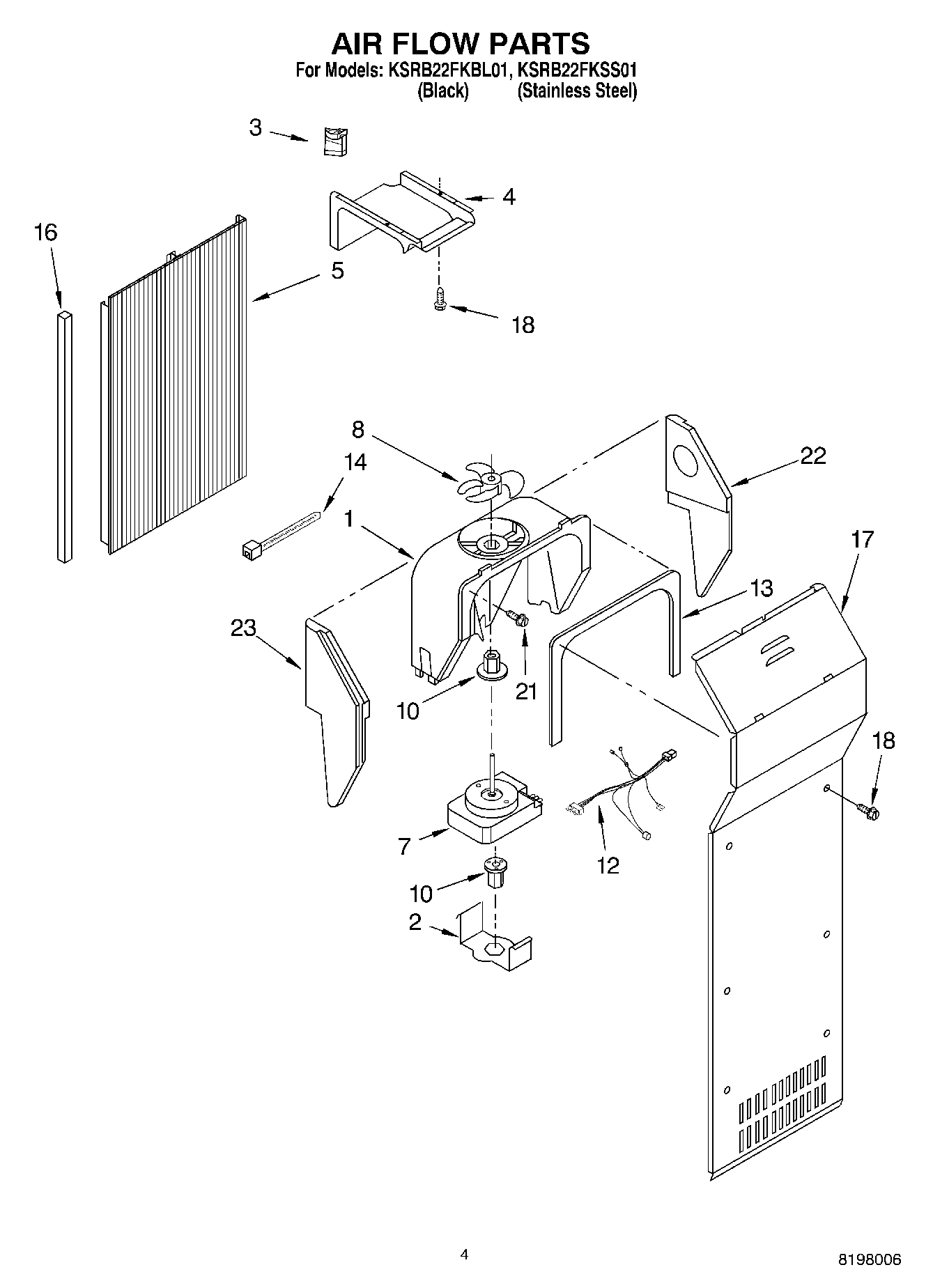

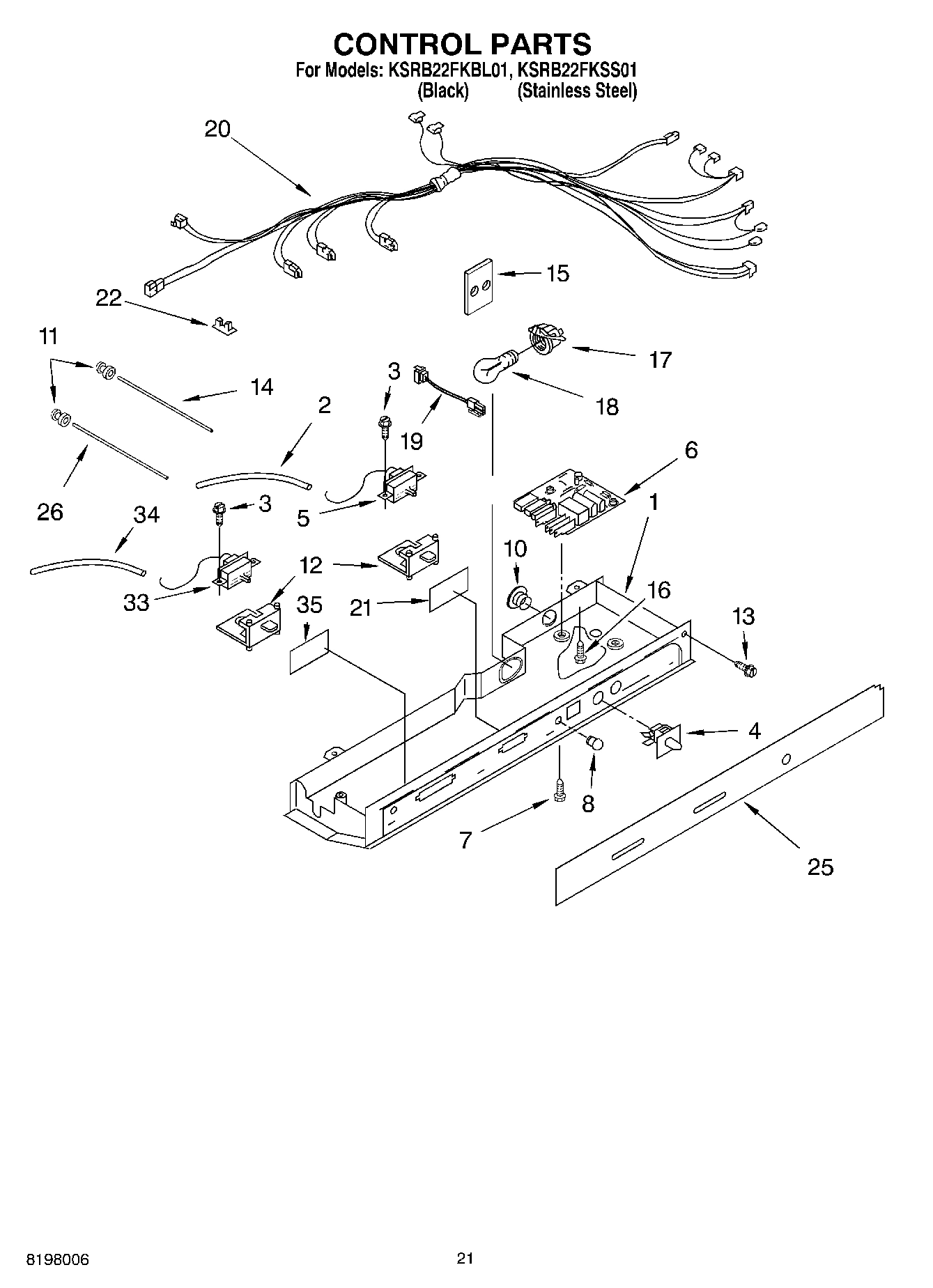

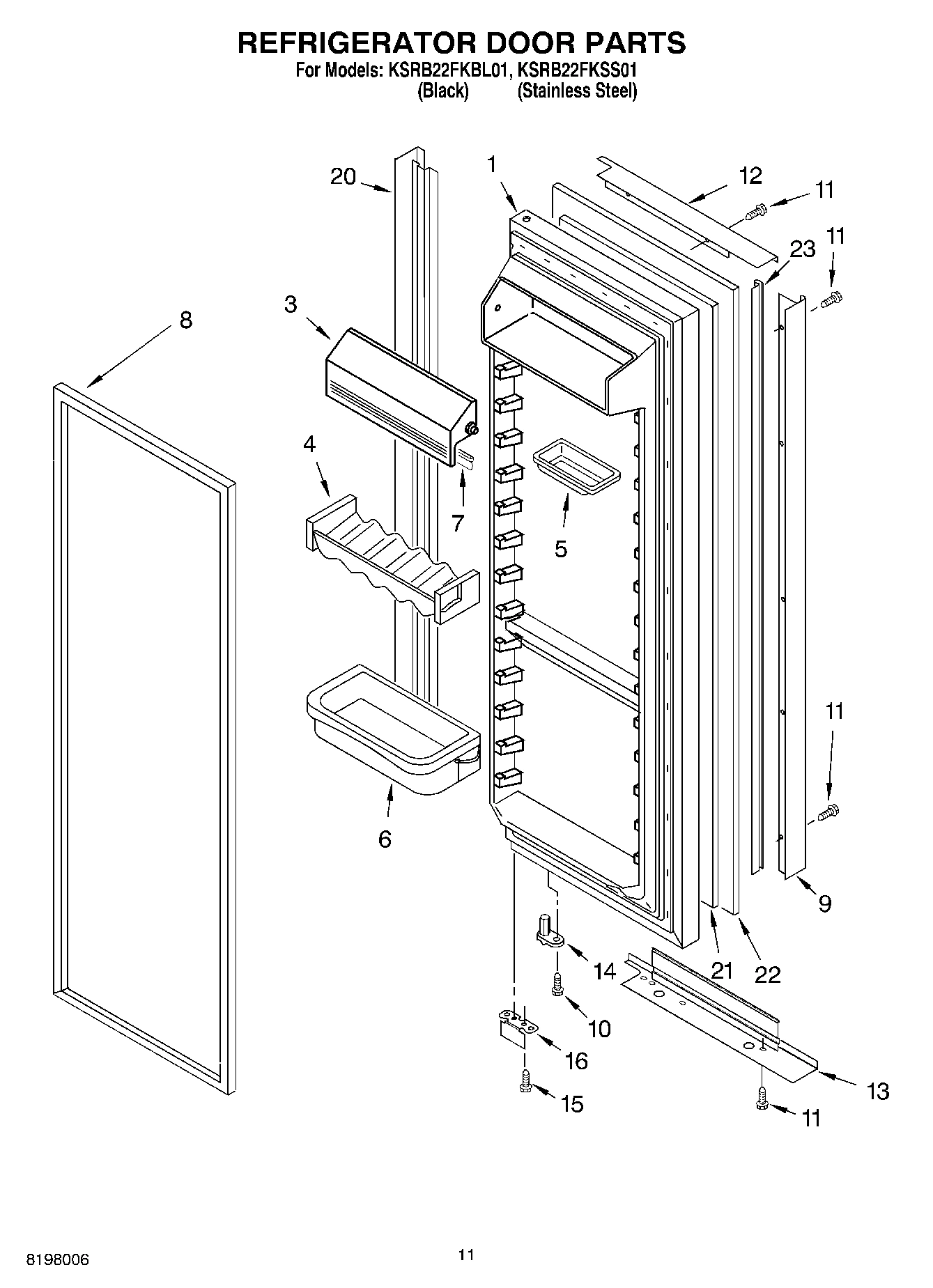

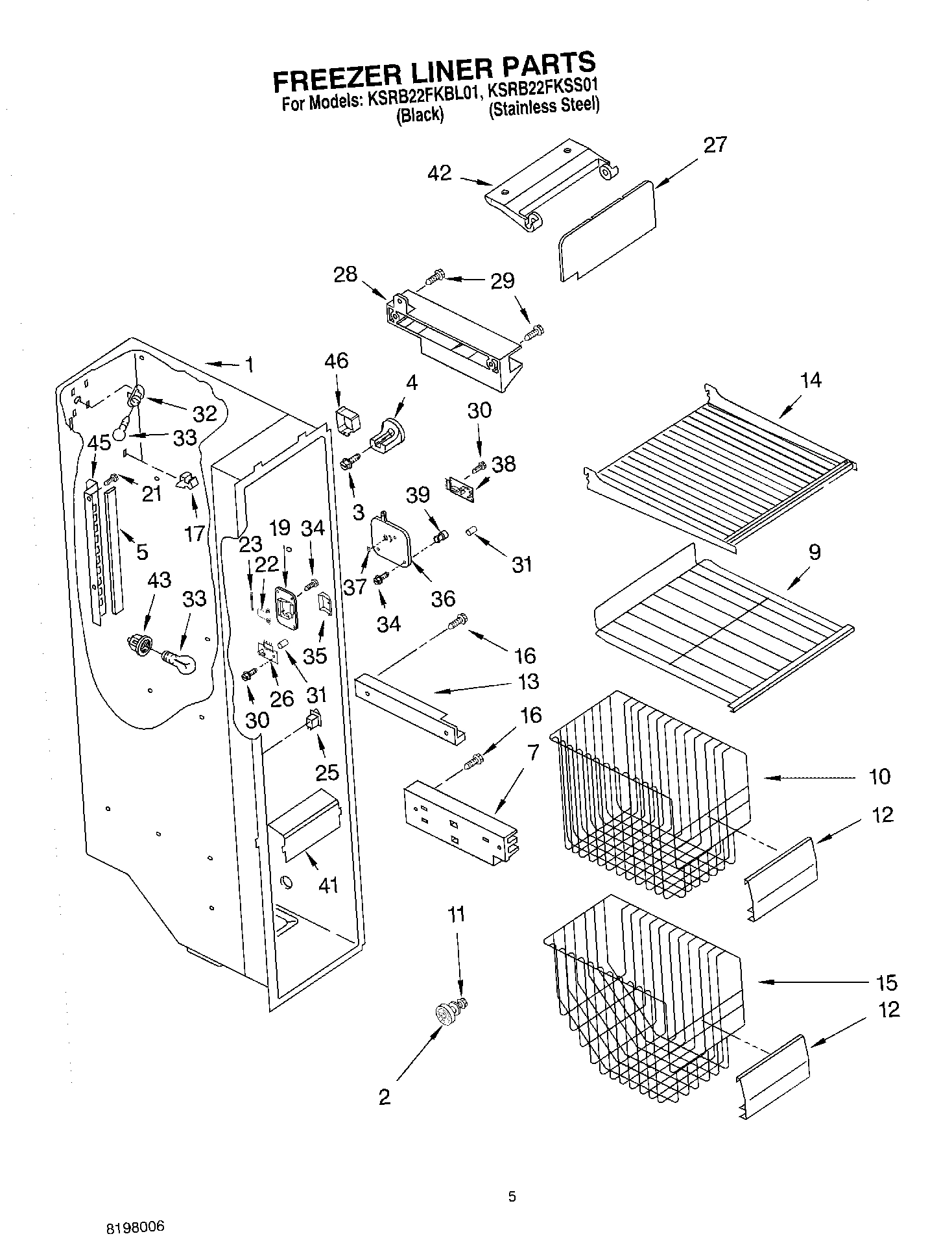

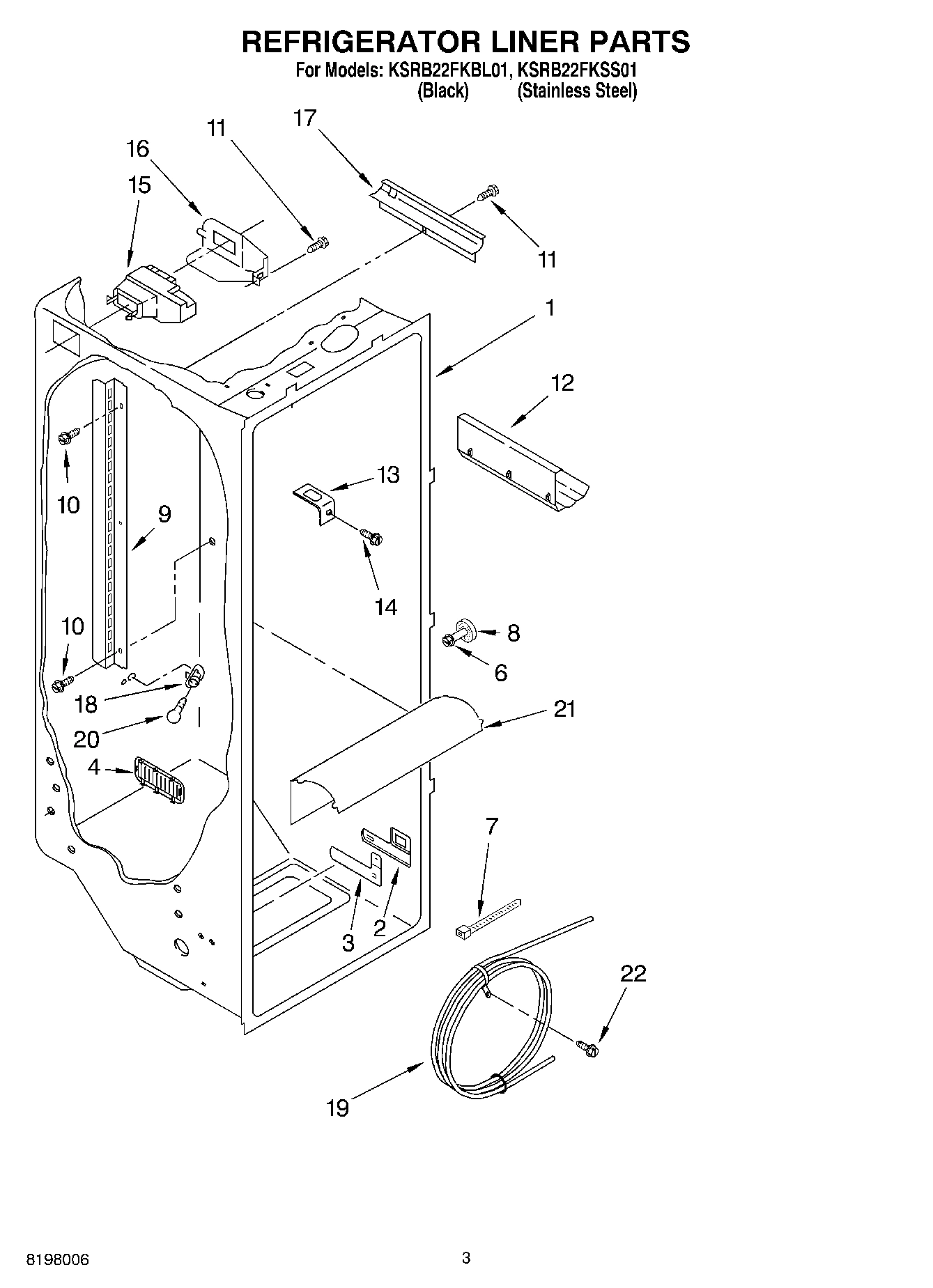

Model Whirlpool KSRB22FKBL01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2220107 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2220276 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2220323 Contact Us For Availability

1

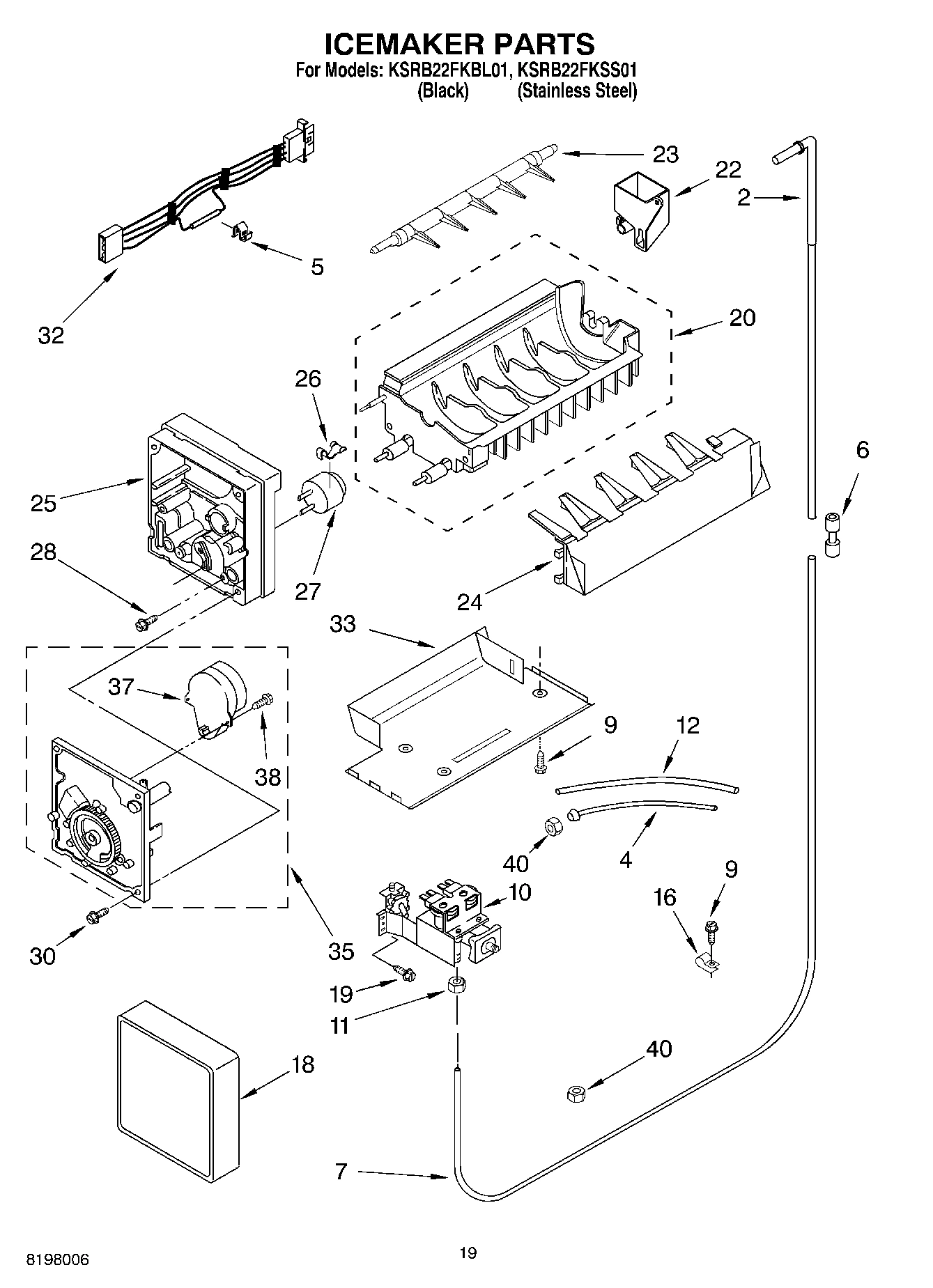

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

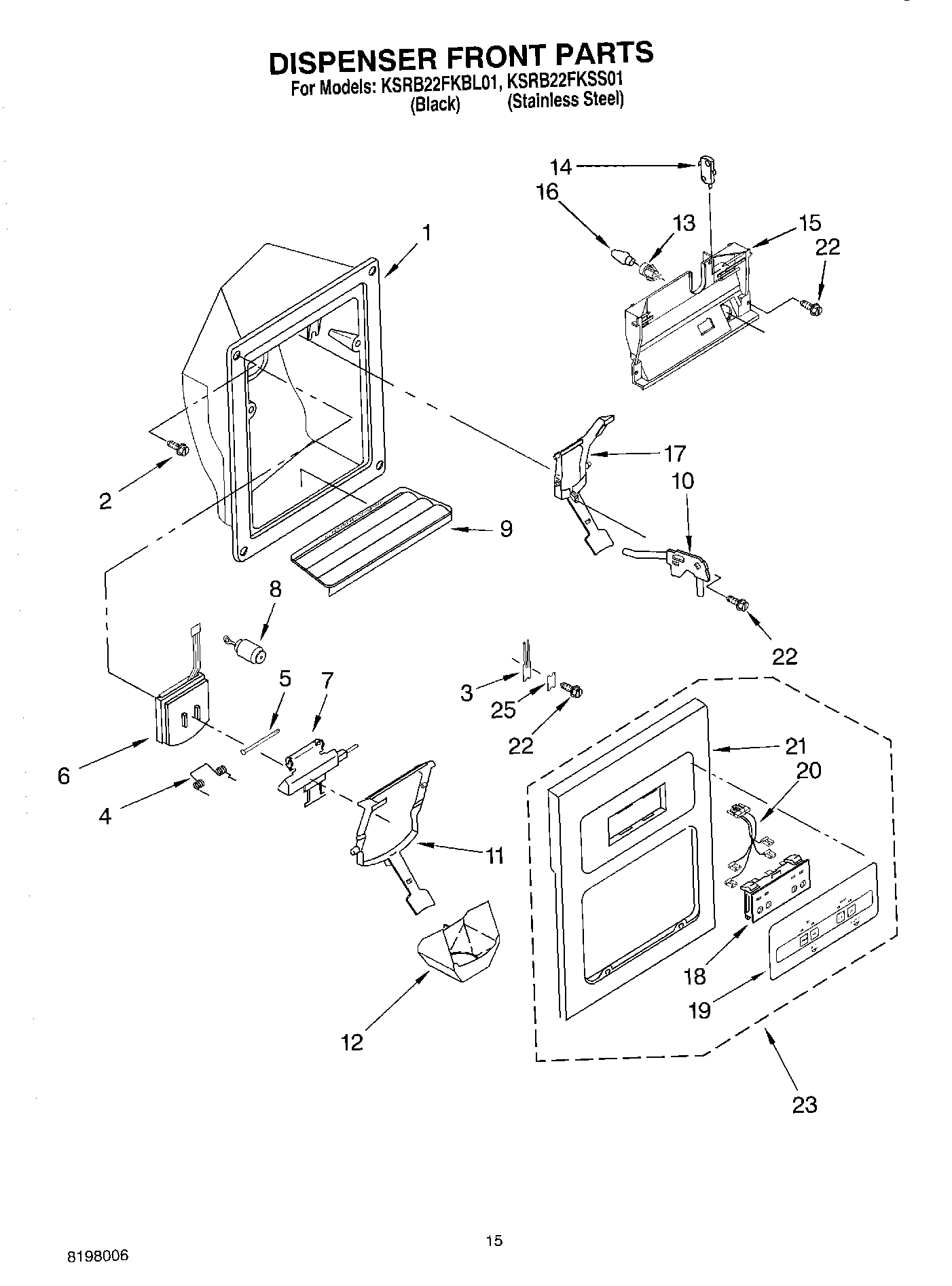

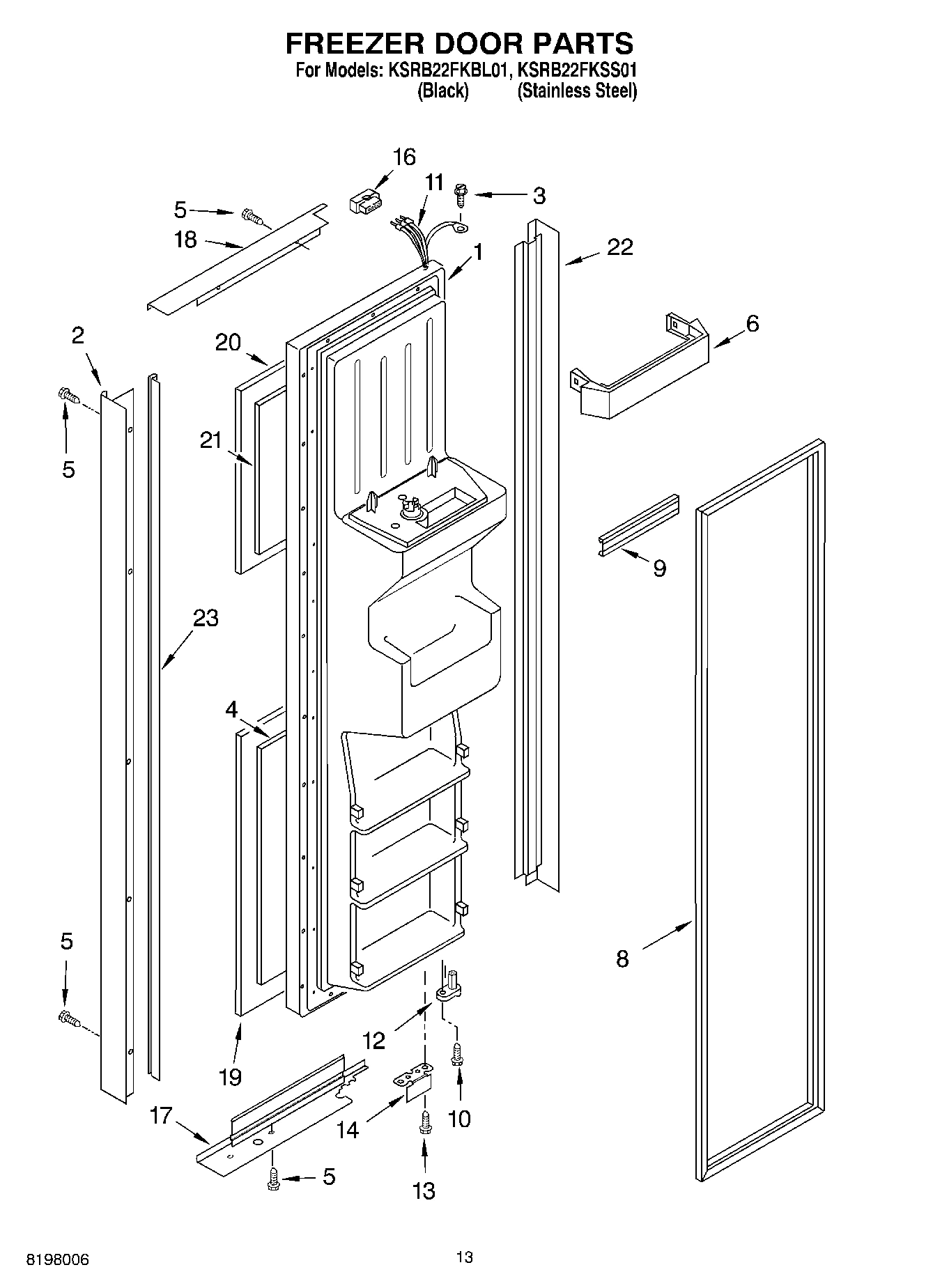

Freezer Door (Includes Item No.8 And Dispense WPL 2219846B Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI94233A3 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Handle (Black) WPL 2206842B Contact Us For Availability

2

Handle (Stainless Steel) WPL 2206842S Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Stud, Rear WPL 2196207 Contact Us For Availability

4

Board, Filler Lower WPL 2219802 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

5

W10851443 Whirlpool Refrigerator Screw In Stock WPL W10851443 $6.99

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $176.93

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $8.39

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

6

Trivet, Shelf (4) WPL 2171071 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $8.99

Block, Blade WPL 2198602 Contact Us For Availability

Wire Harness WPL 2207213 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $90.78

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Eyelet, Roller WPL 2174478 Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Light, Bar WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2206630B Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $48.27

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2209751 Whirlpool Refrigerator Air Diffuser In Stock WPL WP2209751 $243.56

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $80.78

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

Start-Device, Combination (Start Relay and Ov WPL 2212193 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Trim, Door Bottom (Black) WPL 2206844B Contact Us For Availability

Trim, Door Bottom (Stainless Steel) WPL 2206844S Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door Top (Black) WPL 2206843B Contact Us For Availability

Trim, Door Top (Stainless Steel) WPL 2206843S Contact Us For Availability

Switch Assembly (Not Available, Order No.23) WPL ARI94234A7 Contact Us For Availability

Grommet WPL 509812 Contact Us For Availability

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $88.98

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Panel, Door Lower (Black) WPL 2206885B Contact Us For Availability

Panel, Door Lower (Stainless Steel) WPL 2206891S Contact Us For Availability

Overlay, Front Cover (Not Available, Order No WPL ARI94235A6 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Panel, Door Upper (Black) WPL 2206884B Contact Us For Availability

Panel, Door Upper (Stainless Steel) WPL 2206890S Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Board, Filler Upper WPL 2219801 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI94236A2 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

CLIP, WIRING WPL 1115375 Contact Us For Availability

Trim, Hinge Side (Black) WPL 2206845B Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2206845S Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Edging, Panel WPL 2206894B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2219798B Contact Us For Availability

24

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $165.99

24

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

24

Holder WPL 2212369 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Escutcheon, Control Box WPL 2200099 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

NLA:SCREW Backorder WPL WPW10141645 $4.82

Light Bar WPL 2179921 Contact Us For Availability

Harness, Wire WPL 2187398 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $403.72

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $166.45

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

Cabinet (Not A Serviceable Part) WPL ARI94230A4 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $178.99

33

WP2182770 Whirlpool Refrigerator Thermostat In Stock WPL WP2182770 $156.18

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $81.01

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Clip WPL 2161330 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $270.67

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Window WPL 2172941 Contact Us For Availability

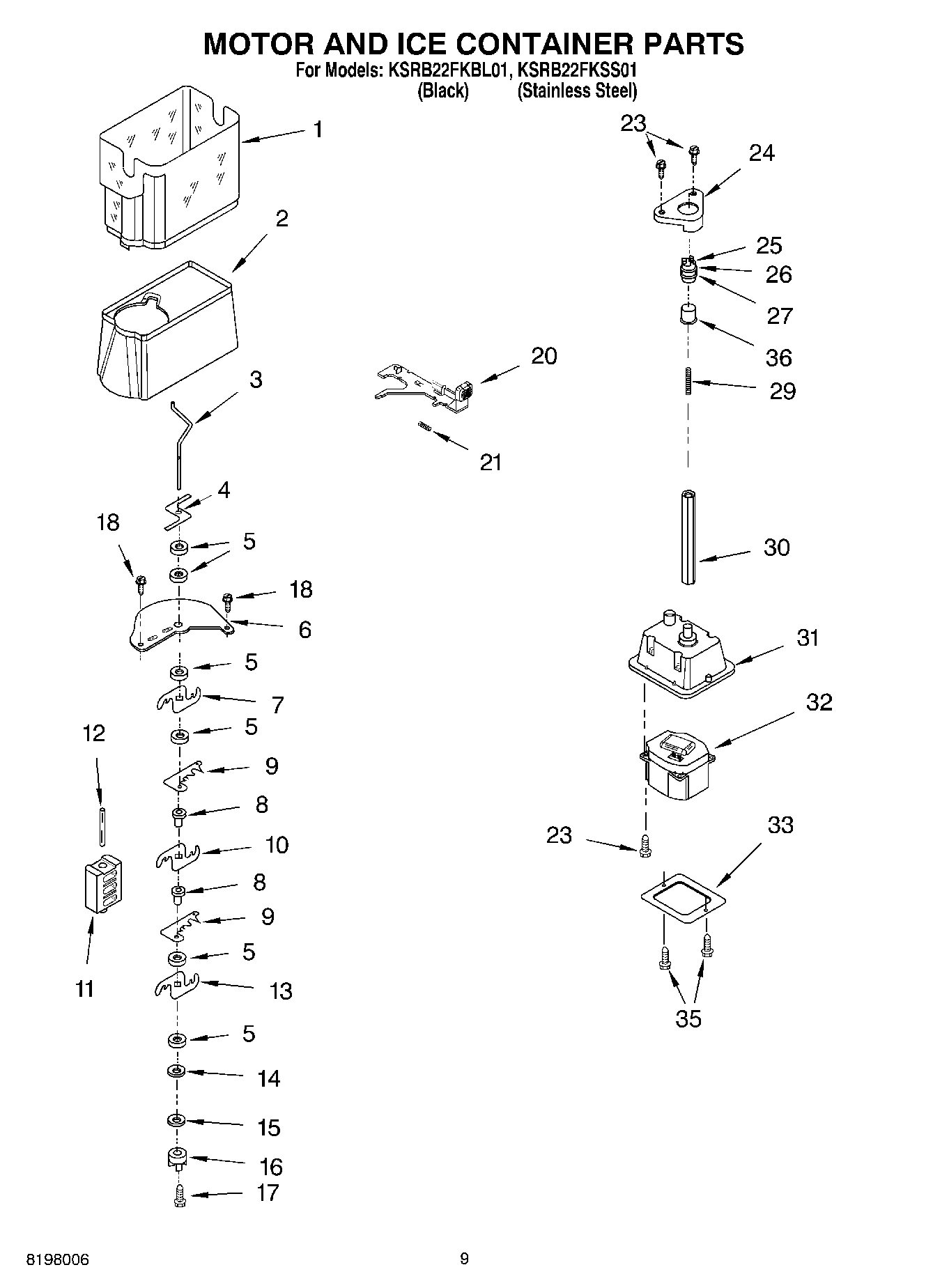

Ice Container Assembly WPL 2212303 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

NI

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82
