Model Whirlpool KGYS977EZ0 GAS DRYER – Common Parts & Diagrams

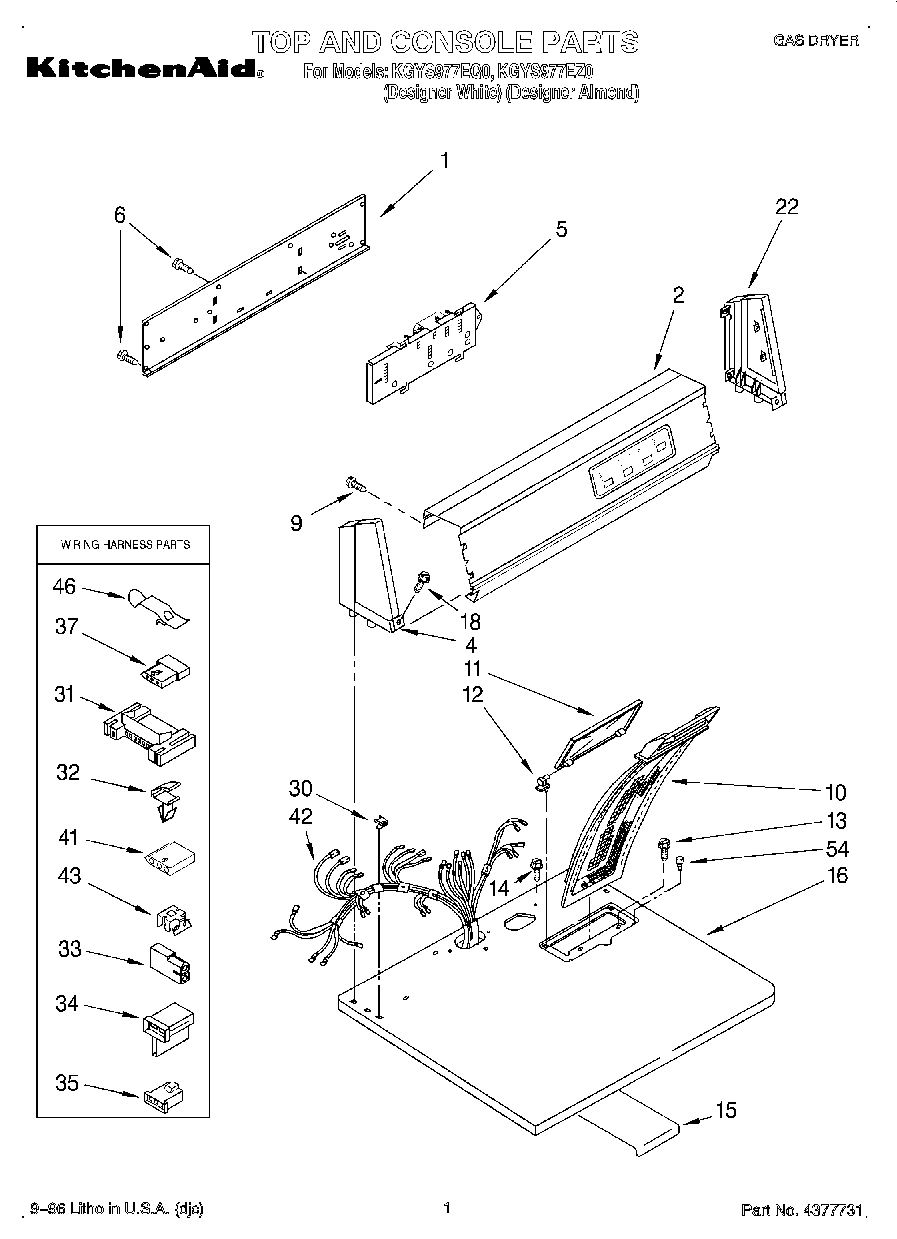

01 - TOP AND CONSOLE, LIT/OPTIONAL

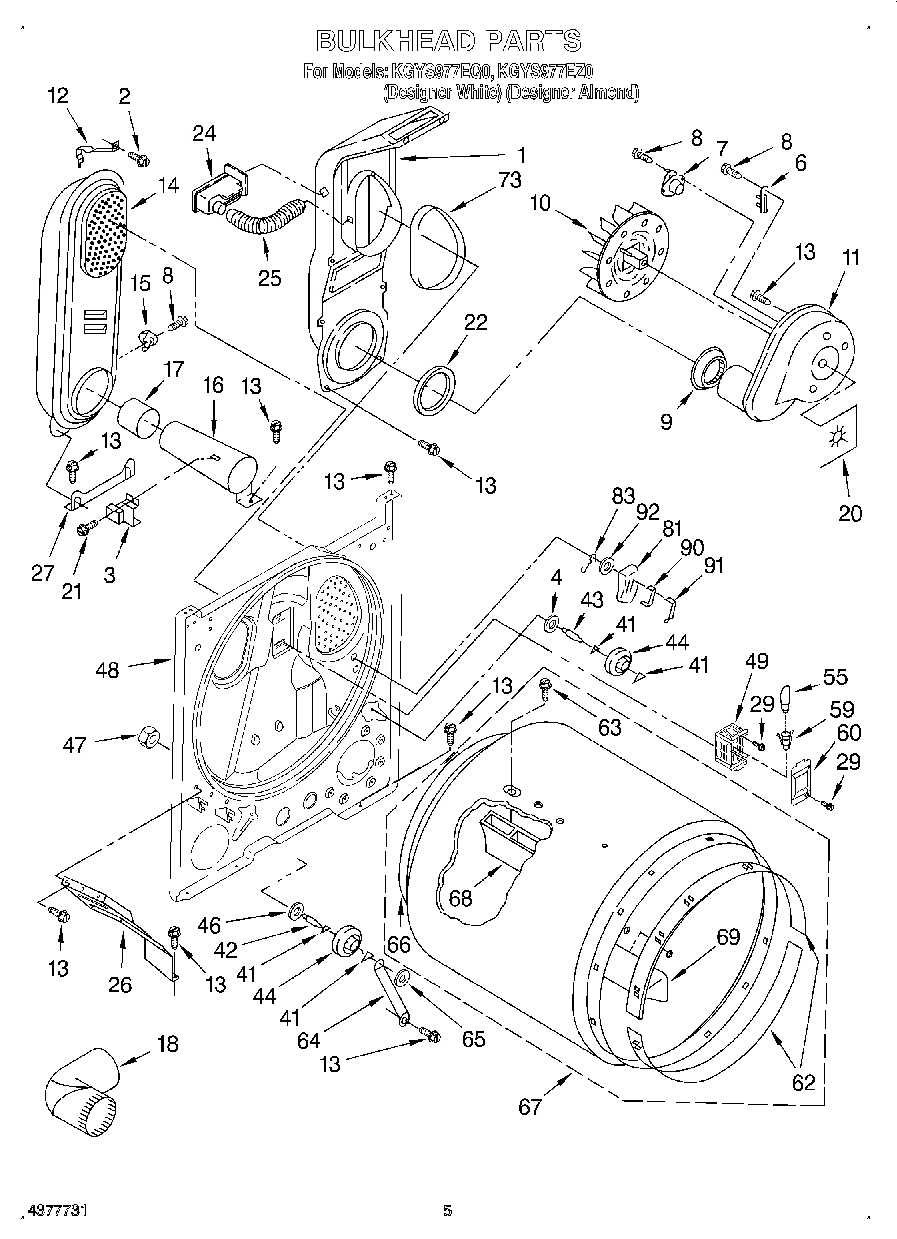

03 - BULKHEAD

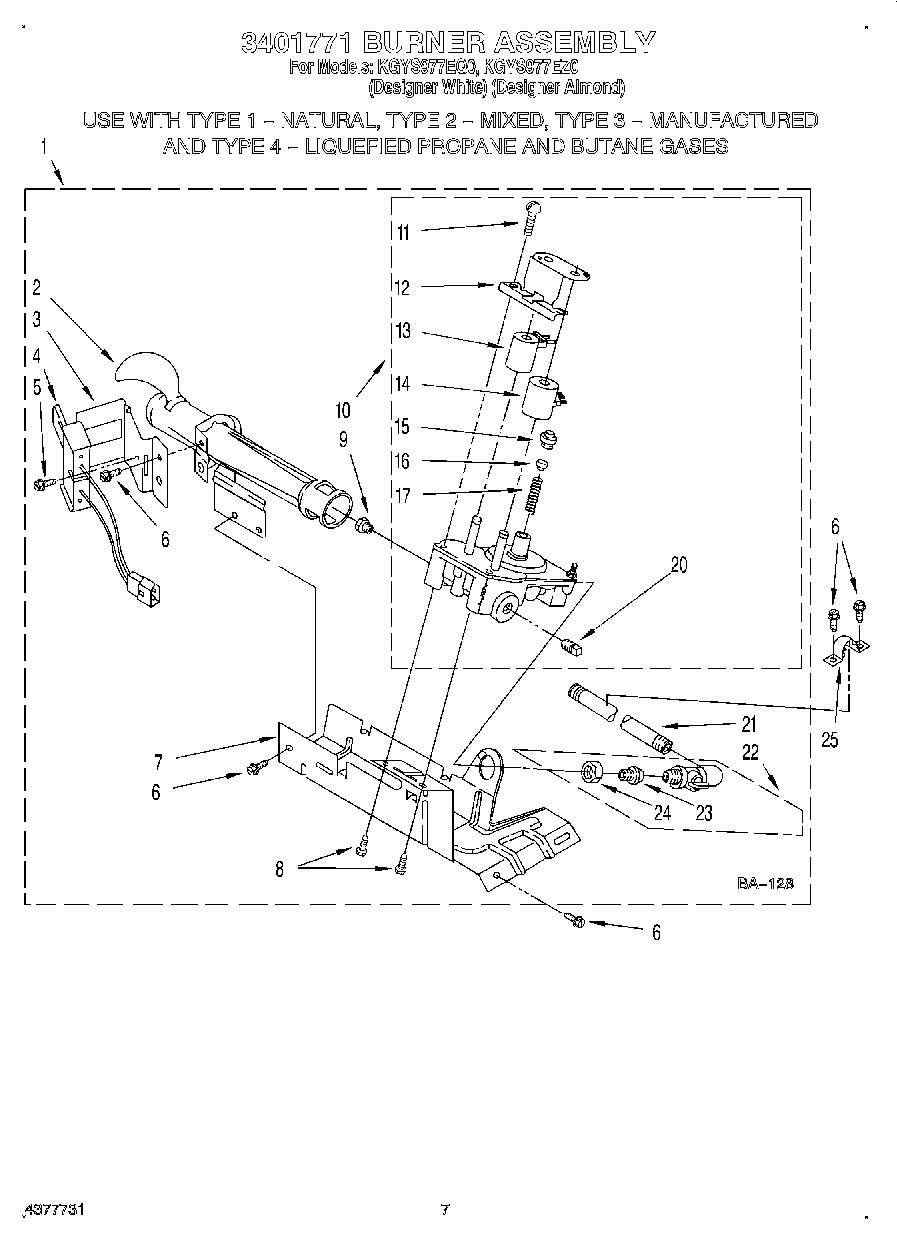

04 - 3401771 BURNER ASSEMBLY

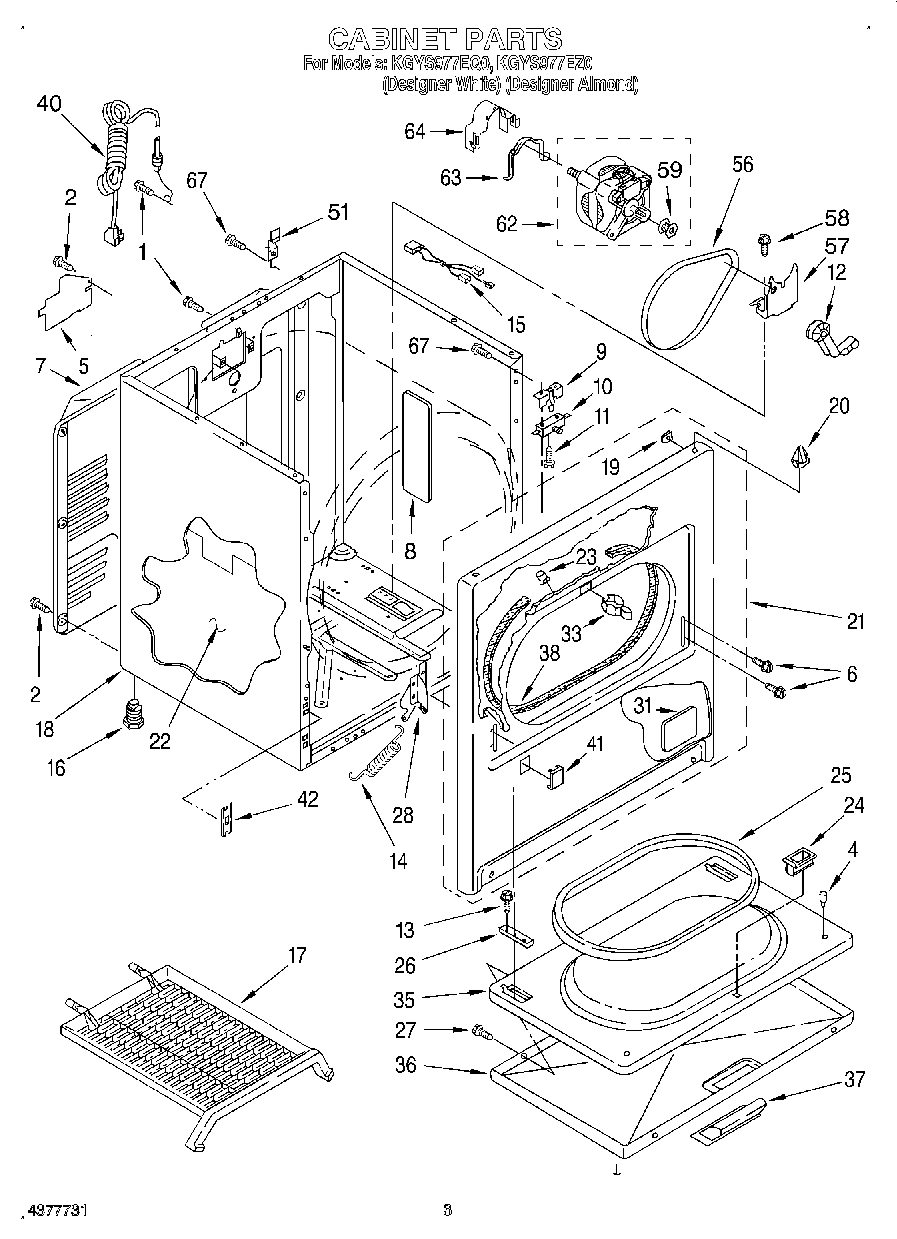

02 - CABINET
Common parts from model Whirlpool KGYS977EZ0 GAS DRYER
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
1
Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3401771 Contact Us For Availability
6
Screw, 10-12 x 1/2 WPL 342043 Contact Us For Availability
7
Base, Burner WPL 693986 Contact Us For Availability
8
Panel, Sound Dampening WPL 3948606 Contact Us For Availability
9
Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability
9
Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5, 7, 16, & 57) WPL 3399585 Contact Us For Availability
18
Cabinet (Includes Illus. Nos. 5, 7, 16, & 57) WPL 3399586 Contact Us For Availability
21
Pipe, Gas Supply WPL 233273 Contact Us For Availability
21
Panel, Front (Almond) WPL 3395198 Contact Us For Availability
22
Valve & Union, Shut-Off WPL 345062 Contact Us For Availability
22
Board, Sound Dampening WPL 3402709 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
31
Panel, Sound Dampening WPL 3949206 Contact Us For Availability
36
Door, Front (Almond) WPL 3393550 Contact Us For Availability
37
Handle, Door (Almond) WPL 690271 Contact Us For Availability
41
Plug-Panel Front (White) WPL 3394975 Contact Us For Availability
41
Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability
× ![]()
